HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Cordless Automatic Screw Driver WF14DSL

SKU: Hitachi WF14DSL
€8.78
VAT included

Hitachi Spare Parts for Cordless Automatic Screw Driver WF14DSL

Original spare parts for Hitachi-Koky Cordless Automatic Screw Driver WF14DSL
Reversible drills and impact cordless drills with batteries from 1.5 Ah to 4, with torque clutch.

- WF14DSL
Hitachi Spare Parts for Cordless Automatic Screw Driver WF14DSL
  • Hitachi Spare Parts for Cordless Automatic Screw Driver WF14DSL
  • Hitachi Spare Parts for Cordless Automatic Screw Driver WF14DSL
HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Cordless Automatic Screw Driver WF14DSL

SKU: Hitachi WF14DSL Condition: New
€8.78
VAT included

Hitachi Spare Parts for Cordless Automatic Screw Driver WF14DSL

Original spare parts for Hitachi-Koky Cordless Automatic Screw Driver WF14DSL
Reversible drills and impact cordless drills with batteries from 1.5 Ah to 4, with torque clutch.

- WF14DSL
settings 17 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
AVAILABLE

verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
17 spare parts

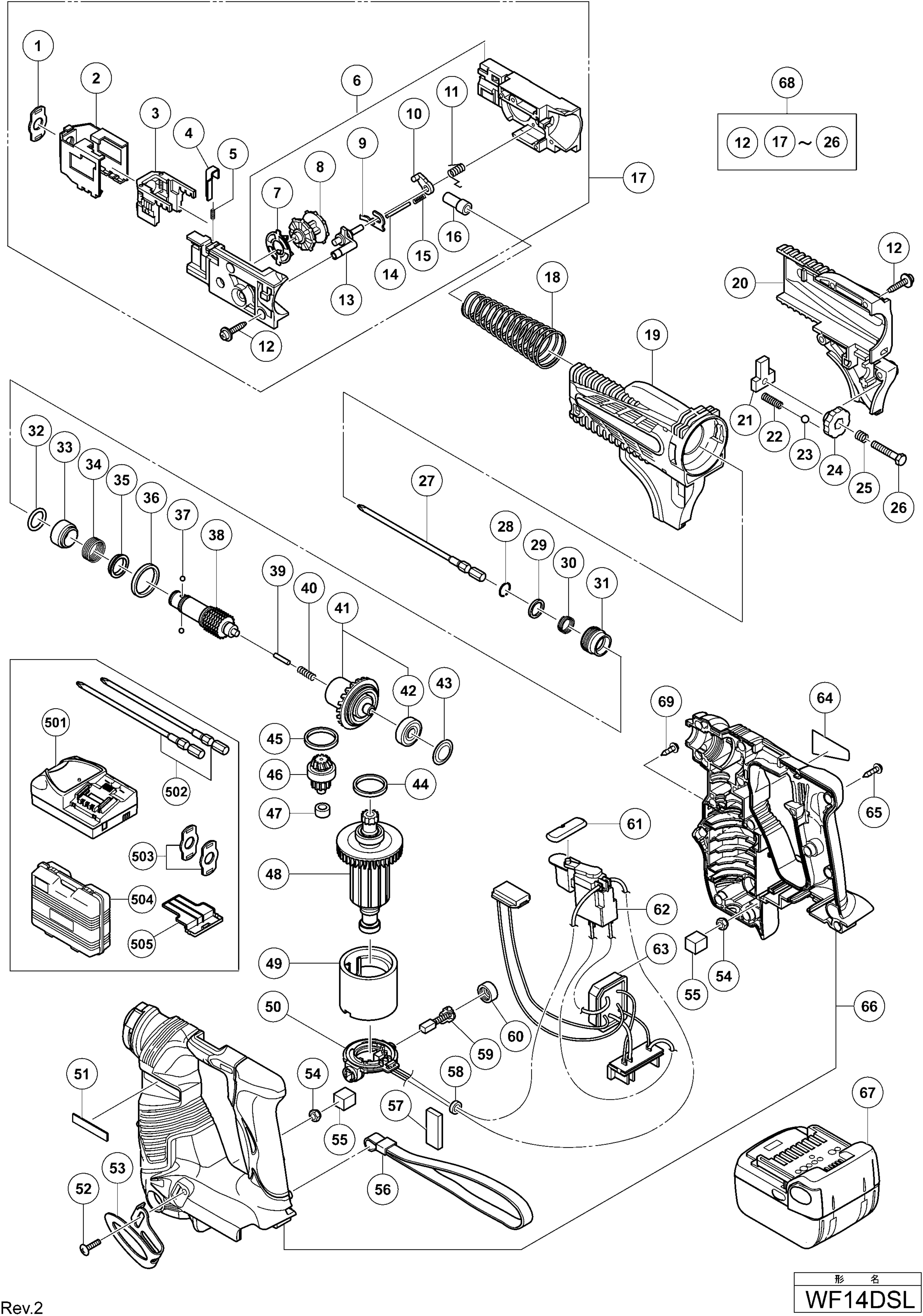

Page 1 zoom_in View exploded
Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
12
 photo_cameraImage coming soon 301653 Tapp.Screw (W / Flange) D4x20 €5.63
23
 photo_cameraImage coming soon 959148 STEEL BALL D3.175 €1.35
25
 photo_cameraImage coming soon 312430 Bipolar Connector €6.81
28
 photo_cameraImage coming soon 330619 RETAINING RING €1.53
31
 photo_cameraImage coming soon 322717 GUIDE SLEEVE (D) €4.47
32
 photo_cameraImage coming soon 317662 O-RING (F) €2.33
37
 photo_cameraImage coming soon 319535 BALLS D3.5 (10 PCS.) €2.55
38
 photo_cameraImage coming soon 332461 PIN - 4X14 DIN7344 €69.83
42
 photo_cameraImage coming soon 608VVM BALL BEARING 608VVC2PS2L €7.12
44
 photo_cameraImage coming soon 323420 RUBBER RING €1.40
53
 photo_cameraImage coming soon 332824 DUST HOOD HOLDING HOOK €6.47
56
 photo_cameraImage coming soon 306952 STRAP (BLACK) €8.78
57
 photo_cameraImage coming soon 326493 SUPPORT (D) €1.61
59
 Carbon Brushes for Cordless Drill and Grinders Hitachi 999054 Carbon Brushes for Cordless Drill and Grinders Hitachi €9.76
60
 Brushes Cap for Cordless Driver Drill Hitachi DS14DSAL/DS18DSAL 319918 Brushes Cap for Cordless Driver Drill Hitachi DS14DSAL/DS18DSAL €4.32
61
 Pusching Button for Drills Hitachi DV16-18V-DV20VB2 322853 Pusching Button for Drills Hitachi DV16-18V-DV20VB2 €2.78
67
 photo_cameraImage coming soon 329083 BATTERY BSL 1430 (EUROPE.AUS.NZL) €155.02

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Hitachi Spare Parts for Cordless Automatic Screw Driver WF14DSL

Original spare parts for Hitachi-Koky Cordless Automatic Screw Driver WF14DSL
Reversible drills and impact cordless drills with batteries from 1.5 Ah to 4, with torque clutch.

- WF14DSL

In the following table, look for the model of the Cordless driver drill and theirs spare part.
You can see diagrams in PDF format at the bottom of the page.
Ordered items will be shipped within 7 working days.

CORDLESS AUTOMATIC SCREW DRIVER WF 14DSL
1 332455 SHEET (2 PCS.)
2 324863 STOPPER
3 324177 GUIDE BLOCK
4 324184 PLATE (A)
5 324185 SPRING (C)
6 324165 SLIDER (A).(B) SET
7 324175 CLUTCH PLATE
8 324167 SPROCKET
9 324176 STOPPER PLATE
10 324173 ARM (B)
11 324174 ARM SPRING
12 301653 TAPPING SCREW (W/FLANGE) D4X20 (BLACK)
13 324169 ARM
14 885349 PIN D2.5
15 324489 SPRING
16 324186 METAL (F)
17 324164 SLIDER ASS'Y
18 324190 SPRING
19 324162 SLIDER CASE (A)
20 324163 SLIDER CASE (B)
21 324189 STOPPER PIN
22 324191 SPRING (A)
23 959148 STEEL BALL D3.175 (10 PCS.)
24 324187 KNOB
25 312430 SPRING
26 324188 BOLT M5
27 324134 + DRIVER BIT NO.2 136.4L
28 330619 RETAINING RING
29 330618 WASHER (D)
30 330617 GUIDE SPRING (C)
31 322717 GUIDE SLEEVE (D)
32 317662 O-RING (F)
33 332465 METAL (F)
34 330162 STOPPING SPRING
35 330163 LOCKING FLANGE
36 334270 DRUM METAL
37 319535 STEEL BALL D3.5 (10 PCS.)
38 332461 SOCKET (A)
39 330164 RUBBER SHAFT
40 329642 SPRING (C)
41 332464 CLUTCH DRUM ASS'Y
42 608VVM BALL BEARING 608VVC2PS2L
43 313153 THRUST PLATE
44 323420 RUBBER RING
45 323420 RUBBER RING
46 332463 SECOND PINION SET
47 324150 NEEDLE BEARING
48 332466 ARMATURE PINION SET
49 333735 MAGNET
50 332460 BRUSH BLOCK
51 329648 HITACHI PLATE
52 327001 TRUSS HD. SCREW M4 (BLACK)
53 332824 HOOK
54 327002 LOCK NUT M4 (BLACK)
55 332462 PACKING
56 306952 STRAP (BLACK)
57 326493 SUPPORT (D)
58 323229 FERRITE CORE
59 999054 CARBON BRUSH 5X6X11.5 (1 PAIR)
60 319918 BRUSH CAP
61 322853 PUSHING BUTTON
62 332459 SWITCH (1P SOLDER TYPE) W/LOCK
63 332458 CONTROLLER TERMINAL SET
65 313687 TAPPING SCREW (W/FLANGE) D3X16 (BLACK)
66 332456 HOUSING (A).(B) SET
67 329083 BATTERY BSL 1430 (EUROPE,AUS,NZL)
68 328497 SLIDER CASE ASS'Y
69 334333 TAPPING SCREW D3X12 (BLACK)

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Hitachi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to hitachi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.

Hitachi WF14DSL
6 Items

Specific References

New

Download

Diagram Hitachi WF14DSL

Diagram Hitachi WF14DSL

Download (120.53KB)
