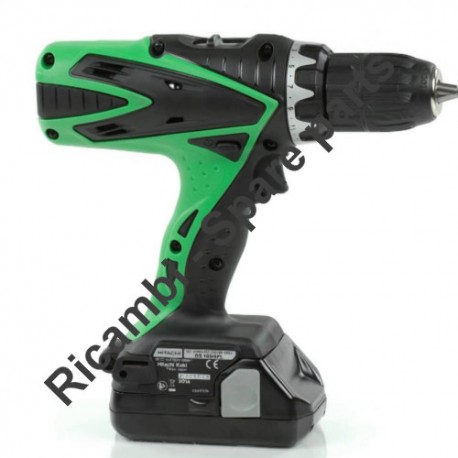

Hitachi Spare Parts for Cordless Driver Drill DS18DSFL

SKU: Hitachi DS18DSFL
€4.87
VAT included

Hitachi Spare Parts for Cordless Driver Drill DS18DSFL

We are Dealers of Hitachi-HIKOKI original spare parts at low at unbeatable prices and an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Cordless Drill DS18DSFL.
Hitachi Spare Parts for Cordless Driver Drill DS18DSFL
  • Hitachi Spare Parts for Cordless Driver Drill DS18DSFL
  • Hitachi Spare Parts for Cordless Driver Drill DS18DSFL
HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Cordless Driver Drill DS18DSFL

SKU: Hitachi DS18DSFL Condition: New
€4.87
VAT included

Hitachi Spare Parts for Cordless Driver Drill DS18DSFL

We are Dealers of Hitachi-HIKOKI original spare parts at low at unbeatable prices and an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Cordless Drill DS18DSFL.
settings 31 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 7/10 Business Days Approx

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
31 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

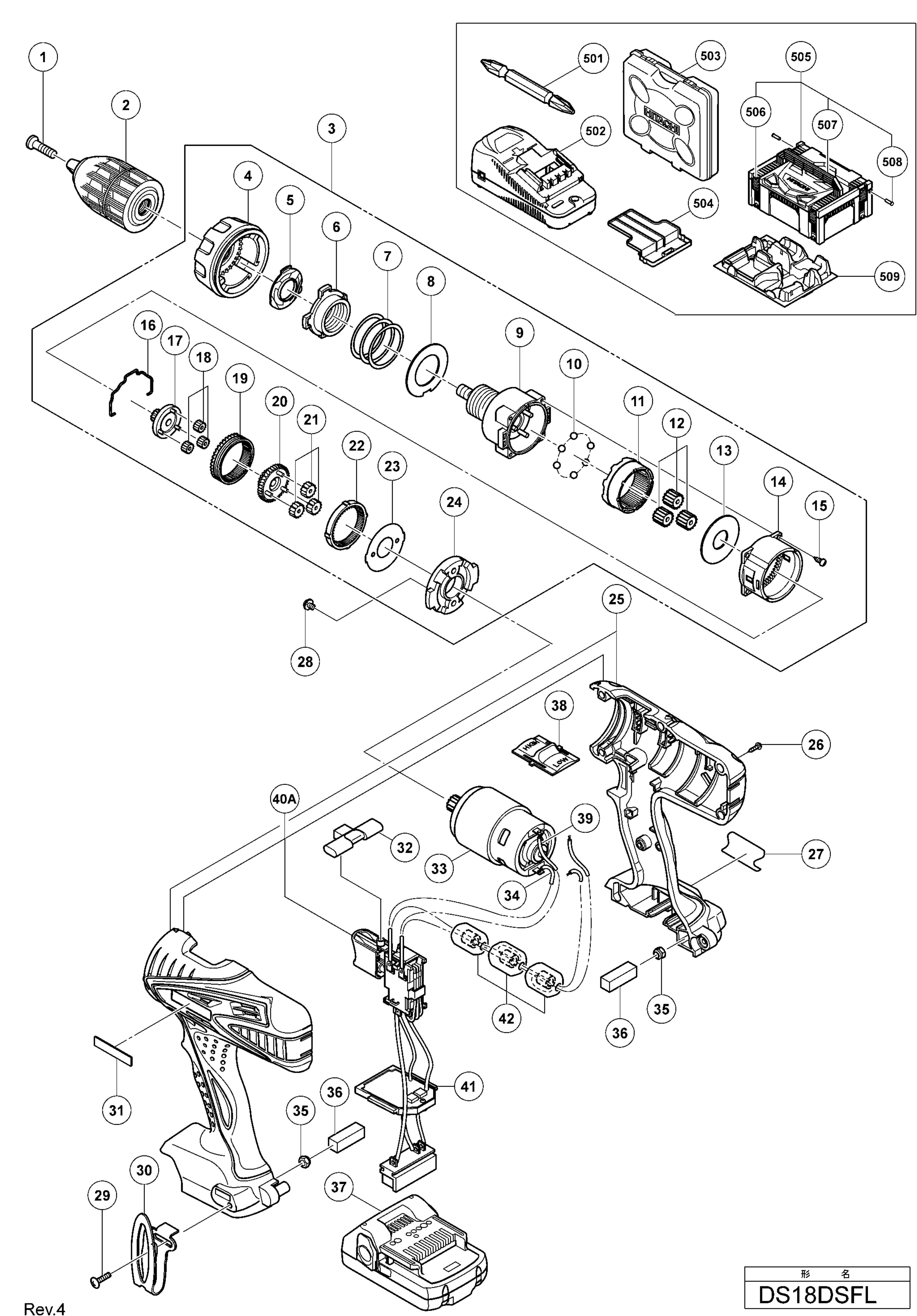

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 311959 Sp.Screw (Left Hand) M6x23 €2.10
2
 photo_cameraImage coming soon 324205 MS1706FR BEARING €16.54
3
 photo_cameraImage coming soon 333315 GEAR BOX ASS'Y €72.93
4
 photo_cameraImage coming soon 332025 CLUTCH DIAL €7.03
5
 photo_cameraImage coming soon 332741 CLICK SPRING €10.02
6
 photo_cameraImage coming soon 324109 NUT €3.53
7
 photo_cameraImage coming soon 324110 SPRING €3.53
8
 photo_cameraImage coming soon 324347 WASHER (D) €3.53
9
 photo_cameraImage coming soon 333314 FRONT CASE €18.89
10
 photo_cameraImage coming soon 306936 STEEL BALL D5 €1.40
11
 photo_cameraImage coming soon 332027 RING GEAR €5.90
12
 photo_cameraImage coming soon 332028 PLANET GEAR (C) - 3PCS. €3.99
13
 photo_cameraImage coming soon 324349 WASHER (A) €3.53 Not available for order
14
 photo_cameraImage coming soon 324501 REAR CASE €4.78
16
 photo_cameraImage coming soon 324115 SHIFT ARM €3.26
17
 photo_cameraImage coming soon 332029 PINION (C) €3.99
18
 photo_cameraImage coming soon 332031 PLANET GEAR (B) - 3PCS. €2.04
19
 photo_cameraImage coming soon 332030 SLIDE RING GEAR B €7.84
20
 photo_cameraImage coming soon 332032 PINION (B) €3.99
21
 photo_cameraImage coming soon 332034 PLANET GEAR (A) - 3PCS. €4.03
22
 photo_cameraImage coming soon 332033 FIRST RING GEAR €3.99
23
 photo_cameraImage coming soon 324355 WASHER (B) €3.53
24
 photo_cameraImage coming soon 332035 MOTOR SPACER €2.02
30
 photo_cameraImage coming soon 332824 DUST HOOD HOLDING HOOK €6.47
32
 photo_cameraImage coming soon 332836 PUSHING BUTTON €25.91
33
 Motor 18 V for Cordless Drill Driver Hitachi DS18DCL 332558 Motor 18 V for Cordless Drill Driver Hitachi DS18DCL €46.36
34
 photo_cameraImage coming soon 332843 INTERNAL WIRE (BLACK) 130L €1.36
36
 photo_cameraImage coming soon 327004 PACKING €2.33
38
 photo_cameraImage coming soon 332036 SHIFT KNOB €1.36
39
 photo_cameraImage coming soon 324499 INTERNAL WIRE RED €1.59
41
 photo_cameraImage coming soon 332823 CONTROLLER TERMINAL SET €34.93

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Hitachi Spare Parts for Cordless Driver Drill DS18DSFL

We are Dealers of Hitachi-HIKOKI original spare parts at low at unbeatable prices and an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Cordless Drill DS18DSFL.
Reversible drills and impact cordless drills with batteries from 1.5 Ah to 4, with torque clutch.

In the following table, look for the model of the CORDLESS DRILL and theirs spare part.
Hitachi DS18DSFL

CORDLESS DRIVER DRILL DS 18DSFL
# Part Num. Description
1 311959 SPECIAL SCREW (LEFT HAND) M6X23
2 332049 DRILL CHUCK 13VLRS-N
2 324205 DRILL CHUCK 13VLRM-N (W/O CHUCK WRENCH)
3 333315 GEAR BOX ASS'Y
4 332025 CLUTCH DIAL
5 332741 CLICK SPRING
6 324109 NUT
7 324110 SPRING
8 324347 WASHER (D)
9 333314 FRONT CASE
10 306936 STEEL BALL D5
11 332027 RING GEAR
12 332028 PLANET GEAR (C) SET (3 PCS.)
13 324349 WASHER (A)
14 324501 REAR CASE
15 324357 SCREW SET D3X12 (4 PCS.)
16 324115 SHIFT ARM
17 332029 PINION (C)
18 332031 PLANET GEAR (B) SET (3 PCS.)
19 332030 SLIDE RING GEAR (B)
20 332032 PINION (B)
21 332034 PLANET GEAR (A) SET (3 PCS.)
22 332033 FIRST RING GEAR
23 324355 WASHER (B)
24 332035 MOTOR SPACER
25 332821 HOUSING (A).(B) SET
26 313687 TAPPING SCREW (W/FLANGE) D3X16 (BLACK)
28 317333 MACHINE SCREW (W/SP. WASHER) M4X6
29 327001 TRUSS HD. SCREW M4 (BLACK)
30 332824 HOOK
32 332836 PUSHING BUTTON
33 332558 MOTOR DC 18V
34 332843 INTERNAL WIRE (BLACK) 130L
35 327002 LOCK NUT M4 (BLACK)
36 327004 PACKING
37 333352 BATTERY BSL 1815 (EUROPE)
38 332036 SHIFT KNOB
39 324499 INTERNAL WIRE (RED) 140L
41 332823 CONTROLLER TERMINAL SET
42 334858 INTERNAL WIRE FERRITE SET
