HiKOKI Power Tools Italia S.p.a.

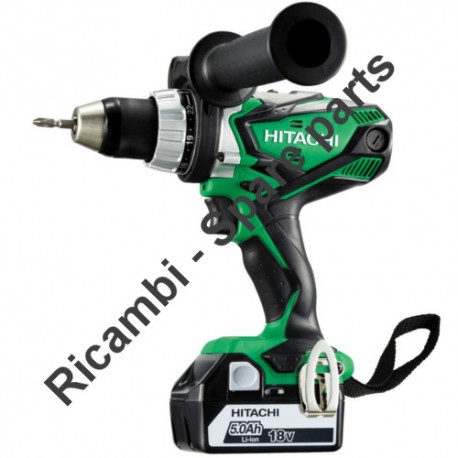

Hitachi Spare Parts for Cordless Driver Drill DS18DSDL

SKU: Hitachi DS18DSDL
€8.78
VAT included

Hitachi Spare Parts for Cordless Driver Drill DS18DSDL

Hitachi-HIKOKI Tanaka authorized service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Cordless Drill DS18DSDL.
Hitachi Spare Parts for Cordless Driver Drill DS18DSDL
  • Hitachi Spare Parts for Cordless Driver Drill DS18DSDL
  • Hitachi Spare Parts for Cordless Driver Drill DS18DSDL
HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Cordless Driver Drill DS18DSDL

SKU: Hitachi DS18DSDL Condition: New
€8.78
VAT included

Hitachi Spare Parts for Cordless Driver Drill DS18DSDL

Hitachi-HIKOKI Tanaka authorized service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Cordless Drill DS18DSDL.
settings 53 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
53 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
2
 photo_cameraImage coming soon 752065 Drill Chuck 13vlrl-n (w/o Chuck Wrench) 1/2X20 1.5X13MM €45.02
4
 photo_cameraImage coming soon 334429 COVER (A) €21.94
5
 photo_cameraImage coming soon 334430 GEAR BOX ASS'Y €114.02
6
 photo_cameraImage coming soon 334431 DIAL HOLDER (A) €10.02
7
 photo_cameraImage coming soon 331881 NUT €2.02
8
 photo_cameraImage coming soon 334432 Brake spring €3.52
9
 photo_cameraImage coming soon 334433 THRUST WASHER €3.52
10
 photo_cameraImage coming soon 334434 FRONT CASE €63.02
11
 photo_cameraImage coming soon 333516 CLICK SPRING €3.38
12
 Pin Set for Cordless Drill Driver Hitachi DS18DBL2 333539 Pin Set for Cordless Drill Driver Hitachi DS18DBL2 €12.25
13
 photo_cameraImage coming soon 331909 WASHER (A) €3.38
14
 photo_cameraImage coming soon 331903 LOCK RING (A) €13.40
15
 photo_cameraImage coming soon 331888 NEEDLE ROLLER SET (6PCS.) €3.38
16
 photo_cameraImage coming soon 331904 LOCK CAM €3.38
17
 photo_cameraImage coming soon 333517 CARRIER €9.48
18
 photo_cameraImage coming soon 333518 PLANET GEAR (C) SET (5 PCS.) €2.70
19
 photo_cameraImage coming soon 333519 RING GEAR €13.40
20
 photo_cameraImage coming soon 331892 WASHER (A) €3.37
21
 photo_cameraImage coming soon 331893 REAR CASE €6.09
22
 photo_cameraImage coming soon 331894 SHIFT ARM €3.38
23
 photo_cameraImage coming soon 330579 SCREW SET D2X3.5 (2 PCS.) €4.07
25
 photo_cameraImage coming soon 331897 PINION (C) €10.84
26
 photo_cameraImage coming soon 333520 PLANET GEAR (B) SET (4 PCS.) €6.09
27
 photo_cameraImage coming soon 333521 SLIDE RING GEAR €9.48
28
 photo_cameraImage coming soon 335296 STOPPER (A) €3.38
29
 photo_cameraImage coming soon 333523 STOPPER SPRING €3.38
30
 photo_cameraImage coming soon 333524 PINION (B) €6.09
31
 photo_cameraImage coming soon 331926 NEEDLE BEARING SET (4 PCS.) €13.40
32
 photo_cameraImage coming soon 334441 GEARS (A) (4 PCS) €7.06
33
 photo_cameraImage coming soon 334435 FIRST RING GEAR €5.41
34
 photo_cameraImage coming soon 322988 WASHER (B) €2.02
35
 photo_cameraImage coming soon 331902 MOTOR SPACER €3.38
36A
 photo_cameraImage coming soon 360975 ARMATURE AND PINION SET 18V €23.11
37
 Field (Magnet) for Cordless Impact Driver Drill Hitachi DV18DSDL 334442 Field (Magnet) for Cordless Impact Driver Drill Hitachi DV18DSDL €33.36
38
 Carbon Brush Block for Cordless Impact Driver Drill Hitachi DV18DSDL 334436 Carbon Brush Block for Cordless Impact Driver Drill Hitachi DV18DSDL €19.52
39
 Carbon Brushes for Cordless Drill and Grinders Hitachi 999054 Carbon Brushes for Cordless Drill and Grinders Hitachi €9.76
40
 Brushes Cap for Cordless Driver Drill Hitachi DS14DSAL/DS18DSAL 319918 Brushes Cap for Cordless Driver Drill Hitachi DS14DSAL/DS18DSAL €4.32
41
 photo_cameraImage coming soon 334440 HOUSING (A).(B) SET €27.09
43
 photo_cameraImage coming soon 332824 DUST HOOD HOLDING HOOK €6.47
45
 photo_cameraImage coming soon 328644 PACKING €2.55
46
 photo_cameraImage coming soon 334438 CONTROLLER TERMINAL SET €67.76
48
 photo_cameraImage coming soon 331907 PUSHING BUTTON €3.38
49
 photo_cameraImage coming soon 334267 SPEED LEVER (EX 333527) €13.40
50
 photo_cameraImage coming soon 333640 SWITCH * EX 322994 €29.92
53
 photo_cameraImage coming soon 306952 STRAP (BLACK) €8.78
54
 photo_cameraImage coming soon 330068 BATTERY BSL 1830 (EUROPE.AUS.NZL) €248.59
54
 photo_cameraImage coming soon 334421 BATTERY BSL 1840 (EUROPE,AUS,NZL) €243.99
501
 photo_cameraImage coming soon 323230 HOUSES €63.57
503
 photo_cameraImage coming soon 983006 + DRIVER BIT NO.2 65L €13.19
505
 photo_cameraImage coming soon 329897 BATTERY PROTECTION €2.20
506
 photo_cameraImage coming soon 336471 CASE ASS'Y (STACKABLE 2) €62.45
508
 photo_cameraImage coming soon 336473 HANDLE FOR EUROPE.RUS €6.68
510
 Gears Box for Angle Grinder Flex L 3709 336475 Gears Box for Angle Grinder Flex L 3709 €24.49 Not available for order

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Hitachi Spare Parts for Cordless Driver Drill DS18DSDL

Hitachi-HIKOKI Tanaka authorized service center

 and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Cordless Drill DS18DSDL.

In the following table, look for the model of the Cordless Drill and theirs spare part.
Hitachi DS18DSDL<

CORDLESS DRIVER DRILL DS18DSDL
# Part Num. Description
1 330588 SPECIAL SCREW (LEFT HAND) M6X27
2 752065 DRILL CHUCK 13VLRL-N (W/O CHUCK WRENCH)
3 334473 TAPPING SCREW (W/SP. WASHER)D3X20(BLACK)
4 334429 COVER (A)
5 334430 GEAR BOX ASS'Y
6 334431 DIAL HOLDER (A)
7 331881 NUT
8 334432 SPRING
9 334433 THRUST WASHER
10 334434 FRONT CASE
11 333516 CLICK SPRING
12 333539 PIN SET (6 PCS.)
13 331909 WASHER (A)
14 331903 LOCK RING (A)
15 331888 NEEDLE ROLLER SET (6PCS.)
16 331904 LOCK CAM
17 333517 CARRIER
18 333518 PLANET GEAR (C) SET (5 PCS.)
19 333519 RING GEAR
20 331892 WASHER (A)
21 331893 REAR CASE
22 331894 SHIFT ARM
23 330579 SCREW SET D2X3.5 (2 PCS.)
24 320087 SCREW SET M3X12 (4 PCS.)
25 331897 PINION (C)
26 333520 PLANET GEAR (B) SET (4 PCS.)
27 333521 SLIDE RING GEAR
28 335296 STOPPER (A)
29 333523 STOPPER SPRING
30 333524 PINION (B)
31 331926 NEEDLE BEARING SET (4 PCS.)
32 334441 PLANET GEAR (A) SET (4 PCS.)
33 334435 FIRST RING GEAR
34 322988 WASHER (B)
35 331902 MOTOR SPACER
36A 360975 ARMATURE AND PINION SET 18V
37 334442 MAGNET
38 334436 BRUSH BLOCK
39 999054 CARBON BRUSH 5X6X11.5 (1 PAIR)
40 319918 BRUSH CAP
41 334440 HOUSING (A).(B) SET
42 327001 TRUSS HD. SCREW M4 (BLACK)
43 332824 HOOK
44 327002 LOCK NUT M4 (BLACK)
45 328644 PACKING
46 334438 CONTROLLER TERMINAL SET
47 334443 FERRITE CORE
48 331907 PUSHING BUTTON
49 334267 SHIFT KNOB
50 333640 DC-SPEED CONTROL SWITCH
51 313687 TAPPING SCREW (W/FLANGE) D3X16 (BLACK)
53 306952 STRAP (BLACK)
54 330068 BATTERY BSL 1830 (EUROPE,AUS,NZL)
54 334421 BATTERY BSL 1840 (EUROPE,AUS,NZL)
501 323230 CASE
503 983006 + DRIVER BIT NO.2 65L
504 331906 SIDE HANDLE
505 329897 BATTERY COVER
506 336471 CASE ASS'Y (STACKABLE)
507 336472 LATCH
508 336473 HANDLE
509 336474 HINGE
510 336475 INNER TRAY
