HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Impact Cordless Driver Drill DV18DCL2

SKU: Hitachi DV18DCL2
€6.27
VAT included

Hitachi Spare Parts for Impact Cordless Driver Drill DV18DCL2

Hitachi-HIKOKI Tanaka authorized service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Cordless Drill DV18DCL2.
Hitachi Spare Parts for Impact Cordless Driver Drill DV18DCL2
  • Hitachi Spare Parts for Impact Cordless Driver Drill DV18DCL2
  • Hitachi Spare Parts for Impact Cordless Driver Drill DV18DCL2
HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Impact Cordless Driver Drill DV18DCL2

SKU: Hitachi DV18DCL2 Condition: New
€6.27
VAT included

Hitachi Spare Parts for Impact Cordless Driver Drill DV18DCL2

Hitachi-HIKOKI Tanaka authorized service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Cordless Drill DV18DCL2.
settings 37 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
37 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

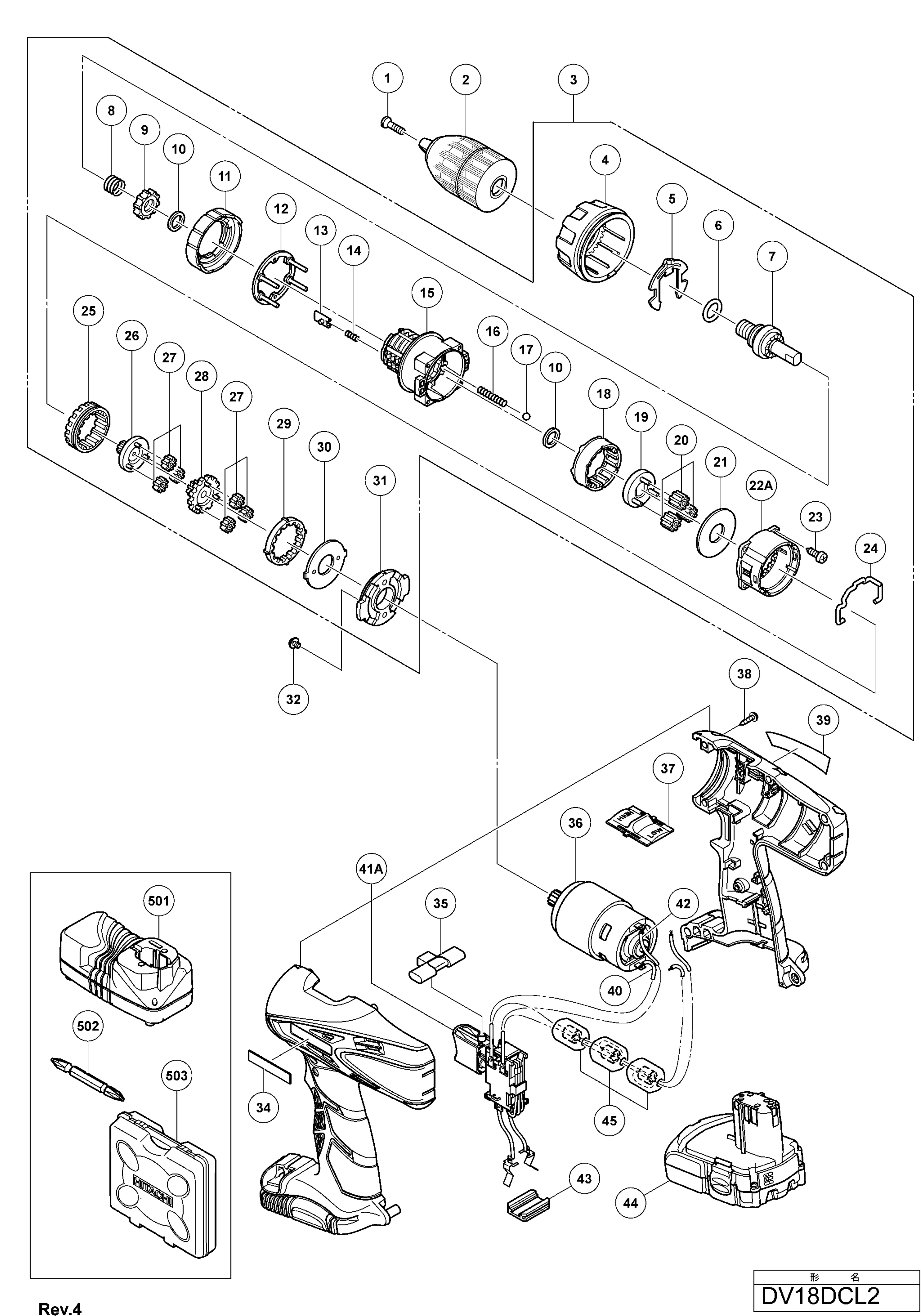

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 995344 Flat Hd. Screw (A) M6x25 €3.09
2
 photo_cameraImage coming soon HFAM767692 DRILL CHUCK 13VLRS-N €31.92
3
 photo_cameraImage coming soon 332008 GEAR BOX ASS'Y €97.82
4
 photo_cameraImage coming soon 332015 CLUTCH DIAL €9.11
5
 photo_cameraImage coming soon 327146 CLICK SPRING €2.70
6
 photo_cameraImage coming soon 327142 O-RING €2.26
7
 photo_cameraImage coming soon 332010 SPINDLE €19.02
8
 photo_cameraImage coming soon 327136 SPRING (C) €2.70
9
 photo_cameraImage coming soon 327134 RATCHET (B) €4.51
10
 photo_cameraImage coming soon 327147 WASHER (A) €2.70
11
 photo_cameraImage coming soon 327145 NUT €2.26
12
 Hitachi Washer for DV14DCL2 332016 Hitachi Washer for DV14DCL2 €9.90
13
 photo_cameraImage coming soon 327135 SLIP BLOCK €2.26
14
 photo_cameraImage coming soon 327133 STOPPER SPRING €2.70
15
 photo_cameraImage coming soon 332009 FRONT CASE €7.03
16
 Gears Head Spring for Cordless Drill DV14DCL2 332018 Gears Head Spring for Cordless Drill DV14DCL2 €3.48
17
 photo_cameraImage coming soon 306936 STEEL BALL D5 €1.40
18
 photo_cameraImage coming soon 328055 RING GEAR €4.51
19
 photo_cameraImage coming soon 332011 CARRIER €7.89
20
 photo_cameraImage coming soon 312705 PLANET GEAR (C) SET (3 PCS.) €3.40
21
 photo_cameraImage coming soon 312704 WASHER (A) €2.84
22A
 photo_cameraImage coming soon 333350 GEAR CASE CARTER €5.08
24
 photo_cameraImage coming soon 332017 SHIFT ARM €2.83
25
 photo_cameraImage coming soon 332013 SLIDE RING GEAR €4.84
26
 photo_cameraImage coming soon 332012 PINION (C) €7.89
27
 photo_cameraImage coming soon 332019 PLANET GEAR (A) SET (6 PCS.) €19.13
28
 photo_cameraImage coming soon 332014 PINION (B) €7.89
29
 photo_cameraImage coming soon 332023 FIRST RING GEAR €9.11
30
 Washer (B) for Cordless Drill DV14DCL2 312716 Washer (B) for Cordless Drill DV14DCL2 €3.46
31
 photo_cameraImage coming soon 312698 MOTOR SPACER €4.53
35
 photo_cameraImage coming soon 332836 PUSHING BUTTON €25.91
36
 photo_cameraImage coming soon 332020 MOTOR DC 18V €34.23
37
 photo_cameraImage coming soon 332036 SHIFT KNOB €1.36
40
 photo_cameraImage coming soon 332843 INTERNAL WIRE (BLACK) 130L €1.36
41A
 photo_cameraImage coming soon 336808 HOUSING. SWITCH SET (GREEN) €29.92
42
 photo_cameraImage coming soon 324499 INTERNAL WIRE RED €1.59
43
 photo_cameraImage coming soon 315141 TERMINAL SUPPORT (A) €2.27

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Hitachi Spare Parts for Impact Cordless Driver Drill DV18DCL2

Hitachi-HIKOKI Tanaka authorized service center

 and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Cordless Drill DV18DCL2.

In the following table, look for the model of the CORDLESS DRILL and theirs spare part.
Hitachi DV18DCL2

CORDLESS IMPACT DRIVER DRILL DV18DCL2
# Part Num. Description
1 995344 FLAT HD. SCREW (A) (LEFT HAND) M6X25
2 HFAM767692 DRILL CHUCK 13VLRS-N
3 332008 GEAR BOX ASS'Y
4 332015 CLUTCH DIAL
5 327146 CLICK SPRING
6 327142 O-RING
7 332010 SPINDLE
8 327136 SPRING (C)
9 327134 RATCHET (B)
10 327147 WASHER (A)
11 327145 NUT
12 332016 WASHER
13 327135 SLIP BLOCK
14 327133 STOPPER SPRING
15 332009 FRONT CASE
16 332018 SPRING (A)
17 306936 STEEL BALL D5
18 328055 RING GEAR
19 332011 CARRIER
20 312705 PLANET GEAR (C) SET (3 PCS.)
21 312704 WASHER (A)
22A 333350 REAR CASE
23 324357 SCREW SET D3X12 (4 PCS.)
24 332017 SHIFT ARM
25 332013 SLIDE RING GEAR
26 332012 PINION (C)
27 332019 PLANET GEAR (A) SET (6 PCS.)
28 332014 PINION (B)
29 332023 FIRST RING GEAR
30 312716 WASHER (B)
31 312698 MOTOR SPACER
32 317333 MACHINE SCREW (W/SP. WASHER) M4X6
35 332836 PUSHING BUTTON
36 332020 MOTOR DC 18V
37 332036 SHIFT KNOB
38 313687 TAPPING SCREW (W/FLANGE) D3X16 (BLACK)
40 332843 INTERNAL WIRE (BLACK) 130L
41A 336808 HOUSING. SWITCH SET (GREEN)
42 324499 INTERNAL WIRE (RED) 140L
43 315141 TERMINAL SUPPORT (A)
44 327731 BATTERY BCL 1815 (EUROPE,AUS,NZL)
45 334858 INTERNAL WIRE FERRITE SET
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Hitachi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to hitachi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Hitachi DV18DCL2
10 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Hitachi DV18DCL2

Diagram Hitachi DV18DCL2

Download (90.89KB)
