HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Impact Cordless Driver Drill DV18DSDL

SKU: Hitachi DV18DSDL
€8.78
VAT included

Hitachi Spare Parts for Impact Cordless Driver Drill DV18DSDL

We are Hitachi-HIKOKI original spare parts Dealers at low at unbeatable prices and an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Cordless Drill DV18DSDL.
Hitachi Spare Parts for Impact Cordless Driver Drill DV18DSDL
  • Hitachi Spare Parts for Impact Cordless Driver Drill DV18DSDL
  • Hitachi Spare Parts for Impact Cordless Driver Drill DV18DSDL
HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Impact Cordless Driver Drill DV18DSDL

SKU: Hitachi DV18DSDL Condition: New
€8.78
VAT included

Hitachi Spare Parts for Impact Cordless Driver Drill DV18DSDL

We are Hitachi-HIKOKI original spare parts Dealers at low at unbeatable prices and an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Cordless Drill DV18DSDL.
settings 47 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
47 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

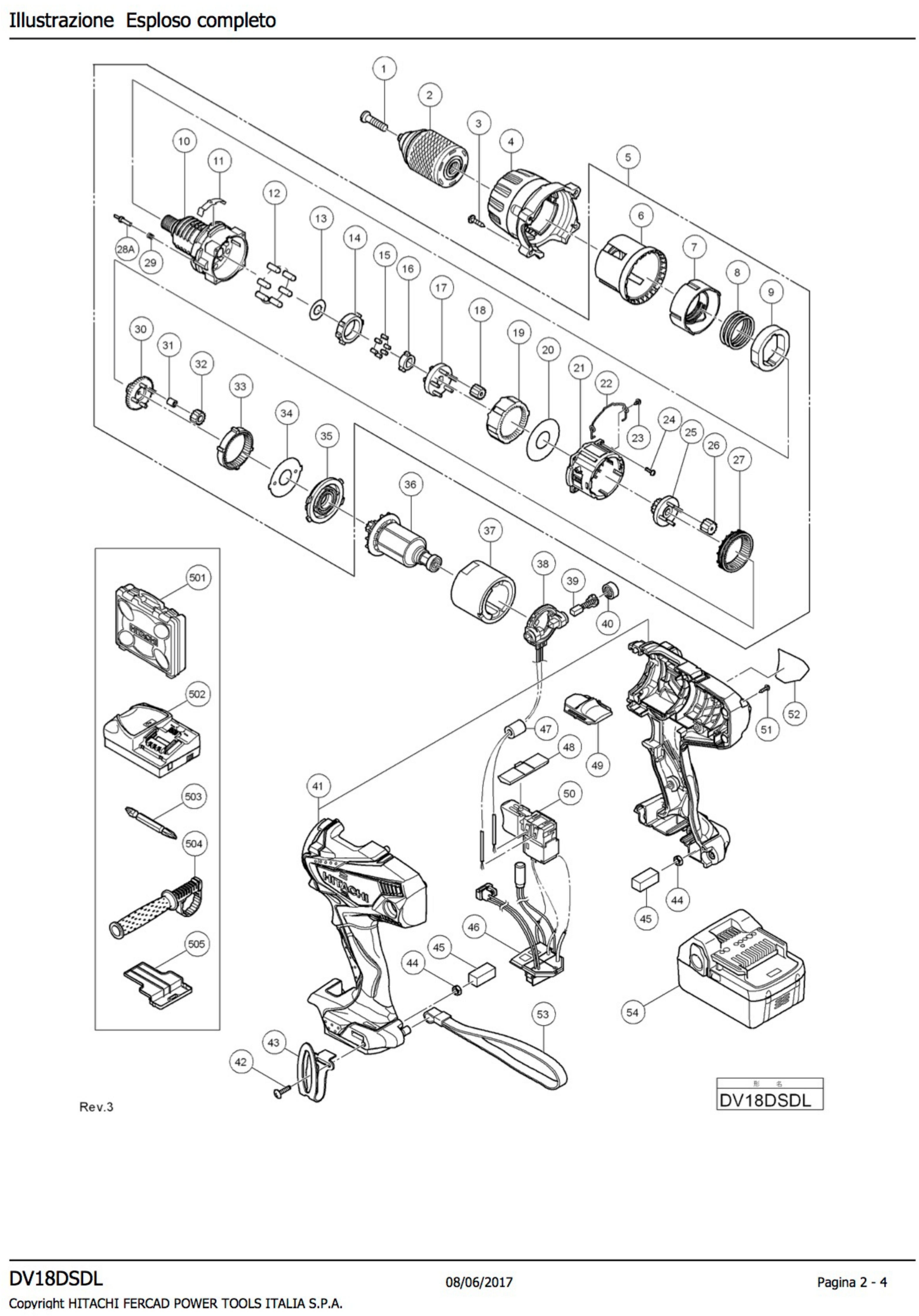

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 334721 SPECIAL SCREW (LEFT HAND) M6 €1.61
4
 photo_cameraImage coming soon 334444 COVER (A) €29.69
5
 photo_cameraImage coming soon 334445 GEAR BOX ASS'Y €157.25
6
 photo_cameraImage coming soon 334446 DIAL HOLDER (B) €14.89
7
 photo_cameraImage coming soon 333512 NUT €3.38
8
 photo_cameraImage coming soon 333513 Brake spring €3.38
9
 photo_cameraImage coming soon 333514 SLEEVE €3.38
10
 photo_cameraImage coming soon 333515 FRONT CASE €109.65
11
 photo_cameraImage coming soon 333516 CLICK SPRING €3.38
12
 Pin Set for Cordless Drill Driver Hitachi DS18DBL2 333539 Pin Set for Cordless Drill Driver Hitachi DS18DBL2 €12.25
13
 photo_cameraImage coming soon 331909 WASHER (A) €3.38
14
 photo_cameraImage coming soon 331903 LOCK RING (A) €13.40
15
 photo_cameraImage coming soon 331888 NEEDLE ROLLER SET (6PCS.) €3.38
16
 photo_cameraImage coming soon 331904 LOCK CAM €3.38
17
 photo_cameraImage coming soon 333517 CARRIER €9.48
18
 photo_cameraImage coming soon 333518 PLANET GEAR (C) SET (5 PCS.) €2.70
19
 photo_cameraImage coming soon 333519 RING GEAR €13.40
20
 photo_cameraImage coming soon 331892 WASHER (A) €3.37
21
 photo_cameraImage coming soon 331893 REAR CASE €6.09
22
 photo_cameraImage coming soon 331894 SHIFT ARM €3.38
23
 photo_cameraImage coming soon 330579 SCREW SET D2X3.5 (2 PCS.) €4.07
25
 photo_cameraImage coming soon 331897 PINION (C) €10.84
26
 photo_cameraImage coming soon 333520 PLANET GEAR (B) SET (4 PCS.) €6.09
27
 photo_cameraImage coming soon 333521 SLIDE RING GEAR €9.48
28
 photo_cameraImage coming soon 335296 STOPPER (A) €3.38
29
 photo_cameraImage coming soon 333523 STOPPER SPRING €3.38
30
 photo_cameraImage coming soon 333524 PINION (B) €6.09
31
 photo_cameraImage coming soon 331926 NEEDLE BEARING SET (4 PCS.) €13.40
32
 photo_cameraImage coming soon 333525 PLANET GEAR (A) SET (4 PCS.) €9.48
33
 photo_cameraImage coming soon 333526 FIRST RING GEAR €6.09
34
 photo_cameraImage coming soon 322988 WASHER (B) €2.02
35
 photo_cameraImage coming soon 331902 MOTOR SPACER €3.38
36A
 Armature for Cordless Impact Driver Drill Hitachi DV18DSDL 360977 Armature for Cordless Impact Driver Drill Hitachi DV18DSDL €29.90
37
 Field (Magnet) for Cordless Impact Driver Drill Hitachi DV18DSDL 334442 Field (Magnet) for Cordless Impact Driver Drill Hitachi DV18DSDL €33.36
38
 Carbon Brush Block for Cordless Impact Driver Drill Hitachi DV18DSDL 334436 Carbon Brush Block for Cordless Impact Driver Drill Hitachi DV18DSDL €19.52
39
 Carbon Brushes for Cordless Drill and Grinders Hitachi 999054 Carbon Brushes for Cordless Drill and Grinders Hitachi €9.76
40
 Brushes Cap for Cordless Driver Drill Hitachi DS14DSAL/DS18DSAL 319918 Brushes Cap for Cordless Driver Drill Hitachi DS14DSAL/DS18DSAL €4.32
41
 photo_cameraImage coming soon 334440 HOUSING (A).(B) SET €27.09
43
 photo_cameraImage coming soon 332824 DUST HOOD HOLDING HOOK €6.47
45
 photo_cameraImage coming soon 328644 PACKING €2.55
46
 photo_cameraImage coming soon 334438 CONTROLLER TERMINAL SET €67.76
48
 photo_cameraImage coming soon 331907 PUSHING BUTTON €3.38
49
 photo_cameraImage coming soon 334267 SPEED LEVER (EX 333527) €13.40
50
 photo_cameraImage coming soon 333640 SWITCH * EX 322994 €29.92
53
 photo_cameraImage coming soon 306952 STRAP (BLACK) €8.78
54
 photo_cameraImage coming soon 330068 BATTERY BSL 1830 (EUROPE.AUS.NZL) €248.59
54
 photo_cameraImage coming soon 334421 BATTERY BSL 1840 (EUROPE,AUS,NZL) €243.99

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Hitachi Spare Parts for Impact Cordless Driver Drill DV18DSDL

We are Hitachi-HIKOKI original spare parts Dealers at low at unbeatable prices and an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Cordless Drill DV18DSDL.
Reversible drills and impact cordless drills with batteries from 1.5 Ah to 4, with torque clutch, DV 18 series.

In the following table, look for the model of the Cordless Drill and theirs spare part.
Hitachi DV18DSDL
CORDLESS IMPACT DRIVER DRILL DV 18DSDL
# Part Num. Description
1 334721 SPECIAL SCREW (LEFT HAND) M6
2 331914 DRILL CHUCK 13VLRR-N (W/O CHUCK WRENCH)
3 334473 TAPPING SCREW (W/SP. WASHER)D3X20(BLACK)
4 334444 COVER (A)
5 334445 GEAR BOX ASS'Y
6 334446 DIAL HOLDER (B)
7 333512 NUT
8 333513 SPRING
9 333514 SLEEVE
10 333515 FRONT CASE
11 333516 CLICK SPRING
12 333539 PIN SET
13 331909 WASHER (A)
14 331903 LOCK RING (A)
15 331888 NEEDLE ROLLER SET
16 331904 LOCK CAM
17 333517 CARRIER
18 333518 PLANET GEAR (C) SET
19 333519 RING GEAR
20 331892 WASHER (A)
21 331893 REAR CASE
22 331894 SHIFT ARM
23 330579 SCREW SET D2X3.5
24 320087 SCREW SET M3X12
25 331897 PINION (C)
26 333520 PLANET GEAR (B) SET
27 333521 SLIDE RING GEAR
28 335296 STOPPER (A)
29 333523 STOPPER SPRING
30 333524 PINION (B)
31 331926 NEEDLE BEARING SET
32 333525 PLANET GEAR (A) SET
33 333526 FIRST RING GEAR
34 322988 WASHER (B)
35 331902 MOTOR SPACER
36A 360977 ARMATURE AND PINION SET 18V
37 334442 MAGNET
38 334436 BRUSH BLOCK
39 999054 CARBON BRUSH 5X6X11.5 (1 PAIR)
40 319918 BRUSH CAP
41 334440 HOUSING (A).(B) SET
42 327001 TRUSS HD. SCREW M4 (BLACK)
43 332824 HOOK
44 327002 LOCK NUT M4 (BLACK)
45 328644 PACKING
46 334438 CONTROLLER TERMINAL SET
47 334443 FERRITE CORE
48 331907 PUSHING BUTTON
49 334267 SHIFT KNOB
50 333640 DC-SPEED CONTROL SWITCH
51 313687 TAPPING SCREW (W/FLANGE) D3X16 (BLACK)
53 306952 STRAP (BLACK)
54 330068 BATTERY BSL 1830 (EUROPE,AUS,NZL)
54 334421 BATTERY BSL 1840 (EUROPE,AUS,NZL)
54 330067 BATTERY BSL 1830 (USA,CAN)
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Hitachi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to hitachi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Hitachi DV18DSDL
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Hitachi DV18DSDL

Diagram Hitachi DV18DSDL

Download (659.22KB)
