Hitachi Spare Parts for Brush Cutter CG 23ECP

SKU: Hitachi CG23ECP
€1.78
VAT included

Hitachi Spare Parts for Brush Cutter CG 23ECP

We are Hitachi-HIKOKI authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair problem for Brush Cutter CG 23ECP.
Hitachi Spare Parts for Brush Cutter CG 23ECP
  • Hitachi Spare Parts for Brush Cutter CG 23ECP
  • Hitachi Spare Parts for Brush Cutter CG 23ECP
  • Hitachi Spare Parts for Brush Cutter CG 23ECP
  • Hitachi Spare Parts for Brush Cutter CG 23ECP
  • Hitachi Spare Parts for Brush Cutter CG 23ECP
HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Brush Cutter CG 23ECP

SKU: Hitachi CG23ECP Condition: New
€1.78
VAT included

Hitachi Spare Parts for Brush Cutter CG 23ECP

We are Hitachi-HIKOKI authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair problem for Brush Cutter CG 23ECP.
settings 51 spare parts
description 4 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
51 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

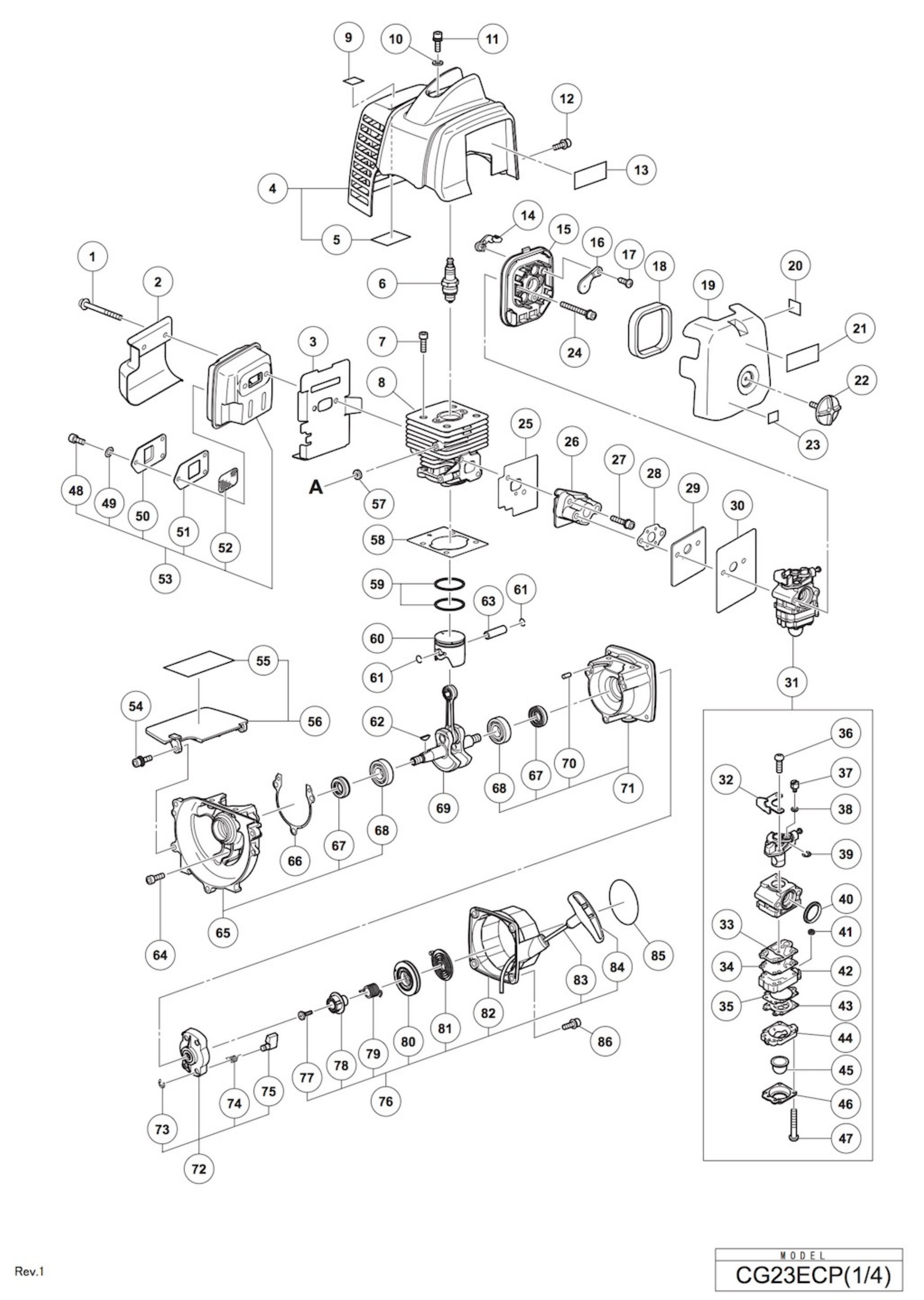

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
4
 photo_cameraImage coming soon 6601288 TOP COVER ASS'Y (VERMILION) €13.36
8
 photo_cameraImage coming soon 6600711 CYLINDER €38.98
18
 photo_cameraImage coming soon 6600725 AIR FILTER ELEMENT €1.16
19
 photo_cameraImage coming soon 6600726 CLEANER COVER €2.38
26
 photo_cameraImage coming soon 6600730 CARBURETOR INSULATOR €8.48
31
 photo_cameraImage coming soon 6600735 CARBURETOR ASS'Y (WYK-483) €101.20
33
 photo_cameraImage coming soon 6684692 PUMP GASKET €26.78
34
 Pump Diaphragm for Chainsaw Hitachi CS33EB 6684693 Pump Diaphragm for Chainsaw Hitachi CS33EB €9.70
35
 photo_cameraImage coming soon 6684691 DIAPHRAGM GASKET €6.04
36
 photo_cameraImage coming soon 6684870 THROTTLE SET SCREW €2.38
39
 photo_cameraImage coming soon 6684696 STOP RING €1.16
40
 photo_cameraImage coming soon 6684875 CLEANER PACKING €3.60
41
 Carburator Inlet Screen for Chainsaws and Bruschcutters Hitachi 6684700 Carburator Inlet Screen for Chainsaws and Bruschcutters Hitachi €3.60
43
 Metering Diaphragm for Chainsaws Hitachi CS-33-40-51 6684690 Metering Diaphragm for Chainsaws Hitachi CS-33-40-51 €26.78
44
 photo_cameraImage coming soon 6684687 PRIMING PUMP COMP. €18.24
45
 photo_cameraImage coming soon 6684689 PRIMING BODY €7.26
53
 photo_cameraImage coming soon 6600708 MUFFLER ASS'Y €51.18
58
 photo_cameraImage coming soon 6600738 CYLINDER PACKING €13.36
59
 photo_cameraImage coming soon 6600739 PISTON RING €6.04
60
 photo_cameraImage coming soon 6600740 PISTON €14.58
61
 photo_cameraImage coming soon 6600736 CIRCLIP €1.16
72
 photo_cameraImage coming soon 6600752 PULLEY ASS'Y €6.04
76
 photo_cameraImage coming soon 6600753 RECOIL STARTER ASS'Y (S) €25.56
80
 photo_cameraImage coming soon 6601313 REEL (S) €4.82
81
 photo_cameraImage coming soon 6601315 SPIRAL SPRING (S) €9.70
82
 photo_cameraImage coming soon 6601317 STARTER CASE (S) €10.92
116
 photo_cameraImage coming soon 6600764 FAN CASE €13.36
118
 photo_cameraImage coming soon 6600765 IGNITION COIL ASS'Y €31.66
125
 photo_cameraImage coming soon 6600771 CLUTCH SHAFT (S) €14.58
126
 photo_cameraImage coming soon 6600661 STEP BOLT €1.16
128
 photo_cameraImage coming soon 6600773 CLUTCH €10.92
131
 photo_cameraImage coming soon 6600774 MAGNETO ROTOR €28.00
141A
 photo_cameraImage coming soon 6600776 TANK CAP ASS'Y €3.60
142
 photo_cameraImage coming soon 6600788 FUEL TANK €14.58
173A
 photo_cameraImage coming soon 6699871 SET BOLT M5X25 €1.16
180
 photo_cameraImage coming soon 6600803 GEAR CASE ASS'Y (S) €63.38
183
 photo_cameraImage coming soon 6600857 HOLDER (A) €6.04
184
 photo_cameraImage coming soon 6600858 HOLDER (B) €2.38
199
 photo_cameraImage coming soon 6600822 THROTTLE LEVER ASS'Y €31.66
205
 photo_cameraImage coming soon 6600850 HANDLE (B) €3.60
208
 photo_cameraImage coming soon 6600841 THROTTLE LEVER €6.04
214
 photo_cameraImage coming soon 6600840 THROTTLE WIRE COMP. €3.60
215
 photo_cameraImage coming soon 6600845 HANDLE (A) €2.38
229
 photo_cameraImage coming soon 6600816 MAIN PIPE €45.08
230
 photo_cameraImage coming soon 6600817 DRIVE SHAFT €13.36
231
 photo_cameraImage coming soon 6601299 GUARD €12.14
239
 photo_cameraImage coming soon 6685068 MACHINE SCREW (W/SP. WASHER) M4X12 €2.38
244
 photo_cameraImage coming soon 6684714 HEX. HOLE BUTTON SCREW 6X25S €2.38
251
 photo_cameraImage coming soon 6698325 FLEXIBLE SHAFT €26.78
259
 photo_cameraImage coming soon 6698809 GUARD €38.98
501
 photo_cameraImage coming soon GHA629250 TAP AND GO easy HEAD €20.68
Page 2 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

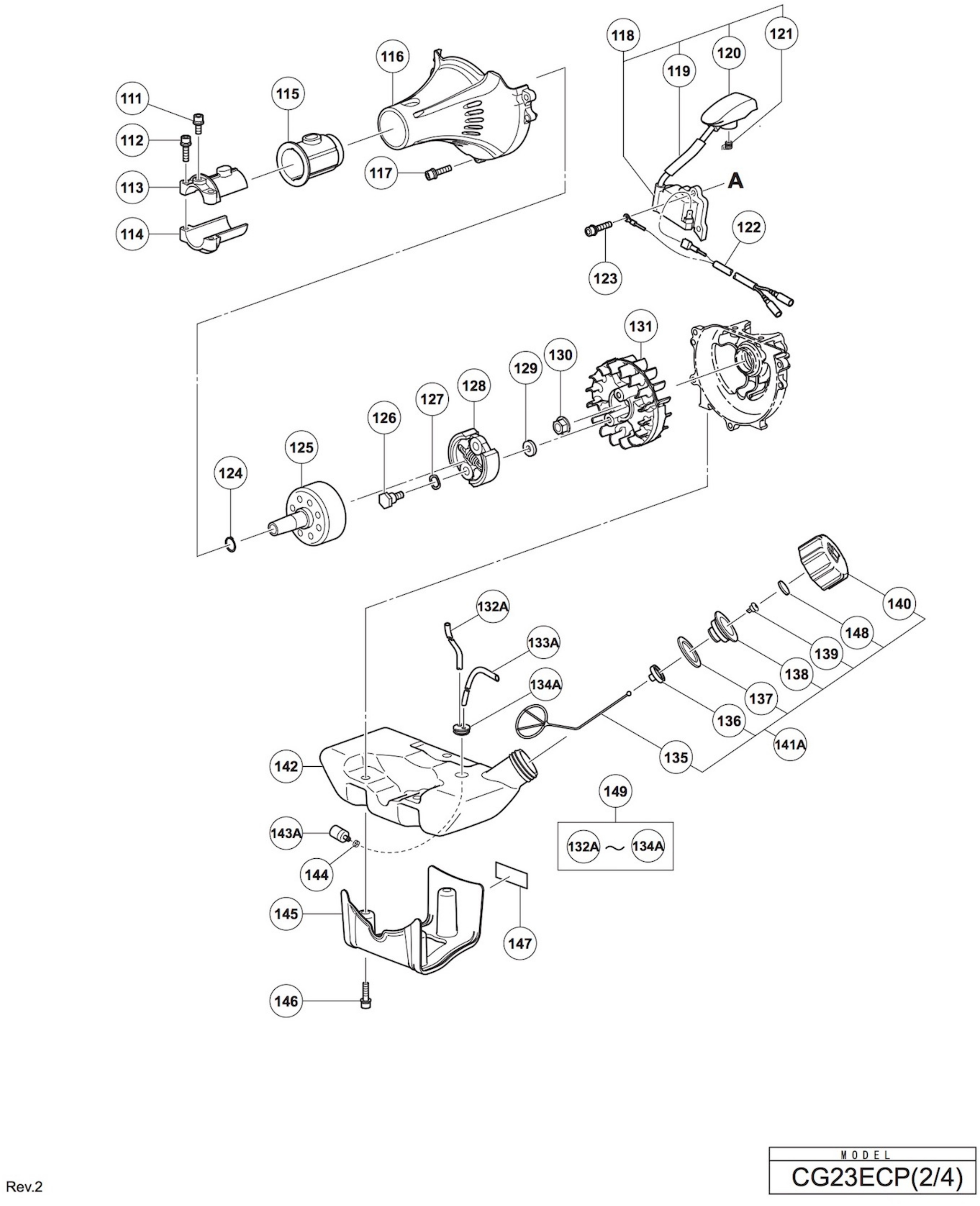

Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
116
 photo_cameraImage coming soon 6600764 FAN CASE €13.36
118
 photo_cameraImage coming soon 6600765 IGNITION COIL ASS'Y €31.66
125
 photo_cameraImage coming soon 6600771 CLUTCH SHAFT (S) €14.58
126
 photo_cameraImage coming soon 6600661 STEP BOLT €1.16
128
 photo_cameraImage coming soon 6600773 CLUTCH €10.92
131
 photo_cameraImage coming soon 6600774 MAGNETO ROTOR €28.00
141A
 photo_cameraImage coming soon 6600776 TANK CAP ASS'Y €3.60
142
 photo_cameraImage coming soon 6600788 FUEL TANK €14.58
Page 3 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

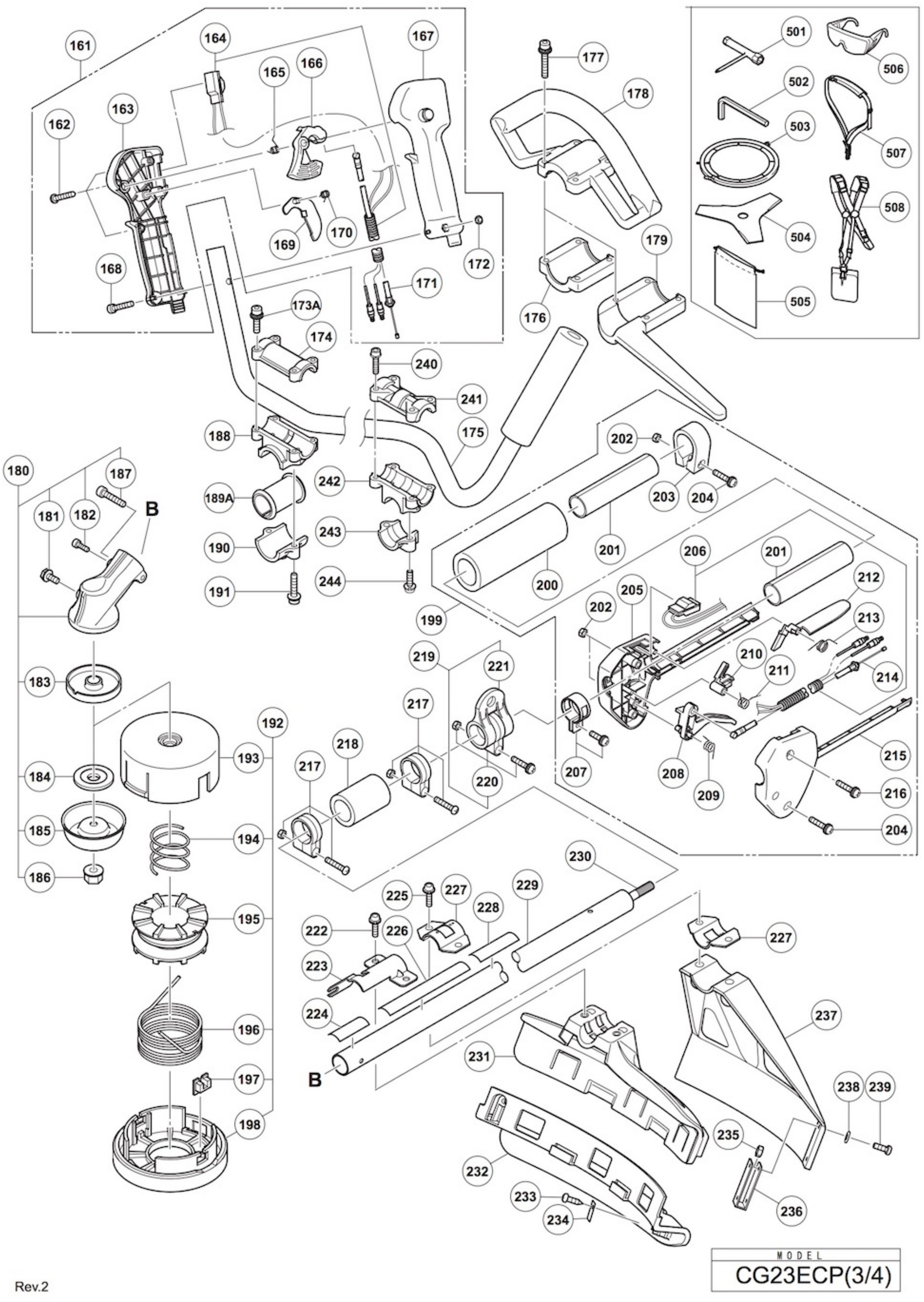

Esploso pagina 3
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
173A
 photo_cameraImage coming soon 6699871 SET BOLT M5X25 €1.16
180
 photo_cameraImage coming soon 6600803 GEAR CASE ASS'Y (S) €63.38
183
 photo_cameraImage coming soon 6600857 HOLDER (A) €6.04
184
 photo_cameraImage coming soon 6600858 HOLDER (B) €2.38
199
 photo_cameraImage coming soon 6600822 THROTTLE LEVER ASS'Y €31.66
205
 photo_cameraImage coming soon 6600850 HANDLE (B) €3.60
208
 photo_cameraImage coming soon 6600841 THROTTLE LEVER €6.04
214
 photo_cameraImage coming soon 6600840 THROTTLE WIRE COMP. €3.60
215
 photo_cameraImage coming soon 6600845 HANDLE (A) €2.38
229
 photo_cameraImage coming soon 6600816 MAIN PIPE €45.08
230
 photo_cameraImage coming soon 6600817 DRIVE SHAFT €13.36
231
 photo_cameraImage coming soon 6601299 GUARD €12.14
239
 photo_cameraImage coming soon 6685068 MACHINE SCREW (W/SP. WASHER) M4X12 €2.38
244
 photo_cameraImage coming soon 6684714 HEX. HOLE BUTTON SCREW 6X25S €2.38
501
 photo_cameraImage coming soon GHA629250 TAP AND GO easy HEAD €20.68
Page 4 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

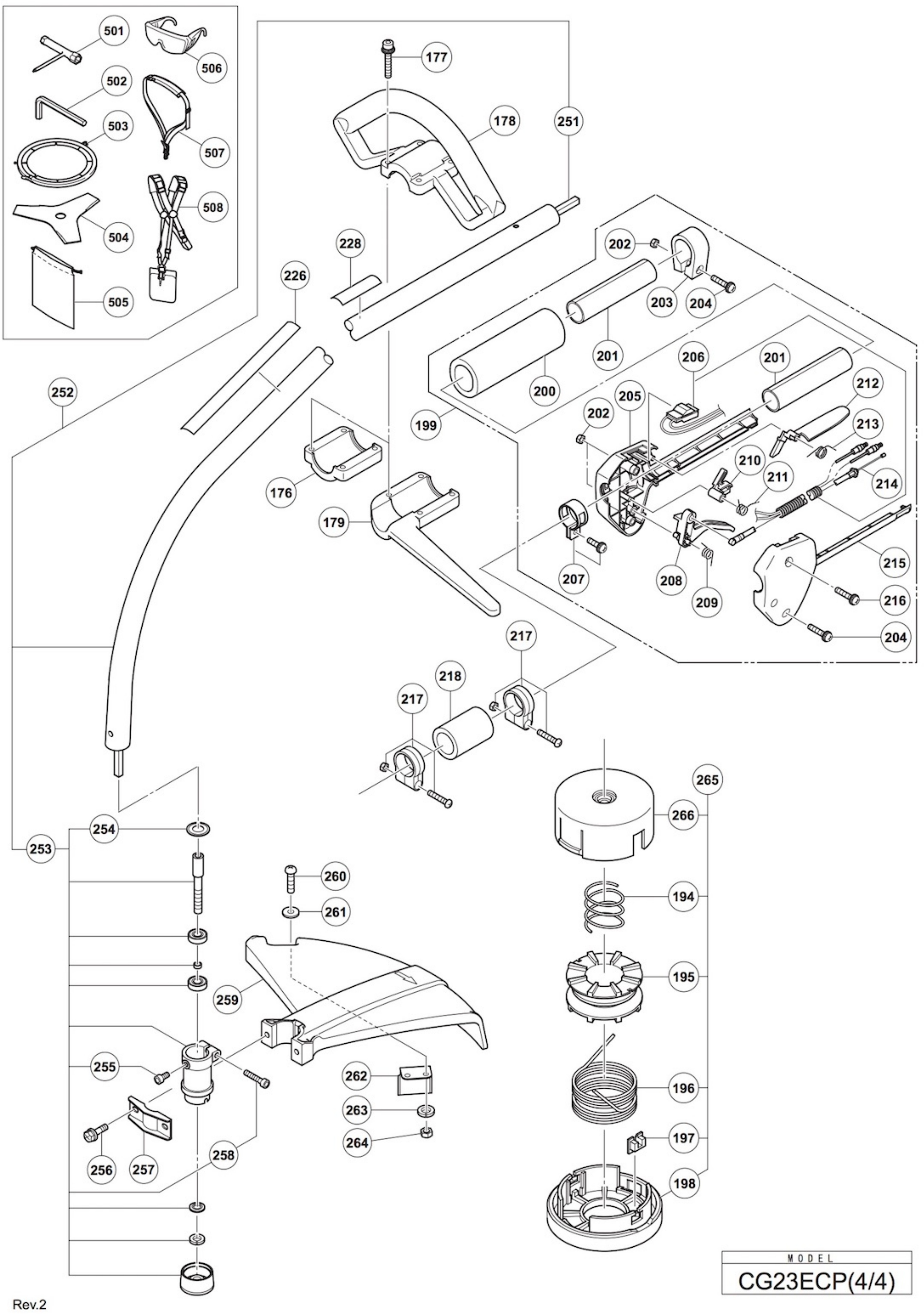

Esploso pagina 4
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
251
 photo_cameraImage coming soon 6698325 FLEXIBLE SHAFT €26.78
259
 photo_cameraImage coming soon 6698809 GUARD €38.98

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Hitachi Spare Parts for Brush Cutter CG 23ECP

We are Hitachi-HIKOKI authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair problem for Brush Cutter CG 23ECP.

In the following table, look for the model of Brush Cutter and the respective parts of the code.
Hitachi CG23ECP

Hitachi - HIKOKI Brush Cutter CG 23ECP
# Part Num. Description
4 6601288 TOP COVER ASS'Y (VERMILION)
8 6600711 CYLINDER
18 6600725 AIR FILTER ELEMENT
19 6600726 CLEANER COVER
26 6600730 CARBURETOR INSULATOR
31 6600735 CARBURETOR ASS'Y (WYK-483)
33 6684692 PUMP GASKET
34 6684693 PUMP DIAPHRAGM
35 6684691 DIAPHRAGM GASKET
36 6684870 THROTTLE SET SCREW
39 6684696 STOP RING
40 6684875 CLEANER PACKING
41 6684700 INLET SCREEN
43 6684690 METERING DIAPHRAGM
44 6684687 PRIMING PUMP COMP.
45 6684689 PRIMING BODY
53 6600708 MUFFLER ASS'Y
58 6600738 CYLINDER PACKING
59 6600739 PISTON RING
60 6600740 PISTON
61 6600736 CIRCLIP
72 6600752 PULLEY ASS'Y
76 6600753 RECOIL STARTER ASS'Y (S)
80 6601313 REEL (S)
81 6601315 SPIRAL SPRING (S)
82 6601317 STARTER CASE (S)
116 6600764 FAN CASE
118 6600765 IGNITION COIL ASS'Y
125 6600771 CLUTCH SHAFT (S)
126 6600661 STEP BOLT
128 6600773 CLUTCH
131 6600774 MAGNETO ROTOR
141A 6600776 TANK CAP ASS'Y
142 6600788 FUEL TANK
173A 6699871 SET BOLT M5X25
180 6600803 GEAR CASE ASS'Y (S)
183 6600857 HOLDER (A)
184 6600858 HOLDER (B)
199 6600822 THROTTLE LEVER ASS'Y
205 6600850 HANDLE (B)
208 6600841 THROTTLE LEVER
214 6600840 THROTTLE WIRE COMP.
215 6600845 HANDLE (A)
229 6600816 MAIN PIPE
230 6600817 DRIVE SHAFT
231 6601299 GUARD
239 6685068 MACHINE SCREW (W/SP. WASHER) M4X12
240 6684709 HEX. HOLE BOLT M5X25/S
244 6684714 HEX. HOLE BUTTON SCREW M6X25S
251 6698325 FLEXIBLE SHAFT
259 6698809 GUARD
501 GHA629250 TAP AND GO easy HEAD
