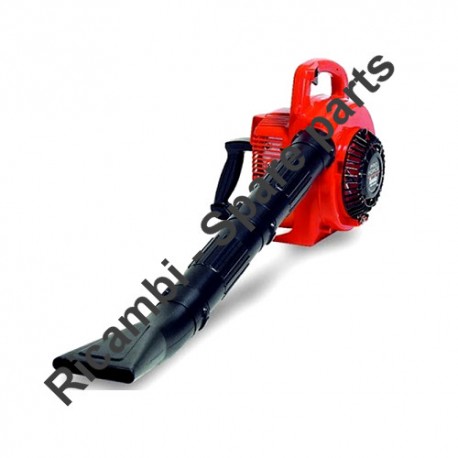

Hitachi Spare Parts for Blower RB 85E

SKU: Hitachi RB85E
€1.11
VAT included

Hitachi Spare Parts for Blower RB 85E

Hitachi-HIKOKI Original spare parts at attractive and competitive prices on the web, we are a licensed service center with a repair service able to quickly solve the maintenance or repair any issues for Blower RB 85E - Tanaka THB 2510 N.

Fix Your Blower. All Spares are original and can be supplied at Low prices. Our Spares are Genuine Parts and Guarantee.
Hitachi Spare Parts for Blower RB 85E
  • Hitachi Spare Parts for Blower RB 85E
  • Hitachi Spare Parts for Blower RB 85E - Drawing
  • Hitachi Spare Parts for Blower RB 85E - Drawing 1
  • Hitachi Spare Parts for Blower RB 85E - Drawing 2
  • Hitachi Spare Parts for Blower RB 85E - Drawing 3
  • Hitachi Spare Parts for Blower RB 85E - Drawing 4
  • Hitachi Spare Parts for Blower RB 85E - Drawing 5
  • Hitachi Spare Parts for Blower RB 85E - Drawing 6

Hitachi Spare Parts for Blower RB 85E

SKU: Hitachi RB85E Condition: New
€1.11
VAT included

Hitachi Spare Parts for Blower RB 85E

Hitachi-HIKOKI Original spare parts at attractive and competitive prices on the web, we are a licensed service center with a repair service able to quickly solve the maintenance or repair any issues for Blower RB 85E - Tanaka THB 2510 N.

Fix Your Blower. All Spares are original and can be supplied at Low prices. Our Spares are Genuine Parts and Guarantee.
settings 94 spare parts
description 7 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 7/10 Business Days Approx

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

87 spare parts

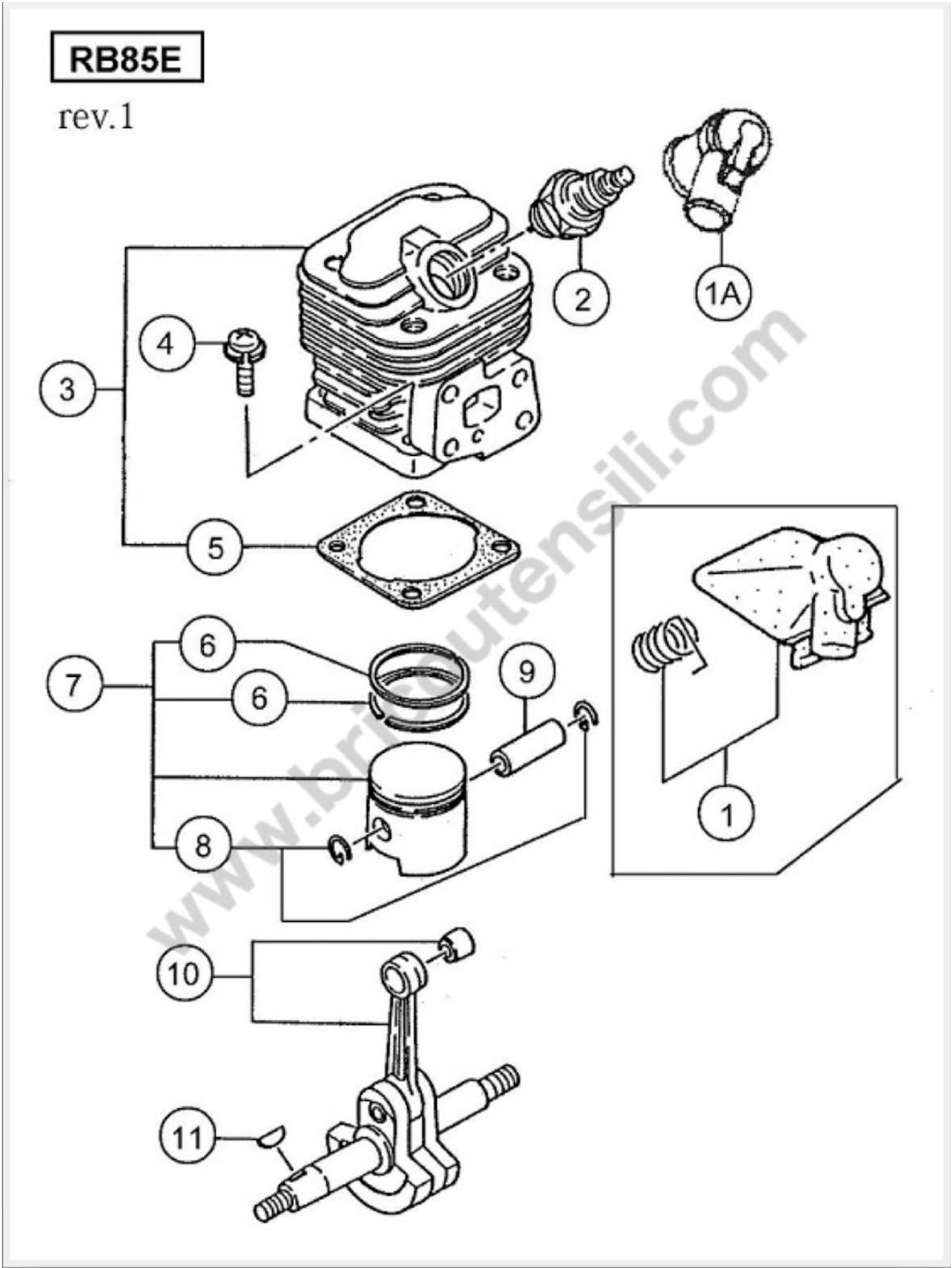

Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
1A
photo_cameraImage coming soon 6687468 SPARK PLUG CAP ASS'Y €5.31
3
photo_cameraImage coming soon 6685446 CYLINDER SET €94.57
4
Bolt M5X18/S for Chainsaws Hitachi CS38EK-CS45EL 6684586 Bolt M5X18/S for Chainsaws Hitachi CS38EK-CS45EL €1.98
5
Cylinder Gasket for Blower Hitachi Tanaka RB 85E 6685709 Cylinder Gasket for Blower Hitachi Tanaka RB 85E €2.52
6
photo_cameraImage coming soon 6684588 PISTON RING €8.99
7
Piston Set for Blower Hitachi RB 85L 6685899 Piston Set for Blower Hitachi RB 85L €39.75
8
Circlip for Brushcutter Hitachi CG 24EBS 6684590 Circlip for Brushcutter Hitachi CG 24EBS €1.57
9
Piston Pin for Brushcutter Hitachi CG27EASP 6684591 Piston Pin for Brushcutter Hitachi CG27EASP €4.14
10
photo_cameraImage coming soon 6686200 CRANK SHAFT COMP. €92.87
11
photo_cameraImage coming soon 6684899 WOODRUFF KEY 3X13X4.5 €1.68
178
photo_cameraImage coming soon 6684914 BUTTON STOP €3.20

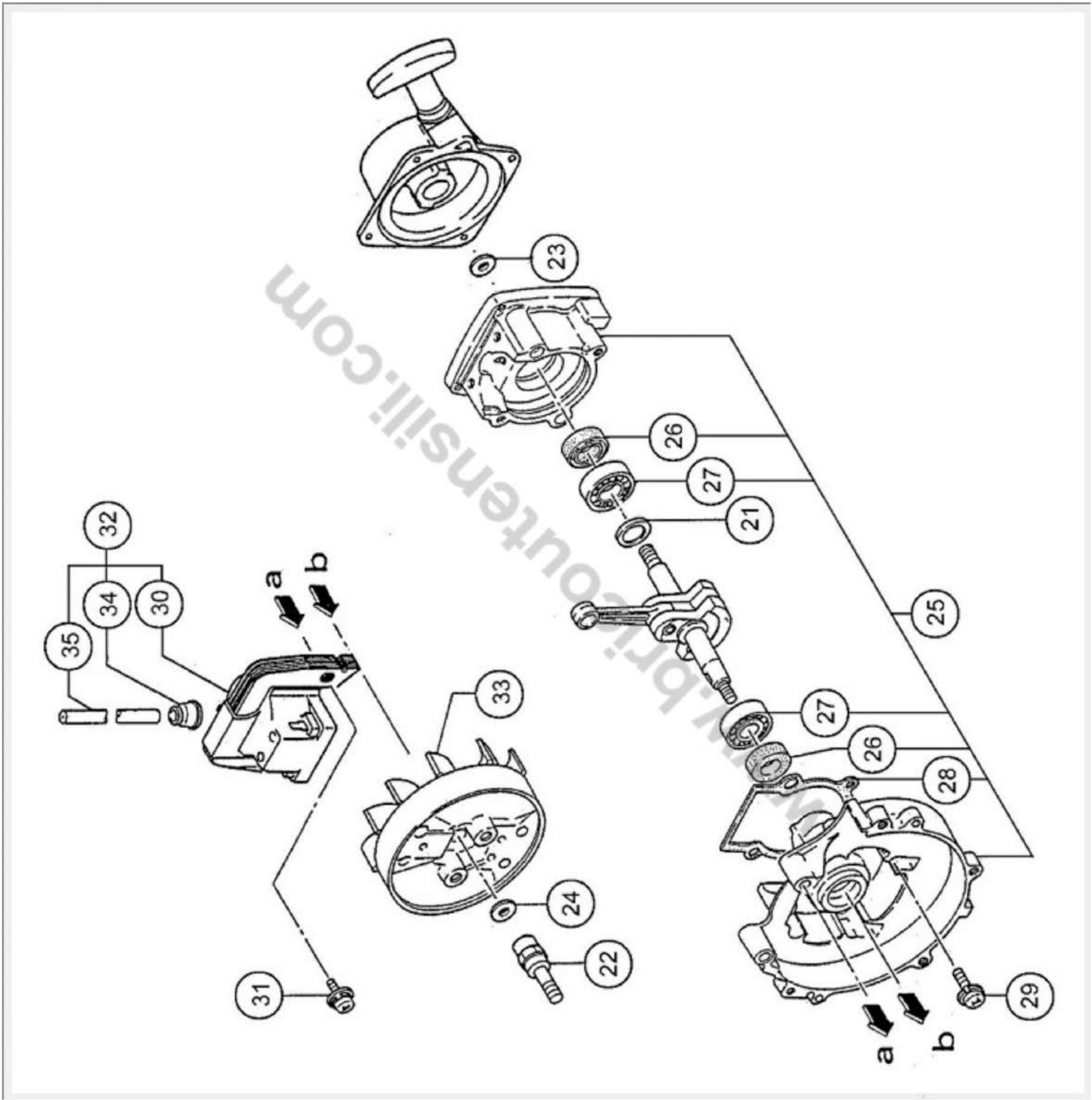

Page 2 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
23
Washer Clutch B for Brush Cutters Auger Hitachi Garden Tanaka 6689645 Washer Clutch B for Brush Cutters Auger Hitachi Garden Tanaka €1.98
24
photo_cameraImage coming soon 6685103 BOLT WASHER M7 €1.25
25
photo_cameraImage coming soon 6686578 CRANK CASE ASS'Y €93.15
30
photo_cameraImage coming soon 6687641 IGNITION COIL COMP. €78.92
32
Ignition Coil for Blower Hitachi RB 85L 6687642 Ignition Coil for Blower Hitachi RB 85L €89.33
33
photo_cameraImage coming soon 6687361 MAGNETO ROTOR COMP. €22.15
34
Ignition Coil Rubber Cap for Brushcutters Hitachi Tanaka 6684602 Ignition Coil Rubber Cap for Brushcutters Hitachi Tanaka €2.65

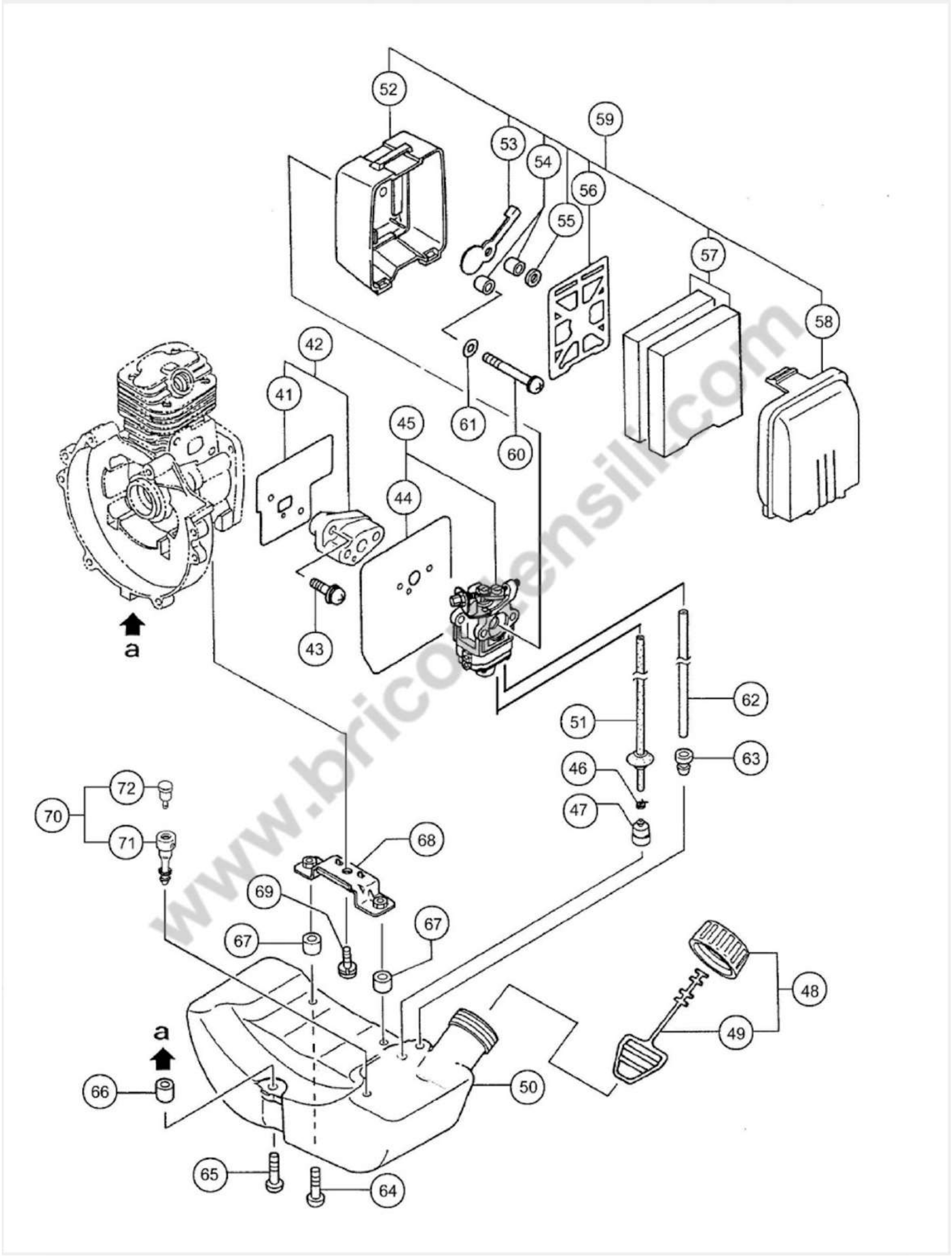

Page 3 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
44
photo_cameraImage coming soon 6689841 CARBURETOR GASKET €2.64
45
photo_cameraImage coming soon 6690489 CARBURETOR SET. SPARE €117.73
46
CLIP D6 6685198 CLIP D6 €1.99
48
photo_cameraImage coming soon 6691714 TANK CAP ASS'Y €8.43
51
photo_cameraImage coming soon 6684618 FUEL PIPE ASS'Y €8.64
52
photo_cameraImage coming soon 6684856 AIR CLEANER BODY €9.31
55
photo_cameraImage coming soon 6684859 SPACER €2.42
56
photo_cameraImage coming soon 6684860 BLOW OVER CHECK BOARD €2.64
57
photo_cameraImage coming soon 6684861 CLEANER SPONGE €5.84
58
photo_cameraImage coming soon 6684862 CLEANER CAP €2.66
59
photo_cameraImage coming soon 6684863 AIR CLEANER ASS'Y €18.68
60
photo_cameraImage coming soon 6695353 SCREW 5X57/S €1.83
62
photo_cameraImage coming soon 6684880 FUEL PIPE 3X5X80 €1.83
63
photo_cameraImage coming soon 6697846 RETURN GROMMET €1.79
65
Screw 5x16/PS for Brushcutter Tanaka TBC-600 6695386 Screw 5x16/PS for Brushcutter Tanaka TBC-600 €1.25
66
Collar 5.8 for Brushcutter Hitachi CG47EJ-L 6692244 Collar 5.8 for Brushcutter Hitachi CG47EJ-L €1.08
68
photo_cameraImage coming soon 6692215 FUEL TANK BRACKET €7.87
70
photo_cameraImage coming soon 6691389 AIR VENT ASS'Y €18.68
72
photo_cameraImage coming soon 6692171 AIR VENT VALVE ASS'Y €10.11

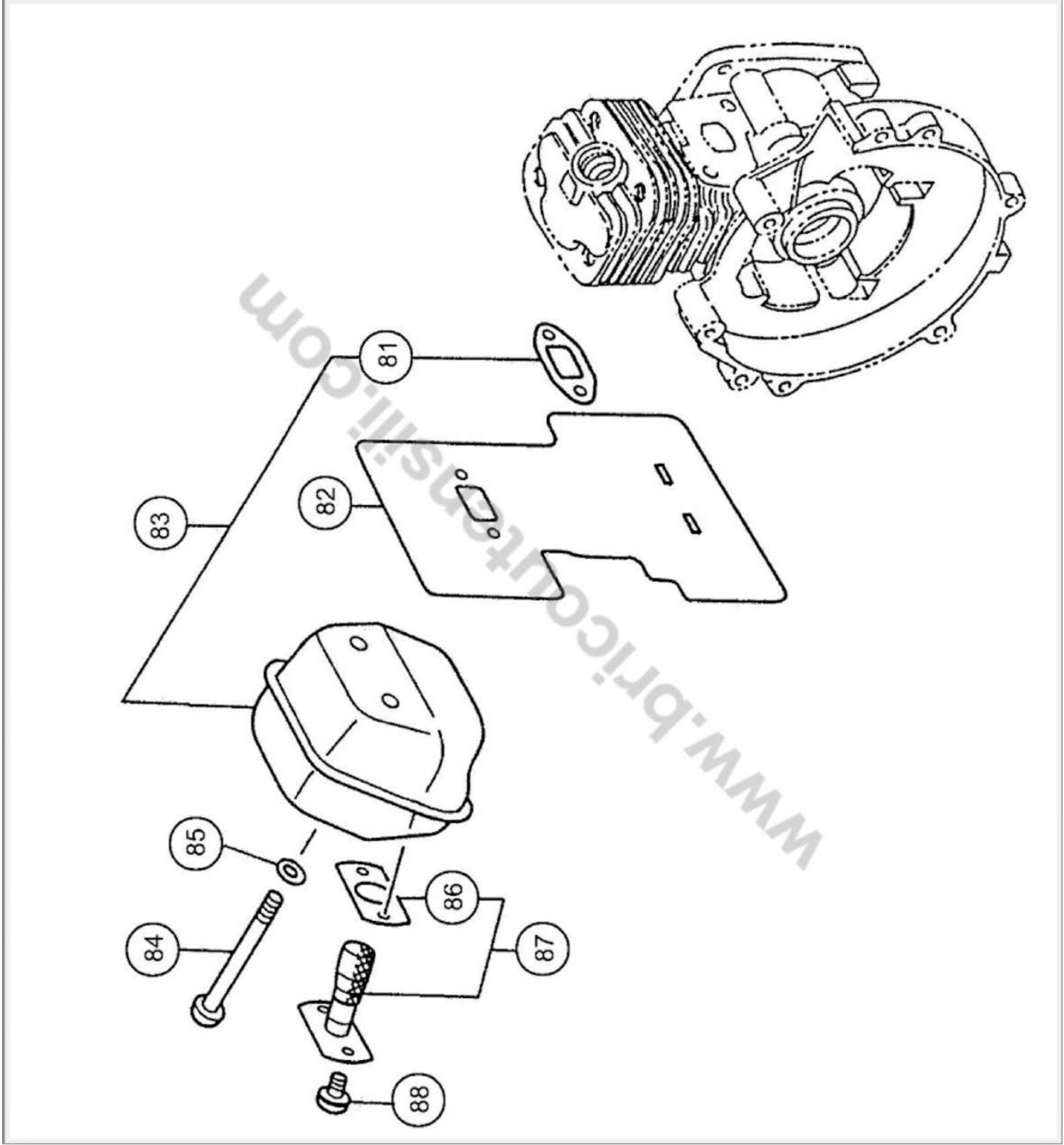

Page 4 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
81
photo_cameraImage coming soon 6692745 MUFFLER GASKET €1.55
82
photo_cameraImage coming soon 6687255 HEAT SHIELD €3.77
83
photo_cameraImage coming soon 6692486 MUFFLER SET. SPARE €34.13
84
photo_cameraImage coming soon 6695057 HEX. HOLE BOLT 5X70 €1.33
85
photo_cameraImage coming soon 6684822 SPECIAL WASHER B €1.98
86
photo_cameraImage coming soon 6692883 MUFFLER SPECIAL GASKET €1.93
87
photo_cameraImage coming soon 6692664 TAIL PIPE SET. SPARE €16.03
88
photo_cameraImage coming soon 6685109 MACHINE SCREW (W/SP. WASHER) M4X8 €1.52

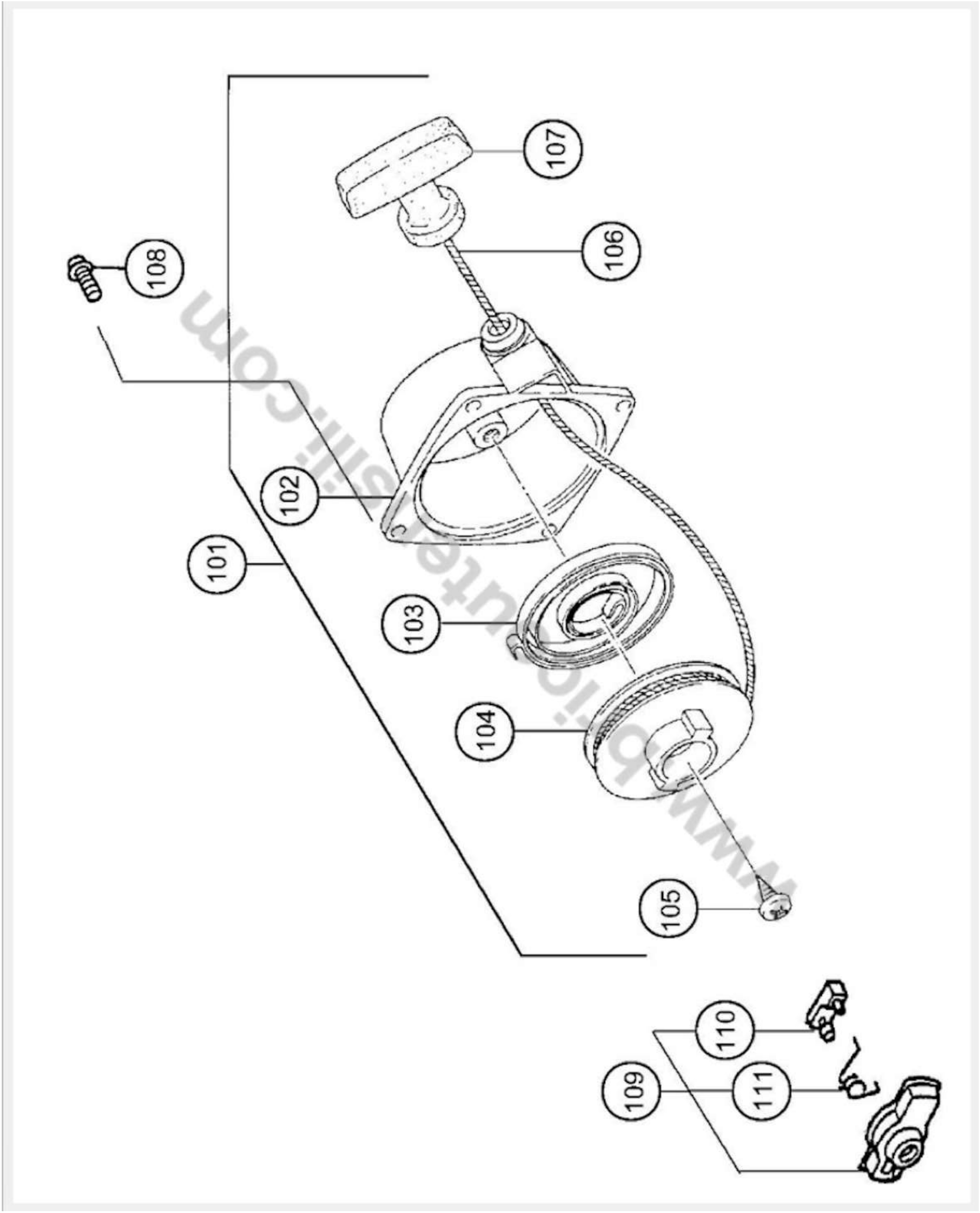

Page 5 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
101
Hitachi Blower RB85E Recoil Starter Ass'y 6692982 Hitachi Blower RB85E Recoil Starter Ass'y €45.24
102
photo_cameraImage coming soon 6693034 RECOIL STARTER BODY COMP..BLK €10.19
103
photo_cameraImage coming soon 6684675 RECOIL SPRING €12.16
104
photo_cameraImage coming soon 6693066 STARTER ROPE REEL €5.99
105
photo_cameraImage coming soon 6693633 SET SCREW €1.74
106
photo_cameraImage coming soon 6693168 ROPE €3.26
107
photo_cameraImage coming soon 6693237 STARTER HANDLE €5.27
109
photo_cameraImage coming soon 6693406 STARTER PULLEY ASSY €14.10
110
photo_cameraImage coming soon 6693320 STARTER PAWL €4.93
111
photo_cameraImage coming soon 6684684 STARTER PAWL SPRING €3.48

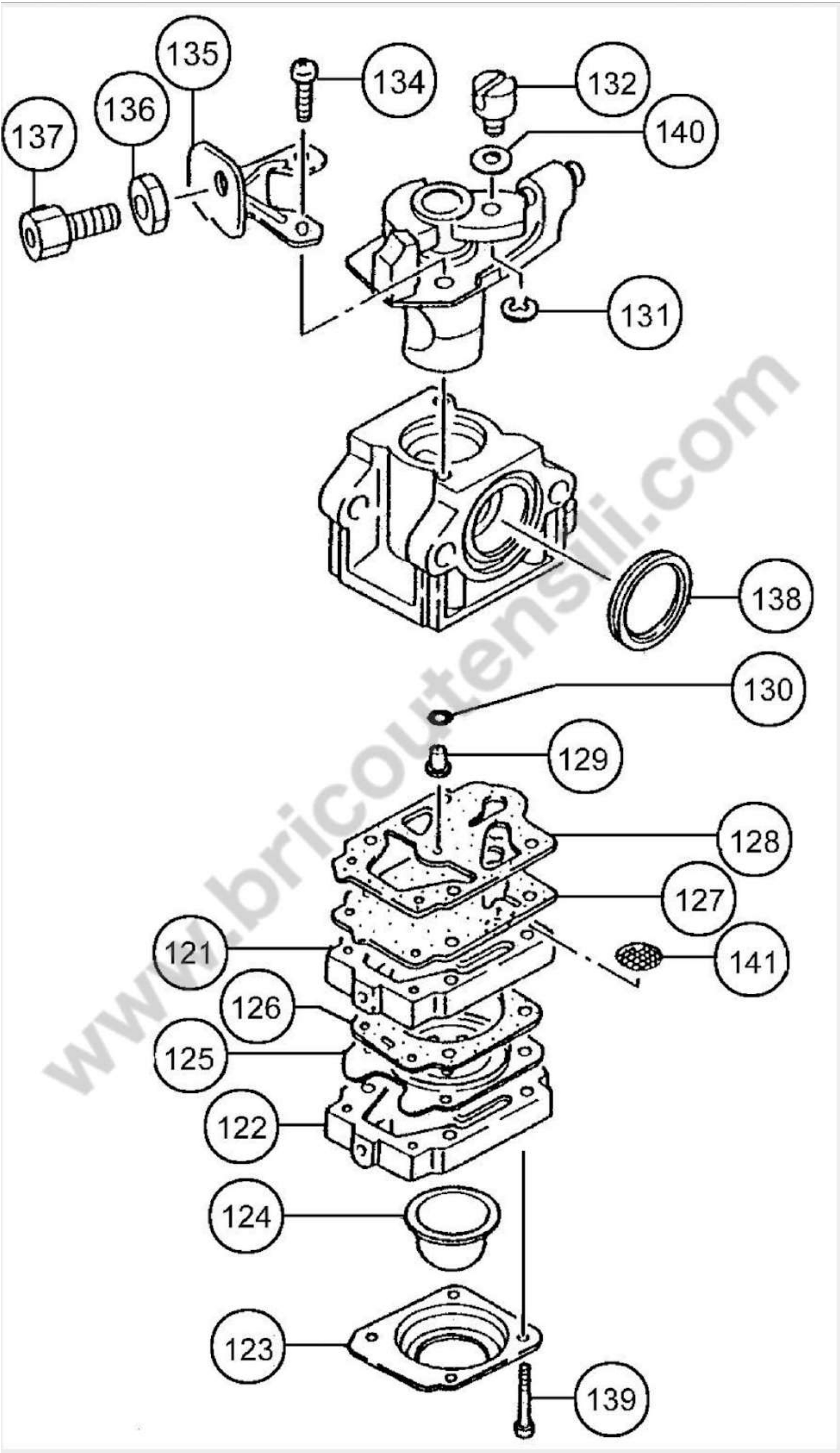

Page 6 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
121
photo_cameraImage coming soon 6684879 PUMP BODY COMP. €53.04
122
photo_cameraImage coming soon 6684687 PRIMING PUMP COMP. €18.30
124
photo_cameraImage coming soon 6684689 PRIMING BODY €6.88
125
Metering Diaphragm Comp. for Chainsaws Hitachi CS25-33-40-45-51 6690827 Metering Diaphragm Comp. for Chainsaws Hitachi CS25-33-40-45-51 €23.70
126
photo_cameraImage coming soon 6684691 DIAPHRAGM GASKET €6.12
127
Pump Diaphragm for Chainsaw Hitachi CS33EB 6684693 Pump Diaphragm for Chainsaw Hitachi CS33EB €9.95
128
photo_cameraImage coming soon 6691457 PUMP GASKET €9.57
129
photo_cameraImage coming soon 6691844 MAIN JET #38 €8.71
130
photo_cameraImage coming soon 6684695 ORING €3.16
131
photo_cameraImage coming soon 6684696 STOP RING €1.76
132
photo_cameraImage coming soon 6684697 SWIVEL €4.96
134
photo_cameraImage coming soon 6684870 THROTTLE SET SCREW €2.24
136
photo_cameraImage coming soon 6684872 LOCK NUT M6 €1.27
137
photo_cameraImage coming soon 6684871 CABLE ADJUSTER €5.25
138
photo_cameraImage coming soon 6684875 CLEANER PACKING €3.12
141
Carburator Inlet Screen for Chainsaws and Bruschcutters Hitachi 6684700 Carburator Inlet Screen for Chainsaws and Bruschcutters Hitachi €3.18

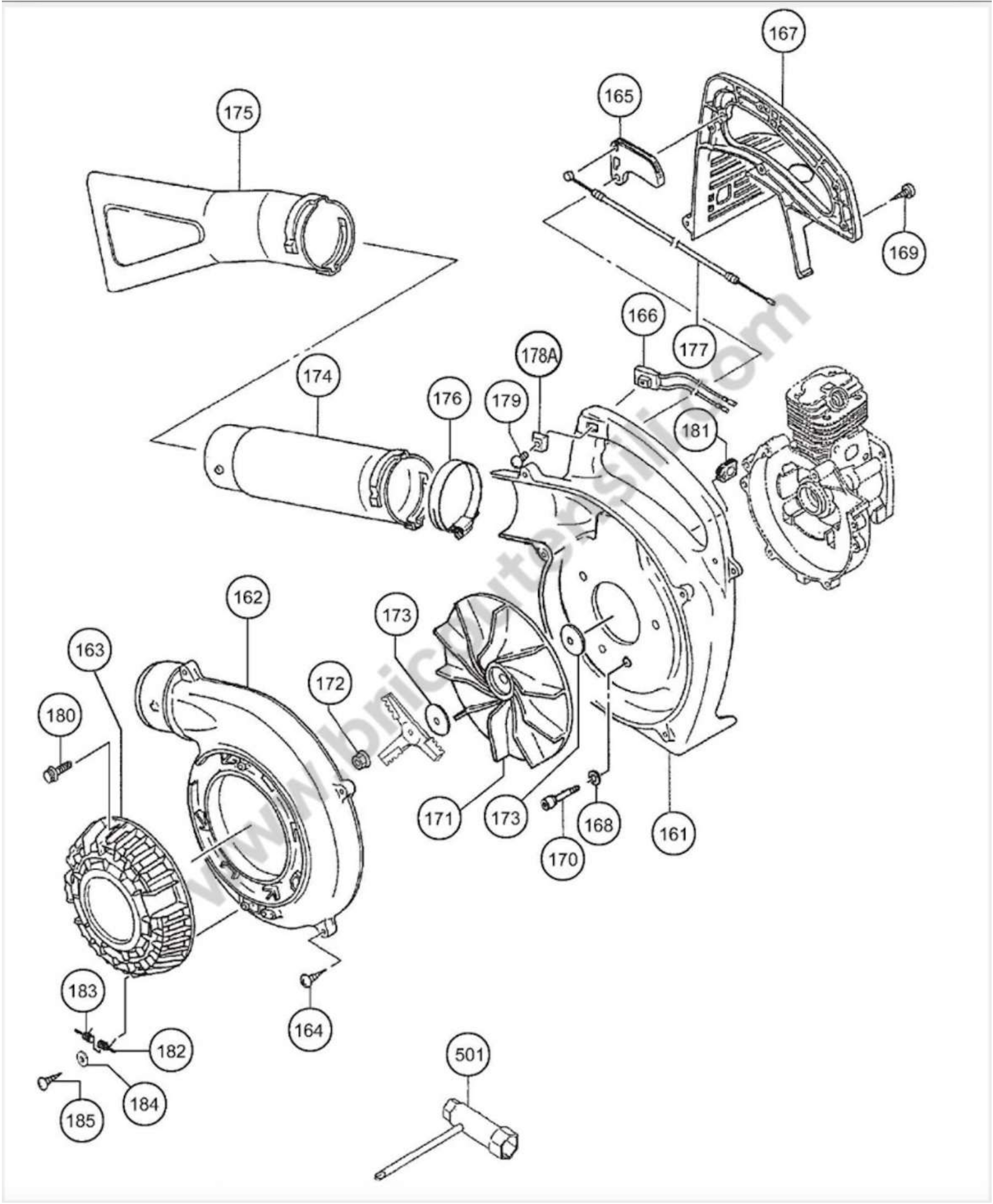

Page 7 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
161
photo_cameraImage coming soon 6685602 FAN CASE E. COMP. €51.39
162
photo_cameraImage coming soon 6686322 VOLUTE CASE €47.86
163
photo_cameraImage coming soon 6686264 DUST COVER €7.42
164
photo_cameraImage coming soon 6695255 TAPPING SCREW 5X20 €1.98
166
photo_cameraImage coming soon 6687752 STOP SWITCH ASS'Y €11.44
167
photo_cameraImage coming soon 6692827 MUFFLER PROTECTOR €19.12
168
Spring Washer 5 for Brushcutter Hitachi CG33EJ-SL 6684834 Spring Washer 5 for Brushcutter Hitachi CG33EJ-SL €1.04
171
photo_cameraImage coming soon 6687173 FAN €29.96
174
photo_cameraImage coming soon 6688422 STRAIGHT PIPE €12.61
175
photo_cameraImage coming soon 6688433 FAN HEADED PIPE €17.39
176
photo_cameraImage coming soon 6690785 CLAMP BAND COMP. €6.73
177
photo_cameraImage coming soon 6693915 THROTTLE WIRE COMP. €5.68
180
photo_cameraImage coming soon 6689740 SPECIAL KNOB €6.72
182
photo_cameraImage coming soon 6686332 COVER PIN €2.64
183
photo_cameraImage coming soon 6693356 SPRING €4.78
185
photo_cameraImage coming soon 6695252 TAPPING SCREW 5X15 €1.28

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Hitachi Spare Parts for Blower RB 85E

Fix Your Blower RB 85E - Tanaka THB 2510 N. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of Blower and the respective parts of the code.
Hitachi RB 85E

Blower RB 85E
# Part Num. Description
1A 6687468 SPARK PLUG CAP ASS'Y
3 6685446 CYLINDER SET
4 6684586 HEX.HOLE BOLT M5X18/S
5 6685709 CYLINDER GASKET
6 6684588 PISTON RING
7 6685899 PISTON SET
8 6684590 CIR CLIP
9 6684591 PISTON PIN
10 6686200 CRANK SHAFT COMP.
11 6684899 WOODRUFF KEY 3X13X4.5
21 6684604 GEAR SHAFT SHIM 0.20
23 6689645 CLUTCH WASHER B
24 6685103 BOLT WASHER M7
25 6686578 CRANK CASE ASS'Y
28 6686718 CRANK CASE GASKET
29 6684709 HEX. HOLE BOLT M5X25/S
30 6687641 IGNITION COIL COMP.
32 6687642 IGNITION COIL ASS'Y
33 6687361 MAGNETO ROTOR COMP.
34 6684602 RUBBER CAP
41 6689893 INLET MANIFOLD GASKET
44 6689841 CARBURETOR GASKET
45 6690489 CARBURETOR SET. SPARE
46 6685198 CLIP D6
48 6691714 TANK CAP ASS'Y
50 6691576 TANK WHT
51 6684618 SHIELD TUBE 3X5X180
52 6684856 AIR CLEANER BODY
55 6684859 SPACER
56 6684860 BLOW OVER CHECK BOARD
57 6684861 CLEANER SPONGE
58 6684862 CLEANER CAP
59 6684863 AIR CLEANER ASS'Y
60 6695353 SCREW 5X57/S
61 6684864 SMALL WASHER 5
62 6684880 FUEL PIPE 3X5X85
63 6697846 RETURN GROMMET
65 6695386 SCREW 5X16/PS
66 6692244 COLLAR 5.8
68 6692215 FUEL TANK BRACKET
70 6691389 AIR VENT ASS'Y
72 6692171 AIR VENT VALVE ASS'Y
81 6692745 MUFFLER GASKET
82 6687255 HEAT SHIELD
83 6692486 MUFFLER SET. SPARE
84 6695057 HEX. HOLE BOLT 5X70
85 6684822 SPECIAL WASHER B
86 6692883 MUFFLER SPECIAL GASKET
87 6692664 TAIL PIPE SET. SPARE
88 6685109 MACHINE SCREW (W/SP. WASHER) M4X8
101 6692982 RECOIL STARTER BODY ASSY
102 6693034 RECOIL STARTER BODY COMP..BLK
103 6684675 RECOIL SPRING
104 6693066 STARTER ROPE REEL
105 6693633 SET SCREW
106 6693168 ROPE
107 6693237 STARTER HANDLE
109 6693406 STARTER PULLEY ASSY
110 6693320 STARTER PAWL
111 6684684 STARTER PAWL SPRING
121 6684879 PUMP BODY COMP.
122 6684687 PRIMING PUMP COMP.
124 6684689 PRIMING BODY
125 6690827 METERING DIAPHRAGM COMP.
126 6684691 DIAPHRAGM GASKET
127 6684693 PUMP DIAPHRAGM
128 6691457 PUMP GASKET
129 6691844 MAIN JET #38
130 6684695 O-RING
131 6684696 STOP RING
132 6684697 SWIVEL
134 6684870 THROTTLE SET SCREW
136 6684872 LOCK NUT M6
137 6684871 CABLE ADJUSTER
138 6684875 CLEANER PACKING
141 6684700 INLET SCREEN
161 6685602 FAN CASE E. COMP.
162 6686322 VOLUTE CASE
163 6686264 DUST COVER
164 6695255 TAPPING SCREW 5X20
166 6687752 STOP SWITCH ASS'Y
167 6692827 MUFFLER PROTECTOR
168 6684834 SPRING WASHER 5
169 6695255 TAPPING SCREW 5X20
171 6687173 FAN
174 6688422 STRAIGHT PIPE
175 6688433 FAN HEADED PIPE
176 6690785 CLAMP BAND COMP.
177 6693915 THROTTLE WIRE COMP.
178 6684914 BUTTON STOP
179 6684913 SCREW 3X10
180 6689740 SPECIAL KNOB
182 6686332 COVER PIN
183 6693356 SPRING
185 6695252 TAPPING SCREW 5X15
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Hitachi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to hitachi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Hitachi RB85E
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Hitachi Blower RB 85E Drawing

Hitachi Blower RB 85E Drawing

Download (676.29KB)

You might also like

HiKOKI Power Tools Italia S.p.a. SKU: 6685899
Piston Set for Blower Hitachi RB 85L Genuine spare part Hitachi-HIKOKI Tanaka, Piston Set with Piston + Piston Rings and Pin Circlip for Blower RB 85E. Part for the following products: -  BLOWER HITACHI RB 85E - BLOWER TANAKA THB...
Last items in stock €39.75
HiKOKI Power Tools Italia S.p.a. SKU: 6685709
Cylinder Gasket for Blower Hitachi Tanaka RB 85E Genuine part Hitachi-HIKOKI Tanaka, Cylinder Gasket for Blower RB 85E. Part for the following products: -  BLOWER HITACHI RB 85E - BLOWER TANAKA THB 2510 N - Code : 6685709
AVAILABLE €2.52
HiKOKI Power Tools Italia S.p.a. SKU: 6684591
Piston Pin for Brushcutter Hitachi CG27EASP Genuine part Hitachi Koky Tanaka, Piston Pin for Brushcutters CG24EASP - CG24EKS - CG25EUS - CG27EASP - CG27EJ(SLNP) Parts for the following products: - Brushcutter Hitachi CG24EASP -...
Last items in stock €4.14
HiKOKI Power Tools Italia S.p.a. SKU: 6695386
Screw 5x16/PS for Brushcutter Tanaka TBC-600 Genuine spare part Tanaka, Screw 5x16/PS for Brushcutter Tanaka TBC-600  - Blower RB 85E. Part for the following products: - Brushcutter Tanaka TBC-600  -...
AVAILABLE €1.25
HiKOKI Power Tools Italia S.p.a. SKU: 6684590
Circlip for Brushcutter Hitachi CG 24EBS Original replacement part Hitachi Koky Tanaka, Piston Pin Circlip for Brushcutters, Chainsaws, Hedgecutters Hitachi - Tanaka. Part for the following...
Last items in stock €1.57
HiKOKI Power Tools Italia S.p.a. SKU: 6684834
Spring Washer 5 for Brushcutter Hitachi CG33EJ-SL Original spare part Hitachi, Spring Washer 5 for Brushcutters CG33EJ-SL - CG47EY-T - CG27EJ-SLNP - CG22EJ. Parts for the following products: - Brushcutter TBC-340 - Brushcutter...
AVAILABLE €1.04
HiKOKI Power Tools Italia S.p.a. SKU: 6692244
Collar 5.8 for Brushcutter Hitachi CG47EJ-L Original part Hitachi-HIKOKI, Fuel Tank Collar 5.8 for Brushcutters CG47EJ-L - CG47EY-T - CG40EF-L - CG47EF(L) - CG22EJ. Parts for the following...
Last items in stock €1.08
HiKOKI Power Tools Italia S.p.a. SKU: 6687642
Ignition Coil for Blower Hitachi RB 85L Genuine spare part Hitachi-HIKOKI Tanaka, Electronic Ignition Coil for Blower RB 85E . Brushcutter Tanaka TBC 265 IS Part for the following products: -  BLOWER HITACHI RB 85E -  Brushcutter...
Last items in stock €89.33
HiKOKI Power Tools Italia S.p.a. SKU: 6692982
Hitachi Blower RB85E Recoil Starter Ass'y Original replacement part Hitachi-HIKOKI, Recoil Starter Body Assembly for Blower RB85E. Part for the following products: - Blower RB85E - Code: 6692982
Last items in stock €45.24
Comments (0)
