Hitachi Spare Parts for Engine Pump A25EBN

SKU: Hitachi A25EBN
€1.23
VAT included

Hitachi Spare Parts for Engine Pump A25EBN

Hitachi HIKOKI Tanaka genuine spare parts or replacement parts for to repair Engine Pump A25EBN.

A practical lightweight, powerful and functional Engine Pump for Irrigate a field, an orchard or a garden, draining flooded the foundations of a building or an empty swimming pool, with parts at the best price on the web.
Hitachi Spare Parts for Engine Pump A25EBN
  • Hitachi Spare Parts for Engine Pump A25EBN
  • Hitachi Spare Parts Diagram for Engine Pump A25EBN
  • Hitachi Spare Parts Diagram for Engine Pump A25EBN - 1
  • Hitachi Spare Parts Diagram for Engine Pump A25EBN - 2
  • Hitachi Spare Parts Diagram for Engine Pump A25EBN - 3
  • Hitachi Spare Parts Diagram for Engine Pump A25EBN - 4
  • Hitachi Spare Parts Diagram for Engine Pump A25EBN - 5
  • Hitachi Spare Parts Diagram for Engine Pump A25EBN - 6
  • Hitachi Spare Parts Diagram for Engine Pump A25EBN - 7
  • Hitachi Spare Parts Diagram for Engine Pump A25EBN - 8
  • Hitachi Spare Parts Diagram for Engine Pump A25EBN - 9

Hitachi Spare Parts for Engine Pump A25EBN

SKU: Hitachi A25EBN Condition: New
€1.23
VAT included

Hitachi Spare Parts for Engine Pump A25EBN

Hitachi HIKOKI Tanaka genuine spare parts or replacement parts for to repair Engine Pump A25EBN.

A practical lightweight, powerful and functional Engine Pump for Irrigate a field, an orchard or a garden, draining flooded the foundations of a building or an empty swimming pool, with parts at the best price on the web.
settings 115 spare parts
description 10 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

76 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 6687476 SPARK PLUG CAP €9.07
3
photo_cameraImage coming soon 6685480 CYLINDER WITH GASKET €65.49
4
photo_cameraImage coming soon 6684668 HEX.HOLE BOLT M5X20/S €1.27
5
photo_cameraImage coming soon 6685744 CYLINDER GASKET €2.09
6
Piston Ring for Hedge Trimmer Tanaka THT 210 6686118 Piston Ring for Hedge Trimmer Tanaka THT 210 €9.05
7
photo_cameraImage coming soon 6685892 PISTON WITH RINGS(2) AND RETAINERS(2) €32.86
8
Piston Pin for Brushcutter Hitachi Tanaka CG22EAS 6696944 Piston Pin for Brushcutter Hitachi Tanaka CG22EAS €7.30
9
photo_cameraImage coming soon 6686028 PISTON PIN CIRCLIP €1.53
10
photo_cameraImage coming soon 6686206 CRANKSHAFT €203.98
11
Ignition Coil for Hedge Trimmer Hitachi CH62EA(ST) 6695939 Ignition Coil for Hedge Trimmer Hitachi CH62EA(ST) €57.25 Not available for order
12
photo_cameraImage coming soon 6695407 HIGH TENSION SCREW 4X18WS €1.25
13
Insulator Tube for Chainsaw Hitachi CS25EC-SC 6684597 Insulator Tube for Chainsaw Hitachi CS25EC-SC €1.08
Page 2 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
22
photo_cameraImage coming soon 6686720 CRANK CASE GASKET €1.59
23
photo_cameraImage coming soon 6684607 OIL SEAL TB 12227 €3.20
24
photo_cameraImage coming soon 6684608 BALL BEARING 6001 C3 €6.06
27
photo_cameraImage coming soon 6684786 HEX. SOCKET HD. BOLT M5X30 S €1.60
28
photo_cameraImage coming soon 6687389 MAGNETO ROTOR COMP. €46.81
29
photo_cameraImage coming soon 6684611 BOLT WASHER M8 €1.24
30
photo_cameraImage coming soon 6684971 WASHER 8 €1.80
Page 3 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
41
photo_cameraImage coming soon 6689891 INTAKE PIPE GASKET €2.69
42
photo_cameraImage coming soon 6689966 CARB. INSULATOR SET,SPARE €13.24
44
photo_cameraImage coming soon 6689839 CARBURETOR GASKET €2.39
48
photo_cameraImage coming soon 6691272 CHOKE LEVER €3.08
49
photo_cameraImage coming soon 6684658 WAVE WASHER 8 €2.45
50
Blow Over Check Board for Brushcutter Hitachi CG40EAS 6690843 Blow Over Check Board for Brushcutter Hitachi CG40EAS €3.48
51
Washer D. 5 for Chainsaw Hitachi CS45EL-CS38EK 6684662 Washer D. 5 for Chainsaw Hitachi CS45EL-CS38EK €1.28
53
photo_cameraImage coming soon 6690364 CLEANER SPONGE €1.61
54
photo_cameraImage coming soon 6690415 AIR FILTER COVER €10.82
56
photo_cameraImage coming soon 6690483 CARBURETOR WYL81 €84.64
57
Shield Tube for Chainsaw Hitachi Tanaka TCS-2801S 6685247 Shield Tube for Chainsaw Hitachi Tanaka TCS-2801S €5.38
58
CLIP D6 6685198 CLIP D6 €1.99
59
photo_cameraImage coming soon 6698874 PESCANTE DOUBLE MIXTURE €21.96
60
Hitachi Engine Pump A25EBN Fuel Tank 6691569 Hitachi Engine Pump A25EBN Fuel Tank €18.47
61
Collar 5.8 for Brushcutter Hitachi CG47EJ-L 6692244 Collar 5.8 for Brushcutter Hitachi CG47EJ-L €1.08
62
Hex Hole Bolt M5x18PS for Hedge Trimmer Tanaka THT 210 6695505 Hex Hole Bolt M5x18PS for Hedge Trimmer Tanaka THT 210 €2.16
63
Tank Cap Ass'y (Black) for Brushcutter Hitachi CG40EFL 6691763 Tank Cap Ass'y (Black) for Brushcutter Hitachi CG40EFL €11.81
64
photo_cameraImage coming soon 6684625 TANK CAP CHAIN €1.78
Page 4 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
72
photo_cameraImage coming soon 6692744 MUFFLER GASKET €3.28
73
photo_cameraImage coming soon 6687252 HEAT SHIELD €3.30
77
photo_cameraImage coming soon 6684661 WASHER 5 €1.27
78
Hex Socket Hd Bolt M5X50 for Hedge Trimmer Tanaka THT 210 6685114 Hex Socket Hd Bolt M5X50 for Hedge Trimmer Tanaka THT 210 €1.66
79
photo_cameraImage coming soon 6692883 MUFFLER SPECIAL GASKET €1.93
81
photo_cameraImage coming soon 6695325 SCREW 4X8/S €1.24
83
photo_cameraImage coming soon 6695441 4X12PS SCREW €1.80
Page 5 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
84
photo_cameraImage coming soon 6687012 STARTER HOUSING €33.04
85
photo_cameraImage coming soon 6684675 RECOIL SPRING €12.16
86
photo_cameraImage coming soon 6693066 STARTER ROPE REEL €5.99
87
photo_cameraImage coming soon 6693633 SET SCREW €1.74
88
photo_cameraImage coming soon 6693405 STARTER PULLEY ASS'Y €9.09
89
photo_cameraImage coming soon 6688050 GROMMET €1.56
90
photo_cameraImage coming soon 6693168 ROPE €3.26
91
photo_cameraImage coming soon 6693237 STARTER HANDLE €5.27
92
photo_cameraImage coming soon 6695374 SCREW 4X16/PS €1.24
93
photo_cameraImage coming soon 6684684 STARTER PAWL SPRING €3.48
94
Starter Pawl for Hedge Trimmer Hitachi CH78EC(C) 6693319 Starter Pawl for Hedge Trimmer Hitachi CH78EC(C) €3.46
Page 6 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
121
photo_cameraImage coming soon 6684698 SCREW €3.06
122
photo_cameraImage coming soon 6684697 SWIVEL €4.96
123
photo_cameraImage coming soon 6684696 STOP RING €1.76
124
photo_cameraImage coming soon 6684695 ORING €3.16
126
photo_cameraImage coming soon 6691457 PUMP GASKET €9.57
127
Pump Diaphragm for Chainsaw Hitachi CS33EB 6684693 Pump Diaphragm for Chainsaw Hitachi CS33EB €9.95
128
Carburator Inlet Screen for Chainsaws and Bruschcutters Hitachi 6684700 Carburator Inlet Screen for Chainsaws and Bruschcutters Hitachi €3.18
129
photo_cameraImage coming soon 6691432 PUMP BODY €46.18
130
Diaphragm Packing Metering for Chainsaws Hitachi CS25-33-40-45-51 6685220 Diaphragm Packing Metering for Chainsaws Hitachi CS25-33-40-45-51 €3.45
131
Metering Diaphragm Comp. for Chainsaws Hitachi CS25-33-40-45-51 6690827 Metering Diaphragm Comp. for Chainsaws Hitachi CS25-33-40-45-51 €23.70
132
photo_cameraImage coming soon 6685222 DIAPHRAGM COVER €6.54
133
photo_cameraImage coming soon 6691312 SET SCREW €2.48
Page 7 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
152
photo_cameraImage coming soon 6695688 O-RING G140 €14.19
160
photo_cameraImage coming soon 6693683 THROTTLE LEVER, 16 DIA. €11.33
Page 8 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
175
Mechanical Seal for Engine Pumps A25EBN-TCP-25B 6687496 Mechanical Seal for Engine Pumps A25EBN-TCP-25B €59.69
176
photo_cameraImage coming soon 6689039 OIL SEAL €7.47
177
photo_cameraImage coming soon 6689535 GASKET €21.64
181
photo_cameraImage coming soon 6686258 WATER FITTING €26.81
Page 9 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
info_outline

No spare parts mapped to this page.
Check the other pages for available parts.

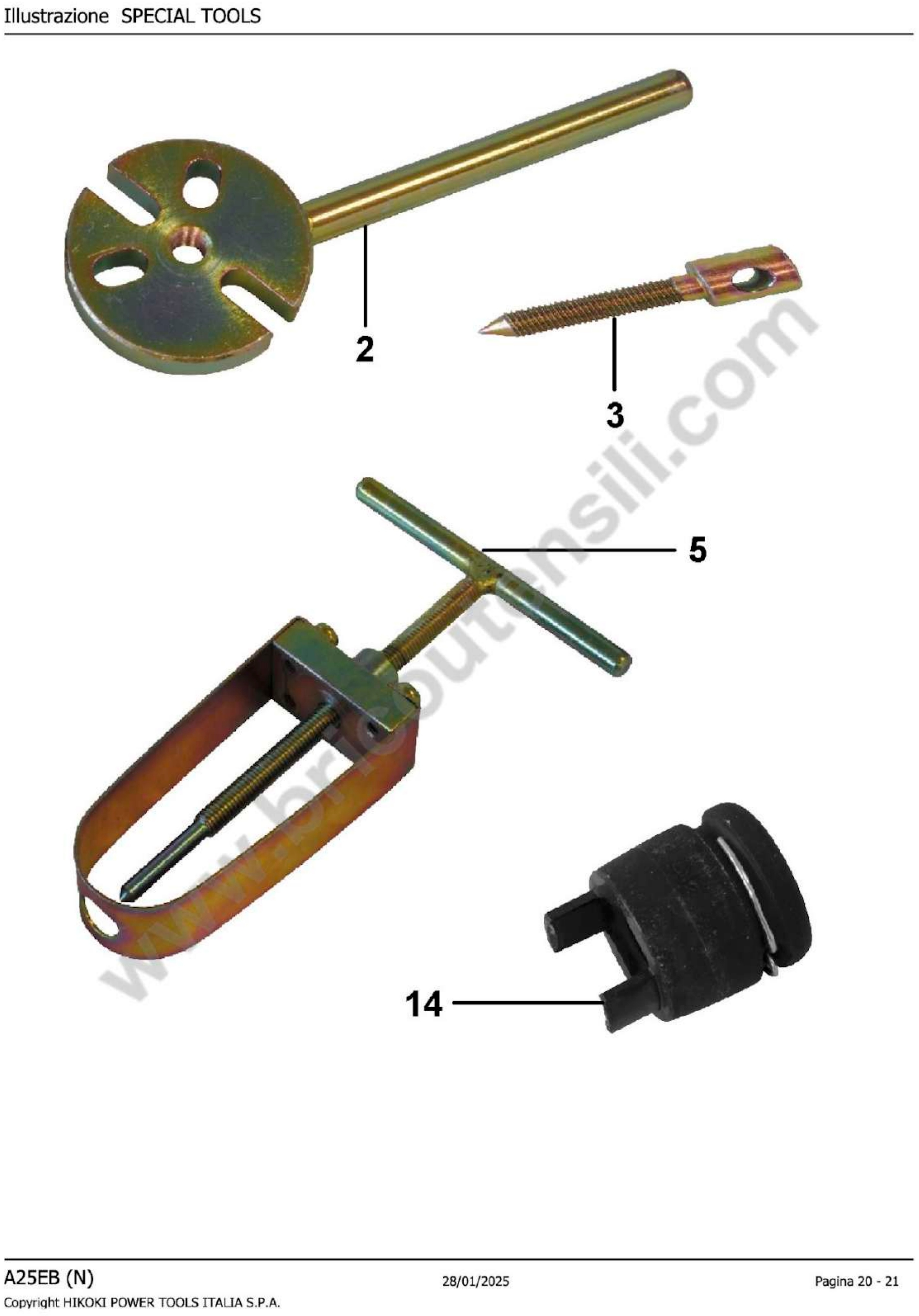

Page 10 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
3
photo_cameraImage coming soon 6695737 FLYWHEEL EXTRACTOR BOLT €22.13
5
photo_cameraImage coming soon 6695740 PISTON PIN EXTRACTOR €80.81
14
photo_cameraImage coming soon 6695754 CLUTCH PULLER €104.29

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Hitachi Spare Parts for Engine Pump A25EBN

Hitachi HIKOKI Tanaka genuine spare parts or replacement parts for to repair Engine Pump A25EBN.

In the following table, look for the model of Pump and the respective parts of the code.
A25EBN

HIKOKI ENGINE PUMP A25EB (N) Parts List Pag.1

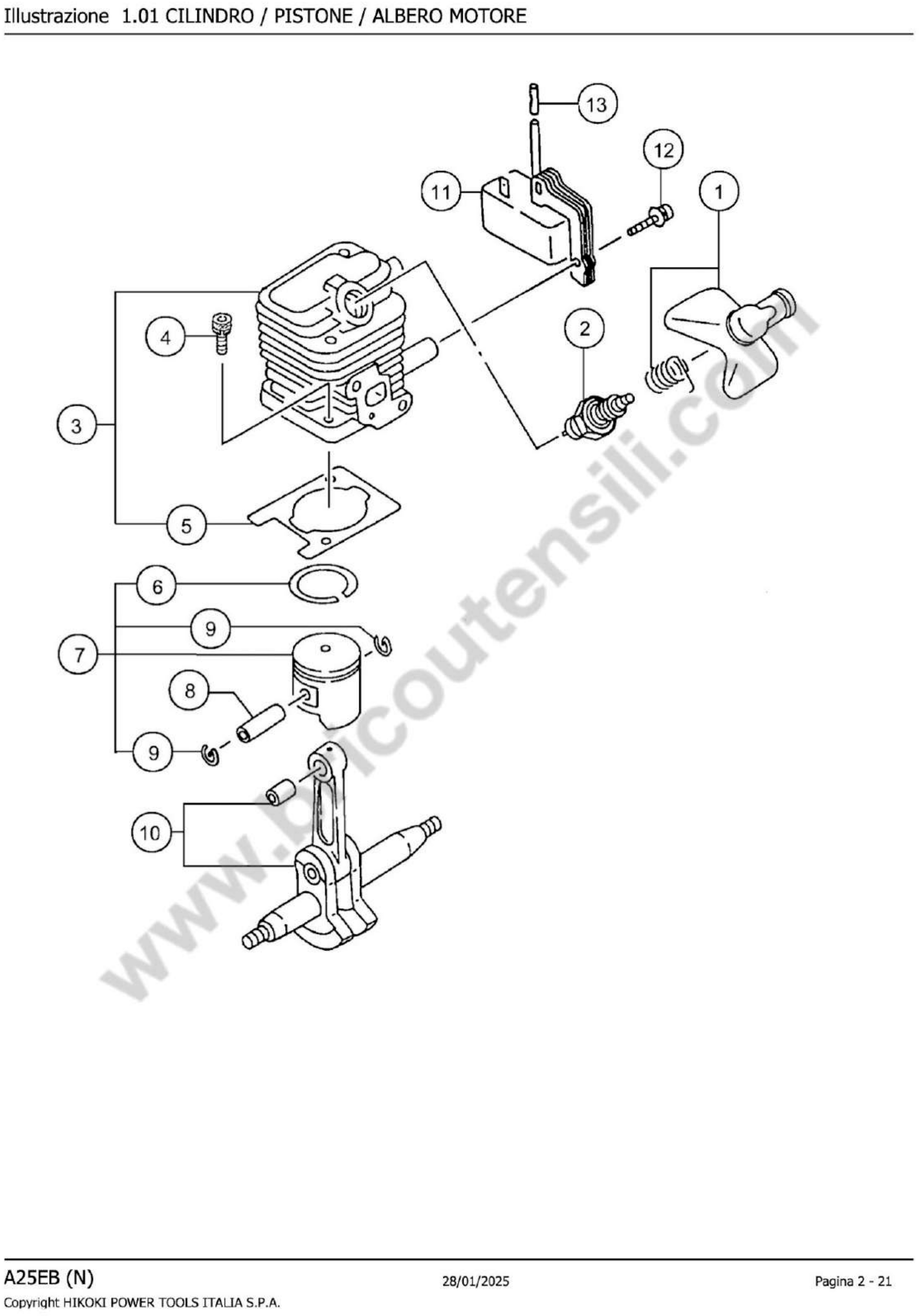

Illustrazione 1.01 CILINDRO / PISTONE / ALBERO MOTORE
# Part Num. Description
1 6687476 SPARE PLUG CAP
3 6685480 CYLINDER WITH GASKET
4 6684668 SCREW M5X20/S
5 6685744 CYLINDER GASKET
6 6686118 PISTON RING
7 6685892 PISTON WITH RINGS(2) AND RETAINERS(2)
8 6696944 PISTON PIN
9 6686028 PIN RETAINER
10 6686206 CRANKSHAFT
11 6695939 IGNITION COIL COMP
12 6695407 SCREW 4X18WS
13 6684597 TUBE

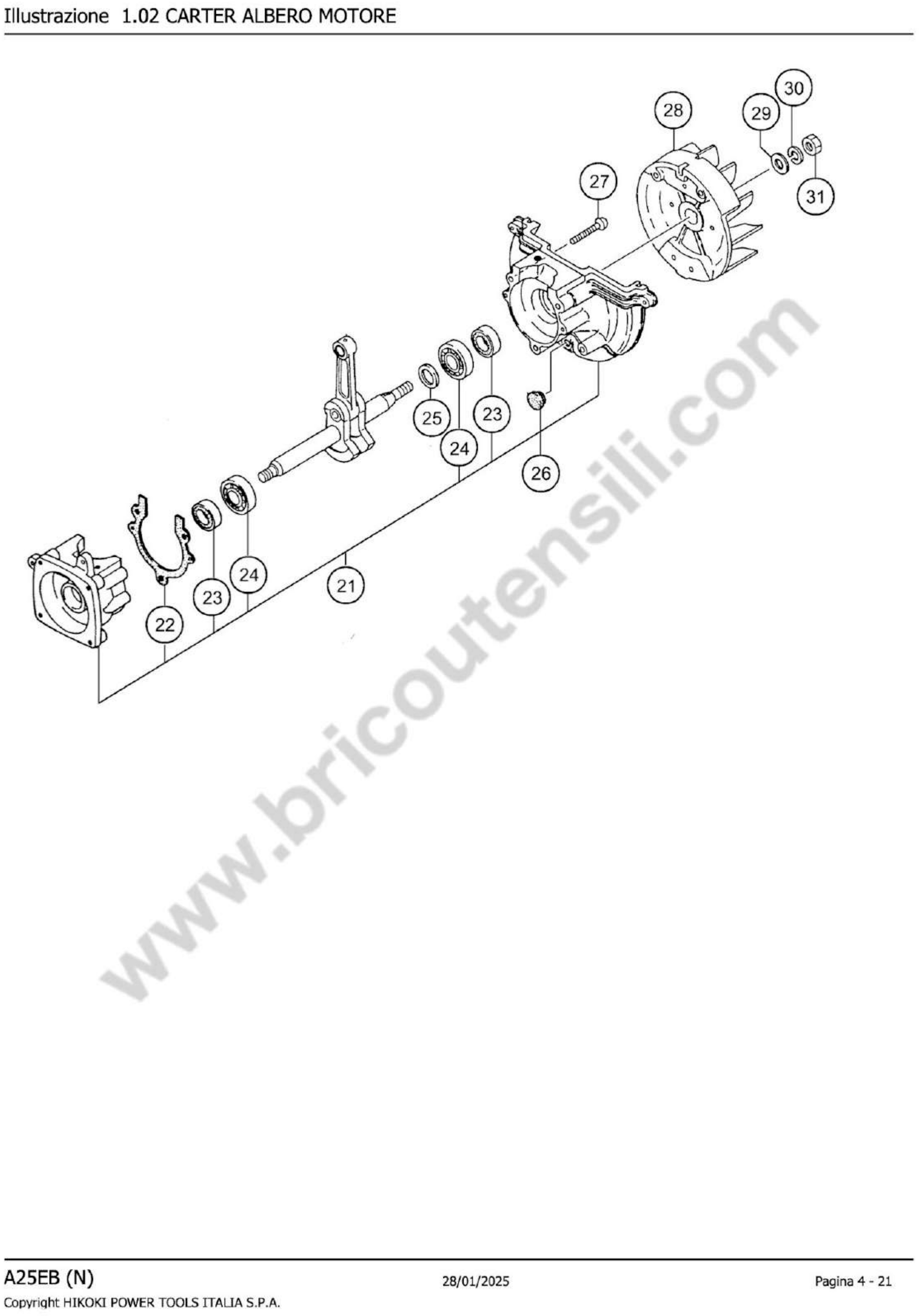

Illustrazione 1.02 CARTER ALBERO MOTORE Pag.2
# Part Num. Description
21 6686576 ENGINE CASE
22 6686720 CRANKSHAFT CRANKCASE GASKET
23 6684607 OIL SEAL TB 12227
24 6684608 BEARING 6001 C3 NSK
25 6684604 SHIM 0.20
25 6684605 SHIM 0.30
26 6691822 RUBBER
27 6684786 SCREW M5X30S
28 6687389 FLYWHEEL
29 6684611 WASHER M8
30 6684971 WASHER 8
31 6684612 NUT M8

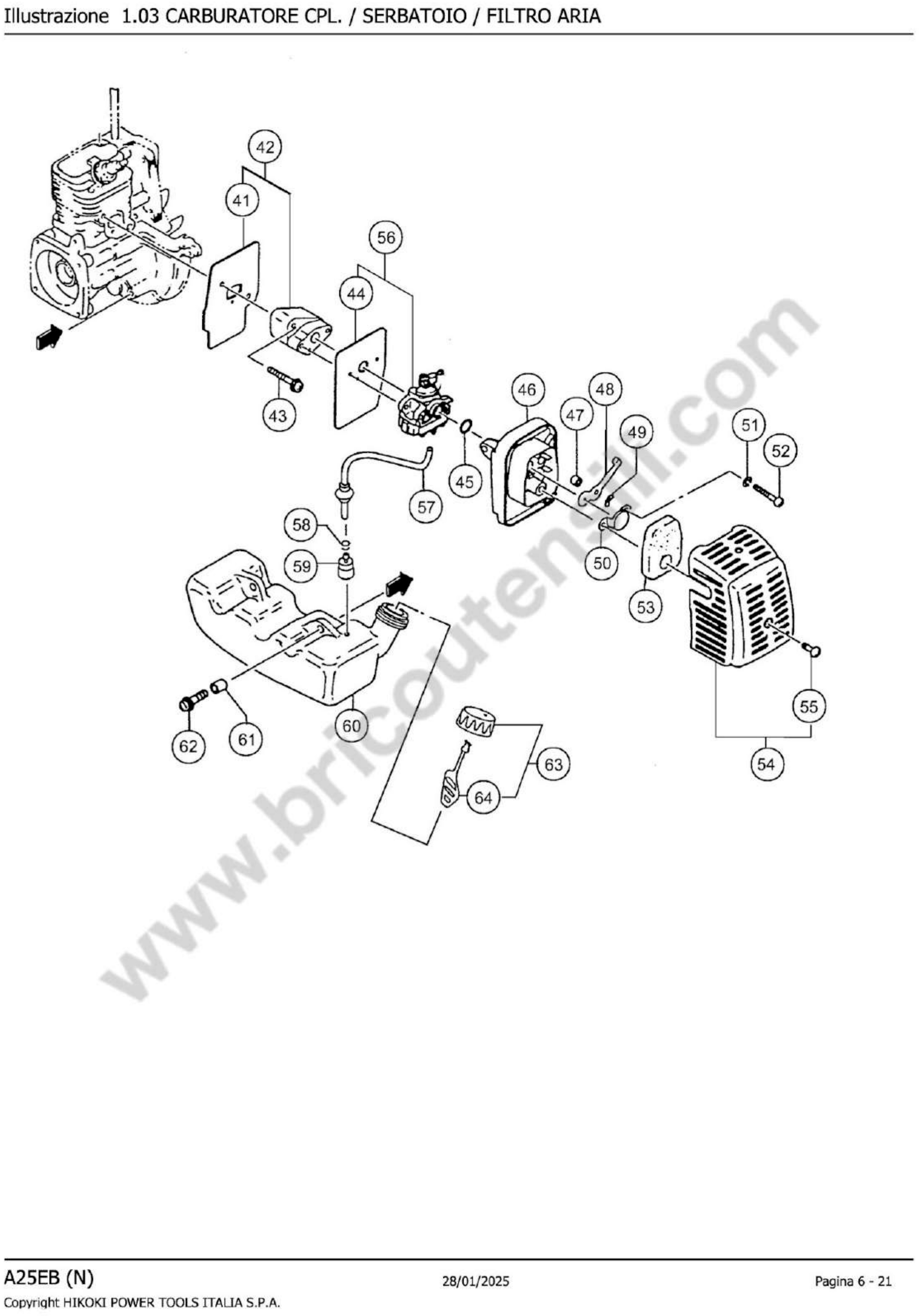

Illustrazione 1.03 CARBURATORE CPL. / SERBATOIO / FILTRO ARIA Pag.3
# Part Num. Description
41 6689891 GASKET
42 6689966 COLLECTOR W/GASKET
43 6696988 MACHINE SCREW (W/WASHERS) M5X25 (BLACK)
44 6689839 GASKET
45 6698966 O-RING P-15
46 6690119 FILTER BODY
47 6690804 BUSH
48 6691272 CHOKE LEVER
49 6684658 *SEE HTR334242 WASHER
50 6690843 VALVE
51 6684662 WASHER
52 6684660 SCREW M5X60
53 6690364 AIR FILTER
54 6690415 AIR FILTER COVER
55 6689737 SCREW
56 6690483 CARBURETOR WYL81
57 6685247 SHIELD TUBE
58 6685198 CLIP D6
59 6698874 OLD 6684620 FUEL FILTER
60 6691569 FUEL TANK, WHITE
61 6692244 COLLAR 5.8
62 6695505 SCREW 5X18PS
63 6691763 FUEL CAP
64 6684625 TANK CAP CHAIN

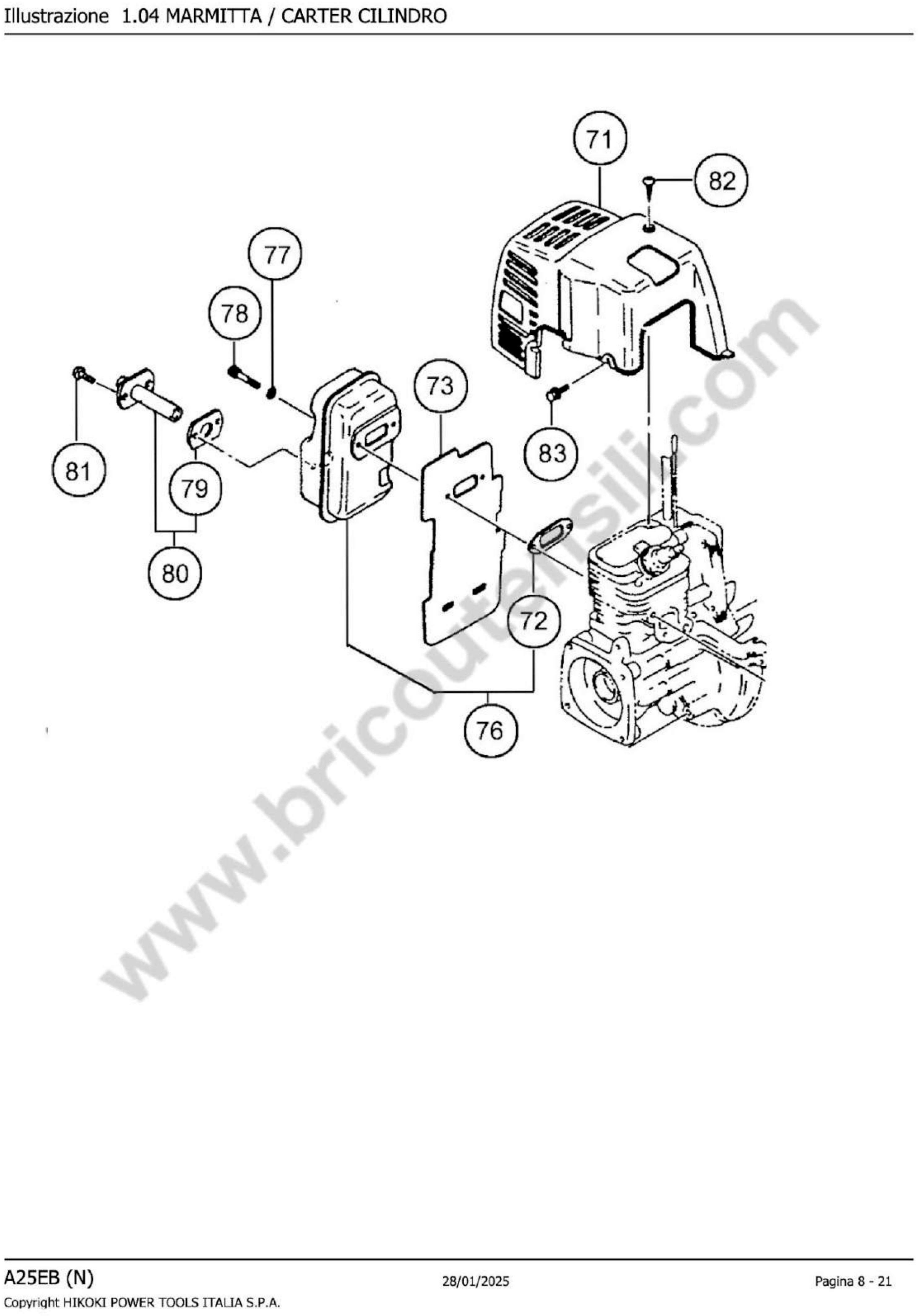

Illustrazione 1.04 MARMITTA / CARTER CILINDRO Pag.4
# Part Num. Description
71 6692796 MUFFLER PROTECTION
72 6692744 MUFFLER GASKET
73 6687252 HEAT PROTECTION
76 6692478 MUFFLER
77 6684661 M5 WASHER
78 6685114 M5X50 SCREW
79 6692883 GASKET
80 6692663 SPARK ARRESTER
81 6695325 4X8/S SCREW
82 6684636 D4.5X16 SCREW
83 6695441 4X12PS SCREW

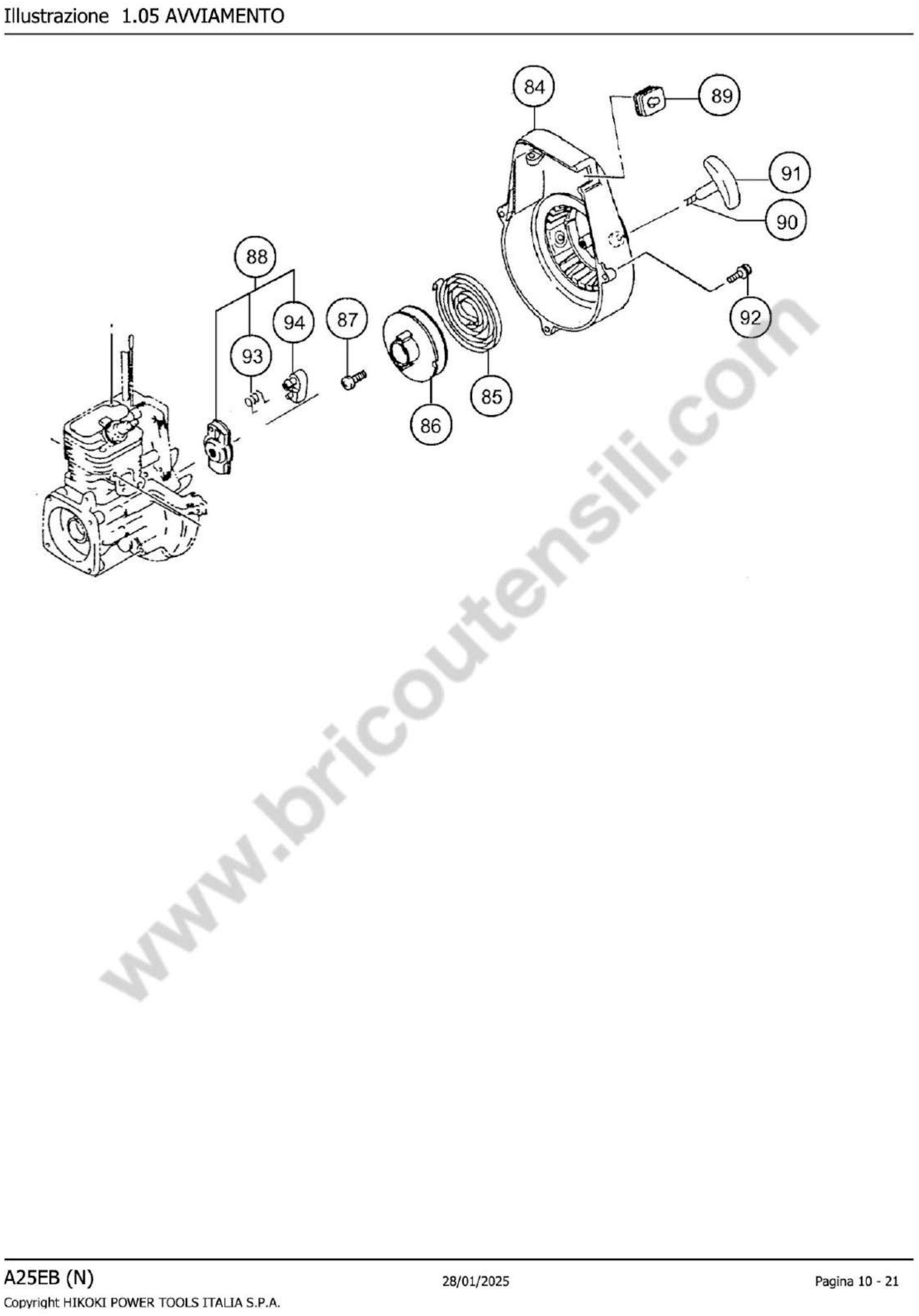

Illustrazione 1.05 AVVIAMENTO Pag.5
# Part Num. Description
84 6687012 STARTER HOUSING
85 6684675 STARTER SPRING
86 6693066 STARTER PULLEY
87 6693633 SCREW SET
88 6693405 COMPLETE STARTER CONNECTOR
89 6688050 RUBBER
90 6693168 STARTER CABLE
91 6693237 STARTER KNOB
92 6695374 SCREW 4X16/PS
93 6684684 RATCHET SPRING
94 6693319 STARTER PAWL

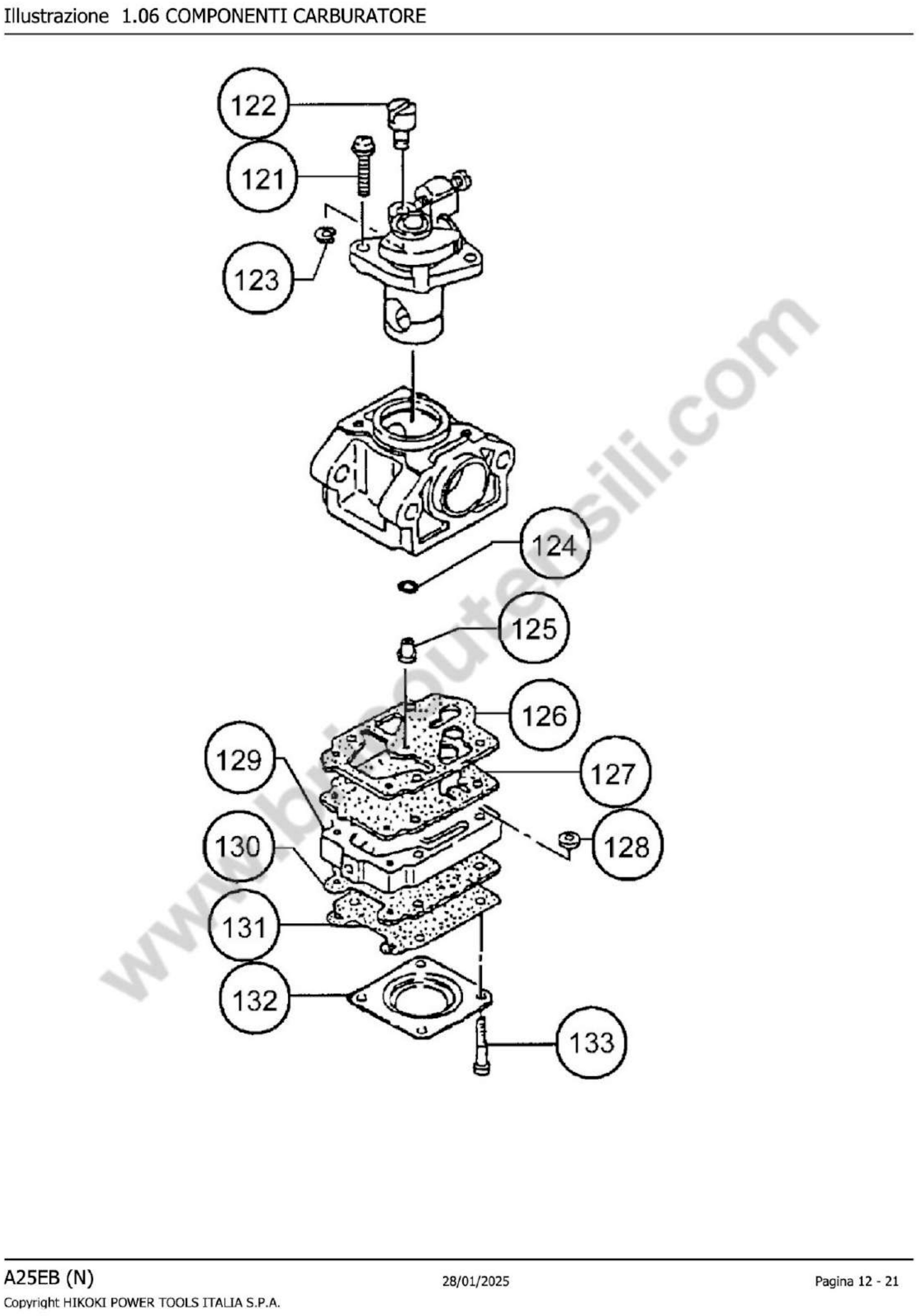

Illustrazione 1.06 COMPONENTI CARBURATORE Pag.6
# Part Num. Description
121 6684698 SCREW
122 6684697 PIVOT
123 6684696 RING
124 6684695 O-RING
125 6691845 MASSIVE JET
126 6691457 PUMPING SEAL
127 6684693 PUMPING MEMBRANE
128 6684700 FILTER NET
129 6691432 PUMP BODY
130 6685220 DISC SEAL
131 6690827 DISC MEMBRANE
132 6685222 COVER
133 6691312 SCREW

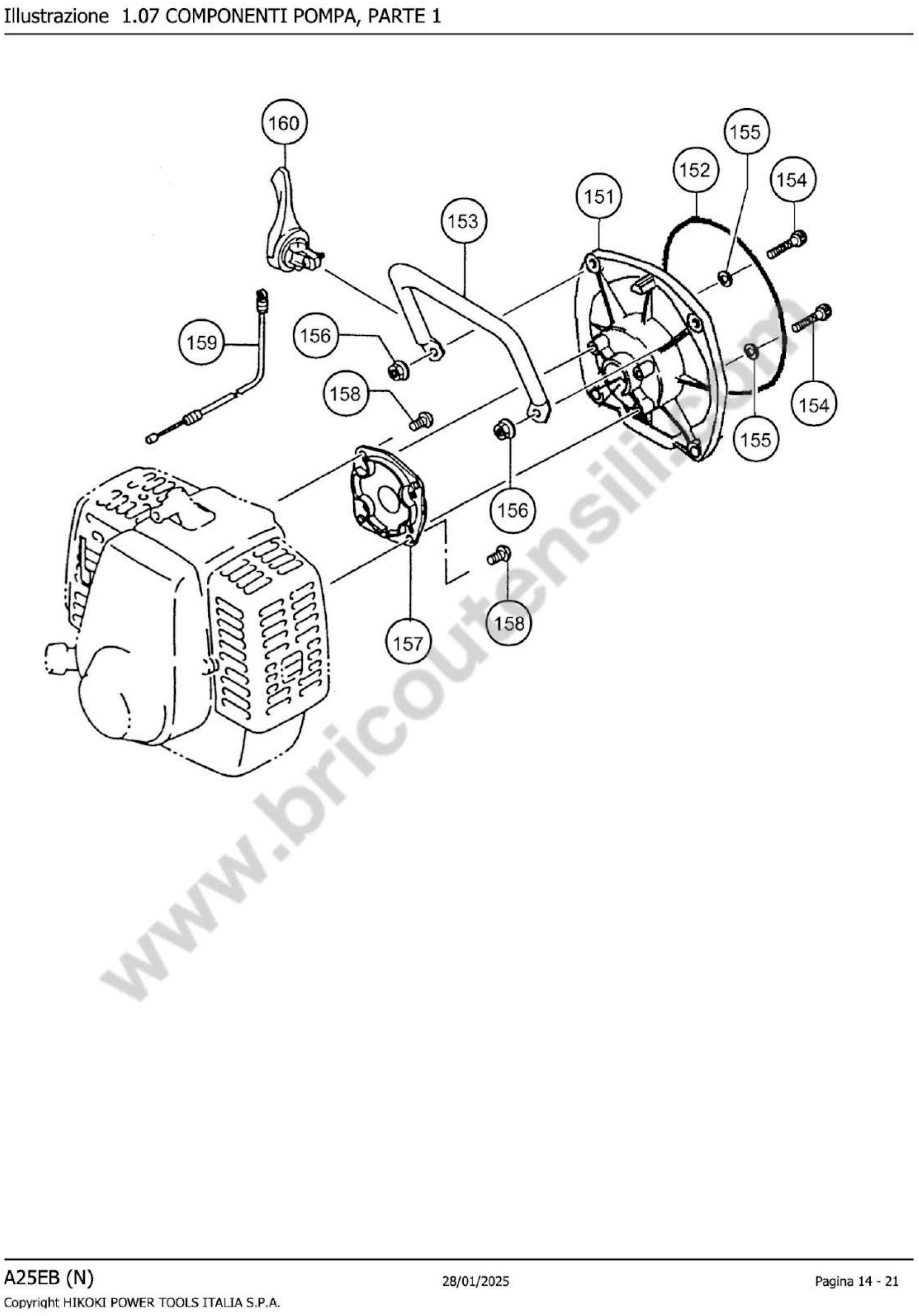

Illustrazione 1.07 COMPONENTI POMPA, PARTE 1 Pag.7
# Part Num. Descrizione
151 6688640 CARTER
152 6695688 O-RING G140
153 6686732 MANIGLIA
154 6694976 VITE 5X25
155 6689684 RONDELLA
156 6695171 DADO 8
157 6689247 FLANGIA
158 6695358 VITE 6X16/S
159 6693909 CAVO ACCELERATORE
160 6693683 LEVA ACCELERATORE

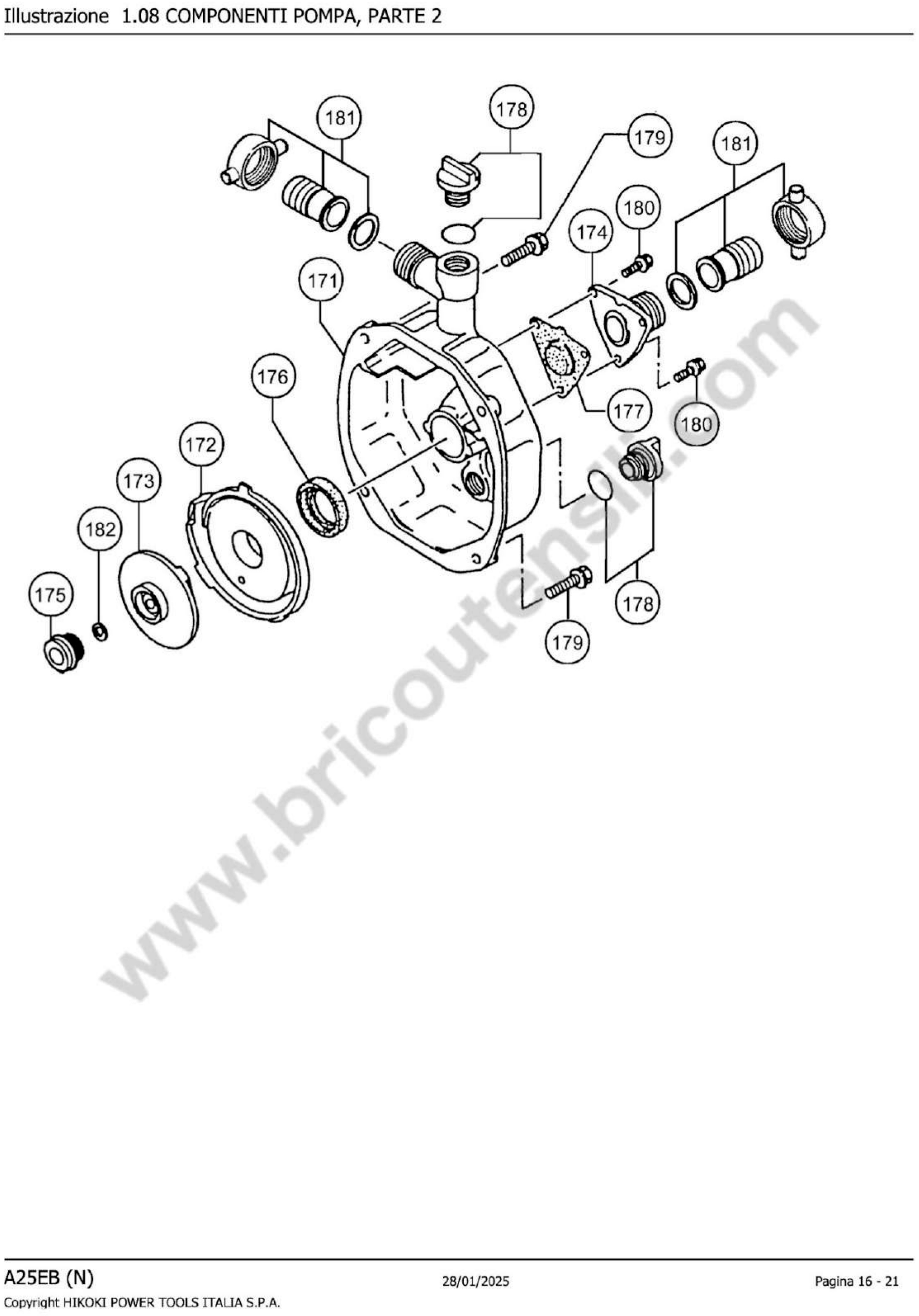

Illustrazione 1.08 COMPONENTI POMPA, PARTE 2 Pag.8
# Part Num. Description
171 6689180 PUMP CASE
172 6689002 IMPELLER SEAT
173 6685958 IMPELLER
174 6689132 FITTING
175 6687496 MECHANICAL SEAL ASS'Y A
176 6689039 OIL SEAL
177 6689535 GASKET
178 6689660 COMPLETE PRIMER
179 6695480 SCREW 8X35
180 6695477 SCREW 6X16
181 6686258 WATER FITTING
182 6685978 SHIM 0.30
Illustrazione 1.09 ACCESSORI / ETICHETTA Pag.9
# Part Num. Description
201 6686629 BASE EX 080-31240-20/21
202 6689060 RUBBER
203 6695251 TAPPING SCREW 5X14 (OLD 993-11051-4
204 6687218 WIRE BAND 33 (OLD 132-31223-20/6687
205 6686782 FILTER COMPLETE
602 6695730 NAME PLATE A25EB(N) (OLD 906-51750-
Illustrazione SPECIAL TOOLS Pag.10
# Part Num. Description
2 6695736 FLYWHEEL PULLER
3 6695737 FLYWHEEL PULLER BOLT
5 6695740 PIN PULLER
14 6695754 CLUTCH REMOVER
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Hitachi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to hitachi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.

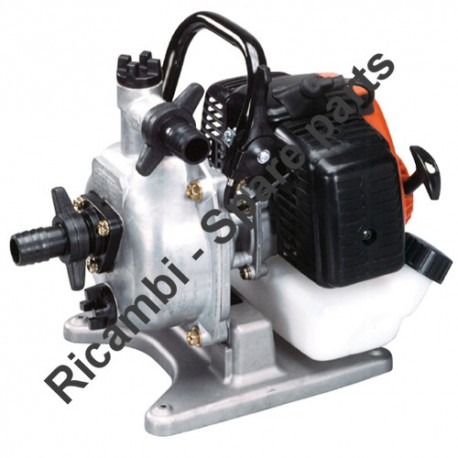

Hitachi A25EBN
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Hitachi A25EBN Parts Diagram

Hitachi A25EBN Parts Diagram

Download (727.03KB)

You might also like

HiKOKI Power Tools Italia S.p.a. SKU: 6687496
Mechanical Seal for Engine Pumps A25EBN-TCP-25B Genuine spare parts Hitachi HIKOKI Tanaka, Mchanical seal Assembly for Engine Pumps A25EBN - TCP-25B. Part for the Following Product: -  Engine Pump Hitachi A25EBN -  Engine...
Last items in stock €59.69
HiKOKI Power Tools Italia S.p.a. SKU: 6696944
Piston Pin for Brushcutter Hitachi Tanaka CG22EAS Genuine spare part Hitachi Koky Tanaka, Piston Pin for Brushcutters CG22EAB - CG22EAS - Edge Trimmer Hitachi CH22EBP2 Part for the following products: - Pump Hitachi A25EB(N) -...
Last items in stock €7.30
HiKOKI Power Tools Italia S.p.a. SKU: 6685247
Shield Tube for Chainsaw Hitachi CS25EC-SC Original spare part Hitachi Koky Tanaka, Shield Tube for Chainsaws CS25EC-SC - CS 30EC - CS33ET - CS33EA. Part for the following products:...
Last items in stock €5.12
HiKOKI Power Tools Italia S.p.a. SKU: 6692244
Collar 5.8 for Brushcutter Hitachi CG47EJ-L Original part Hitachi-HIKOKI, Fuel Tank Collar 5.8 for Brushcutters CG47EJ-L - CG47EY-T - CG40EF-L - CG47EF(L) - CG22EJ. Parts for the following...
Last items in stock €1.08
HiKOKI Power Tools Italia S.p.a. SKU: 6686118
Piston Ring for Hedge Trimmer Tanaka THT 210 Original parts Hitachi Koky Tanaka, Piston Ring for Hedge Trimmer THT 210 - THT 210 B - THT 210 S Parts for the following products: -  Hedge...
Last items in stock €9.05
HiKOKI Power Tools Italia S.p.a. SKU: 6695939
Ignition Coil for Hedge Trimmer Hitachi CH62EA(ST) Original spare part Hitachi HiKoki Tanaka, Ignition Coil for Hedge Trimmers Hitachi CH62EA(ST) - CH62EA3(ST). Part for the following products:...
Available in 7/10 days €57.25
HiKOKI Power Tools Italia S.p.a. SKU: 6691569
Hitachi Engine Pump A25EBN Fuel Tank Genuine spare parts Hitachi HIKOKI Tanaka, Fuel Tank, White for Engine Pumps A25EBN - TCP-25B. Part for the Following Product: -  Engine Pump Hitachi A25EBN -  Engine Pump...
Last items in stock €18.47
Comments (0)
