HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Engine Blower RB 24EAP

SKU: Hitachi RB24EAP
€16.38
VAT included

Hitachi Spare Parts for Engine Blower RB 24EAP

Hitachi original spare parts for to replace broken parts for to fix Engine Blower RB 24EAP.

Compact and light, powerful and effective, great for cleaning up any surface from foliage.
The Hitachi blower ensures extraordinary results with minimum effort and a great time saving.

Hitachi Spare Parts for Engine Blower RB 24EAP
  • Hitachi Spare Parts for Engine Blower RB 24EAP
  • Hitachi Spare Parts for Engine Blower RB 24EAP
HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Engine Blower RB 24EAP

SKU: Hitachi RB24EAP Condition: New
€16.38
VAT included

Hitachi Spare Parts for Engine Blower RB 24EAP

Hitachi original spare parts for to replace broken parts for to fix Engine Blower RB 24EAP.

Compact and light, powerful and effective, great for cleaning up any surface from foliage.
The Hitachi blower ensures extraordinary results with minimum effort and a great time saving.

settings 55 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
55 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

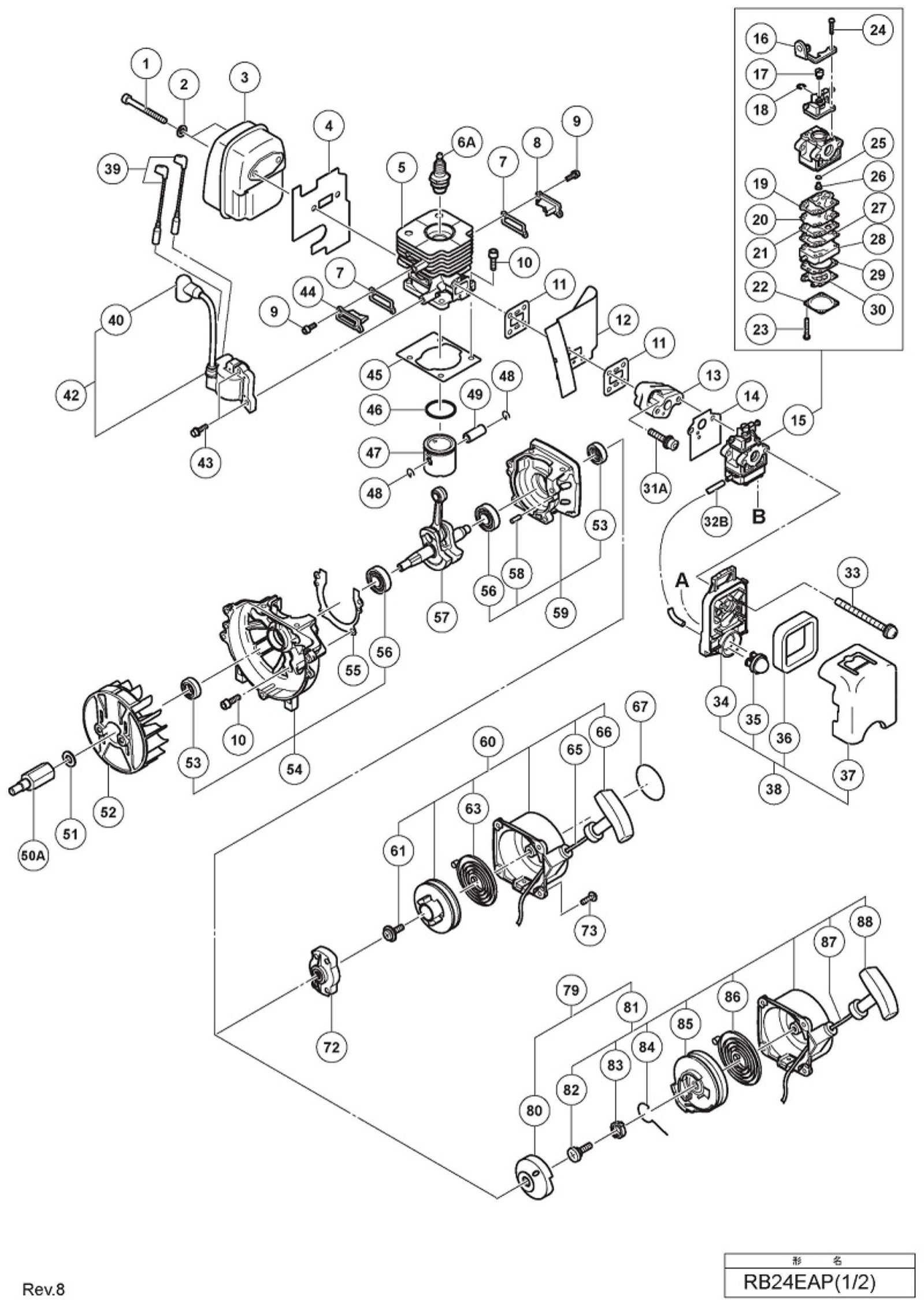

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
3
 photo_cameraImage coming soon 6698375 MUFFLER €59.72
4
 photo_cameraImage coming soon 6698374 HEAT PROTECTION PLATE €12.14
5
 photo_cameraImage coming soon 6698362 CYLINDER €67.04
7
 photo_cameraImage coming soon 6698365 COVER PACKING €2.38
8
 photo_cameraImage coming soon 6698363 SCAVENGING COVER(A) €2.38
12
 Flash Pan for Blower Hitachi Tanaka RB24EAP 6698372 Flash Pan for Blower Hitachi Tanaka RB24EAP €4.82
13
 Hitachi CH22EBP2 Carburetor Insulator 6698387 Hitachi CH22EBP2 Carburetor Insulator €6.04 Not available for order
14
 photo_cameraImage coming soon 6698405 CARBURETOR PACKING €4.82
15
 photo_cameraImage coming soon 6698373 CARBURETOR ASS'Y (WYC-27) €93.88
18
 photo_cameraImage coming soon 6684696 STOP RING €1.16
19
 photo_cameraImage coming soon 6684692 PUMP GASKET €26.78
20
 Pump Diaphragm for Chainsaw Hitachi CS33EB 6684693 Pump Diaphragm for Chainsaw Hitachi CS33EB €9.70
21
 photo_cameraImage coming soon 6691242 PUMP PLATE €6.04
25
 photo_cameraImage coming soon 6684695 ORING €3.60
27
 Circuit Plate Gasket for Brushcutter Hitachi CG22EAS 6691234 Circuit Plate Gasket for Brushcutter Hitachi CG22EAS €7.26
28
 photo_cameraImage coming soon 6696828 PUMP BODY COMP. €25.56
29
 Diaphragm Packing Metering for Chainsaws Hitachi CS25-33-40-45-51 6685220 Diaphragm Packing Metering for Chainsaws Hitachi CS25-33-40-45-51 €3.60
30
 Metering Diaphragm for Chainsaws Hitachi CS-33-40-51 6684690 Metering Diaphragm for Chainsaws Hitachi CS-33-40-51 €26.78
31A
 photo_cameraImage coming soon 6698844 SEAL LOCK HEX. SOCKET BOLT (W/WASHERS)M5 €2.38
34
 Air Filter Housing for Brushcutter Hitachi Tanaka CG22EAB 6696832 Air Filter Housing for Brushcutter Hitachi Tanaka CG22EAB €23.12
35
 Priming Pump for Chain Saws and Brushcutters Hitachi Tanaka 6685139 Priming Pump for Chain Saws and Brushcutters Hitachi Tanaka €13.36
36
 photo_cameraImage coming soon 6690347 CLEANER ELEMENT €6.04
37
 photo_cameraImage coming soon 6696831 AIR CLEANER COVER €15.80
38
 photo_cameraImage coming soon 6696549 AIR CLEANER ASS'Y €15.80
42
 HIKOKI RB24EAP Ignition Coil Ass'y 6698397 HIKOKI RB24EAP Ignition Coil Ass'y €41.42
44
 photo_cameraImage coming soon 6698364 SCAVENGING COVER (B) €2.38
45
 Cylinder Gasket for Brushcutter CG27EASP 6698366 Cylinder Gasket for Brushcutter CG27EASP €2.38
46
 Piston Ring for Bruschcutter and Blower Hitachi Tanaka 6698404 Piston Ring for Bruschcutter and Blower Hitachi Tanaka €9.70
47
 Piston for Brushcutter Hitachi Tanaka CG24EASP 6698368 Piston for Brushcutter Hitachi Tanaka CG24EASP €24.90
48
 Circlip for Brushcutter Hitachi CG 24EBS 6684590 Circlip for Brushcutter Hitachi CG 24EBS €1.16
49
 Piston Pin for Brushcutter Hitachi CG27EASP 6684591 Piston Pin for Brushcutter Hitachi CG27EASP €3.60
52
 photo_cameraImage coming soon 6698396 MAGNETO ROTOR COMP. €24.34
54
 photo_cameraImage coming soon 6698370 CRANK CASE (B) ASS'Y €35.32
55
 Hitachi CG27EASP Crankcase Packing 6698371 Hitachi CG27EASP Crankcase Packing €2.38
57
 photo_cameraImage coming soon 6696533 CRANK SHAFT COMP. €75.58
59
 photo_cameraImage coming soon 6698369 CRANK CASE (A) ASS'Y €29.22
60
 Recoil Starter Assembly for Blower Hitachi RB24EAP 6696572 Recoil Starter Assembly for Blower Hitachi RB24EAP €26.78
61
 photo_cameraImage coming soon 6693633 SET SCREW €1.16
63
 photo_cameraImage coming soon 6684675 RECOIL SPRING €12.14
72
 photo_cameraImage coming soon 6696471 STARTER PULLEY ASS'Y €9.70
79
 Recoil Starter Ass'y for Blower Hitachi RB24EAP 6600408 Recoil Starter Ass'y for Blower Hitachi RB24EAP €26.78
80
 photo_cameraImage coming soon 6600407 STARTER PULLEY €3.60
91
 photo_cameraImage coming soon 6698399 THROTTLE WIRE COMP. €3.60
92
 photo_cameraImage coming soon 6698391 THROTTLE LEVER €2.38
94
 photo_cameraImage coming soon 6685364 STOP SWITCH €6.04
95A
 photo_cameraImage coming soon 6699427 MUFFLER PROTECTOR €18.24
97A
 photo_cameraImage coming soon 6698716 FUEL PIPE €4.82
98
 photo_cameraImage coming soon 6698401 FUEL PIPE (PINK) €3.60
99A
 photo_cameraImage coming soon 6697846 RETURN GROMMET €2.38
101
 Fuel Tank Cap for Brushcutter Hitachi CG24ECP (SL) 6698402 Fuel Tank Cap for Brushcutter Hitachi CG24ECP (SL) €9.70
102A
 Fuel Tank for Brushcutters Hitachi CG24EASP-CG27EASP 6600317 Fuel Tank for Brushcutters Hitachi CG24EASP-CG27EASP €17.02
106
 photo_cameraImage coming soon 6698512 BOLT (W/FLANGE) L23.8 €2.38
107
 photo_cameraImage coming soon 6698394 NOZZLE (B) €9.70
108
 photo_cameraImage coming soon 6698393 NOZZLE (A) €20.68
113
 Fan for Blower Hitachi Tanaka RB24EAP 6698378 Fan for Blower Hitachi Tanaka RB24EAP €20.68
121
 photo_cameraImage coming soon 6698844 SEAL LOCK HEX. SOCKET BOLT (W/WASHERS)M5 €2.38
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

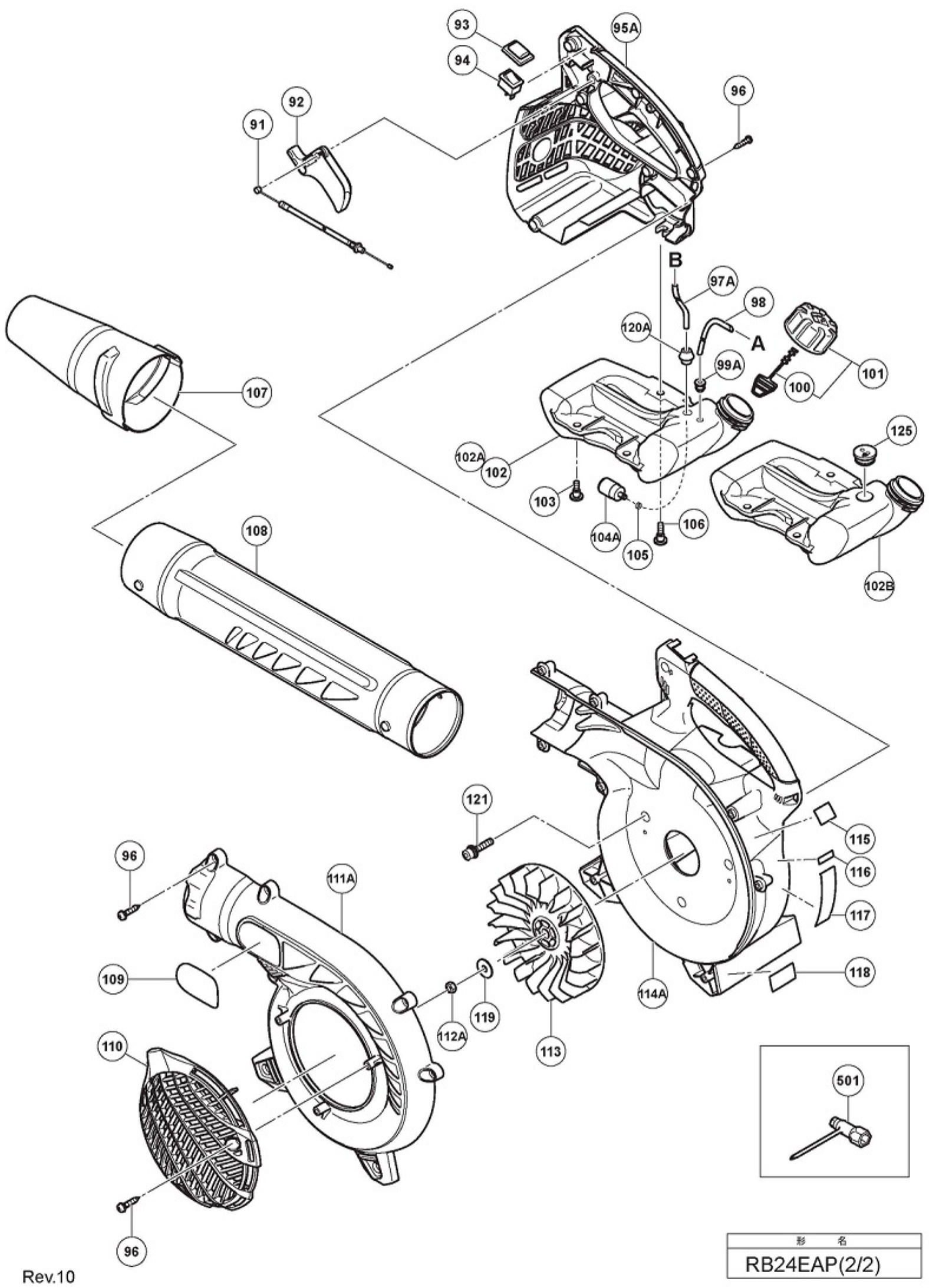

Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
91
 photo_cameraImage coming soon 6698399 THROTTLE WIRE COMP. €3.60
92
 photo_cameraImage coming soon 6698391 THROTTLE LEVER €2.38
94
 photo_cameraImage coming soon 6685364 STOP SWITCH €6.04
95A
 photo_cameraImage coming soon 6699427 MUFFLER PROTECTOR €18.24
97A
 photo_cameraImage coming soon 6698716 FUEL PIPE €4.82
98
 photo_cameraImage coming soon 6698401 FUEL PIPE (PINK) €3.60
99A
 photo_cameraImage coming soon 6697846 RETURN GROMMET €2.38
101
 Fuel Tank Cap for Brushcutter Hitachi CG24ECP (SL) 6698402 Fuel Tank Cap for Brushcutter Hitachi CG24ECP (SL) €9.70
102A
 Fuel Tank for Brushcutters Hitachi CG24EASP-CG27EASP 6600317 Fuel Tank for Brushcutters Hitachi CG24EASP-CG27EASP €17.02
106
 photo_cameraImage coming soon 6698512 BOLT (W/FLANGE) L23.8 €2.38
107
 photo_cameraImage coming soon 6698394 NOZZLE (B) €9.70
108
 photo_cameraImage coming soon 6698393 NOZZLE (A) €20.68
113
 Fan for Blower Hitachi Tanaka RB24EAP 6698378 Fan for Blower Hitachi Tanaka RB24EAP €20.68

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Hitachi Spare Parts for Engine Blower RB 24EAP

Hitachi original spare parts for to replace broken parts for to fix Engine Blower RB 24EAP.

In the following table, look for the model of Blower and the respective parts of the code.
Hitachi RB 24EAP

Engine Blower RB 24EAP
# Part Num. Description
3 6698375 MUFFLER
4 6698374 HEAT PROTECTION PLATE
5 6698362 CYLINDER
7 6698365 COVER PACKING
8 6698363 SCAVENGING COVER(A)
11 6684865 INSULATOR GASKET
12 6698372 FLASH PAN
13 6698387 CARBURETOR INSULATOR
14 6698405 CARBURETOR PACKING
15 6698373 CARBURETOR ASS'Y (WYC-27)
18 6684696 STOP RING
19 6684692 PUMP GASKET
20 6684693 PUMP DIAPHRAGM
21 6691242 PUMP PLATE
25 6684695 O-RING
27 6691234 CIRCUIT PLATE
28 6696828 PUMP BODY COMP.
29 6685220 DIAPHRAGM PACKING-METERING
30 6684690 METERING DIAPHRAGM
31A 6698844 SEAL LOCK HEX. SOCKET BOLT (W/WASHERS)M5
34 6696832 AIR CLEANER HOUSING
35 6685139 PRIMING PUMP COMP.
36 6690347 CLEANER ELEMENT
37 6696831 AIR CLEANER COVER
38 6696549 AIR CLEANER ASS'Y
42 6698397 IGNITION COIL ASS'Y
44 6698364 SCAVENGING COVER (B)
45 6698366 CYLINDER PACKING
46 6698404 PISTON RING
47 6698368 PISTON
48 6684590 CIR CLIP
49 6684591 PISTON PIN
52 6698396 MAGNETO ROTOR COMP.
54 6698370 CRANK CASE (B) ASS'Y
55 6698371 CRANK CASE PACKING
57 6696533 CRANK SHAFT COMP.
59 6698369 CRANK CASE (A) ASS'Y
60 6696572 RECOIL STARTER BODY ASS'Y
INCLUDES 61-66 UP TO YEAR OF PRODUCTION JULY 2014
61 6693633 SET SCREW
63 6684675 RECOIL SPRING
72 6696471 STARTER PULLEY ASS'Y
79 6600408 STARTER ASSY INCLUDE 80-81 SINCE 8 2014
80 6600407 STARTER PULLEY
85 6600405 RECOIL REEL
91 6698399 THROTTLE WIRE COMP.
92 6698391 THROTTLE LEVER
94 6685364 STOP SWITCH
95A 6699427 MUFFLER PROTECTOR
97A 6698716 FUEL PIPE
98 6698401 FUEL PIPE (PINK)
99A 6697846 RETURN GROMMET
101 6698402 FUEL TANK CAP ASS'Y
102A 6600317 TANK (B)
106 6698512 BOLT (W/FLANGE) L23.8
107 6698394 NOZZLE (B)
108 6698393 NOZZLE (A)
113 6698378 FAN
120A 6698931 FUEL GROMMET
121 6698844 SEAL LOCK HEX. SOCKET BOLT (W/WASHERS)M5
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Hitachi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to hitachi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Hitachi RB24EAP
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Hitachi RB 24EAP

Diagram Hitachi RB 24EAP

Download (456.32KB)

You might also like

Priming Pump for Chain Saws and Brushcutters Hitachi Tanaka
HiKOKI Power Tools Italia S.p.a. SKU: 6685139
Priming Pump for Chain Saws and Brushcutters Hitachi Tanaka
Priming Pump for Chain Saws and Brushcutters Hitachi Tanaka Genuine spare Hitachi Koky Tanaka, Priming Pump complete for Brushcutters and Chain Saws Hitachi Tanaka. Parts for the following products: - BRUSHCUTTER CG47EF (L) -...
AVAILABLE €13.36
Details
Fan for Blower Hitachi Tanaka RB24EAP Sale
HiKOKI Power Tools Italia S.p.a. SKU: 6698378
Fan for Blower Hitachi Tanaka RB24EAP
Fan for Blower Hitachi Tanaka RB24EAP Original replacement part  Hitachi Koky Tanaka, Fan for Blower Hitachi RB 24EAP. Part for the following products: - Blower Hitachi RB 24EAP - Tanaka ID: 6698378
AVAILABLE €20.68
Details
Piston for Brushcutter Hitachi Tanaka CG24EASP
HiKOKI Power Tools Italia S.p.a. SKU: 6698368
Piston for Brushcutter Hitachi Tanaka CG24EASP
Piston for Brushcutter Hitachi Tanaka CG24EASP Original parts for Brushcutter Hitachi Koky Tanaka, Piston for Brushcutter CG24EASP HITACHI -  Blower HITACHI RB 24EAP. Parts for the following products: - Brushcutter HITACHI CG24EASP...
AVAILABLE €24.90
Details
Piston Ring for Bruschcutter and Blower Hitachi Tanaka
HiKOKI Power Tools Italia S.p.a. SKU: 6698404
Piston Ring for Bruschcutter and Blower Hitachi Tanaka
Piston Ring for Bruschcutter and Blower Hitachi Tanaka Original spare part for Hitachi HiKoki Tanaka, Piston Ring for Bruschcutter and Blower Hitachi Tanaka. Part for the following products: - Bruschcutter CG24EASP - Blower RB 24EAP...
AVAILABLE €9.70
Details
Cylinder Gasket for Brushcutter CG27EASP
HiKOKI Power Tools Italia S.p.a. SKU: 6698366
Cylinder Gasket for Brushcutter CG27EASP
Cylinder Gasket for Brushcutter CG27EASP Genuine spare part for Brushcutters Hitachi Koky Tanaka, Cylinder Gasket for Brushcutter CG27EASP Blower RB24EAP Hitachi Tanaka. Part for the following article : - Bruschcutter CG27EASP -...
AVAILABLE €2.38
Details
Fuel Tank for Brushcutters Hitachi CG24EASP-CG27EASP
HiKOKI Power Tools Italia S.p.a. SKU: 6600317
Fuel Tank for Brushcutters Hitachi CG24EASP-CG27EASP
Fuel Tank for Brushcutters Hitachi CG24EASP-CG27EASP Genuine part Hitachi Koky Tanaka, Fuel Tank for Brushcutters CG24EASP - CG27EASP - Hedge Trimmer CS 27EPAP - Pruner CS 27EPAP - Blower RB 24EAP. Parts for the following...
Last items in stock €17.02
Details
Metering Diaphragm for Chainsaws Hitachi CS-33-40-51
HiKOKI Power Tools Italia S.p.a. SKU: 6684690
Metering Diaphragm for Chainsaws Hitachi CS-33-40-51
Metering Diaphragm for Chainsaws Hitachi CS-33-40-51 Original parts for Chainsaw Hitachi Koky Tanaka, Metering Diaphragm for Carburetor Chainsaws,CS33EDT - CS 33EB - CS40EA - TANAKA TCS-40EA - Hitachi CS51EAP -...
AVAILABLE €26.78
Details
Piston Pin for Brushcutter Hitachi CG27EASP
HiKOKI Power Tools Italia S.p.a. SKU: 6684591
Piston Pin for Brushcutter Hitachi CG27EASP
Piston Pin for Brushcutter Hitachi CG27EASP Genuine part Hitachi Koky Tanaka, Piston Pin for Brushcutters CG24EASP - CG24EKS - CG25EUS - CG27EASP - CG27EJ(SLNP) Parts for the following products: - Brushcutter Hitachi CG24EASP -...
Last items in stock €3.60
Details
Air Filter Housing for Brushcutter Hitachi Tanaka CG22EAB
HiKOKI Power Tools Italia S.p.a. SKU: 6696832
Air Filter Housing for Brushcutter Hitachi Tanaka CG22EAB
Air Filter Housing for Brushcutter Hitachi Tanaka CG22EAB Original spare part Hitachi, Air Cleaner Housing for Brushcutters CG22EAB(LP) - CG22EAP2(SL) - CG22EAS(SLP) -  CG24EAP2(SL) -  CG24EBSP(SL) -  CG27EAP2(SL) Part for the...
on 7/10 Business Days Approx. €23.12
Details
Flash Pan for Blower Hitachi Tanaka RB24EAP
HiKOKI Power Tools Italia S.p.a. SKU: 6698372
Flash Pan for Blower Hitachi Tanaka RB24EAP
Flash Pan for Blower Hitachi Tanaka RB24EAP Original replacement part  Hitachi Koky Tanaka, Flash Pan for Blower Hitachi RB 24EAP. Part for the following products: - Blower Hitachi RB 24EAP - Tanaka ID: 6698372
AVAILABLE €4.82
Details
Circlip for Brushcutter Hitachi CG 24EBS
HiKOKI Power Tools Italia S.p.a. SKU: 6684590
Circlip for Brushcutter Hitachi CG 24EBS
Circlip for Brushcutter Hitachi CG 24EBS Original replacement part Hitachi Koky Tanaka, Piston Pin Circlip for Brushcutters, Chainsaws, Hedgecutters Hitachi - Tanaka. Part for the following products: - Brushcutter CG25EUS -...
AVAILABLE €1.16
Details
Recoil Starter Assembly for Blower Hitachi RB24EAP
HiKOKI Power Tools Italia S.p.a. SKU: 6696572
Recoil Starter Assembly for Blower Hitachi RB24EAP
Recoil Starter Assembly for Blower Hitachi RB24EAP Original replacement part Hitachi-HIKOKI, Recoil Starter Assembly for Blower RB 24EAP - Brushcutters CG22EAB - CG22EAP2. - INCLUDES 61-66 UP TO YEAR OF...
Usually Ships in: 7/10 Business Days Approx. €26.78
Details
Recoil Starter Ass'y for Blower Hitachi RB24EAP
HiKOKI Power Tools Italia S.p.a. SKU: 6600408
Recoil Starter Ass'y for Blower Hitachi RB24EAP
Recoil Starter Ass'y for Blower Hitachi RB24EAP Original replacement part Hitachi-HIKOKI, Recoil Starter Assembly for Blower RB 24EAP - INCLUDES 80-81 SINCE 8 2014. Part for the following products: -  Blower RB 24EAP -  Blower TRB...
on Demand Only Call Us Before €26.78
Details
HIKOKI RB24EAP Ignition Coil Ass'y
HiKOKI Power Tools Italia S.p.a. SKU: 6698397
HIKOKI RB24EAP Ignition Coil Ass'y
HIKOKI RB24EAP Ignition Coil Ass'y Original replacement part Hitachi-HIKOKI, Ignition Coil Assembly for Blower RB 24EAP - RB 27EA - TRB 24EA. Part for the following products: - Blower RB 24EAP - Blower RB 27EA - ...
AVAILABLE €41.42
Details
Hitachi CG27EASP Crankcase Packing
HiKOKI Power Tools Italia S.p.a. SKU: 6698371
Hitachi CG27EASP Crankcase Packing
Hitachi CG27EASP Crankcase Packing Genuine replacement part Hitachi Koky Tanaka, Crankcase Packing for Brushcutters CG27EASP - CG27EAP2 - CG27EBDP - CG27EBSP - Tanaka TCG 27EBS - TCG 27EASP. Part...
Last items in stock €2.38
Details
Comments (0)
