HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Engine Hedge Trimmer CH 27EPAP

SKU: Hitachi CH27EPAP
€54.91
VAT included

Hitachi Spare Parts for Engine Hedge Trimmer CH 27EPAP

Hitachi genuine spare parts or replacement parts for to repair Engine Hedge Trimmer CH 27EPAP.

Professional machine ideal for maintenance of hedges large.
Hitachi Spare Parts for Engine Hedge Trimmer CH 27EPAP
  • Hitachi Spare Parts for Engine Hedge Trimmer CH 27EPAP
  • Hitachi Spare Parts for Engine Hedge Trimmer CH 27EPAP
HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Engine Hedge Trimmer CH 27EPAP

SKU: Hitachi CH27EPAP Condition: New
€54.91
VAT included

Hitachi Spare Parts for Engine Hedge Trimmer CH 27EPAP

Hitachi genuine spare parts or replacement parts for to repair Engine Hedge Trimmer CH 27EPAP.

Professional machine ideal for maintenance of hedges large.
settings 107 spare parts
description 3 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 7/10 Business Days Approx

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
107 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

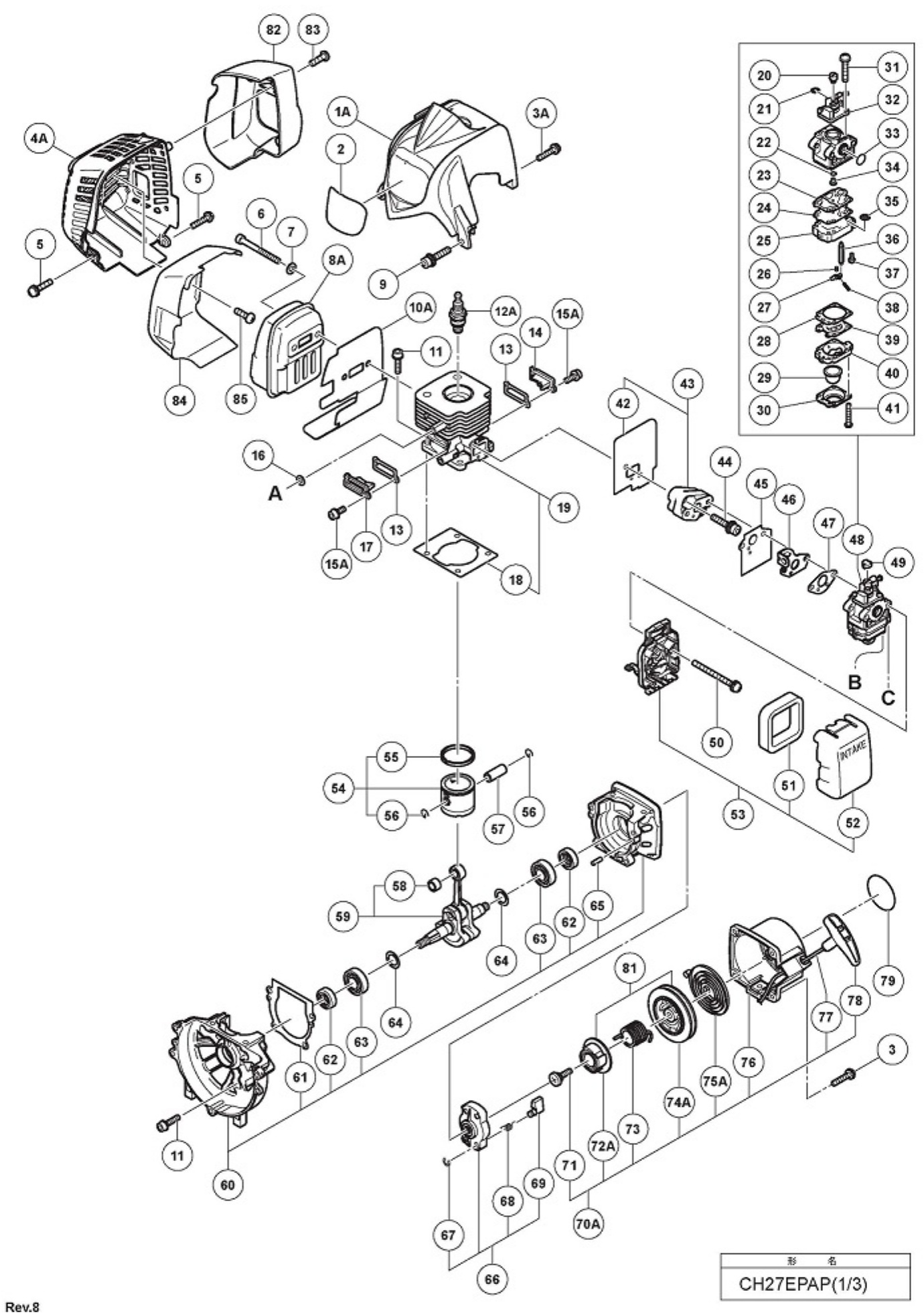

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
4A
 photo_cameraImage coming soon 6600336 MUFFLER COVER €12.14
6
 photo_cameraImage coming soon 6695067 HEX.HOLE BOLT 6X65 €2.38
7
 Bolt Washer 6 for Brushcutters Chainsaws Hitachi Hikoki Tanaka 6684639 Bolt Washer 6 for Brushcutters Chainsaws Hitachi Hikoki Tanaka €2.38
8A
 photo_cameraImage coming soon 6600004 MUFFLER (B) €57.28
10A
 photo_cameraImage coming soon 6600324 HEAT PROTECTION PANEL €3.60
14
 photo_cameraImage coming soon 6698484 SCAVENGING COVER (A) €4.82
15A
 photo_cameraImage coming soon 6684595 HEX. SOCKET HD. BOLT (W/SP.WASHER) M4X12 €1.16
17
 photo_cameraImage coming soon 6698485 SCAVENGING COVER (B) €4.82
19
 photo_cameraImage coming soon 6697679 CYLINDER SET PN €60.94
20
 photo_cameraImage coming soon 6684697 SWIVEL €4.82
21
 photo_cameraImage coming soon 6684696 STOP RING €1.16
22
 photo_cameraImage coming soon 6684695 ORING €3.60
23
 photo_cameraImage coming soon 6684692 PUMP GASKET €26.78
24
 Pump Diaphragm for Chainsaw Hitachi CS33EB 6684693 Pump Diaphragm for Chainsaw Hitachi CS33EB €9.70
27
 Control Lever for Chainsaw Hitachi CS25EC-SC 6685217 Control Lever for Chainsaw Hitachi CS25EC-SC €6.04
28
 photo_cameraImage coming soon 6684691 DIAPHRAGM GASKET €6.04
29
 photo_cameraImage coming soon 6684689 PRIMING BODY €7.26
32
 photo_cameraImage coming soon 6684883 THROTTLE VALVE €38.98
35
 Carburator Inlet Screen for Chainsaws and Bruschcutters Hitachi 6684700 Carburator Inlet Screen for Chainsaws and Bruschcutters Hitachi €3.60
36
 Carburator Needle Valve for Chainsaws Hitachi-HiKoki Tanaka 6685215 Carburator Needle Valve for Chainsaws Hitachi-HiKoki Tanaka €10.92
38
 Hitachi CS25EC-SC Hinge Pin 6685219 Hitachi CS25EC-SC Hinge Pin €2.38
39
 Metering Diaphragm for Chainsaws Hitachi CS-33-40-51 6684690 Metering Diaphragm for Chainsaws Hitachi CS-33-40-51 €26.78
40
 photo_cameraImage coming soon 6684687 PRIMING PUMP COMP. €18.24
44
 photo_cameraImage coming soon 6698844 SEAL LOCK HEX. SOCKET BOLT (W/WASHERS)M5 €2.38
45
 photo_cameraImage coming soon 6684616 CARBURETOR PACKING €2.38
48
 photo_cameraImage coming soon 6698960 CARBURETOR ASS'Y €73.14
51
 photo_cameraImage coming soon 6690347 CLEANER ELEMENT €6.04
53
 photo_cameraImage coming soon 6698961 AIR FILTER ASS'Y €8.48
54
 photo_cameraImage coming soon 6697683 PISTON SET PN €18.24
55
 Piston Ring for Brushcutter Hitachi CG27EASP 6686121 Piston Ring for Brushcutter Hitachi CG27EASP €7.26
56
 Circlip for Brushcutter Hitachi CG 24EBS 6684590 Circlip for Brushcutter Hitachi CG 24EBS €1.16
57
 Piston Pin for Brushcutter Hitachi CG27EASP 6684591 Piston Pin for Brushcutter Hitachi CG27EASP €3.60
58
 photo_cameraImage coming soon 6695590 NEEDLE BEARING HK0810B €7.26
66
 Starter Pulley for Bruschcutters Hitachi CG22EAS-CG24EASP-CG27-33EJ 6684681 Starter Pulley for Bruschcutters Hitachi CG22EAS-CG24EASP-CG27-33EJ €24.34
67
 photo_cameraImage coming soon 6684683 STOP RING E5 €1.16
68
 photo_cameraImage coming soon 6684684 STARTER PAWL SPRING €3.60
69
 photo_cameraImage coming soon 6684685 STARTER PAWL €6.04
70A
 Recoil Starter for Brushcutter Hitachi Tanaka CG22EAS/24-27EASP 6699995 Recoil Starter for Brushcutter Hitachi Tanaka CG22EAS/24-27EASP €34.10
71
 Set Screw for Hedge Trimmer Hitachi CH62EA(ST) 6684679 Set Screw for Hedge Trimmer Hitachi CH62EA(ST) €7.26
72A
 photo_cameraImage coming soon 6699996 CAM PLATE FOR (S) TYPE SINCE 9.2013 FOR AUS €6.04
73
 Damper Spring for Brushcutters Hitachi CG22EAS-CG24EASP-CG27EASP 6684677 Damper Spring for Brushcutters Hitachi CG22EAS-CG24EASP-CG27EASP €8.48
74A
 photo_cameraImage coming soon 6699997 STARTER ROPE REEL €6.04
75A
 photo_cameraImage coming soon 6684675 RECOIL SPRING €12.14
76
 photo_cameraImage coming soon 6684673 RECOIL STARTER BODY COMP. €18.24
81
 photo_cameraImage coming soon 6699691 CAMPLATE ASS'Y €12.14
82
 photo_cameraImage coming soon 6600335 MUFFLER REAR COVER €17.02
84
 photo_cameraImage coming soon 6600323 MUFFLER HEAT COVER €10.92
102
 photo_cameraImage coming soon 6696487 HANDLE (B) €9.70
103
 photo_cameraImage coming soon 6696490 LOCK LEVER €2.38
104
 Throttle Lever for Brushcutters Hitachi CG22/27 6696488 Throttle Lever for Brushcutters Hitachi CG22/27 €4.82
106
 photo_cameraImage coming soon 6685239 STOP SWITCH €8.48
110
 photo_cameraImage coming soon 6696486 HANDLE (A) €9.70
111
 photo_cameraImage coming soon 6684667 HEX.HOLE BOLT M5X12/S €2.38
113
 photo_cameraImage coming soon 6684666 ANTI-VIBE RUBBER (A) €3.60
114
 photo_cameraImage coming soon 6698643 PIPE HOLDER (A) €4.82
115
 photo_cameraImage coming soon 6698644 PIPE HOLDER (B) €4.82
116
 photo_cameraImage coming soon 6684665 ANTI-VIBE RUBBER (B) €3.60
117
 photo_cameraImage coming soon 6684664 STOP RING C12 OUTER €2.38
119
 photo_cameraImage coming soon 6684663 CLUTCH DRUM COMP. €14.58
121
 photo_cameraImage coming soon 6684648 BENT WASHER 8 €2.38
123
 Hitachi CH27EPAP Clutch Set 6697655 Hitachi CH27EPAP Clutch Set €12.14
126
 photo_cameraImage coming soon 6684611 BOLT WASHER M8 €1.16
136
 photo_cameraImage coming soon 6698396 MAGNETO ROTOR COMP. €24.34
137
 photo_cameraImage coming soon 6684618 FUEL PIPE ASS'Y €8.48
138
 photo_cameraImage coming soon 6684880 FUEL PIPE 3X5X80 €2.38
139A
 Fuel Tank Cap for Brushcutter Hitachi CG24ECP (SL) 6698402 Fuel Tank Cap for Brushcutter Hitachi CG24ECP (SL) €9.70
141A
 photo_cameraImage coming soon 6697846 RETURN GROMMET €2.38
142
 photo_cameraImage coming soon 6698496 SPACER €2.38
143A
 Fuel Tank for Brushcutters Hitachi CG24EASP-CG27EASP 6600317 Fuel Tank for Brushcutters Hitachi CG24EASP-CG27EASP €17.02
145
 photo_cameraImage coming soon 6696557 FLANGE BOLT €2.38
147
 Hose Clip 6.3 D. for Brushcutters Chainsaws Hitachi Hikoki Tanaka 6684619 Hose Clip 6.3 D. for Brushcutters Chainsaws Hitachi Hikoki Tanaka €1.16
161
 photo_cameraImage coming soon 6695175 LOCK NUT 6 UPSP €1.16
162
 Bolt Washer 6 for Brushcutters Chainsaws Hitachi Hikoki Tanaka 6684639 Bolt Washer 6 for Brushcutters Chainsaws Hitachi Hikoki Tanaka €2.38
163
 photo_cameraImage coming soon 6690744 SUPPORT PLATE €20.68
165
 photo_cameraImage coming soon 6684822 SPECIAL WASHER B €2.38
166
 Grease Nipple for Hedgetrimmers Hitachi - HIKOKI - Tanaka 6688643 Grease Nipple for Hedgetrimmers Hitachi - HIKOKI - Tanaka €3.60
167
 photo_cameraImage coming soon 6686659 GREASE STOP (B) €1.16
172
 photo_cameraImage coming soon 6689167 GEAR CASE COVER (A) €2.38
173
 Handle for Hedge Trimmer Hitachi CH 27EPAP 6688089 Handle for Hedge Trimmer Hitachi CH 27EPAP €9.70
179
 photo_cameraImage coming soon 6696088 LOOP HANDLE ASS'Y ANTI-VIB. €19.46
180
 photo_cameraImage coming soon 6691098 HANDLE GRIP €9.70
181
 photo_cameraImage coming soon 6684835 HEX.NUT 6 €2.38
183
 photo_cameraImage coming soon 6695255 TAPPING SCREW 5X20 €2.38
188A
 photo_cameraImage coming soon 6697879 DRIVE SHAFT 1483L €29.22
191
 photo_cameraImage coming soon 6695042 HEX. HOLE BOLT 5X10 €2.38
192
 photo_cameraImage coming soon 6686669 GREASE STOP (D) €1.16
193
 photo_cameraImage coming soon 6691200 HANDLE KNOB A COMP. €12.14
194
 photo_cameraImage coming soon 6688653 GEAR CASE A,24 DIA €38.98
200
 photo_cameraImage coming soon 6691134 HANDLE BRACKET A €3.60
201
 photo_cameraImage coming soon 6684838 BOLT 6X43/P (BLACK) €2.38
202
 photo_cameraImage coming soon 6687301 CUTTER COVER €17.02
203
 photo_cameraImage coming soon 6687125 CUTTER GUIDE 625.5MM €46.30
204
 Hitachi CH27EPAP Cutter Blade (A) 6687079 Hitachi CH27EPAP Cutter Blade (A) €82.90
205
 photo_cameraImage coming soon 6687187 WASHER 7 BLACK €2.38
206
 photo_cameraImage coming soon 6687162 CUTTER FIXING BOLT B €1.16
208
 photo_cameraImage coming soon 6688633 SPACER €2.38
209
 photo_cameraImage coming soon 6695075 HEX. HOLE FLUSH BOLT 6X25 €2.38
210
 photo_cameraImage coming soon 6686647 GREASE STOP (A) €1.16
211
 photo_cameraImage coming soon 6686826 CAM ROD PLATE €2.38
212
 Hex Hole Bolt M4x10S for Hedgetrimmer Hitachi CH62EA 6695484 Hex Hole Bolt M4x10S for Hedgetrimmer Hitachi CH62EA €3.60
216
 Retaining Ring 26MM for Brushcutter Tanaka TBC-340 6695294 Retaining Ring 26MM for Brushcutter Tanaka TBC-340 €2.38
218
 photo_cameraImage coming soon 6695073 HEX HOLE FLUSH SCREW 6X16 €1.16
219
 photo_cameraImage coming soon 6686666 GREASE STOP (C) €1.16
220
 photo_cameraImage coming soon 6686611 CAM-ROD GUIDE PLATE €2.38
221
 photo_cameraImage coming soon 6699732 CAM ROD (A) €40.20
222
 photo_cameraImage coming soon 6686790 CAM SHAFT COMP. €54.84
223
 photo_cameraImage coming soon 6698772 BEARING 608ZZC3 €18.24
225
 photo_cameraImage coming soon 6684595 HEX. SOCKET HD. BOLT (W/SP.WASHER) M4X12 €1.16
503
 photo_cameraImage coming soon 6692867 SHOULDER BELT €15.80
Page 2 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

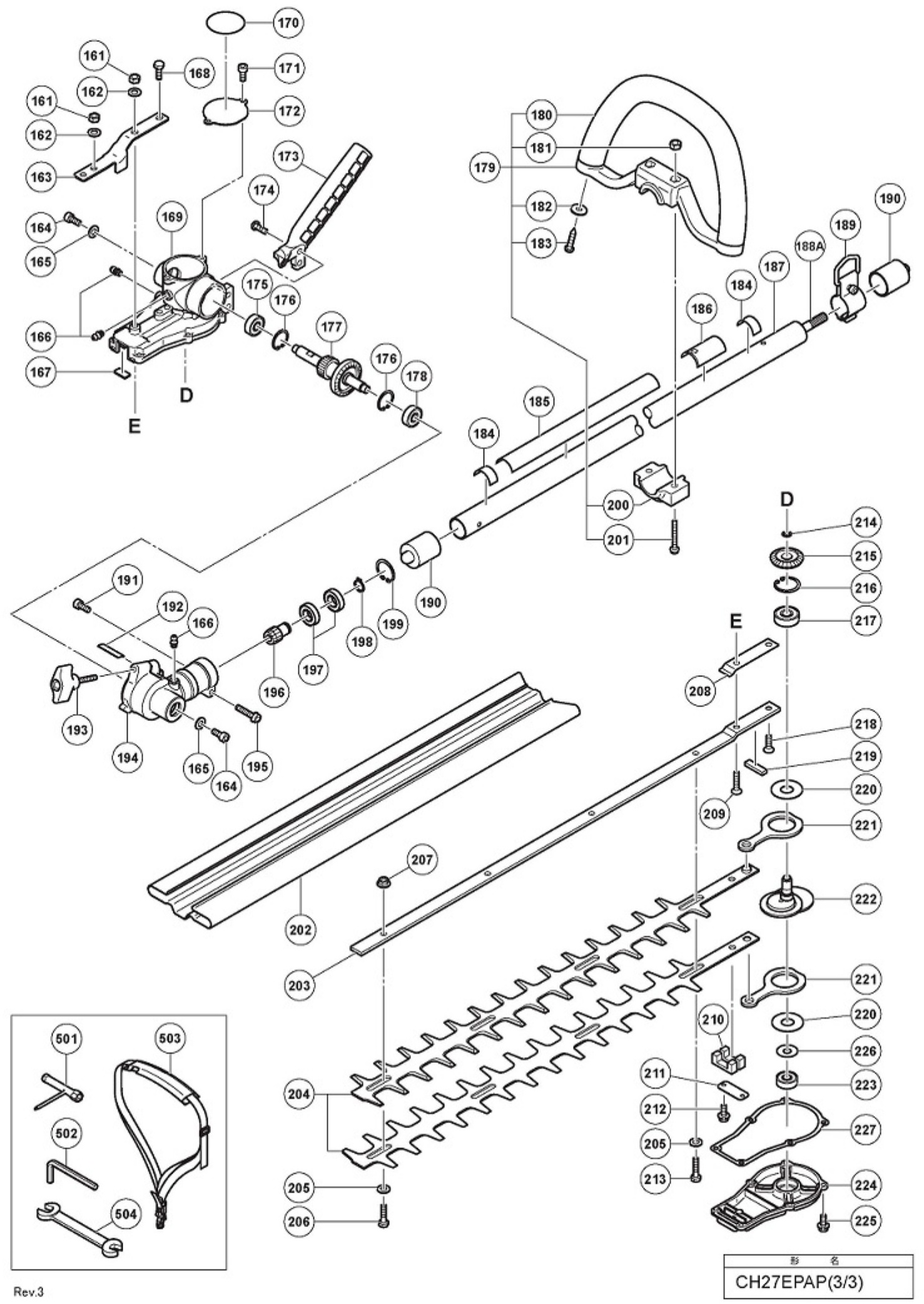

Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
161
 photo_cameraImage coming soon 6695175 LOCK NUT 6 UPSP €1.16
163
 photo_cameraImage coming soon 6690744 SUPPORT PLATE €20.68
165
 photo_cameraImage coming soon 6684822 SPECIAL WASHER B €2.38
166
 Grease Nipple for Hedgetrimmers Hitachi - HIKOKI - Tanaka 6688643 Grease Nipple for Hedgetrimmers Hitachi - HIKOKI - Tanaka €3.60
167
 photo_cameraImage coming soon 6686659 GREASE STOP (B) €1.16
172
 photo_cameraImage coming soon 6689167 GEAR CASE COVER (A) €2.38
173
 Handle for Hedge Trimmer Hitachi CH 27EPAP 6688089 Handle for Hedge Trimmer Hitachi CH 27EPAP €9.70
179
 photo_cameraImage coming soon 6696088 LOOP HANDLE ASS'Y ANTI-VIB. €19.46
180
 photo_cameraImage coming soon 6691098 HANDLE GRIP €9.70
181
 photo_cameraImage coming soon 6684835 HEX.NUT 6 €2.38
183
 photo_cameraImage coming soon 6695255 TAPPING SCREW 5X20 €2.38
188A
 photo_cameraImage coming soon 6697879 DRIVE SHAFT 1483L €29.22
191
 photo_cameraImage coming soon 6695042 HEX. HOLE BOLT 5X10 €2.38
192
 photo_cameraImage coming soon 6686669 GREASE STOP (D) €1.16
193
 photo_cameraImage coming soon 6691200 HANDLE KNOB A COMP. €12.14
194
 photo_cameraImage coming soon 6688653 GEAR CASE A,24 DIA €38.98
200
 photo_cameraImage coming soon 6691134 HANDLE BRACKET A €3.60
201
 photo_cameraImage coming soon 6684838 BOLT 6X43/P (BLACK) €2.38
202
 photo_cameraImage coming soon 6687301 CUTTER COVER €17.02
203
 photo_cameraImage coming soon 6687125 CUTTER GUIDE 625.5MM €46.30
204
 Hitachi CH27EPAP Cutter Blade (A) 6687079 Hitachi CH27EPAP Cutter Blade (A) €82.90
205
 photo_cameraImage coming soon 6687187 WASHER 7 BLACK €2.38
206
 photo_cameraImage coming soon 6687162 CUTTER FIXING BOLT B €1.16
208
 photo_cameraImage coming soon 6688633 SPACER €2.38
209
 photo_cameraImage coming soon 6695075 HEX. HOLE FLUSH BOLT 6X25 €2.38
210
 photo_cameraImage coming soon 6686647 GREASE STOP (A) €1.16
211
 photo_cameraImage coming soon 6686826 CAM ROD PLATE €2.38
212
 Hex Hole Bolt M4x10S for Hedgetrimmer Hitachi CH62EA 6695484 Hex Hole Bolt M4x10S for Hedgetrimmer Hitachi CH62EA €3.60
216
 Retaining Ring 26MM for Brushcutter Tanaka TBC-340 6695294 Retaining Ring 26MM for Brushcutter Tanaka TBC-340 €2.38
218
 photo_cameraImage coming soon 6695073 HEX HOLE FLUSH SCREW 6X16 €1.16
219
 photo_cameraImage coming soon 6686666 GREASE STOP (C) €1.16
220
 photo_cameraImage coming soon 6686611 CAM-ROD GUIDE PLATE €2.38
221
 photo_cameraImage coming soon 6699732 CAM ROD (A) €40.20
222
 photo_cameraImage coming soon 6686790 CAM SHAFT COMP. €54.84
223
 photo_cameraImage coming soon 6698772 BEARING 608ZZC3 €18.24
503
 photo_cameraImage coming soon 6692867 SHOULDER BELT €15.80

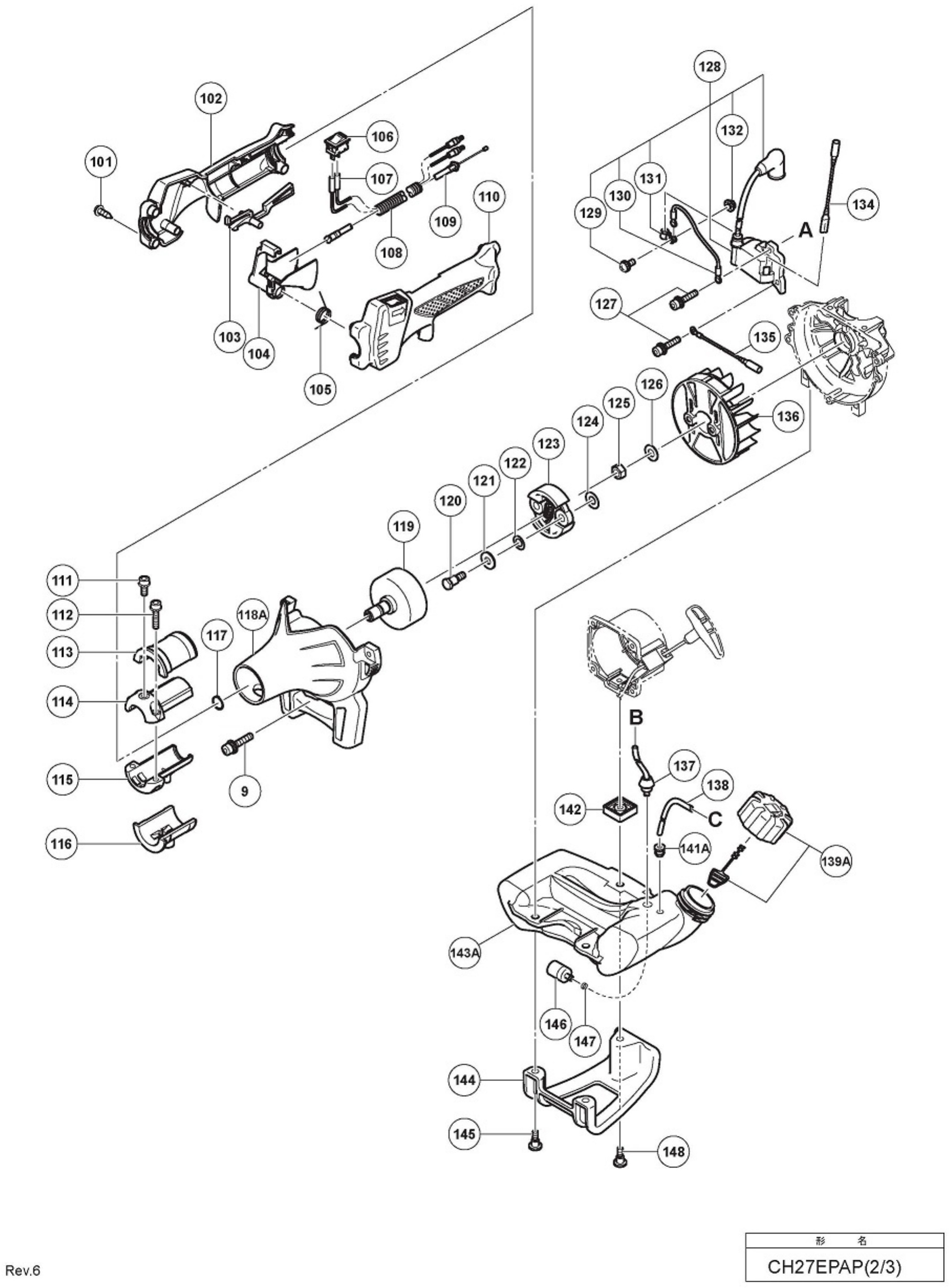

Page 3 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 3
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
102
 photo_cameraImage coming soon 6696487 HANDLE (B) €9.70
103
 photo_cameraImage coming soon 6696490 LOCK LEVER €2.38
104
 Throttle Lever for Brushcutters Hitachi CG22/27 6696488 Throttle Lever for Brushcutters Hitachi CG22/27 €4.82
106
 photo_cameraImage coming soon 6685239 STOP SWITCH €8.48
110
 photo_cameraImage coming soon 6696486 HANDLE (A) €9.70
111
 photo_cameraImage coming soon 6684667 HEX.HOLE BOLT M5X12/S €2.38
113
 photo_cameraImage coming soon 6684666 ANTI-VIBE RUBBER (A) €3.60
114
 photo_cameraImage coming soon 6698643 PIPE HOLDER (A) €4.82
115
 photo_cameraImage coming soon 6698644 PIPE HOLDER (B) €4.82
116
 photo_cameraImage coming soon 6684665 ANTI-VIBE RUBBER (B) €3.60
117
 photo_cameraImage coming soon 6684664 STOP RING C12 OUTER €2.38
119
 photo_cameraImage coming soon 6684663 CLUTCH DRUM COMP. €14.58
121
 photo_cameraImage coming soon 6684648 BENT WASHER 8 €2.38
123
 Hitachi CH27EPAP Clutch Set 6697655 Hitachi CH27EPAP Clutch Set €12.14
126
 photo_cameraImage coming soon 6684611 BOLT WASHER M8 €1.16
136
 photo_cameraImage coming soon 6698396 MAGNETO ROTOR COMP. €24.34
137
 photo_cameraImage coming soon 6684618 FUEL PIPE ASS'Y €8.48
138
 photo_cameraImage coming soon 6684880 FUEL PIPE 3X5X80 €2.38
139A
 Fuel Tank Cap for Brushcutter Hitachi CG24ECP (SL) 6698402 Fuel Tank Cap for Brushcutter Hitachi CG24ECP (SL) €9.70
141A
 photo_cameraImage coming soon 6697846 RETURN GROMMET €2.38
142
 photo_cameraImage coming soon 6698496 SPACER €2.38
143A
 Fuel Tank for Brushcutters Hitachi CG24EASP-CG27EASP 6600317 Fuel Tank for Brushcutters Hitachi CG24EASP-CG27EASP €17.02
145
 photo_cameraImage coming soon 6696557 FLANGE BOLT €2.38
147
 Hose Clip 6.3 D. for Brushcutters Chainsaws Hitachi Hikoki Tanaka 6684619 Hose Clip 6.3 D. for Brushcutters Chainsaws Hitachi Hikoki Tanaka €1.16

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Hitachi Spare Parts for Engine Hedge Trimmer CH 27EPAP

Hitachi genuine spare parts or replacement parts for to repair Engine Hedge Trimmer CH 27EPAP.

In the following table, look for the model of Trimmer and the respective parts of the code.
Hitachi CH27EPAP

Hedge Trimmer CH 27EPAP
# Part Num. Description
4A 6600336 MUFFLER COVER
6 6695067 HEX. HOLE BOLT M6X65
7 6684639 BOLT WASHER 6
8A 6600004 MUFFLER (B)
10A 6600324 HEAT PROTECTION PANEL
14 6698484 SCAVENGING COVER (A)
15A 6684595 HEX. SOCKET HD. BOLT (W/SP.WASHER) M4X12
17 6698485 SCAVENGING COVER (B)
19 6697679 CYLINDER SET PN
20 6684697 SWIVEL
21 6684696 STOP RING
22 6684695 O-RING
23 6684692 PUMP GASKET
24 6684693 PUMP DIAPHRAGM
27 6685217 CONTROL LEVER
28 6684691 DIAPHRAGM GASKET
29 6684689 PRIMING BODY
32 6684883 THROTTLE VALVE
35 6684700 INLET SCREEN
36 6685215 NEEDLE VALVE
38 6685219 HINGE PIN
39 6684690 METERING DIAPHRAGM
40 6684687 PRIMING PUMP COMP.
44 6698844 SEAL LOCK HEX. SOCKET BOLT (W/WASHERS)M5
45 6684616 CARBURETOR PACKING
47 6684615 CARBURETOR GASKET
48 6698960 CARBURETOR ASS'Y
51 6690347 CLEANER ELEMENT
53 6698961 AIR FILTER ASS'Y
54 6697683 PISTON SET PN
55 6686121 PISTON RING
56 6684590 CIR CLIP
57 6684591 PISTON PIN
58 6695590 NEEDLE BEARING HK0810B
66 6684681 STARTER PULLEY ASS'Y
67 6684683 STOP RING E-5
68 6684684 STARTER PAWL SPRING
69 6684685 STARTER PAWL
70A 6699995 RECOIL STARTER BODY ASS'Y
71 6684679 SET SCREW
72A 6699996 CAM PLATE
73 6684677 DAMPER SPRING
74A 6699997 STARTER ROPE REEL
75A 6684675 RECOIL SPRING
76 6684673 RECOIL STARTER BODY COMP.
78 6684680 STARTER HANDLE
81 6699691 CAMPLATE ASS'Y
82 6600335 MUFFLER REAR COVER
84 6600323 MUFFLER HEAT COVER
102 6696487 HANDLE (B)
103 6696490 LOCK LEVER
104 6696488 LEVER
106 6685239 STOP SWITCH
110 6696486 HANDLE (A)
111 6684667 HEX.HOLE BOLT M5X12/S
112 6684709 HEX. HOLE BOLT M5X25/S
113 6684666 ANTI-VIBE RUBBER (A)
114 6698643 PIPE HOLDER (A)
115 6698644 PIPE HOLDER (B)
116 6684665 ANTI-VIBE RUBBER (B)
117 6684664 STOP RING C-12 OUTER
118A 6697922 FAN CASE
119 6684663 CLUTCH DRUM COMP.
121 6684648 BENT WASHER 8
123 6697655 CLUTCH SET
126 6684611 BOLT WASHER M8
136 6698396 MAGNETO ROTOR COMP.
137 6684618 SHIELD TUBE 3X5X180
138 6684880 FUEL PIPE 3X5X85
139A 6698402 FUEL TANK CAP ASS'Y
141A 6697846 RETURN GROMMET
142 6698496 SPACER
143A 6600317 TANK (B)
145 6696557 FLANGE BOLT
147 6684619 CLIP,6.3 DIA.
161 6695175 LOCK NUT 6 UPS-P
162 6684639 BOLT WASHER 6
163 6690744 SUPPORT PLATE
164 6695078 HEX. HOLE BOLT 6X12
165 6684822 SPECIAL WASHER B
166 6688643 GREASE NIPPLE COMP.
167 6686659 GREASE STOP (B)
168 6695016 PLUS BOLT 6X14
172 6689167 GEAR CASE COVER (A)
173 6688089 HANDLE
174 6695079 HEX HOLE BUTTON SCREW 6X15
179 6696088 LOOP HANDLE ASS'Y ANTI-VIB.
180 6691098 HANDLE GRIP
181 6684835 HEX.NUT 6
182 6689681 BRAKE SHAFT WASHER
183 6695255 TAPPING SCREW 5X20
188A 6697879 DRIVE SHAFT 1483L
191 6695042 HEX. HOLE BOLT 5X10
192 6686669 GREASE STOP (D)
193 6691200 HANDLE KNOB A COMP.
194 6688653 GEAR CASE A,24 DIA
195 6684709 HEX. HOLE BOLT M5X25/S
199 6684732 STOP RING C-24,INNER
200 6691134 HANDLE BRACKET A
201 6684838 BOLT 6X43/P (BLACK)
202 6687301 CUTTER COVER
203 6687125 CUTTER GUIDE 625.5MM
204 6687079 CUTTER (A)
205 6687187 WASHER 7 BLACK
206 6687162 CUTTER FIXING BOLT B
207 6695170 FLANGE NUT 6
208 6688633 SPACER
209 6695075 HEX. HOLE FLUSH BOLT 6X25
210 6686647 GREASE STOP (A)
211 6686826 CAM ROD PLATE
212 6695484 HEX. HOLE BOLT 4X10S
213 6687158 FIXING BOLT A M6
214 6695310 RETAINING RING E-TYPE D6
216 6695294 RETAINING RING C-TYPE D26
218 6695073 HEX HOLE FLUSH SCREW 6X16
219 6686666 GREASE STOP (C)
220 6686611 CAM-ROD GUIDE PLATE
221 6699732 CAM ROD (A)
222 6686790 CAM SHAFT COMP.
223 6698772 BALL BEARING 608ZZC3
225 6684595 HEX. SOCKET HD. BOLT (W/SP.WASHER) M4X12
227 6699733 GEAR CASE PACKING
503 6692867 SHOULDER BELT
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Hitachi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to hitachi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Hitachi CH27EPAP
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Hitachi CH 27EPAP

Diagram Hitachi CH 27EPAP

Download (633.74KB)

You might also like

Damper Spring for Brushcutters Hitachi CG22EAS-CG24EASP-CG27EASP
HiKOKI Power Tools Italia S.p.a. SKU: 6684677
Damper Spring for Brushcutters Hitachi CG22EAS-CG24EASP-CG27EASP
Damper Spring for Brushcutters Hitachi CG22EAS-CG24EASP-CG27EASP Genuine spare parts Hitachi Koky Tanaka, Damper Spring for Brushcutters CG22EAS - CG24EASP - CG27EJ (SLNP) - CG27EASP - CG33EJ-SL Parts for the following products:...
on 7/10 Business Days Approx. €8.48
Details
Fuel Tank for Brushcutters Hitachi CG24EASP-CG27EASP
HiKOKI Power Tools Italia S.p.a. SKU: 6600317
Fuel Tank for Brushcutters Hitachi CG24EASP-CG27EASP
Fuel Tank for Brushcutters Hitachi CG24EASP-CG27EASP Genuine part Hitachi Koky Tanaka, Fuel Tank for Brushcutters CG24EASP - CG27EASP - Hedge Trimmer CS 27EPAP - Pruner CS 27EPAP - Blower RB 24EAP. Parts for the following...
AVAILABLE €17.02
Details
Metering Diaphragm for Chainsaws Hitachi CS-33-40-51
HiKOKI Power Tools Italia S.p.a. SKU: 6684690
Metering Diaphragm for Chainsaws Hitachi CS-33-40-51
Metering Diaphragm for Chainsaws Hitachi CS-33-40-51 Original parts for Chainsaw Hitachi Koky Tanaka, Metering Diaphragm for Carburetor Chainsaws,CS33EDT - CS 33EB - CS40EA - TANAKA TCS-40EA - Hitachi CS51EAP -...
AVAILABLE €26.78
Details
Piston Ring for Brushcutter Hitachi CG27EASP
HiKOKI Power Tools Italia S.p.a. SKU: 6686121
Piston Ring for Brushcutter Hitachi CG27EASP
Piston Ring for Brushcutter Hitachi CG27EASP Genuine part Hitachi Koky Tanaka, Piston Ring for Brushcutter CG27EASP - CG27EBSP - CG27EJ(SLNP) - Engine Hedge Trimmer CS 27EPAP - Engine...
AVAILABLE €7.26
Details
Piston Pin for Brushcutter Hitachi CG27EASP
HiKOKI Power Tools Italia S.p.a. SKU: 6684591
Piston Pin for Brushcutter Hitachi CG27EASP
Piston Pin for Brushcutter Hitachi CG27EASP Genuine part Hitachi Koky Tanaka, Piston Pin for Brushcutters CG24EASP - CG24EKS - CG25EUS - CG27EASP - CG27EJ(SLNP) Parts for the following products: - Brushcutter Hitachi CG24EASP -...
AVAILABLE €3.60
Details
Handle for Hedge Trimmer Hitachi CH 27EPAP
HiKOKI Power Tools Italia S.p.a. SKU: 6688089
Handle for Hedge Trimmer Hitachi CH 27EPAP
Handle for Hedge Trimmer Hitachi CH 27EPAP Genuine part Hitachi Koky Tanaka, Handle for Hedge Trimmers CH 27EPAP - CH27EPA (S) - CH55EPC (SM) - CG-HT - CG-HTB. Part for the following...
Last items in stock €9.70
Details
Circlip for Brushcutter Hitachi CG 24EBS
HiKOKI Power Tools Italia S.p.a. SKU: 6684590
Circlip for Brushcutter Hitachi CG 24EBS
Circlip for Brushcutter Hitachi CG 24EBS Original replacement part Hitachi Koky Tanaka, Piston Pin Circlip for Brushcutters, Chainsaws, Hedgecutters Hitachi - Tanaka. Part for the following...
AVAILABLE €1.16
Details
Carburator Needle Valve for Chainsaws Hitachi-HiKoki Tanaka
HiKOKI Power Tools Italia S.p.a. SKU: 6685215
Carburator Needle Valve for Chainsaws Hitachi-HiKoki Tanaka
Carburator Needle Valve for Chainsaws Hitachi-HiKoki Tanaka Original part Hitachi-HiKoki Tanaka, Carburator Needle Valve for Chainsaws and Brushcutters Hitachi-HiKoki Tanaka. Part for the following products: - Chainsaw ECS 3301D -...
AVAILABLE €10.92
Details
Retaining Ring 26MM for Brushcutter Tanaka TBC-340
HiKOKI Power Tools Italia S.p.a. SKU: 6695294
Retaining Ring 26MM for Brushcutter Tanaka TBC-340
Retaining Ring 26MM for Brushcutter Tanaka TBC-340 Genuine spare part Tanaka, Retaining Ring 26MM for Brushcutter Tanaka TBC-340 - TBC-340D - Hitachi CG33EJ-SL Part for the following products: -  Brushcutter Tanaka TBC-340 -...
on 7/10 Business Days Approx €2.38
Details
Hex Hole Bolt M4x10S for Hedgetrimmer Hitachi CH62EA
HiKOKI Power Tools Italia S.p.a. SKU: 6695484
Hex Hole Bolt M4x10S for Hedgetrimmer Hitachi CH62EA
Hex Hole Bolt M4x10S for Hedgetrimmer Hitachi CH62EA Original spare part Hitachi-HIKOKI Tanaka, Hex Hole Bolt M4x10S for Hedgetrimmers CH62EA - CH66EB - CH62EA3. Parts for the following...
AVAILABLE €3.60
Details
Hitachi CH27EPAP Clutch Set
HiKOKI Power Tools Italia S.p.a. SKU: 6697655
Hitachi CH27EPAP Clutch Set
Hitachi CH27EPAP Clutch Set Genuine part Hitachi HIKOKI Tanaka, Clutch Set for Hedge Trimmer CH27EPAP - Pole Saw CS27EPAP. Part for the following products: - Hedge Trimmer Hitachi CH27EPAP - Pole Saw CS27EPAP - Brushcutter...
on 7/10 Business Days Approx. €12.14
Details
Hitachi CH27EPAP Cutter Blade (A)
HiKOKI Power Tools Italia S.p.a. SKU: 6687079
Hitachi CH27EPAP Cutter Blade (A)
Hitachi CH27EPAP Cutter Blade (A) Original spare part Hitachi-HIKOKI Tanaka, Cutter Blade (A) for Engine Hedge Trimmer CH 27EPAP - CG-HT "SMART FIT" Part for the following products: - Engine Hedge Trimmer CH 27EPAP -...
on 7/10 Business Days Approx. €82.90
Details
Comments (0)
