HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Engine Hedge Trimmer CH22ECP2

SKU: Hitachi CH22ECP2
€17.74
VAT included

Hitachi Spare Parts for Engine Hedge Trimmer CH22ECP2

Hitachi-HIKOKI Tanaka Original spare parts at attractive and competitive prices on the web, we are a licensed service center with a repair service able to quickly solve the maintenance or repair any issues for Engine Hedge Trimmer CH22ECP2.

Fix Your Hedge Trimmer CH22ECP2. Our Spares are Original Parts and Come with a Full Guarantee.
Hitachi Spare Parts for Engine Hedge Trimmer CH22ECP2
  • Hitachi Spare Parts for Engine Hedge Trimmer CH22ECP2
  • Hitachi Spare Parts for Engine Hedge Trimmer CH22ECP2
  • Hitachi Spare Parts for Engine Hedge Trimmer CH22ECP2
  • Hitachi Spare Parts for Engine Hedge Trimmer CH22ECP2
HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Engine Hedge Trimmer CH22ECP2

SKU: Hitachi CH22ECP2 Condition: New
€17.74
VAT included

Hitachi Spare Parts for Engine Hedge Trimmer CH22ECP2

Hitachi-HIKOKI Tanaka Original spare parts at attractive and competitive prices on the web, we are a licensed service center with a repair service able to quickly solve the maintenance or repair any issues for Engine Hedge Trimmer CH22ECP2.

Fix Your Hedge Trimmer CH22ECP2. Our Spares are Original Parts and Come with a Full Guarantee.
settings 116 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
107 spare parts

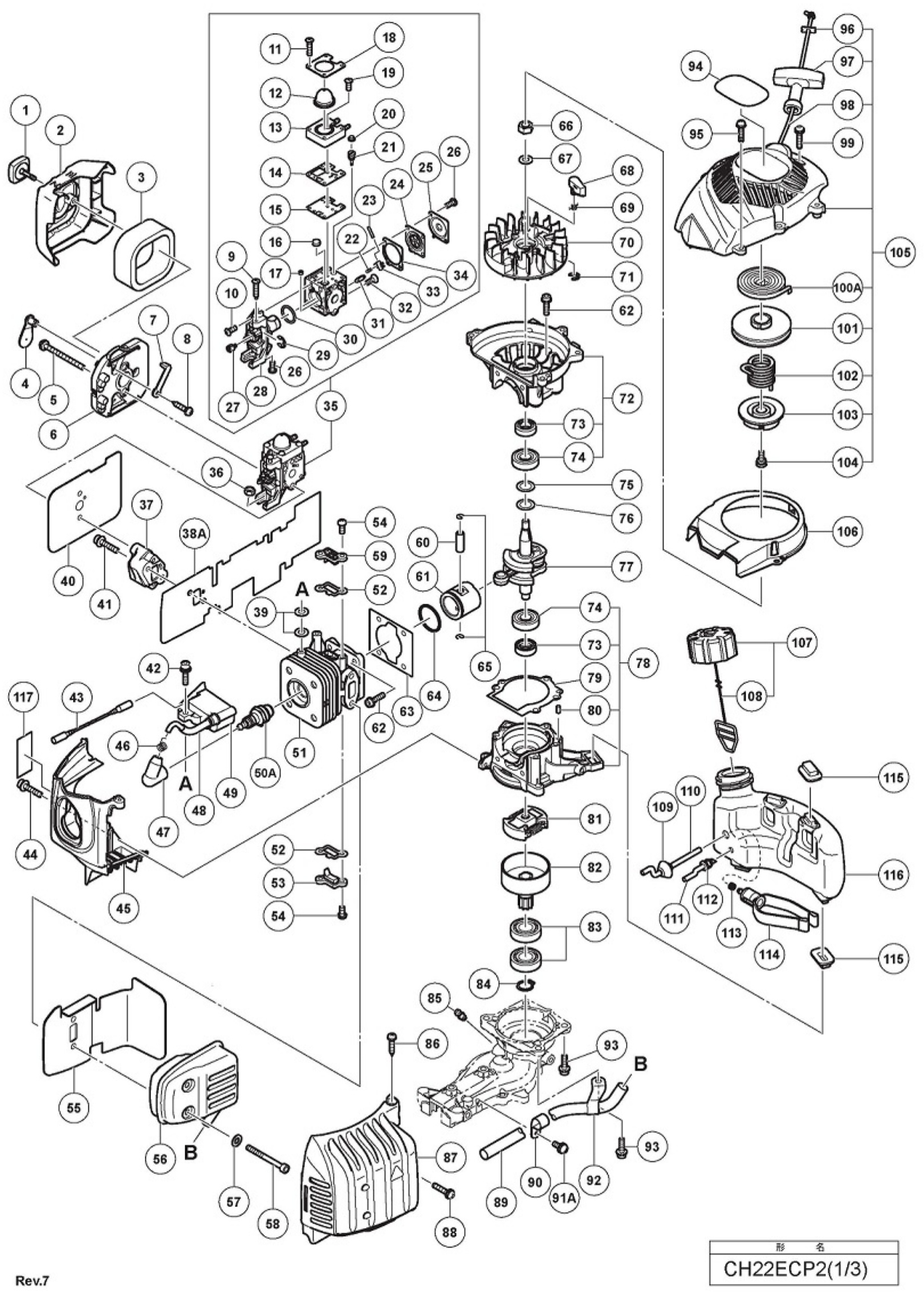

Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 1
Pos. Item Price Buy
1
 Air Filter Cover Knob for Brushcutter Hitachi CG33EJ-SL 6698730 Air Filter Cover Knob for Brushcutter Hitachi CG33EJ-SL €5.46
2
 Filter Cover for Hedge Trimmer Hitachi Tanaka CH22EBP2-CH22ECP2 6698609 Filter Cover for Hedge Trimmer Hitachi Tanaka CH22EBP2-CH22ECP2 €4.64
3
 Air Filter for Brushcutter-Trimmer-Auger Hitachi Tanaka 6690365 Air Filter for Brushcutter-Trimmer-Auger Hitachi Tanaka €1.98
6
 photo_cameraImage coming soon 6698606 AIR FILTER SUPPORT €4.07
13
 photo_cameraImage coming soon 6699097 PUMPING BASE UNTIL YEAR OF PRODUCTION SEPTEMBER 2015 €43.30
35
 photo_cameraImage coming soon 6699078 CARBURETOR ASS'Y €74.34
37
 Hitachi CH22EBP2 Carburetor Insulator 6698387 Hitachi CH22EBP2 Carburetor Insulator €6.29
38A
 photo_cameraImage coming soon 6600456 SUCTION GASKET €3.25
39
 photo_cameraImage coming soon 6698700 GLASS WASHER €2.16
40
 photo_cameraImage coming soon 6698816 GASKET CARB. €3.35
41
 photo_cameraImage coming soon 6698844 SEAL LOCK HEX. SOCKET BOLT (W/WASHERS)M5 €2.16
49
 photo_cameraImage coming soon 6698602 IGNITION COIL €85.06
51
 Cylinder for Hedge Trimmer Hitachi Tanaka CH22EBP2-CH22ECP2 6698597 Cylinder for Hedge Trimmer Hitachi Tanaka CH22EBP2-CH22ECP2 €65.87
52
 Carburator Cover Packing for Brushcutter Hitachi CG22EAS 6696534 Carburator Cover Packing for Brushcutter Hitachi CG22EAS €2.14
53
 photo_cameraImage coming soon 6696535 INTAKE COVER (A) €2.25
54
 Seal Lock Screw M4x10 for Chainsaw Hitachi CS40EA 6696835 Seal Lock Screw M4x10 for Chainsaw Hitachi CS40EA €2.08
56
 photo_cameraImage coming soon 6698631 MUFFLER €68.68
60
 Piston Pin for Brushcutter Hitachi Tanaka CG22EAS 6696944 Piston Pin for Brushcutter Hitachi Tanaka CG22EAS €7.30
61
 Piston for Brush Cutter and Hedge Trimmer Hitachi Tanaka CG-CH 6696531 Piston for Brush Cutter and Hedge Trimmer Hitachi Tanaka CG-CH €15.81
63
 Cylinder Gasket for Brushcutter Hitachi Tanaka CG22EAS 6696530 Cylinder Gasket for Brushcutter Hitachi Tanaka CG22EAS €2.16
64
 Piston Ring for Brush Cutter end Hedge Trimmers Hitachi 6696532 Piston Ring for Brush Cutter end Hedge Trimmers Hitachi €6.50
65
 Circlip for Brushcutter Hitachi CG 24EBS 6684590 Circlip for Brushcutter Hitachi CG 24EBS €1.57
66
 photo_cameraImage coming soon 6696879 FLYWHEEL NUT M7 €2.27
67
 photo_cameraImage coming soon 6696880 BOLT WASHER D7 €2.22
69
 Starter Pawl Spring for Chainsaw Hitachi Tanaka CS33EDT-EB 6685335 Starter Pawl Spring for Chainsaw Hitachi Tanaka CS33EDT-EB €2.65
70
 photo_cameraImage coming soon 6698601 THEY FLY €29.51
71
 photo_cameraImage coming soon 6685336 RETAINING RING D4 €2.48
77
 photo_cameraImage coming soon 6699043 CRANKSHAFT €65.39
79
 photo_cameraImage coming soon 6696539 CRANK CASE PACKING €2.25
81
 Clutch Ass'y for Hedge Trimmers Hitachi CH22EBP2-CH22EC2 6699173 Clutch Ass'y for Hedge Trimmers Hitachi CH22EBP2-CH22EC2 €31.72
83
 photo_cameraImage coming soon 6698740 BEARING 6002-2ZC3 €8.01
85
 Grease Nipple for Hedgetrimmers Hitachi - HIKOKI - Tanaka 6688643 Grease Nipple for Hedgetrimmers Hitachi - HIKOKI - Tanaka €3.48
100A
 photo_cameraImage coming soon 6684675 RECOIL SPRING €12.16
101
 photo_cameraImage coming soon 6693072 STARTER ROPE REEL €9.95
102
 Damper Spring for Chainsaw Hitachi Tanaka CS33EA-CS25EC-SC 6685183 Damper Spring for Chainsaw Hitachi Tanaka CS33EA-CS25EC-SC €7.83
103
 photo_cameraImage coming soon 6685182 CAM PLATE €7.82
104
 Set Screw for Hedge Trimmer Hitachi CH62EA(ST) 6684679 Set Screw for Hedge Trimmer Hitachi CH62EA(ST) €6.81
104
 photo_cameraImage coming soon 6685182 CAM PLATE €7.82
107
 Fuel Tank Cap for Brushcutter Hitachi CG24ECP (SL) 6698402 Fuel Tank Cap for Brushcutter Hitachi CG24ECP (SL) €9.73
110
 Fuel Pipe for Hedge Trimmer Tanaka TCH-22EAP2 6698873 Fuel Pipe for Hedge Trimmer Tanaka TCH-22EAP2 €10.50
111
 photo_cameraImage coming soon 6601399 FUEL PIPE €3.59
112
 photo_cameraImage coming soon 6697846 RETURN GROMMET €1.79
114
 photo_cameraImage coming soon 6698874 PESCANTE DOUBLE MIXTURE €21.96
115
 photo_cameraImage coming soon 6698615 RUBBER SUPP. RESERVOIR €4.07
152
 photo_cameraImage coming soon 6696344 LOCK LEVER ACC. €1.83
153
 photo_cameraImage coming soon 6696345 SPRING €2.22
154
 Switch for Brushcutter Hitachi Tanaka CG24EASP 6696940 Switch for Brushcutter Hitachi Tanaka CG24EASP €9.30
157
 photo_cameraImage coming soon 6698627 CONTROL CABLE €8.01
162
 photo_cameraImage coming soon 6696359 STOPPED €1.87
164
 Bolt Washer 6 for Brushcutters Chainsaws Hitachi Hikoki Tanaka 6684639 Bolt Washer 6 for Brushcutters Chainsaws Hitachi Hikoki Tanaka €1.98
165
 photo_cameraImage coming soon 6699108 NUT M5 €3.25
171
 photo_cameraImage coming soon 6698779 SPRING HOLDER €4.06
173
 photo_cameraImage coming soon 6698780 ANTIVIBRATION SPRING €3.56
174A
 photo_cameraImage coming soon 6600410 BLADE ASS'Y (780MM) €164.05
176
 photo_cameraImage coming soon 6699062 PLATE €1.64
177
 Hex Socket Bolt M6x25 for Hedge Trimmers Hitachi CH22EBP2 6699113 Hex Socket Bolt M6x25 for Hedge Trimmers Hitachi CH22EBP2 €6.41
178
 photo_cameraImage coming soon 6699114 WASHER €1.70
179
 photo_cameraImage coming soon 6699111 WASHER M7 €1.70
180
 photo_cameraImage coming soon 6699109 SCREW M5X25 €3.25
181
 photo_cameraImage coming soon 6699179 SCREW €4.07
184
 photo_cameraImage coming soon 6698772 BEARING 608ZZC3 €17.21
185
 Hex Socket Bolt M6x25 for Hedge Trimmers Hitachi CH22EBP2 6699113 Hex Socket Bolt M6x25 for Hedge Trimmers Hitachi CH22EBP2 €6.41
186A
 photo_cameraImage coming soon 6600418 GUIDE PLATE €2.65
187
 photo_cameraImage coming soon 6698987 BLADES CONNECTING ROD €4.07
189
 photo_cameraImage coming soon 6699068 FELT €1.35
190
 Hitachi Felt for Hedgecutter CH22EBP2 6699067 Hitachi Felt for Hedgecutter CH22EBP2 €3.40
191
 photo_cameraImage coming soon 6699042 COVER GASKET €1.59
192
 Gear Case (B) Ass'Y for Hedge Trimmer Hitachi CH22EBP2 6699071 Gear Case (B) Ass'Y for Hedge Trimmer Hitachi CH22EBP2 €21.45
195
 Lower Plate for Hedge Trimmers Hitachi CH22EBP2-CH22ECP2 6600013 Lower Plate for Hedge Trimmers Hitachi CH22EBP2-CH22ECP2 €19.86
196
 Blade Guide 620 MM for Hedge Trimmers Hitachi CH22EBP2-CH22ECP2 6600012 Blade Guide 620 MM for Hedge Trimmers Hitachi CH22EBP2-CH22ECP2 €18.63
196
 Blade Guide (780mm) for Hedge Trimmer Hitachi CH22ECP2 6600015 Blade Guide (780mm) for Hedge Trimmer Hitachi CH22ECP2 €21.92 Not available for order
197
 620 mm Single Blade for Hedge Trimmers Hitachi CH22EBP2-CH22ECP2 6600014 620 mm Single Blade for Hedge Trimmers Hitachi CH22EBP2-CH22ECP2 €53.05
197
 photo_cameraImage coming soon 6600016 HEDGE TRIMMER BLADE (D) 780MM €48.59
198
 Blade Liner 620 mm for Hedge Trimmer Hitachi CH22EBP2-CH22ECP2 6600360 Blade Liner 620 mm for Hedge Trimmer Hitachi CH22EBP2-CH22ECP2 €9.16
198
 photo_cameraImage coming soon 6600361 BLADE LINER €9.84
199
 photo_cameraImage coming soon 6699112 WASHER €1.70

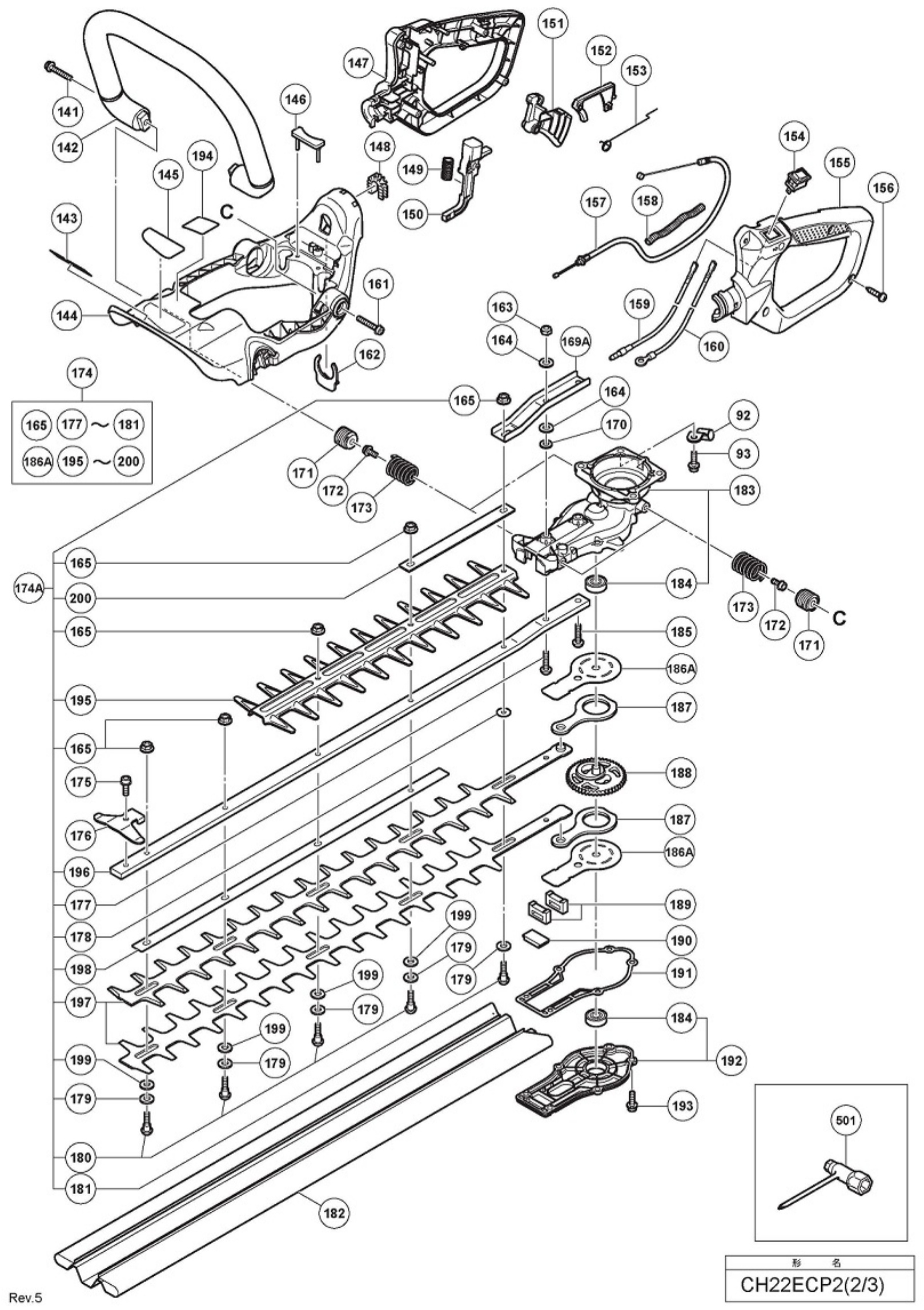

Page 2 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 2
Pos. Item Price Buy
152
 photo_cameraImage coming soon 6696344 LOCK LEVER ACC. €1.83
153
 photo_cameraImage coming soon 6696345 SPRING €2.22
154
 Switch for Brushcutter Hitachi Tanaka CG24EASP 6696940 Switch for Brushcutter Hitachi Tanaka CG24EASP €9.30
157
 photo_cameraImage coming soon 6698627 CONTROL CABLE €8.01
162
 photo_cameraImage coming soon 6696359 STOPPED €1.87
164
 Bolt Washer 6 for Brushcutters Chainsaws Hitachi Hikoki Tanaka 6684639 Bolt Washer 6 for Brushcutters Chainsaws Hitachi Hikoki Tanaka €1.98
165
 photo_cameraImage coming soon 6699108 NUT M5 €3.25
171
 photo_cameraImage coming soon 6698779 SPRING HOLDER €4.06
173
 photo_cameraImage coming soon 6698780 ANTIVIBRATION SPRING €3.56
174A
 photo_cameraImage coming soon 6600410 BLADE ASS'Y (780MM) €164.05
176
 photo_cameraImage coming soon 6699062 PLATE €1.64
177
 Hex Socket Bolt M6x25 for Hedge Trimmers Hitachi CH22EBP2 6699113 Hex Socket Bolt M6x25 for Hedge Trimmers Hitachi CH22EBP2 €6.41
178
 photo_cameraImage coming soon 6699114 WASHER €1.70
179
 photo_cameraImage coming soon 6699111 WASHER M7 €1.70
180
 photo_cameraImage coming soon 6699109 SCREW M5X25 €3.25
181
 photo_cameraImage coming soon 6699179 SCREW €4.07
184
 photo_cameraImage coming soon 6698772 BEARING 608ZZC3 €17.21
186A
 photo_cameraImage coming soon 6600418 GUIDE PLATE €2.65
187
 photo_cameraImage coming soon 6698987 BLADES CONNECTING ROD €4.07
189
 photo_cameraImage coming soon 6699068 FELT €1.35
190
 Hitachi Felt for Hedgecutter CH22EBP2 6699067 Hitachi Felt for Hedgecutter CH22EBP2 €3.40
191
 photo_cameraImage coming soon 6699042 COVER GASKET €1.59
192
 Gear Case (B) Ass'Y for Hedge Trimmer Hitachi CH22EBP2 6699071 Gear Case (B) Ass'Y for Hedge Trimmer Hitachi CH22EBP2 €21.45
195
 Lower Plate for Hedge Trimmers Hitachi CH22EBP2-CH22ECP2 6600013 Lower Plate for Hedge Trimmers Hitachi CH22EBP2-CH22ECP2 €19.86
196
 Blade Guide 620 MM for Hedge Trimmers Hitachi CH22EBP2-CH22ECP2 6600012 Blade Guide 620 MM for Hedge Trimmers Hitachi CH22EBP2-CH22ECP2 €18.63
196
 Blade Guide (780mm) for Hedge Trimmer Hitachi CH22ECP2 6600015 Blade Guide (780mm) for Hedge Trimmer Hitachi CH22ECP2 €21.92 Not available for order
197
 620 mm Single Blade for Hedge Trimmers Hitachi CH22EBP2-CH22ECP2 6600014 620 mm Single Blade for Hedge Trimmers Hitachi CH22EBP2-CH22ECP2 €53.05
197
 photo_cameraImage coming soon 6600016 HEDGE TRIMMER BLADE (D) 780MM €48.59
198
 Blade Liner 620 mm for Hedge Trimmer Hitachi CH22EBP2-CH22ECP2 6600360 Blade Liner 620 mm for Hedge Trimmer Hitachi CH22EBP2-CH22ECP2 €9.16
198
 photo_cameraImage coming soon 6600361 BLADE LINER €9.84
199
 photo_cameraImage coming soon 6699112 WASHER €1.70

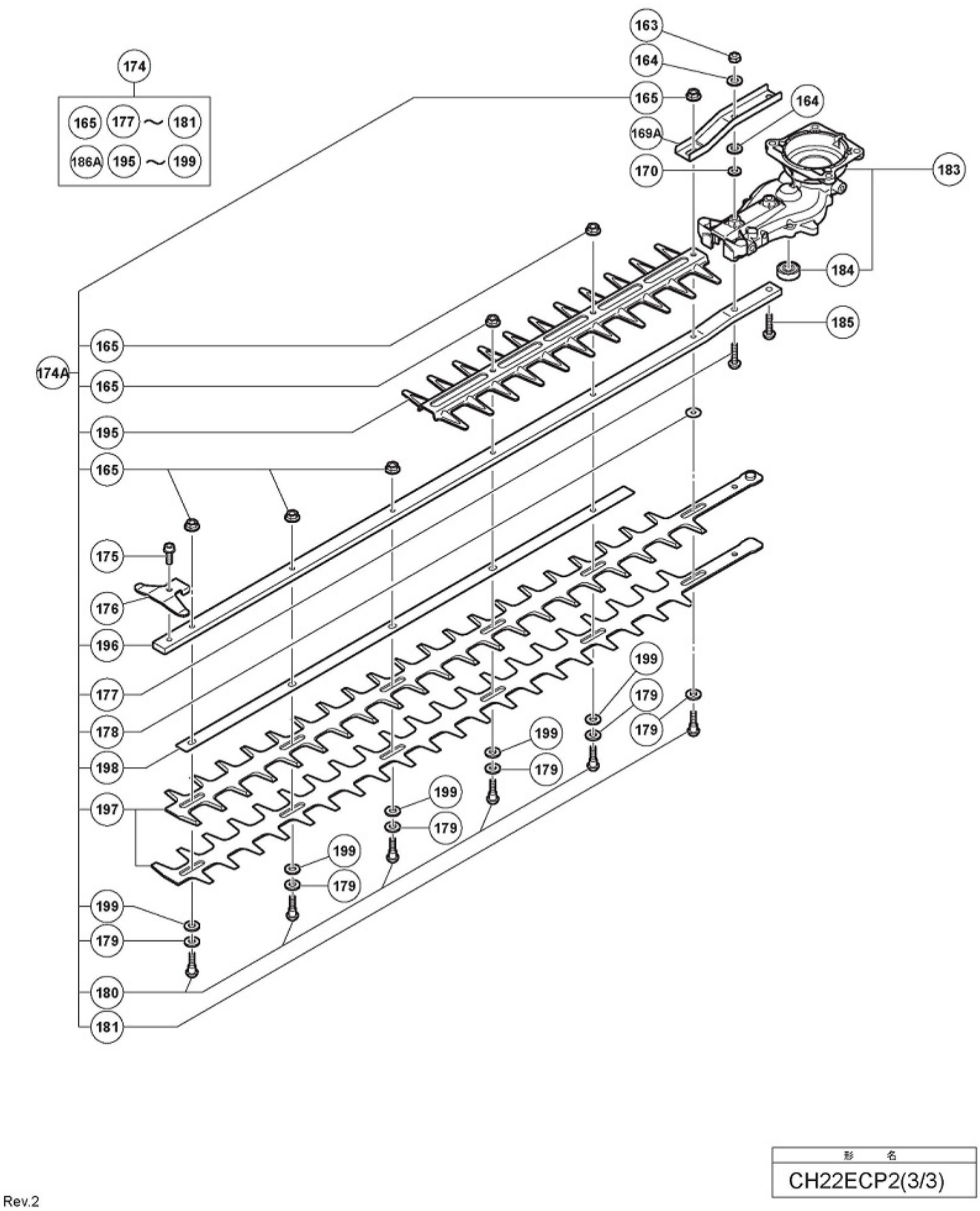

Page 3 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 3
info_outline

No spare parts mapped to this page.
Check the other pages for available parts.

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Hitachi Spare Parts for Engine Hedge Trimmer CH22ECP2

Fix Your Hedge Trimmer CH22ECP2. All Spares are Ready For Quick Delivery. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of Trimmer and the respective parts of the code.
Hitachi CH22ECP2

Engine Hedge Trimmer CH22ECP2
# Part Num. Description
1 6698730 COVER FIXING BOLT COMP.
2 6698609 CLEANER COVER
3 6690365 CLEANER SPONGE
6 6698606 CLEANER BODY
13 6699097 PRIMER BASE
35 6699078 CARBURETOR ASS'Y
37 6698387 CARBURETOR INSULATOR
38A 6600456 INTAKE PAKING (A)
39 6698700 GLASS WASHER
40 6698816 CARBURETOR PACKING
41 6698844 SEAL LOCK HEX. SOCKET BOLT (W/WASHERS)M5
49 6698602 IGNITION COIL
51 6698597 CYLINDER
52 6696534 COVER PACKING
53 6696535 INTAKE COVER (A)
54 6696835 SEAL LOCK SCREW M4X10
56 6698631 MUFFLER
60 6696944 PISTON PIN
61 6696531 PISTON
63 6696530 CYLINDER PACKING
64 6696532 PISTON RING
65 6684590 CIR CLIP
66 6696879 FLYWHEEL NUT M7
67 6696880 BOLT WASHER D7
69 6685335 STARTER PAWL SPRING
70 6698601 MAGNETO ROTOR
71 6685336 RETAINING RING D4
77 6699043 CRANK SHAFT
79 6696539 CRANK CASE PACKING
81 6699173 CLUTCH ASS'Y (B)
83 6698740 BALL BEARING 6002ZC3
85 6688643 GREASE NIPPLE COMP.
93 6695495 HEX. HOLE BOLT 6X18/S
100A 6684675 RECOIL SPRING
101 6693072 STARTER ROPE REEL
102 6685183 DAMPER SPRING
103 6685182 CAM PLATE
104 6684679 SET SCREW
104 6685182 CAM PLATE
105 6698622 STARTER ASSY
107 6698402 FUEL TANK CAP ASS'Y
109 6698931 FUEL GROMMET
110 6698873 FUEL PIPE
111 6601399 FUEL PIPE
112 6697846 GROMMET
114 6698874 PUMP FILTER
115 6698615 CUSHION RUBBER
152 6696344 TRIGGER LOCKOUT
153 6696345 THROTTLE LEVER SPRING
154 6696940 STOP SWITCH
157 6698627 THROTTLE WIRE
162 6696359 CLIP
164 6684639 BOLT WASHER 6
164 6684639 BOLT WASHER 6
165 6699108 U-NUT M5
165 6699108 U-NUT M5
171 6698779 SPRING HOLDER
173 6698780 ANTIVIBRATION SPRING
174A 6600410 BLADE ASS'Y (780MM)
175 6699065 HEX. SOCKET HD. BOLT (W/FLANGE) M5X8
176 6699062 GUARD PLATE
177 6699113 HEX. SOCKET HD. BOLT (W/BUTTON) M6X25
178 6699114 WASHER (A)
179 6699111 WASHER M7
179 6699111 WASHER M7
180 6699109 SHOULDER BUTTON BOLT M5X25
180 6699109 SHOULDER BUTTON BOLT M5X25
181 6699179 SHOULDER BUTTON BOLT M5X31
183 6699074 GEAR CASE (A) ASS'Y
184 6698772 BALL BEARING 608ZZC3
185 6699113 HEX. SOCKET HD. BOLT (W/BUTTON) M6X25
186A 6600418 GUIDE PLATE
187 6698987 CAM ROD
188 6699066 GEAR 2
189 6699068 FELT PACKING (B)
190 6699067 FELT PACKING (C)
191 6699042 GEAR CASE PACKING
192 6699071 GEAR CASE (B) ASS'Y
195 6600013 LOWER PLATE
196 6600012 BLADE GUIDE (620MM)
196 6600015 BLADE GUIDE (780MM)
197 6600014 HEDGE TRIMMER BLADE (C) 620MM
197 6600016 HEDGE TRIMMER BLADE (D) 780MM
198 6600360 BLADE LINER
198 6600361 BLADE LINER
199 6699112 WASHER (B)
199 6699112 WASHER (B)
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Hitachi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to hitachi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Hitachi CH22ECP2
11 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Hitachi CH22ECP2

Diagram Hitachi CH22ECP2

Download (814.29KB)

You might also like

Damper Spring for Chainsaw Hitachi Tanaka CS33EA-CS25EC-SC
HiKOKI Power Tools Italia S.p.a. SKU: 6685183
Damper Spring for Chainsaw Hitachi Tanaka CS33EA-CS25EC-SC
Damper Spring for Chainsaw Hitachi Tanaka CS33EA-CS25EC-SC Genuine spare parts for Chainsaw Hitachi Koky Tanaka, Damper Spring for Chainsaw CS25EC-SC HEDGETRIMMER CH22EBP2 - HEDGETRIMMER CH22ECP2. Parts for the following...
AVAILABLE €7.83
Details
Piston Ring for Brush Cutter end Hedge Trimmers Hitachi
HiKOKI Power Tools Italia S.p.a. SKU: 6696532
Piston Ring for Brush Cutter end Hedge Trimmers Hitachi
Piston Ring for Brush Cutter end Hedge Trimmers Hitachi Original spare Hitachi Koky Tanaka, Piston Ring for Brush Cutter end Hedge Trimmers Hitachi. Parts for the following products: - Brush Cutter CG22EAS - Hedge Trimmers CH22EBP2 -...
AVAILABLE €6.50
Details
Piston for Brush Cutter and Hedge Trimmer Hitachi Tanaka CG-CH
HiKOKI Power Tools Italia S.p.a. SKU: 6696531
Piston for Brush Cutter and Hedge Trimmer Hitachi Tanaka CG-CH
Piston for Brush Cutter and Hedge Trimmer Hitachi Tanaka CG-CH Original spare part Hitachi Koky Tanaka, Piston for Brush Cutter and Hedge trimmer Hitachi Tanaka CG-CH. Part for the followinf article: - Brush Cutter CG22EAS - Hedge...
Last items in stock €15.81
Details
Air Filter for Brushcutter-Trimmer-Auger Hitachi Tanaka
HiKOKI Power Tools Italia S.p.a. SKU: 6690365
Air Filter for Brushcutter-Trimmer-Auger Hitachi Tanaka
Air Filter for Brushcutter-Trimmer-Auger Hitachi Tanaka Original spare part Hitachi Koky Tanaka, Air Filter for Brushcutter-Trimmer-Auger Hitachi Tanaka. Part for the following items : - Brushcutter CG27EJ-SLNP -...
AVAILABLE €1.98
Details
Air Filter Cover Knob for Brushcutter Hitachi CG33EJ-SL
HiKOKI Power Tools Italia S.p.a. SKU: 6698730
Air Filter Cover Knob for Brushcutter Hitachi CG33EJ-SL
Air Filter Cover Knob for Brushcutter Hitachi CG33EJ-SL Original spare Hitachi Koky Tanaka, Air Filter Knob for Brushcutter CG33EJ-SL and Trimmers CH22EBP2-CH22ECP2 Hitachi. Parts for the following products: - Brushcutter...
AVAILABLE €5.46
Details
Filter Cover for Hedge Trimmer Hitachi Tanaka CH22EBP2-CH22ECP2
HiKOKI Power Tools Italia S.p.a. SKU: 6698609
Filter Cover for Hedge Trimmer Hitachi Tanaka CH22EBP2-CH22ECP2
Filter Cover for Hedge Trimmer Hitachi Tanaka CH22EBP2-CH22ECP2 Original spare Hitachi Koky Tanaka, Cover Filter for Hedge Trimmer Hitachi Tanaka CH22EBP2-CH22ECP2 Parts for the following products: - Hedge Trimmer...
Last items in stock €4.64
Details
Carburator Cover Packing for Brushcutter Hitachi CG22EAS
HiKOKI Power Tools Italia S.p.a. SKU: 6696534
Carburator Cover Packing for Brushcutter Hitachi CG22EAS
Carburator Cover Packing for Brushcutter Hitachi CG22EAS Original parts Hitachi Koky Tanaka, Carburator Cover Packing for Brushcutters CG22EAS Parts for the following products: - Brushcutter Hitachi CG22EAS - Hedge Trimmer Hitachi...
Last items in stock €2.14
Details
Cylinder Gasket for Brushcutter Hitachi Tanaka CG22EAS
HiKOKI Power Tools Italia S.p.a. SKU: 6696530
Cylinder Gasket for Brushcutter Hitachi Tanaka CG22EAS
Cylinder Gasket for Brushcutter Hitachi Tanaka CG22EAS Genuine spare part Hitachi Koky Tanaka, Cylinder Gasket for Brushcutters CG22EAB - CG22EAS - Edge Trimmer Hitachi CH22EBP2 Part for the following products: - Brushcutter Hitachi...
AVAILABLE €2.16
Details
Piston Pin for Brushcutter Hitachi Tanaka CG22EAS
HiKOKI Power Tools Italia S.p.a. SKU: 6696944
Piston Pin for Brushcutter Hitachi Tanaka CG22EAS
Piston Pin for Brushcutter Hitachi Tanaka CG22EAS Genuine spare part Hitachi Koky Tanaka, Piston Pin for Brushcutters CG22EAB - CG22EAS - Edge Trimmer Hitachi CH22EBP2 Part for the following products: - Pump Hitachi A25EB(N) -...
Last items in stock €7.30
Details
Cylinder for Hedge Trimmer Hitachi Tanaka CH22EBP2-CH22ECP2
HiKOKI Power Tools Italia S.p.a. SKU: 6698597
Cylinder for Hedge Trimmer Hitachi Tanaka CH22EBP2-CH22ECP2
Cylinder for Hedge Trimmer Hitachi Tanaka CH22EBP2-CH22ECP2 Original spare Hitachi Koky Tanaka, Cylinder for Hedge Trimmer Hitachi Tanaka CH22EC2(62ST) - CH22ECP2(62ST) - CH22EC2(78ST) - CH22ECP2(78ST) Parts...
Last items in stock €65.87
Details
Blade Liner 620 mm for Hedge Trimmer Hitachi CH22EBP2-CH22ECP2
HiKOKI Power Tools Italia S.p.a. SKU: 6600360
Blade Liner 620 mm for Hedge Trimmer Hitachi CH22EBP2-CH22ECP2
Blade Liner 620 mm for Hedge Trimmer Hitachi CH22EBP2-CH22ECP2 Original spare Hitachi Koky Tanaka, Blade Liner 620 mm for Hedge Trimmer Hitachi Tanaka CH22EBP2 - CH22ECP2 - CH22EC2 Parts for the following products: - Hedge Trimmer...
Last items in stock €9.16
Details
Stop Switch Cord for Hedge Trimmers Hitachi CH22EBP2-CH22ECP2
HiKOKI Power Tools Italia S.p.a. SKU: 6699058
Stop Switch Cord for Hedge Trimmers Hitachi CH22EBP2-CH22ECP2
Stop Switch Cord for Hedge Trimmers Hitachi CH22EBP2-CH22ECP2 Original spare part Hitachi-HIKOKI Tanaka, Stop Switch Cord for Hedge Trimmers CH22EBP2 (62 ST) - CH22EC2 (62 ST) - CH22ECP2 (66 ST) - CH22ECP2 (78 ST). Parts for the...
AVAILABLE €1.62
Details
Switch for Brushcutter Hitachi Tanaka CG24EASP
HiKOKI Power Tools Italia S.p.a. SKU: 6696940
Switch for Brushcutter Hitachi Tanaka CG24EASP
Switch for Brushcutter Hitachi Tanaka CG24EASP Genuine spare part for Hitachi Koky Tanaka, Switch for Brushcutters CG25EUS - CG24EASP - CG24EACP - CG27EASP - CG22EAS. Part for the following products: - Brushcutter Hitachi CG25EUS -...
Last items in stock €9.30
Details
Circlip for Brushcutter Hitachi CG 24EBS
HiKOKI Power Tools Italia S.p.a. SKU: 6684590
Circlip for Brushcutter Hitachi CG 24EBS
Circlip for Brushcutter Hitachi CG 24EBS Original replacement part Hitachi Koky Tanaka, Piston Pin Circlip for Brushcutters, Chainsaws, Hedgecutters Hitachi - Tanaka. Part for the following...
Last items in stock €1.57
Details
Guide Blade for Hedge Trimmer Hitachi CH22ECP2
HiKOKI Power Tools Italia S.p.a. SKU: 6600015
Blade Guide (780mm) for Hedge Trimmer Hitachi CH22ECP2
Blade Guide (780mm) for Hedge Trimmer Hitachi CH22ECP2 Original spare part Hitachi Koky Tanaka, Blade Guide (780mm) for Hedge Trimmers CH22EC2 - CH22ECP2(62ST) - CH22ECP2(66ST) - CH22ECP2(78ST).  Parts...
Available in 7/10 days €21.92
Details
Hex Socket Bolt M6x25 for Hedge Trimmers Hitachi CH22EBP2
HiKOKI Power Tools Italia S.p.a. SKU: 6699113
Hex Socket Bolt M6x25 for Hedge Trimmers Hitachi CH22EBP2
Hex Socket Bolt M6x25 for Hedge Trimmers Hitachi CH22EBP2 Original spare part Hitachi Koky Tanaka, Hex Socket HD Bolt M6x25 for Hedge Trimmers CH22EBP2- CH22ECP2 - CH22EC2. Parts for the following products: - Hedge Trimmer Hitachi...
AVAILABLE €6.41
Details
Lower Plate for Hedge Trimmers Hitachi CH22EBP2-CH22ECP2
HiKOKI Power Tools Italia S.p.a. SKU: 6600013
Lower Plate for Hedge Trimmers Hitachi CH22EBP2-CH22ECP2
Lower Plate for Hedge Trimmers Hitachi CH22EBP2-CH22ECP2 Original spare part Hitachi Koky Tanaka, Lower Plate for Hedge Trimmers CH22EBP2 (62 ST) - CH22ECP2 (62 ST) - CH22EC2 (62 ST) - Tanaka TCH22EBP2. Parts for the following...
AVAILABLE €19.86
Details
Clutch Ass'y for Hedge Trimmers Hitachi CH22EBP2-CH22EC2
HiKOKI Power Tools Italia S.p.a. SKU: 6699173
Clutch Ass'y for Hedge Trimmers Hitachi CH22EBP2-CH22EC2
Clutch Ass'y for Hedge Trimmers Hitachi CH22EBP2-CH22EC2 Original spare part Hitachi-HIKOKI Tanaka, Clutch Ass'y for Hedge Trimmers CH22EBP2 (62 ST) - CH22EC2 (62 ST) - CH22ECP2 (66 ST) - CH22ECP2...
Last items in stock €31.72
Details
Seal Lock Screw M4x10 for Chainsaw Hitachi CS40EA
HiKOKI Power Tools Italia S.p.a. SKU: 6696835
Seal Lock Screw M4x10 for Chainsaw Hitachi CS40EA
Seal Lock Screw M4x10 for Chainsaw Hitachi CS40EA Original spare part Hitachi HiKoki Tanaka, Seal Lock Screw M4x10 for Chainsaw CS40EA - Tanaka TCS-40EA Part for the following products: -  Chainsaw Hitachi CS40EA -  Chainsaw Tanaka...
on 7/10 Business Days Approx €2.08
Details
Gear Case (B) Ass'Y for Hedge Trimmer Hitachi CH22EBP2
HiKOKI Power Tools Italia S.p.a. SKU: 6699071
Gear Case (B) Ass'Y for Hedge Trimmer Hitachi CH22EBP2
Gear Case (B) Ass'Y for Hedge Trimmer Hitachi CH22EBP2 Original spare part Hitachi-HIKOKI Tanaka, Gear Case (B) Ass'Y for Hedge Trimmers CH22EBP2 (62 ST) - CH22EC2 (62 ST) - CH22ECP2 - CH22ECP2...
on 7/10 Business Days Approx €21.45
Details
Fuel Pipe for Hedge Trimmer Tanaka TCH-22EAP2
HiKOKI Power Tools Italia S.p.a. SKU: 6698873
Fuel Pipe for Hedge Trimmer Tanaka TCH-22EAP2
Fuel Pipe for Hedge Trimmer Tanaka TCH-22EAP2 Genuine spare parts Tanaka, Fuel Pipe for Hedge Trimmers TCH-22EAP2 - TCH-22EBP2 - Hitachi CH22ECP2. Part for the following items: - Hedge...
AVAILABLE €10.50
Details
Grease Nipple for Hedgetrimmers Hitachi - HIKOKI - Tanaka
HiKOKI Power Tools Italia S.p.a. SKU: 6688643
Grease Nipple for Hedgetrimmers Hitachi - HIKOKI - Tanaka
Grease Nipple for Hedgetrimmers Hitachi - HIKOKI - Tanaka Original spare part Hitachi HIKOKI, Grease Nipple for Hedgetrimmers Hitachi - HIKOKI - Tanaka. Parts for the following products: - HEDGETRIMMER THT-2520 - 2520 B - HEDGETRIMMER...
Last items in stock €3.48
Details
Hitachi CH22EBP2 Carburetor Insulator
HiKOKI Power Tools Italia S.p.a. SKU: 6698387
Hitachi CH22EBP2 Carburetor Insulator
Hitachi CH22EBP2 Carburetor Insulator Original spare part Hitachi-HIKOKI Tanaka, Carburetor Insulator for Hedge Trimmers CH22EBP2 (62 ST) - CH22EC2 (62 ST) - CH22ECP2 (66 ST) - CH22ECP2 (78 ST). Parts for the...
Out-of-Stock €6.29
Details
Hitachi Felt for Hedgecutter CH22EBP2
HiKOKI Power Tools Italia S.p.a. SKU: 6699067
Hitachi Felt for Hedgecutter CH22EBP2
Hitachi Felt for Hedgecutter CH22EBP2 Genuine spare part Hitachi - Hikoki, Felt Packing (C) for Hedgecutter CH22EBP2 - CH22ECP2. Part for the following products: - Hedgecutter Hitachi CH22EBP2 - Hedgecutter Hitachi CH22ECP2 -...
Usually Ships in: 7/10 Business Days Approx. €3.40
Details
Comments (0)
