Hitachi Spare Parts for Engine Hedge Trimmer CH22EBP2

SKU: Hitachi CH22EBP2 Condition: New
€5.20
VAT included

Hitachi Spare Parts for Engine Hedge Trimmer CH22EBP2

Hitachi-HIKOKI Tanaka authorized service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Engine Hedge Trimmer CH22EBP2.
settings 197 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
118 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

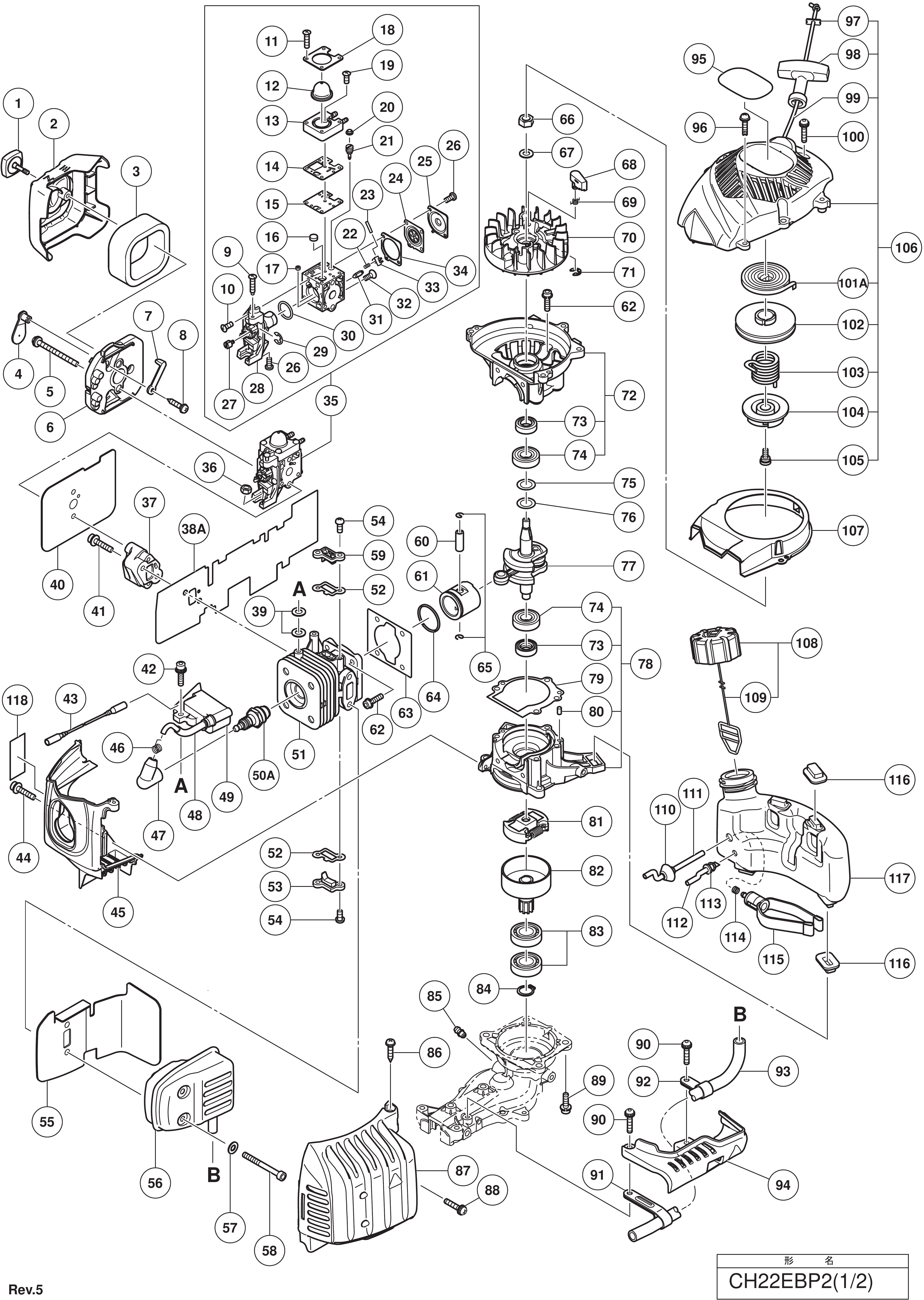

Esploso pagina 1
Pos. Item Price Buy
1
 Air Filter Cover Knob for Brushcutter Hitachi CG33EJ-SL 6698730 Air Filter Cover Knob for Brushcutter Hitachi CG33EJ-SL €5.46
2
 Filter Cover for Hedge Trimmer Hitachi Tanaka CH22EBP2-CH22ECP2 6698609 Filter Cover for Hedge Trimmer Hitachi Tanaka CH22EBP2-CH22ECP2 €4.64
3
 Air Filter for Brushcutter-Trimmer-Auger Hitachi Tanaka 6690365 Air Filter for Brushcutter-Trimmer-Auger Hitachi Tanaka €1.98
3
 photo_cameraImage coming soon 6695737 FLYWHEEL EXTRACTOR BOLT €22.13
4
 photo_cameraImage coming soon 6698608 AIR VALVE €2.10
5
 photo_cameraImage coming soon 6695740 PISTON PIN EXTRACTOR €80.81
6
 photo_cameraImage coming soon 6698606 AIR FILTER SUPPORT €4.07
7
 photo_cameraImage coming soon 6698607 AIR LEVER €2.10
13
 photo_cameraImage coming soon 6699097 PUMPING BASE UNTIL YEAR OF PRODUCTION SEPTEMBER 2015 €43.30
14
 photo_cameraImage coming soon 6695754 CLUTCH PULLER €104.29
14
 photo_cameraImage coming soon 6699096 CARBURETOR GASKET UNTIL YEAR OF PRODUCTION SEPTEMBER 2015 €7.73
17
 photo_cameraImage coming soon 6699103 ROLLER GUIDE UNTIL YEAR OF PRODUCTION SEPTEMBER 2015 €4.11
24
 photo_cameraImage coming soon 6699091 DISC MEMBRANE UNTIL YEAR OF PRODUCTION SEPTEMBER 2015 €15.68
34
 photo_cameraImage coming soon 6699092 CARBURETOR GASKET UNTIL YEAR OF PRODUCTION SEPTEMBER 2015 €7.73
37
 Hitachi CH22EBP2 Carburetor Insulator 6698387 Hitachi CH22EBP2 Carburetor Insulator €6.29
38A
 photo_cameraImage coming soon 6600456 SUCTION GASKET €3.25
39
 photo_cameraImage coming soon 6698700 GLASS WASHER €2.16
40
 photo_cameraImage coming soon 6698816 GASKET CARB. €3.35
41
 photo_cameraImage coming soon 6698844 SEAL LOCK HEX. SOCKET BOLT (W/WASHERS)M5 €2.16
45
 photo_cameraImage coming soon 6698871 CYLINDER COVER €6.87
47
 photo_cameraImage coming soon 6698548 PLUG CAP €3.93
49A
 Ignition Coil for Hedge Trimmer Tanaka TCH-22EAP2 6600890 Ignition Coil for Hedge Trimmer Tanaka TCH-22EAP2 €60.11
51
 Cylinder for Hedge Trimmer Hitachi Tanaka CH22EBP2-CH22ECP2 6698597 Cylinder for Hedge Trimmer Hitachi Tanaka CH22EBP2-CH22ECP2 €65.87
52
 Carburator Cover Packing for Brushcutter Hitachi CG22EAS 6696534 Carburator Cover Packing for Brushcutter Hitachi CG22EAS €2.14
53
 photo_cameraImage coming soon 6696535 INTAKE COVER (A) €2.25
54
 Seal Lock Screw M4x10 for Chainsaw Hitachi CS40EA 6696835 Seal Lock Screw M4x10 for Chainsaw Hitachi CS40EA €2.08
59
 photo_cameraImage coming soon 6696536 INTAKE COVER (B) €2.16
60
 Piston Pin for Brushcutter Hitachi Tanaka CG22EAS 6696944 Piston Pin for Brushcutter Hitachi Tanaka CG22EAS €7.30
61
 Piston for Brush Cutter and Hedge Trimmer Hitachi Tanaka CG-CH 6696531 Piston for Brush Cutter and Hedge Trimmer Hitachi Tanaka CG-CH €15.81
63
 Cylinder Gasket for Brushcutter Hitachi Tanaka CG22EAS 6696530 Cylinder Gasket for Brushcutter Hitachi Tanaka CG22EAS €2.16
64
 Piston Ring for Brush Cutter end Hedge Trimmers Hitachi 6696532 Piston Ring for Brush Cutter end Hedge Trimmers Hitachi €6.50
65
 Circlip for Brushcutter Hitachi CG 24EBS 6684590 Circlip for Brushcutter Hitachi CG 24EBS €1.57
66
 photo_cameraImage coming soon 6696879 FLYWHEEL NUT M7 €2.27
67
 photo_cameraImage coming soon 6696880 BOLT WASHER D7 €2.22
69
 Starter Pawl Spring for Chainsaw Hitachi Tanaka CS33EDT-EB 6685335 Starter Pawl Spring for Chainsaw Hitachi Tanaka CS33EDT-EB €2.65
70
 photo_cameraImage coming soon 6698601 THEY FLY €29.51
71
 photo_cameraImage coming soon 6685336 RETAINING RING D4 €2.48
72
 photo_cameraImage coming soon 6698872 CRANKCASE (B) ASS'Y INCLUDES 73.74 €28.48
73
 photo_cameraImage coming soon 6684607 OIL SEAL TB 12227 €3.20
74
 photo_cameraImage coming soon 6684608 BALL BEARING 6001 C3 €6.06
77
 photo_cameraImage coming soon 6699043 CRANKSHAFT €65.39
79
 photo_cameraImage coming soon 6696539 CRANK CASE PACKING €2.25
81
 Clutch Ass'y for Hedge Trimmers Hitachi CH22EBP2-CH22EC2 6699173 Clutch Ass'y for Hedge Trimmers Hitachi CH22EBP2-CH22EC2 €31.72
82
 Hitachi HIKOKI CH22EC2 Clutch Drum 6699040 Hitachi HIKOKI CH22EC2 Clutch Drum €19.55
83
 photo_cameraImage coming soon 6698740 BEARING 6002-2ZC3 €8.01
84
 Retaining Ring Type C 15 mm for Drills Hitachi D13VG-DV16V 939544 Retaining Ring Type C 15 mm for Drills Hitachi D13VG-DV16V €0.55
85
 Grease Nipple for Hedgetrimmers Hitachi - HIKOKI - Tanaka 6688643 Grease Nipple for Hedgetrimmers Hitachi - HIKOKI - Tanaka €3.48
87
 photo_cameraImage coming soon 6698876 COVER, MUFFLER €28.94
91
 photo_cameraImage coming soon 6699047 FIXING PLATE (A) €1.22
93
 photo_cameraImage coming soon 6699052 DRAIN PIPE €5.00
94
 Exhaust Cover for Hedge Trimmer Tanaka TCH-22EAP2 6699037 Exhaust Cover for Hedge Trimmer Tanaka TCH-22EAP2 €5.35
98
 photo_cameraImage coming soon 6693227 STARTER HANDLE €6.94
99
 photo_cameraImage coming soon 6693168 ROPE €3.26
101A
 photo_cameraImage coming soon 6684675 RECOIL SPRING €12.16
102A
 photo_cameraImage coming soon 6600995 STARTING PULLEY FROM YEAR OF PRODUCTION JANUARY 2015 €4.54
103
 Damper Spring for Chainsaw Hitachi Tanaka CS33EA-CS25EC-SC 6685183 Damper Spring for Chainsaw Hitachi Tanaka CS33EA-CS25EC-SC €7.83
104A
 photo_cameraImage coming soon 6600996 PULLEY ENGAGEMENT FROM YEAR OF PRODUCTION JANUARY 2015 €4.69
105
 Set Screw for Hedge Trimmer Hitachi CH62EA(ST) 6684679 Set Screw for Hedge Trimmer Hitachi CH62EA(ST) €6.81
107
 photo_cameraImage coming soon 6698624 AIR CONVEYOR €1.91
108
 Fuel Tank Cap for Brushcutter Hitachi CG24ECP (SL) 6698402 Fuel Tank Cap for Brushcutter Hitachi CG24ECP (SL) €9.73
111
 Fuel Pipe for Hedge Trimmer Tanaka TCH-22EAP2 6698873 Fuel Pipe for Hedge Trimmer Tanaka TCH-22EAP2 €10.50
113A
 photo_cameraImage coming soon 6697846 RETURN GROMMET €1.79
114
 photo_cameraImage coming soon 6696949 CAPACITOR CLIP €2.06
115
 photo_cameraImage coming soon 6698874 PESCANTE DOUBLE MIXTURE €21.96
116
 photo_cameraImage coming soon 6698615 RUBBER SUPP. RESERVOIR €4.07
117
 Hitachi CH22EBP2 Fuel Tank 6698613 Hitachi CH22EBP2 Fuel Tank €10.78
123
 photo_cameraImage coming soon 6600879 MEMBRANE GASKET FROM YEAR OF PRODUCTION OCTOBER 2015 €9.58
124
 photo_cameraImage coming soon 6600880 PUMPING MEMBRANE FROM YEAR OF PRODUCTION OCTOBER 2015 €5.77
125
 Carburator Inlet Screen for Chainsaws and Bruschcutters Hitachi 6684700 Carburator Inlet Screen for Chainsaws and Bruschcutters Hitachi €3.18
129
 Hitachi CS25EC-SC Hinge Pin 6685219 Hitachi CS25EC-SC Hinge Pin €2.53
130
 photo_cameraImage coming soon 6600881 DISC MEMBRANE FROM YEAR OF PRODUCTION OCTOBER 2015 €26.18
131
 photo_cameraImage coming soon 6685222 DIAPHRAGM COVER €6.54
132
 photo_cameraImage coming soon 6684697 SWIVEL €4.96
134
 photo_cameraImage coming soon 6684696 STOP RING €1.76
136
 Carburator Needle Valve for Chainsaws Hitachi-HiKoki Tanaka 6685215 Carburator Needle Valve for Chainsaws Hitachi-HiKoki Tanaka €10.76
139
 Diaphragm Packing Metering for Chainsaws Hitachi CS25-33-40-45-51 6685220 Diaphragm Packing Metering for Chainsaws Hitachi CS25-33-40-45-51 €3.45
140
 Tanaka TCH-22EAP2 Carburetor Assy 6600875 Tanaka TCH-22EAP2 Carburetor Assy €55.00
201
 photo_cameraImage coming soon 6698405 CARBURETOR PACKING €4.33
202
 photo_cameraImage coming soon 6600891 HEAT GASKET INCLUDES 5A.201 €5.77
203
 photo_cameraImage coming soon 6600997 STARTER PULLEY KIT WITH SPRING -NEW- UNTIL PRODUCTION YEAR DECEMBER 2014. INCLUDES 102A.104A €11.23
205
 photo_cameraImage coming soon 6601364 FULL IGNITION COIL INCLUDES 46-49A €69.33
208
 photo_cameraImage coming soon 6600358 TANK GROMMET FROM YEAR OF PRODUCTION OCTOBER 2016 €2.18
Page 2 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 2
Pos. Item Price Buy
142
 Front Handle Ass'y for Hedge Trimmer Hitachi CH22EBP2 6699079 Front Handle Ass'y for Hedge Trimmer Hitachi CH22EBP2 €22.49 Not available for order
145
 photo_cameraImage coming soon 6698749 WASHER €2.10
146
 photo_cameraImage coming soon 6698880 HANDLE (A) €19.86
148
 photo_cameraImage coming soon 6696348 SPRING €2.10
151
 photo_cameraImage coming soon 6696344 LOCK LEVER ACC. €1.83
152
 photo_cameraImage coming soon 6696345 SPRING €2.22
153A
 photo_cameraImage coming soon 6601275 STOP SWITCH €2.62
154
 photo_cameraImage coming soon 6699051 HANDLE (B) €6.38
156
 photo_cameraImage coming soon 6698627 CONTROL CABLE €8.01
158
 Stop Switch Cord for Hedge Trimmers Hitachi CH22EBP2-CH22ECP2 6699058 Stop Switch Cord for Hedge Trimmers Hitachi CH22EBP2-CH22ECP2 €1.62
159
 photo_cameraImage coming soon 6699059 STOP CABLE €2.10
162
 Bolt Washer 6 for Brushcutters Chainsaws Hitachi Hikoki Tanaka 6684639 Bolt Washer 6 for Brushcutters Chainsaws Hitachi Hikoki Tanaka €1.98
163
 photo_cameraImage coming soon 6699108 NUT M5 €3.25
169A
 photo_cameraImage coming soon 6600398 COMPLETE 620MM BLADE KIT INCLUDES 163.172-176.194-199 €127.70
171
 photo_cameraImage coming soon 6699062 PLATE €1.64
172
 Hex Socket Bolt M6x25 for Hedge Trimmers Hitachi CH22EBP2 6699113 Hex Socket Bolt M6x25 for Hedge Trimmers Hitachi CH22EBP2 €6.41
173
 photo_cameraImage coming soon 6699114 WASHER €1.70
174
 photo_cameraImage coming soon 6699111 WASHER M7 €1.70
175
 photo_cameraImage coming soon 6699109 SCREW M5X25 €3.25
176
 photo_cameraImage coming soon 6699179 SCREW €4.07
177
 photo_cameraImage coming soon 6698948 BLADE PROTECTION €7.60
179
 photo_cameraImage coming soon 6696359 STOPPED €1.87
180
 photo_cameraImage coming soon 6685407 BOLT WASHER D5 €2.22
183
 photo_cameraImage coming soon 6698772 BEARING 608ZZC3 €17.21
185A
 photo_cameraImage coming soon 6600418 GUIDE PLATE €2.65
186
 photo_cameraImage coming soon 6698987 BLADES CONNECTING ROD €4.07
188
 photo_cameraImage coming soon 6699068 FELT €1.35
189
 Hitachi Felt for Hedgecutter CH22EBP2 6699067 Hitachi Felt for Hedgecutter CH22EBP2 €3.40
190
 photo_cameraImage coming soon 6699042 COVER GASKET €1.59
191
 Gear Case (B) Ass'Y for Hedge Trimmer Hitachi CH22EBP2 6699071 Gear Case (B) Ass'Y for Hedge Trimmer Hitachi CH22EBP2 €21.45
194
 Lower Plate for Hedge Trimmers Hitachi CH22EBP2-CH22ECP2 6600013 Lower Plate for Hedge Trimmers Hitachi CH22EBP2-CH22ECP2 €19.86
195
 Blade Guide 620 MM for Hedge Trimmers Hitachi CH22EBP2-CH22ECP2 6600012 Blade Guide 620 MM for Hedge Trimmers Hitachi CH22EBP2-CH22ECP2 €18.63
196
 620 mm Single Blade for Hedge Trimmers Hitachi CH22EBP2-CH22ECP2 6600014 620 mm Single Blade for Hedge Trimmers Hitachi CH22EBP2-CH22ECP2 €53.05
197
 Blade Liner 620 mm for Hedge Trimmer Hitachi CH22EBP2-CH22ECP2 6600360 Blade Liner 620 mm for Hedge Trimmer Hitachi CH22EBP2-CH22ECP2 €9.16
198
 photo_cameraImage coming soon 6699112 WASHER €1.70
199
 photo_cameraImage coming soon 6600362 REINFORCEMENT BALANCER €3.78

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Hitachi Spare Parts for Engine Hedge Trimmer CH22EBP2

Hitachi-HIKOKI Tanaka authorized service center

 and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Engine Hedge Trimmer CH22EBP2.

In the following table, look for the model of Trimmer and the respective parts of the code.
Hitachi CH22EBP2

Engine Hedge Trimmer CH22EBP2
ENGINE Pag.1
# PART NUM. DESCRIPTION
1 6698730 KNOB
2 6698609 AIR FILTER COVER
3 6690365 AIR FILTER (SPONGE)
4 6698608 AIR VALVE
5A 312440 MACHINE SCREW M5X65 BLACK
6 6698606 AIR FILTER SUPPORT
7 6698607 AIR LEVER
8 309470 TAPPING SCREW D4X12 (W / FLANGE)
9 6699087 THROTTLE ADJUST SCREW (TAS)
UNTIL YEAR OF PRODUCTION SEPTEMBER 2015
10 6699088 SET SCREW (B) UP TO YEAR OF PRODUCTION SEPTEMBER 2015
11 6699100 SET SCREW (D) UNTIL YEAR OF PRODUCTION SEPTEMBER 2015
12 6699098 SYRINGE UNTIL YEAR OF PRODUCTION SEPTEMBER 2015
13 6699097 PUMPING BASE UNTIL YEAR OF PRODUCTION SEPTEMBER 2015
14 6699096 CARBURETOR GASKET UNTIL YEAR OF PRODUCTION SEPTEMBER 2015
15 6699095 PUMPING MEMBRANE UNTIL YEAR OF PRODUCTION SEPTEMBER 2015
16 6699080 STRAINER UNTIL YEAR OF PRODUCTION SEPTEMBER 2015
17 6699103 ROLLER GUIDE UNTIL YEAR OF PRODUCTION SEPTEMBER 2015
18 6699099 SYRINGE RETAINER UNTIL YEAR OF PRODUCTION SEPTEMBER 2015
19 6699101 SET SCREW (E) UNTIL YEAR OF PRODUCTION SEPTEMBER 2015
20 6699104 BALL PLUG RETAINER UNTIL YEAR OF PRODUCTION SEPTEMBER 2015
21 6699105 ADJUSTING SCREW (MAIN MIXTURE)
UP TO YEAR OF PRODUCTION SEPTEMBER 2015
22 6699083 METERING LEVER SPRING UNTIL YEAR OF PRODUCTION SEPTEMBER 2015
23 6699082 PIN UNTIL YEAR OF PRODUCTION SEPTEMBER 2015
24 6699091 DISC MEMBRANE UNTIL YEAR OF PRODUCTION SEPTEMBER 2015
25 6699093 METERING COVER UNTIL YEAR OF PRODUCTION SEPTEMBER 2015
26 6699094 SET SCREW (C) UP TO YEAR OF PRODUCTION SEPTEMBER 2015
27 6699089 POST UP TO YEAR OF PRODUCTION SEPTEMBER 2015
28 6699086 ROTOR COVER UP TO YEAR OF PRODUCTION SEPTEMBER 2015
29 6699090 RETAINING RING (E-TYPE) FOR D2.5 SHAFT
UP TO YEAR OF PRODUCTION SEPTEMBER 2015
30 6699102 O-RING UNTIL YEAR OF PRODUCTION SEPTEMBER 2015
31 6699081 INLET NEEDLE VALVE UNTIL YEAR OF PRODUCTION SEPTEMBER 2015
32 6699085 SET SCREW (A) UNTIL YEAR OF PRODUCTION SEPTEMBER 2015
33 6699084 METERING LEVER UNTIL YEAR OF PRODUCTION SEPTEMBER 2015
34 6699092 CARBURETOR GASKET UNTIL YEAR OF PRODUCTION SEPTEMBER 2015
36 949567 LOCK NUT M6 (10 PCS)
37 6698387 CARBURETOR INSULATOR
38A 6600456 SUCTION GASKET
39 6698700 PLASTIC WASHER
40 6698816 GASKET CARB.
41 6698844 SCREW M5X25
42 6698388 HEX. SOCKET HD BOLT M4X18 (W / WASHER
43 6699060 CORD
44 6698879 SEAL LOCK HEX. SOCKET HD. BOLT M4X12
45 6698871 CYLINDER COVER
46 6699180 METAL OF PLUG CAP (60) (B)
47 6698548 CANDLE HOOD
48 6699175 CORD INSULATION TUBE L60
49A 6600890 IGNITION COIL
51 6698597 CYLINDER
52 6696534 GASKET
53 6696535 INTAKE CARTER
54 6696835 SCREW M4X10
55 6698617 HEAT SCREEN
56 6698733 MUFFLER
57 949432 WASHER M6
58 6696819 HEX. SOCKET HD. BOLT M6X55 NEW
59 6696536 SUCTION COVER
60 6696944 PISTON PIN
61 6696531 PISTON
62 6698386 HEX. SOCKET HD BOLT M5X18 (W / SP.WAS
63 6696530 CYLINDER GASKET
64 6696532 PISTON RING
65 6684590 STOP PIN
66 6696879 FLYWHEEL NUT
67 6696880 WASHER
68 6698603 SALTARELLI AVV.
69 6685335 STARTER HOOK SPRING
70 6698601 THEY FLY
71 6685336 E-RING D4E
72 6698872 CRANKCASE (B) ASS'Y INCLUDES 73.74
73 6684607 OIL SEAL TB 12227
74 6684608 BEARING 6001 C3 NSK
75 6696946 THICKNESS * 6684604
76 6696945 SHIM
77 6699043 CRANKSHAFT
78 6698729 CRANK CASE (A) ASS'Y INCLUDES 73.74.80
79 6696539 GASKET
80 6696947 KNOCK PIN 4X12
81 6699173 CLUTCH
82 6699040 CLUTCH DRUM
83 6698740 BEARING 6002-2ZC3
84 939544 RING TYPE C X SHAFT D.15
85 6688643 GREASER
86 302089 TAPPING SCREW D5X20 (W / FLANGE) BLAC
87 6698876 COVER, MUFFLER
88 887021 SCREW M5X16 (W / WASHERS) BLACK
89 6695495 SCREW
90 6698988 HEX. SOCKET HD. BOLT (W / BUTTON) M5X20
91 6699047 FIXING PLATE (A)
92 6699048 FIXING PLATE (B)
93 6699052 DRAIN PIPE
94 6699037 EXHAUST COVER
96 6698878 TAPPING SCREW D4.5X16
97 6685189 ROPE STOP
98 6693227 HANDLE AVV.
99 6693168 STARTING ROPE
100 6698988 HEX. SOCKET HD. BOLT (W / BUTTON) M5X20
101A 6684675 STARTER SPRING
102A 6600995 STARTING PULLEY FROM YEAR OF PRODUCTION JANUARY 2015
103 6685183 S-START STARTER SPRING
104A 6600996 PULLEY ENGAGEMENT FROM YEAR OF PRODUCTION JANUARY 2015
105 6684679 SCREW
106 6698622 COMPLETE START-UP INCLUDES 97-99.101-105
107 6698624 AIR CONVEYOR
108 6698402 TANK CAP INCLUDES 109
109 6698732 TANK CAP CHAIN
110 6698931 RUBBER MIXTURE * 6688156
UNTIL YEAR OF PRODUCTION SEPTEMBER 2016
111 6698873 MIX TUBE
112 6698875 * SEE 6601399
113A 6697846 RUBBER UNTIL YEAR OF PRODUCTION SEPTEMBER 2016
114 6696949 CLIP
115 6698874 PESCANTE DOUBLE MIXTURE
116 6698615 RUBBER SUPP. RESERVOIR
117 6698613 FUEL TANK UNTIL YEAR OF PRODUCTION SEPTEMBER 2016
119 6600883 SCREW (B) FROM YEAR OF PRODUCTION OCTOBER 2015
120 6600884 SCREW (C) FROM YEAR OF PRODUCTION OCTOBER 2015
121 6600889 PRIMER PUMP FROM YEAR OF PRODUCTION OCTOBER 2015
122 6600876 PUMP BODY FROM YEAR OF PRODUCTION OCTOBER 2015
123 6600879 MEMBRANE GASKET FROM YEAR OF PRODUCTION OCTOBER 2015
124 6600880 PUMPING MEMBRANE FROM YEAR OF PRODUCTION OCTOBER 2015
125 6684700 FILTER NET FROM YEAR OF PRODUCTION OCTOBER 2015
126 6600877 PUMP COVER FROM YEAR OF PRODUCTION OCTOBER 2015
127 6600887 HIGH SPEED NEEDLE FROM YEAR OF PRODUCTION OCTOBER 2015
128 6600885 METERING LEVER SPRING FROM YEAR OF PRODUCTION OCTOBER 2015
129 6685219 SPINA BALANCER FROM YEAR OF PRODUCTION OCTOBER 2015
130 6600881 DISC MEMBRANE FROM YEAR OF PRODUCTION OCTOBER 2015
131 6685222 COVER FROM YEAR OF PRODUCTION OCTOBER 2015
132 6684697 PIN FROM YEAR OF PRODUCTION OCTOBER 2015
133 6600878 THROTTLE VALVE FROM YEAR OF PRODUCTION OCTOBER 2015
134 6684696 RING FROM YEAR OF PRODUCTION OCTOBER 2015
135 6600886 WASHER FROM YEAR OF PRODUCTION OCTOBER 2015
136 6685215 PIN FROM YEAR OF PRODUCTION OCTOBER 2015
137 6600882 SCREW (A) FROM YEAR OF PRODUCTION OCTOBER 2015
138 6600888 METERING LEVER FROM YEAR OF PRODUCTION OCTOBER 2015
139 6685220 DISC GASKET FROM YEAR OF PRODUCTION OCTOBER 2015
140 6600875 WYGA-1 CARBURETOR INCLUDES 119-139
201 6698405 CARBURETOR GASKET
202 6600891 HEAT GASKET INCLUDES 5A.201
203 6600997 STARTER PULLEY KIT WITH SPRING -NEW-
UNTIL PRODUCTION YEAR DECEMBER 2014. INCLUDES 102A.104A
205 6601364 FULL IGNITION COIL INCLUDES 46-49A
206 6601361 CARBURETOR ASS'Y WYGA-1 (W / HEAT PANEL)
UP TO YEAR OF PRODUCTION SEPTEMBER 2015. INCLUDES 140.202
207 6601419 TANK FROM YEAR OF PRODUCTION OCTOBER 2016
208 6600358 TANK GROMMET FROM YEAR OF PRODUCTION OCTOBER 2016
BLADE - GEAR CASE Pag.2
89 6695495 SCREW
142 6699079 HANDLE
143 6698885 SCREW M5X40
144 6698884 SPRING WASHER M5
145 6698749 WASHER
146 6698880 HANDLE (A)
148 6696348 SPRING
149 6699055 LOCK LEVER
150 6699053 TRIGGER
151 6696344 LOCK LEVER ACC.
152 6696345 SPRING
153A 6601275 STOP SWITCH
154 6699051 HANDLE (B)
155 305812 SCREW WITH FLANGE D4X16 BLACK
156 6698627 CONTROL CABLE
157 6698738 PROTECTION TUBE
158 6699058 STOP CABLE
159 6699059 STOP CABLE
160 6699049 FIXATION PLATE (B)
161 6695175 NUT M6
162 6684639 WASHER M6
163 6699108 NUT M5
167A 6699064 SUPPORT PLATE
168 949432 WASHER M6
169A 6600398 COMPLETE 620MM BLADE KIT INCLUDES 163.172-176.194-199
170 6699065 SCREW
171 6699062 PLATE
172 6699113 HEX SCREW M6X25
173 6699114 WASHER
174 6699111 WASHER M7
175 6699109 SCREW M5X25
176 6699179 SCREW
177 6698948 BLADE PROTECTION
178 6699041 HANDLE SUPPORT
179 6696359 STOPPED
180 6685407 WASHER M5
181 6699044 SEAL LOCK HEX. SOCKET BOLT (W / WASHERS) M5
182 6699070 GEAR BOX INCLUDES 183 - DISCONTINUED
183 6698772 BEARING 608ZZC3
184 6699113 HEX SCREW M6X25
185A 6600418 GUIDE PLATE
186 6698987 BLADES CONNECTING ROD
187 6699066 BLADES GEAR
188 6699068 FELT
189 6699067 FELT
190 6699042 COVER GASKET
191 6699071 BOTTOM COVER
192 6699069 HEX. SOCKET HD. BOLT (W / SP.WASHER) M5X14
194 6600013 PROTECTION
195 6600012 BLADE GUIDE BAR (620MM)
196 6600014 SINGLE BLADE 620MM
197 6600360 BLADE LINER 620MM
198 6699112 WASHER
199 6600362 REINFORCEMENT BALANCER
SPECIAL TOOLS Pag.3
2 6695736 FLYWHEEL EXTRACTOR
3 6695737 FLYWHEEL EXTRACTOR BOLT
5 6695740 PISTON PIN EXTRACTOR
14 6695754 CLUTCH PULLER
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Hitachi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to hitachi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Hitachi CH22EBP2
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Hitachi CH22EBP2

Diagram Hitachi CH22EBP2

Download (529.03KB)

You might also like

Damper Spring for Chainsaw Hitachi Tanaka CS33EA-CS25EC-SC
HiKOKI Power Tools Italia S.p.a. SKU: 6685183
Damper Spring for Chainsaw Hitachi Tanaka CS33EA-CS25EC-SC
Damper Spring for Chainsaw Hitachi Tanaka CS33EA-CS25EC-SC Genuine spare parts for Chainsaw Hitachi Koky Tanaka, Damper Spring for Chainsaw CS25EC-SC HEDGETRIMMER CH22EBP2 - HEDGETRIMMER CH22ECP2. Parts for the following...
AVAILABLE €7.83
Details
Piston Ring for Brush Cutter end Hedge Trimmers Hitachi
HiKOKI Power Tools Italia S.p.a. SKU: 6696532
Piston Ring for Brush Cutter end Hedge Trimmers Hitachi
Piston Ring for Brush Cutter end Hedge Trimmers Hitachi Original spare Hitachi Koky Tanaka, Piston Ring for Brush Cutter end Hedge Trimmers Hitachi. Parts for the following products: - Brush Cutter CG22EAS - Hedge Trimmers CH22EBP2 -...
AVAILABLE €6.50
Details
Piston for Brush Cutter and Hedge Trimmer Hitachi Tanaka CG-CH
HiKOKI Power Tools Italia S.p.a. SKU: 6696531
Piston for Brush Cutter and Hedge Trimmer Hitachi Tanaka CG-CH
Piston for Brush Cutter and Hedge Trimmer Hitachi Tanaka CG-CH Original spare part Hitachi Koky Tanaka, Piston for Brush Cutter and Hedge trimmer Hitachi Tanaka CG-CH. Part for the followinf article: - Brush Cutter CG22EAS - Hedge...
Last items in stock €15.81
Details
Air Filter for Brushcutter-Trimmer-Auger Hitachi Tanaka
HiKOKI Power Tools Italia S.p.a. SKU: 6690365
Air Filter for Brushcutter-Trimmer-Auger Hitachi Tanaka
Air Filter for Brushcutter-Trimmer-Auger Hitachi Tanaka Original spare part Hitachi Koky Tanaka, Air Filter for Brushcutter-Trimmer-Auger Hitachi Tanaka. Part for the following items : - Brushcutter CG27EJ-SLNP -...
AVAILABLE €1.98
Details
Air Filter Cover Knob for Brushcutter Hitachi CG33EJ-SL
HiKOKI Power Tools Italia S.p.a. SKU: 6698730
Air Filter Cover Knob for Brushcutter Hitachi CG33EJ-SL
Air Filter Cover Knob for Brushcutter Hitachi CG33EJ-SL Original spare Hitachi Koky Tanaka, Air Filter Knob for Brushcutter CG33EJ-SL and Trimmers CH22EBP2-CH22ECP2 Hitachi. Parts for the following products: - Brushcutter...
AVAILABLE €5.46
Details
Filter Cover for Hedge Trimmer Hitachi Tanaka CH22EBP2-CH22ECP2
HiKOKI Power Tools Italia S.p.a. SKU: 6698609
Filter Cover for Hedge Trimmer Hitachi Tanaka CH22EBP2-CH22ECP2
Filter Cover for Hedge Trimmer Hitachi Tanaka CH22EBP2-CH22ECP2 Original spare Hitachi Koky Tanaka, Cover Filter for Hedge Trimmer Hitachi Tanaka CH22EBP2-CH22ECP2 Parts for the following products: - Hedge Trimmer...
Last items in stock €4.64
Details
Carburator Cover Packing for Brushcutter Hitachi CG22EAS
HiKOKI Power Tools Italia S.p.a. SKU: 6696534
Carburator Cover Packing for Brushcutter Hitachi CG22EAS
Carburator Cover Packing for Brushcutter Hitachi CG22EAS Original parts Hitachi Koky Tanaka, Carburator Cover Packing for Brushcutters CG22EAS Parts for the following products: - Brushcutter Hitachi CG22EAS - Hedge Trimmer Hitachi...
Last items in stock €2.14
Details
Cylinder Gasket for Brushcutter Hitachi Tanaka CG22EAS
HiKOKI Power Tools Italia S.p.a. SKU: 6696530
Cylinder Gasket for Brushcutter Hitachi Tanaka CG22EAS
Cylinder Gasket for Brushcutter Hitachi Tanaka CG22EAS Genuine spare part Hitachi Koky Tanaka, Cylinder Gasket for Brushcutters CG22EAB - CG22EAS - Edge Trimmer Hitachi CH22EBP2 Part for the following products: - Brushcutter Hitachi...
AVAILABLE €2.16
Details
Piston Pin for Brushcutter Hitachi Tanaka CG22EAS
HiKOKI Power Tools Italia S.p.a. SKU: 6696944
Piston Pin for Brushcutter Hitachi Tanaka CG22EAS
Piston Pin for Brushcutter Hitachi Tanaka CG22EAS Genuine spare part Hitachi Koky Tanaka, Piston Pin for Brushcutters CG22EAB - CG22EAS - Edge Trimmer Hitachi CH22EBP2 Part for the following products: - Pump Hitachi A25EB(N) -...
Last items in stock €7.30
Details
Cylinder for Hedge Trimmer Hitachi Tanaka CH22EBP2-CH22ECP2
HiKOKI Power Tools Italia S.p.a. SKU: 6698597
Cylinder for Hedge Trimmer Hitachi Tanaka CH22EBP2-CH22ECP2
Cylinder for Hedge Trimmer Hitachi Tanaka CH22EBP2-CH22ECP2 Original spare Hitachi Koky Tanaka, Cylinder for Hedge Trimmer Hitachi Tanaka CH22EC2(62ST) - CH22ECP2(62ST) - CH22EC2(78ST) - CH22ECP2(78ST) Parts...
Last items in stock €65.87
Details
Blade Liner 620 mm for Hedge Trimmer Hitachi CH22EBP2-CH22ECP2
HiKOKI Power Tools Italia S.p.a. SKU: 6600360
Blade Liner 620 mm for Hedge Trimmer Hitachi CH22EBP2-CH22ECP2
Blade Liner 620 mm for Hedge Trimmer Hitachi CH22EBP2-CH22ECP2 Original spare Hitachi Koky Tanaka, Blade Liner 620 mm for Hedge Trimmer Hitachi Tanaka CH22EBP2 - CH22ECP2 - CH22EC2 Parts for the following products: - Hedge Trimmer...
Last items in stock €9.16
Details
Stop Switch Cord for Hedge Trimmers Hitachi CH22EBP2-CH22ECP2
HiKOKI Power Tools Italia S.p.a. SKU: 6699058
Stop Switch Cord for Hedge Trimmers Hitachi CH22EBP2-CH22ECP2
Stop Switch Cord for Hedge Trimmers Hitachi CH22EBP2-CH22ECP2 Original spare part Hitachi-HIKOKI Tanaka, Stop Switch Cord for Hedge Trimmers CH22EBP2 (62 ST) - CH22EC2 (62 ST) - CH22ECP2 (66 ST) - CH22ECP2 (78 ST). Parts for the...
AVAILABLE €1.62
Details
Switch for Brushcutter Hitachi Tanaka CG24EASP
HiKOKI Power Tools Italia S.p.a. SKU: 6696940
Switch for Brushcutter Hitachi Tanaka CG24EASP
Switch for Brushcutter Hitachi Tanaka CG24EASP Genuine spare part for Hitachi Koky Tanaka, Switch for Brushcutters CG25EUS - CG24EASP - CG24EACP - CG27EASP - CG22EAS. Part for the following products: - Brushcutter Hitachi CG25EUS -...
Last items in stock €9.30
Details
Circlip for Brushcutter Hitachi CG 24EBS
HiKOKI Power Tools Italia S.p.a. SKU: 6684590
Circlip for Brushcutter Hitachi CG 24EBS
Circlip for Brushcutter Hitachi CG 24EBS Original replacement part Hitachi Koky Tanaka, Piston Pin Circlip for Brushcutters, Chainsaws, Hedgecutters Hitachi - Tanaka. Part for the following...
Last items in stock €1.57
Details
Hex Socket Bolt M6x25 for Hedge Trimmers Hitachi CH22EBP2
HiKOKI Power Tools Italia S.p.a. SKU: 6699113
Hex Socket Bolt M6x25 for Hedge Trimmers Hitachi CH22EBP2
Hex Socket Bolt M6x25 for Hedge Trimmers Hitachi CH22EBP2 Original spare part Hitachi Koky Tanaka, Hex Socket HD Bolt M6x25 for Hedge Trimmers CH22EBP2- CH22ECP2 - CH22EC2. Parts for the following products: - Hedge Trimmer Hitachi...
AVAILABLE €6.41
Details
Lower Plate for Hedge Trimmers Hitachi CH22EBP2-CH22ECP2
HiKOKI Power Tools Italia S.p.a. SKU: 6600013
Lower Plate for Hedge Trimmers Hitachi CH22EBP2-CH22ECP2
Lower Plate for Hedge Trimmers Hitachi CH22EBP2-CH22ECP2 Original spare part Hitachi Koky Tanaka, Lower Plate for Hedge Trimmers CH22EBP2 (62 ST) - CH22ECP2 (62 ST) - CH22EC2 (62 ST) - Tanaka TCH22EBP2. Parts for the following...
AVAILABLE €19.86
Details
Clutch Ass'y for Hedge Trimmers Hitachi CH22EBP2-CH22EC2
HiKOKI Power Tools Italia S.p.a. SKU: 6699173
Clutch Ass'y for Hedge Trimmers Hitachi CH22EBP2-CH22EC2
Clutch Ass'y for Hedge Trimmers Hitachi CH22EBP2-CH22EC2 Original spare part Hitachi-HIKOKI Tanaka, Clutch Ass'y for Hedge Trimmers CH22EBP2 (62 ST) - CH22EC2 (62 ST) - CH22ECP2 (66 ST) - CH22ECP2...
Last items in stock €31.72
Details
Front Handle Ass'y for Hedge Trimmer Hitachi CH22EBP2
HiKOKI Power Tools Italia S.p.a. SKU: 6699079
Front Handle Ass'y for Hedge Trimmer Hitachi CH22EBP2
Front Handle Ass'y for Hedge Trimmer Hitachi CH22EBP2 Original spare part Hitachi-HIKOKI Tanaka, Front Handle Assembly for Hedge Trimmers CH22EBP2 (62 ST) - CH24EBP - CH62EA3 - CH78EC3. Parts...
Available in 7/10 days €22.49
Details
Seal Lock Screw M4x10 for Chainsaw Hitachi CS40EA
HiKOKI Power Tools Italia S.p.a. SKU: 6696835
Seal Lock Screw M4x10 for Chainsaw Hitachi CS40EA
Seal Lock Screw M4x10 for Chainsaw Hitachi CS40EA Original spare part Hitachi HiKoki Tanaka, Seal Lock Screw M4x10 for Chainsaw CS40EA - Tanaka TCS-40EA Part for the following products: -  Chainsaw Hitachi CS40EA -  Chainsaw Tanaka...
on 7/10 Business Days Approx €2.08
Details
Gear Case (B) Ass'Y for Hedge Trimmer Hitachi CH22EBP2
HiKOKI Power Tools Italia S.p.a. SKU: 6699071
Gear Case (B) Ass'Y for Hedge Trimmer Hitachi CH22EBP2
Gear Case (B) Ass'Y for Hedge Trimmer Hitachi CH22EBP2 Original spare part Hitachi-HIKOKI Tanaka, Gear Case (B) Ass'Y for Hedge Trimmers CH22EBP2 (62 ST) - CH22EC2 (62 ST) - CH22ECP2 - CH22ECP2...
on 7/10 Business Days Approx €21.45
Details
Ignition Coil for Hedge Trimmer Tanaka TCH-22EAP2
HiKOKI Power Tools Italia S.p.a. SKU: 6600890
Ignition Coil for Hedge Trimmer Tanaka TCH-22EAP2
Ignition Coil for Hedge Trimmer Tanaka TCH-22EAP2 Genuine spare parts Tanaka, Ignition Coil for Hedge Trimmers TCH-22EAP2 - TCH-22EBP2 - Hitachi TCH CH22EBP2 - CH22EC2. Part for the...
Last items in stock €60.11
Details
Exhaust Cover for Hedge Trimmer Tanaka TCH-22EAP2
HiKOKI Power Tools Italia S.p.a. SKU: 6699037
Exhaust Cover for Hedge Trimmer Tanaka TCH-22EAP2
Exhaust Cover for Hedge Trimmer Tanaka TCH-22EAP2 Genuine spare parts Tanaka, Exhaust Cover for Hedge Trimmers TCH-22EAP2 - TCH-22EBP2 - Hitachi TCH CH22EBP2. Part for the following items: - ...
Last items in stock €5.35
Details
Hitachi HIKOKI CH22EC2 Clutch Drum
HiKOKI Power Tools Italia S.p.a. SKU: 6699040
Hitachi HIKOKI CH22EC2 Clutch Drum
Hitachi HIKOKI CH22EC2 Clutch Drum Original spare part Hitachi-HIKOKI Tanaka, Clutch Drum for Hedge Trimmers CH22EC2 - CH22EBP2 - TCH 22EAP2 - TCH 22EBP2. Parts for the following...
Last items in stock €19.55
Details
Hitachi CH22EBP2 Fuel Tank
HiKOKI Power Tools Italia S.p.a. SKU: 6698613
Hitachi CH22EBP2 Fuel Tank
Hitachi CH22EBP2 Fuel Tank Original spare part Hitachi-HIKOKI Tanaka, Fuel Tank for Hedge Trimmers CH22EBP2 (62 ST) - CH22EC2 (62 ST). Parts for the following products: - Hedge Trimmer Hitachi CH22EBP2 (62 ST ) -...
Last items in stock €10.78
Details
Hitachi CH22EBP2 Carburetor Insulator
HiKOKI Power Tools Italia S.p.a. SKU: 6698387
Hitachi CH22EBP2 Carburetor Insulator
Hitachi CH22EBP2 Carburetor Insulator Original spare part Hitachi-HIKOKI Tanaka, Carburetor Insulator for Hedge Trimmers CH22EBP2 (62 ST) - CH22EC2 (62 ST) - CH22ECP2 (66 ST) - CH22ECP2 (78 ST). Parts for the...
Last items in stock €6.29
Details
Tanaka TCH-22EAP2 Carburetor Ass'y
HiKOKI Power Tools Italia S.p.a. SKU: 6600875
Tanaka TCH-22EAP2 Carburetor Assy
Tanaka TCH-22EAP2 Carburetor Ass'y WYGA-1 Genuine spare parts Tanaka, Carburetor Ass'y WYGA-1 for Hedge Trimmers TCH-22EAP2 - TCH-22EBP2 - Hitachi CH22ECP2. Part for the following items: - Hedge Trimmer HIKOKI...
Last items in stock €55.00
Details
Hitachi Felt for Hedgecutter CH22EBP2
HiKOKI Power Tools Italia S.p.a. SKU: 6699067
Hitachi Felt for Hedgecutter CH22EBP2
Hitachi Felt for Hedgecutter CH22EBP2 Genuine spare part Hitachi - Hikoki, Felt Packing (C) for Hedgecutter CH22EBP2 - CH22ECP2. Part for the following products: - Hedgecutter Hitachi CH22EBP2 - Hedgecutter Hitachi CH22ECP2 -...
Usually Ships in: 7/10 Business Days Approx. €3.40
Details
Comments (0)
