HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Engine Brush Cutter CG47EJ-L

SKU: Hitachi CG47EJ-L
€1.11
VAT included

Hitachi Spare Parts for Engine Brush Cutter CG47EJ-L

Hitachi-HIKOKI Tanaka authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues for Brushcutter CG47EJ-L.
Hitachi Spare Parts for Engine Brush Cutter CG40EJ-L
  • Hitachi Spare Parts for Engine Brush Cutter CG40EJ-L
  • Hitachi Spare Parts for Engine Brush Cutter CG47EJ-L
  • Hitachi Spare Parts for Engine Brush Cutter CG47EJ-L
  • Hitachi Spare Parts for Engine Brush Cutter CG47EJ-L
  • Hitachi Spare Parts for Engine Brush Cutter CG47EJ-L
  • Hitachi Spare Parts for Engine Brush Cutter CG47EJ-L
  • Hitachi Spare Parts for Engine Brush Cutter CG47EJ-L
  • Hitachi Spare Parts for Engine Brush Cutter CG47EJ-L
  • Hitachi Spare Parts for Engine Brush Cutter CG47EJ-L
  • Hitachi Spare Parts for Engine Brush Cutter CG47EJ-L
  • Hitachi Spare Parts for Engine Brush Cutter CG47EJ-L
  • Hitachi Spare Parts for Engine Brush Cutter CG47EJ-L
  • Hitachi Spare Parts for Engine Brush Cutter CG47EJ-L
HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Engine Brush Cutter CG47EJ-L

SKU: Hitachi CG47EJ-L Condition: New
€1.11
VAT included

Hitachi Spare Parts for Engine Brush Cutter CG47EJ-L

Hitachi-HIKOKI Tanaka authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues for Brushcutter CG47EJ-L.
settings 213 spare parts
description 11 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
156 spare parts

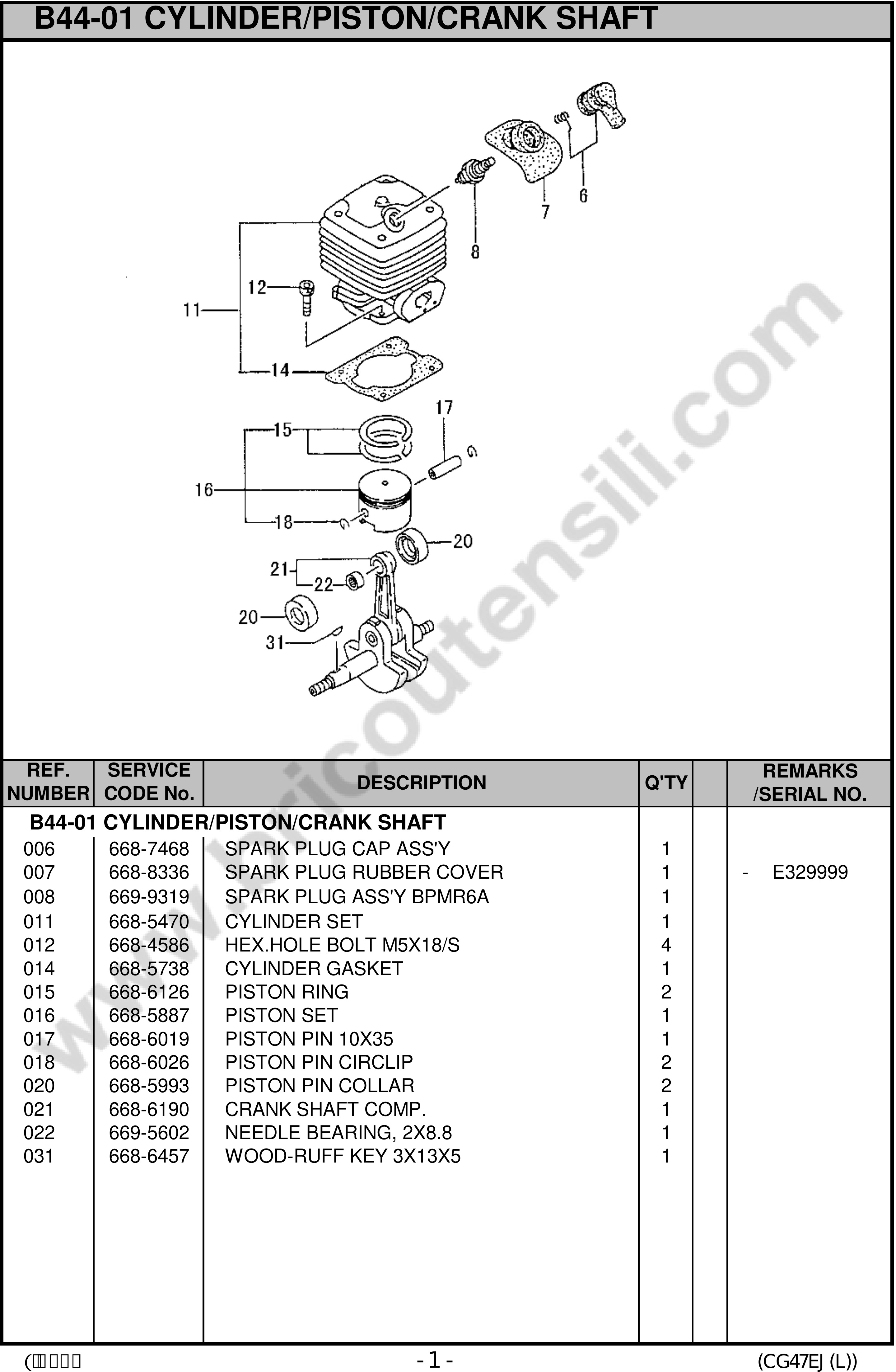

Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

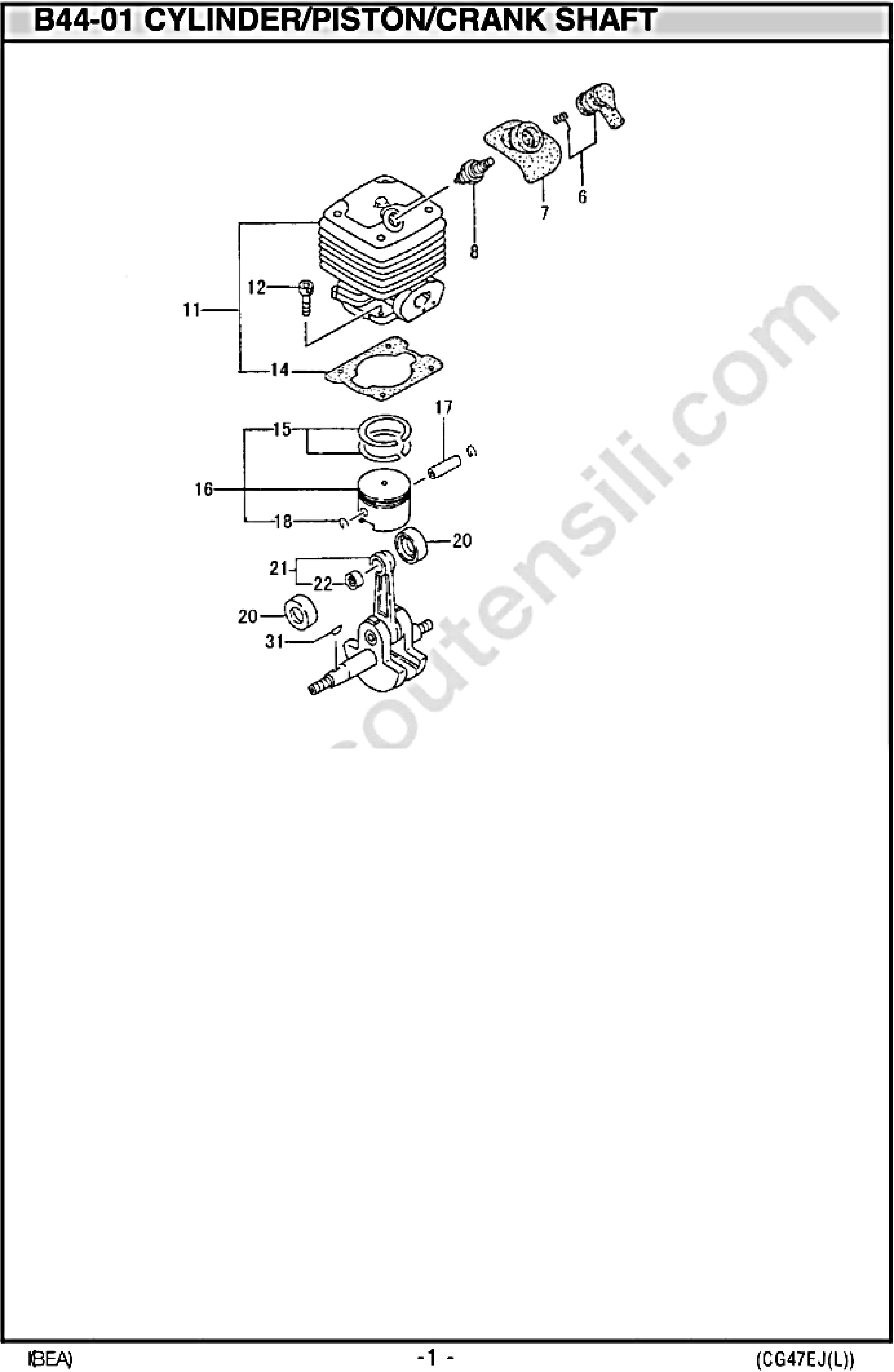

Esploso pagina 1
Pos. Item Price Buy
7
 photo_cameraImage coming soon 6688336 SPARK PLUG RUBBER COVER €5.16
8
 photo_cameraImage coming soon 6699319 SPARK PLUG ASS'Y BPMR6A €12.12
11
 Cylinder for Brushcutters Hitachi Tanaka CG47EF - EJ - EY 6685470 Cylinder for Brushcutters Hitachi Tanaka CG47EF - EJ - EY €90.07
12
 Bolt M5X18/S for Chainsaws Hitachi CS38EK-CS45EL 6684586 Bolt M5X18/S for Chainsaws Hitachi CS38EK-CS45EL €1.98
14
 Cylinder Gasket for Brushcutter Hitachi CG47EJ-L 6685738 Cylinder Gasket for Brushcutter Hitachi CG47EJ-L €2.99
15
 Piston Ring for Brush Cutter Hitachi CG47EJ-LEY-T-EF(L) 6686126 Piston Ring for Brush Cutter Hitachi CG47EJ-LEY-T-EF(L) €15.81
16
 Piston Set for Brushcutters Hitachi Tanaka CG47EF - EJ - EY 6685887 Piston Set for Brushcutters Hitachi Tanaka CG47EF - EJ - EY €38.13 Not available for order
17
 photo_cameraImage coming soon 6686019 PISTON PIN 10X35 €5.80
18
 Piston Pin Circlip for Chainsaw Hitachi CS45EL 6686026 Piston Pin Circlip for Chainsaw Hitachi CS45EL €1.98
22
 Conrod Needle Bearing for Chainsaws Hitachi CS38EK-CS45EL 6695602 Conrod Needle Bearing for Chainsaws Hitachi CS38EK-CS45EL €10.49
31
 photo_cameraImage coming soon 6686457 WOODRUFF KEY 3X13X5 €1.93

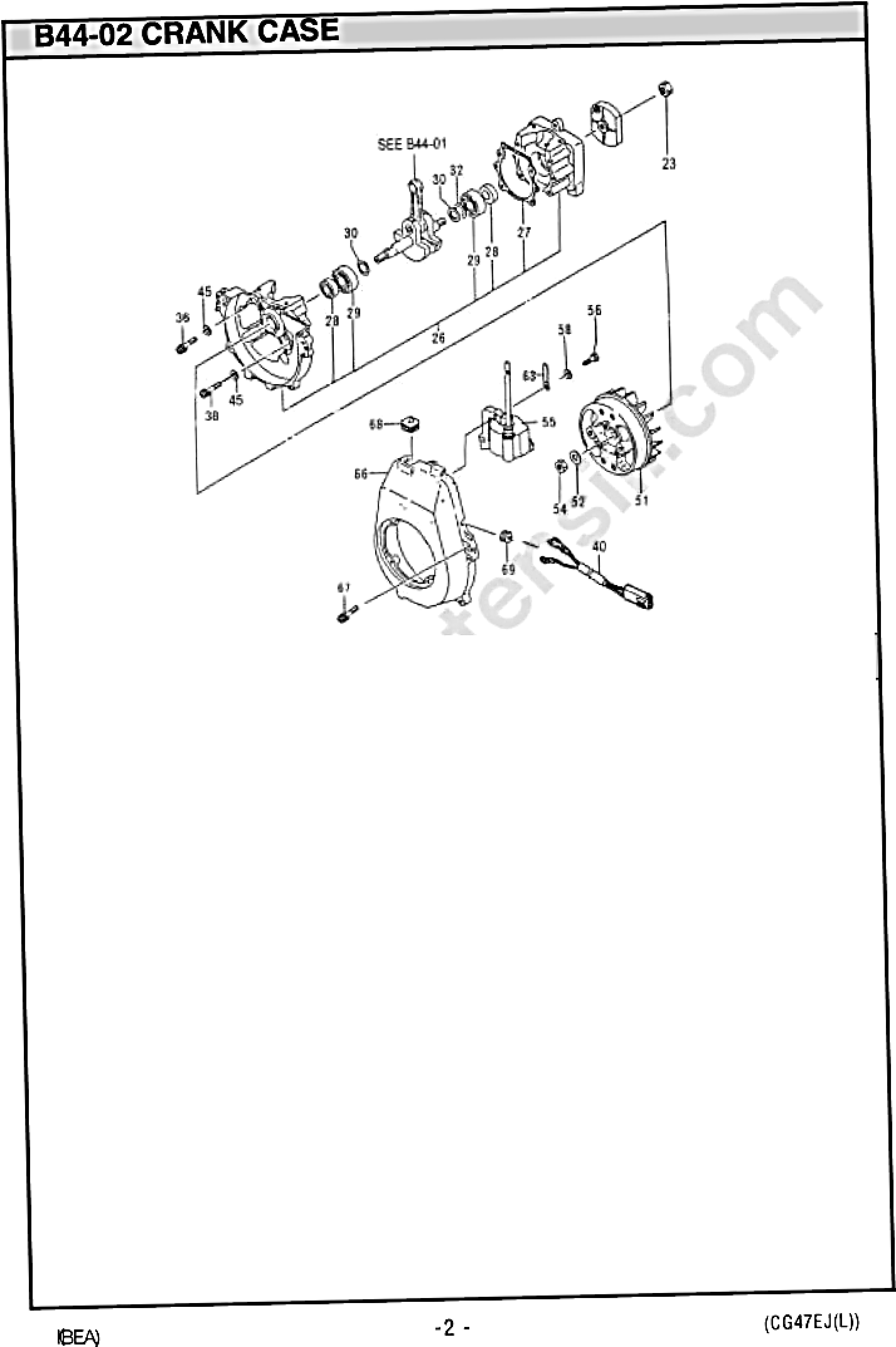

Page 2 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

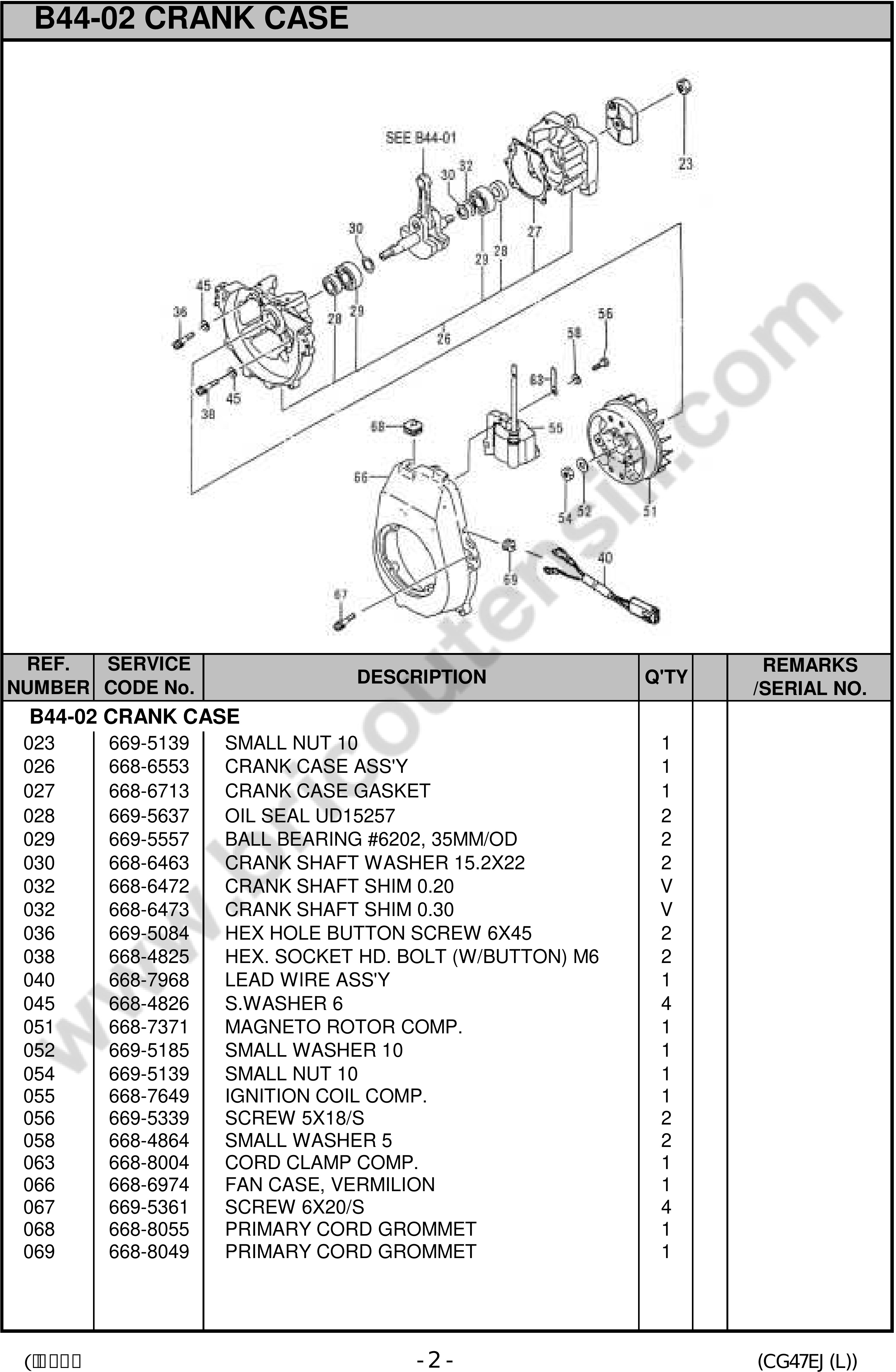

Esploso pagina 2
Pos. Item Price Buy
23
 photo_cameraImage coming soon 6695139 SMALL NUT 10 €12.28
26
 Cranck Shaft Case Ass'y for Brushcutters Hitachi CG47EJ-L-CG47EF (L) 6686553 Cranck Shaft Case Ass'y for Brushcutters Hitachi CG47EJ-L-CG47EF (L) €98.26
27
 photo_cameraImage coming soon 6686713 CRANK CASE GASKET €1.93
28
 Oil Sial for Brush Cutter Hitachi 6695637 Oil Sial for Brush Cutter Hitachi €5.17
29
 photo_cameraImage coming soon 6695557 BALL BEARING #6202, 35MM/OD €6.63
30
 photo_cameraImage coming soon 6686463 CRANK SHAFT WASHER 15.2X22 €1.93
32
 photo_cameraImage coming soon 6686472 CRANK SHAFT SHIM 0.20 €2.15
32
 photo_cameraImage coming soon 6686473 CRANK SHAFT SHIM 0.30 €2.15
38
 photo_cameraImage coming soon 6684825 HEX. SOCKET HD. BOLT (W/BUTTON) M6 €1.98
45
 photo_cameraImage coming soon 6684826 S.WASHER 6 €1.98
51
 photo_cameraImage coming soon 6687371 MAGNETO ROTOR COMP. €82.30
54
 photo_cameraImage coming soon 6695139 SMALL NUT 10 €12.28
55
 photo_cameraImage coming soon 6687649 IGNITION COIL COMP. €91.53
66
 photo_cameraImage coming soon 6686974 FAN CASE, VERMILION €62.40
69
 photo_cameraImage coming soon 6688049 PRIMARY CORD GROMMET €1.52

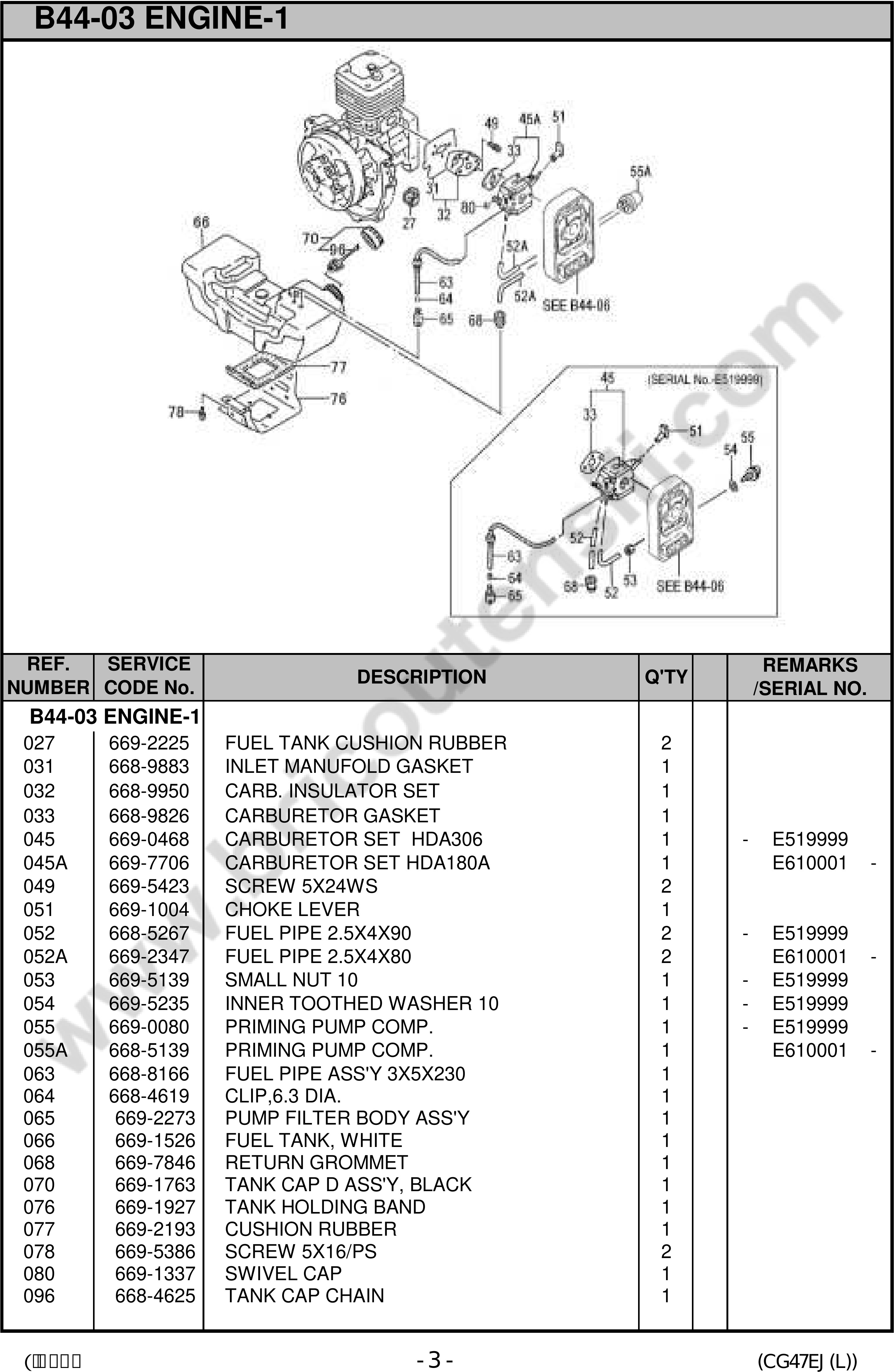

Page 3 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

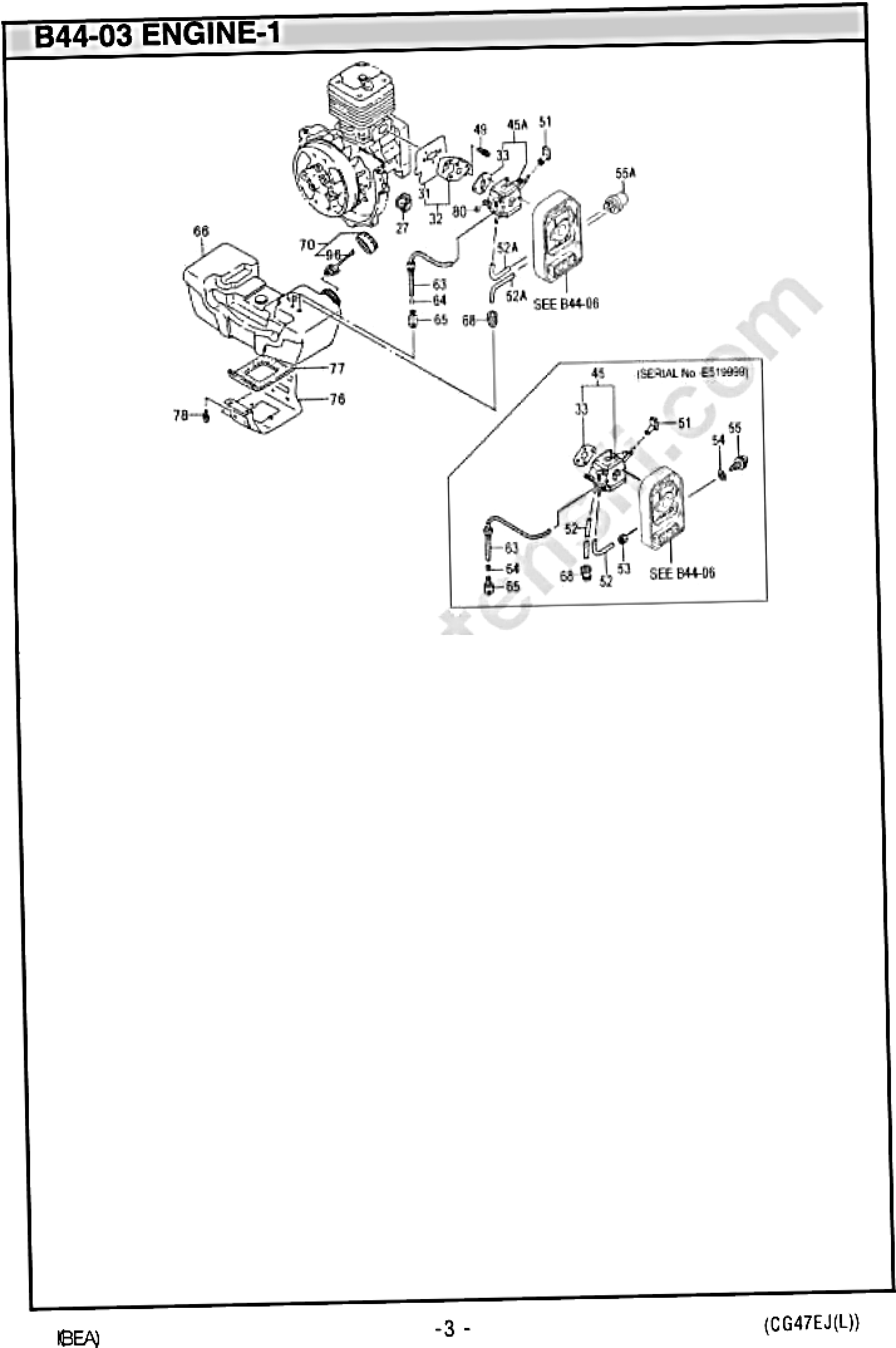

Esploso pagina 3
Pos. Item Price Buy
27
 photo_cameraImage coming soon 6692225 FUEL TANK CUSHION RUBBER €2.57
31
 Inlet Manifold Gasket for Brushcutters Tanaka Hitachi CG 47 6689883 Inlet Manifold Gasket for Brushcutters Tanaka Hitachi CG 47 €1.98
32
 photo_cameraImage coming soon 6689950 CARB. INSULATOR SET €19.23
33
 Carburator Gasket for Brushcutter Hitachi CG40EJ-T 6689826 Carburator Gasket for Brushcutter Hitachi CG40EJ-T €1.77
45
 Carburator for Brushcutters Hitachi CG47EF (L)-CG47EJ-L-CG47EY-T 6690468 Carburator for Brushcutters Hitachi CG47EF (L)-CG47EJ-L-CG47EY-T €102.25 Not available for order
045A
 photo_cameraImage coming soon 6697706 CARBURETOR SET HDA180A €107.15
51
 photo_cameraImage coming soon 6691004 CHOKE LEVER €2.57
52
 Fuel Hose for Brushcutters Hitachi CG47EF (L)-CG47EJ-L-CG47EY-T 6685267 Fuel Hose for Brushcutters Hitachi CG47EF (L)-CG47EJ-L-CG47EY-T €3.31
53
 photo_cameraImage coming soon 6695139 SMALL NUT 10 €12.28
54
 photo_cameraImage coming soon 6695235 INNER TOOTHED WASHER 10 €1.93
055A
 Priming Pump for Chain Saws and Brushcutters Hitachi Tanaka 6685139 Priming Pump for Chain Saws and Brushcutters Hitachi Tanaka €13.15
64
 Hose Clip 6.3 D. for Brushcutters Chainsaws Hitachi Hikoki Tanaka 6684619 Hose Clip 6.3 D. for Brushcutters Chainsaws Hitachi Hikoki Tanaka €1.25
65
 photo_cameraImage coming soon 6692273 PUMP FILTER BODY ASS'Y €10.22
66
 Fuel Tank for Brushcutters Hitachi CG47EF (L)-CG47EJ-L-CG47EY-T 6691526 Fuel Tank for Brushcutters Hitachi CG47EF (L)-CG47EJ-L-CG47EY-T €27.71 Not available for order
68
 photo_cameraImage coming soon 6697846 RETURN GROMMET €1.79
70
 Tank Cap Ass'y (Black) for Brushcutter Hitachi CG40EFL 6691763 Tank Cap Ass'y (Black) for Brushcutter Hitachi CG40EFL €11.81
76
 photo_cameraImage coming soon 6691927 TANK HOLDING BAND €15.48
77
 photo_cameraImage coming soon 6692193 CUSHION RUBBER €15.36
78
 Screw 5x16/PS for Brushcutter Tanaka TBC-600 6695386 Screw 5x16/PS for Brushcutter Tanaka TBC-600 €1.25
80
 photo_cameraImage coming soon 6691337 SWIVEL CAP €1.78
96
 photo_cameraImage coming soon 6684625 TANK CAP CHAIN €1.78
Page 4 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

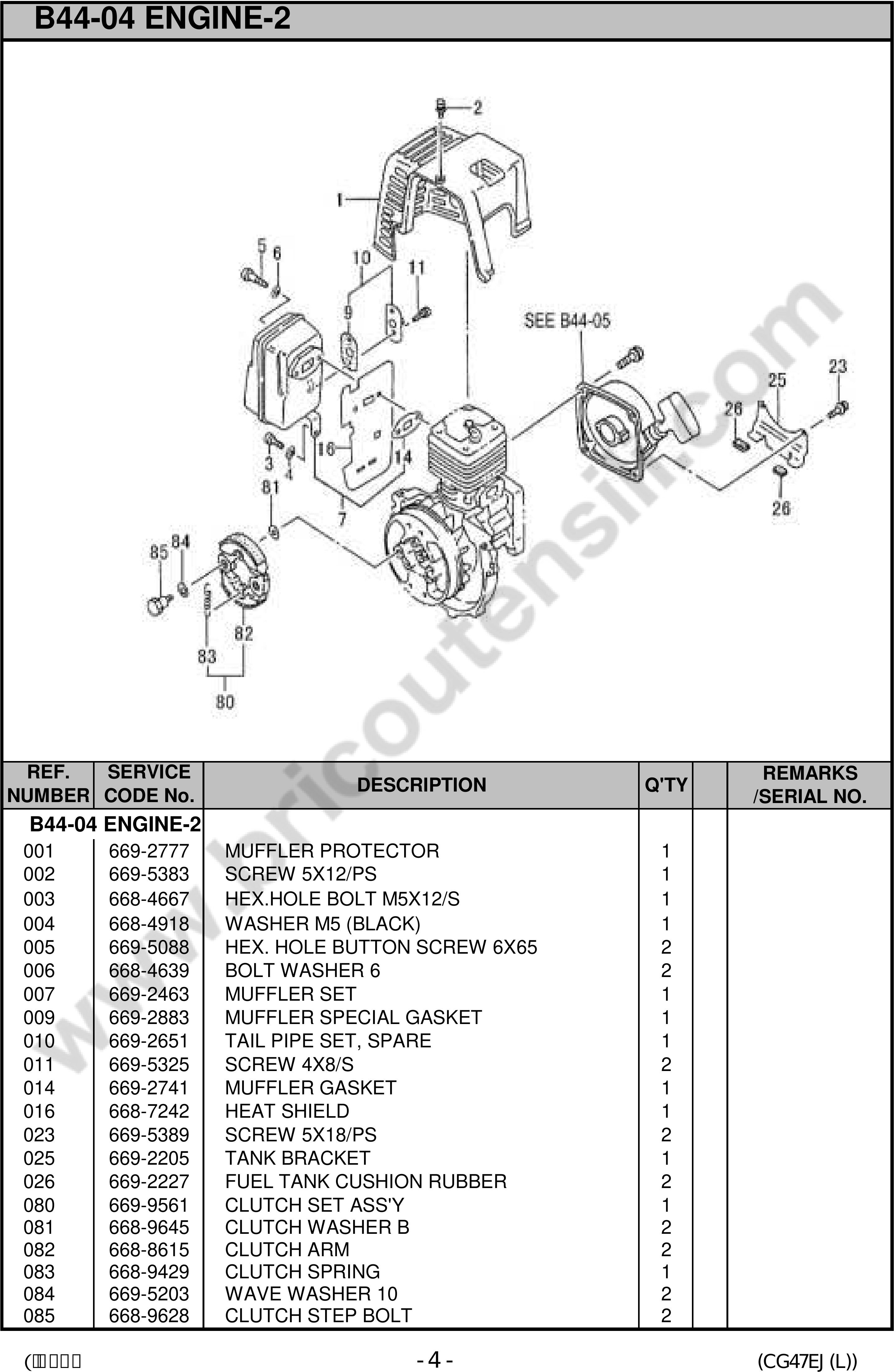

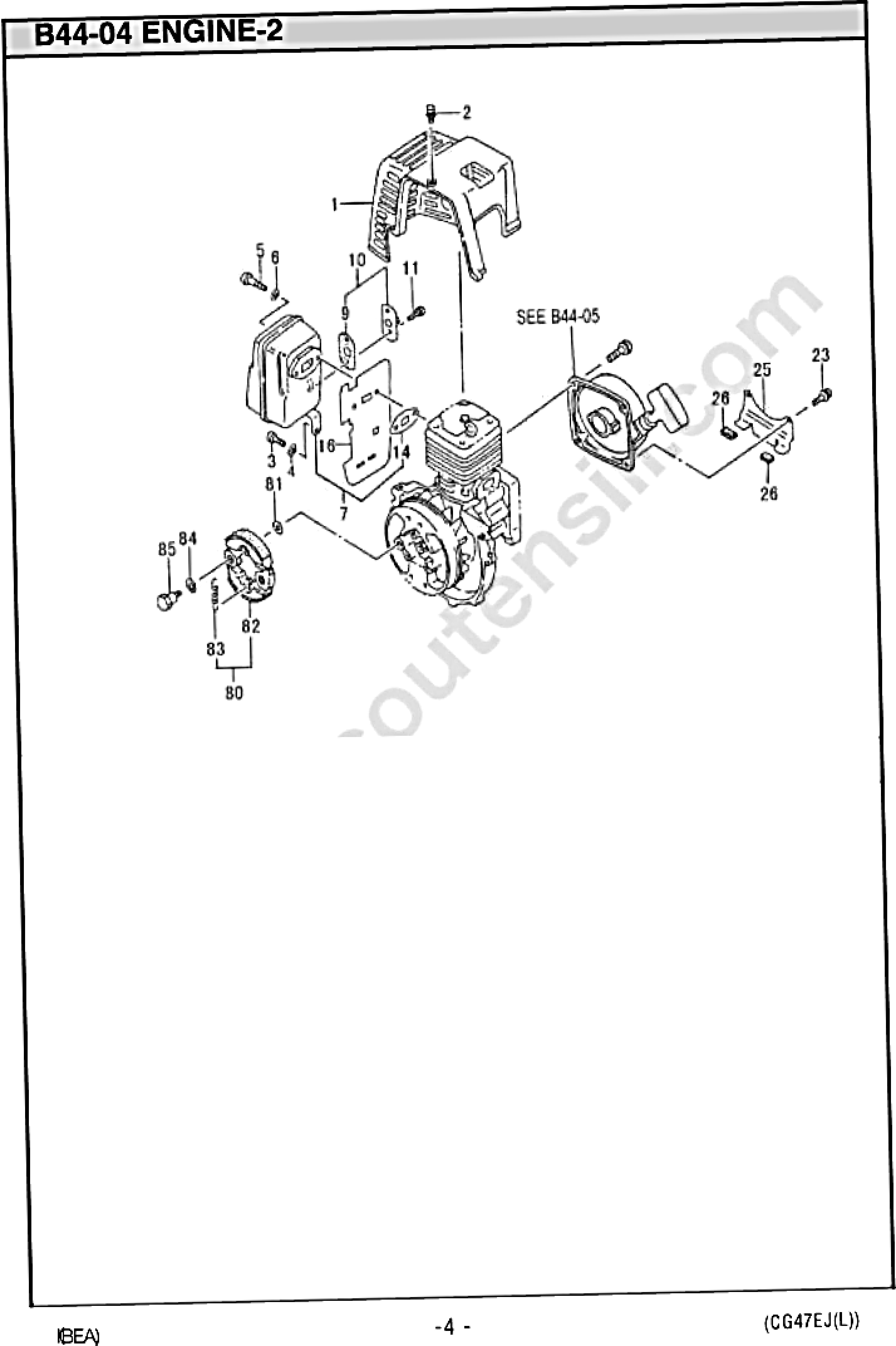

Esploso pagina 4
Pos. Item Price Buy
1
 photo_cameraImage coming soon 6692777 MUFFLER PROTECTOR €19.32
3
 photo_cameraImage coming soon 6684667 HEX.HOLE BOLT M5X12/S €1.93
4
 photo_cameraImage coming soon 6684918 WASHER M5 €1.98
5
 photo_cameraImage coming soon 6695088 HEX. HOLE BUTTON SCREW 6X65 €3.87
6
 Bolt Washer 6 for Brushcutters Chainsaws Hitachi Hikoki Tanaka 6684639 Bolt Washer 6 for Brushcutters Chainsaws Hitachi Hikoki Tanaka €1.98
9
 photo_cameraImage coming soon 6692883 MUFFLER SPECIAL GASKET €1.93
11
 photo_cameraImage coming soon 6695325 SCREW 4X8/S €1.24
14
 Muffler Gasket for Brushcutter Hitachi Tanaka CG40EFL 6692741 Muffler Gasket for Brushcutter Hitachi Tanaka CG40EFL €3.98
16
 photo_cameraImage coming soon 6687242 HEAT SHIELD €6.45
23
 photo_cameraImage coming soon 6695389 SCREW 5X18/PS €1.93
25
 photo_cameraImage coming soon 6692205 TANK BRACKET €12.90
26
 photo_cameraImage coming soon 6692227 FUEL TANK CUSHION RUBBER €1.93
81
 Washer Clutch B for Brush Cutters Auger Hitachi Garden Tanaka 6689645 Washer Clutch B for Brush Cutters Auger Hitachi Garden Tanaka €1.98
82
 Clutch Arm for Brushcutters Hitachi CG47EJ-L-CG47EF (L) 6688615 Clutch Arm for Brushcutters Hitachi CG47EJ-L-CG47EF (L) €22.58
83
 Clutch Arm Spring for Brushcutters Hitachi CG47EJ-L-CG47EF (L) 6689429 Clutch Arm Spring for Brushcutters Hitachi CG47EJ-L-CG47EF (L) €5.31
84
 Washer for Brush Cutter and Auger Hitachi 6695203 Washer for Brush Cutter and Auger Hitachi €1.98
85
 photo_cameraImage coming soon 6689628 CLUTCH STEP BOLT €3.87

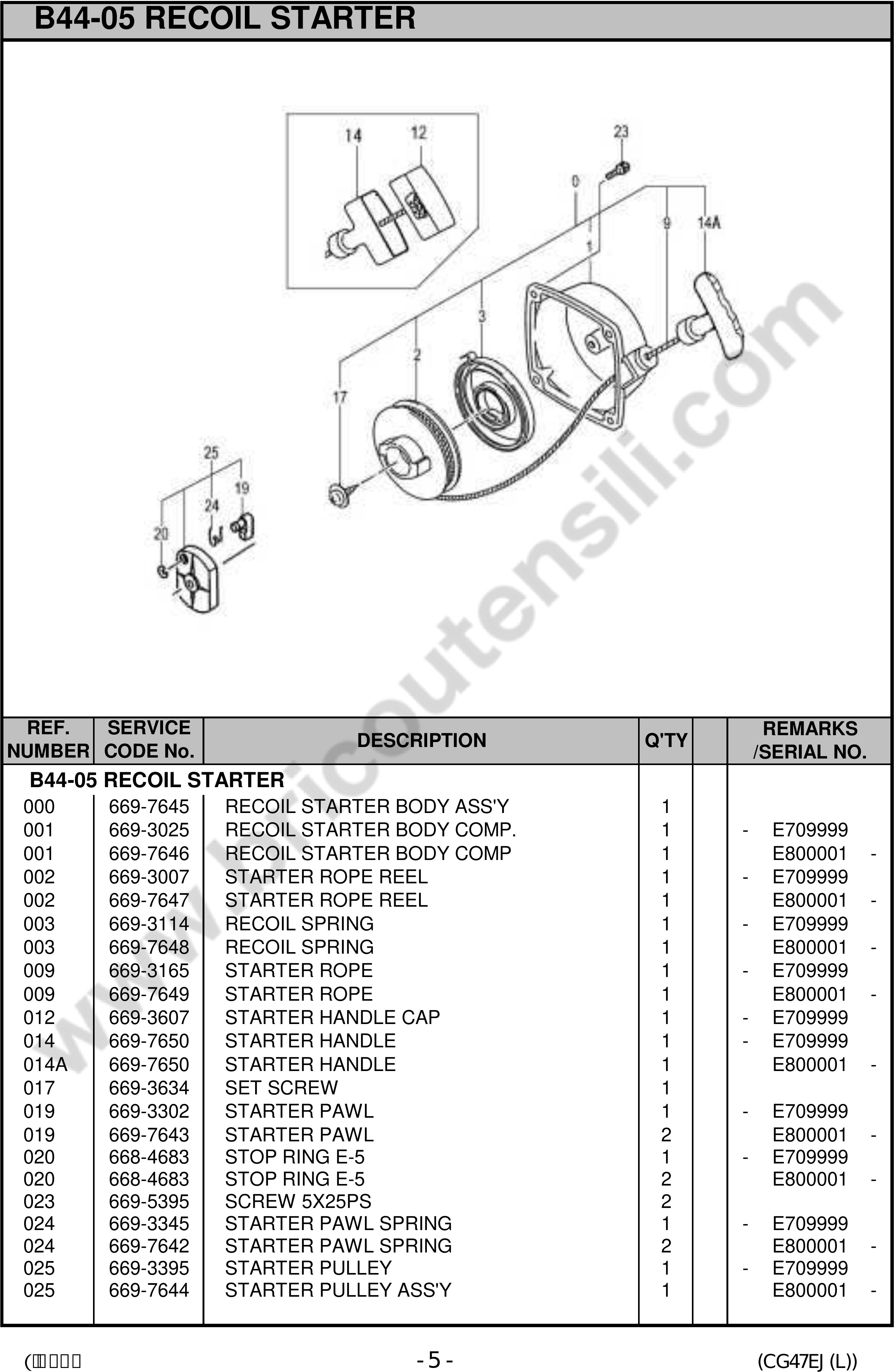

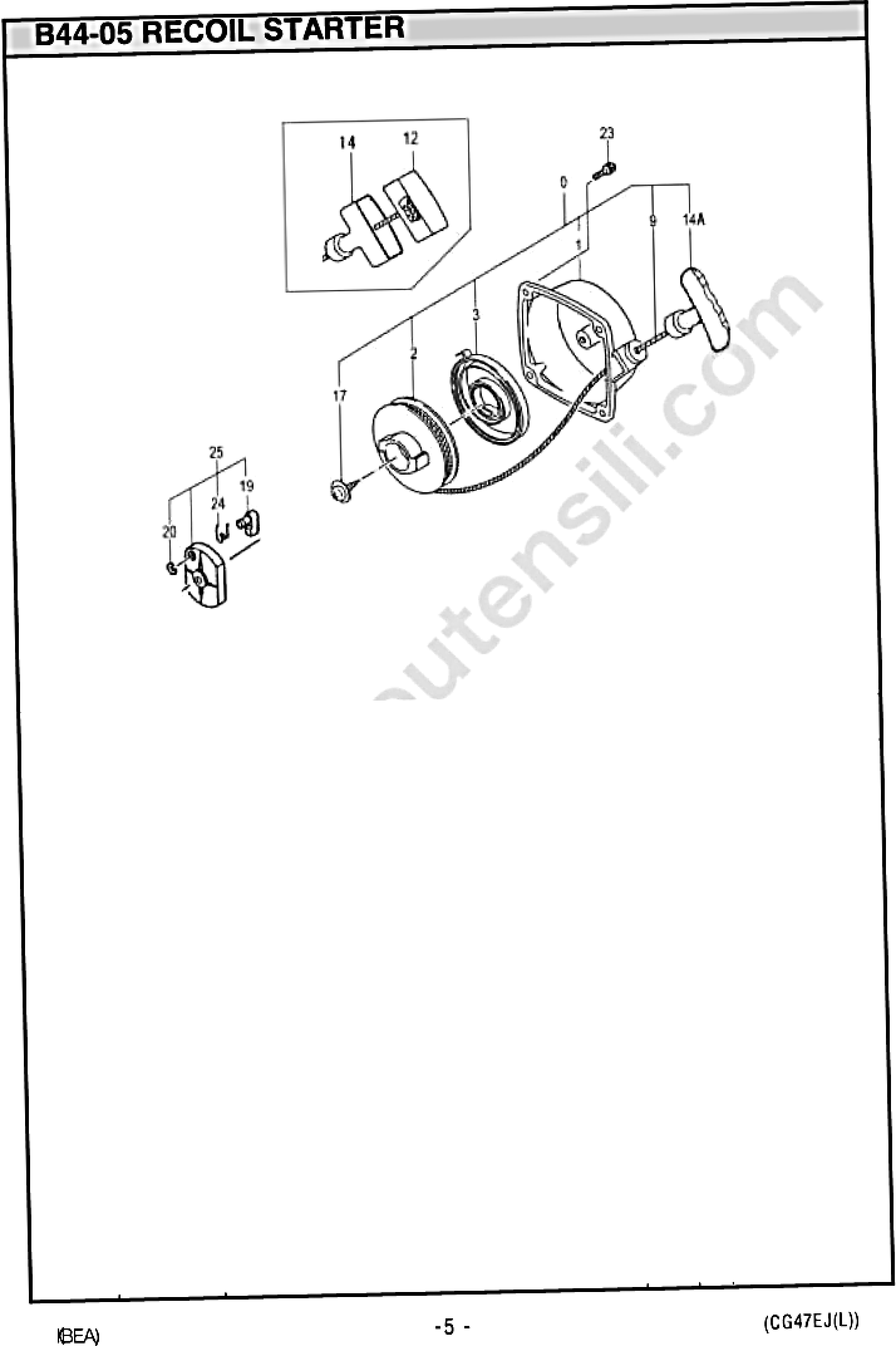

Page 5 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 5
Pos. Item Price Buy
photo_cameraImage coming soon 6697645 RECOIL STARTER BODY ASS'Y €54.48
1
 photo_cameraImage coming soon 6693025 RECOIL STARTER BODY COMP. €21.94
1
 photo_cameraImage coming soon 6697646 RECOIL STARTER BODY COMP €20.22
2
 photo_cameraImage coming soon 6693007 STARTER ROPE REEL €14.19
2
 photo_cameraImage coming soon 6697647 STARTER ROPE REEL €6.96
3
 photo_cameraImage coming soon 6693114 RECOIL SPRING €19.23
12
 photo_cameraImage coming soon 6693607 STARTER HANDLE CAP €3.87
17
 photo_cameraImage coming soon 6693634 SET SCREW €1.75
19
 Starter Pawl for Brushcutter Hitachi CG40EF(L) 6693302 Starter Pawl for Brushcutter Hitachi CG40EF(L) €3.30
20
 photo_cameraImage coming soon 6684683 STOP RING E5 €1.22
24
 photo_cameraImage coming soon 6693345 STARTER PAWL SPRING €3.87
25
 photo_cameraImage coming soon 6693395 STARTER PULLEY €16.65
25
 photo_cameraImage coming soon 6697644 STARTER PULLEY ASS'Y €15.74

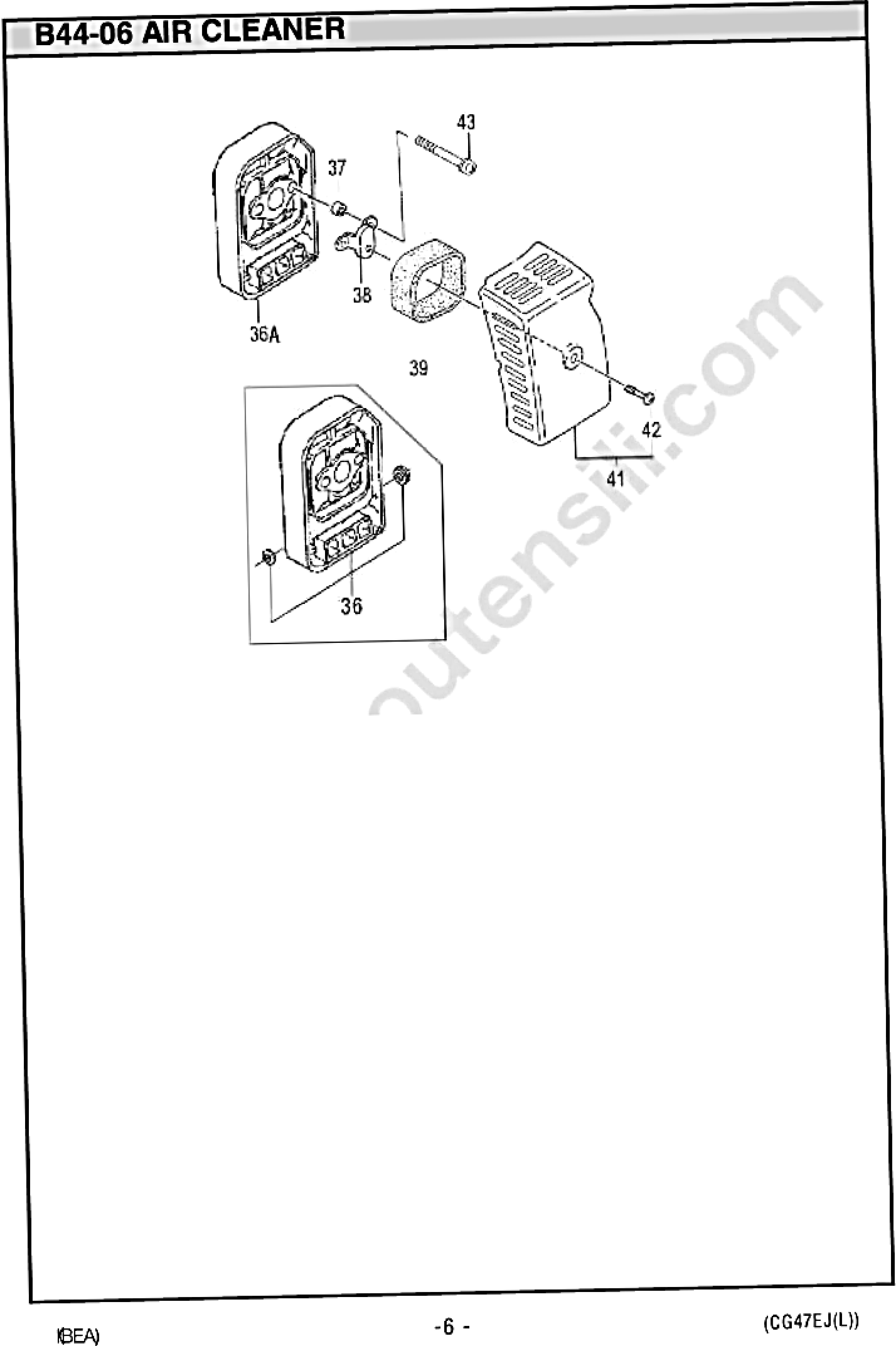

Page 6 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

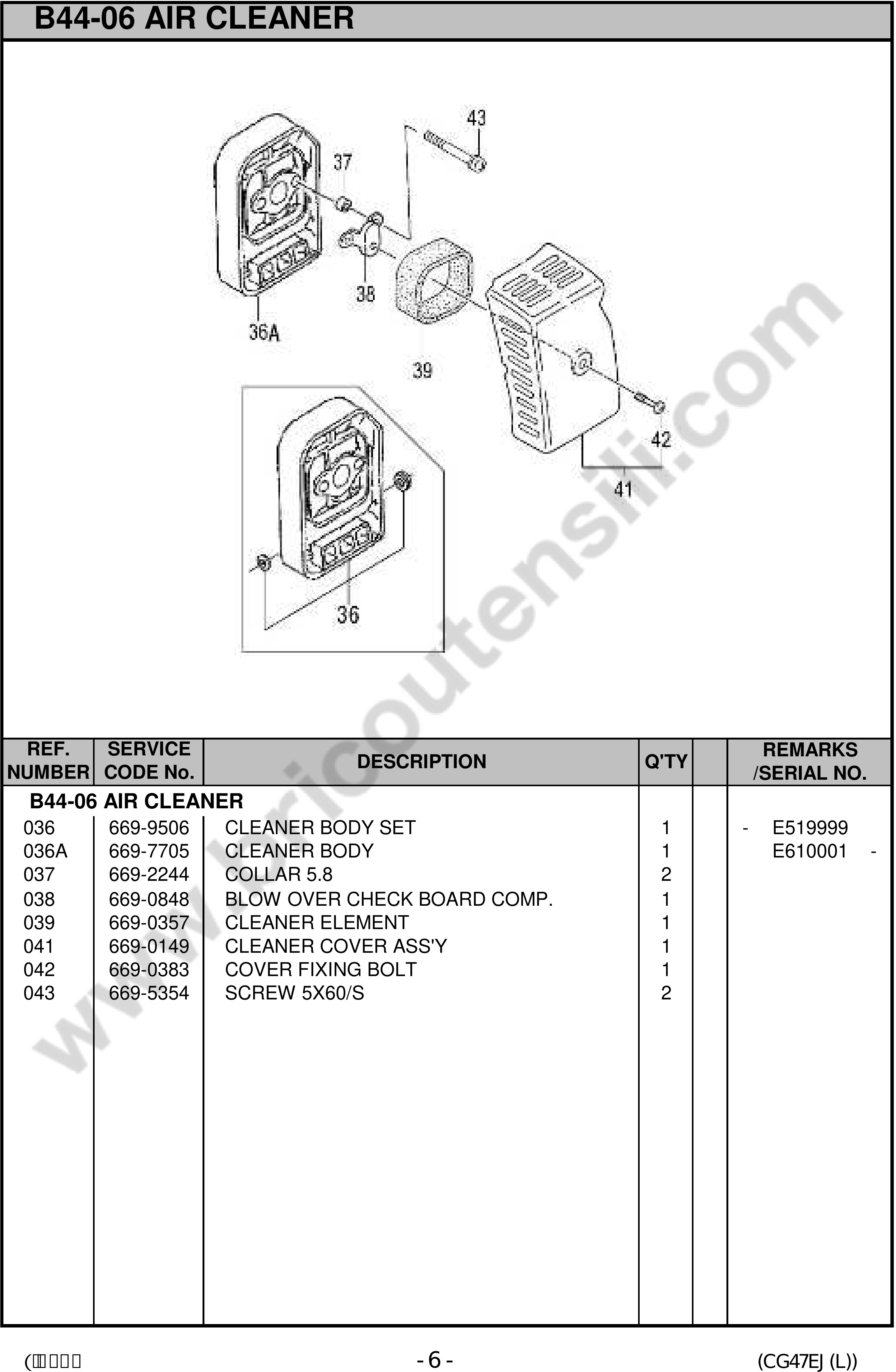

Esploso pagina 6
Pos. Item Price Buy
36
 Cleaner Body Set for Brushcutters Hitachi CG47EF (L)-CG47EJ-L 6699506 Cleaner Body Set for Brushcutters Hitachi CG47EF (L)-CG47EJ-L €26.45
37
 Collar 5.8 for Brushcutter Hitachi CG47EJ-L 6692244 Collar 5.8 for Brushcutter Hitachi CG47EJ-L €1.08
38
 Cleaner Body Blow Over Check Board for Brushcutters Hitachi CG47EF (L) 6690848 Cleaner Body Blow Over Check Board for Brushcutters Hitachi CG47EF (L) €5.97
39
 Cleaner Element for Brushcutter Hitachi Tanaka CG47EJ-L 6690357 Cleaner Element for Brushcutter Hitachi Tanaka CG47EJ-L €3.84
41
 photo_cameraImage coming soon 6690149 CLEANER COVER ASS'Y €18.07
42
 photo_cameraImage coming soon 6690383 COVER FIXING BOLT €2.76
43
 photo_cameraImage coming soon 6695354 SCREW C-HEAD 5X60/S €1.83
Page 7 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

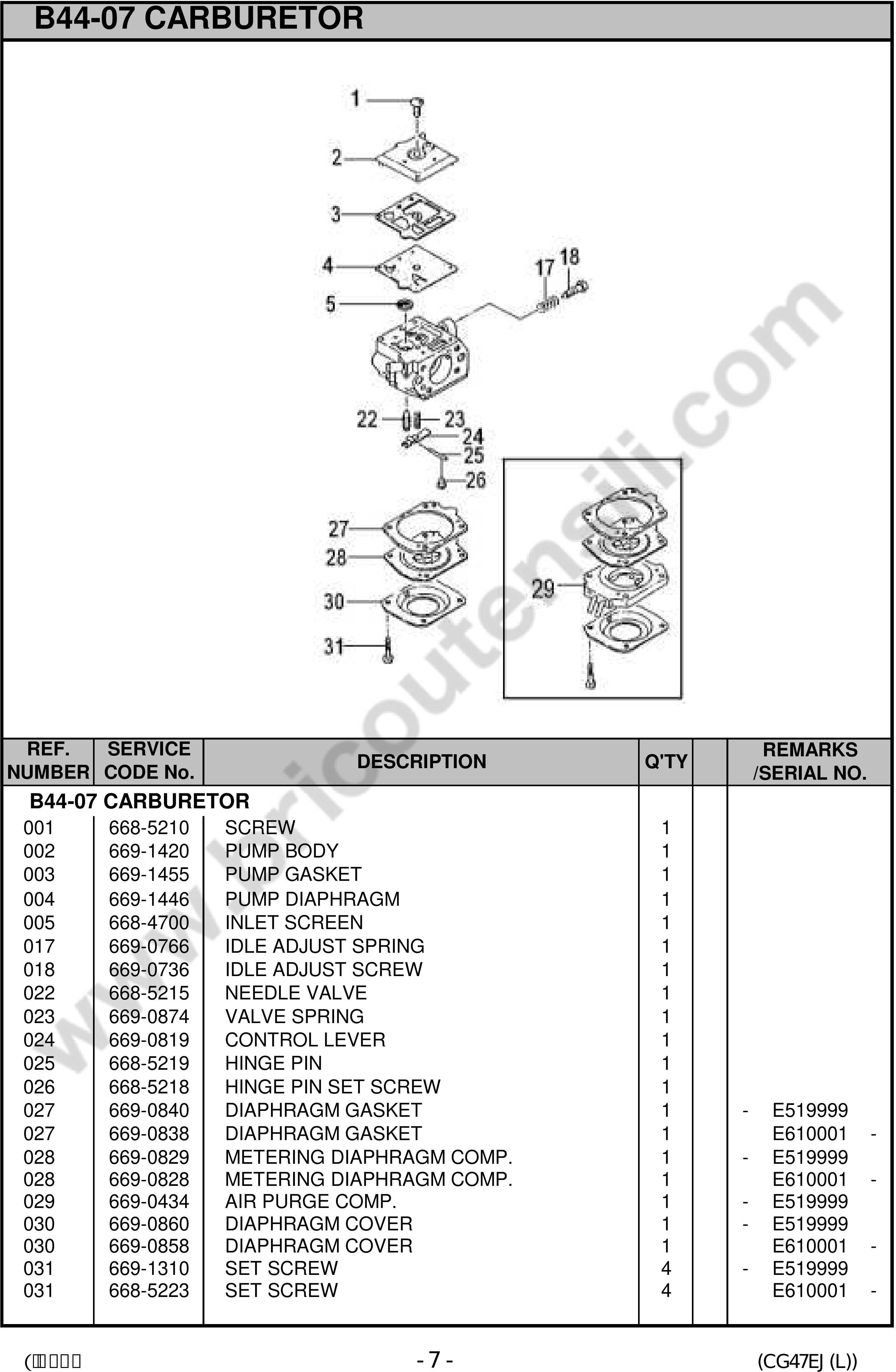

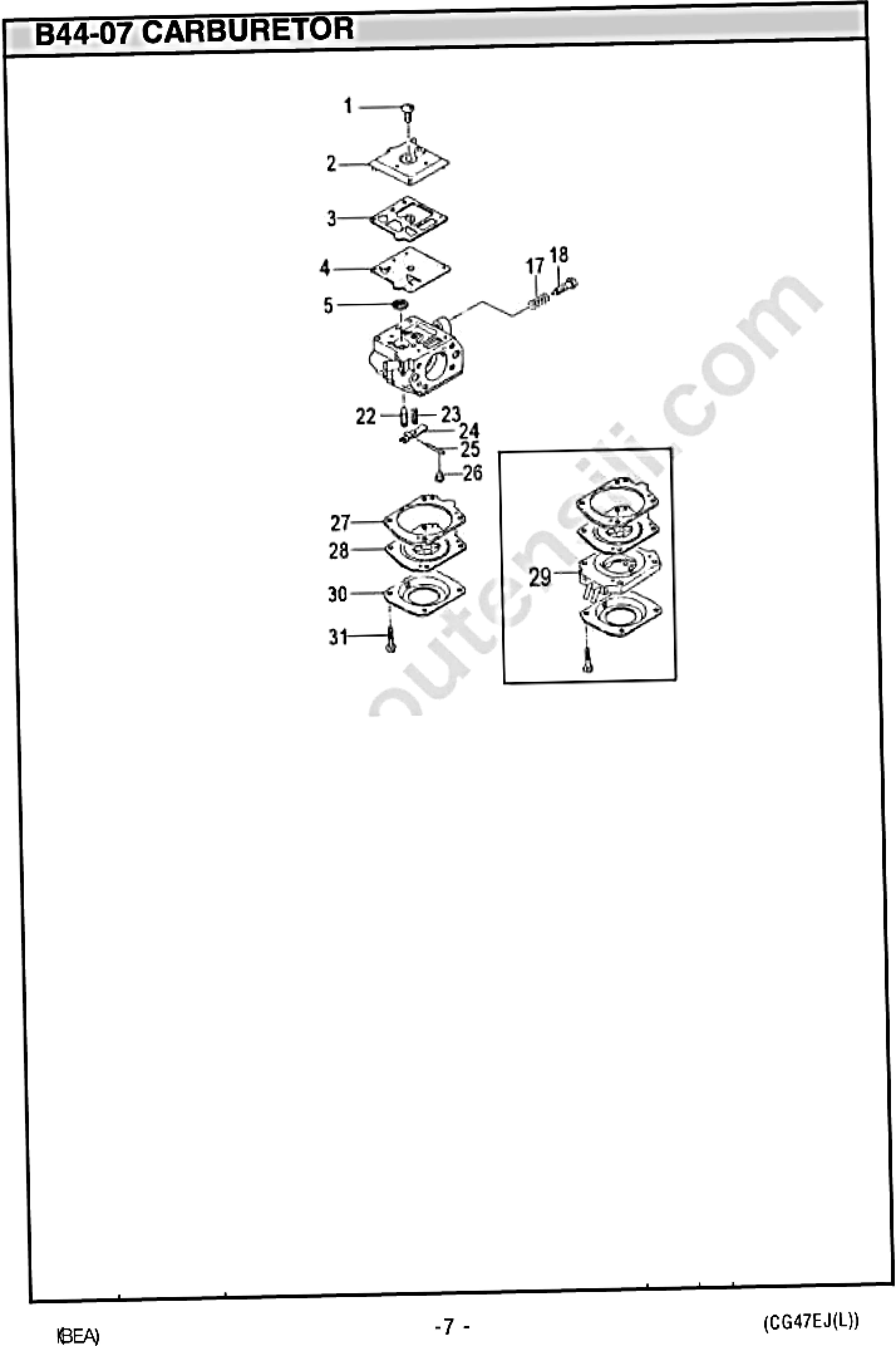

Esploso pagina 7
Pos. Item Price Buy
1
 photo_cameraImage coming soon 6685210 SCREW €2.52
2
 photo_cameraImage coming soon 6691420 CORPO POMPANTE €14.70
3
 photo_cameraImage coming soon 6691455 GUARNIZIONE POMPANTE €5.16
4
 photo_cameraImage coming soon 6691446 MEMBRANA €9.68
5
 Carburator Inlet Screen for Chainsaws and Bruschcutters Hitachi 6684700 Carburator Inlet Screen for Chainsaws and Bruschcutters Hitachi €3.18
17
 photo_cameraImage coming soon 6690766 IDLE ADJUST SPRING €3.87
18
 photo_cameraImage coming soon 6690736 IDLE ADJUST SCREW €6.45
22
 Carburator Needle Valve for Chainsaws Hitachi-HiKoki Tanaka 6685215 Carburator Needle Valve for Chainsaws Hitachi-HiKoki Tanaka €10.76
25
 Hitachi CS25EC-SC Hinge Pin 6685219 Hitachi CS25EC-SC Hinge Pin €2.53
26
 photo_cameraImage coming soon 6685218 HINGE PIN SET SCREW €3.38
27
 photo_cameraImage coming soon 6690838 DIAPHRAGM GASKET €3.87
27
 photo_cameraImage coming soon 6690840 GUARNIZIONE CARBURATORE FINO A MATRICOLA E519999 €7.74
28
 photo_cameraImage coming soon 6690828 METERING DIAPHRAGM COMP. €19.58
28
 photo_cameraImage coming soon 6690829 METERING DIAPHRAGM COMP. €20.65
29
 photo_cameraImage coming soon 6690434 AIR PURGE COMP. €36.14
31
 photo_cameraImage coming soon 6685223 SET SCREW €2.59
31
 photo_cameraImage coming soon 6691310 SET SCREW €1.43

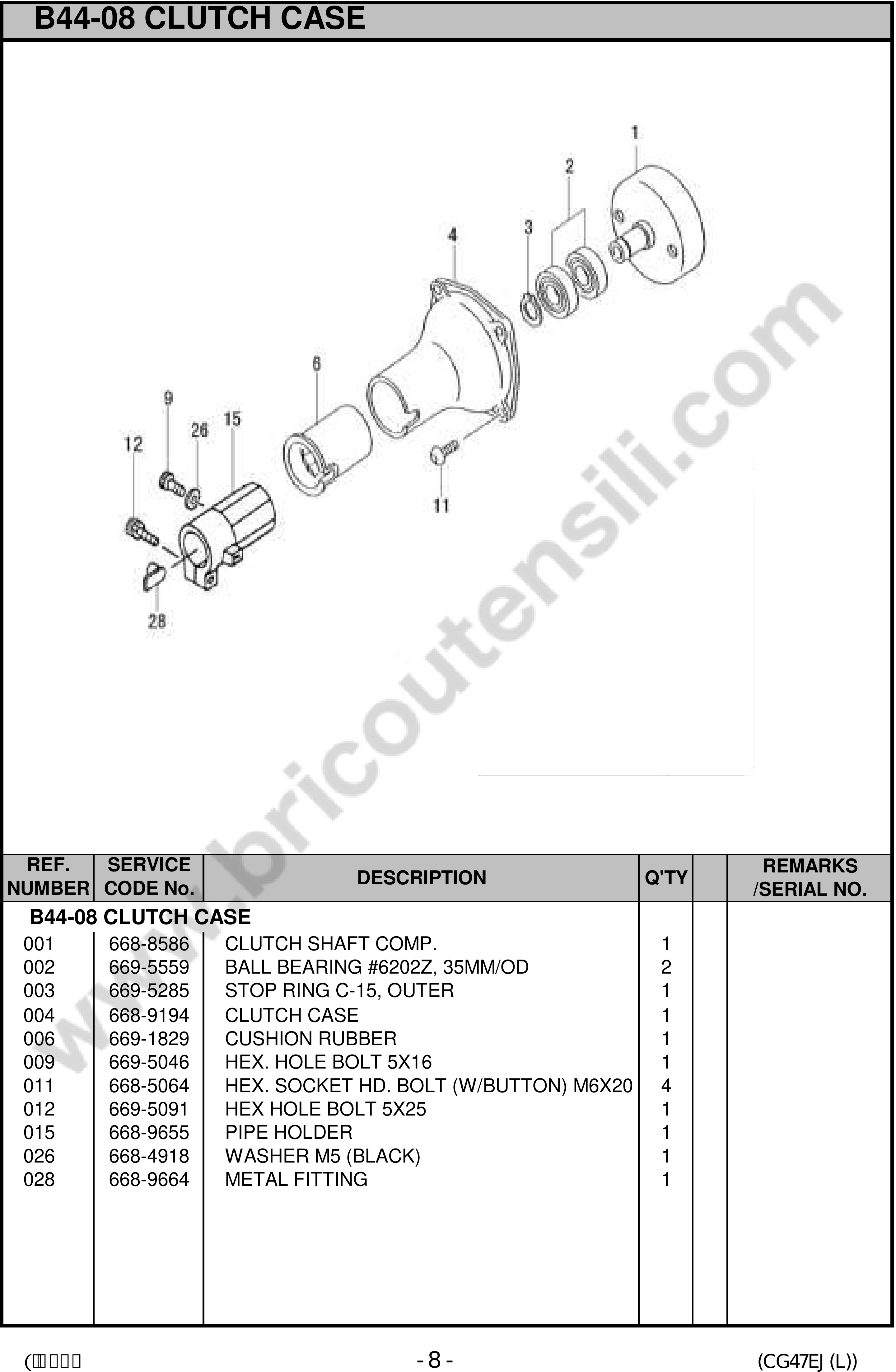

Page 8 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

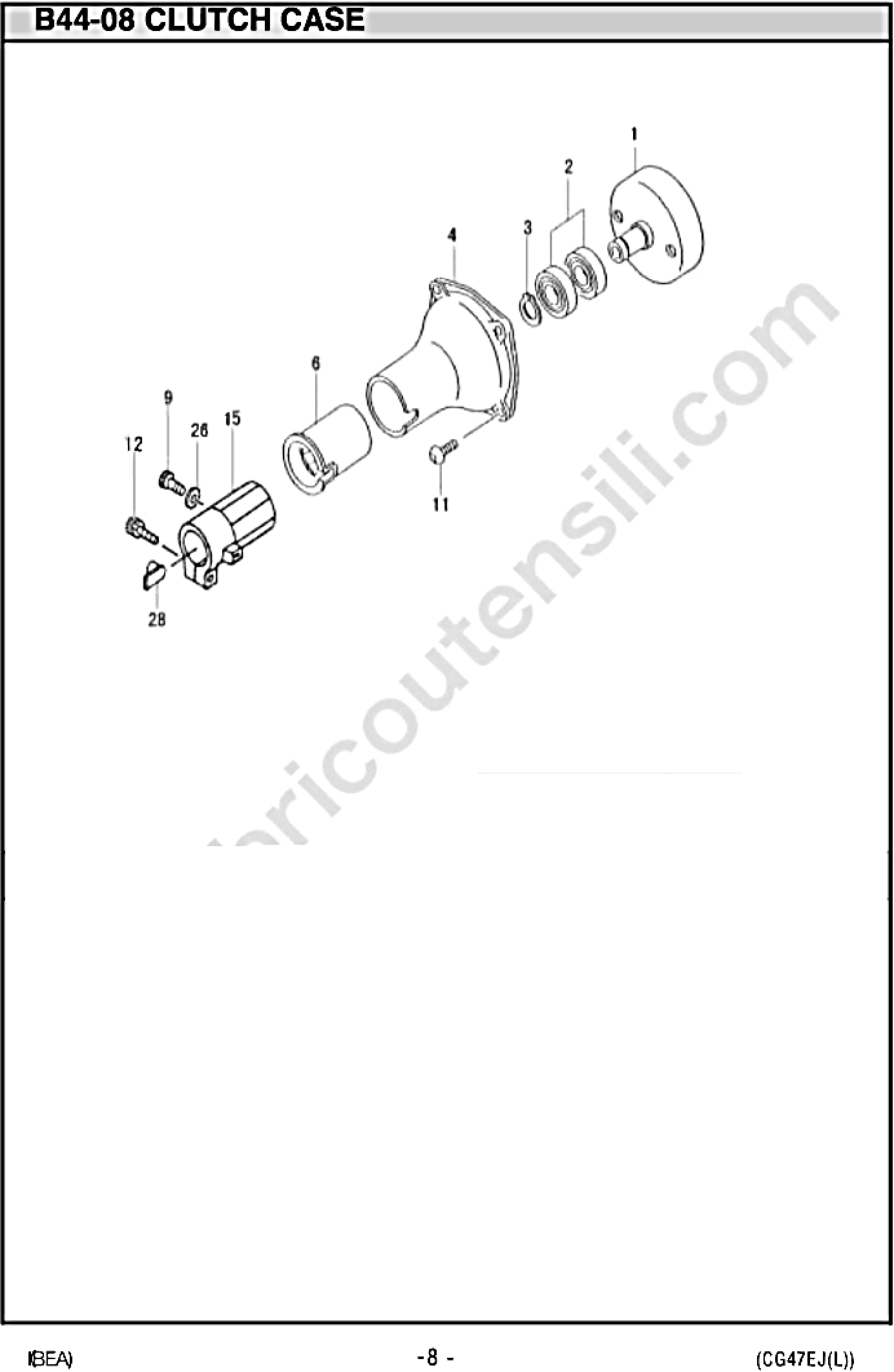

Esploso pagina 8
Pos. Item Price Buy
2
 photo_cameraImage coming soon 6695559 BALL BEARING #6202Z, 35MM/OD €9.74
3
 Stop Ring C-15 for Hedge Trimmer Tanaka THT 210 THT 210 B 6695285 Stop Ring C-15 for Hedge Trimmer Tanaka THT 210 THT 210 B €0.66
4
 photo_cameraImage coming soon 6689194 CLUTCH CASE €36.51
6
 photo_cameraImage coming soon 6691829 CUSHION RUBBER €6.09
9
 photo_cameraImage coming soon 6695046 HEX. HOLE BOLT 5X16 €1.98
11
 photo_cameraImage coming soon 6685064 HEX. SOCKET HD. BOLT (W/BUTTON) M6X20 €1.93
12
 photo_cameraImage coming soon 6695091 HEX HOLE BOLT 5X25 €1.83
15
 photo_cameraImage coming soon 6689655 PIPE HOLDER €10.96
26
 photo_cameraImage coming soon 6684918 WASHER M5 €1.98
28
 photo_cameraImage coming soon 6689664 METAL FITTING €9.30
Page 9 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

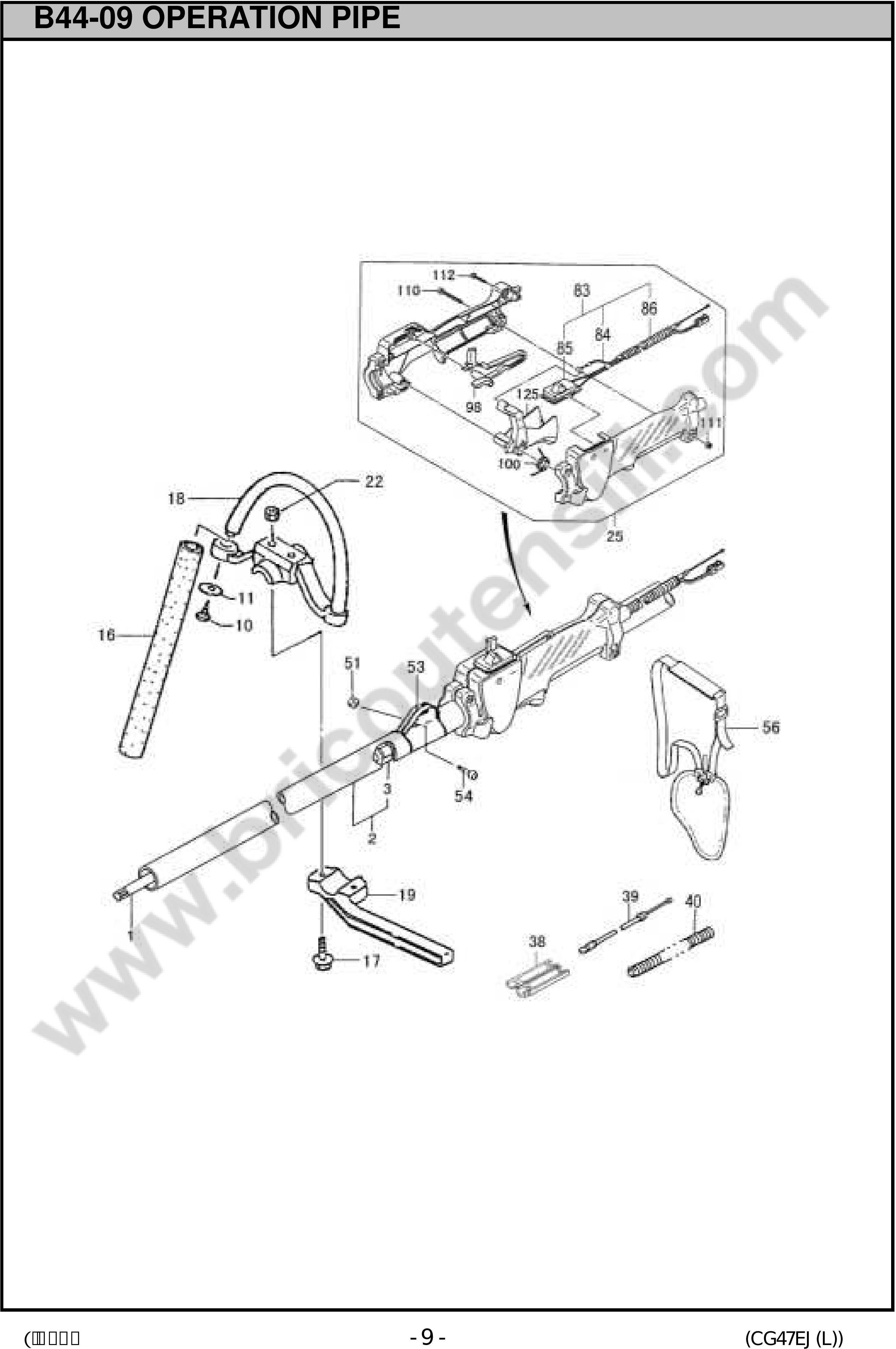

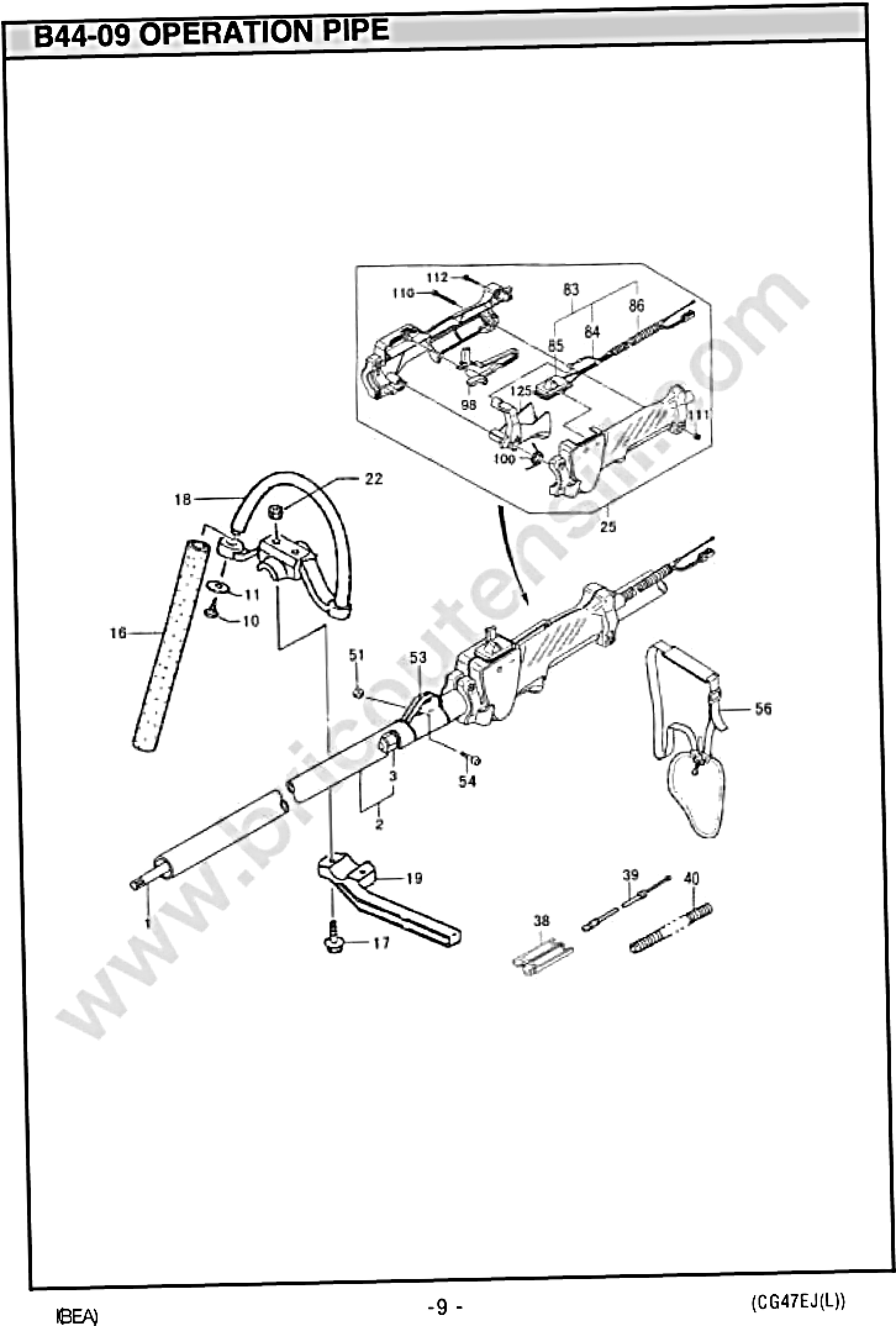

Esploso pagina 9
Pos. Item Price Buy
1
 photo_cameraImage coming soon 6689475 DRIVE SHAFT €32.86
10
 photo_cameraImage coming soon 6695255 TAPPING SCREW 5X20 €1.98
16
 photo_cameraImage coming soon 6691098 HANDLE GRIP €9.30
17
 photo_cameraImage coming soon 6684838 BOLT 6X43/P (BLACK) €1.98
19
 photo_cameraImage coming soon 6691231 BARRIER, 26 DIA, BLACK €14.60
22
 photo_cameraImage coming soon 6684835 HEX.NUT 6 €1.98
25
 photo_cameraImage coming soon 6693731 THROTTLE LEVER ASS'Y €66.81
38
 Connector Case for Brushcutter Hitachi CG33EJ-SL 6694029 Connector Case for Brushcutter Hitachi CG33EJ-SL €4.17
40
 photo_cameraImage coming soon 6687520 SPLIT PROTECTION TUBE,7X70L €1.52
53
 photo_cameraImage coming soon 6689264 LIFTING METAL €2.60
54
 Hex Hole Bolt 10.9 M5x16/6 for Chainsaws Hitachi 6684903 Hex Hole Bolt 10.9 M5x16/6 for Chainsaws Hitachi €1.32
56
 photo_cameraImage coming soon 6692874 SHOULDER BELT ASS'Y €32.74
83
 photo_cameraImage coming soon 6693957 THROTTLE WIRE COMP. €29.09
84
 photo_cameraImage coming soon 6694010 THROTTLE WIRE €12.16
85
 photo_cameraImage coming soon 6687442 STOP SWITCH COMP. €18.13
100
 photo_cameraImage coming soon 6684722 RETURN SPRING €2.65
111
 photo_cameraImage coming soon 6684727 CONTAL NUT 5 €1.22
125
 Throttle Lever for Brushcutters Hitachi CG33EJ-LP-CG33EJ-SL 6684804 Throttle Lever for Brushcutters Hitachi CG33EJ-LP-CG33EJ-SL €6.64

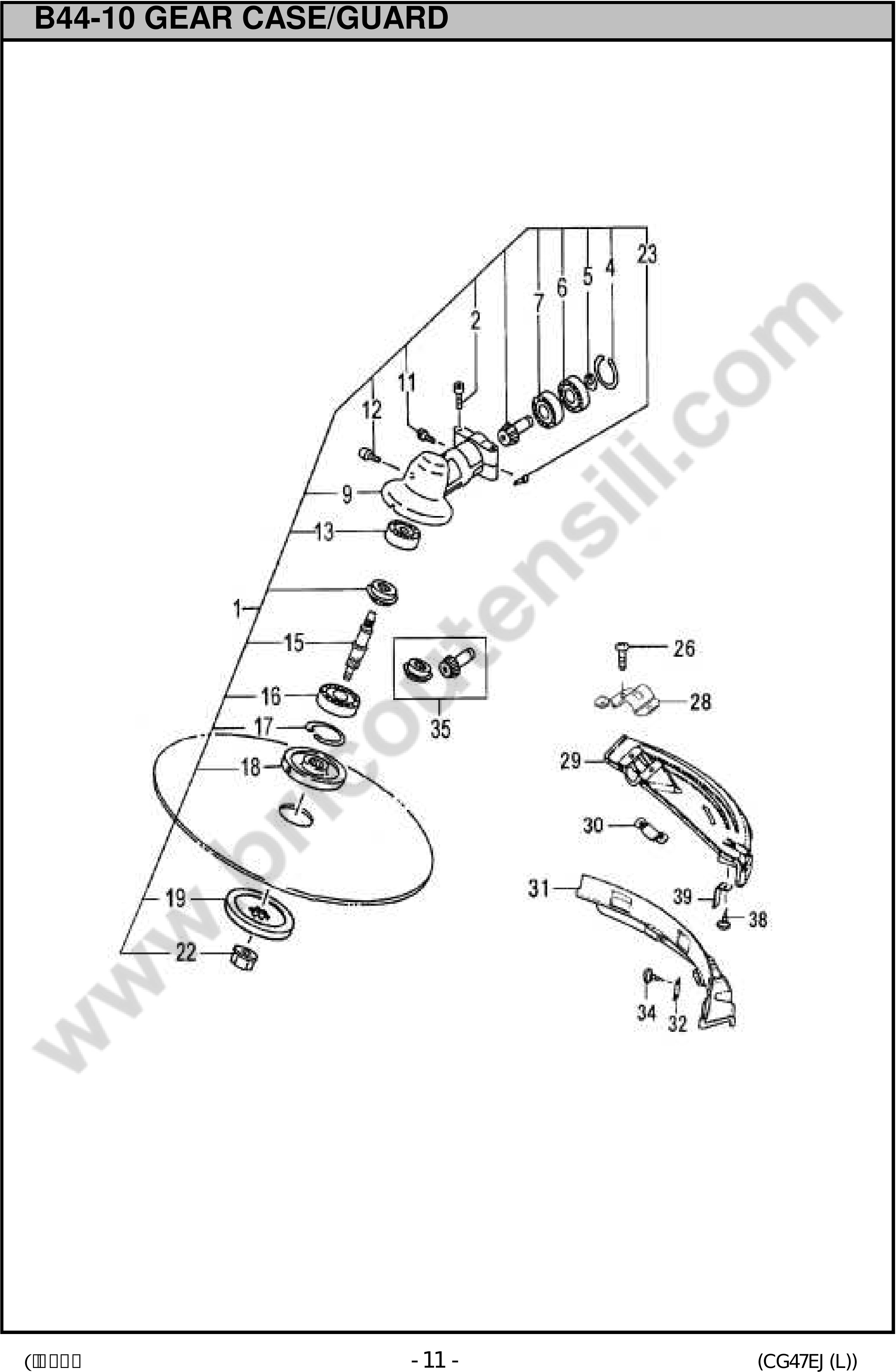

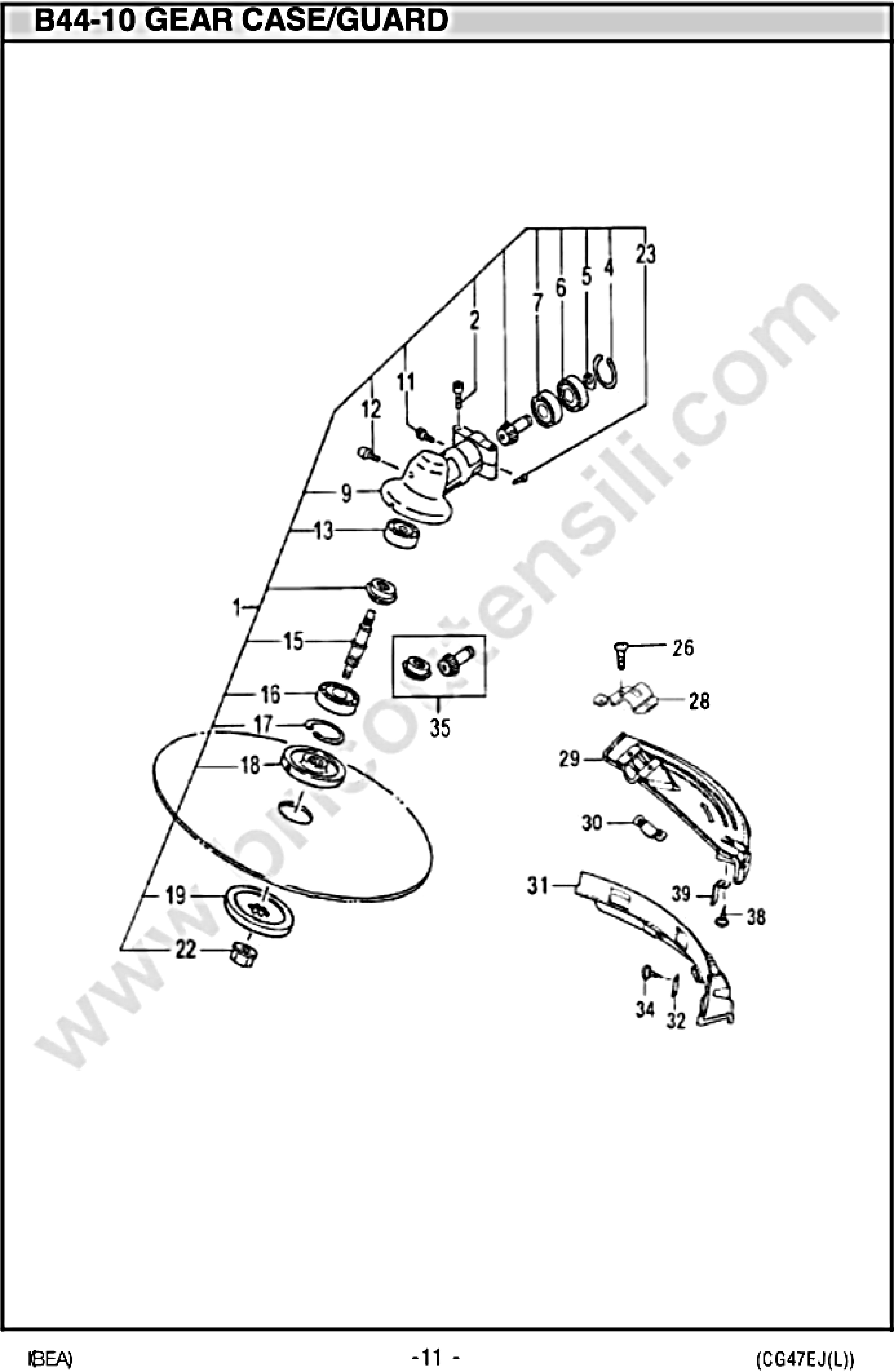

Page 10 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 10
Pos. Item Price Buy
4
 Retaining Ring 26MM for Brushcutter Tanaka TBC-340 6695294 Retaining Ring 26MM for Brushcutter Tanaka TBC-340 €2.08
5
 photo_cameraImage coming soon 6695315 STOP RING OUTER 10 €3.66
6
 photo_cameraImage coming soon 6695526 BALL BEARING # 6000Z 26MM/OD €13.65
7
 photo_cameraImage coming soon 6695524 BALL BEARING # 6000 26MM/OD €7.93
9
 photo_cameraImage coming soon 6688770 GEAR CASE 26 DIAM.FOR SERIAL MACHINES E630001 FOR MODEL CG33EJ (SL) €30.42
11
 photo_cameraImage coming soon 6684667 HEX.HOLE BOLT M5X12/S €1.93
12
 photo_cameraImage coming soon 6689109 OILING BOLT €1.83
13
 photo_cameraImage coming soon 6684734 BALL BEARING 609 €5.01
15
 photo_cameraImage coming soon 6688924 GEAR SHAFT €27.99
16
 photo_cameraImage coming soon 6695554 BALL BEARING 6201D 32MM/OD €8.52
17
 photo_cameraImage coming soon 6695295 STOP RING C32, INNER €1.93
18
 Upper Cutter Holder for Brushcutter Tanaka TBC-340 6689032 Upper Cutter Holder for Brushcutter Tanaka TBC-340 €19.53
22
 Fixing Nut M10x1,25 for Brushcutter Hitachi CG33EJ-SL 6689073 Fixing Nut M10x1,25 for Brushcutter Hitachi CG33EJ-SL €4.83
23
 photo_cameraImage coming soon 6689159 GEAR CASE WASHER €1.98
26
 photo_cameraImage coming soon 6684714 HEX. HOLE BUTTON SCREW 6X25S €1.98
28
 photo_cameraImage coming soon 6690315 COVER BRACKET 26 €8.52
29
 photo_cameraImage coming soon 6690276 GUARD 26CE €27.99
30
 photo_cameraImage coming soon 6684748 BLADE GUARD HOLDER €3.87
31
 photo_cameraImage coming soon 6690376 BLADE GUARD €15.48
32
 photo_cameraImage coming soon 6684750 KNIFE €3.98
34
 photo_cameraImage coming soon 6684751 TAPPING SCREW 4X14 €1.98
35
 photo_cameraImage coming soon 6688875 GEAR/PINION SET SPARE €38.83
38
 photo_cameraImage coming soon 6684753 TAPPING SCREW 5X20 €1.93
39
 photo_cameraImage coming soon 6684754 KNIFE €6.70

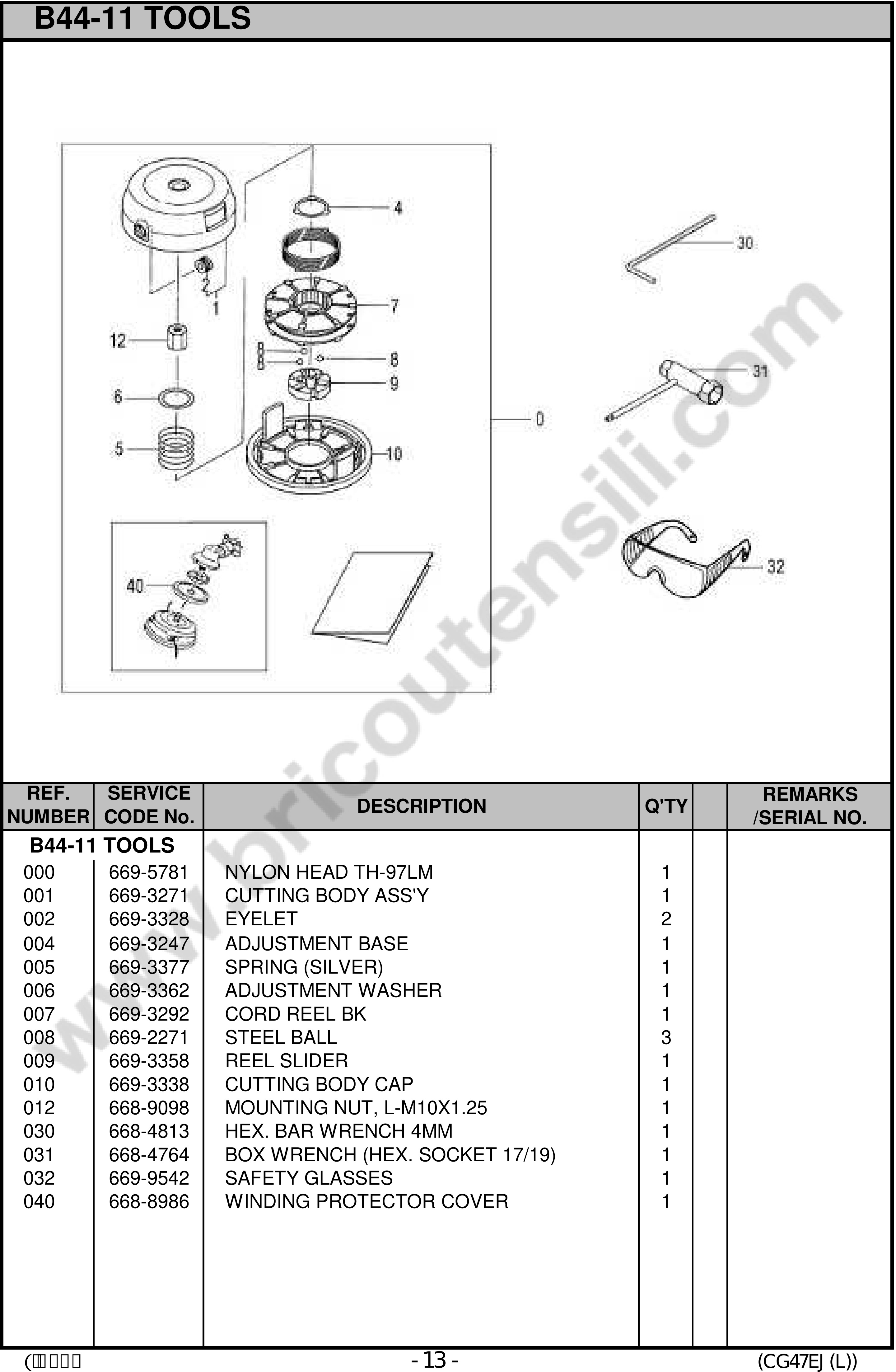

Page 11 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 11
Pos. Item Price Buy
9
 photo_cameraImage coming soon 6693358 REEL SLIDER €3.65
10
 photo_cameraImage coming soon 6693338 CUTTING BODY CAP €21.02
40
 photo_cameraImage coming soon 6688986 WINDING PROTECTOR COVER €5.00

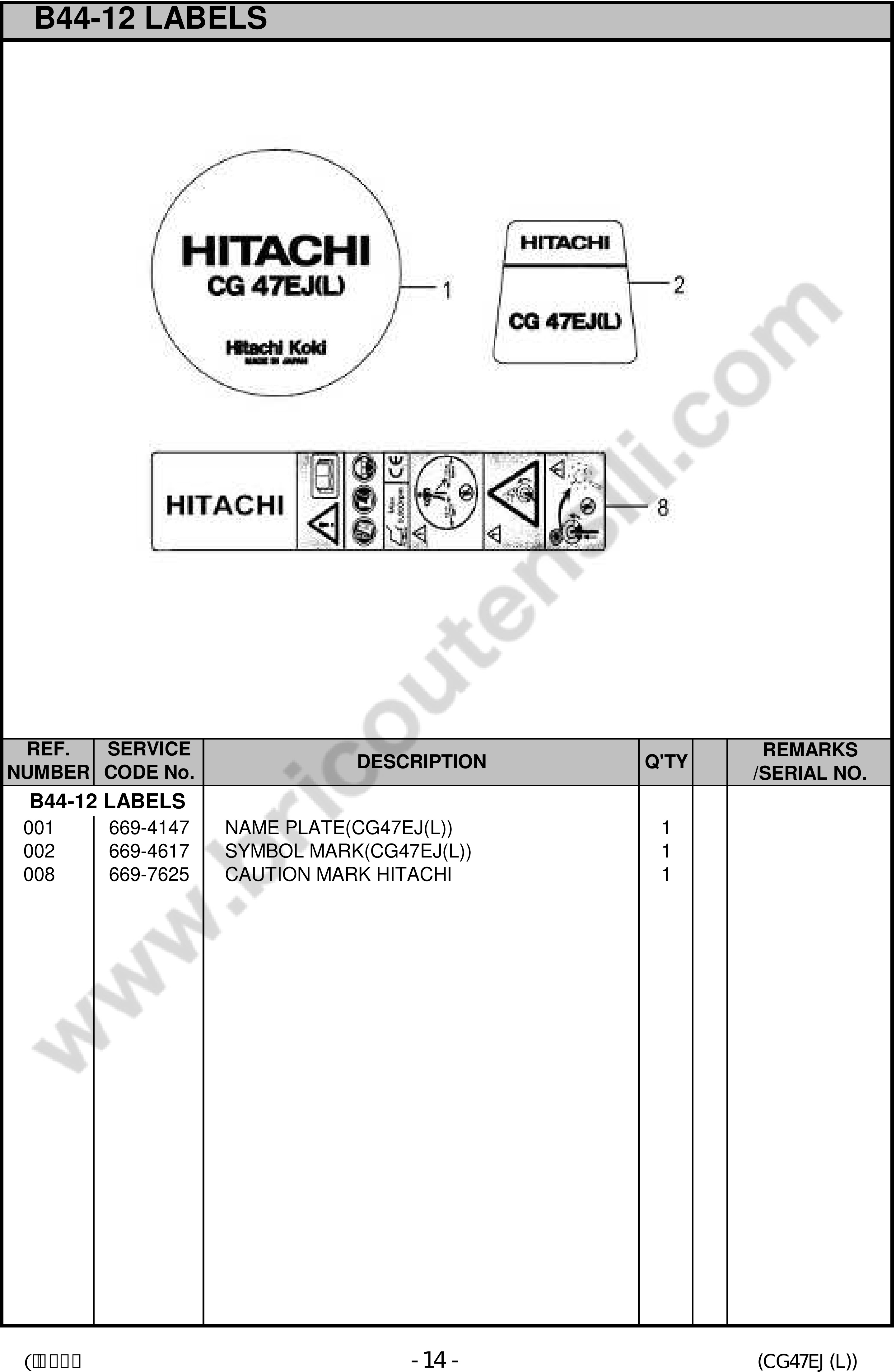

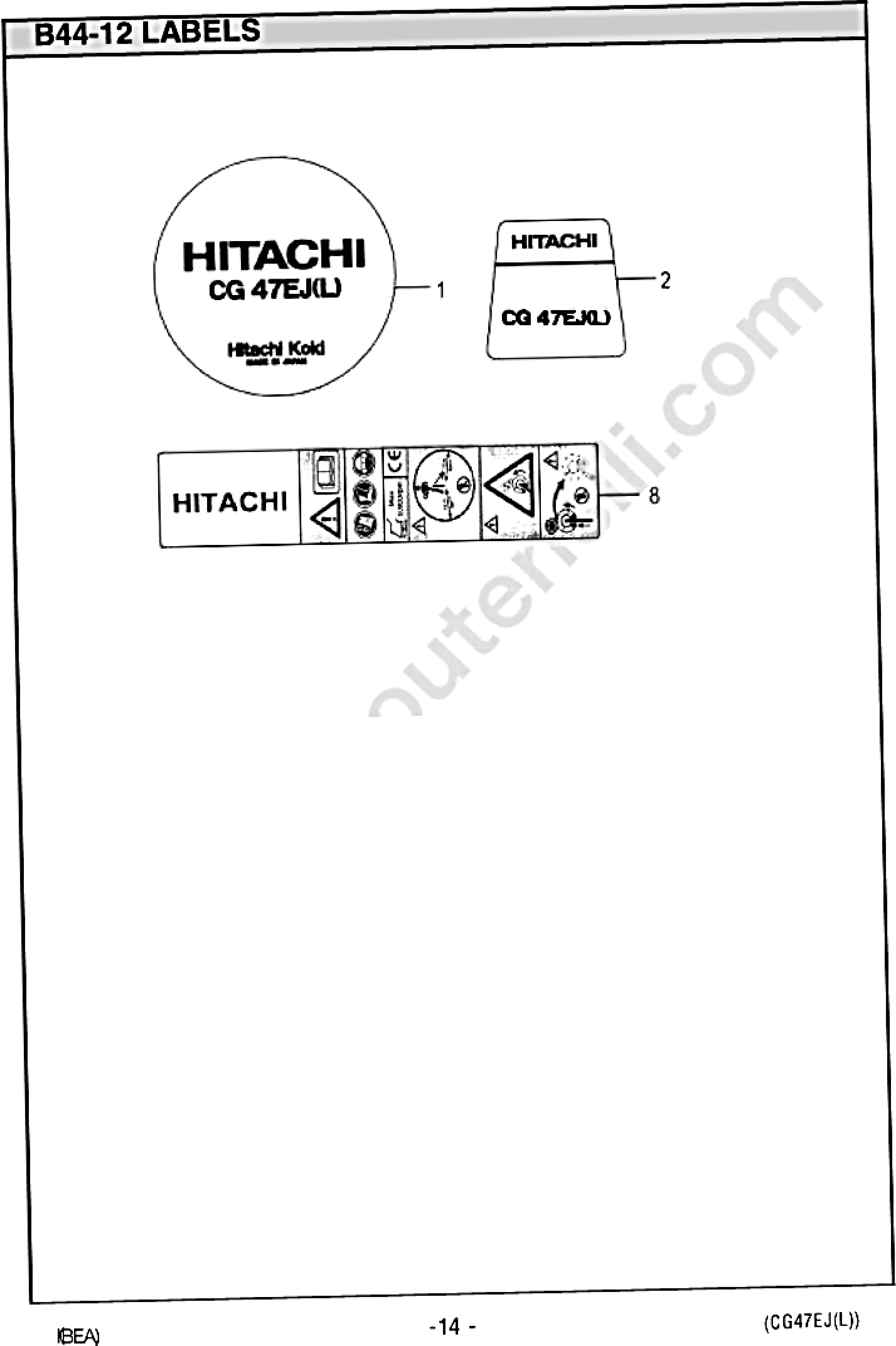

Page 12 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 12
info_outline

No spare parts mapped to this page.
Check the other pages for available parts.

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Hitachi Spare Parts for Engine Brush Cutter CG47EJ-L

Hitachi-HIKOKI Tanak

a authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues for Brushcutter CG47EJ-L.

In the following table, look for the model of the chainsaw and ripettivo spare part.
Hitachi CG47EJ-L

ENGINE BRUSH CUTTER CG47EJ-L
B4401 CYLINDER/PISTON/CRANK SHAFT Pag.1
6 6687468 SPARK PLUG CAP ASS'Y
7 6688336 SPARK PLUG RUBBER COVER
8 6699319 SPARK PLUG ASS'Y BPMR6A
11 6685470 CYLINDER SET
12 6684586 HEX.HOLE BOLT M5X18/S
14 6685738 CYLINDER GASKET
15 6686126 PISTON RING
16 6685887 PISTON SET
17 6686019 PISTON PIN 10X35
18 6686026 PISTON PIN CIRCLIP
20 6685993 PISTON PIN COLLAR
21 6686190 CRANK SHAFT COMP. - DISCONTINUED
22 6695602 NEEDLE BEARING, 2X8.8
31 6686457 WOODRUFF KEY 3X13X5
B4402 CRANK CASE Pag.2
23 6695139 SMALL NUT 10
26 6686553 CRANK CASE ASS'Y
27 6686713 CRANK CASE GASKET
28 6695637 OIL SEAL UD15257
29 6695557 BALL BEARING #6202, 35MM/OD
30 6686463 CRANK SHAFT WASHER 15.2X22
32 6686472 CRANK SHAFT SHIM 0.20
32 6686473 CRANK SHAFT SHIM 0.30
36 6695084 HEX HOLE BUTTON SCREW 6X45
38 6684825 HEX. SOCKET HD. BOLT (W/BUTTON) M6
40 6687968 LEAD WIRE ASS'Y
45 6684826 S.WASHER 6
51 6687371 MAGNETO ROTOR COMP.
52 6695185 SMALL WASHER 10
54 6695139 SMALL NUT 10
55 6687649 IGNITION COIL COMP.
56 6695339 SCREW 5X18/S
58 6684864 SMALL WASHER 5X10
63 6688004 CORD CLAMP COMP.
66 6686974 FAN CASE, VERMILION
67 6695361 SCREW 6X20/S
68 6688055 PRIMARY CORD GROMMET
69 6688049 PRIMARY CORD GROMMET
B4403 ENGINE 1 Pag.3
27 6692225 FUEL TANK CUSHION RUBBER
31 6689883 INLET MANUFOLD GASKET
32 6689950 CARB. INSULATOR SET
33 6689826 CARBURETOR GASKET
45 6690468 CARBURETOR SET HDA306
045A 6697706 CARBURETOR SET HDA180A
49 6695423 SCREW 5X24WS
51 6691004 CHOKE LEVER
52 6685267 FUEL PIPE 2.5X4X90
052A 6692347 FUEL PIPE 2.5X4X80
53 6695139 SMALL NUT 10
54 6695235 INNER TOOTHED WASHER 10
55 6690080 PRIMING PUMP COMP.
055A 6685139 PRIMING PUMP COMP.
63 6688166 FUEL PIPE ASS'Y 3X5X230
64 6684619 CLIP,6.3 DIA.
65 6692273 PUMP FILTER BODY ASS'Y
66 6691526 FUEL TANK, WHITE
68 6697846 RETURN GROMMET
70 6691763 TANK CAP D ASS'Y, BLACK
76 6691927 TANK HOLDING BAND
77 6692193 CUSHION RUBBER
78 6695386 SCREW 5X16/PS
80 6691337 SWIVEL CAP
96 6684625 TANK CAP CHAIN
B4404 ENGINE 2 Pag.4
1 6692777 MUFFLER PROTECTOR
2 6695383 SCREW 5X12/PS
3 6684667 HEX.HOLE BOLT M5X12/S
4 6684918 WASHER M5 (BLACK)
5 6695088 HEX. HOLE BUTTON SCREW 6X65
6 6684639 BOLT WASHER 6
7 6692463 MUFFLER SET
9 6692883 MUFFLER SPECIAL GASKET
10 6692651 TAIL PIPE SET, SPARE
11 6695325 SCREW 4X8/S
14 6692741 MUFFLER GASKET
16 6687242 HEAT SHIELD
23 6695389 SCREW 5X18/PS
25 6692205 TANK BRACKET
26 6692227 FUEL TANK CUSHION RUBBER
80 6699561 CLUTCH SET ASS'Y
81 6689645 CLUTCH WASHER B
82 6688615 CLUTCH ARM
83 6689429 CLUTCH SPRING
84 6695203 WAVE WASHER 10
85 6689628 CLUTCH STEP BOLT
B4405 RECOIL STARTER Pag.5
0 6697645 RECOIL STARTER BODY ASS'Y
1 6693025 RECOIL STARTER BODY COMP.
1 6697646 RECOIL STARTER BODY COMP
2 6693007 STARTER ROPE REEL
2 6697647 STARTER ROPE REEL
3 6693114 RECOIL SPRING
3 6697648 RECOIL SPRING
9 6693165 STARTER ROPE
9 6697649 STARTER ROPE
12 6693607 STARTER HANDLE CAP
14 6697650 STARTER HANDLE
014A 6697650 STARTER HANDLE
17 6693634 SET SCREW
19 6693302 STARTER PAWL
19 6697643 STARTER PAWL
20 6684683 STOP RING E5
20 6684683 STOP RING E5
23 6695395 SCREW 5X25PS
24 6693345 STARTER PAWL SPRING
24 6697642 STARTER PAWL SPRING
25 6693395 STARTER PULLEY
25 6697644 STARTER PULLEY ASS'Y
B4406 AIR CLEANER Pag.6
36 6699506 CLEANER BODY SET
036A 6697705 CLEANER BODY
37 6692244 COLLAR 5.8
38 6690848 BLOW OVER CHECK BOARD COMP.
39 6690357 CLEANER ELEMENT
41 6690149 CLEANER COVER ASS'Y
42 6690383 COVER FIXING BOLT
43 6695354 SCREW CHEAD 5X60/S
B4407 CARBURETOR Pag.7
1 6685210 SCREW
2 6691420 PUMP BODY
3 6691455 PUMP GASKET
4 6691446 PUMP DIAPHRAGM
5 6684700 INLET SCREEN
17 6690766 IDLE ADJUST SPRING
18 6690736 IDLE ADJUST SCREW
22 6685215 NEEDLE VALVE
23 6690874 VALVE SPRING
24 6690819 CONTROL LEVER
25 6685219 HINGE PIN
26 6685218 HINGE PIN SET SCREW
27 6690840 DIAPHRAGM GASKET
27 6690838 DIAPHRAGM GASKET
28 6690829 METERING DIAPHRAGM COMP.
28 6690828 METERING DIAPHRAGM COMP.
29 6690434 AIR PURGE COMP.
30 6690860 DIAPHRAGM COVER
30 6690858 DIAPHRAGM COVER
31 6691310 SET SCREW
31 6685223 SET SCREW
B4408 CLUTCH CASE Pag.8
1 6688586 CLUTCH SHAFT COMP.
2 6695559 BALL BEARING #6202Z, 35MM/OD
3 6695285 STOP RING C15, OUTER
4 6689194 CLUTCH CASE
6 6691829 CUSHION RUBBER
9 6695046 HEX. HOLE BOLT 5X16
11 6685064 HEX. SOCKET HD. BOLT (W/BUTTON) M6X20
12 6695091 HEX HOLE BOLT 5X25
15 6689655 PIPE HOLDER
26 6684918 WASHER M5 (BLACK)
28 6689664 METAL FITTING
B4409 OPERATION PIPE Pag.9
1 6689475 DRIVE SHAFT
2 6699277 MAIN PIPE COMP
3 6699278 BUSHING ASS'Y
10 6695255 TAPPING SCREW 5X20
11 6689681 BRAKE SHAFT WASHER
16 6691098 HANDLE GRIP
17 6684838 BOLT 6X43/P (BLACK)
18 6691049 LOOP HANDLE, 26DIA., BLACK
19 6691231 BARRIER, 26 DIA, BLACK
22 6684835 HEX.NUT 6
25 6693731 THROTTLE LEVER ASS'Y
38 6694029 CONNECTOR CASE
39 6693886 THROTTLE WIRE 155+57.5
40 6687520 SPLIT PROTECTION TUBE,7X70L
51 6684965 NUT M5
53 6689264 LIFTING METAL
54 6684903 HEX.HOLE BOLT M5X16/S
56 6692874 SHOULDER BELT ASS'Y
83 6693957 THROTTLE WIRE COMP.
84 6694010 THROTTLE WIRE
85 6687442 STOP SWITCH COMP.
86 6687519 SPLIT PROTECTION TUBE,7X70L
98 6684721 TRIGGER LOCK OUT
100 6684722 RETURN SPRING
110 6684803 SCREW M5X20
111 6684727 CONTAL NUT 5
112 6684725 SCREW M4X20 (BLACK)
125 6684804 THROTTLE LEVER
B4410 GEAR CASE/GUARD Pag.10
1 6696497 GEAR CASE SET PN
2 6684709 HEX.HOLE BOLT M5X25/S
4 6695294 RETAINING RING CTYPE D26
5 6695315 STOP RING OUTER 10
6 6695526 BALL BEARING #6000Z, 26MM/OD
7 6695524 BALL BEARING #6000, 26MM/OD
9 6688770 GEAR CASE 26 DIA
11 6684667 HEX.HOLE BOLT M5X12/S
12 6689109 OILING BOLT
13 6684734 BALL BEARING 609
15 6688924 GEAR SHAFT
16 6695554 BALL BEARING 6201D, 32MM/OD
17 6695295 STOP RING C32, INNER
18 6689032 CUTTER HOLDER
19 6689055 CUTTER HOLDER CAP
22 6689073 FIXING NUT M10X1.25
23 6689159 GEAR CASE WASHER
26 6684714 HEX.HOLE BUTTON SCREW 6X25S
28 6690315 COVER BRACKET 26
29 6690276 BLADE GUARD 26CE
30 6684748 GUARD HOLDER
31 6690376 BLADE GUARD
32 6684750 KNIFE
34 6684751 TAPPING SCREW 4X14
35 6688875 GEAR/PINION SET, SPARE
38 6684753 TAPPING SCREW 5X20
39 6684754 KNIFE
B4411 TOOLS Pag.11
0 6695781 NYLON HEAD TH97LM
1 6693271 CUTTING BODY ASS'Y
2 6693328 EYELET
4 6693247 ADJUSTMENT BASE
5 6693377 SPRING (SILVER)
6 6693362 ADJUSTMENT WASHER
7 6693292 CORD REEL BK
8 6692271 STEEL BALL
9 6693358 REEL SLIDER
10 6693338 CUTTING BODY CAP
12 6689098 MOUNTING NUT, LM10X1.25
30 6684813 HEX. BAR WRENCH 4MM
31 6684764 BOX WRENCH (HEX. SOCKET 17/19)
32 6699542 SAFETY GLASSES
40 6688986 WINDING PROTECTOR COVER
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Hitachi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to hitachi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Hitachi CG47EJ-L
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Hitachi CG47EJ-L Drawing

Hitachi CG47EJ-L Drawing

Download (612.07KB)

You might also like

Priming Pump for Chain Saws and Brushcutters Hitachi Tanaka
HiKOKI Power Tools Italia S.p.a. SKU: 6685139
Priming Pump for Chain Saws and Brushcutters Hitachi Tanaka
Priming Pump for Chain Saws and Brushcutters Hitachi Tanaka Genuine spare Hitachi Koky Tanaka, Priming Pump complete for Brushcutters and Chain Saws Hitachi Tanaka. Parts for the following products: - BRUSHCUTTER CG47EF (L) -...
AVAILABLE €13.15
Details
Clutch Arm for Brushcutters Hitachi CG47EJ-L-CG47EF (L)
HiKOKI Power Tools Italia S.p.a. SKU: 6688615
Clutch Arm for Brushcutters Hitachi CG47EJ-L-CG47EF (L)
Clutch Arm for Brushcutters Hitachi CG47EJ-L-CG47EF (L) Original spare Hitachi Koky Tanaka, Clutch Arm for Brushcutters Hitachi Tanaka CG47EJ-L - CG47EY-T - CG47EF (L). Parts for the following products: - BRUSHCUTTER CG47EJ-L -...
AVAILABLE €22.58
Details
Clutch Arm Spring for Brushcutters Hitachi CG47EJ-L-CG47EF (L)
HiKOKI Power Tools Italia S.p.a. SKU: 6689429
Clutch Arm Spring for Brushcutters Hitachi CG47EJ-L-CG47EF (L)
Clutch Arm Spring for Brushcutters Hitachi CG47EJ-L-CG47EF (L) Original spare Hitachi Koky Tanaka, Clutch Arm Spring for Brushcutters Hitachi Tanaka CG47EJ-L - CG47EY-T - CG47EF (L). Parts for the following products: - BRUSHCUTTER...
Last items in stock €5.31
Details
Inlet Manifold Gasket for Brushcutters Tanaka Hitachi CG 47
HiKOKI Power Tools Italia S.p.a. SKU: 6689883
Inlet Manifold Gasket for Brushcutters Tanaka Hitachi CG 47
Inlet Manifold Gasket for Brushcutters Tanaka Hitachi CG 47 Original parts for Brushcutter Hitachi Koky Tanaka, Inlet Manifold Carburetor Gasket for Brushcutters Hitachi CG47EF Tanaka (L) - CG47EJ-L - CG47EY-T. Parts for the...
Last items in stock €1.98
Details
Washer Clutch B for Brush Cutters Auger Hitachi Garden Tanaka
HiKOKI Power Tools Italia S.p.a. SKU: 6689645
Washer Clutch B for Brush Cutters Auger Hitachi Garden Tanaka
Washer Clutch B for Brush Cutters Auger Hitachi Garden Tanaka Hitachi genuine parts, Washer Clutch B for Brush Cutters Auger Hitachi Garden Tanaka. Part for the following article : - Brush Cutters CG33EJ-SL - Brush Cutters CG33EJ-LP -...
AVAILABLE €1.98
Details
Piston Ring for Brush Cutter Hitachi CG47EJ-LEY-T-EF(L)
HiKOKI Power Tools Italia S.p.a. SKU: 6686126
Piston Ring for Brush Cutter Hitachi CG47EJ-LEY-T-EF(L)
Piston Ring for Brush Cutter Hitachi CG47EJ-LEY-T-EF(L) Original spare Hitachi Koky Tanaka, Piston Ring for Brush Cutter Hitachi CG. Parts for the following products: -  Brush Cutter CG47EJ-L -  Brush Cutter CG47EY-T -  Brush Cutter...
AVAILABLE €15.81
Details
Washer for Brush Cutter and Auger Hitachi
HiKOKI Power Tools Italia S.p.a. SKU: 6695203
Washer for Brush Cutter and Auger Hitachi
Washer for Brush Cutter and Auger Hitachi Original spare Hitachi Koky Tanaka, Washer for Brush Cutter and Auger Hitachi. Parts for the following products: - Brush Cutter CG33EJ-LP - Brush Cutter CG33EJ-SL - Brush Cutter CG40EK-LP -...
AVAILABLE €1.98
Details
Oil Sial for Brush Cutter Hitachi Sale
HiKOKI Power Tools Italia S.p.a. SKU: 6695637
Oil Sial for Brush Cutter Hitachi
Oil Sial for Brush Cutter Hitachi Original spare Hitachi Koky Tanaka, Oil Sial for Brush Cutter Hitachi. Parts for the following products: - Brush Cutter CG40EK-LP - Brush Cutter CG40EJ-T - Brush Cutter CG40EJ-L - Brush Cutter...
AVAILABLE €5.17
Details
Bolt M5X18/S for Chainsaws Hitachi CS38EK-CS45EL
HiKOKI Power Tools Italia S.p.a. SKU: 6684586
Bolt M5X18/S for Chainsaws Hitachi CS38EK-CS45EL
Bolt M5X18/S for Chainsaws Hitachi CS38EK-CS45EL Genuine spare Hitachi Koky Tanaka, Bolt M5X18 / S Brushcutters Hitachi CG22EAS - CG27EJ (SLNP) - CG47EJ-L - CG47EY-T - CG47EF (L) - Chainsaws CS38EK - CS45EL. Parts for the following...
AVAILABLE €1.98
Details
Fuel Tank for Brushcutters Hitachi CG47EF (L)-CG47EJ-L-CG47EY-T
HiKOKI Power Tools Italia S.p.a. SKU: 6691526
Fuel Tank for Brushcutters Hitachi CG47EF (L)-CG47EJ-L-CG47EY-T
Fuel Tank for Brushcutters Hitachi CG47EF (L)-CG47EJ-L-CG47EY-T Genuine part Hitachi Koky Tanaka, Fuel Tank for Brushcutters G47EF (L) - CG47EJ-L - CG47EY-T. Parts for the following products: - BRUSHCUTTER HITACHI CG47EF (L) -...
Out-of-Stock €27.71
Details
Conrod Needle Bearing for Chainsaws Hitachi CS38EK-CS45EL
HiKOKI Power Tools Italia S.p.a. SKU: 6695602
Conrod Needle Bearing for Chainsaws Hitachi CS38EK-CS45EL
Conrod Needle Bearing for Chainsaws Hitachi CS38EK-CS45EL Genuine part Hitachi, Conrod Needle Bearing for Chainsaws Hitachi Garden Tanaka Model CS38EK - CS45EL - BRUSHCUTTER CG47EJ-L - CG47EY-T - CG47EF (L). Parts for the following...
AVAILABLE €10.49
Details
Throttle Lever for Brushcutters Hitachi CG33EJ-LP-CG33EJ-SL
HiKOKI Power Tools Italia S.p.a. SKU: 6684804
Throttle Lever for Brushcutters Hitachi CG33EJ-LP-CG33EJ-SL
Throttle Lever for Brushcutters Hitachi CG33EJ-LP-CG33EJ-SL Genuine parts Hitachi Koky Tanaka, Throttle Lever for Brushcutters CG27EJ (SLNP) - CG33EJ-LP - CG33EJ-SL - CG40EK-LP - CG40EJ-L - CG40EF-L - CG47EJ-L - CG47EF (L). Parts for...
AVAILABLE €6.64
Details
Fuel Hose for Brushcutters Hitachi CG47EF (L)-CG47EJ-L-CG47EY-T
HiKOKI Power Tools Italia S.p.a. SKU: 6685267
Fuel Hose for Brushcutters Hitachi CG47EF (L)-CG47EJ-L-CG47EY-T
Fuel Hose for Brushcutters Hitachi CG47EF (L)-CG47EJ-L-CG47EY-T Genuine part Hitachi Koky Tanaka, Fuel Hose mm 2.5X4X90 for Brushcutters G47EF (L) - CG47EJ-L - CG47EY-T - Tanaka TBC-600 - Chainsaw HITACHI CS51EAP Parts for the...
AVAILABLE €3.31
Details
Starter Pawl for Brushcutter Hitachi CG40EF(L)
HiKOKI Power Tools Italia S.p.a. SKU: 6693302
Starter Pawl for Brushcutter Hitachi CG40EF(L)
Starter Pawl for Brushcutter Hitachi CG40EF(L) Genuine spare part Hitachi, Starter Pawl for Brushcutters CG40EF(L) - CG40EJ(L) - CG40EJ(T) - CG40EK(LP) - CG47EF(L) -  CG47EJ(L - CG47EJ(T) Part for the following products: - BRUSHCUTTER...
AVAILABLE €3.30
Details
Cleaner Element for Brushcutter Hitachi Tanaka CG47EJ-L
HiKOKI Power Tools Italia S.p.a. SKU: 6690357
Cleaner Element for Brushcutter Hitachi Tanaka CG47EJ-L
Cleaner Element for Brushcutter Hitachi Tanaka CG47EJ-L Original spare part Hitachi, Cleaner Element for BrushcutterS CG47EJ-L - CG47EY-T - CG47EF (L) - Tanaka TBC-600 Part for the following prdoducts: -...
AVAILABLE €3.84
Details
Carburator for Brushcutters Hitachi CG47EF (L)-CG47EJ-L-CG47EY-TCleaner Body Set for Brushcutters Hitachi CG47EF (L)-CG47EJ-L
HiKOKI Power Tools Italia S.p.a. SKU: 6699506
Cleaner Body Set for Brushcutters Hitachi CG47EF (L)-CG47EJ-L
Cleaner Body Set for Brushcutters Hitachi CG47EF (L)-CG47EJ-L Genuine part Hitachi Koky Tanaka, Cleaner Body Set for Brushcutters G47EF (L) - CG47EJ-L - CG47EY-T - Tanaka TBC-600 Part for the following products: - Brushcutter Hitacchi...
AVAILABLE €26.45
Details
Carburator Gasket for Brushcutter Hitachi CG40EJ-T
HiKOKI Power Tools Italia S.p.a. SKU: 6689826
Carburator Gasket for Brushcutter Hitachi CG40EJ-T
Carburator Gasket for Brushcutter Hitachi CG40EJ-T Genuine part Hitachi Koky Tanaka, Carburator Gasket for Brushcutters CG40EJ-T - CG40EJ-L - CG47EF(L) - CG47EJ(L) - CG47EJ(T)...
AVAILABLE €1.77
Details
Hex Hole Bolt 10.9 M5x16/6 for Chainsaws Hitachi
HiKOKI Power Tools Italia S.p.a. SKU: 6684903
Hex Hole Bolt 10.9 M5x16/6 for Chainsaws Hitachi
Hex Hole Bolt 10.9 M5x16/6 for Chainsaws Hitachi Genuine part Hitachi Koky Tanaka, Hex Hole Bolt 10.9 M5x16/6 for Chainsaws CS38EK - CS45EL - Tanaka ECV-3801 - Tanaka ECV-4501. Part for the following products: - Chainsaw Hitachi...
AVAILABLE €1.32
Details
Cylinder for Brushcutters Hitachi Tanaka CG47EF - EJ - EY
HiKOKI Power Tools Italia S.p.a. SKU: 6685470
Cylinder for Brushcutters Hitachi Tanaka CG47EF - EJ - EY
Cylinder for Brushcutters Hitachi Tanaka CG47EF - EJ - EY Genuine spare part Hitachi Koky Tanaka, Cylinder + Gasket for Brushcutters CG47EF (L) - CG47EJ (L) - CG47EJ (T) - CG47EY (T) - Tanaka...
Last items in stock €90.07
Details
Cranck Shaft Housing Cpl for Brushcutters Hitachi CG47EJ-L-CG47EF (L)
HiKOKI Power Tools Italia S.p.a. SKU: 6686553
Cranck Shaft Case Ass'y for Brushcutters Hitachi CG47EJ-L-CG47EF (L)
Cranck Shaft Case Ass'y for Brushcutters Hitachi CG47EJ-L-CG47EF (L) Original  spare part  Hitachi HIKOKI Tanaka, Cranck Shaft Case Ass'y for  Brushcutters  Hitachi Tanaka CG47EJ-L - CG47EY-T - CG47EF (L). Parts for the following...
Last items in stock €98.26
Details
Collar 5.8 for Brushcutter Hitachi CG47EJ-L
HiKOKI Power Tools Italia S.p.a. SKU: 6692244
Collar 5.8 for Brushcutter Hitachi CG47EJ-L
Collar 5.8 for Brushcutter Hitachi CG47EJ-L Original part Hitachi-HIKOKI, Fuel Tank Collar 5.8 for Brushcutters CG47EJ-L - CG47EY-T - CG40EF-L - CG47EF(L) - CG22EJ. Parts for the following...
Last items in stock €1.08
Details
Carburator Needle Valve for Chainsaws Hitachi-HiKoki Tanaka
HiKOKI Power Tools Italia S.p.a. SKU: 6685215
Carburator Needle Valve for Chainsaws Hitachi-HiKoki Tanaka
Carburator Needle Valve for Chainsaws Hitachi-HiKoki Tanaka Original part Hitachi-HiKoki Tanaka, Carburator Needle Valve for Chainsaws and Brushcutters Hitachi-HiKoki Tanaka. Part for the following products: - Chainsaw ECS 3301D -...
AVAILABLE €10.76
Details
Upper Cutter Holder for Brushcutter Tanaka TBC-340
HiKOKI Power Tools Italia S.p.a. SKU: 6689032
Upper Cutter Holder for Brushcutter Tanaka TBC-340
Upper Cutter Holder for Brushcutter Tanaka TBC-340 Genuine spare part Tanaka, Upper Cutter Holder for Brushcutter Tanaka TBC-340 - TBC-340D - Hitachi CG33EJ-SL Part for the following products: -  Brushcutter Tanaka TBC-340 -...
Last items in stock €19.53
Details
Retaining Ring 26MM for Brushcutter Tanaka TBC-340
HiKOKI Power Tools Italia S.p.a. SKU: 6695294
Retaining Ring 26MM for Brushcutter Tanaka TBC-340
Retaining Ring 26MM for Brushcutter Tanaka TBC-340 Genuine spare part Tanaka, Retaining Ring 26MM for Brushcutter Tanaka TBC-340 - TBC-340D - Hitachi CG33EJ-SL Part for the following products: -  Brushcutter Tanaka TBC-340 -...
on 7/10 Business Days Approx €2.08
Details
Connector Case for Brushcutter Hitachi CG33EJ-SL
HiKOKI Power Tools Italia S.p.a. SKU: 6694029
Connector Case for Brushcutter Hitachi CG33EJ-SL
Connector Case for Brushcutter Hitachi CG33EJ-SL Original spare Hitachi HiKoki Tanaka, Connector Case for Brushcutters CG33EJ-SL - CG40EJ-L - CG47EJ-L Parts for the following products: -  Brushcutter CG33EJ-SL - Brushcutter CG40EJ-L...
on 7/10 Business Days Approx €4.17
Details
Cylinder Gasket for Brushcutter Hitachi CG47EJ-L
HiKOKI Power Tools Italia S.p.a. SKU: 6685738
Cylinder Gasket for Brushcutter Hitachi CG47EJ-L
Cylinder Gasket for Brushcutter Hitachi CG47EJ-L Original spare Hitachi HIKOKI Tanaka, Cylinder Gasket for Brush Cutter Hitachi CG47EJ-L - CG47EY-T - CG47EF(L). Parts for the following products: -  Brush Cutter CG47EJ-L -  Brush...
Last items in stock €2.99
Details
Comments (0)
