HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Engine Brush Cutter CG40EJ-L

SKU: Hitachi CG40EJ-L
€2.65
VAT included

Hitachi Spare Parts for Engine Brush Cutter CG40EJ-L

We are Hitachi-HIKOKI Tanaka authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues for Engine Bush Cutter CG40EJ-L.
Hitachi Spare Parts for Engine Brush Cutter CG40EJ-L
  • Hitachi Spare Parts for Engine Brush Cutter CG40EJ-L
  • Hitachi Spare Parts for Engine Brush Cutter CG40EJ-L
  • Hitachi Spare Parts for Engine Brush Cutter CG40EJ-L
  • Hitachi Spare Parts for Engine Brush Cutter CG40EJ-L
  • Hitachi Spare Parts for Engine Brush Cutter CG40EJ-L
  • Hitachi Spare Parts for Engine Brush Cutter CG40EJ-L
  • Hitachi Spare Parts for Engine Brush Cutter CG40EJ-L
  • Hitachi Spare Parts for Engine Brush Cutter CG40EJ-L
  • Hitachi Spare Parts for Engine Brush Cutter CG40EJ-L
  • Hitachi Spare Parts for Engine Brush Cutter CG40EJ-L
  • Hitachi Spare Parts for Engine Brush Cutter CG40EJ-L
HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Engine Brush Cutter CG40EJ-L

SKU: Hitachi CG40EJ-L Condition: New
€2.65
VAT included

Hitachi Spare Parts for Engine Brush Cutter CG40EJ-L

We are Hitachi-HIKOKI Tanaka authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues for Engine Bush Cutter CG40EJ-L.
settings 182 spare parts
description 11 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
151 spare parts
Esploso pagina 1
Pos. Item Price Buy
1
 photo_cameraImage coming soon 6689475 DRIVE SHAFT €32.86
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 1
Pos. Item Price Buy
6
 photo_cameraImage coming soon 6687466 SPARK PLUG CAP ASS'Y €6.09
8
 photo_cameraImage coming soon 6685086 SPARK PLUG BPMR6A €6.61
12
 photo_cameraImage coming soon 6684668 HEX.HOLE BOLT M5X20/S €1.27
14
 Cylinder Gasket for Brushcutters Hitachi Tanaka CG40EJ-T/EJ-L/EF-L 6685740 Cylinder Gasket for Brushcutters Hitachi Tanaka CG40EJ-T/EJ-L/EF-L €5.17
15
 photo_cameraImage coming soon 6686123 PISTON RING €8.52
16
 Piston Set for Brushcutters Hitachi CG40EJ-T/EJ-L/EF-L 6685888 Piston Set for Brushcutters Hitachi CG40EJ-T/EJ-L/EF-L €45.07
17
 Piston Pin for Brushcutters Hitachi CG40EK-LP-EJ-T-EJ-L-EF-L 6686007 Piston Pin for Brushcutters Hitachi CG40EK-LP-EJ-T-EJ-L-EF-L €5.97
18
 Piston Pin Circlip for Brushcutter Hitachi CG40EJ-T 6686032 Piston Pin Circlip for Brushcutter Hitachi CG40EJ-T €1.04
21
 photo_cameraImage coming soon 6686191 CRANK SHAFT COMP. €221.36
31
 photo_cameraImage coming soon 6686457 WOODRUFF KEY 3X13X5 €1.93
43
 photo_cameraImage coming soon 6687655 IGNITION COIL COMP. €54.64
44
 Ignition Coil Rubber Cap for Brushcutters Hitachi Tanaka 6684602 Ignition Coil Rubber Cap for Brushcutters Hitachi Tanaka €2.65
45
 photo_cameraImage coming soon 6687885 HIGHT TENSION CORD €1.83
50
 photo_cameraImage coming soon 6687969 LEAD WIRE ASS'Y €5.53
55
 photo_cameraImage coming soon 6687657 IGNITION COIL ASS'Y €66.81
Page 2 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

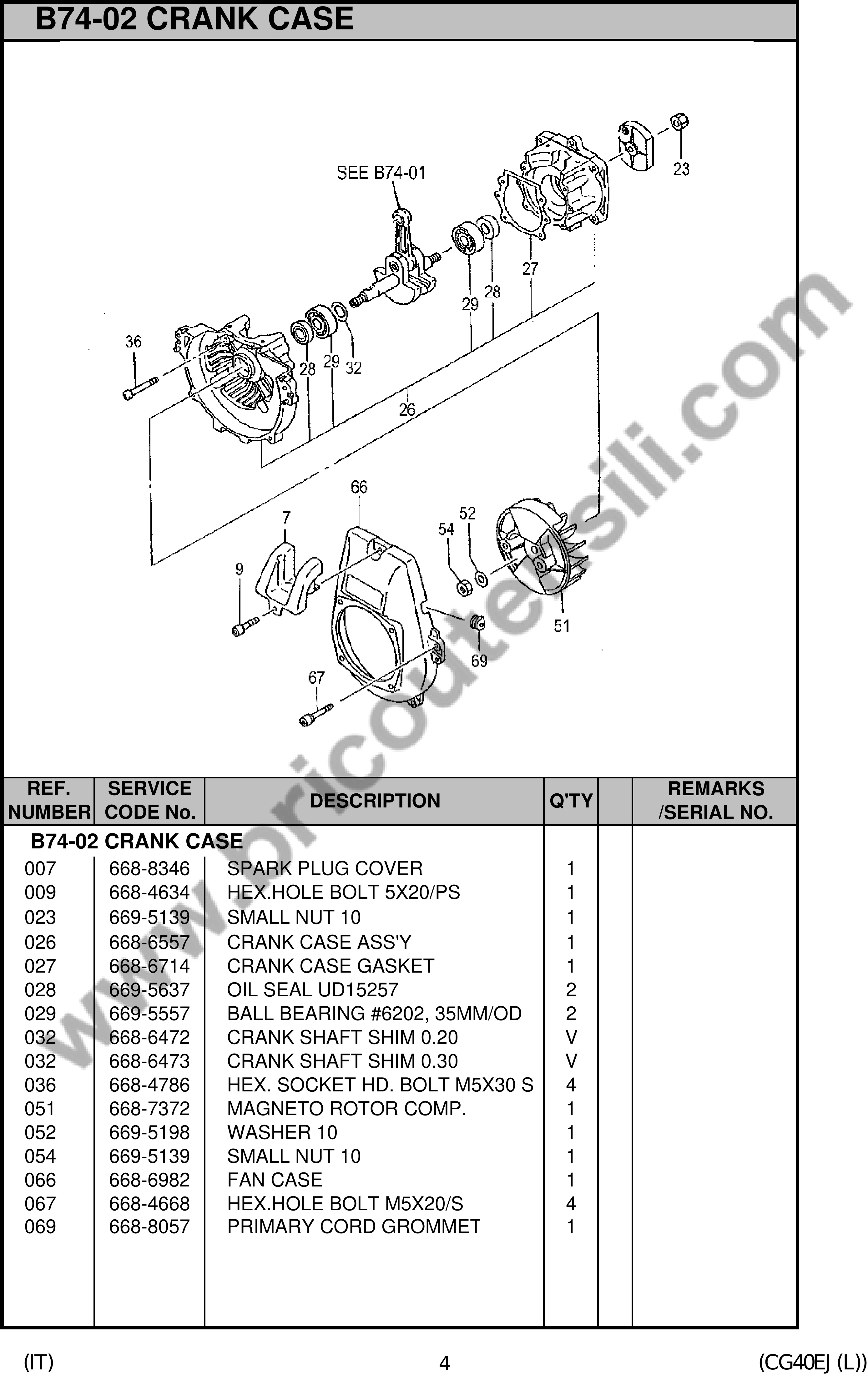

Esploso pagina 2
Pos. Item Price Buy
7
 photo_cameraImage coming soon 6688346 SPARK PLUG COVER €5.27
9
 photo_cameraImage coming soon 6684634 HEX.HOLE BOLT 5X20/PS €1.68
23
 photo_cameraImage coming soon 6695139 SMALL NUT 10 €12.28
27
 photo_cameraImage coming soon 6686714 CRANK CASE GASKET €1.59
28
 Oil Sial for Brush Cutter Hitachi 6695637 Oil Sial for Brush Cutter Hitachi €5.17
29
 photo_cameraImage coming soon 6695557 BALL BEARING #6202, 35MM/OD €6.63
32
 photo_cameraImage coming soon 6686472 CRANK SHAFT SHIM 0.20 €2.15
32
 photo_cameraImage coming soon 6686473 CRANK SHAFT SHIM 0.30 €2.15
36
 photo_cameraImage coming soon 6684786 HEX. SOCKET HD. BOLT M5X30 S €1.60
51
 photo_cameraImage coming soon 6687372 MAGNETO ROTOR COMP. €32.86
66
 photo_cameraImage coming soon 6686982 FAN CASE €37.71
69
 photo_cameraImage coming soon 6688057 PRIMARY CORD GROMMET €1.63
Page 3 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

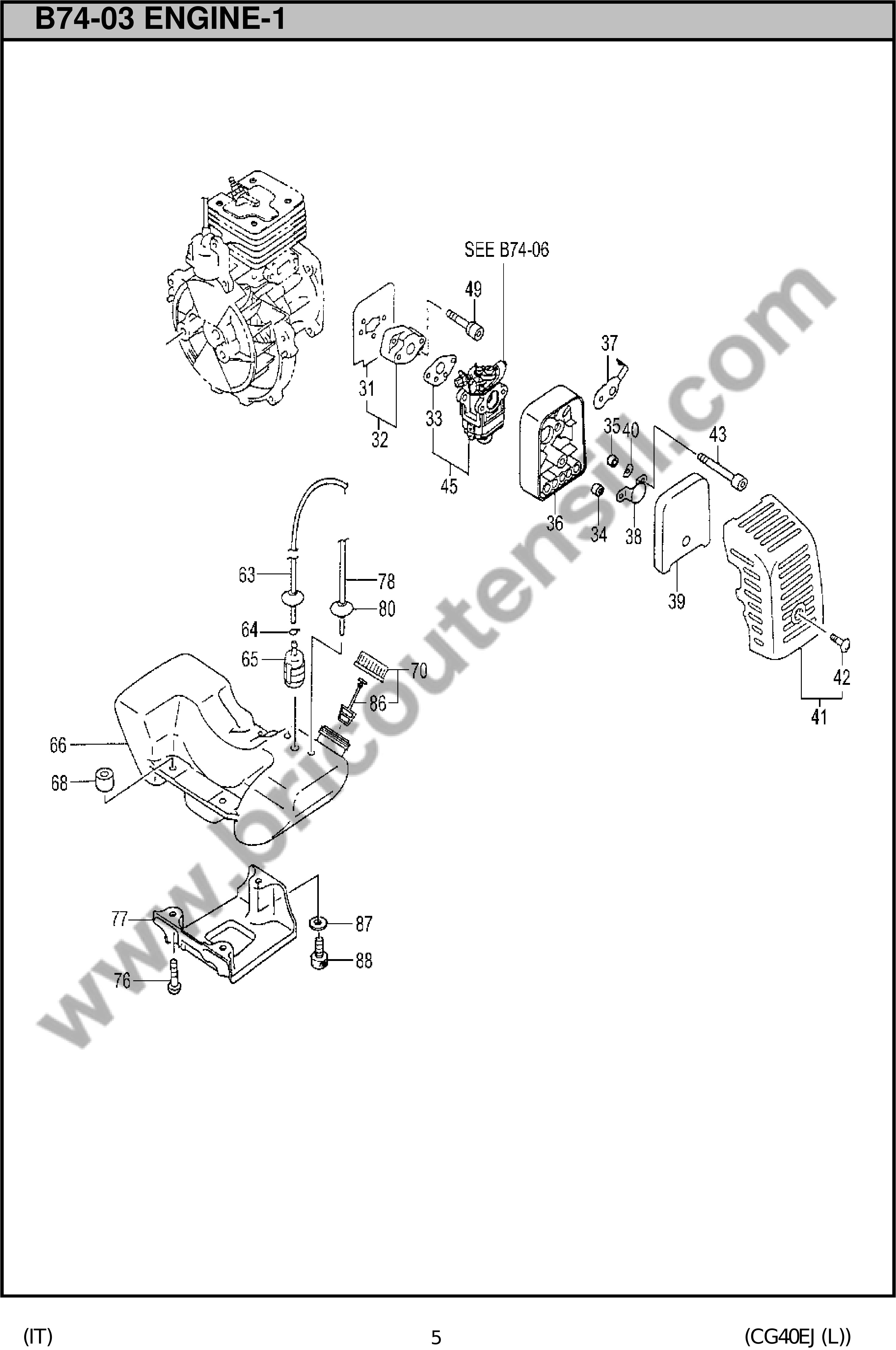

Esploso pagina 3
Pos. Item Price Buy
31
 Intake Gasket for Brushcutters Hitachi CG 40 EK-LP/EJ-T/EJ-L/EF-L 6689885 Intake Gasket for Brushcutters Hitachi CG 40 EK-LP/EJ-T/EJ-L/EF-L €5.17
32
 photo_cameraImage coming soon 6689956 CARBURETOR INSULATOR €11.92
33
 Carburator Gasket for Brushcutter Hitachi CG40EJ-T 6689826 Carburator Gasket for Brushcutter Hitachi CG40EJ-T €1.77
36
 photo_cameraImage coming soon 6690099 CLEANER BODY COMP. €14.48
38
 Blow Over Check Board for Brushcutter Hitachi CG40EAS 6690843 Blow Over Check Board for Brushcutter Hitachi CG40EAS €3.48
39
 photo_cameraImage coming soon 6690352 CLEANER ELEMENT 6T €4.75
40
 photo_cameraImage coming soon 6684658 WAVE WASHER 8 €2.45
41
 Cleaner Cover for Brushcutters Hitachi CG40EK-LP/EJ-T/EJ-L/EF-L 6690397 Cleaner Cover for Brushcutters Hitachi CG40EK-LP/EJ-T/EJ-L/EF-L €15.81 Not available for order
43
 photo_cameraImage coming soon 6695353 SCREW 5X57/S €1.83
45
 photo_cameraImage coming soon 6690473 CARBURETOR SET WT775 €94.92
49
 photo_cameraImage coming soon 6695515 HEX HOLE BOLT 5X25WS €1.67
63
 photo_cameraImage coming soon 6684618 FUEL PIPE ASS'Y €8.64
64
 Hose Clip 6.3 D. for Brushcutters Chainsaws Hitachi Hikoki Tanaka 6684619 Hose Clip 6.3 D. for Brushcutters Chainsaws Hitachi Hikoki Tanaka €1.25
65
 photo_cameraImage coming soon 6692273 PUMP FILTER BODY ASS'Y €10.22
66
 Fuel Tank for Brushcutters Hitachi CG40EJ-T 6691533 Fuel Tank for Brushcutters Hitachi CG40EJ-T €17.14
68
 photo_cameraImage coming soon 6684623 COLLAR C €1.98
70
 Tank Cap Ass'y (Black) for Brushcutter Hitachi CG40EFL 6691763 Tank Cap Ass'y (Black) for Brushcutter Hitachi CG40EFL €11.81
77
 photo_cameraImage coming soon 6694785 ENGINE BED €14.48
78
 photo_cameraImage coming soon 6684880 FUEL PIPE 3X5X80 €1.83
80
 Fuel Pipe Grommet for Brushcutter Hitachi CG33EJ-SL 6688156 Fuel Pipe Grommet for Brushcutter Hitachi CG33EJ-SL €6.26
86
 photo_cameraImage coming soon 6684625 TANK CAP CHAIN €1.78
87
 photo_cameraImage coming soon 6684918 WASHER M5 €1.98
88
 photo_cameraImage coming soon 6695492 HEX. HOLE BOLT 5X22/S €1.23
Page 4 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

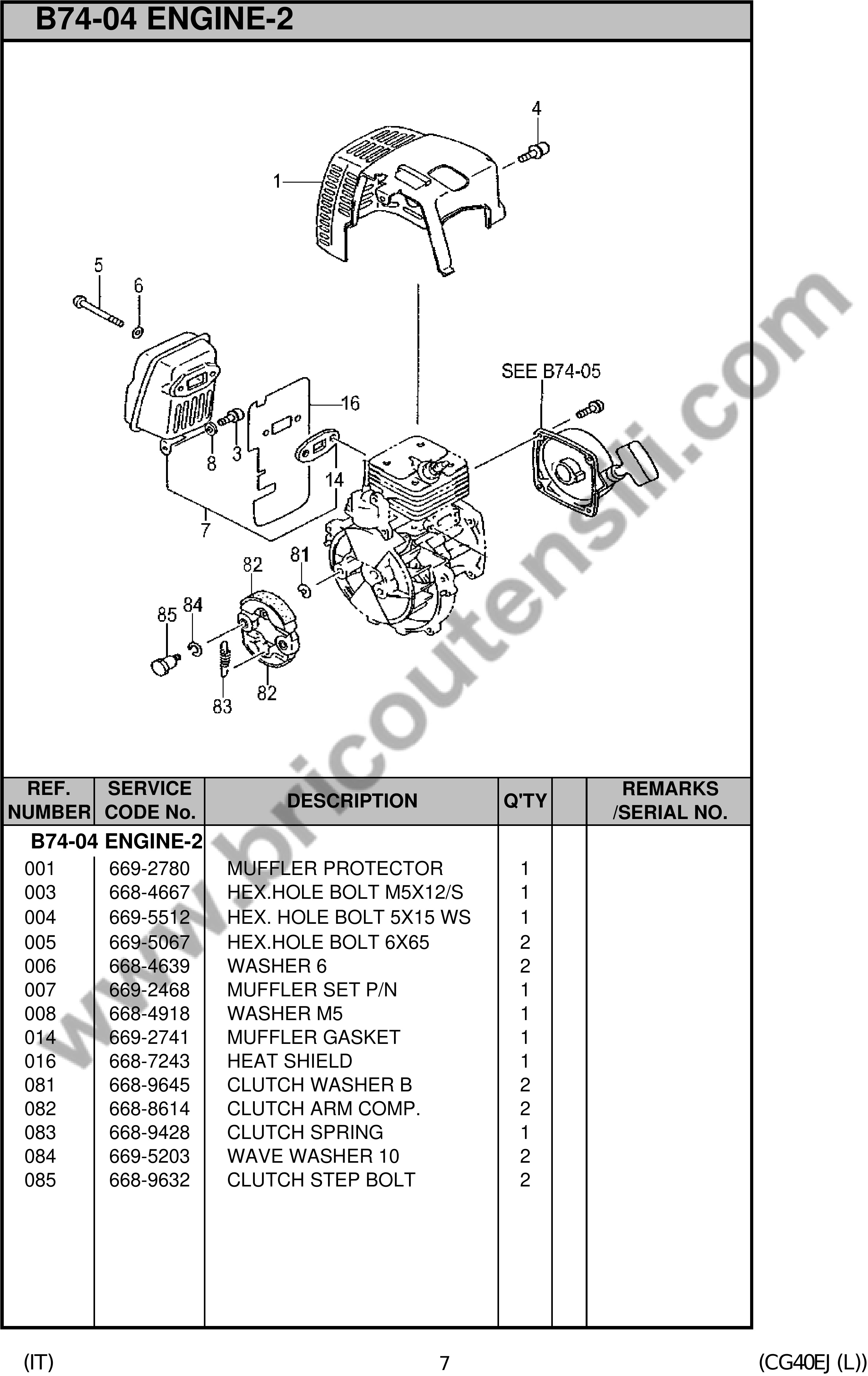

Esploso pagina 4
Pos. Item Price Buy
1
 photo_cameraImage coming soon 6692780 MUFFLER PROTECTOR €30.30
3
 photo_cameraImage coming soon 6684667 HEX.HOLE BOLT M5X12/S €1.93
4
 photo_cameraImage coming soon 6695512 HEX. HOLE BOLT 5X15 WS €1.57
5
 photo_cameraImage coming soon 6695067 HEX.HOLE BOLT 6X65 €1.98
6
 Bolt Washer 6 for Brushcutters Chainsaws Hitachi Hikoki Tanaka 6684639 Bolt Washer 6 for Brushcutters Chainsaws Hitachi Hikoki Tanaka €1.98
7
 photo_cameraImage coming soon 6692468 MUFFLER SET P/N €54.64
14
 Muffler Gasket for Brushcutter Hitachi Tanaka CG40EFL 6692741 Muffler Gasket for Brushcutter Hitachi Tanaka CG40EFL €3.98
16
 photo_cameraImage coming soon 6687243 HEAT SHIELD €5.27
81
 Washer Clutch B for Brush Cutters Auger Hitachi Garden Tanaka 6689645 Washer Clutch B for Brush Cutters Auger Hitachi Garden Tanaka €1.98
82
 Clutch Arm for Brushcutters Hitachi CG40EK-LP/EJ-T/EJ-L/EF-L 6688614 Clutch Arm for Brushcutters Hitachi CG40EK-LP/EJ-T/EJ-L/EF-L €17.14
83
 photo_cameraImage coming soon 6689428 CLUTCH SPRING €2.44
84
 Washer for Brush Cutter and Auger Hitachi 6695203 Washer for Brush Cutter and Auger Hitachi €1.98
85
 Bolt Clutch for Brush Cutters Hitachi Garden Tanaka CG 6689632 Bolt Clutch for Brush Cutters Hitachi Garden Tanaka CG €8.63
Page 5 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

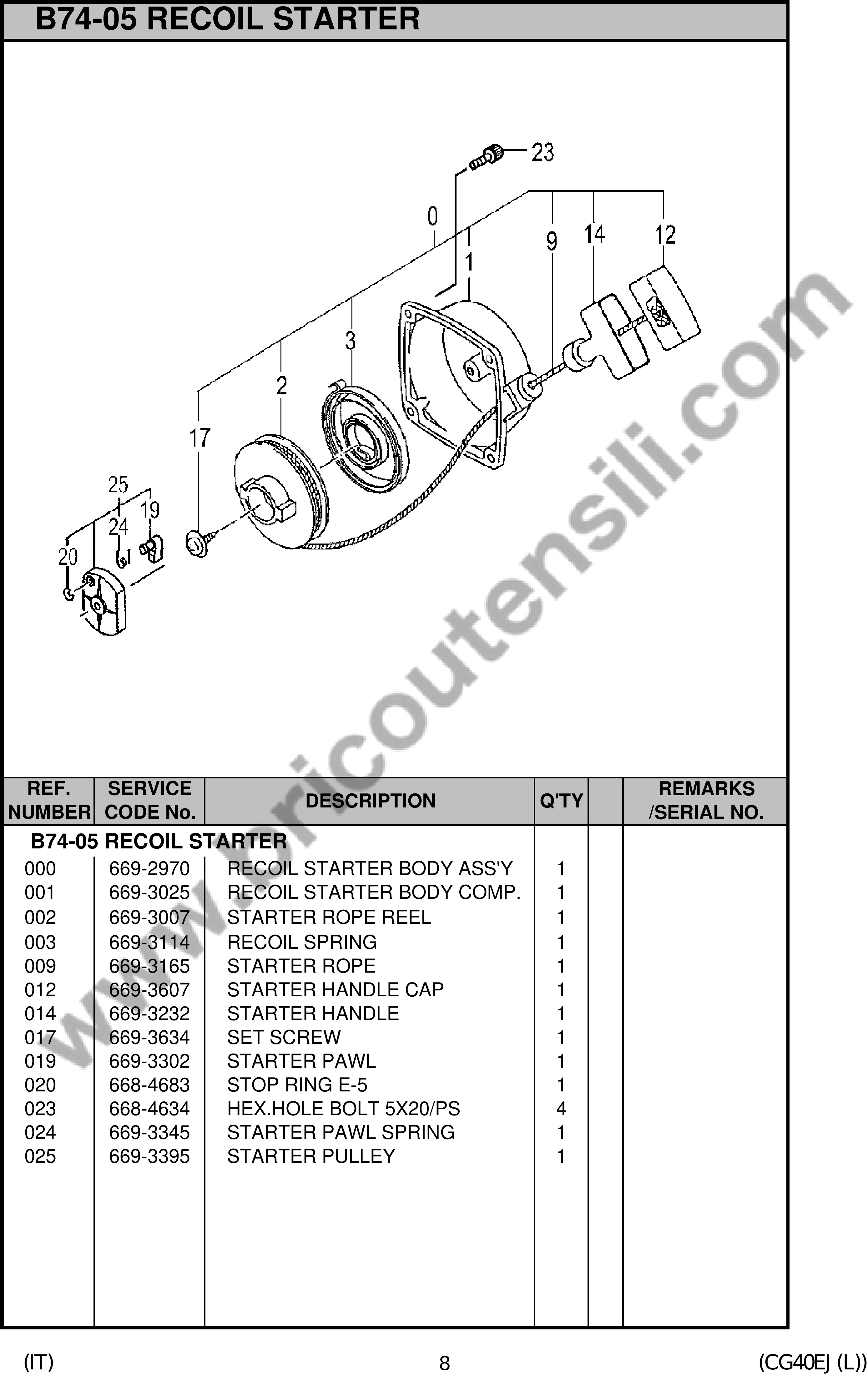

Esploso pagina 5
Pos. Item Price Buy
1
 photo_cameraImage coming soon 6693025 RECOIL STARTER BODY COMP. €21.94
2
 photo_cameraImage coming soon 6693007 STARTER ROPE REEL €14.19
3
 photo_cameraImage coming soon 6693114 RECOIL SPRING €19.23
12
 photo_cameraImage coming soon 6693607 STARTER HANDLE CAP €3.87
14
 photo_cameraImage coming soon 6693232 STARTER HANDLE €9.74
17
 photo_cameraImage coming soon 6693634 SET SCREW €1.75
19
 Starter Pawl for Brushcutter Hitachi CG40EF(L) 6693302 Starter Pawl for Brushcutter Hitachi CG40EF(L) €3.30
20
 photo_cameraImage coming soon 6684683 STOP RING E5 €1.22
24
 photo_cameraImage coming soon 6693345 STARTER PAWL SPRING €3.87
25
 photo_cameraImage coming soon 6693395 STARTER PULLEY €16.65
Page 6 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

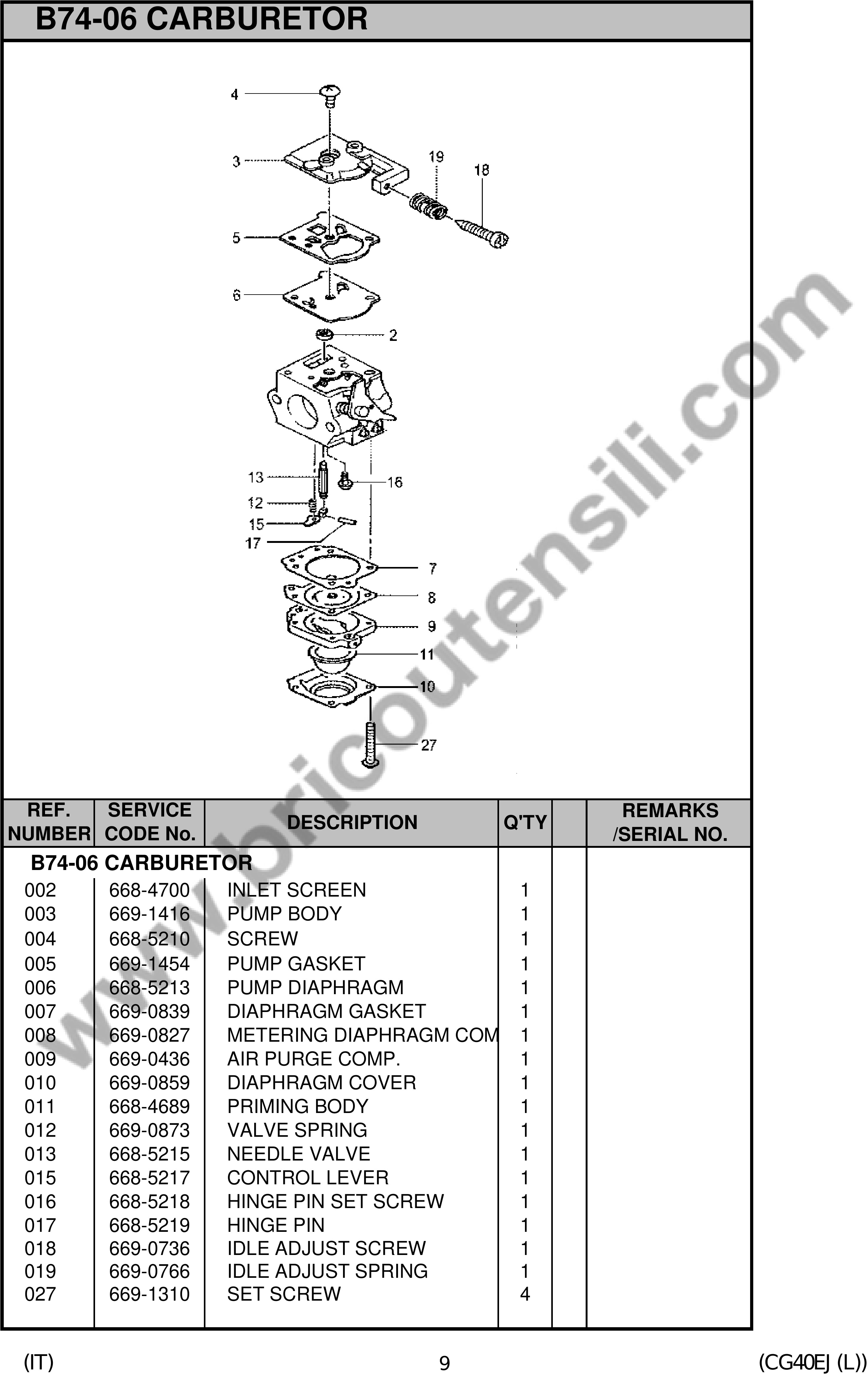

Esploso pagina 6
Pos. Item Price Buy
2
 Carburator Inlet Screen for Chainsaws and Bruschcutters Hitachi 6684700 Carburator Inlet Screen for Chainsaws and Bruschcutters Hitachi €3.18
4
 photo_cameraImage coming soon 6685210 SCREW €2.52
5
 photo_cameraImage coming soon 6691454 PUMP GASKET €3.65
6
 Carburetor Pump Diaphragm for Chainsaws Hitachi CS25-33-40-45-51 6685213 Carburetor Pump Diaphragm for Chainsaws Hitachi CS25-33-40-45-51 €10.63
7
 photo_cameraImage coming soon 6690839 DIAPHRAGM GASKET €3.65
8
 Metering Diaphragm Comp. for Chainsaws Hitachi CS25-33-40-45-51 6690827 Metering Diaphragm Comp. for Chainsaws Hitachi CS25-33-40-45-51 €23.70
9
 photo_cameraImage coming soon 6690436 AIR PURGE COMP. €21.90
11
 photo_cameraImage coming soon 6684689 PRIMING BODY €6.88
12
 photo_cameraImage coming soon 6690873 VALVE SPRING €5.57
13
 Carburator Needle Valve for Chainsaws Hitachi-HiKoki Tanaka 6685215 Carburator Needle Valve for Chainsaws Hitachi-HiKoki Tanaka €10.76
15
 Control Lever for Chainsaw Hitachi CS25EC-SC 6685217 Control Lever for Chainsaw Hitachi CS25EC-SC €6.34
16
 photo_cameraImage coming soon 6685218 HINGE PIN SET SCREW €3.38
17
 Hitachi CS25EC-SC Hinge Pin 6685219 Hitachi CS25EC-SC Hinge Pin €2.53
18
 photo_cameraImage coming soon 6690736 IDLE ADJUST SCREW €6.45
19
 photo_cameraImage coming soon 6690766 IDLE ADJUST SPRING €3.87
27
 photo_cameraImage coming soon 6691310 SET SCREW €1.43
Page 7 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

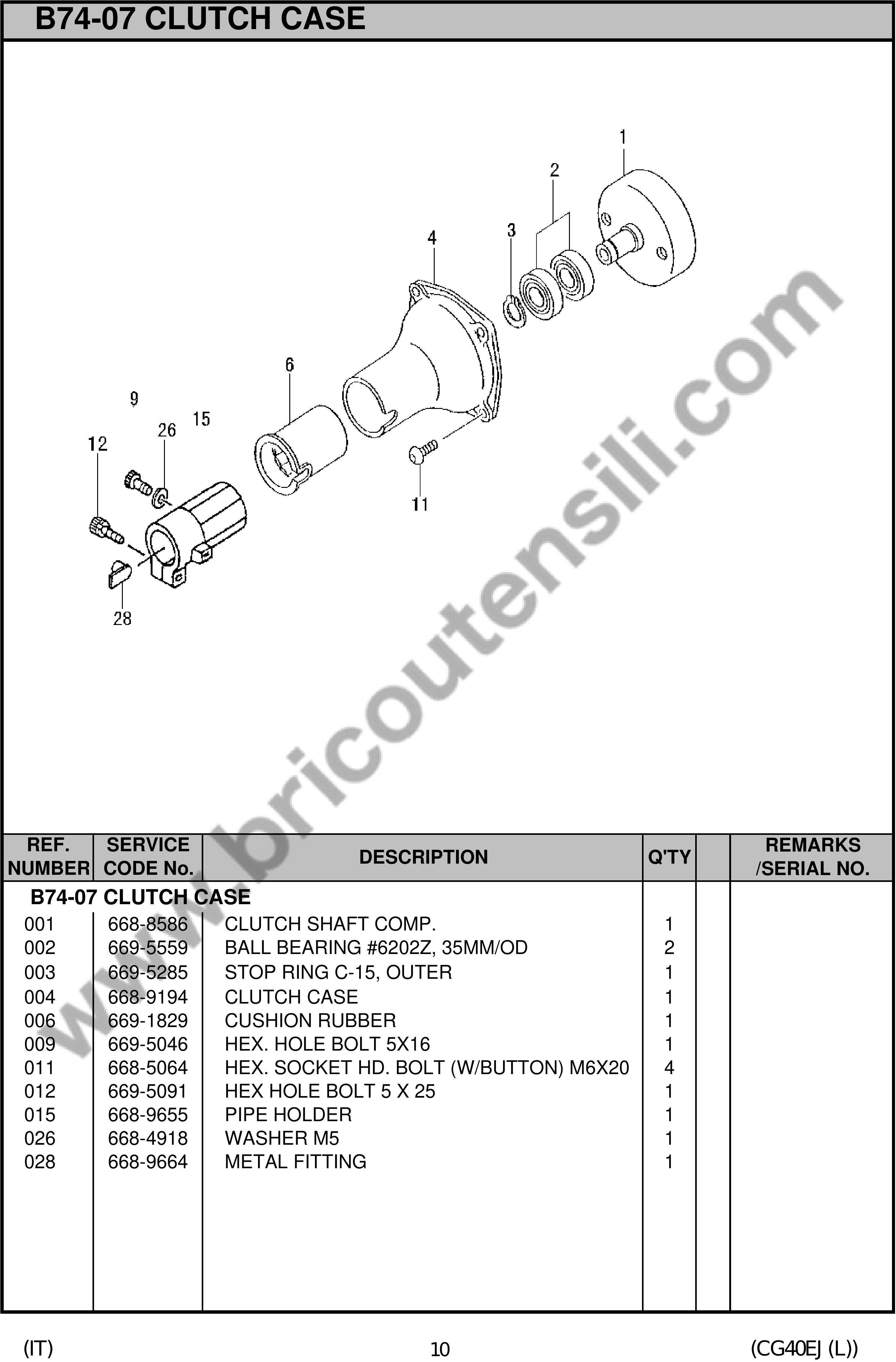

Esploso pagina 7
Pos. Item Price Buy
2
 photo_cameraImage coming soon 6695559 BALL BEARING #6202Z, 35MM/OD €9.74
3
 Stop Ring C-15 for Hedge Trimmer Tanaka THT 210 THT 210 B 6695285 Stop Ring C-15 for Hedge Trimmer Tanaka THT 210 THT 210 B €0.66
4
 photo_cameraImage coming soon 6689194 CLUTCH CASE €36.51
6
 photo_cameraImage coming soon 6691829 CUSHION RUBBER €6.09
9
 photo_cameraImage coming soon 6695046 HEX. HOLE BOLT 5X16 €1.98
11
 photo_cameraImage coming soon 6685064 HEX. SOCKET HD. BOLT (W/BUTTON) M6X20 €1.93
12
 photo_cameraImage coming soon 6695091 HEX HOLE BOLT 5X25 €1.83
15
 photo_cameraImage coming soon 6689655 PIPE HOLDER €10.96
28
 photo_cameraImage coming soon 6689664 METAL FITTING €9.30
Page 8 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

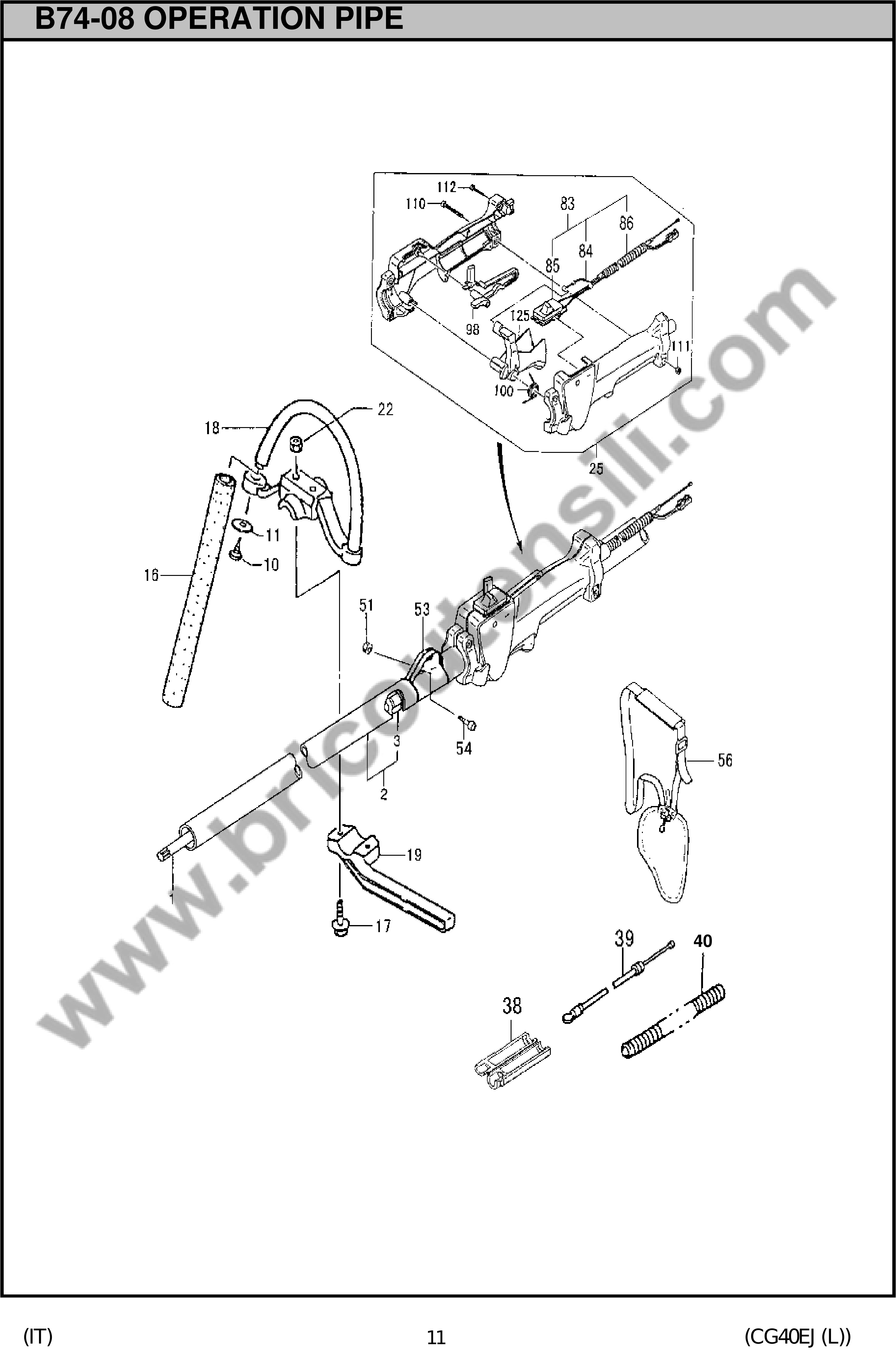

Esploso pagina 8
Pos. Item Price Buy
2
 photo_cameraImage coming soon 6689400 DRIVE SHAFT COMP. €49.92
3
 photo_cameraImage coming soon 6689522 BUSH ASS'Y, 8 DIA. €4.03
10
 photo_cameraImage coming soon 6695255 TAPPING SCREW 5X20 €1.98
16
 photo_cameraImage coming soon 6691098 HANDLE GRIP €9.30
17
 photo_cameraImage coming soon 6684838 BOLT 6X43/P (BLACK) €1.98
19
 photo_cameraImage coming soon 6691231 BARRIER, 26 DIA, BLACK €14.60
22
 photo_cameraImage coming soon 6684835 HEX.NUT 6 €1.98
25
 photo_cameraImage coming soon 6693731 THROTTLE LEVER ASS'Y €66.81
38
 Connector Case for Brushcutter Hitachi CG33EJ-SL 6694029 Connector Case for Brushcutter Hitachi CG33EJ-SL €4.17
39
 Throttle Wire for Brushcutter Hitachi Tanaka CG40EJ-L 6693890 Throttle Wire for Brushcutter Hitachi Tanaka CG40EJ-L €11.96
40
 photo_cameraImage coming soon 6687520 SPLIT PROTECTION TUBE,7X70L €1.52
51
 photo_cameraImage coming soon 6685075 NUT M5 (BLACK) €1.52
53
 photo_cameraImage coming soon 6689264 LIFTING METAL €2.60
54
 Hex Hole Bolt 10.9 M5x16/6 for Chainsaws Hitachi 6684903 Hex Hole Bolt 10.9 M5x16/6 for Chainsaws Hitachi €1.32
56
 photo_cameraImage coming soon 6692874 SHOULDER BELT ASS'Y €32.74
83
 photo_cameraImage coming soon 6693957 THROTTLE WIRE COMP. €29.09
84
 photo_cameraImage coming soon 6694010 THROTTLE WIRE €12.16
85
 photo_cameraImage coming soon 6687442 STOP SWITCH COMP. €18.13
100
 photo_cameraImage coming soon 6684722 RETURN SPRING €2.65
111
 photo_cameraImage coming soon 6684727 CONTAL NUT 5 €1.22
125
 Throttle Lever for Brushcutters Hitachi CG33EJ-LP-CG33EJ-SL 6684804 Throttle Lever for Brushcutters Hitachi CG33EJ-LP-CG33EJ-SL €6.64
Page 9 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

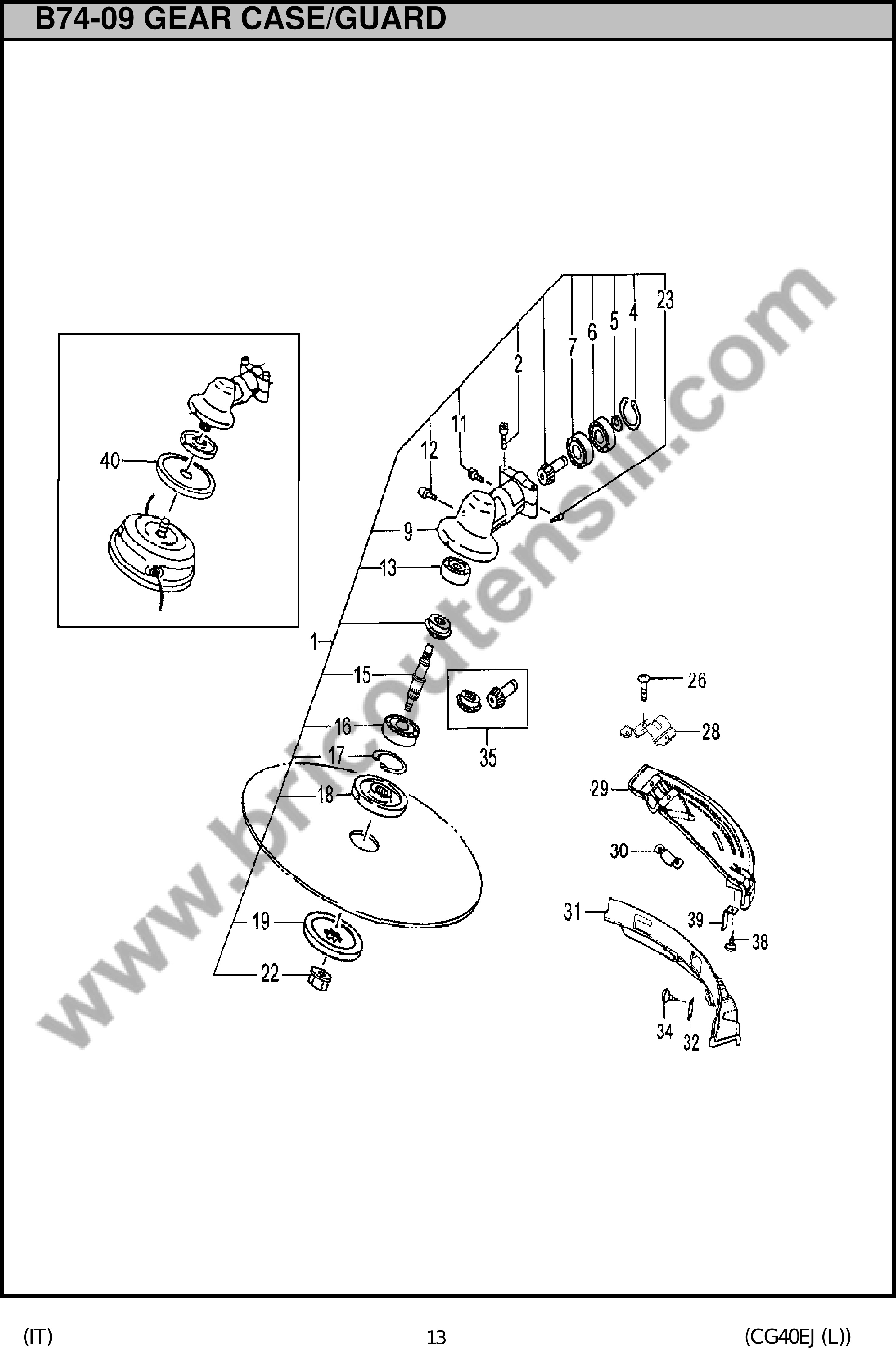

Esploso pagina 9
Pos. Item Price Buy
4
 Retaining Ring 26MM for Brushcutter Tanaka TBC-340 6695294 Retaining Ring 26MM for Brushcutter Tanaka TBC-340 €2.08
5
 photo_cameraImage coming soon 6695315 STOP RING OUTER 10 €3.66
6
 photo_cameraImage coming soon 6695526 BALL BEARING # 6000Z 26MM/OD €13.65
7
 photo_cameraImage coming soon 6695524 BALL BEARING # 6000 26MM/OD €7.93
9
 photo_cameraImage coming soon 6688770 GEAR CASE 26 DIAM.FOR SERIAL MACHINES E630001 FOR MODEL CG33EJ (SL) €30.42
12
 photo_cameraImage coming soon 6689109 OILING BOLT €1.83
13
 photo_cameraImage coming soon 6684734 BALL BEARING 609 €5.01
15
 photo_cameraImage coming soon 6688924 GEAR SHAFT €27.99
16
 photo_cameraImage coming soon 6695554 BALL BEARING 6201D 32MM/OD €8.52
17
 photo_cameraImage coming soon 6695295 STOP RING C32, INNER €1.93
18
 Upper Cutter Holder for Brushcutter Tanaka TBC-340 6689032 Upper Cutter Holder for Brushcutter Tanaka TBC-340 €19.53
22
 Fixing Nut M10x1,25 for Brushcutter Hitachi CG33EJ-SL 6689073 Fixing Nut M10x1,25 for Brushcutter Hitachi CG33EJ-SL €4.83
23
 photo_cameraImage coming soon 6689159 GEAR CASE WASHER €1.98
26
 photo_cameraImage coming soon 6684714 HEX. HOLE BUTTON SCREW 6X25S €1.98
28
 photo_cameraImage coming soon 6690315 COVER BRACKET 26 €8.52
29
 photo_cameraImage coming soon 6690276 GUARD 26CE €27.99
30
 photo_cameraImage coming soon 6684748 BLADE GUARD HOLDER €3.87
31
 photo_cameraImage coming soon 6690376 BLADE GUARD €15.48
32
 photo_cameraImage coming soon 6684750 KNIFE €3.98
34
 photo_cameraImage coming soon 6684751 TAPPING SCREW 4X14 €1.98
35
 photo_cameraImage coming soon 6688875 GEAR/PINION SET SPARE €38.83
38
 photo_cameraImage coming soon 6684753 TAPPING SCREW 5X20 €1.93
39
 photo_cameraImage coming soon 6684754 KNIFE €6.70
40
 photo_cameraImage coming soon 6688986 WINDING PROTECTOR COVER €5.00
Page 10 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 10
Pos. Item Price Buy
15A
 Nylon Head Semi-Automatic 130mm M10x1.25 for Brushcutters Hitachi HGA781307 Nylon Head Semi-Automatic 130mm M10x1.25 for Brushcutters Hitachi €16.00
23
 photo_cameraImage coming soon 6684757 CUTTING BODY €16.08
25
 Tap&Go Head Reel Spring for Brushcutter Hitachi CG24EKS 6684759 Tap&Go Head Reel Spring for Brushcutter Hitachi CG24EKS €3.98
26
 Spool for Brushcutter Hitachi CG24EKS 6684760 Spool for Brushcutter Hitachi CG24EKS €14.47
27
 photo_cameraImage coming soon 6684761 CUTTING BODY CAP €26.55
28
 Tap&Go Head Reel Eyelet for Brushcutter Hitachi CG24EKS 6684762 Tap&Go Head Reel Eyelet for Brushcutter Hitachi CG24EKS €3.98
35
 photo_cameraImage coming soon 6684763 WINDING PROTECTOR €2.92

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Hitachi Spare Parts for Engine Brush Cutter CG40EJ-L

We are Hitachi-HIKOKI Tanaka authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues for Engine Bush Cutter CG40EJ-L.

In the following table, look for the model of the Brushcutter and corresponding spare part.
Hitachi CG40EJ-L

ENGINE BRUSH CUTTER CG40EJ-L
B74-01 CYLINDER/PISTON/CRANK SHAFT Pag.1
# Part Num. Description
6 6687466 SPARK PLUG CAP ASS'Y
8 6685086 SPARK PLUG BPMR6A
11 6685474 CYLINDER SET
12 6684668 HEX.HOLE BOLT M5X20/S
14 6685740 CYLINDER GASKET
15 6686123 PISTON RING
16 6685888 PISTON SET
17 6686007 PISTON PIN 10X30
18 6686032 PISTON PIN CIRCLIP
21 6686191 CRANK SHAFT COMP.
31 6686457 WOODRUFF KEY 3X13X5
43 6687655 IGNITION COIL COMP.
44 6684602 RUBBER CAP
45 6687885 HIGHT TENSION CORD
50 6687969 LEAD WIRE ASS'Y
55 6687657 IGNITION COIL ASS'Y
56 6684599 HEX.HOLE BOLT M4X18/WS
63 6688011 CORD CLAMP COMP.
B74-02 CRANK CASE Pag.2
7 6688346 SPARK PLUG COVER
9 6684634 HEX.HOLE BOLT 5X20/PS
23 6695139 SMALL NUT 10
26 6686557 CRANK CASE ASS'Y
27 6686714 CRANK CASE GASKET
28 6695637 OIL SEAL UD15257
29 6695557 BALL BEARING #6202, 35MM/OD
32 6686472 CRANK SHAFT SHIM 0.20
32 6686473 CRANK SHAFT SHIM 0.30
36 6684786 HEX. SOCKET HD. BOLT M5X30 S
51 6687372 MAGNETO ROTOR COMP.
52 6695198 WASHER 10
54 6695139 SMALL NUT 10
66 6686982 FAN CASE
67 6684668 HEX.HOLE BOLT M5X20/S
69 6688057 PRIMARY CORD GROMMET
B74-03 ENGINE 1 Pag.3
31 6689885 INLET MANIFOLD GASKET
32 6689956 CARBURETOR INSULATOR
33 6689826 CARBURETOR GASKET
34 6690430 COLLAR
35 6690802 COLLAR
36 6690099 CLEANER BODY COMP.
37 6691264 CHOKE VALVE
38 6690843 BLOW OVER CHECK BOARD
39 6690352 CLEANER ELEMENT 6T
40 6684658 WAVE WASHER 8
41 6690397 CLEANER COVER ASS'Y
42 6689737 SPECIAL SCREW
43 6695353 SCREW 5X57/S
45 6690473 CARBURETOR SET WT775
49 6695515 HEX. HOLE BOLT 5X25WS
63 6684618 FUEL PIPE
64 6684619 CLIP,6.3 DIA.
65 6692273 PUMP FILTER BODY ASS'Y
66 6691533 TANK
68 6684623 COLLAR C
70 6691763 TANK CAP D ASS'Y, BLACK
76 6684634 HEX.HOLE BOLT 5X20/PS
77 6694785 ENGINE BED
78 6684880 FUEL PIPE 3X5X80
80 6688156 FUEL PIPE GROMMET
86 6684625 TANK CAP CHAIN
87 6684918 WASHER M5
88 6695492 HEX. HOLE BOLT 5X22/S
B74-04 ENGINE 2 Pag.4
1 6692780 MUFFLER PROTECTOR
3 6684667 HEX.HOLE BOLT M5X12/S
4 6695512 HEX. HOLE BOLT 5X15 WS
5 6695067 HEX.HOLE BOLT 6X65
6 6684639 WASHER 6
7 6692468 MUFFLER SET P/N
8 6684918 WASHER M5
14 6692741 MUFFLER GASKET
16 6687243 HEAT SHIELD
81 6689645 CLUTCH WASHER B
82 6688614 CLUTCH ARM
83 6689428 CLUTCH SPRING
84 6695203 WAVE WASHER 10
85 6689632 CLUTCH STEP BOLT
B74-05 RECOIL STARTER Pag.5
0 6692970 RECOIL STARTER BODY ASS'Y
1 6693025 RECOIL STARTER BODY COMP.
2 6693007 STARTER ROPE REEL
3 6693114 RECOIL SPRING
9 6693165 STARTER ROPE
12 6693607 STARTER HANDLE CAP
14 6693232 STARTER HANDLE
17 6693634 SET SCREW
19 6693302 STARTER PAWL
20 6684683 STOP RING E5
23 6684634 HEX.HOLE BOLT 5X20/PS
24 6693345 STARTER PAWL SPRING
25 6693395 STARTER PULLEY
B74-06 CARBURETOR Pag.6
2 6684700 INLET SCREEN
3 6691416 PUMP BODY
4 6685210 SCREW
5 6691454 PUMP GASKET
6 6685213 PUMP DIAPHRAGM
7 6690839 DIAPHRAGM GASKET
8 6690827 METERING DIAPHRAGM COM
9 6690436 AIR PURGE COMP.
10 6690859 DIAPHRAGM COVER
11 6684689 PRIMING BODY
12 6690873 VALVE SPRING
13 6685215 NEEDLE VALVE
15 6685217 CONTROL LEVER
16 6685218 HINGE PIN SET SCREW
17 6685219 HINGE PIN
18 6690736 IDLE ADJUST SCREW
19 6690766 IDLE ADJUST SPRING
27 6691310 SET SCREW
B74-07 CLUTCH CASE Pag.7
1 6688586 CLUTCH SHAFT COMP.
2 6695559 BALL BEARING #6202Z, 35MM/OD
3 6695285 STOP RING C15, OUTER
4 6689194 CLUTCH CASE
6 6691829 CUSHION RUBBER
9 6695046 HEX. HOLE BOLT 5X16
11 6685064 HEX. SOCKET HD. BOLT (W/BUTTON) M6X20
12 6695091 HEX HOLE BOLT 5 X 25
15 6689655 PIPE HOLDER
26 6684918 WASHER M5
28 6689664 METAL FITTING
B74-08 OPERATION PIPE Pag.8
1 6689475 DRIVE SHAFT
2 6689400 DRIVE SHAFT COMP.
3 6689522 BUSH ASS'Y, 8 DIA.
10 6695255 TAPPING SCREW 5X20
11 6689681 BRAKE SHAFT WASHER
16 6691098 HANDLE GRIP
17 6684838 BOLT 6X43/P (BLACK)
18 6691049 LOOP HANDLE, 26DIA., BLACK
19 6691231 BARRIER, 26 DIA, BLACK
22 6684835 HEX.NUT 6
25 6693731 THROTTLE LEVER ASS'Y
38 6694029 CONNECTOR CASE
39 6693890 THROTTLE WIRE 125+70.5
40 6687520 SPLIT PROTECTION TUBE,7X70L
51 6685075 NUT M5 (BLACK)
53 6689264 LIFTING METAL
54 6684903 HEX.HOLE BOLT M5X16/S
56 6692874 SHOULDER BELT ASS'Y
83 6693957 THROTTLE WIRE COMP.
84 6694010 THROTTLE WIRE
85 6687442 STOP SWITCH COMP.
86 6687519 SPLIT PROTECTION TUBE,7X70L
98 6684721 SAFETY LEVER
100 6684722 RETURN SPRING
110 6684803 SCREW M5X20
111 6684727 CONTAL NUT 5
112 6684725 SCREW M4X20 (BLACK)
125 6684804 THROTTLE LEVER
B74-09 GEAR CASE/GURD Pag.9
1 6696497 GEAR CASE SET PN
2 6684709 HEX.HOLE BOLT M5X25/S
4 6695294 RETAINING RING C26, INNER
5 6695315 STOP RING OUTER 10
6 6695526 BALL BEARING #6000Z, 26MM/OD
7 6695524 BALL BEARING #6000, 26MM/OD
9 6688770 GEAR CASE 26 DIA
11 6684667 HEX.HOLE BOLT M5X12/S
12 6689109 OILING BOLT
13 6684734 BALL BEARING 609
15 6688924 GEAR SHAFT
16 6695554 BALL BEARING 6201D, 32MM/OD
17 6695295 STOP RING C32, INNER
18 6689032 CUTTER HOLDER
19 6689055 CUTTER HOLDER CAP
22 6689073 FIXING NUT M10X1.25
23 6689159 GEAR CASE WASHER
26 6684714 HEX.HOLE BUTTON SCREW 6X25S
28 6690315 COVER BRACKET 26
29 6690276 GUARD 26CE
30 6684748 SAFETY COVER HOLDER
31 6690376 BLADE GUARD
32 6684750 KNIFE
34 6684751 TAPPING SCREW 4X14
35 6688875 GEAR/PINION SET, SPARE
38 6684753 TAPPING SCREW 5X20
39 6684754 KNIFE
40 6688986 WINDING PROTECTOR COVER

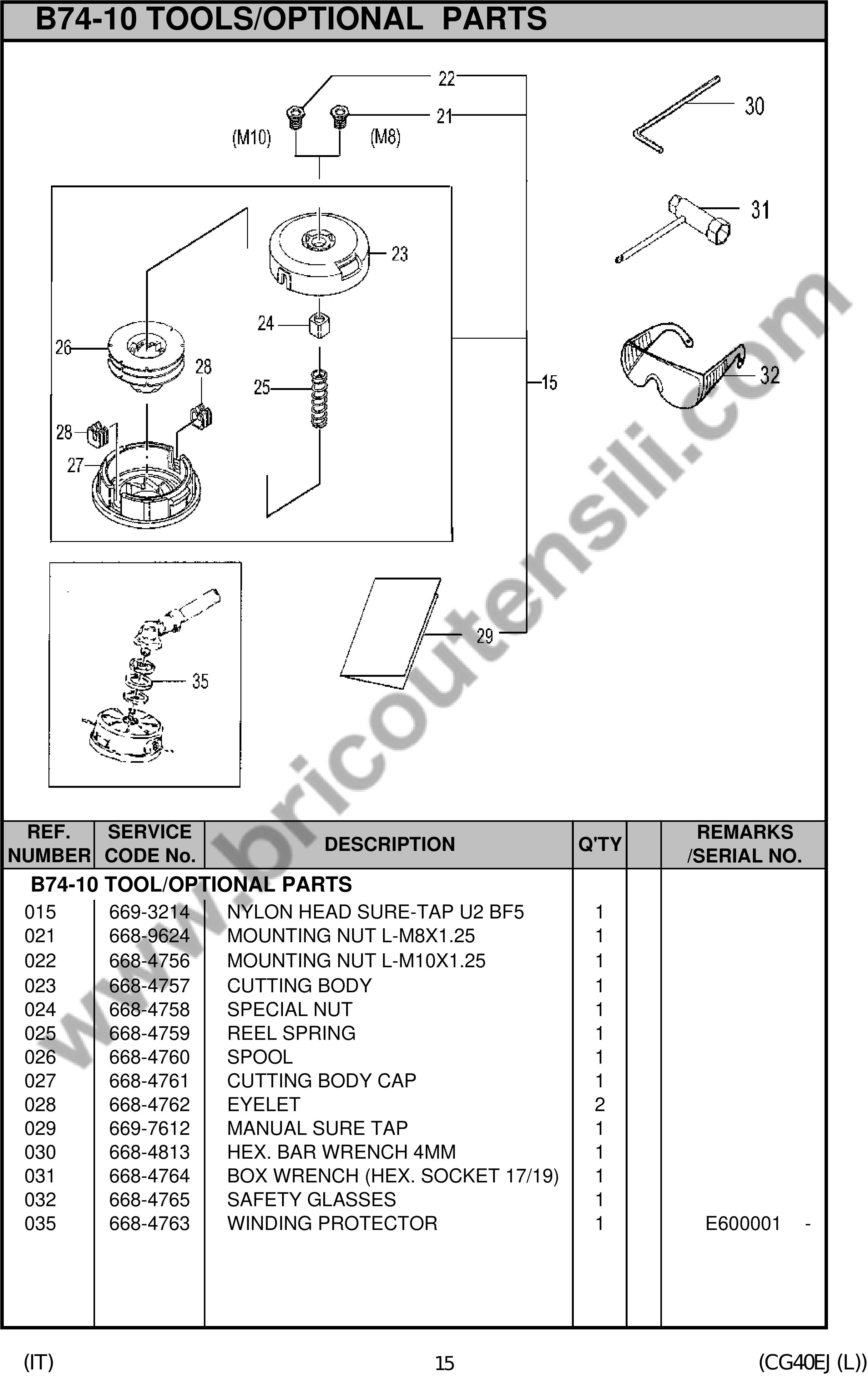

B74-10 TOOL/OPTIONAL PARTS Pag.10
15 6693214 NYLON HEAD SURETAP U2 BF5
15A HGA781307 Nylon Head Semi-Automatic 130mm M10x1.25 Lh
21 6689624 MOUNTING NUT LM8X1.25
22 6684756 MOUNTING NUT LM10X1.25
23 6684757 CUTTING BODY
24 6684758 SPECIAL NUT
25 6684759 REEL SPRING
26 6684760 SPOOL
27 6684761 CUTTING BODY CAP
28 6684762 EYELET
29 6697612 MANUAL SURE TAP
30 6684813 HEX. BAR WRENCH 4MM
31 6684764 BOX WRENCH (HEX. SOCKET 17/19)
32 6684765 SAFETY GLASSES
35 6684763 WINDING PROTECTOR
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Hitachi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to hitachi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Hitachi CG40EJ-L
11 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Hitachi CG40EJ-L Drawing

Hitachi CG40EJ-L Drawing

Download (400.22KB)

You might also like

Carburetor Pump Gasket for Chainsaws Hitachi CS25-33-40-45-51
HiKOKI Power Tools Italia S.p.a. SKU: 6685212
Carburetor Pump Gasket for Chainsaws Hitachi CS25-33-40-45-51
Carburetor Pump Gasket for Chainsaws Hitachi CS25-33-40-45-51 Original parts for Chainsaw Hitachi HiKoky Tanaka, Carburetor Pump Gasket for Chainsaws, CS25EC-SC-EU - CS33EDT - CS38EK - CS40EA - CS45EL - CS51EAP. Parts for the...
AVAILABLE €3.98
Details
Carburetor Pump Diaphragm for Chainsaws Hitachi CS25-33-40-45-51
HiKOKI Power Tools Italia S.p.a. SKU: 6685213
Carburetor Pump Diaphragm for Chainsaws Hitachi CS25-33-40-45-51
Carburetor Pump Diaphragm for Chainsaws Hitachi CS25-33-40-45-51 Original parts for Chainsaw Hitachi Koky Tanaka, Pump Diaphragm for Carburetor Chainsaws, CS25EC-SC-EU - CS33EDT - CS38EK - CS40EA - CS45EL - CS51EAP - BRUSHCUTTERS...
AVAILABLE €10.63
Details
Clutch Arm for Brushcutters Hitachi CG40EK-LP/EJ-T/EJ-L/EF-L
HiKOKI Power Tools Italia S.p.a. SKU: 6688614
Clutch Arm for Brushcutters Hitachi CG40EK-LP/EJ-T/EJ-L/EF-L
Clutch Arm for Brushcutters Hitachi CG40EK-LP/EJ-T/EJ-L/EF-L Original spare Hitachi Koky Tanaka, Clutch Arm for Brushcutters Hitachi Tanaka CG40EK-LP - CG40EJ-T - CG40EJ-L - CG40EF-L Parts for the following products: -...
AVAILABLE €17.14
Details
Cleaner Cover for Brushcutters Hitachi CG40EK-LP/EJ-T/EJ-L/EF-L
HiKOKI Power Tools Italia S.p.a. SKU: 6690397
Cleaner Cover for Brushcutters Hitachi CG40EK-LP/EJ-T/EJ-L/EF-L
Cleaner Cover for Brushcutters Hitachi CG40EK-LP/EJ-T/EJ-L/EF-L Original spare Hitachi Koky Tanaka, Cleaner Cover Ass'y for Brushcutters Hitachi Tanaka CG40EK-LP - CG40EJ-T - CG40EJ-L - CG40EF-L. Parts for the following products: -...
Available in 7/10 days €15.81
Details
Piston Set for Brushcutters Hitachi CG40EJ-T/EJ-L/EF-L Sale
HiKOKI Power Tools Italia S.p.a. SKU: 6685888
Piston Set for Brushcutters Hitachi CG40EJ-T/EJ-L/EF-L
Piston Set for Brushcutters Hitachi CG40EJ-T/EJ-L/EF-L Original replacement part Hitachi Koky Tanaka, Piston Set for Brushcutters Hitachi Tanaka CG40EJ-T - CG40EJ-L - CG40EF-L. Part for the following products: - BRUSHCUTTER CG40EJ-T -...
Last items in stock €45.07
Details
Intake Gasket for Brushcutters Hitachi CG 40 EK-LP/EJ-T/EJ-L/EF-L
HiKOKI Power Tools Italia S.p.a. SKU: 6689885
Intake Gasket for Brushcutters Hitachi CG 40 EK-LP/EJ-T/EJ-L/EF-L
Intake Gasket for Brushcutters Hitachi CG 40 EK-LP/EJ-T/EJ-L/EF-L Original spare Hitachi Koky Tanaka, Intake Gasket Manifold for trimmers Hitachi Tanaka CG40EK-LP - CG40EJ-T - CG40EJ-L - CG40EF-L. Parts for the following products: -...
AVAILABLE €5.17
Details
Washer Clutch B for Brush Cutters Auger Hitachi Garden Tanaka
HiKOKI Power Tools Italia S.p.a. SKU: 6689645
Washer Clutch B for Brush Cutters Auger Hitachi Garden Tanaka
Washer Clutch B for Brush Cutters Auger Hitachi Garden Tanaka Hitachi genuine parts, Washer Clutch B for Brush Cutters Auger Hitachi Garden Tanaka. Part for the following article : - Brush Cutters CG33EJ-SL - Brush Cutters CG33EJ-LP -...
AVAILABLE €1.98
Details
Bolt Clutch for Brush Cutters Hitachi Garden Tanaka CG
HiKOKI Power Tools Italia S.p.a. SKU: 6689632
Bolt Clutch for Brush Cutters Hitachi Garden Tanaka CG
Bolt Clutch for Brush Cutters Hitachi Garden Tanaka CG Hitachi genuine parts, Bolt Clutch for Brush Cutters Hitachi Garden Tanaka CG. Part for the following article : - Brush Cutters CG40EK-LP - Brush Cutters CG40EJ-T - Brush...
AVAILABLE €8.63
Details
Washer for Brush Cutter and Auger Hitachi
HiKOKI Power Tools Italia S.p.a. SKU: 6695203
Washer for Brush Cutter and Auger Hitachi
Washer for Brush Cutter and Auger Hitachi Original spare Hitachi Koky Tanaka, Washer for Brush Cutter and Auger Hitachi. Parts for the following products: - Brush Cutter CG33EJ-LP - Brush Cutter CG33EJ-SL - Brush Cutter CG40EK-LP -...
AVAILABLE €1.98
Details
Oil Sial for Brush Cutter Hitachi Sale
HiKOKI Power Tools Italia S.p.a. SKU: 6695637
Oil Sial for Brush Cutter Hitachi
Oil Sial for Brush Cutter Hitachi Original spare Hitachi Koky Tanaka, Oil Sial for Brush Cutter Hitachi. Parts for the following products: - Brush Cutter CG40EK-LP - Brush Cutter CG40EJ-T - Brush Cutter CG40EJ-L - Brush Cutter...
AVAILABLE €5.17
Details
Throttle Lever for Brushcutters Hitachi CG33EJ-LP-CG33EJ-SL
HiKOKI Power Tools Italia S.p.a. SKU: 6684804
Throttle Lever for Brushcutters Hitachi CG33EJ-LP-CG33EJ-SL
Throttle Lever for Brushcutters Hitachi CG33EJ-LP-CG33EJ-SL Genuine parts Hitachi Koky Tanaka, Throttle Lever for Brushcutters CG27EJ (SLNP) - CG33EJ-LP - CG33EJ-SL - CG40EK-LP - CG40EJ-L - CG40EF-L - CG47EJ-L - CG47EF (L). Parts for...
AVAILABLE €6.64
Details
Throttle Wire for Brushcutter Hitachi Tanaka CG40EJ-L
HiKOKI Power Tools Italia S.p.a. SKU: 6693890
Throttle Wire for Brushcutter Hitachi Tanaka CG40EJ-L
Throttle Wire for Brushcutter Hitachi Tanaka CG40EJ-L Genuine spare part Hitachi Koky Tanaka, Throttle Wire for Brushcutter CG40EJ-L. Part for the following article: -  BRUSHCUTTER HITACHI CG40EJ-L - Code :6693890
Last items in stock €11.96
Details
Fuel Hose for Brushcutters Hitachi CG47EF (L)-CG47EJ-L-CG47EY-T
HiKOKI Power Tools Italia S.p.a. SKU: 6685267
Fuel Hose for Brushcutters Hitachi CG47EF (L)-CG47EJ-L-CG47EY-T
Fuel Hose for Brushcutters Hitachi CG47EF (L)-CG47EJ-L-CG47EY-T Genuine part Hitachi Koky Tanaka, Fuel Hose mm 2.5X4X90 for Brushcutters G47EF (L) - CG47EJ-L - CG47EY-T - Tanaka TBC-600 - Chainsaw HITACHI CS51EAP Parts for the...
AVAILABLE €3.31
Details
Starter Pawl for Brushcutter Hitachi CG40EF(L)
HiKOKI Power Tools Italia S.p.a. SKU: 6693302
Starter Pawl for Brushcutter Hitachi CG40EF(L)
Starter Pawl for Brushcutter Hitachi CG40EF(L) Genuine spare part Hitachi, Starter Pawl for Brushcutters CG40EF(L) - CG40EJ(L) - CG40EJ(T) - CG40EK(LP) - CG47EF(L) -  CG47EJ(L - CG47EJ(T) Part for the following products: - BRUSHCUTTER...
AVAILABLE €3.30
Details
Fuel Tank for Brushcutters Hitachi CG40EJ-T
HiKOKI Power Tools Italia S.p.a. SKU: 6691533
Fuel Tank for Brushcutters Hitachi CG40EJ-T
Fuel Tank for Brushcutters Hitachi CG40EJ-T Genuine part Hitachi Koky Tanaka, Fuel Tank for Brushcutters CG40EJ-T - CG40EJ-L - CG40EFL Parts for the following products: - BRUSHCUTTER HITACHI CG40EJ-T -...
Last items in stock €17.14
Details
Spool for Brushcutter Hitachi CG24EKS
HiKOKI Power Tools Italia S.p.a. SKU: 6684760
Spool for Brushcutter Hitachi CG24EKS
Spool for Brushcutter Hitachi CG24EKS Original spare Hitachi Koky Tanaka, Spool for Brushcutters CG24EKS - CG33EJ-SL - CG40EJ-L Parts for the following products: - Brushcutter Hitachi CG24EKS - Brushcutter Hitachi CG33EJ-SL -...
AVAILABLE €14.47
Details
Carburator Gasket for Brushcutter Hitachi CG40EJ-T
HiKOKI Power Tools Italia S.p.a. SKU: 6689826
Carburator Gasket for Brushcutter Hitachi CG40EJ-T
Carburator Gasket for Brushcutter Hitachi CG40EJ-T Genuine part Hitachi Koky Tanaka, Carburator Gasket for Brushcutters CG40EJ-T - CG40EJ-L - CG47EF(L) - CG47EJ(L) - CG47EJ(T)...
AVAILABLE €1.77
Details
Fuel Pipe Grommet for Brushcutter Hitachi CG33EJ-SL
HiKOKI Power Tools Italia S.p.a. SKU: 6688156
Fuel Pipe Grommet for Brushcutter Hitachi CG33EJ-SL
Fuel Pipe Grommet for Brushcutter Hitachi CG33EJ-SL Original spare part Hitachi Koky Tanaka, Fuel Pipe Grommet for Brushcutters CG33EJ-SL - CG40EK-LP - CG40EJ-T - CG40EJ-L - CG40EF-L. Part...
AVAILABLE €6.26
Details
Hex Hole Bolt 10.9 M5x16/6 for Chainsaws Hitachi
HiKOKI Power Tools Italia S.p.a. SKU: 6684903
Hex Hole Bolt 10.9 M5x16/6 for Chainsaws Hitachi
Hex Hole Bolt 10.9 M5x16/6 for Chainsaws Hitachi Genuine part Hitachi Koky Tanaka, Hex Hole Bolt 10.9 M5x16/6 for Chainsaws CS38EK - CS45EL - Tanaka ECV-3801 - Tanaka ECV-4501. Part for the following products: - Chainsaw Hitachi...
AVAILABLE €1.32
Details
Piston Pin Circlip for Brushcutter Hitachi CG40EJ-T
HiKOKI Power Tools Italia S.p.a. SKU: 6686032
Piston Pin Circlip for Brushcutter Hitachi CG40EJ-T
Piston Pin Circlip for Brushcutter Hitachi CG40EJ-T Original replacement part Hitachi Koky Tanaka, Piston Pin Circlip for Brushcutters CG40EJ-T - CG40EK-LP - CG40EF-L - CG40EJ-L. Part for the following products: - Brushcutter Hitachi...
AVAILABLE €1.04
Details
Carburator Needle Valve for Chainsaws Hitachi-HiKoki Tanaka
HiKOKI Power Tools Italia S.p.a. SKU: 6685215
Carburator Needle Valve for Chainsaws Hitachi-HiKoki Tanaka
Carburator Needle Valve for Chainsaws Hitachi-HiKoki Tanaka Original part Hitachi-HiKoki Tanaka, Carburator Needle Valve for Chainsaws and Brushcutters Hitachi-HiKoki Tanaka. Part for the following products: - Chainsaw ECS 3301D -...
AVAILABLE €10.76
Details
Upper Cutter Holder for Brushcutter Tanaka TBC-340
HiKOKI Power Tools Italia S.p.a. SKU: 6689032
Upper Cutter Holder for Brushcutter Tanaka TBC-340
Upper Cutter Holder for Brushcutter Tanaka TBC-340 Genuine spare part Tanaka, Upper Cutter Holder for Brushcutter Tanaka TBC-340 - TBC-340D - Hitachi CG33EJ-SL Part for the following products: -  Brushcutter Tanaka TBC-340 -...
Last items in stock €19.53
Details
Retaining Ring 26MM for Brushcutter Tanaka TBC-340
HiKOKI Power Tools Italia S.p.a. SKU: 6695294
Retaining Ring 26MM for Brushcutter Tanaka TBC-340
Retaining Ring 26MM for Brushcutter Tanaka TBC-340 Genuine spare part Tanaka, Retaining Ring 26MM for Brushcutter Tanaka TBC-340 - TBC-340D - Hitachi CG33EJ-SL Part for the following products: -  Brushcutter Tanaka TBC-340 -...
on 7/10 Business Days Approx €2.08
Details
Connector Case for Brushcutter Hitachi CG33EJ-SL
HiKOKI Power Tools Italia S.p.a. SKU: 6694029
Connector Case for Brushcutter Hitachi CG33EJ-SL
Connector Case for Brushcutter Hitachi CG33EJ-SL Original spare Hitachi HiKoki Tanaka, Connector Case for Brushcutters CG33EJ-SL - CG40EJ-L - CG47EJ-L Parts for the following products: -  Brushcutter CG33EJ-SL - Brushcutter CG40EJ-L...
on 7/10 Business Days Approx €4.17
Details
Comments (0)
