HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Engine Brush Cutter CG40EJ-T

SKU: Hitachi CG40EJ-T
€8.64
VAT included

Hitachi Spare Parts for Engine Brush Cutter CG40EJ-T

Hitachi-HIKOKI Tanaka authorized repair center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Engine Bush Cutter CG40EJ-T.
Hitachi Spare Parts for Engine Brush Cutter CG40EK-LP
  • Hitachi Spare Parts for Engine Brush Cutter CG40EK-LP
  • Hitachi Spare Parts for Engine Brush Cutter CG40EJ-T
  • Hitachi Spare Parts for Engine Brush Cutter CG40EJ-T
  • Hitachi Spare Parts for Engine Brush Cutter CG40EJ-T
  • Hitachi Spare Parts for Engine Brush Cutter CG40EJ-T
  • Hitachi Spare Parts for Engine Brush Cutter CG40EJ-T
  • Hitachi Spare Parts for Engine Brush Cutter CG40EJ-T
  • Hitachi Spare Parts for Engine Brush Cutter CG40EJ-T
  • Hitachi Spare Parts for Engine Brush Cutter CG40EJ-T
  • Hitachi Spare Parts for Engine Brush Cutter CG40EJ-T
HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Engine Brush Cutter CG40EJ-T

SKU: Hitachi CG40EJ-T Condition: New
€8.64
VAT included

Hitachi Spare Parts for Engine Brush Cutter CG40EJ-T

Hitachi-HIKOKI Tanaka authorized repair center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Engine Bush Cutter CG40EJ-T.
settings 188 spare parts
description 10 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
143 spare parts

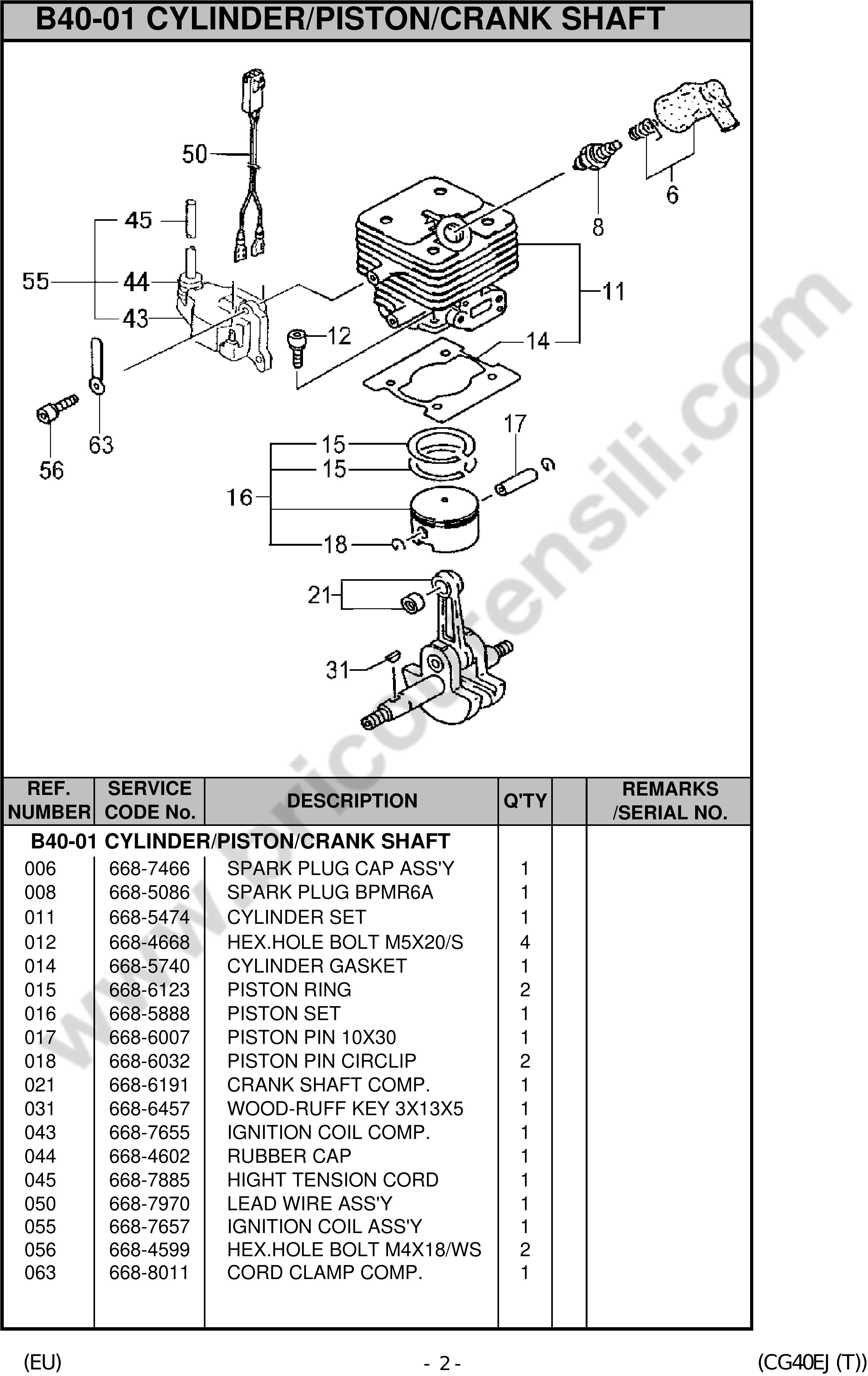

Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 1
Pos. Item Price Buy
6
 photo_cameraImage coming soon 6687466 SPARK PLUG CAP ASS'Y €6.09
8
 photo_cameraImage coming soon 6685086 SPARK PLUG BPMR6A €6.61
12
 photo_cameraImage coming soon 6684668 HEX.HOLE BOLT M5X20/S €1.27
14
 Cylinder Gasket for Brushcutters Hitachi Tanaka CG40EJ-T/EJ-L/EF-L 6685740 Cylinder Gasket for Brushcutters Hitachi Tanaka CG40EJ-T/EJ-L/EF-L €5.17
15
 photo_cameraImage coming soon 6686123 PISTON RING €8.52
16
 Piston Set for Brushcutters Hitachi CG40EJ-T/EJ-L/EF-L 6685888 Piston Set for Brushcutters Hitachi CG40EJ-T/EJ-L/EF-L €45.07
17
 Piston Pin for Brushcutters Hitachi CG40EK-LP-EJ-T-EJ-L-EF-L 6686007 Piston Pin for Brushcutters Hitachi CG40EK-LP-EJ-T-EJ-L-EF-L €5.97
18
 Piston Pin Circlip for Brushcutter Hitachi CG40EJ-T 6686032 Piston Pin Circlip for Brushcutter Hitachi CG40EJ-T €1.04
21
 photo_cameraImage coming soon 6686191 CRANK SHAFT COMP. €221.36
31
 photo_cameraImage coming soon 6686457 WOODRUFF KEY 3X13X5 €1.93
43
 photo_cameraImage coming soon 6687655 IGNITION COIL COMP. €54.64
44
 Ignition Coil Rubber Cap for Brushcutters Hitachi Tanaka 6684602 Ignition Coil Rubber Cap for Brushcutters Hitachi Tanaka €2.65
45
 photo_cameraImage coming soon 6687885 HIGHT TENSION CORD €1.83
50
 photo_cameraImage coming soon 6687970 LEAD WIRE ASS'Y €6.70
55
 photo_cameraImage coming soon 6687657 IGNITION COIL ASS'Y €66.81

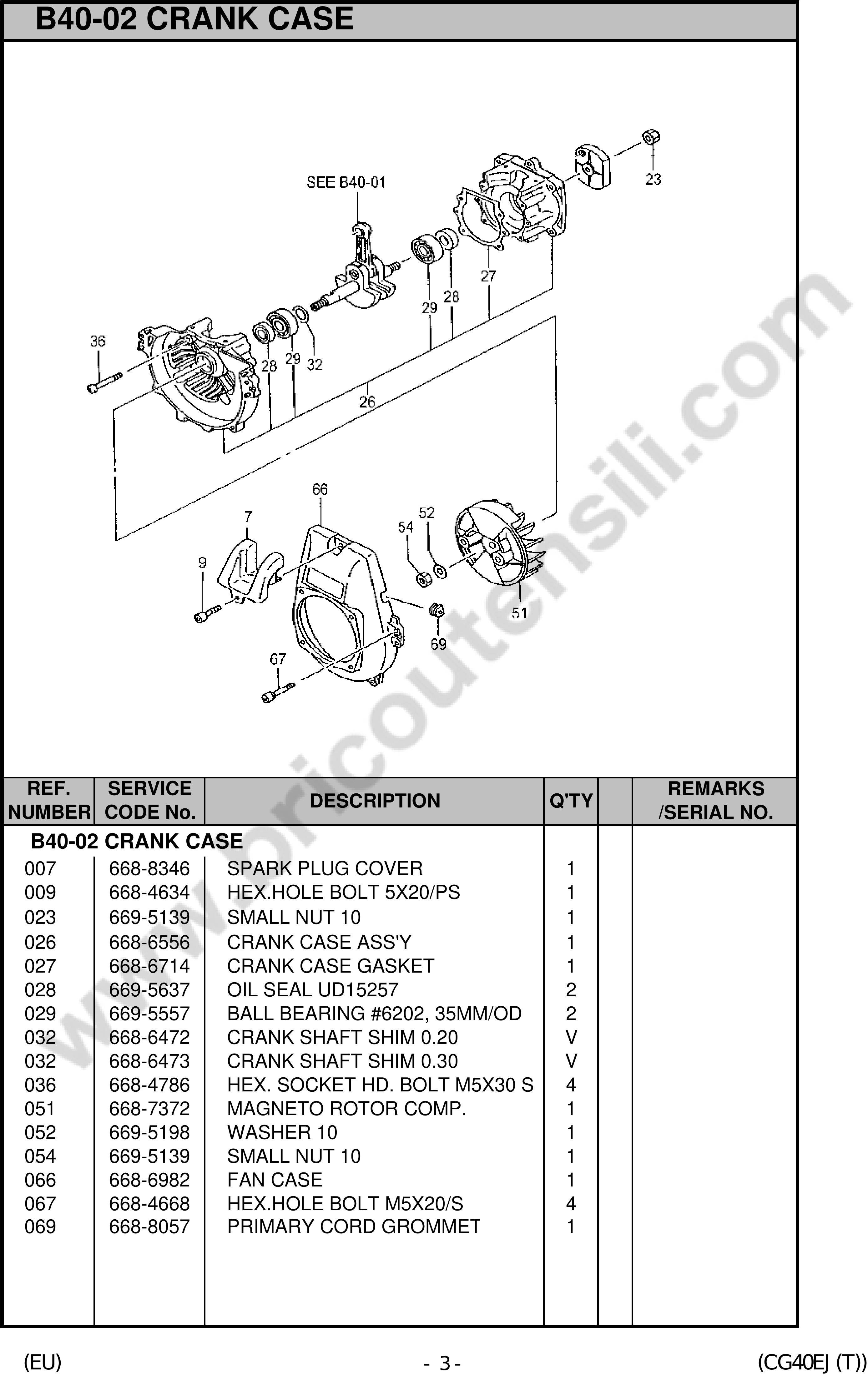

Page 2 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 2
Pos. Item Price Buy
7
 photo_cameraImage coming soon 6688346 SPARK PLUG COVER €5.27
9
 photo_cameraImage coming soon 6684634 HEX.HOLE BOLT 5X20/PS €1.68
23
 photo_cameraImage coming soon 6695139 SMALL NUT 10 €12.28
27
 photo_cameraImage coming soon 6686714 CRANK CASE GASKET €1.59
28
 Oil Sial for Brush Cutter Hitachi 6695637 Oil Sial for Brush Cutter Hitachi €5.17
29
 photo_cameraImage coming soon 6695557 BALL BEARING #6202, 35MM/OD €6.63
32
 photo_cameraImage coming soon 6686472 CRANK SHAFT SHIM 0.20 €2.15
32
 photo_cameraImage coming soon 6686473 CRANK SHAFT SHIM 0.30 €2.15
36
 photo_cameraImage coming soon 6684786 HEX. SOCKET HD. BOLT M5X30 S €1.60
51
 photo_cameraImage coming soon 6687372 MAGNETO ROTOR COMP. €32.86
54
 photo_cameraImage coming soon 6695139 SMALL NUT 10 €12.28
66
 photo_cameraImage coming soon 6686982 FAN CASE €37.71
67
 photo_cameraImage coming soon 6684668 HEX.HOLE BOLT M5X20/S €1.27
69
 photo_cameraImage coming soon 6688057 PRIMARY CORD GROMMET €1.63
Page 3 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

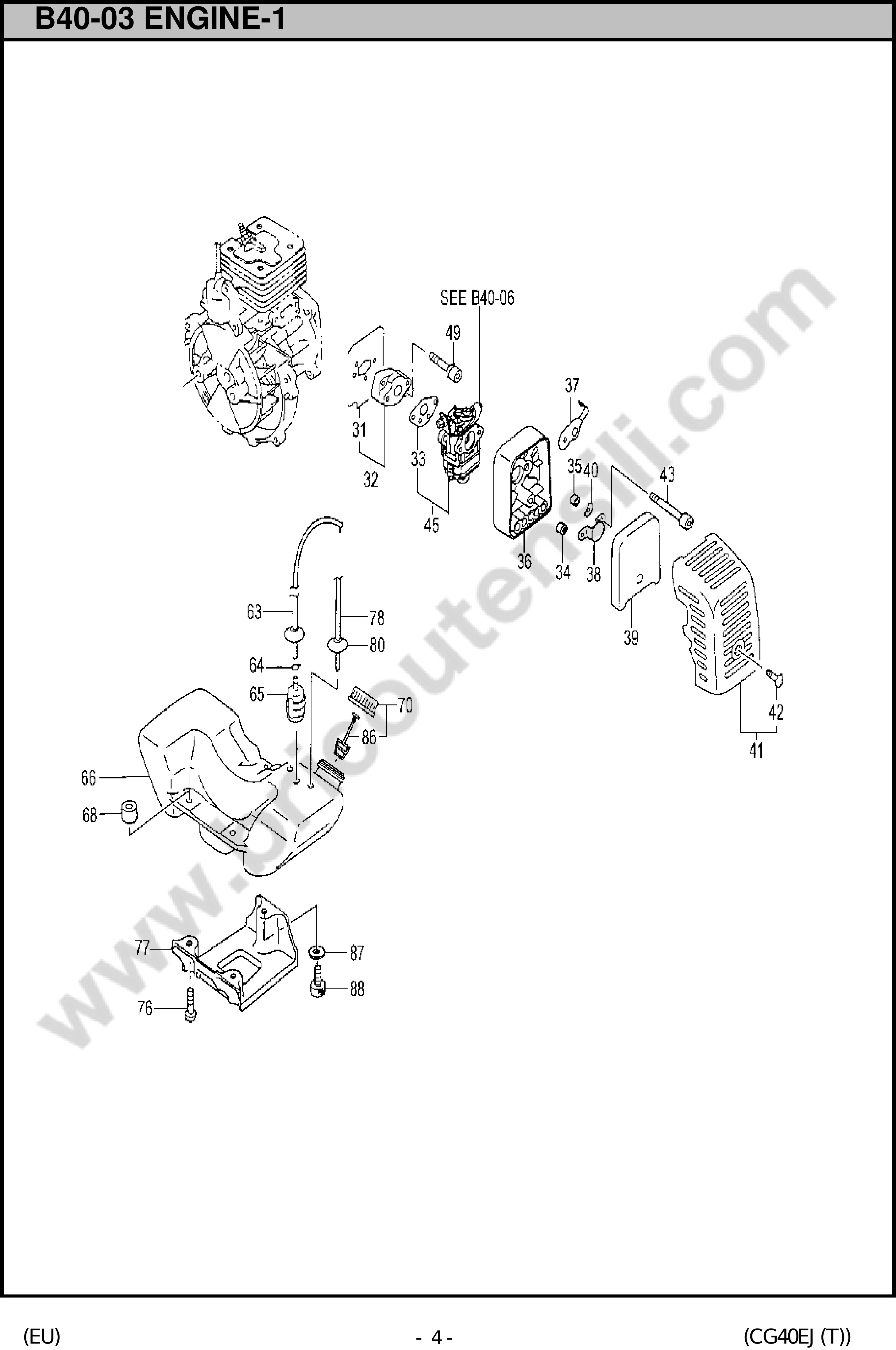

Esploso pagina 3
Pos. Item Price Buy
31
 Intake Gasket for Brushcutters Hitachi CG 40 EK-LP/EJ-T/EJ-L/EF-L 6689885 Intake Gasket for Brushcutters Hitachi CG 40 EK-LP/EJ-T/EJ-L/EF-L €5.17
32
 Carburator Insulator Set for Brushcutters Hitachi Tanaka CG40 6689955 Carburator Insulator Set for Brushcutters Hitachi Tanaka CG40 €19.80
33
 photo_cameraImage coming soon 6689833 CARBURETOR GASKET €1.83
36
 photo_cameraImage coming soon 6690099 CLEANER BODY COMP. €14.48
37
 photo_cameraImage coming soon 6691258 CHOKE VALVE €3.65
38
 Blow Over Check Board for Brushcutter Hitachi CG40EAS 6690843 Blow Over Check Board for Brushcutter Hitachi CG40EAS €3.48
39
 photo_cameraImage coming soon 6690352 CLEANER ELEMENT 6T €4.75
40
 photo_cameraImage coming soon 6684658 WAVE WASHER 8 €2.45
41
 Cleaner Cover for Brushcutters Hitachi CG40EK-LP/EJ-T/EJ-L/EF-L 6690397 Cleaner Cover for Brushcutters Hitachi CG40EK-LP/EJ-T/EJ-L/EF-L €15.81 Not available for order
43
 photo_cameraImage coming soon 6695353 SCREW 5X57/S €1.83
45
 photo_cameraImage coming soon 6690474 CARBURETOR SET WYJ389 €102.10
49
 photo_cameraImage coming soon 6695515 HEX HOLE BOLT 5X25WS €1.67
63
 photo_cameraImage coming soon 6684618 FUEL PIPE ASS'Y €8.64
64
 Hose Clip 6.3 D. for Brushcutters Chainsaws Hitachi Hikoki Tanaka 6684619 Hose Clip 6.3 D. for Brushcutters Chainsaws Hitachi Hikoki Tanaka €1.25
65
 photo_cameraImage coming soon 6692273 PUMP FILTER BODY ASS'Y €10.22
66
 Fuel Tank for Brushcutters Hitachi CG40EJ-T 6691533 Fuel Tank for Brushcutters Hitachi CG40EJ-T €17.14
68
 photo_cameraImage coming soon 6684623 COLLAR C €1.98
70
 Tank Cap Ass'y (Black) for Brushcutter Hitachi CG40EFL 6691763 Tank Cap Ass'y (Black) for Brushcutter Hitachi CG40EFL €11.81
76
 photo_cameraImage coming soon 6684634 HEX.HOLE BOLT 5X20/PS €1.68
77
 photo_cameraImage coming soon 6694785 ENGINE BED €14.48
78
 photo_cameraImage coming soon 6684880 FUEL PIPE 3X5X80 €1.83
80
 Fuel Pipe Grommet for Brushcutter Hitachi CG33EJ-SL 6688156 Fuel Pipe Grommet for Brushcutter Hitachi CG33EJ-SL €6.26
86
 photo_cameraImage coming soon 6684625 TANK CAP CHAIN €1.78
87
 photo_cameraImage coming soon 6684918 WASHER M5 €1.98
88
 photo_cameraImage coming soon 6695492 HEX. HOLE BOLT 5X22/S €1.23

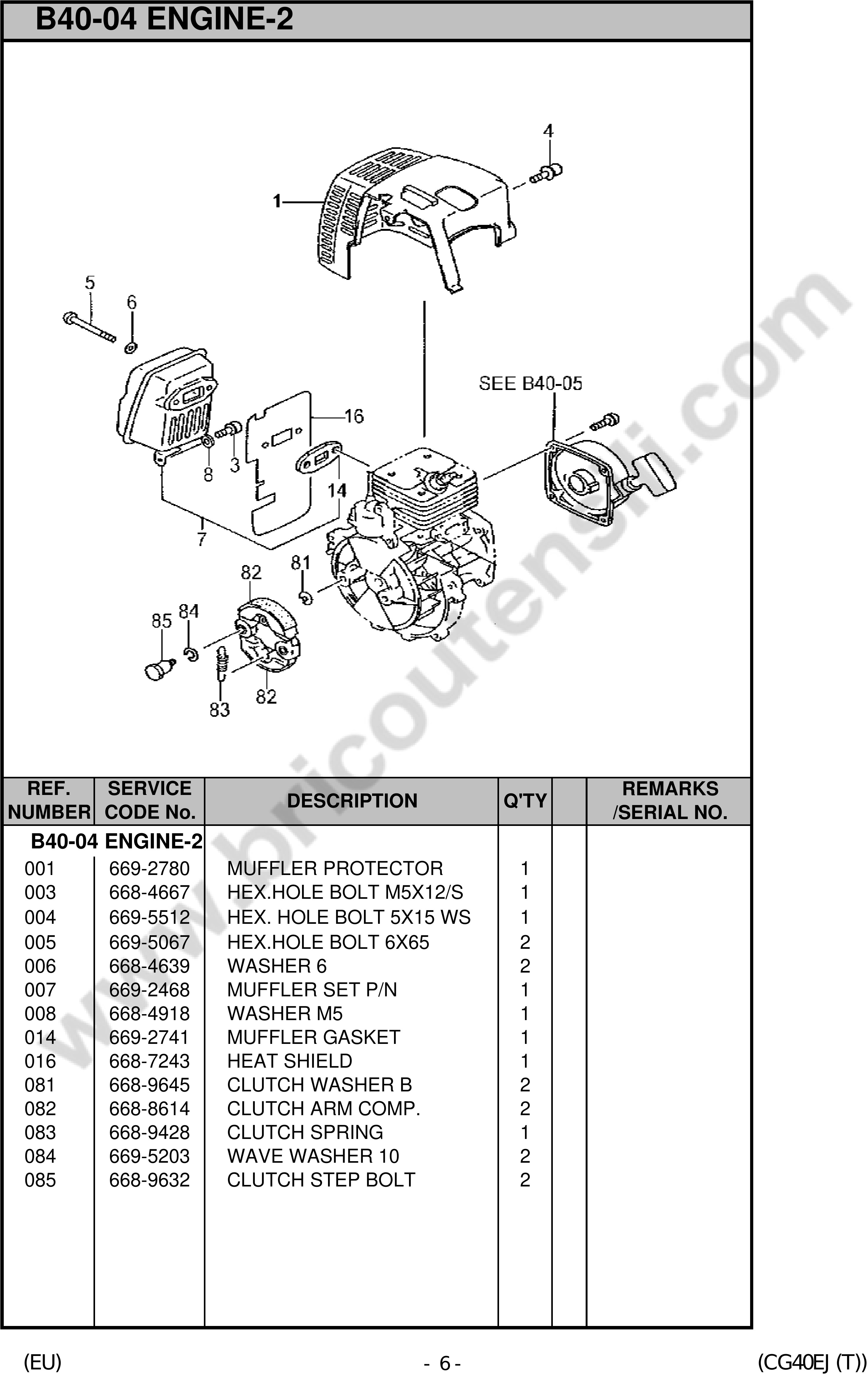

Page 4 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 4
Pos. Item Price Buy
1
 photo_cameraImage coming soon 6692780 MUFFLER PROTECTOR €30.30
3
 photo_cameraImage coming soon 6684667 HEX.HOLE BOLT M5X12/S €1.93
4
 photo_cameraImage coming soon 6695512 HEX. HOLE BOLT 5X15 WS €1.57
5
 photo_cameraImage coming soon 6695067 HEX.HOLE BOLT 6X65 €1.98
6
 Bolt Washer 6 for Brushcutters Chainsaws Hitachi Hikoki Tanaka 6684639 Bolt Washer 6 for Brushcutters Chainsaws Hitachi Hikoki Tanaka €1.98
7
 photo_cameraImage coming soon 6692468 MUFFLER SET P/N €54.64
8
 photo_cameraImage coming soon 6684918 WASHER M5 €1.98
14
 Muffler Gasket for Brushcutter Hitachi Tanaka CG40EFL 6692741 Muffler Gasket for Brushcutter Hitachi Tanaka CG40EFL €3.98
16
 photo_cameraImage coming soon 6687243 HEAT SHIELD €5.27
81
 Washer Clutch B for Brush Cutters Auger Hitachi Garden Tanaka 6689645 Washer Clutch B for Brush Cutters Auger Hitachi Garden Tanaka €1.98
82
 Clutch Arm for Brushcutters Hitachi CG40EK-LP/EJ-T/EJ-L/EF-L 6688614 Clutch Arm for Brushcutters Hitachi CG40EK-LP/EJ-T/EJ-L/EF-L €17.14
83
 photo_cameraImage coming soon 6689428 CLUTCH SPRING €2.44
84
 Washer for Brush Cutter and Auger Hitachi 6695203 Washer for Brush Cutter and Auger Hitachi €1.98
85
 Bolt Clutch for Brush Cutters Hitachi Garden Tanaka CG 6689632 Bolt Clutch for Brush Cutters Hitachi Garden Tanaka CG €8.63

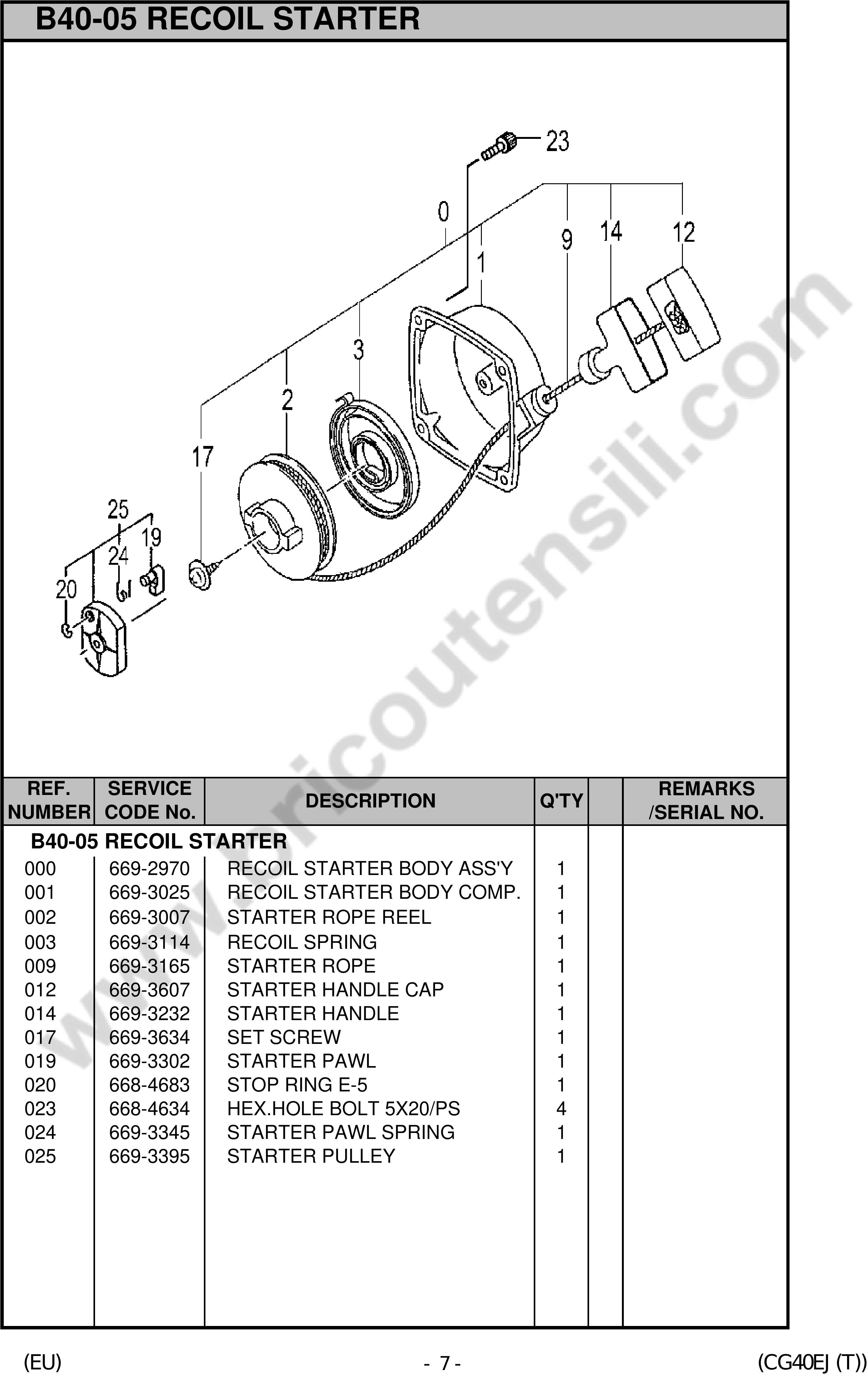

Page 5 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 5
Pos. Item Price Buy
1
 photo_cameraImage coming soon 6693025 RECOIL STARTER BODY COMP. €21.94
2
 photo_cameraImage coming soon 6693007 STARTER ROPE REEL €14.19
3
 photo_cameraImage coming soon 6693114 RECOIL SPRING €19.23
12
 photo_cameraImage coming soon 6693607 STARTER HANDLE CAP €3.87
14
 photo_cameraImage coming soon 6693232 STARTER HANDLE €9.74
17
 photo_cameraImage coming soon 6693634 SET SCREW €1.75
19
 Starter Pawl for Brushcutter Hitachi CG40EF(L) 6693302 Starter Pawl for Brushcutter Hitachi CG40EF(L) €3.30
20
 photo_cameraImage coming soon 6684683 STOP RING E5 €1.22
23
 photo_cameraImage coming soon 6684634 HEX.HOLE BOLT 5X20/PS €1.68
24
 photo_cameraImage coming soon 6693345 STARTER PAWL SPRING €3.87
25
 photo_cameraImage coming soon 6693395 STARTER PULLEY €16.65
Page 6 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

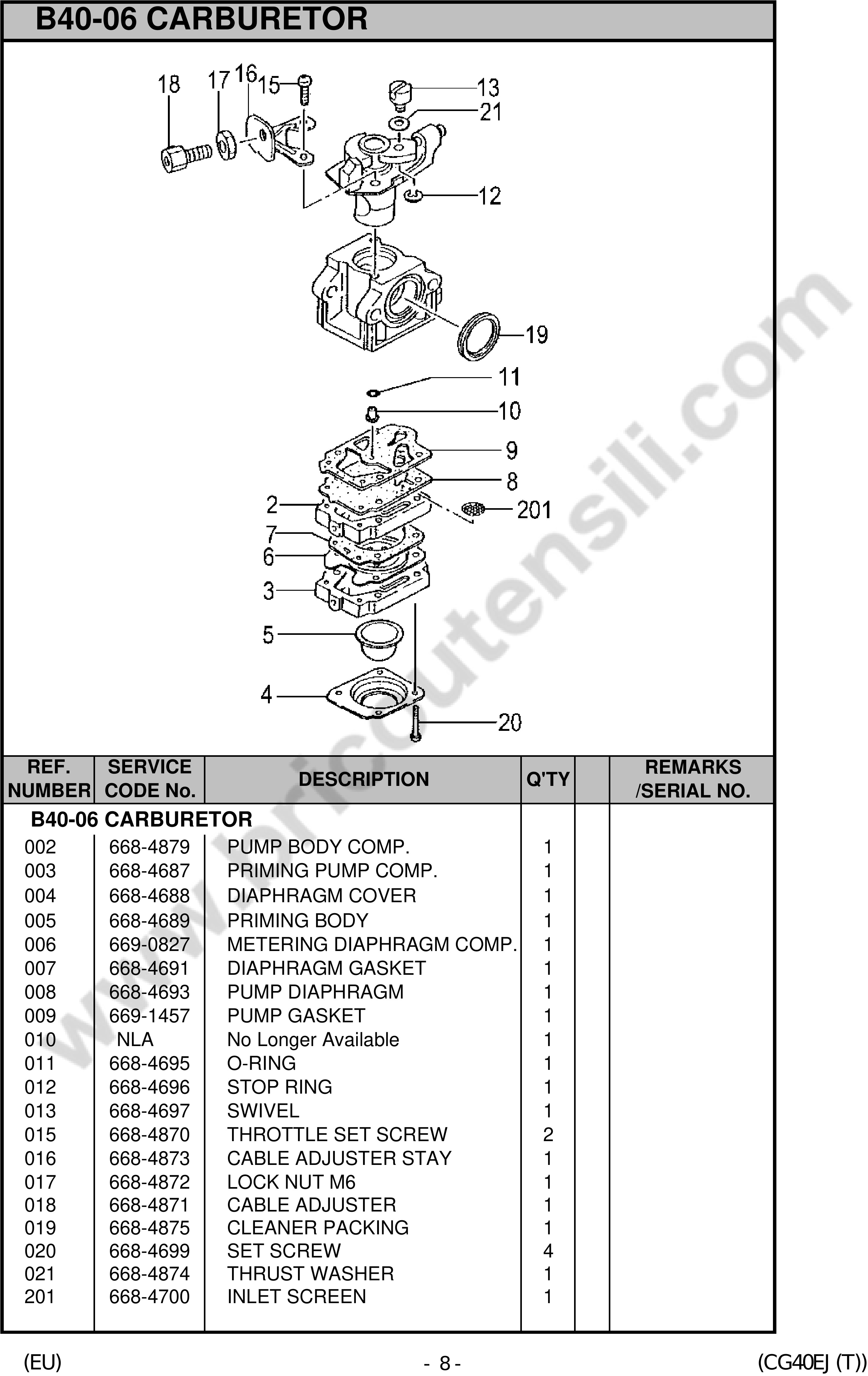

Esploso pagina 6
Pos. Item Price Buy
2
 photo_cameraImage coming soon 6684879 PUMP BODY COMP. €53.04
3
 photo_cameraImage coming soon 6684687 PRIMING PUMP COMP. €18.30
5
 photo_cameraImage coming soon 6684689 PRIMING BODY €6.88
6
 Metering Diaphragm Comp. for Chainsaws Hitachi CS25-33-40-45-51 6690827 Metering Diaphragm Comp. for Chainsaws Hitachi CS25-33-40-45-51 €23.70
7
 photo_cameraImage coming soon 6684691 DIAPHRAGM GASKET €6.12
8
 Pump Diaphragm for Chainsaw Hitachi CS33EB 6684693 Pump Diaphragm for Chainsaw Hitachi CS33EB €9.95
9
 photo_cameraImage coming soon 6691457 PUMP GASKET €9.57
11
 photo_cameraImage coming soon 6684695 ORING €3.16
12
 photo_cameraImage coming soon 6684696 STOP RING €1.76
13
 photo_cameraImage coming soon 6684697 SWIVEL €4.96
15
 photo_cameraImage coming soon 6684870 THROTTLE SET SCREW €2.24
17
 photo_cameraImage coming soon 6684872 LOCK NUT M6 €1.27
18
 photo_cameraImage coming soon 6684871 CABLE ADJUSTER €5.25
19
 photo_cameraImage coming soon 6684875 CLEANER PACKING €3.12
201
 Carburator Inlet Screen for Chainsaws and Bruschcutters Hitachi 6684700 Carburator Inlet Screen for Chainsaws and Bruschcutters Hitachi €3.18

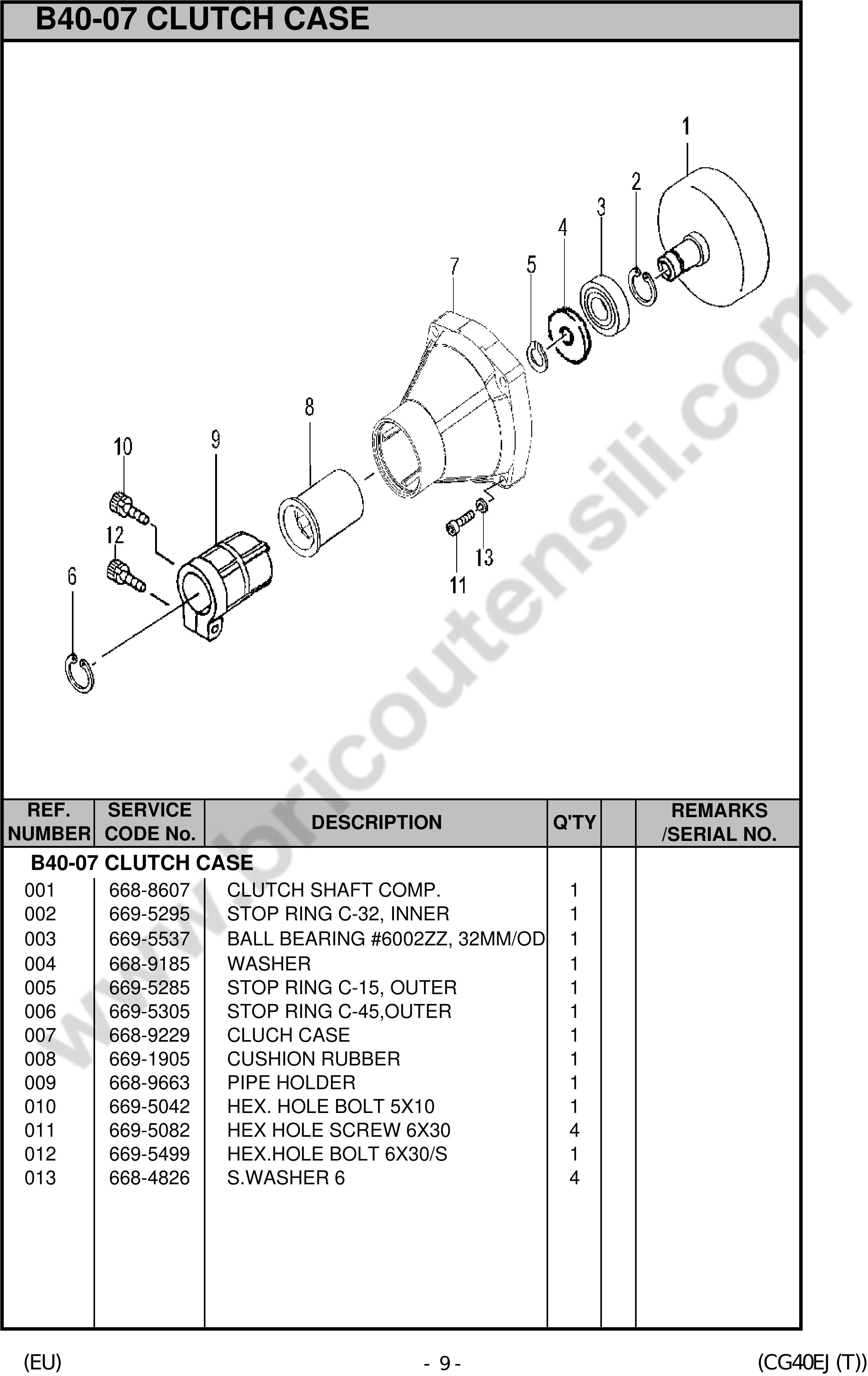

Page 7 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 7
Pos. Item Price Buy
2
 photo_cameraImage coming soon 6695295 STOP RING C32, INNER €1.93
3
 photo_cameraImage coming soon 6695537 BALL BEARING #6002ZZ, 32MM/OD €6.09
5
 Stop Ring C-15 for Hedge Trimmer Tanaka THT 210 THT 210 B 6695285 Stop Ring C-15 for Hedge Trimmer Tanaka THT 210 THT 210 B €0.66
8
 photo_cameraImage coming soon 6691905 CUSHION RUBBER €7.92
10
 photo_cameraImage coming soon 6695042 HEX. HOLE BOLT 5X10 €1.83
13
 photo_cameraImage coming soon 6684826 S.WASHER 6 €1.98

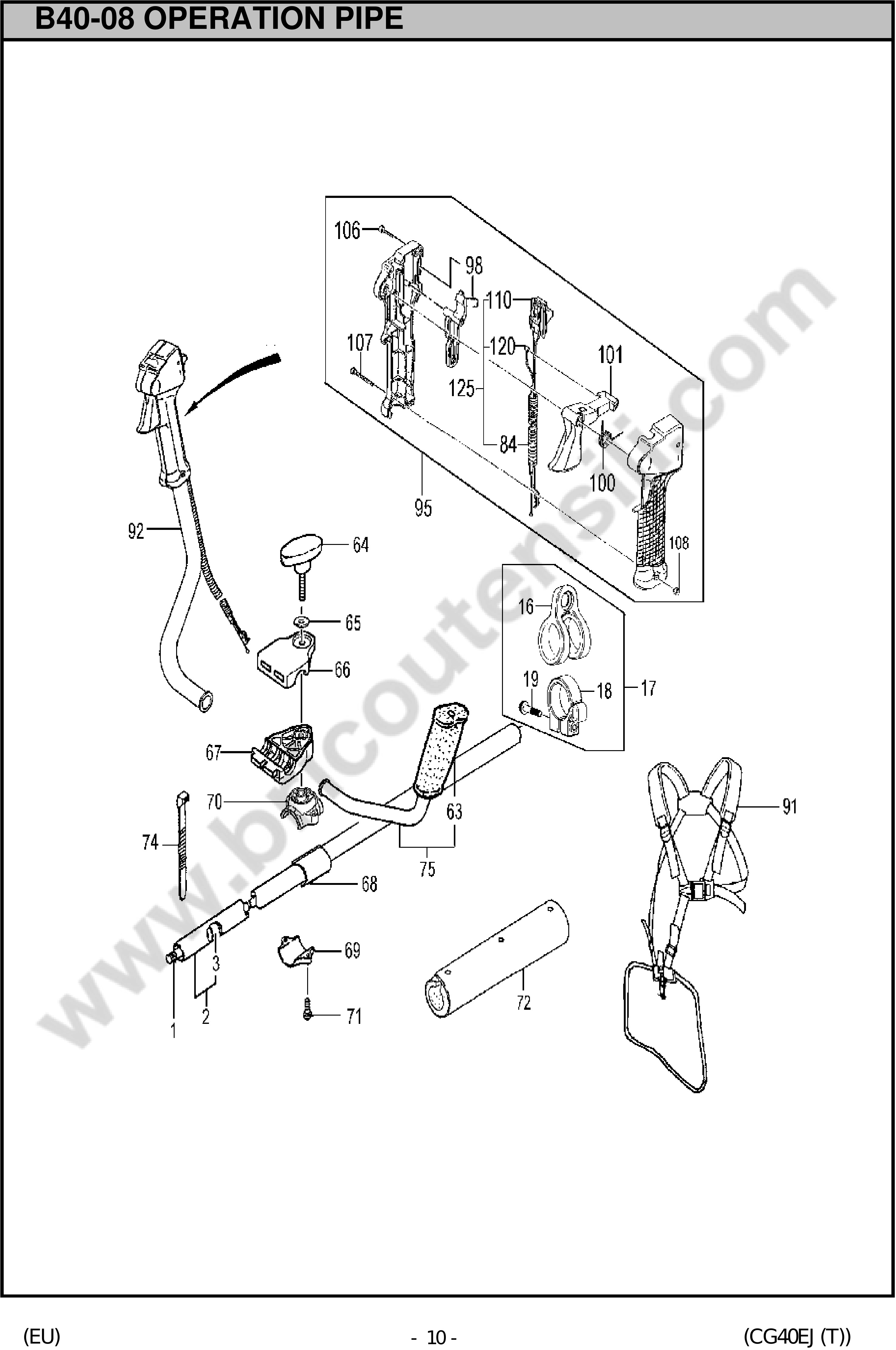

Page 8 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 8
Pos. Item Price Buy
1
 photo_cameraImage coming soon 6689474 DRIVE SHAFT 1542L €32.86
2
 photo_cameraImage coming soon 6689404 DRIVE SHAFT PIPE COMP.1500L €60.72
16
 photo_cameraImage coming soon 6689278 HANGER €18.25
17
 photo_cameraImage coming soon 6689279 LIFTING METAL ASS'Y €8.52
18
 photo_cameraImage coming soon 6689293 HANGER FIXING BRACKET €3.65
19
 photo_cameraImage coming soon 6695515 HEX HOLE BOLT 5X25WS €1.67
63
 photo_cameraImage coming soon 6684708 HANDLE GRIP €7.81
64
 photo_cameraImage coming soon 6691208 HANDLE KNOB COMP. €3.65
65
 photo_cameraImage coming soon 6692955 MOUNTING WASHER 1.0 €1.83
66
 photo_cameraImage coming soon 6691144 HANDLE BRACKET A €16.91
67
 photo_cameraImage coming soon 6691150 HANDLE BRACKET B €10.96
68
 photo_cameraImage coming soon 6691190 CUSHION RUBBER €3.65
69
 photo_cameraImage coming soon 6691175 HANDLE BRACKET C €4.87
70
 photo_cameraImage coming soon 6691160 HANDLE BRACKET B €7.92
71
 photo_cameraImage coming soon 6695515 HEX HOLE BOLT 5X25WS €1.67
75
 photo_cameraImage coming soon 6691089 HANDLE LEFT ASS'Y €27.87
92
 photo_cameraImage coming soon 6691080 RIGHT HANDLE €19.35
95
 photo_cameraImage coming soon 6693766 THROTTLE LEVER ASS'Y 19 €62.67
100
 photo_cameraImage coming soon 6684722 RETURN SPRING €2.65
101
 photo_cameraImage coming soon 6684723 THROTTLE LEVER €7.74
108
 photo_cameraImage coming soon 6684727 CONTAL NUT 5 €1.22
110
 photo_cameraImage coming soon 6687461 STOP SWITCH €15.56
120
 photo_cameraImage coming soon 6694023 THROTTLE WIRE €18.13

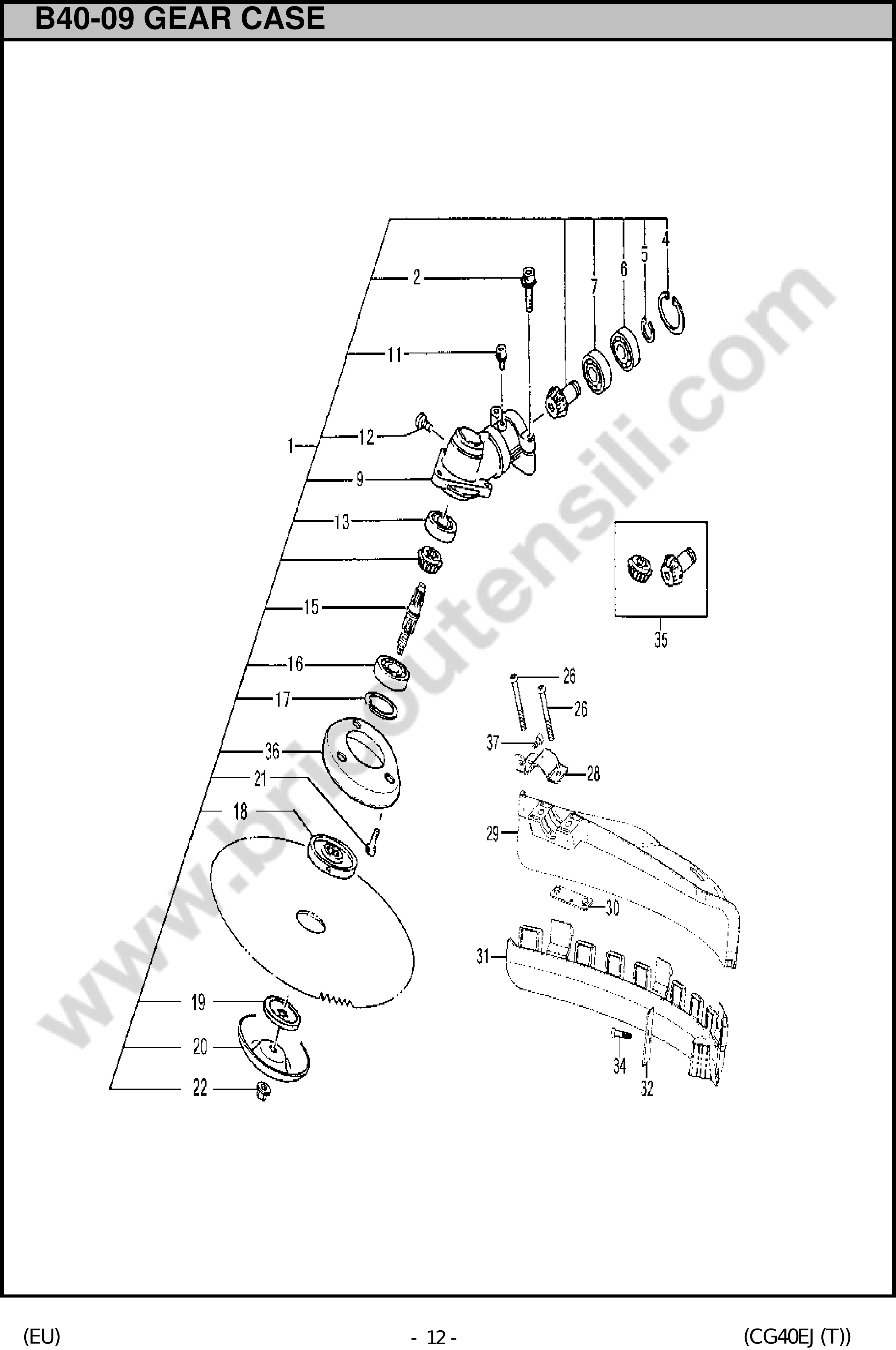

Page 9 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 9
Pos. Item Price Buy
1
 photo_cameraImage coming soon 6688799 GEAR CASE ASS'Y 28 DIA €151.99
4
 photo_cameraImage coming soon 6684741 STOP RING C28,INNER €1.93
5
 photo_cameraImage coming soon 6684664 STOP RING C12 OUTER €1.98
6
 photo_cameraImage coming soon 6695532 BALL BEARING #6001Z, 28MM/OD €10.32
7
 photo_cameraImage coming soon 6695535 BALL BEARING 6001 C3 €6.45
9
 photo_cameraImage coming soon 6688798 GEAR CASE €36.39
13
 photo_cameraImage coming soon 6695535 BALL BEARING 6001 C3 €6.45
17
 Internal Seeger D. 35 for Brushcutters Hitachi CG40EJ-T-CG47EY-T 6695296 Internal Seeger D. 35 for Brushcutters Hitachi CG40EJ-T-CG47EY-T €2.08
18
 photo_cameraImage coming soon 6689029 CUTTER HOLDER €14.48
19
 photo_cameraImage coming soon 6689051 CUTTER HOLDER CAP €8.52
20
 Protection Cover B for Brushcutter Hitachi CG33EJ-LP 6688995 Protection Cover B for Brushcutter Hitachi CG33EJ-LP €5.90
21
 photo_cameraImage coming soon 6695418 SCREW 5X16/WS €1.81
22
 Fixing Nut M10x1,25 for Brushcutter Hitachi CG33EJ-SL 6689073 Fixing Nut M10x1,25 for Brushcutter Hitachi CG33EJ-SL €4.83
29
 photo_cameraImage coming soon 6690265 GUARD €20.68
32
 Knife for Brushcutter Hitachi CG28EJ 6693386 Knife for Brushcutter Hitachi CG28EJ €7.30
34
 photo_cameraImage coming soon 6684753 TAPPING SCREW 5X20 €1.93
35
 photo_cameraImage coming soon 6688879 GEAR PINION SET,SPARE €25.55
36
 photo_cameraImage coming soon 6697604 GEAR CASE COVER COMP €12.04
37
 photo_cameraImage coming soon 6695042 HEX. HOLE BOLT 5X10 €1.83
Page 10 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

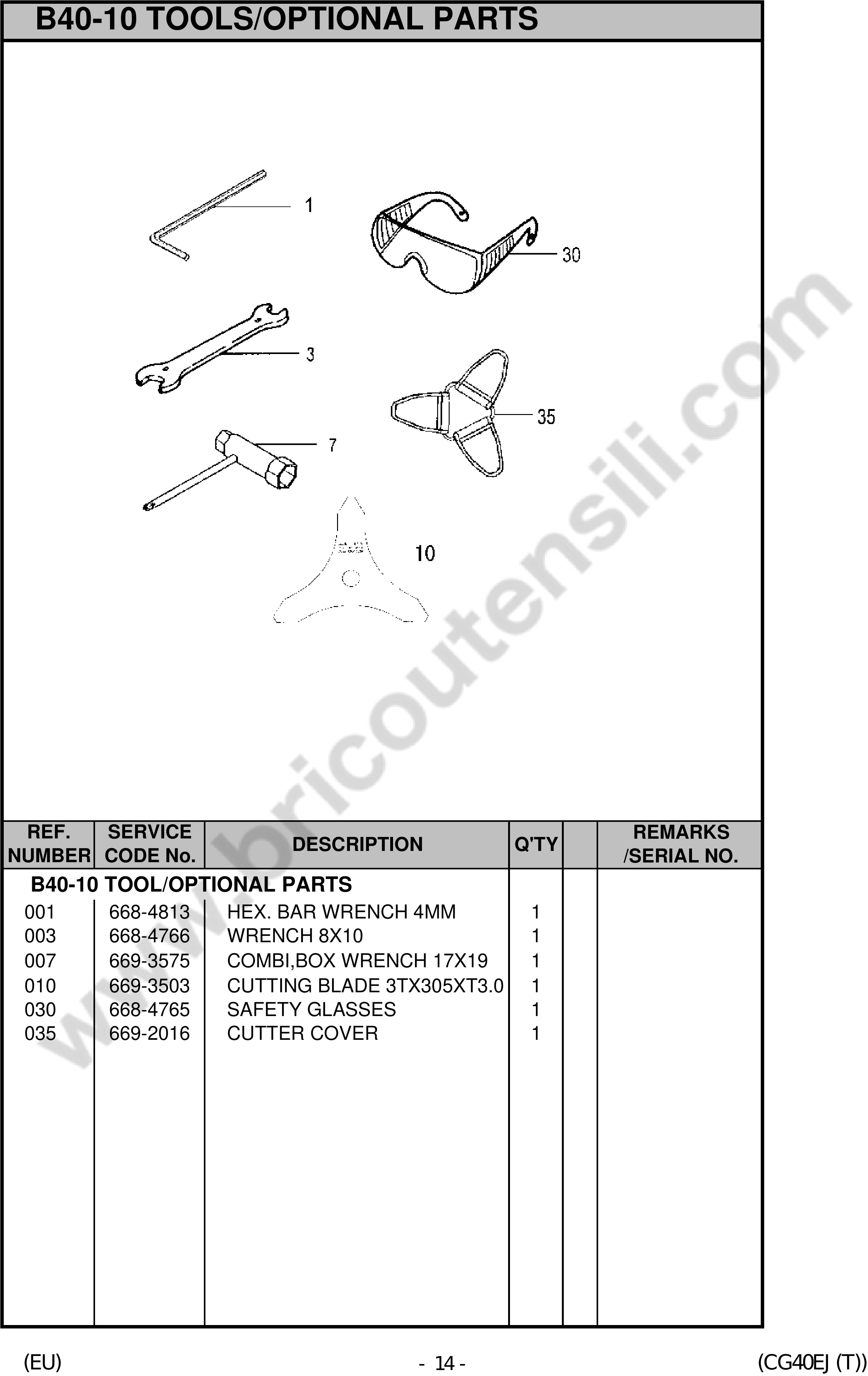

Esploso pagina 10
Pos. Item Price Buy
500
 Nylon Head Semi-Automatic 130mm M10x1.25 for Brushcutters Hitachi HGA781307 Nylon Head Semi-Automatic 130mm M10x1.25 for Brushcutters Hitachi €16.00

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Hitachi Spare Parts for Engine Brush Cutter CG40EJ-T

Hitachi-HIKOKI Tanaka authorized repair center

 and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Engine Bush Cutter CG40EJ-T.

In the following table, look for the model of the chainsaw and ripettivo spare part.
Hitachi CG40EJ-T

ENGINE BRUSH CUTTER CG40EJ-T
B40-01 CYLINDER/PISTON/CRANK SHAFT Pag.1
# Part Num. Description
6 6687466 SPARK PLUG CAP ASS'Y
8 6685086 SPARK PLUG BPMR6A
11 6685474 CYLINDER SET
12 6684668 HEX.HOLE BOLT M5X20/S
14 6685740 CYLINDER GASKET
15 6686123 PISTON RING
16 6685888 PISTON SET
17 6686007 PISTON PIN 10X30
18 6686032 PISTON PIN CIRCLIP
21 6686191 CRANK SHAFT COMP.
31 6686457 WOODRUFF KEY 3X13X5
43 6687655 IGNITION COIL COMP.
44 6684602 RUBBER CAP
45 6687885 HIGHT TENSION CORD
50 6687970 LEAD WIRE ASS'Y
55 6687657 IGNITION COIL ASS'Y
56 6684599 HEX.HOLE BOLT M4X18/WS
63 6688011 CORD CLAMP COMP.
B40-02 CRANK CASE Pag.2
7 6688346 SPARK PLUG COVER
9 6684634 HEX.HOLE BOLT 5X20/PS
23 6695139 SMALL NUT 10
26 6686556 CRANK CASE ASS'Y
27 6686714 CRANK CASE GASKET
28 6695637 OIL SEAL UD15257
29 6695557 BALL BEARING #6202, 35MM/OD
32 6686472 CRANK SHAFT SHIM 0.20
32 6686473 CRANK SHAFT SHIM 0.30
36 6684786 HEX. SOCKET HD. BOLT M5X30 S
51 6687372 MAGNETO ROTOR COMP.
52 6695198 WASHER 10
54 6695139 SMALL NUT 10
66 6686982 FAN CASE
67 6684668 HEX.HOLE BOLT M5X20/S
69 6688057 PRIMARY CORD GROMMET
B40-03 ENGINE - 1 Pag.3
31 6689885 INLET MANIFOLD GASKET
32 6689955 CARB.INSULATOR SET, SPARE     1
33 6689833 CARBURETOR GASKET
34 6690430 COLLAR
35 6690802 COLLAR
36 6690099 CLEANER BODY COMP.
37 6691258 CHOKE VALVE
38 6690843 BLOW OVER CHECK BOARD
39 6690352 CLEANER ELEMENT 6T
40 6684658 WAVE WASHER 8
41 6690397 CLEANER COVER ASS'Y
42 6689737 SPECIAL SCREW
43 6695353 SCREW 5X57/S
45 6690474 CARBURETOR SET WYJ389
49 6695515 HEX. HOLE BOLT 5X25WS
63 6684618 FUEL PIPE
64 6684619 CLIP,6.3 DIA.
65 6692273 PUMP FILTER BODY ASS'Y
66 6691533 TANK
68 6684623 COLLAR C
70 6691763 TANK CAP D ASS'Y, BLACK
76 6684634 HEX.HOLE BOLT 5X20/PS
77 6694785 ENGINE BED
78 6684880 FUEL PIPE 3X5X80
80 6688156 FUEL PIPE GROMMET
86 6684625 TANK CAP CHAIN
87 6684918 WASHER M5
88 6695492 HEX. HOLE BOLT 5X22/S
B40-04 ENGINE - 2 Pag.4
1 6692780 MUFFLER PROTECTOR
3 6684667 HEX.HOLE BOLT M5X12/S
4 6695512 HEX. HOLE BOLT 5X15 WS
5 6695067 HEX.HOLE BOLT 6X65
6 6684639 WASHER 6
7 6692468 MUFFLER SET P/N
8 6684918 WASHER M5
14 6692741 MUFFLER GASKET
16 6687243 HEAT SHIELD
81 6689645 CLUTCH WASHER B
82 6688614 CLUTCH ARM COMP.
83 6689428 CLUTCH SPRING
84 6695203 WAVE WASHER 10
85 6689632 CLUTCH STEP BOLT
B40-05 RECOIL STARTER Pag.5
0 6692970 RECOIL STARTER BODY ASS'Y
1 6693025 RECOIL STARTER BODY COMP.
2 6693007 STARTER ROPE REEL
3 6693114 RECOIL SPRING
9 6693165 STARTER ROPE
12 6693607 STARTER HANDLE CAP
14 6693232 STARTER HANDLE
17 6693634 SET SCREW
19 6693302 STARTER PAWL
20 6684683 STOP RING E5
23 6684634 HEX.HOLE BOLT 5X20/PS
24 6693345 STARTER PAWL SPRING
25 6693395 STARTER PULLEY
B40-06 CARBURETOR Pag.6
2 6684879 PUMP BODY COMP.
3 6684687 PRIMING PUMP COMP.
4 6684688 DIAPHRAGM COVER
5 6684689 PRIMING BODY
6 6690827 METERING DIAPHRAGM COMP.
7 6684691 DIAPHRAGM GASKET
8 6684693 PUMP DIAPHRAGM
9 6691457 PUMP GASKET
11 6684695 ORING
12 6684696 STOP RING
13 6684697 SWIVEL
15 6684870 THROTTLE SET SCREW
16 6684873 CABLE ADJUSTER STAY
17 6684872 LOCK NUT M6
18 6684871 CABLE ADJUSTER
19 6684875 CLEANER PACKING
20 6684699 SET SCREW
21 6684874 THRUST WASHER
201 6684700 INLET SCREEN
B40-07 CLUTCH CASE Pag.7
1 6688607 CLUTCH SHAFT COMP.
2 6695295 STOP RING C32, INNER
3 6695537 BALL BEARING #6002ZZ, 32MM/OD
4 6689185 WASHER
5 6695285 STOP RING C15, OUTER
6 6695305 STOP RING C45,OUTER
7 6689229 CLUCH CASE
8 6691905 CUSHION RUBBER
9 6689663 PIPE HOLDER
10 6695042 HEX. HOLE BOLT 5X10
11 6695082 HEX HOLE SCREW 6X30
12 6695499 HEX.HOLE BOLT 6X30/S
13 6684826 S.WASHER 6
B40-08 OPERATION PIPE Pag.8
1 6689474 DRIVE SHAFT 1542L
2 6689404 DRIVE SHAFT PIPE COMP.1500L
3 6689524 BUSH ASS'Y
16 6689278 HANGER
17 6689279 LIFTING METAL ASS'Y
18 6689293 HANGER FIXING BRACKET
19 6695515 HEX. HOLE BOLT 5X25WS
63 6684708 HANDLE GRIP
64 6691208 HANDLE KNOB COMP.
65 6692955 MOUNTING WASHER 1.0
66 6691144 HANDLE BRACKET A
67 6691150 HANDLE BRACKET B
68 6691190 CUSHION RUBBER
69 6691175 HANDLE BRACKET C
70 6691160 HANDLE BRACKET B
71 6695515 HEX. HOLE BOLT 5X25WS
72 6689291 HIP PAD
74 6688024 CORD CLAMP
75 6691089 HANDLE LEFT ASS'Y
84 6687546 PROTECTION TUBE
91 6696184 SHOULDER BELT ASS'Y OR
92 6691080 RIGHT HANDLE
95 6693766 THROTTLE LEVER ASS'Y 19
98 6684721 SAFETY LEVER
100 6684722 RETURN SPRING
101 6684723 THROTTLE LEVER
106 6684725 SCREW M4X20 (BLACK)
107 6684726 SCREW 5X30 (BLACK)
108 6684727 CONTAL NUT 5
110 6687461 STOP SWITCH
120 6694023 THROTTLE WIRE
125 6693980 THROTTLE WIRE COMP.
B40-09 GEAR CASE Pag.9
1 6688799 GEAR CASE ASS'Y 28 DIA
2 6695497 HEX.HOLE BOLT 6X25S
4 6684741 STOP RING C28,INNER
5 6684664 STOP RING C12 OUTER
6 6695532 BALL BEARING #6001Z, 28MM/OD
7 6695535 BALL BEARING 6001 C3
9 6688798 GEAR CASE
11 6695510 HEX HOLE BOLT 5X12
12 6694979 BOLT 6X8
13 6695535 BALL BEARING 6001 C3
15 6688943 GEAR SHAFT LM10X1.25
16 6696297 BALL BEARING #6202DD, 35MM/OD
17 6695296 STOP RING C35, INNER
18 6689029 CUTTER HOLDER
19 6689051 CUTTER HOLDER CAP
20 6688995 PROTECTION COVER B
21 6695418 SCREW 5X16/WS
22 6689073 FIXING NUT M10X1.25
26 6695082 HEX HOLE SCREW 6X30
28 6690313 SAFETY GUARD BRACKET
29 6690265 GUARD
30 6690342 SAFTY COVER HOLDER
31 6690374 COVER GUARD
32 6693386 KNIFE
34 6684753 TAPPING SCREW 5X20
35 6688879 GEAR PINION SET,SPARE
36 6697604 GEAR CASE COVER COMP
37 6695042 HEX. HOLE BOLT 5X10
B40-10 TOOL/OPTIONAL PARTS Pag.10
1 6684813 HEX. BAR WRENCH 4MM
3 6684766 WRENCH 8X10
7 6693575 COMBI,BOX WRENCH 17X19
10 6693503 CUTTING BLADE 3TX305XT3.0
30 6684765 SAFETY GLASSES
35 6692016 CUTTER COVER
500 HGA781307 Nylon Head Semi-Automatic 130mm M10x1.25 Lh
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Hitachi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to hitachi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Hitachi CG40EJ-T
4 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Hitachi CG40EJ-T Drawing

Hitachi CG40EJ-T Drawing

Download (304.29KB)

You might also like

Carburator Insulator Set for Brushcutters Hitachi Tanaka CG40
HiKOKI Power Tools Italia S.p.a. SKU: 6689955
Carburator Insulator Set for Brushcutters Hitachi Tanaka CG40
Carburator Insulator Set for Brushcutters Hitachi Tanaka CG40 Original spare part Hitachi Koky Tanaka, Carburator Insulator Set (intake manifold) for Brushcutter CG40EK-LP - CG40EJ-T - CG40EF-L. Part for the following aproducts: -...
Last items in stock €19.80
Details
Clutch Arm for Brushcutters Hitachi CG40EK-LP/EJ-T/EJ-L/EF-L
HiKOKI Power Tools Italia S.p.a. SKU: 6688614
Clutch Arm for Brushcutters Hitachi CG40EK-LP/EJ-T/EJ-L/EF-L
Clutch Arm for Brushcutters Hitachi CG40EK-LP/EJ-T/EJ-L/EF-L Original spare Hitachi Koky Tanaka, Clutch Arm for Brushcutters Hitachi Tanaka CG40EK-LP - CG40EJ-T - CG40EJ-L - CG40EF-L Parts for the following products: -...
AVAILABLE €17.14
Details
Cleaner Cover for Brushcutters Hitachi CG40EK-LP/EJ-T/EJ-L/EF-L
HiKOKI Power Tools Italia S.p.a. SKU: 6690397
Cleaner Cover for Brushcutters Hitachi CG40EK-LP/EJ-T/EJ-L/EF-L
Cleaner Cover for Brushcutters Hitachi CG40EK-LP/EJ-T/EJ-L/EF-L Original spare Hitachi Koky Tanaka, Cleaner Cover Ass'y for Brushcutters Hitachi Tanaka CG40EK-LP - CG40EJ-T - CG40EJ-L - CG40EF-L. Parts for the following products: -...
Out-of-Stock €15.81
Details
Piston Set for Brushcutters Hitachi CG40EJ-T/EJ-L/EF-L Sale
HiKOKI Power Tools Italia S.p.a. SKU: 6685888
Piston Set for Brushcutters Hitachi CG40EJ-T/EJ-L/EF-L
Piston Set for Brushcutters Hitachi CG40EJ-T/EJ-L/EF-L Original replacement part Hitachi Koky Tanaka, Piston Set for Brushcutters Hitachi Tanaka CG40EJ-T - CG40EJ-L - CG40EF-L. Part for the following products: - BRUSHCUTTER CG40EJ-T -...
Last items in stock €45.07
Details
Intake Gasket for Brushcutters Hitachi CG 40 EK-LP/EJ-T/EJ-L/EF-L
HiKOKI Power Tools Italia S.p.a. SKU: 6689885
Intake Gasket for Brushcutters Hitachi CG 40 EK-LP/EJ-T/EJ-L/EF-L
Intake Gasket for Brushcutters Hitachi CG 40 EK-LP/EJ-T/EJ-L/EF-L Original spare Hitachi Koky Tanaka, Intake Gasket Manifold for trimmers Hitachi Tanaka CG40EK-LP - CG40EJ-T - CG40EJ-L - CG40EF-L. Parts for the following products: -...
AVAILABLE €5.17
Details
Washer Clutch B for Brush Cutters Auger Hitachi Garden Tanaka
HiKOKI Power Tools Italia S.p.a. SKU: 6689645
Washer Clutch B for Brush Cutters Auger Hitachi Garden Tanaka
Washer Clutch B for Brush Cutters Auger Hitachi Garden Tanaka Hitachi genuine parts, Washer Clutch B for Brush Cutters Auger Hitachi Garden Tanaka. Part for the following article : - Brush Cutters CG33EJ-SL - Brush Cutters CG33EJ-LP -...
AVAILABLE €1.98
Details
Bolt Clutch for Brush Cutters Hitachi Garden Tanaka CG
HiKOKI Power Tools Italia S.p.a. SKU: 6689632
Bolt Clutch for Brush Cutters Hitachi Garden Tanaka CG
Bolt Clutch for Brush Cutters Hitachi Garden Tanaka CG Hitachi genuine parts, Bolt Clutch for Brush Cutters Hitachi Garden Tanaka CG. Part for the following article : - Brush Cutters CG40EK-LP - Brush Cutters CG40EJ-T - Brush...
AVAILABLE €8.63
Details
Washer for Brush Cutter and Auger Hitachi
HiKOKI Power Tools Italia S.p.a. SKU: 6695203
Washer for Brush Cutter and Auger Hitachi
Washer for Brush Cutter and Auger Hitachi Original spare Hitachi Koky Tanaka, Washer for Brush Cutter and Auger Hitachi. Parts for the following products: - Brush Cutter CG33EJ-LP - Brush Cutter CG33EJ-SL - Brush Cutter CG40EK-LP -...
AVAILABLE €1.98
Details
Oil Sial for Brush Cutter Hitachi Sale
HiKOKI Power Tools Italia S.p.a. SKU: 6695637
Oil Sial for Brush Cutter Hitachi
Oil Sial for Brush Cutter Hitachi Original spare Hitachi Koky Tanaka, Oil Sial for Brush Cutter Hitachi. Parts for the following products: - Brush Cutter CG40EK-LP - Brush Cutter CG40EJ-T - Brush Cutter CG40EJ-L - Brush Cutter...
AVAILABLE €5.17
Details
Starter Pawl for Brushcutter Hitachi CG40EF(L)
HiKOKI Power Tools Italia S.p.a. SKU: 6693302
Starter Pawl for Brushcutter Hitachi CG40EF(L)
Starter Pawl for Brushcutter Hitachi CG40EF(L) Genuine spare part Hitachi, Starter Pawl for Brushcutters CG40EF(L) - CG40EJ(L) - CG40EJ(T) - CG40EK(LP) - CG47EF(L) -  CG47EJ(L - CG47EJ(T) Part for the following products: - BRUSHCUTTER...
AVAILABLE €3.30
Details
Fuel Tank for Brushcutters Hitachi CG40EJ-T
HiKOKI Power Tools Italia S.p.a. SKU: 6691533
Fuel Tank for Brushcutters Hitachi CG40EJ-T
Fuel Tank for Brushcutters Hitachi CG40EJ-T Genuine part Hitachi Koky Tanaka, Fuel Tank for Brushcutters CG40EJ-T - CG40EJ-L - CG40EFL Parts for the following products: - BRUSHCUTTER HITACHI CG40EJ-T -...
Last items in stock €17.14
Details
Internal Seeger D. 35 for Brushcutters Hitachi CG40EJ-T-CG47EY-T
HiKOKI Power Tools Italia S.p.a. SKU: 6695296
Internal Seeger D. 35 for Brushcutters Hitachi CG40EJ-T-CG47EY-T
Internal Seeger D. 35 for Brushcutters Hitachi CG40EJ-T-CG47EY-T Genuine spare part Tanaka, Internal Seeger D. 35 for Brushcutters Hitachi CG40EJ-T - CG47EY-T - Tanaka TBC-600. Part for the following products: - Brushcutters CG40EJ-T...
AVAILABLE €2.08
Details
Carburator Gasket for Brushcutter Hitachi CG40EJ-T
HiKOKI Power Tools Italia S.p.a. SKU: 6689826
Carburator Gasket for Brushcutter Hitachi CG40EJ-T
Carburator Gasket for Brushcutter Hitachi CG40EJ-T Genuine part Hitachi Koky Tanaka, Carburator Gasket for Brushcutters CG40EJ-T - CG40EJ-L - CG47EF(L) - CG47EJ(L) - CG47EJ(T)...
AVAILABLE €1.77
Details
Fuel Pipe Grommet for Brushcutter Hitachi CG33EJ-SL
HiKOKI Power Tools Italia S.p.a. SKU: 6688156
Fuel Pipe Grommet for Brushcutter Hitachi CG33EJ-SL
Fuel Pipe Grommet for Brushcutter Hitachi CG33EJ-SL Original spare part Hitachi Koky Tanaka, Fuel Pipe Grommet for Brushcutters CG33EJ-SL - CG40EK-LP - CG40EJ-T - CG40EJ-L - CG40EF-L. Part...
AVAILABLE €6.26
Details
Hex Hole Bolt 10.9 M5x16/6 for Chainsaws Hitachi
HiKOKI Power Tools Italia S.p.a. SKU: 6684903
Hex Hole Bolt 10.9 M5x16/6 for Chainsaws Hitachi
Hex Hole Bolt 10.9 M5x16/6 for Chainsaws Hitachi Genuine part Hitachi Koky Tanaka, Hex Hole Bolt 10.9 M5x16/6 for Chainsaws CS38EK - CS45EL - Tanaka ECV-3801 - Tanaka ECV-4501. Part for the following products: - Chainsaw Hitachi...
AVAILABLE €1.32
Details
Piston Pin Circlip for Brushcutter Hitachi CG40EJ-T
HiKOKI Power Tools Italia S.p.a. SKU: 6686032
Piston Pin Circlip for Brushcutter Hitachi CG40EJ-T
Piston Pin Circlip for Brushcutter Hitachi CG40EJ-T Original replacement part Hitachi Koky Tanaka, Piston Pin Circlip for Brushcutters CG40EJ-T - CG40EK-LP - CG40EF-L - CG40EJ-L. Part for the following products: - Brushcutter Hitachi...
AVAILABLE €1.04
Details
Protection Cover B for Brushcutter Hitachi CG33EJ-L
HiKOKI Power Tools Italia S.p.a. SKU: 6688995
Protection Cover B for Brushcutter Hitachi CG33EJ-LP
Protection Cover B for Brushcutter Hitachi CG33EJ-LP Original spare part Hitachi HiKoki Tanaka, Protection Cover B for Brushcutters CG33EJ-LP - Tanaka TBC-340 - TBC 340D. Part for the following products: -  Brushcutter Hitachi...
Last items in stock €5.90
Details
Comments (0)
