Hitachi Spare Parts for Engine Brush Cutter CG22EAS

SKU: Hitachi CG22EAS Condition: New
€1.11
VAT included

Hitachi Spare Parts for Engine Brush Cutter CG22EAS

Hitachi-HIKOKI Tanaka authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues for Engine Brush Cutter CG22EAS.
settings 258 spare parts
description 3 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Shipped on 7/10 Business Days Approx

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
175 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

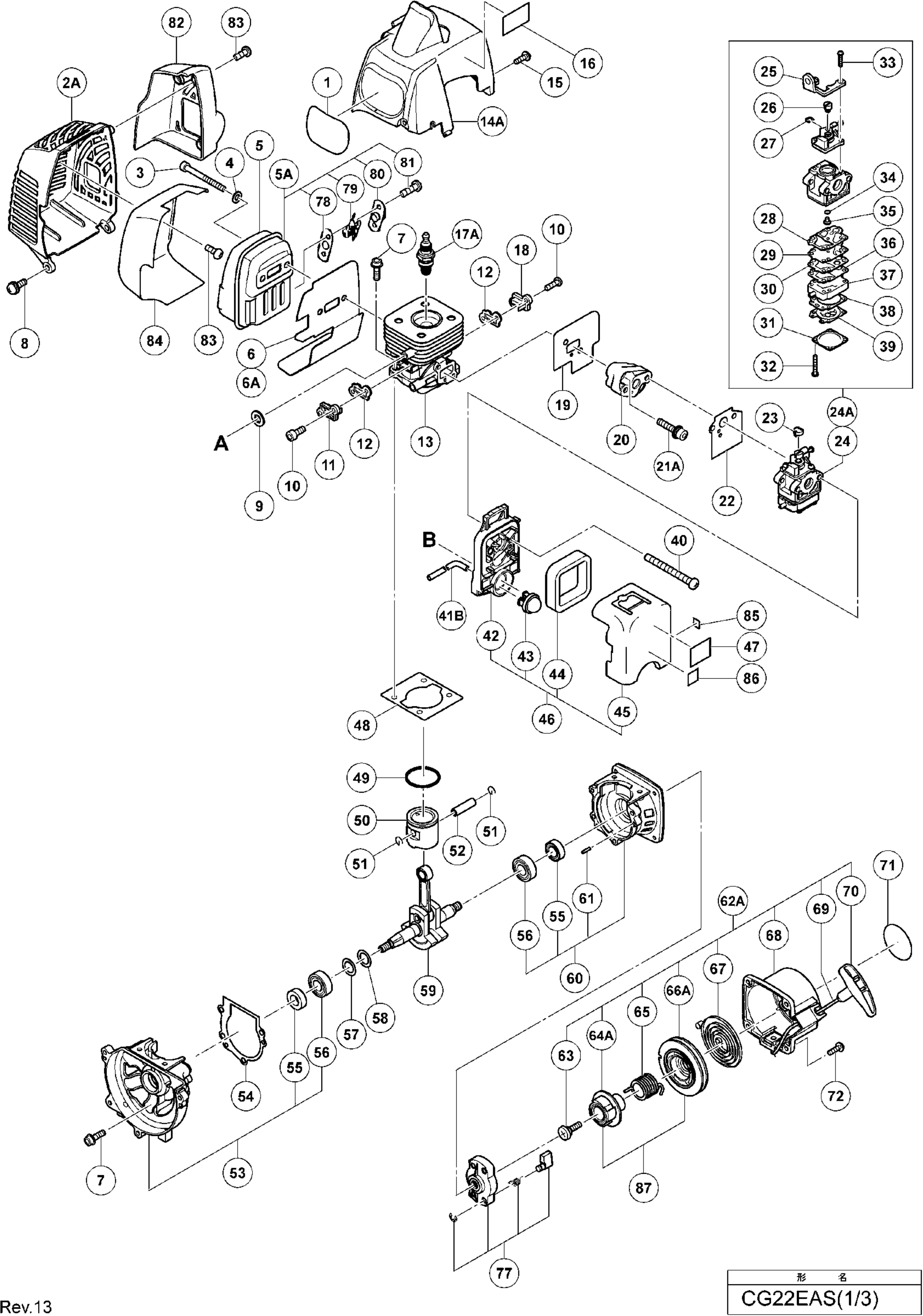

Esploso pagina 1
Pos. Item Price Buy
3
 photo_cameraImage coming soon 6684638 HEX. HOLE BOLT M6X55 €1.93
5
 photo_cameraImage coming soon 6696554 MUFFLER €57.96
6A
 photo_cameraImage coming soon 6600320 HEAT PROTECTION PANEL €2.63
7
 Bolt M5X18/S for Chainsaws Hitachi CS38EK-CS45EL 6684586 Bolt M5X18/S for Chainsaws Hitachi CS38EK-CS45EL €1.98
10
 photo_cameraImage coming soon 6684595 HEX. SOCKET HD. BOLT (W/SP.WASHER) M4X12 €1.71
11
 photo_cameraImage coming soon 6696536 INTAKE COVER (B) €2.16
12
 Carburator Cover Packing for Brushcutter Hitachi CG22EAS 6696534 Carburator Cover Packing for Brushcutter Hitachi CG22EAS €2.14
13
 Cylinder for Brushcutter Hitachi Tanaka CG22EAB (LP) 6696527 Cylinder for Brushcutter Hitachi Tanaka CG22EAB (LP) €57.03
14A
 photo_cameraImage coming soon 6699155 CYLINDER COVER €7.10
17A
 photo_cameraImage coming soon 6699316 SPARK PLUG ASS'Y BMR7A €5.32
18
 photo_cameraImage coming soon 6696535 INTAKE COVER (A) €2.25
19
 photo_cameraImage coming soon 6696548 INTAKE PACKING €2.58
20
 photo_cameraImage coming soon 6696943 CARBURETOR INSULATOR €29.56
21A
 photo_cameraImage coming soon 6698844 SEAL LOCK HEX. SOCKET BOLT (W/WASHERS)M5 €2.16
22
 photo_cameraImage coming soon 6684616 CARBURETOR PACKING €1.98
23
 photo_cameraImage coming soon 6684628 SWIVEL CAP €1.93
24
 photo_cameraImage coming soon 6696550 CARBURETOR ASS'Y WYC-22 €99.49
26
 photo_cameraImage coming soon 6696830 SWIVEL €7.91
27
 photo_cameraImage coming soon 6684696 STOP RING €1.76
28
 photo_cameraImage coming soon 6684692 PUMP GASKET €26.45
29
 Pump Diaphragm for Chainsaw Hitachi CS33EB 6684693 Pump Diaphragm for Chainsaw Hitachi CS33EB €9.95
30
 photo_cameraImage coming soon 6691242 PUMP PLATE €5.81
31
 photo_cameraImage coming soon 6685222 DIAPHRAGM COVER €6.54
32
 photo_cameraImage coming soon 6691312 SET SCREW €2.48
34
 photo_cameraImage coming soon 6684695 ORING €3.16
36
 Circuit Plate Gasket for Brushcutter Hitachi CG22EAS 6691234 Circuit Plate Gasket for Brushcutter Hitachi CG22EAS €6.64
37
 photo_cameraImage coming soon 6696828 PUMP BODY COMP. €24.52
38
 Diaphragm Packing Metering for Chainsaws Hitachi CS25-33-40-45-51 6685220 Diaphragm Packing Metering for Chainsaws Hitachi CS25-33-40-45-51 €3.45
39
 Metering Diaphragm for Chainsaws Hitachi CS-33-40-51 6684690 Metering Diaphragm for Chainsaws Hitachi CS-33-40-51 €25.81
41A
 photo_cameraImage coming soon 6698720 FUEL PIPE €7.10
42
 Air Filter Housing for Brushcutter Hitachi Tanaka CG22EAB 6696832 Air Filter Housing for Brushcutter Hitachi Tanaka CG22EAB €22.46
43
 Priming Pump for Chain Saws and Brushcutters Hitachi Tanaka 6685139 Priming Pump for Chain Saws and Brushcutters Hitachi Tanaka €13.15
44
 photo_cameraImage coming soon 6690347 CLEANER ELEMENT €5.39
45
 photo_cameraImage coming soon 6696831 AIR CLEANER COVER €15.50
46
 photo_cameraImage coming soon 6696549 AIR CLEANER ASS'Y €15.50
48
 Cylinder Gasket for Brushcutter Hitachi Tanaka CG22EAS 6696530 Cylinder Gasket for Brushcutter Hitachi Tanaka CG22EAS €2.16
49
 Piston Ring for Brush Cutter end Hedge Trimmers Hitachi 6696532 Piston Ring for Brush Cutter end Hedge Trimmers Hitachi €6.50
50
 Piston for Brush Cutter and Hedge Trimmer Hitachi Tanaka CG-CH 6696531 Piston for Brush Cutter and Hedge Trimmer Hitachi Tanaka CG-CH €15.81
51
 Circlip for Brushcutter Hitachi CG 24EBS 6684590 Circlip for Brushcutter Hitachi CG 24EBS €1.57
52
 Piston Pin for Brushcutter Hitachi Tanaka CG22EAS 6696944 Piston Pin for Brushcutter Hitachi Tanaka CG22EAS €7.30
53
 photo_cameraImage coming soon 6696538 CRANK CASE (B) COMP €28.27
54
 photo_cameraImage coming soon 6696539 CRANK CASE PACKING €2.25
55
 photo_cameraImage coming soon 6684607 OIL SEAL TB 12227 €3.20
56
 photo_cameraImage coming soon 6684608 BALL BEARING 6001 C3 €6.06
59
 photo_cameraImage coming soon 6696533 CRANK SHAFT COMP. €73.45
62A
 Recoil Starter for Brushcutter Hitachi Tanaka CG22EAS/24-27EASP 6699995 Recoil Starter for Brushcutter Hitachi Tanaka CG22EAS/24-27EASP €33.10
63
 Set Screw for Hedge Trimmer Hitachi CH62EA(ST) 6684679 Set Screw for Hedge Trimmer Hitachi CH62EA(ST) €6.81
64A
 photo_cameraImage coming soon 6699996 CAM PLATE FOR (S) TYPE SINCE 9.2013 FOR AUS €5.81
65
 Damper Spring for Brushcutters Hitachi CG22EAS-CG24EASP-CG27EASP 6684677 Damper Spring for Brushcutters Hitachi CG22EAS-CG24EASP-CG27EASP €7.83
66A
 photo_cameraImage coming soon 6699997 STARTER ROPE REEL €6.45
67
 photo_cameraImage coming soon 6684675 RECOIL SPRING €12.16
68
 photo_cameraImage coming soon 6684673 RECOIL STARTER BODY COMP. €17.27
69
 photo_cameraImage coming soon 6684674 STARTER ROPE 3.5X860 €5.16
77
 Starter Pulley for Bruschcutters Hitachi CG22EAS-CG24EASP-CG27-33EJ 6684681 Starter Pulley for Bruschcutters Hitachi CG22EAS-CG24EASP-CG27-33EJ €23.26
82
 photo_cameraImage coming soon 6600339 MUFFLER REAR COVER €6.88
84
 photo_cameraImage coming soon 6600340 MUFFER HEAT COVER €10.32
87
 photo_cameraImage coming soon 6699691 CAMPLATE ASS'Y €11.62
91
 photo_cameraImage coming soon 6684667 HEX.HOLE BOLT M5X12/S €1.93
93B
 photo_cameraImage coming soon 6699159 FAN CASE (VERMILION) €17.94
94A
 photo_cameraImage coming soon 6699199 CLUTCH SHAFT €21.81
95
 photo_cameraImage coming soon 6696469 STEP BOLT €1.93
96
 photo_cameraImage coming soon 6684648 BENT WASHER 8 €1.98
97
 photo_cameraImage coming soon 6696546 CLUTCH PLATE (A) €2.58
98
 photo_cameraImage coming soon 6696948 CLUTCH €25.81
99
 photo_cameraImage coming soon 6696547 CLUTCH WASHER (B) €2.58
100
 Flywheel Nut for Chainsaw Hitachi CS33EB 6685337 Flywheel Nut for Chainsaw Hitachi CS33EB €2.49
102B
 Ignition Coil for Brushcutters Hitachi Tanaka CG22EAS-CG24EASP 6699464 Ignition Coil for Brushcutters Hitachi Tanaka CG22EAS-CG24EASP €35.76
106
 Coil Cord (BLACK) for Brushcutter Hitachi CG22EAS 6696544 Coil Cord (BLACK) for Brushcutter Hitachi CG22EAS €2.65
107
 Coil Rarth Cord (Yellow) for Brushcutter Hitachi CG22EAS 6696545 Coil Rarth Cord (Yellow) for Brushcutter Hitachi CG22EAS €2.65
108A
 photo_cameraImage coming soon 6699289 MAGNETO ROTOR ASS'Y €31.63
109
 Anti Vibe Rubber (A) for Brushcutter Hitachi CG22EAB 6696963 Anti Vibe Rubber (A) for Brushcutter Hitachi CG22EAB €4.44
110
 photo_cameraImage coming soon 6696542 PIPE HOLDER (A) €2.58
112
 photo_cameraImage coming soon 6696543 PIPE HOLDER (B) €2.58
113
 photo_cameraImage coming soon 6696964 ANTI VIBE RUBBER (B) €5.81
114
 Retaining Ring 12 mm for Hitachi Power Tools 939542 Retaining Ring 12 mm for Hitachi Power Tools €3.13
118
 photo_cameraImage coming soon 6696487 HANDLE (B) €9.04
118
 photo_cameraImage coming soon 6696942 HANDLE (B) €6.14
119
 photo_cameraImage coming soon 6696490 LOCK LEVER €1.93
120
 Throttle Lever for Brushcutters Hitachi CG22/27 6696488 Throttle Lever for Brushcutters Hitachi CG22/27 €5.17
121
 photo_cameraImage coming soon 6696489 SPRING (A) €2.30
122
 Switch for Brushcutter Hitachi Tanaka CG24EASP 6696940 Switch for Brushcutter Hitachi Tanaka CG24EASP €9.30
126
 photo_cameraImage coming soon 6696486 HANDLE (A) €9.04
126
 photo_cameraImage coming soon 6696941 HANDLE (A) €6.14
127
 Fuel Tank for Brushcutter Hitachi CG22EAS 6696569 Fuel Tank for Brushcutter Hitachi CG22EAS €10.63
128
 photo_cameraImage coming soon 6684620 PUMP FILTER BODY COMP. €21.52
129
 photo_cameraImage coming soon 6696949 CAPACITOR CLIP €2.06
131
 photo_cameraImage coming soon 6696574 BOLT (W/FLANGE) L17.8 €2.58
132A
 photo_cameraImage coming soon 6698716 FUEL PIPE €5.16
133
 photo_cameraImage coming soon 6696476 FUEL PIPE (PINK) €3.60
134A
 photo_cameraImage coming soon 6697846 RETURN GROMMET €1.79
136A
 Fuel Tank Cap for Brushcutter Hitachi CG24ECP (SL) 6698402 Fuel Tank Cap for Brushcutter Hitachi CG24ECP (SL) €9.73
145
 photo_cameraImage coming soon 6684899 WOODRUFF KEY 3X13X4.5 €1.68
146
 photo_cameraImage coming soon 6699463 MAGNETO KEY SET €43.75
157
 photo_cameraImage coming soon 6684714 HEX. HOLE BUTTON SCREW 6X25S €1.98
164
 photo_cameraImage coming soon 6696973 BARRIER €4.31
165
 photo_cameraImage coming soon 6696974 BOLT (BLACK) M6 €2.58
167
 photo_cameraImage coming soon 6696975 LOOP HANDLE €7.47
168A
 Hitachi CG22EAS Gear Case 6699402 Hitachi CG22EAS Gear Case €86.29
176
 photo_cameraImage coming soon 6696977 CUTTER HOLDER (A) €29.69
186
 photo_cameraImage coming soon 6696494 COVER BRACKET €3.87
187
 photo_cameraImage coming soon 6684714 HEX. HOLE BUTTON SCREW 6X25S €1.98
195
 photo_cameraImage coming soon 6696558 MAIN PIPE COMP. €42.60
196A
 photo_cameraImage coming soon 6698514 DRIVE SHAFT €34.85
198
 photo_cameraImage coming soon 6698794 COVER €25.83
201
 photo_cameraImage coming soon 6698796 REEL €10.09
203
 Button for Brushcutter Hitachi CG22EAS 6698798 Button for Brushcutter Hitachi CG22EAS €10.60
204
 photo_cameraImage coming soon 6698799 CORD GUIDE €10.01
205
 photo_cameraImage coming soon 6698800 CASE €18.02
206
 photo_cameraImage coming soon 6696454 NYLON HEAD ASS'Y €17.92
207
 photo_cameraImage coming soon 6696950 COVER GUARD €16.78
208
 photo_cameraImage coming soon 6684751 TAPPING SCREW 4X14 €1.98
209
 photo_cameraImage coming soon 6684750 KNIFE €3.98
210
 photo_cameraImage coming soon 6696951 GUARD HOLDER €3.08
211
 photo_cameraImage coming soon 6696980 COVER €23.23
215
 photo_cameraImage coming soon 323210 BOLT WASHER M4 (BLACK) €1.65
216
 photo_cameraImage coming soon 6685068 MACHINE SCREW (W/SP. WASHER) M4X12 €1.93
217
 Fuel Tank Grommet for Brushcutter Hitachi CG22EAS 6685308 Fuel Tank Grommet for Brushcutter Hitachi CG22EAS €1.98
Page 2 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

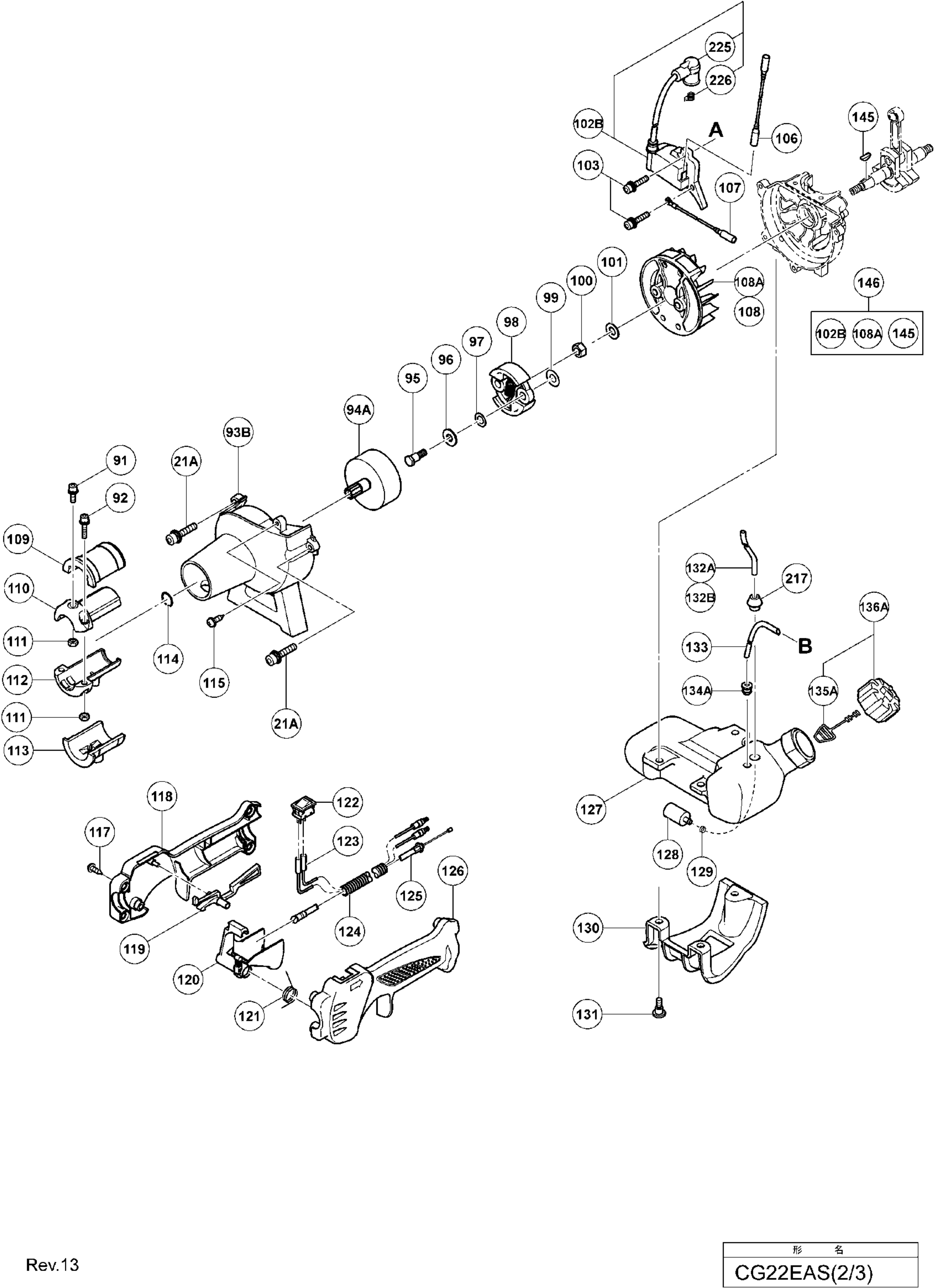

Esploso pagina 2
Pos. Item Price Buy
91
 photo_cameraImage coming soon 6684667 HEX.HOLE BOLT M5X12/S €1.93
93B
 photo_cameraImage coming soon 6699159 FAN CASE (VERMILION) €17.94
94A
 photo_cameraImage coming soon 6699199 CLUTCH SHAFT €21.81
95
 photo_cameraImage coming soon 6696469 STEP BOLT €1.93
96
 photo_cameraImage coming soon 6684648 BENT WASHER 8 €1.98
97
 photo_cameraImage coming soon 6696546 CLUTCH PLATE (A) €2.58
98
 photo_cameraImage coming soon 6696948 CLUTCH €25.81
99
 photo_cameraImage coming soon 6696547 CLUTCH WASHER (B) €2.58
100
 Flywheel Nut for Chainsaw Hitachi CS33EB 6685337 Flywheel Nut for Chainsaw Hitachi CS33EB €2.49
102B
 Ignition Coil for Brushcutters Hitachi Tanaka CG22EAS-CG24EASP 6699464 Ignition Coil for Brushcutters Hitachi Tanaka CG22EAS-CG24EASP €35.76
106
 Coil Cord (BLACK) for Brushcutter Hitachi CG22EAS 6696544 Coil Cord (BLACK) for Brushcutter Hitachi CG22EAS €2.65
107
 Coil Rarth Cord (Yellow) for Brushcutter Hitachi CG22EAS 6696545 Coil Rarth Cord (Yellow) for Brushcutter Hitachi CG22EAS €2.65
108A
 photo_cameraImage coming soon 6699289 MAGNETO ROTOR ASS'Y €31.63
109
 Anti Vibe Rubber (A) for Brushcutter Hitachi CG22EAB 6696963 Anti Vibe Rubber (A) for Brushcutter Hitachi CG22EAB €4.44
110
 photo_cameraImage coming soon 6696542 PIPE HOLDER (A) €2.58
112
 photo_cameraImage coming soon 6696543 PIPE HOLDER (B) €2.58
113
 photo_cameraImage coming soon 6696964 ANTI VIBE RUBBER (B) €5.81
114
 Retaining Ring 12 mm for Hitachi Power Tools 939542 Retaining Ring 12 mm for Hitachi Power Tools €3.13
118
 photo_cameraImage coming soon 6696487 HANDLE (B) €9.04
118
 photo_cameraImage coming soon 6696942 HANDLE (B) €6.14
119
 photo_cameraImage coming soon 6696490 LOCK LEVER €1.93
120
 Throttle Lever for Brushcutters Hitachi CG22/27 6696488 Throttle Lever for Brushcutters Hitachi CG22/27 €5.17
121
 photo_cameraImage coming soon 6696489 SPRING (A) €2.30
122
 Switch for Brushcutter Hitachi Tanaka CG24EASP 6696940 Switch for Brushcutter Hitachi Tanaka CG24EASP €9.30
126
 photo_cameraImage coming soon 6696486 HANDLE (A) €9.04
126
 photo_cameraImage coming soon 6696941 HANDLE (A) €6.14
127
 Fuel Tank for Brushcutter Hitachi CG22EAS 6696569 Fuel Tank for Brushcutter Hitachi CG22EAS €10.63
128
 photo_cameraImage coming soon 6684620 PUMP FILTER BODY COMP. €21.52
129
 photo_cameraImage coming soon 6696949 CAPACITOR CLIP €2.06
131
 photo_cameraImage coming soon 6696574 BOLT (W/FLANGE) L17.8 €2.58
132A
 photo_cameraImage coming soon 6698716 FUEL PIPE €5.16
133
 photo_cameraImage coming soon 6696476 FUEL PIPE (PINK) €3.60
134A
 photo_cameraImage coming soon 6697846 RETURN GROMMET €1.79
136A
 Fuel Tank Cap for Brushcutter Hitachi CG24ECP (SL) 6698402 Fuel Tank Cap for Brushcutter Hitachi CG24ECP (SL) €9.73
145
 photo_cameraImage coming soon 6684899 WOODRUFF KEY 3X13X4.5 €1.68
146
 photo_cameraImage coming soon 6699463 MAGNETO KEY SET €43.75
217
 Fuel Tank Grommet for Brushcutter Hitachi CG22EAS 6685308 Fuel Tank Grommet for Brushcutter Hitachi CG22EAS €1.98
Page 3 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

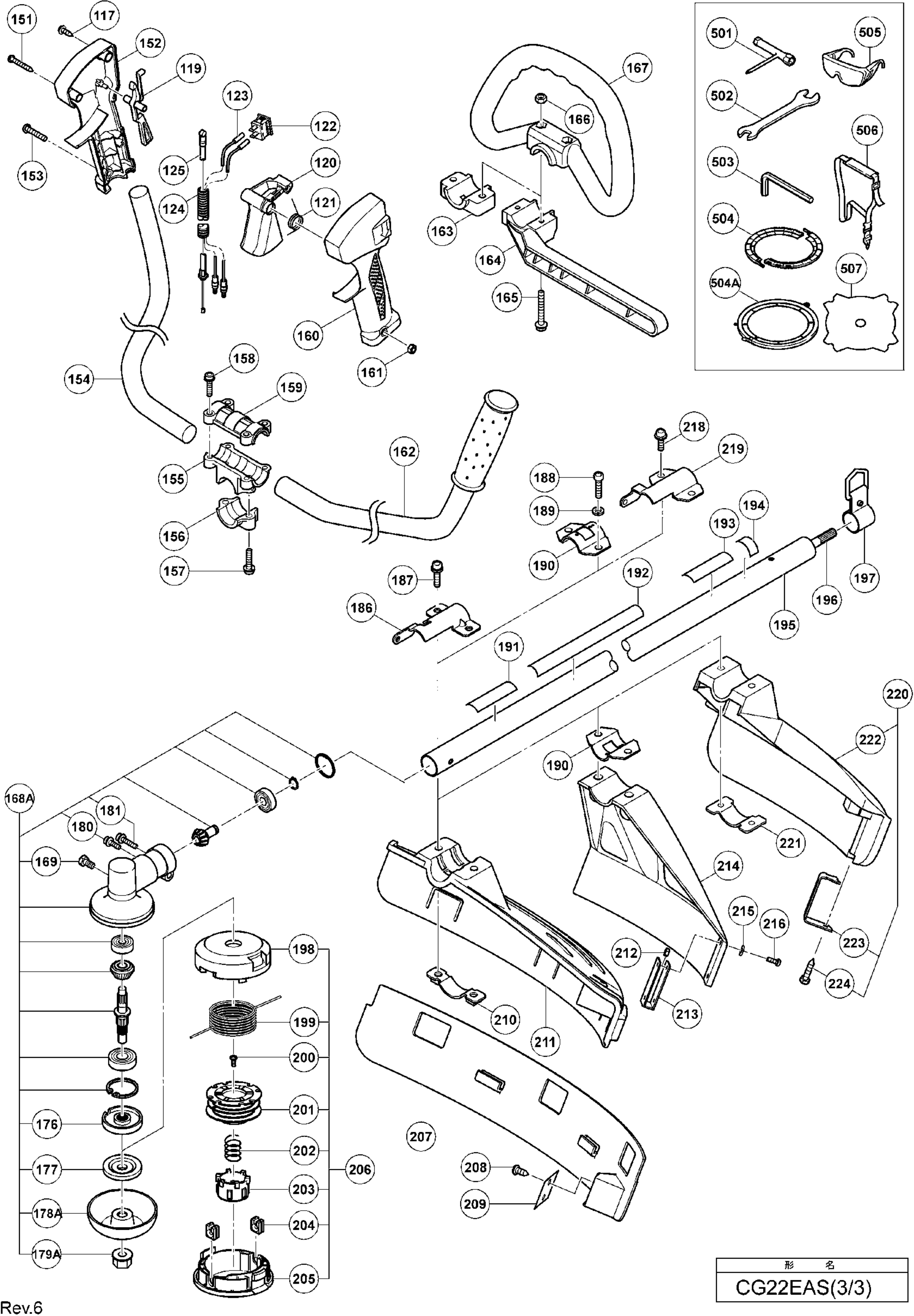

Esploso pagina 3
Pos. Item Price Buy
157
 photo_cameraImage coming soon 6684714 HEX. HOLE BUTTON SCREW 6X25S €1.98
164
 photo_cameraImage coming soon 6696973 BARRIER €4.31
165
 photo_cameraImage coming soon 6696974 BOLT (BLACK) M6 €2.58
167
 photo_cameraImage coming soon 6696975 LOOP HANDLE €7.47
168A
 Hitachi CG22EAS Gear Case 6699402 Hitachi CG22EAS Gear Case €86.29
176
 photo_cameraImage coming soon 6696977 CUTTER HOLDER (A) €29.69
186
 photo_cameraImage coming soon 6696494 COVER BRACKET €3.87
195
 photo_cameraImage coming soon 6696558 MAIN PIPE COMP. €42.60
198
 photo_cameraImage coming soon 6698794 COVER €25.83
201
 photo_cameraImage coming soon 6698796 REEL €10.09
203
 Button for Brushcutter Hitachi CG22EAS 6698798 Button for Brushcutter Hitachi CG22EAS €10.60
204
 photo_cameraImage coming soon 6698799 CORD GUIDE €10.01
205
 photo_cameraImage coming soon 6698800 CASE €18.02
206
 photo_cameraImage coming soon 6696454 NYLON HEAD ASS'Y €17.92
207
 photo_cameraImage coming soon 6696950 COVER GUARD €16.78
208
 photo_cameraImage coming soon 6684751 TAPPING SCREW 4X14 €1.98
209
 photo_cameraImage coming soon 6684750 KNIFE €3.98
210
 photo_cameraImage coming soon 6696951 GUARD HOLDER €3.08
211
 photo_cameraImage coming soon 6696980 COVER €23.23
215
 photo_cameraImage coming soon 323210 BOLT WASHER M4 (BLACK) €1.65
216
 photo_cameraImage coming soon 6685068 MACHINE SCREW (W/SP. WASHER) M4X12 €1.93

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Hitachi Spare Parts for Engine Brush Cutter CG22EAS

Hitachi-HIKOKI Tanaka authorized service center

and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues for Engine Brush Cutter CG22EAS.

In the following table, look for the model of the chainsaw and ripettivo spare part.
Hitachi CG22EAS

ENGINE BRUSH CUTTER CG22EAS
# Part Num. Description
2A 6600338 MUFFLER PROTECTOR
2A 6600337 MUFFLER PROTECTOR FROM PRODUCTION NOVEMBER YEAR 2013
3 6684638 HEX. HOLE BOLT M6X55
4 949432 BOLT WASHER M6
5 6696570 MUFFLER
5 6696554 MUFFLER
6 6696553 HEAT PROTECTION PANEL
6A 6600320 HEAT PROTECTION PANEL
7 6684586 HEX.HOLE BOLT M5X18/S
8 887021 SCREW (W/WASHERS) M5X16 (BLACK)
9 6684600 WASHER T1.6
10 6684595 HEX. SOCKET HD. BOLT (W/SP.WASHER) M4X12
11 6696536 INTAKE COVER (B)
12 6696534 COVER PACKING
13 6696527 CYLINDER
14A 6699155 CYLINDER COVER
15 307606 MACHINE SCREW (W/WASHERS) M4X20 (BLACK)
17A 6699322 SPARK PLUG ASS'Y CJ6
17A 6699316 SPARK PLUG ASS'Y BMR7A
18 6696535 INTAKE COVER (A)
19 6696548 INTAKE PACKING
20 6696943 CARBURETOR INSULATOR
21A 6698844 SEAL LOCK HEX. SOCKET BOLT (W/WASHERS)M5
22 6684616 CARBURETOR PACKING
23 6684628 SWIVEL CAP
24 6696550 CARBURETOR ASS'Y WYC-22
25 6699287 CABLE ADJUST STAY
26 6696830 SWIVEL
27 6684696 STOP RING
28 6684692 PUMP GASKET
29 6684693 PUMP DIAPHRAGM
30 6691242 PUMP PLATE
31 6685222 DIAPHRAGM COVER-METERING
32 6691312 SET SCREW
33 6696829 SET SCREW M3X12
34 6684695 O-RING
36 6691234 CIRCUIT PLATE
37 6696828 PUMP BODY COMP.
38 6685220 DIAPHRAGM PACKING-METERING
39 6684690 METERING DIAPHRAGM
40 307224 MACHINE SCREW (W/WASHERS) M5X60 (BLACK)
41A 6698720 FUEL PIPE
42 6696832 AIR CLEANER HOUSING
43 6685139 PRIMING PUMP COMP.
44 6690347 CLEANER ELEMENT
45 6696831 AIR CLEANER COVER
46 6696549 AIR CLEANER ASS'Y
48 6696530 CYLINDER PACKING
49 6696532 PISTON RING
50 6696531 PISTON
51 6684590 CIR CLIP
52 6696944 PISTON PIN
53 6696538 CRANK CASE (B) COMP
54 6696539 CRANK CASE PACKING
55 6684607 OIL SEAL TB 12227
56 6684608 BALL BEARING 6001 C3
57 6696946 SHIM T0.2
58 6696945 SHIM T0.3
59 6696533 CRANK SHAFT COMP.
60 6696537 CRANK CASE (A) ASS'Y
61 6695521 KNOCK PIN 4X12
62A 6699995 RECOIL STARTER BODY ASS'Y
63 6684679 SET SCREW
64A 6699996 CAM PLATE
65 6684677 DAMPER SPRING
66A 6699997 STARTER ROPE REEL
67 6684675 RECOIL SPRING
68 6684673 RECOIL STARTER BODY COMP.
69 6684674 STARTER ROPE 3.5X860
70 6684680 STARTER HANDLE
72 993539 MACHINE SCREW (W/WASHERS) M4X16
77 6684681 STARTER PULLEY ASS'Y
82 6600339 MUFFLER REAR COVER
83 6600325 TAPPING SCREW D4X10
84 6600340 MUFFER HEAT COVER
85 6600327 MARK PLATE (T)
86 6699000 PRIMER LABEL
87 6699691 CAMPLATE ASS'Y
91 6684667 HEX.HOLE BOLT M5X12/S
92 305583 HEX. SOCKET HD. BOLT (W/SP.WASHER) M5X20
93B 6699159 FAN CASE (VERMILION)
94A 6699199 CLUTCH SHAFT
95 6696469 STEP BOLT
96 6684648 BENT WASHER 8
97 6696546 CLUTCH PLATE (A)
98 6696948 CLUTCH
99 6696547 CLUTCH WASHER (B)
100 6685337 FLYWHEEL NUT
101 323212 BOLT WASHER M8 (BLACK)
102B 6699464 IGNITION COIL ASS'Y
103 6684599 HEX.HOLE BOLT M4X18/WS
106 6696544 CORD
107 6696545 EARTH CORD
108 6696928 MAGNETO ROTOR COMP.
108A 6699289 MAGNETO ROTOR ASS'Y
109 6696963 ANTI VIBE RUBBER (A)
110 6696542 PIPE HOLDER (A)
112 6696543 PIPE HOLDER (B)
113 6696964 ANTI VIBE RUBBER (B)
114 939542 RETAINING RING FOR D12 SHAFT
115 6684636 TAPPING SCREW D4.5X16
117 305812 TAPPING SCREW (W/FLANGE) D4X16 (BLACK)
118 6696942 HANDLE (B)
118 6696487 HANDLE (B)
119 6696490 LOCK LEVER
120 6696488 LEVER
121 6696489 SPRING (A)
122 6696940 STOP SWITCH
126 6696941 HANDLE (A)
126 6696486 HANDLE (A)
127 6696569 TANK
128 6684620 PUMP FILTER BODY COMP.
129 6696949 CLIP
131 6696574 BOLT (W/FLANGE) L17.8
132A 6698716 FUEL PIPE
133 6696476 FUEL PIPE (PINK)
134A 6697846 RETURN GROMMET
135A 6698732 TANK CAP CHAIN
136A 6698402 FUEL TANK CAP ASS'Y
145 6684899 WOODRUFF KEY 3X13X4.5
146 6699463 MAGNETO KEY SET
151 323837 TAPPING SCREW (W/FLANGE) D4X30
152 6696591 HANDLE (B)
152 6696590 HANDLE (B)
153 323041 MACHINE SCREW M5X30 (BLACK)
154 6696585 HANDLE RIGHT
155 6696577 HANDLE HOLDER (B)
156 6696578 HANDLE HOLDER (C)
157 6684714 HEX. HOLE BUTTON SCREW 6X25S
158 6684709 HEX. HOLE BOLT M5X25/S
159 6696576 HANDLE HOLDER (A)
160 6696589 HANDLE (A)
160 6696588 HANDLE (A)
161 302012 NUT M5 (BLACK)
162 6696595 HANDLE LEFT
164 6696973 BARRIER
165 6696974 BOLT (BLACK) M6
166 949556 NUT M6
167 6696975 LOOP HANDLE
168A 6699402 GEAR CASE ASS'Y 3BB(A)
169 6684737 BOLT (W/PLUS) M6X8
176 6696977 CUTTER HOLDER (A)
180 6695414 SCREW 5X12/W.S
181 949664 HEX. SOCKET HD. BOLT M5X30
186 6696494 COVER BRACKET
187 6684714 HEX. HOLE BUTTON SCREW 6X25S
194 6684851 LEVEL MARK
195 6696558 MAIN PIPE COMP.
196A 6698514 DRIVE SHAFT
198 6698794 COVER
200 6698795 SET SCREW
201 6698796 REEL
202 6698797 RETURN SPRING
203 6698798 BUTTON
204 6698799 CORD GUIDE
205 6698800 CASE
206 6696454 NYLON HEAD ASS'Y
207 6696950 COVER GUARD
208 6684751 TAPPING SCREW 4X14
209 6684750 KNIFE
210 6696951 GUARD HOLDER
211 6696980 COVER
212 949554 NUT M4
213 6696584 KNIFE
215 323210 BOLT WASHER M4 (BLACK)
216 6685068 MACHINE SCREW (W/SP. WASHER) M4X12
217 6685308 FUEL GROMMET (A)
225 6699187 PLUG CAP
226 6699186 PLUG CAP METAL
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Hitachi websites, which we consider as reliable Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to hitachi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Hitachi CG22EAS
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Hitachi CG22EAS

Diagram Hitachi CG22EAS

Download (152.9KB)

You might also like

Recoil Starter for Brushcutter Hitachi Tanaka CG22EAS/24-27EASP
HiKOKI Power Tools Italia S.p.a. SKU: 6699995
Recoil Starter for Brushcutter Hitachi Tanaka CG22EAS/24-27EASP
Recoil Starter for Brushcutters Hitachi Tanaka CG22EAS/24-27EASP Original spare part Hitachi Koky Tanaka, Recoil Starter for Brushcutters CG22EAS - CG24EASP - CG27EASP. Part for the following items: - Brushcutters CG22EAS -...
Last items in stock €33.10
Details
Priming Pump for Chain Saws and Brushcutters Hitachi Tanaka
HiKOKI Power Tools Italia S.p.a. SKU: 6685139
Priming Pump for Chain Saws and Brushcutters Hitachi Tanaka
Priming Pump for Chain Saws and Brushcutters Hitachi Tanaka Genuine spare Hitachi Koky Tanaka, Priming Pump complete for Brushcutters and Chain Saws Hitachi Tanaka. Parts for the following products: - BRUSHCUTTER CG47EF (L) -...
AVAILABLE €13.15
Details
Starter Pulley for Bruschcutters Hitachi CG22EAS-CG24EASP-CG27-33EJ
HiKOKI Power Tools Italia S.p.a. SKU: 6684681
Starter Pulley for Bruschcutters Hitachi CG22EAS-CG24EASP-CG27-33EJ
Starter Pulley for Bruschcutters Hitachi CG22EAS-CG24EASP-CG27-33EJ Genuine parts for Bruschcutters Hitachi Koky Tanaka, Starter Pulley Assembly for Brushcutters Recoil CG22EAS - CG24EASP - CG27EJ (SLNP) - CG33EJ-SL. For the following...
Last items in stock €23.26
Details
Damper Spring for Brushcutters Hitachi CG22EAS-CG24EASP-CG27EASP
HiKOKI Power Tools Italia S.p.a. SKU: 6684677
Damper Spring for Brushcutters Hitachi CG22EAS-CG24EASP-CG27EASP
Damper Spring for Brushcutters Hitachi CG22EAS-CG24EASP-CG27EASP Genuine spare parts Hitachi Koky Tanaka, Damper Spring for Brushcutters CG22EAS - CG24EASP - CG27EJ (SLNP) - CG27EASP - CG33EJ-SL Parts for the following products:...
Last items in stock €7.83
Details
Piston Ring for Brush Cutter end Hedge Trimmers Hitachi
HiKOKI Power Tools Italia S.p.a. SKU: 6696532
Piston Ring for Brush Cutter end Hedge Trimmers Hitachi
Piston Ring for Brush Cutter end Hedge Trimmers Hitachi Original spare Hitachi Koky Tanaka, Piston Ring for Brush Cutter end Hedge Trimmers Hitachi. Parts for the following products: - Brush Cutter CG22EAS - Hedge Trimmers CH22EBP2 -...
AVAILABLE €6.50
Details
Piston for Brush Cutter and Hedge Trimmer Hitachi Tanaka CG-CH
HiKOKI Power Tools Italia S.p.a. SKU: 6696531
Piston for Brush Cutter and Hedge Trimmer Hitachi Tanaka CG-CH
Piston for Brush Cutter and Hedge Trimmer Hitachi Tanaka CG-CH Original spare part Hitachi Koky Tanaka, Piston for Brush Cutter and Hedge trimmer Hitachi Tanaka CG-CH. Part for the followinf article: - Brush Cutter CG22EAS - Hedge...
Last items in stock €15.81
Details
Bolt M5X18/S for Chainsaws Hitachi CS38EK-CS45EL
HiKOKI Power Tools Italia S.p.a. SKU: 6684586
Bolt M5X18/S for Chainsaws Hitachi CS38EK-CS45EL
Bolt M5X18/S for Chainsaws Hitachi CS38EK-CS45EL Genuine spare Hitachi Koky Tanaka, Bolt M5X18 / S Brushcutters Hitachi CG22EAS - CG27EJ (SLNP) - CG47EJ-L - CG47EY-T - CG47EF (L) - Chainsaws CS38EK - CS45EL. Parts for the following...
AVAILABLE €1.98
Details
Fuel Tank for Brushcutter Hitachi CG22EAS
HiKOKI Power Tools Italia S.p.a. SKU: 6696569
Fuel Tank for Brushcutter Hitachi CG22EAS
Fuel Tank for Brushcutter Hitachi CG22EAS Original spare Hitachi Koky Tanaka, Fuel Tank for Brushcutter Hitachi CG22EAS. Parts for the following products: - BRUSHCUTTER Hitachi CG22EAS - BRUSHCUTTER HITACHI CG22EAB - BRUSHCUTTER...
Last items in stock €10.63
Details
Fuel Tank Grommet for Brushcutter Hitachi CG22EAS
HiKOKI Power Tools Italia S.p.a. SKU: 6685308
Fuel Tank Grommet for Brushcutter Hitachi CG22EAS
Fuel Tank Grommet for Brushcutter Hitachi CG22EAS Original spare Hitachi Koky Tanaka, Fuel Tank Hose Grommet for Brushcutter Hitachi CG22EAS. Parts for the following products: -  BRUSHCUTTER HITACHI CG22EAS -  BRUSHCUTTER...
AVAILABLE €1.98
Details
Ignition Coil for Brushcutters Hitachi Tanaka CG22EAS-CG24EASP
HiKOKI Power Tools Italia S.p.a. SKU: 6699464
Ignition Coil for Brushcutters Hitachi Tanaka CG22EAS-CG24EASP
Ignition Coil for Brushcutters Hitachi Tanaka CG22EAS-CG24EASP Genuine parts for Hitachi Koky Tanaka, Ignition Coil for Petrol Brushcutter 2 stoke CG22EAS - CG24EASP. Replace your old Ignition coil of your petrol brush...
Last items in stock €35.76
Details
Coil Cord (BLACK) for Brushcutter Hitachi CG22EAS Sale
HiKOKI Power Tools Italia S.p.a. SKU: 6696544
Coil Cord (BLACK) for Brushcutter Hitachi CG22EAS
Coil Cord (BLACK) for Brushcutter Hitachi CG22EAS Original spare Hitachi Koky Tanaka, Coil Cord (BLACK) for Brushcutter Hitachi CG22EAS - CG24EASP. Parts for the following products: - BRUSHCUTTER HITACHI CG22EAS - BRUSHCUTTER HITACHI...
AVAILABLE €2.65
Details
Coil Rarth Cord (Yellow) for Brushcutter Hitachi CG22EAS Sale
HiKOKI Power Tools Italia S.p.a. SKU: 6696545
Coil Rarth Cord (Yellow) for Brushcutter Hitachi CG22EAS
Coil Rarth Cord (Yellow) for Brushcutter Hitachi CG22EAS Original spare Hitachi Koky Tanaka, Coil Rarth Cord (Yellow) for Brushcutter Hitachi CG22EAS - CG24EASP - CG27EASP. Parts for the following products: -  BRUSHCUTTER HITACHI...
AVAILABLE €2.65
Details
Metering Diaphragm for Chainsaws Hitachi CS-33-40-51
HiKOKI Power Tools Italia S.p.a. SKU: 6684690
Metering Diaphragm for Chainsaws Hitachi CS-33-40-51
Metering Diaphragm for Chainsaws Hitachi CS-33-40-51 Original parts for Chainsaw Hitachi Koky Tanaka, Metering Diaphragm for Carburetor Chainsaws,CS33EDT - CS 33EB - CS40EA - TANAKA TCS-40EA - Hitachi CS51EAP -...
Last items in stock €25.81
Details
Cylinder for Brushcutter Hitachi Tanaka CG22EAB (LP) Sale
HiKOKI Power Tools Italia S.p.a. SKU: 6696527
Cylinder for Brushcutter Hitachi Tanaka CG22EAB (LP)
Cylinder for Brushcutter Hitachi Tanaka CG22EAB (LP) Genuine spare part Hitachi Koky Tanaka, Cylinder for Brushcutters CG22EAB (LP) - CG22EAP2 (SP) - CG22EAS (SLP) Part for the following products: - Brushcutter Hitachi CG22EAB (LP) -...
Last items in stock €57.03
Details
Circuit Plate Gasket for Brushcutter Hitachi CG22EAS
HiKOKI Power Tools Italia S.p.a. SKU: 6691234
Circuit Plate Gasket for Brushcutter Hitachi CG22EAS
Circuit Plate Gasket for Brushcutter Hitachi CG22EAS Original parts Hitachi Koky Tanaka, Circuit Plate Gasket for Brushcutters CG22EAS - CG24EASP - CG27EASP Parts for the following products: - Brushcutter Hitachi...
AVAILABLE €6.64
Details
Carburator Cover Packing for Brushcutter Hitachi CG22EAS
HiKOKI Power Tools Italia S.p.a. SKU: 6696534
Carburator Cover Packing for Brushcutter Hitachi CG22EAS
Carburator Cover Packing for Brushcutter Hitachi CG22EAS Original parts Hitachi Koky Tanaka, Carburator Cover Packing for Brushcutters CG22EAS Parts for the following products: - Brushcutter Hitachi CG22EAS - Hedge Trimmer Hitachi...
Last items in stock €2.14
Details
Cylinder Gasket for Brushcutter Hitachi Tanaka CG22EAS
HiKOKI Power Tools Italia S.p.a. SKU: 6696530
Cylinder Gasket for Brushcutter Hitachi Tanaka CG22EAS
Cylinder Gasket for Brushcutter Hitachi Tanaka CG22EAS Genuine spare part Hitachi Koky Tanaka, Cylinder Gasket for Brushcutters CG22EAB - CG22EAS - Edge Trimmer Hitachi CH22EBP2 Part for the following products: - Brushcutter Hitachi...
AVAILABLE €2.16
Details
Piston Pin for Brushcutter Hitachi Tanaka CG22EAS
HiKOKI Power Tools Italia S.p.a. SKU: 6696944
Piston Pin for Brushcutter Hitachi Tanaka CG22EAS
Piston Pin for Brushcutter Hitachi Tanaka CG22EAS Genuine spare part Hitachi Koky Tanaka, Piston Pin for Brushcutters CG22EAB - CG22EAS - Edge Trimmer Hitachi CH22EBP2 Part for the following products: - Pump Hitachi A25EB(N) -...
Last items in stock €7.30
Details
Air Filter Housing for Brushcutter Hitachi Tanaka CG22EAB
HiKOKI Power Tools Italia S.p.a. SKU: 6696832
Air Filter Housing for Brushcutter Hitachi Tanaka CG22EAB
Air Filter Housing for Brushcutter Hitachi Tanaka CG22EAB Original spare part Hitachi, Air Cleaner Housing for Brushcutters CG22EAB(LP) - CG22EAP2(SL) - CG22EAS(SLP) -  CG24EAP2(SL) -  CG24EBSP(SL) -  CG27EAP2(SL) Part for the...
Last items in stock €22.46
Details
Switch for Brushcutter Hitachi Tanaka CG24EASP
HiKOKI Power Tools Italia S.p.a. SKU: 6696940
Switch for Brushcutter Hitachi Tanaka CG24EASP
Switch for Brushcutter Hitachi Tanaka CG24EASP Genuine spare part for Hitachi Koky Tanaka, Switch for Brushcutters CG25EUS - CG24EASP - CG24EACP - CG27EASP - CG22EAS. Part for the following products: - Brushcutter Hitachi CG25EUS -...
Last items in stock €9.30
Details
Circlip for Brushcutter Hitachi CG 24EBS
HiKOKI Power Tools Italia S.p.a. SKU: 6684590
Circlip for Brushcutter Hitachi CG 24EBS
Circlip for Brushcutter Hitachi CG 24EBS Original replacement part Hitachi Koky Tanaka, Piston Pin Circlip for Brushcutters, Chainsaws, Hedgecutters Hitachi - Tanaka. Part for the following...
Last items in stock €1.57
Details
Button for Brushcutter Hitachi CG22EAS
HiKOKI Power Tools Italia S.p.a. SKU: 6698798
Button for Brushcutter Hitachi CG22EAS
Button for Brushcutter Hitachi CG22EAS Original spare Hitachi HiKoki Tanaka, Nylon Head Button for Brushcutter Hitachi CG22EAS - CG24EASP - CG27EASP. Parts for the following products: -  BRUSHCUTTER HITACHI CG22EAS -  BRUSHCUTTER...
Last items in stock €10.60
Details
Anti Vibe Rubber (A) for Brushcutter Hitachi CG22EAB
HiKOKI Power Tools Italia S.p.a. SKU: 6696963
Anti Vibe Rubber (A) for Brushcutter Hitachi CG22EAB
Anti Vibe Rubber (A) for Brushcutter Hitachi CG22EAB Original spare part Hitachi, Anti Vibe Rubber (A) for Brushcutters CG22EAB(LP) - CG22EAP2(SL) - CG22EAS(SLP) -  CG24EAP2(SL) -  CG24EBSP(SL) -  CG27EAP2(SL) Part for the following...
on 7/10 Business Days Approx €4.44
Details
Flywheel Nut for Chainsaw Hitachi CS33EB
HiKOKI Power Tools Italia S.p.a. SKU: 6685337
Flywheel Nut for Chainsaw Hitachi CS33EB
Flywheel Nut for Chainsaw Hitachi CS33EB Original spare part Hitachi-HIKOKI Tanaka, Flywheel Nut for Chainsaw CS33EB - TANAKA - TCS 33EB. Parts for the following products:...
AVAILABLE €2.49
Details
Hitachi CG22EAS Gear Case
HiKOKI Power Tools Italia S.p.a. SKU: 6699402
Hitachi CG22EAS Gear Case
Hitachi Gear Case for Brushcutter CG40EAS Genuine spare part Hoitachi HIKOKI Tanaka, Gear Case Ass'y for Brushcutter CG22EAS - CG25EUP2 - TCG 27EASP. Part for the following products: - Brushcutter Hitachi...
Last items in stock €86.29
Details
Comments (0)
