Hitachi Spare Parts for Engine Grass Trimmer CG25EUS

Name: Hitachi Spare Parts for Engine Grass Trimmer CG25EUS
Brand: HiKOKI Power Tools Italia S.p.a.
SKU: Hitachi CG25EUS
Availability: InStock

SKU: Hitachi CG25EUS

€1.76

VAT included

Hitachi Spare Parts for Engine Grass Trimmer CG25EUS

Hitachi-HIKOKI Tanaka authorized service center and original spare parts Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Engine Grass Trimmer CG 25EUS.

168 spare parts

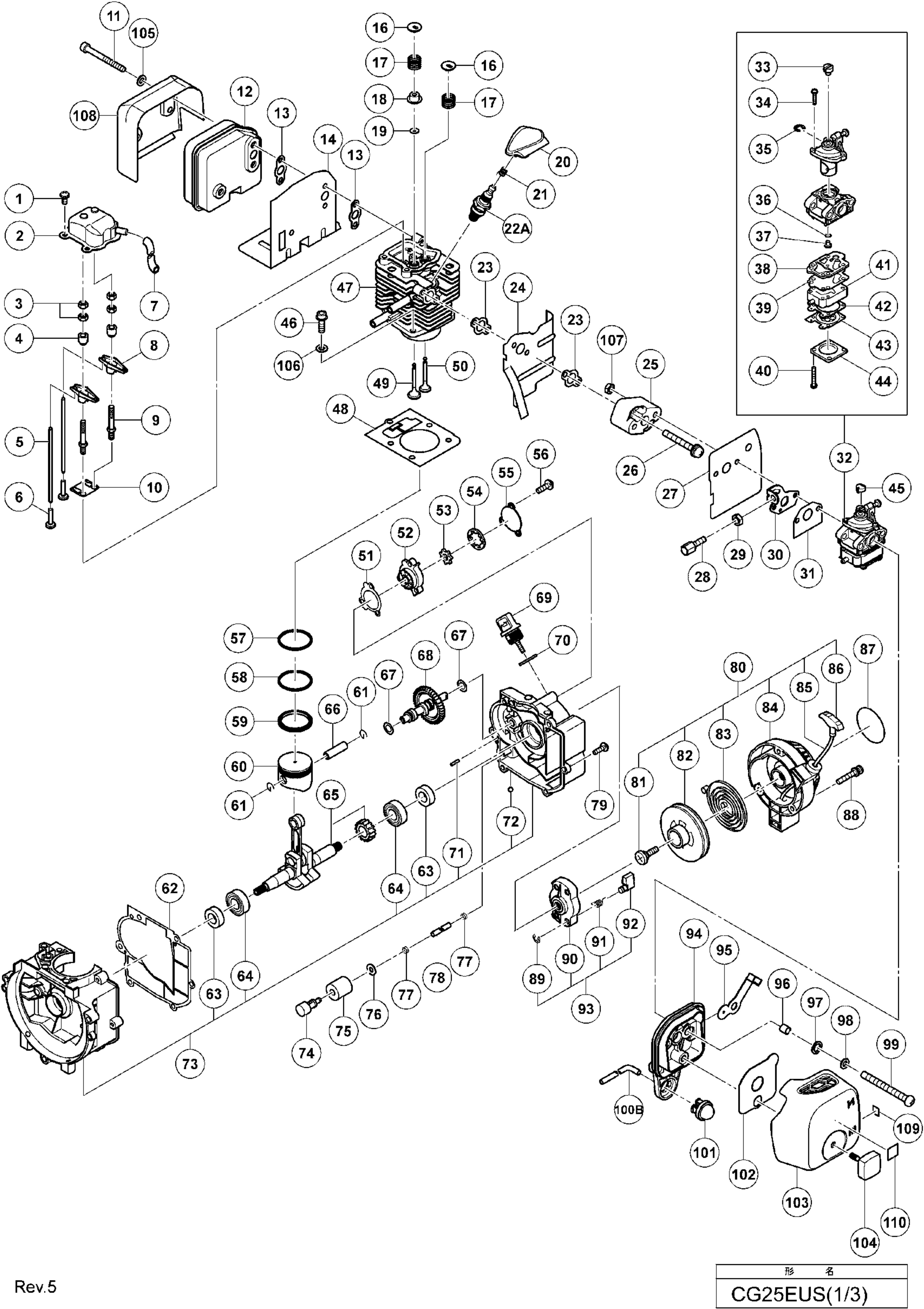

Page 1 View exploded Usually Ships in: 7/10 BUSINESS DAYS

Pos.		Item	Price
2	Image coming soon	6696440 CYLINDER HEAD COVER	€5.16
3		949566 Lock Nut M5 for Reciprocating Saws Hitachi CR13V2 - CR13VBY	€1.45
4	Image coming soon	6696438 PIVOT ROCKER ARM	€2.07
5	Image coming soon	6696437 PUSH ROD	€5.16
6	Image coming soon	6696432 TAPPET	€10.33
7	Image coming soon	6696442 BREATHER PIPE	€10.70
8	Image coming soon	6696439 ROCKER ARM	€5.16
12	Image coming soon	6696462 MUFFLER	€16.77
13	Image coming soon	6696460 MUFFLER GASKET(A)	€2.58
14	Image coming soon	6696461 WIND GUIDE PLATE (B)	€9.04
16	Image coming soon	6696421 RETAINER VALVE	€1.93
17	Image coming soon	6696420 VALVE SPRING	€2.58
18	Image coming soon	6696418 STEM SEAL BASE	€2.58
19	Image coming soon	6696419 STEM SEAL	€2.58
23	Image coming soon	6696450 INSULATOR GASKET	€1.93
24	Image coming soon	6696451 WIND GUIDE PLATE (A)	€8.39
25	Image coming soon	6696452 INSULATOR	€5.81
27	Image coming soon	6696954 CARBURETOR GASKET	€2.58
31	Image coming soon	6696956 INSULATOR GASKET (B)	€2.58
32	Image coming soon	6696957 CARBURETOR	€98.24
45	Image coming soon	6684628 SWIVEL CAP	€1.93
46	Image coming soon	6696958 HEX. SOCKET BOLT M5X20	€3.86
47	Image coming soon	6696413 CYLINDER (A)	€145.75
48	Image coming soon	6696436 CYLINDER GASKET	€1.93
49	Image coming soon	6696417 INTAKE VALVE	€10.33
50	Image coming soon	6696416 EXHAUST VALVE	€12.90
51	Image coming soon	6696444 PUMP GASKET	€2.07
52	Image coming soon	6696443 BASE PUMP	€9.56
53	Image coming soon	6696445 INNER ROTOR	€3.95
54	Image coming soon	6696446 OUTER ROTOR	€3.95
57	Image coming soon	6696429 1ST RING	€19.23
58	Image coming soon	6696430 2ND RING	€21.94
59	Image coming soon	6696431 OIL RING	€43.75
60	Image coming soon	6696427 PISTON	€16.77
61		6684590 Circlip for Brushcutter Hitachi CG 24EBS	€1.57
62	Image coming soon	6696425 CRANK CASE GASKET	€2.58
63	Image coming soon	6684607 OIL SEAL TB 12227	€3.20
64	Image coming soon	6684608 BALL BEARING 6001 C3	€6.06
65	Image coming soon	6696426 CRANK SHAFT GEAR SET	€107.14
66		6684591 Piston Pin for Brushcutter Hitachi CG27EASP	€4.14
67	Image coming soon	6696434 SHIM	€2.07
70	Image coming soon	6696959 O-RING (I.D 13.8)	€2.07
71		6685391 Needle Roller mm 3 for Chainsaw Hitachi Tanaka CS40EA	€2.52
72	Image coming soon	321905 STEEL BALL D4 (10 PCS.)	€5.53
74		6685310 Oil Filter Body for Chainsaw Hitachi Tanaka CS33EDT	€2.37
76	Image coming soon	6685407 BOLT WASHER D5	€2.22
77	Image coming soon	6685311 CLIP	€2.58
80	Image coming soon	6696470 RECOIL STARTER BODY ASS'Y	€46.27
85	Image coming soon	6693168 ROPE	€3.26
93	Image coming soon	6696471 STARTER PULLEY ASS'Y	€9.04
94	Image coming soon	6696455 CLEANER BODY	€5.16
97	Image coming soon	6684658 WAVE WASHER 8	€2.45
98	Image coming soon	6685407 BOLT WASHER D5	€2.22
100A	Image coming soon	6698720 FUEL PIPE	€7.10
101		6685139 Priming Pump for Chain Saws and Brushcutters Hitachi Tanaka	€13.15
103	Image coming soon	6696458 CLEANER COVER	€6.45
104	Image coming soon	6684655 COVER FIXING BOLT	€6.45
107		949566 Lock Nut M5 for Reciprocating Saws Hitachi CR13V2 - CR13VBY	€1.45
108	Image coming soon	6600329 MUFFLER HEAT COVER	€8.96
121	Image coming soon	6684667 HEX.HOLE BOLT M5X12/S	€1.93
123		6696963 Anti Vibe Rubber (A) for Brushcutter Hitachi CG22EAB	€4.44
124A	Image coming soon	6698643 PIPE HOLDER (A)	€5.16
125A	Image coming soon	6698644 PIPE HOLDER (B)	€5.16
126	Image coming soon	6696964 ANTI VIBE RUBBER (B)	€5.81
131	Image coming soon	6696469 STEP BOLT	€1.93
132	Image coming soon	6684648 BENT WASHER 8	€1.98
133	Image coming soon	6696965 CLUTCH PLATE (A)	€2.06
134	Image coming soon	6696948 CLUTCH	€25.81
135	Image coming soon	6684642 CLUTCH WASHER B	€1.98
136		6685337 Flywheel Nut for Chainsaw Hitachi CS33EB	€2.49
137	Image coming soon	6685410 BOLT WASHER D8	€2.58
138	Image coming soon	6696464 MAGNET ROTOR	€29.68
144		939542 Retaining Ring 12 mm for Hitachi Power Tools	€3.13
147B	Image coming soon	6698793 CLUTCH SHAFT	€19.35
149	Image coming soon	6696487 HANDLE (B)	€9.04
150	Image coming soon	6696490 LOCK LEVER	€1.93
151		6696488 Throttle Lever for Brushcutters Hitachi CG22/27	€5.17
152	Image coming soon	6696489 SPRING (A)	€2.30
153	Image coming soon	6696486 HANDLE (A)	€9.04
154		6696940 Switch for Brushcutter Hitachi Tanaka CG24EASP	€9.30
155	Image coming soon	6696491 STOP SWITCH CORD	€4.23
156	Image coming soon	6696967 PROTECTION TUBE	€2.30
157	Image coming soon	6696492 THROTTLE WIRE (EU)	€12.90
159		6685199 Pump Filter Body for Chainsaw Hitachi Tanaka CS25EC-SC	€6.50
163A	Image coming soon	6698717 FUEL PIPE	€19.35
164	Image coming soon	6696476 FUEL PIPE (PINK)	€3.60
165A	Image coming soon	6697846 RETURN GROMMET	€1.79
166		6685308 Fuel Tank Grommet for Brushcutter Hitachi CG22EAS	€1.98
167	Image coming soon	6696479 TANK CAP ASS'Y (A)	€16.60
170	Image coming soon	6685311 CLIP	€2.58
187	Image coming soon	6684714 HEX. HOLE BUTTON SCREW 6X25S	€1.98
194	Image coming soon	6696973 BARRIER	€4.31
195	Image coming soon	6696974 BOLT (BLACK) M6	€2.58
196		949566 Lock Nut M5 for Reciprocating Saws Hitachi CR13V2 - CR13VBY	€1.45
197	Image coming soon	6696975 LOOP HANDLE	€7.47
198A		6699402 Hitachi CG22EAS Gear Case	€86.29
206	Image coming soon	6696977 CUTTER HOLDER (A)	€29.69
208A	Image coming soon	6699188 NUT COVER	€16.77
216	Image coming soon	6696494 COVER BRACKET	€3.87
217	Image coming soon	6684714 HEX. HOLE BUTTON SCREW 6X25S	€1.98
225	Image coming soon	6696558 MAIN PIPE COMP.	€42.60
226A	Image coming soon	6698514 DRIVE SHAFT	€34.85
227	Image coming soon	6696493 HANGER	€3.95
228	Image coming soon	6698794 COVER	€25.83
231	Image coming soon	6698796 REEL	€10.09
233		6698798 Button for Brushcutter Hitachi CG22EAS	€10.60
234	Image coming soon	6698799 CORD GUIDE	€10.01
235	Image coming soon	6698800 CASE	€18.02
236	Image coming soon	6696454 NYLON HEAD ASS'Y	€17.92
237	Image coming soon	6696950 COVER GUARD	€16.78
238	Image coming soon	6684751 TAPPING SCREW 4X14	€1.98
239	Image coming soon	6684750 KNIFE	€3.98
240	Image coming soon	6696951 GUARD HOLDER	€3.08
241	Image coming soon	6696980 COVER	€23.23
249	Image coming soon	6696593 THROTTLE WIRE COMP.	€10.33

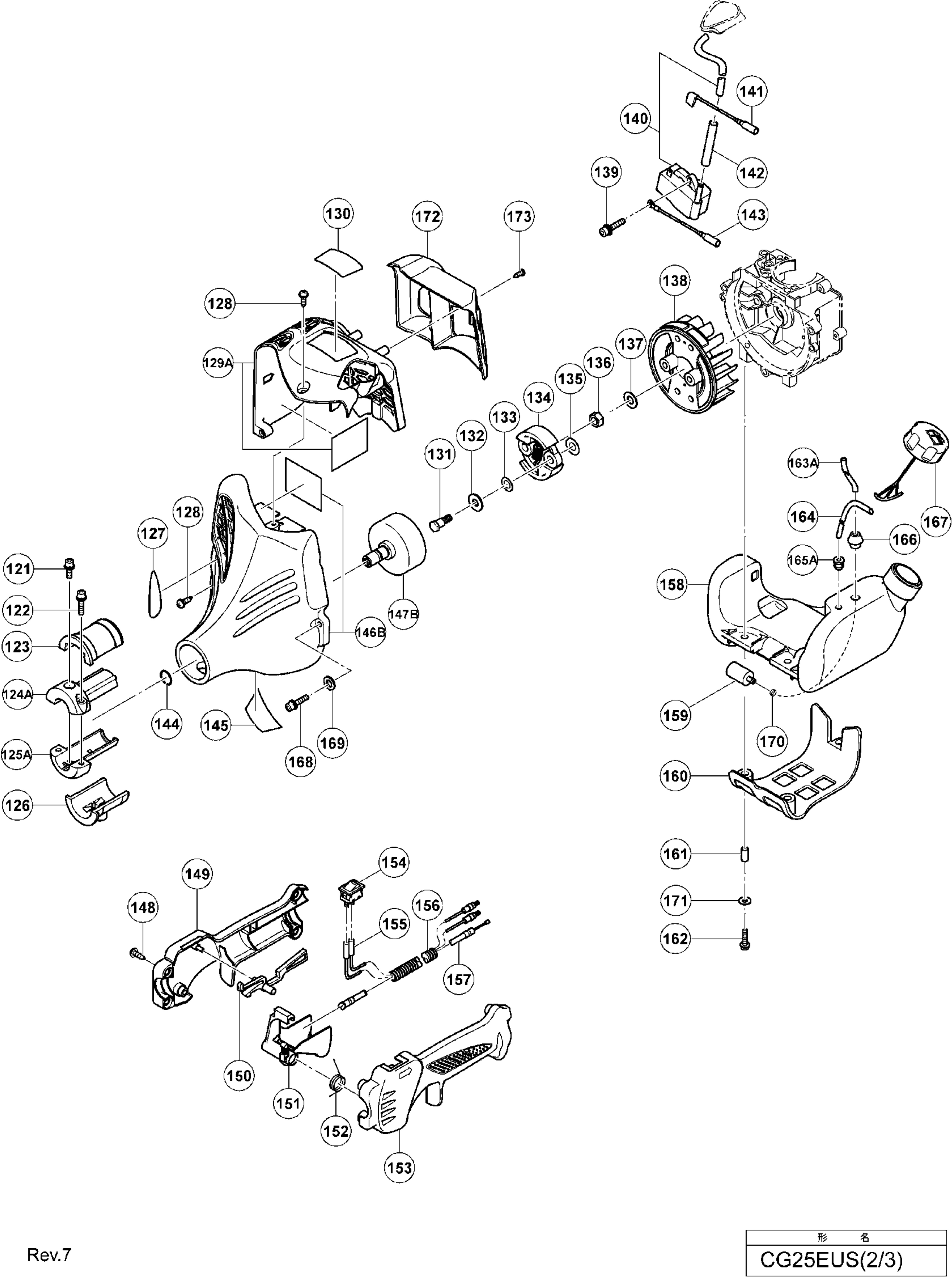

Page 2 View exploded Usually Ships in: 7/10 BUSINESS DAYS

Pos.		Item	Price
121	Image coming soon	6684667 HEX.HOLE BOLT M5X12/S	€1.93
123		6696963 Anti Vibe Rubber (A) for Brushcutter Hitachi CG22EAB	€4.44
124A	Image coming soon	6698643 PIPE HOLDER (A)	€5.16
125A	Image coming soon	6698644 PIPE HOLDER (B)	€5.16
126	Image coming soon	6696964 ANTI VIBE RUBBER (B)	€5.81
131	Image coming soon	6696469 STEP BOLT	€1.93
132	Image coming soon	6684648 BENT WASHER 8	€1.98
133	Image coming soon	6696965 CLUTCH PLATE (A)	€2.06
134	Image coming soon	6696948 CLUTCH	€25.81
135	Image coming soon	6684642 CLUTCH WASHER B	€1.98
136		6685337 Flywheel Nut for Chainsaw Hitachi CS33EB	€2.49
137	Image coming soon	6685410 BOLT WASHER D8	€2.58
138	Image coming soon	6696464 MAGNET ROTOR	€29.68
144		939542 Retaining Ring 12 mm for Hitachi Power Tools	€3.13
147B	Image coming soon	6698793 CLUTCH SHAFT	€19.35
149	Image coming soon	6696487 HANDLE (B)	€9.04
150	Image coming soon	6696490 LOCK LEVER	€1.93
151		6696488 Throttle Lever for Brushcutters Hitachi CG22/27	€5.17
152	Image coming soon	6696489 SPRING (A)	€2.30
153	Image coming soon	6696486 HANDLE (A)	€9.04
154		6696940 Switch for Brushcutter Hitachi Tanaka CG24EASP	€9.30
155	Image coming soon	6696491 STOP SWITCH CORD	€4.23
156	Image coming soon	6696967 PROTECTION TUBE	€2.30
157	Image coming soon	6696492 THROTTLE WIRE (EU)	€12.90
159		6685199 Pump Filter Body for Chainsaw Hitachi Tanaka CS25EC-SC	€6.50
163A	Image coming soon	6698717 FUEL PIPE	€19.35
164	Image coming soon	6696476 FUEL PIPE (PINK)	€3.60
165A	Image coming soon	6697846 RETURN GROMMET	€1.79
166		6685308 Fuel Tank Grommet for Brushcutter Hitachi CG22EAS	€1.98
167	Image coming soon	6696479 TANK CAP ASS'Y (A)	€16.60

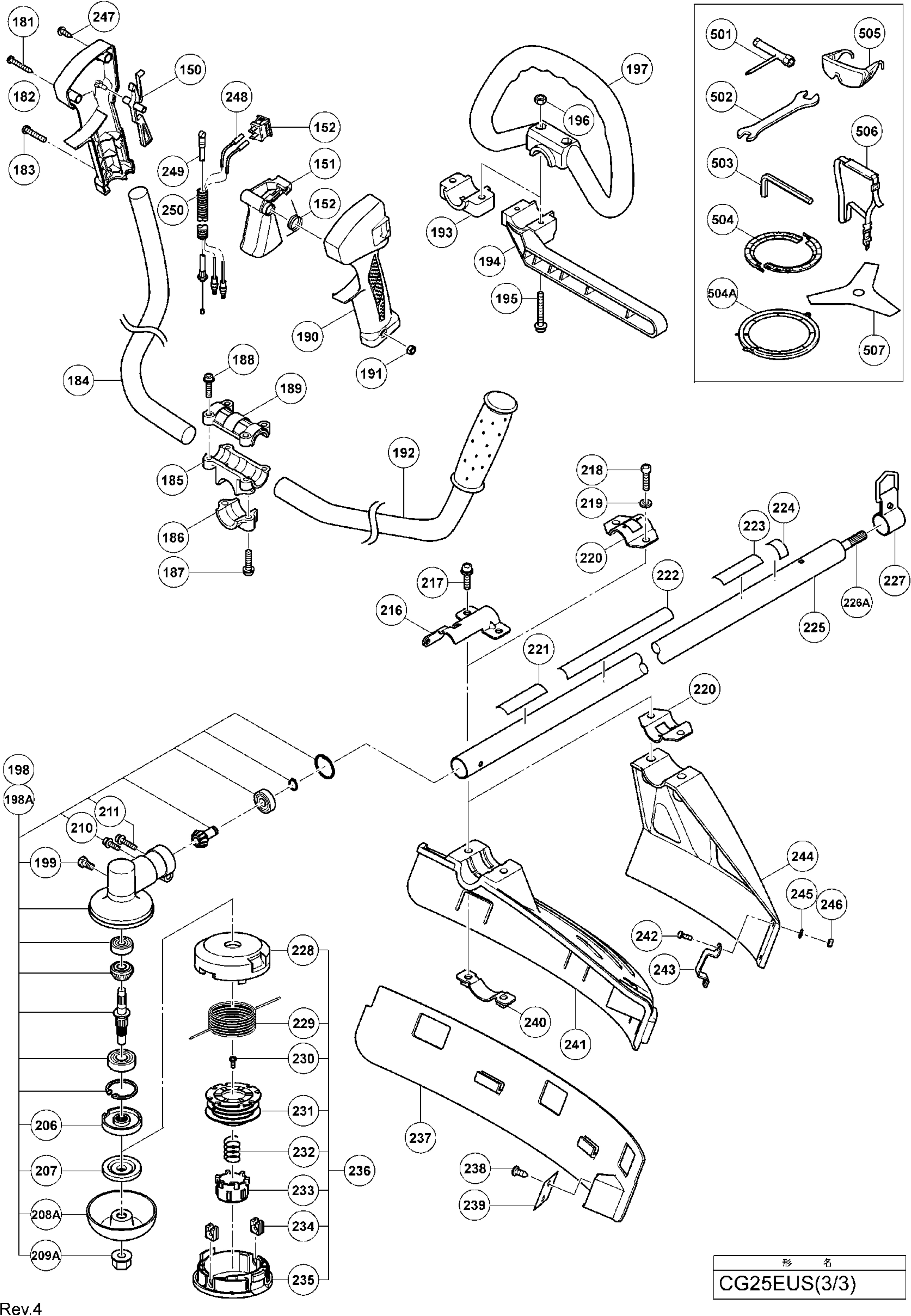

Page 3 View exploded Usually Ships in: 7/10 BUSINESS DAYS

Pos.		Item	Price
187	Image coming soon	6684714 HEX. HOLE BUTTON SCREW 6X25S	€1.98
194	Image coming soon	6696973 BARRIER	€4.31
195	Image coming soon	6696974 BOLT (BLACK) M6	€2.58
197	Image coming soon	6696975 LOOP HANDLE	€7.47
198A		6699402 Hitachi CG22EAS Gear Case	€86.29
206	Image coming soon	6696977 CUTTER HOLDER (A)	€29.69
208A	Image coming soon	6699188 NUT COVER	€16.77
216	Image coming soon	6696494 COVER BRACKET	€3.87
225	Image coming soon	6696558 MAIN PIPE COMP.	€42.60
226A	Image coming soon	6698514 DRIVE SHAFT	€34.85
227	Image coming soon	6696493 HANGER	€3.95
228	Image coming soon	6698794 COVER	€25.83
231	Image coming soon	6698796 REEL	€10.09
233		6698798 Button for Brushcutter Hitachi CG22EAS	€10.60
234	Image coming soon	6698799 CORD GUIDE	€10.01
235	Image coming soon	6698800 CASE	€18.02
236	Image coming soon	6696454 NYLON HEAD ASS'Y	€17.92
237	Image coming soon	6696950 COVER GUARD	€16.78
238	Image coming soon	6684751 TAPPING SCREW 4X14	€1.98
239	Image coming soon	6684750 KNIFE	€3.98
240	Image coming soon	6696951 GUARD HOLDER	€3.08
241	Image coming soon	6696980 COVER	€23.23
249	Image coming soon	6696593 THROTTLE WIRE COMP.	€10.33

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Hitachi Spare Parts for Engine Grass Trimmer CG25EUS

Hitachi-HIKOKI Tanaka authorized service center

and original spare parts Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Engine Grass Trimmer CG 25EUS.

In the following table, look for the model of the Trimmer and ripettivo spare part.

ENGINE GRASS TRIMMER CG 25EUS
#	Part Num.	Description
1	307635	MACHINE SCREW (W/SP. WASHER) M4X10
2	6696440	CYLINDER HEAD COVER
3	949566	LOCK NUT M5 (10 PCS.)
4	6696438	PIVOT ROCKER ARM
5	6696437	PUSH ROD
6	6696432	TAPPET
7	6696442	BREATHER PIPE
8	6696439	ROCKER ARM
9	6696415	SHAFT BOLT
10	6696414	PUSH ROD GUIDE
11	6685409	HEX. SOCKET HD. BOLT M5
12	6696462	MUFFLER
13	6696460	MUFFLER GASKET(A)
14	6696461	WIND GUIDE PLATE (B)
16	6696421	RETAINER VALVE
17	6696420	VALVE SPRING
18	6696418	STEM SEAL BASE
19	6696419	STEM SEAL
20	6696465	SPARK PLUG CAP
21	6696996	METAL FITTING OF PLUG CAP
22A	6699310	SPARK PLUG ASS'Y CMR5H
23	6696450	INSULATOR GASKET
24	6696451	WIND GUIDE PLATE (A)
25	6696452	INSULATOR
26	880561	MACHINE SCREW (W/WASHERS) M5X30
27	6696954	CARBURETOR GASKET
30	6684629	THROTTLE WIRE FIXING PLATE
31	6696956	INSULATOR GASKET (B)
32	6696957	CARBURETOR
45	6684628	SWIVEL CAP
46	6696958	HEX. SOCKET BOLT M5X20
47	6696413	CYLINDER (A)
48	6696436	CYLINDER GASKET
49	6696417	INTAKE VALVE
50	6696416	EXHAUST VALVE
51	6696444	PUMP GASKET
52	6696443	BASE PUMP
53	6696445	INNER ROTOR
54	6696446	OUTER ROTOR
55	6696447	COVER PUMP
56	696997	MACHINE SCREW (W/SP. WASHER) M4X16(BLACK
57	6696429	1ST RING
58	6696430	2ND RING
59	6696431	OIL RING
60	6696427	PISTON
61	6684590	CIR CLIP
62	6696425	CRANK CASE GASKET
63	6684607	OIL SEAL TB 12227
64	6684608	BALL BEARING 6001 C3
65	6696426	CRANK SHAFT GEAR SET
66	6684591	PISTON PIN
67	6696434	SHIM
68	6696433	CAM SHAFT SET
69	6696449	OIL CAP
70	6696959	O-RING (I.D 13.8)
71	6685391	NEEDLE ROLLER D3
72	321905	STEEL BALL D4 (10 PCS.)
73	6696960	CRANK CASE ASS'Y (B)
74	6685310	OIL FILTER BODY
75	6690919	OIL FILTER
76	6685407	BOLT WASHER D5
77	6685311	CLIP
78	6696435	FUEL PIPE
79	6684599	HEX.HOLE BOLT M4X18/WS
80	6696470	RECOIL STARTER BODY ASS'Y
85	6693168	ROPE
88	6696472	SEAL LOCK SCREW M4
93	6696471	STARTER PULLEY ASS'Y
94	6696455	CLEANER BODY
95	6684657	CHOKE VALVE
96	6684659	COLLAR 8
97	6684658	WAVE WASHER 8
98	6685407	BOLT WASHER D5
99	6696961	MACHINE SCREW (W/SP. WASHER) M5
100A	6698720	FUEL PIPE
101	6685139	PRIMING PUMP COMP.
102	6696459	CLEANER ELEMENT
103	6696458	CLEANER COVER
104	6684655	COVER FIXING BOLT
105	6685408	WASHER 5
106	6685408	WASHER 5
107	949566	LOCK NUT M5 (10 PCS.)
108	6600329	MUFFLER HEAT COVER
109	6600327	MARK PLATE (T)
110	6699000	PRIMER LABEL
121	6684667	HEX.HOLE BOLT M5X12/S
122	305583	HEX. SOCKET HD. BOLT (W/SP.WASHER) M5X20
123	6696963	ANTI VIBE RUBBER (A)
124A	6698643	PIPE HOLDER (A)
125A	6698644	PIPE HOLDER (B)
126	6696964	ANTI VIBE RUBBER (B)
128	6684636	TAPPING SCREW D4.5X16
129A	6600331	ENGINE COVER (W/ALUMINUM TAPE)
131	6696469	STEP BOLT
132	6684648	BENT WASHER 8
133	6696965	CLUTCH PLATE (A)
134	6696948	CLUTCH
135	6684642	CLUTCH WASHER B
136	6685337	FLYWHEEL NUT
137	6685410	BOLT WASHER D8
138	6696464	MAGNET ROTOR
139	6684599	HEX.HOLE BOLT M4X18/WS
140	6696463	IGNITION COIL SET
141	6696467	STOP CORD
142	6696966	CORD INSULATION TUBE
143	6696466	EARTH CORD
144	939542	RETAINING RING FOR D12 SHAFT (10 PCS.)
146B	6600330	FAN CASE (A) W/ALUMINUM TAPE
147B	6698793	CLUTCH SHAFT
*148	305812	TAPPING SCREW (W/FLANGE) D4X16 (BLACK)
*149	6696487	HANDLE (B)
150	6696490	LOCK LEVER
151	6696488	LEVER
152	6696489	SPRING (A)
*153	6696486	HANDLE (A)
154	6696940	STOP SWITCH
*155	6696491	STOP SWITCH CORD
*156	6696967	PROTECTION TUBE
*157	6696492	THROTTLE WIRE (EU)
*158	6696474	TANK
159	6685199	PUMP FILTER BODY
160	6696477	STAND
161	6696478	COLLAR
162	6684709	HEX. HOLE BOLT M5X25/S
163A	6698717	FUEL PIPE
164	6696476	FUEL PIPE (PINK)
165A	6697846	RETURN GROMMET
166	6685308	FUEL GROMMET (A)
167	6600333	REAR COVER
*167	6696479	TANK CAP ASS'Y (A)
168	305583	HEX. SOCKET HD. BOLT (W/SP.WASHER) M5X20
168	6600332	TAPPING SCREW D4
169	6685408	WASHER 5
170	6685311	CLIP
171	6685408	WASHER 5
172	6600333	REAR COVER
173	6600332	TAPPING SCREW D4
181	323837	TAPPING SCREW (W/FLANGE) D4X30
182	6696590	HANDLE (B)
183	323041	MACHINE SCREW M5X30 (BLACK)
*184	6698637	HANDLE RIGHT
185	6696577	HANDLE HOLDER (B)
186	6696578	HANDLE HOLDER (C)
187	6684714	HEX. HOLE BUTTON SCREW 6X25S
188	6684709	HEX. HOLE BOLT M5X25/S
189	6696576	HANDLE HOLDER (A)
190	6696588	HANDLE (A)
191	302012	NUT M5 (BLACK)
*192	6698638	HANDLE (LEFT)
194	6696973	BARRIER
195	6696974	BOLT (BLACK) M6
*196	949566	LOCK NUT M5 (10 PCS.)
*197	6696975	LOOP HANDLE
*198	6696976	GEAR CASE ASS'Y 3BB (B) SET
198A	6699402	GEAR CASE ASS'Y 3BB(A)
199	6684737	BOLT (W/PLUS) M6X8
206	6696977	CUTTER HOLDER (A)
208A	6699188	NUT COVER
209A	335759	U-NUT (LEFT HAND) M10
216	6696494	COVER BRACKET
217	6684714	HEX. HOLE BUTTON SCREW 6X25S
224	6684851	LEVEL MARK
225	6696558	MAIN PIPE COMP.
226A	6698514	DRIVE SHAFT
227	6696493	HANGER
228	6698794	COVER
230	6698795	SET SCREW
231	6698796	REEL
232	6698797	RETURN SPRING
233	6698798	BUTTON
234	6698799	CORD GUIDE
235	6698800	CASE
236	6696454	NYLON HEAD ASS'Y
237	6696950	COVER GUARD
238	6684751	TAPPING SCREW 4X14
239	6684750	KNIFE
240	6696951	GUARD HOLDER
241	6696980	COVER
247	305812	TAPPING SCREW (W/FLANGE) D4X16 (BLACK)
248	6696592	STOP SWITCH CORD
249	6696593	THROTTLE WIRE COMP.
250	6696594	PROTECTION TUBE

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Hitachi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to hitachi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.

Reference Hitachi CG25EUS

Available 6 Items

Data sheet

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]

Specific References

Condition New

Download

Diagram Hitachi CG25EUS

Download (159.83KB)

HiKOKI Power Tools Italia S.p.a. SKU: 6685139

Priming Pump for Chain Saws and Brushcutters Hitachi Tanaka

Priming Pump for Chain Saws and Brushcutters Hitachi Tanaka Genuine spare Hitachi Koky Tanaka, Priming Pump complete for Brushcutters and Chain Saws Hitachi Tanaka. Parts for the following products: - BRUSHCUTTER CG47EF (L) -...

AVAILABLE €13.15

Details

HiKOKI Power Tools Italia S.p.a. SKU: 6685308

Fuel Tank Grommet for Brushcutter Hitachi CG22EAS

Fuel Tank Grommet for Brushcutter Hitachi CG22EAS Original spare Hitachi Koky Tanaka, Fuel Tank Hose Grommet for Brushcutter Hitachi CG22EAS. Parts for the following products: - BRUSHCUTTER HITACHI CG22EAS - BRUSHCUTTER...

AVAILABLE €1.98

Details

HiKOKI Power Tools Italia S.p.a. SKU: 6684591

Piston Pin for Brushcutter Hitachi CG27EASP

Piston Pin for Brushcutter Hitachi CG27EASP Genuine part Hitachi Koky Tanaka, Piston Pin for Brushcutters CG24EASP - CG24EKS - CG25EUS - CG27EASP - CG27EJ(SLNP) Parts for the following products: - Brushcutter Hitachi CG24EASP -...

Last items in stock €4.14

Details

HiKOKI Power Tools Italia S.p.a. SKU: 6685310

Oil Filter Body for Chainsaw Hitachi Tanaka CS33EDT

Oil Filter Body for Chainsaw Hitachi Tanaka CS33EDT Genuine spare part Hitachi Koky Tanaka, Oil Filter Body for Chainsaws CS33EDT - CS33EDTP - CS33EA - CS33EB - CS33ET...

AVAILABLE €2.37

Details

HiKOKI Power Tools Italia S.p.a. SKU: 6685199

Pump Filter Body for Chainsaw Hitachi Tanaka CS25EC-SC

Pump Filter Body for Chainsaw Hitachi Tanaka CS25EC-SC Original spare part Hitachi Koky Tanaka, Pump Filter Body for Chainsaw CS25EC-SC - CS33EDT - CS33EB - CS40EA - Brushcutter CG25EUS. Part for the following products: - Chainsaw...

Last items in stock €6.50

Details

HiKOKI Power Tools Italia S.p.a. SKU: 6685391

Needle Roller mm 3 for Chainsaw Hitachi Tanaka CS40EA

Needle Roller mm 3 for Chainsaw Hitachi Tanaka CS40EA Original spare part Hitachi Koky Tanaka, Needle Roller mm 3 for Chainsaws CS33EDT - CS40EA - CS33EB - CS51EAP - Tanaka TCS-40EA - TCS 33ED. Part for the following products: -...

AVAILABLE €2.52

Details

HiKOKI Power Tools Italia S.p.a. SKU: 6696940

Switch for Brushcutter Hitachi Tanaka CG24EASP

Switch for Brushcutter Hitachi Tanaka CG24EASP Genuine spare part for Hitachi Koky Tanaka, Switch for Brushcutters CG25EUS - CG24EASP - CG24EACP - CG27EASP - CG22EAS. Part for the following products: - Brushcutter Hitachi CG25EUS -...

Last items in stock €9.30

Details

HiKOKI Power Tools Italia S.p.a. SKU: 6684590

Circlip for Brushcutter Hitachi CG 24EBS

Circlip for Brushcutter Hitachi CG 24EBS Original replacement part Hitachi Koky Tanaka, Piston Pin Circlip for Brushcutters, Chainsaws, Hedgecutters Hitachi - Tanaka. Part for the following...

Last items in stock €1.57

Details

HiKOKI Power Tools Italia S.p.a. SKU: 949566

Lock Nut M5 for Reciprocating Saws Hitachi CR13V2 - CR13VBY

Lock Nut M5 for Reciprocating Saws Hitachi CR13V2 - CR13VBY Genuine part Hitachi, Lock Nut M5 (10 PCS.) for Reciprocating Saws CR13V2 - CR13VBY - Cut-Off Machine CC14SF - Brushcutter CG25EUS. Part for the following products: -...

AVAILABLE €1.45

Details

HiKOKI Power Tools Italia S.p.a. SKU: 6698798

Button for Brushcutter Hitachi CG22EAS

Button for Brushcutter Hitachi CG22EAS Original spare Hitachi HiKoki Tanaka, Nylon Head Button for Brushcutter Hitachi CG22EAS - CG24EASP - CG27EASP. Parts for the following products: - BRUSHCUTTER HITACHI CG22EAS - BRUSHCUTTER...

Last items in stock €10.60

Details

HiKOKI Power Tools Italia S.p.a. SKU: 6696963

Anti Vibe Rubber (A) for Brushcutter Hitachi CG22EAB

Anti Vibe Rubber (A) for Brushcutter Hitachi CG22EAB Original spare part Hitachi, Anti Vibe Rubber (A) for Brushcutters CG22EAB(LP) - CG22EAP2(SL) - CG22EAS(SLP) - CG24EAP2(SL) - CG24EBSP(SL) - CG27EAP2(SL) Part for the following...

on 7/10 Business Days Approx €4.44

Details

HiKOKI Power Tools Italia S.p.a. SKU: 6685337

Flywheel Nut for Chainsaw Hitachi CS33EB

Flywheel Nut for Chainsaw Hitachi CS33EB Original spare part Hitachi-HIKOKI Tanaka, Flywheel Nut for Chainsaw CS33EB - TANAKA - TCS 33EB. Parts for the following products:...

AVAILABLE €2.49

Details

HiKOKI Power Tools Italia S.p.a. SKU: 6699402

Hitachi CG22EAS Gear Case

Hitachi Gear Case for Brushcutter CG40EAS Genuine spare part Hoitachi HIKOKI Tanaka, Gear Case Ass'y for Brushcutter CG22EAS - CG25EUP2 - TCG 27EASP. Part for the following products: - Brushcutter Hitachi...

Last items in stock €86.29

Details

Comments (0)

Cart (0)

Subcategories

Subcategories

Subcategories

Power Tools Spare Parts

Garden Spare Parts

Air Compressor Spare Parts

Protezione & Edilizia

Impianti & Utensili

Casa & Giardino

Hitachi Spare Parts for Engine Grass Trimmer CG25EUS

Hitachi Spare Parts for Engine Grass Trimmer CG25EUS

Hitachi Spare Parts for Engine Grass Trimmer CG25EUS

Hitachi Spare Parts for Engine Grass Trimmer CG25EUS

Hitachi Spare Parts for Engine Grass Trimmer CG25EUS

Data sheet

Specific References

Download

Diagram Hitachi CG25EUS

You might also like

News

Notes

Products

Our company
