HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Engine Chainsaw CS38EK

SKU: Hitachi CS38EK
€1.11
VAT included

Hitachi Spare Parts for Engine Chainsaw CS38EK

Hitachi - HIKOKI original spare parts for the replacement of damaged parts or to repair electrical or mechanical components of Chainsaw CS38EK.

A practical, powerful and functional chainsaw, for all types of garden work, in the countryside, in woods and forests for cutting bushes, branches, trees and trunks, with spare parts at the best price.
Hitachi Spare Parts for Engine Chainsaw CS38EK
  • Hitachi Spare Parts for Engine Chainsaw CS38EK
  • Hitachi Spare Parts for Engine Chainsaw CS38EK
  • Hitachi Spare Parts for Engine Chainsaw CS38EK
  • Hitachi Spare Parts for Engine Chainsaw CS38EK
  • Hitachi Spare Parts for Engine Chainsaw CS38EK
  • Hitachi Spare Parts for Engine Chainsaw CS38EK
  • Hitachi Spare Parts for Engine Chainsaw CS38EK
  • Hitachi Spare Parts for Engine Chainsaw CS38EK
  • Hitachi Spare Parts for Engine Chainsaw CS38EK
  • Hitachi Spare Parts for Engine Chainsaw CS38EK
  • Hitachi Spare Parts for Engine Chainsaw CS38EK
HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Engine Chainsaw CS38EK

SKU: Hitachi CS38EK Condition: New
€1.11
VAT included

Hitachi Spare Parts for Engine Chainsaw CS38EK

Hitachi - HIKOKI original spare parts for the replacement of damaged parts or to repair electrical or mechanical components of Chainsaw CS38EK.

A practical, powerful and functional chainsaw, for all types of garden work, in the countryside, in woods and forests for cutting bushes, branches, trees and trunks, with spare parts at the best price.
settings 178 spare parts
description 11 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
133 spare parts
Esploso pagina 1
Pos. Item Price Buy
1
 photo_cameraImage coming soon 6687468 SPARK PLUG CAP ASS'Y €5.31
1
 Upper Air Cleaner for Chainsaw Hitachi Tanaka CS38EK-CS45EL 6690335 Upper Air Cleaner for Chainsaw Hitachi Tanaka CS38EK-CS45EL €13.15
1
 photo_cameraImage coming soon 6693633 SET SCREW €1.74
1
 Bar + Chain Set 38 cm 15'' for Chainsaw Hitachi CS38EK HGA781245 Bar + Chain Set 38 cm 15'' for Chainsaw Hitachi CS38EK €52.89
2
 Lower Air Cleaner for Chainsaw Hitachi Tanaka CS38EK-CS45EL 6690325 Lower Air Cleaner for Chainsaw Hitachi Tanaka CS38EK-CS45EL €8.63
2
 Starter Rope Reel for Chainsaw Tanaka ECV-3801 6693059 Starter Rope Reel for Chainsaw Tanaka ECV-3801 €16.73
3
 photo_cameraImage coming soon 6690198 AIRCLEANER BASE COMP. €9.35
3
 Recoil Spring for Chainsaw Hitachi CS45EL 6693096 Recoil Spring for Chainsaw Hitachi CS45EL €17.14
4
 photo_cameraImage coming soon 6685731 CYLINDER GASKET €1.69
5
 Washer D. 5 for Chainsaw Hitachi CS45EL-CS38EK 6684662 Washer D. 5 for Chainsaw Hitachi CS45EL-CS38EK €1.28
6
 Valve Gasket for Chainsaw Hitachi CS38EK 6685860 Valve Gasket for Chainsaw Hitachi CS38EK €1.98
6
 photo_cameraImage coming soon 6693230 STARTER HANDLE €9.01
7
 photo_cameraImage coming soon 6685589 DECOMPRESSION COMP. €40.64
7
 Rear Handle Ass'y for Chainsaws Hitachi CS38EK-CS45EL 6685663 Rear Handle Ass'y for Chainsaws Hitachi CS38EK-CS45EL €55.82 Not available for order
7
 photo_cameraImage coming soon 6695512 HEX. HOLE BOLT 5X15 WS €1.57
8
 Diaphragm Packing Metering for Chainsaws Hitachi CS25-33-40-45-51 6685220 Diaphragm Packing Metering for Chainsaws Hitachi CS25-33-40-45-51 €3.45
8
 photo_cameraImage coming soon 6685282 SPRING PIN 5X25 €1.32
8
 Decompression Cover for Chainsaw Hitachi CS38EL 6685800 Decompression Cover for Chainsaw Hitachi CS38EL €1.98
9
 photo_cameraImage coming soon 6687993 IDLE ADJUSTMENT SCREW €5.07
10
 photo_cameraImage coming soon 6687943 SPECIAL WASHER €2.15
10
 photo_cameraImage coming soon 6690808 DUST COVER €1.55
11
 Clutch Ass'y for Chainsaw Hitachi CS38EK 6688489 Clutch Ass'y for Chainsaw Hitachi CS38EK €35.76
11
 photo_cameraImage coming soon 6690004 CARB. INSULATOR, RUBBER €7.33
12
 Clutch Housing for Chainsaw Tanaka ECV-3801 6689009 Clutch Housing for Chainsaw Tanaka ECV-3801 €51.65
12
 photo_cameraImage coming soon 6689941 INSULATOR COMP. €6.83
13
 photo_cameraImage coming soon 6692507 CHOKE BUTTON COMP. €4.52
13
 Clutch Needle Bearing for Chain Saws Hitachi CS38EK-CS45EL 6695606 Clutch Needle Bearing for Chain Saws Hitachi CS38EK-CS45EL €17.14
14
 Inlet Manifold Gasket for Chainsaw Hitachi Tanaka CS38EK 6689876 Inlet Manifold Gasket for Chainsaw Hitachi Tanaka CS38EK €6.05
14
 photo_cameraImage coming soon 6692587 CHOKE ROD HOLDING RUBB €2.58
15
 photo_cameraImage coming soon 6684595 HEX. SOCKET HD. BOLT (W/SP.WASHER) M4X12 €1.71
15
 Gear Screw for Chainsaw Tanaka ECV-3801 6686640 Gear Screw for Chainsaw Tanaka ECV-3801 €27.77
15
 photo_cameraImage coming soon 6687506 STOP SWITCH COMP. €9.53
16
 Oil Pump for Chainsaw Tanaka ECV-3801 6687331 Oil Pump for Chainsaw Tanaka ECV-3801 €58.35 Not available for order
16
 photo_cameraImage coming soon 6690766 IDLE ADJUST SPRING €3.87
16
 photo_cameraImage coming soon 6691192 CONTROL PLATE €1.59
17
 photo_cameraImage coming soon 6686452 PINION WASHER 1T €2.76
17
 photo_cameraImage coming soon 6687952 SHUTTER PLATE €3.38
18
 photo_cameraImage coming soon 6685202 INLET MANIFOLD SPACER €4.69
18
 photo_cameraImage coming soon 6688164 SIDE DUMPER €2.15
19
 photo_cameraImage coming soon 6685069 NUT M4 €1.22
20
 Muffler Protection for Chainsaws Hitachi CS38EK-CS45EL 6692737 Muffler Protection for Chainsaws Hitachi CS38EK-CS45EL €13.15
20
 photo_cameraImage coming soon 6695407 HIGH TENSION SCREW 4X18WS €1.25
21
 Release Valve for Chainsaws Hitachi Tanaka CS38EK-CS45EL 6686661 Release Valve for Chainsaws Hitachi Tanaka CS38EK-CS45EL €1.98
21
 Chain Bar Clamp Nut M8 for Chainsaw Hitachi Tanaka CS30EG (S) 6687105 Chain Bar Clamp Nut M8 for Chainsaw Hitachi Tanaka CS30EG (S) €1.60
21
 Fuel Hose for Chainsaw Hitachi CS38EK 6688173 Fuel Hose for Chainsaw Hitachi CS38EK €6.64
21
 Muffler Kit for Chainsaws Hitachi CS38EK-CS45EL 6692459 Muffler Kit for Chainsaws Hitachi CS38EK-CS45EL €46.53
22
 Hose Clip 6.3 D. for Brushcutters Chainsaws Hitachi Hikoki Tanaka 6684619 Hose Clip 6.3 D. for Brushcutters Chainsaws Hitachi Hikoki Tanaka €1.25
22
 Stay-Muffler for Chainsaw Tanaka ECV-3801 6692942 Stay-Muffler for Chainsaw Tanaka ECV-3801 €10.46
22
 photo_cameraImage coming soon 6695280 TAP SCREW 4X14 P €1.98
25
 photo_cameraImage coming soon 6685068 MACHINE SCREW (W/SP. WASHER) M4X12 €1.93
25
 Pump Filter Body for Chainsaws Hitachi CS38EK-CS45EL 6692285 Pump Filter Body for Chainsaws Hitachi CS38EK-CS45EL €13.14
26
 photo_cameraImage coming soon 6685223 SET SCREW €2.59
27
 photo_cameraImage coming soon 6686095 SIDE CASE ASS'Y €129.31
27
 photo_cameraImage coming soon 6691219 OIL PIPE A €9.56
28
 Guide Plate Screw M4x10 for Chainsaw Hitachi CS25EC-SC 6685161 Guide Plate Screw M4x10 for Chainsaw Hitachi CS25EC-SC €1.15
29
 photo_cameraImage coming soon 6689715 BRAKE BAND HOLDER €1.59
29
 photo_cameraImage coming soon 6697651 OIL FILTER BODY COMP. €4.60
31
 Piston Pin Circlip for Chainsaw Hitachi CS45EL 6686026 Piston Pin Circlip for Chainsaw Hitachi CS45EL €1.98
31
 Clutch Spring for Chainsaws Hitachi CS38EK-CS45EL 6689426 Clutch Spring for Chainsaws Hitachi CS38EK-CS45EL €5.97
32
 photo_cameraImage coming soon 6686124 PISTON RING, PARKER €9.01
32
 Cleaner Fixing Collar for Chainsaw Hitachi CS25EC-SC 6690805 Cleaner Fixing Collar for Chainsaw Hitachi CS25EC-SC €3.31
33
 photo_cameraImage coming soon 6685883 PISTON SET, SPARE €38.34
33
 Clutch Boss for Chainsaw Tanaka ECV-3801 6689497 Clutch Boss for Chainsaw Tanaka ECV-3801 €2.52
34
 Piston Pin for Brushcutters Hitachi CG40EK-LP-EJ-T-EJ-L-EF-L 6686007 Piston Pin for Brushcutters Hitachi CG40EK-LP-EJ-T-EJ-L-EF-L €5.97
34
 Brake Lever Spring for Chainsaws Hitachi CS38EK 6689781 Brake Lever Spring for Chainsaws Hitachi CS38EK €5.09
35
 Brake Band Link for Chainsaw Tanaka ECV-3801 6685121 Brake Band Link for Chainsaw Tanaka ECV-3801 €25.12
35
 photo_cameraImage coming soon 6692111 TANK CAP ASS'Y €7.04
37
 Petrol-Oil Tank Cap Packing for Chainsaw Hitachi CS33EDT 6685179 Petrol-Oil Tank Cap Packing for Chainsaw Hitachi CS33EDT €1.98
37
 photo_cameraImage coming soon 6686182 CRANKSHAFT COMP €205.46
37
 Clutch Arm Spring for Chainsaws Hitachi CS38EKCS38-45EL 6689700 Clutch Arm Spring for Chainsaws Hitachi CS38EKCS38-45EL €7.97
38
 photo_cameraImage coming soon 6684899 WOODRUFF KEY 3X13X4.5 €1.68
38
 Brake Band for Chainsaws Hitachi CS38EKCS38-45EL 6689724 Brake Band for Chainsaws Hitachi CS38EKCS38-45EL €22.58
40
 photo_cameraImage coming soon 6685098 SHIM S T0.2 €1.98
40
 photo_cameraImage coming soon 6685099 SHIM S T0.3 €1.98
40
 photo_cameraImage coming soon 6686475 SHIM 0.4 €2.11
42
 Guide Plate B for Chainsaw Hitachi Tanaka CS38EK-CS45EL 6697598 Guide Plate B for Chainsaw Hitachi Tanaka CS38EK-CS45EL €9.16
45
 Ball Bearing 6201 for Chainsaw Hitachi CS30EH 6685096 Ball Bearing 6201 for Chainsaw Hitachi CS30EH €11.47
49
 photo_cameraImage coming soon 6686710 CRANKCASE GASKET €2.79
49
 Tension Adjustment Bolt for Chainsaw Hitachi CS38EK-CS45EL 6687067 Tension Adjustment Bolt for Chainsaw Hitachi CS38EK-CS45EL €9.16
50
 photo_cameraImage coming soon 6685173 AIR VENT VALVE (B) €5.98
51
 photo_cameraImage coming soon 6684667 HEX.HOLE BOLT M5X12/S €1.93
51
 photo_cameraImage coming soon 6686632 4X50 MINUS DRIVER €9.30
51
 photo_cameraImage coming soon 6691399 AIR VENT COVER €9.35
55
 Bolt M5X18/S for Chainsaws Hitachi CS38EK-CS45EL 6684586 Bolt M5X18/S for Chainsaws Hitachi CS38EK-CS45EL €1.98
55
 Chain Catcher Protection Pipe for Chainsaw Hitachi CS25EC-SC 6685154 Chain Catcher Protection Pipe for Chainsaw Hitachi CS25EC-SC €1.32
56
 photo_cameraImage coming soon 6684786 HEX. SOCKET HD. BOLT M5X30 S €1.60
58
 photo_cameraImage coming soon 6692248 COLLAR 15 €1.55
62
 Oil Tank Cap Packing for Chainsaw Tanaka TCS-2800S 6697888 Oil Tank Cap Packing for Chainsaw Tanaka TCS-2800S €2.08
64
 Ignition Coil for Chainsaws Hitachi Tanaka CS38EK-CS45EL 6687695 Ignition Coil for Chainsaws Hitachi Tanaka CS38EK-CS45EL €115.54
64
 photo_cameraImage coming soon 6687942 SPECIAL WASHER €1.69
65
 photo_cameraImage coming soon 6693348 PAWL SPRING €2.74
66
 photo_cameraImage coming soon 6693304 STARTER PAWL €3.13
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 1
info_outline

No spare parts mapped to this page.
Check the other pages for available parts.

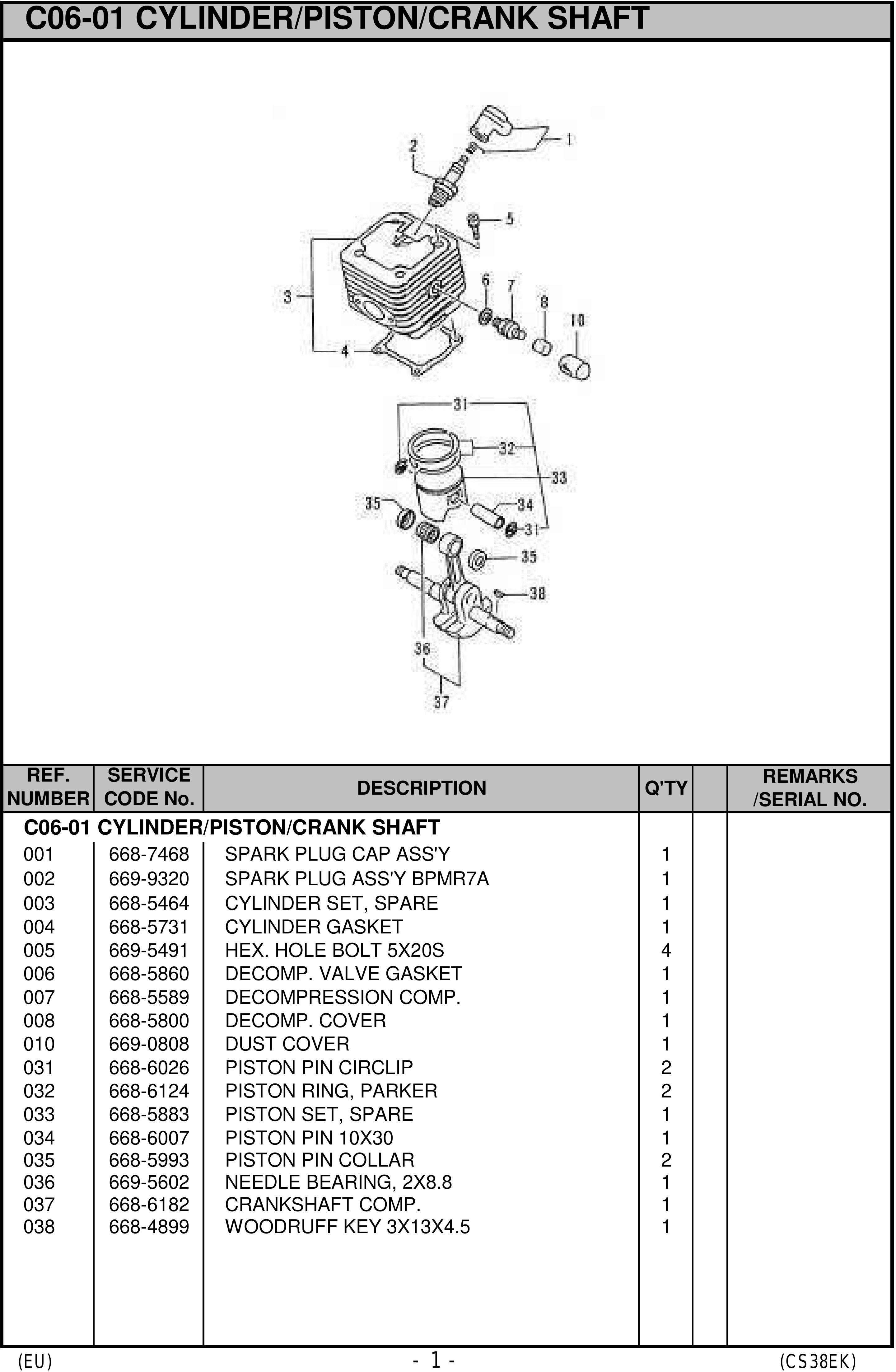

Page 2 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 2
Pos. Item Price Buy
36
 Conrod Needle Bearing for Chainsaws Hitachi CS38EK-CS45EL 6695602 Conrod Needle Bearing for Chainsaws Hitachi CS38EK-CS45EL €10.49

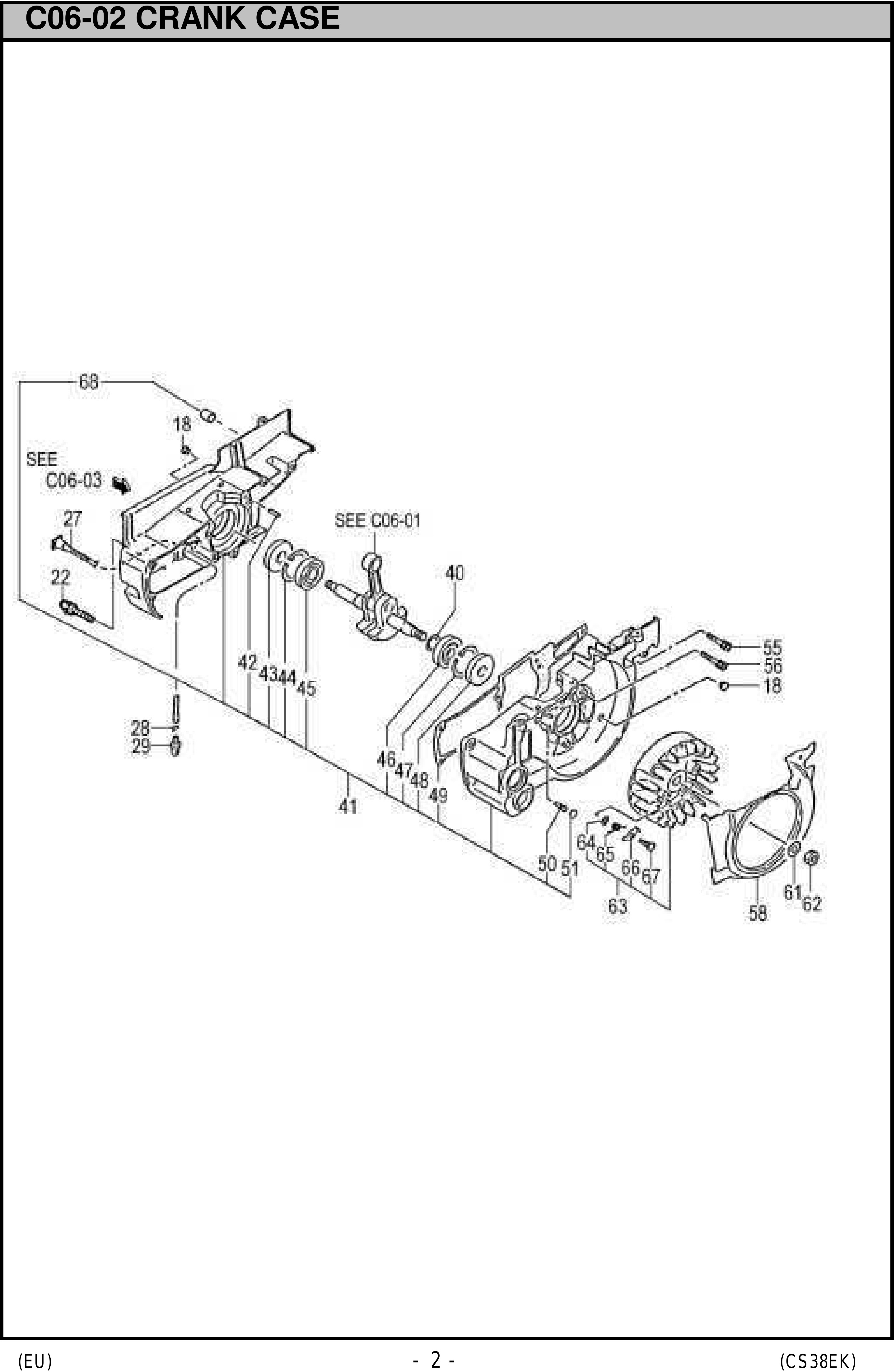

Page 3 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 3
Pos. Item Price Buy
41
 photo_cameraImage coming soon 6697589 CRANK CASE ASS'Y €174.50
43
 photo_cameraImage coming soon 6695633 OIL SEAL ISMX12325.5 €6.89
44
 photo_cameraImage coming soon 6695295 STOP RING C32, INNER €1.93
46
 Guide Plate for Chainsaw Hitachi Tanaka CS38EK-CS45EL 6697597 Guide Plate for Chainsaw Hitachi Tanaka CS38EK-CS45EL €9.16
61
 photo_cameraImage coming soon 6684611 BOLT WASHER M8 €1.24
63
 photo_cameraImage coming soon 6687395 MAGNETO ROTOR ASS'Y €88.89
Page 4 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

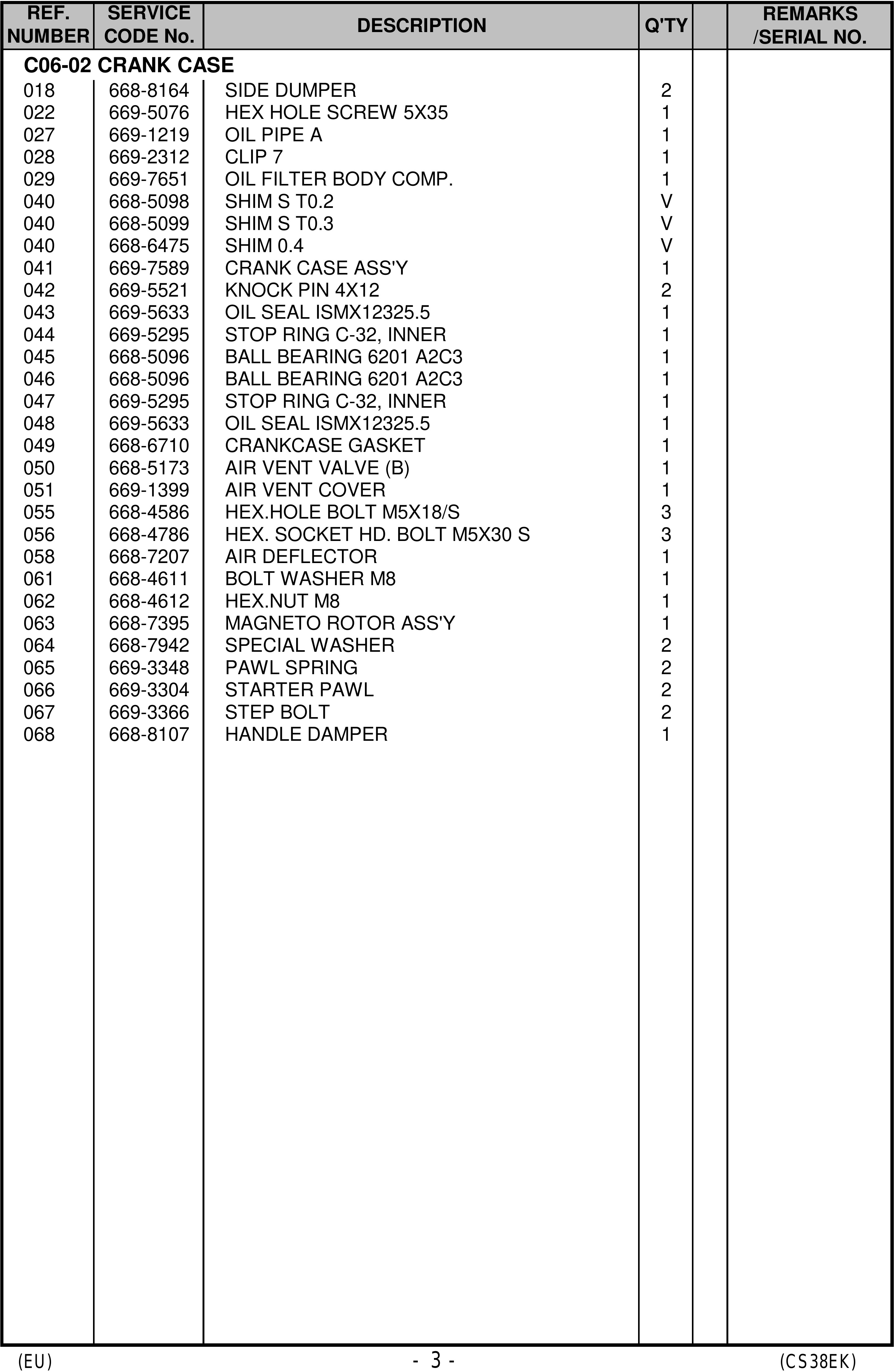

Esploso pagina 4
Pos. Item Price Buy
009A
 photo_cameraImage coming soon 6685298 IDLE ADJUST SCREW €3.44
Page 5 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

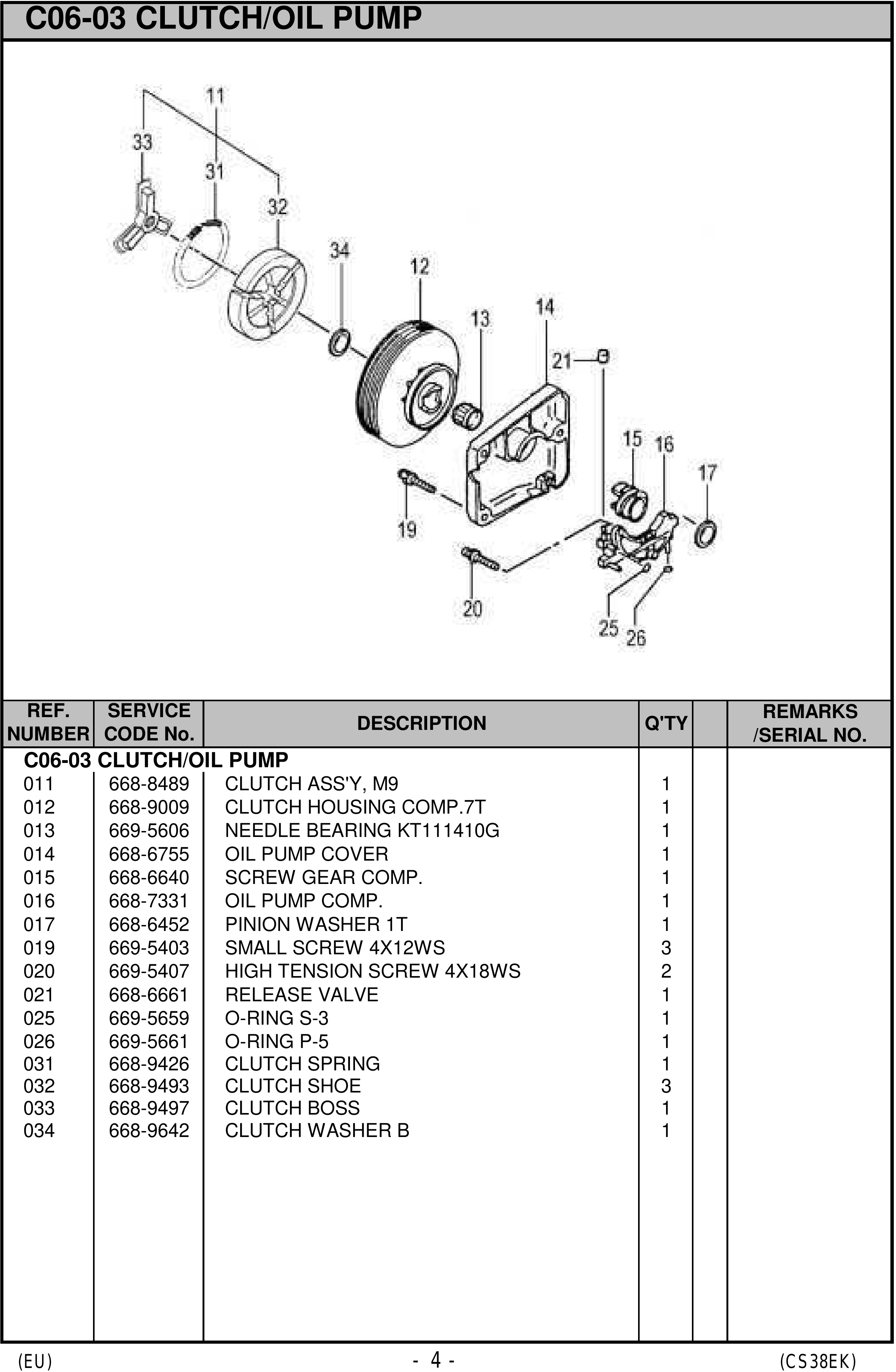

Esploso pagina 5
Pos. Item Price Buy
Recoil Starter Assembly for Chainsaws Tanaka ECV-3801-ECV-4501 6692916 Recoil Starter Assembly for Chainsaws Tanaka ECV-3801-ECV-4501 €68.26
Page 6 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

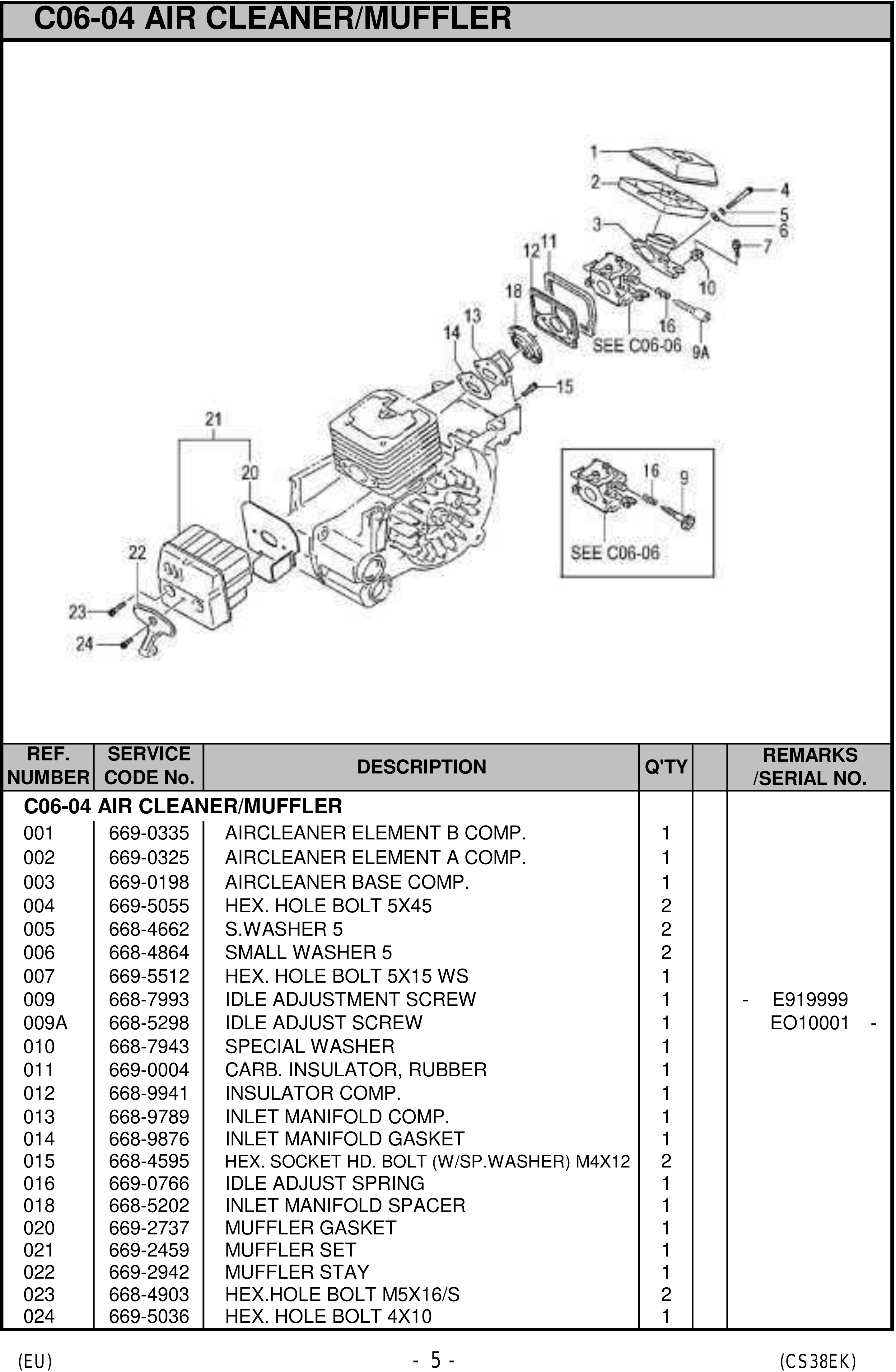

Esploso pagina 6
Pos. Item Price Buy
photo_cameraImage coming soon 6690606 CARBURETOR ASS'Y WT497A €128.40
2
 Carburator Inlet Screen for Chainsaws and Bruschcutters Hitachi 6684700 Carburator Inlet Screen for Chainsaws and Bruschcutters Hitachi €3.18
4
 photo_cameraImage coming soon 6685210 SCREW €2.52
5
 Carburetor Pump Gasket for Chainsaws Hitachi CS25-33-40-45-51 6685212 Carburetor Pump Gasket for Chainsaws Hitachi CS25-33-40-45-51 €3.98
6
 Carburetor Pump Diaphragm for Chainsaws Hitachi CS25-33-40-45-51 6685213 Carburetor Pump Diaphragm for Chainsaws Hitachi CS25-33-40-45-51 €10.63
7
 Carburator Needle Valve for Chainsaws Hitachi-HiKoki Tanaka 6685215 Carburator Needle Valve for Chainsaws Hitachi-HiKoki Tanaka €10.76
9
 Metering Diaphragm Comp. for Chainsaws Hitachi CS25-33-40-45-51 6690827 Metering Diaphragm Comp. for Chainsaws Hitachi CS25-33-40-45-51 €23.70
10
 photo_cameraImage coming soon 6685222 DIAPHRAGM COVER €6.54
12
 photo_cameraImage coming soon 6685218 HINGE PIN SET SCREW €3.38
13
 Hitachi CS25EC-SC Hinge Pin 6685219 Hitachi CS25EC-SC Hinge Pin €2.53
14
 Control Lever for Chainsaw Hitachi CS25EC-SC 6685217 Control Lever for Chainsaw Hitachi CS25EC-SC €6.34
23
 Hex Hole Bolt 10.9 M5x16/6 for Chainsaws Hitachi 6684903 Hex Hole Bolt 10.9 M5x16/6 for Chainsaws Hitachi €1.32
24
 photo_cameraImage coming soon 6693454 FRONT HAND GUARD €14.90
Page 7 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 7
Pos. Item Price Buy
1
 photo_cameraImage coming soon 6687793 AIRCLEANER KNOB COMP. €7.88
2
 photo_cameraImage coming soon 6690404 CLEANER COVER SET, SPARE €9.71
5
 photo_cameraImage coming soon 6685681 CYLINDER COVER €15.37
Page 8 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

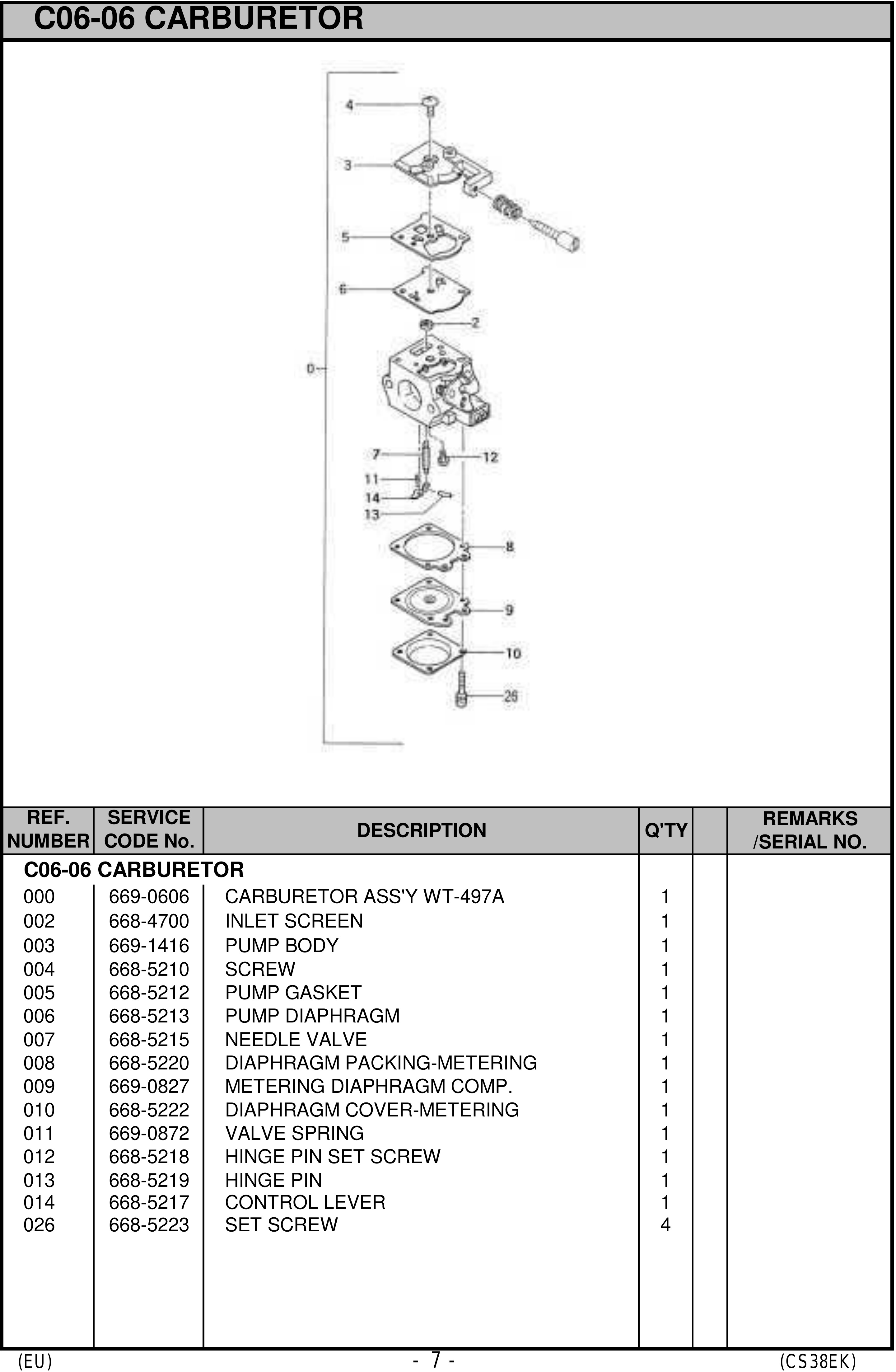

Esploso pagina 8
info_outline

No spare parts mapped to this page.
Check the other pages for available parts.

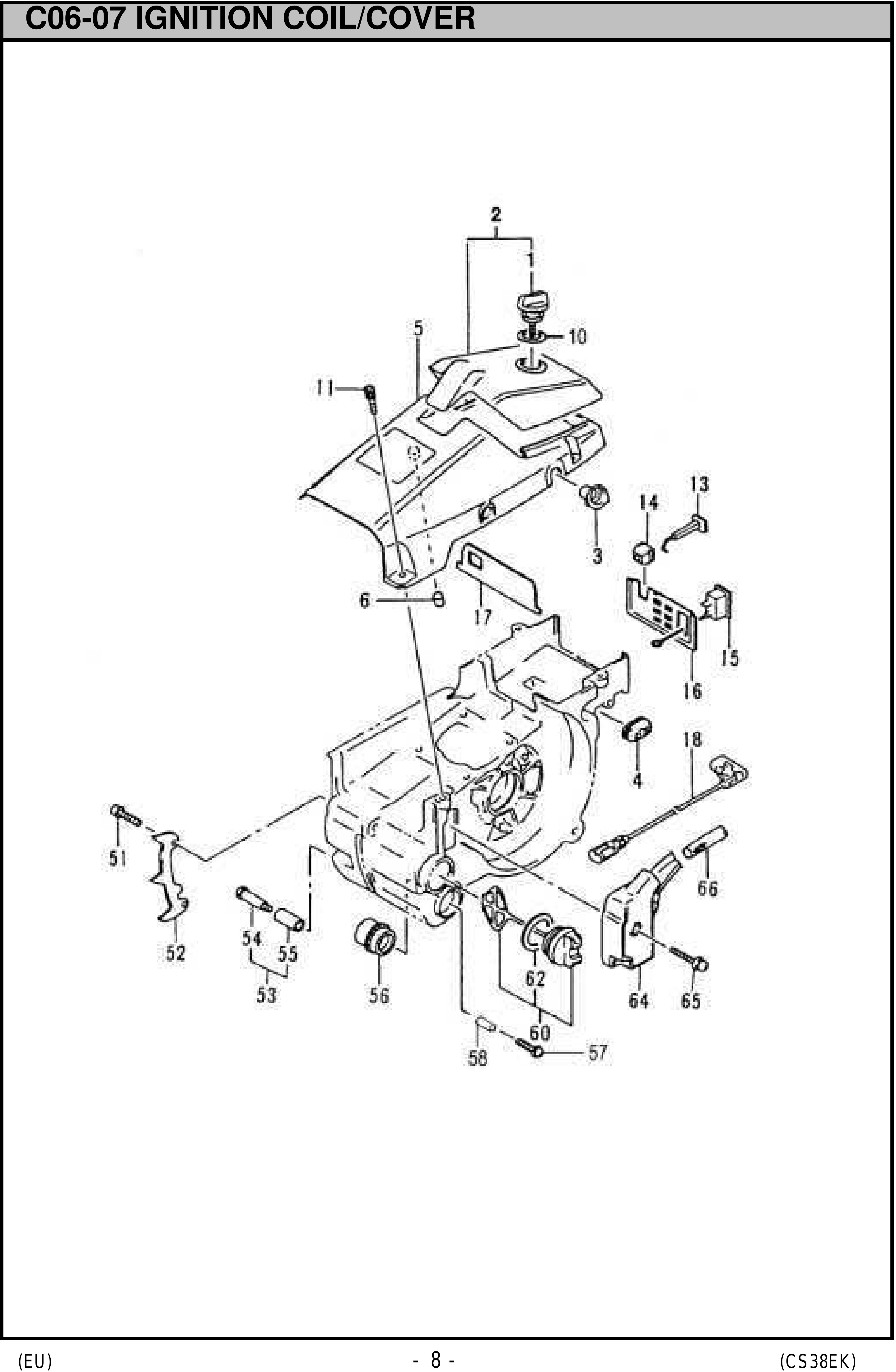

Page 9 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 9
Pos. Item Price Buy
2
 photo_cameraImage coming soon 6688212 REAR HANDLE GRIP €9.46
3
 photo_cameraImage coming soon 6688352 TRIGGER LOCKOUT BLACK €3.38
4
 photo_cameraImage coming soon 6690967 THROTTLE ROD COMP. €8.50
5
 photo_cameraImage coming soon 6686381 THROTTLE LEVER €3.07
6
 photo_cameraImage coming soon 6686412 THROTTLE LEVER SPRING €4.74
14
 photo_cameraImage coming soon 6692172 AIR VENT VALVE ASS'Y €10.11
15
 photo_cameraImage coming soon 6691391 AIRVENT PIPE €11.30
16
 photo_cameraImage coming soon 6688241 FRONT DAMPER €5.03
17
 Damper for Chainsaw Tanaka ECV-3801 6688261 Damper for Chainsaw Tanaka ECV-3801 €9.62 Not available for order
18
 photo_cameraImage coming soon 6688478 DAPMPER COLLAR €1.69
52
 photo_cameraImage coming soon 6690705 BUMPER SPIKE €6.70
53
 photo_cameraImage coming soon 6687163 CHAIN CATCHER €6.22
57
 Tanaka TCS-3301S Tapping Screw 5x35 6695107 Tanaka TCS-3301S Tapping Screw 5x35 €1.09
60
 Oil Tank Cap for Chainsaw Hitachi CS 30EC 6697756 Oil Tank Cap for Chainsaw Hitachi CS 30EC €5.43 Not available for order
Page 10 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 10
Pos. Item Price Buy
501
 Chain Loop for Bar 15"-38CM for Chainsaws Hitachi CS38EK-CS40EA HGA781135 Chain Loop for Bar 15"-38CM for Chainsaws Hitachi CS38EK-CS40EA €25.25
Page 11 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 11
Pos. Item Price Buy
39
 Needle Roller 3x9,8 mm for Chainsaw Hitachi CS25EC-SC 6685141 Needle Roller 3x9,8 mm for Chainsaw Hitachi CS25EC-SC €1.93
Page 12 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 12
info_outline

No spare parts mapped to this page.
Check the other pages for available parts.

Page 13 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 13
info_outline

No spare parts mapped to this page.
Check the other pages for available parts.

Page 14 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 14
info_outline

No spare parts mapped to this page.
Check the other pages for available parts.

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Hitachi Spare Parts for Engine Chainsaw CS38EK

Hitachi - HIKOKI original spare parts for the replacement of damaged parts or to repair electrical or mechanical components of Chainsaw CS38EK.

In the following table, look for the model of the Chainsaw and ripettivo spare part.
Hitachi CS38EK

ENGINE CHAINSAW CS38EK
C06-01 CYLINDER/PISTON/CRANK SHAFT Pag.1
# Part Num. Description
1 6687468 SPARK PLUG CAP ASS'Y
2 6699320 SPARK PLUG ASS'Y BPMR7A
3 6685464 CYLINDER SET, SPARE
4 6685731 CYLINDER GASKET
5 6695491 HEX. HOLE BOLT 5X20S
6 6685860 DECOMP. VALVE GASKET
7 6685589 DECOMPRESSION COMP.
8 6685800 DECOMP. COVER
10 6690808 DUST COVER
31 6686026 PISTON PIN CIRCLIP
32 6686124 PISTON RING, PARKER
33 6685883 PISTON SET, SPARE
34 6686007 PISTON PIN 10X30
35 6685993 PISTON PIN COLLAR
36 6695602 NEEDLE BEARING, 2X8.8
37 6686182 CRANKSHAFT COMP
38 6684899 WOODRUFF KEY 3X13X4.5
C06-02 CRANK CASE Pag.2
18 6688164 SIDE DUMPER
22 6695076 HEX HOLE SCREW 5X35
27 6691219 OIL PIPE A
28 6692312 CLIP 7
29 6697651 OIL FILTER BODY COMP.
40 6685098 SHIM S T0.2
40 6685099 SHIM S T0.3
40 6686475 SHIM 0.4
41 6697589 CRANK CASE ASS'Y
42 6695521 KNOCK PIN 4X12
43 6695633 OIL SEAL ISMX12325.5
44 6695295 STOP RING C32, INNER
45 6685096 BALL BEARING 6201 A2C3
46 6685096 BALL BEARING 6201 A2C3
47 6695295 STOP RING C32, INNER
48 6695633 OIL SEAL ISMX12325.5
49 6686710 CRANKCASE GASKET
50 6685173 AIR VENT VALVE (B)
51 6691399 AIR VENT COVER
55 6684586 HEX.HOLE BOLT M5X18/S
56 6684786 HEX. SOCKET HD. BOLT M5X30 S
58 6687207 AIR DEFLECTOR
61 6684611 BOLT WASHER M8
62 6684612 HEX.NUT M8
63 6687395 MAGNETO ROTOR ASS'Y
64 6687942 SPECIAL WASHER
65 6693348 PAWL SPRING
66 6693304 STARTER PAWL
C06-03 CLUTCH/OIL PUMP Pag.3
11 6688489 CLUTCH ASS'Y, M9
12 6689009 CLUTCH HOUSING COMP.7T
13 6695606 NEEDLE BEARING KT111410G
14 6686755 OIL PUMP COVER
15 6686640 SCREW GEAR COMP.
16 6687331 OIL PUMP ASS'Y
17 6686452 PINION WASHER 1T
19 6695403 SMALL SCREW 4X12WS
20 6695407 HIGH TENSION SCREW 4X18WS
21 6686661 RELEASE VALVE
25 6695659 ORING S3
26 6695661 ORING P5
31 6689426 CLUTCH SPRING
32 6689493 CLUTCH SHOE
33 6689497 CLUTCH BOSS
34 6689642 CLUTCH WASHER B
C06-04 AIR CLEANER/MUFFLER Pag.4
1 6690335 AIR CLEANER ELEMENT B COMP.
2 6690325 AIR CLEANER ELEMENT A COMP.
3 6690198 AIRCLEANER BASE COMP.
4 6695055 HEX. HOLE BOLT 5X45
5 6684662 S.WASHER 5
6 6684864 SMALL WASHER 5x10
7 6695512 HEX. HOLE BOLT 5X15 WS
9 6687993 IDLE ADJUSTMENT SCREW
009A 6685298 IDLE ADJUST SCREW
10 6687943 SPECIAL WASHER
11 6690004 CARB. INSULATOR, RUBBER
12 6689941 INSULATOR COMP.
13 6689789 INLET MANIFOLD COMP.
14 6689876 INLET MANIFOLD GASKET
15 6684595 HEX. SOCKET HD. BOLT (W/SP.WASHER) M4X12
16 6690766 IDLE ADJUST SPRING
18 6685202 INLET MANIFOLD SPACER
20 6692737 MUFFLER GASKET
21 6692459 MUFFLER SET
22 6692942 MUFFLER STAY
23 6684903 HEX.HOLE BOLT M5X16/S

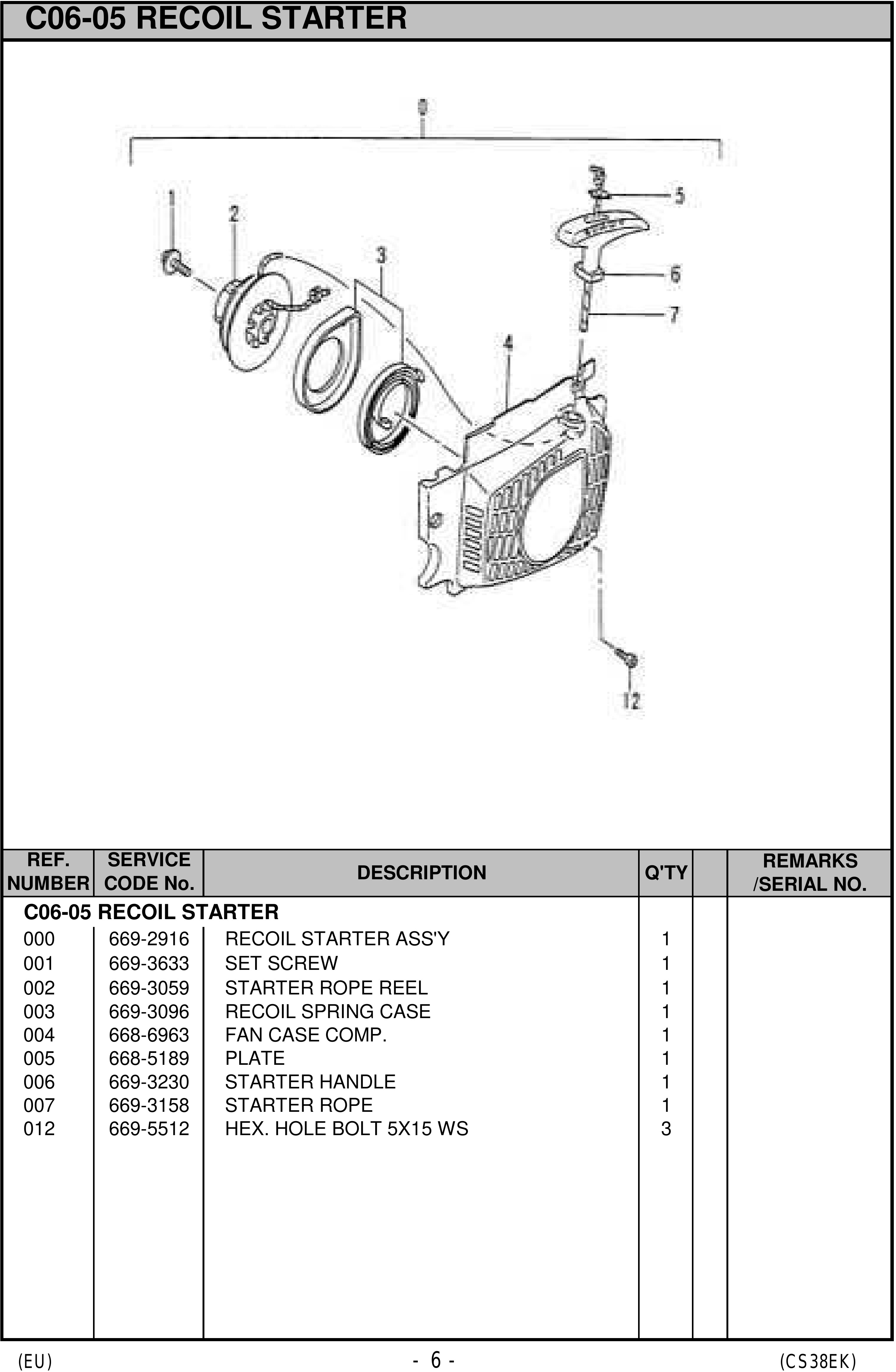

C06-05 RECOIL STARTER Pag.5
0 6692916 RECOIL STARTER ASS'Y
1 6693633 SET SCREW
2 6693059 STARTER ROPE REEL
3 6693096 RECOIL SPRING CASE
4 6686963 FAN CASE COMP.
5 6685189 PLATE
6 6693230 STARTER HANDLE
7 6693158 STARTER ROPE
12 6695512 HEX. HOLE BOLT 5X15 WS
C06-06 CARBURETOR Pag.6
0 6690606 CARBURETOR ASS'Y WT497A
2 6684700 INLET SCREEN
3 6691416 PUMP BODY
4 6685210 SCREW
5 6685212 PUMP GASKET
6 6685213 PUMP DIAPHRAGM
7 6685215 NEEDLE VALVE
8 6685220 DIAPHRAGM PACKINGMETERING
9 6690827 METERING DIAPHRAGM COMP.
10 6685222 DIAPHRAGM COVERMETERING
11 6690872 VALVE SPRING
12 6685218 HINGE PIN SET SCREW
13 6685219 HINGE PIN
14 6685217 CONTROL LEVER
26 6685223 SET SCREW

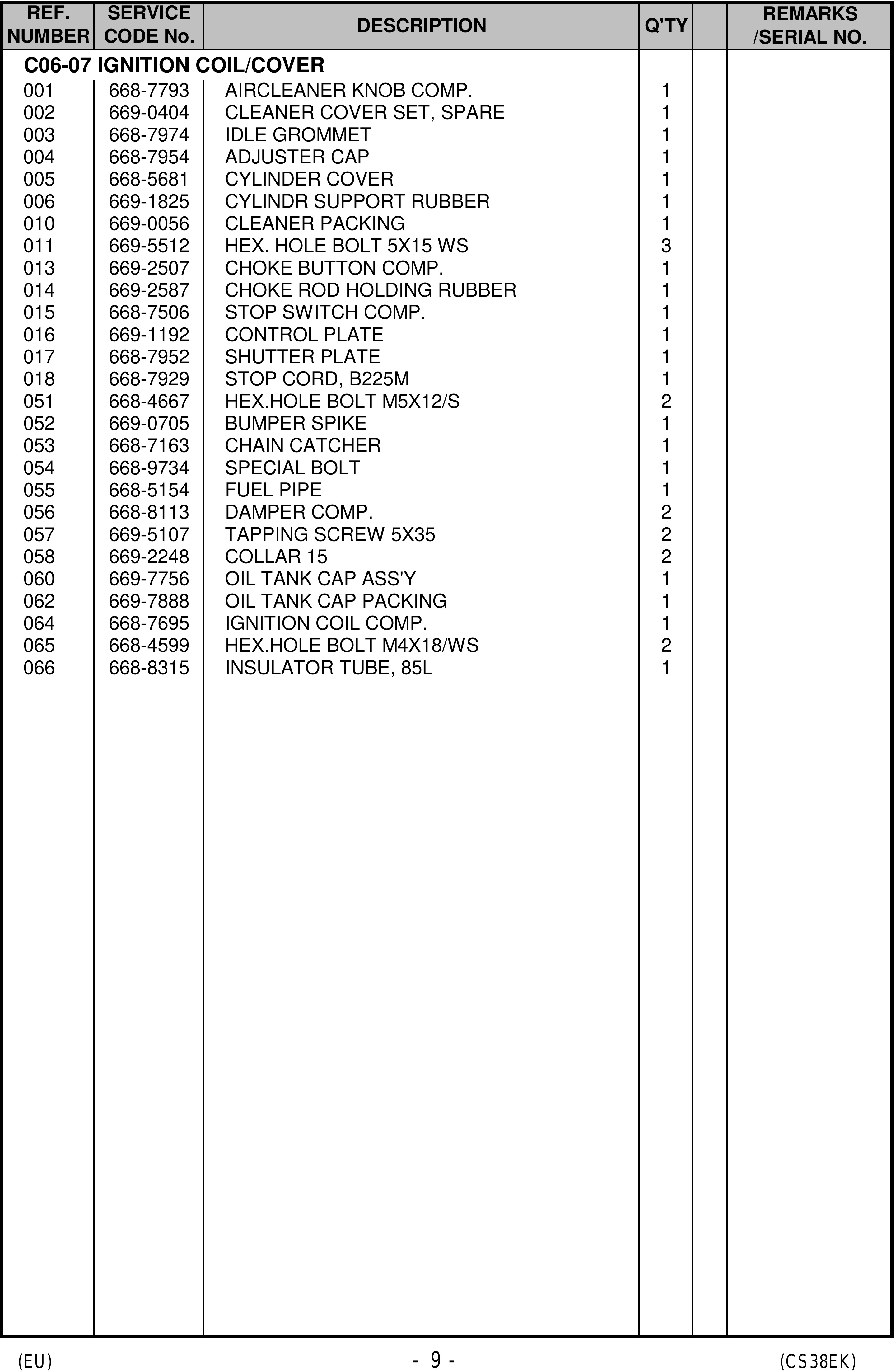

C06-07 IGNITION COIL/COVER Pag.7
1 6687793 AIRCLEANER KNOB COMP.
2 6690404 CLEANER COVER SET, SPARE
3 6687974 IDLE GROMMET
4 6687954 ADJUSTER CAP
5 6685681 CYLINDER COVER
6 6691825 CYLINDR SUPPORT RUBBER
10 6690056 CLEANER PACKING
11 6695512 HEX. HOLE BOLT 5X15 WS
13 6692507 CHOKE BUTTON COMP.
14 6692587 CHOKE ROD HOLDING RUBBER
15 6687506 STOP SWITCH COMP.
16 6691192 CONTROL PLATE
17 6687952 SHUTTER PLATE
18 6687929 STOP CORD, B225M
51 6684667 HEX.HOLE BOLT M5X12/S
52 6690705 BUMPER SPIKE
53 6687163 CHAIN CATCHER
54 6689734 SPECIAL BOLT
55 6685154 FUEL PIPE
56 6688113 DAMPER COMP.
57 6695107 TAPPING SCREW 5X35
58 6692248 COLLAR 15
60 6697756 OIL TANK CAP ASS'Y
62 6697888 OIL TANK CAP PACKING
64 6687695 IGNITION COIL COMP.
65 6684599 HEX.HOLE BOLT M4X18/WS
66 6688315 INSULATOR TUBE, 85L

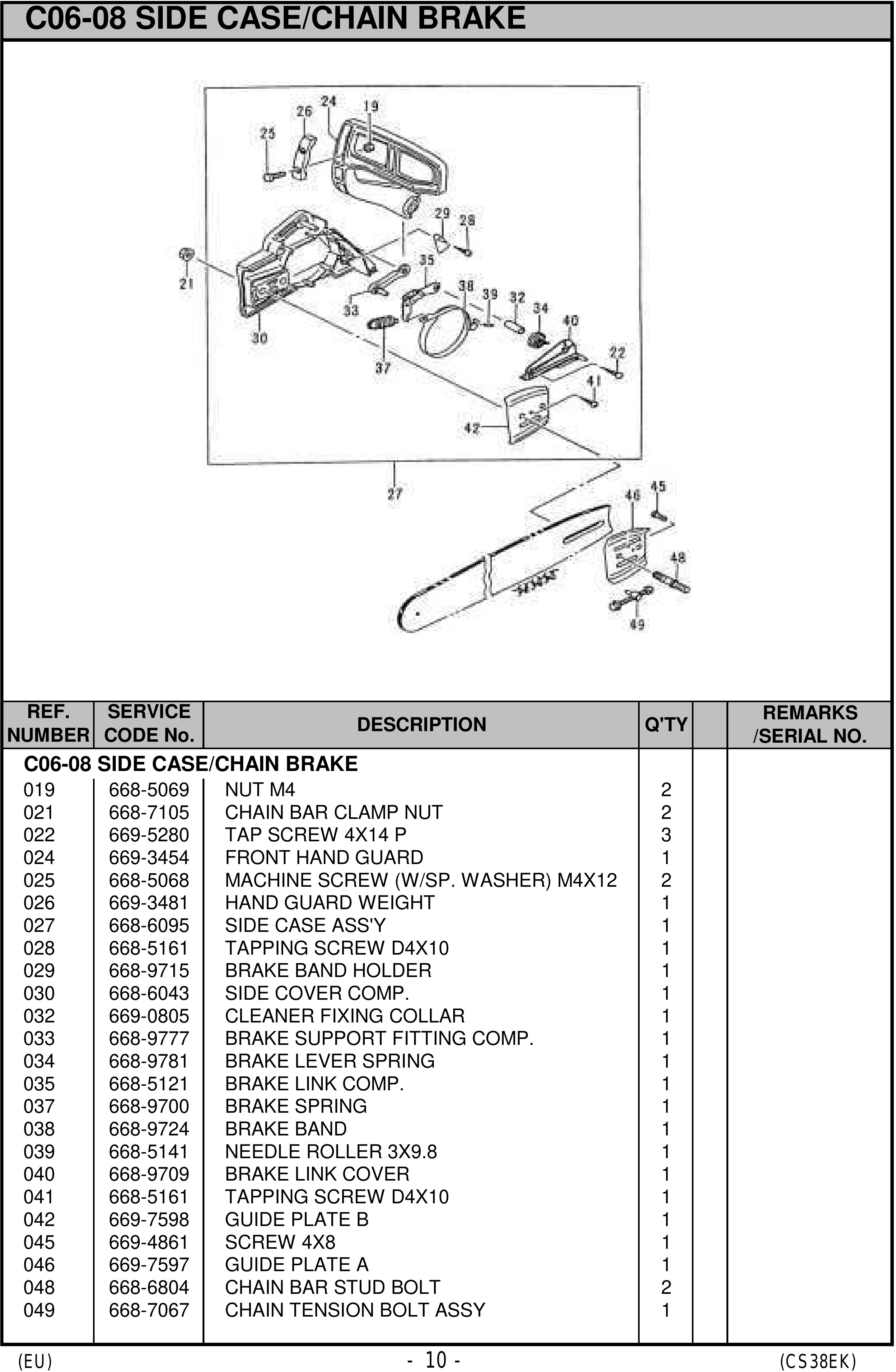

C06-08 SIDE CASE/CHAIN BRAKE Pag.8
19 6685069 NUT M4
21 6687105 CHAIN BAR CLAMP NUT
22 6695280 TAP SCREW 4X14 P
24 6693454 FRONT HAND GUARD
25 6685068 MACHINE SCREW (W/SP. WASHER) M4X12
26 6693481 HAND GUARD WEIGHT
27 6686095 SIDE CASE ASS'Y
28 6685161 TAPPING SCREW D4X10
29 6689715 BRAKE BAND HOLDER
30 6686043 SIDE COVER COMP.
32 6690805 CLEANER FIXING COLLAR
33 6689777 BRAKE SUPPORT FITTING COMP.
34 6689781 BRAKE LEVER SPRING
35 6685121 BRAKE LINK COMP.
37 6689700 BRAKE SPRING
38 6689724 BRAKE BAND
39 6685141 NEEDLE ROLLER 3X9.8
40 6689709 BRAKE LINK COVER
41 6685161 TAPPING SCREW D4X10
42 6697598 GUIDE PLATE B
45 6694861 SCREW 4X8
46 6697597 GUIDE PLATE A
48 6686804 CHAIN BAR STUD BOLT
49 6687067 CHAIN TENSION BOLT ASSY

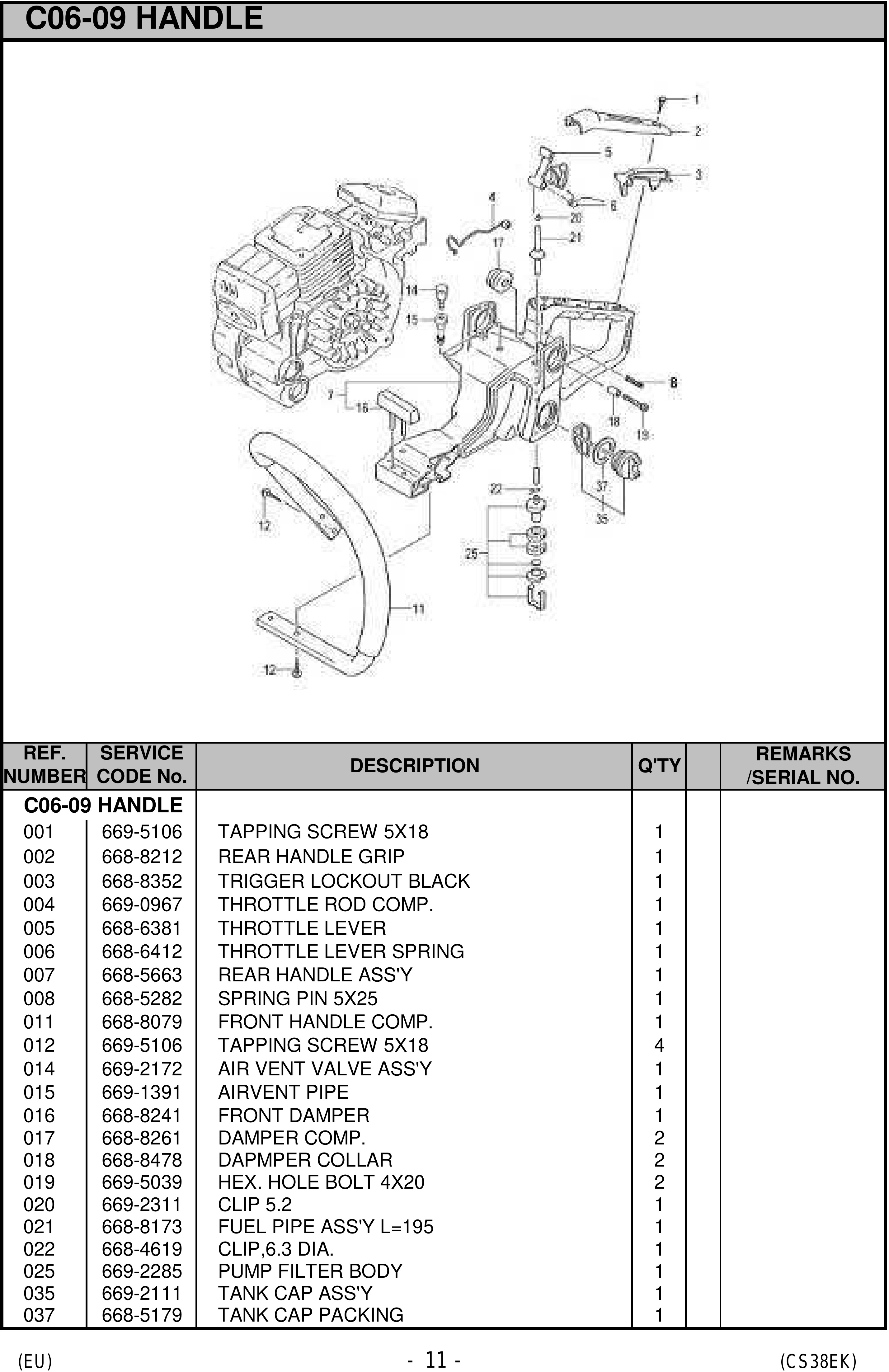

C06-09 HANDLE Pag.9
1 6695106 TAPPING SCREW 5X18
2 6688212 REAR HANDLE GRIP
3 6688352 TRIGGER LOCKOUT BLACK
4 6690967 THROTTLE ROD COMP.
5 6686381 THROTTLE LEVER
6 6686412 THROTTLE LEVER SPRING
7 6685663 REAR HANDLE ASS'Y
8 6685282 SPRING PIN 5X25
11 6688079 FRONT HANDLE COMP. - DISCONTINUED
12 6695106 TAPPING SCREW 5X18
14 6692172 AIR VENT VALVE ASS'Y
15 6691391 AIRVENT PIPE
16 6688241 FRONT DAMPER
17 6688261 DAMPER COMP.
18 6688478 DAPMPER COLLAR
19 6695039 HEX. HOLE BOLT 4X20
20 6692311 CLIP 5.2
21 6688173 FUEL HOSE ASS'Y L=195
22 6684619 CLIP,6.3 DIA.
25 6692285 PUMP FILTER BODY
35 6692111 TANK CAP ASS'Y
37 6685179 TANK CAP PACKING

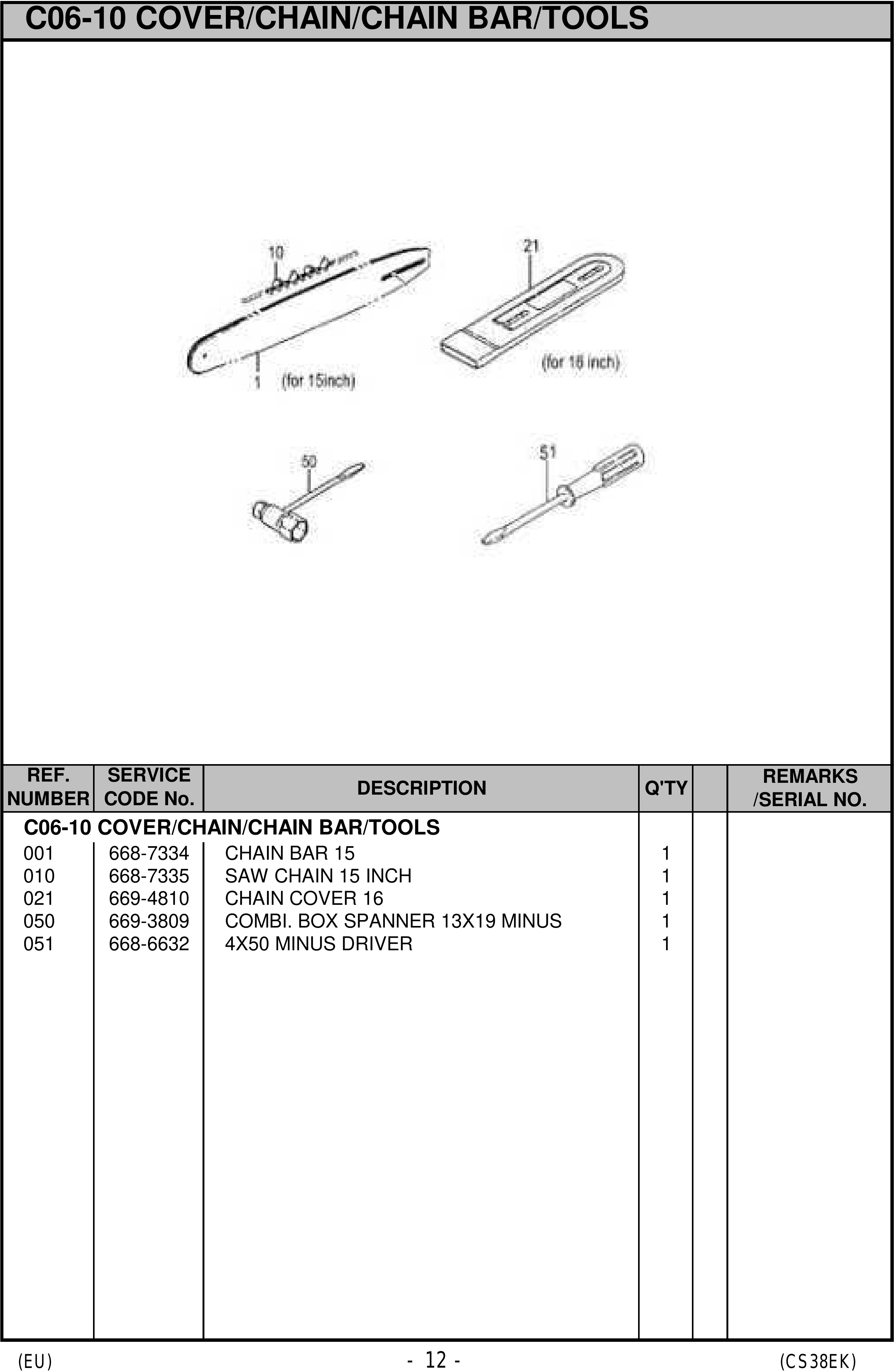

C06-10 COVER/CHAIN/CHAIN BAR/TOOLS Pag.10
1 HGA781245 SPROCKET NOSE BAR SET 38 CM 15" .325 64
10 6687335 SAW CHAIN 15 INCH
21 6694810 CHAIN COVER 16
50 6693809 COMBI. BOX SPANNER 13X19 MINUS
51 6686632 4X50 MINUS DRIVER
501 HGA781135 CHAIN X BAR 15"-38CM - .325" . NK - 64 M. 1,3 MM/0,50"
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Hitachi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to hitachi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Hitachi CS38EK
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Hitachi CS38EK

Diagram Hitachi CS38EK

Download (205.01KB)

You might also like

Upper Air Cleaner for Chainsaw Hitachi Tanaka CS38EK-CS45EL
HiKOKI Power Tools Italia S.p.a. SKU: 6690335
Upper Air Cleaner for Chainsaw Hitachi Tanaka CS38EK-CS45EL
Upper Air Cleaner for Chainsaw Hitachi Tanaka CS38EK-CS45EL Original spare part for Chainsaw Hitachi Koky Tanaka, Upper Air Cleaner Element B Comp. CS38EK-CS45EL. Part for the following items: -  Chainsaw Hitachi CS38EK...
AVAILABLE €13.15
Details
Muffler Protection for Chainsaws Hitachi CS38EK-CS45EL
HiKOKI Power Tools Italia S.p.a. SKU: 6692737
Muffler Protection for Chainsaws Hitachi CS38EK-CS45EL
Muffler Protection for Chainsaws Hitachi CS38EK-CS45EL Hitachi genuine parts, Heat protection of the Muffler for chainsaw Hitachi Garden Tanaka Model CS38EK - CS45EL. Parts for the following products: - CHAINSAW CS38EK - CHAINSAW...
Last items in stock €13.15
Details
Priming Pump for Chain Saws and Brushcutters Hitachi Tanaka
HiKOKI Power Tools Italia S.p.a. SKU: 6685139
Priming Pump for Chain Saws and Brushcutters Hitachi Tanaka
Priming Pump for Chain Saws and Brushcutters Hitachi Tanaka Genuine spare Hitachi Koky Tanaka, Priming Pump complete for Brushcutters and Chain Saws Hitachi Tanaka. Parts for the following products: - BRUSHCUTTER CG47EF (L) -...
AVAILABLE €13.15
Details
Carburetor Pump Gasket for Chainsaws Hitachi CS25-33-40-45-51
HiKOKI Power Tools Italia S.p.a. SKU: 6685212
Carburetor Pump Gasket for Chainsaws Hitachi CS25-33-40-45-51
Carburetor Pump Gasket for Chainsaws Hitachi CS25-33-40-45-51 Original parts for Chainsaw Hitachi HiKoky Tanaka, Carburetor Pump Gasket for Chainsaws, CS25EC-SC-EU - CS33EDT - CS38EK - CS40EA - CS45EL - CS51EAP. Parts for the...
AVAILABLE €3.98
Details
Carburetor Pump Diaphragm for Chainsaws Hitachi CS25-33-40-45-51
HiKOKI Power Tools Italia S.p.a. SKU: 6685213
Carburetor Pump Diaphragm for Chainsaws Hitachi CS25-33-40-45-51
Carburetor Pump Diaphragm for Chainsaws Hitachi CS25-33-40-45-51 Original parts for Chainsaw Hitachi Koky Tanaka, Pump Diaphragm for Carburetor Chainsaws, CS25EC-SC-EU - CS33EDT - CS38EK - CS40EA - CS45EL - CS51EAP - BRUSHCUTTERS...
AVAILABLE €10.63
Details
Muffler Kit for Chainsaws Hitachi CS38EK-CS45EL
HiKOKI Power Tools Italia S.p.a. SKU: 6692459
Muffler Kit for Chainsaws Hitachi CS38EK-CS45EL
Muffler Kit for Chainsaws Hitachi CS38EK-CS45EL Hitachi genuine parts, Muffler Kit with Heat protection for chainsaw Hitachi Garden Tanaka Model CS38EK - CS45EL. Parts for the following products: - CHAINSAW CS38EK - CHAINSAW...
Last items in stock €46.53
Details
Lower Air Cleaner for Chainsaw Hitachi Tanaka CS38EK-CS45EL
HiKOKI Power Tools Italia S.p.a. SKU: 6690325
Lower Air Cleaner for Chainsaw Hitachi Tanaka CS38EK-CS45EL
Lower Air Cleaner for Chainsaw Hitachi Tanaka CS38EK-CS45EL Genuine spare part for Chainsaw Hitachi Koky Tanaka, Lower Air Cleaner Element A Comp. for Chainsaws CS38EK - CS38EL - CS45EL Part for the following products:...
Last items in stock €8.63
Details
Clutch Arm Spring for Chainsaws Hitachi CS38EKCS38-45EL Sale
HiKOKI Power Tools Italia S.p.a. SKU: 6689700
Clutch Arm Spring for Chainsaws Hitachi CS38EKCS38-45EL
Clutch Arm Spring for Chainsaws Hitachi CS38EKCS38-45EL Original spare Hitachi Koky Tanaka, Clutch Arm Spring for Chainsaws Hitachi Tanaka CS38EK - CS38/45EL. Parts for the following products: - CHAINSAW CS38EK - CHAINSAW...
AVAILABLE €7.97
Details
Brake Band for Chainsaws Hitachi CS38EKCS38-45EL
HiKOKI Power Tools Italia S.p.a. SKU: 6689724
Brake Band for Chainsaws Hitachi CS38EKCS38-45EL
Brake Band for Chainsaws Hitachi CS38EKCS38-45EL Original spare Hitachi Koky Tanaka, Brake band for Chainsaws Hitachi Tanaka CS38EK - CS38/45EL. Parts for the following products: - CHAINSAW CS38EK - CHAINSAW CS38/45EL - Code: 6689724
AVAILABLE €22.58
Details
Guide Plate for Chainsaw Hitachi Tanaka CS38EK-CS45EL
HiKOKI Power Tools Italia S.p.a. SKU: 6697597
Guide Plate for Chainsaw Hitachi Tanaka CS38EK-CS45EL
Guide Plate for Chainsaw Hitachi Tanaka CS38EK-CS45EL Original spare part for Chainsaw Hitachi Koky Tanaka, Guide plate for Pruning Chainsaw CS38EK - CS45EL. Part for the following products: - CHAINSAW CS38EK - CHAINSAW CS45EL - Code:...
Last items in stock €9.16
Details
Guide Plate B for Chainsaw Hitachi Tanaka CS38EK-CS45EL
HiKOKI Power Tools Italia S.p.a. SKU: 6697598
Guide Plate B for Chainsaw Hitachi Tanaka CS38EK-CS45EL
Guide Plate B for Chainsaw Hitachi Tanaka CS38EK-CS45EL Original spare part for Chainsaw Hitachi Koky Tanaka, Guide plate B for Chainsaw CS38EK - CS45EL. Part for the following article: - CHAINSAW CS38EK - CHAINSAW CS45EL - Code...
AVAILABLE €9.16
Details
Recoil Spring for Chainsaw Hitachi CS45EL
HiKOKI Power Tools Italia S.p.a. SKU: 6693096
Recoil Spring for Chainsaw Hitachi CS45EL
Recoil Spring for Chainsaw Hitachi CS45EL Original Replacement part Hitachi Koky Tanaka, Recoil Starter Spring for Chainsaw Hitachi Tanaka CS38EK - CS45EL. Part for the following products: -  Chainsaw Hitachi CS38EK -  Chainsaw...
Last items in stock €17.14
Details
Bolt M5X18/S for Chainsaws Hitachi CS38EK-CS45EL
HiKOKI Power Tools Italia S.p.a. SKU: 6684586
Bolt M5X18/S for Chainsaws Hitachi CS38EK-CS45EL
Bolt M5X18/S for Chainsaws Hitachi CS38EK-CS45EL Genuine spare Hitachi Koky Tanaka, Bolt M5X18 / S Brushcutters Hitachi CG22EAS - CG27EJ (SLNP) - CG47EJ-L - CG47EY-T - CG47EF (L) - Chainsaws CS38EK - CS45EL. Parts for the following...
AVAILABLE €1.98
Details
Conrod Needle Bearing for Chainsaws Hitachi CS38EK-CS45EL
HiKOKI Power Tools Italia S.p.a. SKU: 6695602
Conrod Needle Bearing for Chainsaws Hitachi CS38EK-CS45EL
Conrod Needle Bearing for Chainsaws Hitachi CS38EK-CS45EL Genuine part Hitachi, Conrod Needle Bearing for Chainsaws Hitachi Garden Tanaka Model CS38EK - CS45EL - BRUSHCUTTER CG47EJ-L - CG47EY-T - CG47EF (L). Parts for the following...
AVAILABLE €10.49
Details
Clutch Housing for Chainsaw Tanaka ECV-3801
HiKOKI Power Tools Italia S.p.a. SKU: 6689009
Clutch Housing for Chainsaw Tanaka ECV-3801
Clutch Housing for Chainsaw Tanaka ECV-3801 Genuine spare parts Tanaka, Clutch Housing for Chainsaw CS38EK - CS45EL - ECV-3801 - ECV-4501 Part for the following products: - Chainsaw Hitachi CS38EK - Chainsaw Hitachi...
Last items in stock €51.65
Details
Oil Pump for Chainsaw Tanaka ECV-3801
HiKOKI Power Tools Italia S.p.a. SKU: 6687331
Oil Pump for Chainsaw Tanaka ECV-3801
Oil Pump for Chainsaw Tanaka ECV-3801 Genuine spare part Tanaka, Oil Pump Walbro for Chainsaw Hitachi CS38EK - CS45EL - Tanaka ECV-3801 - ECV-4501. Part for the following products: -  Chainsaw Hitachi...
Available in 7/10 days €58.35
Details
Valve Gasket for Chainsaw Hitachi CS38EK Sale
HiKOKI Power Tools Italia S.p.a. SKU: 6685860
Valve Gasket for Chainsaw Hitachi CS38EK
Valve Gasket for Chainsaw Hitachi CS38EK Genuine spare parts, Decompression Valve Gasket for Chainsaw CS38EK - CS38EL - CS45EL - ECV-3801 - ECV-4501. Parts for the following products: - Chainsaw Hitachi CS38EK - Chainsaw Hitachi...
AVAILABLE €1.98
Details
Decompression Cover for Chainsaw Hitachi CS38EL
HiKOKI Power Tools Italia S.p.a. SKU: 6685800
Decompression Cover for Chainsaw Hitachi CS38EL
Decompression Cover for Chainsaw Hitachi CS38EL Original Spare Parts Hitachi Koky Tanaka, Decompression Valve Cover for Chainsaw CS38EK - CS38EL - CS45EL - ECV-3801 - ECV-4501. Parts for the following products: - Chainsaw Hitachi...
AVAILABLE €1.98
Details
Bar + Chain Set 40 cm 16'' for Chainsaw Hitachi CS33EB
HiKOKI Power Tools Italia S.p.a. SKU: HGA781236
Bar + Chain Set 40 cm 16'' for Chainsaw Hitachi CS33EB
Bar + Chain Set 40 cm 16'' for Chainsaw Hitachi CS33EB Original spare parts Hitachi Koky Tanaka, Bar + Chain Set cm 40 16'' - 3/8'' LP - 57 M. 1,3 mm/0.50'' for Chainsaws CS30EG - CS33EB...
on 7/10 Business Days Approx €34.43
Details
Clutch Needle Bearing for Chain Saws Hitachi CS38EK-CS45EL
HiKOKI Power Tools Italia S.p.a. SKU: 6695606
Clutch Needle Bearing for Chain Saws Hitachi CS38EK-CS45EL
Clutch Needle Bearing for Chain Saws Hitachi CS38EK-CS45EL Hitachi genuine parts, Clutch Needle Bearing for Chainsaws Hitachi Garden Tanaka Model CS38EK - CS45EL - TANAKA ECV-3801 - ECV-4501. Part for the following products: -...
AVAILABLE €17.14
Details
Damper for Chainsaw Tanaka ECV-3801
HiKOKI Power Tools Italia S.p.a. SKU: 6688261
Damper for Chainsaw Tanaka ECV-3801
Damper for Chainsaw Tanaka ECV-3801 Genuine spare parts Tanaka, Damper for Chainsaws ECV-3801 - ECV-4501 - Hitachi CS38EK - CS45EL For the following items: - ...
Available in 7/10 days €9.62
Details
Tension Adjustment Bolt for Chainsaw Hitachi CS38EK-CS45EL
HiKOKI Power Tools Italia S.p.a. SKU: 6687067
Tension Adjustment Bolt for Chainsaw Hitachi CS38EK-CS45EL
Tension Adjustment Bolt for Chainsaw Hitachi CS38EK-CS45EL Genuine part Hitachi Koky Tanaka, Tension Adjustment Bolt Ass'y for Chainsaw CS38EK - CS45EL - ECV-3801 - ECV-4501. Part for the following products: -  Chainsaw Hitachi CS38EK...
Last items in stock €9.16
Details
Washer D. 5 for Chainsaw Hitachi CS45EL-CS38EK
HiKOKI Power Tools Italia S.p.a. SKU: 6684662
Washer D. 5 for Chainsaw Hitachi CS45EL-CS38EK
Washer D. 5 for Chainsaw Hitachi CS45EL-CS38EK Original spare Hitachi, Washer D. 5 for Chaisaw Hitachi CS45EL - CS38EK - Tanaka ECV-4501 - ECV-3801 - Brusch Cutter CG24EKS - CG40EK-LP - CG33EJ-LP - CG27EJ-SLNP. Parts for the following...
AVAILABLE €1.28
Details
Fuel Hose for Chainsaw Hitachi CS38EK Sale
HiKOKI Power Tools Italia S.p.a. SKU: 6688173
Fuel Hose for Chainsaw Hitachi CS38EK
Fuel Hose for Chainsaw Hitachi CS38EK Genuine part Hitachi-HIKOKI Tanaka, Fuel Hose L 195 for Chainsaws CS38EK - CS38EL - CS45EL - Brushcutter CG33EJ (SL)/(LP) Parts for the following products: -  Chainsaw Hitachi CS38EK - Chainsaw...
AVAILABLE €6.64
Details
Chain Catcher Protection Pipe for Chainsaw Hitachi CS25EC-SC
HiKOKI Power Tools Italia S.p.a. SKU: 6685154
Chain Catcher Protection Pipe for Chainsaw Hitachi CS25EC-SC
Chain Catcher Protection Pipe for Chainsaw Hitachi CS25EC-SC Genuine part Hitachi, Tensioner Protection Pipe for Chainsaw Hitachi CS25EC-SC - CS30EC - CS30EG - CS38EK - CS45EL Ricambio per i seguenti prodotti: - Chainsaw Tanaka...
AVAILABLE €1.32
Details
Release Valve for Chainsaws Hitachi Tanaka CS38EK-CS45EL Sale
HiKOKI Power Tools Italia S.p.a. SKU: 6686661
Release Valve for Chainsaws Hitachi Tanaka CS38EK-CS45EL
Release Valve for Chainsaws Hitachi Tanaka CS38EK-CS45EL Original spare part Hitachi Koky Tanaka, Release Valve for Chainsaws CS38EK - CS45EL - Tanaka ECV-3801 - ECV-4501 Part for the following products: -  Chainsaw Hitachi CS38EK -...
AVAILABLE €1.98
Details
Oil Tank Cap for Chainsaws Tanaka TCS-2800S - TCS-2801S
HiKOKI Power Tools Italia S.p.a. SKU: 6697756
Oil Tank Cap for Chainsaws Tanaka TCS-2800S - TCS-2801S
Oil Tank Cap for Chainsaws Tanaka TCS-2800S - TCS-2801S Original parts for Chainsaw Hitachi Koky Tanaka, Oil Tank Cap Ass'y for Chainsaws, TCS-2800S - TCS-2801S - ECV-3801 - ECV-4501 Parts...
Available in 7/10 days €5.43
Details
Chain Bar Clamp Nut M8 for Chainsaw Hitachi Tanaka CS30EG (S)
HiKOKI Power Tools Italia S.p.a. SKU: 6687105
Chain Bar Clamp Nut M8 for Chainsaw Hitachi Tanaka CS30EG (S)
Chain Bar Clamp Nut M8 for Chainsaw Hitachi Tanaka CS30EG (S) Genuine spare part Hitachi Koky Tanaka, Chain Bar Clamp Nut M8 for Chainsaws CS30EG (S) - CS35EG (S) - CS38EK -  CS38EL - Motosega Tanaka TCS-3301S - ECV-3801 Part for the...
AVAILABLE €1.60
Details
Gear Screw for Chainsaw Tanaka ECV-3801 Sale
HiKOKI Power Tools Italia S.p.a. SKU: 6686640
Gear Screw for Chainsaw Tanaka ECV-3801
Gear Screw for Chainsaw Tanaka ECV-3801 Genuine part Hitachi HiKoki Tanaka, Oil Pump Gear Screw for Chainsaw CS38EK - CS45EL - ECV-3801 - ECV-4501. Part for the following products: -  Chainsaw Tanaka ECV-3801 -  Chainsaw Tanaka...
Last items in stock €27.77
Details
Stay-Muffler for Chainsaw Tanaka ECV-3801
HiKOKI Power Tools Italia S.p.a. SKU: 6692942
Stay-Muffler for Chainsaw Tanaka ECV-3801
Stay-Muffler for Chainsaw Tanaka ECV-3801 Genuine part Hitachi Koky Tanaka, Stay-Muffler for Chainsaw CS38EK - CS45EL - ECV-3801 - ECV-4501. Part for the following products: - Chainsaw Tanaka ECV-3801 - Chainsaw Tanaka ECV-4501 -...
Last items in stock €10.46
Details
Chain Catcher for Chainsaw Hitachi CS25EC-SC
HiKOKI Power Tools Italia S.p.a. SKU: 6685155
Chain Catcher for Chainsaw Hitachi CS25EC-SC
Chain Catcher for Chainsaw Hitachi CS25EC-SC Genuine part Hitachi, Chain Catcher for Chainsaw Hitachi CS25EC-SC - CS30EC - CS30EG - CS38EK - CS45EL Ricambio per i seguenti prodotti:...
Last items in stock €1.98
Details
Guide Plate Screw M4x10 for Chainsaw Hitachi CS25EC-SC
HiKOKI Power Tools Italia S.p.a. SKU: 6685161
Guide Plate Screw M4x10 for Chainsaw Hitachi CS25EC-SC
Guide Plate Screw M4x10 for Chainsaw Hitachi CS25EC-SC Genuine part Hitachi, Guide Plate Screw M4x10 for Chainsaw Hitachi CS25EC-SC - CS30EC - CS30EG - CS38EK - CS45EL. Ricambio per i seguenti prodotti: - Chainsaw Tanaka TCS-2800S -...
AVAILABLE €1.15
Details
Chain Catcher Screw M5X14 for Chainsaw Hitachi CS25EC-SC
HiKOKI Power Tools Italia S.p.a. SKU: 6685275
Chain Catcher Screw M5X14 for Chainsaw Hitachi CS25EC-SC
Chain Catcher Screw M5X14 for Chainsaw Hitachi CS25EC-SC Genuine part Hitachi, Guide Plate Screw M4x10 for Chainsaw Hitachi CS25EC-SC - CS30EC - CS30EG - CS38EK - CS45EL. Ricambio per i seguenti prodotti: - Chainsaw Tanaka TCS-2800S -...
AVAILABLE €1.27
Details
Chain Bar Lock Nut for Chainsaw Hitachi CS25EC-SC
HiKOKI Power Tools Italia S.p.a. SKU: 6685166
Chain Bar Lock Nut for Chainsaw Hitachi CS25EC-SC
Chain Bar Lock Nut for Chainsaw Hitachi CS25EC-SC Genuine part Hitachi, Chain Bar Lock Nut for Chainsaw Hitachi CS25EC-SC - CS30EC - CS30EG - Tanaka TCS-2800S - ECS-3350D. Ricambio per i seguenti prodotti: - Chainsaw Hitachi CS25EC-SC...
AVAILABLE €4.64
Details
Clutch Spring for Chainsaws Hitachi CS38EK-CS45EL Sale
HiKOKI Power Tools Italia S.p.a. SKU: 6689426
Clutch Spring for Chainsaws Hitachi CS38EK-CS45EL
Clutch Spring for Chainsaws Hitachi CS38EK-CS45EL Genuine part Hitachi Koky Tanaka, Clutch Spring for Chainsaws CS38EK - CS45EL - Tanaka ECV-3801 - Tanaka ECV-4501. Part for the following products: - Chainsaw Hitachi CS38EK  -...
AVAILABLE €5.97
Details
Pump Filter Body for Chainsaws Hitachi CS38EK-CS45EL Sale
HiKOKI Power Tools Italia S.p.a. SKU: 6692285
Pump Filter Body for Chainsaws Hitachi CS38EK-CS45EL
Pump Filter Body for Chainsaws Hitachi CS38EK-CS45EL Genuine part Hitachi Koky Tanaka, Pump Filter Body for Chainsaws CS38EK - CS45EL - Tanaka ECV-3801 - Tanaka ECV-4501. Part for the following products: - Chainsaw Hitachi CS38EK  -...
AVAILABLE €13.14
Details
Hex Hole Bolt 10.9 M5x16/6 for Chainsaws Hitachi
HiKOKI Power Tools Italia S.p.a. SKU: 6684903
Hex Hole Bolt 10.9 M5x16/6 for Chainsaws Hitachi
Hex Hole Bolt 10.9 M5x16/6 for Chainsaws Hitachi Genuine part Hitachi Koky Tanaka, Hex Hole Bolt 10.9 M5x16/6 for Chainsaws CS38EK - CS45EL - Tanaka ECV-3801 - Tanaka ECV-4501. Part for the following products: - Chainsaw Hitachi...
AVAILABLE €1.32
Details
Needle Roller 3x9,8 mm for Chainsaw Tanaka ECV-3801
HiKOKI Power Tools Italia S.p.a. SKU: 6685141
Needle Roller 3x9,8 mm for Chainsaw Tanaka ECV-3801
Needle Roller 3x9,8 mm for Chainsaw Tanaka ECV-3801 Genuine spare part Tanaka, Needle Roller 3x9,8 mm for Chainsaws TCS-2801S - TCS-3301S - ECV-3801 - ECV-4501 - ECS 3301B - ECS 3301D....
AVAILABLE €1.93
Details
Ignition Coil for Chainsaws Hitachi Tanaka CS38EK-CS45EL
HiKOKI Power Tools Italia S.p.a. SKU: 6687695
Ignition Coil for Chainsaws Hitachi Tanaka CS38EK-CS45EL
Ignition Coil for Chainsaws Hitachi Tanaka CS38EK-CS45EL Original spare part Hitachi Koky Tanaka, Electgronic Ignition Coil for Chainsaws CS38EK - CS45EL - Tanaka ECV-3801 - ECV-4501 Part for the following products: -  Chainsaw...
Last items in stock €115.54
Details
Rear Handle Ass'y for Chainsaws Hitachi CS38EK-CS45EL
HiKOKI Power Tools Italia S.p.a. SKU: 6685663
Rear Handle Ass'y for Chainsaws Hitachi CS38EK-CS45EL
Rear Handle Ass'y for Chainsaws Hitachi CS38EK-CS45EL Original part Hitachi HiKoki Tanaka, Rear Handle Ass'y for Chainsaws CS38EK - CS45EL - Tanaka ECV-3801 - Tanaka ECV-4501. Part for the following products:...
Available in 7/10 days €55.82
Details
Chain Loop for Bar 15"-38CM for Chainsaws Hitachi CS38EK-CS40EA
HiKOKI Power Tools Italia S.p.a. SKU: HGA781135
Chain Loop for Bar 15"-38CM for Chainsaws Hitachi CS38EK-CS40EA
Chain Loop for Bar 15"-38CM for Chainsaws Hitachi CS38EK-CS40EA Original part Hitachi HiKoki Tanaka, Chain Loop for Bar 15"-38CM - .325".NK - 64 M. 1,3 MM/0,50" for Chainsaws CS38EK - CS40EA - Tanaka ECV-3801 - ECV-4501. Part for the...
AVAILABLE €25.25
Details
Carburator Needle Valve for Chainsaws Hitachi-HiKoki Tanaka
HiKOKI Power Tools Italia S.p.a. SKU: 6685215
Carburator Needle Valve for Chainsaws Hitachi-HiKoki Tanaka
Carburator Needle Valve for Chainsaws Hitachi-HiKoki Tanaka Original part Hitachi-HiKoki Tanaka, Carburator Needle Valve for Chainsaws and Brushcutters Hitachi-HiKoki Tanaka. Part for the following products: - Chainsaw ECS 3301D -...
AVAILABLE €10.76
Details
Inlet Manifold Gasket for Chainsaw Hitachi Tanaka CS38EK
HiKOKI Power Tools Italia S.p.a. SKU: 6689876
Inlet Manifold Gasket for Chainsaw Hitachi Tanaka CS38EK
Inlet Manifold Gasket for Chainsaw Hitachi Tanaka CS38EK Genuine spare part Hitachi-HIKOKI Tanaka, Inlet Manifold Gasket for Chainsaws CS38EK-CS38EL - CS45EL - Tanaka ECV-3801 - ECV-4501. Part for the following products: - Chainsaw...
AVAILABLE €6.05
Details
Clutch Ass'y for Chainsaw Hitachi CS38EK
HiKOKI Power Tools Italia S.p.a. SKU: 6688489
Clutch Ass'y for Chainsaw Hitachi CS38EK
Clutch Ass'y for Chainsaw Hitachi CS38EK Genuine part Hitachi-HIKOKI Tanaka, Clutch Ass'y for Chainsaws CS38EK - CS45EL - Tanaka ECV-3801 - ECV-4501. Parts for the following products: -  Chainsaw Hitachi CS38EK - Chainsaw Hitachi...
Last items in stock €35.76
Details
Ball Bearing 6201 for Chainsaw Hitachi CS30EH
HiKOKI Power Tools Italia S.p.a. SKU: 6685096
Ball Bearing 6201 for Chainsaw Hitachi CS30EH
Ball Bearing 6201 for Chainsaw Hitachi CS30EH Original replacement part Hitachi-HIKOKI, Ball Bearing 6201 A2C3 (Old 99961620) for Chainsaws CS30EH(S) - CS35EH(S) - Tanaka TCS-3401S. Part for the following products: -  Chainsaw Hitachi...
on 7/10 Business Days Approx €11.47
Details
Clutch Boss for Chainsaw Tanaka ECV-3801
HiKOKI Power Tools Italia S.p.a. SKU: 6689497
Clutch Boss for Chainsaw Tanaka ECV-3801
Clutch Boss for Chainsaw Tanaka ECV-3801 Genuine part Hitachi HiKoki Tanaka, Clutch Boss for Chainsaw CS38EK - CS45EL - ECV-3801 - ECV-4501. Part for the following products: -  Chainsaw Tanaka ECV-3801 -  Chainsaw Tanaka ECV-4501 -...
on 7/10 Business Days Approx €2.52
Details
Brake Lever Spring for Chainsaws Hitachi CS38EK
HiKOKI Power Tools Italia S.p.a. SKU: 6689781
Brake Lever Spring for Chainsaws Hitachi CS38EK
Brake Lever Spring for Chainsaws Hitachi CS38EK Original spare part Hitachi HiKoki Tanaka, Brake Lever Spring for Chainsaws CS38EK - CS45EL - Tanaka ECV-3801 - ECV-4501 Part for the following products:...
Last items in stock €5.09
Details
Bar + Chain Set 38 cm 15'' for Chainsaw Hitachi CS38EK
HiKOKI Power Tools Italia S.p.a. SKU: HGA781245
Bar + Chain Set 38 cm 15'' for Chainsaw Hitachi CS38EK
Bar + Chain Set 38 cm 15'' for Chainsaw Hitachi CS38EK Original spare parts Hitachi Koky Tanaka, Bar + Chain Set cm 38 15'' - .325'' NK - 64 M. 1,3 mm/0.50'' for Chainsaw CS38EK. Part for the folllowing products:...
Last items in stock €52.89
Details
Comments (0)
