HiKOKI Power Tools Italia S.p.a.

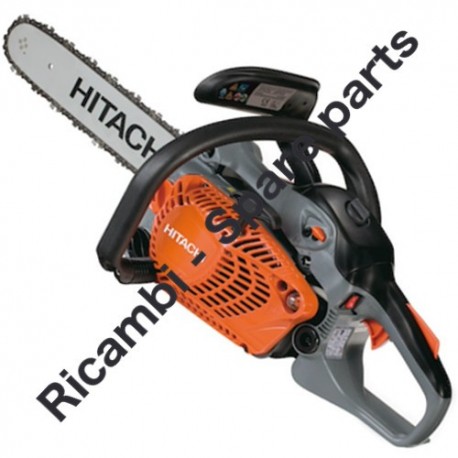

Hitachi Chainsaw CS33EDP Parts

SKU: Hitachi CS33EDP
€1.09
VAT included

Hitachi Spare Parts for Engine Chainsaw CS33EDP

Hitachi-HIKOKI Tanaka authorized service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Pruning Chainsaw CS33EDTP.
Hitachi Chainsaw CS33EDP Parts
  • Hitachi Chainsaw CS33EDP Parts
  • Hitachi Chainsaw CS33EDP Parts Diagram
  • Hitachi Chainsaw CS33EDP Parts Diagram - 1
  • Hitachi Chainsaw CS33EDP Accessories
HiKOKI Power Tools Italia S.p.a.

Hitachi Chainsaw CS33EDP Parts

SKU: Hitachi CS33EDP Condition: New
€1.09
VAT included

Hitachi Spare Parts for Engine Chainsaw CS33EDP

Hitachi-HIKOKI Tanaka authorized service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Pruning Chainsaw CS33EDTP.
settings 191 spare parts
description 3 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
126 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

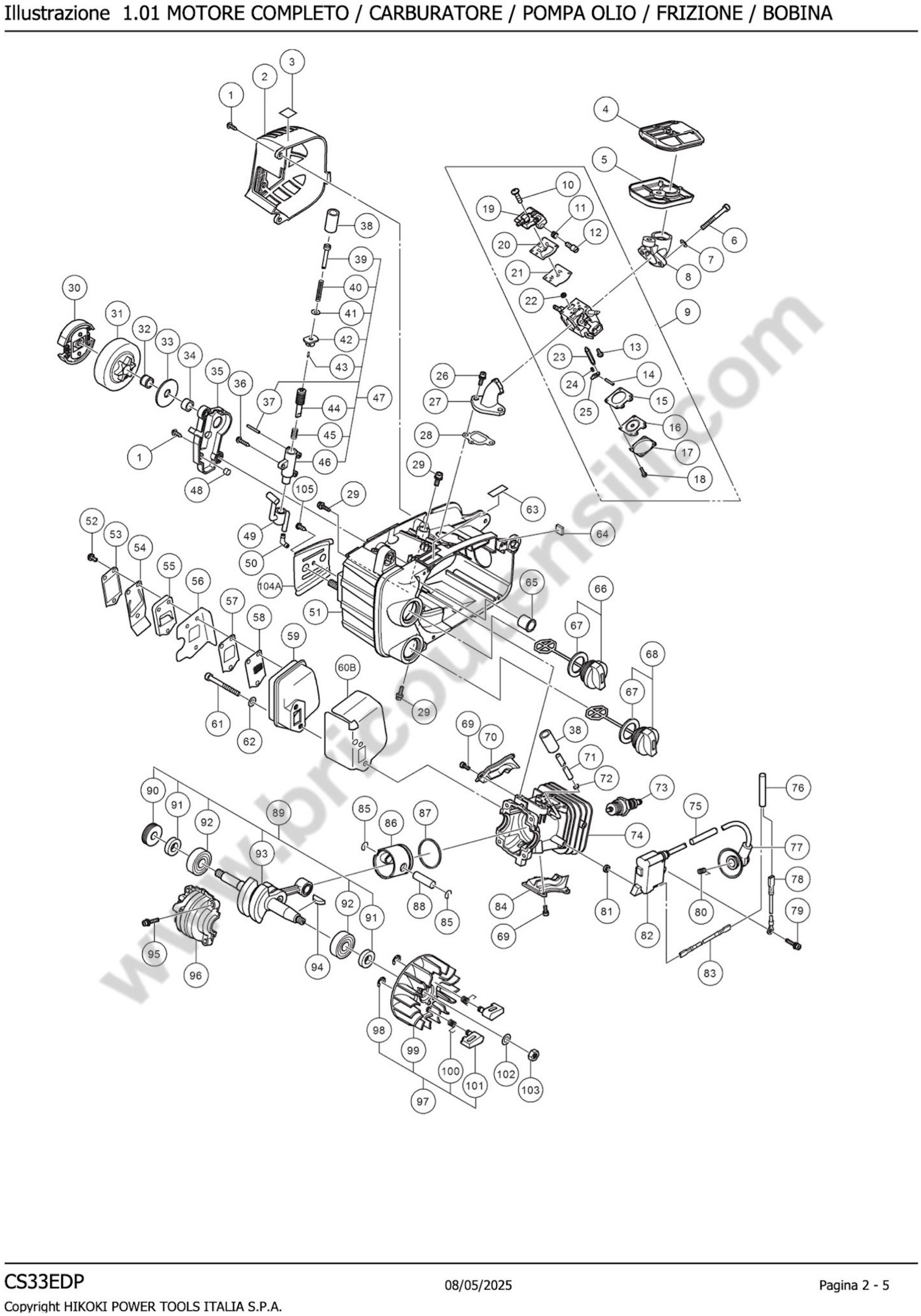

Esploso pagina 1
Pos. Item Price Buy
2
 Muffler Cover for Chainsaw Hitachi CS33EDTP 6696821 Muffler Cover for Chainsaw Hitachi CS33EDTP €16.85
4
 photo_cameraImage coming soon 6699969 CLEANER ELEMENT (B) €6.77
5
 photo_cameraImage coming soon 6699968 CLEANER ELEMENT (A) €6.29
6
 photo_cameraImage coming soon 949824 HEX. SOCKET HD. BOLT M5X45 (10 PCS.) €5.87
9
 photo_cameraImage coming soon 6699976 CARBURETOR ASS'Y €104.88
10
 photo_cameraImage coming soon 6685210 SCREW €2.52
11
 photo_cameraImage coming soon 6685297 IDLE ADJUST SPRING €3.38
12
 photo_cameraImage coming soon 6685298 IDLE ADJUST SCREW €3.44
13
 photo_cameraImage coming soon 6685218 HINGE PIN SET SCREW €3.38
14
 Hitachi CS25EC-SC Hinge Pin 6685219 Hitachi CS25EC-SC Hinge Pin €2.53
15
 Diaphragm Packing Metering for Chainsaws Hitachi CS25-33-40-45-51 6685220 Diaphragm Packing Metering for Chainsaws Hitachi CS25-33-40-45-51 €3.45
16
 Metering Diaphragm for Chainsaws Hitachi CS-33-40-51 6684690 Metering Diaphragm for Chainsaws Hitachi CS-33-40-51 €25.81
17
 photo_cameraImage coming soon 6685222 DIAPHRAGM COVER €6.54
18
 photo_cameraImage coming soon 6685223 SET SCREW €2.59
20
 Carburetor Pump Gasket for Chainsaws Hitachi CS25-33-40-45-51 6685212 Carburetor Pump Gasket for Chainsaws Hitachi CS25-33-40-45-51 €3.98
21
 Carburetor Pump Diaphragm for Chainsaws Hitachi CS25-33-40-45-51 6685213 Carburetor Pump Diaphragm for Chainsaws Hitachi CS25-33-40-45-51 €10.63
22
 Carburator Inlet Screen for Chainsaws and Bruschcutters Hitachi 6684700 Carburator Inlet Screen for Chainsaws and Bruschcutters Hitachi €3.18
23
 Carburator Needle Valve for Chainsaws Hitachi-HiKoki Tanaka 6685215 Carburator Needle Valve for Chainsaws Hitachi-HiKoki Tanaka €10.76
25
 Control Lever for Chainsaw Hitachi CS25EC-SC 6685217 Control Lever for Chainsaw Hitachi CS25EC-SC €6.34
27
 photo_cameraImage coming soon 6699951 INTAKE €8.93
31
 photo_cameraImage coming soon 6685144 CLUTCH HOUSING COMP. €28.75
32
 Clutch Needle Bearing for Chain Saws Hitachi CS33EB-EDT 6685361 Clutch Needle Bearing for Chain Saws Hitachi CS33EB-EDT €10.63
33
 Clutch Washer for Chainsaws Hitachi CS33EDT-CS33EB 6685414 Clutch Washer for Chainsaws Hitachi CS33EDT-CS33EB €2.65
34
 Crank Shaft Collar for Chainsaw Hitachi Tanaka CS33EB 6685360 Crank Shaft Collar for Chainsaw Hitachi Tanaka CS33EB €6.64
35
 Oil Pump Cover for Chainsaw Tanaka TCS33ED 6699610 Oil Pump Cover for Chainsaw Tanaka TCS33ED €5.43
37
 photo_cameraImage coming soon 6685356 NEEDLE ROLLER 2.5X19.8 €2.51
38
 photo_cameraImage coming soon 6696793 IDOL SPONGE €2.27
41
 photo_cameraImage coming soon 323210 BOLT WASHER M4 (BLACK) €1.65
44
 photo_cameraImage coming soon 6699957 PUMP GEAR (ED) €2.89
46
 photo_cameraImage coming soon 6699119 PUMP CASE €14.62
47
 photo_cameraImage coming soon 6600085 PUMP ASS'Y €33.05
48
 Air Vent Sponge for Chainsaw Hitachi CS33EB-CS33EDT-CS40EA 6685371 Air Vent Sponge for Chainsaw Hitachi CS33EB-CS33EDT-CS40EA €3.31
49
 Oil Pipe for Chainsaw Tanaka TCS33EDT 6696811 Oil Pipe for Chainsaw Tanaka TCS33EDT €5.43
50
 Oil Pipe Joint for Chainsaw Hitachi Tanaka CS33EB 6685358 Oil Pipe Joint for Chainsaw Hitachi Tanaka CS33EB €2.65
51
 photo_cameraImage coming soon 6600084 ENGINE CASE ASS'Y €56.10
53
 photo_cameraImage coming soon 6698861 PACKING PLATE €2.22
54
 photo_cameraImage coming soon 6698862 MUFFLER SPECIAL PACKING (S) €2.22
55
 photo_cameraImage coming soon 6696816 EXHAUST PIPE €2.27
56
 photo_cameraImage coming soon 6696818 MUFFLER SPECIAL PACKING €2.27
57
 photo_cameraImage coming soon 6696817 GAUZE FIXING PLATE €2.27
58
 photo_cameraImage coming soon 6696815 MUFFLER GAUZE €2.27
59
 photo_cameraImage coming soon 6600049 MUFFLER GUARD €40.03
65
 photo_cameraImage coming soon 6685351 INNER CAP €9.28
66
 Petrol Tank Cap for Chainsaws Hitachi CS33EDT-40EA-51EAP 6698854 Petrol Tank Cap for Chainsaws Hitachi CS33EDT-40EA-51EAP €6.50
67
 Petrol-Oil Tank Cap Packing for Chainsaw Hitachi CS33EDT 6685179 Petrol-Oil Tank Cap Packing for Chainsaw Hitachi CS33EDT €1.98
68
 Oil Tank Cap for Chainsaws Hitachi CS33EDT-40EA-51EAP 6698358 Oil Tank Cap for Chainsaws Hitachi CS33EDT-40EA-51EAP €6.50
70
 photo_cameraImage coming soon 6696766 SCAVENGING COVER (B) €4.18
71
 photo_cameraImage coming soon 6698907 FUEL PIPE (FKM) €15.43
72
 photo_cameraImage coming soon 6685311 CLIP €2.58
74
 photo_cameraImage coming soon 6600083 CYLINDER €85.94
79
 Hex Socket HD Bolt M4x18 for Chainsaw Tanaka TCS-40EA 6696326 Hex Socket HD Bolt M4x18 for Chainsaw Tanaka TCS-40EA €2.40
80
 photo_cameraImage coming soon 6696772 METAL FITTING OF PLUG CAP (A) €2.22
81
 photo_cameraImage coming soon 6698700 GLASS WASHER €2.16
82
 photo_cameraImage coming soon 6699977 IGNITION COIL €55.49
84
 photo_cameraImage coming soon 6696765 SCAVENGING COVER (A) €4.18
85
 photo_cameraImage coming soon 6685326 CIRCLIP €2.51
86
 photo_cameraImage coming soon 6698806 PISTON (M) €23.72
87
 Piston Ring for Chainsaw Hitachi Tanaka CS33EB 6685331 Piston Ring for Chainsaw Hitachi Tanaka CS33EB €10.49
88
 photo_cameraImage coming soon 6696764 PISTON PIN €2.44
89
 photo_cameraImage coming soon 6698853 CRANK WORM ASS'Y €126.90
90
 photo_cameraImage coming soon 6685330 WORM €9.04
91
 photo_cameraImage coming soon 6685329 OIL SEAL €6.27
92
 photo_cameraImage coming soon 6685328 BALL BEARING €8.52
93
 photo_cameraImage coming soon 6696762 CRANK SHAFT €10.21
94
 photo_cameraImage coming soon 6684899 WOODRUFF KEY 3X13X4.5 €1.68
97
 photo_cameraImage coming soon 6600090 MAGNETO SUB ASS'Y €62.11
98
 photo_cameraImage coming soon 6685336 RETAINING RING D4 €2.48
100
 Starter Pawl Spring for Chainsaw Hitachi Tanaka CS33EDT-EB 6685335 Starter Pawl Spring for Chainsaw Hitachi Tanaka CS33EDT-EB €2.65
101
 Starter Pawl for Chainsaw Hitachi Tanaka CS33EDT-EB 6685334 Starter Pawl for Chainsaw Hitachi Tanaka CS33EDT-EB €2.65
102
 photo_cameraImage coming soon 6696880 BOLT WASHER D7 €2.22
103
 photo_cameraImage coming soon 6696879 FLYWHEEL NUT M7 €2.27
104A
 photo_cameraImage coming soon 6600346 GUIDE PLATE (C) €3.12
Page 2 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

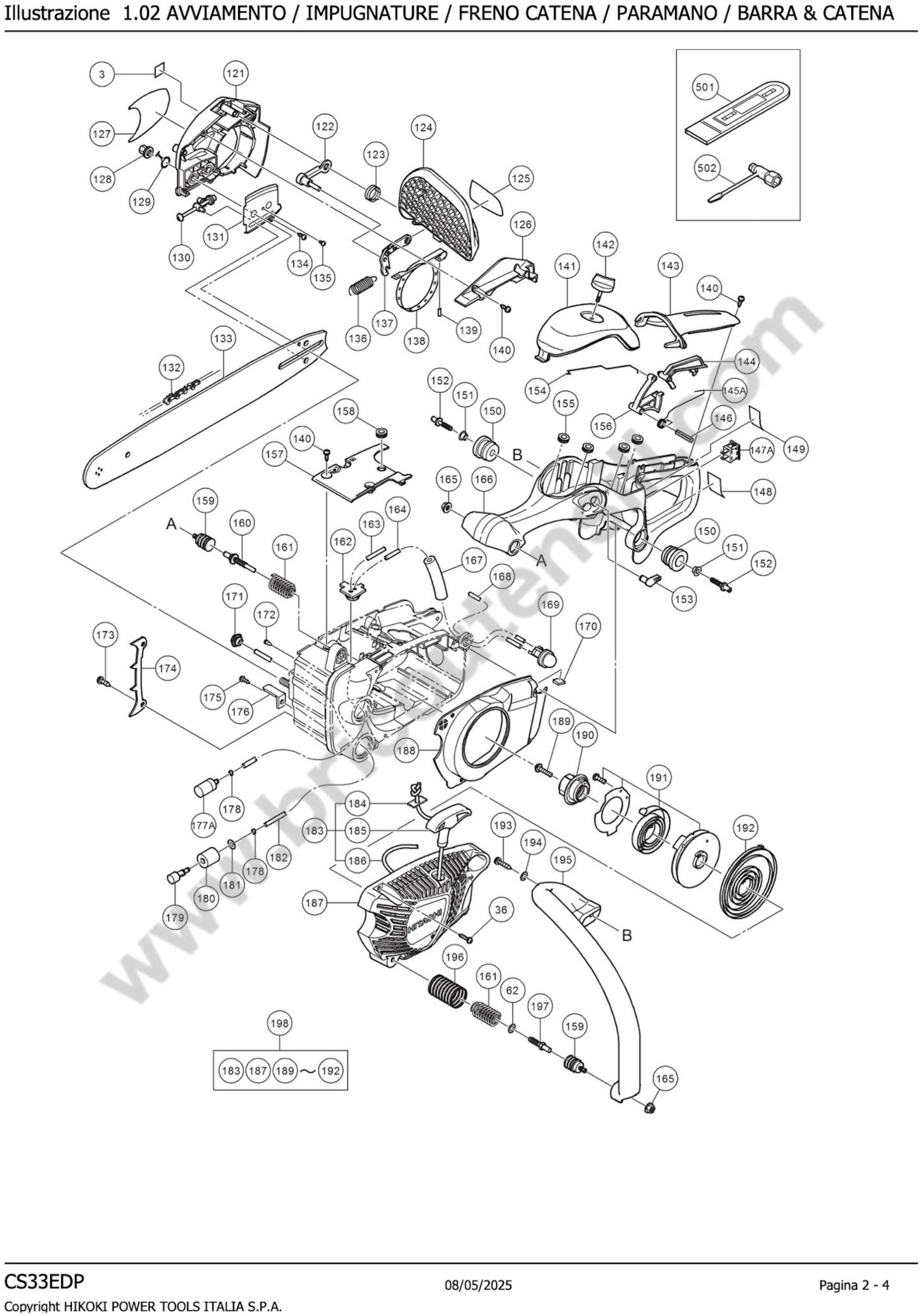

Esploso pagina 2
Pos. Item Price Buy
121
 photo_cameraImage coming soon 6600088 CHAIN ​​HOUSING €23.90
122
 photo_cameraImage coming soon 6696782 BRAKE SUPPORT PLATE €8.27
123
 photo_cameraImage coming soon 6696783 BRAKE LEVER SPRING €2.27
124
 photo_cameraImage coming soon 6699972 BRAKE HANDLE €9.77
126
 photo_cameraImage coming soon 6696779 BRAKE LINK COVER €2.22
128
 photo_cameraImage coming soon 6600057 BLADE FIXING NUT €1.95
130
 Tension Adjustment Bolt for Chainsaw Hitachi CS33EB-CS33EDT-CS40EA 6698986 Tension Adjustment Bolt for Chainsaw Hitachi CS33EB-CS33EDT-CS40EA €25.92
131
 Guide Plate for Chainsaw Hitachi Tanaka CS33EDT 6696784 Guide Plate for Chainsaw Hitachi Tanaka CS33EDT €9.30
132
 photo_cameraImage coming soon 781124 CHAIN ​​PACK 3/8 LP 1.3 52M €16.21
132
 photo_cameraImage coming soon 781126 CHAIN SAW 3/8 LP 1.3 57M €27.87
133
 photo_cameraImage coming soon 781232 CHAIN BAR 12 INCH 3/8 SPROCKET PRC €31.82
133
 photo_cameraImage coming soon 781236 KIT CHAIN BAR 40CM 3/8 1.3 57M €38.42
135
 Tapping Screw D3 for Electric Chain Saw Hitachi CS 35Y 696352 Tapping Screw D3 for Electric Chain Saw Hitachi CS 35Y €1.61
137
 photo_cameraImage coming soon 6685388 BRAKE LINK €8.33
138
 photo_cameraImage coming soon 6685140 BRAKE BAND - DISCONTINUED €27.71
139
 Needle Roller mm 3 for Chainsaw Hitachi Tanaka CS40EA 6685391 Needle Roller mm 3 for Chainsaw Hitachi Tanaka CS40EA €2.52
142
 photo_cameraImage coming soon 6699971 AIR FILTER KNOB €1.95
144
 photo_cameraImage coming soon 6685350 TRIGGER LOCKOUT (VERMILION) €2.52
146
 photo_cameraImage coming soon 6685282 SPRING PIN 5X25 €1.32
147A
 photo_cameraImage coming soon 6601275 STOP SWITCH €2.62
150
 photo_cameraImage coming soon 6696327 DAMPER (A) €10.03
151
 photo_cameraImage coming soon 696314 DISTANCE PIECE (B) €3.76
152
 photo_cameraImage coming soon 6685413 DAMPER SET BOLT €2.52
153
 photo_cameraImage coming soon 6685206 CHOKE LEVER €1.83
156
 photo_cameraImage coming soon 6698916 THROTTLE LEVER (VERMILION) €2.27
159
 photo_cameraImage coming soon 6698409 SPRING HOLDER €4.87
161
 photo_cameraImage coming soon 6698428 ANTIVIBRATION SPRING €4.87
162
 photo_cameraImage coming soon 6696167 FUEL GROMMET €2.44
165
 photo_cameraImage coming soon 329934 FLANGE NUT M6 €2.57
166
 photo_cameraImage coming soon 6699963 REAR HANDLE €17.08
168
 Fuel Hose for Brushcutters Hitachi CG47EF (L)-CG47EJ-L-CG47EY-T 6685267 Fuel Hose for Brushcutters Hitachi CG47EF (L)-CG47EJ-L-CG47EY-T €3.31
169
 Priming Pump for Chain Saws and Brushcutters Hitachi Tanaka 6685139 Priming Pump for Chain Saws and Brushcutters Hitachi Tanaka €13.15
171
 Fuel Tank Grommet for Brushcutter Hitachi CG22EAS 6685308 Fuel Tank Grommet for Brushcutter Hitachi CG22EAS €1.98
172
 Air Vent Valve for Chainsaw Hitachi CS33EB-CS33EDT-CS40EA 6685370 Air Vent Valve for Chainsaw Hitachi CS33EB-CS33EDT-CS40EA €4.64
173
 photo_cameraImage coming soon 6698456 FLANGED TAPPING SCREW D5X15 €2.44
175
 photo_cameraImage coming soon 6698456 FLANGED TAPPING SCREW D5X15 €2.44
177A
 photo_cameraImage coming soon 6600351 PUMP FILTER €5.32
178
 photo_cameraImage coming soon 6685311 CLIP €2.58
179
 Oil Filter Body for Chainsaw Hitachi Tanaka CS33EDT 6685310 Oil Filter Body for Chainsaw Hitachi Tanaka CS33EDT €2.37
181
 photo_cameraImage coming soon 6685407 BOLT WASHER D5 €2.22
182
 photo_cameraImage coming soon 6698715 FUEL PIPE €19.56
183
 photo_cameraImage coming soon 6600061 STARTER HANDLE ASS'Y €5.11
187
 photo_cameraImage coming soon 6600066 STARTER COVER €36.71
190
 photo_cameraImage coming soon 6600064 CAM PLATE (NS) €3.61
191
 photo_cameraImage coming soon 6600065 STARTER PULLEY W/S-START SPRING €23.56
192
 photo_cameraImage coming soon 6600063 STARTER SPRING €11.60
195
 photo_cameraImage coming soon 6699967 FRONT HANDLE €10.96
196
 photo_cameraImage coming soon 6698865 SPRING COVER €2.27
197
 photo_cameraImage coming soon 6698859 DAMPER SET BOLT €2.07
198
 photo_cameraImage coming soon 6699953 COMPLETE STARTER INCLUDES 183, 187, 189-192 €40.36
501
 photo_cameraImage coming soon 6685439 CHAIN BAR COVER 35 CM €9.11
502
 photo_cameraImage coming soon 6685440 CHAIN COVER 16" €9.11
Page 3 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

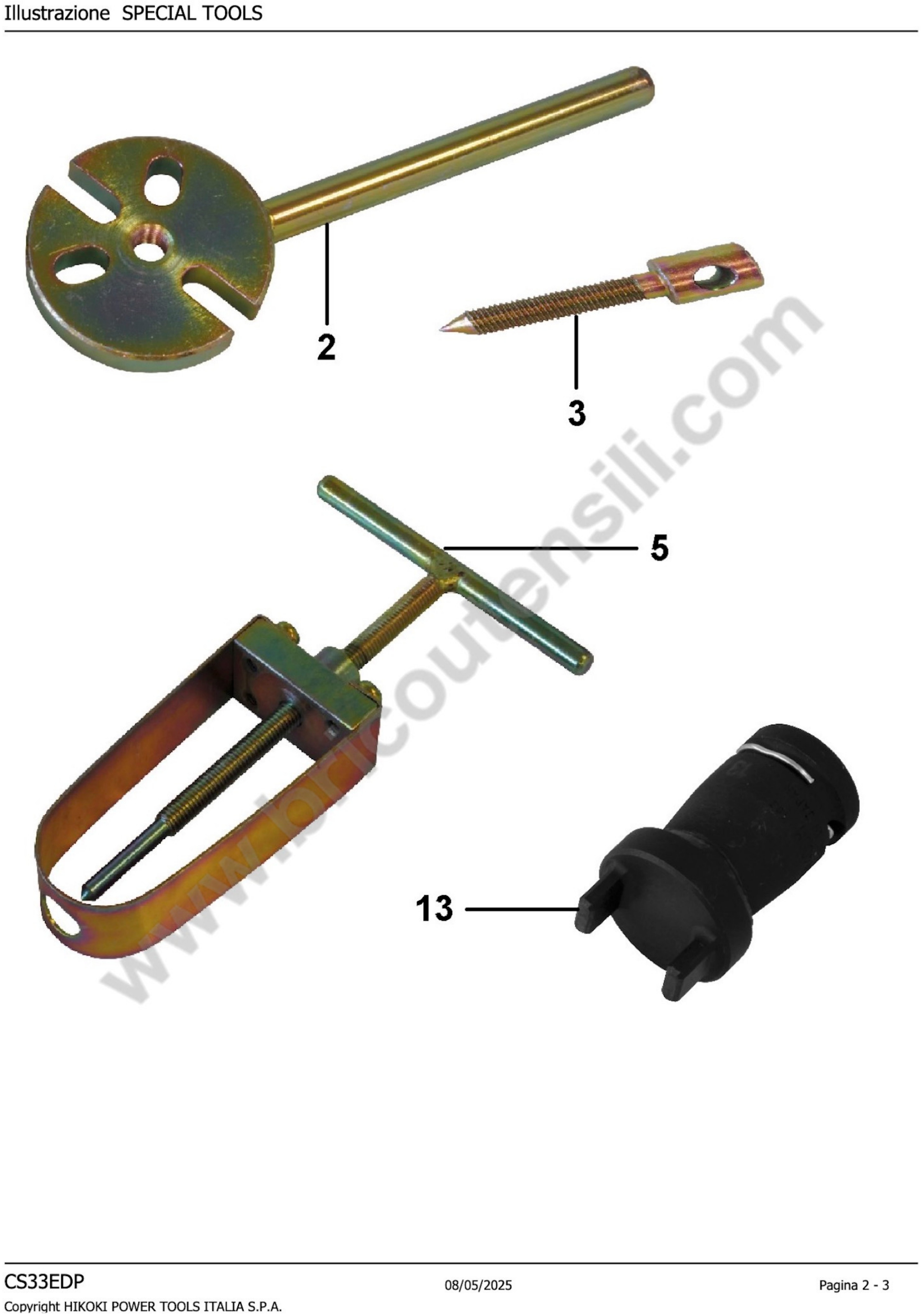

Esploso pagina 3
Pos. Item Price Buy
3
 photo_cameraImage coming soon 6695737 FLYWHEEL EXTRACTOR BOLT €22.13
5
 photo_cameraImage coming soon 6695740 PISTON PIN EXTRACTOR €80.81

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Hitachi Spare Parts for Engine Chainsaw CS33EDP

Hitachi-HIKOKI Tanaka authorized service center

 and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Pruning Chainsaw CS33EDP.

In the following table, look for the model of the Chainsaw and ripettivo spare part.
Hitachi CS33EDP

Chainsaw CS33EDP
ENGINE - CARBURETOR - OIL PUMP - CLUTCH - COIL
Pag.1
# Part Num Description
1 305812 SCREW WITH BLACK D4X16 FLANGE
2 6696821 MUFFLER PROTECTION
3 6698864 CAUTION LABEL (HOT) NEW
4 6699969 UPPER AIR FILTER
5 6699968 LOWER AIR FILTER
6 949824 BOLT M5X45 T.E.I. (10PCS.)
7 6685408 WASHER
8 6699966 CLEANER SUPPORT
9 6699976 CARBURETOR INCLUDES 10-25
10 6685210 SCREW
11 6685297 SPRING
12 6685298 IDLE ADJUSTMENT SCREW
13 6685218 SCREW
14 6685219 PIN ROCKER ARM
15 6685220 DISC GASKET
16 6684690 PUMPING MEMBRANE
17 6685222 COVER
18 6685223 SCREW
19 6600091 PUMP COVER
20 6685212 PUMPING MEMBRANE
21 6685213 FILTER SCREEN
22 6684700 NEEDLE
23 6685215 VALVE SPRING (OLD 477-25343-20)
24 6685216 ROCKER ARM
25 6685217 HEX. HOLE BOLT M4 NEW
26 6698792 COLLECTOR
27 6699951 COLLECTOR GASKET
28 6699952 SEAL LOCK HEX. SOCKET BOLT (W/WASHERS)M5
29 6699044 CLUTCH COMPLETE
30 6600316 CLUTCH BELL 3/8
31 6685144 ROLLER BEARING
32 6685361 WASHER
33 6685414 BUSHING
34 6685360 PUMP COVER
35 6699610 SELF-THREADING SCREW D4X20 BLACK
36 302086 PLUG
37 6685356 SPONGE
38 6696793 OIL PUMP ADJUSTER (ED)
39 6699960 ADJUSTER SPRING
40 6699961 M4 WASHER
41 323210 ADJUSTER CAP
42 6699959 NEEDLE ROLLER
43 6600046 OIL PUMP SHAFT
44 6699957 PUMP GEAR SPRING (ED)
45 6699958 PUMP BODY
46 6699119 OIL PUMP COMPLETE INCLUDES 37, 39-46
47 6600085 OIL FILTER (SPONGE)
48 6685371 OIL PIPE
49 6696811 PIPE CONNECTOR
50 6685358 ENGINE CASE INCLUDES 64, 65, 172
51 6600084 SCREW (W/WASHERS) M4 (BLACK)
52 6600048 MUFFLER PLATE
53 6698861 MUFFLER GASKET
54 6698862 MUFFLER PLATE
55 6696816 MUFFLER PLATE
56 6696818 MUFFLER PLATE
57 6696817 MUFFLER NET
58 6696815 MUFFLER
59 6600049 MUFFLER GUARD
60B 6600445 HEX. SOCKET HD. BOLT M6X55 NEW
61 6696819 WASHER M6
62 949432 TANK MARK LABEL (50:1) NEW
63 6698921 PROTECTION SHEET
64 6600047 MIX TANK BREATHER
65 6685351 MIX CAP (ORANGE) *6698358 INCLUDES 67
66 6698854 CAP SEAL
67 6685179 OIL CAP (BLACK) INCLUDES 67
68 6698358 BOLT M4X10
69 949812 CYLINDER CAP (B)
70 6696766 MIX TUBE
71 6698907 *SEE 6685198
72 6685311 CYLINDER
74 6600083 CORD INSULATION TUBE L100
75 6600051 CORD INSULATION TUBE L60
76 6699175 SPARK PLUG CAP
77 6696771 CORD
78 6600052 HEX SCREW M4
79 6696326 METAL FITTING OF PLUG CAP (A) NEW
80 6696772 PLASTIC WASHER
81 6698700 IGNITION COIL
82 6699977 CORD (A)
83 6699948 CYLINDER CAP (A)
84 6696765 LOCK PIN
85 6685326 PISTON
86 6698806 PISTON RING
87 6685331 PISTON PIN
88 6696764 CRANKSHAFT-BEARINGS-OIL SEAL INCLUDES 90-93
89 6698853 PUMP GEAR
90 6685330 OIL SEAL
91 6685329 BEARING
92 6685328 CRANKSHAFT W/ BEARING
93 6696762 WOODRUFF KEY
94 6684899 HEX. SOCKET HD BOLT M5X18 (W/SP.WAS
95 6698386 CRANK CASE NEW MAR
96 6696767 FLYWHEEL W/ PAWLS INCLUDES 98-101
97 6600090 E-RING D4E
98 6685336 MAGNETO ROTOR COMP.
99 6600053 STARTER HOOK SPRING
100 6685335 STARTER PAWL
101 6685334 STARTER RATCHET
102 6696880 WASHER
103 6696879 FLYWHEEL NUT
104A 6600346 GUIDE PLATE
105 958715 SELF-THREADING SCREW D.4X10
STARTER-GRIPS-CHAIN ​​BRAKE-HANDGUARD-BAR and CHAIN
Pag.2
3
6698864
 CAUTION LABEL (HOT) NEW
36
302086
 SELF-THREADING SCREW D4X20 BLACK
62
949432
 M6 WASHER
121
6600088
 CHAIN ​​HOUSING
122
6696782
 BRAKE LEVER SUPPORT
123
6696783
 BRAKE LEVER SPRING
124
6699972
 HAND GUARD
126
6696779
 BRAKE HOUSING
127
6600071
 NAME PLATE (EURO.A) CS33EDP
128
6600057
 BLADE FIXING NUT
129
6600058
 NUT HOLDER
130
 6698986 CHAIN ​​TENSIONER
131
 6696784 GUIDE PLATE
132
781124
 CHAIN ​​PACK 3/8 LP 1.3 52M
132
781126
 CHAIN ​​PACK 3/8 LP 1.3 57M
133
 Bar + Chain Set cm 30 12''  - 3/8'' LP - 45 M. 1,3 mm/0.50''
133
 Bar + Chain Set cm 40 16'' - 3/8'' LP - 57 M. 1,3 mm/0.50''
134
958715
 SELF-TAPPING SCREW D.4X10
135
 696352 D3 SCREW
136
6600054
 BRAKE SPRING
137
6685388
 BRAKE CONNECTION
138
6685140
 BRAKE SPRING
139
 6685391 PIN
140
305812
 BLACK D4X16 FLANGE SCREW
141
6699970
 AIR FILTER COVER
142
6699971
 AIR FILTER KNOB
143
6699965
 REAR HANDLE GRIP
144
6685350
 SAFETY LEVER
145A
6600341
 THROTTLE LEVER SPRING
146
6685282
 PLUG
147A
6601275
 STOP SWITCH
148
6600082
 START LABEL (CS33ED) EX
150
6696327
 SHOCK ABSORBER
151
696314
 *SEE HGR696314
152
6685413
 BOLT
153
6685206
 CHOKE LEVER
154
6699964
 THROTTLE ROD (ED)
155
6698787
 GROMMET NEW
156
6698916
 THROTTLE TRIGGER
157
6699974
 ENGINE CASE COVER
158
6698787
 GROMMET NEW
159
6698409
 DAMPER SPRING CONNECTOR
160
6699962
 DAMPER SET BOLT (A)
161
6698428
 DAMPER SPRING
162
6696167
 MIXTURE RUBBER
163
6699975
 FUEL PIPE
164
6600055
 FUEL PIPE L220
165
329934
 M6 FLANGED NUT
166
6699963
 REAR HANDLE
167
6600056
 IDLE SPONGE
168
 6685267 MIX TUBE
169
 6685139 PRIMER
170
6600047
 PROTECTION SHEET
171
 6685308 MIX TUBE RUBBER
172
 6685370 RUBBER
173
6698456
 D5X15 SCREW
174
6699973
 SPIKE
175
6698456
 D5X15 SCREW
176
6699950
 CHAIN ​​CATCHER
177A
6600351
 MIXTURE FISHING UNIT
178
6685311
 *SEE 6685198
179
 6685310 FISHING UNIT OIL
180
6696804
 *SEE HGR6690919
181
6685407
 M5 WASHER
182
6698715
 RUBBER TUBE
183
6600061
 STARTER HANDLE INCLUDES 184-186
184
6699465
 ROPE STOPPER
185
6699467
 STARTER KNOB
186
6600060
 STARTER ROPE (NS)
187
6600066
 STARTER COVER
188
6600089
 AIR DEFLECTOR ASS'Y INCLUDES 170
189
6600062
 SCREW
190
6600064
 ENGAGEMENT PLATE
191
6600065
 STARTER PULLEY W/S-START SPRING
192
6600063
 STARTER SPRING
193
305558
 TAPPING SCREW D5X25 (W/FLANGE) BLAC
194
6685408
 WASHER
195
6699967
 FRONT HANDLE
196
6698865
 SPRING GUARD
197
6698859
 SHOCK ABSORBER SCREW
198
6699953
 COMPLETE STARTER INCLUDES 183, 187, 189-192
501
6685439
 ROD SLEEVE 35CM
502
6685440
 ROD SLEEVE 40CM
Accessories Pag.3
2 6695736 FLYWHEEL PULLER
3 6695737 FLYWHEEL PULLER BOLT
5 6695740 PIN PULLER
13 6695753 CLUTCH PULLER
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Hitachi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to hitachi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Hitachi CS33EDP
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Hitachi CS33EDP Parts Diagram

Hitachi CS33EDP Parts Diagram

Download (1.07MB)

You might also like

Oil Pump Gear for Chainsaw Hitachi Tanaka CS33EA-EB-EDT
HiKOKI Power Tools Italia S.p.a. SKU: 6685354
Oil Pump Gear for Chainsaw Hitachi Tanaka CS33EA-EB-EDT
Oil Pump Gear for Chainsaw Hitachi CS33EB Original spare part Hitachi Koky Tanaka, Oil Pump Gear for Chainsaw CS33EB - CS33EDT Parts for the following products: -  Chainsaw Hitachi CS33EB - ...
AVAILABLE €11.82
Details
Oil Pump for Chainsaw Hitachi Tanaka CS33EDT
HiKOKI Power Tools Italia S.p.a. SKU: 6699120
Oil Pump for Chainsaw Hitachi Tanaka CS33EDT
Oil Pump for Chainsaw Hitachi Tanaka CS33EDT Original spare part Hitachi Tanaka, Oil Pump for Chainsaws CS33EDT - CS33EDTP - Tanaka TCS33EDT. Part for the following products: - Chainsaw Hitachi CS33EDT -...
Last items in stock €19.93
Details
Clutch Housing for Chainsaw Hitachi Tanaka CS33EDT
HiKOKI Power Tools Italia S.p.a. SKU: 6698856
Clutch Drum for Chainsaw Hitachi Tanaka CS33EDT
Clutch Drum for Chainsaw Hitachi Tanaka CS33EDT Original part for Chainsaw Hitachi HIKOKI Tanaka, clutch drum with pinion, for Chainsaw CS33EDT - TCS33TP. Part for the following products: - Chainsaw Hitachi  CS33EDT -...
Last items in stock €35.00
Details
Ignition Coil for Chainsaw Hitachi Tanaka CS33EDT
HiKOKI Power Tools Italia S.p.a. SKU: 6699999
Ignition Coil for Chainsaw Hitachi Tanaka CS33EDT
Ignition Coil for Chainsaw Hitachi Tanaka CS33EDT Genuine parts Hitachi Koky Tanaka, Ignition Coil for Chainsaw CS33EDT. Parts for the following items : -  Chainsaw Hitachi CS33EDT - ...
Last items in stock €61.02
Details
Clutch Needle Bearing for Chain Saws Hitachi CS33EB-EDT
HiKOKI Power Tools Italia S.p.a. SKU: 6685361
Clutch Needle Bearing for Chain Saws Hitachi CS33EB-EDT
Clutch Needle Bearing for Chain Saws Hitachi CS33EB-EDT Hitachi-HIKOKI Tanaka genuine part, Clutch Needle Bearing for pruning  Hitachi Garden Tanaka Chainsaws CS33EB - CS33EDT. Part for the following products: - Chainsaw CS33EDT -...
AVAILABLE €10.63
Details
Priming Pump for Chain Saws and Brushcutters Hitachi Tanaka
HiKOKI Power Tools Italia S.p.a. SKU: 6685139
Priming Pump for Chain Saws and Brushcutters Hitachi Tanaka
Priming Pump for Chain Saws and Brushcutters Hitachi Tanaka Genuine spare Hitachi Koky Tanaka, Priming Pump complete for Brushcutters and Chain Saws Hitachi Tanaka. Parts for the following products: - BRUSHCUTTER CG47EF (L) -...
AVAILABLE €13.15
Details
Carburetor Pump Gasket for Chainsaws Hitachi CS25-33-40-45-51
HiKOKI Power Tools Italia S.p.a. SKU: 6685212
Carburetor Pump Gasket for Chainsaws Hitachi CS25-33-40-45-51
Carburetor Pump Gasket for Chainsaws Hitachi CS25-33-40-45-51 Original parts for Chainsaw Hitachi HiKoky Tanaka, Carburetor Pump Gasket for Chainsaws, CS25EC-SC-EU - CS33EDT - CS38EK - CS40EA - CS45EL - CS51EAP. Parts for the...
AVAILABLE €3.98
Details
Carburetor Pump Diaphragm for Chainsaws Hitachi CS25-33-40-45-51
HiKOKI Power Tools Italia S.p.a. SKU: 6685213
Carburetor Pump Diaphragm for Chainsaws Hitachi CS25-33-40-45-51
Carburetor Pump Diaphragm for Chainsaws Hitachi CS25-33-40-45-51 Original parts for Chainsaw Hitachi Koky Tanaka, Pump Diaphragm for Carburetor Chainsaws, CS25EC-SC-EU - CS33EDT - CS38EK - CS40EA - CS45EL - CS51EAP - BRUSHCUTTERS...
AVAILABLE €10.63
Details
Oil Pump Gear Spring for Chainsaw Hitachi Tanaka CS33EA-CS33EDT
HiKOKI Power Tools Italia S.p.a. SKU: 6685355
Oil Pump Gear Spring for Chainsaw Hitachi Tanaka CS33EA-CS33EDT
Oil Pump Gear Spring for Chainsaw Hitachi Tanaka CS33EA-CS33EDT Original replacement part Hitachi Koky Tanaka, Oil Pump Gear Spring for Chainsaws CS33EA-CS33EDT. Part for the following products: -  Chainsaw Hitachi CS33EB -  Chainsaw...
AVAILABLE €2.65
Details
Intake Manifold for Chainsaw Hitachi Tanaka CS33EDT
HiKOKI Power Tools Italia S.p.a. SKU: 6696794
Intake Manifold for Chainsaw Hitachi Tanaka CS33EDT
Intake Manifold for Chainsaw Hitachi Tanaka CS33EDT Original spare part for Chainsaw Hitachi Koky Tanaka, Carburator Intake Manifold for Pruning Chainsaw CS33EDT. Part for the following product: -  Pruning...
Last items in stock €8.60
Details
Diaphragm Packing Metering for Chainsaws Hitachi CS25-33-40-45-51
HiKOKI Power Tools Italia S.p.a. SKU: 6685220
Diaphragm Packing Metering for Chainsaws Hitachi CS25-33-40-45-51
Diaphragm Packing Metering for Chainsaws Hitachi CS25-33-40-45-51 Original parts for Chainsaw Hitachi Koky Tanaka, Diaphragm Packing Metering Gasket for Carburetor Chainsaws, CS25EC-SC-EU - CS33EDT - CS38EK - CS40EA - CS45EL - CS51EAP...
AVAILABLE €3.45
Details
Metering Diaphragm for Chainsaws Hitachi CS-33-40-51
HiKOKI Power Tools Italia S.p.a. SKU: 6684690
Metering Diaphragm for Chainsaws Hitachi CS-33-40-51
Metering Diaphragm for Chainsaws Hitachi CS-33-40-51 Original parts for Chainsaw Hitachi Koky Tanaka, Metering Diaphragm for Carburetor Chainsaws,CS33EDT - CS 33EB - CS40EA - TANAKA TCS-40EA - Hitachi CS51EAP -...
Last items in stock €25.81
Details
Air Filter Cover for Chainsaw Hitachi CS33EDT
HiKOKI Power Tools Italia S.p.a. SKU: 6696785
Air Filter Cover for Chainsaw Hitachi CS33EDT
Air Filter Cover for Chainsaw Hitachi CS33EDT Genuine spare parts Hitachi-HIKOKI Tanaka, Air Filter Cover for Chainsaw CS33EDT Part for the following products: - Chainsaw Hitachi CS33EDT - Chainsaw...
Last items in stock €8.60
Details
Cleaner Sponge for Chainsaw Hitachi CS33EDT
HiKOKI Power Tools Italia S.p.a. SKU: 6696825
Cleaner Sponge for Chainsaw Hitachi CS33EDT
Cleaner Sponge for Chainsaw Hitachi CS33EDT Genuine spare part Hitachi Koky Tanaka, Cleaner Sponge for Chainsaw CS33EDT - CS33EDTP - Tanaka TCS33EDT. Part for the following products: - Chainsaw Hitachi...
Last items in stock €2.65
Details
Air Cleaner Cover Knob for Chainsaw Hitachi CS33EDT
HiKOKI Power Tools Italia S.p.a. SKU: 6696786
Air Cleaner Cover Knob for Chainsaw Hitachi CS33EDT
Air Cleaner Cover Knob for Chainsaw Hitachi CS33EDT Genuine spare part Hitachi Koky Tanaka, Air Cleaner Cover Knob for Chainsaw CS33EDT. Part for the following products: - Chainsaw Hitachi CS33EDT -...
Last items in stock €2.65
Details
Crank Shaft Collar for Chainsaw Hitachi Tanaka CS33EB Sale
HiKOKI Power Tools Italia S.p.a. SKU: 6685360
Crank Shaft Collar for Chainsaw Hitachi Tanaka CS33EB
Crank Shaft Collar for Chainsaw Hitachi Tanaka CS33EB Original spare part Hitachi Koky Tanaka, Crank Shaft Collar for Chainsaws CS33EB - CS30EG - CS35EG - CS30EH - CS35EH Part for the following products: - Chainsaw Hitachi CS33EB -...
AVAILABLE €6.64
Details
Clutch Washer for Chainsaws Hitachi CS33EDT-CS33EB
HiKOKI Power Tools Italia S.p.a. SKU: 6685414
Clutch Washer for Chainsaws Hitachi CS33EDT-CS33EB
Clutch Washer for Chainsaws Hitachi CS33EDT-CS33EB Hitachi genuine parts, Clutch Washer for Chainsaws Hitachi CS33EDT - CS33EB. Parts for the following products: - Chainsaw CS33EDT - Chainsaw CS33EB  - Code : 6685414
AVAILABLE €2.65
Details
Air Cleaner Sponge (B) for Chainsaw Hitachi Tanaka CS33EDT
HiKOKI Power Tools Italia S.p.a. SKU: 6696826
Air Cleaner Sponge (B) for Chainsaw Hitachi Tanaka CS33EDT
Air Cleaner Sponge (B) for Chainsaw Hitachi Tanaka CS33EDT Original spare parts Hitachi Tanaka, Air Cleaner Sponge (B) for Chainsaws CS33EDT - CS33EDTP Part for the following products: - Chainsaw Hitachi CS33EDT...
Usually Ships in: 7/10 Business Days Approx. €2.65
Details
Lower Cleaner Element for Chainsaw Tanaka TCS33EDT
HiKOKI Power Tools Italia S.p.a. SKU: 6685230
Lower Cleaner Element for Chainsaw Tanaka TCS33EDT
Lower Cleaner Element for Chainsaw Tanaka TCS33EDT Genuine spare part Tanaka, Lower Cleaner Element for Chainsaw TCS33EDT - Hitachi CS33EDT Part for the following products: - Chainsaw Tanaka TCS33EDT - Chainsaw Hitachi CS33EDT - Code:...
Last items in stock €5.43
Details
Upper Cleaner Element for Chainsaw Tanaka TCS33EDT
HiKOKI Power Tools Italia S.p.a. SKU: 6685231
Upper Cleaner Element for Chainsaw Tanaka TCS33EDT
Upper Cleaner Element for Chainsaw Tanaka TCS33EDT Genuine spare part Tanaka, Upper Cleaner Element for Chainsaw TCS33EDT Part for the following products: - Chainsaw Tanaka TCS33EDT - Chainsaw...
AVAILABLE €5.43
Details
Oil Pipe for Chainsaw Tanaka TCS33EDT
HiKOKI Power Tools Italia S.p.a. SKU: 6696811
Oil Pipe for Chainsaw Tanaka TCS33EDT
Oil Pipe for Chainsaw Tanaka TCS33EDT Genuine spare part Tanaka, Oil Pipe for Chainsaws TCS33ED - TCS33EDT - Hitachi CS33EDT Part for the following products: - Chainsaw Tanaka TCS33ED - Chainsaw Tanaka...
Last items in stock €5.43
Details
Oil Pump Cover for Chainsaw Tanaka TCS33ED
HiKOKI Power Tools Italia S.p.a. SKU: 6699610
Oil Pump Cover for Chainsaw Tanaka TCS33ED
Oil Pump Cover for Chainsaw Tanaka TCS33ED Genuine spare part Tanaka, Oil Pump Cover for Chainsaws TCS33ED - Hitachi CS33EDT - CS33EDTP Part for the following products: - Chainsaw Tanaka TCS33ED - Chainsaw Hitachi CS33EDT - Chainsaw...
AVAILABLE €5.43
Details
Carburator Needle Valve for Chainsaws Hitachi-HiKoki Tanaka
HiKOKI Power Tools Italia S.p.a. SKU: 6685215
Carburator Needle Valve for Chainsaws Hitachi-HiKoki Tanaka
Carburator Needle Valve for Chainsaws Hitachi-HiKoki Tanaka Original part Hitachi-HiKoki Tanaka, Carburator Needle Valve for Chainsaws and Brushcutters Hitachi-HiKoki Tanaka. Part for the following products: - Chainsaw ECS 3301D -...
AVAILABLE €10.76
Details
Hex Socket HD Bolt M4x18 for Chainsaw Tanaka TCS-40EA
HiKOKI Power Tools Italia S.p.a. SKU: 6696326
Hex Socket HD Bolt M4x18 for Chainsaw Tanaka TCS-40EA
Hex Socket HD Bolt (W/Flange) M4x18 for  Chainsaw  Tanaka TCS-40EA Original parts Hitachi Koky Tanaka, Hex Socket HD Bolt (W/Flange) M4x18 for Chainsaws TCS-40EA - TCS 33ED - TCS33EDT. Parts for the following products: -  Chainsaw...
on 7/10 Business Days Approx €2.40
Details
Fan Case for Chainsaw Hitachi CS33EDTP
HiKOKI Power Tools Italia S.p.a. SKU: 6699491
Fan Case for Chainsaw Hitachi CS33EDTP
Fan Case for Chainsaw Hitachi CS33EDTP Original spare part Hitachi HIKOKI, Fan Case for Pruning Chainsaw CS33EDTP. Parts for the following products: -  Pruning Chainsaw CS33EDTP - Code : 6699491
Last items in stock €20.35
Details
Muffler Cover for Chainsaw Hitachi CS33EDTP
HiKOKI Power Tools Italia S.p.a. SKU: 6696821
Muffler Cover for Chainsaw Hitachi CS33EDTP
Muffler Cover for Chainsaw Hitachi CS33EDTP Original spare part Hitachi HIKOKI, Muffler Cover for Pruning Chainsaw CS33EDTP. Parts for the following products: -  Chainsaw Hitachi CS33EDT...
Last items in stock €16.85
Details
Oil Pump for Chainsaw Hitachi Tanaka CS33EDT
HiKOKI Power Tools Italia S.p.a. SKU: 6696795
Hitachi Chainsaw CS33EDT Carburetor Ass'y
Hitachi Chainsaw CS33EDT Carburetor Ass'y Original spare part Hitachi HIKOKI Tanaka, Carburetor Ass'y for Chainsaws CS33EDT - CS33EDTP - Tanaka TCS33EDT. Part for the following products: - Chainsaw Hitachi...
Last items in stock €112.46
Details
Comments (0)
