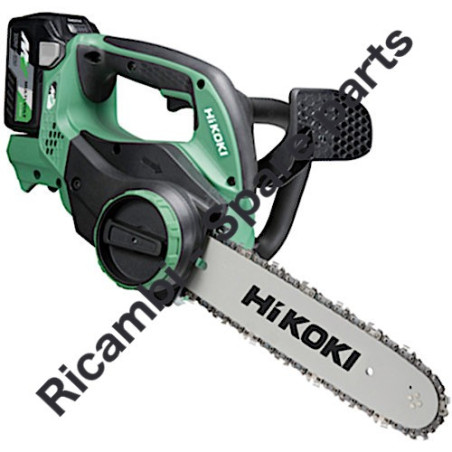

Hikoki Cordless Chainsaw CS3630DC

Name: Hikoki Cordless Chainsaw CS3630DC
Brand: HiKOKI Power Tools Italia S.p.a.
SKU: Hitachi CS3630DC
Availability: InStock

SKU: Hitachi CS3630DC

€13.49

VAT included

HIKOKI CORDLESS ELECTRIC CHAINSAW CS3630DC PARTS

We are Hitachi-HIKOKI-TANAKA authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair problem for Cordless Electric Chainsaw CS3630DC.

23 spare parts

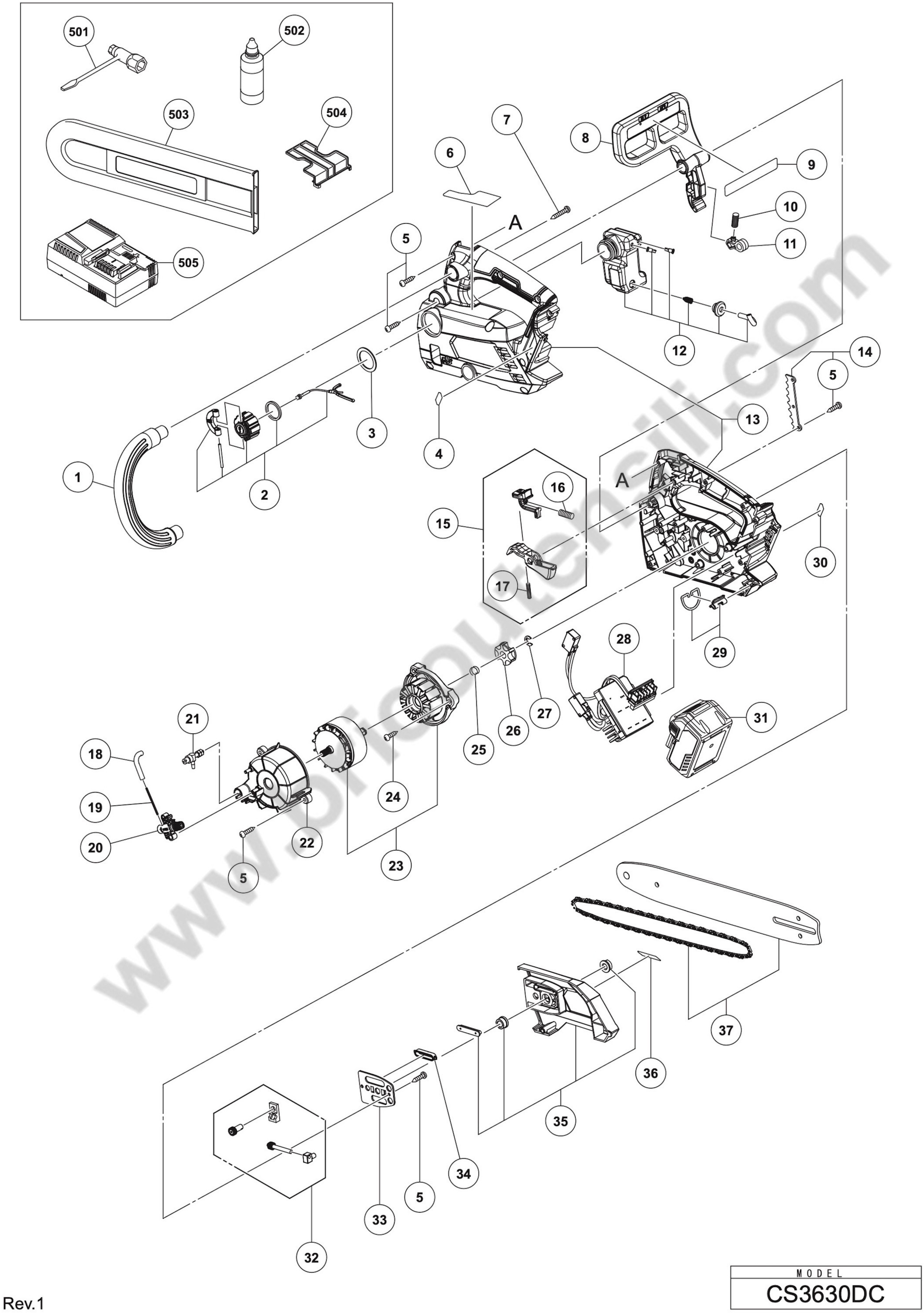

Page 1 View exploded Usually Ships in: 7/10 BUSINESS DAYS

Click on the exploded view to buy spare parts

Pos.		Item	Price
1	Image coming soon	380009 FRONT HANDLE	€13.36
2	Image coming soon	380003 TANK CAP SET	€9.70
3	Image coming soon	338803 RUBBER RING	€2.38
8	Image coming soon	380011 BRAKE HANDLE	€12.14
10	Image coming soon	380013 STOPPER SPRING	€1.16
11	Image coming soon	380012 BRAKE STOPPER	€1.16
12	Image coming soon	380002 OIL TANK SET	€6.04
13	Image coming soon	380001 HOUSING SET	€62.16
14	Image coming soon	379897 SPIKE SET INCLUD.5	€6.04
15	Image coming soon	380004 TRIGGER ASS'Y INCLUD.16,17	€6.04
20	Image coming soon	380017 OIL PUMP	€26.78
21	Image coming soon	335967 ADJUSTING BOLT	€4.82
22	Image coming soon	380019 FAN COVER	€7.26
23	Image coming soon	380068 MOTOR SET (36V)	€124.38
25	Image coming soon	338798 SPRING	€2.38
26	Image coming soon	338799 SPROCKET	€6.04
28	Image coming soon	380069 CONTROLLER (36V)	€124.38
29	Image coming soon	380005 HOOK SET	€8.48
32	Image coming soon	380006 CHAIN PULLER SET	€21.90
33	Image coming soon	380021 INSULATION BRACKET	€3.60
34	Image coming soon	377201 SEAL RING	€3.60
35	Image coming soon	380007 SIDE COVER SET	€20.68
37	Image coming soon	781226 CHAIN GUIDE BAR SET	€71.92

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

HIKOKI CORDLESS ELECTRIC CHAINSAW CS3630DC PARTS

HIKOKI CHAINSAW CS3630DC Pag.1
#	Part. Num.	Description
1	380009	FRONT HANDLE
2	380003	TANK CAP SET
3	338803	RUBBER RING
4	379349	MV LABEL (A) (2)
5	377205	TAPPING SCREW D4X16
6		NAME PLATE
7	380010	TAPPING SCREW D4X25
8	380011	BRAKE HANDLE
9		CAUTION LABEL (EX)
10	380013	STOPPER SPRING
11	380012	BRAKE STOPPER
12	380002	OIL TANK SET
13	380001	HOUSING SET
14	379897	SPIKE SET INCLUD.5
15	380004	TRIGGER ASS'Y INCLUD.16,17
16	380014	LEVER SPRING
17	380015	TRIGGER SPRING
18	380018	OIL PIPE (B)
19	380022	SPRING
20	380017	OIL PUMP
21	335967	ADJUSTING BOLT
22	380019	FAN COVER
23	380068	MOTOR SET (36V)
24	380020	TAPPING SCREW D5X14
25	338798	SPRING
26	338799	SPROCKET
27	974577	RETAINING RING (E-TYPE) FOR D7 SHAFT
28	380069	CONTROLLER (36V)
29	380005	HOOK SET
30	379350	MV LABEL (B) (2)
32	380006	CHAIN PULLER SET
33	380021	INSULATION BRACKET
34	377201	SEAL RING
35	380007	SIDE COVER SET
36		POP LABEL
37	781226	CHAIN GUIDE BAR SET
STANDARD ACCESSORIES Pag.2
501	6698582	COMBI BOX SPANNER 13X19
502		OIL FEEDER (50CC)
503	377207	CHAIN COVER 12"
OPTIONAL ACCESSORIES Pag.3
601	957681	LUBRICANT OILER (120CC)
602	6697724	DEPTH GAGE
603	6698688	FILE 5/32 SET

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Hitachi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to hitachi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.

Reference Hitachi CS3630DC

Available 6 Items

Data sheet

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]

Specific References

Condition New

Download

Hikoki CS3630DC Parts Diagram

Download (648.79KB)
