HiKOKI Power Tools Italia S.p.a.

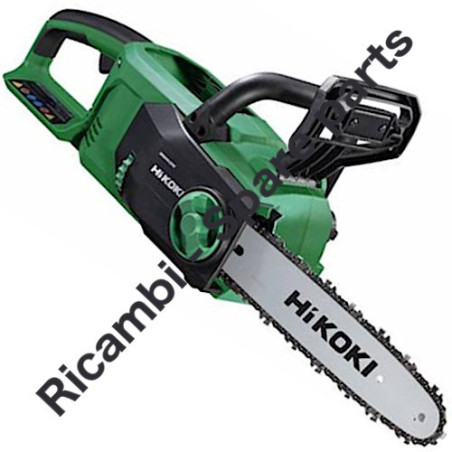

Hikoki Cordless Chainsaw CS3630DB

SKU: Hitachi CS3630DB
€3.39
VAT included

HIKOKI CORDLESS ELECTRIC CHAINSAW CS3630DB PARTS

We are Hitachi-HIKOKI-TANAKA authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair problem for Cordless Electric Chainsaw CS3630DB.
Hikoki Cordless Chainsaw CS3630DB
  • Hikoki Cordless Chainsaw CS3630DB
  • Hikoki Cordless Chainsaw CS3630DB Parts Diagram
HiKOKI Power Tools Italia S.p.a.

Hikoki Cordless Chainsaw CS3630DB

SKU: Hitachi CS3630DB Condition: New
€3.39
VAT included

HIKOKI CORDLESS ELECTRIC CHAINSAW CS3630DB PARTS

We are Hitachi-HIKOKI-TANAKA authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair problem for Cordless Electric Chainsaw CS3630DB.
settings 24 spare parts
description 3 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
24 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

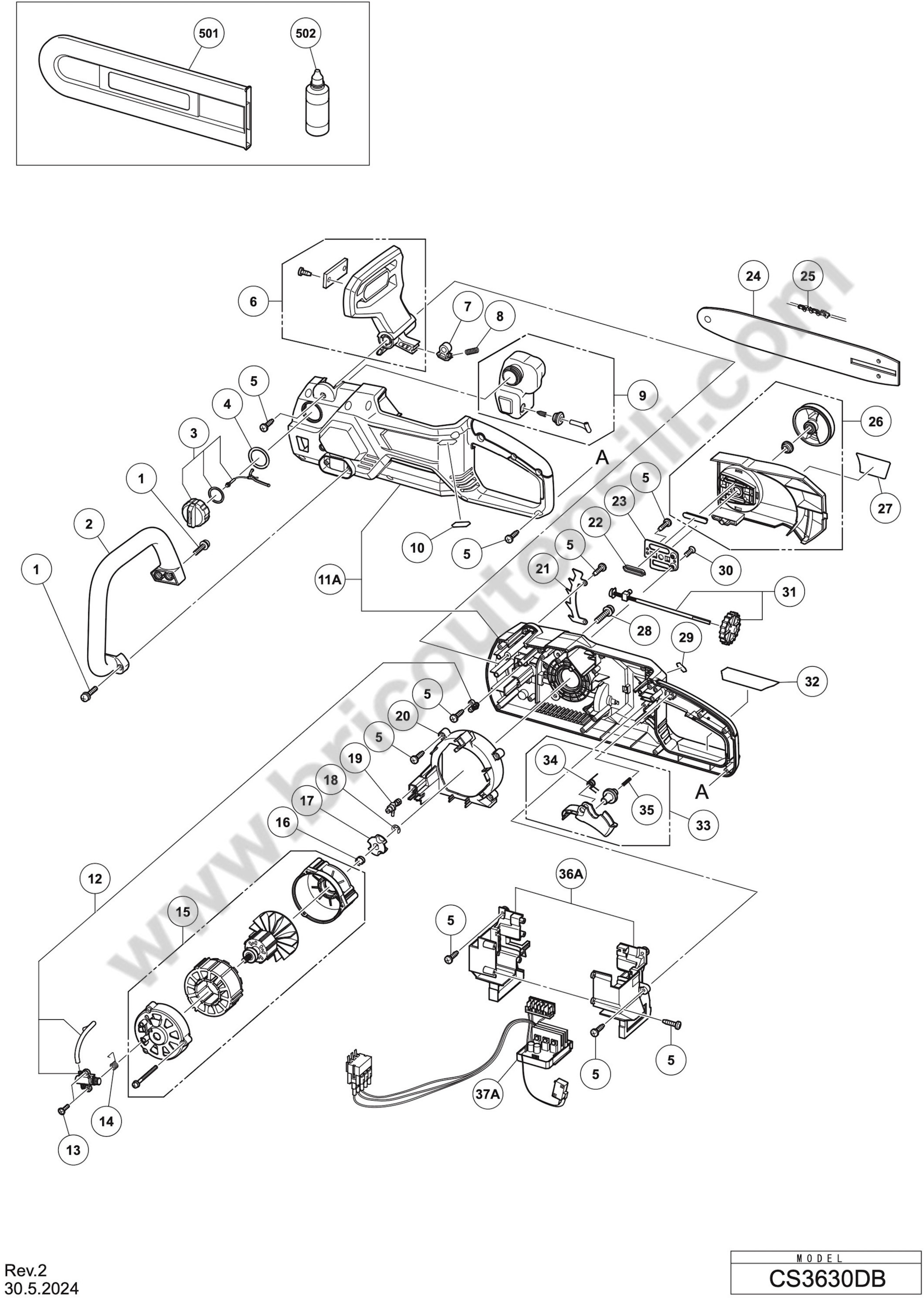

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
2
 photo_cameraImage coming soon 377204 FRONT HANDLE €3.60
3
 photo_cameraImage coming soon 377185 TANK CAP SET €9.70
4
 photo_cameraImage coming soon 338803 RUBBER RING €2.38
6
 photo_cameraImage coming soon 377190 BRAKE HANDLE SET €13.36
7
 photo_cameraImage coming soon 377199 BRAKE STOPPER €1.16
8
 photo_cameraImage coming soon 377198 STOPPER SPRING €2.38
9
 photo_cameraImage coming soon 377184 OIL TANK SET €7.26
10
 photo_cameraImage coming soon 373913 MV LABEL (A) €1.40
12
 photo_cameraImage coming soon 377186 PUMP CONNECTOR SET €4.82
14
 photo_cameraImage coming soon 338821 EXTENSION SPRING €2.38
15
 photo_cameraImage coming soon 377187 MOTOR SET €128.04
16
 photo_cameraImage coming soon 338798 SPRING €2.38
17
 photo_cameraImage coming soon 338799 SPROCKET €6.04
19
 photo_cameraImage coming soon 335967 ADJUSTING BOLT €4.82
20
 photo_cameraImage coming soon 377194 FAN COVER €8.48
21
 photo_cameraImage coming soon 338797 SPIKE €2.38
22
 photo_cameraImage coming soon 377201 SEAL RING €3.60
23
 photo_cameraImage coming soon 377202 INSULATION BRACKET €3.60
26
 photo_cameraImage coming soon 377192 CHAIN SIDE COVER SET €41.42
29
 photo_cameraImage coming soon 373914 MV LABEL (B) €1.40
31
 photo_cameraImage coming soon 377191 CHAIN PULLER SET €9.70
33
 photo_cameraImage coming soon 377189 TRIGGER ASS'Y INCLUD.34,35 €7.26
34
 photo_cameraImage coming soon 377197 TRIGGER SPRING €1.16
35
 photo_cameraImage coming soon 377196 LOCK OFF SPRING €7.26

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

HIKOKI CORDLESS ELECTRIC CHAINSAW CS3630DB PARTS

We are Hitachi-HIKOKI-TANAKA authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair problem for Cordless Electric Chainsaw CS3630DB.

In the following table, look for the model of the Chainsaw and ripettivo spare part.
Hitachi CS3630DB
HIKOKI CHAINSAW CS3630DB Pag.1
# Part. Num. Description
1 377208 TAPPING SCREW (W/WASHERS) D4X18
2 377204 FRONT HANDLE
3 377185 TANK CAP SET
4 338803 RUBBER RING
5 377205 TAPPING SCREW D4X16
6 377190 BRAKE HANDLE SET
7 377199 BRAKE STOPPER
8 377198 STOPPER SPRING
9 377184 OIL TANK SET
10 373913 MV LABEL (A)
11A 381418 HOUSING SET
12 377186 PUMP CONNECTOR SET
13 377193 TAPPING SCREW (W/FLANGE) D3X12
14 338821 EXTENSION SPRING
15 377187 MOTOR SET
16 338798 SPRING
17 338799 SPROCKET
18 974577 RETAINING RING (E-TYPE) FOR D7 SHAFT
19 335967 ADJUSTING BOLT
20 377194 FAN COVER
21 338797 SPIKE
22 377201 SEAL RING
23 377202 INSULATION BRACKET
24 377206 GUIDE BAR 12"
25 377211 SAW CHAIN (3/8X12")
26 377192 CHAIN SIDE COVER SET
27 BRAND LABEL
28 377200 TAPPING SCREW (W/SP. WASHER) D5X25
29 373914 MV LABEL (B)
30 377203 FLAT HD. SCREW M4X12
31 377191 CHAIN PULLER SET
32 NAME PLATE
33 377189 TRIGGER ASS'Y INCLUD.34,35
34 377197 TRIGGER SPRING
35 377196 LOCK OFF SPRING
36A 381419 BATTERY TERMINAL HOLDER SET
37A 381420 CONTROLLER
STANDARD ACCESSORIES Pag.2
501 377207 CHAIN COVER 12"
502 OIL FEEDER (50CC)
OPTIONAL ACCESSORIES Pag.3
601 957681 LUBRICANT OILER (120CC)
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Hitachi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to hitachi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Hitachi CS3630DB
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Hikoki CS3630DB Parts Diagram

Hikoki CS3630DB Parts Diagram

Download (690.41KB)
