HiKOKI Power Tools Italia S.p.a.

Hitachi-Hikoki CH36DL Cordless Hedge Trimmer Parts

SKU: Hitachi CH36DL
€19.54
VAT included

Hitachi-Hikoki CH36DL Cordless Hedge Trimmer Spare Parts

We are Hitachi-HIKOKI Tanaka authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues for Hitachi-Hikoki CH36DL Cordless Hedge Trimmer Spare Parts.
Hitachi-Hikoki CH36DL Cordless Hedge Trimmer Parts
  • Hitachi-Hikoki CH36DL Cordless Hedge Trimmer Parts
  • Hitachi-Hikoki CH36DL Cordless Hedge Trimmer Parts
HiKOKI Power Tools Italia S.p.a.

Hitachi-Hikoki CH36DL Cordless Hedge Trimmer Parts

SKU: Hitachi CH36DL Condition: New
€19.54
VAT included

Hitachi-Hikoki CH36DL Cordless Hedge Trimmer Spare Parts

We are Hitachi-HIKOKI Tanaka authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues for Hitachi-Hikoki CH36DL Cordless Hedge Trimmer Spare Parts.
settings 36 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
36 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

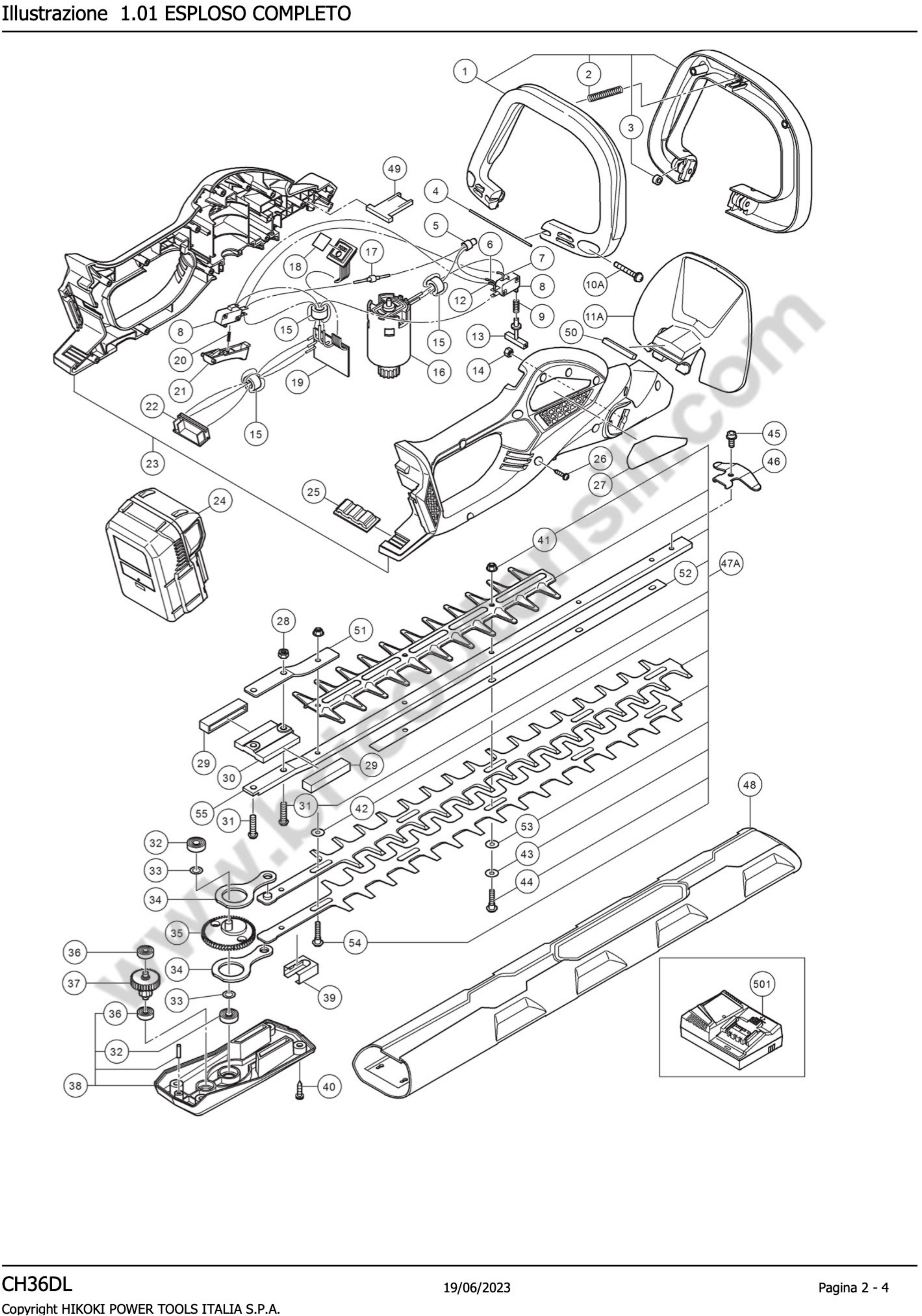

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 335015 SUB HANDLE ASS'Y €18.98
8
 photo_cameraImage coming soon 335018 SWITCH €4.77
11A
 photo_cameraImage coming soon 335010 PROTECTOR €2.93
13
 photo_cameraImage coming soon 333343 PUSH PIN €1.60
15
 photo_cameraImage coming soon 334379 FERRITE CORE €6.61
16
 photo_cameraImage coming soon 335016 MOTOR DC 36V €37.66
17
 photo_cameraImage coming soon 335346 DIODE €1.71
19
 photo_cameraImage coming soon 335341 CONTROLLER (W/FERRITE CORE) €40.72
20
 photo_cameraImage coming soon 324307 SPRING (B) €2.62
21
 photo_cameraImage coming soon 333761 TRIGGER €1.60
23
 photo_cameraImage coming soon 335012 HOUSING (A).(B) SET €38.43
25
 photo_cameraImage coming soon 332668 RUBBER CUSHION €4.06
26
 photo_cameraImage coming soon 301653 Tapp.Screw (W / Flange) D4x20 €5.63
30
 photo_cameraImage coming soon 335020 SPACER €5.31
31
 Hex Socket Bolt M6x25 for Hedge Trimmers Hitachi CH22EBP2 6699113 Hex Socket Bolt M6x25 for Hedge Trimmers Hitachi CH22EBP2 €6.41
32
 photo_cameraImage coming soon 608DDM BALL BEARING 608DDC2PS2L €7.07
34
 photo_cameraImage coming soon 6698987 BLADES CONNECTING ROD €4.07
35
 photo_cameraImage coming soon 335014 GEAR €20.46
36
 photo_cameraImage coming soon 335669 BALL BEARING 626ZZC2 PS2-L €6.09
37
 photo_cameraImage coming soon 335013 FIRST GEAR €14.28
38
 photo_cameraImage coming soon 335017 BOTTOM COVER ASS'Y INCLUD.32 €20.93
39
 photo_cameraImage coming soon 335677 CAM ROD HOLDER €1.60
41
 photo_cameraImage coming soon 6699108 NUT M5 €3.25
42
 photo_cameraImage coming soon 6699114 WASHER €1.70
43
 photo_cameraImage coming soon 6699111 WASHER M7 €1.70
44
 photo_cameraImage coming soon 6699109 SCREW M5X25 €3.25
46
 photo_cameraImage coming soon 6699062 PLATE €1.64
47A
 photo_cameraImage coming soon 6600409 BLADE ASS'Y (620MM) INCLUD.31 €131.54
48
 photo_cameraImage coming soon 335011 BLADE CASE (620MM) €7.43
49
 photo_cameraImage coming soon 335761 FELT €2.76
51
 photo_cameraImage coming soon 337893 SUPPORT PLATE CH36DL €4.30
52
 Blade Liner 620 mm for Hedge Trimmer Hitachi CH22EBP2-CH22ECP2 6600360 Blade Liner 620 mm for Hedge Trimmer Hitachi CH22EBP2-CH22ECP2 €9.16
53
 photo_cameraImage coming soon 6699112 WASHER €1.70
54
 photo_cameraImage coming soon 6699179 SCREW €4.07
55
 Blade Guide 620 MM for Hedge Trimmers Hitachi CH22EBP2-CH22ECP2 6600012 Blade Guide 620 MM for Hedge Trimmers Hitachi CH22EBP2-CH22ECP2 €18.63
601A
 photo_cameraImage coming soon 6600410 BLADE ASS'Y (780MM) €164.05

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Hitachi-Hikoki CH36DL Cordless Hedge Trimmer Spare Parts

We are Hitachi-HIKOKI Tanaka authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues for Hitachi-Hikoki CH36DL Cordless Hedge Trimmer Spare Parts.

In the following table, look for the model of the Electric Saw and their spare part.
Hitachi-Hikoki CH36DL Cordless Hedge Trimmer Spare Parts

Hitachi-Hikoki CH36DL Cordless Hedge Trimmer Spare Parts
# Part Num. Description
1 335015 SUB HANDLE ASS'Y
2 333341 SPRING (C) CH18DSL
3 335347 COLLAR
4 335019 SHAFT (D)
5 959141 CONNECTOR 50092
6 335345 INTERNAL WIRE (L96)
7 335344 INTERNAL WIRE (L186)
8 335018 SWITCH
9 333344 SPRING (D) CH18DSL
10A 336239 MACHINE SCREW (W/WASHER) M5X30 (BLACK)
11A 335010 PROTECTOR
12 335343 INTERNAL WIRE (L204)
13 333343 PUSH PIN CH18DSL
14 302012 NUT M5 (BLACK)
15 334379 FERRITE CORE
16 335016 MOTOR DC 36V
17 335346 DIODE
18 335342 PANEL SHEET
19 335341 CONTROLLER (W/FERRITE CORE)
20 324307 SPRING B CG/CH10DL
21 333761 TRIGGER CH18DSL
22 331399 BATTERY TERMINAL
23 335012 HOUSING (A).(B) SET
24 334998 BATTERY BSL 3620 (EUROPE,AUS,NZL)
25 332668 RUBBER CUSHION 05/2010
26 301653 TAPPING SCREW D4X20 (W/FLANGE) BLACK
28 6698766 NYLON NUT M6
29 335021 CUSHION
30 335020 SPACER
31 6699113 HEX. SOCKET HD. BOLT (W/BUTTON) M6X25
32 608DDM BALL BEARING 608DD
33 335022 WASHER
34 6698987 CAM ROD
35 335014 GEAR
36 335669 BALL BEARING 626ZZC2 PS2-L
37 335013 FIRST GEAR
38 335017 BOTTOM COVER ASS'Y INCLUD.32
39 335677 CAM ROD HOLDER
40 302089 TAPPING SCREW D5X20 (W/FLANGE) BLACK
41 6699108 U-NUT M5
42 6699114 WASHER
43 6699111 WASHER M7
44 6699109 SHOULDER BUTTON BOLT M5X25
45 6699065 HEX. SOCKET HD. BOLT (W/FLANGE) M5X8
46 6699062 GUARD PLATE
47A 6600409 BLADE ASS'Y (620MM) INCLUD.31
48 335011 BLADE CASE (620MM)
49 335761 FELT
50 335762 PACKING (A)
51 337893 SUPPORT PLATE CH36DL
52 6600360 BLADE LINER 620MM
53 6699112 WASHER
54 6699179 SHOULDER BUTTON BOLT M5X31
55 6600012 GUIDE BAR (620MM)
501 93199712 QUICK CHARGER UC36YSL
601A 6600410 BLADE ASS'Y (780MM)
602 336102 BLADE CASE (780MM)
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Hitachi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to hitachi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Hitachi CH36DL
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Hitachi-Hikoki CH36DL Drawing

Hitachi-Hikoki CH36DL Drawing

Download (458.86KB)
