Hitachi Spare Parts for Cordless Shrub Shear CH10DL

SKU: Hitachi CH10DL - CG10DL
€24.42
VAT included

Hitachi Spare Parts for Cordless Shrub Shear CH10DL

We supply original Hitachi-HIKOKI spare parts on offer at unbeatable prices, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Cordless Hedge Trimmer - Cordless Shrub Shear CH10DL/CG10DL.
Hitachi Spare Parts for Cordless Shrub Shear CH10DL
  • Online only
  • Hitachi Spare Parts for Cordless Shrub Shear CH10DL
  • Hitachi Spare Parts for Cordless Shrub Shear CH10DL - Diagram

Hitachi Spare Parts for Cordless Shrub Shear CH10DL

SKU: Hitachi CH10DL - CG10DL Condition: New
€24.42
VAT included

Hitachi Spare Parts for Cordless Shrub Shear CH10DL

We supply original Hitachi-HIKOKI spare parts on offer at unbeatable prices, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Cordless Hedge Trimmer - Cordless Shrub Shear CH10DL/CG10DL.
settings 6 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 7/10 Business Days Approx

SHIPPING IN:: ON DEMAND ONLY
MORE INFO:: CALL US FOR AVAILABILITY AND SHIPPING TIMES
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

6 spare parts
Page 1 zoom_in View exploded local_shipping ON DEMAND ONLY
Pos. Item Price Buy
6
photo_cameraImage coming soon 330879 PROTECTOR €8.48
9
photo_cameraImage coming soon 301653 Tapp.Screw (W / Flange) D4x20 €5.63
11
photo_cameraImage coming soon 324307 SPRING (B) €2.38
19
photo_cameraImage coming soon 329832 SHAFT (B) €2.38
37A
photo_cameraImage coming soon 339040 NUT L 3906 C €2.19
50
photo_cameraImage coming soon 334379 FERRITE CORE €6.61

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Hitachi Spare Parts for Cordless Shrub Shear CH10DL

We supply original Hitachi-HIKOKI spare parts on offer at unbeatable prices, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Cordless Hedge Trimmer - Cordless Shrub Shear CH10DL/CG10DL.

In the following table you can choose the model and relative spare parts of the Blower RB40VA.
Hitachi CH10DL/CG10DL

Cordless Hedge Trimmer - Cordless Shrub Shear CH10DL/CG10DL
# Part Num. Description
1 330882 HOUSING COMPLETE CG/CH10DL
2 324306 SPRING (A) CG / CH10DL
3 324298 LOCK-OFF BUTTON CG/CH10DL
4 330056 NUT M4
5 329837 NUT HOLDER CG / CH10DL
6 330879 PROTECTOR CG / CH10DL
7 949423 FLAT WASHER M4
8 949217 MACHINE SCREW M4X12
9 301653 TAPPING SCREW D4X20 (W / FLANGE) BLAC
11 324307 SPRING B CG / CH10DL
12 324299 TRIGGER CG/CH10DL
13 320786 SWITCH CG/CH10DL
14A 334608 INTERNAL WIRE NEW
15 329371 BATTERY BCL1015 BCL1030C
16A 334609 CONTROLLER (C) NEW
17 330880 MOTOR DC 10.8 CG / CH10DL
18 329835 WASHER D15
19 329832 SHAFT B CG / CH10DL
20 330055 FIRST GEAR CG/CH10DL
21A 331755 GEAR HOLDER CG / CH10DL
23 329830 SHAFT A CG / CH10DL
24 330878 CRANK CAM ASS'Y INCLUDES 25.26
27 331507 CRANK CASE
28 331508 DUST FELT
29 323211 MACHINE SCREW M4X8 (BLACK)
30 330883 BOTTOM COVER CG / CH10DL
33 319931 U-NUT M4
34 996689 DISTANCE PIECE
35 949217 SCREW M4X12 T.C.
37A 339040 BLADE CASE (FOR 190MM)
38A 331257 BLADE SET (CH) INCLUDES 4.24.27-29.31.36.37A.601
38A 330881 BLADE SET CH10DL INCLUDES 4.24.27-29.31.36.37A.601
39 330886 COMPLETE CAM CG/CH10DL INCLUDES 40.41
43 323211 MACHINE SCREW M4X8 (BLACK)
46 328030 BLADE COVER (170)
47 330057 BLADE BOX
48 330887 BLADE SET CG10DL INCLUDES 4.27.28.39.42.45-47
49 328023 ADAPTER CG / CH10DL
50 334379 TOROID
501 93199608 BATTERY CHARGER UC10SL2
502 330885 CASE
601 330057 BLADE BOX
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Hitachi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to hitachi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Hitachi CH10DL - CG10DL
6 Items

Data sheet

SHIPPING IN:
ON DEMAND ONLY
MORE INFO:
CALL US FOR AVAILABILITY AND SHIPPING TIMES

Specific References

New

Download

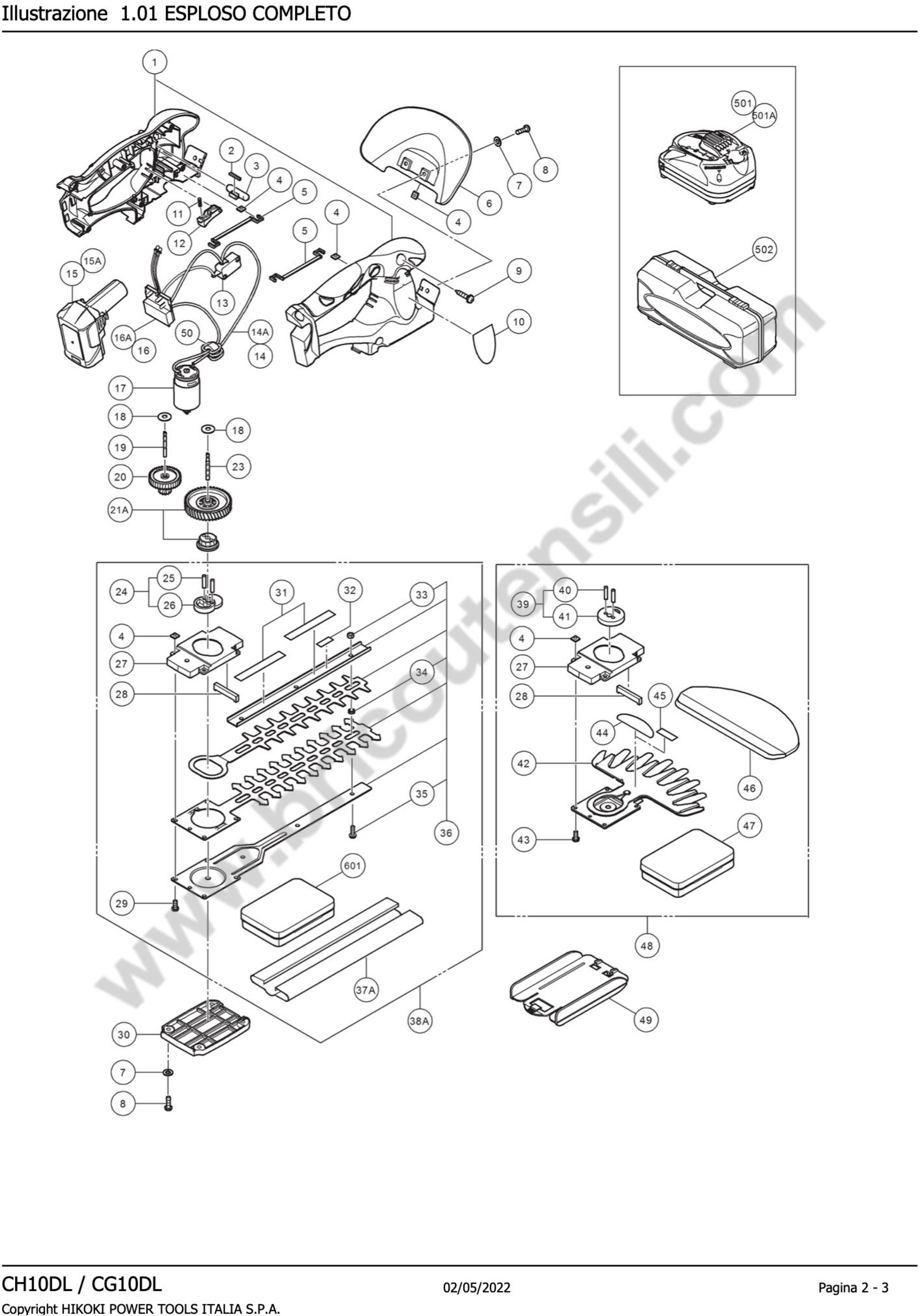

Diagram Hitachi CH10DL/CG10DL

Diagram Hitachi CH10DL/CG10DL

Download (335.36KB)
