HiKOKI Power Tools Italia S.p.a.

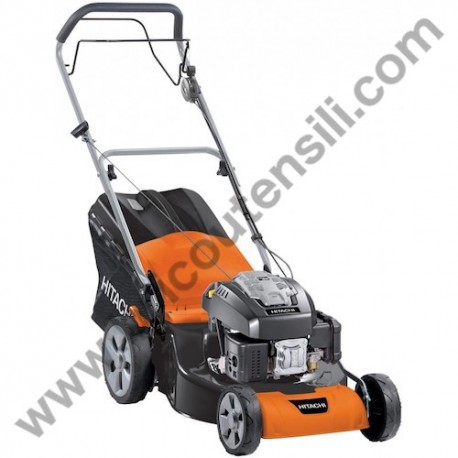

Hitachi Spare Parts for Lawnmower ML48LS

SKU: Hitachi ML48LS
€15.29
VAT included

Hitachi Spare Parts for Lawnmower ML48LS

We supply original Hitachi HIKOKI Tanaka spare parts on offer at unbeatable prices, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Lawnmower ML48LS.
Hitachi Spare Parts for Lawnmower ML48LS
  • Hitachi Spare Parts for Lawnmower ML48LS
  • Hitachi Spare Parts for Lawnmower ML48LS - 1
  • Hitachi Spare Parts for Lawnmower ML48LS - 2
  • Hitachi Spare Parts for Lawnmower ML48LS - 3
  • Hitachi Spare Parts for Lawnmower ML48LS - 4
  • Hitachi Spare Parts for Lawnmower ML48LS - 5
  • Hitachi Spare Parts for Lawnmower ML48LS - 6
  • Hitachi Spare Parts for Lawnmower ML48LS - 7
  • Hitachi Spare Parts for Lawnmower ML48LS - 8
  • Hitachi Spare Parts for Lawnmower ML48LS - 9
  • Hitachi Spare Parts for Lawnmower ML48LS - 10
  • Hitachi Spare Parts for Lawnmower ML48LS - 11
  • Hitachi Spare Parts for Lawnmower ML48LS - 12
  • Hitachi Spare Parts for Lawnmower ML48LS - 13
HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Lawnmower ML48LS

SKU: Hitachi ML48LS Condition: New
€15.29
VAT included

Hitachi Spare Parts for Lawnmower ML48LS

We supply original Hitachi HIKOKI Tanaka spare parts on offer at unbeatable prices, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Lawnmower ML48LS.
settings 156 spare parts
description 13 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 7/10 Business Days Approx

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
156 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

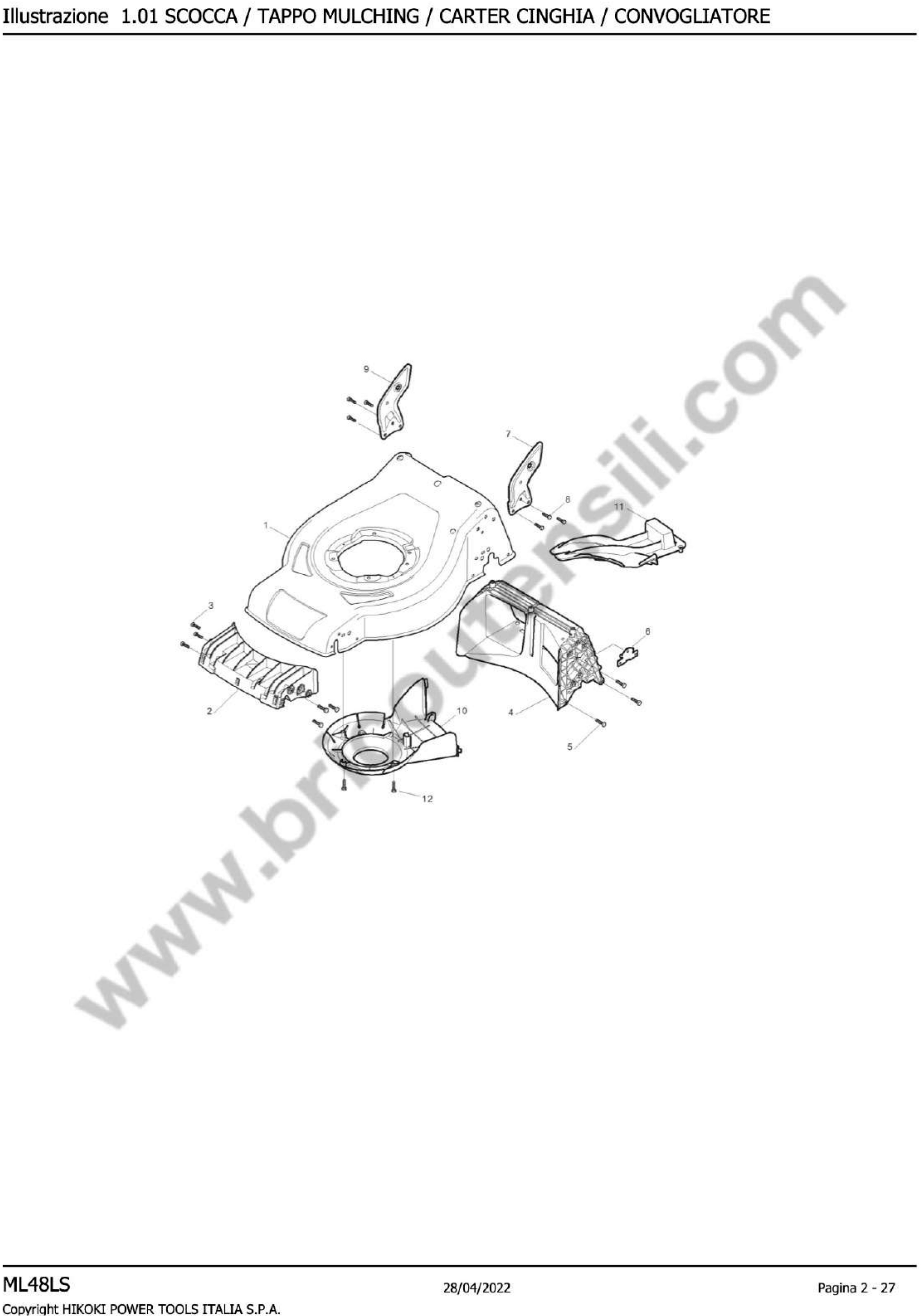

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
2
 photo_cameraImage coming soon 3221083011 FRONT BAFFLE €14.58
3
 photo_cameraImage coming soon 1127286990 SCREW €1.16
4
 photo_cameraImage coming soon 3221083020 REAR BAFFLE €28.00
5
 photo_cameraImage coming soon 1127286990 SCREW €1.16
6
 photo_cameraImage coming soon 3225452130 PLATE €2.38
7
 photo_cameraImage coming soon 3810051390 LEFT BRACKET €7.26
8
 photo_cameraImage coming soon 1127278010 SCREW €1.16
9
 photo_cameraImage coming soon 3810051370 RIGHT BRACKET €6.04
10
 photo_cameraImage coming soon 3220602422 BELT COVER €12.14
11
 photo_cameraImage coming soon 3221402391 MULCHING CAP 48 €17.02
12
 photo_cameraImage coming soon 1127285300 SCREW €2.38
Page 2 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

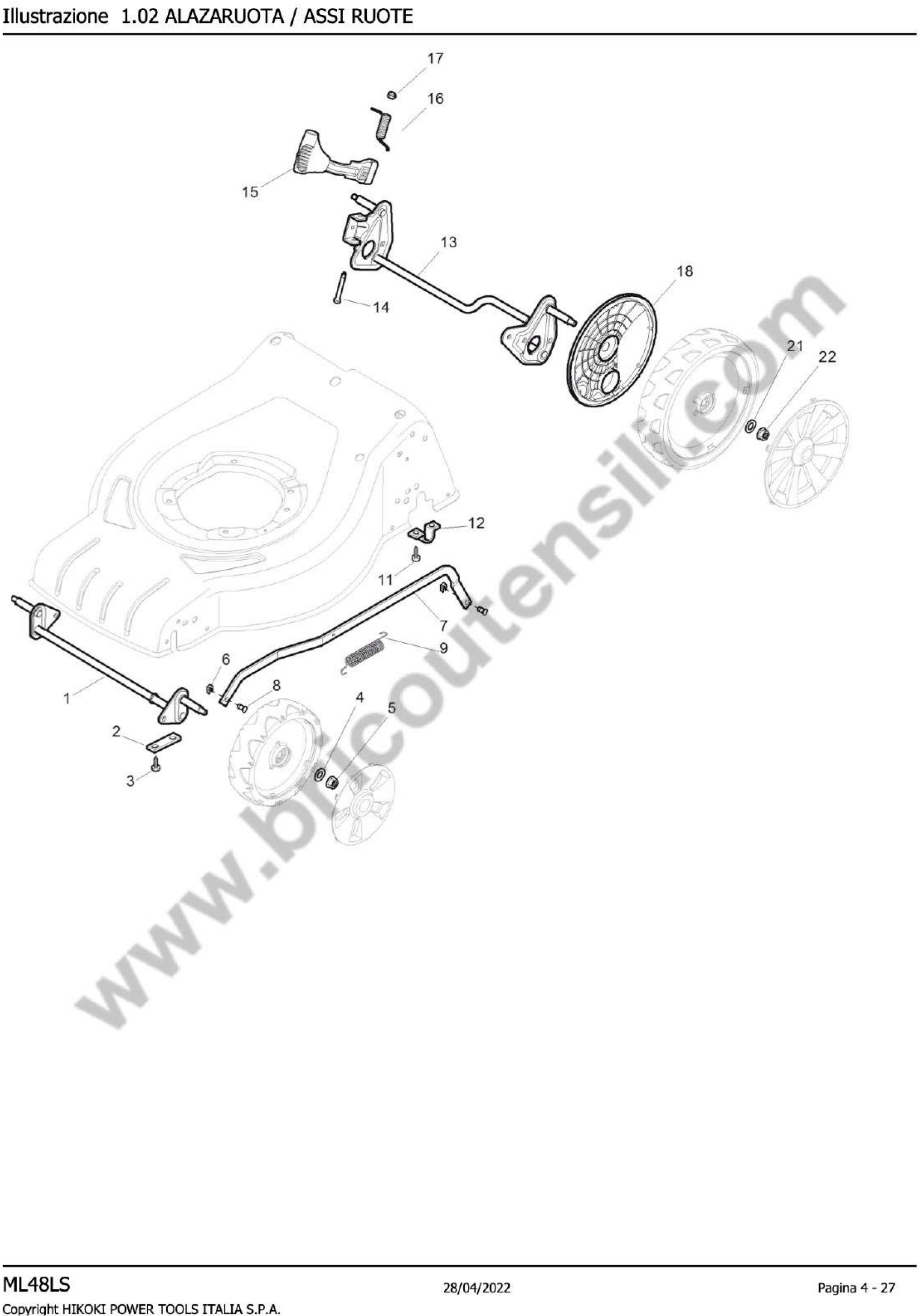

Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 3813028210 FRONT WHEEL AXLE €29.22
2
 photo_cameraImage coming soon 3225451420 PLATE €1.16
3
 photo_cameraImage coming soon 1127286980 SCREW €1.16
4
 photo_cameraImage coming soon 1125213500 WASHER €1.16
5
 photo_cameraImage coming soon 1121550000 NUT €1.16
6
 photo_cameraImage coming soon 1124360510 PLATE €2.38
7
 photo_cameraImage coming soon 3228696730 WHEEL HEIGHT ADJUST CONTROL ROD €21.90
8
 photo_cameraImage coming soon 1225198200 PIN €2.38
9
 photo_cameraImage coming soon 1224461930 SPRING €4.82
11
 photo_cameraImage coming soon 1127286980 SCREW €1.16
12
 photo_cameraImage coming soon 3225451520 PLATE €1.16
13
 photo_cameraImage coming soon 3813028170 REAR WHEEL AXLE €31.66
14
 photo_cameraImage coming soon 1225341310 PIN €1.16
15
 photo_cameraImage coming soon 3810033570 CENTRALIZED HEIGHT ADJUST LEVER €15.80
16
 photo_cameraImage coming soon 1224461920 SPRING €2.38
17
 photo_cameraImage coming soon 1121545100 NUT M6 €2.38
18
 photo_cameraImage coming soon 3226002051 WHEEL PROTECTION €3.60
21
 photo_cameraImage coming soon 1125213500 WASHER €1.16
22
 photo_cameraImage coming soon 1121550000 NUT €1.16
Page 3 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

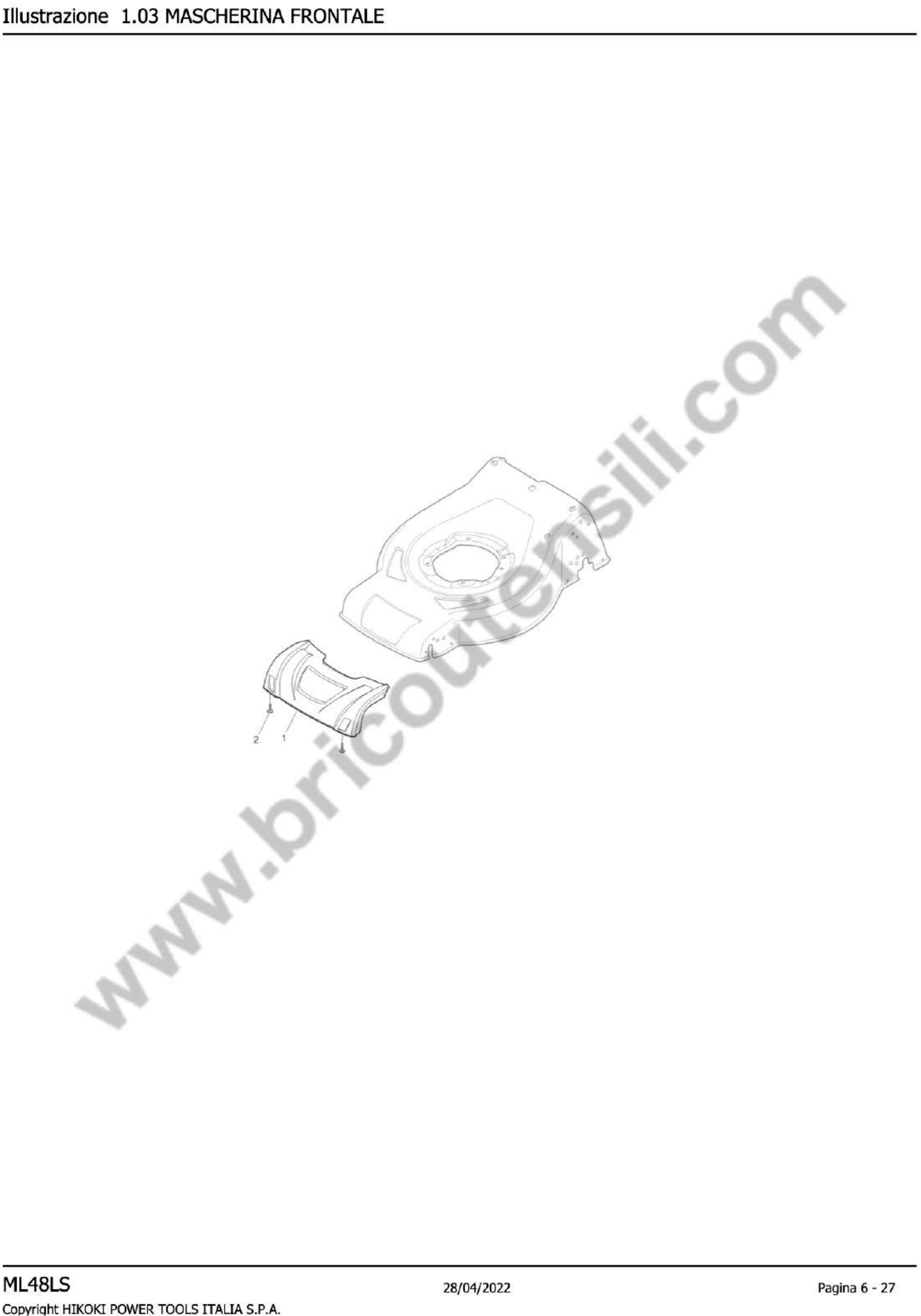

Esploso pagina 3
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 3222262380 ORANGE MASK ML48 €10.92
2
 photo_cameraImage coming soon 1127286980 SCREW €1.16
Page 4 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

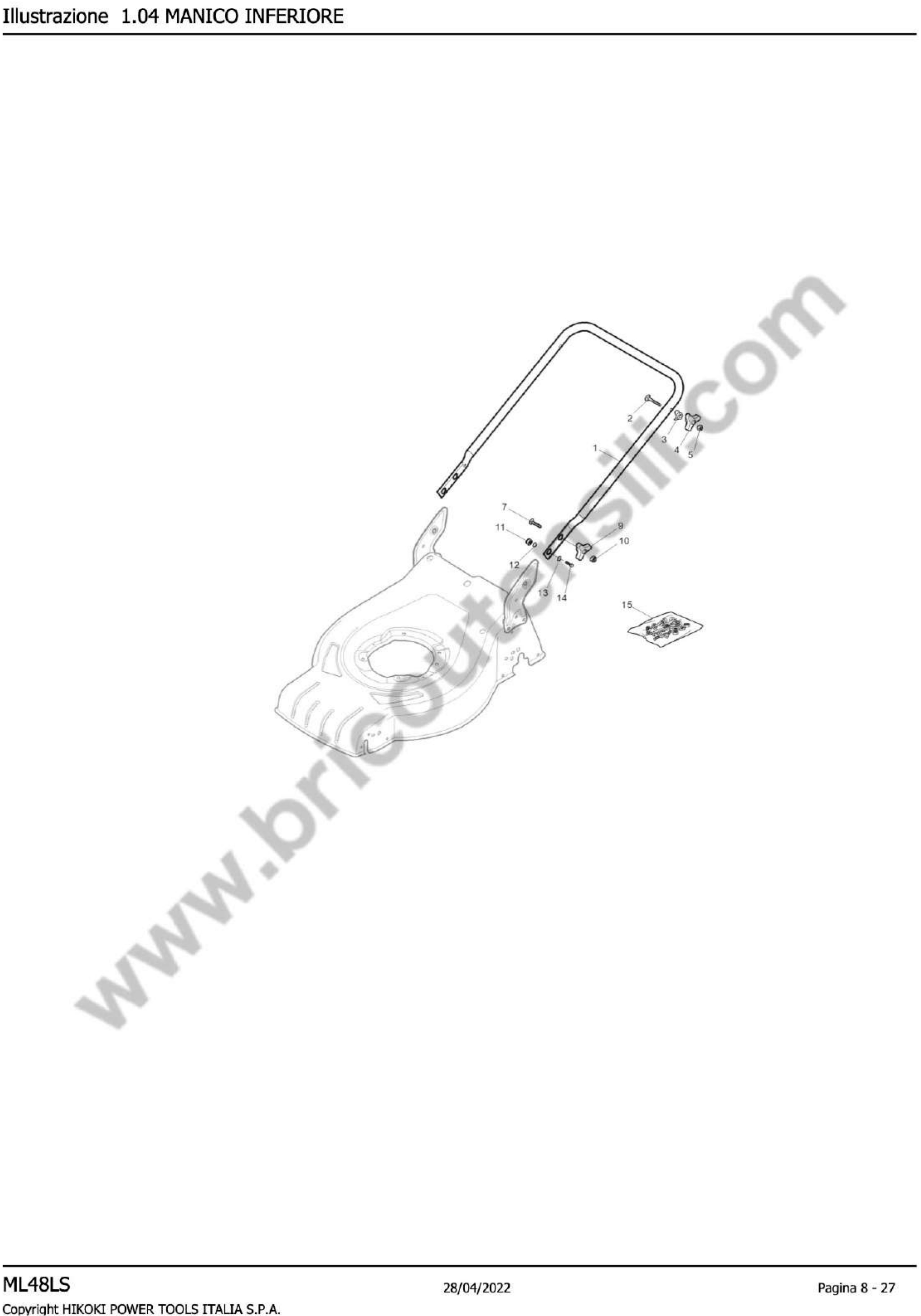

Esploso pagina 4
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 3810067370 LOWER HANDLE €25.56
2
 photo_cameraImage coming soon 1128191100 SCREW €2.38
3
 photo_cameraImage coming soon 1226716510 WASHER €3.60
4
 photo_cameraImage coming soon 1223999000 KNOB €2.38
5
 photo_cameraImage coming soon 1122932000 NUT €1.16
7
 photo_cameraImage coming soon 1128189000 SCREW €2.38
9
 photo_cameraImage coming soon 1223999000 KNOB €2.38
10
 photo_cameraImage coming soon 1122932000 NUT €1.16
11
 photo_cameraImage coming soon 1121550000 NUT €1.16
12
 photo_cameraImage coming soon 1125213500 WASHER €1.16
13
 photo_cameraImage coming soon 1123695000 ELASTIC DISC €1.16
14
 photo_cameraImage coming soon 1127606050 SCREW €3.60
15
 photo_cameraImage coming soon 3810086910 SCREWS OUTFIT €13.36
Page 5 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

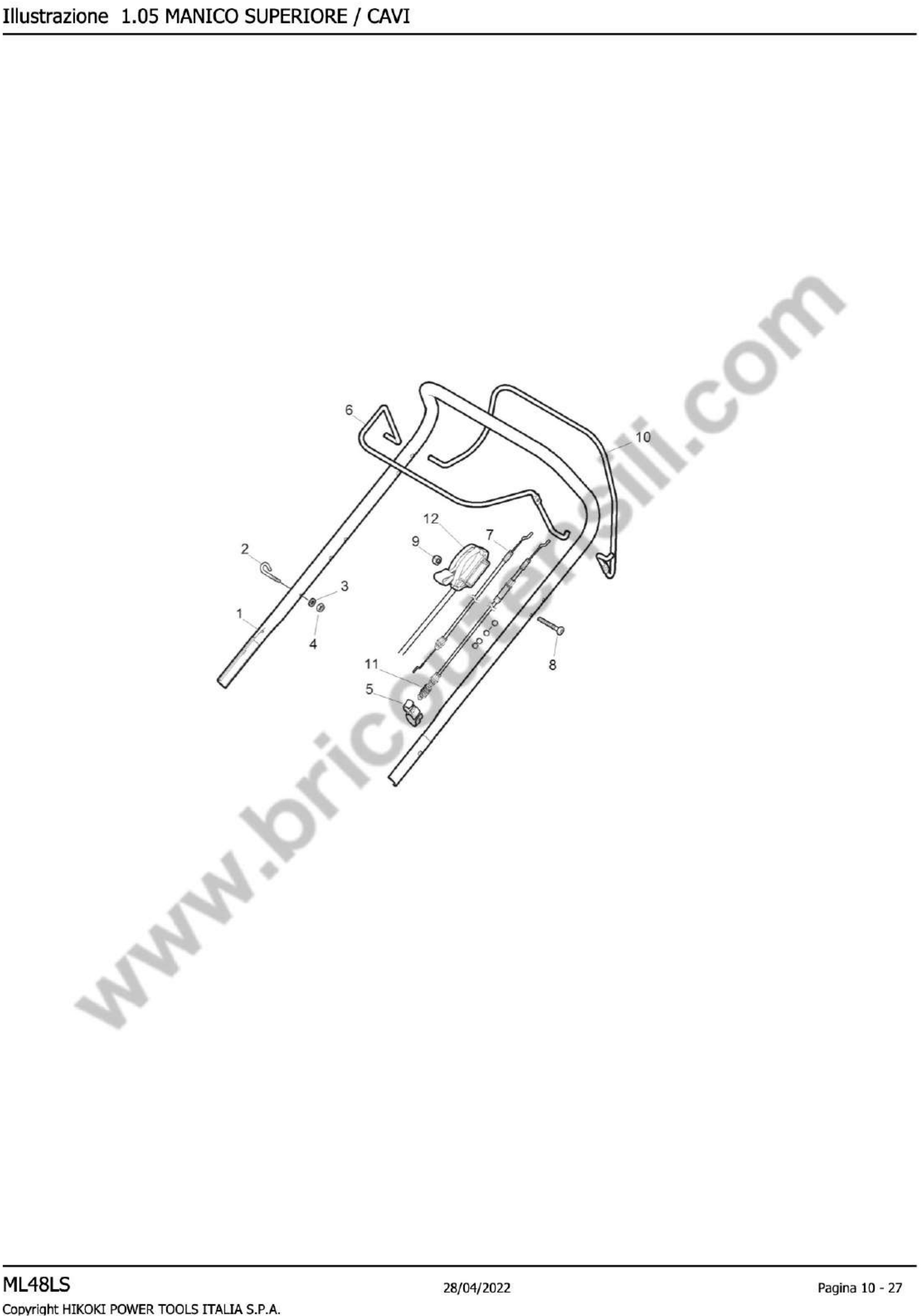

Esploso pagina 5
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
2
 photo_cameraImage coming soon 1224303130 SPRING GUIDE €3.60
3
 photo_cameraImage coming soon 1125213300 WASHER €1.16
4
 photo_cameraImage coming soon 1121545100 NUT M6 €2.38
5
 photo_cameraImage coming soon 1183900200 CABLE CLIP €2.38
6
 photo_cameraImage coming soon 1810033631 ENGINE BRAKE LEVER BLACK €14.58
7
 photo_cameraImage coming soon 1810300560 ENGINE BRAKE CABLE €34.10
8
 photo_cameraImage coming soon 1127277880 SCREW €1.16
9
 photo_cameraImage coming soon 1121545100 NUT M6 €2.38
10
 photo_cameraImage coming soon 1810033640 TRACTION CONTROL LEVER €15.80
11
 photo_cameraImage coming soon 3810300510 TRACTION CABLE €54.84
12
 Hitachi Throttle Group for ML48LS 1810055170 Hitachi Throttle Group for ML48LS €25.56
Page 6 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

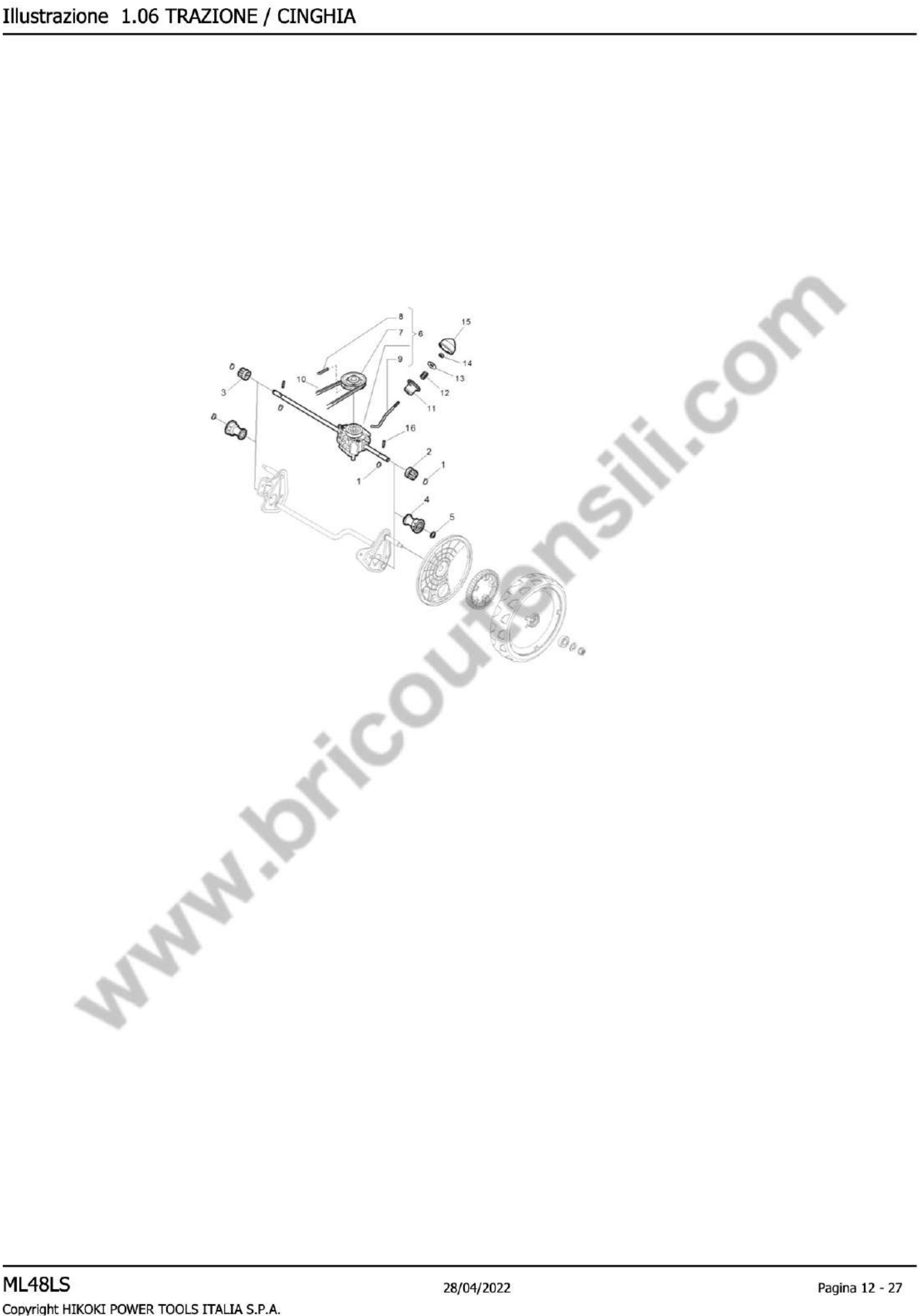

Esploso pagina 6
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 1126086000 SEEGER FOR SHAFT D = 12 UNI 7435 C60 €1.16
2
 photo_cameraImage coming soon 1225701201 LEFT PINION ML48 €8.48
3
 photo_cameraImage coming soon 1225701101 RIGHT PINION ML48 €8.48
4
 photo_cameraImage coming soon 3220420660 BUSH €2.38
5
 photo_cameraImage coming soon 1125213710 WASHER €1.16
6
 photo_cameraImage coming soon 1810030920 COMPLETE TRACTION GROUP €113.40
7
 photo_cameraImage coming soon 1226019090 STARTER PULLEY €6.04
8
 photo_cameraImage coming soon 1126457050 ELASTIC SPINE €1.16
9
 photo_cameraImage coming soon 1220332830 ADJUST ROD €4.82
10
 photo_cameraImage coming soon 1350638000 BELT Z 27 €13.36
11
 photo_cameraImage coming soon 1220419571 BUSH €1.16
12
 photo_cameraImage coming soon 1224500630 SPRING €1.16
13
 photo_cameraImage coming soon 3226800090 WASHER €2.38
14
 photo_cameraImage coming soon 1121545100 NUT M6 €2.38
15
 photo_cameraImage coming soon 1221102300 HUBCAP €1.16
16
 photo_cameraImage coming soon 1227530000 PLUG €1.16
Page 7 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

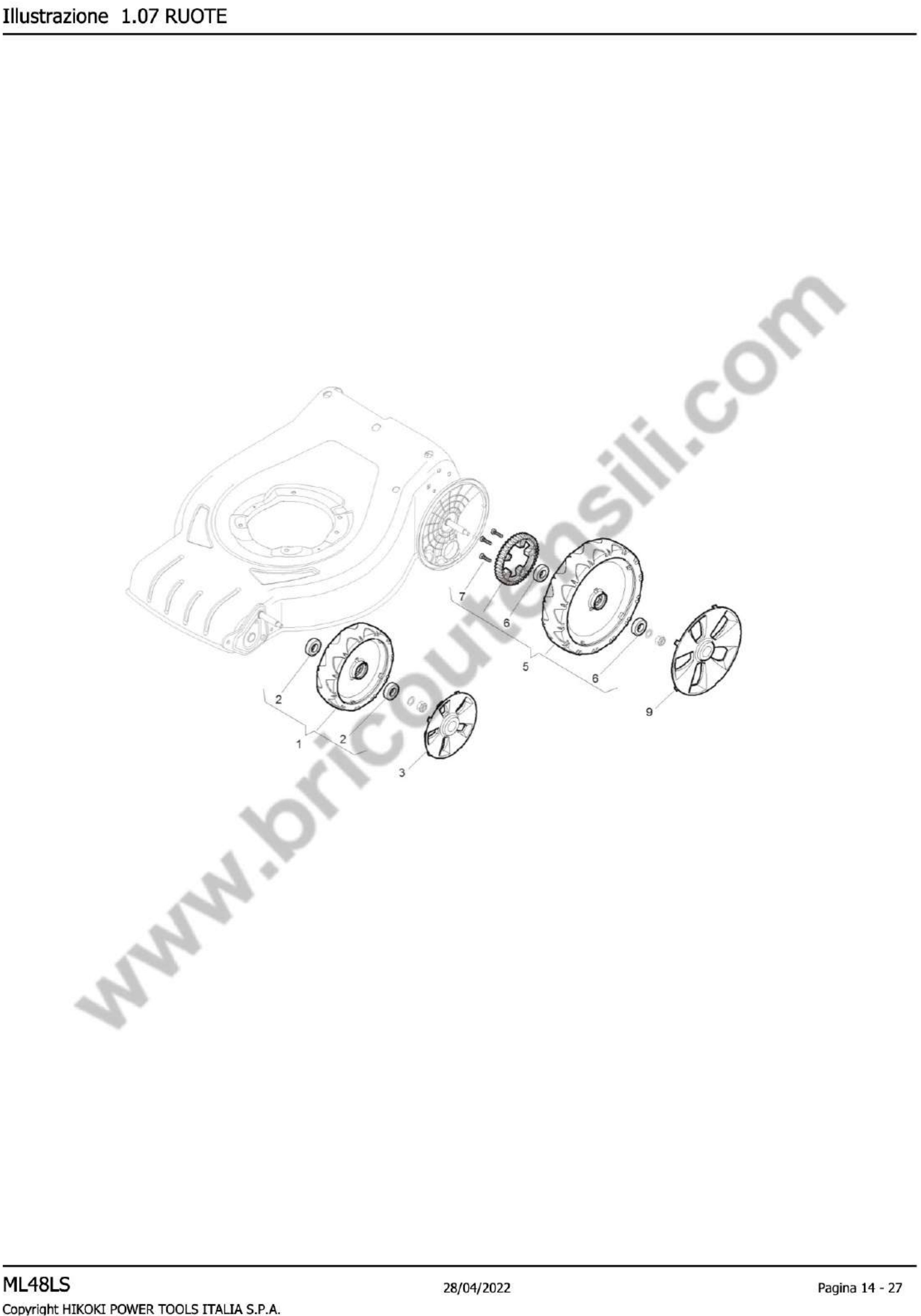

Esploso pagina 7
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 3810074551 WHEEL €17.02
2
 photo_cameraImage coming soon 1192160350 BALL BEARING 6001 2RS (12X28X8) €3.60
3
 photo_cameraImage coming soon 3221106360 HUB COVER GRAY €2.38
5
 photo_cameraImage coming soon 3810074671 REAR WHEEL ML48 CPL. €40.20
6
 photo_cameraImage coming soon 1192160350 BALL BEARING 6001 2RS (12X28X8) €3.60
7
 photo_cameraImage coming soon 1127287060 SCREW €1.16
9
 photo_cameraImage coming soon 3221106370 REAR WHEEL COVER ML48 €3.60
Page 8 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

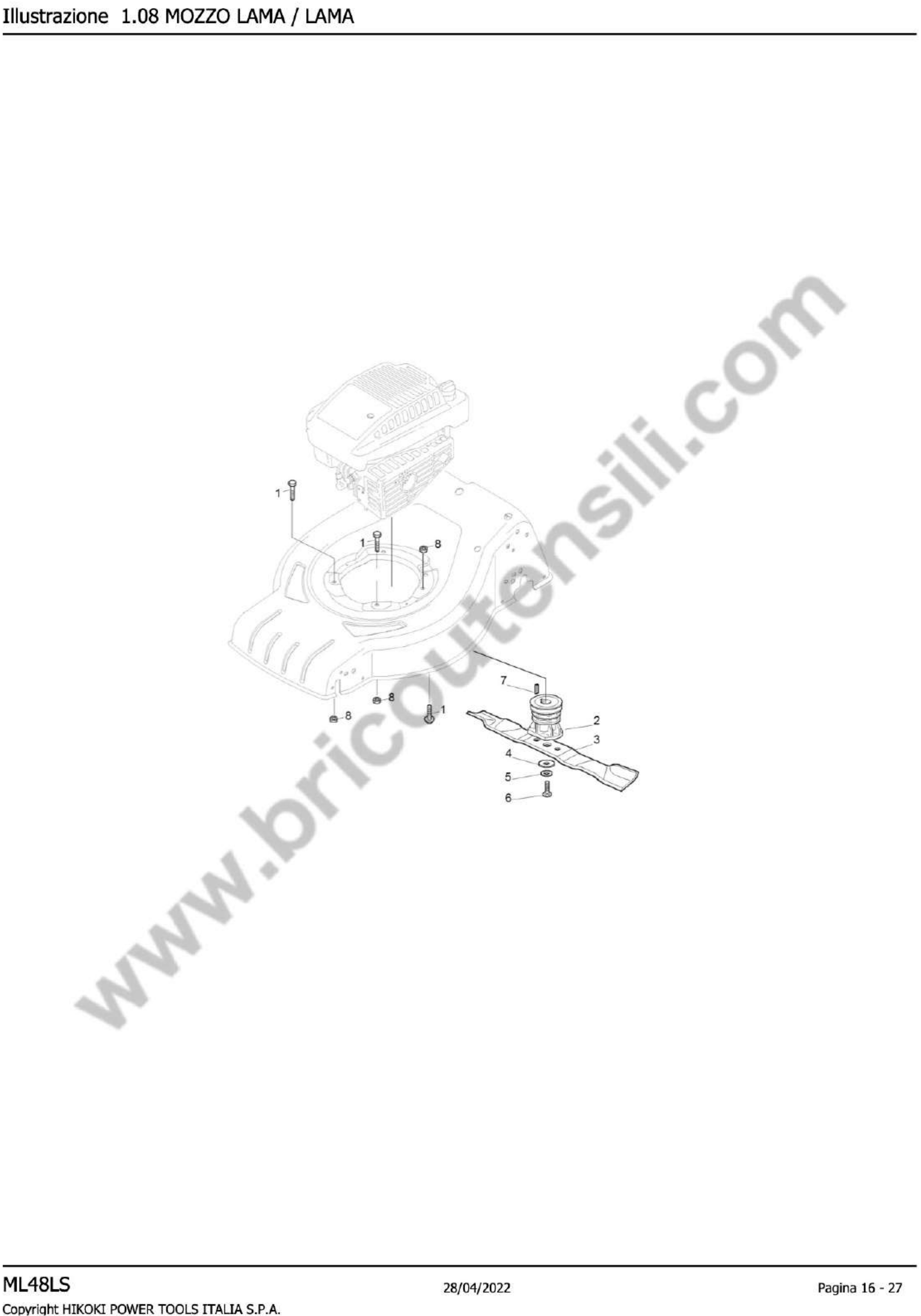

Esploso pagina 8
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 1126911000 SCREW €1.16
2
 photo_cameraImage coming soon 1224656074 BLADE HUB €12.14
3
 photo_cameraImage coming soon 1810043463 MULCHING BLADE 46 CM €19.46
4
 photo_cameraImage coming soon 1221604000 WASHER €2.38
5
 photo_cameraImage coming soon 1125230800 WASHER €1.16
6
 photo_cameraImage coming soon 1127356980 SCREW BLADE €2.38
7
 photo_cameraImage coming soon 1121391000 CRANKSHAFT TAB €1.16
8
 photo_cameraImage coming soon 1121542100 NUT €1.16
Page 9 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

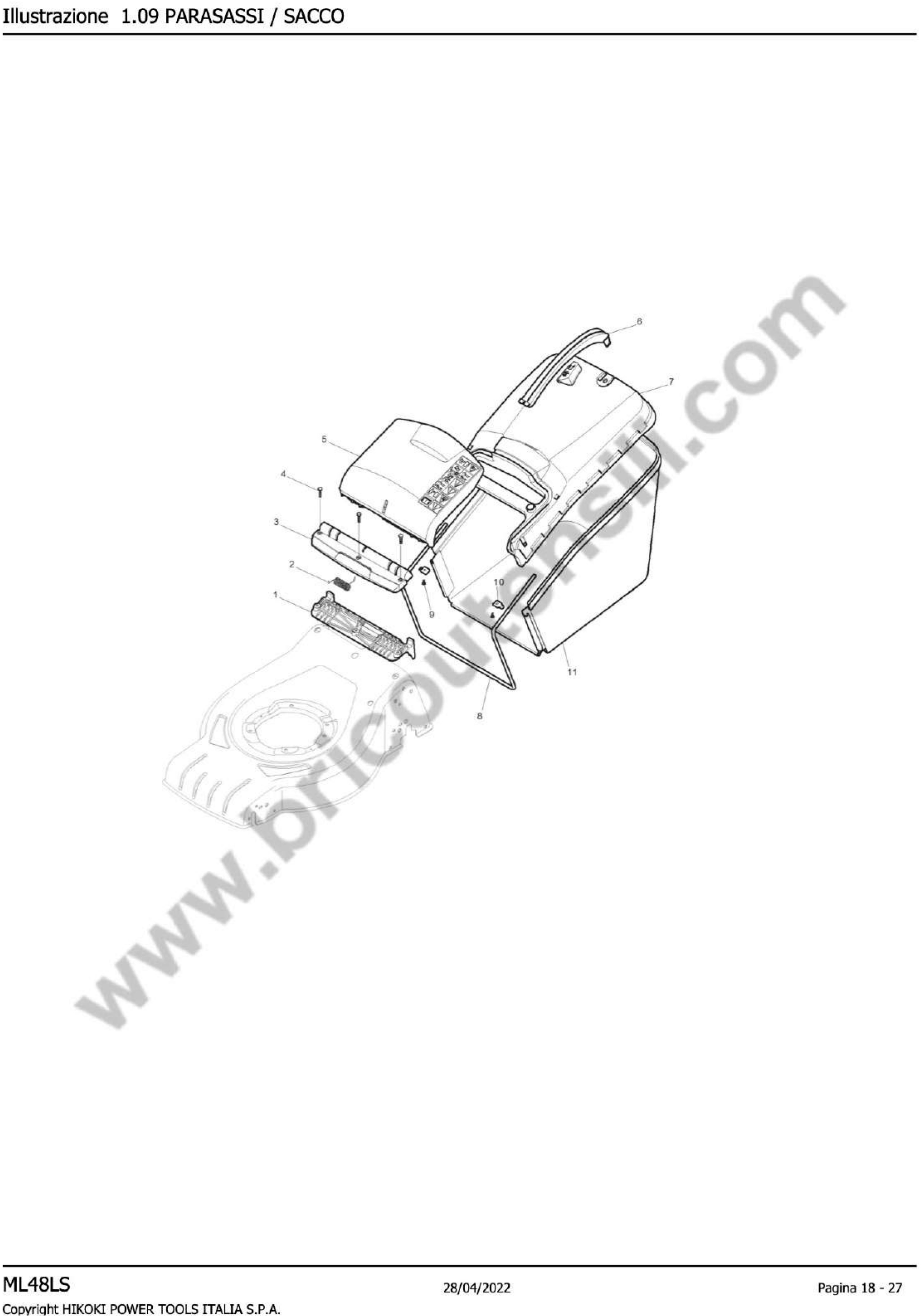

Esploso pagina 9
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 3227853310 BAFFLE SUPPORT (BLACK) €8.48
2
 photo_cameraImage coming soon 1224504640 BAFFLE SPRING €2.38
4
 photo_cameraImage coming soon 1127286990 SCREW €1.16
5
 photo_cameraImage coming soon 3226003310 STONE PROTECTION ORANGE ML48 €8.48
6
 photo_cameraImage coming soon 3223936440 BAG HANDLE €6.04
7
 photo_cameraImage coming soon 3814860180 BAG, BLACK TOP €38.98
8
 photo_cameraImage coming soon 1226085610 LOWER REINFORCEMENT €12.14
9
 photo_cameraImage coming soon 1127286920 SCREW €1.16
10
 photo_cameraImage coming soon 3225451590 PLATE €1.16
11
 photo_cameraImage coming soon 1810023180 COLLECTION BAG BLACK €36.54
Page 10 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

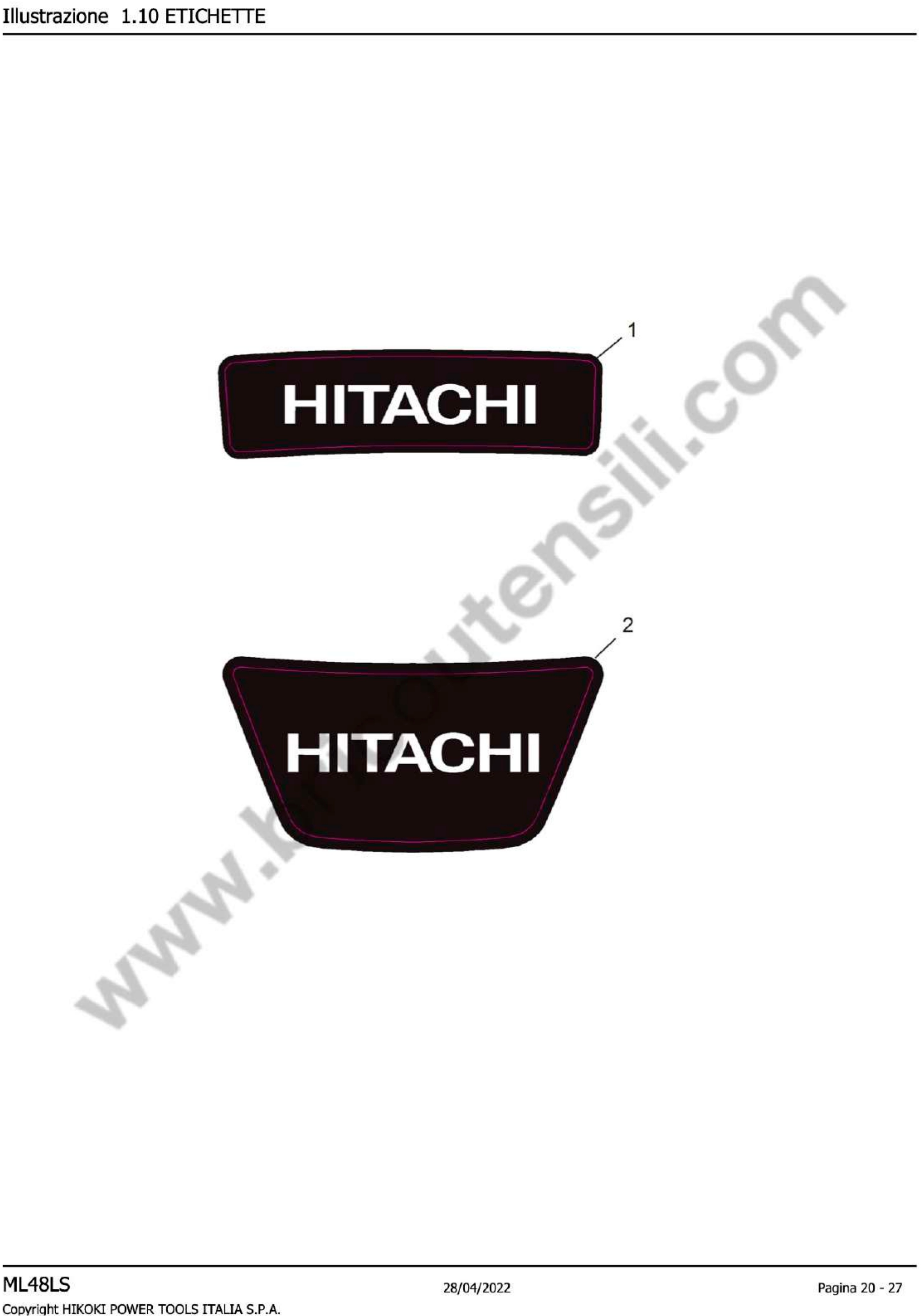

Esploso pagina 10
info_outline

No spare parts mapped to this page.
Check the other pages for available parts.

Page 11 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

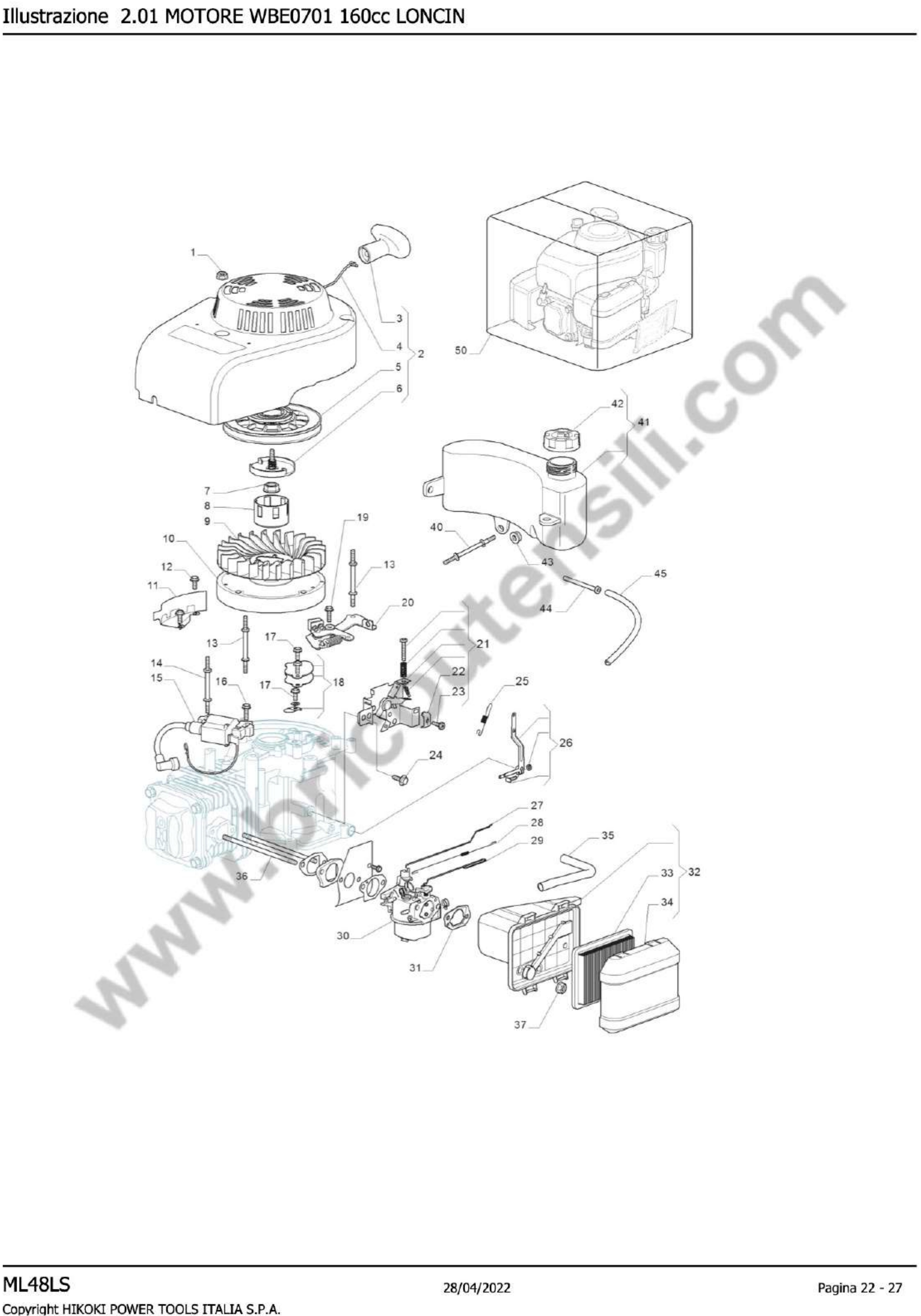

Esploso pagina 11
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 1122921020 NUT €1.16
2
 photo_cameraImage coming soon 1185502761 STARTER ASS'Y €118.28
3
 photo_cameraImage coming soon 1185502740 STARTER HANDLE €15.80
4
 photo_cameraImage coming soon 1185507790 STARTER ROPE €7.26
5
 photo_cameraImage coming soon 1185507780 STARTER PULLEY €38.98
6
 photo_cameraImage coming soon 1185502750 STARTER PAWL SET €12.14
7
 photo_cameraImage coming soon 1185503360 NUT €6.04
8
 photo_cameraImage coming soon 1185503350 STARTER CUP €23.12
9
 photo_cameraImage coming soon 1185502540 FLYWHEEL FAN €20.68
10
 photo_cameraImage coming soon 1185502530 FLYWHEEL ASS.Y €96.32
11
 photo_cameraImage coming soon 1185507740 GUARD €7.26
12
 photo_cameraImage coming soon 1127912131 FEED SCREW €1.16
13
 photo_cameraImage coming soon 1185503020 STUD BOLT €8.48
14
 photo_cameraImage coming soon 1185503010 STUD BOLT €7.26
15
 photo_cameraImage coming soon 1185502550 ELECTRONIC COIL €60.94
16
 photo_cameraImage coming soon 1127915000 FEED SCREW €1.16
17
 photo_cameraImage coming soon 1127905000 FEED SCREW €2.38
18
 photo_cameraImage coming soon 1185503780 GASKET ASSY €23.12
19
 photo_cameraImage coming soon 1127915000 FEED SCREW €1.16
20
 photo_cameraImage coming soon 1185503760 FLYWHEEL BRAKE ASSY €40.20
21
 photo_cameraImage coming soon 1185502590 REMOTE CONTROL ASSY €26.78
23
 photo_cameraImage coming soon 1185503380 FEED SCREW €7.26
24
 photo_cameraImage coming soon 1127912131 FEED SCREW €1.16
26
 photo_cameraImage coming soon 1185502660 ACCELERATOR CONTROL LEVER €18.24
27
 photo_cameraImage coming soon 1185503970 GOVERNOR LINK €3.60
28
 photo_cameraImage coming soon 1185502630 SPRING €4.82
29
 photo_cameraImage coming soon 1185502640 AIR CONTROL LEVER €4.82
30
 photo_cameraImage coming soon 1185502510 CARBURETOR €65.82
31
 photo_cameraImage coming soon 1185507380 AIR FILTER GASKET €9.70
32
 photo_cameraImage coming soon 1185507370 COMPLETE AIR FILTER €40.20
33
 photo_cameraImage coming soon 1185502570 AIR FILTER ELEMENT €24.34
34
 photo_cameraImage coming soon 1185507390 AIR FILTER COVER €12.14
35
 photo_cameraImage coming soon 1185503770 BREATHER FULE PIPE €4.82
36
 photo_cameraImage coming soon 1185502980 STUD BOLT €7.26
37
 photo_cameraImage coming soon 1122921020 NUT €1.16
40
 photo_cameraImage coming soon 1185503150 STUD BOLT €7.26
41
 photo_cameraImage coming soon 1185503160 GAS TANK €60.94
42
 photo_cameraImage coming soon 1185503391 TANK CAP €14.58
43
 photo_cameraImage coming soon 1122921020 NUT €1.16
44
 photo_cameraImage coming soon 1185503140 FUEL FILTER €4.82
45
 photo_cameraImage coming soon 1185503400 FUEL PIPE €8.48
50
 photo_cameraImage coming soon 1185504080 ENGINE ASSEMBLED €246.38
Page 12 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

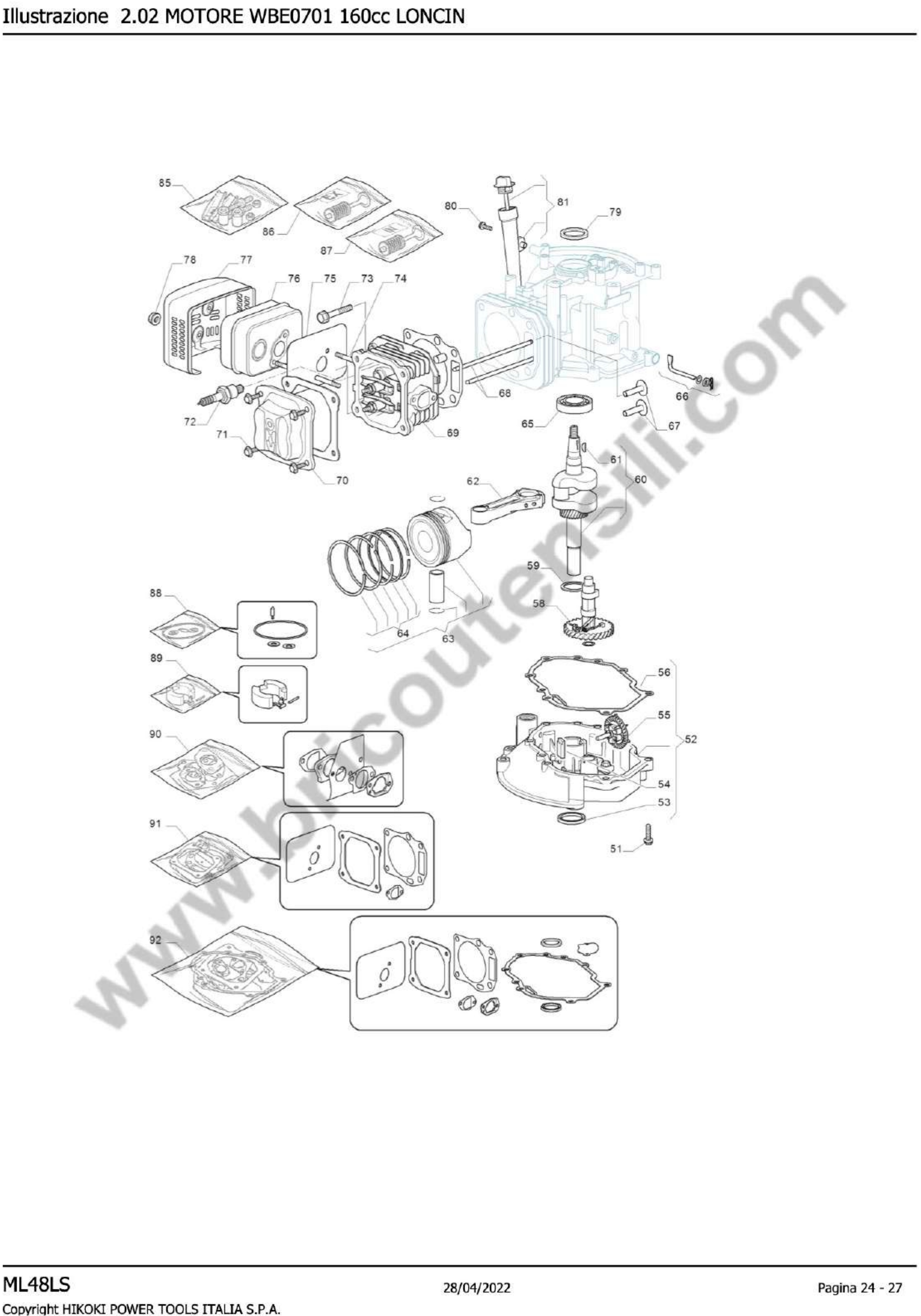

Esploso pagina 12
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
51
 photo_cameraImage coming soon 1126745500 FEED SCREW €1.16
52
 photo_cameraImage coming soon 1185503830 CRANKSHAFT HOUSING €110.96
53
 photo_cameraImage coming soon 1185503790 OIL SEAL €18.24
55
 photo_cameraImage coming soon 1185503120 SPEED GOVERNOR ASSY €12.14
56
 photo_cameraImage coming soon 1185503801 CRANKCASE GASKET €17.02
58
 photo_cameraImage coming soon 1185502710 CAMSHAFT ASSY €36.54
59
 photo_cameraImage coming soon 1185502830 SPRING  €3.60
60
 photo_cameraImage coming soon 1185502810 CRANKSHAFT €114.62
61
 photo_cameraImage coming soon 1185502880 WOODRUFF KEY €6.04
62
 photo_cameraImage coming soon 1185502840 CONNECTING ROD ASSY €40.20
63
 photo_cameraImage coming soon 1185502780 PISTON ASSY €51.18
64
 photo_cameraImage coming soon 1185502860 PISTON, RING SET €28.00
65
 photo_cameraImage coming soon 1185502800 BALL BEARING €24.34
66
 photo_cameraImage coming soon 1185503080 SHAFT, GOVERNOR ARM ASSY €10.92
67
 photo_cameraImage coming soon 1185502910 VALVE LIFTER ASSY €9.70
69
 photo_cameraImage coming soon 1185502440 CYLINDER HEAD ASSY €132.92
70
 photo_cameraImage coming soon 1185502961 COVER COMP., HEAD €14.58
71
 photo_cameraImage coming soon 1127912131 FEED SCREW €1.16
72
 photo_cameraImage coming soon 9400024400 SPARK PLUG €6.04
73
 photo_cameraImage coming soon 1185502970 FEED SCREW €6.04
74
 photo_cameraImage coming soon 1185502980 STUD BOLT €7.26
75
 photo_cameraImage coming soon 1185502700 MUFFLER GASKET €12.14
76
 photo_cameraImage coming soon 1185502690 MUFFLER €35.32
77
 photo_cameraImage coming soon 1185502681 MUFFLER GUARD €38.98
78
 photo_cameraImage coming soon 1122921020 NUT €1.16
79
 photo_cameraImage coming soon 1185503000 OIL SEAL €12.14
80
 photo_cameraImage coming soon 1126745500 FEED SCREW €1.16
81
 photo_cameraImage coming soon 1185503110 COMPLETE OIL LEVEL CAP €35.32
85
 photo_cameraImage coming soon 1185502730 VALVE ROCKER SET €19.46
86
 photo_cameraImage coming soon 1185502940 EXHAUST VALVE KIT €36.54
87
 photo_cameraImage coming soon 1185502920 SUCTION VALVE KIT €34.10
88
 photo_cameraImage coming soon 1185503890 REPAIR KIT €14.58
89
 photo_cameraImage coming soon 1185503880 CARBURETOR REPAIR KIT €18.24
90
 photo_cameraImage coming soon 1185507430 CARBURETOR GASKET KIT €20.68
91
 photo_cameraImage coming soon 1185504060 CYLINDER HEAD GASKET KIT €37.76
92
 photo_cameraImage coming soon 1185507400 ENGINE SEAL KIT €51.18
Page 13 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

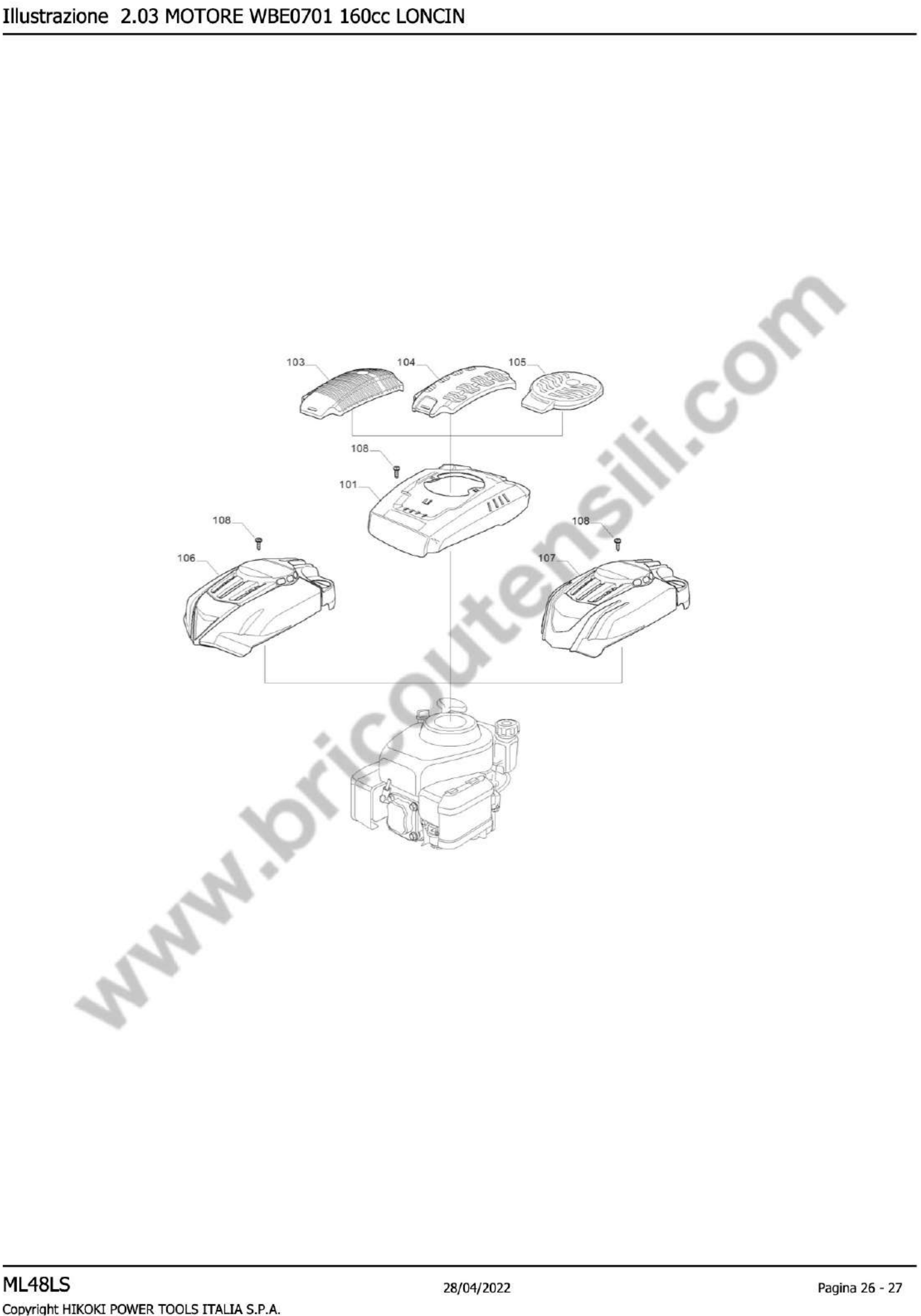

Esploso pagina 13
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
101
 photo_cameraImage coming soon 3220554631 COVER €12.14
104
 photo_cameraImage coming soon 3220554500 COVER, BLACK €6.04
108
 photo_cameraImage coming soon 1127286800 FEED SCREW €1.16

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Hitachi Spare Parts for Lawnmower ML48LS

We supply original Hitachi HIKOKI Tanaka spare parts on offer at unbeatable prices, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Lawnmower ML48LS.

In the following table, look for the model of the Lawnmower and ripettivo spare part.
Hitachi ML48LS
SELF-PROPELLED INTERNAL COMBUSTION LAWNMOWER HITACHI HIKOKI ML48LS
CHASSIS/ MULCHING CAP/BELT COVER Pag.1
# Part Num. Description
1 3810048280 CHASSIS GRAY
2 3221083011 FRONT BAFFLE
3 1127286990 SCREW
4 3221083020 REAR BAFFLE
5 1127286990 SCREW
6 3225452130 PLATE
7 3810051390 LEFT BRACKET
8 1127278010 SCREW
9 3810051370 RIGHT BRACKET
10 3220602422 BELT COVER
11 3221402391 MULCHING CAP 48
12 1127285300 SCREW
WHEEL LIFTER/WHEEL AXLE Pag.2
1 3813028210 FRONT WHEEL AXLE
2 3225451420 PLATE
3 1127286980 SCREW
4 1125213500 WASHER
5 1121550000 NUT
6 1124360510 PLATE
7 3228696730 WHEEL HEIGHT ADJUST CONTROL ROD
8 1225198200 PIN
9 1224461930 SPRING
11 1127286980 SCREW
12 3225451520 PLATE
13 3813028170 REAR WHEEL AXLE
14 1225341310 PIN
15 3810033570 CENTRALIZED HEIGHT ADJUST LEVER
16 1224461920 SPRING
17 1121545100 NUT M6
18 3226002051 WHEEL PROTECTION
21 1125213500 WASHER
22 1121550000 NUT
FRONT PLATE Pag.3
1 3222262380 ORANGE MASK ML48
2 1127286980 SCREW
LOWER HANDLE Pag.4
1 3810067370 LOWER HANDLE
2 1128191100 SCREW
3 1226716510 WASHER
4 1223999000 KNOB
5 1122932000 NUT
7 1128189000 SCREW
9 1223999000 KNOB
10 1122932000 NUT
11 1121550000 NUT
12 1125213500 WASHER
13 1123695000 ELASTIC DISC
14 1127606050 SCREW
15 3810086910 SCREWS OUTFIT
UPPER HANDLE/CABLE Pag.5
1 3810075061 HANDLE, UPPER PART GRAY
2 1224303130 SPRING GUIDE
3 1125213300 WASHER
4 1121545100 NUT M6
5 1183900200 CABLE CLIP
6 1810033631 ENGINE BRAKE LEVER BLACK
7 1810300560 ENGINE BRAKE CABLE
8 1127277880 SCREW
9 1121545100 NUT M6
10 1810033640 TRACTION CONTROL LEVER
11 3810300510 TRACTION CABLE
12 1810055170 THROTTLE GROUP
TRACTION/BELT Pag.6
1 1126086000 SEEGER FOR SHAFT D = 12 UNI 7435 C60
2 1225701201 LEFT PINION ML48
3 1225701101 RIGHT PINION ML48
4 3220420660 BUSH
5 1125213710 WASHER
6 1810030920 COMPLETE TRACTION GROUP
7 1226019090 STARTER PULLEY
8 1126457050 ELASTIC SPINE
9 1220332830 ADJUST ROD
10 1350638000 BELT Z 27
11 1220419571 BUSH
12 1224500630 SPRING
13 3226800090 WASHER
14 1121545100 NUT M6
15 1221102300 HUBCAP
16 1227530000 PLUG
WHEEL Pag.7
1 3810074551 WHEEL
2 1192160350 BALL BEARING 6001 2RS (12X28X8)
3 3221106360 HUB COVER GRAY
5 3810074671 REAR WHEEL ML48 CPL.
6 1192160350 BALL BEARING 6001 2RS (12X28X8)
7 1127287060 SCREW
9 3221106370 REAR WHEEL COVER ML48
BLADE HUB/BLADE/BLADE Pag.8
1 1126911000 SCREW
2 1224656074 BLADE HUB
3 1810043463 MULCHING BLADE 46 CM
4 1221604000 WASHER
5 1125230800 WASHER
6 1127356980 SCREW BLADE
7 1121391000 CRANKSHAFT TAB
8 1121542100 NUT
STONEGUARD/COLLECTION BAG Pag.9
1 3227853310 BAFFLE SUPPORT (BLACK)
2 1224504640 BAFFLE SPRING
3 3221095770 STONE PROTECTION COVER, ORANGE
4 1127286990 SCREW
5 3226003310 STONE PROTECTION ORANGE ML48
6 3223936440 BAG HANDLE
7 3814860180 BAG, BLACK TOP
8 1226085610 LOWER REINFORCEMENT
9 1127286920 SCREW
10 3225451590 PLATE
11 1810023180 COLLECTION BAG BLACK
LABEL Pag.10
1 1143691320 ENGINE HOOD LABEL
2 1143691340 FRONT LABEL
ENGINE WBE0701 160CC LONCIN Pag.11
1 1122921020 NUT
2 1185502761 STARTER ASS'Y
3 1185502740 STARTER HANDLE
4 1185507790 STARTER ROPE
5 1185507780 STARTER PULLEY
6 1185502750 STARTER PAWL SET
7 1185503360 NUT
8 1185503350 STARTER CUP
9 1185502540 FLYWHEEL FAN
10 1185502530 FLYWHEEL ASS.Y
11 1185507740 GUARD
12 1127912131 SCREW
13 1185503020 STUD BOLT
14 1185503010 STUD BOLT
15 1185502550 ELECTRONIC COIL
16 1127915000 SCREW
17 1127905000 SCREW
18 1185503780 GASKET ASSY
19 1127915000 SCREW
20 1185503760 FLYWHEEL BRAKE ASSY
21 1185502590 REMOTE CONTROL ASSY
22 1185503370 CASING CLAMP
23 1185503380 SCREW
24 1127912131 SCREW
25 1185502600 SPRING
26 1185502660 ACCELERATOR CONTROL LEVER
27 1185503970 GOVERNOR LINK
28 1185502630 SPRING
29 1185502640 AIR CONTROL LEVER
30 1185502510 CARBURETOR
31 1185507380 AIR FILTER GASKET
32 1185507370 COMPLETE AIR FILTER
33 1185502570 AIR FILTER ELEMENT
34 1185507390 AIR FILTER COVER
35 1185503770 BREATHER FULE PIPE
36 1185502980 STUD BOLT
37 1122921020 NUT
40 1185503150 STUD BOLT
41 1185503160 GAS TANK
42 1185503391 TANK CAP
43 1122921020 NUT
44 1185503140 FUEL FILTER
45 1185503400 FUEL PIPE
50 1185504080 ENGINE ASSEMBLED
ENGINE WBE0701 160CC LONCIN Pag.12
51 1126745500 SCREW
52 1185503830 CRANKSHAFT HOUSING
53 1185503790 OIL SEAL
54 1185507750 GROMMET
55 1185503120 SPEED GOVERNOR ASSY
56 1185503801 CRANKCASE GASKET
58 1185502710 CAMSHAFT ASSY
59 1185502830 WASHER
60 1185502810 CRANKSHAFT
61 1185502880 WOODRUFF KEY
62 1185502840 CONNECTING ROD ASSY
63 1185502780 PISTON ASSY
64 1185502860 PISTON, RING SET
65 1185502800 BALL BEARING
66 1185503080 SHAFT, GOVERNOR ARM ASSY
67 1185502910 VALVE LIFTER ASSY
68 1185502890 PUSH RODS ASSY
69 1185502440 CYLINDER HEAD ASSY
70 1185502961 COVER COMP., HEAD
71 1127912131 SCREW
72 9400024400 SPARK PLUG
73 1185502970 SCREW
74 1185502980 STUD BOLT
75 1185502700 MUFFLER GASKET
76 1185502690 MUFFLER
77 1185502681 MUFFLER GUARD
78 1122921020 NUT
79 1185503000 OIL SEAL
80 1126745500 SCREW
81 1185503110 COMPLETE OIL LEVEL CAP
85 1185502730 VALVE ROCKER SET
86 1185502940 EXHAUST VALVE KIT
87 1185502920 SUCTION VALVE KIT
88 1185503890 REPAIR KIT
89 1185503880 CARBURETOR REPAIR KIT
90 1185507430 CARBURETOR GASKET KIT
91 1185504060 CYLINDER HEAD GASKET KIT
92 1185507400 ENGINE SEAL KIT
ENGINE WBE0701 160CC LONCIN Pag.13
101 3220554631 COVER
104 3220554500 COVER, BLACK
108 1127286800 SCREW
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Hitachi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to hitachi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Hitachi ML48LS
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Drawing Hitachi ML48LS

Drawing Hitachi ML48LS

Download (582KB)

You might also like

Tank Cap for Engine Alpina WBE0701
GGP Italy SKU: 118550339/1
Tank Cap for Engine Alpina WBE0701
Tank Cap for Engine Alpina WBE0701 Original replacement part Alpina, Tank Cap for Engine GGP WBE0701 - Lawnmower XC 48 GSW4 - AL5 51 G - BL 460 - HW531 PD - S481 PD ES. Part for the...
AVAILABLE €14.82
Details
Hitachi Throttle Group for ML48LS
HiKOKI Power Tools Italia S.p.a. SKU: 1810055170
Hitachi Throttle Group for ML48LS
Hitachi Throttle Group for Lawnmower ML48LS Original spare part Hitachi HIKOKI Tanaka, Throttle Group for Lawnmower ML48LS. Part for the following products: -  Lawnmower ML48LS - Code: 1810055170
Last items in stock €25.56
Details
Comments (0)
