HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Petrol Hedge Trimmer CH66EB3

SKU: Hitachi CH66EB3
€1.04
VAT included

Hitachi Spare Parts for Petrol Hedge Trimmer CH66EB3

Hitachi-HIKOKI Tanaka Original spare parts at attractive and competitive prices on the web, we are a licensed service center with a repair service able to quickly solve the maintenance or repair any issues for Engine Hedge Trimmer CH 66EB3.

Fix Your Power Tool. All Spares are Ready For Quick Delivery.
Hitachi Spare Parts for Petrol Hedge Trimmer CH66EB3
  • Hitachi Spare Parts for Petrol Hedge Trimmer CH66EB3
  • Hitachi Spare Parts for Petrol Hedge Trimmer CH66EB3
  • Hitachi Spare Parts for Petrol Hedge Trimmer CH66EB3
HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Petrol Hedge Trimmer CH66EB3

SKU: Hitachi CH66EB3 Condition: New
€1.04
VAT included

Hitachi Spare Parts for Petrol Hedge Trimmer CH66EB3

Hitachi-HIKOKI Tanaka Original spare parts at attractive and competitive prices on the web, we are a licensed service center with a repair service able to quickly solve the maintenance or repair any issues for Engine Hedge Trimmer CH 66EB3.

Fix Your Power Tool. All Spares are Ready For Quick Delivery.
settings 150 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
126 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

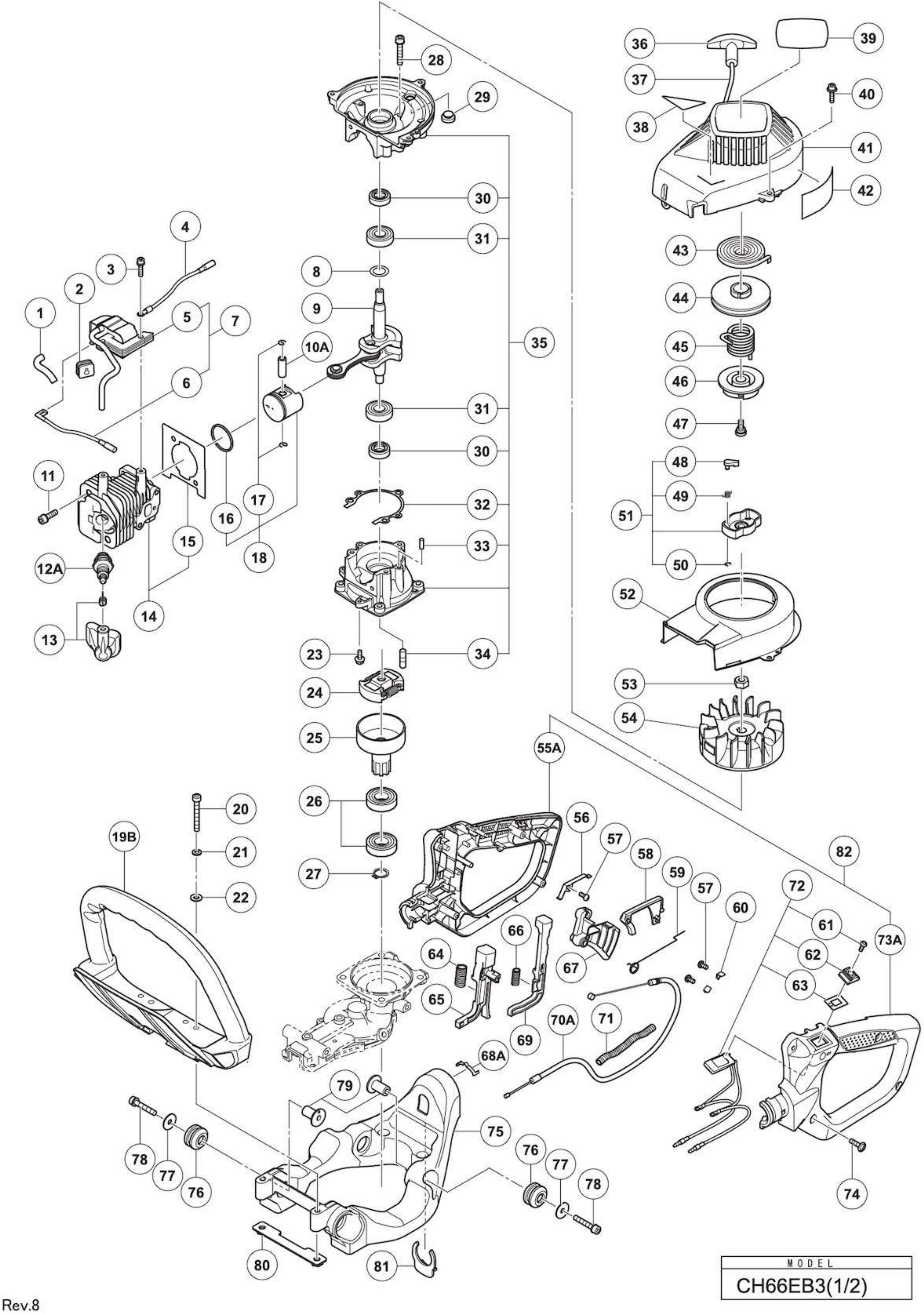

Esploso pagina 1
Pos. Item Price Buy
1
 Insulator Tube for Chainsaw Hitachi CS25EC-SC 6684597 Insulator Tube for Chainsaw Hitachi CS25EC-SC €1.08
2
 photo_cameraImage coming soon 6688050 GROMMET €1.56
9
 photo_cameraImage coming soon 6686208 CRANKSHAFT €85.82
10A
 Piston Pin for Brushcutter Hitachi Tanaka CG22EAS 6696944 Piston Pin for Brushcutter Hitachi Tanaka CG22EAS €7.30
11
 Bolt M5X18/S for Chainsaws Hitachi CS38EK-CS45EL 6684586 Bolt M5X18/S for Chainsaws Hitachi CS38EK-CS45EL €1.98
12A
 photo_cameraImage coming soon 6699319 SPARK PLUG ASS'Y BPMR6A €12.12
13
 photo_cameraImage coming soon 6687476 SPARK PLUG CAP €9.07
14
 photo_cameraImage coming soon 6685480 CYLINDER WITH GASKET €65.49
15
 photo_cameraImage coming soon 6685744 CYLINDER GASKET €2.09
16
 Piston Ring for Hedge Trimmer Tanaka THT 210 6686118 Piston Ring for Hedge Trimmer Tanaka THT 210 €9.05
17
 Circlip for Brushcutter Hitachi CG 24EBS 6684590 Circlip for Brushcutter Hitachi CG 24EBS €1.57
18
 photo_cameraImage coming soon 6685892 PISTON WITH RINGS(2) AND RETAINERS(2) €32.86
19B
 Front Handle Ass'y for Hedge Trimmer Hitachi CH22EBP2 6699079 Front Handle Ass'y for Hedge Trimmer Hitachi CH22EBP2 €22.49 Not available for order
21
 Spring Washer 5 for Brushcutter Hitachi CG33EJ-SL 6684834 Spring Washer 5 for Brushcutter Hitachi CG33EJ-SL €1.04
22
 photo_cameraImage coming soon 6684918 WASHER M5 €1.98
23
 photo_cameraImage coming soon 6695441 4X12PS SCREW €1.80
25
 Clutch Drum for Hedge Trimmers Tanaka THT 210-HTD2530PF 6688570 Clutch Drum for Hedge Trimmers Tanaka THT 210-HTD2530PF €44.53
26
 Ball Bearing 6002Z for Hedge Trimmer Hitachi CH62EA(ST) 6695538 Ball Bearing 6002Z for Hedge Trimmer Hitachi CH62EA(ST) €14.45
27
 Stop Ring C-15 for Hedge Trimmer Tanaka THT 210 THT 210 B 6695285 Stop Ring C-15 for Hedge Trimmer Tanaka THT 210 THT 210 B €0.66
28
 photo_cameraImage coming soon 6684786 HEX. SOCKET HD. BOLT M5X30 S €1.60
30
 photo_cameraImage coming soon 6684607 OIL SEAL TB 12227 €3.20
31
 photo_cameraImage coming soon 6684608 BALL BEARING 6001 C3 €6.06
32
 photo_cameraImage coming soon 6686720 CRANK CASE GASKET €1.59
34
 photo_cameraImage coming soon 6686771 STUD BOLT 6X22 €1.56
35
 photo_cameraImage coming soon 6686574 CRANK CASE ASS'Y €115.32
36
 photo_cameraImage coming soon 6693237 STARTER HANDLE €5.27
37
 photo_cameraImage coming soon 6693172 ROPE 3X890 €3.12
40
 photo_cameraImage coming soon 6695502 HEX.HOLE BOLT 4X18PS €1.28
41
 Fan Case Comp. for Hedge Trimmer Hitachi CH62EA(ST) 6687014 Fan Case Comp. for Hedge Trimmer Hitachi CH62EA(ST) €37.10 Not available for order
43
 photo_cameraImage coming soon 6684675 RECOIL SPRING €12.16
44
 photo_cameraImage coming soon 6693072 STARTER ROPE REEL €9.95
45
 Damper Spring for Brushcutters Hitachi CG22EAS-CG24EASP-CG27EASP 6684677 Damper Spring for Brushcutters Hitachi CG22EAS-CG24EASP-CG27EASP €7.83
46
 Cam Plate for Hedge Trimmer Hitachi CH62EA(ST) 6684678 Cam Plate for Hedge Trimmer Hitachi CH62EA(ST) €6.81
47
 Set Screw for Hedge Trimmer Hitachi CH62EA(ST) 6684679 Set Screw for Hedge Trimmer Hitachi CH62EA(ST) €6.81
48
 photo_cameraImage coming soon 6684685 STARTER PAWL €6.11
49
 photo_cameraImage coming soon 6684684 STARTER PAWL SPRING €3.48
50
 photo_cameraImage coming soon 6685101 D4E RETAINING RING €1.25
51
 Starter Pulley for Bruschcutters Hitachi CG22EAS-CG24EASP-CG27-33EJ 6684681 Starter Pulley for Bruschcutters Hitachi CG22EAS-CG24EASP-CG27-33EJ €23.26
52
 photo_cameraImage coming soon 6687209 DEFLECTOR €10.07
54
 photo_cameraImage coming soon 6687396 THEY FLY €25.77
55A
 photo_cameraImage coming soon 6698868 HANDLE A €9.23
56
 photo_cameraImage coming soon 6696350 EARTH TERMINAL €2.07
57
 Tapping Screw D3 for Electric Chain Saw Hitachi CS 35Y 696352 Tapping Screw D3 for Electric Chain Saw Hitachi CS 35Y €1.61
58
 photo_cameraImage coming soon 6696344 LOCK LEVER ACC. €1.83
59
 photo_cameraImage coming soon 6696345 SPRING €2.22
60
 photo_cameraImage coming soon 6696355 TAB TERMINAL €2.07
62
 photo_cameraImage coming soon 6688366 BUTTON STOP €1.59
63
 photo_cameraImage coming soon 6694588 STOP SWITCH €2.42
64
 photo_cameraImage coming soon 6696348 SPRING €2.10
65
 photo_cameraImage coming soon 6696346 LOCK LEVER €2.01
66
 photo_cameraImage coming soon 6696349 SPRING (B) €2.01
67
 photo_cameraImage coming soon 6696343 THROTTLE LEVER €1.69
68A
 photo_cameraImage coming soon 6698784 CLICK SPRING €1.77
69
 photo_cameraImage coming soon 6696347 RELEASE LEVER €2.14
70A
 photo_cameraImage coming soon 6698828 THROTTLE WIRE €10.31
71
 photo_cameraImage coming soon 6687524 PROTECTION TUBE 150L €1.59
72
 photo_cameraImage coming soon 6696354 STOP SWITCH ASS'Y (A) €19.44
73A
 photo_cameraImage coming soon 6698869 HANDLE B €8.46
75
 Hitachi CH66EB3 Frame 6696363 Hitachi CH66EB3 Frame €25.65
76
 Damper B for Hedge Trimmer Tanaka THT 210 6688412 Damper B for Hedge Trimmer Tanaka THT 210 €2.06
79
 Tanaka TCS-3301S Damper Collar B 6688485 Tanaka TCS-3301S Damper Collar B €3.16
80
 Handle Support for Hedge Trimmer Tanaka THT 210 6686111 Handle Support for Hedge Trimmer Tanaka THT 210 €6.19
81
 photo_cameraImage coming soon 6696359 STOPPED €1.87
Page 2 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

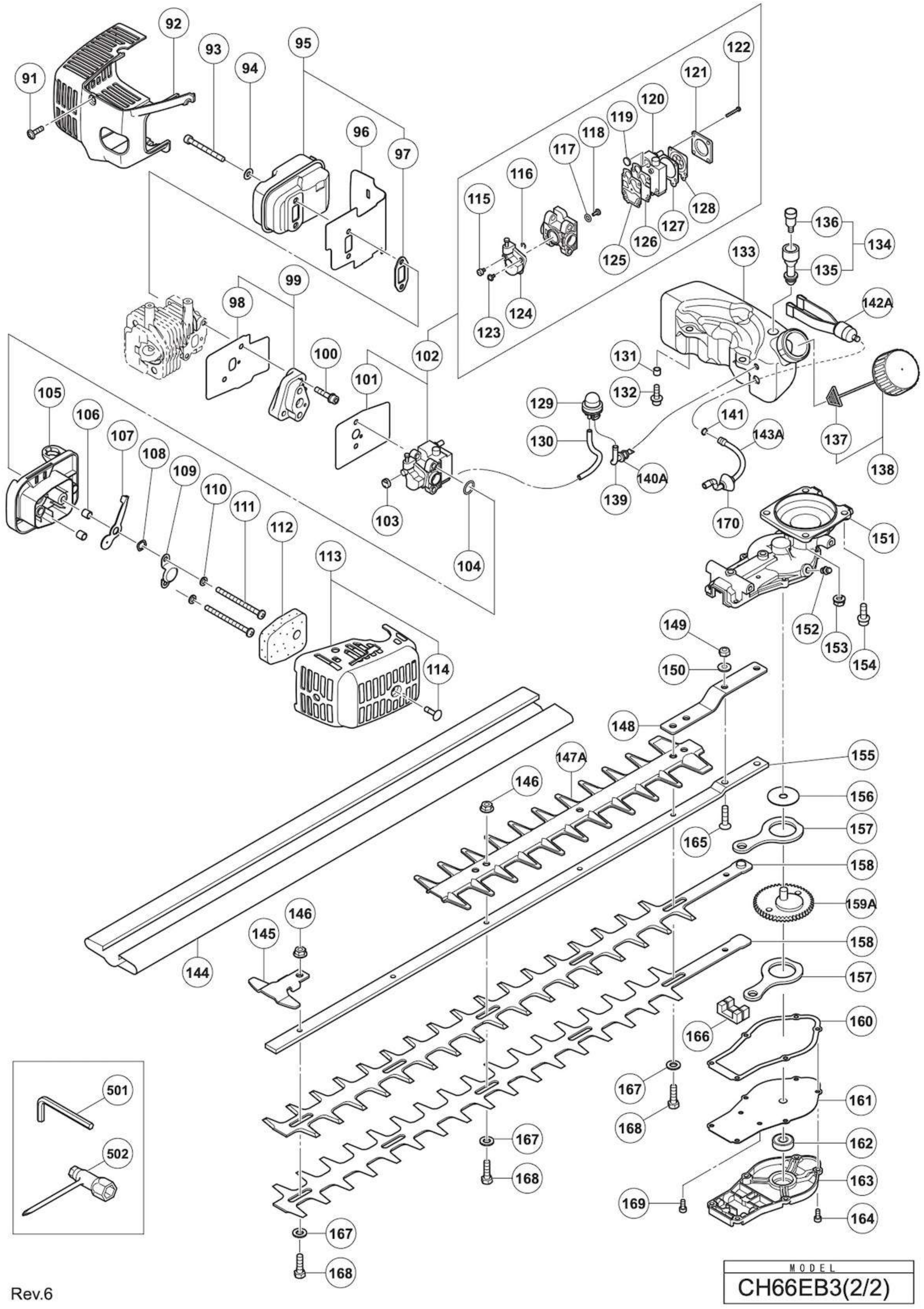

Esploso pagina 2
Pos. Item Price Buy
92
 photo_cameraImage coming soon 6692795 MUFFLER PROTECTION €12.33
93
 Hex Socket Hd Bolt M5X50 for Hedge Trimmer Tanaka THT 210 6685114 Hex Socket Hd Bolt M5X50 for Hedge Trimmer Tanaka THT 210 €1.66
94
 photo_cameraImage coming soon 6684661 WASHER 5 €1.27
95
 photo_cameraImage coming soon 6692477 MUFFLER ASS'Y €51.25
96
 photo_cameraImage coming soon 6687252 HEAT SHIELD €3.30
97
 photo_cameraImage coming soon 6692744 MUFFLER GASKET €3.28
98
 photo_cameraImage coming soon 6689891 INTAKE PIPE GASKET €2.69
99
 photo_cameraImage coming soon 6689966 CARB. INSULATOR SET,SPARE €13.24
100
 photo_cameraImage coming soon 6695515 HEX HOLE BOLT 5X25WS €1.67
101
 photo_cameraImage coming soon 6689839 CARBURETOR GASKET €2.39
102
 photo_cameraImage coming soon 6690482 CARBURETOR WITH GASKET €112.88
107
 photo_cameraImage coming soon 6691272 CHOKE LEVER €3.08
107
 photo_cameraImage coming soon 6691274 CHOKE VALVE €3.11
108
 photo_cameraImage coming soon 6684658 WAVE WASHER 8 €2.45
109
 Blow Over Check Board for Brushcutter Hitachi CG40EAS 6690843 Blow Over Check Board for Brushcutter Hitachi CG40EAS €3.48
110
 Washer D. 5 for Chainsaw Hitachi CS45EL-CS38EK 6684662 Washer D. 5 for Chainsaw Hitachi CS45EL-CS38EK €1.28
112
 photo_cameraImage coming soon 6690364 CLEANER SPONGE €1.61
113
 photo_cameraImage coming soon 6690415 AIR FILTER COVER €10.82
115
 photo_cameraImage coming soon 6684697 SWIVEL €4.96
116
 photo_cameraImage coming soon 6684696 STOP RING €1.76
117
 photo_cameraImage coming soon 6684695 ORING €3.16
119
 Carburator Inlet Screen for Chainsaws and Bruschcutters Hitachi 6684700 Carburator Inlet Screen for Chainsaws and Bruschcutters Hitachi €3.18
121
 photo_cameraImage coming soon 6685222 DIAPHRAGM COVER €6.54
122
 photo_cameraImage coming soon 6691312 SET SCREW €2.48
123
 photo_cameraImage coming soon 6684698 SCREW €3.06
124
 photo_cameraImage coming soon 6684883 THROTTLE VALVE €38.04
125
 photo_cameraImage coming soon 6691457 PUMP GASKET €9.57
126
 Pump Diaphragm for Chainsaw Hitachi CS33EB 6684693 Pump Diaphragm for Chainsaw Hitachi CS33EB €9.95
127
 Diaphragm Packing Metering for Chainsaws Hitachi CS25-33-40-45-51 6685220 Diaphragm Packing Metering for Chainsaws Hitachi CS25-33-40-45-51 €3.45
128
 Metering Diaphragm Comp. for Chainsaws Hitachi CS25-33-40-45-51 6690827 Metering Diaphragm Comp. for Chainsaws Hitachi CS25-33-40-45-51 €23.70
129
 Priming Pump for Chain Saws and Brushcutters Hitachi Tanaka 6685139 Priming Pump for Chain Saws and Brushcutters Hitachi Tanaka €13.15
131
 Collar 5.8 for Brushcutter Hitachi CG47EJ-L 6692244 Collar 5.8 for Brushcutter Hitachi CG47EJ-L €1.08
132
 Hex Hole Bolt M5x18PS for Hedge Trimmer Tanaka THT 210 6695505 Hex Hole Bolt M5x18PS for Hedge Trimmer Tanaka THT 210 €2.16
134
 photo_cameraImage coming soon 6691389 AIR VENT ASS'Y €18.68
136
 photo_cameraImage coming soon 6692171 AIR VENT VALVE ASS'Y €10.11
137
 photo_cameraImage coming soon 6684625 TANK CAP CHAIN €1.78
138
 photo_cameraImage coming soon 6691714 TANK CAP ASS'Y €8.43
138
 Tank Cap Ass'y (Black) for Brushcutter Hitachi CG40EFL 6691763 Tank Cap Ass'y (Black) for Brushcutter Hitachi CG40EFL €11.81
140A
 photo_cameraImage coming soon 6697846 RETURN GROMMET €1.79
141
 Hose Clip 6.3 D. for Brushcutters Chainsaws Hitachi Hikoki Tanaka 6684619 Hose Clip 6.3 D. for Brushcutters Chainsaws Hitachi Hikoki Tanaka €1.25
142A
 photo_cameraImage coming soon 6698874 PESCANTE DOUBLE MIXTURE €21.96
143A
 photo_cameraImage coming soon 6698715 FUEL PIPE €19.56
144
 photo_cameraImage coming soon 6687302 BLADE PROTECTION €11.53
145
 photo_cameraImage coming soon 6687275 GUARD PLATE €4.77
147A
 photo_cameraImage coming soon 6601209 PROTECTION PLATE €19.47
148
 photo_cameraImage coming soon 6690762 SUPPORT PLATE €8.37
149
 photo_cameraImage coming soon 6695175 LOCK NUT 6 UPSP €1.63
150
 Bolt Washer 6 for Brushcutters Chainsaws Hitachi Hikoki Tanaka 6684639 Bolt Washer 6 for Brushcutters Chainsaws Hitachi Hikoki Tanaka €1.98
151
 photo_cameraImage coming soon 6688684 GEAR CASE COMP. €40.98
152
 Grease Nipple for Hedgetrimmers Hitachi - HIKOKI - Tanaka 6688643 Grease Nipple for Hedgetrimmers Hitachi - HIKOKI - Tanaka €3.48
153
 photo_cameraImage coming soon 6695475 SPRING NUT 6 €1.67
155
 Cutter Guide (734MM) for Hedge Trimmer Tanaka THT 210 B 6687147 Cutter Guide (734MM) for Hedge Trimmer Tanaka THT 210 B €56.71 Not available for order
156
 photo_cameraImage coming soon 6686612 PLATE €2.03
157
 Cam Rod for Hedge Trimmer Hitachi CH78EC3(ST) 6686811 Cam Rod for Hedge Trimmer Hitachi CH78EC3(ST) €19.38
158
 696,5 mm Blade for Hedge Trimmer Tanaka THT 210 6687086 696,5 mm Blade for Hedge Trimmer Tanaka THT 210 €79.43 Not available for order
159A
 photo_cameraImage coming soon 6698773 GEAR 2 COMP. €31.91
160
 Gear Case Cover Gasket for Hedge Trimmer Hitachi CH62EA3 (ST) 6688909 Gear Case Cover Gasket for Hedge Trimmer Hitachi CH62EA3 (ST) €2.13
162
 photo_cameraImage coming soon 6695547 BALL BEARING 608 ZZ C3 €10.07
164
 photo_cameraImage coming soon 6684595 HEX. SOCKET HD. BOLT (W/SP.WASHER) M4X12 €1.71
165
 photo_cameraImage coming soon 6695075 HEX. HOLE FLUSH BOLT 6X25 €1.89
166
 Clean Blade Felt for Hedge Trimmers Tanaka THT 210-HTD2530PF 6686654 Clean Blade Felt for Hedge Trimmers Tanaka THT 210-HTD2530PF €1.79
167
 photo_cameraImage coming soon 6687187 WASHER 7 BLACK €2.09
169
 Hex Hole Bolt M4x10S for Hedgetrimmer Hitachi CH62EA 6695484 Hex Hole Bolt M4x10S for Hedgetrimmer Hitachi CH62EA €3.16

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Hitachi Spare Parts for Petrol Hedge Trimmer CH66EB3

Hitachi-HIKOKI Tanaka Original spare parts

 at attractive and competitive prices on the web, we are a licensed service center with a repair service able to quickly solve the maintenance or repair any issues for Engine Hedge Trimmer CH 66EB3.

In the following table, look for the model of Trimmer and the respective parts of the code.
Hitachi CH66EB3

Petrol Hedge Trimmer CH66EB3
# Part Num. Description
1 6684597 INSULATOR TUBE 50L
2 6688050 GROMMET
8 6684604 GEAR SHAFT SHIM 0.20
8 6684605 GEAR SHAFT SHIM 0.30
9 6686208 CRANK SHAFT COMP
10A 6696944 PISTON PIN
11 6684586 HEX.HOLE BOLT M5X18/S
12A 6699319 SPARK PLUG ASS'Y BPMR6A
13 6687476 SPARK PLUG CAP
14 6685480 CYLINDER ASS'Y
15 6685744 CYLINDER GASKET
16 6686118 PISTON RING
17 6684590 CIR CLIP
18 6685892 PISTON SET
19B 6699079 FRONT HANDLE
20 6695054 HEX. HOLE BOLT 5X40
21 6684834 SPRING WASHER 5
22 6684918 WASHER M5 (BLACK)
23 6695441 BOLT 4X12PS
24 6688494 CLUTCH
25 6688570 CLUTCH DRUM COMP.
26 6695538 BALL BEARING #6002Z, 32MM/OD
27 6695285 STOP RING C-15, OUTER
28 6684786 HEX. SOCKET HD. BOLT M5X30 S
30 6684607 OIL SEAL TB 12227
31 6684608 BALL BEARING 6001 C3
32 6686720 CRANK CASE GASKET
34 6686771 STUD BOLT 6X22
35 6686574 CRANK CASE ASS'Y
36 6693237 STARTER HANDLE
37 6693172 ROPE 3X890
40 6695502 HEX.HOLE BOLT 4X18PS
41 6687014 FAN CASE COMP.
43 6684675 RECOIL SPRING
44 6693072 STARTER ROPE REEL
45 6684677 DAMPER SPRING
46 6684678 CAM PLATE
47 6684679 SET SCREW
48 6684685 STARTER PAWL
49 6684684 STARTER PAWL SPRING
50 6685101 D4E RETAINING RING
51 6684681 STARTER PULLEY ASS'Y
52 6687209 DEFLECTOR
53 6684612 HEX. NUT M8
54 6687396 MAGNETO ROTOR COMP.
55A 6698868 HANDLE A
56 6696350 EARTH TERMINAL
57 696352 TAPPING SCREW D3X6
58 6696344 TRIGGER LOCKOUT
59 6696345 THROTTLE LEVER SPRING
60 6696355 TAB TERMINAL
61 6684913 SCREW 3X10
62 6688366 BUTTON STOP
63 6694588 STOP BUTTON MARK
64 6696348 SPRING (A)
65 6696346 LOCK LEVER
66 6696349 SPRING (B)
67 6696343 THROTTLE LEVER
68A 6698784 CLICK SPRING
69 6696347 RELEASE LEVER
70A 6698828 THROTTLE WIRE
71 6687524 PROTECTION TUBE 150L
72 6696354 STOP SWITCH ASS'Y (A)
73A 6698869 HANDLE B
74 305812 TAPPING SCREW (W/FLANGE) D4X16 (BLACK)
75 6696363 FRAME
76 6688412 DAMPER B
77 6689680 BRAKE SHAFT WASHER
78 6684786 HEX. SOCKET HD. BOLT M5X30 S
79 6688485 DAMPER COLLAR B
80 6686111 HANDLE SUPPORT COMP.
81 6696359 CLIP
91 6684636 TAPPING SCREW D4.5X16
92 6692795 MUFFLER PROTECTOR
93 6685114 HEX. SOCKET HD. BOLT M5X50
94 6684661 WASHER 5
95 6692477 MUFFLER ASS'Y
96 6687252 HEAT SHIELD
97 6692744 MUFFLER GASKET
98 6689891 INTAKE PIPE GASKET
99 6689966 CARB. INSULATOR SET,SPARE
100 6695515 HEX. HOLE BOLT M5X25WS
101 6689839 CARBURETOR GASKET
102 6690487 CARBURETOR SET, WYL120
102 6690482 CARBURETOR SET WYL112
105 6690119 CLEANER BODY COMP.
106 6690804 COLLAR 7.5
107 6691274 CHOKE VALVE
107 6691272 CHOKE VALVE
108 6684658 WAVE WASHER 8
109 6690843 BLOW OVER CHECK BOARD
110 6684662 S.WASHER 5
111 6684660 SCREW M5X60
112 6690364 CLEANER SPONGE
113 6690415 CLEANER COVER ASS'Y
114 6689737 SPECIAL SCREW
115 6684697 SWIVEL
116 6684696 STOP RING
117 6684695 O-RING
119 6684700 INLET SCREEN
121 6685222 DIAPHRAGM COVER-METERING
122 6691312 SET SCREW
123 6684698 THROTTLE SET SCREW
124 6684883 THROTTLE VALVE
125 6691457 PUMP GASKET
126 6684693 PUMP DIAPHRAGM
127 6685220 DIAPHRAGM PACKING-METERING
128 6690827 METERING DIAPHRAGM COMP.
129 6685139 PRIMING PUMP COMP.
130 6692347 FUEL PIPE 2.5X4X80
131 6692244 COLLAR 5.8
132 6695505 HEX. HOLE BOLT 5X18PS
133 6696360 TANK
133 6696361 TANK - DISCONTINUED
134 6691389 AIR VENT ASS'Y
136 6692171 AIR VENT VALVE ASS'Y
137 6684625 TANK CAP CHAIN
138 6691763 TANK CAP D ASS'Y, BLACK
138 6691714 TANK CAP ASS'Y
139 6692346 FUEL PIPE 2.5X4X70
140A 6697846 RETURN GROMMET
141 6684619 CLIP,6.3 DIA.
142A 6698874 PUMP FILTER
143A 6698715 FUEL PIPE
144 6687302 CUTTER COVER
145 6687275 GUARD PLATE
146 6695170 FLANGE NUT 6
147A 6601209 PROTECTION PLATE
148 6690762 SUPPORT PLATE
149 6695175 LOCK NUT 6 UPS-P
150 6684639 BOLT WASHER 6
151 6688684 GEAR CASE COMP.
152 6688643 GREASE NIPPLE COMP.
153 6695475 SPRING NUT 6
154 6695495 HEX. HOLE BOLT 6X18/S
155 6687147 CUTTER GUIDE 734L M6
156 6686612 GUIDE PLATE
157 6686811 CAM ROD
158 6687086 CUTTER BLADE A (696.5L)
159A 6698773 GEAR 2 COMP.
160 6688909 GEAR CASE GASKET
161 6692101 GEAR CASE COVER
162 6695547 BALL BEARING 608 ZZ C3
163 6688846 GEAR CASE B
164 6684595 HEX. SOCKET HD. BOLT (W/SP.WASHER) M4X12
165 6695075 HEX. HOLE FLUSH BOLT 6X25
166 6686654 GREASE SEAL A
167 6687187 WASHER 7 BLACK
168 6687158 FIXING BOLT A M6
169 6695484 HEX. HOLE BOLT 4X10S
170 6698931 FUEL GROMMET
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Hitachi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to hitachi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Hitachi CH66EB3
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Hitachi CH66EB3

Diagram Hitachi CH66EB3

Download (454.92KB)

You might also like

Priming Pump for Chain Saws and Brushcutters Hitachi Tanaka
HiKOKI Power Tools Italia S.p.a. SKU: 6685139
Priming Pump for Chain Saws and Brushcutters Hitachi Tanaka
Priming Pump for Chain Saws and Brushcutters Hitachi Tanaka Genuine spare Hitachi Koky Tanaka, Priming Pump complete for Brushcutters and Chain Saws Hitachi Tanaka. Parts for the following products: - BRUSHCUTTER CG47EF (L) -...
AVAILABLE €13.15
Details
Starter Pulley for Bruschcutters Hitachi CG22EAS-CG24EASP-CG27-33EJ
HiKOKI Power Tools Italia S.p.a. SKU: 6684681
Starter Pulley for Bruschcutters Hitachi CG22EAS-CG24EASP-CG27-33EJ
Starter Pulley for Bruschcutters Hitachi CG22EAS-CG24EASP-CG27-33EJ Genuine parts for Bruschcutters Hitachi Koky Tanaka, Starter Pulley Assembly for Brushcutters Recoil CG22EAS - CG24EASP - CG27EJ (SLNP) - CG33EJ-SL. For the following...
Last items in stock €23.26
Details
Damper Spring for Brushcutters Hitachi CG22EAS-CG24EASP-CG27EASP
HiKOKI Power Tools Italia S.p.a. SKU: 6684677
Damper Spring for Brushcutters Hitachi CG22EAS-CG24EASP-CG27EASP
Damper Spring for Brushcutters Hitachi CG22EAS-CG24EASP-CG27EASP Genuine spare parts Hitachi Koky Tanaka, Damper Spring for Brushcutters CG22EAS - CG24EASP - CG27EJ (SLNP) - CG27EASP - CG33EJ-SL Parts for the following products:...
Last items in stock €7.83
Details
Bolt M5X18/S for Chainsaws Hitachi CS38EK-CS45EL
HiKOKI Power Tools Italia S.p.a. SKU: 6684586
Bolt M5X18/S for Chainsaws Hitachi CS38EK-CS45EL
Bolt M5X18/S for Chainsaws Hitachi CS38EK-CS45EL Genuine spare Hitachi Koky Tanaka, Bolt M5X18 / S Brushcutters Hitachi CG22EAS - CG27EJ (SLNP) - CG47EJ-L - CG47EY-T - CG47EF (L) - Chainsaws CS38EK - CS45EL. Parts for the following...
AVAILABLE €1.98
Details
Diaphragm Packing Metering for Chainsaws Hitachi CS25-33-40-45-51
HiKOKI Power Tools Italia S.p.a. SKU: 6685220
Diaphragm Packing Metering for Chainsaws Hitachi CS25-33-40-45-51
Diaphragm Packing Metering for Chainsaws Hitachi CS25-33-40-45-51 Original parts for Chainsaw Hitachi Koky Tanaka, Diaphragm Packing Metering Gasket for Carburetor Chainsaws, CS25EC-SC-EU - CS33EDT - CS38EK - CS40EA - CS45EL - CS51EAP...
AVAILABLE €3.45
Details
Pump Diaphragm for Chainsaw Hitachi CS33EB
HiKOKI Power Tools Italia S.p.a. SKU: 6684693
Pump Diaphragm for Chainsaw Hitachi CS33EB
Pump Diaphragm for Chainsaw Hitachi CS33EB Original parts Hitachi Koky Tanaka, Pump Diaphragm for Carburetor Chainsaw, CS33EB - CS 33EB - Brushcutters CG22EAS - CG24EKS - CG27EJ-SLNP...
Last items in stock €9.95
Details
Piston Pin for Brushcutter Hitachi Tanaka CG22EAS
HiKOKI Power Tools Italia S.p.a. SKU: 6696944
Piston Pin for Brushcutter Hitachi Tanaka CG22EAS
Piston Pin for Brushcutter Hitachi Tanaka CG22EAS Genuine spare part Hitachi Koky Tanaka, Piston Pin for Brushcutters CG22EAB - CG22EAS - Edge Trimmer Hitachi CH22EBP2 Part for the following products: - Pump Hitachi A25EB(N) -...
Last items in stock €7.30
Details
Washer D. 5 for Chainsaw Hitachi CS45EL-CS38EK
HiKOKI Power Tools Italia S.p.a. SKU: 6684662
Washer D. 5 for Chainsaw Hitachi CS45EL-CS38EK
Washer D. 5 for Chainsaw Hitachi CS45EL-CS38EK Original spare Hitachi, Washer D. 5 for Chaisaw Hitachi CS45EL - CS38EK - Tanaka ECV-4501 - ECV-3801 - Brusch Cutter CG24EKS - CG40EK-LP - CG33EJ-LP - CG27EJ-SLNP. Parts for the following...
AVAILABLE €1.28
Details
Insulator Tube for Chainsaw Hitachi CS25EC-SC
HiKOKI Power Tools Italia S.p.a. SKU: 6684597
Insulator Tube for Chainsaw Hitachi CS25EC-SC
Insulator Tube for Chainsaw Hitachi CS25EC-SC Hitachi genuine part, Insulator Tube for Chainsaw Hitachi CS25EC-SC EU Part for the following products: - Chainsaw Hitachi CS25EC-SC EU - Motorpump Hitachi A25EB(N) - Brushcutter Hitachi...
AVAILABLE €1.08
Details
Circlip for Brushcutter Hitachi CG 24EBS
HiKOKI Power Tools Italia S.p.a. SKU: 6684590
Circlip for Brushcutter Hitachi CG 24EBS
Circlip for Brushcutter Hitachi CG 24EBS Original replacement part Hitachi Koky Tanaka, Piston Pin Circlip for Brushcutters, Chainsaws, Hedgecutters Hitachi - Tanaka. Part for the following...
Last items in stock €1.57
Details
Gear Case Cover Gasket for Hedge Trimmer Hitachi CH62EA3 (ST)
HiKOKI Power Tools Italia S.p.a. SKU: 6688909
Gear Case Cover Gasket for Hedge Trimmer Hitachi CH62EA3 (ST)
Gear Case Cover Gasket for Hedge Trimmer Hitachi CH62EA3 (ST) Original spare part Hitachi Koky Tanaka, Gear Case Cover Gasket for Hedge Trimmer Hitachi CH62EA3 (ST). Part for the following products: - Hedge Trimmer Hitachi CH78ED -...
Last items in stock €2.13
Details
Spring Washer 5 for Brushcutter Hitachi CG33EJ-SL
HiKOKI Power Tools Italia S.p.a. SKU: 6684834
Spring Washer 5 for Brushcutter Hitachi CG33EJ-SL
Spring Washer 5 for Brushcutter Hitachi CG33EJ-SL Original spare part Hitachi, Spring Washer 5 for Brushcutters CG33EJ-SL - CG47EY-T - CG27EJ-SLNP - CG22EJ. Parts for the following products: - Brushcutter TBC-340 - Brushcutter...
AVAILABLE €1.04
Details
Cam Rod for Hedge Trimmer Hitachi CH78EC3(ST)
HiKOKI Power Tools Italia S.p.a. SKU: 6686811
Cam Rod for Hedge Trimmer Hitachi CH78EC3(ST)
Cam Rod for Hedge Trimmer Hitachi CH78EC3(ST) Original spare part Hitachi Koky Tanaka, Cam Rod for Hedge Trimmer Hitachi Tanaka CH78EC(ST) -  CH78EC3(ST) - CH66EB(ST) - CH66EB2(ST) - CH66EB3(ST)....
on 7/10 Business Days Approx €19.38
Details
Collar 5.8 for Brushcutter Hitachi CG47EJ-L
HiKOKI Power Tools Italia S.p.a. SKU: 6692244
Collar 5.8 for Brushcutter Hitachi CG47EJ-L
Collar 5.8 for Brushcutter Hitachi CG47EJ-L Original part Hitachi-HIKOKI, Fuel Tank Collar 5.8 for Brushcutters CG47EJ-L - CG47EY-T - CG40EF-L - CG47EF(L) - CG22EJ. Parts for the following...
Last items in stock €1.08
Details
Hex Hole Bolt M5x18PS for Hedge Trimmer Tanaka THT 210
HiKOKI Power Tools Italia S.p.a. SKU: 6695505
Hex Hole Bolt M5x18PS for Hedge Trimmer Tanaka THT 210
Hex Hole Bolt M5x18PS for Hedge Trimmer Tanaka THT 210 Original spare part Hitachi-HIKOKI Tanaka, Hex Hole Bolt M5x18PS for Hedge Trimmers THT 210 - THT 210 B - THT 210 S. Parts for the following products: -  Hedge Trimmer Tanaka THT...
AVAILABLE €2.16
Details
Front Handle Ass'y for Hedge Trimmer Hitachi CH22EBP2
HiKOKI Power Tools Italia S.p.a. SKU: 6699079
Front Handle Ass'y for Hedge Trimmer Hitachi CH22EBP2
Front Handle Ass'y for Hedge Trimmer Hitachi CH22EBP2 Original spare part Hitachi-HIKOKI Tanaka, Front Handle Assembly for Hedge Trimmers CH22EBP2 (62 ST) - CH24EBP - CH62EA3 - CH78EC3. Parts...
Available in 7/10 days €22.49
Details
Ball Bearing 6002Z for Hedge Trimmer Hitachi CH62EA(ST)
HiKOKI Power Tools Italia S.p.a. SKU: 6695538
Ball Bearing 6002Z for Hedge Trimmer Hitachi CH62EA(ST)
Ball Bearing 6002Z for Hedge Trimmer Hitachi CH62EA(ST) Original spare part Hitachi HiKoki Tanaka, Ball Bearing 6002Z C3 32MM OD for Hedge Trimmers Hitachi CH62EA(ST) - CH62EA2(ST) Part for the following products: -  Hedge Trimmer...
on 7/10 Business Days Approx €14.45
Details
Piston Ring for Hedge Trimmer Tanaka THT 210
HiKOKI Power Tools Italia S.p.a. SKU: 6686118
Piston Ring for Hedge Trimmer Tanaka THT 210
Piston Ring for Hedge Trimmer Tanaka THT 210 Original parts Hitachi Koky Tanaka, Piston Ring for Hedge Trimmer THT 210 - THT 210 B - THT 210 S Parts for the following products: -  Hedge...
Last items in stock €9.05
Details
Handle Support for Hedge Trimmer Tanaka THT 210
HiKOKI Power Tools Italia S.p.a. SKU: 6686111
Handle Support for Hedge Trimmer Tanaka THT 210
Handle Support for Hedge Trimmer Tanaka THT 210 Original parts Hitachi Koky Tanaka, Handle Support Comp. for Hedge Trimmer THT 210 - THT 210 B - THT 210 S Parts for the following products: -  Hedge Trimmer Tanaka THT 210 -  Hedge...
on 7/10 Business Days Approx €6.19
Details
Cam Plate for Hedge Trimmer Hitachi CH62EA(ST)
HiKOKI Power Tools Italia S.p.a. SKU: 6684678
Cam Plate for Hedge Trimmer Hitachi CH62EA(ST)
Cam Plate for Hedge Trimmer Hitachi CH62EA(ST) Original spare part Hitachi HiKoki Tanaka, Cam Plate for Hedge Trimmers Hitachi CH62EA(ST) - CH62EA3(ST). Part for the following products: -  BRUSHCUTTER CG27EJ-SLNP -  BRUSHCUTTER...
Last items in stock €6.81
Details
Set Screw for Hedge Trimmer Hitachi CH62EA(ST)
HiKOKI Power Tools Italia S.p.a. SKU: 6684679
Set Screw for Hedge Trimmer Hitachi CH62EA(ST)
Set Screw for Hedge Trimmer Hitachi CH62EA(ST) Original spare part Hitachi HiKoki Tanaka, Cam Plate Set Screw for Hedge Trimmers Hitachi CH62EA(ST) - CH62EA3(ST). Part for the following...
Last items in stock €6.81
Details
Fan Case Comp. for Hedge Trimmer Hitachi CH62EA(ST)
HiKOKI Power Tools Italia S.p.a. SKU: 6687014
Fan Case Comp. for Hedge Trimmer Hitachi CH62EA(ST)
Fan Case Comp. for Hedge Trimmer Hitachi CH62EA(ST) Original spare part Hitachi HiKoki Tanaka, Fan Case Comp. for Hedge Trimmers Hitachi CH62EA(ST) - CH62EA3(ST). Part for the following products: -  HEDGE TRIMMER THT 210 S -  HEDGE...
Available in 7/10 days €37.10
Details
Cutter Guide (734MM) for Hedge Trimmer Tanaka THT 210 B
HiKOKI Power Tools Italia S.p.a. SKU: 6687147
Cutter Guide (734MM) for Hedge Trimmer Tanaka THT 210 B
Cutter Guide (734MM) for Hedge Trimmer Tanaka THT 210 B Genuine replacement part Tanaka, Cutter Guide (734MM) for Hedge Trimmers THT 210 S - THT 210 B. Part for the following items: -  HEDGE TRIMMER...
Available in 7/10 days €56.71
Details
Hitachi CH66EB3 Frame
HiKOKI Power Tools Italia S.p.a. SKU: 6696363
Hitachi CH66EB3 Frame
Hitachi CH66EB3 Frame Original spare part Hitachi-HIKOKI Tanaka, Frame for Hedge Trimmers Hitachi-HIKOKI CH66EB3 - CH78EC3. Part for the following products: - Hedge Trimmer CH66EB3 - Hedge Trimmer CH78EC3 - Code : 6696363
Last items in stock €25.65
Details
Comments (0)
