HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Petrol Hedge Trimmer CH 24ECP

SKU: Hitachi CH24ECP
€1.04
VAT included

Hitachi Spare Parts for Petrol Hedge Trimmer CH 24ECP

We are Hitachi-HIKOKI authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair problem for Engine Hedge Trimmer CH24ECP.
Hitachi Spare Parts for Petrol Hedge Trimmer CH 24ECP
  • Hitachi Spare Parts for Petrol Hedge Trimmer CH 24ECP
  • Hitachi Spare Parts for Petrol Hedge Trimmer CH 24ECP
  • Hitachi Spare Parts for Petrol Hedge Trimmer CH 24ECP
  • Hitachi Spare Parts for Petrol Hedge Trimmer CH 24ECP
HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Petrol Hedge Trimmer CH 24ECP

SKU: Hitachi CH24ECP Condition: New
€1.04
VAT included

Hitachi Spare Parts for Petrol Hedge Trimmer CH 24ECP

We are Hitachi-HIKOKI authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair problem for Engine Hedge Trimmer CH24ECP.
settings 80 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 7/10 Business Days Approx

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
77 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

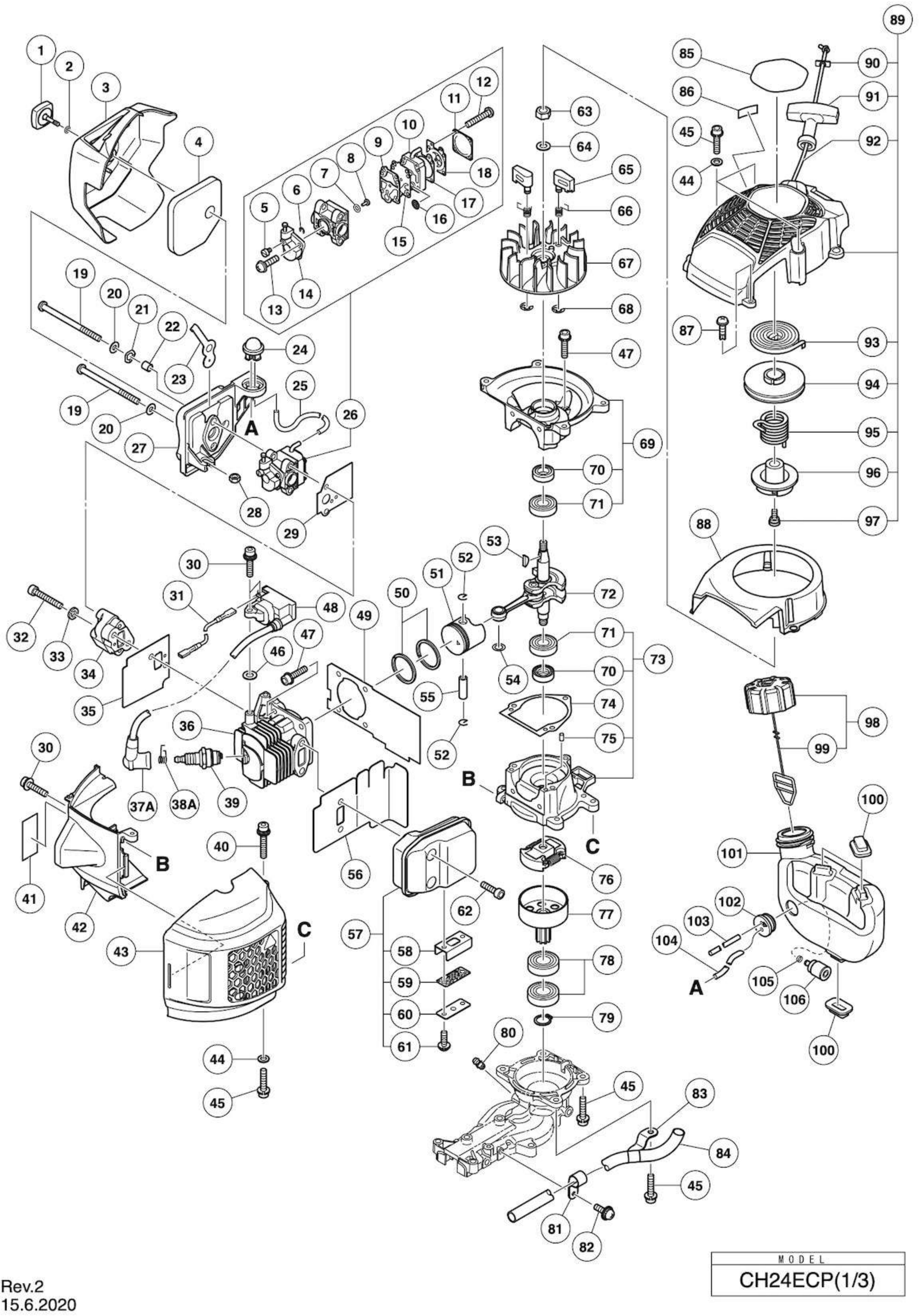

Esploso pagina 1
Pos. Item Price Buy
1
 photo_cameraImage coming soon 6684655 COVER FIXING BOLT €6.45
2
 photo_cameraImage coming soon 981317 O-RING (S-4) €1.30
3
 photo_cameraImage coming soon 6601540 AIR CLEANER COVER €2.68
4
 photo_cameraImage coming soon 6601539 AIR CLEANER ELEMENT €1.51
5
 photo_cameraImage coming soon 6684697 SWIVEL €4.96
6
 photo_cameraImage coming soon 6684696 STOP RING €1.76
7
 photo_cameraImage coming soon 6684695 ORING €3.16
9
 photo_cameraImage coming soon 6684692 PUMP GASKET €26.45
11
 photo_cameraImage coming soon 6685222 DIAPHRAGM COVER €6.54
12
 photo_cameraImage coming soon 6691312 SET SCREW €2.48
13
 photo_cameraImage coming soon 6684698 SCREW €3.06
15
 Pump Diaphragm for Chainsaw Hitachi CS33EB 6684693 Pump Diaphragm for Chainsaw Hitachi CS33EB €9.95
16
 Carburator Inlet Screen for Chainsaws and Bruschcutters Hitachi 6684700 Carburator Inlet Screen for Chainsaws and Bruschcutters Hitachi €3.18
17
 Diaphragm Packing Metering for Chainsaws Hitachi CS25-33-40-45-51 6685220 Diaphragm Packing Metering for Chainsaws Hitachi CS25-33-40-45-51 €3.45
18
 Metering Diaphragm for Chainsaws Hitachi CS-33-40-51 6684690 Metering Diaphragm for Chainsaws Hitachi CS-33-40-51 €25.81
19
 photo_cameraImage coming soon 6694914 SCREW 5X55 €2.28
20
 photo_cameraImage coming soon 6685407 BOLT WASHER D5 €2.22
21
 photo_cameraImage coming soon 334242 WAVE WASHER 8 €2.60
24
 Priming Pump for Chain Saws and Brushcutters Hitachi Tanaka 6685139 Priming Pump for Chain Saws and Brushcutters Hitachi Tanaka €13.15
25
 photo_cameraImage coming soon 6601607 FUEL PIPE €7.27
26
 photo_cameraImage coming soon 6601535 CARBURETOR ASS'Y (WYL-367) €39.19
27
 photo_cameraImage coming soon 6601536 AIR CLEANER BASE €3.09
29
 photo_cameraImage coming soon 6698405 CARBURETOR PACKING €4.33
31
 Coil Cord (BLACK) for Brushcutter Hitachi CG22EAS 6696544 Coil Cord (BLACK) for Brushcutter Hitachi CG22EAS €2.65
32
 photo_cameraImage coming soon 6601358 SEAL LOCK HEX. SOCKET HD. BOLT M6X27 €1.96
36
 photo_cameraImage coming soon 6600902 CYLINDER N24 €43.53
46
 photo_cameraImage coming soon 6698700 GLASS WASHER €2.16
48
 photo_cameraImage coming soon 6601612 IGNITION COIL €39.73
49
 photo_cameraImage coming soon 6601527 CYLINDER PACKING €2.11
50
 Piston Ring for Bruschcutter and Blower Hitachi Tanaka 6698404 Piston Ring for Bruschcutter and Blower Hitachi Tanaka €9.16
52
 Circlip for Brushcutter Hitachi CG 24EBS 6684590 Circlip for Brushcutter Hitachi CG 24EBS €1.57
55
 photo_cameraImage coming soon 6601344 PISTON PIN €5.48
57
 photo_cameraImage coming soon 6601529 MUFFLER ASS'Y €39.89
61
 photo_cameraImage coming soon 6685068 MACHINE SCREW (W/SP. WASHER) M4X12 €1.93
63
 photo_cameraImage coming soon 6696879 FLYWHEEL NUT M7 €2.27
64
 photo_cameraImage coming soon 6696880 BOLT WASHER D7 €2.22
65
 Starter Pawl for Chainsaw Hitachi Tanaka CS33EDT-EB 6685334 Starter Pawl for Chainsaw Hitachi Tanaka CS33EDT-EB €2.65
66
 Starter Pawl Spring for Chainsaw Hitachi Tanaka CS33EDT-EB 6685335 Starter Pawl Spring for Chainsaw Hitachi Tanaka CS33EDT-EB €2.65
68
 photo_cameraImage coming soon 6685336 RETAINING RING D4 €2.48
70
 photo_cameraImage coming soon 6684607 OIL SEAL TB 12227 €3.20
71
 photo_cameraImage coming soon 6684608 BALL BEARING 6001 C3 €6.06
74
 photo_cameraImage coming soon 6600514 CRANK CASE PACKING €1.67
76
 Clutch Ass'y for Hedge Trimmers Hitachi CH22EBP2-CH22EC2 6699173 Clutch Ass'y for Hedge Trimmers Hitachi CH22EBP2-CH22EC2 €31.72
77
 photo_cameraImage coming soon 6601548 CLUTCH DRUM €12.70
78
 photo_cameraImage coming soon 6698740 BEARING 6002-2ZC3 €8.01
79
 Retaining Ring Type C 15 mm for Drills Hitachi D13VG-DV16V 939544 Retaining Ring Type C 15 mm for Drills Hitachi D13VG-DV16V €0.55
80
 Grease Nipple for Hedgetrimmers Hitachi - HIKOKI - Tanaka 6688643 Grease Nipple for Hedgetrimmers Hitachi - HIKOKI - Tanaka €3.48
91
 photo_cameraImage coming soon 6693227 STARTER HANDLE €6.94
95
 Damper Spring for Chainsaw Hitachi Tanaka CS33EA-CS25EC-SC 6685183 Damper Spring for Chainsaw Hitachi Tanaka CS33EA-CS25EC-SC €7.83
97
 Set Screw for Hedge Trimmer Hitachi CH62EA(ST) 6684679 Set Screw for Hedge Trimmer Hitachi CH62EA(ST) €6.81
98
 Fuel Tank Cap for Brushcutter Hitachi CG24ECP (SL) 6698402 Fuel Tank Cap for Brushcutter Hitachi CG24ECP (SL) €9.73
100
 photo_cameraImage coming soon 6698615 RUBBER SUPP. RESERVOIR €4.07
102
 photo_cameraImage coming soon 6600358 TANK GROMMET FROM YEAR OF PRODUCTION OCTOBER 2016 €2.18
103
 photo_cameraImage coming soon 6698716 FUEL PIPE €5.16
104
 photo_cameraImage coming soon 6601399 FUEL PIPE €3.59
106
 photo_cameraImage coming soon 6600351 PUMP FILTER €5.32
Page 2 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

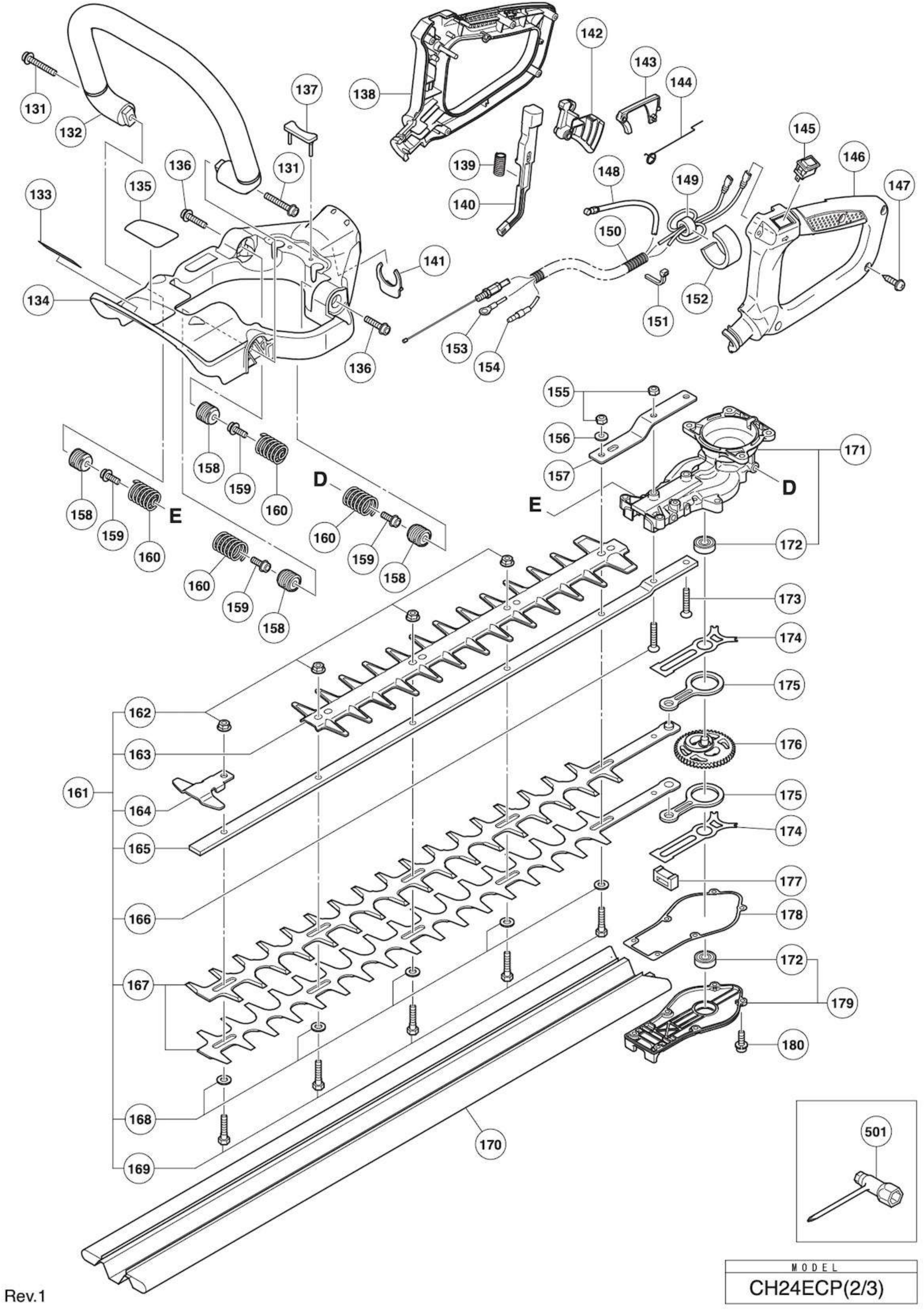

Esploso pagina 2
Pos. Item Price Buy
132
 photo_cameraImage coming soon 6698776 FRONT HANDLE €11.39
139
 photo_cameraImage coming soon 6696348 SPRING €2.10
141
 photo_cameraImage coming soon 6696359 STOPPED €1.87
143
 photo_cameraImage coming soon 6696344 LOCK LEVER ACC. €1.83
144
 photo_cameraImage coming soon 6696345 SPRING €2.22
145
 photo_cameraImage coming soon 6601275 STOP SWITCH €2.62
149
 photo_cameraImage coming soon 334379 FERRITE CORE €6.61
153
 photo_cameraImage coming soon 6699059 STOP CABLE €2.10
154
 photo_cameraImage coming soon 6696491 STOP SWITCH CORD €4.23
156
 Bolt Washer 6 for Brushcutters Chainsaws Hitachi Hikoki Tanaka 6684639 Bolt Washer 6 for Brushcutters Chainsaws Hitachi Hikoki Tanaka €1.98
157
 photo_cameraImage coming soon 6600892 SUPPORT PLATE €2.24
158
 photo_cameraImage coming soon 6698779 SPRING HOLDER €4.06
160
 photo_cameraImage coming soon 6600480 ANTIVIBRATION SPRING €4.10
161
 photo_cameraImage coming soon 6601556 BLADE ASS'Y (660MM) €113.87
161
 photo_cameraImage coming soon 6601557 BLADE ASS'Y (780MM) €148.22
164
 photo_cameraImage coming soon 6687275 GUARD PLATE €4.77
165
 photo_cameraImage coming soon 6687144 CUTTER GUIDE 845L M6 €37.41
165
 Cutter Guide (734MM) for Hedge Trimmer Tanaka THT 210 B 6687147 Cutter Guide (734MM) for Hedge Trimmer Tanaka THT 210 B €56.71 Not available for order
166
 photo_cameraImage coming soon 6695075 HEX. HOLE FLUSH BOLT 6X25 €1.89
168
 photo_cameraImage coming soon 6687187 WASHER 7 BLACK €2.09
180
 photo_cameraImage coming soon 6698385 HEX. SOCKET HD. BOLT M4X12 €2.24
Page 3 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

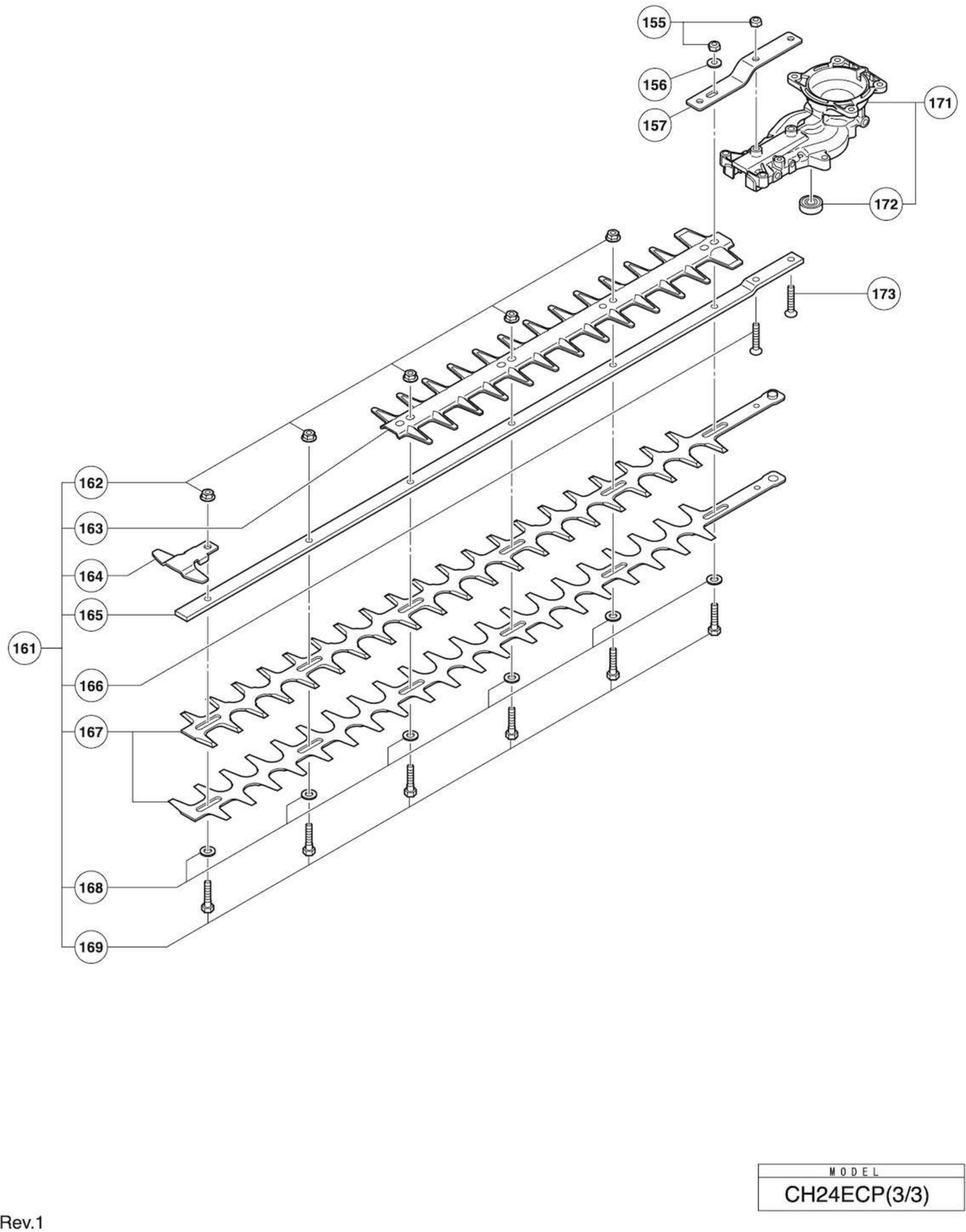

Esploso pagina 3
info_outline

No spare parts mapped to this page.
Check the other pages for available parts.

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Hitachi Spare Parts for Petrol Hedge Trimmer CH 24ECP

We are Hitachi-HIKOKI authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair problem for Engine Hedge Trimmer CH24ECP.

Fix Your Power Tool. All Spares are Ready For Quick Delivery. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of Petrol Hedge Trimmer and the respective parts of the code.
Hitachi CH24ECP

Petrol Hedge Trimmer CH 24ECP
# Part Num. Description
1 6684655 COVER FIXING BOLT
2 981317 O-RING (S-4)
3 6601540 AIR CLEANER COVER
4 6601539 AIR CLEANER ELEMENT
5 6684697 SWIVEL
6 6684696 STOP RING
7 6684695 O-RING
9 6684692 PUMP GASKET
11 6685222 DIAPHRAGM COVER-METERING
12 6691312 SET SCREW
13 6684698 THROTTLE SET SCREW
15 6684693 PUMP DIAPHRAGM
16 6684700 INLET SCREEN
17 6685220 DIAPHRAGM PACKING-METERING
18 6684690 METERING DIAPHRAGM
19 6694914 SCREW M5X55
20 6685407 BOLT WASHER D5
21 334242 WAVE WASHER 8
24 6685139 PRIMING PUMP COMP.
25 6601607 FUEL PIPE
26 6601535 CARBURETOR ASS'Y (WYL-367)
27 6601536 AIR CLEANER BASE
29 6698405 CARBURETOR PACKING
31 6696544 CORD
32 6601358 SEAL LOCK HEX. SOCKET HD. BOLT M6X27
36 6600902 CYLINDER N24
46 6698700 GLASS WASHER
48 6601612 IGNITION COIL
49 6601527 CYLINDER PACKING
50 6698404 PISTON RING
52 6684590 CIR CLIP
55 6601344 PISTON PIN
57 6601529 MUFFLER ASS'Y
61 6685068 MACHINE SCREW (W/SP. WASHER) M4X12
63 6696879 FLYWHEEL NUT M7
64 6696880 BOLT WASHER D7
65 6685334 STARTER PAWL
66 6685335 STARTER PAWL SPRING
68 6685336 RETAINING RING D4
70 6684607 OIL SEAL TB 12227
71 6684608 BALL BEARING 6001 C3
74 6600514 CRANK CASE PACKING
76 6699173 CLUTCH (B)
77 6601548 CLUTCH DRUM
78 6698740 BALL BEARING 6002ZC3
79 939544 RETAINING RING FOR D15 SHAFT
80 6688643 GREASE NIPPLE COMP.
91 6693227 STARTER HANDLE
95 6685183 DAMPER SPRING
97 6684679 SET SCREW
98 6698402 FUEL TANK CAP ASS'Y
100 6698615 CUSHION RUBBER
102 6600358 FUEL GROMMET
103 6698716 FUEL PIPE
104 6601399 FUEL PIPE
106 6600351 PUMP FILTER
132 6698776 FRONT HANDLE
139 6696348 SPRING (A)
141 6696359 CLIP
143 6696344 TRIGGER LOCKOUT
144 6696345 THROTTLE LEVER SPRING
145 6601275 STOP SWITCH
147 305812 TAPPING SCREW (W/FLANGE) D4X16 (BLACK)
149 334379 FERRITE CORE
153 6699059 STOP SWITCH CORD (B)
154 6696491 STOP SWITCH CORD
156 6684639 BOLT WASHER 6
157 6600892 SUPPORT PLATE
158 6698779 SPRING HOLDER
160 6600480 ANTIVIBRATION SPRING
161 6601556 BLADE ASS'Y (660MM)
161 6601557 BLADE ASS'Y (780MM)
162 6695170 FLANGE NUT 6
162 6695170 FLANGE NUT 6
164 6687275 GUARD PLATE
165 6687147 CUTTER GUIDE 734L M6
165 6687144 CUTTER GUIDE 845L M6
166 6695075 HEX. HOLE FLUSH BOLT 6X25
168 6687187 WASHER 7 BLACK
168 6687187 WASHER 7 BLACK
169 6687158 FIXING BOLT A M6
169 6687158 FIXING BOLT A M6
180 6698385 HEX. SOCKET HD. BOLT M4X12

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Hitachi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to hitachi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Hitachi CH24ECP
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Hitachi CH 24ECP

Diagram Hitachi CH 24ECP

Download (599.79KB)

You might also like

Starter Pawl for Chainsaw Hitachi Tanaka CS33EDT-EB
HiKOKI Power Tools Italia S.p.a. SKU: 6685334
Starter Pawl for Chainsaw Hitachi Tanaka CS33EDT-EB
Starter Pawl for Chainsaw Hitachi Tanaka CS33EDT-EB Genuine spare parts Hitachi Tanaka, Starter Pawl for Chainsaws CS30EG(S) - CS33EG(S) - CS33EA - CS33EB - CS33EDP - CS33EDT - CS33EDTP Part...
Last items in stock €2.65
Details
Starter Pawl Spring for Chainsaw Hitachi Tanaka CS33EDT-EB
HiKOKI Power Tools Italia S.p.a. SKU: 6685335
Starter Pawl Spring for Chainsaw Hitachi Tanaka CS33EDT-EB
Starter Pawl Spring for Chainsaw Hitachi Tanaka CS33EDT-EB Genuine spare parts Hitachi Tanaka, Starter Pawl Spring for Chainsaws CS30EG(S) - CS33EG(S) - CS33EA - CS33EB - CS33EDP - CS33EDT - CS33EDTP Part for the following products:...
on 7/10 Business Days Approx. €2.65
Details
Damper Spring for Chainsaw Hitachi Tanaka CS33EA-CS25EC-SC
HiKOKI Power Tools Italia S.p.a. SKU: 6685183
Damper Spring for Chainsaw Hitachi Tanaka CS33EA-CS25EC-SC
Damper Spring for Chainsaw Hitachi Tanaka CS33EA-CS25EC-SC Genuine spare parts for Chainsaw Hitachi Koky Tanaka, Damper Spring for Chainsaw CS25EC-SC HEDGETRIMMER CH22EBP2 - HEDGETRIMMER CH22ECP2. Parts for the following...
AVAILABLE €7.83
Details
Priming Pump for Chain Saws and Brushcutters Hitachi Tanaka
HiKOKI Power Tools Italia S.p.a. SKU: 6685139
Priming Pump for Chain Saws and Brushcutters Hitachi Tanaka
Priming Pump for Chain Saws and Brushcutters Hitachi Tanaka Genuine spare Hitachi Koky Tanaka, Priming Pump complete for Brushcutters and Chain Saws Hitachi Tanaka. Parts for the following products: - BRUSHCUTTER CG47EF (L) -...
AVAILABLE €13.15
Details
Piston Ring for Bruschcutter and Blower Hitachi Tanaka
HiKOKI Power Tools Italia S.p.a. SKU: 6698404
Piston Ring for Bruschcutter and Blower Hitachi Tanaka
Piston Ring for Bruschcutter and Blower Hitachi Tanaka Original spare part for Hitachi HiKoki Tanaka, Piston Ring for Bruschcutter and Blower Hitachi Tanaka. Part for the following products: - Bruschcutter CG24EASP - Blower RB 24EAP -...
Last items in stock €9.16
Details
Coil Cord (BLACK) for Brushcutter Hitachi CG22EAS Sale
HiKOKI Power Tools Italia S.p.a. SKU: 6696544
Coil Cord (BLACK) for Brushcutter Hitachi CG22EAS
Coil Cord (BLACK) for Brushcutter Hitachi CG22EAS Original spare Hitachi Koky Tanaka, Coil Cord (BLACK) for Brushcutter Hitachi CG22EAS - CG24EASP. Parts for the following products: - BRUSHCUTTER HITACHI CG22EAS - BRUSHCUTTER HITACHI...
AVAILABLE €2.65
Details
Diaphragm Packing Metering for Chainsaws Hitachi CS25-33-40-45-51
HiKOKI Power Tools Italia S.p.a. SKU: 6685220
Diaphragm Packing Metering for Chainsaws Hitachi CS25-33-40-45-51
Diaphragm Packing Metering for Chainsaws Hitachi CS25-33-40-45-51 Original parts for Chainsaw Hitachi Koky Tanaka, Diaphragm Packing Metering Gasket for Carburetor Chainsaws, CS25EC-SC-EU - CS33EDT - CS38EK - CS40EA - CS45EL - CS51EAP...
AVAILABLE €3.45
Details
Metering Diaphragm for Chainsaws Hitachi CS-33-40-51
HiKOKI Power Tools Italia S.p.a. SKU: 6684690
Metering Diaphragm for Chainsaws Hitachi CS-33-40-51
Metering Diaphragm for Chainsaws Hitachi CS-33-40-51 Original parts for Chainsaw Hitachi Koky Tanaka, Metering Diaphragm for Carburetor Chainsaws,CS33EDT - CS 33EB - CS40EA - TANAKA TCS-40EA - Hitachi CS51EAP -...
Last items in stock €25.81
Details
Pump Diaphragm for Chainsaw Hitachi CS33EB
HiKOKI Power Tools Italia S.p.a. SKU: 6684693
Pump Diaphragm for Chainsaw Hitachi CS33EB
Pump Diaphragm for Chainsaw Hitachi CS33EB Original parts Hitachi Koky Tanaka, Pump Diaphragm for Carburetor Chainsaw, CS33EB - CS 33EB - Brushcutters CG22EAS - CG24EKS - CG27EJ-SLNP...
Last items in stock €9.95
Details
Circlip for Brushcutter Hitachi CG 24EBS
HiKOKI Power Tools Italia S.p.a. SKU: 6684590
Circlip for Brushcutter Hitachi CG 24EBS
Circlip for Brushcutter Hitachi CG 24EBS Original replacement part Hitachi Koky Tanaka, Piston Pin Circlip for Brushcutters, Chainsaws, Hedgecutters Hitachi - Tanaka. Part for the following...
Last items in stock €1.57
Details
Clutch Ass'y for Hedge Trimmers Hitachi CH22EBP2-CH22EC2
HiKOKI Power Tools Italia S.p.a. SKU: 6699173
Clutch Ass'y for Hedge Trimmers Hitachi CH22EBP2-CH22EC2
Clutch Ass'y for Hedge Trimmers Hitachi CH22EBP2-CH22EC2 Original spare part Hitachi-HIKOKI Tanaka, Clutch Ass'y for Hedge Trimmers CH22EBP2 (62 ST) - CH22EC2 (62 ST) - CH22ECP2 (66 ST) - CH22ECP2...
Last items in stock €31.72
Details
Grease Nipple for Hedgetrimmers Hitachi - HIKOKI - Tanaka
HiKOKI Power Tools Italia S.p.a. SKU: 6688643
Grease Nipple for Hedgetrimmers Hitachi - HIKOKI - Tanaka
Grease Nipple for Hedgetrimmers Hitachi - HIKOKI - Tanaka Original spare part Hitachi HIKOKI, Grease Nipple for Hedgetrimmers Hitachi - HIKOKI - Tanaka. Parts for the following products: - HEDGETRIMMER THT-2520 - 2520 B - HEDGETRIMMER...
Last items in stock €3.48
Details
Cutter Guide (734MM) for Hedge Trimmer Tanaka THT 210 B
HiKOKI Power Tools Italia S.p.a. SKU: 6687147
Cutter Guide (734MM) for Hedge Trimmer Tanaka THT 210 B
Cutter Guide (734MM) for Hedge Trimmer Tanaka THT 210 B Genuine replacement part Tanaka, Cutter Guide (734MM) for Hedge Trimmers THT 210 S - THT 210 B. Part for the following items: -  HEDGE TRIMMER...
Available in 7/10 days €56.71
Details
Comments (0)
