HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Engine Hedge Trimmer CH62EA3 (ST)

SKU: Hitachi CH62EA3 (ST)
€1.23
VAT included

Hitachi Spare Parts for Engine Hedge Trimmer CH62EA3 (ST)

We are Hitachi-HIKOKI authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair problem for Engine Hedge Trimmer CH62EA3 (ST).
Hitachi Spare Parts for Engine Hedge Trimmer CH62EA3 (ST)
  • Hitachi Spare Parts for Engine Hedge Trimmer CH62EA3 (ST)
  • Hitachi Spare Parts for Engine Hedge Trimmer CH62EA3 (ST)
  • Hitachi Spare Parts for Engine Hedge Trimmer CH62EA3 (ST)
  • Hitachi Spare Parts for Engine Hedge Trimmer CH62EA3 (ST)
HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Engine Hedge Trimmer CH62EA3 (ST)

SKU: Hitachi CH62EA3 (ST) Condition: New
€1.23
VAT included

Hitachi Spare Parts for Engine Hedge Trimmer CH62EA3 (ST)

We are Hitachi-HIKOKI authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair problem for Engine Hedge Trimmer CH62EA3 (ST).
settings 152 spare parts
description 3 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
125 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

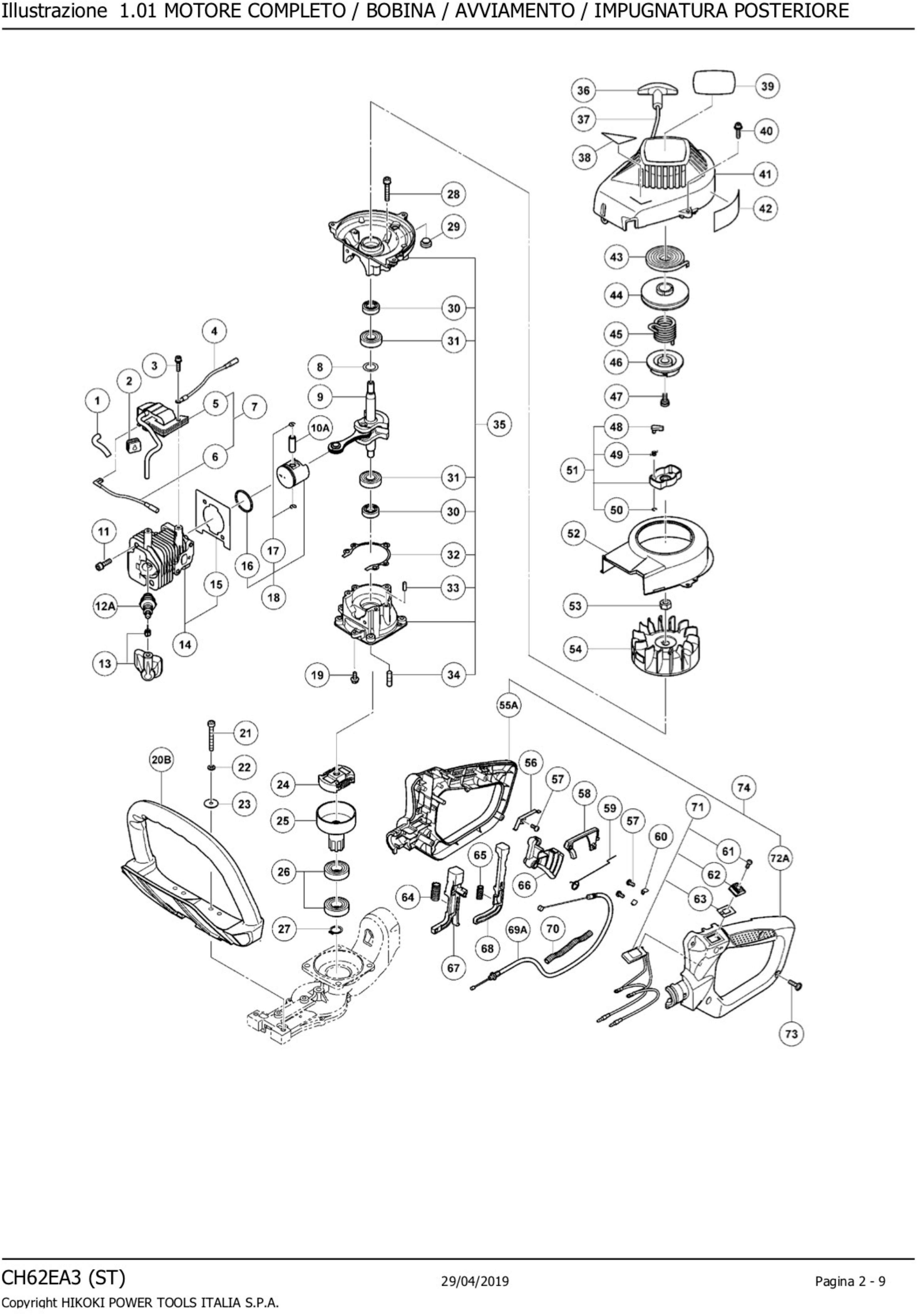

Esploso pagina 1
Pos. Item Price Buy
1
 Insulator Tube for Chainsaw Hitachi CS25EC-SC 6684597 Insulator Tube for Chainsaw Hitachi CS25EC-SC €1.08
2
 photo_cameraImage coming soon 6688050 GROMMET €1.56
7
 Hitachi CH62EA3 (ST) Ignition Coil Ass'y 6697150 Hitachi CH62EA3 (ST) Ignition Coil Ass'y €50.15
9
 photo_cameraImage coming soon 6686208 CRANKSHAFT €85.82
10A
 Piston Pin for Brushcutter Hitachi Tanaka CG22EAS 6696944 Piston Pin for Brushcutter Hitachi Tanaka CG22EAS €7.30
11
 Bolt M5X18/S for Chainsaws Hitachi CS38EK-CS45EL 6684586 Bolt M5X18/S for Chainsaws Hitachi CS38EK-CS45EL €1.98
13
 photo_cameraImage coming soon 6687476 SPARK PLUG CAP €9.07
14
 photo_cameraImage coming soon 6685480 CYLINDER WITH GASKET €65.49
15
 photo_cameraImage coming soon 6685744 CYLINDER GASKET €2.09
16
 Piston Ring for Hedge Trimmer Tanaka THT 210 6686118 Piston Ring for Hedge Trimmer Tanaka THT 210 €9.05
17
 Circlip for Brushcutter Hitachi CG 24EBS 6684590 Circlip for Brushcutter Hitachi CG 24EBS €1.57
18
 photo_cameraImage coming soon 6685892 PISTON WITH RINGS(2) AND RETAINERS(2) €32.86
19
 photo_cameraImage coming soon 6695441 4X12PS SCREW €1.80
20B
 Front Handle Ass'y for Hedge Trimmer Hitachi CH22EBP2 6699079 Front Handle Ass'y for Hedge Trimmer Hitachi CH22EBP2 €22.49 Not available for order
22
 Spring Washer 5 for Brushcutter Hitachi CG33EJ-SL 6684834 Spring Washer 5 for Brushcutter Hitachi CG33EJ-SL €1.04
25
 Clutch Drum for Hedge Trimmers Tanaka THT 210-HTD2530PF 6688570 Clutch Drum for Hedge Trimmers Tanaka THT 210-HTD2530PF €44.53
26
 Ball Bearing 6002Z for Hedge Trimmer Hitachi CH62EA(ST) 6695538 Ball Bearing 6002Z for Hedge Trimmer Hitachi CH62EA(ST) €14.45
27
 Stop Ring C-15 for Hedge Trimmer Tanaka THT 210 THT 210 B 6695285 Stop Ring C-15 for Hedge Trimmer Tanaka THT 210 THT 210 B €0.66
28
 photo_cameraImage coming soon 6684786 HEX. SOCKET HD. BOLT M5X30 S €1.60
30
 photo_cameraImage coming soon 6684607 OIL SEAL TB 12227 €3.20
31
 photo_cameraImage coming soon 6684608 BALL BEARING 6001 C3 €6.06
32
 photo_cameraImage coming soon 6686720 CRANK CASE GASKET €1.59
34
 photo_cameraImage coming soon 6686771 STUD BOLT 6X22 €1.56
35
 photo_cameraImage coming soon 6686574 CRANK CASE ASS'Y €115.32
36
 photo_cameraImage coming soon 6693237 STARTER HANDLE €5.27
37
 photo_cameraImage coming soon 6693172 ROPE 3X890 €3.12
40
 photo_cameraImage coming soon 6695502 HEX.HOLE BOLT 4X18PS €1.28
41
 Fan Case Comp. for Hedge Trimmer Hitachi CH62EA(ST) 6687014 Fan Case Comp. for Hedge Trimmer Hitachi CH62EA(ST) €37.10 Not available for order
43
 photo_cameraImage coming soon 6684675 RECOIL SPRING €12.16
44
 photo_cameraImage coming soon 6693072 STARTER ROPE REEL €9.95
45
 Damper Spring for Brushcutters Hitachi CG22EAS-CG24EASP-CG27EASP 6684677 Damper Spring for Brushcutters Hitachi CG22EAS-CG24EASP-CG27EASP €7.83
46
 Cam Plate for Hedge Trimmer Hitachi CH62EA(ST) 6684678 Cam Plate for Hedge Trimmer Hitachi CH62EA(ST) €6.81
47
 Set Screw for Hedge Trimmer Hitachi CH62EA(ST) 6684679 Set Screw for Hedge Trimmer Hitachi CH62EA(ST) €6.81
48
 photo_cameraImage coming soon 6684685 STARTER PAWL €6.11
49
 photo_cameraImage coming soon 6684684 STARTER PAWL SPRING €3.48
50
 photo_cameraImage coming soon 6685101 D4E RETAINING RING €1.25
51
 Starter Pulley for Bruschcutters Hitachi CG22EAS-CG24EASP-CG27-33EJ 6684681 Starter Pulley for Bruschcutters Hitachi CG22EAS-CG24EASP-CG27-33EJ €23.26
52
 photo_cameraImage coming soon 6687209 DEFLECTOR €10.07
54
 photo_cameraImage coming soon 6687396 THEY FLY €25.77
55A
 photo_cameraImage coming soon 6698868 HANDLE A €9.23
56
 photo_cameraImage coming soon 6696350 EARTH TERMINAL €2.07
57
 Tapping Screw D3 for Electric Chain Saw Hitachi CS 35Y 696352 Tapping Screw D3 for Electric Chain Saw Hitachi CS 35Y €1.61
58
 photo_cameraImage coming soon 6696344 LOCK LEVER ACC. €1.83
59
 photo_cameraImage coming soon 6696345 SPRING €2.22
60
 photo_cameraImage coming soon 6696355 TAB TERMINAL €2.07
62
 photo_cameraImage coming soon 6688366 BUTTON STOP €1.59
63
 photo_cameraImage coming soon 6694588 STOP SWITCH €2.42
64
 photo_cameraImage coming soon 6696348 SPRING €2.10
65
 photo_cameraImage coming soon 6696349 SPRING (B) €2.01
66
 photo_cameraImage coming soon 6696343 THROTTLE LEVER €1.69
67
 photo_cameraImage coming soon 6696346 LOCK LEVER €2.01
68
 photo_cameraImage coming soon 6696347 RELEASE LEVER €2.14
69A
 photo_cameraImage coming soon 6698827 ACCELERATOR CABLE €9.80
70
 photo_cameraImage coming soon 6687521 TUBE PROTECTION €1.62
71
 photo_cameraImage coming soon 6696354 STOP SWITCH ASS'Y (A) €19.44
72A
 photo_cameraImage coming soon 6698869 HANDLE B €8.46
74
 photo_cameraImage coming soon 6698870 HANDLE A/B SET €16.13
Page 2 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

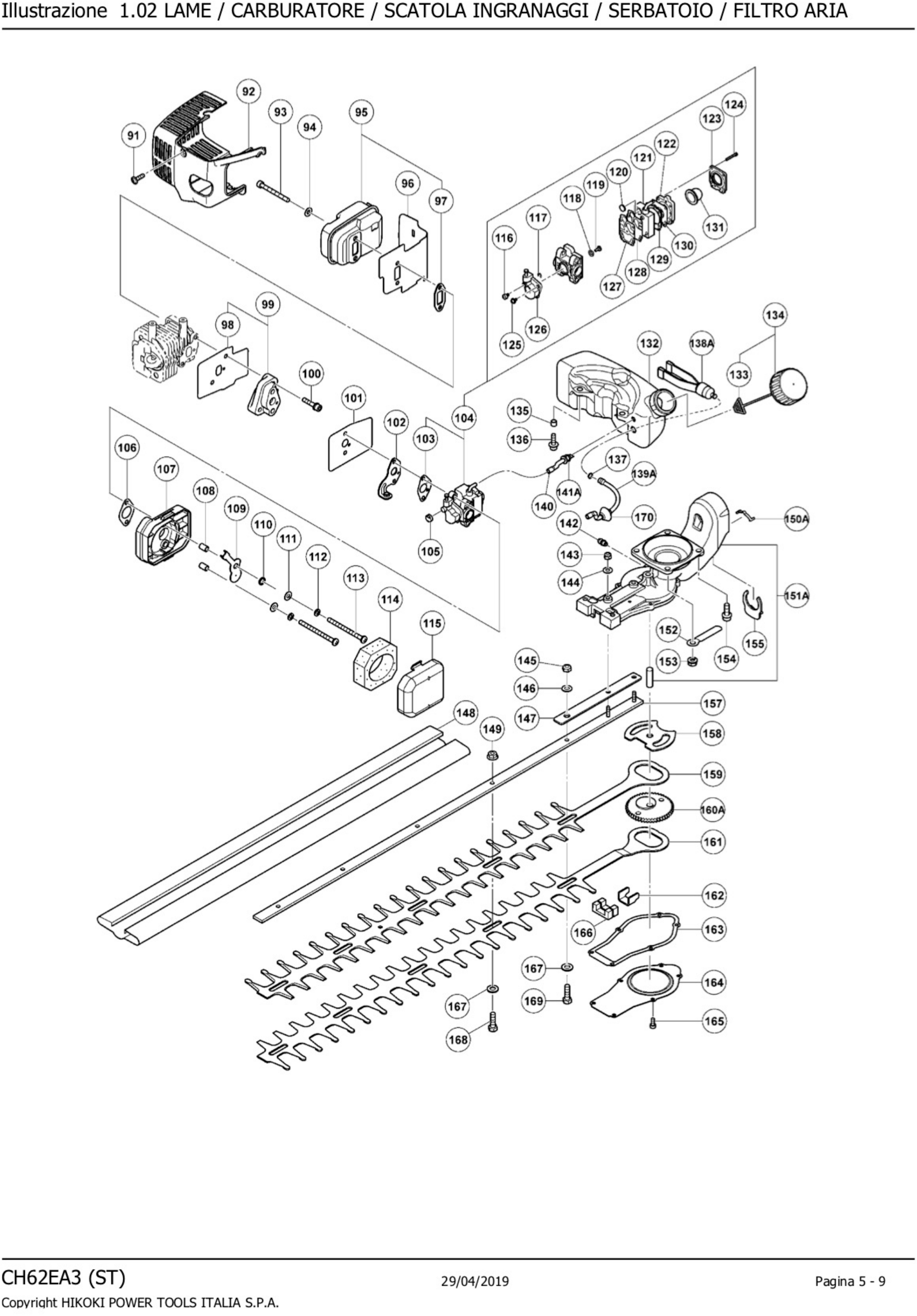

Esploso pagina 2
Pos. Item Price Buy
92
 photo_cameraImage coming soon 6692795 MUFFLER PROTECTION €12.33
93
 Hex Socket Hd Bolt M5X50 for Hedge Trimmer Tanaka THT 210 6685114 Hex Socket Hd Bolt M5X50 for Hedge Trimmer Tanaka THT 210 €1.66
94
 photo_cameraImage coming soon 6684661 WASHER 5 €1.27
95
 photo_cameraImage coming soon 6692481 MUFFLER SET €36.07
96
 photo_cameraImage coming soon 6687252 HEAT SHIELD €3.30
97
 photo_cameraImage coming soon 6692744 MUFFLER GASKET €3.28
98
 photo_cameraImage coming soon 6689891 INTAKE PIPE GASKET €2.69
99
 photo_cameraImage coming soon 6689966 CARB. INSULATOR SET,SPARE €13.24
100
 photo_cameraImage coming soon 6695515 HEX HOLE BOLT 5X25WS €1.67
101
 photo_cameraImage coming soon 6689839 CARBURETOR GASKET €2.39
104
 photo_cameraImage coming soon 6690495 CARBURETOR WYL212 €85.46
105
 photo_cameraImage coming soon 6691337 SWIVEL CAP €1.78
106
 photo_cameraImage coming soon 6690184 GASKET €1.50
107
 photo_cameraImage coming soon 6690091 FILTER BODY €9.39
108
 photo_cameraImage coming soon 6690801 COLLAR €4.30
109
 photo_cameraImage coming soon 6691267 DISTANCE €5.78
110
 photo_cameraImage coming soon 6684859 SPACER €2.42
112
 Washer D. 5 for Chainsaw Hitachi CS45EL-CS38EK 6684662 Washer D. 5 for Chainsaw Hitachi CS45EL-CS38EK €1.28
114
 photo_cameraImage coming soon 6690350 CLEANER ELEMENT €8.70
115
 photo_cameraImage coming soon 6690142 AIR CLEANER CAP €8.87
116
 photo_cameraImage coming soon 6684697 SWIVEL €4.96
117
 photo_cameraImage coming soon 6684696 STOP RING €1.76
118
 photo_cameraImage coming soon 6684695 ORING €3.16
119
 photo_cameraImage coming soon 6684878 JET # 39 €5.84
120
 Carburator Inlet Screen for Chainsaws and Bruschcutters Hitachi 6684700 Carburator Inlet Screen for Chainsaws and Bruschcutters Hitachi €3.18
121
 photo_cameraImage coming soon 6691433 CARBURETOR PLATE €63.49
122
 photo_cameraImage coming soon 6684687 PRIMING PUMP COMP. €18.30
125
 photo_cameraImage coming soon 6684698 SCREW €3.06
126
 photo_cameraImage coming soon 6684883 THROTTLE VALVE €38.04
127
 photo_cameraImage coming soon 6691457 PUMP GASKET €9.57
128
 Pump Diaphragm for Chainsaw Hitachi CS33EB 6684693 Pump Diaphragm for Chainsaw Hitachi CS33EB €9.95
129
 photo_cameraImage coming soon 6684691 DIAPHRAGM GASKET €6.12
130
 photo_cameraImage coming soon 6690830 METERING DIAPHRAGM COMP. €15.00
131
 photo_cameraImage coming soon 6684689 PRIMING BODY €6.88
132
 photo_cameraImage coming soon 6696356 FLUME €18.02
133
 photo_cameraImage coming soon 6692059 CATENELLA TAPPO €1.62
134
 Tank Cap Ass'y (Black) for Brushcutter Hitachi CG40EFL 6691763 Tank Cap Ass'y (Black) for Brushcutter Hitachi CG40EFL €11.81
135
 Collar 5.8 for Brushcutter Hitachi CG47EJ-L 6692244 Collar 5.8 for Brushcutter Hitachi CG47EJ-L €1.08
136
 Hex Hole Bolt M5x18PS for Hedge Trimmer Tanaka THT 210 6695505 Hex Hole Bolt M5x18PS for Hedge Trimmer Tanaka THT 210 €2.16
137
 Hose Clip 6.3 D. for Brushcutters Chainsaws Hitachi Hikoki Tanaka 6684619 Hose Clip 6.3 D. for Brushcutters Chainsaws Hitachi Hikoki Tanaka €1.25
138A
 photo_cameraImage coming soon 6698874 PESCANTE DOUBLE MIXTURE €21.96
139A
 photo_cameraImage coming soon 6698715 FUEL PIPE €19.56
140
 photo_cameraImage coming soon 6684626 FUEL PIPE 3X5X65 €1.71
141A
 photo_cameraImage coming soon 6697846 RETURN GROMMET €1.79
142
 Grease Nipple for Hedgetrimmers Hitachi - HIKOKI - Tanaka 6688643 Grease Nipple for Hedgetrimmers Hitachi - HIKOKI - Tanaka €3.48
145
 photo_cameraImage coming soon 6695175 LOCK NUT 6 UPSP €1.63
146
 Bolt Washer 6 for Brushcutters Chainsaws Hitachi Hikoki Tanaka 6684639 Bolt Washer 6 for Brushcutters Chainsaws Hitachi Hikoki Tanaka €1.98
147
 photo_cameraImage coming soon 6690761 REINFORCEMENT €11.12
148
 photo_cameraImage coming soon 6687302 BLADE PROTECTION €11.53
150A
 photo_cameraImage coming soon 6698784 CLICK SPRING €1.77
152
 photo_cameraImage coming soon 6688008 CABLE CLAMP €1.62
153
 photo_cameraImage coming soon 6695475 SPRING NUT 6 €1.67
155
 photo_cameraImage coming soon 6696359 STOPPED €1.87
157
 photo_cameraImage coming soon 6697703 BLADE GUIDE €34.88
158
 photo_cameraImage coming soon 6686614 PLATE €5.63
159
 photo_cameraImage coming soon 6697702 UPPER BLADE €75.08
160A
 photo_cameraImage coming soon 6698746 GEAR 2 €29.78
161
 Lower Blade for Hedge Trimmer Hitachi CH62EA3 (ST) 6697701 Lower Blade for Hedge Trimmer Hitachi CH62EA3 (ST) €82.43
162
 photo_cameraImage coming soon 6686468 PLATE €2.63
163
 Gear Case Cover Gasket for Hedge Trimmer Hitachi CH62EA3 (ST) 6688909 Gear Case Cover Gasket for Hedge Trimmer Hitachi CH62EA3 (ST) €2.13
164
 Gear Case Cover for Hedge Trimmer Hitachi CH62EA3 (ST) 6692102 Gear Case Cover for Hedge Trimmer Hitachi CH62EA3 (ST) €11.80
165
 Hex Hole Bolt M4x10S for Hedgetrimmer Hitachi CH62EA 6695484 Hex Hole Bolt M4x10S for Hedgetrimmer Hitachi CH62EA €3.16
166
 photo_cameraImage coming soon 6686658 FELT €1.51
167
 photo_cameraImage coming soon 6687187 WASHER 7 BLACK €2.09
168
 photo_cameraImage coming soon 6687162 CUTTER FIXING BOLT B €1.56
Page 3 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

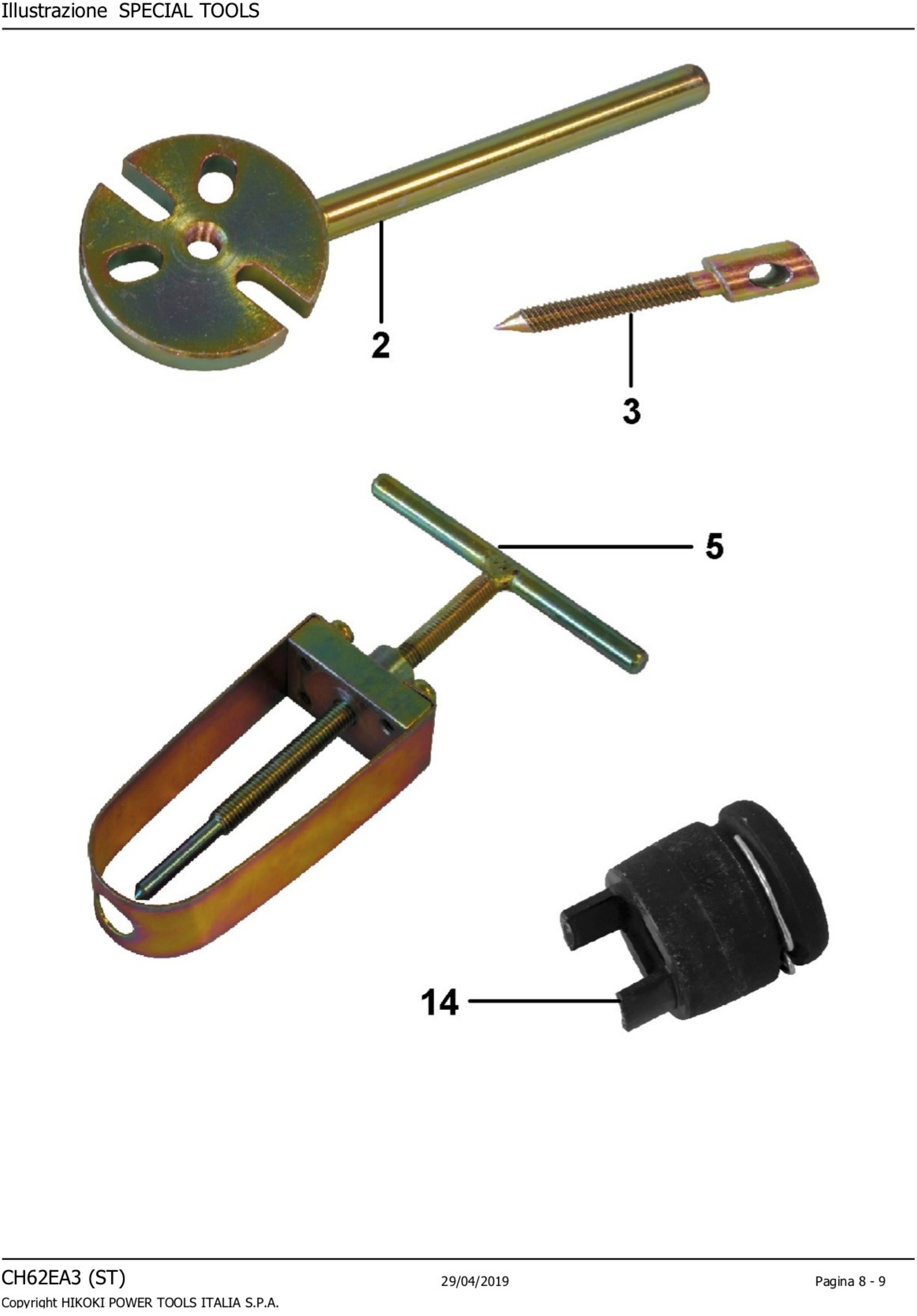

Esploso pagina 3
Pos. Item Price Buy
3
 photo_cameraImage coming soon 6695737 FLYWHEEL EXTRACTOR BOLT €22.13
5
 photo_cameraImage coming soon 6695740 PISTON PIN EXTRACTOR €80.81
14
 photo_cameraImage coming soon 6695754 CLUTCH PULLER €104.29

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Hitachi Spare Parts for Engine Hedge Trimmer CH62EA3 (ST)

We are Hitachi-HIKOKI authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair problem for Engine Hedge Trimmer CH62EA3 (ST).

In the following table, look for the model of Trimmer and the respective parts of the code.
Hitachi CH62EA3 (ST)

 ENGINE HEDGE TRIMMER HITACHI CH62EA3 (ST) pag.1
# Part Num. Description
1 6684597 TUBETTO
2 6688050 GOMMINO
3 6684599 VITE EX68-4599
4 6688477 CORD (OLD 274-51705-80)
6 6687918 CORD 200M (OLD 178-51705-80)
7 6697150 IGNITION COIL ASS'Y
8 6684604 SPESSORE 0,20
8 6684605 SPESSORE 0,30
9 6686208 ALBERO MOTORE
10A 6696944 SPINOTTO PISTONE
11 6684586 VITE M5X18/S
13 6687476 CAPPUCCIO CANDELA
14 6685480 CILINDRO CON GUARNIZIONE INCLUDE 15
15 6685744 GUARNIZIONE CILINDRO
16 6686118 FASCIA ELASTICA
17 6684590 FERMO SPINOTTO
18 6685892 PISTONE CON FASCE(2) E FERMI (2) INCLUDE 16.17
19 6695441 VITE 4X12PS
20B 6699079 FRONT HANDLE
21 6695054 BULLONE 5X40
22 6684834 RONDELLA
23 6689680 RONDELLA
24 6688494 FRIZIONE COMPLETA
25 6688570 CAMPANA FRIZIONE
26 6695538 BALL BEARING
27 6695285 SEEGER
28 6684786 VITE M5X30S
29 6691822 GOMMINO
30 6684607 PARAOLIO TB 12227
31 6684608 CUSCINETTO 6001 C3 NSK
32 6686720 GUARNIZIONE CARTER ALBERO MOTORE
33 6695521 KNOCK PIN 4X12 (OLD 999-05041-203)
34 6686771 PRIGIONIERO
35 6686574 CARTER ALBERO MOTORE INCLUDE 30-34
36 6693237 MANOPOLA AVVIAMENTO
37 6693172 CORDA 3X890
40 6695502 BULLONE ESA
41 6687014 FAN CASE COMP. - DISCONTINUED
43 6684675 MOLLA AVVIAMENTO
44 6693072 PULEGGIA
45 6684677 MOLLA AVVIAMENTO S-START
46 6684678 CAM PLATE
47 6684679 SET SCREW
48 6684685 CRICCHETTO AVVIAMENTO
49 6684684 MOLLA CRICCHETTO
50 6685101 ANELLO BLOCCANTE D4E
51 6684681 STARTER PULLEY INCLUDE 48-50
52 6687209 DEFLETTORE
53 6684612 DADO M8
54 6687396 VOLANO
55A 6698868 SEMI IMPUGNATURA (DX)
56 6696350 CARTERINO
57 696352 VITE D3
58 6696344 LEVA BLOCCO ACCELERATORE
59 6696345 MOLLA
60 6696355 PIASTRINA
61 6684913 VITE 3X10
62 6688366 PULSANTE
63 6694588 INTERRUTTORE STOP
64 6696348 MOLLA
65 6696349 MOLLA
66 6696343 LEVA ACCELERATORE
67 6696346 BLOCCO LEVA
68 6696347 LEVA RILASCIO
69A 6698827 CAVO ACCELERATORE
70 6687521 PROTEZIONE TUBO
71 6696354 INTERRUTTORE STOP INCLUDE 61-63
72A 6698869 SEMI IMPUGNATURA (SX)
73 305812 VITE CON FLANGIA D4X16 NERA
74 6698870 SET IMPUGNATURA FINO AD ANNO PRODUZIONE SETTEMBRE 2011
ENGINE HEDGE TRIMMER HITACHI CH62EA3 (ST) pag.2
91 6684636 VITE D4.5X16
92 6692795 PROTEZIONE MARMITTA
93 6685114 VITE M5X50
94 6684661 RONDELLA M5
95 6692481 MARMITTA COMPLETA INCLUDE 97
96 6687252 PROTEZIONE TERMICA
97 6692744 GUARNIZIONE MARMITTA
98 6689891 GUARNIZIONE
99 6689966 COLLETTORE C/ GUARNIZIONE INCLUDE 98
100 6695515 VITE 5X25WS
101 6689839 GUARNIZIONE
102 6684629 STAFFA AD ESA. 668-4629
103 6684615 GUARNIZIONE CARBURATORE
104 6690495 CARBURATORE WYL212 INCLUDE 103.116-131
105 6691337 TAPPO
106 6690184 GUARNIZIONE
107 6690091 CORPO FILTRO
108 6690801 COLLARE
109 6691267 DISTANZIALE
110 6684859 BOCCOLA
111 6684661 RONDELLA M5
112 6684662 RONDELLA
113 6694918 VITE AD ESAGONO 990-11050-652
114 6690350 FILTRO ARIA
115 6690142 COPERCHIO FILTRO ARIA
116 6684697 PERNO
117 6684696 ANELLO
118 6684695 O-RING
119 6684878 GETTO #39
120 6684700 RETINA FILTRO
121 6691433 PIASTRA CARBURATORE
122 6684687 PIASTRA PRIMER CARBURATORE
123 6684688 COPERCHIETTO
124 6684699 SET SCREW (OLD 548-25151-20/6696324
125 6684698 VITE
126 6684883 VALVOLA CARBURATORE
127 6691457 GUARNIZIONE POMPANTE
128 6684693 PUMP DIAPHRAGM
129 6684691 GUARNIZIONE DISCO
130 6690830 MEMBRANA DISCO
131 6684689 PRIMER
132 6696356 SERBATOIO
133 6692059 CATENELLA TAPPO
134 6691763 TAPPO MISCELA INCLUDE 133
135 6692244 COLLARE 5.8
136 6695505 VITE 5X18PS
137 6684619 CLIP
138A 6698874 PESCANTE MISCELA DOPPIO
139A 6698715 TUBO IN GOMMA
140 6684626 TUBO MISCELA 3X5X65
141A 6697846 GOMMINO
142 6688643 INGRASSATORE
143 305491 NYLON NUT M5 (OLD 991-78050-010)
144 6684864 RONDELLA
145 6695175 DADO M6
146 6684639 RONDELLA M6
147 6690761 RINFORZO
148 6687302 PROTEZIONE LAMA
149 6695170 DADO M6
150A 6698784 MOLLA
151A 6699125 SCATOLA INGRANAGGI
152 6688008 FASCETTA CAVI
153 6695475 DADO M6
154 6695495 VITE
155 6696359 FERMO
157 6697703 GUIDA LAMA
158 6686614 PIASTRA
159 6697702 LAMA SUPERIORE
160A 6698746 INGRANAGGIO MOVIMENTO LAME
161 6697701 LAMA INFERIORE
162 6686468 PIASTRA
163 6688909 GEAR CASE COVER GASKET
164 6692102 CARTER INFERIORE
165 6695484 VITE 4X10S
166 6686658 FELTRO
167 6687187 RONDELLA D7
168 6687162 VITE FISSAGGIO LAMA
169 6687158 VITE M6
170 6698931 GOMMINO MISCELA
SPECIAL TOOLS Pag.3
2 6695736 ESTRATTORE VOLANO
3 6695737 BULLONE ESTRATTORE VOLANO
5 6695740 ESTRATTORE SPINOTTO PISTONE
14 6695754 ESTRATTORE FRIZIONE
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Hitachi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to hitachi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Hitachi CH62EA3 (ST)
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Drawing Hitachi CH62EA3 (ST)

Drawing Hitachi CH62EA3 (ST)

Download (795.87KB)

You might also like

Damper Spring for Chainsaw Hitachi Tanaka CS33EA-CS25EC-SC
HiKOKI Power Tools Italia S.p.a. SKU: 6685183
Damper Spring for Chainsaw Hitachi Tanaka CS33EA-CS25EC-SC
Damper Spring for Chainsaw Hitachi Tanaka CS33EA-CS25EC-SC Genuine spare parts for Chainsaw Hitachi Koky Tanaka, Damper Spring for Chainsaw CS25EC-SC HEDGETRIMMER CH22EBP2 - HEDGETRIMMER CH22ECP2. Parts for the following...
AVAILABLE €7.83
Details
Piston Ring for Brush Cutter end Hedge Trimmers Hitachi
HiKOKI Power Tools Italia S.p.a. SKU: 6696532
Piston Ring for Brush Cutter end Hedge Trimmers Hitachi
Piston Ring for Brush Cutter end Hedge Trimmers Hitachi Original spare Hitachi Koky Tanaka, Piston Ring for Brush Cutter end Hedge Trimmers Hitachi. Parts for the following products: - Brush Cutter CG22EAS - Hedge Trimmers CH22EBP2 -...
AVAILABLE €6.50
Details
Piston for Brush Cutter and Hedge Trimmer Hitachi Tanaka CG-CH
HiKOKI Power Tools Italia S.p.a. SKU: 6696531
Piston for Brush Cutter and Hedge Trimmer Hitachi Tanaka CG-CH
Piston for Brush Cutter and Hedge Trimmer Hitachi Tanaka CG-CH Original spare part Hitachi Koky Tanaka, Piston for Brush Cutter and Hedge trimmer Hitachi Tanaka CG-CH. Part for the followinf article: - Brush Cutter CG22EAS - Hedge...
Last items in stock €15.81
Details
Air Filter for Brushcutter-Trimmer-Auger Hitachi Tanaka
HiKOKI Power Tools Italia S.p.a. SKU: 6690365
Air Filter for Brushcutter-Trimmer-Auger Hitachi Tanaka
Air Filter for Brushcutter-Trimmer-Auger Hitachi Tanaka Original spare part Hitachi Koky Tanaka, Air Filter for Brushcutter-Trimmer-Auger Hitachi Tanaka. Part for the following items : - Brushcutter CG27EJ-SLNP -...
AVAILABLE €1.98
Details
Air Filter Cover Knob for Brushcutter Hitachi CG33EJ-SL
HiKOKI Power Tools Italia S.p.a. SKU: 6698730
Air Filter Cover Knob for Brushcutter Hitachi CG33EJ-SL
Air Filter Cover Knob for Brushcutter Hitachi CG33EJ-SL Original spare Hitachi Koky Tanaka, Air Filter Knob for Brushcutter CG33EJ-SL and Trimmers CH22EBP2-CH22ECP2 Hitachi. Parts for the following products: - Brushcutter...
AVAILABLE €5.46
Details
Filter Cover for Hedge Trimmer Hitachi Tanaka CH22EBP2-CH22ECP2
HiKOKI Power Tools Italia S.p.a. SKU: 6698609
Filter Cover for Hedge Trimmer Hitachi Tanaka CH22EBP2-CH22ECP2
Filter Cover for Hedge Trimmer Hitachi Tanaka CH22EBP2-CH22ECP2 Original spare Hitachi Koky Tanaka, Cover Filter for Hedge Trimmer Hitachi Tanaka CH22EBP2-CH22ECP2 Parts for the following products: - Hedge Trimmer...
Last items in stock €4.64
Details
Carburator Cover Packing for Brushcutter Hitachi CG22EAS
HiKOKI Power Tools Italia S.p.a. SKU: 6696534
Carburator Cover Packing for Brushcutter Hitachi CG22EAS
Carburator Cover Packing for Brushcutter Hitachi CG22EAS Original parts Hitachi Koky Tanaka, Carburator Cover Packing for Brushcutters CG22EAS Parts for the following products: - Brushcutter Hitachi CG22EAS - Hedge Trimmer Hitachi...
Last items in stock €2.14
Details
Cleaner Gasket for Brushcutter Hitachi CG31EBS
HiKOKI Power Tools Italia S.p.a. SKU: 791187
Cleaner Gasket for Brushcutter Hitachi CG31EBS
Cleaner Gasket for Brushcutter Hitachi CG31EBS Genuine spare part Hitachi HIKOKI Tanaka, Cleaner Gasket for Brushcutter CG31EBS Part for the following products: -  Brushcutter Hitachi...
AVAILABLE €1.58
Details
Cylinder Gasket for Brushcutter Hitachi Tanaka CG22EAS
HiKOKI Power Tools Italia S.p.a. SKU: 6696530
Cylinder Gasket for Brushcutter Hitachi Tanaka CG22EAS
Cylinder Gasket for Brushcutter Hitachi Tanaka CG22EAS Genuine spare part Hitachi Koky Tanaka, Cylinder Gasket for Brushcutters CG22EAB - CG22EAS - Edge Trimmer Hitachi CH22EBP2 Part for the following products: - Brushcutter Hitachi...
AVAILABLE €2.16
Details
Piston Pin for Brushcutter Hitachi Tanaka CG22EAS
HiKOKI Power Tools Italia S.p.a. SKU: 6696944
Piston Pin for Brushcutter Hitachi Tanaka CG22EAS
Piston Pin for Brushcutter Hitachi Tanaka CG22EAS Genuine spare part Hitachi Koky Tanaka, Piston Pin for Brushcutters CG22EAB - CG22EAS - Edge Trimmer Hitachi CH22EBP2 Part for the following products: - Pump Hitachi A25EB(N) -...
Last items in stock €7.30
Details
Cylinder for Hedge Trimmer Hitachi Tanaka CH22EBP2-CH22ECP2
HiKOKI Power Tools Italia S.p.a. SKU: 6698597
Cylinder for Hedge Trimmer Hitachi Tanaka CH22EBP2-CH22ECP2
Cylinder for Hedge Trimmer Hitachi Tanaka CH22EBP2-CH22ECP2 Original spare Hitachi Koky Tanaka, Cylinder for Hedge Trimmer Hitachi Tanaka CH22EC2(62ST) - CH22ECP2(62ST) - CH22EC2(78ST) - CH22ECP2(78ST) Parts...
Last items in stock €65.87
Details
Blade Liner 620 mm for Hedge Trimmer Hitachi CH22EBP2-CH22ECP2
HiKOKI Power Tools Italia S.p.a. SKU: 6600360
Blade Liner 620 mm for Hedge Trimmer Hitachi CH22EBP2-CH22ECP2
Blade Liner 620 mm for Hedge Trimmer Hitachi CH22EBP2-CH22ECP2 Original spare Hitachi Koky Tanaka, Blade Liner 620 mm for Hedge Trimmer Hitachi Tanaka CH22EBP2 - CH22ECP2 - CH22EC2 Parts for the following products: - Hedge Trimmer...
Last items in stock €9.16
Details
Stop Switch Cord for Hedge Trimmers Hitachi CH22EBP2-CH22ECP2
HiKOKI Power Tools Italia S.p.a. SKU: 6699058
Stop Switch Cord for Hedge Trimmers Hitachi CH22EBP2-CH22ECP2
Stop Switch Cord for Hedge Trimmers Hitachi CH22EBP2-CH22ECP2 Original spare part Hitachi-HIKOKI Tanaka, Stop Switch Cord for Hedge Trimmers CH22EBP2 (62 ST) - CH22EC2 (62 ST) - CH22ECP2 (66 ST) - CH22ECP2 (78 ST). Parts for the...
AVAILABLE €1.62
Details
Switch for Brushcutter Hitachi Tanaka CG24EASP
HiKOKI Power Tools Italia S.p.a. SKU: 6696940
Switch for Brushcutter Hitachi Tanaka CG24EASP
Switch for Brushcutter Hitachi Tanaka CG24EASP Genuine spare part for Hitachi Koky Tanaka, Switch for Brushcutters CG25EUS - CG24EASP - CG24EACP - CG27EASP - CG22EAS. Part for the following products: - Brushcutter Hitachi CG25EUS -...
Last items in stock €9.30
Details
Circlip for Brushcutter Hitachi CG 24EBS
HiKOKI Power Tools Italia S.p.a. SKU: 6684590
Circlip for Brushcutter Hitachi CG 24EBS
Circlip for Brushcutter Hitachi CG 24EBS Original replacement part Hitachi Koky Tanaka, Piston Pin Circlip for Brushcutters, Chainsaws, Hedgecutters Hitachi - Tanaka. Part for the following...
Last items in stock €1.57
Details
Gear Case Cover Gasket for Hedge Trimmer Hitachi CH62EA3 (ST)
HiKOKI Power Tools Italia S.p.a. SKU: 6688909
Gear Case Cover Gasket for Hedge Trimmer Hitachi CH62EA3 (ST)
Gear Case Cover Gasket for Hedge Trimmer Hitachi CH62EA3 (ST) Original spare part Hitachi Koky Tanaka, Gear Case Cover Gasket for Hedge Trimmer Hitachi CH62EA3 (ST). Part for the following products: - Hedge Trimmer Hitachi CH78ED -...
Last items in stock €2.13
Details
Spring Washer 5 for Brushcutter Hitachi CG33EJ-SL
HiKOKI Power Tools Italia S.p.a. SKU: 6684834
Spring Washer 5 for Brushcutter Hitachi CG33EJ-SL
Spring Washer 5 for Brushcutter Hitachi CG33EJ-SL Original spare part Hitachi, Spring Washer 5 for Brushcutters CG33EJ-SL - CG47EY-T - CG27EJ-SLNP - CG22EJ. Parts for the following products: - Brushcutter TBC-340 - Brushcutter...
AVAILABLE €1.04
Details
Shield Tube for Chainsaw Hitachi Tanaka CS25EC-SC
HiKOKI Power Tools Italia S.p.a. SKU: 6685247
Shield Tube for Chainsaw Hitachi CS25EC-SC
Shield Tube for Chainsaw Hitachi CS25EC-SC Original spare part Hitachi Koky Tanaka, Shield Tube for Chainsaws CS25EC-SC - CS 30EC - CS33ET - CS33EA. Part for the following products:...
Last items in stock €5.12
Details
Lower Blade for Hedge Trimmer Hitachi CH62EA3 (ST)
HiKOKI Power Tools Italia S.p.a. SKU: 6697701
Lower Blade for Hedge Trimmer Hitachi CH62EA3 (ST)
Lower Blade for Hedge Trimmer Hitachi CH62EA3 (ST) Original spare part Hitachi Koky Tanaka, Lower Blade for Hedge Trimmer Hitachi CH62EA - CH62EA3 (ST). Part for the following products: - ...
Usually Ships in: 7/10 Business Days Approx. €82.43
Details
Gear Case Cover for Hedge Trimmer Hitachi CH62EA3 (ST)
HiKOKI Power Tools Italia S.p.a. SKU: 6692102
Gear Case Cover for Hedge Trimmer Hitachi CH62EA3 (ST)
Gear Case Cover for Hedge Trimmer Hitachi CH62EA3 (ST) Original spare part Hitachi Koky Tanaka, Gear Case Cover for Hedge Trimmer Hitachi CH62EA(ST) - CH62EA2(ST) - CH62EA3 (ST). Part for the following products: - Hedge Trimmer...
Last items in stock €11.80
Details
Collar 5.8 for Brushcutter Hitachi CG47EJ-L
HiKOKI Power Tools Italia S.p.a. SKU: 6692244
Collar 5.8 for Brushcutter Hitachi CG47EJ-L
Collar 5.8 for Brushcutter Hitachi CG47EJ-L Original part Hitachi-HIKOKI, Fuel Tank Collar 5.8 for Brushcutters CG47EJ-L - CG47EY-T - CG40EF-L - CG47EF(L) - CG22EJ. Parts for the following...
Last items in stock €1.08
Details
Hex Hole Bolt M5x18PS for Hedge Trimmer Tanaka THT 210
HiKOKI Power Tools Italia S.p.a. SKU: 6695505
Hex Hole Bolt M5x18PS for Hedge Trimmer Tanaka THT 210
Hex Hole Bolt M5x18PS for Hedge Trimmer Tanaka THT 210 Original spare part Hitachi-HIKOKI Tanaka, Hex Hole Bolt M5x18PS for Hedge Trimmers THT 210 - THT 210 B - THT 210 S. Parts for the following products: -  Hedge Trimmer Tanaka THT...
AVAILABLE €2.16
Details
Front Handle Ass'y for Hedge Trimmer Hitachi CH22EBP2
HiKOKI Power Tools Italia S.p.a. SKU: 6699079
Front Handle Ass'y for Hedge Trimmer Hitachi CH22EBP2
Front Handle Ass'y for Hedge Trimmer Hitachi CH22EBP2 Original spare part Hitachi-HIKOKI Tanaka, Front Handle Assembly for Hedge Trimmers CH22EBP2 (62 ST) - CH24EBP - CH62EA3 - CH78EC3. Parts...
Available in 7/10 days €22.49
Details
Ball Bearing 6002Z for Hedge Trimmer Hitachi CH62EA(ST)
HiKOKI Power Tools Italia S.p.a. SKU: 6695538
Ball Bearing 6002Z for Hedge Trimmer Hitachi CH62EA(ST)
Ball Bearing 6002Z for Hedge Trimmer Hitachi CH62EA(ST) Original spare part Hitachi HiKoki Tanaka, Ball Bearing 6002Z C3 32MM OD for Hedge Trimmers Hitachi CH62EA(ST) - CH62EA2(ST) Part for the following products: -  Hedge Trimmer...
on 7/10 Business Days Approx €14.45
Details
Piston Ring for Hedge Trimmer Tanaka THT 210
HiKOKI Power Tools Italia S.p.a. SKU: 6686118
Piston Ring for Hedge Trimmer Tanaka THT 210
Piston Ring for Hedge Trimmer Tanaka THT 210 Original parts Hitachi Koky Tanaka, Piston Ring for Hedge Trimmer THT 210 - THT 210 B - THT 210 S Parts for the following products: -  Hedge...
Last items in stock €9.05
Details
Cam Plate for Hedge Trimmer Hitachi CH62EA(ST)
HiKOKI Power Tools Italia S.p.a. SKU: 6684678
Cam Plate for Hedge Trimmer Hitachi CH62EA(ST)
Cam Plate for Hedge Trimmer Hitachi CH62EA(ST) Original spare part Hitachi HiKoki Tanaka, Cam Plate for Hedge Trimmers Hitachi CH62EA(ST) - CH62EA3(ST). Part for the following products: -  BRUSHCUTTER CG27EJ-SLNP -  BRUSHCUTTER...
Last items in stock €6.81
Details
Set Screw for Hedge Trimmer Hitachi CH62EA(ST)
HiKOKI Power Tools Italia S.p.a. SKU: 6684679
Set Screw for Hedge Trimmer Hitachi CH62EA(ST)
Set Screw for Hedge Trimmer Hitachi CH62EA(ST) Original spare part Hitachi HiKoki Tanaka, Cam Plate Set Screw for Hedge Trimmers Hitachi CH62EA(ST) - CH62EA3(ST). Part for the following...
Last items in stock €6.81
Details
Fan Case Comp. for Hedge Trimmer Hitachi CH62EA(ST)
HiKOKI Power Tools Italia S.p.a. SKU: 6687014
Fan Case Comp. for Hedge Trimmer Hitachi CH62EA(ST)
Fan Case Comp. for Hedge Trimmer Hitachi CH62EA(ST) Original spare part Hitachi HiKoki Tanaka, Fan Case Comp. for Hedge Trimmers Hitachi CH62EA(ST) - CH62EA3(ST). Part for the following products: -  HEDGE TRIMMER THT 210 S -  HEDGE...
Available in 7/10 days €37.10
Details
Hitachi CH62EA3 (ST) Ignition Coil Ass'y
HiKOKI Power Tools Italia S.p.a. SKU: 6697150
Hitachi CH62EA3 (ST) Ignition Coil Ass'y
Hitachi CH62EA3 (ST) Ignition Coil Ass'y Original spare part Hitachi Koky Tanaka, Ignition Coil Ass'y for Hedge Trimmer Hitachi CH62EA3 (ST). Part for the following products: -  Hedge Trimmer Hitachi CH62EA3...
Last items in stock €50.15
Details
Comments (0)
