HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Lawnmower ML 190EA

SKU: Hitachi ML 190EA
€6.69
VAT included

Hitachi Spare Parts for Lawnmower ML 190EA

We supply original Hitachi HIKOKI Tanaka spare parts on offer at unbeatable prices, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Lawnmower ML 190EA.
Hitachi Spare Parts for Lawnmower ML 190EA
  • Online only
  • Hitachi Spare Parts for Lawnmower ML 190EA
  • Hitachi Spare Parts for Lawnmower ML 190EA
  • Hitachi Spare Parts for Lawnmower ML 190EA
HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Lawnmower ML 190EA

SKU: Hitachi ML 190EA Condition: New
€6.69
VAT included

Hitachi Spare Parts for Lawnmower ML 190EA

We supply original Hitachi HIKOKI Tanaka spare parts on offer at unbeatable prices, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Lawnmower ML 190EA.
settings 26 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
26 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

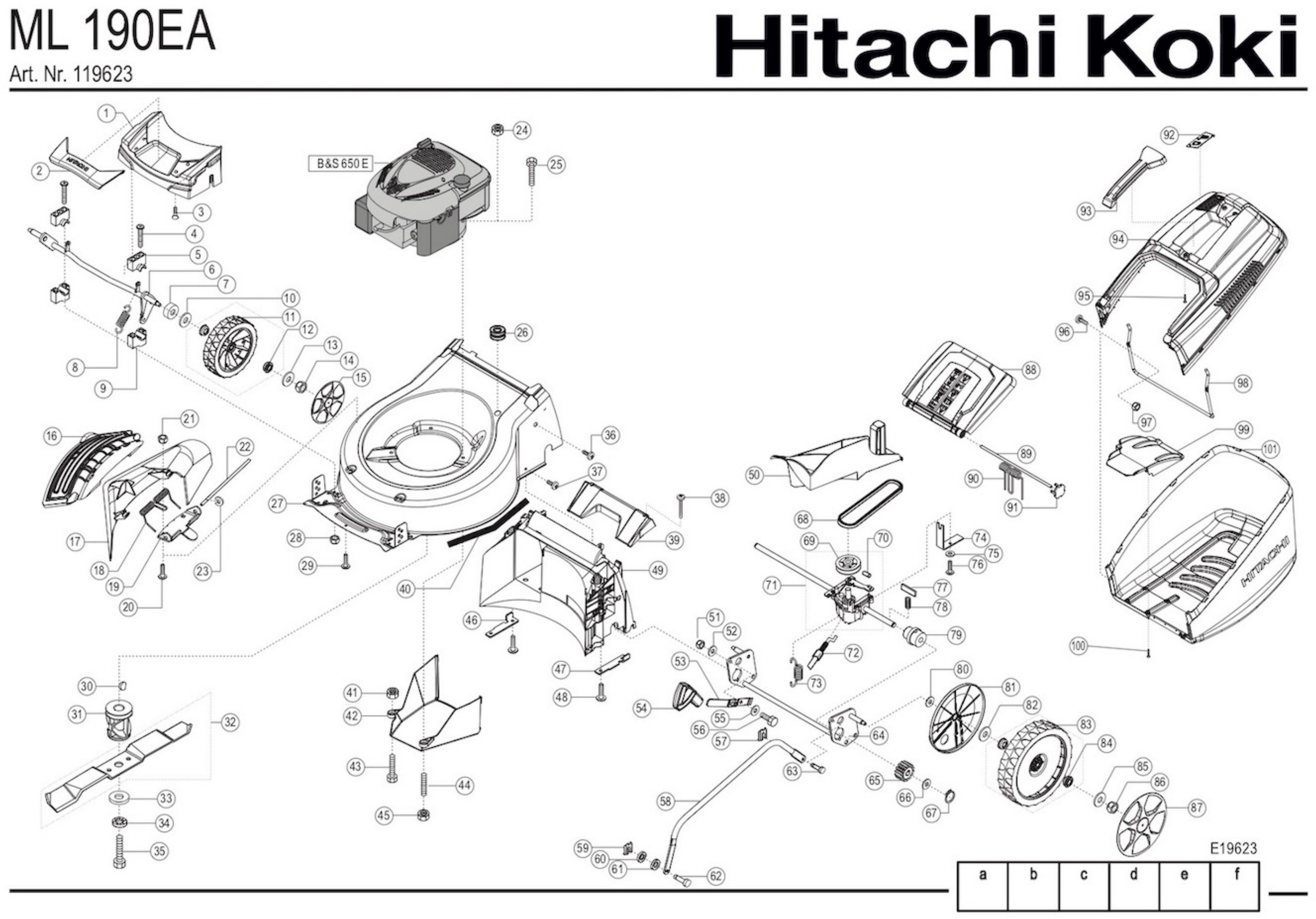

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
16
 photo_cameraImage coming soon 6600162 SIDE DISCHARGE FLAP €10.92
24
 photo_cameraImage coming soon 6600211 NUT M8 €1.16
31
 photo_cameraImage coming soon 6600178 BLADE HOLDER €28.00
32
 photo_cameraImage coming soon 6600100 MULCHING BLADE 46 €71.92
35
 photo_cameraImage coming soon 6600094 HEXAGON SCREW 3/8"X 60 €6.04
41
 photo_cameraImage coming soon 6600211 NUT M8 €1.16
42
 photo_cameraImage coming soon 6600145 COVER FOR BELT €20.68
50
 photo_cameraImage coming soon 6600175 MULCHING WEDGE €21.90
61
 photo_cameraImage coming soon 6600261 WASHER8 €1.16
65
 photo_cameraImage coming soon 6600233 PINION €19.46
68
 photo_cameraImage coming soon 6600151 BELT €19.46
69
 photo_cameraImage coming soon 6600239 PULLEY €24.34
71
 photo_cameraImage coming soon 6600117 TRANSMISSION 46 €114.62 Not available for order
72
 photo_cameraImage coming soon 6600125 CABLE 1290 €28.00
83
 photo_cameraImage coming soon 6600140 WHEEL €43.86
89
 Rod for Flap for Lawnmower Hitachi ML 140E 6600176 Rod for Flap for Lawnmower Hitachi ML 140E €3.60
90
 Spring for Flap for Lawnmower Hitachi ML 140E 6600147 Spring for Flap for Lawnmower Hitachi ML 140E €14.58
91
 Rod Stopper for Lawnmower Hitachi ML 140E 6600155 Rod Stopper for Lawnmower Hitachi ML 140E €2.38
93
 photo_cameraImage coming soon 6600103 GRIP €7.26
94
 photo_cameraImage coming soon 6600104 BOX TOP €40.20
98
 photo_cameraImage coming soon 6600113 BOX BRACKET €24.34
101
 photo_cameraImage coming soon 6600105 BOX LOWER PART €56.06
102
 photo_cameraImage coming soon 6600238 WING NUT €3.60
107
 photo_cameraImage coming soon 6600258 SCREW 8X 45 €1.16
128
 photo_cameraImage coming soon 6600131 CABLE 1260 €19.46
129
 photo_cameraImage coming soon 6600128 CABLE 1200 €19.46
141
 photo_cameraImage coming soon 6600135 DRIVE LEVER €23.12
Page 2 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

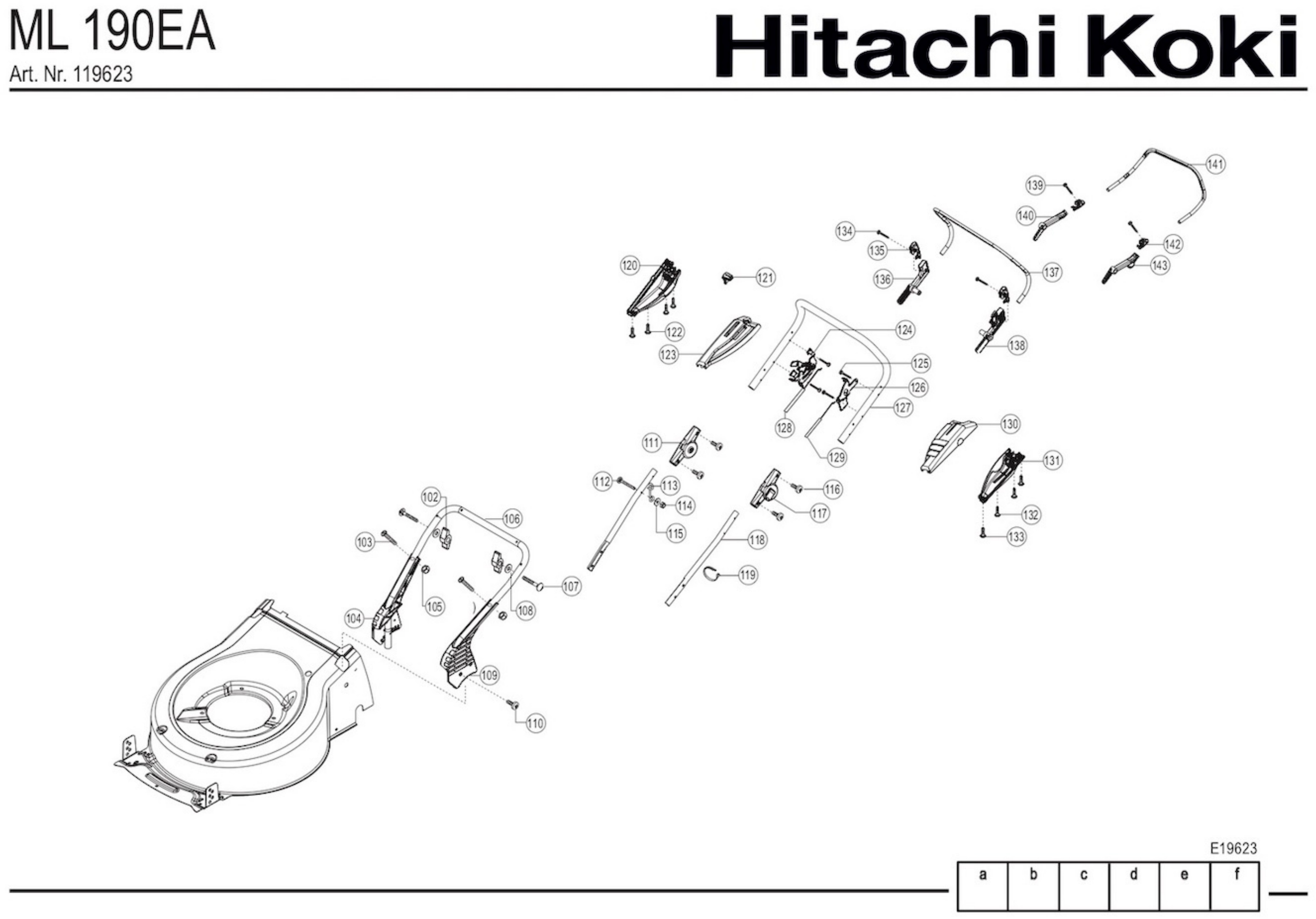

Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
102
 photo_cameraImage coming soon 6600238 WING NUT €3.60
107
 photo_cameraImage coming soon 6600258 SCREW 8X 45 €1.16
128
 photo_cameraImage coming soon 6600131 CABLE 1260 €19.46
129
 photo_cameraImage coming soon 6600128 CABLE 1200 €19.46
141
 photo_cameraImage coming soon 6600135 DRIVE LEVER €23.12

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Hitachi Spare Parts for Lawnmower ML 190EA

We supply original Hitachi HIKOKI Tanaka spare parts on offer at unbeatable prices, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Lawnmower ML 190EA.

In the following table, look for the model of the Lawnmower and ripettivo spare part.
Hitachi ML 190EA
Lawnmower ML 190EA
# Part Num. Description
16 6600162 SIDE DISCHARGE FLAP
24 6600211 NUT M8
31 6600178 BLADE HOLDER
32 6600100 MULCHING BLADE 46
34 6600248 WASHER 10,5
35 6600094 HEXAGON SCREW 3/8"X 60
41 6600211 NUT M8
42 6600145 COVER FOR BELT
50 6600175 MULCHING WEDGE
57 6600236 SAFEGUARD
59 6600236 SAFEGUARD
60 6600270 WASHER 8X14X1,0
61 6600261 WASHER 8
65 6600233 PINION
68 6600151 BELT
69 6600239 PULLEY
71 6600117 TRANSMISSION 46
72 6600125 CABLE 1290
83 6600140 WHEEL
88 6600110 FLAP
89 6600176 ROD FOR FLAP
90 6600147 SPRING
91 6600155 STOPPER
92 6600102 LEVEL INDICATOR
93 6600103 GRIP
94 6600104 BOX TOP
98 6600113 BOX BRACKET
99 6600114 INSET FOR BOX
101 6600105 BOX LOWER PART
102 6600238 WING NUT
107 6600258 SCREW 8X 45
128 6600131 CABLE 1260
129 6600128 CABLE 1200
137 6600134 STOP LEVER
141 6600135 DRIVE LEVER
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Hitachi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to hitachi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Hitachi ML 190EA
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Hitachi ML 190EA

Diagram Hitachi ML 190EA

Download (403.96KB)
