HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Engine Hedge Trimmer CH62EA (ST)

SKU: Hitachi CH62EA (ST) Condition: New
€9.61
VAT included

Hitachi Spare Parts for Engine Hedge Trimmer CH62EA (ST)

We are Dealers of Hitachi-HIKOKI original spare parts at low at unbeatable prices, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Engine Hedge Trimmer CH62EA (ST).
settings 150 spare parts
description 8 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
124 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

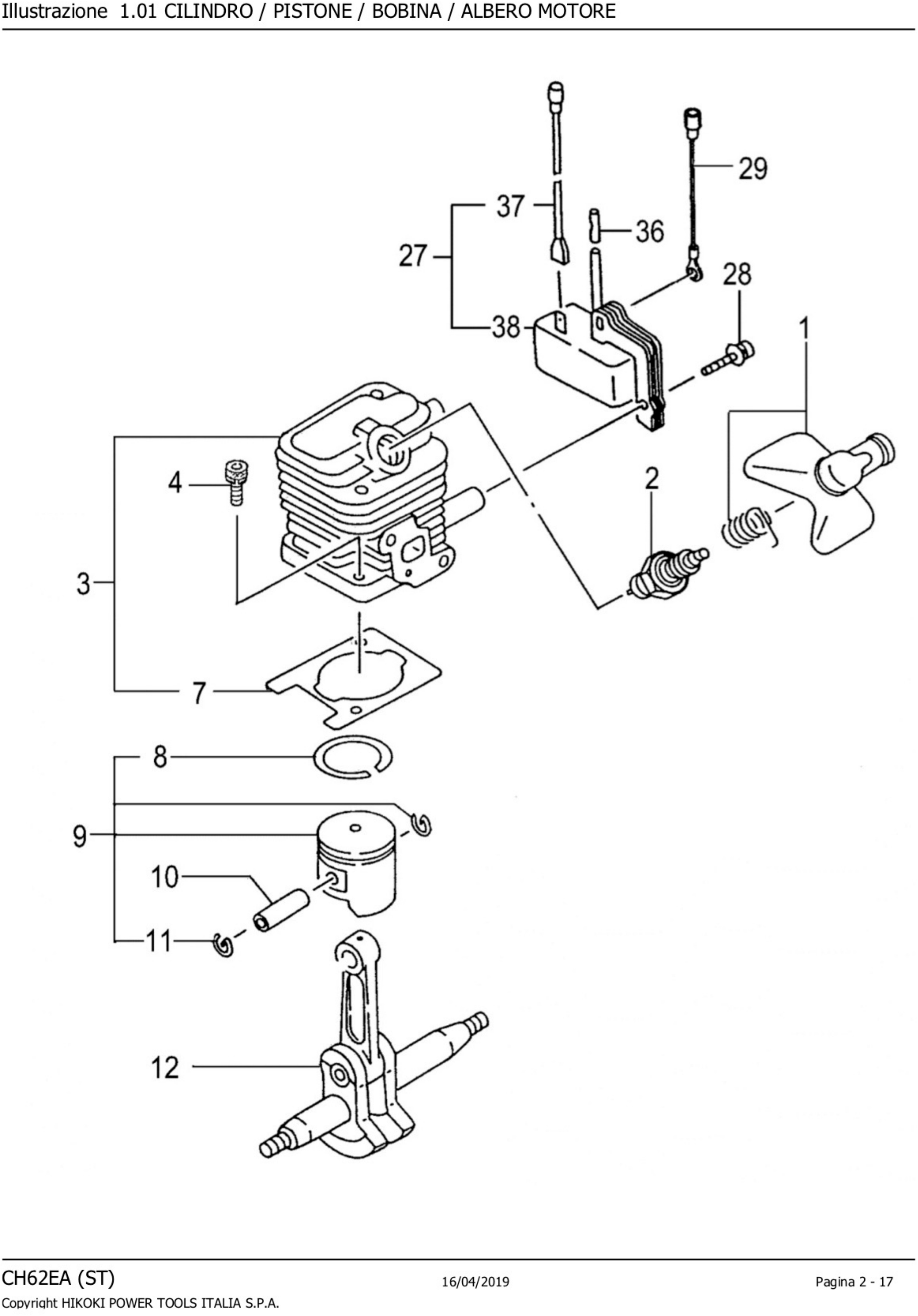

Esploso pagina 1
Pos. Item Price Buy
1
 photo_cameraImage coming soon 6687476 SPARK PLUG CAP €9.07
3
 photo_cameraImage coming soon 6685480 CYLINDER WITH GASKET €65.49
4
 Bolt M5X18/S for Chainsaws Hitachi CS38EK-CS45EL 6684586 Bolt M5X18/S for Chainsaws Hitachi CS38EK-CS45EL €1.98
7
 photo_cameraImage coming soon 6685744 CYLINDER GASKET €2.09
8
 Piston Ring for Hedge Trimmer Tanaka THT 210 6686118 Piston Ring for Hedge Trimmer Tanaka THT 210 €9.05
9
 photo_cameraImage coming soon 6685892 PISTON WITH RINGS(2) AND RETAINERS(2) €32.86
10
 Piston Pin for Brushcutter Hitachi Tanaka CG22EAS 6696944 Piston Pin for Brushcutter Hitachi Tanaka CG22EAS €7.30
11
 Circlip for Brushcutter Hitachi CG 24EBS 6684590 Circlip for Brushcutter Hitachi CG 24EBS €1.57
12
 photo_cameraImage coming soon 6686208 CRANKSHAFT €85.82
27
 Ignition Coil for Hedge Trimmers Tanaka THT 210 - THT 210 B 6695927 Ignition Coil for Hedge Trimmers Tanaka THT 210 - THT 210 B €79.77
36
 Insulator Tube for Chainsaw Hitachi CS25EC-SC 6684597 Insulator Tube for Chainsaw Hitachi CS25EC-SC €1.08
38
 Ignition Coil for Hedge Trimmer Hitachi CH62EA(ST) 6695939 Ignition Coil for Hedge Trimmer Hitachi CH62EA(ST) €57.25 Not available for order
Page 2 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

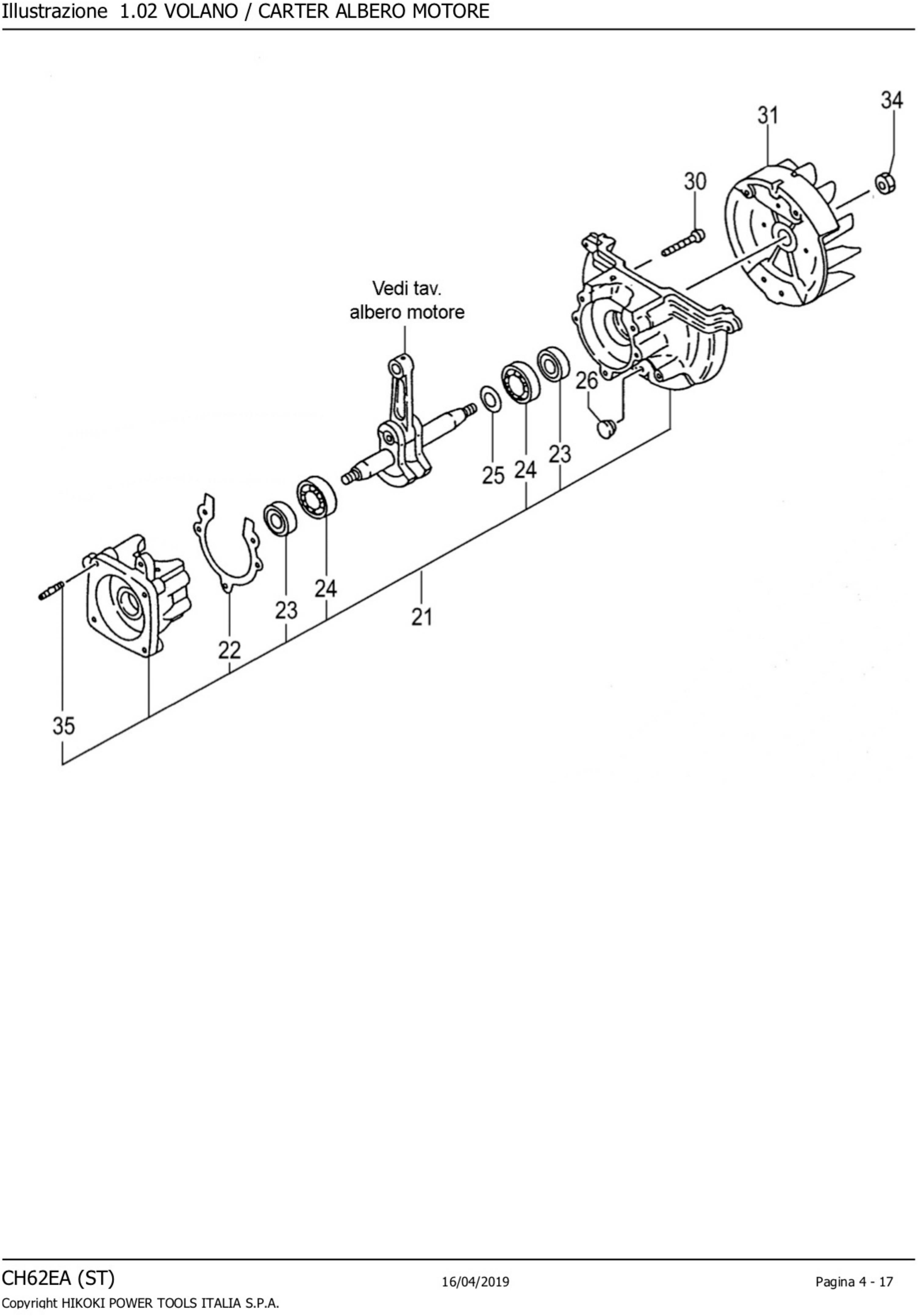

Esploso pagina 2
Pos. Item Price Buy
21
 photo_cameraImage coming soon 6686574 CRANK CASE ASS'Y €115.32
22
 photo_cameraImage coming soon 6686720 CRANK CASE GASKET €1.59
23
 photo_cameraImage coming soon 6684607 OIL SEAL TB 12227 €3.20
24
 photo_cameraImage coming soon 6684608 BALL BEARING 6001 C3 €6.06
30
 photo_cameraImage coming soon 6684786 HEX. SOCKET HD. BOLT M5X30 S €1.60
31
 photo_cameraImage coming soon 6687396 THEY FLY €25.77
35
 photo_cameraImage coming soon 6686771 STUD BOLT 6X22 €1.56
Page 3 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

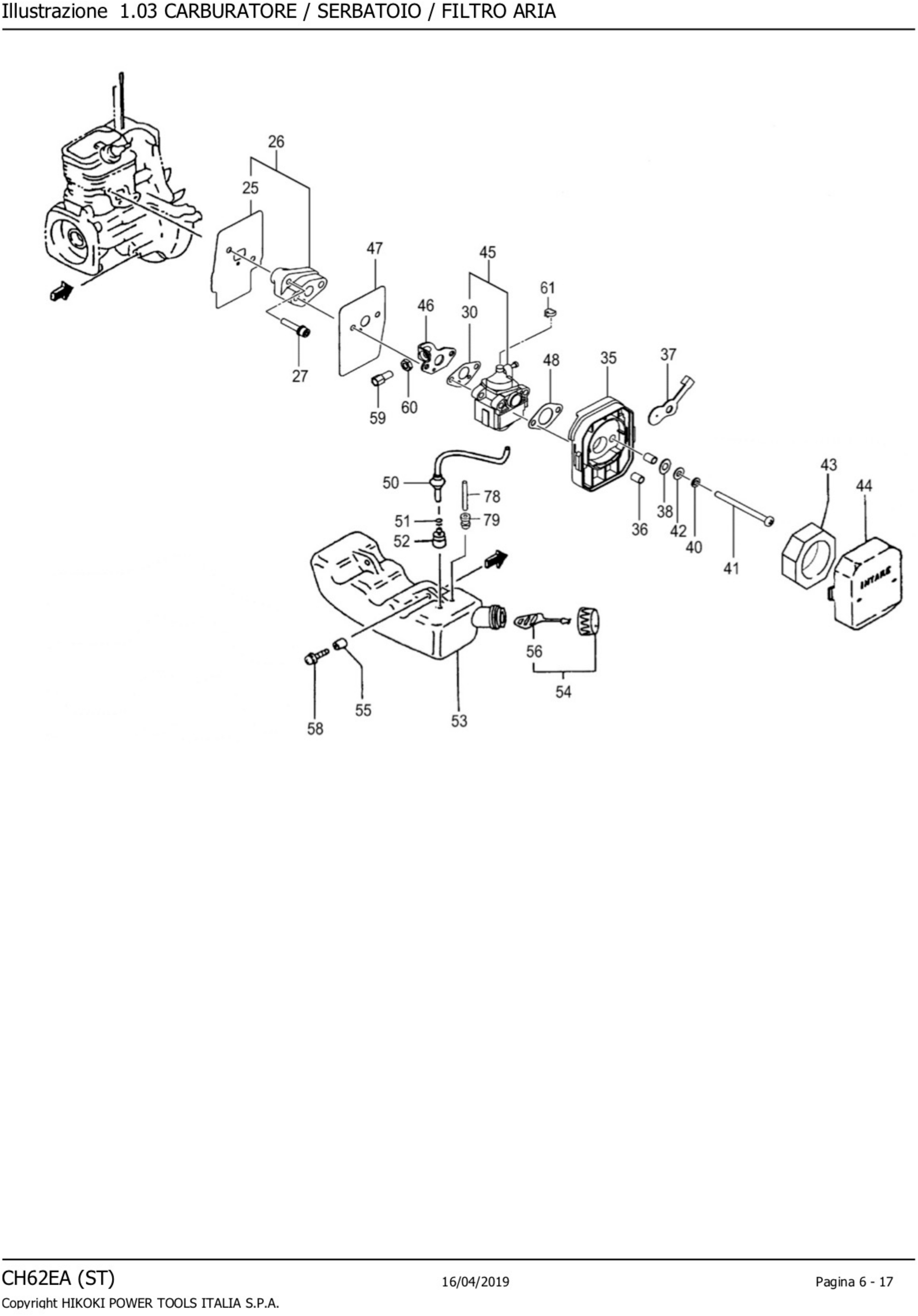

Esploso pagina 3
Pos. Item Price Buy
25
 photo_cameraImage coming soon 6689891 INTAKE PIPE GASKET €2.69
26
 photo_cameraImage coming soon 6689966 CARB. INSULATOR SET,SPARE €13.24
27
 photo_cameraImage coming soon 6695515 HEX HOLE BOLT 5X25WS €1.67
35
 photo_cameraImage coming soon 6690091 FILTER BODY €9.39
36
 photo_cameraImage coming soon 6690801 COLLAR €4.30
37
 photo_cameraImage coming soon 6691267 DISTANCE €5.78
38
 photo_cameraImage coming soon 6684859 SPACER €2.42
40
 Washer D. 5 for Chainsaw Hitachi CS45EL-CS38EK 6684662 Washer D. 5 for Chainsaw Hitachi CS45EL-CS38EK €1.28
42
 photo_cameraImage coming soon 6684661 WASHER 5 €1.27
43
 photo_cameraImage coming soon 6690350 CLEANER ELEMENT €8.70
44
 photo_cameraImage coming soon 6690142 AIR CLEANER CAP €8.87
45
 photo_cameraImage coming soon 6690495 CARBURETOR WYL212 €85.46
47
 photo_cameraImage coming soon 6689839 CARBURETOR GASKET €2.39
48
 photo_cameraImage coming soon 6690184 GASKET €1.50
50
 Shield Tube for Chainsaw Hitachi Tanaka TCS-2801S 6685247 Shield Tube for Chainsaw Hitachi Tanaka TCS-2801S €5.38
51
 Hose Clip 6.3 D. for Brushcutters Chainsaws Hitachi Hikoki Tanaka 6684619 Hose Clip 6.3 D. for Brushcutters Chainsaws Hitachi Hikoki Tanaka €1.25
52
 photo_cameraImage coming soon 6698874 PESCANTE DOUBLE MIXTURE €21.96
53
 photo_cameraImage coming soon 6691647 TANK €14.02
54
 Tank Cap Ass'y (Orange) for Hedge Trimmer Tanaka THT 210 6691716 Tank Cap Ass'y (Orange) for Hedge Trimmer Tanaka THT 210 €12.64
55
 Collar 5.8 for Brushcutter Hitachi CG47EJ-L 6692244 Collar 5.8 for Brushcutter Hitachi CG47EJ-L €1.08
56
 photo_cameraImage coming soon 6692059 CATENELLA TAPPO €1.62
58
 Hex Hole Bolt M5x18PS for Hedge Trimmer Tanaka THT 210 6695505 Hex Hole Bolt M5x18PS for Hedge Trimmer Tanaka THT 210 €2.16
59
 photo_cameraImage coming soon 6684871 CABLE ADJUSTER €5.25
60
 photo_cameraImage coming soon 6684872 LOCK NUT M6 €1.27
61
 photo_cameraImage coming soon 6691337 SWIVEL CAP €1.78
78
 photo_cameraImage coming soon 6692357 PIPE €2.98
79
 photo_cameraImage coming soon 6697846 RETURN GROMMET €1.79
Page 4 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

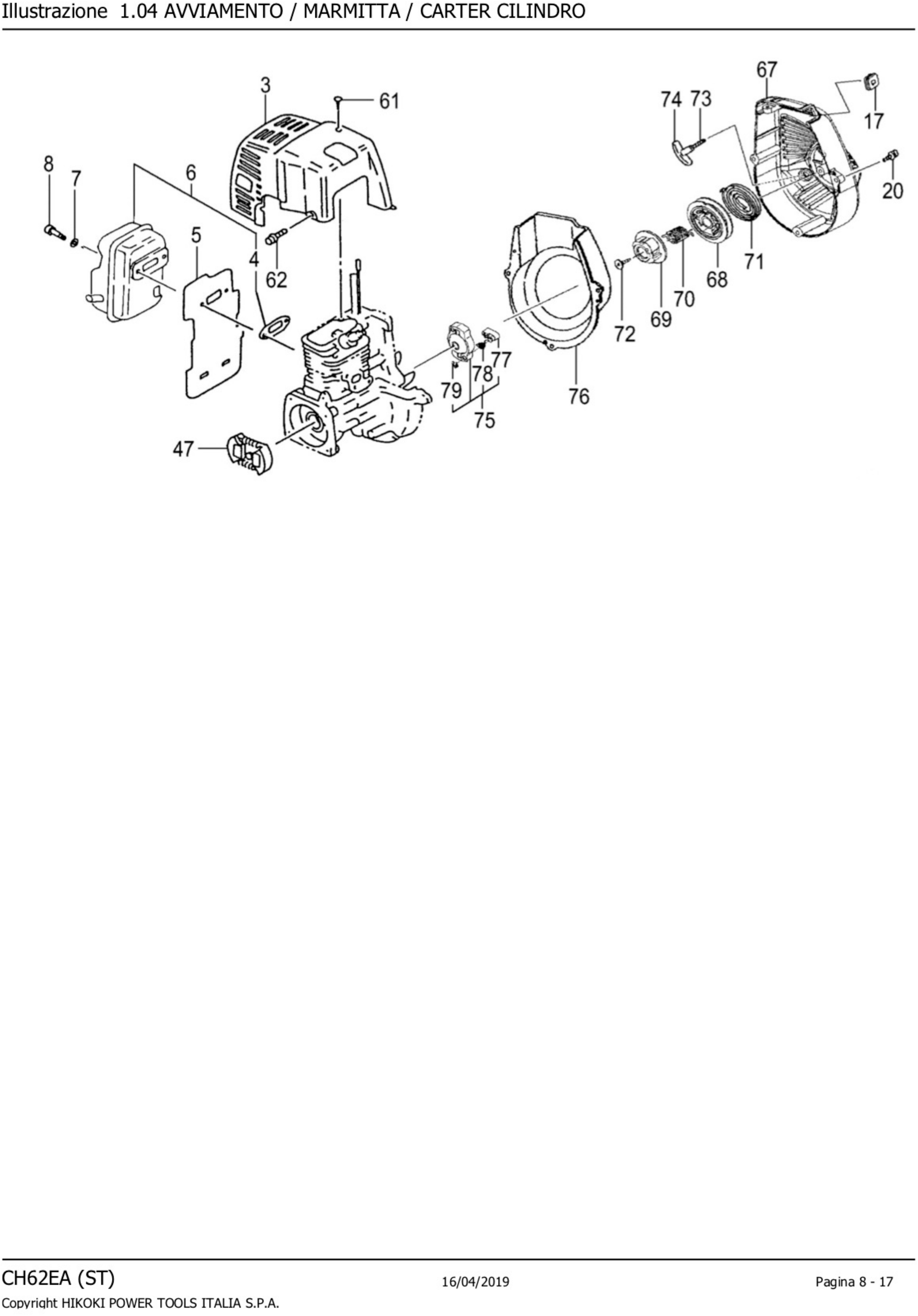

Esploso pagina 4
Pos. Item Price Buy
3
 photo_cameraImage coming soon 6692795 MUFFLER PROTECTION €12.33
4
 photo_cameraImage coming soon 6692744 MUFFLER GASKET €3.28
5
 photo_cameraImage coming soon 6687252 HEAT SHIELD €3.30
6
 photo_cameraImage coming soon 6692481 MUFFLER SET €36.07
8
 Hex Socket Hd Bolt M5X50 for Hedge Trimmer Tanaka THT 210 6685114 Hex Socket Hd Bolt M5X50 for Hedge Trimmer Tanaka THT 210 €1.66
17
 photo_cameraImage coming soon 6688050 GROMMET €1.56
20
 photo_cameraImage coming soon 6695502 HEX.HOLE BOLT 4X18PS €1.28
62
 photo_cameraImage coming soon 6695441 4X12PS SCREW €1.80
67
 Fan Case Comp. for Hedge Trimmer Hitachi CH62EA(ST) 6687014 Fan Case Comp. for Hedge Trimmer Hitachi CH62EA(ST) €37.10 Not available for order
68
 photo_cameraImage coming soon 6693072 STARTER ROPE REEL €9.95
69
 Cam Plate for Hedge Trimmer Hitachi CH62EA(ST) 6684678 Cam Plate for Hedge Trimmer Hitachi CH62EA(ST) €6.81
70
 Damper Spring for Brushcutters Hitachi CG22EAS-CG24EASP-CG27EASP 6684677 Damper Spring for Brushcutters Hitachi CG22EAS-CG24EASP-CG27EASP €7.83
71
 photo_cameraImage coming soon 6684675 RECOIL SPRING €12.16
72
 Set Screw for Hedge Trimmer Hitachi CH62EA(ST) 6684679 Set Screw for Hedge Trimmer Hitachi CH62EA(ST) €6.81
73
 photo_cameraImage coming soon 6693172 ROPE 3X890 €3.12
74
 photo_cameraImage coming soon 6693237 STARTER HANDLE €5.27
75
 Starter Pulley for Bruschcutters Hitachi CG22EAS-CG24EASP-CG27-33EJ 6684681 Starter Pulley for Bruschcutters Hitachi CG22EAS-CG24EASP-CG27-33EJ €23.26
76
 photo_cameraImage coming soon 6687209 DEFLECTOR €10.07
77
 photo_cameraImage coming soon 6684685 STARTER PAWL €6.11
78
 photo_cameraImage coming soon 6684684 STARTER PAWL SPRING €3.48
79
 photo_cameraImage coming soon 6684683 STOP RING E5 €1.22
Page 5 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

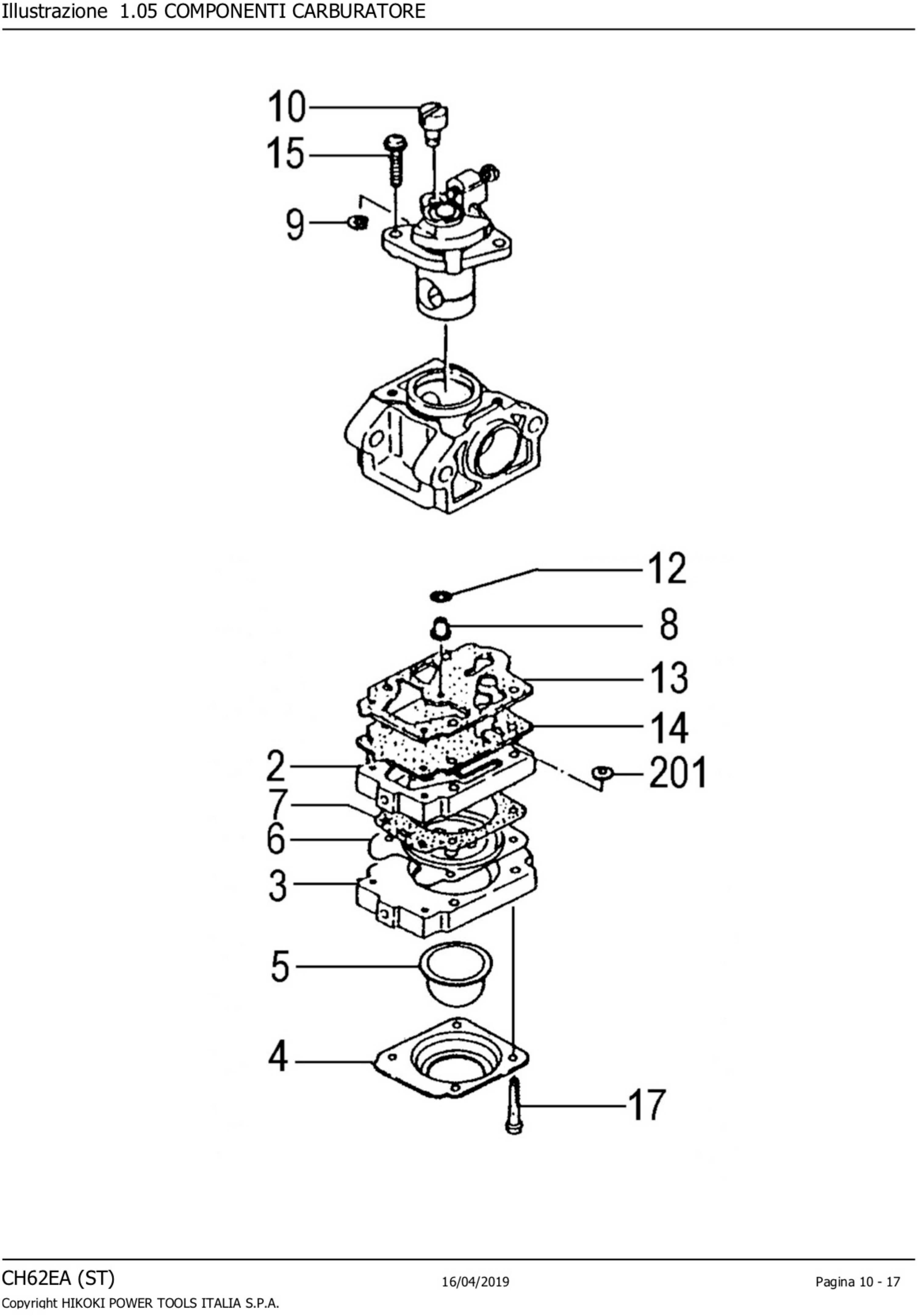

Esploso pagina 5
Pos. Item Price Buy
2
 photo_cameraImage coming soon 6691433 CARBURETOR PLATE €63.49
3
 photo_cameraImage coming soon 6684687 PRIMING PUMP COMP. €18.30
5
 photo_cameraImage coming soon 6684689 PRIMING BODY €6.88
6
 photo_cameraImage coming soon 6690830 METERING DIAPHRAGM COMP. €15.00
7
 photo_cameraImage coming soon 6684691 DIAPHRAGM GASKET €6.12
8
 photo_cameraImage coming soon 6684878 JET # 39 €5.84
9
 photo_cameraImage coming soon 6684696 STOP RING €1.76
10
 photo_cameraImage coming soon 6684697 SWIVEL €4.96
12
 photo_cameraImage coming soon 6684695 ORING €3.16
13
 photo_cameraImage coming soon 6691457 PUMP GASKET €9.57
14
 Pump Diaphragm for Chainsaw Hitachi CS33EB 6684693 Pump Diaphragm for Chainsaw Hitachi CS33EB €9.95
15
 photo_cameraImage coming soon 6684698 SCREW €3.06
201
 Carburator Inlet Screen for Chainsaws and Bruschcutters Hitachi 6684700 Carburator Inlet Screen for Chainsaws and Bruschcutters Hitachi €3.18
Page 6 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

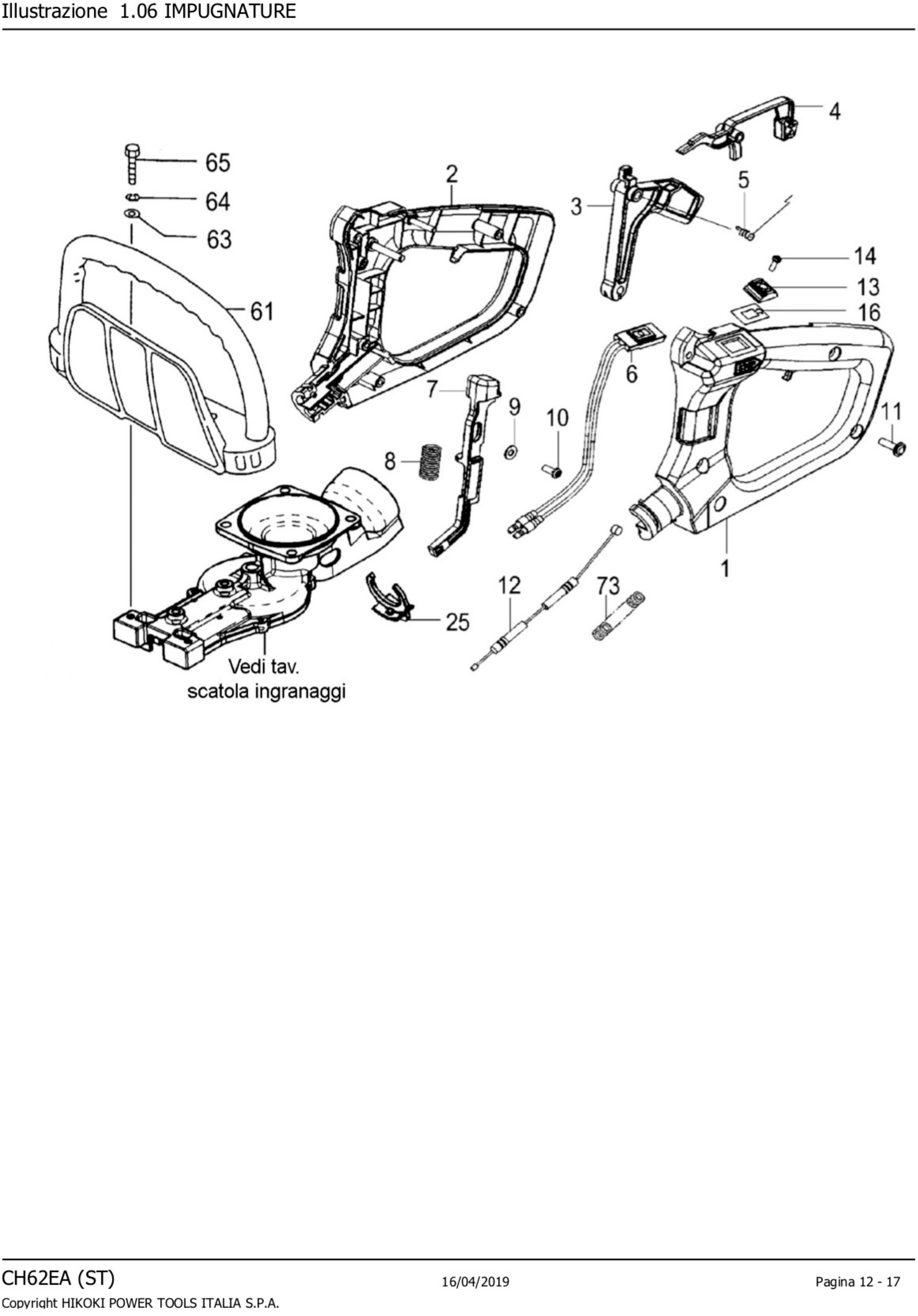

Esploso pagina 6
Pos. Item Price Buy
1
 photo_cameraImage coming soon 6686314 HANDLE B - SINCE C226131 FOR US €9.82
2
 photo_cameraImage coming soon 6686279 HANDLE A - SINCE C226131 FOR US €9.82
3
 photo_cameraImage coming soon 6688230 THROTTLE LEVER €2.71
4
 photo_cameraImage coming soon 6688240 SAFETY LEVER OR €1.86
5
 photo_cameraImage coming soon 6688244 SPRING LEVER ACCELERATOR €2.77
6
 photo_cameraImage coming soon 6687758 STOP SWITCH COMP. €15.43
7
 photo_cameraImage coming soon 6688246 LOCK LEVER €2.02
8
 photo_cameraImage coming soon 6688279 SPRING €2.81
9
 Oil Pump Setting Bolt Washer for Chainsaw Tanaka TCS-2800S 6685070 Oil Pump Setting Bolt Washer for Chainsaw Tanaka TCS-2800S €2.08
10
 Guide Plate Screw M4x10 for Chainsaw Hitachi CS25EC-SC 6685161 Guide Plate Screw M4x10 for Chainsaw Hitachi CS25EC-SC €1.15
12
 photo_cameraImage coming soon 6693942 THROTTLE CABLE €5.78
13
 photo_cameraImage coming soon 6688366 BUTTON STOP €1.59
16
 photo_cameraImage coming soon 6694588 STOP SWITCH €2.42
25
 photo_cameraImage coming soon 6696359 STOPPED €1.87
61
 photo_cameraImage coming soon 6688096 HANDLE GUARD €15.57
64
 Spring Washer 5 for Brushcutter Hitachi CG33EJ-SL 6684834 Spring Washer 5 for Brushcutter Hitachi CG33EJ-SL €1.04
73
 photo_cameraImage coming soon 6687521 TUBE PROTECTION €1.62
Page 7 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

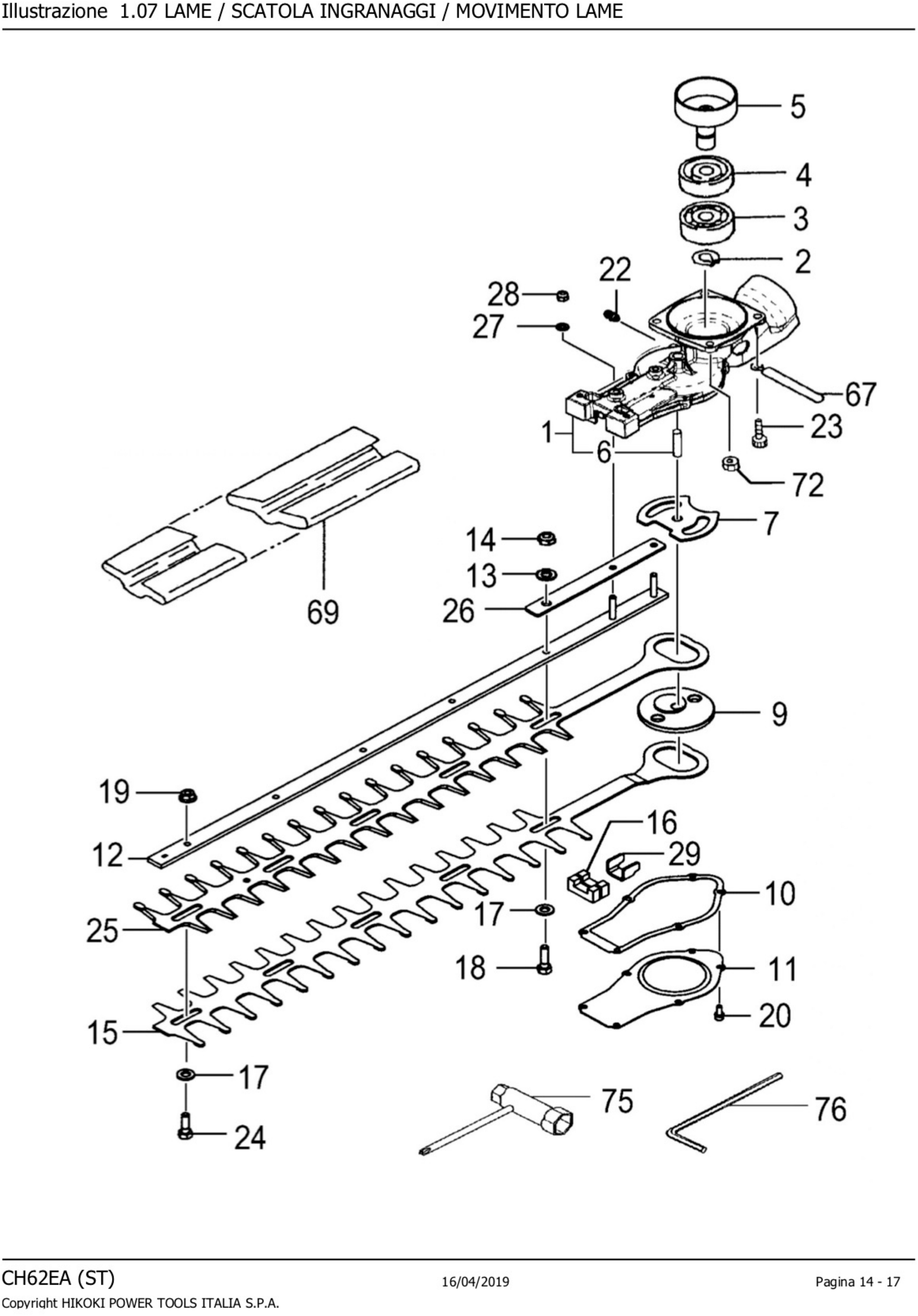

Esploso pagina 7
Pos. Item Price Buy
2
 Stop Ring C-15 for Hedge Trimmer Tanaka THT 210 THT 210 B 6695285 Stop Ring C-15 for Hedge Trimmer Tanaka THT 210 THT 210 B €0.66
3
 photo_cameraImage coming soon 6002C3 BEARING 6002C3 €7.00
4
 Ball Bearing 6002Z for Hedge Trimmer Hitachi CH62EA(ST) 6695538 Ball Bearing 6002Z for Hedge Trimmer Hitachi CH62EA(ST) €14.45
5
 Clutch Drum for Hedge Trimmers Tanaka THT 210-HTD2530PF 6688570 Clutch Drum for Hedge Trimmers Tanaka THT 210-HTD2530PF €44.53
6
 Shaft, Gear for Hedge Trimmer Tanaka THT 210 6688960 Shaft, Gear for Hedge Trimmer Tanaka THT 210 €3.70
7
 photo_cameraImage coming soon 6686614 PLATE €5.63
9
 Spur Gear for Hedge Trimmer Hitachi CH62EA(ST) 6688979 Spur Gear for Hedge Trimmer Hitachi CH62EA(ST) €43.32
10
 Gear Case Cover Gasket for Hedge Trimmer Hitachi CH62EA3 (ST) 6688909 Gear Case Cover Gasket for Hedge Trimmer Hitachi CH62EA3 (ST) €2.13
11
 Gear Case Cover for Hedge Trimmer Hitachi CH62EA3 (ST) 6692102 Gear Case Cover for Hedge Trimmer Hitachi CH62EA3 (ST) €11.80
12
 photo_cameraImage coming soon 6697703 BLADE GUIDE €34.88
13
 Bolt Washer 6 for Brushcutters Chainsaws Hitachi Hikoki Tanaka 6684639 Bolt Washer 6 for Brushcutters Chainsaws Hitachi Hikoki Tanaka €1.98
14
 photo_cameraImage coming soon 6695175 LOCK NUT 6 UPSP €1.63
15
 Lower Blade for Hedge Trimmer Hitachi CH62EA3 (ST) 6697701 Lower Blade for Hedge Trimmer Hitachi CH62EA3 (ST) €82.43
16
 photo_cameraImage coming soon 6686658 FELT €1.51
17
 photo_cameraImage coming soon 6687187 WASHER 7 BLACK €2.09
20
 Hex Hole Bolt M4x10S for Hedgetrimmer Hitachi CH62EA 6695484 Hex Hole Bolt M4x10S for Hedgetrimmer Hitachi CH62EA €3.16
22
 Grease Nipple for Hedgetrimmers Hitachi - HIKOKI - Tanaka 6688643 Grease Nipple for Hedgetrimmers Hitachi - HIKOKI - Tanaka €3.48
24
 photo_cameraImage coming soon 6687162 CUTTER FIXING BOLT B €1.56
25
 photo_cameraImage coming soon 6697702 UPPER BLADE €75.08
26
 photo_cameraImage coming soon 6690761 REINFORCEMENT €11.12
29
 photo_cameraImage coming soon 6686468 PLATE €2.63
67
 photo_cameraImage coming soon 6688008 CABLE CLAMP €1.62
69
 photo_cameraImage coming soon 6687302 BLADE PROTECTION €11.53
72
 photo_cameraImage coming soon 6695475 SPRING NUT 6 €1.67
Page 8 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

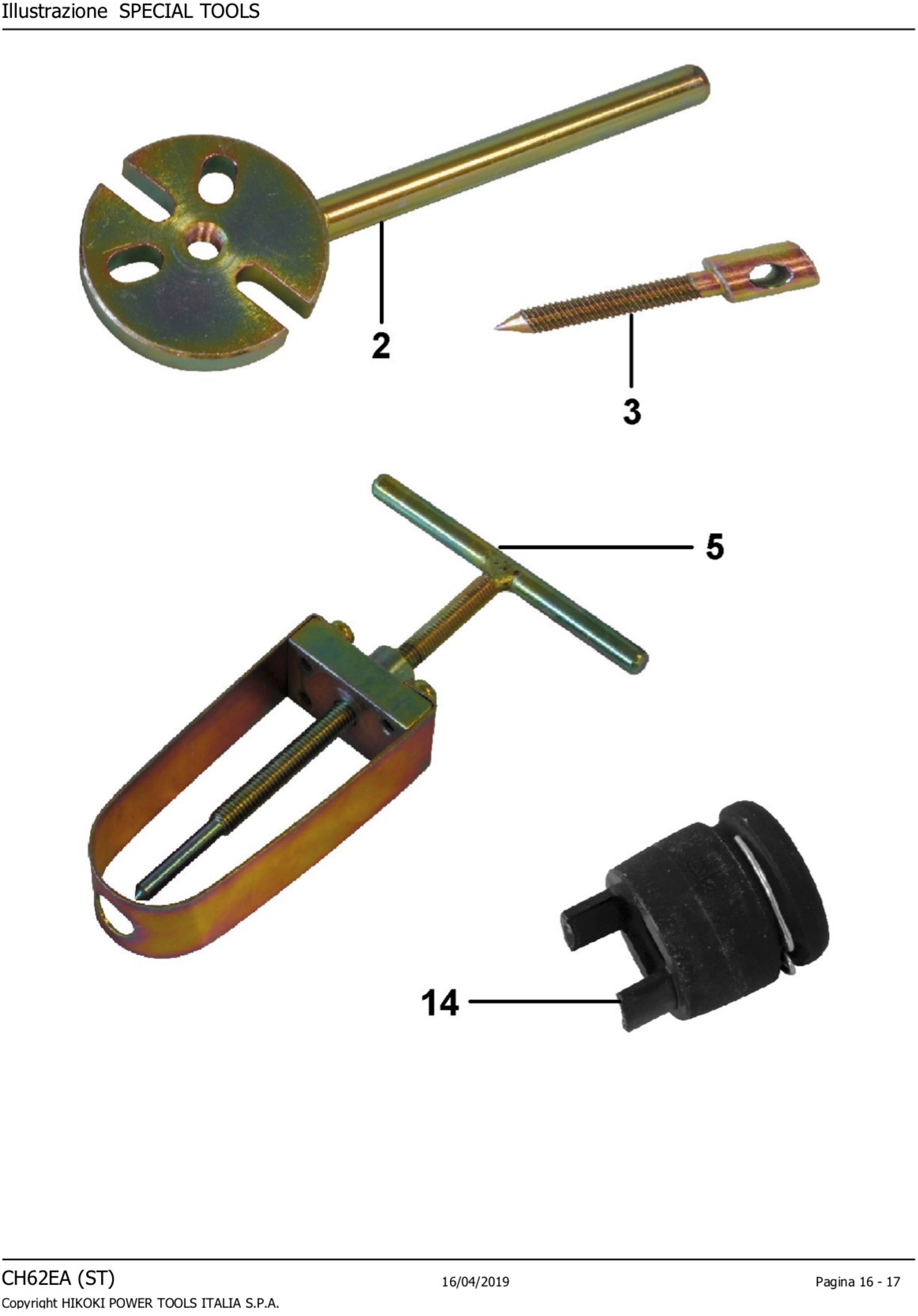

Esploso pagina 8
Pos. Item Price Buy
3
 photo_cameraImage coming soon 6695737 FLYWHEEL EXTRACTOR BOLT €22.13
5
 photo_cameraImage coming soon 6695740 PISTON PIN EXTRACTOR €80.81
14
 photo_cameraImage coming soon 6695754 CLUTCH PULLER €104.29

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Hitachi Spare Parts for Engine Hedge Trimmer CH62EA (ST)

We are Dealers of Hitachi-HIKOKI original spare parts at low at unbeatable prices, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Engine Hedge Trimmer CH62EA (ST).

In the following table, look for the model of Trimmer and the respective parts of the code.
Hitachi CH62EA (ST)

HEDGETRIMMER HITACHI CH62EA (ST) pag.1
# Part Num. Description
1 6687476 SPARK PLUG CAP
3 6685480 CYLINDER WITH GASKET
4 6684586 SCREW M5X18 / S
7 6685744 CYLINDER GASKET
8 6686118 PISTON RING
9 6685892 PISTON WITH RINGS (2) AND CIRCLIPS (2)
10 6696944 PISTON PIN
11 6684590 CIRCLIP
12 6686208 CRANKSHAFT
27 6695927 IGNITION COIL ASSY
28 6684599 SCREW EX 68-4599
29 6688461 IGNITION CABLE
36 6684597 TUBE
37 6687866 CABLE
38 6695939 IGNITION COIL
HEDGETRIMMER HITACHI CH62EA (ST) pag.2
21 6686574 CRANKSHAFT CASE
22 6686720 CRANKSHAFT CASE GASKET
23 6684607 OUTER TB 12227
24 6684608 BEARING 6001 C3 NSK
25 6689177 THICKNESS 0.10
25 6689178 THICKNESS 0.15
25 6684604 THICKNESS 0.20
25 6684605 THICKNESS 0.30
26 6691822 RUBBER
30 6684786 SCREW M5X30S
31 6687396 THEY FLY
34 6684612 NUT M8
35 6686771 STUD
HEDGETRIMMER HITACHI CH62EA (ST) pag.3
25 6689891 GASKET
26 6689966 INTAKE MANIFOLD WITH GASKET
27 6695515 SCREW 5X25WS
30 6684615 CARBURETOR GASKET
35 6690091 FILTER BODY
36 6690801 COLLAR
37 6691267 DISTANCE
38 6684859 BUSHING
40 6684662 WASHER
41 6694918 EXAGONAL SCREW 990-11050-652
42 6684661 WASHER M5
43 6690350 CLEANER ELEMENT
44 6690142 AIR CLEANER CAP
45 6690495 CARBURETOR WYL212
46 6684629 HEXAGON BRACKET 668-4629
47 6689839 GASKET
48 6690184 GASKET
50 6685247 HOSE WITH GROMMET
51 6684619 CLIP
52 6698874 PUMP FILTER
53 6691647 TANK
54 6691716 TANK CAP - ORANGE
55 6692244 COLLAR 5.8
56 6692059 TANK CAP CHAIN
58 6695505 SCREW 5X18PS
59 6684871 CABLE REGULATOR
60 6684872 NUT M6
61 6691337 CAP
78 6692357 PIPE
79 6697846 GROMMET
HEDGETRIMMER HITACHI CH62EA (ST) pag.4
3 6692795 MUFFLER PROTECTOR
4 6692744 MUFFLER GASKET
5 6687252 HEAT SHIELD
6 6692481 MUFFLER SET
7 6684661 WASHER M5
8 6685114 SCREW M5X50
17 6688050 GROMMET
20 6695502 HEXAGONAL BOLT
47 6688494 CLUTCH
61 6684636 SCREW D4.5X16
62 6695441 SCREW 4X12PS
67 6687014 FAN CASE COMP. - DISCONTINUED
68 6693072 PULLEY
69 6684678 CAM PLATE
70 6684677 STARTER SPRING S-START
71 6684675 STARTER SPRING
72 6684679 SET SCREW
73 6693172 ROPE 3X890
74 6693237 STARTER KNOB
75 6684681 STARTER PULLEY ASS'Y
76 6687209 DEFLECTOR
77 6684685 STARTER PAWL
78 6684684 PAWL SPRING
79 6684683 RETAINING RING
HEDGETRIMMER HITACHI CH62EA (ST) pag.5
2 6691433 CARBURETOR PLATE
3 6684687 CARBURETOR PRIMER PLATE
4 6684688 LITTLE COVER
5 6684689 PRIMER
6 6690830 DISC MEMBRANE
7 6684691 DISC GASKET
8 6684878 JET # 39
9 6684696 RING
10 6684697 PIN
12 6684695 O-RING
13 6691457 PUMP GASKET
14 6684693 PUMP MEMBRANE
15 6684698 SCREW
17 6684699 SET SCREW (OLD 548-25151-20 / 6696324
201 6684700 NET FILTER
HEDGETRIMMER HITACHI CH62EA (ST) pag.6
1 6686314 LEFT HANDLE
2 6686279 RIGHT HANDLE
3 6688230 THROTTLE LEVER
4 6688240 SAFETY LEVER
5 6688244 THROTTLE LEVER SPRING
6 6687758 SWITCH
7 6688246 LEVER
8 6688279 SPRING
9 6685070 WASHER
10 6685161 SCREW D4X10
11 6684636 SCREW D4.5X16
12 6693942 THROTTLE CABLE
13 6688366 BUTTON
14 6684913 SCREW 3X10
16 6694588 STOP SWITCH
25 6696359 STILL
61 6688096 FRONT HANDLE
63 6689680 WASHER
64 6684834 WASHER
65 6695054 BOLT 5X40
73 6687521 TUBE PROTECTION
HEDGETRIMMER HITACHI CH62EA (ST) pag.7
1 6688827 GEAR BOX - DISCONTINUED
2 6695285 SEEGER
3 6002C3 BALL BEARING 6002C3
4 6695538 BALL BEARING
5 6688570 CLUTCH DRUM
6 6688960 SHAFT, GEAR
7 6686614 PLATE
9 6688979 GEAR
10 6688909 GEAR COVER GASKET
11 6692102 LOWER CASE
12 6697703 BLADE GUIDE
13 6684639 WASHER M6
14 6695175 NUT M6
15 6697701 LOWER BLADE
16 6686658 FELT
17 6687187 WASHER D7
18 6687158 SCREW M6
19 6695170 NUT M6
20 6695484 SCREW 4X10S
22 6688643 GREASE
23 6695495 SCREW
24 6687162 BLADE SCREW
25 6697702 UPPER BLADE
26 6690761 REINFORCEMENT
27 6684864 WASHER
28 305491 NYLON NUT M5 (OLD 991-78050-010)
29 6686468 PLATE
67 6688008 CABLE CLAMP
69 6687302 BLADE PROTECTION
72 6695475 NUT M6
HEDGETRIMMER HITACHI CH62EA (ST) pag.8
2 6695736 FLYWHEEL PULLER
3 6695737 FLYWHEEL BOLT PULLER
5 6695740 PISTON PIN PULLER
14 6695754 CLUTCH PULLER
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Hitachi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to hitachi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Hitachi CH62EA (ST)
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Drawing Hitachi CH62EA (ST)

Drawing Hitachi CH62EA (ST)

Download (1.4MB)

You might also like

Damper Spring for Chainsaw Hitachi Tanaka CS33EA-CS25EC-SC
HiKOKI Power Tools Italia S.p.a. SKU: 6685183
Damper Spring for Chainsaw Hitachi Tanaka CS33EA-CS25EC-SC
Damper Spring for Chainsaw Hitachi Tanaka CS33EA-CS25EC-SC Genuine spare parts for Chainsaw Hitachi Koky Tanaka, Damper Spring for Chainsaw CS25EC-SC HEDGETRIMMER CH22EBP2 - HEDGETRIMMER CH22ECP2. Parts for the following...
AVAILABLE €7.83
Details
Piston Ring for Brush Cutter end Hedge Trimmers Hitachi
HiKOKI Power Tools Italia S.p.a. SKU: 6696532
Piston Ring for Brush Cutter end Hedge Trimmers Hitachi
Piston Ring for Brush Cutter end Hedge Trimmers Hitachi Original spare Hitachi Koky Tanaka, Piston Ring for Brush Cutter end Hedge Trimmers Hitachi. Parts for the following products: - Brush Cutter CG22EAS - Hedge Trimmers CH22EBP2 -...
AVAILABLE €6.50
Details
Piston for Brush Cutter and Hedge Trimmer Hitachi Tanaka CG-CH
HiKOKI Power Tools Italia S.p.a. SKU: 6696531
Piston for Brush Cutter and Hedge Trimmer Hitachi Tanaka CG-CH
Piston for Brush Cutter and Hedge Trimmer Hitachi Tanaka CG-CH Original spare part Hitachi Koky Tanaka, Piston for Brush Cutter and Hedge trimmer Hitachi Tanaka CG-CH. Part for the followinf article: - Brush Cutter CG22EAS - Hedge...
Last items in stock €15.81
Details
Air Filter for Brushcutter-Trimmer-Auger Hitachi Tanaka
HiKOKI Power Tools Italia S.p.a. SKU: 6690365
Air Filter for Brushcutter-Trimmer-Auger Hitachi Tanaka
Air Filter for Brushcutter-Trimmer-Auger Hitachi Tanaka Original spare part Hitachi Koky Tanaka, Air Filter for Brushcutter-Trimmer-Auger Hitachi Tanaka. Part for the following items : - Brushcutter CG27EJ-SLNP -...
AVAILABLE €1.98
Details
Air Filter Cover Knob for Brushcutter Hitachi CG33EJ-SL
HiKOKI Power Tools Italia S.p.a. SKU: 6698730
Air Filter Cover Knob for Brushcutter Hitachi CG33EJ-SL
Air Filter Cover Knob for Brushcutter Hitachi CG33EJ-SL Original spare Hitachi Koky Tanaka, Air Filter Knob for Brushcutter CG33EJ-SL and Trimmers CH22EBP2-CH22ECP2 Hitachi. Parts for the following products: - Brushcutter...
AVAILABLE €5.46
Details
Filter Cover for Hedge Trimmer Hitachi Tanaka CH22EBP2-CH22ECP2
HiKOKI Power Tools Italia S.p.a. SKU: 6698609
Filter Cover for Hedge Trimmer Hitachi Tanaka CH22EBP2-CH22ECP2
Filter Cover for Hedge Trimmer Hitachi Tanaka CH22EBP2-CH22ECP2 Original spare Hitachi Koky Tanaka, Cover Filter for Hedge Trimmer Hitachi Tanaka CH22EBP2-CH22ECP2 Parts for the following products: - Hedge Trimmer...
Last items in stock €4.64
Details
Carburator Cover Packing for Brushcutter Hitachi CG22EAS
HiKOKI Power Tools Italia S.p.a. SKU: 6696534
Carburator Cover Packing for Brushcutter Hitachi CG22EAS
Carburator Cover Packing for Brushcutter Hitachi CG22EAS Original parts Hitachi Koky Tanaka, Carburator Cover Packing for Brushcutters CG22EAS Parts for the following products: - Brushcutter Hitachi CG22EAS - Hedge Trimmer Hitachi...
Last items in stock €2.14
Details
Cleaner Gasket for Brushcutter Hitachi CG31EBS
HiKOKI Power Tools Italia S.p.a. SKU: 791187
Cleaner Gasket for Brushcutter Hitachi CG31EBS
Cleaner Gasket for Brushcutter Hitachi CG31EBS Genuine spare part Hitachi HIKOKI Tanaka, Cleaner Gasket for Brushcutter CG31EBS Part for the following products: -  Brushcutter Hitachi...
AVAILABLE €1.58
Details
Cylinder Gasket for Brushcutter Hitachi Tanaka CG22EAS
HiKOKI Power Tools Italia S.p.a. SKU: 6696530
Cylinder Gasket for Brushcutter Hitachi Tanaka CG22EAS
Cylinder Gasket for Brushcutter Hitachi Tanaka CG22EAS Genuine spare part Hitachi Koky Tanaka, Cylinder Gasket for Brushcutters CG22EAB - CG22EAS - Edge Trimmer Hitachi CH22EBP2 Part for the following products: - Brushcutter Hitachi...
AVAILABLE €2.16
Details
Piston Pin for Brushcutter Hitachi Tanaka CG22EAS
HiKOKI Power Tools Italia S.p.a. SKU: 6696944
Piston Pin for Brushcutter Hitachi Tanaka CG22EAS
Piston Pin for Brushcutter Hitachi Tanaka CG22EAS Genuine spare part Hitachi Koky Tanaka, Piston Pin for Brushcutters CG22EAB - CG22EAS - Edge Trimmer Hitachi CH22EBP2 Part for the following products: - Pump Hitachi A25EB(N) -...
Last items in stock €7.30
Details
Cylinder for Hedge Trimmer Hitachi Tanaka CH22EBP2-CH22ECP2
HiKOKI Power Tools Italia S.p.a. SKU: 6698597
Cylinder for Hedge Trimmer Hitachi Tanaka CH22EBP2-CH22ECP2
Cylinder for Hedge Trimmer Hitachi Tanaka CH22EBP2-CH22ECP2 Original spare Hitachi Koky Tanaka, Cylinder for Hedge Trimmer Hitachi Tanaka CH22EC2(62ST) - CH22ECP2(62ST) - CH22EC2(78ST) - CH22ECP2(78ST) Parts...
Last items in stock €65.87
Details
Blade Liner 620 mm for Hedge Trimmer Hitachi CH22EBP2-CH22ECP2
HiKOKI Power Tools Italia S.p.a. SKU: 6600360
Blade Liner 620 mm for Hedge Trimmer Hitachi CH22EBP2-CH22ECP2
Blade Liner 620 mm for Hedge Trimmer Hitachi CH22EBP2-CH22ECP2 Original spare Hitachi Koky Tanaka, Blade Liner 620 mm for Hedge Trimmer Hitachi Tanaka CH22EBP2 - CH22ECP2 - CH22EC2 Parts for the following products: - Hedge Trimmer...
Last items in stock €9.16
Details
Stop Switch Cord for Hedge Trimmers Hitachi CH22EBP2-CH22ECP2
HiKOKI Power Tools Italia S.p.a. SKU: 6699058
Stop Switch Cord for Hedge Trimmers Hitachi CH22EBP2-CH22ECP2
Stop Switch Cord for Hedge Trimmers Hitachi CH22EBP2-CH22ECP2 Original spare part Hitachi-HIKOKI Tanaka, Stop Switch Cord for Hedge Trimmers CH22EBP2 (62 ST) - CH22EC2 (62 ST) - CH22ECP2 (66 ST) - CH22ECP2 (78 ST). Parts for the...
AVAILABLE €1.62
Details
Switch for Brushcutter Hitachi Tanaka CG24EASP
HiKOKI Power Tools Italia S.p.a. SKU: 6696940
Switch for Brushcutter Hitachi Tanaka CG24EASP
Switch for Brushcutter Hitachi Tanaka CG24EASP Genuine spare part for Hitachi Koky Tanaka, Switch for Brushcutters CG25EUS - CG24EASP - CG24EACP - CG27EASP - CG22EAS. Part for the following products: - Brushcutter Hitachi CG25EUS -...
Last items in stock €9.30
Details
Circlip for Brushcutter Hitachi CG 24EBS
HiKOKI Power Tools Italia S.p.a. SKU: 6684590
Circlip for Brushcutter Hitachi CG 24EBS
Circlip for Brushcutter Hitachi CG 24EBS Original replacement part Hitachi Koky Tanaka, Piston Pin Circlip for Brushcutters, Chainsaws, Hedgecutters Hitachi - Tanaka. Part for the following...
Last items in stock €1.57
Details
Spring Washer 5 for Brushcutter Hitachi CG33EJ-SL
HiKOKI Power Tools Italia S.p.a. SKU: 6684834
Spring Washer 5 for Brushcutter Hitachi CG33EJ-SL
Spring Washer 5 for Brushcutter Hitachi CG33EJ-SL Original spare part Hitachi, Spring Washer 5 for Brushcutters CG33EJ-SL - CG47EY-T - CG27EJ-SLNP - CG22EJ. Parts for the following products: - Brushcutter TBC-340 - Brushcutter...
AVAILABLE €1.04
Details
Shield Tube for Chainsaw Hitachi Tanaka CS25EC-SC
HiKOKI Power Tools Italia S.p.a. SKU: 6685247
Shield Tube for Chainsaw Hitachi CS25EC-SC
Shield Tube for Chainsaw Hitachi CS25EC-SC Original spare part Hitachi Koky Tanaka, Shield Tube for Chainsaws CS25EC-SC - CS 30EC - CS33ET - CS33EA. Part for the following products:...
Last items in stock €5.12
Details
Lower Blade for Hedge Trimmer Hitachi CH62EA3 (ST)
HiKOKI Power Tools Italia S.p.a. SKU: 6697701
Lower Blade for Hedge Trimmer Hitachi CH62EA3 (ST)
Lower Blade for Hedge Trimmer Hitachi CH62EA3 (ST) Original spare part Hitachi Koky Tanaka, Lower Blade for Hedge Trimmer Hitachi CH62EA - CH62EA3 (ST). Part for the following products: - ...
Usually Ships in: 7/10 Business Days Approx. €82.43
Details
Gear Case Cover for Hedge Trimmer Hitachi CH62EA3 (ST)
HiKOKI Power Tools Italia S.p.a. SKU: 6692102
Gear Case Cover for Hedge Trimmer Hitachi CH62EA3 (ST)
Gear Case Cover for Hedge Trimmer Hitachi CH62EA3 (ST) Original spare part Hitachi Koky Tanaka, Gear Case Cover for Hedge Trimmer Hitachi CH62EA(ST) - CH62EA2(ST) - CH62EA3 (ST). Part for the following products: - Hedge Trimmer...
Last items in stock €11.80
Details
Collar 5.8 for Brushcutter Hitachi CG47EJ-L
HiKOKI Power Tools Italia S.p.a. SKU: 6692244
Collar 5.8 for Brushcutter Hitachi CG47EJ-L
Collar 5.8 for Brushcutter Hitachi CG47EJ-L Original part Hitachi-HIKOKI, Fuel Tank Collar 5.8 for Brushcutters CG47EJ-L - CG47EY-T - CG40EF-L - CG47EF(L) - CG22EJ. Parts for the following...
Last items in stock €1.08
Details
Hex Hole Bolt M5x18PS for Hedge Trimmer Tanaka THT 210
HiKOKI Power Tools Italia S.p.a. SKU: 6695505
Hex Hole Bolt M5x18PS for Hedge Trimmer Tanaka THT 210
Hex Hole Bolt M5x18PS for Hedge Trimmer Tanaka THT 210 Original spare part Hitachi-HIKOKI Tanaka, Hex Hole Bolt M5x18PS for Hedge Trimmers THT 210 - THT 210 B - THT 210 S. Parts for the following products: -  Hedge Trimmer Tanaka THT...
AVAILABLE €2.16
Details
Spur Gear for Hedge Trimmer Hitachi CH62EA(ST)
HiKOKI Power Tools Italia S.p.a. SKU: 6688979
Spur Gear for Hedge Trimmer Hitachi CH62EA(ST)
Spur Gear for Hedge Trimmer Hitachi CH62EA(ST) Original spare part Hitachi HiKoki Tanaka, Spur Gear for Hedge Trimmers Hitachi CH62EA(ST) - CH62EA2(ST) Part for the following products: -  Hedge...
Last items in stock €43.32
Details
Ball Bearing 6002Z for Hedge Trimmer Hitachi CH62EA(ST)
HiKOKI Power Tools Italia S.p.a. SKU: 6695538
Ball Bearing 6002Z for Hedge Trimmer Hitachi CH62EA(ST)
Ball Bearing 6002Z for Hedge Trimmer Hitachi CH62EA(ST) Original spare part Hitachi HiKoki Tanaka, Ball Bearing 6002Z C3 32MM OD for Hedge Trimmers Hitachi CH62EA(ST) - CH62EA2(ST) Part for the following products: -  Hedge Trimmer...
on 7/10 Business Days Approx €14.45
Details
Shaft, Gear for Hedge Trimmer Tanaka THT 210
HiKOKI Power Tools Italia S.p.a. SKU: 6688960
Shaft, Gear for Hedge Trimmer Tanaka THT 210
Shaft, Gear for Hedge Trimmer Tanaka THT 210 Original parts Hitachi HiKoki Tanaka, Shaft, Gear for Hedge Trimmers THT 210 - THT 210 B - HTD2530PF - CH62EA (ST) Parts for the following products: -  Hedge Trimmer THT 210 -  Hedge...
on 7/10 Business Days Approx €3.70
Details
Piston Ring for Hedge Trimmer Tanaka THT 210
HiKOKI Power Tools Italia S.p.a. SKU: 6686118
Piston Ring for Hedge Trimmer Tanaka THT 210
Piston Ring for Hedge Trimmer Tanaka THT 210 Original parts Hitachi Koky Tanaka, Piston Ring for Hedge Trimmer THT 210 - THT 210 B - THT 210 S Parts for the following products: -  Hedge...
Last items in stock €9.05
Details
Cam Plate for Hedge Trimmer Hitachi CH62EA(ST)
HiKOKI Power Tools Italia S.p.a. SKU: 6684678
Cam Plate for Hedge Trimmer Hitachi CH62EA(ST)
Cam Plate for Hedge Trimmer Hitachi CH62EA(ST) Original spare part Hitachi HiKoki Tanaka, Cam Plate for Hedge Trimmers Hitachi CH62EA(ST) - CH62EA3(ST). Part for the following products: -  BRUSHCUTTER CG27EJ-SLNP -  BRUSHCUTTER...
Last items in stock €6.81
Details
Set Screw for Hedge Trimmer Hitachi CH62EA(ST)
HiKOKI Power Tools Italia S.p.a. SKU: 6684679
Set Screw for Hedge Trimmer Hitachi CH62EA(ST)
Set Screw for Hedge Trimmer Hitachi CH62EA(ST) Original spare part Hitachi HiKoki Tanaka, Cam Plate Set Screw for Hedge Trimmers Hitachi CH62EA(ST) - CH62EA3(ST). Part for the following...
Last items in stock €6.81
Details
Fan Case Comp. for Hedge Trimmer Hitachi CH62EA(ST)
HiKOKI Power Tools Italia S.p.a. SKU: 6687014
Fan Case Comp. for Hedge Trimmer Hitachi CH62EA(ST)
Fan Case Comp. for Hedge Trimmer Hitachi CH62EA(ST) Original spare part Hitachi HiKoki Tanaka, Fan Case Comp. for Hedge Trimmers Hitachi CH62EA(ST) - CH62EA3(ST). Part for the following products: -  HEDGE TRIMMER THT 210 S -  HEDGE...
Available in 7/10 days €37.10
Details
Ignition Coil for Hedge Trimmer Hitachi CH62EA(ST)
HiKOKI Power Tools Italia S.p.a. SKU: 6695939
Ignition Coil for Hedge Trimmer Hitachi CH62EA(ST)
Ignition Coil for Hedge Trimmer Hitachi CH62EA(ST) Original spare part Hitachi HiKoki Tanaka, Ignition Coil for Hedge Trimmers Hitachi CH62EA(ST) - CH62EA3(ST). Part for the following products:...
Available in 7/10 days €57.25
Details
Comments (0)
