HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Engine Brushcutter CG32EA (SL)

SKU: Hitachi CG32EA (SL)
€31.67
VAT included

Hitachi Spare Parts for Engine Brushcutter CG32EA (SL)

Hitachi-HIKOKI Tanaka authorized service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Engine Brushcutter CG32EA (SL).
Hitachi Spare Parts for Engine Brushcutter CG32EA (SL)
  • Hitachi Spare Parts for Engine Brushcutter CG32EA (SL)
  • Hitachi Spare Parts for Engine Brushcutter CG32EA (SL)
  • Hitachi Spare Parts for Engine Brushcutter CG32EA (SL)
  • Hitachi Spare Parts for Engine Brushcutter CG32EA (SL)
  • Hitachi Spare Parts for Engine Brushcutter CG32EA (SL)
HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Engine Brushcutter CG32EA (SL)

SKU: Hitachi CG32EA (SL) Condition: New
€31.67
VAT included

Hitachi Spare Parts for Engine Brushcutter CG32EA (SL)

Hitachi-HIKOKI Tanaka authorized service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Engine Brushcutter CG32EA (SL).
settings 53 spare parts
description 4 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
53 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

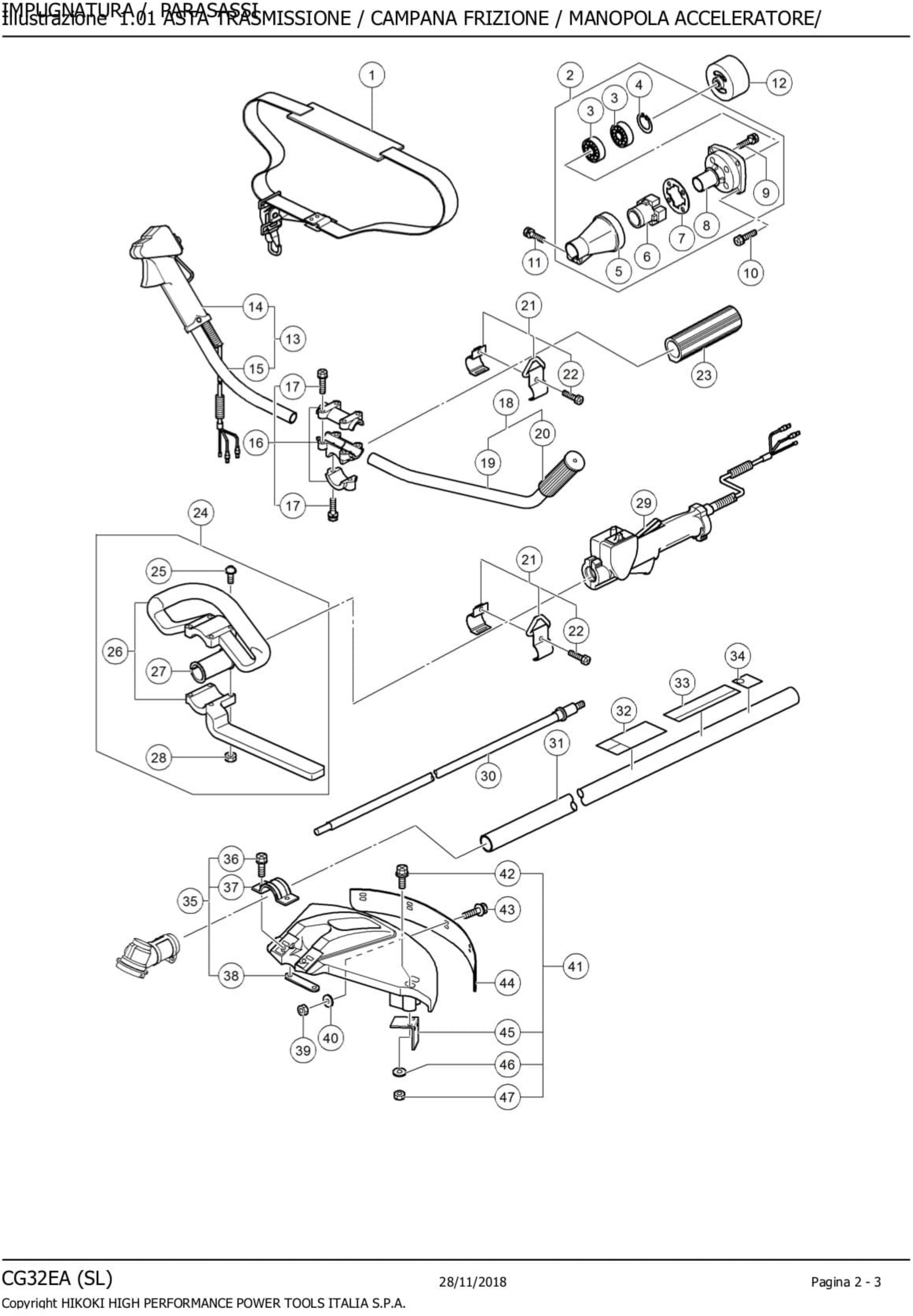

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 683002 COMPLETE BELT €24.50
3
 photo_cameraImage coming soon 683127 BALL BEARING 6000 ZZ €8.67
12
 photo_cameraImage coming soon 682981 CLUTCH CAMPANA €29.00
21
 photo_cameraImage coming soon 682985 HANGING BRACKET ASS'Y INCLUDES 22 €7.41
22
 photo_cameraImage coming soon 682986 BOLT M5 X 15 €5.35
26
 photo_cameraImage coming soon 682988 LOOPE HANDLE €9.07
29
 photo_cameraImage coming soon 683147 IMP. ACCEL. COMPL. CG32EA €61.73
30
 photo_cameraImage coming soon 683133 AUCTION €29.64
35
 photo_cameraImage coming soon 683143 PARAGAMBE CG32EA INCLUDES 36-38 €28.61
41
 photo_cameraImage coming soon 682995 PROTECTION CG42 INCLUDES 42, 45-47 €7.41
44
 photo_cameraImage coming soon 682998 EXTENSION PROT. BLADE CG23EA €9.07
45
 photo_cameraImage coming soon 682996 KNIFE CG23EA €5.35
Page 2 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

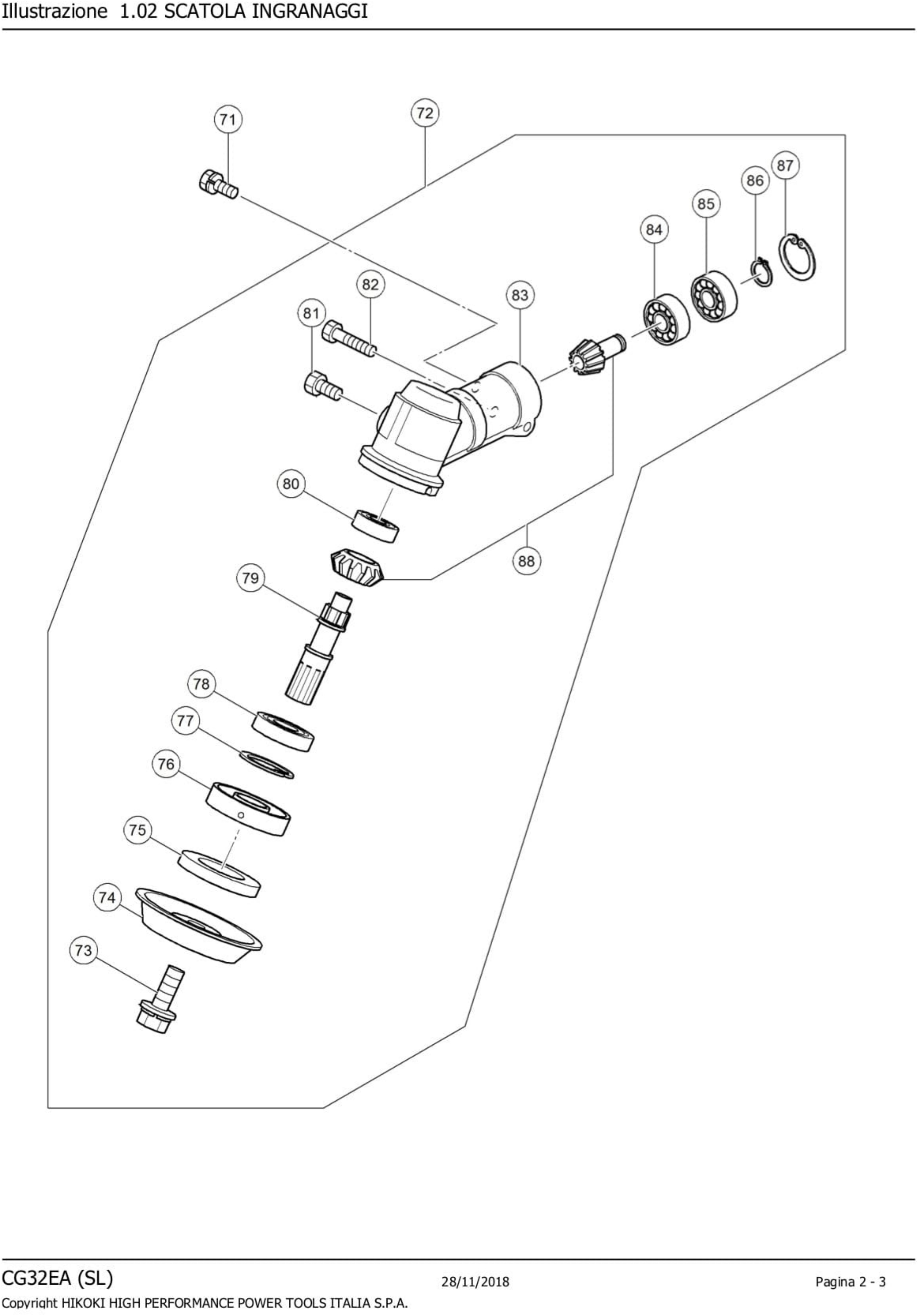

Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
72
 photo_cameraImage coming soon 683148 HEAD INCLUDES 73-88 €173.81
73
 photo_cameraImage coming soon 683018 BOLT M8X22 SX €1.78
74
 photo_cameraImage coming soon 683017 LOWER CUP CG23EA €5.35
75
 photo_cameraImage coming soon 683016 FLANGE DISC €6.19
76
 photo_cameraImage coming soon 683015 FLANGE DISC €10.75
86
 photo_cameraImage coming soon 683012 RING €2.97
Page 3 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

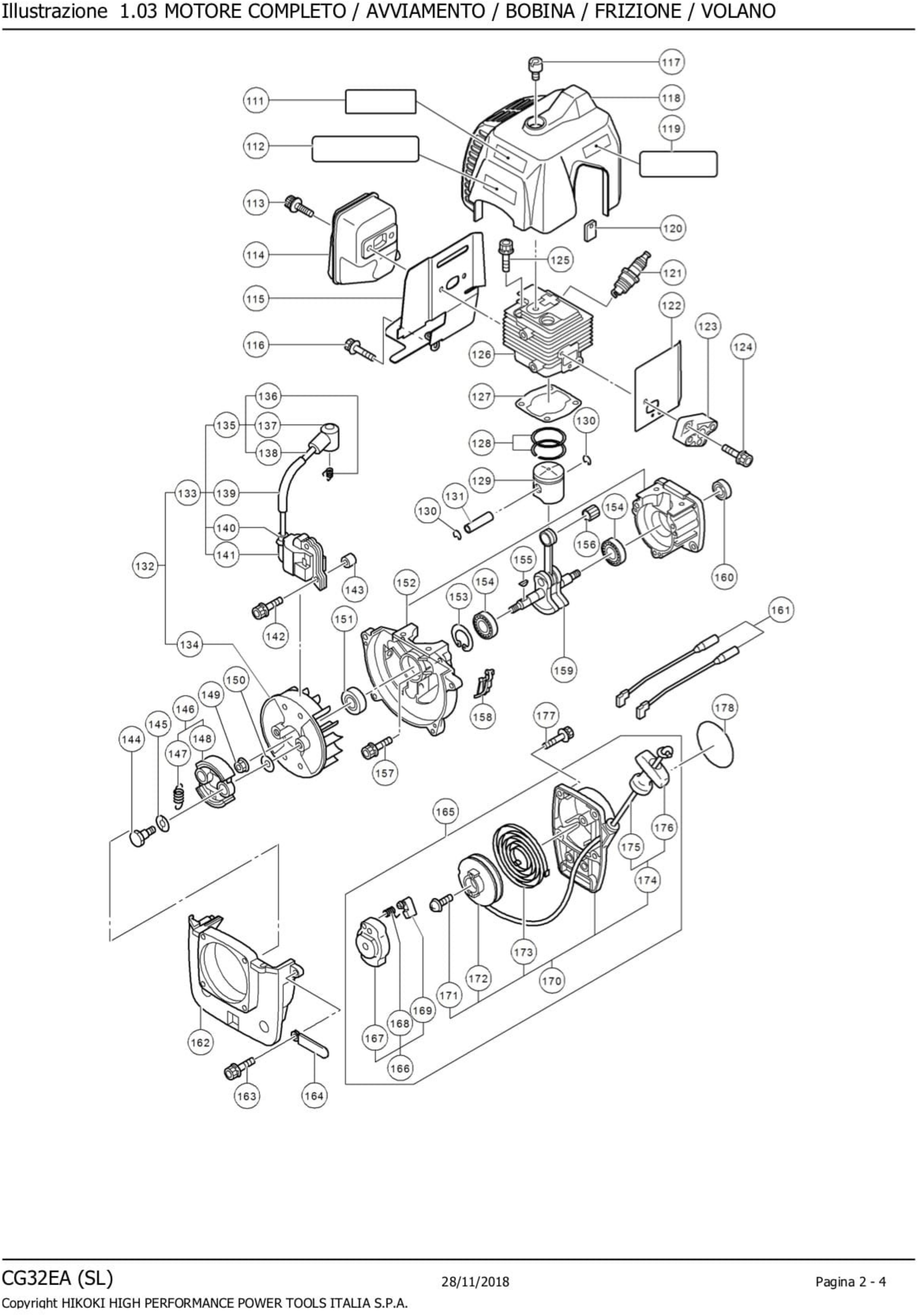

Esploso pagina 3
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
122
 photo_cameraImage coming soon 683160 MANIFOLD GASKET €5.67
126
 photo_cameraImage coming soon 683157 CYLINDER CG32EA €132.82
127
 Cylinder Gasket for Brushcutter Hitachi CG32EA (SL) 683158 Cylinder Gasket for Brushcutter Hitachi CG32EA (SL) €2.74
128
 Piston Ring for Brushcutter Hitachi CG32EA (SL) 683172 Piston Ring for Brushcutter Hitachi CG32EA (SL) €8.44
129
 Piston for Brushcutter Hitachi CG32EA (SL) 683171 Piston for Brushcutter Hitachi CG32EA (SL) €32.78
130
 photo_cameraImage coming soon 683175 CIR CLIP CG32EA €1.78
131
 photo_cameraImage coming soon 683173 PISTON PIN CG32EA €6.74
133
 photo_cameraImage coming soon 683056 IGNITION COIL INCLUDES 135, 139-141 €88.14
144
 photo_cameraImage coming soon 683050 SPECIAL BOLT M6 €3.89
145
 photo_cameraImage coming soon 683052 WAVY WASHER €2.97
146
 photo_cameraImage coming soon 683177 CG32EA CLUTCH INCLUDES 147, 148 €40.30
150
 photo_cameraImage coming soon 683051 WASHER €2.97
155
 photo_cameraImage coming soon 683064 KEY CG51EA €1.78
165
 photo_cameraImage coming soon 683182 STARTING INCLUDES 166, 170 €66.81
166
 photo_cameraImage coming soon 683190 STARTER JOINT CG32EA INCLUDES 167-169 €22.41
168
 photo_cameraImage coming soon 683192 RETURN SPRING €2.23
169
 photo_cameraImage coming soon 683191 STARTER HOOK CG32EA €5.08
170
 photo_cameraImage coming soon 683183 RECOIL STARTER CG32EA INCLUDES 171-174 €42.08
172
 photo_cameraImage coming soon 683188 REEL CG32EA €13.11
Page 4 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

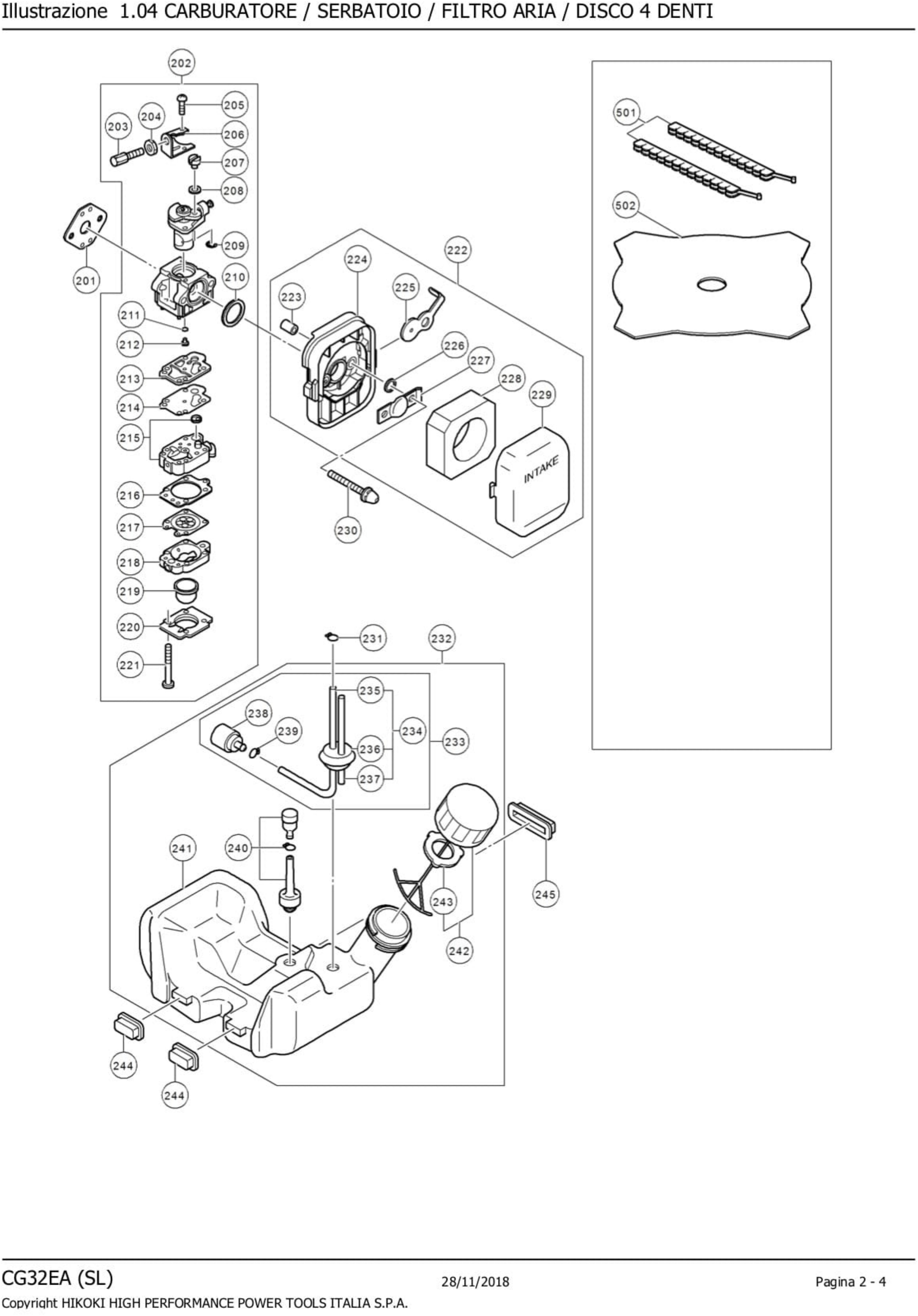

Esploso pagina 4
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
201
 photo_cameraImage coming soon 683104 CARBURETOR GASKET €2.82
203
 photo_cameraImage coming soon 683199 SPECIAL SCREW CG32EA €8.08
204
 photo_cameraImage coming soon 683083 CG32EA SPECIAL WASHER €1.78
213
 photo_cameraImage coming soon 683092 GASKET CG32EA €7.65
214
 photo_cameraImage coming soon 683093 CG32EA DIAPHRAGM €12.16
217
 photo_cameraImage coming soon 683096 MEMBRANE CG23EA €26.03
219
 photo_cameraImage coming soon 683098 Air Purge Pump €8.82
220
 photo_cameraImage coming soon 683099 PRIMER COVER €10.05
224
 photo_cameraImage coming soon 683203 CG32EA AIR FILTER CARCASS €11.00
229
 photo_cameraImage coming soon 683204 CG32EA AIR FILTER COVER €10.68
231
 photo_cameraImage coming soon 683122 SEEGER CG23EA €2.23
232
 photo_cameraImage coming soon 683210 COMPLETE TANK INCLUDES 233, 240-242 €88.55
239
 photo_cameraImage coming soon 683122 SEEGER CG23EA €2.23
240
 photo_cameraImage coming soon 683115 CG23EA BREATHER €12.38
242
 photo_cameraImage coming soon 683113 COMPLETE PLUG INCLUDES 243 €10.05
245
 photo_cameraImage coming soon 683216 TANK RUBBER €2.26
503
 photo_cameraImage coming soon HTA781302 NYLON HEAD SEMI-AUT. 109MM M8X1.25 LH €19.90

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Hitachi Spare Parts for Engine Brushcutter CG32EA (SL)

Hitachi-HIKOKI Tanaka authorized service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Engine Brushcutter CG32EA (SL).

In the following table, look for the model of the Brush Cutters and ripettivo spare part.
Hitachi CG32EA (SL)
ENGINE BRUSHCUTTER CG32EA (SL) pag.1
# Part Num. Description
1 683002 COMPLETE BELT
2 683125 CLUTCH CASE ASS'Y INCLUDES 3-9
3 683127 BALL BEARING 6000 ZZ
4 683128 SNAP RING H26
5 683132 DRIVESHAFT TUBE ADAPTER
6 683129 BUFFER
7 683130 WASHER
8 683126 BEARING CASE
9 683131 SCREW (W / SP.WASHER) M5 X 15
10 683001 BOLT M5 X 20 WSW
11 683014 BOLT M5 X 25 SW
12 682981 CLUTCH CAMPANA
21 682985 HANGING BRACKET ASS'Y INCLUDES 22
22 682986 BOLT M5 X 15
24 682987 LOOPE HANDLE ASS'Y INCLUDES 25-28
25 682990 SCREW M5 X 28 SW
26 682988 LOOPE HANDLE
27 682989 PACKING
28 949555 NUT M5
29 683147 IMP. ACCEL. COMPL. CG32EA
30 683133 AUCTION
31 683146 DRIVESHAFT TUBE ASS'Y
35 683143 PARAGAMBE CG32EA INCLUDES 36-38
36 682994 BOLT M6X30 SW
37 683144 BRACKET
38 683145 THREADED BRACKET
39 949555 NUT M5
40 683000 PLANE WASHER M5
41 682995 PROTECTION CG42 INCLUDES 42, 45-47
42 682997 BOLT M5 X 25 W
43 682999 BOLT M5 X 15 WSW
44 682998 EXTENSION PROT. BLADE CG23EA
45 682996 KNIFE CG23EA
46 949454 GROWER M5 WASHER
47 949555 NUT M5
ENGINE BRUSHCUTTER CG32EA (SL) pag.2
71 683019 BOLT M5 X 12
72 683148 HEAD INCLUDES 73-88
73 683018 BOLT M8X22 SX
74 683017 LOWER CUP CG23EA
75 683016 FLANGE DISC
76 683015 FLANGE DISC
77 683010 SNAP RING
78 683009 BALL BEARING
79 683153 BLADE SHAFT
80 683151 BALL BEARING
81 683150 BOLT M8X10
82 683014 BOLT M5 X 25 SW
83 683149 GEAR CASE
84 683154 BALL BEARING
85 683011 BALL BEARING
86 683012 RING
87 683013 SNAP RING
88 683152 GEAR SETS
ENGINE BRUSHCUTTER CG32EA (SL) pag.3
113 683164 CAP SCREW
114 683161 MUFFLER COMPLETE
115 683162 GASKET COMPLETE
116 683033 CAP SCREW
117 683166 KNOB
118 683165 TOP COVER
119 683351 CAUTION LABEL (B) NEW
120 683181 GROMMET
122 683160 MANIFOLD GASKET
123 683159 INSULATOR
124 683029 CAP SCREW
125 683087 CAP SCREW
126 683157 CYLINDER CG32EA
127 683158 GASKET CG32EA
128 683172 PISTON RING CG32EA
129 683171 PISTON CG32EA
130 683175 CIR CLIP CG32EA
131 683173 PISTON PIN CG32EA
132 683054 MAGNET ASS'Y INCLUDES 133, 134
133 683056 IGNITION COIL INCLUDES 135, 139-141
134 683055 ROTOR-FAN
135 683058 CORD ASS'Y INCLUDES 136-138
136 683061 CONNECTOR
137 683060 PLUG CAP
138 683059 CORD
139 683063 TUBE
140 683062 POSTAL CODE
141 683057 COIL
142 683067 CAP SCREW
143 683066 SPACER
144 683050 SPECIAL BOLT M6
145 683052 WAVY WASHER
146 683177 CG32EA CLUTCH INCLUDES 147, 148
147 683179 SPRING CLUTCH
148 683178 CLUTCH SHOE
149 683065 NUT
150 683051 WASHER
151 683169 OIL SEAL
152 683167 CRANK CASE
153 683170 SNAP RING
154 683168 BALL BEARING
155 683064 KEY CG51EA
156 683174 NEEDLE BEARING
157 683040 CAP SCREW
158 683194 SCREEN
159 683176 CRANK SHAFT
160 683039 OIL SEAL
161 683069 LEAD
162 683180 FAN COVER
163 683087 CAP SCREW
164 683088 CLAMP SCREW
165 683182 STARTING INCLUDES 166, 170
166 683190 STARTER JOINT CG32EA INCLUDES 167-169
167 683193 STARTER PULLEY
168 683192 RETURN SPRING
169 683191 STARTER HOOK CG32EA
170 683183 RECOIL STARTER CG32EA INCLUDES 171-174
171 683189 SCREW
172 683188 REEL CG32EA
173 683187 SPIRAL SPRING
174 683184 ROPE ASS'Y INCLUDES 175, 176
175 683186 ROPE
176 683185 STARTER GRIP
177 683163 CAP SCREW
ENGINE BRUSHCUTTER CG32EA (SL) pag.4
201 683104 CARBURETOR GASKET
202 683195 CARBURETOR ASS'Y INCLUDES 203-221
203 683199 SPECIAL SCREW CG32EA
204 683083 CG32EA SPECIAL WASHER
205 683197 SCREW
206 683198 BRACKET
207 683102 SWIVEL
208 683201 WASHER
209 683101 RING
210 683200 FRAME
211 683090 O-RING
212 683196 MAIN JET
213 683092 GASKET CG32EA
214 683093 CG32EA DIAPHRAGM
215 683094 PUMP BODY
216 683095 GASKET
217 683096 MEMBRANE CG23EA
218 683097 PURGE BODY
219 683098 PRIMER
220 683099 PRIMER COVER
221 683100 SCREW
222 683202 AIR CLEANER ASS'Y INCLUDES 223-229
223 683207 SLEEVE
224 683203 CG32EA AIR FILTER CARCASS
225 683208 CHOKE VALVE
226 683206 WASHER
227 683209 PLATE
228 683205 CG32EA AIR FILTER
229 683204 CG32EA AIR FILTER COVER
230 683110 CAP SCREW
231 683122 SEEGER CG23EA
232 683210 COMPLETE TANK INCLUDES 233, 240-242
233 683212 FUEL PIPE INCLUDES 234, 238, 239
234 683213 FUEL PIPE ASS'Y INCLUDES 235-237
235 683214 FUEL PIPE
236 683118 GROMMET
237 683120 RETURN PIPE
238 683121 FUEL FILTER ASS'Y
239 683122 SEEGER CG23EA
240 683115 CG23EA BREATHER
241 683211 FUEL TANK ASS'Y
242 683113 COMPLETE PLUG INCLUDES 243
243 683114 PACKING
244 683215 PAD
245 683216 TANK RUBBER
501 683155 BLADE COVER
502 683156 CUTTER BLADE 255MM-D25 4 HOLE-NT4
503 HTA781302 NYLON HEAD SEMI-AUT. 109MM M8X1.25 LH
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Hitachi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to hitachi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Hitachi CG32EA (SL)
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Drawing Hitachi CG32EA (SL)

Drawing Hitachi CG32EA (SL)

Download (467KB)

You might also like

Cylinder for Brushcutter Hitachi Tanaka CG40EAS
HiKOKI Power Tools Italia S.p.a. SKU: 790114
Cylinder for Brushcutter Hitachi Tanaka CG40EAS
Cylinder for Brushcutter Hitachi Tanaka CG40EAS Original spare part Hitachi HIKOKI Tanaka, Cylinder for Brushcutter CG40EAS. Part for the following products: -  Brushcutter Hitachi HIKOKI CG40EAS - Tanaka Code:...
Out-of-Stock €42.41
Details
Piston Ring for Brushcutter Hitachi Tanaka CG31EBS
HiKOKI Power Tools Italia S.p.a. SKU: 791169
Piston Ring for Brushcutter Hitachi Tanaka CG31EBS
Piston Ring for Brushcutter Hitachi Tanaka CG31EBS Original spare part Hitachi Koky Tanaka, Piston Ring for Brushcutter CG31EBS Part for the following products: -  Brushcutter Hitachi CG31EBS (LP) - Code: 791169
on 7/10 Business Days Approx €5.17
Details
Cylinder Gasket for Brushcutter Hitachi Tanaka CG31EBS
HiKOKI Power Tools Italia S.p.a. SKU: 791174
Cylinder Gasket for Brushcutter Hitachi Tanaka CG31EBS
Cylinder Gasket for Brushcutter Hitachi Tanaka CG31EBS Genuine spare part Hitachi Koky Tanaka, Cylinder Gasket for Brushcutter CG31EBS Part for the following products: -  Brushcutter Hitachi CG31EBS (LP) - Tanaka Code: 791174
AVAILABLE €5.17
Details
Air Filter for Brushcutter Hitachi Tanaka CG31EBS
HiKOKI Power Tools Italia S.p.a. SKU: 791190
Air Filter for Brushcutter Hitachi Tanaka CG31EBS
Air Filter for Brushcutter Hitachi Tanaka CG31EBS Original spare part Hitachi, Cleaner Element for Brushcutter CG31EBS Part for the following prdoducts: -  Brushcutter Hitachi CG31EBS - Tanaka Code: 791190
AVAILABLE €5.17
Details
Air Cleaner Cover for Brushcutters Hitachi CG31EBS
HiKOKI Power Tools Italia S.p.a. SKU: 791191
Air Cleaner Cover for Brushcutters Hitachi CG31EBS
Air Cleaner Cover for Brushcutters Hitachi CG31EBS Original spare Hitachi Koky Tanaka, Air Cleaner Cover for Brushcutters Hitachi Tanaka CG31EBS. Parts for the following products: - BRUSHCUTTER CG31EBS - Code: 791191
AVAILABLE €11.29
Details
Piston for Brushcutter Hitachi Tanaka CG40EAS
HiKOKI Power Tools Italia S.p.a. SKU: 790109
Piston for Brushcutter Hitachi Tanaka CG40EAS
Piston for Brushcutter Hitachi Tanaka CG40EAS Genuine spare part Hoitachi Koky Tanaka, Piston for Brushcutter CG40EAS Part for the following products: -  Brushcutter Hitachi CG40EAS (LP)/(LA) -...
AVAILABLE €15.81
Details
Ignition Coil for Brushcutter Hitachi Tanaka CG31EBS
HiKOKI Power Tools Italia S.p.a. SKU: 791217
Ignition Coil for Brushcutter Hitachi Tanaka CG31EBS
Ignition Coil for Brushcutter Hitachi Tanaka CG31EBS Genuine parts for Hitachi Koky Tanaka, Ignition Coil for Brushcutter CG31EBS(LP). Parts for the following article: -  Brushcutter...
Out-of-Stock €69.72
Details
Cleaner Gasket for Brushcutter Hitachi CG31EBS
HiKOKI Power Tools Italia S.p.a. SKU: 791187
Cleaner Gasket for Brushcutter Hitachi CG31EBS
Cleaner Gasket for Brushcutter Hitachi CG31EBS Genuine spare part Hitachi HIKOKI Tanaka, Cleaner Gasket for Brushcutter CG31EBS Part for the following products: -  Brushcutter Hitachi...
AVAILABLE €1.58
Details
Carburetor Gasket for Brushcutter Hitachi CG31EBS
HiKOKI Power Tools Italia S.p.a. SKU: 791185
Carburetor Gasket for Brushcutter Hitachi CG31EBS
Carburetor Gasket for Brushcutter Hitachi CG31EBS Genuine spare part Hitachi Koky Tanaka, Carburetor Gasket for Brushcutter CG31EBS Part for the following products: -  Brushcutter Hitachi CG31EBS - Code...
AVAILABLE €3.43
Details
Muffler Gasket for Brushcutter Hitachi CG31EBS
HiKOKI Power Tools Italia S.p.a. SKU: 791219
Muffler Gasket for Brushcutter Hitachi CG31EBS
Muffler Gasket for Brushcutter Hitachi CG31EBS Genuine spare part Hitachi Koky Tanaka, Muffler Gasket for Brushcutter CG31EBS Part for the following products: - Brushcutter Hitachi CG31EBS - Code : 791219
AVAILABLE €8.54
Details
Ignition Coil Spacer for Brushcutter Hitachi Tanaka CG31EBS
HiKOKI Power Tools Italia S.p.a. SKU: 791176
Ignition Coil Spacer for Brushcutter Hitachi Tanaka CG31EBS
Ignition Coil Spacer for Brushcutter Hitachi Tanaka CG31EBS Genuine parts for Hitachi Koky Tanaka, Ignition Coil Spacer for Brushcutter CG31EBS Parts for the following article: - Brushcutter Hitachi CG31EBS - Code: 791176
on 7/10 Business Days Approx. €3.43
Details
Carburator WYC-14 for Brushcutter Hitachi Tanaka CG31EBS
HiKOKI Power Tools Italia S.p.a. SKU: 791186
Carburator WYC-14 for Brushcutter Hitachi Tanaka CG31EBS
Carburator WYC-14 for Brushcutter Hitachi Tanaka CG31EBS Genuine replacement part Hitachi HIKOKI Tanaka, Carburator WYC-14 for Brushcutter CG31EBS. Part for the following products: -  Brushcutter...
AVAILABLE €58.36
Details
Piston for Brushcutter Hitachi CG32EA (SL)
HiKOKI Power Tools Italia S.p.a. SKU: 683171
Piston for Brushcutter Hitachi CG32EA (SL)
Piston for Brushcutter Hitachi CG32EA (SL) Original spare part Hitachi-HIKOKI Tanaka, Piston for Brushcutter CG32EA (SL) Part for the following products: -  Brushcutter Hitachi-HIKOKI CG32EA...
AVAILABLE €32.78
Details
Cylinder Gasket for Brushcutter Hitachi CG32EA (SL)
HiKOKI Power Tools Italia S.p.a. SKU: 683158
Cylinder Gasket for Brushcutter Hitachi CG32EA (SL)
Cylinder Gasket for Brushcutter Hitachi CG32EA (SL) Original spare part Hitachi-HIKOKI Tanaka, Cylinder Gasket for Brushcutter CG32EA (SL) Part for the following products: - ...
AVAILABLE €2.74
Details
Comments (0)
