Hitachi Parts for Engine Hedge Trimmer CH66EB (ST)

SKU: Hitachi CH66EB (ST)
€0.94
VAT included

Hitachi Parts for Engine Hedge Trimmer CH66EB (ST)

Hitachi Original spare parts at attractive and competitive prices on the web, we are a licensed service center with a repair service able to quickly solve the maintenance or repair any issues for Engine Hedge Trimmer CH66EB (ST).

Fix Your Engine Hedge Trimmer CH66EB (ST). All Spares can be supplied at discounted prices. Our Spares are Genuine.

Tanaka Spare Parts for Engine Hedgecutter CH66EB (ST)
  • Tanaka Spare Parts for Engine Hedgecutter CH66EB (ST)
  • Tanaka Spare Parts for Engine Hedgecutter CH66EB (ST)
  • Tanaka Spare Parts for Engine Hedgecutter CH66EB (ST)
  • Tanaka Spare Parts for Engine Hedgecutter CH66EB (ST)
  • Tanaka Spare Parts for Engine Hedgecutter CH66EB (ST)
  • Tanaka Spare Parts for Engine Hedgecutter CH66EB (ST)
  • Tanaka Spare Parts for Engine Hedgecutter CH66EB (ST)
  • Tanaka Spare Parts for Engine Hedgecutter CH66EB (ST)
  • Tanaka Spare Parts for Engine Hedgecutter CH66EB (ST)
  • Tanaka Spare Parts for Engine Hedgecutter CH66EB (ST)
HiKOKI Power Tools Italia S.p.a.

Hitachi Parts for Engine Hedge Trimmer CH66EB (ST)

SKU: Hitachi CH66EB (ST) Condition: New
€0.94
VAT included

Hitachi Parts for Engine Hedge Trimmer CH66EB (ST)

Hitachi Original spare parts at attractive and competitive prices on the web, we are a licensed service center with a repair service able to quickly solve the maintenance or repair any issues for Engine Hedge Trimmer CH66EB (ST).

Fix Your Engine Hedge Trimmer CH66EB (ST). All Spares can be supplied at discounted prices. Our Spares are Genuine.

settings 153 Spare parts
description 9 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN: Usually Ships in 10/15 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal PayPal Pay in 3 Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
153 spare parts

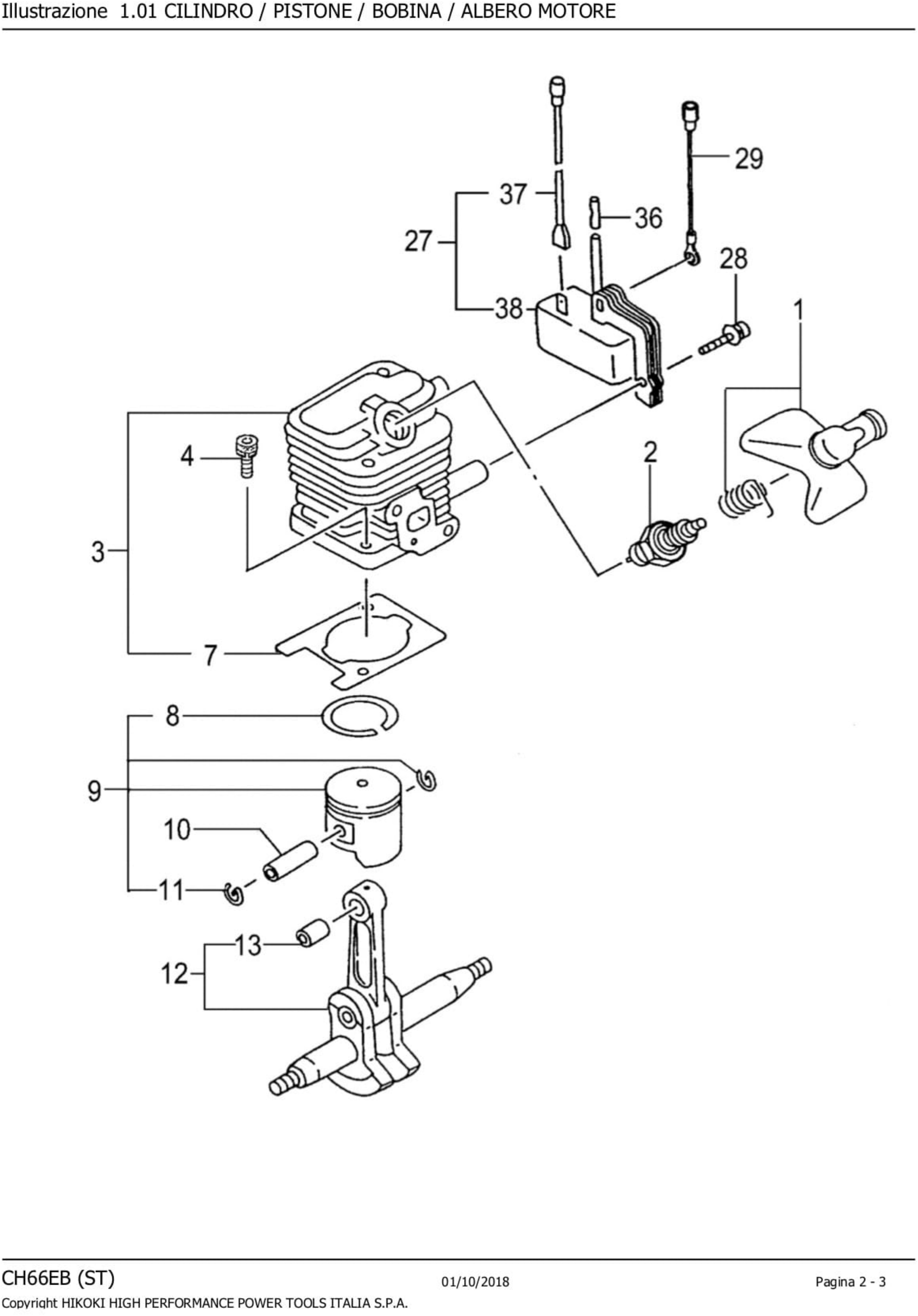

Page 1 zoom_in View exploded local_shipping Usually Ships in 10/15 BUSINESS DAYS
Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 6687476 SPARK PLUG CAP €9.70
3
 photo_cameraImage coming soon 6685480 CYLINDER WITH GASKET €67.04
4
 Bolt M5X18/S for Chainsaws Hitachi CS38EK-CS45EL 6684586 Bolt M5X18/S for Chainsaws Hitachi CS38EK-CS45EL €2.38
7
 photo_cameraImage coming soon 6685744 CYLINDER GASKET €2.38
8
 Piston Ring for Hedge Trimmer Tanaka THT 210 6686118 Piston Ring for Hedge Trimmer Tanaka THT 210 €9.70
9
 photo_cameraImage coming soon 6685892 PISTON WITH RINGS(2) AND RETAINERS(2) €34.10
10
 Piston Pin for Brushcutter Hitachi Tanaka CG22EAS 6696944 Piston Pin for Brushcutter Hitachi Tanaka CG22EAS €7.26
11
 photo_cameraImage coming soon 6686028 PISTON PIN CIRCLIP €1.16
12
 photo_cameraImage coming soon 6686205 CRANK SHAFT COMP. €207.34
13
 photo_cameraImage coming soon 6695589 BEARING €10.92
27
 photo_cameraImage coming soon 6695589 BEARING €10.92
28
 photo_cameraImage coming soon 6684599 HEX.HOLE BOLT M4X18/WS €0.00 Not available for order
29
 photo_cameraImage coming soon 6688461 IGNITION COIL CABLE €0.00 Not available for order
36
 Insulator Tube for Chainsaw Hitachi CS25EC-SC 6684597 Insulator Tube for Chainsaw Hitachi CS25EC-SC €1.16 Not available for order
37
 photo_cameraImage coming soon 6687866 CABLE €0.00 Not available for order
38
 Ignition Coil for Hedge Trimmer Hitachi CH62EA(ST) 6695939 Ignition Coil for Hedge Trimmer Hitachi CH62EA(ST) €58.50 Not available for order

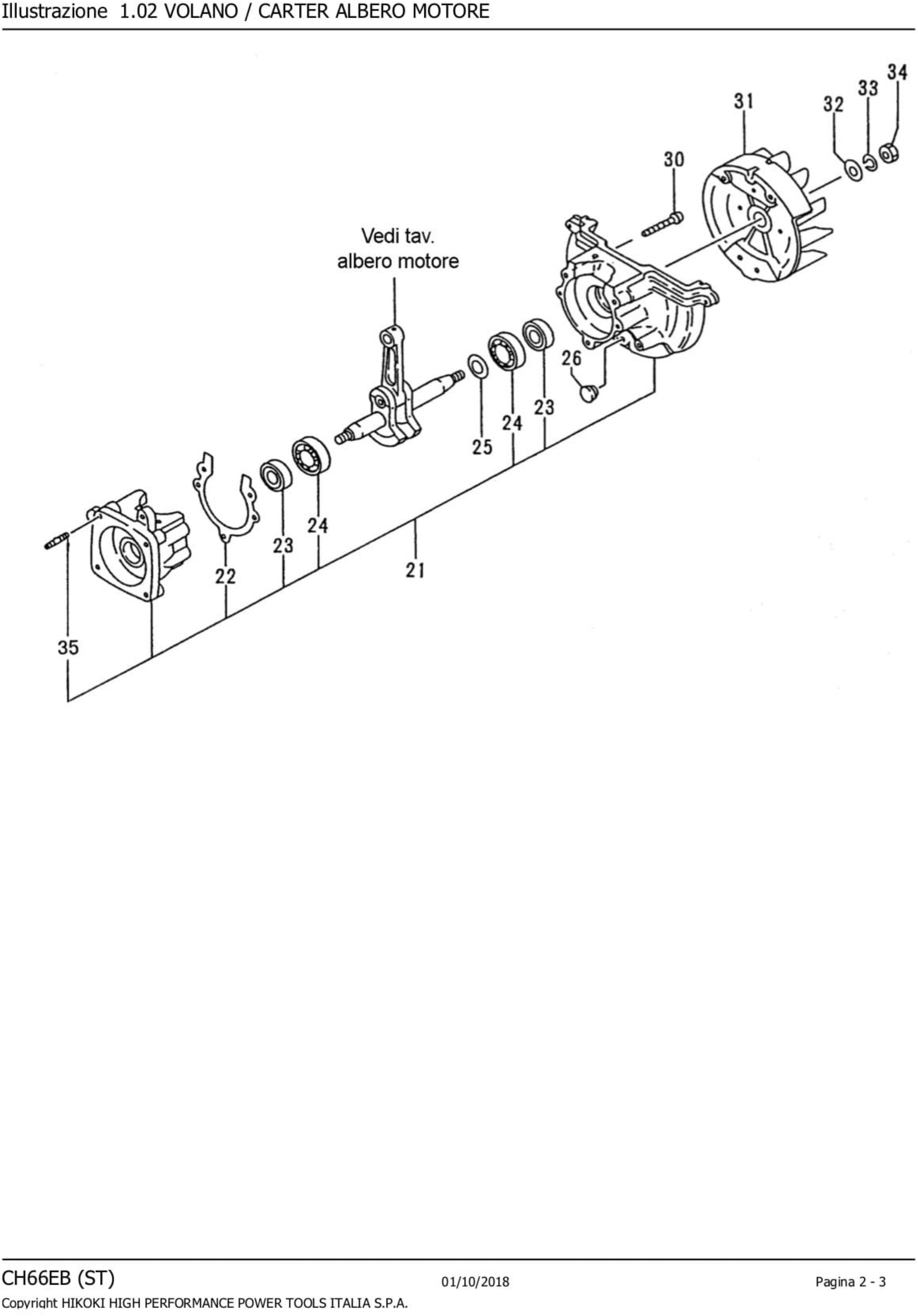

Page 2 zoom_in View exploded local_shipping Usually Ships in 10/15 BUSINESS DAYS
Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
21
 photo_cameraImage coming soon 6686574 CRANK CASE ASS'Y €119.50
22
 photo_cameraImage coming soon 6686720 CRANK CASE GASKET €1.16
23
 photo_cameraImage coming soon 6684607 OIL SEAL TB 12227 €3.60
24
 photo_cameraImage coming soon 6684608 BALL BEARING 6001 C3 €6.04
25
 photo_cameraImage coming soon 6684604 GEAR SHAFT SHIM 0.20 €0.00 Not available for order
25
 photo_cameraImage coming soon 6684605 GEAR SHAFT SHIM 0.30 €0.00 Not available for order
26
 photo_cameraImage coming soon 6691822 RUBBER €0.00 Not available for order
30
 photo_cameraImage coming soon 6684786 HEX. SOCKET HD. BOLT M5X30 S €1.16
31
 photo_cameraImage coming soon 6687389 MAGNETO ROTOR COMP. €48.74
32
 photo_cameraImage coming soon 6684611 BOLT WASHER M8 €1.16
33
 photo_cameraImage coming soon 6684971 WASHER 8 €2.38
34
 photo_cameraImage coming soon 6684612 HEX.NUT M8 €0.00 Not available for order
35
 photo_cameraImage coming soon 6686771 STUD BOLT 6X22 €1.16

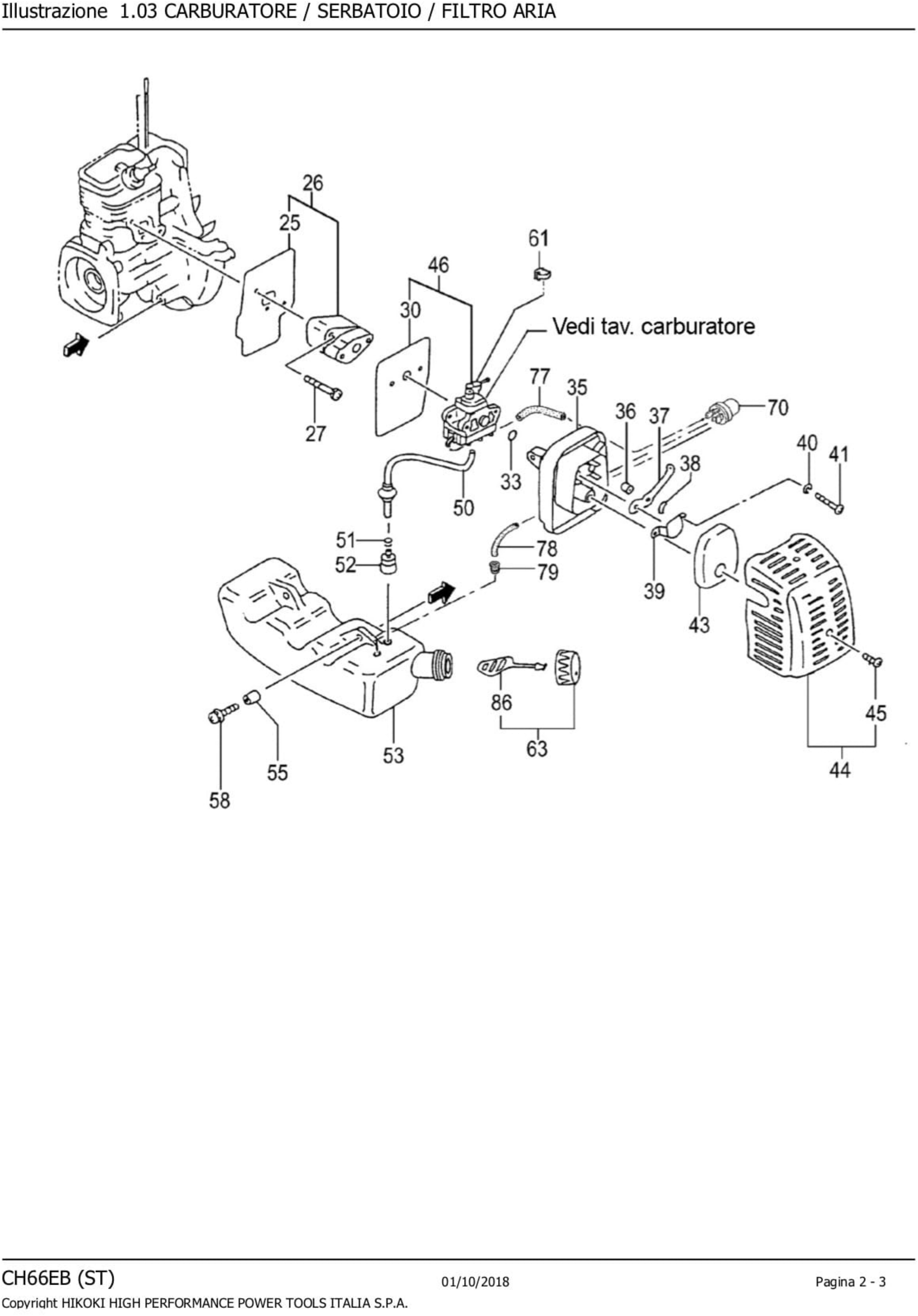

Page 3 zoom_in View exploded local_shipping Usually Ships in 10/15 BUSINESS DAYS
Esploso pagina 3
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
25
 photo_cameraImage coming soon 6689891 INTAKE PIPE GASKET €2.38
26
 photo_cameraImage coming soon 6689966 CARB. INSULATOR SET,SPARE €13.36
27
 photo_cameraImage coming soon 6695515 HEX HOLE BOLT 5X25WS €1.16
30
 photo_cameraImage coming soon 6689839 CARBURETOR GASKET €2.38
33
 photo_cameraImage coming soon 6695670 0-RING €0.00 Not available for order
35
 photo_cameraImage coming soon 6690119 CLEANER BODY COMP. €8.48 Not available for order
36
 photo_cameraImage coming soon 6690804 COLLAR 7.5 €0.00 Not available for order
37
 photo_cameraImage coming soon 6691274 CHOKE VALVE €3.60
38
 photo_cameraImage coming soon 6684658 WAVE WASHER 8 €2.38
39
 Blow Over Check Board for Brushcutter Hitachi CG40EAS 6690843 Blow Over Check Board for Brushcutter Hitachi CG40EAS €3.60
40
 Washer D. 5 for Chainsaw Hitachi CS45EL-CS38EK 6684662 Washer D. 5 for Chainsaw Hitachi CS45EL-CS38EK €1.16
41
 photo_cameraImage coming soon 6684660 SCREW M5X60 €0.00 Not available for order
43
 photo_cameraImage coming soon 6690364 CLEANER SPONGE €1.16
44
 photo_cameraImage coming soon 6690415 AIR FILTER COVER €10.92
45
 photo_cameraImage coming soon 6689737 SPECIAL SCREW €0.00 Not available for order
46
 photo_cameraImage coming soon 6690487 CARBURETOR SET, WYL120 €0.00 Not available for order
50
 Shield Tube for Chainsaw Hitachi Tanaka TCS-2801S 6685247 Shield Tube for Chainsaw Hitachi Tanaka TCS-2801S €6.04
51
 Hose Clip 6.3 D. for Brushcutters Chainsaws Hitachi Hikoki Tanaka 6684619 Hose Clip 6.3 D. for Brushcutters Chainsaws Hitachi Hikoki Tanaka €1.16
52
 photo_cameraImage coming soon 6698874 PESCANTE DOUBLE MIXTURE €23.12
53
 Fuel Tank for Hedge Trimmers Hitachi Tanaka CH78EC-C 6691582 Fuel Tank for Hedge Trimmers Hitachi Tanaka CH78EC-C €0.00 Not available for order
55
 Collar 5.8 for Brushcutter Hitachi CG47EJ-L 6692244 Collar 5.8 for Brushcutter Hitachi CG47EJ-L €1.16
58
 Hex Hole Bolt M5x18PS for Hedge Trimmer Tanaka THT 210 6695505 Hex Hole Bolt M5x18PS for Hedge Trimmer Tanaka THT 210 €2.38
61
 photo_cameraImage coming soon 6691337 SWIVEL CAP €2.38
63
 Tank Cap Ass'y (Orange) for Hedge Trimmer Tanaka THT 210 6691716 Tank Cap Ass'y (Orange) for Hedge Trimmer Tanaka THT 210 €13.36
70
 Priming Pump for Chain Saws and Brushcutters Hitachi Tanaka 6685139 Priming Pump for Chain Saws and Brushcutters Hitachi Tanaka €13.36
77
 photo_cameraImage coming soon 6692347 FUEL PIPE 2.5X4X80 €0.00 Not available for order
78
 photo_cameraImage coming soon 6692346 FUEL PIPE 2.5X4X70 €0.00 Not available for order
79
 RETURN GROMMET 6697846 RETURN GROMMET €2.38
86
 photo_cameraImage coming soon 6692059 CATENELLA TAPPO €1.16

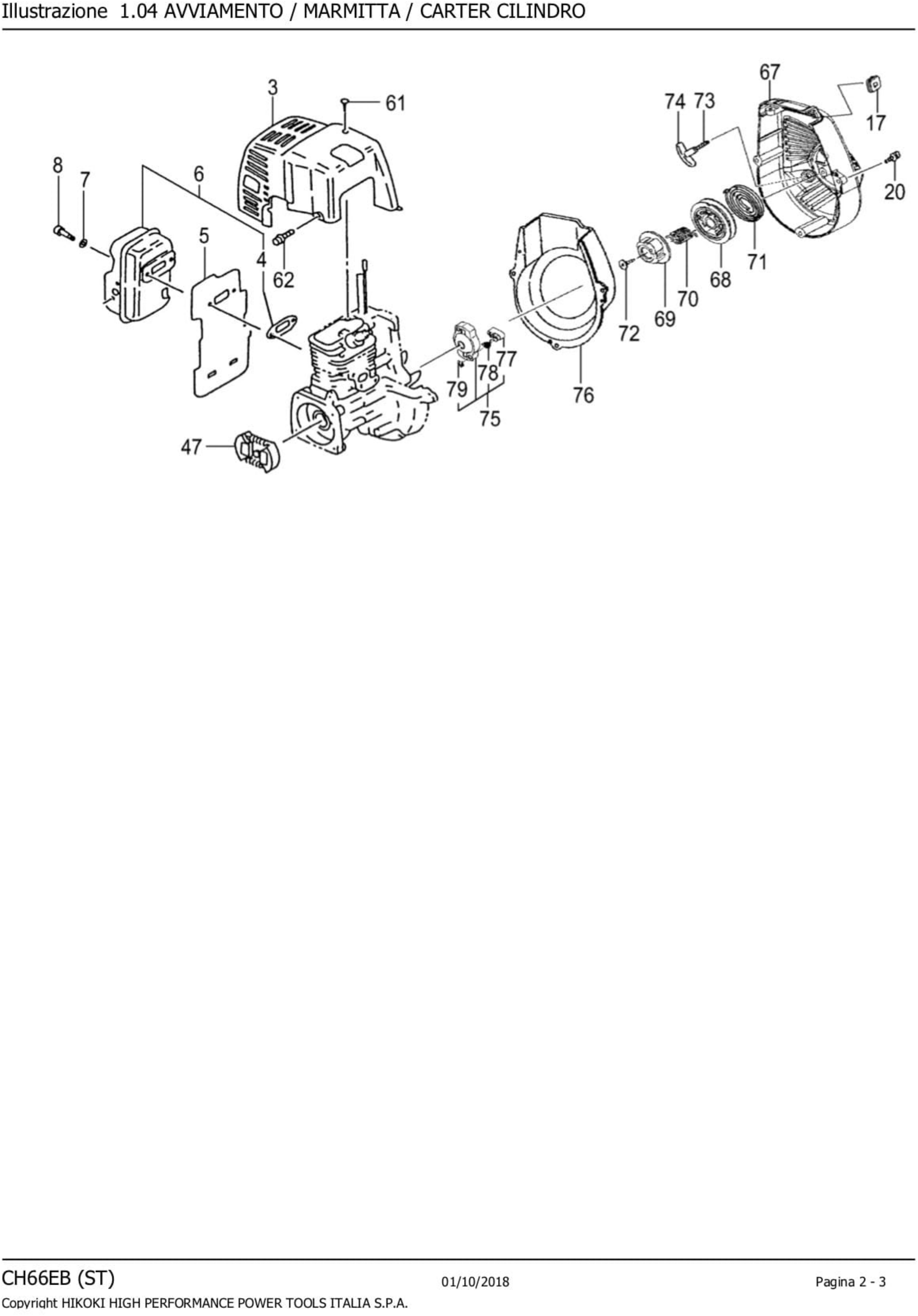

Page 4 zoom_in View exploded local_shipping Usually Ships in 10/15 BUSINESS DAYS
Esploso pagina 4
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
3
 photo_cameraImage coming soon 6692795 MUFFLER PROTECTION €12.14
4
 photo_cameraImage coming soon 6692744 MUFFLER GASKET €3.60
5
 photo_cameraImage coming soon 6687252 HEAT SHIELD €3.60
6
 photo_cameraImage coming soon 6692477 MUFFLER ASS'Y €52.40
7
 photo_cameraImage coming soon 6684661 WASHER 5 €1.16
8
 Hex Socket Hd Bolt M5X50 for Hedge Trimmer Tanaka THT 210 6685114 Hex Socket Hd Bolt M5X50 for Hedge Trimmer Tanaka THT 210 €1.16
17
 photo_cameraImage coming soon 6688050 GROMMET €1.16
20
 photo_cameraImage coming soon 6695502 HEX.HOLE BOLT 4X18PS €1.16
47
 photo_cameraImage coming soon 6688494 CLUTCH €0.00 Not available for order
61
 photo_cameraImage coming soon 6684636 TAPPING SCREW D4.5X16 €0.00 Not available for order
62
 photo_cameraImage coming soon 6695441 4X12PS SCREW €2.38
67
 Fan Case Comp. for Hedge Trimmer Hitachi CH62EA(ST) 6687014 Fan Case Comp. for Hedge Trimmer Hitachi CH62EA(ST) €37.76 Not available for order
68
 photo_cameraImage coming soon 6693072 STARTER ROPE REEL €9.70
69
 Cam Plate for Hedge Trimmer Hitachi CH62EA(ST) 6684678 Cam Plate for Hedge Trimmer Hitachi CH62EA(ST) €7.26
70
 Damper Spring for Brushcutters Hitachi CG22EAS-CG24EASP-CG27EASP 6684677 Damper Spring for Brushcutters Hitachi CG22EAS-CG24EASP-CG27EASP €14.58 Not available for order
71
 RECOIL SPRING 6684675 RECOIL SPRING €12.14
72
 Set Screw for Hedge Trimmer Hitachi CH62EA(ST) 6684679 Set Screw for Hedge Trimmer Hitachi CH62EA(ST) €7.26
73
 photo_cameraImage coming soon 6693172 ROPE 3X890 €3.60
74
 photo_cameraImage coming soon 6693237 STARTER HANDLE €4.82
75
 Starter Pulley for Bruschcutters Hitachi CG22EAS-CG24EASP-CG27-33EJ 6684681 Starter Pulley for Bruschcutters Hitachi CG22EAS-CG24EASP-CG27-33EJ €24.34
76
 photo_cameraImage coming soon 6687209 DEFLECTOR €10.92
77
 photo_cameraImage coming soon 6684685 STARTER PAWL €6.04
78
 photo_cameraImage coming soon 6684684 STARTER PAWL SPRING €3.60
79
 photo_cameraImage coming soon 6684683 STOP RING E5 €1.16
Page 5 zoom_in View exploded local_shipping Usually Ships in 10/15 BUSINESS DAYS

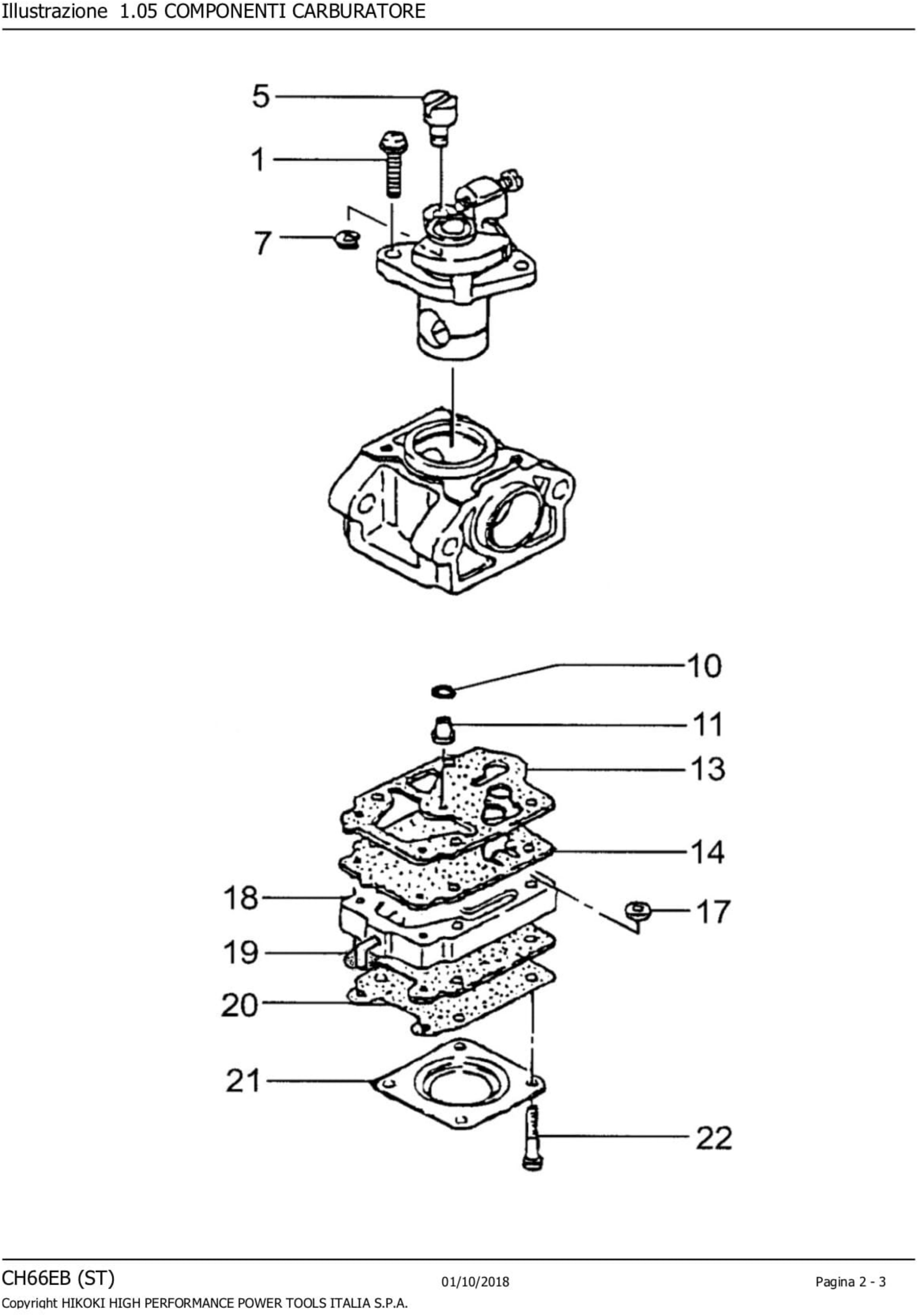

Esploso pagina 5
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 6684698 SCREW €3.60
5
 photo_cameraImage coming soon 6684697 SWIVEL €4.82
7
 photo_cameraImage coming soon 6684696 STOP RING €1.16
10
 photo_cameraImage coming soon 6684695 ORING €3.60
11
 photo_cameraImage coming soon 6691888 JET TO ES. 669-1888 €0.00 Not available for order
13
 photo_cameraImage coming soon 6691457 PUMP GASKET €9.70
14
 Pump Diaphragm for Chainsaw Hitachi CS33EB 6684693 Pump Diaphragm for Chainsaw Hitachi CS33EB €9.70
17
 Carburator Inlet Screen for Chainsaws and Bruschcutters Hitachi 6684700 Carburator Inlet Screen for Chainsaws and Bruschcutters Hitachi €3.60
18
 photo_cameraImage coming soon 6691430 BODY PUMP €0.00 Not available for order
19
 Diaphragm Packing Metering for Chainsaws Hitachi CS25-33-40-45-51 6685220 Diaphragm Packing Metering for Chainsaws Hitachi CS25-33-40-45-51 €3.60
20
 Metering Diaphragm Comp. for Chainsaws Hitachi CS25-33-40-45-51 6690827 Metering Diaphragm Comp. for Chainsaws Hitachi CS25-33-40-45-51 €24.34
21
 photo_cameraImage coming soon 6685222 DIAPHRAGM COVER €7.26
22
 photo_cameraImage coming soon 6691312 SET SCREW €2.38

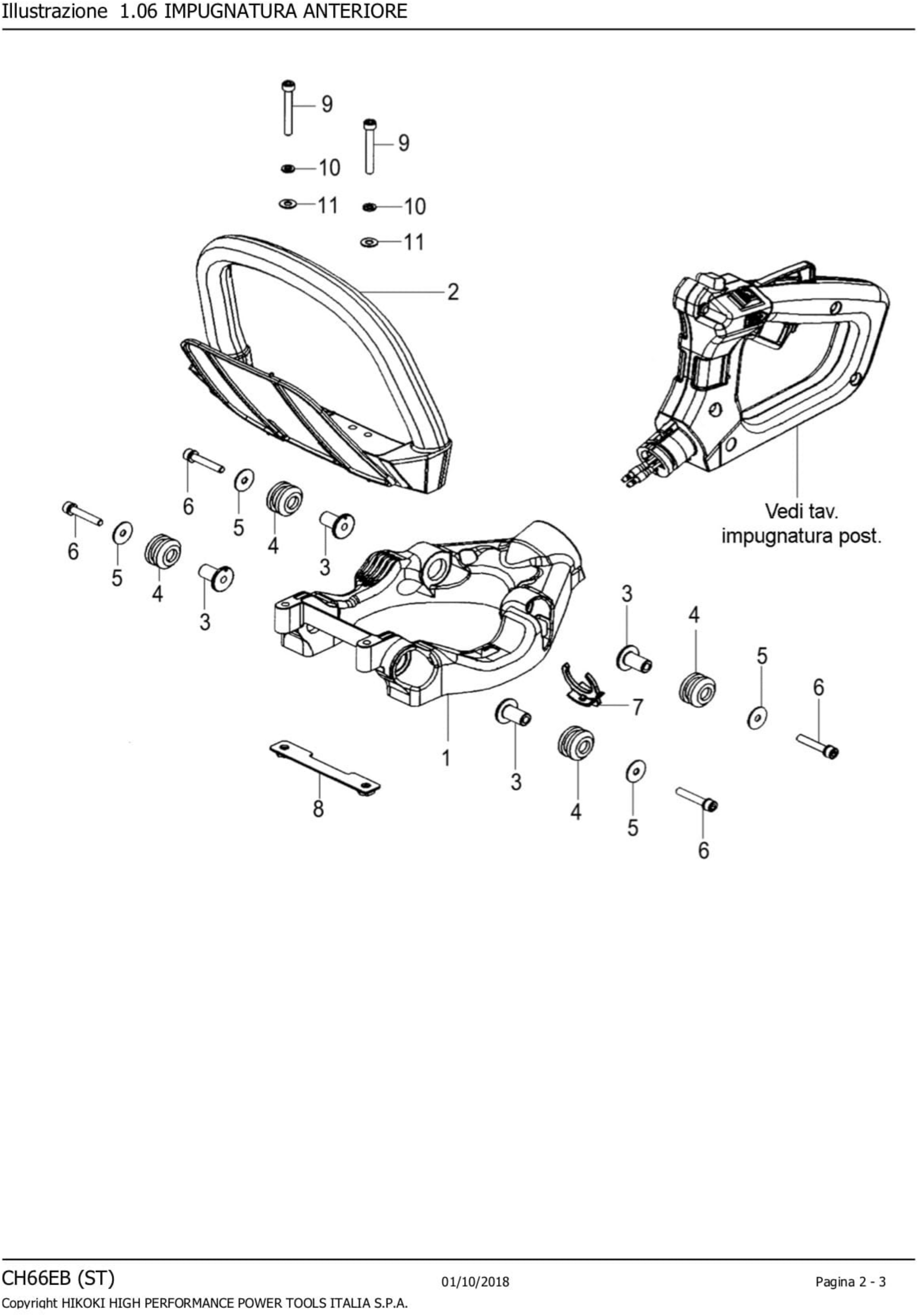

Page 6 zoom_in View exploded local_shipping Usually Ships in 10/15 BUSINESS DAYS
Esploso pagina 6
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 6688377 FLAME €12.14
2
 photo_cameraImage coming soon 6688096 HANDLE GUARD €15.80
3
 Tanaka TCS-3301S Damper Collar B 6688485 Tanaka TCS-3301S Damper Collar B €3.60
4
 Damper B for Hedge Trimmer Tanaka THT 210 6688412 Damper B for Hedge Trimmer Tanaka THT 210 €2.38
5
 photo_cameraImage coming soon 6689680 WASHER €0.00 Not available for order
6
 photo_cameraImage coming soon 6684786 HEX. SOCKET HD. BOLT M5X30 S €1.16
7
 photo_cameraImage coming soon 6696359 STOPPED €2.38
8
 Handle Support for Hedge Trimmer Tanaka THT 210 6686111 Handle Support for Hedge Trimmer Tanaka THT 210 €6.04
9
 photo_cameraImage coming soon 6695054 HEX. HOLE BOLT 5X40 €0.00 Not available for order
10
 Spring Washer 5 for Brushcutter Hitachi CG33EJ-SL 6684834 Spring Washer 5 for Brushcutter Hitachi CG33EJ-SL €1.16
11
 photo_cameraImage coming soon 6684918 WASHER M5 €2.38

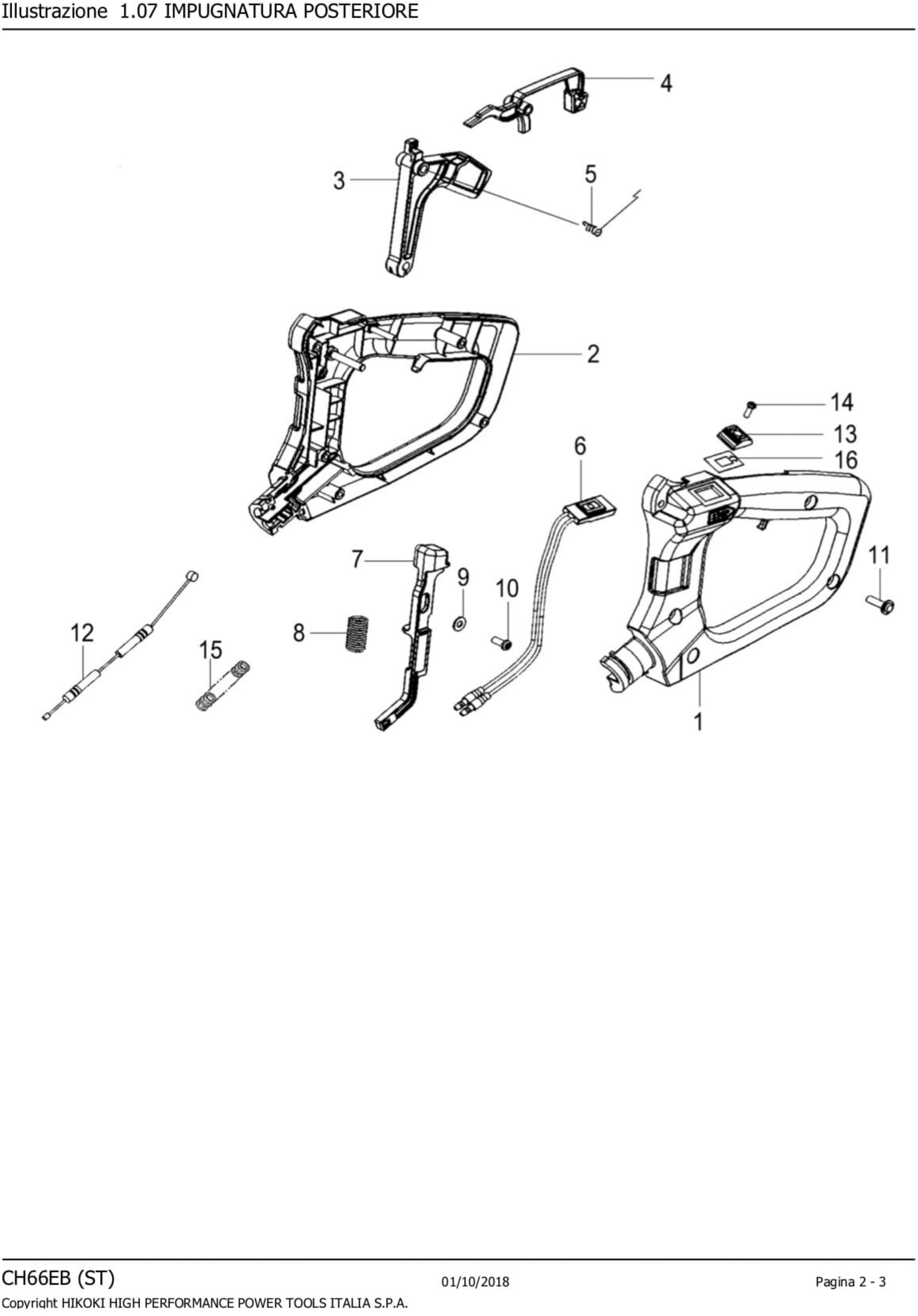

Page 7 zoom_in View exploded local_shipping Usually Ships in 10/15 BUSINESS DAYS
Esploso pagina 7
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 6686314 HANDLE B - SINCE C226131 FOR US €9.70
2
 photo_cameraImage coming soon 6686279 HANDLE A - SINCE C226131 FOR US €9.70
3
 photo_cameraImage coming soon 6688230 THROTTLE LEVER €2.38
4
 photo_cameraImage coming soon 6688240 SAFETY LEVER OR €2.38
5
 photo_cameraImage coming soon 6688244 SPRING LEVER ACCELERATOR €2.38
6
 photo_cameraImage coming soon 6687770 STOP BUTTON €15.80
7
 photo_cameraImage coming soon 6688246 LOCK LEVER €2.38
8
 photo_cameraImage coming soon 6688279 SPRING €2.38
9
 Oil Pump Setting Bolt Washer for Chainsaw Tanaka TCS-2800S 6685070 Oil Pump Setting Bolt Washer for Chainsaw Tanaka TCS-2800S €2.38
10
 Guide Plate Screw M4x10 for Chainsaw Hitachi CS25EC-SC 6685161 Guide Plate Screw M4x10 for Chainsaw Hitachi CS25EC-SC €1.16
11
 photo_cameraImage coming soon 6684636 TAPPING SCREW D4.5X16 €0.00 Not available for order
12
 photo_cameraImage coming soon 6693943 THROTTLE CABLE €8.48
13
 photo_cameraImage coming soon 6688366 BUTTON STOP €1.16
14
 photo_cameraImage coming soon 6684913 SCREW 3X10 €0.00 Not available for order
15
 photo_cameraImage coming soon 6687524 PROTECTION TUBE 150L €1.16
16
 photo_cameraImage coming soon 6694588 STOP SWITCH €2.38
Page 8 zoom_in View exploded local_shipping Usually Ships in 10/15 BUSINESS DAYS

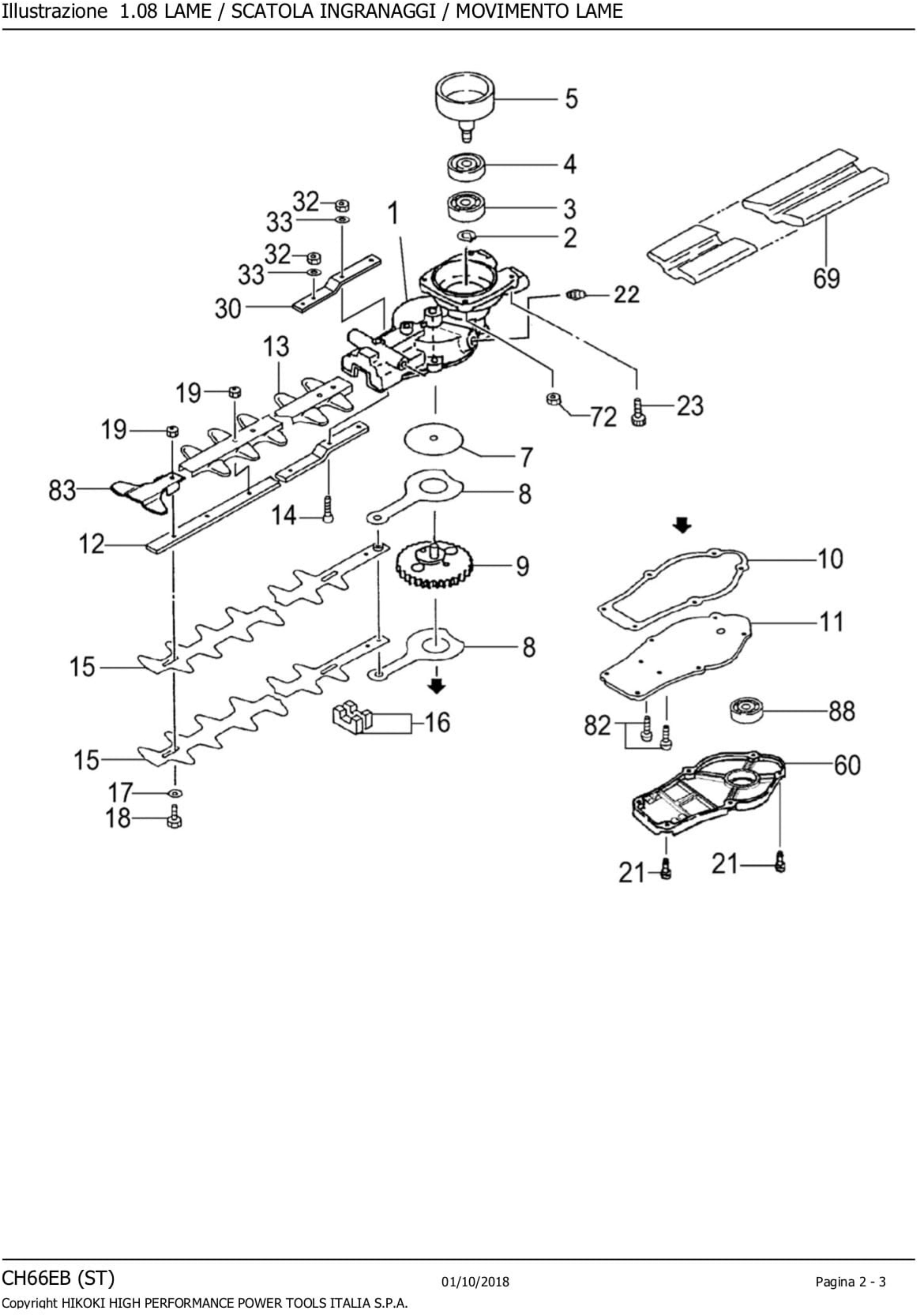

Esploso pagina 8
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 6688684 GEAR CASE COMP. €42.64 Not available for order
2
 Stop Ring C-15 for Hedge Trimmer Tanaka THT 210 THT 210 B 6695285 Stop Ring C-15 for Hedge Trimmer Tanaka THT 210 THT 210 B €1.16
3
 photo_cameraImage coming soon 6002C3 BEARING 6002C3 €7.26
4
 Ball Bearing 6002Z for Hedge Trimmer Hitachi CH62EA(ST) 6695538 Ball Bearing 6002Z for Hedge Trimmer Hitachi CH62EA(ST) €14.58
5
 Clutch Drum for Hedge Trimmers Tanaka THT 210-HTD2530PF 6688570 Clutch Drum for Hedge Trimmers Tanaka THT 210-HTD2530PF €46.30
7
 photo_cameraImage coming soon 6686612 PLATE €2.38
8
 Cam Rod for Hedge Trimmer Hitachi CH78EC3(ST) 6686811 Cam Rod for Hedge Trimmer Hitachi CH78EC3(ST) €19.46
9
 photo_cameraImage coming soon 6688625 GEAR 2 COMP. €48.74
10
 Gear Case Cover Gasket for Hedge Trimmer Hitachi CH62EA3 (ST) 6688909 Gear Case Cover Gasket for Hedge Trimmer Hitachi CH62EA3 (ST) €2.38 Not available for order
11
 photo_cameraImage coming soon 6692101 GEAR CASE COVER €0.00 Not available for order
12
 Cutter Guide (734MM) for Hedge Trimmer Tanaka THT 210 B 6687147 Cutter Guide (734MM) for Hedge Trimmer Tanaka THT 210 B €58.50 Not available for order
13
 photo_cameraImage coming soon 6687285 PROTECTION €0.00 Not available for order
14
 photo_cameraImage coming soon 6695075 HEX. HOLE FLUSH BOLT 6X25 €2.38
15
 696,5 mm Blade for Hedge Trimmer Tanaka THT 210 6687086 696,5 mm Blade for Hedge Trimmer Tanaka THT 210 €82.90 Not available for order
16
 Clean Blade Felt for Hedge Trimmers Tanaka THT 210-HTD2530PF 6686654 Clean Blade Felt for Hedge Trimmers Tanaka THT 210-HTD2530PF €2.38 Not available for order
17
 photo_cameraImage coming soon 6687187 WASHER 7 BLACK €2.38
18
 photo_cameraImage coming soon 6687158 FIXING BOLT A M6 €0.00 Not available for order
19
 photo_cameraImage coming soon 6695170 FLANGE NUT 6 €0.00 Not available for order
21
 photo_cameraImage coming soon 6684595 HEX. SOCKET HD. BOLT (W/SP.WASHER) M4X12 €1.16
22
 Grease Nipple for Hedgetrimmers Hitachi - HIKOKI - Tanaka 6688643 Grease Nipple for Hedgetrimmers Hitachi - HIKOKI - Tanaka €3.60
23
 photo_cameraImage coming soon 6695495 SCREW €0.00 Not available for order
30
 photo_cameraImage coming soon 6690762 SUPPORT PLATE €8.48
32
 photo_cameraImage coming soon 6695175 LOCK NUT 6 UPSP €1.16
33
 Bolt Washer 6 for Brushcutters Chainsaws Hitachi Hikoki Tanaka 6684639 Bolt Washer 6 for Brushcutters Chainsaws Hitachi Hikoki Tanaka €2.38
60
 photo_cameraImage coming soon 6688844 GEAR CASE B €28.00
69
 BLADE PROTECTION 6687302 BLADE PROTECTION €12.14
72
 photo_cameraImage coming soon 6695475 SPRING NUT 6 €1.16
82
 Hex Hole Bolt M4x10S for Hedgetrimmer Hitachi CH62EA 6695484 Hex Hole Bolt M4x10S for Hedgetrimmer Hitachi CH62EA €3.60
83
 photo_cameraImage coming soon 6687275 GUARD PLATE €4.82 Not available for order
88
 photo_cameraImage coming soon 6695547 BALL BEARING 608 ZZ C3 €10.92
Page 9 zoom_in View exploded local_shipping Usually Ships in 10/15 BUSINESS DAYS

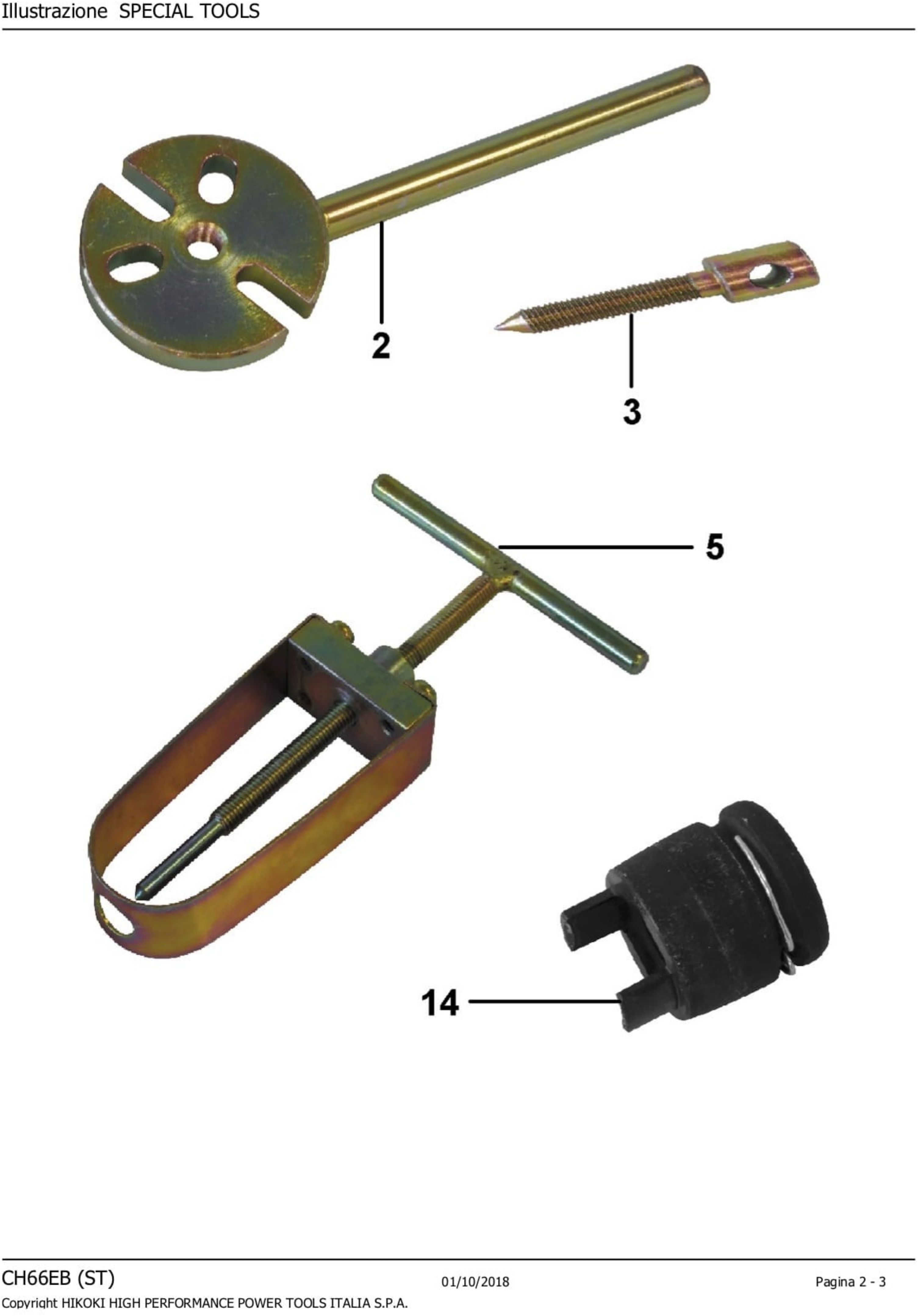

Esploso pagina 9
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
2
 photo_cameraImage coming soon HGA6695736 FLYWHEEL PULLER €0.00 Not available for order
3
 photo_cameraImage coming soon HGA6695737 FLYWHEEL PULLER BOLT €0.00 Not available for order
5
 photo_cameraImage coming soon HGA6695740 PISTON PIN PULLER €0.00 Not available for order
14
 photo_cameraImage coming soon HGA6695754 CLUTCH PULLER €0.00 Not available for order

Shipping and delivery information will be available shortly.

Hitachi Parts for Engine Hedge Trimmer CH66EB (ST)

Fix Your Engine Hedge Trimmer CH66EB (ST). All Spares can be supplied at discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of the Hedgecutter and the respective parts of the code.
Engine Hedge Trimmer CH66EB (ST)

ENGINE HEDGE Trimmer Hitachi CH66EB (ST)
1.01 CYLINDER / PISTON / COIL / CRANK SHAFT Pag.1
# Pat Num Description
1 6687476 SPARK PLUG CAP
3 6685480 CYLINDER CW/ GASKET
4 6684586 SCREW M5X18 / S
7 6685744 CYLINDER GASKET
8 6686118 PISTON RING
9 6685892 PISTON W/ RINGS (2) AND FERMI (2)
10 6696944 PISTON PIN
11 6686028 CIRCLIP
12 6686205 CRANKSHAFT W / BEARING
13 6695589 NEEDLE BEARING
27 6695589 NEEDLE BEARING
28 6684599 SCREW EX68-4599
29 6688461 IGNITION COIL CABLE
36 6684597 TUBE
37 6687866 CABLE
38 6695939 IGNITION COIL
1.02 FLYWHEEL / CRANK SHAFT HOUSING Pag.2
21 6686574 CRANKSHAFT CARTER
22 6686720 CARTER CRANKSHAFT GASKET
23 6684607 OIL SEAL TB 12227
24 6684608 BEARING 6001 C3 NSK
25 6684604 SPACER 0,20
25 6684605 SPACER 0.30
26 6691822 RUBBER
30 6684786 SCREW M5X30S
31 6687389 FLYWHEEL
32 6684611 WASHER M8
33 6684971 WASHER 8
34 6684612 NUT M8
35 6686771 STUD
1.03 CARBURATOR / TANK / AIR CLEANER Pag.3
25 6689891 GASKET
26 6689966 COLLECTOR C / GASKET
27 6695515 SCREW 5X25WS
30 6689839 GASKET
33 6695670 O-RING
35 6690119 FILTER BODY
36 6690804 BUSHING
37 6691274 VALVE
38 6684658 WAVY WASHER M8
39 6690843 VALVE
40 6684662 WASHER
41 6684660 SCREW M5X60
43 6690364 AIR FILTER
44 6690415 AIR FILTER COVER
45 6689737 SCREW
46 6690487 CARBURETOR WYL120 W/ GASKET
50 6685247 TUBE W / GROMMET
51 6684619 CLIP
52 6698874 DOUBLE MIXTURE FILTER
53 6691582 MIXTURE TANK
55 6692244 COLLAR 5.8
58 6695505 HEX HOLE SCREW 5X18PS
61 6691337 TANK CAP
63 6691716 ORANGE TANK CAP
70 6685139 PRIMER
77 6692347 TUBE MIX
78 6692346 TUBE
79 6697846 RUBBER
86 6692059 CHAIN CAP
1.04 RECOIL STARTER / MUFFLER / CYLINDER HOUSING Pag.4
3 6692795 MUFFLER PROTECTION
4 6692744 MUFFLER GASKET
5 6687252 THERMAL PROTECTION
6 6692477 COMPLETE MUFFLER
7 6684661 WASHER M5
8 6685114 SCREW M5X50
17 6688050 RUBBER
20 6695502 BOLT ESA
47 6688494 COMPLETE CLUTCH
61 6684636 SCREW D4.5X16
62 6695441 SCREW 4X12PS
67 6687014 FAN CASE COMP. DISCONTINUED
68 6693072 REEL
69 6684678 CAM PLATE
70 6684677 STARTER SPRING WITOUT-START
71 6684675 STARTER SPRING
72 6684679 SET SCREW
73 6693172 ROPE 3X890
74 6693237 STARTER KNOB
75 6684681 COMPLETE STARTER COUPLING
76 6687209 DEFLECTOR
77 6684685 STARTER PAWL
78 6684684 PAWL SPRING
79 6684683 PIN
1.05 CARBURATOR STUFF Pag.5
1 6684698 SCREW
5 6684697 PIN
7 6684696 RING
10 6684695 O-RING
11 6691888 JET TO ES. 669-1888
13 6691457 PUMP GASKET
14 6684693 PUMP MEMBRANE
17 6684700 NET FILTER
18 6691430 CARBURATOR CIRCUIT ESA 669-1430
19 6685220 DISC GASKET
20 6690827 MEMBRANE DISC
21 6685222 LITTLE COVER
22 6691312 SCREW
1.06 FRONT HANDLE GRIP Pag.6
1 6688377 HANDLE GRIP SUPPORT
2 6688096 FRONT HANDLE GRIP
3 6688485 RUBBER RING
4 6688412 DAMPER
5 6689680 WASHER
6 6684786 SCREW M5X30S
7 6696359 PIN
8 6686111 SUPPORT
9 6695054 BOLT 5X40
10 6684834 WASHER
11 6684918 WASHER M5
1.07 REAR HANDLE GRIP Pag.7
1 6686314 LEFT HANDLE
2 6686279 RIGHT HANDLE
3 6688230 THROTTLE LEVER
4 6688240 SAFETY LEVER
5 6688244 THROTTLE SPRING LEVER
6 6687770 STOP BUTTON
7 6688246 LEVER
8 6688279 SPRING
9 6685070 WASHER
10 6685161 SCREW D4X10
11 6684636 SCREW D4.5X16
12 6693943 THROTTLE CABLE
13 6688366 BUTTON
14 6684913 SCREW 3X10
15 6687524 PROTECTION
16 6694588 STOP SWITCH
1.08 BLADE / GEARS CASE/ BLADE DRIVE Pag.8
1 6688684 GEAR BOX COMP.
2 6695285 SEEGER
3 6002C3 BEARING 6002C3
4 6695538 BEARING
5 6688570 CLUTCH DRUM
7 6686612 PLATE
8 6686811 ROD
9 6688625 GEAR
10 6688909 GEAR COVER GASKET
11 6692101 COVER
12 6687147 CUTTER GUIDE (734MM)
13 6687285 PROTECTION
14 6695075 SCREW M6X25
15 6687086 BLADE (696.5 MM)
16 6686654 FELT
17 6687187 WASHER D7
18 6687158 SCREW M6
19 6695170 NUT M6
21 6684595 SCREW M4X12 / S
22 6688643 GREASE
23 6695495 SCREW
30 6690762 PLATE
32 6695175 NUT M6
33 6684639 WASHER M6
60 6688844 GEAR CASE COVER
69 6687302 BLADE PROTECTION
72 6695475 NUT M6
82 6695484 SCREW 4X10S
83 6687275 PROTECTION
88 6695547 BEARING 608 ZZ C3
SPECIAL TOOLS Pag.9
2 HGA6695736 FLYWHEEL PULLER
3 HGA6695737 FLYWHEEL PULLER BOLT
5 HGA6695740 PISTON PIN PULLER
14 HGA6695754 CLUTCH PULLER
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Tanaka websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Tanaka brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Hitachi CH66EB (ST)
6 Items

Data sheet

SHIPPING IN
Usually Ships in 10/15 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Tanaka CH66EB (ST)

Diagram Tanaka CH66EB (ST)

Download (693.88KB)

You might also like

Priming Pump for Chain Saws and Brushcutters Hitachi Tanaka
HiKOKI Power Tools Italia S.p.a. SKU: 6685139
Priming Pump for Chain Saws and Brushcutters Hitachi Tanaka
Priming Pump for Chain Saws and Brushcutters Hitachi Tanaka Genuine spare Hitachi Koky Tanaka, Priming Pump complete for Brushcutters and Chain Saws Hitachi Tanaka. Parts for the following products: - BRUSHCUTTER CG47EF (L) -...
AVAILABLE €13.36
Details
Damper Spring for Brushcutters Hitachi CG22EAS-CG24EASP-CG27EASP
HiKOKI Power Tools Italia S.p.a. SKU: 6684677
Damper Spring for Brushcutters Hitachi CG22EAS-CG24EASP-CG27EASP
Damper Spring for Brushcutters Hitachi CG22EAS-CG24EASP-CG27EASP Genuine spare parts Hitachi Koky Tanaka, Damper Spring for Brushcutters CG22EAS - CG24EASP - CG27EJ (SLNP) - CG27EASP - CG33EJ-SL Parts for the following products: -...
Out-of-Stock €14.58
Details
Fuel Tank for Hedge Trimmers Hitachi Tanaka CH78EC-C
HiKOKI Power Tools Italia S.p.a. SKU: 6691582
Fuel Tank for Hedge Trimmers Hitachi Tanaka CH78EC-C
Fuel Tank for Hedge Trimmers Hitachi Tanaka CH78EC-C Original spare Hitachi Koky Tanaka, Fuel Tank for Hedge Trimmers CH78EC-C Hitachi Tanaka. Parts for the following products: - Hedge Trimmers CH78EC-C - Code : 6691582
Out-of-Stock €0.00
Details
Bolt M5X18/S for Chainsaws Hitachi CS38EK-CS45EL
HiKOKI Power Tools Italia S.p.a. SKU: 6684586
Bolt M5X18/S for Chainsaws Hitachi CS38EK-CS45EL
Bolt M5X18/S for Chainsaws Hitachi CS38EK-CS45EL Genuine spare Hitachi Koky Tanaka, Bolt M5X18 / S Brushcutters Hitachi CG22EAS - CG27EJ (SLNP) - CG47EJ-L - CG47EY-T - CG47EF (L) - Chainsaws CS38EK - CS45EL. Parts for the following...
AVAILABLE €2.38
Details
Clutch Drum for Hedge Trimmers Tanaka THT 210-HTD2530PF
HiKOKI Power Tools Italia S.p.a. SKU: 6688570
Clutch Drum for Hedge Trimmers Tanaka THT 210-HTD2530PF
Clutch Drum for Hedge Trimmers Tanaka THT 210-HTD2530PF Original parts Hitachi Koky Tanaka, Clutch Drum, for Hedge Trimmers THT 210 - HTD2530PF Parts for the following products: -  Hedge Trimmer THT 210 -  Hedge Trimmer THT 210 B -...
AVAILABLE €46.30
Details
Diaphragm Packing Metering for Chainsaws Hitachi CS25-33-40-45-51
HiKOKI Power Tools Italia S.p.a. SKU: 6685220
Diaphragm Packing Metering for Chainsaws Hitachi CS25-33-40-45-51
Diaphragm Packing Metering for Chainsaws Hitachi CS25-33-40-45-51 Original parts for Chainsaw Hitachi Koky Tanaka, Diaphragm Packing Metering Gasket for Carburetor Chainsaws, CS25EC-SC-EU - CS33EDT - CS38EK - CS40EA - CS45EL - CS51EAP...
AVAILABLE €3.60
Details
Pump Diaphragm for Chainsaw Hitachi CS33EB
HiKOKI Power Tools Italia S.p.a. SKU: 6684693
Pump Diaphragm for Chainsaw Hitachi CS33EB
Pump Diaphragm for Chainsaw Hitachi CS33EB Original parts Hitachi Koky Tanaka, Pump Diaphragm for Carburetor Chainsaw, CS33EB - CS 33EB - Brushcutters CG22EAS - CG24EKS - CG27EJ-SLNP - CG24EASP - CG33EJ-LP - CG40EK-LP Parts for the...
AVAILABLE €9.70
Details
Oil Pump Setting Bolt Washer for Chainsaw Tanaka TCS-2800S
HiKOKI Power Tools Italia S.p.a. SKU: 6685070
Oil Pump Setting Bolt Washer for Chainsaw Tanaka TCS-2800S
Oil Pump Setting Bolt Washer for Chainsaw Tanaka TCS-2800S Genuine spare parts Tanaka, Oil Pump Setting Bolt Washer for Chainsaws TCS-2800S - TCS-2801S - Hitachi CS25EC-SC - EU For the following items: - MOTOSEGA TANAKA TCS-2800S -...
AVAILABLE €2.38
Details
Hex Socket Hd Bolt M5X50 for Hedge Trimmer Tanaka THT 210
HiKOKI Power Tools Italia S.p.a. SKU: 6685114
Hex Socket Hd Bolt M5X50 for Hedge Trimmer Tanaka THT 210
Hex Socket Hd Bolt M5X50 for Hedge Trimmer Tanaka THT 210 Genuine spare part Tanaka, Hex Socket Hd Bolt M5X50 for Hedge Trimmer Tanaka THT 210 - THT-2530 - Brushcutter Tanaka TBC-230S Part for the following items: - Hedge Trimmer...
AVAILABLE €1.16
Details
Piston Pin for Brushcutter Hitachi Tanaka CG22EAS
HiKOKI Power Tools Italia S.p.a. SKU: 6696944
Piston Pin for Brushcutter Hitachi Tanaka CG22EAS
Piston Pin for Brushcutter Hitachi Tanaka CG22EAS Genuine spare part Hitachi Koky Tanaka, Piston Pin for Brushcutters CG22EAB - CG22EAS - Edge Trimmer Hitachi CH22EBP2 Part for the following products: - Pump Hitachi A25EB(N) -...
on 7/10 Business Days Approx. €7.26
Details
Washer D. 5 for Chainsaw Hitachi CS45EL-CS38EK
HiKOKI Power Tools Italia S.p.a. SKU: 6684662
Washer D. 5 for Chainsaw Hitachi CS45EL-CS38EK
Washer D. 5 for Chainsaw Hitachi CS45EL-CS38EK Original spare Hitachi, Washer D. 5 for Chaisaw Hitachi CS45EL - CS38EK - Tanaka ECV-4501 - ECV-3801 - Brusch Cutter CG24EKS - CG40EK-LP - CG33EJ-LP - CG27EJ-SLNP. Parts for the following...
AVAILABLE €1.16
Details
Insulator Tube for Chainsaw Hitachi CS25EC-SC
HiKOKI Power Tools Italia S.p.a. SKU: 6684597
Insulator Tube for Chainsaw Hitachi CS25EC-SC
Insulator Tube for Chainsaw Hitachi CS25EC-SC Hitachi genuine part, Insulator Tube for Chainsaw Hitachi CS25EC-SC EU Part for the following products: - Chainsaw Hitachi CS25EC-SC EU - Motorpump Hitachi A25EB(N) - Brushcutter Hitachi...
Out-of-Stock €1.16
Details
Damper B for Hedge Trimmer Tanaka THT 210
HiKOKI Power Tools Italia S.p.a. SKU: 6688412
Damper B for Hedge Trimmer Tanaka THT 210
Damper B for Hedge Trimmer Tanaka THT 210 Genuine spare parts Tanaka, Damper B for Hedge Trimmer Tanaka THT 210 - HTD2530PF - Chainsaws Tanaka TCS-3301S - ECS-3350D Part for the following items: - Hedge Trimmer Tanaka THT 210 - Hedge...
AVAILABLE €2.38
Details
Clean Blade Felt for Hedge Trimmers Tanaka THT 210-HTD2530PF
HiKOKI Power Tools Italia S.p.a. SKU: 6686654
Clean Blade Felt for Hedge Trimmers Tanaka THT 210-HTD2530PF
Clean Blade Felt for Hedge Trimmers Tanaka THT 210-HTD2530PF Original parts Hitachi Koky Tanaka, Clean Blade Felt for Hedge Trimmers THT 210 - HTD2530PF - Hitachi CH78ED Parts for the following products: - Hedge Trimmer Tanaka...
Details
Guide Plate Screw M4x10 for Chainsaw Hitachi CS25EC-SC
HiKOKI Power Tools Italia S.p.a. SKU: 6685161
Guide Plate Screw M4x10 for Chainsaw Hitachi CS25EC-SC
Guide Plate Screw M4x10 for Chainsaw Hitachi CS25EC-SC Genuine part Hitachi, Guide Plate Screw M4x10 for Chainsaw Hitachi CS25EC-SC - CS30EC - CS30EG - CS38EK - CS45EL. Ricambio per i seguenti prodotti: - Chainsaw Tanaka TCS-2800S -...
AVAILABLE €1.16
Details
Tank Cap Ass'y (Orange) for Hedge Trimmer Tanaka THT 210
HiKOKI Power Tools Italia S.p.a. SKU: 6691716
Tank Cap Ass'y (Orange) for Hedge Trimmer Tanaka THT 210
Tank Cap Ass'y (Orange) for Hedge Trimmer Tanaka THT 210 Genuine spare part Tanaka, Tank Cap Ass'y (Orange) for Hedge Trimmer THT 210 - CH62EA (ST) -  CH66EB (ST) - CH78EC (ST). Part for the following items: -  Hedge Trimmer Tanaka...
AVAILABLE €13.36
Details
696,5 mm Blade for Hedge Trimmer Tanaka THT 210
HiKOKI Power Tools Italia S.p.a. SKU: 6687086
696,5 mm Blade for Hedge Trimmer Tanaka THT 210
696,5 mm Blade for Hedge Trimmer Tanaka THT 210 Genuine spare part Tanaka, 696,5 mm Blade for Hedge Trimmers THT 210 - Tanaka THT 210 B - Hitachi CH22EPC2 - CH66EB - CH66EB2 - CH66EB3. Part for the following items: -  Hedge Trimmer...
Out-of-Stock €82.90
Details
Spring Washer 5 for Brushcutter Hitachi CG33EJ-SL
HiKOKI Power Tools Italia S.p.a. SKU: 6684834
Spring Washer 5 for Brushcutter Hitachi CG33EJ-SL
Spring Washer 5 for Brushcutter Hitachi CG33EJ-SL Original spare part Hitachi, Spring Washer 5 for Brushcutters CG33EJ-SL - CG47EY-T - CG27EJ-SLNP - CG22EJ. Parts for the following products: - Brushcutter TBC-340 - Brushcutter...
AVAILABLE €1.16
Details
Cam Rod for Hedge Trimmer Hitachi CH78EC3(ST)
HiKOKI Power Tools Italia S.p.a. SKU: 6686811
Cam Rod for Hedge Trimmer Hitachi CH78EC3(ST)
Cam Rod for Hedge Trimmer Hitachi CH78EC3(ST) Original spare part Hitachi Koky Tanaka, Cam Rod for Hedge Trimmer Hitachi Tanaka CH78EC(ST) -  CH78EC3(ST) - CH66EB(ST) - CH66EB2(ST) - CH66EB3(ST). Parts for the following products: -...
on 7/10 Business Days Approx €19.46
Details
Hex Hole Bolt M5x18PS for Hedge Trimmer Tanaka THT 210
HiKOKI Power Tools Italia S.p.a. SKU: 6695505
Hex Hole Bolt M5x18PS for Hedge Trimmer Tanaka THT 210
Hex Hole Bolt M5x18PS for Hedge Trimmer Tanaka THT 210 Original spare part Hitachi-HIKOKI Tanaka, Hex Hole Bolt M5x18PS for Hedge Trimmers THT 210 - THT 210 B - THT 210 S. Parts for the following products: -  Hedge Trimmer Tanaka THT...
AVAILABLE €2.38
Details
Cam Plate for Hedge Trimmer Hitachi CH62EA(ST)
HiKOKI Power Tools Italia S.p.a. SKU: 6684678
Cam Plate for Hedge Trimmer Hitachi CH62EA(ST)
Cam Plate for Hedge Trimmer Hitachi CH62EA(ST) Original spare part Hitachi HiKoki Tanaka, Cam Plate for Hedge Trimmers Hitachi CH62EA(ST) - CH62EA3(ST). Part for the following products: -  BRUSHCUTTER CG27EJ-SLNP -  BRUSHCUTTER...
on 7/10 Business Days Approx €7.26
Details
Set Screw for Hedge Trimmer Hitachi CH62EA(ST)
HiKOKI Power Tools Italia S.p.a. SKU: 6684679
Set Screw for Hedge Trimmer Hitachi CH62EA(ST)
Set Screw for Hedge Trimmer Hitachi CH62EA(ST) Original spare part Hitachi HiKoki Tanaka, Cam Plate Set Screw for Hedge Trimmers Hitachi CH62EA(ST) - CH62EA3(ST). Part for the following...
on 7/10 Business Days Approx €7.26
Details
Fan Case Comp. for Hedge Trimmer Hitachi CH62EA(ST)
HiKOKI Power Tools Italia S.p.a. SKU: 6687014
Fan Case Comp. for Hedge Trimmer Hitachi CH62EA(ST)
Fan Case Comp. for Hedge Trimmer Hitachi CH62EA(ST) Original spare part Hitachi HiKoki Tanaka, Fan Case Comp. for Hedge Trimmers Hitachi CH62EA(ST) - CH62EA3(ST). Part for the following products: -  HEDGE TRIMMER THT 210 S -  HEDGE...
Out-of-Stock €37.76
Details
Grease Nipple for Hedgetrimmers Hitachi - HIKOKI - Tanaka
HiKOKI Power Tools Italia S.p.a. SKU: 6688643
Grease Nipple for Hedgetrimmers Hitachi - HIKOKI - Tanaka
Grease Nipple for Hedgetrimmers Hitachi - HIKOKI - Tanaka Original spare part Hitachi HIKOKI, Grease Nipple for Hedgetrimmers Hitachi - HIKOKI - Tanaka. Parts for the following products: - HEDGETRIMMER THT-2520 - 2520 B - HEDGETRIMMER...
Last items in stock €3.60
Details
Cutter Guide (734MM) for Hedge Trimmer Tanaka THT 210 B
HiKOKI Power Tools Italia S.p.a. SKU: 6687147
Cutter Guide (734MM) for Hedge Trimmer Tanaka THT 210 B
Cutter Guide (734MM) for Hedge Trimmer Tanaka THT 210 B Genuine replacement part Tanaka, Cutter Guide (734MM) for Hedge Trimmers THT 210 S - THT 210 B. Part for the following items: -  HEDGE TRIMMER...
Out-of-Stock €58.50
Details
Ignition Coil for Hedge Trimmer Hitachi CH62EA(ST)
HiKOKI Power Tools Italia S.p.a. SKU: 6695939
Ignition Coil for Hedge Trimmer Hitachi CH62EA(ST)
Ignition Coil for Hedge Trimmer Hitachi CH62EA(ST) Original spare part Hitachi HiKoki Tanaka, Ignition Coil for Hedge Trimmers Hitachi CH62EA(ST) - CH62EA3(ST). Part for the following products:...
Out-of-Stock €58.50
Details
Comments (0)
No customer reviews for the moment.
