HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Engine Chainsaw CS33EA

SKU: Hitachi CS33EA
€2.65
VAT included

Hitachi Spare Parts for Engine Chainsaw CS33EA

We supply original Hitachi-HIKOKI spare parts on offer at unbeatable prices, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Engine Chainsaw CS33EA.
Hitachi Spare Parts for Engine Chainsaw CS33EA
  • Hitachi Spare Parts for Engine Chainsaw CS33EA
  • Hitachi Spare Parts for Engine Chainsaw CS33EA
  • Hitachi Spare Parts for Engine Chainsaw CS33EA
  • Hitachi Spare Parts for Engine Chainsaw CS33EA
HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Engine Chainsaw CS33EA

SKU: Hitachi CS33EA Condition: New
€2.65
VAT included

Hitachi Spare Parts for Engine Chainsaw CS33EA

We supply original Hitachi-HIKOKI spare parts on offer at unbeatable prices, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Engine Chainsaw CS33EA.
settings 122 spare parts
description 3 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 7/10 Business Days Approx

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
117 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

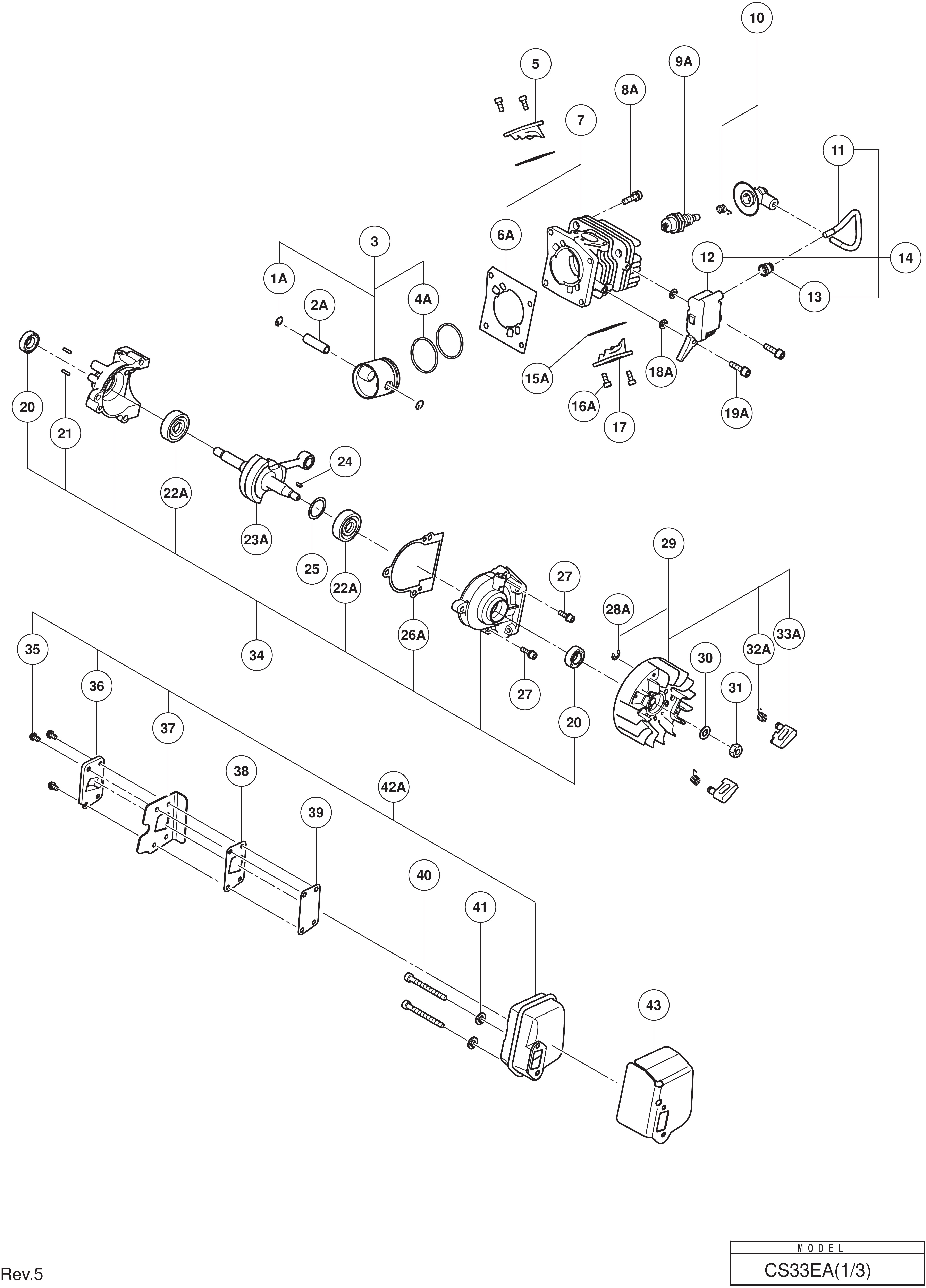

Esploso pagina 1
Pos. Item Price Buy
1A
 photo_cameraImage coming soon 6685326 CIRCLIP €2.51
2A
 photo_cameraImage coming soon 6696764 PISTON PIN €2.44
3
 photo_cameraImage coming soon 6685080 PISTON SET €30.39
4A
 Piston Ring for Chainsaw Hitachi Tanaka CS33EB 6685331 Piston Ring for Chainsaw Hitachi Tanaka CS33EB €10.49
6A
 photo_cameraImage coming soon 6698697 CYLINDER PACKING €1.76
7
 photo_cameraImage coming soon 6685084 CYLINDER SET €52.32
12
 photo_cameraImage coming soon 6685089 IGNITION COIL €44.06
13
 Ignition Coil Rubber Cap for Brushcutters Hitachi Tanaka 6684602 Ignition Coil Rubber Cap for Brushcutters Hitachi Tanaka €2.65
18A
 photo_cameraImage coming soon 6698700 GLASS WASHER €2.16
22A
 photo_cameraImage coming soon 6685328 BALL BEARING €8.52
24
 photo_cameraImage coming soon 6684899 WOODRUFF KEY 3X13X4.5 €1.68
25
 photo_cameraImage coming soon 6685098 SHIM S T0.2 €1.98
25
 photo_cameraImage coming soon 6685099 SHIM S T0.3 €1.98
27
 photo_cameraImage coming soon 6684668 HEX.HOLE BOLT M5X20/S €1.27
28A
 photo_cameraImage coming soon 6685336 RETAINING RING D4 €2.48
29
 photo_cameraImage coming soon 6685102 THEY FLY €33.98
30
 photo_cameraImage coming soon 6685103 BOLT WASHER M7 €1.25
32A
 Starter Pawl Spring for Chainsaw Hitachi Tanaka CS33EDT-EB 6685335 Starter Pawl Spring for Chainsaw Hitachi Tanaka CS33EDT-EB €2.65
33A
 Starter Pawl for Chainsaw Hitachi Tanaka CS33EDT-EB 6685334 Starter Pawl for Chainsaw Hitachi Tanaka CS33EDT-EB €2.65
34
 photo_cameraImage coming soon 6685107 CRANK CASE ASS'Y €38.63
35
 photo_cameraImage coming soon 6685109 MACHINE SCREW (W/SP. WASHER) M4X8 €1.52
40
 Hex Socket Hd Bolt M5X50 for Hedge Trimmer Tanaka THT 210 6685114 Hex Socket Hd Bolt M5X50 for Hedge Trimmer Tanaka THT 210 €1.66
41
 photo_cameraImage coming soon 6684661 WASHER 5 €1.27
42
 photo_cameraImage coming soon 6685115 MUFFLER COMP. €41.59
43
 photo_cameraImage coming soon 6685117 MUFFLER PACKING €4.36
Page 2 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

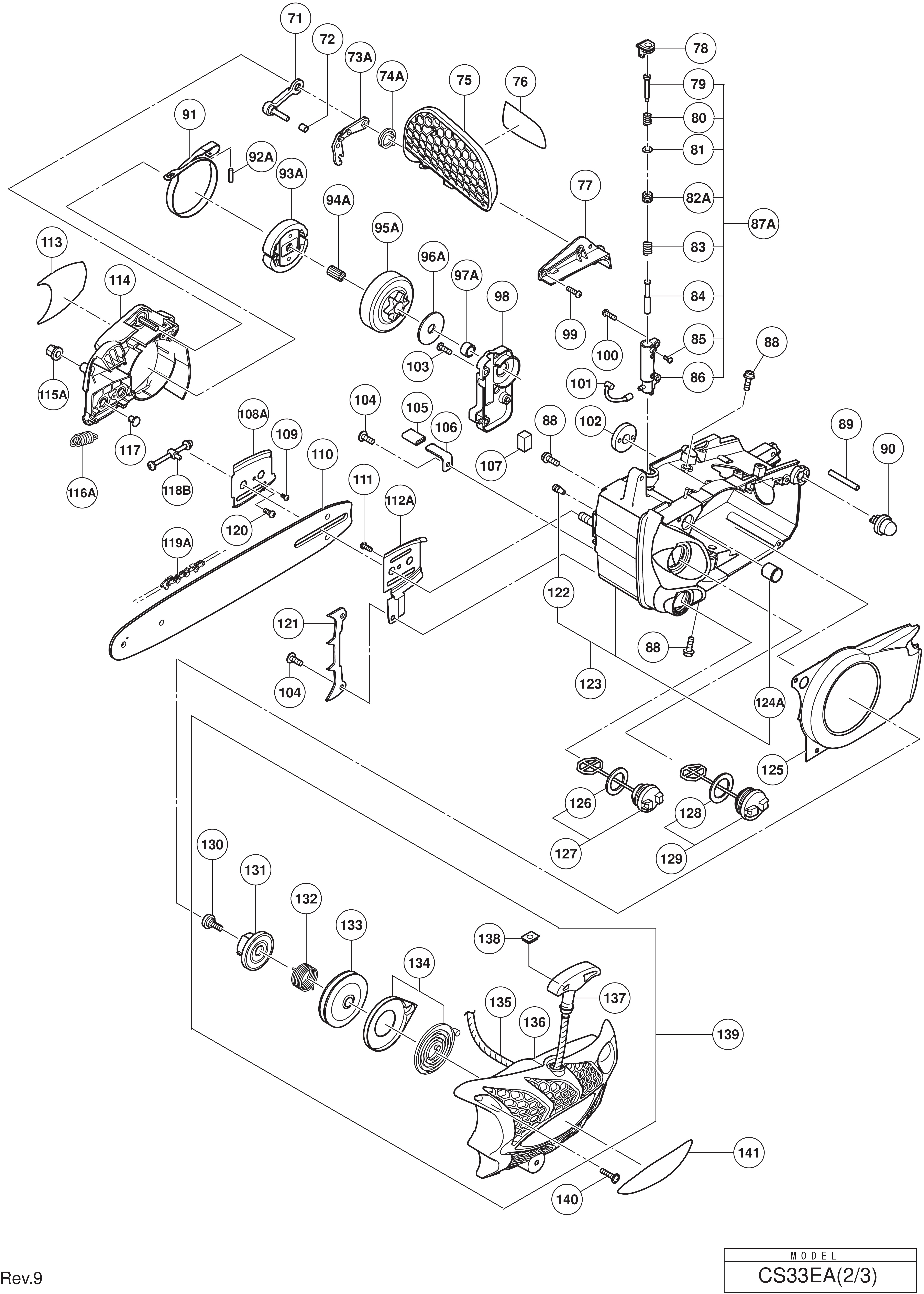

Esploso pagina 2
Pos. Item Price Buy
71
 Brake Lever Rod for Chainsaw Tanaka TCS-2801S 6685119 Brake Lever Rod for Chainsaw Tanaka TCS-2801S €6.83
72
 Brake Lever Rod Collar for Chainsaw Hitachi CS25EC-SC 6685120 Brake Lever Rod Collar for Chainsaw Hitachi CS25EC-SC €1.98
73A
 photo_cameraImage coming soon 6685388 BRAKE LINK €8.33
74A
 photo_cameraImage coming soon 6696783 BRAKE LEVER SPRING €2.27
78
 photo_cameraImage coming soon 6685127 OIL ADJUST GROMMET €16.94
79
 Adjustment Oil Pump Screw for Chainsaw Hitachi Tanaka CS25EC-SC 6685128 Adjustment Oil Pump Screw for Chainsaw Hitachi Tanaka CS25EC-SC €6.64
80
 Adjustment Oil Pump Screw Spring for Chainsaw Hitachi Tanaka CS25EC-SC 6685129 Adjustment Oil Pump Screw Spring for Chainsaw Hitachi Tanaka CS25EC-SC €2.65
81
 Oil Pump Setting Bolt Washer for Chainsaw Tanaka TCS-2800S 6685070 Oil Pump Setting Bolt Washer for Chainsaw Tanaka TCS-2800S €2.08
82A
 Adjustment Oil Pump Piston for Chainsaw Hitachi Tanaka CS25EC-SC 6685130 Adjustment Oil Pump Piston for Chainsaw Hitachi Tanaka CS25EC-SC €3.31
83
 photo_cameraImage coming soon 6685131 PUMP GEAR SPRING €1.80
84
 Oil Pump Gear for Chainsaw Tanaka TCS-2800S 6685132 Oil Pump Gear for Chainsaw Tanaka TCS-2800S €33.10
85
 Machine Screw M3x8 for Chainsaw Hitachi CS25EC-SC 6685133 Machine Screw M3x8 for Chainsaw Hitachi CS25EC-SC €2.08
87A
 Oil Pump for Chainsaw Hitachi Tanaka CS33EA-CS25EC-SC 6685135 Oil Pump for Chainsaw Hitachi Tanaka CS33EA-CS25EC-SC €33.10
89
 Fuel Hose for Brushcutters Hitachi CG47EF (L)-CG47EJ-L-CG47EY-T 6685267 Fuel Hose for Brushcutters Hitachi CG47EF (L)-CG47EJ-L-CG47EY-T €3.31
90
 Priming Pump for Chain Saws and Brushcutters Hitachi Tanaka 6685139 Priming Pump for Chain Saws and Brushcutters Hitachi Tanaka €13.15
91
 photo_cameraImage coming soon 6685140 BRAKE BAND - DISCONTINUED €27.71
92A
 Needle Roller mm 3 for Chainsaw Hitachi Tanaka CS40EA 6685391 Needle Roller mm 3 for Chainsaw Hitachi Tanaka CS40EA €2.52
94A
 Clutch Needle Bearing for Chain Saws Hitachi CS33EB-EDT 6685361 Clutch Needle Bearing for Chain Saws Hitachi CS33EB-EDT €10.63
95A
 Clutch Drum for Chainsaw Hitachi Tanaka CS33EB 6685403 Clutch Drum for Chainsaw Hitachi Tanaka CS33EB €19.80
96A
 Clutch Washer for Chainsaws Hitachi CS33EDT-CS33EB 6685414 Clutch Washer for Chainsaws Hitachi CS33EDT-CS33EB €2.65
97A
 Crank Shaft Collar for Chainsaw Hitachi Tanaka CS33EB 6685360 Crank Shaft Collar for Chainsaw Hitachi Tanaka CS33EB €6.64
98
 photo_cameraImage coming soon 6685147 OIL PUMP COVER €1.41
99
 Screw D. 4x15 for Chainsaw Hitachi CS25EC-SC-CS30EG 6685148 Screw D. 4x15 for Chainsaw Hitachi CS25EC-SC-CS30EG €1.05
100
 Machine Screw M4X14 for Chainsaws Hitachi Tanaka CS33EA-CS25EC-SC 6685149 Machine Screw M4X14 for Chainsaws Hitachi Tanaka CS33EA-CS25EC-SC €1.12
101
 Oil Pipe (A) for Chainsaw Hitachi Tanaka CS25EC-SC 6685150 Oil Pipe (A) for Chainsaw Hitachi Tanaka CS25EC-SC €7.83
102
 photo_cameraImage coming soon 6685151 SCREW GEAR €11.62
104
 photo_cameraImage coming soon 6685153 TAPPING SCREW D4.5X14 €1.75
105
 Chain Catcher Protection Pipe for Chainsaw Hitachi CS25EC-SC 6685154 Chain Catcher Protection Pipe for Chainsaw Hitachi CS25EC-SC €1.32
106
 Chain Catcher for Chainsaw Hitachi CS25EC-SC 6685155 Chain Catcher for Chainsaw Hitachi CS25EC-SC €1.98
107
 photo_cameraImage coming soon 6685156 AIR VENT SPONGE €1.51
108A
 Guide Plate for Chainsaw Hitachi Tanaka CS33EDT 6696784 Guide Plate for Chainsaw Hitachi Tanaka CS33EDT €9.30
109
 photo_cameraImage coming soon 6685158 TAPPING SCREW D3X8 €1.36
111
 Guide Plate Screw M4x10 for Chainsaw Hitachi CS25EC-SC 6685161 Guide Plate Screw M4x10 for Chainsaw Hitachi CS25EC-SC €1.15
114
 photo_cameraImage coming soon 6685165 SIDE COVER COMP. €13.62
115A
 Bar Chain Nut for Chainsaw Hitachi Tanaka CS33EB-CS40EA 6685416 Bar Chain Nut for Chainsaw Hitachi Tanaka CS33EB-CS40EA €2.65
116A
 Brake Spring for Chainsaws Hitachi CS33EB 6685389 Brake Spring for Chainsaws Hitachi CS33EB €2.65
117
 Gear (A) for Chain Tensioner for Chainsaw Hitachi CS25EC-SC 6685168 Gear (A) for Chain Tensioner for Chainsaw Hitachi CS25EC-SC €5.17
118B
 Tension Adjustment Bolt for Chainsaw Hitachi CS33EB-CS33EDT-CS40EA 6698986 Tension Adjustment Bolt for Chainsaw Hitachi CS33EB-CS33EDT-CS40EA €25.92
121
 photo_cameraImage coming soon 6685270 SPIKED BUMPER €9.44
122
 photo_cameraImage coming soon 6685173 AIR VENT VALVE (B) €5.98
124A
 photo_cameraImage coming soon 6685175 BREATHER VALVE €11.96
128
 Petrol-Oil Tank Cap Packing for Chainsaw Hitachi CS33EDT 6685179 Petrol-Oil Tank Cap Packing for Chainsaw Hitachi CS33EDT €1.98
129
 Tank Cap Ass'y for Chainsaw Hitachi CS25EC-SC 6685180 Tank Cap Ass'y for Chainsaw Hitachi CS25EC-SC €5.92
130
 Set Screw for Hedge Trimmer Hitachi CH62EA(ST) 6684679 Set Screw for Hedge Trimmer Hitachi CH62EA(ST) €6.81
131
 photo_cameraImage coming soon 6685182 CAM PLATE €7.82
132
 Damper Spring for Chainsaw Hitachi Tanaka CS33EA-CS25EC-SC 6685183 Damper Spring for Chainsaw Hitachi Tanaka CS33EA-CS25EC-SC €7.83
133
 Starter Pulley for Chainsaw Hitachi Tanaka CS25EC-SC 6685184 Starter Pulley for Chainsaw Hitachi Tanaka CS25EC-SC €10.63
134
 Spring Case Set for Chainsaw Tanaka TCS-2801S 6685185 Spring Case Set for Chainsaw Tanaka TCS-2801S €15.21
136
 photo_cameraImage coming soon 6685187 FAN CASE COMP. €20.92
137
 photo_cameraImage coming soon 6685188 STARTER HANDLE €6.45
139
 photo_cameraImage coming soon 6685190 RECOIL STARTER ASS'Y €38.63
Page 3 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

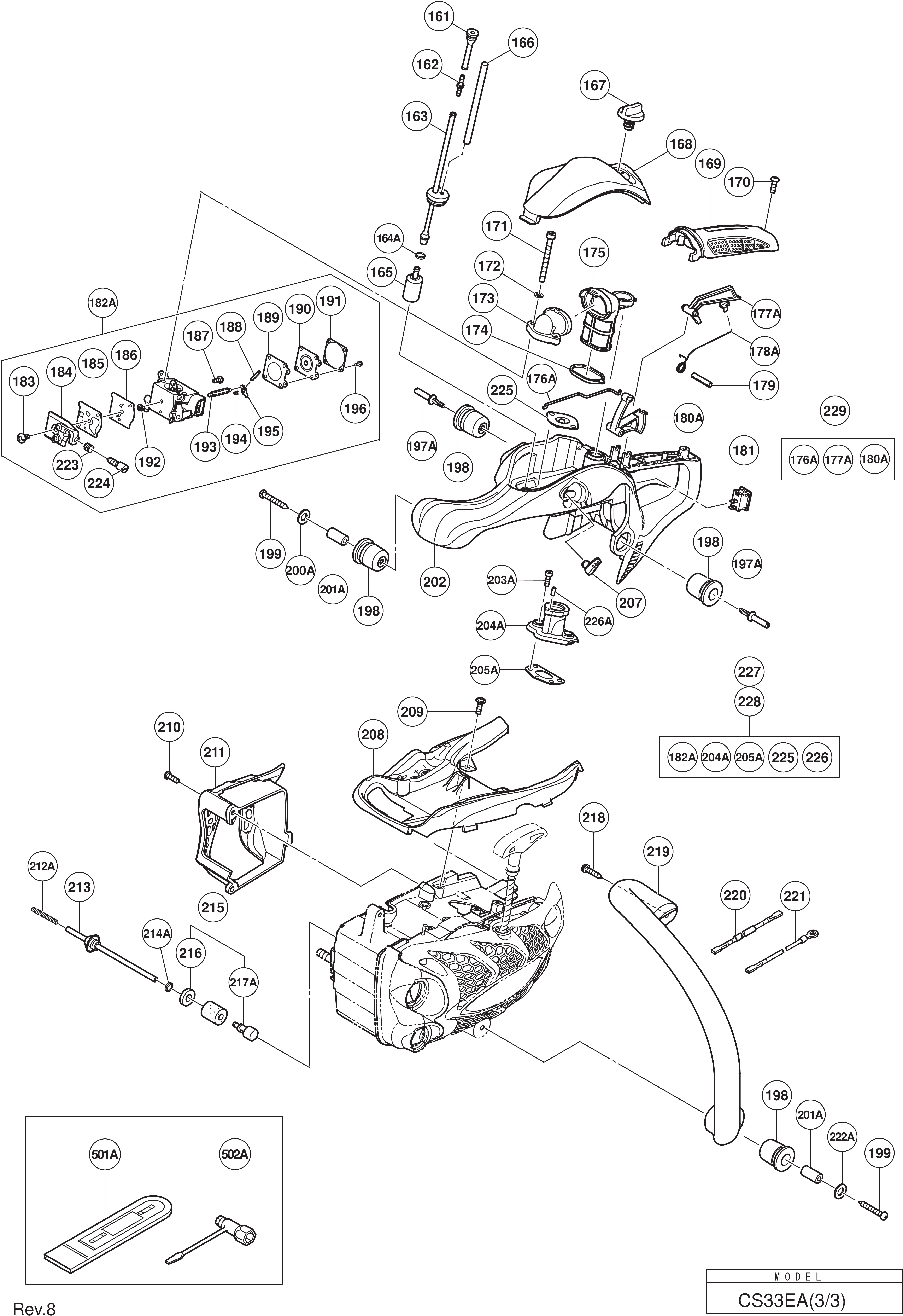

Esploso pagina 3
Pos. Item Price Buy
162
 photo_cameraImage coming soon 6685196 FITTING €2.57
163
 photo_cameraImage coming soon 6685197 SHIELD TUBE ASS'Y €8.19
164A
 photo_cameraImage coming soon 6685311 CLIP €2.58
167
 Cleaner Cover Knob for Chainsaw Hitachi CS25EC-SC 6685228 Cleaner Cover Knob for Chainsaw Hitachi CS25EC-SC €4.04
168
 photo_cameraImage coming soon 6685273 CLEANER COVER €5.50
169
 photo_cameraImage coming soon 6685274 REAR HANDLE GRIP COMP. €8.20
170
 Chain Catcher Screw M5X14 for Chainsaw Hitachi CS25EC-SC 6685275 Chain Catcher Screw M5X14 for Chainsaw Hitachi CS25EC-SC €1.27
172
 photo_cameraImage coming soon 6685226 WASHER M5 (BLACK) €1.93
175
 photo_cameraImage coming soon 6685278 CLEANER ELEMENT COMP. €5.50
177A
 photo_cameraImage coming soon 6685350 TRIGGER LOCKOUT (VERMILION) €2.52
179
 photo_cameraImage coming soon 6685282 SPRING PIN 5X25 €1.32
180A
 photo_cameraImage coming soon 6698916 THROTTLE LEVER (VERMILION) €2.27
181
 photo_cameraImage coming soon 6685239 STOP SWITCH €7.82
183
 photo_cameraImage coming soon 6685210 SCREW €2.52
185
 Carburetor Pump Gasket for Chainsaws Hitachi CS25-33-40-45-51 6685212 Carburetor Pump Gasket for Chainsaws Hitachi CS25-33-40-45-51 €3.98
186
 Carburetor Pump Diaphragm for Chainsaws Hitachi CS25-33-40-45-51 6685213 Carburetor Pump Diaphragm for Chainsaws Hitachi CS25-33-40-45-51 €10.63
187
 photo_cameraImage coming soon 6685218 HINGE PIN SET SCREW €3.38
188
 Hitachi CS25EC-SC Hinge Pin 6685219 Hitachi CS25EC-SC Hinge Pin €2.53
189
 Diaphragm Packing Metering for Chainsaws Hitachi CS25-33-40-45-51 6685220 Diaphragm Packing Metering for Chainsaws Hitachi CS25-33-40-45-51 €3.45
190
 Metering Diaphragm for Chainsaws Hitachi CS-33-40-51 6684690 Metering Diaphragm for Chainsaws Hitachi CS-33-40-51 €25.81
192
 Carburator Inlet Screen for Chainsaws and Bruschcutters Hitachi 6684700 Carburator Inlet Screen for Chainsaws and Bruschcutters Hitachi €3.18
193
 Carburator Needle Valve for Chainsaws Hitachi-HiKoki Tanaka 6685215 Carburator Needle Valve for Chainsaws Hitachi-HiKoki Tanaka €10.76
195
 Control Lever for Chainsaw Hitachi CS25EC-SC 6685217 Control Lever for Chainsaw Hitachi CS25EC-SC €6.34
196
 photo_cameraImage coming soon 6685223 SET SCREW €2.59
199
 photo_cameraImage coming soon 6685233 TAPPING SCREW D5X45 €1.38
201A
 photo_cameraImage coming soon 6696800 COLLAR 28.2 €3.70
202
 photo_cameraImage coming soon 6685288 REAR HANDLE (A) COMP. €27.00
205A
 photo_cameraImage coming soon 6685205 INTAKE PACKING €1.51
207
 photo_cameraImage coming soon 6685206 CHOKE LEVER €1.83
208
 photo_cameraImage coming soon 6685291 ENGINE CASE COVER €5.02
211
 photo_cameraImage coming soon 6685245 MUFFLER COVER €11.69
213
 Shield Tube for Chainsaw Hitachi Tanaka TCS-2801S 6685247 Shield Tube for Chainsaw Hitachi Tanaka TCS-2801S €5.38
215
 Oil Filter Body Ass’y for Chainsaw Tanaka TCS-2800S 6685249 Oil Filter Body Ass’y for Chainsaw Tanaka TCS-2800S €7.67
217A
 Oil Filter Body for Chainsaw Hitachi Tanaka CS33EDT 6685310 Oil Filter Body for Chainsaw Hitachi Tanaka CS33EDT €2.37
219
 photo_cameraImage coming soon 6685292 FRONT HANDLE €15.79
221
 photo_cameraImage coming soon 6685252 CABLE €5.34
223
 photo_cameraImage coming soon 6685297 IDLE ADJUST SPRING €3.38
224
 photo_cameraImage coming soon 6685298 IDLE ADJUST SCREW €3.44
225
 photo_cameraImage coming soon 6685202 INLET MANIFOLD SPACER €4.69
501A
 photo_cameraImage coming soon 6685401 CHAIN COVER 12" €7.63
501A
 photo_cameraImage coming soon 6685439 CHAIN BAR COVER 35 CM €9.11

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Hitachi Spare Parts for Engine Chainsaw CS33EA

We supply original Hitachi-HIKOKI spare parts on offer at unbeatable prices, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Engine Chainsaw CS33EA.

In the following table, look for the model of the Chainsaw and ripettivo spare part.
Hitachi CS33EA

Chainsaw CS33EA
# Part Num. Description
1A 6685326 CIRCLIP
2A 6696764 PISTON PIN
3 6685080 PISTON SET
4A 6685331 PISTON RING (XR1-1856)
6A 6698697 CYLINDER PACKING
7 6685084 CYLINDER SET
12 6685089 IGNITION COIL COMP.
13 6684602 RUBBER CAP
18A 6698700 GLASS WASHER
21 6685095 NEEDLE ROLLER 2.5X9.8
22A 6685328 BALL BEARING
24 6684899 WOODRUFF KEY 3X13X4.5
25 6685098 SHIM S T0.2
25 6685099 SHIM S T0.3
27 6684668 HEX.HOLE BOLT M5X20/S
28A 6685336 RETAINING RING D4
29 6685102 MAGNETO ROTOR ASS'Y
30 6685103 BOLT WASHER M7
31 6685104 FLYWHEEL NUT
32A 6685335 STARTER PAWL SPRING
33A 6685334 STARTER PAWL
34 6685107 CRANK CASE ASS'Y
35 6685109 MACHINE SCREW (W/SP. WASHER) M4X8
40 6685114 HEX. SOCKET HD. BOLT M5X50
41 6684661 WASHER 5
42 6685115 MUFFLER COMP.
43 6685117 MUFFLER PACKING
71 6685119 BRAKE SUPPORT PLATE COMP.
72 6685120 COLLAR
73A 6685388 BRAKE LINK
74A 6696783 BRAKE LEVER SPRING
78 6685127 OIL ADJUST GROMMET
79 6685128 OIL PUMP ADJUSTER
80 6685129 ADJUSTER SPRING
81 6685070 BOLT WASHER M4
82A 6685130 OIL PUMP ADJUST CAP
83 6685131 PUMP GEAR SPRING
84 6685132 PUMP GEAR COMP.
85 6685133 MACHINE SCREW M3X8
87A 6685135 OIL PUMP CASE ASS'Y
89 6685267 FUEL PIPE 2.5X4X90
90 6685139 PRIMING PUMP COMP.
91 6685140 BRAKE BAND - DISCONTINUED
92A 6685391 NEEDLE ROLLER D3
94A 6685361 NEEDLE BEARING (D)
95A 6685403 CLUTCH HOUSING
96A 6685414 CLUTCH WASHER
97A 6685360 CRANK SHAFT COLLAR
98 6685147 OIL PUMP COVER
99 6685148 TAPPING SCREW D4X15
100 6685149 MACHINE SCREW (W/SP. WASHER) M4X14
101 6685150 OIL PIPE (A)
102 6685151 SCREW GEAR
104 6685153 TAPPING SCREW D4.5X14
105 6685154 FUEL PIPE
106 6685155 CHAIN CATCHER
107 6685156 AIR VENT SPONGE
108A 6696784 GUIDE PLATE (B)
109 6685158 TAPPING SCREW D3X8
111 6685161 TAPPING SCREW D4X10
114 6685165 SIDE COVER COMP.
115A 6685416 CHAIN BAR CLAMP NUT
116A 6685389 BRAKE SPRING
117 6685168 GEAR (A)
118B 6698986 CHAIN PULLER
120 6685161 TAPPING SCREW D4X10
121 6685270 SPIKE
122 6685173 AIR VENT VALVE (B)
124A 6685175 INNER CAP
128 6685179 TANK CAP PACKING
129 6685180 TANK CAP ASS'Y
130 6684679 SET SCREW
131 6685182 CAM PLATE
132 6685183 DAMPER SPRING
133 6685184 STARTER PULLEY
134 6685185 SPRING CASE SET
136 6685187 FAN CASE COMP.
137 6685188 STARTER HANDLE
139 6685190 RECOIL STARTER ASS'Y
140 6685191 TAPPING SCREW D4.5X20
162 6685196 PIPE JOINT
163 6685197 SHIELD TUBE ASS'Y
164A 6685311 CLIP
167 6685228 CLEANER KNOB
168 6685273 CLEANER COVER
169 6685274 REAR HANDLE GRIP COMP.
170 6685275 TAPPING SCREW D5X14
171 6685114 HEX. SOCKET HD. BOLT M5X50
172 6685226 WASHER M5 (BLACK)
175 6685278 CLEANER ELEMENT COMP.
177A 6685350 TRIGGER LOCKOUT (VERMILION)
179 6685282 SPRING PIN 5X25
180A 6698916 THROTTLE LEVER (VERMILION)
181 6685239 STOP SWITCH
183 6685210 SCREW
185 6685212 PUMP GASKET
186 6685213 PUMP DIAPHRAGM
187 6685218 HINGE PIN SET SCREW
188 6685219 HINGE PIN
189 6685220 DIAPHRAGM PACKING-METERING
190 6684690 METERING DIAPHRAGM
192 6684700 INLET SCREEN
193 6685215 NEEDLE VALVE
195 6685217 CONTROL LEVER
196 6685223 SET SCREW
199 6685233 TAPPING SCREW D5X45
201A 6696800 COLLAR 28.2
202 6685288 REAR HANDLE (A) COMP.
204A 6685289 INTAKE COMP.
205A 6685205 INTAKE PACKING
207 6685206 CHOKE LEVER
208 6685291 ENGINE CASE COVER
209 6685153 TAPPING SCREW D4.5X14
211 6685245 MUFFLER COVER
213 6685247 SHIELD TUBE
214A 6685311 CLIP
215 6685249 OIL FILTER BODY ASS'Y
216 6684661 WASHER 5
217A 6685310 OIL FILTER BODY
219 6685292 FRONT HANDLE
221 6685252 CORD 180MM
223 6685297 IDLE ADJUST SPRING
224 6685298 IDLE ADJUST SCREW
225 6685202 INLET MANIFOLD SPACER
226A 6699673 PULSE GUIDE 2.5X3.5X12
501A 6685401 CHAIN COVER 12"
501A 6685439 CHAIN COVER 14"
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Hitachi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to hitachi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Hitachi CS33EA
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Hitachi CS33EA

Diagram Hitachi CS33EA

Download (535.39KB)

You might also like

Oil Pump for Chainsaw Hitachi Tanaka CS33EA-CS25EC-SC
HiKOKI Power Tools Italia S.p.a. SKU: 6685135
Oil Pump for Chainsaw Hitachi Tanaka CS33EA-CS25EC-SC
Oil Pump for Chainsaw Hitachi Tanaka CS33EA-CS25EC-SC Original spare parts Hitachi Koky Tanaka, Oil Pump Ass'y for Chainsaws CS33EA-CS25EC-SC - Tanaka TCS-2800S - TCS-2801S. Part for the following products:...
on 7/10 Business Days Approx €33.10
Details
Damper Spring for Chainsaw Hitachi Tanaka CS33EA-CS25EC-SC
HiKOKI Power Tools Italia S.p.a. SKU: 6685183
Damper Spring for Chainsaw Hitachi Tanaka CS33EA-CS25EC-SC
Damper Spring for Chainsaw Hitachi Tanaka CS33EA-CS25EC-SC Genuine spare parts for Chainsaw Hitachi Koky Tanaka, Damper Spring for Chainsaw CS25EC-SC HEDGETRIMMER CH22EBP2 - HEDGETRIMMER CH22ECP2. Parts for the following...
AVAILABLE €7.83
Details
Priming Pump for Chain Saws and Brushcutters Hitachi Tanaka
HiKOKI Power Tools Italia S.p.a. SKU: 6685139
Priming Pump for Chain Saws and Brushcutters Hitachi Tanaka
Priming Pump for Chain Saws and Brushcutters Hitachi Tanaka Genuine spare Hitachi Koky Tanaka, Priming Pump complete for Brushcutters and Chain Saws Hitachi Tanaka. Parts for the following products: - BRUSHCUTTER CG47EF (L) -...
AVAILABLE €13.15
Details
Carburetor Pump Gasket for Chainsaws Hitachi CS25-33-40-45-51
HiKOKI Power Tools Italia S.p.a. SKU: 6685212
Carburetor Pump Gasket for Chainsaws Hitachi CS25-33-40-45-51
Carburetor Pump Gasket for Chainsaws Hitachi CS25-33-40-45-51 Original parts for Chainsaw Hitachi HiKoky Tanaka, Carburetor Pump Gasket for Chainsaws, CS25EC-SC-EU - CS33EDT - CS38EK - CS40EA - CS45EL - CS51EAP. Parts for the...
AVAILABLE €3.98
Details
Carburetor Pump Diaphragm for Chainsaws Hitachi CS25-33-40-45-51
HiKOKI Power Tools Italia S.p.a. SKU: 6685213
Carburetor Pump Diaphragm for Chainsaws Hitachi CS25-33-40-45-51
Carburetor Pump Diaphragm for Chainsaws Hitachi CS25-33-40-45-51 Original parts for Chainsaw Hitachi Koky Tanaka, Pump Diaphragm for Carburetor Chainsaws, CS25EC-SC-EU - CS33EDT - CS38EK - CS40EA - CS45EL - CS51EAP - BRUSHCUTTERS...
AVAILABLE €10.63
Details
Starter Pulley for Chainsaw Hitachi Tanaka CS25EC-SC Sale
HiKOKI Power Tools Italia S.p.a. SKU: 6685184
Starter Pulley for Chainsaw Hitachi Tanaka CS25EC-SC
Starter Pulley for Chainsaw Hitachi Tanaka CS25EC-SC Genuine spare parts for Chainsaw Hitachi Koky Tanaka, Starter Pulley for chainsaw CS25EC-SC. Articles made parts for the following: - CHAINSAW CS25EC-SC - Tanaka Code: 6685184
AVAILABLE €10.63
Details
Oil Pipe (A) for Chainsaw Hitachi Tanaka CS25EC-SC
HiKOKI Power Tools Italia S.p.a. SKU: 6685150
Oil Pipe (A) for Chainsaw Hitachi Tanaka CS25EC-SC
Oil Pipe (A) for Chainsaw Hitachi Tanaka CS25EC-SC Original spare part Hitachi Koky Tanaka, Oil Pump Pipe(A) cfor Chainsaw CS25EC-SC. Part for the following products: - CHAINSAW HITACHI CS25 (S) - CHAINSAW HITACHI CS25...
AVAILABLE €7.83
Details
Adjustment Oil Pump Screw for Chainsaw Hitachi Tanaka CS25EC-SC
HiKOKI Power Tools Italia S.p.a. SKU: 6685128
Adjustment Oil Pump Screw for Chainsaw Hitachi Tanaka CS25EC-SC
Adjustment Oil Pump Screw for Chainsaw Hitachi Tanaka CS25EC-SC Genuine parts Hitachi Koky Tanaka, Adjustment Oil Screw Pump for Chainsaw Hitachi Tanaka CS25EC-SC. Part for the following products: - CHAINSAW FOR PRUNING...
Last items in stock €6.64
Details
Diaphragm Packing Metering for Chainsaws Hitachi CS25-33-40-45-51
HiKOKI Power Tools Italia S.p.a. SKU: 6685220
Diaphragm Packing Metering for Chainsaws Hitachi CS25-33-40-45-51
Diaphragm Packing Metering for Chainsaws Hitachi CS25-33-40-45-51 Original parts for Chainsaw Hitachi Koky Tanaka, Diaphragm Packing Metering Gasket for Carburetor Chainsaws, CS25EC-SC-EU - CS33EDT - CS38EK - CS40EA - CS45EL - CS51EAP...
AVAILABLE €3.45
Details
Metering Diaphragm for Chainsaws Hitachi CS-33-40-51
HiKOKI Power Tools Italia S.p.a. SKU: 6684690
Metering Diaphragm for Chainsaws Hitachi CS-33-40-51
Metering Diaphragm for Chainsaws Hitachi CS-33-40-51 Original parts for Chainsaw Hitachi Koky Tanaka, Metering Diaphragm for Carburetor Chainsaws,CS33EDT - CS 33EB - CS40EA - TANAKA TCS-40EA - Hitachi CS51EAP -...
Last items in stock €25.81
Details
Fuel Hose for Brushcutters Hitachi CG47EF (L)-CG47EJ-L-CG47EY-T
HiKOKI Power Tools Italia S.p.a. SKU: 6685267
Fuel Hose for Brushcutters Hitachi CG47EF (L)-CG47EJ-L-CG47EY-T
Fuel Hose for Brushcutters Hitachi CG47EF (L)-CG47EJ-L-CG47EY-T Genuine part Hitachi Koky Tanaka, Fuel Hose mm 2.5X4X90 for Brushcutters G47EF (L) - CG47EJ-L - CG47EY-T - Tanaka TBC-600 - Chainsaw HITACHI CS51EAP Parts for the...
AVAILABLE €3.31
Details
Petrol-Oil Tank Cap Packing for Chainsaw Hitachi CS33EDT
HiKOKI Power Tools Italia S.p.a. SKU: 6685179
Petrol-Oil Tank Cap Packing for Chainsaw Hitachi CS33EDT
Petrol-Oil Tank Cap Packing for Chainsaw Hitachi CS33EDT Original part Hitachi Koky Tanaka, Petrol - Oil Tank Cap Packing for Chainsaws, CS 33EDT - CS 33EB - CS 40EA - CS 51EAP Parts for the following products: - Motosega Hitachi...
Last items in stock €1.98
Details
Screw D. 4x15 for Chainsaw Hitachi CS25EC-SC-CS30EG Sale
HiKOKI Power Tools Italia S.p.a. SKU: 6685148
Screw D. 4x15 for Chainsaw Hitachi CS25EC-SC-CS30EG
Screw D. 4x15 for Chainsaw Hitachi CS25EC-SC-CS30EG Original spare part Hitachi, Screw D. 4x15 for Chainsaw Hitachi CS25EC-SC - CS30EG - Tanaka TCS-2801S - Tanaka TCS-3301S - Tanaka TCS-2800S. Part for the following products: -...
AVAILABLE €1.05
Details
Chain Catcher Protection Pipe for Chainsaw Hitachi CS25EC-SC
HiKOKI Power Tools Italia S.p.a. SKU: 6685154
Chain Catcher Protection Pipe for Chainsaw Hitachi CS25EC-SC
Chain Catcher Protection Pipe for Chainsaw Hitachi CS25EC-SC Genuine part Hitachi, Tensioner Protection Pipe for Chainsaw Hitachi CS25EC-SC - CS30EC - CS30EG - CS38EK - CS45EL Ricambio per i seguenti prodotti: - Chainsaw Tanaka...
AVAILABLE €1.32
Details
Chain Catcher for Chainsaw Hitachi CS25EC-SC
HiKOKI Power Tools Italia S.p.a. SKU: 6685155
Chain Catcher for Chainsaw Hitachi CS25EC-SC
Chain Catcher for Chainsaw Hitachi CS25EC-SC Genuine part Hitachi, Chain Catcher for Chainsaw Hitachi CS25EC-SC - CS30EC - CS30EG - CS38EK - CS45EL Ricambio per i seguenti prodotti:...
Last items in stock €1.98
Details
Guide Plate Screw M4x10 for Chainsaw Hitachi CS25EC-SC
HiKOKI Power Tools Italia S.p.a. SKU: 6685161
Guide Plate Screw M4x10 for Chainsaw Hitachi CS25EC-SC
Guide Plate Screw M4x10 for Chainsaw Hitachi CS25EC-SC Genuine part Hitachi, Guide Plate Screw M4x10 for Chainsaw Hitachi CS25EC-SC - CS30EC - CS30EG - CS38EK - CS45EL. Ricambio per i seguenti prodotti: - Chainsaw Tanaka TCS-2800S -...
AVAILABLE €1.15
Details
Chain Catcher Screw M5X14 for Chainsaw Hitachi CS25EC-SC
HiKOKI Power Tools Italia S.p.a. SKU: 6685275
Chain Catcher Screw M5X14 for Chainsaw Hitachi CS25EC-SC
Chain Catcher Screw M5X14 for Chainsaw Hitachi CS25EC-SC Genuine part Hitachi, Guide Plate Screw M4x10 for Chainsaw Hitachi CS25EC-SC - CS30EC - CS30EG - CS38EK - CS45EL. Ricambio per i seguenti prodotti: - Chainsaw Tanaka TCS-2800S -...
AVAILABLE €1.27
Details
Cleaner Cover Knob for Chainsaw Hitachi CS25EC-SC
HiKOKI Power Tools Italia S.p.a. SKU: 6685228
Cleaner Cover Knob for Chainsaw Hitachi CS25EC-SC
Cleaner Cover Knob for Chainsaw Hitachi CS25EC-SC Original part Hitachi Koky Tanaka, Cleaner Cover Knob for Chainsaws Hitachi CS25EC-SC - Tanaka TCS-2801S - TCS-3301S. Part for the following products: -...
Last items in stock €4.04
Details
Cleaner Fixing Collar for Chainsaw Hitachi CS25EC-SC
HiKOKI Power Tools Italia S.p.a. SKU: 6685180
Tank Cap Ass'y for Chainsaws Hitachi CS25EC-SC
Tank Cap Ass'y for Chainsaws Hitachi CS25EC-SC Original spare part Hitachi Koky Tanaka, Tank Cap Ass'y for Chainsaws Hitachi CS25EC-SC - CS 30EC - CS30EH - TCS-2800S - TCS-2801S. Part for the following products: - Chainsaw Hitachi...
Last items in stock €5.64
Details
Brake Lever Rod for Chainsaws Hitachi CS25EC-SC
HiKOKI Power Tools Italia S.p.a. SKU: 6685119
Brake Lever Rod for Chainsaws Hitachi CS25EC-SC
Brake Lever Rod for Chainsaws Hitachi CS25EC-SC Original spare part Hitachi Koky Tanaka, Brake Lever Rod for Chainsaws Hitachi CS25EC-SC - CS 30EC - CS30EH - TCS-2801S. Part for the following products: - Chainsaw Hitachi CS25EC-SC -...
AVAILABLE €6.50
Details
Brake Lever Rod Collar for Chainsaw Hitachi CS25EC-SC
HiKOKI Power Tools Italia S.p.a. SKU: 6685120
Brake Lever Rod Collar for Chainsaw Hitachi CS25EC-SC
Brake Lever Rod Collar for Chainsaw Hitachi CS25EC-SC Original spare part Hitachi Koky Tanaka, Brake Lever Rod Collar for Chainsaws CS25EC (S) - CS25EC (SC) - CS30EG - CS 30EC. Part for the following products: - Chainsaw Hitachi...
AVAILABLE €1.98
Details
Shield Tube for Chainsaw Hitachi Tanaka CS25EC-SC
HiKOKI Power Tools Italia S.p.a. SKU: 6685247
Shield Tube for Chainsaw Hitachi CS25EC-SC
Shield Tube for Chainsaw Hitachi CS25EC-SC Original spare part Hitachi Koky Tanaka, Shield Tube for Chainsaws CS25EC-SC - CS 30EC - CS33ET - CS33EA. Part for the following products:...
Last items in stock €5.12
Details
Carburator Needle Valve for Chainsaws Hitachi-HiKoki Tanaka
HiKOKI Power Tools Italia S.p.a. SKU: 6685215
Carburator Needle Valve for Chainsaws Hitachi-HiKoki Tanaka
Carburator Needle Valve for Chainsaws Hitachi-HiKoki Tanaka Original part Hitachi-HiKoki Tanaka, Carburator Needle Valve for Chainsaws and Brushcutters Hitachi-HiKoki Tanaka. Part for the following products: - Chainsaw ECS 3301D -...
AVAILABLE €10.76
Details
Control Lever for Chainsaw Hitachi CS25EC-SC
HiKOKI Power Tools Italia S.p.a. SKU: 6685217
Control Lever for Chainsaw Hitachi CS25EC-SC
Control Lever for Chainsaw Hitachi CS25EC-SC Original spare parts Hitachi HiKoki Tanaka, Control Lever for Chainsaws CS33EA-CS25EC-SC - Tanaka TCS-2800S - TCS-2801S. Part for the following products: -  Chainsaw Hitachi CS25EC-SC -...
Last items in stock €6.34
Details
Machine Screw M3x8 for Chainsaw Hitachi CS25EC-SC
HiKOKI Power Tools Italia S.p.a. SKU: 6685133
Machine Screw M3x8 for Chainsaw Hitachi CS25EC-SC
Machine Screw M3x8 for Chainsaw Hitachi CS25EC-SC Original spare part Hitachi-HIKOKI Tanaka, Machine Screw M3x8 for Chainsaws CS25EC-SC - CS 30EC - CS33ET - CS33EA Part for the following products: -  Motosega HITACHI CS25EC-SC -...
Last items in stock €2.08
Details
Comments (0)
