HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Engine Chainsaw CS30EH

SKU: Hitachi CS30EH(S) / CE35EH(S)
€1.11
VAT included

Hitachi Spare Parts for Engine Chainsaw CS30EH

We supply original Hitachi-HIKOKI spare parts on offer at unbeatable prices, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Pruning Chainsaw CS30EH.
Hitachi Spare Parts for Engine Chainsaw CS30EH
  • Hitachi Spare Parts for Engine Chainsaw CS30EH
  • Hitachi Spare Parts for Engine Chainsaw CS30EH
  • Hitachi Spare Parts for Engine Chainsaw CS30EH
  • Hitachi Spare Parts for Engine Chainsaw CS30EH
  • Hitachi Spare Parts for Engine Chainsaw CS30EH
  • Hitachi Spare Parts for Engine Chainsaw CS30EH
  • Hitachi Spare Parts for Engine Chainsaw CS30EH
  • Hitachi Spare Parts for Engine Chainsaw CS30EH
  • Hitachi Spare Parts for Engine Chainsaw CS30EH
  • Hitachi Spare Parts for Engine Chainsaw CS30EH
  • Hitachi Spare Parts for Engine Chainsaw CS30EH
  • Hitachi Spare Parts for Engine Chainsaw CS30EH
HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Engine Chainsaw CS30EH

SKU: Hitachi CS30EH(S) / CE35EH(S) Condition: New
€1.11
VAT included

Hitachi Spare Parts for Engine Chainsaw CS30EH

We supply original Hitachi-HIKOKI spare parts on offer at unbeatable prices, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Pruning Chainsaw CS30EH.
settings 157 spare parts
description 11 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 7/10 Business Days Approx

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
140 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 1
Pos. Item Price Buy
*65
 photo_cameraImage coming soon 6687958 GROMMET €4.50
*65
 photo_cameraImage coming soon 6687959 GROMMET €4.50
1
 photo_cameraImage coming soon 6687468 SPARK PLUG CAP ASS'Y €5.31
3
 photo_cameraImage coming soon 6685460 CYLINDER AND GASKET €107.88
4
 Bolt M5X18/S for Chainsaws Hitachi CS38EK-CS45EL 6684586 Bolt M5X18/S for Chainsaws Hitachi CS38EK-CS45EL €1.98
5
 photo_cameraImage coming soon 6685725 CYLINDER GASKET €1.36
6
 Piston Ring for Chainsaw Hitachi CS30EH 6686122 Piston Ring for Chainsaw Hitachi CS30EH €8.53
7
 photo_cameraImage coming soon 6685880 PISTON €29.37
8
 Piston Pin for Brushcutters Hitachi CG33EJ-LP-CG33EJ-SL 6686008 Piston Pin for Brushcutters Hitachi CG33EJ-LP-CG33EJ-SL €4.64
9
 Hitachi CG33EJ-LP Circlip 6685078 Hitachi CG33EJ-LP Circlip €1.22
11
 photo_cameraImage coming soon 6684899 WOODRUFF KEY 3X13X4.5 €1.68
12
 photo_cameraImage coming soon 6695407 HIGH TENSION SCREW 4X18WS €1.25
13
 photo_cameraImage coming soon 6685089 IGNITION COIL €44.06
15
 Ignition Coil Rubber Cap for Brushcutters Hitachi Tanaka 6684602 Ignition Coil Rubber Cap for Brushcutters Hitachi Tanaka €2.65
16
 photo_cameraImage coming soon 6687667 ELECTRONIC IGNITION COIL till series A289400 €47.52
Page 2 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

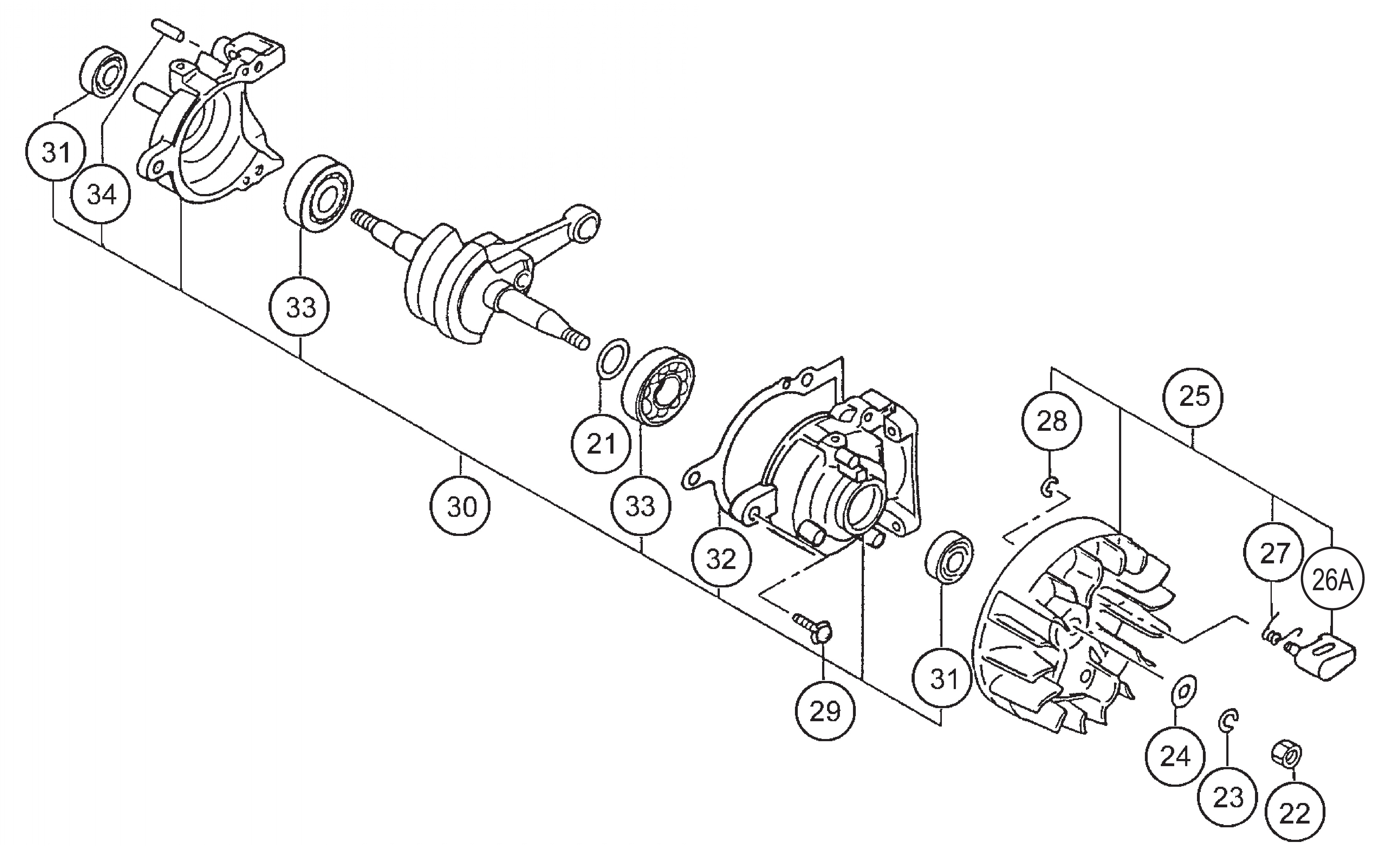

Esploso pagina 2
Pos. Item Price Buy
21
 photo_cameraImage coming soon 6685098 SHIM S T0.2 €1.98
21
 photo_cameraImage coming soon 6685099 SHIM S T0.3 €1.98
24
 photo_cameraImage coming soon 6685103 BOLT WASHER M7 €1.25
25
 photo_cameraImage coming soon 6685102 THEY FLY €33.98
27
 photo_cameraImage coming soon 6685105 STARTER PAWL SPRING €1.68
28
 photo_cameraImage coming soon 6685101 D4E RETAINING RING €1.25
29
 photo_cameraImage coming soon 6684668 HEX.HOLE BOLT M5X20/S €1.27
30
 photo_cameraImage coming soon 6686524 ENGINE CASE €82.04
33
 Ball Bearing 6201 for Chainsaw Hitachi CS30EH 6685096 Ball Bearing 6201 for Chainsaw Hitachi CS30EH €11.47
Page 3 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

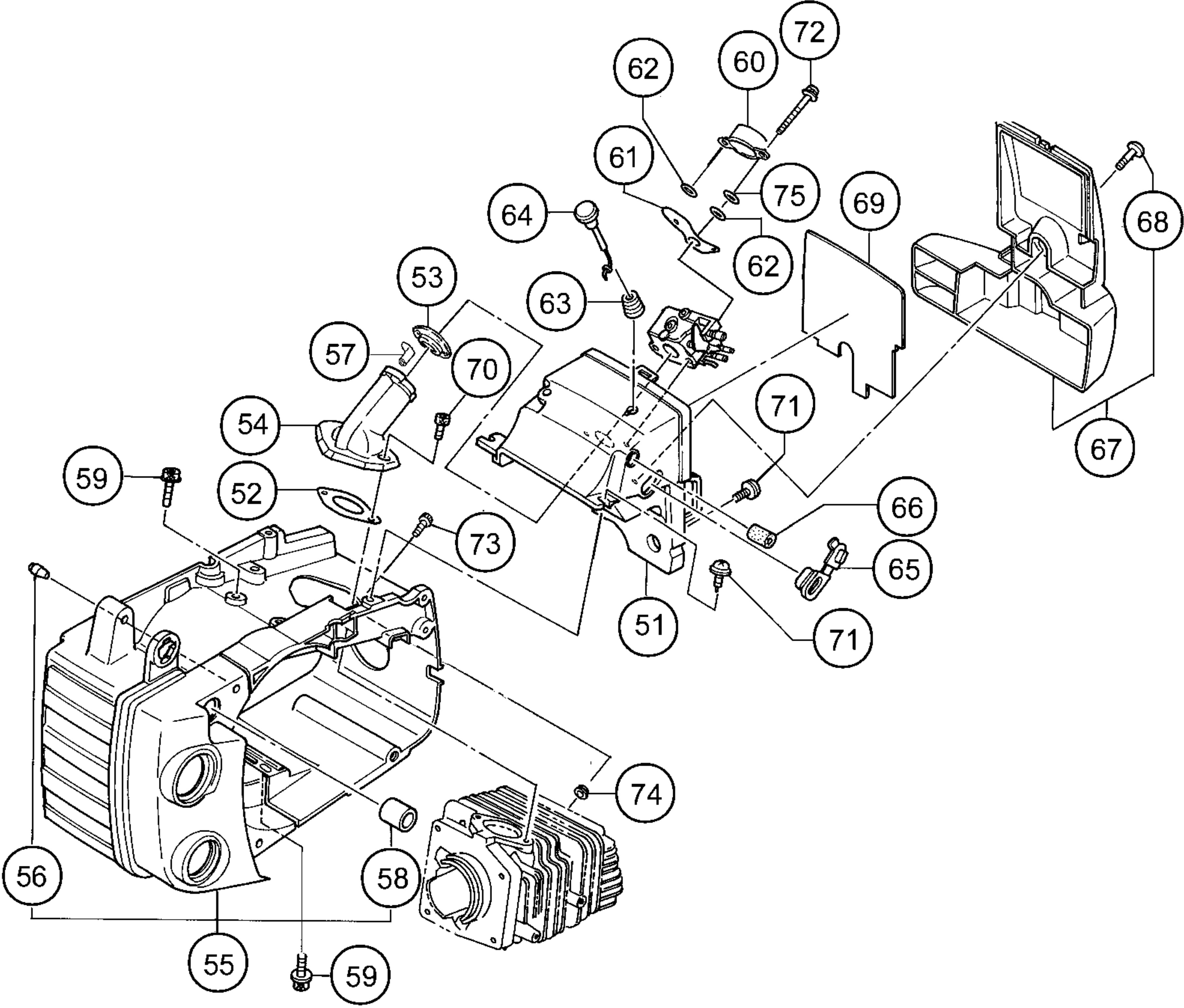

Esploso pagina 3
Pos. Item Price Buy
51
 photo_cameraImage coming soon 6687421 FILTER BODY €13.90
52
 Inlet Manifold Gasket for Chainsaw Hitachi Tanaka CS38EK 6689876 Inlet Manifold Gasket for Chainsaw Hitachi Tanaka CS38EK €6.05
53
 photo_cameraImage coming soon 6685202 INLET MANIFOLD SPACER €4.69
54
 Chainsaw Hitachi CS30EH Intake Manifold 6689787 Chainsaw Hitachi CS30EH Intake Manifold €21.92
55
 photo_cameraImage coming soon 6691367 ENGINE HOUSING €75.82
56
 photo_cameraImage coming soon 6685173 AIR VENT VALVE (B) €5.98
57
 photo_cameraImage coming soon 6685203 PULSE GUIDE €1.83
58
 photo_cameraImage coming soon 6685175 BREATHER VALVE €11.96
59
 photo_cameraImage coming soon 6684634 HEX.HOLE BOLT 5X20/PS €1.68
60
 Blow Over Check Board for Brushcutter Hitachi CG40EAS 6690843 Blow Over Check Board for Brushcutter Hitachi CG40EAS €3.48
61
 photo_cameraImage coming soon 6692411 CHOKE VALVE €2.21
63
 photo_cameraImage coming soon 6692591 GROMMET €2.01
64
 photo_cameraImage coming soon 6692514 LEVER €3.83
67
 photo_cameraImage coming soon 6686304 HALF CARTER €7.82
69
 Air Cleaner Element for Chainsaw Tanaka TCS-3401S 6690074 Air Cleaner Element for Chainsaw Tanaka TCS-3401S €6.84
70
 photo_cameraImage coming soon 6684595 HEX. SOCKET HD. BOLT (W/SP.WASHER) M4X12 €1.71
71
 photo_cameraImage coming soon 6685153 TAPPING SCREW D4.5X14 €1.75
73
 Hex Hole Bolt M5x18PS for Hedge Trimmer Tanaka THT 210 6695505 Hex Hole Bolt M5x18PS for Hedge Trimmer Tanaka THT 210 €2.16
74
 photo_cameraImage coming soon 6685853 GROMMET €2.55
Page 4 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

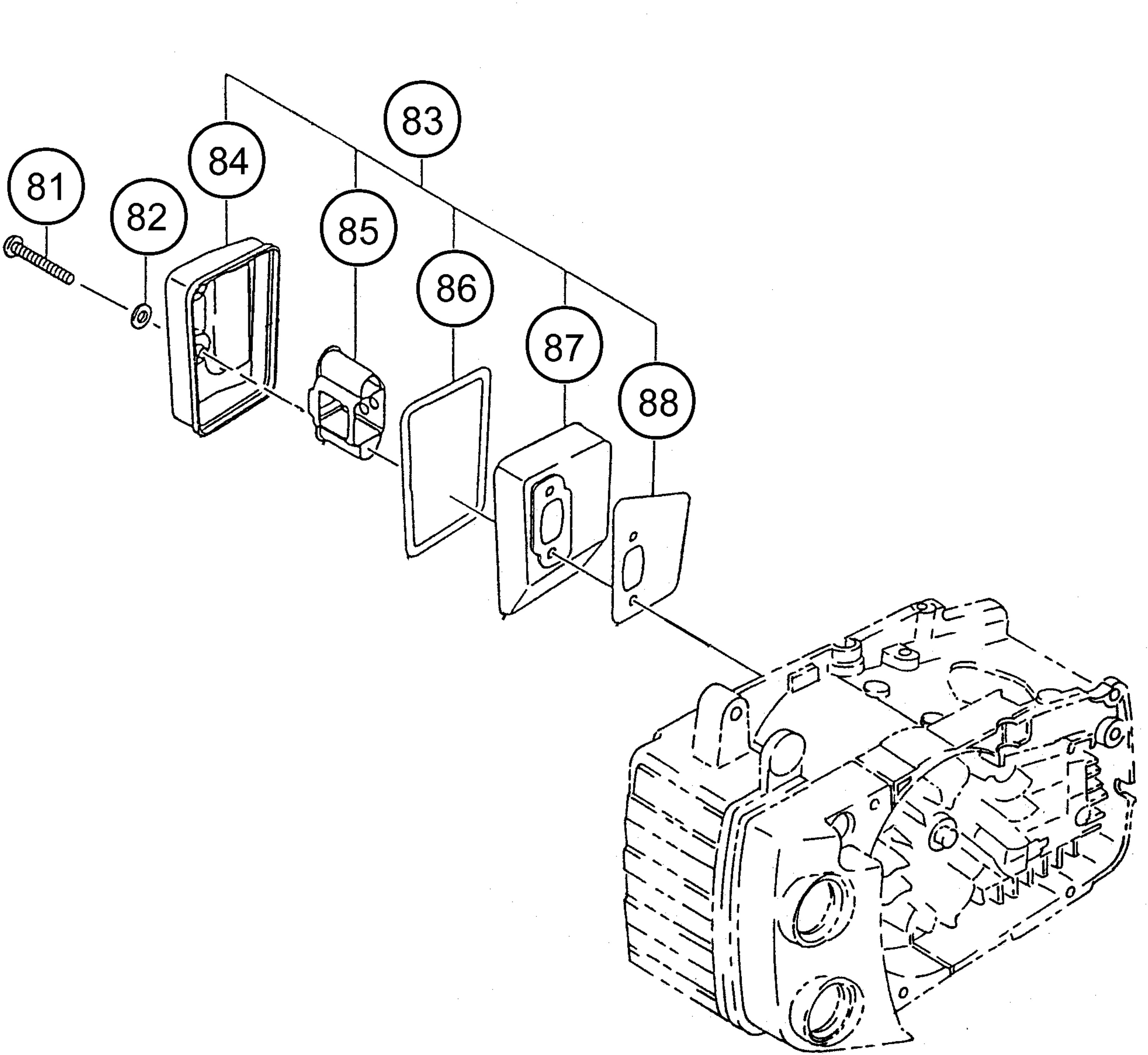

Esploso pagina 4
Pos. Item Price Buy
82
 Washer D. 5 for Chainsaw Hitachi CS45EL-CS38EK 6684662 Washer D. 5 for Chainsaw Hitachi CS45EL-CS38EK €1.28
84
 photo_cameraImage coming soon 6692628 MUFFLER BODY €8.48
86
 photo_cameraImage coming soon 6692834 SEAL €2.55
88
 photo_cameraImage coming soon 6692735 GASKET €2.55
Page 5 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

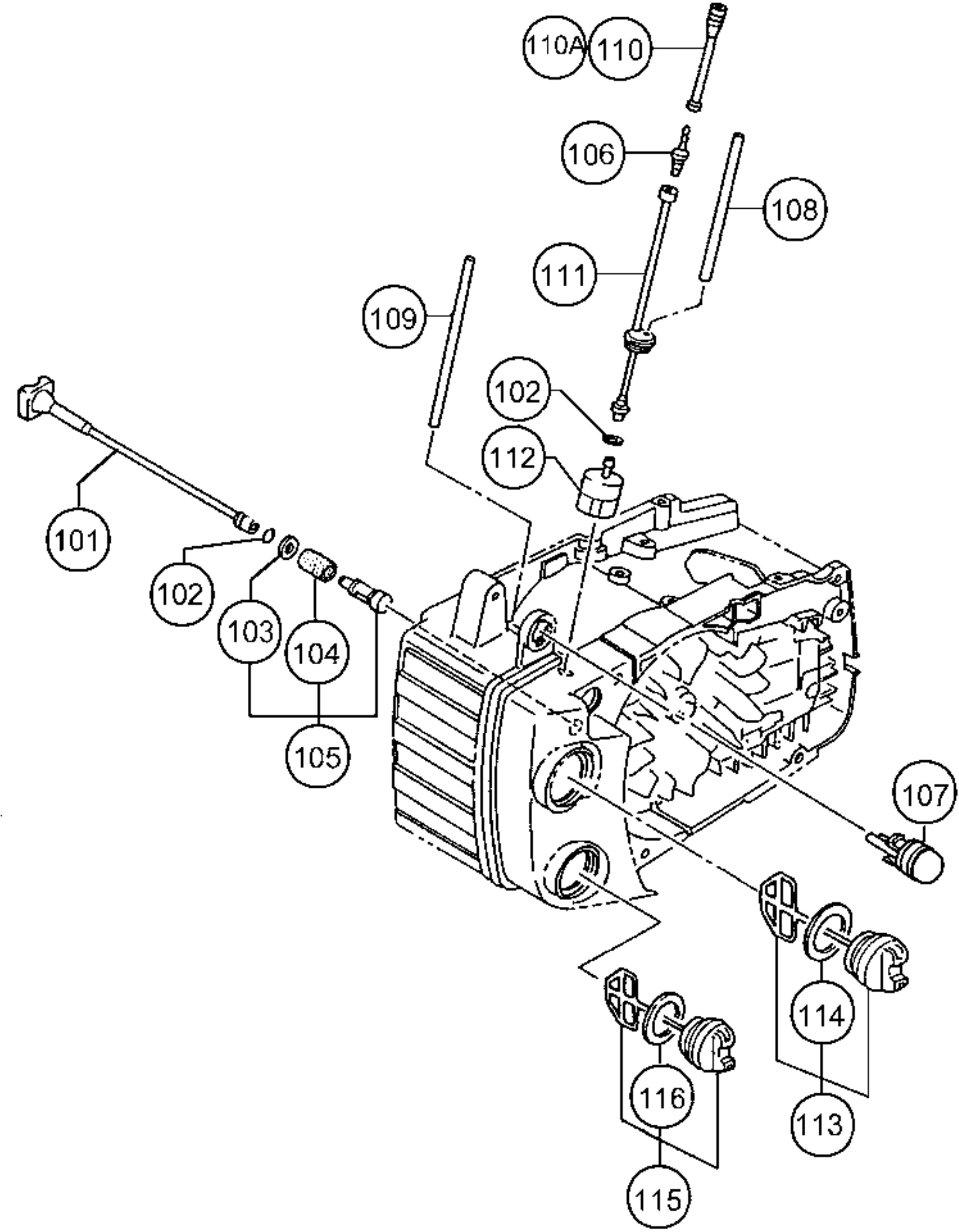

Esploso pagina 5
Pos. Item Price Buy
101
 Oil Pipe (B) for Chainsaw Hitachi Tanaka CS30EG (S) 6691121 Oil Pipe (B) for Chainsaw Hitachi Tanaka CS30EG (S) €10.49
103
 photo_cameraImage coming soon 6684661 WASHER 5 €1.27
105
 Oil Filter Body Ass’y for Chainsaw Tanaka TCS-2800S 6685249 Oil Filter Body Ass’y for Chainsaw Tanaka TCS-2800S €7.67
106
 photo_cameraImage coming soon 6685196 FITTING €2.57
107
 Priming Pump for Chain Saws and Brushcutters Hitachi Tanaka 6685139 Priming Pump for Chain Saws and Brushcutters Hitachi Tanaka €13.15
108
 Fuel Hose for Brushcutters Hitachi CG47EF (L)-CG47EJ-L-CG47EY-T 6685267 Fuel Hose for Brushcutters Hitachi CG47EF (L)-CG47EJ-L-CG47EY-T €3.31
110A
 photo_cameraImage coming soon 6697632 TUBE €3.66
111
 photo_cameraImage coming soon 6688155 MIXTURE TUBE €9.21
113
 Tank Cap Ass'y for Chainsaw Hitachi CS25EC-SC 6685180 Tank Cap Ass'y for Chainsaw Hitachi CS25EC-SC €5.92
114
 Petrol-Oil Tank Cap Packing for Chainsaw Hitachi CS33EDT 6685179 Petrol-Oil Tank Cap Packing for Chainsaw Hitachi CS33EDT €1.98
115
 Oil Tank Cap for Chainsaw Hitachi CS 30EC 6697756 Oil Tank Cap for Chainsaw Hitachi CS 30EC €5.43 Not available for order
116
 Oil Tank Cap Packing for Chainsaw Tanaka TCS-2800S 6697888 Oil Tank Cap Packing for Chainsaw Tanaka TCS-2800S €2.08
Page 6 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

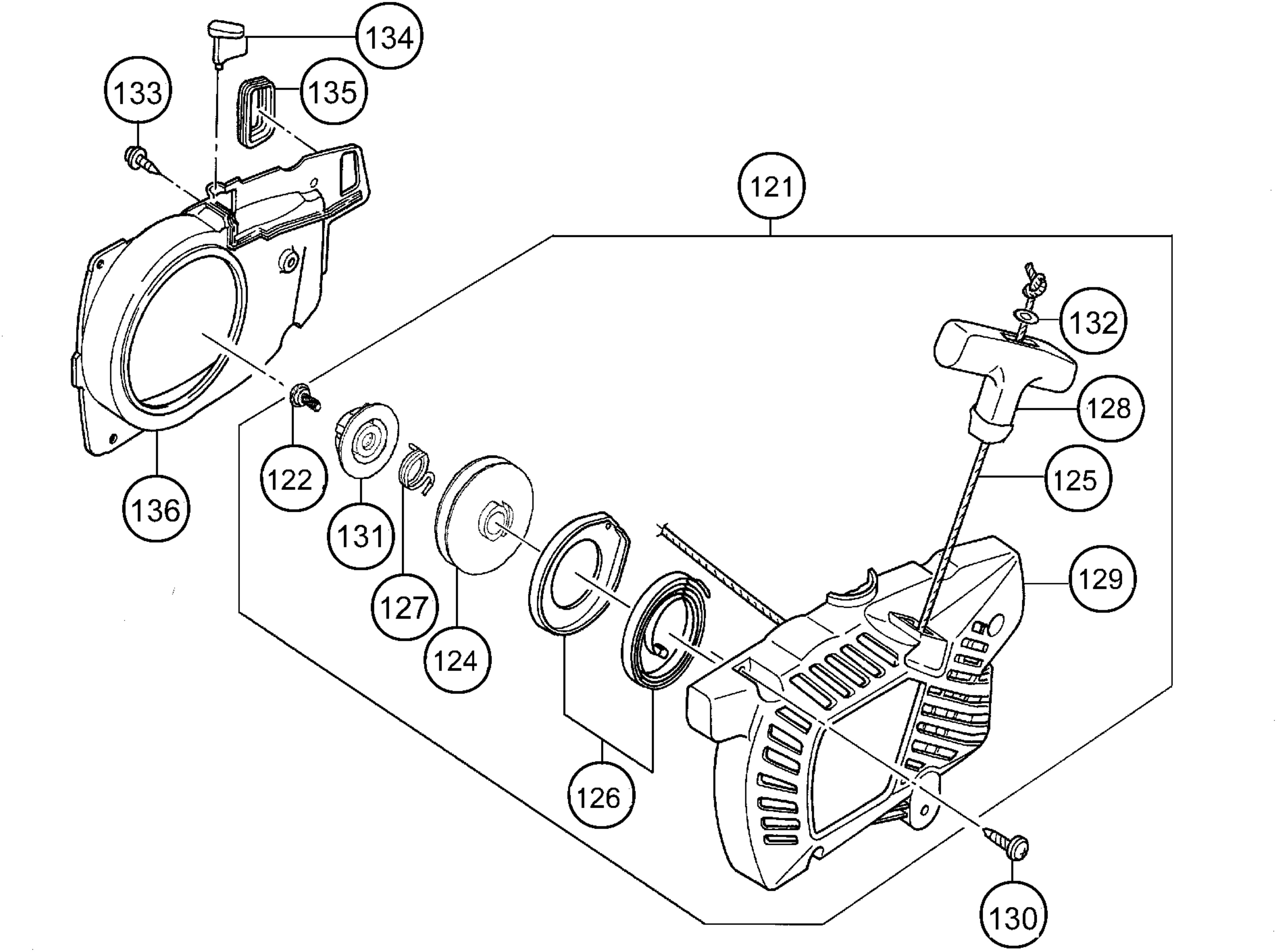

Esploso pagina 6
Pos. Item Price Buy
121
 Recoil Starter Ass'y for Chainsaw Hitachi CS30EH 6692911 Recoil Starter Ass'y for Chainsaw Hitachi CS30EH €38.42 Not available for order
122
 Set Screw for Hedge Trimmer Hitachi CH62EA(ST) 6684679 Set Screw for Hedge Trimmer Hitachi CH62EA(ST) €6.81
124
 Starter Pulley for Chainsaw Hitachi Tanaka CS25EC-SC 6685184 Starter Pulley for Chainsaw Hitachi Tanaka CS25EC-SC €10.63
126
 Spring Case Set for Chainsaw Tanaka TCS-2801S 6685185 Spring Case Set for Chainsaw Tanaka TCS-2801S €15.21
127
 Damper Spring for Chainsaw Hitachi Tanaka CS33EA-CS25EC-SC 6685183 Damper Spring for Chainsaw Hitachi Tanaka CS33EA-CS25EC-SC €7.83
128
 photo_cameraImage coming soon 6685188 STARTER HANDLE €6.45
129
 photo_cameraImage coming soon 6686952 STARTER CARTER (S-START) €21.32
131
 photo_cameraImage coming soon 6685182 CAM PLATE €7.82
135
 photo_cameraImage coming soon 6687183 GROMMET €2.55
136
 photo_cameraImage coming soon 6687327 CONVEYOR €10.47
Page 7 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

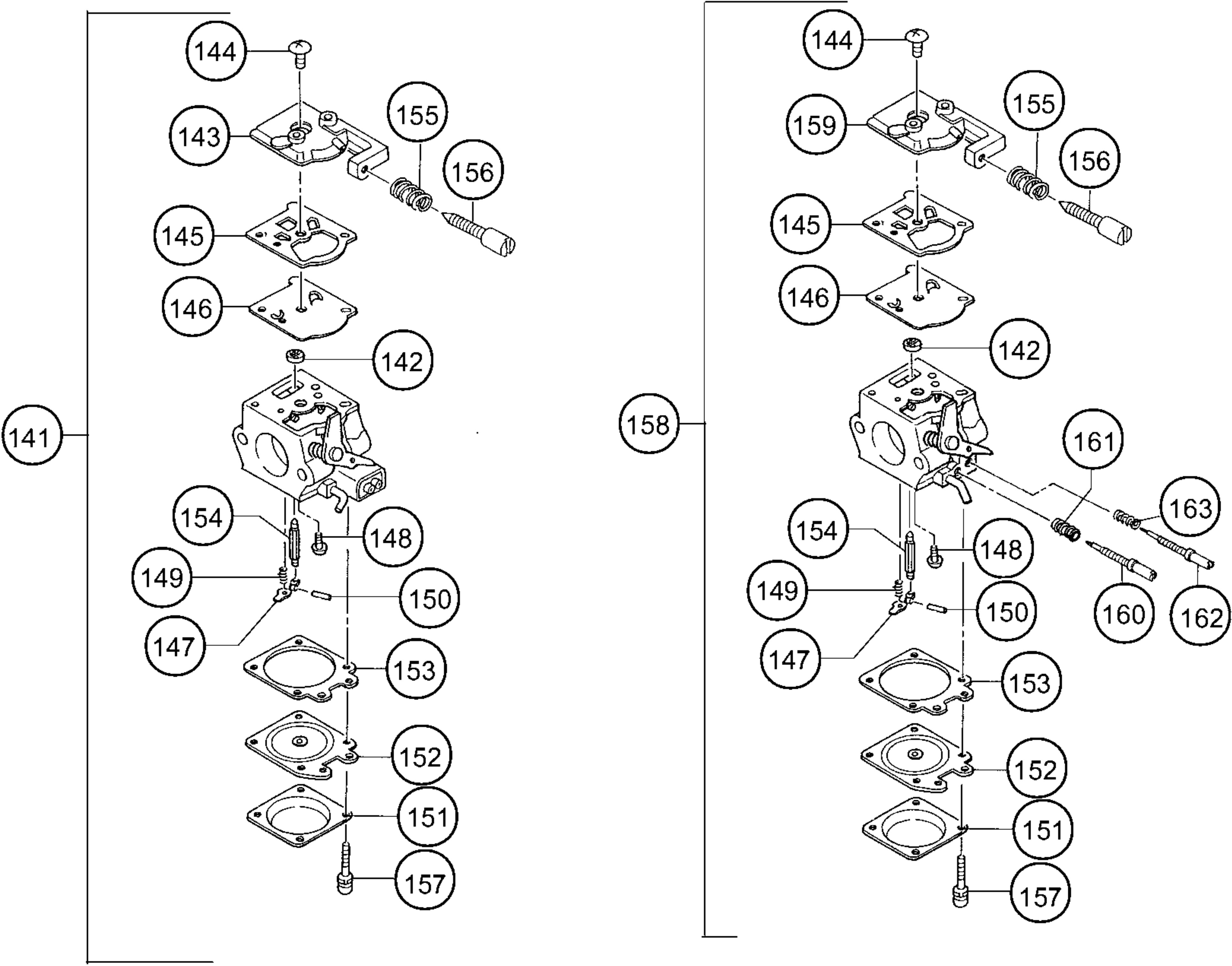

Esploso pagina 7
Pos. Item Price Buy
141
 photo_cameraImage coming soon 6690650 CARBURETOR WT553 €102.68
142
 Carburator Inlet Screen for Chainsaws and Bruschcutters Hitachi 6684700 Carburator Inlet Screen for Chainsaws and Bruschcutters Hitachi €3.18
144
 photo_cameraImage coming soon 6685210 SCREW €2.52
145
 Carburetor Pump Gasket for Chainsaws Hitachi CS25-33-40-45-51 6685212 Carburetor Pump Gasket for Chainsaws Hitachi CS25-33-40-45-51 €3.98
146
 Carburetor Pump Diaphragm for Chainsaws Hitachi CS25-33-40-45-51 6685213 Carburetor Pump Diaphragm for Chainsaws Hitachi CS25-33-40-45-51 €10.63
147
 Control Lever for Chainsaw Hitachi CS25EC-SC 6685217 Control Lever for Chainsaw Hitachi CS25EC-SC €6.34
148
 photo_cameraImage coming soon 6685218 HINGE PIN SET SCREW €3.38
150
 Hitachi CS25EC-SC Hinge Pin 6685219 Hitachi CS25EC-SC Hinge Pin €2.53
152
 Metering Diaphragm Comp. for Chainsaws Hitachi CS25-33-40-45-51 6690827 Metering Diaphragm Comp. for Chainsaws Hitachi CS25-33-40-45-51 €23.70
153
 Diaphragm Packing Metering for Chainsaws Hitachi CS25-33-40-45-51 6685220 Diaphragm Packing Metering for Chainsaws Hitachi CS25-33-40-45-51 €3.45
154
 Carburator Needle Valve for Chainsaws Hitachi-HiKoki Tanaka 6685215 Carburator Needle Valve for Chainsaws Hitachi-HiKoki Tanaka €10.76
155
 photo_cameraImage coming soon 6685297 IDLE ADJUST SPRING €3.38
156
 photo_cameraImage coming soon 6685298 IDLE ADJUST SCREW €3.44
157
 photo_cameraImage coming soon 6685223 SET SCREW €2.59
158
 photo_cameraImage coming soon 6690647 CARBURETOR WT551 €79.75
161
 photo_cameraImage coming soon 6692048 HIGH/LOW ADJUST SPRING €3.35
162
 photo_cameraImage coming soon 6686764 PUMP COVER €3.93
163
 photo_cameraImage coming soon 6690897 HIGH ADJUSTMENT SPRING €4.75
163
 Oil Pipe (A) for Chainsaw Hitachi Tanaka CS30EG (S) 6691223 Oil Pipe (A) for Chainsaw Hitachi Tanaka CS30EG (S) €6.50
Page 8 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

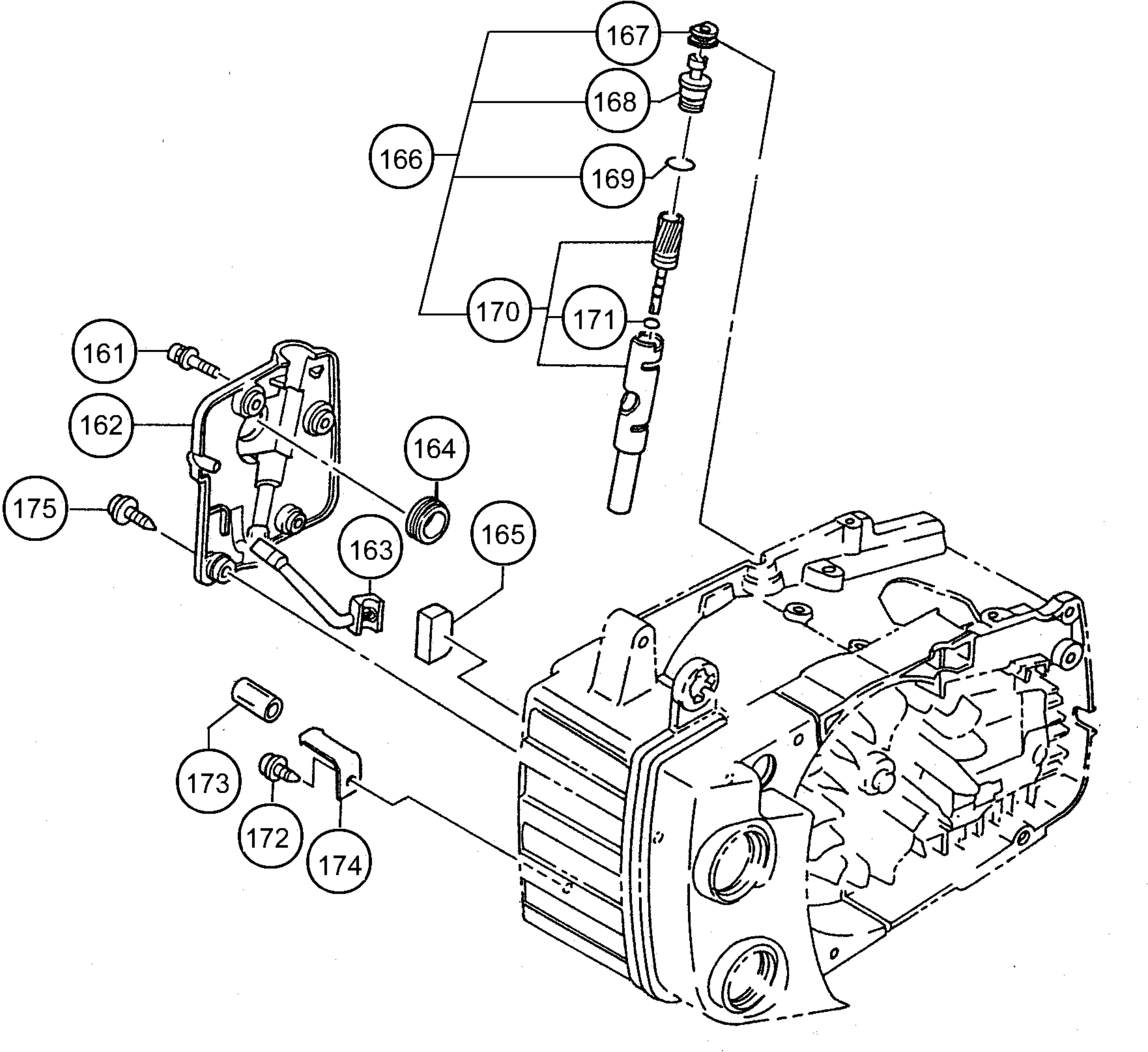

Esploso pagina 8
Pos. Item Price Buy
164
 Oil Pump Worm Screw for Chainsaw Tanaka TCS-3401S 6686645 Oil Pump Worm Screw for Chainsaw Tanaka TCS-3401S €13.94
165
 photo_cameraImage coming soon 6685156 AIR VENT SPONGE €1.51
166
 Oil Pump Ass'y for Chainsaw Tanaka TCS-3401S 6687325 Oil Pump Ass'y for Chainsaw Tanaka TCS-3401S €23.58
167
 photo_cameraImage coming soon 6690957 GROMMET €2.01
168
 Oil Pump Adjuster for Chainsaw Hitachi Tanaka CS30EG (S) 6691070 Oil Pump Adjuster for Chainsaw Hitachi Tanaka CS30EG (S) €3.84
169
 photo_cameraImage coming soon 6697917 O RING €2.23
170
 Oil Pump Case Set for Chainsaw Hitachi Tanaka CS30(EG) 6686681 Oil Pump Case Set for Chainsaw Hitachi Tanaka CS30(EG) €19.80
172
 Chain Catcher Screw M5X14 for Chainsaw Hitachi CS25EC-SC 6685275 Chain Catcher Screw M5X14 for Chainsaw Hitachi CS25EC-SC €1.27
173
 Chain Catcher Protection Pipe for Chainsaw Hitachi CS25EC-SC 6685154 Chain Catcher Protection Pipe for Chainsaw Hitachi CS25EC-SC €1.32
174
 Chain Catcher for Chainsaw Hitachi CS25EC-SC 6685155 Chain Catcher for Chainsaw Hitachi CS25EC-SC €1.98
Page 9 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

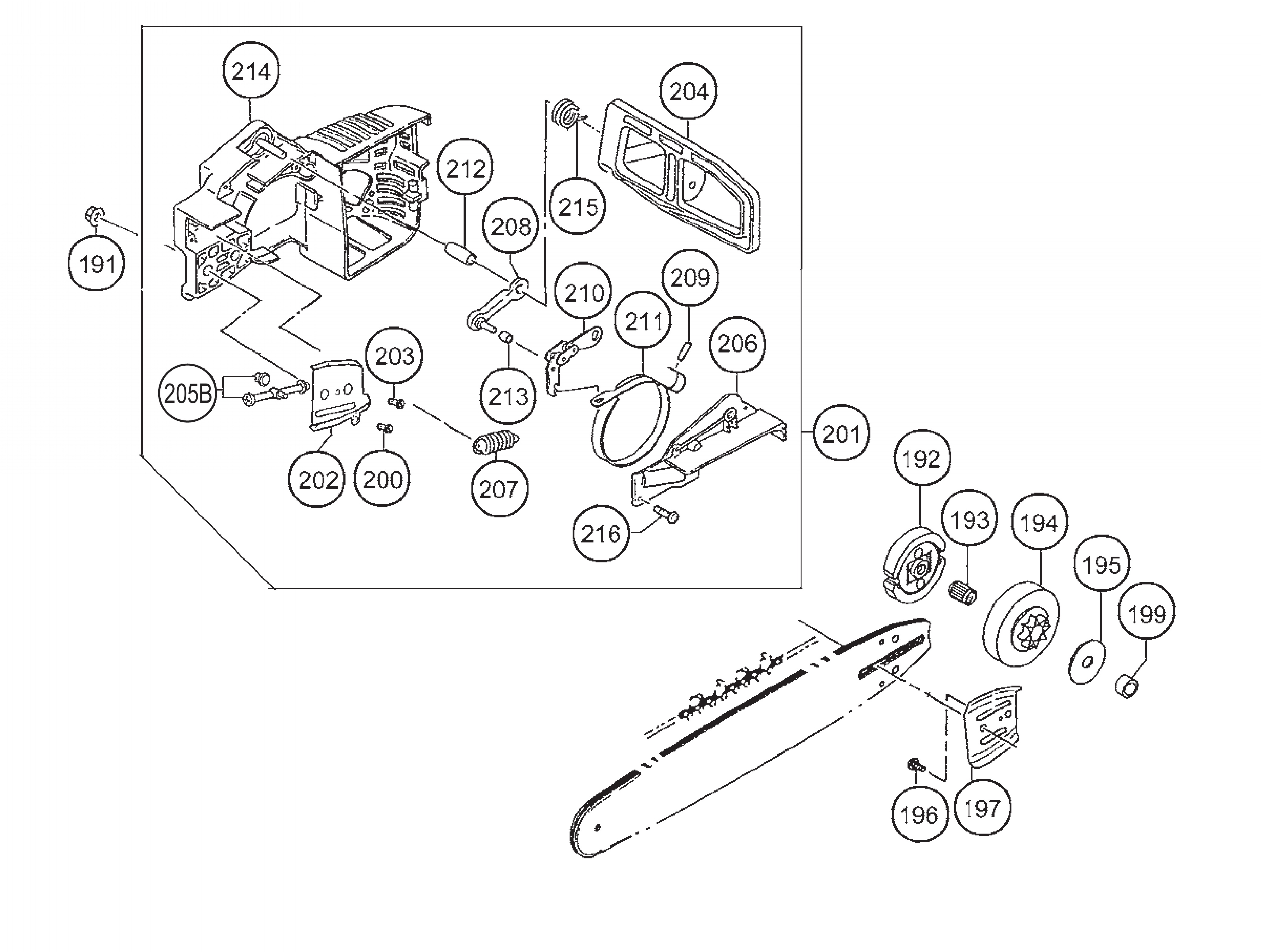

Esploso pagina 9
Pos. Item Price Buy
191
 Chain Bar Lock Nut for Chainsaw Hitachi CS25EC-SC 6685166 Chain Bar Lock Nut for Chainsaw Hitachi CS25EC-SC €4.64
192
 Clutch for Chainsaw Hitachi Tanaka CS33EB 6685142 Clutch for Chainsaw Hitachi Tanaka CS33EB €26.45
193
 Clutch Needle Bearing for Chain Saws Hitachi CS25EC-SC 6685143 Clutch Needle Bearing for Chain Saws Hitachi CS25EC-SC €10.49 Not available for order
194
 photo_cameraImage coming soon 6685144 CLUTCH HOUSING COMP. €28.75
195
 Clutch Washer for Chainsaw Tanaka ECS 3300D 6685145 Clutch Washer for Chainsaw Tanaka ECS 3300D €3.42
196
 Guide Plate Screw M4x10 for Chainsaw Hitachi CS25EC-SC 6685161 Guide Plate Screw M4x10 for Chainsaw Hitachi CS25EC-SC €1.15
199
 photo_cameraImage coming soon 6685146 CRANK SHAFT COLLAR €8.68
201
 photo_cameraImage coming soon 6686110 CHAIN CARTER ASSY €78.07
202
 Guide Plate for Chainsaw Tanaka TCS-3301S 6690756 Guide Plate for Chainsaw Tanaka TCS-3301S €5.43
203
 Screw mm 2,6x5 for Chainsaw Tanaka ECS 3300D 6695269 Screw mm 2,6x5 for Chainsaw Tanaka ECS 3300D €2.07
204
 photo_cameraImage coming soon 6697958 BRAKE HANDLE COMP. €15.32
205B
 Tension Adjustment Bolt for Chainsaw Hitachi CS33EB-CS33EDT-CS40EA 6698986 Tension Adjustment Bolt for Chainsaw Hitachi CS33EB-CS33EDT-CS40EA €25.92
206
 photo_cameraImage coming soon 6689712 BRAKE LINK COVER, BLACK €5.99
207
 photo_cameraImage coming soon 6689705 SPRING €4.50
208
 Brake Lever Rod for Chainsaw Tanaka TCS-2801S 6685119 Brake Lever Rod for Chainsaw Tanaka TCS-2801S €6.83
209
 Needle Roller 3x9,8 mm for Chainsaw Hitachi CS25EC-SC 6685141 Needle Roller 3x9,8 mm for Chainsaw Hitachi CS25EC-SC €1.93
210
 photo_cameraImage coming soon 6685388 BRAKE LINK €8.33
211
 photo_cameraImage coming soon 6689728 BRAKE BAND €18.20
212
 Cleaner Fixing Collar for Chainsaw Hitachi CS25EC-SC 6690805 Cleaner Fixing Collar for Chainsaw Hitachi CS25EC-SC €3.31
213
 Brake Lever Rod Collar for Chainsaw Hitachi CS25EC-SC 6685120 Brake Lever Rod Collar for Chainsaw Hitachi CS25EC-SC €1.98
214
 photo_cameraImage coming soon 6686046 SIDE CARTER €15.97
215
 Brake Lever Spring for Chainsaw Hitachi CS25EC-SC 6685122 Brake Lever Spring for Chainsaw Hitachi CS25EC-SC €5.31
216
 Screw D. 4x15 for Chainsaw Hitachi CS25EC-SC-CS30EG 6685148 Screw D. 4x15 for Chainsaw Hitachi CS25EC-SC-CS30EG €1.05

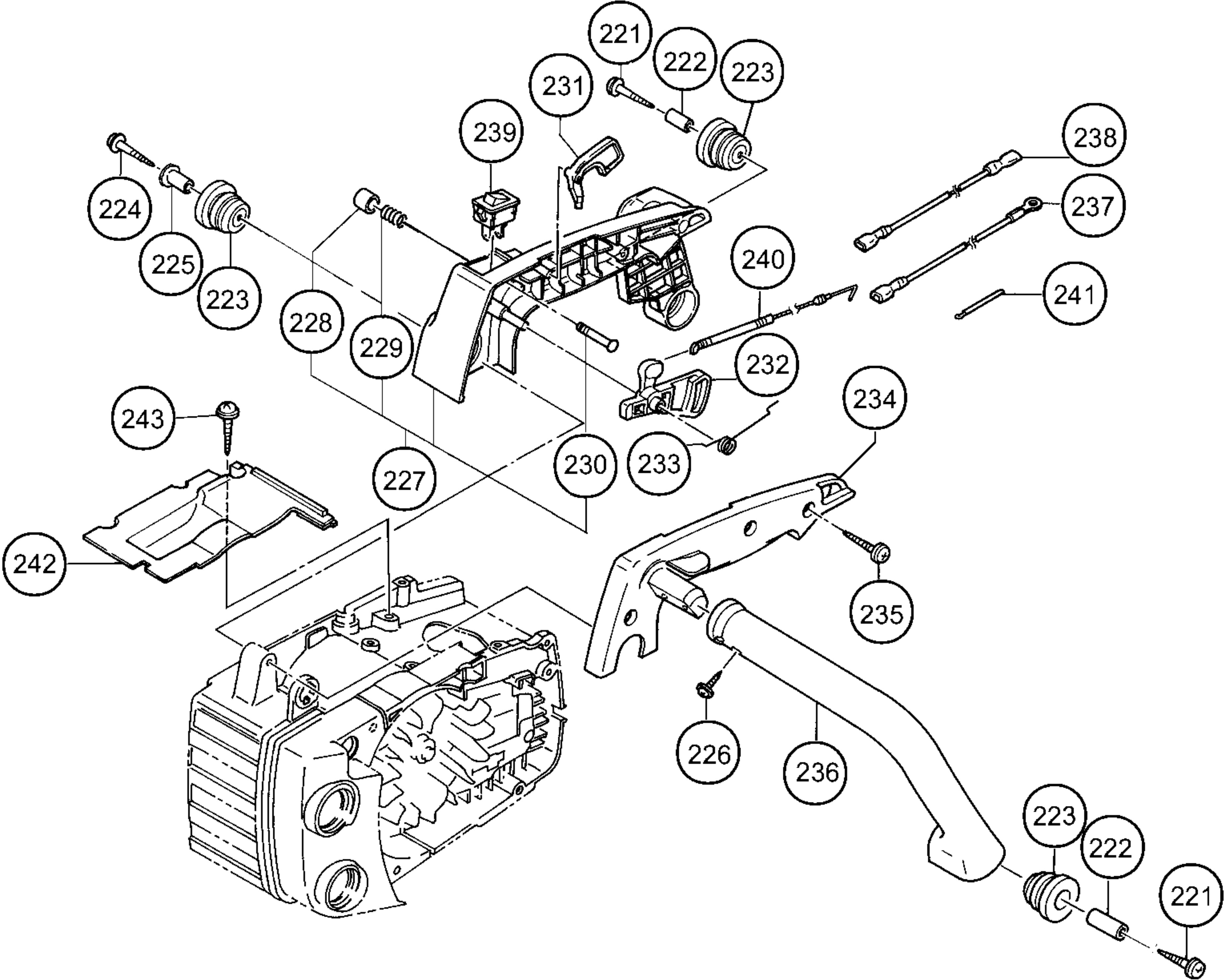

Page 10 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 10
Pos. Item Price Buy
221
 Tanaka TCS-3301S Tapping Screw 5x35 6695107 Tanaka TCS-3301S Tapping Screw 5x35 €1.09
223
 Handle Rear Damper for Chainsaw Hitachi CS30EH 6688263 Handle Rear Damper for Chainsaw Hitachi CS30EH €6.60 Not available for order
224
 photo_cameraImage coming soon 6695108 TAPPING SCREW 5X40 €1.98
225
 photo_cameraImage coming soon 6688481 SPACER €1.51
226
 photo_cameraImage coming soon 6685074 TAPPING SCREW D5X16 €1.93
227
 photo_cameraImage coming soon 6685651 HALF HANDLE RIGHT €17.48
230
 Handle Push Pin for Hedge Trimmer Tanaka THT 210 6686430 Handle Push Pin for Hedge Trimmer Tanaka THT 210 €1.79
231
 photo_cameraImage coming soon 6688363 SAFETY LEVER €3.98
232
 photo_cameraImage coming soon 6686395 THROTTLE LEVER €3.87
233
 photo_cameraImage coming soon 6686416 THROTTLE LEVER SPRING €3.98
234
 photo_cameraImage coming soon 6685623 HALF HANDLE LEFT €11.57
236
 photo_cameraImage coming soon 6688085 SIDE HANDLE €17.86
237
 photo_cameraImage coming soon 6685252 CABLE €5.34
238
 photo_cameraImage coming soon 6687838 CABLE €4.94
239
 photo_cameraImage coming soon 6685239 STOP SWITCH €7.82
240
 photo_cameraImage coming soon 6693874 THROTTLE CABLE €7.60

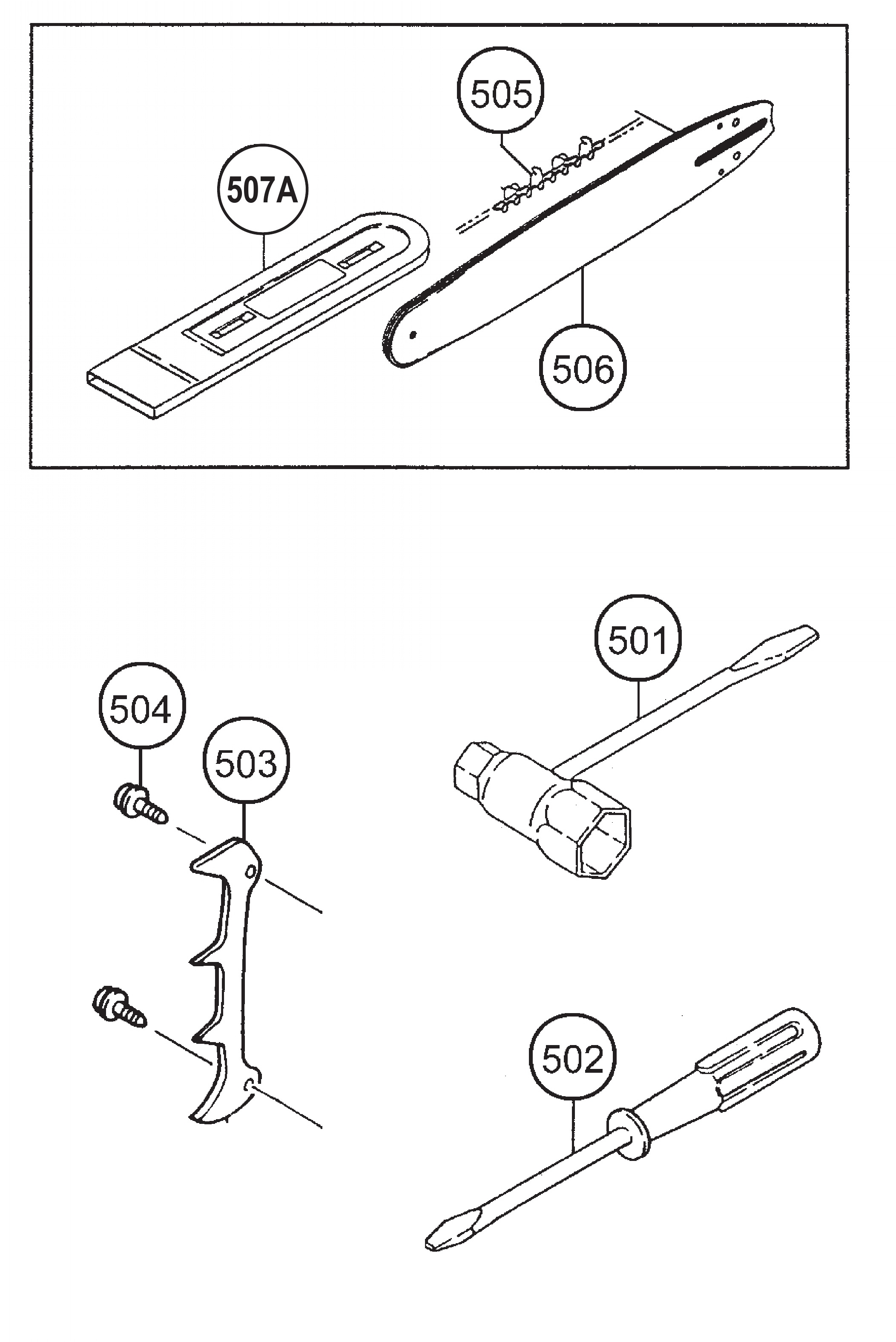

Page 11 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 11
Pos. Item Price Buy
502
 photo_cameraImage coming soon 6686632 4X50 MINUS DRIVER €9.30
503
 photo_cameraImage coming soon 6685270 SPIKED BUMPER €9.44
507A
 photo_cameraImage coming soon 6685401 CHAIN COVER 12" €7.63

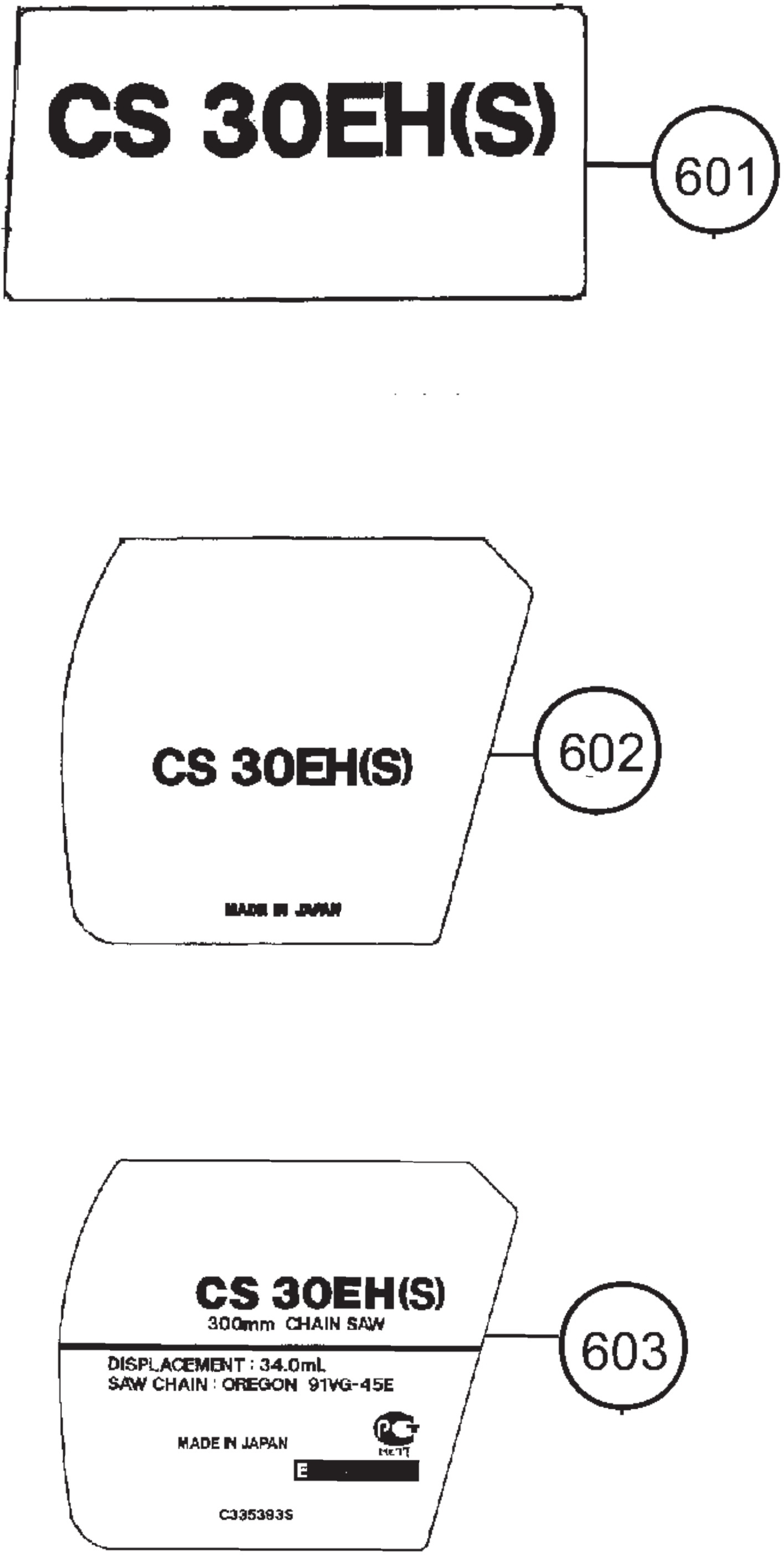

Page 12 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 12
info_outline

No spare parts mapped to this page.
Check the other pages for available parts.

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Hitachi Spare Parts for Engine Chainsaw CS30EH

We supply original Hitachi-HIKOKI spare parts on offer at unbeatable prices, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Pruning Chainsaw CS30EH.

In the following table, look for the model of the Chainsaw and ripettivo spare part.
Pruning Chainsaw CS30EH

Chainsaw CS30EH
# Part Num. Description
1 6687468 SPARK PLUG CAP ASS'Y
3 6685460 CYLINDER SET
4 6684586 HEX.HOLE BOLT M5X18/S
5 6685725 CYLINDER GASKET
6 6686122 PISTON RING
7 6685880 PISTON SET,SPARE
8 6686008 PISTON PIN
9 6685078 CIRCLIP
11 6684899 WOODRUFF KEY 3X13X4.5
12 6695407 HIGH TENSION SCREW 4X18WS
13 6685089 IGNITION COIL COMP.
15 6684602 RUBBER CAP
16 6687667 IGNITION COIL ASS'Y
17 6692900 CORD INSULATOR TUBE
21 6685098 SHIM S T0.2
21 6685099 SHIM S T0.3
22 6685104 FLYWHEEL NUT
23 6695222 S.WASHER 7
24 6685103 BOLT WASHER M7
25 6685102 MAGNETO ROTOR ASS'Y
27 6685105 STARTER PAWL SPRING
28 6685101 D4E RETAINING RING
29 6684668 HEX.HOLE BOLT M5X20/S
30 6686524 CRANK CASE ASS'Y
32 6686702 CRANK CASE GASKET
33 6685096 BALL BEARING 6201 A2C3
34 6685095 NEEDLE ROLLER 2.5X9.8
51 6687421 CLEANER BODY COMP.
52 6689876 INTAKE MANIFOLD GASKET
53 6685202 INTAKE MANIFOLD SPACER
54 6689787 INTAKE MANIFOLD COMP.
55 6691367 ENGINE CASE ASS'Y
56 6685173 AIR VENT VALVE (B)
57 6685203 PULSE GUIDE
58 6685175 INNER CAP
59 6684634 HEX.HOLE BOLT 5X20/PS
60 6690843 BLOW OVER CHECK BOARD
61 6692411 CHOKE VALVE
62 6692596 CHOKE SHIM 0.8
63 6692591 CHOKE ROD RUBBER
64 6692514 CHOKE BUTTON COMP.
65 6687959 ADJUSTER CAP
65 6687958 ADJUSTER CAP
66 6685224 IDLE SPONGE
67 6686304 CLEANER COVER SET
68 6689735 CLEANER COVER BOLT
69 6690074 AIR CLEANER ELEMENT
70 6684595 HEX. SOCKET HD. BOLT (W/SP.WASHER) M4X12
71 6685153 TAPPING SCREW D4.5X14
73 6695505 HEX. HOLE BOLT 5X18PS
74 6685853 COLLAR
75 6684864 SMALL WASHER 5
81 6695054 HEX. HOLE BOLT 5X40
82 6684662 S.WASHER 5
84 6692628 MUFFLER BODY B COMP.
86 6692834 MUFFLER JOINT GASKET
88 6692735 MUFFLER GASKET
101 6691121 OIL PIPE B
102 6692312 CLIP 7
103 6684661 WASHER 5
104 6690919 OIL FILTER
105 6685249 OIL FILTER BODY ASS'Y
106 6685196 PIPE JOINT
107 6685139 PRIMING PUMP COMP.
108 6685267 FUEL PIPE 2.5X4X90
110A 6697632 RUBBER PIPE
111 6688155 SHIELD TUBE
113 6685180 TANK CAP ASS'Y
114 6685179 TANK CAP PACKING
115 6697756 OIL TANK CAP ASS'Y
116 6697888 OIL TANK CAP PACKING
121 6692911 S-STARTER ASS'Y
122 6684679 SET SCREW
124 6685184 STARTER PULLEY
126 6685185 SPRING CASE SET
127 6685183 DAMPER SPRING
128 6685188 STARTER HANDLE
129 6686952 FAN CASE (S-START)
130 6685191 TAPPING SCREW D4.5X20
131 6685182 CAM PLATE
133 6685153 TAPPING SCREW D4.5X14
134 6687481 INTAKE CHANGE LEVER
135 6687183 SEAL COVER
136 6687327 AIR DEFLECTOR
141 6690650 CARBURETOR ASS'Y WT553
142 6684700 INLET SCREEN
144 6685210 SCREW
145 6685212 PUMP GASKET
146 6685213 PUMP DIAPHRAGM
147 6685217 CONTROL LEVER
148 6685218 HINGE PIN SET SCREW
150 6685219 HINGE PIN
152 6690827 METERING DIAPHRAGM COMP.
153 6685220 DIAPHRAGM PACKING-METERING
154 6685215 NEEDLE VALVE
155 6685297 IDLE ADJUST SPRING
156 6685298 IDLE ADJUST SCREW
157 6685223 SET SCREW
158 6690647 CARBURETOR ASS'Y WT551
161 6692048 HIGH/LOW ADJUST SPRING
162 6686764 OIL PUMP COVER
163 6690897 HIGH ADJUSTMENT SPRING
163 6691223 OIL PIPE A
164 6686645 SCREW GEAR
165 6685156 AIR VENT SPONGE
166 6687325 OIL PUMP ASS'Y
167 6690957 OIL ADJUST GROMMET
168 6691070 OIL PUMP ADJUSTER
169 6697917 O RING
170 6686681 OIL PUMP CASE SET, SPARE
171 6697917 O RING
172 6685275 TAPPING SCREW D5X14
173 6685154 FUEL PIPE
174 6685155 CHAIN CATCHER
191 6685166 NUT
192 6685142 CLUTCH COMP.
193 6685143 NEEDLE BEARING
194 6685144 CLUTCH HOUSING COMP.
195 6685145 CLUTCH WASHER
196 6685161 TAPPING SCREW D4X10
199 6685146 CRANK SHAFT COLLAR
200 6685161 TAPPING SCREW D4X10
201 6686110 SIDE CASE ASS'Y
202 6690756 GUIDE PLATE B
203 6695269 SCREW 2.6X5
204 6697958 BRAKE HANDLE COMP.
205B 6698986 CHAIN PULLER
206 6689712 BRAKE LINK COVER, BLACK
207 6689705 BRAKE SPRING
208 6685119 BRAKE SUPPORT PLATE COMP.
209 6685141 NEEDLE ROLLER 3X9.8
210 6685388 BRAKE LINK
211 6689728 BRAKE BAND
212 6690805 CLEANER FIXING COLLAR
213 6685120 COLLAR
214 6686046 SIDE CASE COVER
215 6685122 BRAKE LEVER SPRING
216 6685148 TAPPING SCREW D4X15
221 6695107 TAPPING SCREW 5X35
222 6690805 CLEANER FIXING COLLAR
223 6688263 DAMPER COMP.
224 6695108 TAPPING SCREW 5X40
225 6688481 DAMPER COLLAR A
226 6685074 TAPPING SCREW D5X16
227 6685651 REAR HANDLE B
228 6692680 PUSH PIN CAP
229 6686447 STOPPER SPRING
230 6686430 PUSH PIN
231 6688363 TRIGGER LOCKOUT VERMILION
232 6686395 THROTTLE LEVER
233 6686416 THROTTLE LEVER SPRING
234 6685623 REAR HANDLE
235 6685148 TAPPING SCREW D4X15
236 6688085 FRONT HANDLE
237 6685252 CORD 180MM
238 6687838 CORD 325L
239 6685239 STOP SWITCH
240 6693874 THROTTLE WIRE COMP.
241 6688011 CORD CLAMP COMP.
243 6685153 TAPPING SCREW D4.5X14
502 6686632 4X50 MINUS DRIVER
503 6685270 SPIKE
504 6685275 TAPPING SCREW D5X14
507A 6685401 CHAIN COVER 12"

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Hitachi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to hitachi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Hitachi CS30EH(S) / CE35EH(S)
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Hitachi CS30EH

Diagram Hitachi CS30EH

Download (524.36KB)

You might also like

Tension Adjustment Bolt for Chainsaw Hitachi CS33EB-CS33EDT-CS40EA
HiKOKI Power Tools Italia S.p.a. SKU: 6698986
Tension Adjustment Bolt for Chainsaw Hitachi CS33EB-CS33EDT-CS40EA
Tension Adjustment Bolt for Chainsaw Hitachi CS33EB-CS33EDT-CS40EA Genuine parts Hitachi Koky Tanaka, Tension Adjustment Bolt Ass'y for Chainsaw Bar for Pruning CS33EB - CS33EDT - CS40EA. Part for the following products: - Chainsaw...
Last items in stock €25.92
Details
Damper Spring for Chainsaw Hitachi Tanaka CS33EA-CS25EC-SC
HiKOKI Power Tools Italia S.p.a. SKU: 6685183
Damper Spring for Chainsaw Hitachi Tanaka CS33EA-CS25EC-SC
Damper Spring for Chainsaw Hitachi Tanaka CS33EA-CS25EC-SC Genuine spare parts for Chainsaw Hitachi Koky Tanaka, Damper Spring for Chainsaw CS25EC-SC HEDGETRIMMER CH22EBP2 - HEDGETRIMMER CH22ECP2. Parts for the following...
AVAILABLE €7.83
Details
Clutch Needle Bearing for Chain Saws Hitachi CS25EC-SC
HiKOKI Power Tools Italia S.p.a. SKU: 6685143
Clutch Needle Bearing for Chain Saws Hitachi CS25EC-SC
Clutch Needle Bearing for Chain Saws Hitachi CS25EC-SC Hitachi genuine parts, Needle Bearing for clutch of the chain saws for pruning Hitachi Garden Tanaka Model CS25EC-SC. Part for the following products: - Chainsaw Hitachi CS...
Available in 7/10 days €10.49
Details
Priming Pump for Chain Saws and Brushcutters Hitachi Tanaka
HiKOKI Power Tools Italia S.p.a. SKU: 6685139
Priming Pump for Chain Saws and Brushcutters Hitachi Tanaka
Priming Pump for Chain Saws and Brushcutters Hitachi Tanaka Genuine spare Hitachi Koky Tanaka, Priming Pump complete for Brushcutters and Chain Saws Hitachi Tanaka. Parts for the following products: - BRUSHCUTTER CG47EF (L) -...
AVAILABLE €13.15
Details
Carburetor Pump Gasket for Chainsaws Hitachi CS25-33-40-45-51
HiKOKI Power Tools Italia S.p.a. SKU: 6685212
Carburetor Pump Gasket for Chainsaws Hitachi CS25-33-40-45-51
Carburetor Pump Gasket for Chainsaws Hitachi CS25-33-40-45-51 Original parts for Chainsaw Hitachi HiKoky Tanaka, Carburetor Pump Gasket for Chainsaws, CS25EC-SC-EU - CS33EDT - CS38EK - CS40EA - CS45EL - CS51EAP. Parts for the...
AVAILABLE €3.98
Details
Carburetor Pump Diaphragm for Chainsaws Hitachi CS25-33-40-45-51
HiKOKI Power Tools Italia S.p.a. SKU: 6685213
Carburetor Pump Diaphragm for Chainsaws Hitachi CS25-33-40-45-51
Carburetor Pump Diaphragm for Chainsaws Hitachi CS25-33-40-45-51 Original parts for Chainsaw Hitachi Koky Tanaka, Pump Diaphragm for Carburetor Chainsaws, CS25EC-SC-EU - CS33EDT - CS38EK - CS40EA - CS45EL - CS51EAP - BRUSHCUTTERS...
AVAILABLE €10.63
Details
Starter Pulley for Chainsaw Hitachi Tanaka CS25EC-SC Sale
HiKOKI Power Tools Italia S.p.a. SKU: 6685184
Starter Pulley for Chainsaw Hitachi Tanaka CS25EC-SC
Starter Pulley for Chainsaw Hitachi Tanaka CS25EC-SC Genuine spare parts for Chainsaw Hitachi Koky Tanaka, Starter Pulley for chainsaw CS25EC-SC. Articles made parts for the following: - CHAINSAW CS25EC-SC - Tanaka Code: 6685184
AVAILABLE €10.63
Details
Piston Pin for Brushcutters Hitachi CG33EJ-LP-CG33EJ-SL
HiKOKI Power Tools Italia S.p.a. SKU: 6686008
Piston Pin for Brushcutters Hitachi CG33EJ-LP-CG33EJ-SL
Piston Pin for Brushcutters Hitachi CG33EJ-LP-CG33EJ-SL Original spare Hitachi Koky Tanaka, Piston Pin for Brushcutters Hitachi Tanaka CG33EJ-LP - CG33EJ-SL - Auger DA200E SP. Parts for the following products: - Brushcutter Hitachi...
AVAILABLE €4.64
Details
Bolt M5X18/S for Chainsaws Hitachi CS38EK-CS45EL
HiKOKI Power Tools Italia S.p.a. SKU: 6684586
Bolt M5X18/S for Chainsaws Hitachi CS38EK-CS45EL
Bolt M5X18/S for Chainsaws Hitachi CS38EK-CS45EL Genuine spare Hitachi Koky Tanaka, Bolt M5X18 / S Brushcutters Hitachi CG22EAS - CG27EJ (SLNP) - CG47EJ-L - CG47EY-T - CG47EF (L) - Chainsaws CS38EK - CS45EL. Parts for the following...
AVAILABLE €1.98
Details
Diaphragm Packing Metering for Chainsaws Hitachi CS25-33-40-45-51
HiKOKI Power Tools Italia S.p.a. SKU: 6685220
Diaphragm Packing Metering for Chainsaws Hitachi CS25-33-40-45-51
Diaphragm Packing Metering for Chainsaws Hitachi CS25-33-40-45-51 Original parts for Chainsaw Hitachi Koky Tanaka, Diaphragm Packing Metering Gasket for Carburetor Chainsaws, CS25EC-SC-EU - CS33EDT - CS38EK - CS40EA - CS45EL - CS51EAP...
AVAILABLE €3.45
Details
Fuel Hose for Brushcutters Hitachi CG47EF (L)-CG47EJ-L-CG47EY-T
HiKOKI Power Tools Italia S.p.a. SKU: 6685267
Fuel Hose for Brushcutters Hitachi CG47EF (L)-CG47EJ-L-CG47EY-T
Fuel Hose for Brushcutters Hitachi CG47EF (L)-CG47EJ-L-CG47EY-T Genuine part Hitachi Koky Tanaka, Fuel Hose mm 2.5X4X90 for Brushcutters G47EF (L) - CG47EJ-L - CG47EY-T - Tanaka TBC-600 - Chainsaw HITACHI CS51EAP Parts for the...
AVAILABLE €3.31
Details
Clutch for Chainsaw Hitachi Tanaka CS33EB
HiKOKI Power Tools Italia S.p.a. SKU: 6685142
Clutch for Chainsaw Hitachi Tanaka CS33EB
Clutch for Chainsaw Hitachi Tanaka CS33EB Original spare part Hitachi Koky Tanaka, Clutch Ass'y for Chainsaws CS33EB - CS30EG - CS35EG - CS30EH - CS35EH Part for the following products: -...
Last items in stock €26.45
Details
Oil Pump Case Set for Chainsaw Hitachi Tanaka CS30(EG)
HiKOKI Power Tools Italia S.p.a. SKU: 6686681
Oil Pump Case Set for Chainsaw Hitachi Tanaka CS30(EG)
Oil Pump Case Set for Chainsaw Hitachi Tanaka CS30(EG) Original spare part Hitachi Koky Tanaka, Oil Pump Case Set for Chainsaws CS30(EG) - CS35EG(S) - CS30EH(S) - CS35EH(S) - Tanaka TCS-3301S Part...
Last items in stock €19.80
Details
Oil Pipe (A) for Chainsaw Hitachi Tanaka CS30EG (S)
HiKOKI Power Tools Italia S.p.a. SKU: 6691223
Oil Pipe (A) for Chainsaw Hitachi Tanaka CS30EG (S)
Oil Pipe (A) for Chainsaw Hitachi Tanaka CS30EG (S) Genuine spare parts Hitachi Koky Tanaka, Oil Pipe (A) for Chainsaws CS30EG (S) - CS35EG (S) - CS30EH (S) - CS35EH (S) -...
Last items in stock €6.50
Details
Oil Pipe (B) for Chainsaw Hitachi Tanaka CS30EG (S)
HiKOKI Power Tools Italia S.p.a. SKU: 6691121
Oil Pipe (B) for Chainsaw Hitachi Tanaka CS30EG (S)
Oil Pipe (B) for Chainsaw Hitachi Tanaka CS30EG (S) Genuine spare parts Hitachi Koky Tanaka, Oil Pipe (B) for Chainsaws CS30EG (S) - CS35EG (S) - CS30EH (S) - CS35EH (S) -...
Last items in stock €10.49
Details
Oil Pump Adjuster for Chainsaw Hitachi Tanaka CS30EG (S) Sale
HiKOKI Power Tools Italia S.p.a. SKU: 6691070
Oil Pump Adjuster for Chainsaw Hitachi Tanaka CS30EG (S)
Oil Pump Adjuster for Chainsaw Hitachi Tanaka CS30EG (S) Genuine spare parts Hitachi Koky Tanaka, Oil Pump Adjuster for Chainsaws CS30EG (S) - Tanaka TCS-3301S Parts for the following products: - Chainsaw Hitachi CS30EG - Chainsaw...
AVAILABLE €3.84
Details
Petrol-Oil Tank Cap Packing for Chainsaw Hitachi CS33EDT
HiKOKI Power Tools Italia S.p.a. SKU: 6685179
Petrol-Oil Tank Cap Packing for Chainsaw Hitachi CS33EDT
Petrol-Oil Tank Cap Packing for Chainsaw Hitachi CS33EDT Original part Hitachi Koky Tanaka, Petrol - Oil Tank Cap Packing for Chainsaws, CS 33EDT - CS 33EB - CS 40EA - CS 51EAP Parts for the following products: - Motosega Hitachi...
Last items in stock €1.98
Details
Screw D. 4x15 for Chainsaw Hitachi CS25EC-SC-CS30EG Sale
HiKOKI Power Tools Italia S.p.a. SKU: 6685148
Screw D. 4x15 for Chainsaw Hitachi CS25EC-SC-CS30EG
Screw D. 4x15 for Chainsaw Hitachi CS25EC-SC-CS30EG Original spare part Hitachi, Screw D. 4x15 for Chainsaw Hitachi CS25EC-SC - CS30EG - Tanaka TCS-2801S - Tanaka TCS-3301S - Tanaka TCS-2800S. Part for the following products: -...
AVAILABLE €1.05
Details
Washer D. 5 for Chainsaw Hitachi CS45EL-CS38EK
HiKOKI Power Tools Italia S.p.a. SKU: 6684662
Washer D. 5 for Chainsaw Hitachi CS45EL-CS38EK
Washer D. 5 for Chainsaw Hitachi CS45EL-CS38EK Original spare Hitachi, Washer D. 5 for Chaisaw Hitachi CS45EL - CS38EK - Tanaka ECV-4501 - ECV-3801 - Brusch Cutter CG24EKS - CG40EK-LP - CG33EJ-LP - CG27EJ-SLNP. Parts for the following...
AVAILABLE €1.28
Details
Chain Catcher Protection Pipe for Chainsaw Hitachi CS25EC-SC
HiKOKI Power Tools Italia S.p.a. SKU: 6685154
Chain Catcher Protection Pipe for Chainsaw Hitachi CS25EC-SC
Chain Catcher Protection Pipe for Chainsaw Hitachi CS25EC-SC Genuine part Hitachi, Tensioner Protection Pipe for Chainsaw Hitachi CS25EC-SC - CS30EC - CS30EG - CS38EK - CS45EL Ricambio per i seguenti prodotti: - Chainsaw Tanaka...
AVAILABLE €1.32
Details
Guide Plate Screw M4x10 for Chainsaw Hitachi CS25EC-SC
HiKOKI Power Tools Italia S.p.a. SKU: 6685161
Guide Plate Screw M4x10 for Chainsaw Hitachi CS25EC-SC
Guide Plate Screw M4x10 for Chainsaw Hitachi CS25EC-SC Genuine part Hitachi, Guide Plate Screw M4x10 for Chainsaw Hitachi CS25EC-SC - CS30EC - CS30EG - CS38EK - CS45EL. Ricambio per i seguenti prodotti: - Chainsaw Tanaka TCS-2800S -...
AVAILABLE €1.15
Details
Chain Catcher Screw M5X14 for Chainsaw Hitachi CS25EC-SC
HiKOKI Power Tools Italia S.p.a. SKU: 6685275
Chain Catcher Screw M5X14 for Chainsaw Hitachi CS25EC-SC
Chain Catcher Screw M5X14 for Chainsaw Hitachi CS25EC-SC Genuine part Hitachi, Guide Plate Screw M4x10 for Chainsaw Hitachi CS25EC-SC - CS30EC - CS30EG - CS38EK - CS45EL. Ricambio per i seguenti prodotti: - Chainsaw Tanaka TCS-2800S -...
AVAILABLE €1.27
Details
Chain Bar Lock Nut for Chainsaw Hitachi CS25EC-SC
HiKOKI Power Tools Italia S.p.a. SKU: 6685166
Chain Bar Lock Nut for Chainsaw Hitachi CS25EC-SC
Chain Bar Lock Nut for Chainsaw Hitachi CS25EC-SC Genuine part Hitachi, Chain Bar Lock Nut for Chainsaw Hitachi CS25EC-SC - CS30EC - CS30EG - Tanaka TCS-2800S - ECS-3350D. Ricambio per i seguenti prodotti: - Chainsaw Hitachi CS25EC-SC...
AVAILABLE €4.64
Details
Circlip for Brushcutter Hitachi CG 24EBS
HiKOKI Power Tools Italia S.p.a. SKU: 6684590
Circlip for Brushcutter Hitachi CG 24EBS
Circlip for Brushcutter Hitachi CG 24EBS Original replacement part Hitachi Koky Tanaka, Piston Pin Circlip for Brushcutters, Chainsaws, Hedgecutters Hitachi - Tanaka. Part for the following...
Last items in stock €1.57
Details
Oil Pump Ass'y for Chainsaw Tanaka TCS-3401S
HiKOKI Power Tools Italia S.p.a. SKU: 6687325
Oil Pump Ass'y for Chainsaw Tanaka TCS-3401S
Oil Pump Ass'y for Chainsaw Tanaka TCS-3401S Genuine spare part Tanaka, Oil Pump Assembly for Chainsaw TCS-3401S - Hitachi CS30EH. Part for the following items: - Chainsaw Tanaka TCS-3401S - Chainsaw...
Last items in stock €23.58
Details
Oil Pump Worm Screw for Chainsaw Tanaka TCS-3401S
HiKOKI Power Tools Italia S.p.a. SKU: 6686645
Oil Pump Worm Screw for Chainsaw Tanaka TCS-3401S
Oil Pump Worm Screw for Chainsaw Tanaka TCS-3401S Genuine spare part Tanaka, Oil Pump Worm Screw for Chainsaw TCS-3401S - Hitachi CS30EH. Part for the following items: -  Motosega Tanaka TCS-3301S -  Motosega Tanaka TCS-3401S -...
on 7/10 Business Days Approx. €13.94
Details
Clutch Washer for Chainsaw Tanaka ECS 3300D
HiKOKI Power Tools Italia S.p.a. SKU: 6685145
Clutch Washer for Chainsaw Tanaka ECS 3300D
Clutch Washer for Chainsaw Tanaka ECS 3300D Genuine part Hitachi Koky Tanaka, Clutch Washer for Chainsaws ECS 3300D - ECS 3301B - ECS 3301D - ECS-3350D. Part for the following products: -...
AVAILABLE €3.42
Details
Oil Tank Cap for Chainsaw Hitachi CS 30EC
HiKOKI Power Tools Italia S.p.a. SKU: 6697756
Oil Tank Cap for Chainsaw Hitachi CS 30EC
Oil Tank Cap for Chainsaw Hitachi CS 30EC Original spare part Hitachi Koky Tanaka, Oil Tank Cap Ass'y (Black) for Chainsaws, CS 30EC - CS30EH - CS30EH(S) - CE35EH(S) - CS38EK. Parts for the following products: - Chainsaw Hitachi CS...
Available in 7/10 days €5.43
Details
Cleaner Fixing Collar for Chainsaw Hitachi CS25EC-SC
HiKOKI Power Tools Italia S.p.a. SKU: 6685180
Tank Cap Ass'y for Chainsaws Hitachi CS25EC-SC
Tank Cap Ass'y for Chainsaws Hitachi CS25EC-SC Original spare part Hitachi Koky Tanaka, Tank Cap Ass'y for Chainsaws Hitachi CS25EC-SC - CS 30EC - CS30EH - TCS-2800S - TCS-2801S. Part for the following products: - Chainsaw Hitachi...
Last items in stock €5.64
Details
Brake Lever Rod for Chainsaws Hitachi CS25EC-SC
HiKOKI Power Tools Italia S.p.a. SKU: 6685119
Brake Lever Rod for Chainsaws Hitachi CS25EC-SC
Brake Lever Rod for Chainsaws Hitachi CS25EC-SC Original spare part Hitachi Koky Tanaka, Brake Lever Rod for Chainsaws Hitachi CS25EC-SC - CS 30EC - CS30EH - TCS-2801S. Part for the following products: - Chainsaw Hitachi CS25EC-SC -...
AVAILABLE €6.50
Details
Brake Lever Rod Collar for Chainsaw Hitachi CS25EC-SC
HiKOKI Power Tools Italia S.p.a. SKU: 6685120
Brake Lever Rod Collar for Chainsaw Hitachi CS25EC-SC
Brake Lever Rod Collar for Chainsaw Hitachi CS25EC-SC Original spare part Hitachi Koky Tanaka, Brake Lever Rod Collar for Chainsaws CS25EC (S) - CS25EC (SC) - CS30EG - CS 30EC. Part for the following products: - Chainsaw Hitachi...
AVAILABLE €1.98
Details
Brake Lever Spring for Chainsaw Hitachi CS25EC-SC
HiKOKI Power Tools Italia S.p.a. SKU: 6685122
Brake Lever Spring for Chainsaw Hitachi CS25EC-SC
Brake Lever Spring for Chainsaw Hitachi CS25EC-SC Original spare part Hitachi Koky Tanaka, Brake Lever Spring for Chainsaws CS25EC-SC - CS 30EC - CS30EG - CS30EH - CS33ET. Part for the following products: - Chainsaw Hitachi CS25EC...
AVAILABLE €5.31
Details
Inlet Manifold for Chainsaw Hitachi CS30EH
HiKOKI Power Tools Italia S.p.a. SKU: 6689787
Chainsaw Hitachi CS30EH Intake Manifold
Chainsaw Hitachi CS30EH Intake Manifold  Original replacement part Hitachi Koky Tanaka, Intake Manifold Compl. for Chainsaws CS30EH(S) - CS35EH(S) - Tanaka TCS-3401S. Part...
Last items in stock €21.92
Details
Handle Rear Damper for Chainsaw Hitachi CS30EH
HiKOKI Power Tools Italia S.p.a. SKU: 6688263
Handle Rear Damper for Chainsaw Hitachi CS30EH
Handle Rear Damper for Chainsaw Hitachi CS30EH Original replacement part Hitachi-HIKOKI, Handle Rear Damper for Chainsaws CS30EH(S) - CS35EH(S) - Tanaka TCS-3401S. Part for the following products: -  Chainsaw Hitachi CS30EH -...
Available in 7/10 days €6.60
Details
Carburator Needle Valve for Chainsaws Hitachi-HiKoki Tanaka
HiKOKI Power Tools Italia S.p.a. SKU: 6685215
Carburator Needle Valve for Chainsaws Hitachi-HiKoki Tanaka
Carburator Needle Valve for Chainsaws Hitachi-HiKoki Tanaka Original part Hitachi-HiKoki Tanaka, Carburator Needle Valve for Chainsaws and Brushcutters Hitachi-HiKoki Tanaka. Part for the following products: - Chainsaw ECS 3301D -...
AVAILABLE €10.76
Details
Inlet Manifold Gasket for Chainsaw Hitachi Tanaka CS38EK
HiKOKI Power Tools Italia S.p.a. SKU: 6689876
Inlet Manifold Gasket for Chainsaw Hitachi Tanaka CS38EK
Inlet Manifold Gasket for Chainsaw Hitachi Tanaka CS38EK Genuine spare part Hitachi-HIKOKI Tanaka, Inlet Manifold Gasket for Chainsaws CS38EK-CS38EL - CS45EL - Tanaka ECV-3801 - ECV-4501. Part for the following products: - Chainsaw...
AVAILABLE €6.05
Details
Air Cleaner Element for Chainsaw Tanaka TCS-3401S
HiKOKI Power Tools Italia S.p.a. SKU: 6690074
Air Cleaner Element for Chainsaw Tanaka TCS-3401S
Air Cleaner Element for Chainsaw Tanaka TCS-3401S Genuine spare part Tanaka, Air Cleaner Element for Chainsaw TCS-3401S - Hitachi CS30EH - CS35EH. Part for the following items: -  Chainsaw...
AVAILABLE €6.84
Details
Recoil Starter Ass'y for Chainsaw Hitachi CS30EH
HiKOKI Power Tools Italia S.p.a. SKU: 6692911
Recoil Starter Ass'y for Chainsaw Hitachi CS30EH
Recoil Starter Ass'y for Chainsaw Hitachi CS30EH Original replacement part Hitachi-HIKOKI, Recoil Starter Ass'y for Chainsaws CS30EH(S) - CS35EH(S) - Tanaka TCS-3401S. Part for the...
Available in 7/10 days €38.42
Details
Oil Tank Cap Packing for Chainsaw Tanaka TCS-2800S
HiKOKI Power Tools Italia S.p.a. SKU: 6697888
Oil Tank Cap Packing for Chainsaw Tanaka TCS-2800S
Oil Tank Cap Packing for Chainsaw Tanaka TCS-2800S Genuine spare part Tanaka, Oil Tank Cap Packing for Chainsaws TCS-2800S - TCS-2801S - Hitachi CS 30EC. Part For the following items: - ...
AVAILABLE €2.08
Details
Hex Hole Bolt M5x18PS for Hedge Trimmer Tanaka THT 210
HiKOKI Power Tools Italia S.p.a. SKU: 6695505
Hex Hole Bolt M5x18PS for Hedge Trimmer Tanaka THT 210
Hex Hole Bolt M5x18PS for Hedge Trimmer Tanaka THT 210 Original spare part Hitachi-HIKOKI Tanaka, Hex Hole Bolt M5x18PS for Hedge Trimmers THT 210 - THT 210 B - THT 210 S. Parts for the following products: -  Hedge Trimmer Tanaka THT...
AVAILABLE €2.16
Details
Ball Bearing 6201 for Chainsaw Hitachi CS30EH
HiKOKI Power Tools Italia S.p.a. SKU: 6685096
Ball Bearing 6201 for Chainsaw Hitachi CS30EH
Ball Bearing 6201 for Chainsaw Hitachi CS30EH Original replacement part Hitachi-HIKOKI, Ball Bearing 6201 A2C3 (Old 99961620) for Chainsaws CS30EH(S) - CS35EH(S) - Tanaka TCS-3401S. Part for the following products: -  Chainsaw Hitachi...
on 7/10 Business Days Approx €11.47
Details
Comments (0)
