HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Engine Chainsaw CS33ET

SKU: Hitachi CS33ET
€2.47
VAT included

Hitachi Spare Parts for Engine Chainsaw CS33ET

HITACHI-HIKOKI TANAKA Authorized Technical Assistance, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Pruning Chainsaw CS33ET.
Hitachi Spare Parts for Engine Chainsaw CS33ET
  • Hitachi Spare Parts for Engine Chainsaw CS33ET
  • Hitachi Spare Parts for Engine Chainsaw CS33ET
  • Hitachi Spare Parts for Engine Chainsaw CS33ET
  • Hitachi Spare Parts for Engine Chainsaw CS33ET
HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Engine Chainsaw CS33ET

SKU: Hitachi CS33ET Condition: New
€2.47
VAT included

Hitachi Spare Parts for Engine Chainsaw CS33ET

HITACHI-HIKOKI TANAKA Authorized Technical Assistance, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Pruning Chainsaw CS33ET.
settings 127 spare parts
description 3 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 7/10 Business Days Approx

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
127 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

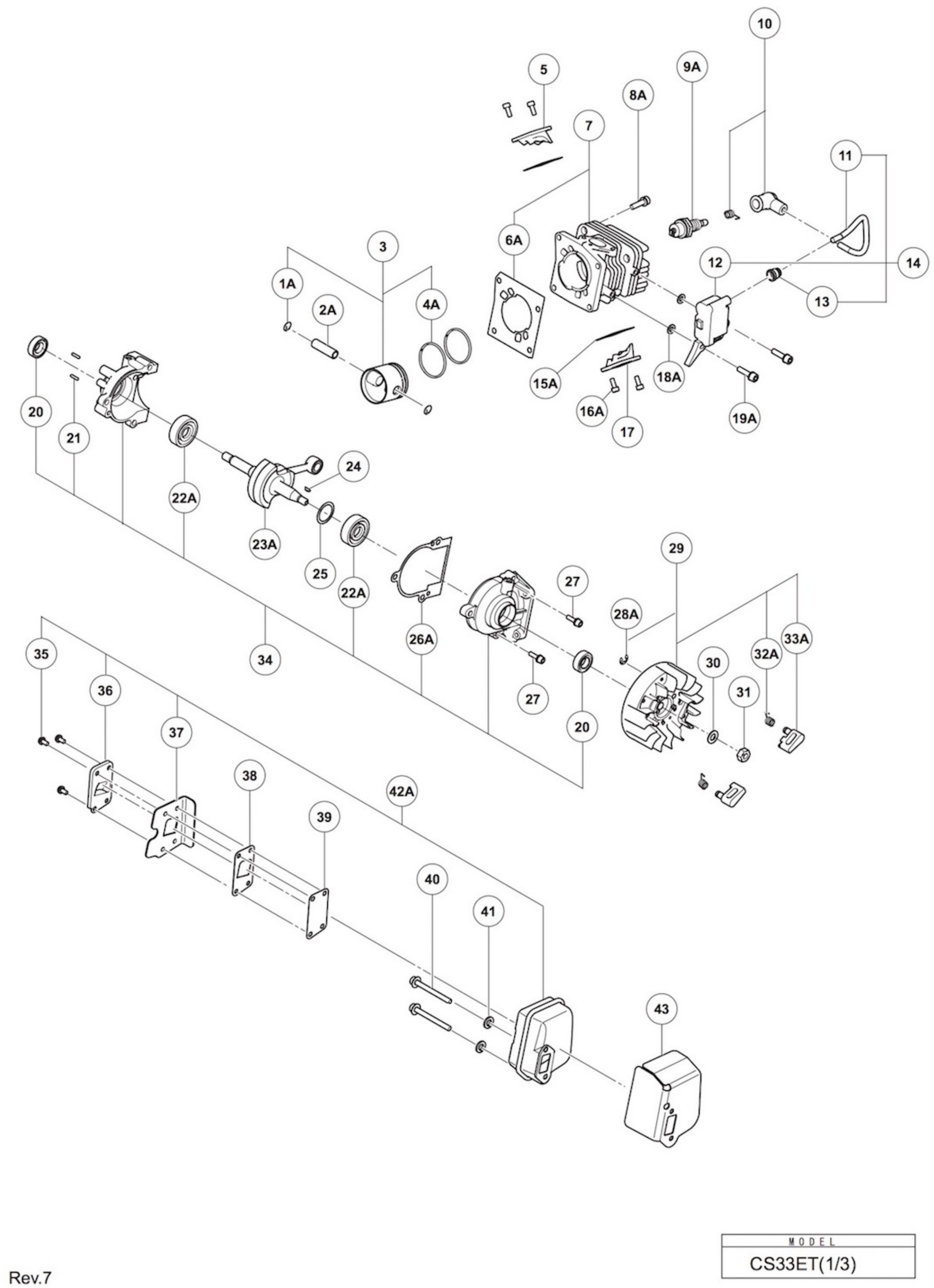

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1A
 photo_cameraImage coming soon 6685326 CIRCLIP €2.38
2A
 photo_cameraImage coming soon 6696764 PISTON PIN €2.38
3
 photo_cameraImage coming soon 6685080 PISTON SET €31.66
4A
 Piston Ring for Chainsaw Hitachi Tanaka CS33EB 6685331 Piston Ring for Chainsaw Hitachi Tanaka CS33EB €10.92
6A
 photo_cameraImage coming soon 6698697 CYLINDER PACKING €1.16
7
 photo_cameraImage coming soon 6685084 CYLINDER SET €53.62
12
 photo_cameraImage coming soon 6685089 IGNITION COIL €45.08
13
 Ignition Coil Rubber Cap for Brushcutters Hitachi Tanaka 6684602 Ignition Coil Rubber Cap for Brushcutters Hitachi Tanaka €2.38
18A
 photo_cameraImage coming soon 6698700 GLASS WASHER €2.38
22A
 photo_cameraImage coming soon 6685328 BALL BEARING €8.48
24
 photo_cameraImage coming soon 6684899 WOODRUFF KEY 3X13X4.5 €1.16
25
 photo_cameraImage coming soon 6685098 SHIM S T0.2 €2.38
25
 photo_cameraImage coming soon 6685099 SHIM S T0.3 €2.38
27
 photo_cameraImage coming soon 6684668 HEX.HOLE BOLT M5X20/S €1.16
28A
 photo_cameraImage coming soon 6685336 RETAINING RING D4 €2.38
29
 photo_cameraImage coming soon 6685102 THEY FLY €35.32
30
 photo_cameraImage coming soon 6685103 BOLT WASHER M7 €1.16
32A
 Starter Pawl Spring for Chainsaw Hitachi Tanaka CS33EDT-EB 6685335 Starter Pawl Spring for Chainsaw Hitachi Tanaka CS33EDT-EB €2.38
33A
 Starter Pawl for Chainsaw Hitachi Tanaka CS33EDT-EB 6685334 Starter Pawl for Chainsaw Hitachi Tanaka CS33EDT-EB €2.38
34
 photo_cameraImage coming soon 6685107 CRANK CASE ASS'Y €40.20
35
 photo_cameraImage coming soon 6685109 MACHINE SCREW (W/SP. WASHER) M4X8 €1.16
40
 Hex Socket Hd Bolt M5X50 for Hedge Trimmer Tanaka THT 210 6685114 Hex Socket Hd Bolt M5X50 for Hedge Trimmer Tanaka THT 210 €1.16
41
 photo_cameraImage coming soon 6684661 WASHER 5 €1.16
42
 photo_cameraImage coming soon 6685115 MUFFLER COMP. €42.64
43
 photo_cameraImage coming soon 6685117 MUFFLER PACKING €4.82
71
 Brake Lever Rod for Chainsaws Hitachi CS25EC-SC 6685119 Brake Lever Rod for Chainsaws Hitachi CS25EC-SC €6.04
72
 Brake Lever Rod Collar for Chainsaw Tanaka TCS-2801S 6685120 Brake Lever Rod Collar for Chainsaw Tanaka TCS-2801S €2.38
73A
 photo_cameraImage coming soon 6685388 BRAKE LINK €8.48
74A
 photo_cameraImage coming soon 6696783 BRAKE LEVER SPRING €2.38
75
 photo_cameraImage coming soon 6685123 BRAKE HANDLE €8.48
78
 photo_cameraImage coming soon 6685127 OIL ADJUST GROMMET €17.02
79
 Adjustment Oil Pump Screw for Chainsaw Hitachi Tanaka CS25EC-SC 6685128 Adjustment Oil Pump Screw for Chainsaw Hitachi Tanaka CS25EC-SC €7.26
80
 Adjustment Oil Pump Screw Spring for Chainsaw Hitachi Tanaka CS25EC-SC 6685129 Adjustment Oil Pump Screw Spring for Chainsaw Hitachi Tanaka CS25EC-SC €2.38
81
 Oil Pump Setting Bolt Washer for Chainsaw Tanaka TCS-2800S 6685070 Oil Pump Setting Bolt Washer for Chainsaw Tanaka TCS-2800S €2.38
82A
 Adjustment Oil Pump Piston for Chainsaw Hitachi Tanaka CS25EC-SC 6685130 Adjustment Oil Pump Piston for Chainsaw Hitachi Tanaka CS25EC-SC €3.60
83
 photo_cameraImage coming soon 6685131 PUMP GEAR SPRING €2.38
84
 Oil Pump Gear for Chainsaw Tanaka TCS-2800S 6685132 Oil Pump Gear for Chainsaw Tanaka TCS-2800S €34.10
85
 Machine Screw M3x8 for Chainsaw Hitachi CS25EC-SC 6685133 Machine Screw M3x8 for Chainsaw Hitachi CS25EC-SC €2.38
87A
 Oil Pump for Chainsaw Hitachi Tanaka CS33EA-CS25EC-SC 6685135 Oil Pump for Chainsaw Hitachi Tanaka CS33EA-CS25EC-SC €34.10
91
 Priming Pump for Chain Saws and Brushcutters Hitachi Tanaka 6685139 Priming Pump for Chain Saws and Brushcutters Hitachi Tanaka €13.36
92
 photo_cameraImage coming soon 6685140 BRAKE BAND - DISCONTINUED €28.00
93A
 Needle Roller mm 3 for Chainsaw Hitachi Tanaka CS40EA 6685391 Needle Roller mm 3 for Chainsaw Hitachi Tanaka CS40EA €2.38
95A
 Clutch Needle Bearing for Chain Saws Hitachi CS33EB-EDT 6685361 Clutch Needle Bearing for Chain Saws Hitachi CS33EB-EDT €10.92
96A
 Clutch Drum for Chainsaw Hitachi Tanaka CS33EB 6685403 Clutch Drum for Chainsaw Hitachi Tanaka CS33EB €20.68
97A
 Clutch Washer for Chainsaws Hitachi CS33EDT-CS33EB 6685414 Clutch Washer for Chainsaws Hitachi CS33EDT-CS33EB €2.38
98A
 Crank Shaft Collar for Chainsaw Hitachi Tanaka CS33EB 6685360 Crank Shaft Collar for Chainsaw Hitachi Tanaka CS33EB €7.26
99
 photo_cameraImage coming soon 6685147 OIL PUMP COVER €1.16
100
 Screw D. 4x15 for Chainsaw Hitachi CS25EC-SC-CS30EG 6685148 Screw D. 4x15 for Chainsaw Hitachi CS25EC-SC-CS30EG €1.16
101
 Machine Screw M4X14 for Chainsaws Hitachi Tanaka CS33EA-CS25EC-SC 6685149 Machine Screw M4X14 for Chainsaws Hitachi Tanaka CS33EA-CS25EC-SC €1.16
102
 Oil Pipe (A) for Chainsaw Hitachi Tanaka CS25EC-SC 6685150 Oil Pipe (A) for Chainsaw Hitachi Tanaka CS25EC-SC €8.48
103
 photo_cameraImage coming soon 6685151 SCREW GEAR €12.14
105
 photo_cameraImage coming soon 6685153 TAPPING SCREW D4.5X14 €1.16
106
 Chain Catcher Protection Pipe for Chainsaw Hitachi CS25EC-SC 6685154 Chain Catcher Protection Pipe for Chainsaw Hitachi CS25EC-SC €1.16
107
 Chain Catcher for Chainsaw Hitachi CS25EC-SC 6685155 Chain Catcher for Chainsaw Hitachi CS25EC-SC €2.38
108
 photo_cameraImage coming soon 6685156 AIR VENT SPONGE €1.16
109A
 Guide Plate for Chainsaw Hitachi Tanaka CS33EDT 6696784 Guide Plate for Chainsaw Hitachi Tanaka CS33EDT €9.70
110
 photo_cameraImage coming soon 6685158 TAPPING SCREW D3X8 €1.16
112
 Guide Plate Screw M4x10 for Chainsaw Hitachi CS25EC-SC 6685161 Guide Plate Screw M4x10 for Chainsaw Hitachi CS25EC-SC €1.16
115
 photo_cameraImage coming soon 6685165 SIDE COVER COMP. €14.58
116A
 Bar Chain Nut for Chainsaw Hitachi Tanaka CS33EB-CS40EA 6685416 Bar Chain Nut for Chainsaw Hitachi Tanaka CS33EB-CS40EA €2.38
117A
 Brake Spring for Chainsaws Hitachi CS33EB 6685389 Brake Spring for Chainsaws Hitachi CS33EB €2.38
118
 Gear (A) Chain Tensioner for Chainsaw Tanaka TCS-2801S 6685168 Gear (A) Chain Tensioner for Chainsaw Tanaka TCS-2801S €6.04
119B
 Tension Adjustment Bolt for Chainsaw Hitachi CS33EB-CS33EDT-CS40EA 6698986 Tension Adjustment Bolt for Chainsaw Hitachi CS33EB-CS33EDT-CS40EA €26.78
121
 Guide Plate Screw M4x10 for Chainsaw Hitachi CS25EC-SC 6685161 Guide Plate Screw M4x10 for Chainsaw Hitachi CS25EC-SC €1.16
123
 photo_cameraImage coming soon 6685173 AIR VENT VALVE (B) €6.04
124
 photo_cameraImage coming soon 6685174 ENGINE CASE ASS'Y €54.84
125A
 photo_cameraImage coming soon 6685175 BREATHER VALVE €12.14
129
 Petrol-Oil Tank Cap Packing for Chainsaw Hitachi CS33EDT 6685179 Petrol-Oil Tank Cap Packing for Chainsaw Hitachi CS33EDT €2.38 Not available for order
130
 Tank Cap Ass'y for Chainsaws Hitachi CS25EC-SC 6685180 Tank Cap Ass'y for Chainsaws Hitachi CS25EC-SC €6.04
131
 Set Screw for Hedge Trimmer Hitachi CH62EA(ST) 6684679 Set Screw for Hedge Trimmer Hitachi CH62EA(ST) €7.26
132
 photo_cameraImage coming soon 6685182 CAM PLATE €8.48
133
 Damper Spring for Chainsaw Hitachi Tanaka CS33EA-CS25EC-SC 6685183 Damper Spring for Chainsaw Hitachi Tanaka CS33EA-CS25EC-SC €8.48
134
 Starter Pulley for Chainsaw Hitachi Tanaka CS25EC-SC 6685184 Starter Pulley for Chainsaw Hitachi Tanaka CS25EC-SC €10.92
135
 Spring Case Set for Chainsaw Tanaka TCS-2801S 6685185 Spring Case Set for Chainsaw Tanaka TCS-2801S €15.80
137
 photo_cameraImage coming soon 6685187 FAN CASE COMP. €21.90
138
 photo_cameraImage coming soon 6685188 STARTER HANDLE €6.04
140
 photo_cameraImage coming soon 6685190 RECOIL STARTER ASS'Y €40.20
164
 photo_cameraImage coming soon 6685196 FITTING €2.38
165
 photo_cameraImage coming soon 6685197 SHIELD TUBE ASS'Y €8.48
166A
 photo_cameraImage coming soon 6685311 CLIP €2.38
169
 photo_cameraImage coming soon 6685153 TAPPING SCREW D4.5X14 €1.16
171
 photo_cameraImage coming soon 6685202 INLET MANIFOLD SPACER €4.82
173
 photo_cameraImage coming soon 6685203 PULSE GUIDE €2.38
174
 photo_cameraImage coming soon 6685204 INTAKE COMP. €10.92
175
 photo_cameraImage coming soon 6685205 INTAKE PACKING €1.16
176
 photo_cameraImage coming soon 6685206 CHOKE LEVER €2.38
178
 photo_cameraImage coming soon 6685208 CARBURETOR ASS'Y WT-940 €126.82
179
 photo_cameraImage coming soon 6685210 SCREW €2.38
181
 Carburetor Pump Gasket for Chainsaws Hitachi CS25-33-40-45-51 6685212 Carburetor Pump Gasket for Chainsaws Hitachi CS25-33-40-45-51 €3.60
182
 Carburetor Pump Diaphragm for Chainsaws Hitachi CS25-33-40-45-51 6685213 Carburetor Pump Diaphragm for Chainsaws Hitachi CS25-33-40-45-51 €10.92
183
 Carburator Inlet Screen for Chainsaws and Bruschcutters Hitachi 6684700 Carburator Inlet Screen for Chainsaws and Bruschcutters Hitachi €3.60
184
 Carburator Needle Valve for Chainsaws Hitachi-HiKoki Tanaka 6685215 Carburator Needle Valve for Chainsaws Hitachi-HiKoki Tanaka €10.92
186
 Control Lever for Chainsaw Hitachi CS25EC-SC 6685217 Control Lever for Chainsaw Hitachi CS25EC-SC €6.04
187
 photo_cameraImage coming soon 6685218 HINGE PIN SET SCREW €3.60
188
 Hitachi CS25EC-SC Hinge Pin 6685219 Hitachi CS25EC-SC Hinge Pin €2.38
189
 Diaphragm Packing Metering for Chainsaws Hitachi CS25-33-40-45-51 6685220 Diaphragm Packing Metering for Chainsaws Hitachi CS25-33-40-45-51 €3.60
190
 Metering Diaphragm for Chainsaws Hitachi CS-33-40-51 6684690 Metering Diaphragm for Chainsaws Hitachi CS-33-40-51 €26.78
192
 photo_cameraImage coming soon 6685223 SET SCREW €2.38
194
 photo_cameraImage coming soon 6685225 AIR CLEANER BASE €2.38
195
 photo_cameraImage coming soon 6685226 WASHER M5 (BLACK) €2.38
196
 Hex Socket Hd Bolt M5X50 for Hedge Trimmer Tanaka THT 210 6685114 Hex Socket Hd Bolt M5X50 for Hedge Trimmer Tanaka THT 210 €1.16
197
 photo_cameraImage coming soon 6685227 CLEANER COVER €6.04
198
 Cleaner Cover Knob for Chainsaw Tanaka TCS-2801S 6685228 Cleaner Cover Knob for Chainsaw Tanaka TCS-2801S €3.60
199
 photo_cameraImage coming soon 6685229 CLEANER SPONGE (B) €1.16
200
 Lower Cleaner Element for Chainsaw Tanaka TCS33EDT 6685230 Lower Cleaner Element for Chainsaw Tanaka TCS33EDT €6.04
201
 Upper Cleaner Element for Chainsaw Tanaka TCS33EDT 6685231 Upper Cleaner Element for Chainsaw Tanaka TCS33EDT €6.04
202
 photo_cameraImage coming soon 6685232 CLEANER SPONGE (A) €2.38
203
 photo_cameraImage coming soon 6685233 TAPPING SCREW D5X45 €1.16
205A
 photo_cameraImage coming soon 6696800 COLLAR 28.2 €3.60
207
 photo_cameraImage coming soon 6685153 TAPPING SCREW D4.5X14 €1.16
210
 photo_cameraImage coming soon 6685239 STOP SWITCH €8.48
212
 photo_cameraImage coming soon 6685241 THROTTLE WIRE COMP. €8.48
213
 photo_cameraImage coming soon 6685242 THROTTLE LEVER €2.38
214A
 photo_cameraImage coming soon 6698691 THROTTLE LEVER SPRING €2.38
215
 photo_cameraImage coming soon 6685244 TRIGGER LOCKOUT €2.38
217
 photo_cameraImage coming soon 6685245 MUFFLER COVER €12.14
219
 Shield Tube for Chainsaw Hitachi CS25EC-SC 6685247 Shield Tube for Chainsaw Hitachi CS25EC-SC €4.82 Not available for order
220A
 photo_cameraImage coming soon 6685311 CLIP €2.38
221
 photo_cameraImage coming soon 6684661 WASHER 5 €1.16
222A
 Oil Filter Body for Chainsaw Hitachi Tanaka CS33EDT 6685310 Oil Filter Body for Chainsaw Hitachi Tanaka CS33EDT €2.38
223
 Oil Filter Body Ass’y for Chainsaw Tanaka TCS-2800S 6685249 Oil Filter Body Ass’y for Chainsaw Tanaka TCS-2800S €7.26
226
 photo_cameraImage coming soon 6685252 CABLE €6.04
228
 photo_cameraImage coming soon 6685074 TAPPING SCREW D5X16 €2.38
230
 photo_cameraImage coming soon 6685297 IDLE ADJUST SPRING €3.60
231
 photo_cameraImage coming soon 6685298 IDLE ADJUST SCREW €3.60
501A
 photo_cameraImage coming soon 6685401 CHAIN COVER 12" €7.26
501A
 photo_cameraImage coming soon 6685439 CHAIN BAR COVER 35 CM €9.70
Page 2 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

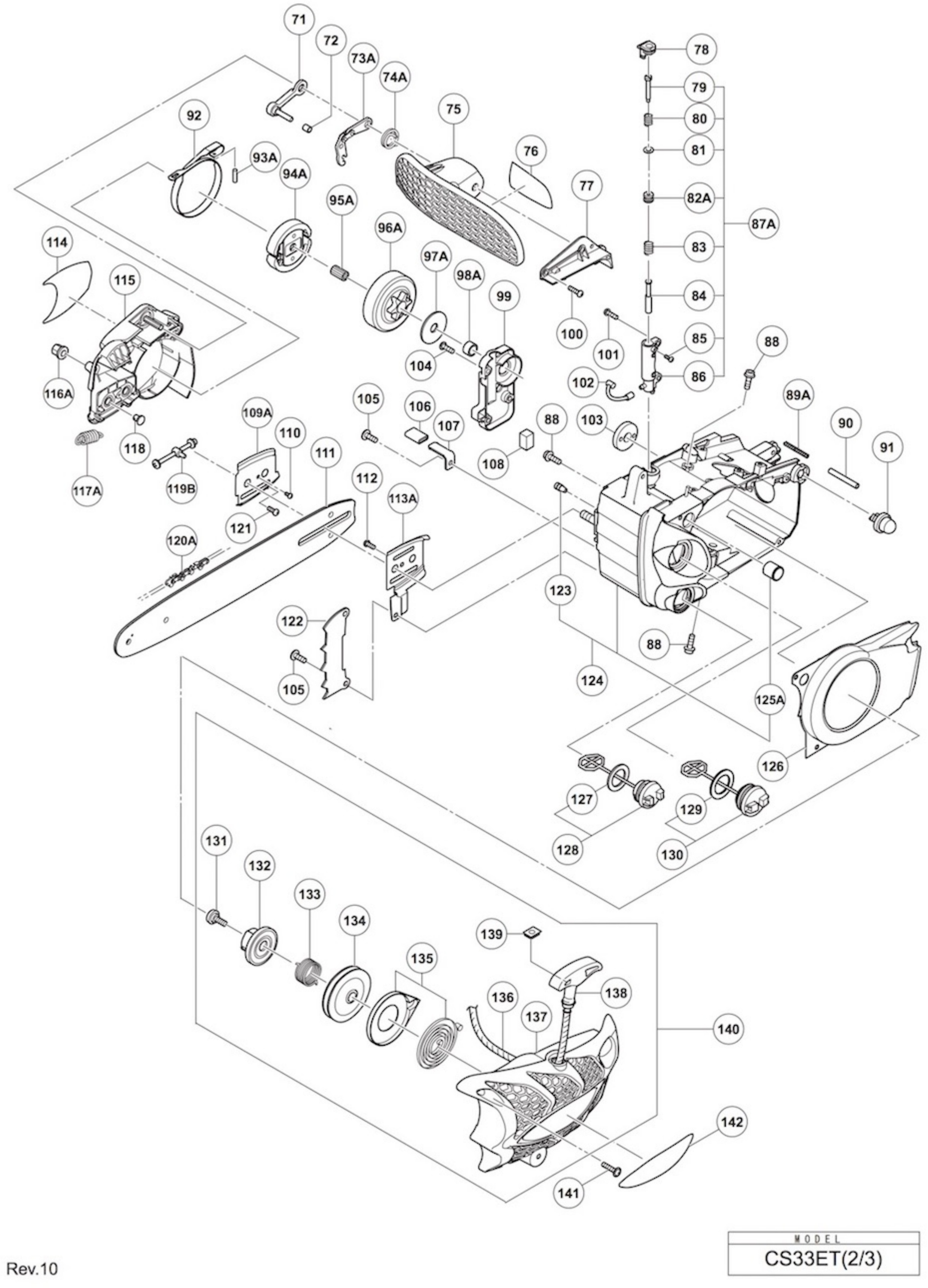

Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
71
 Brake Lever Rod for Chainsaw Tanaka TCS-2801S 6685119 Brake Lever Rod for Chainsaw Tanaka TCS-2801S €7.26
72
 Brake Lever Rod Collar for Chainsaw Hitachi CS25EC-SC 6685120 Brake Lever Rod Collar for Chainsaw Hitachi CS25EC-SC €2.38
73A
 photo_cameraImage coming soon 6685388 BRAKE LINK €8.48
74A
 photo_cameraImage coming soon 6696783 BRAKE LEVER SPRING €2.38
75
 photo_cameraImage coming soon 6685123 BRAKE HANDLE €8.48
78
 photo_cameraImage coming soon 6685127 OIL ADJUST GROMMET €17.02
79
 Adjustment Oil Pump Screw for Chainsaw Hitachi Tanaka CS25EC-SC 6685128 Adjustment Oil Pump Screw for Chainsaw Hitachi Tanaka CS25EC-SC €7.26
80
 Adjustment Oil Pump Screw Spring for Chainsaw Hitachi Tanaka CS25EC-SC 6685129 Adjustment Oil Pump Screw Spring for Chainsaw Hitachi Tanaka CS25EC-SC €2.38
81
 Oil Pump Setting Bolt Washer for Chainsaw Tanaka TCS-2800S 6685070 Oil Pump Setting Bolt Washer for Chainsaw Tanaka TCS-2800S €2.38
82A
 Adjustment Oil Pump Piston for Chainsaw Hitachi Tanaka CS25EC-SC 6685130 Adjustment Oil Pump Piston for Chainsaw Hitachi Tanaka CS25EC-SC €3.60
83
 photo_cameraImage coming soon 6685131 PUMP GEAR SPRING €2.38
84
 Oil Pump Gear for Chainsaw Tanaka TCS-2800S 6685132 Oil Pump Gear for Chainsaw Tanaka TCS-2800S €34.10
85
 Machine Screw M3x8 for Chainsaw Hitachi CS25EC-SC 6685133 Machine Screw M3x8 for Chainsaw Hitachi CS25EC-SC €2.38
87A
 Oil Pump for Chainsaw Hitachi Tanaka CS33EA-CS25EC-SC 6685135 Oil Pump for Chainsaw Hitachi Tanaka CS33EA-CS25EC-SC €34.10
91
 Priming Pump for Chain Saws and Brushcutters Hitachi Tanaka 6685139 Priming Pump for Chain Saws and Brushcutters Hitachi Tanaka €13.36
92
 photo_cameraImage coming soon 6685140 BRAKE BAND - DISCONTINUED €28.00
93A
 Needle Roller mm 3 for Chainsaw Hitachi Tanaka CS40EA 6685391 Needle Roller mm 3 for Chainsaw Hitachi Tanaka CS40EA €2.38
95A
 Clutch Needle Bearing for Chain Saws Hitachi CS33EB-EDT 6685361 Clutch Needle Bearing for Chain Saws Hitachi CS33EB-EDT €10.92
96A
 Clutch Drum for Chainsaw Hitachi Tanaka CS33EB 6685403 Clutch Drum for Chainsaw Hitachi Tanaka CS33EB €20.68
97A
 Clutch Washer for Chainsaws Hitachi CS33EDT-CS33EB 6685414 Clutch Washer for Chainsaws Hitachi CS33EDT-CS33EB €2.38
98A
 Crank Shaft Collar for Chainsaw Hitachi Tanaka CS33EB 6685360 Crank Shaft Collar for Chainsaw Hitachi Tanaka CS33EB €7.26
99
 photo_cameraImage coming soon 6685147 OIL PUMP COVER €1.16
100
 Screw D. 4x15 for Chainsaw Hitachi CS25EC-SC-CS30EG 6685148 Screw D. 4x15 for Chainsaw Hitachi CS25EC-SC-CS30EG €1.16
101
 Machine Screw M4X14 for Chainsaws Hitachi Tanaka CS33EA-CS25EC-SC 6685149 Machine Screw M4X14 for Chainsaws Hitachi Tanaka CS33EA-CS25EC-SC €1.16
102
 Oil Pipe (A) for Chainsaw Hitachi Tanaka CS25EC-SC 6685150 Oil Pipe (A) for Chainsaw Hitachi Tanaka CS25EC-SC €8.48
103
 photo_cameraImage coming soon 6685151 SCREW GEAR €12.14
105
 photo_cameraImage coming soon 6685153 TAPPING SCREW D4.5X14 €1.16
106
 Chain Catcher Protection Pipe for Chainsaw Hitachi CS25EC-SC 6685154 Chain Catcher Protection Pipe for Chainsaw Hitachi CS25EC-SC €1.16
107
 Chain Catcher for Chainsaw Hitachi CS25EC-SC 6685155 Chain Catcher for Chainsaw Hitachi CS25EC-SC €2.38
108
 photo_cameraImage coming soon 6685156 AIR VENT SPONGE €1.16
109A
 Guide Plate for Chainsaw Hitachi Tanaka CS33EDT 6696784 Guide Plate for Chainsaw Hitachi Tanaka CS33EDT €9.70
110
 photo_cameraImage coming soon 6685158 TAPPING SCREW D3X8 €1.16
112
 Guide Plate Screw M4x10 for Chainsaw Hitachi CS25EC-SC 6685161 Guide Plate Screw M4x10 for Chainsaw Hitachi CS25EC-SC €1.16
115
 photo_cameraImage coming soon 6685165 SIDE COVER COMP. €14.58
116A
 Bar Chain Nut for Chainsaw Hitachi Tanaka CS33EB-CS40EA 6685416 Bar Chain Nut for Chainsaw Hitachi Tanaka CS33EB-CS40EA €2.38
117A
 Brake Spring for Chainsaws Hitachi CS33EB 6685389 Brake Spring for Chainsaws Hitachi CS33EB €2.38
118
 Gear (A) for Chain Tensioner for Chainsaw Hitachi CS25EC-SC 6685168 Gear (A) for Chain Tensioner for Chainsaw Hitachi CS25EC-SC €4.82
119B
 Tension Adjustment Bolt for Chainsaw Hitachi CS33EB-CS33EDT-CS40EA 6698986 Tension Adjustment Bolt for Chainsaw Hitachi CS33EB-CS33EDT-CS40EA €26.78
123
 photo_cameraImage coming soon 6685173 AIR VENT VALVE (B) €6.04
124
 photo_cameraImage coming soon 6685174 ENGINE CASE ASS'Y €54.84
125A
 photo_cameraImage coming soon 6685175 BREATHER VALVE €12.14
129
 Petrol-Oil Tank Cap Packing for Chainsaw Hitachi CS33EDT 6685179 Petrol-Oil Tank Cap Packing for Chainsaw Hitachi CS33EDT €2.38 Not available for order
130
 Tank Cap Ass'y for Chainsaw Hitachi CS25EC-SC 6685180 Tank Cap Ass'y for Chainsaw Hitachi CS25EC-SC €6.04
131
 Set Screw for Hedge Trimmer Hitachi CH62EA(ST) 6684679 Set Screw for Hedge Trimmer Hitachi CH62EA(ST) €7.26
132
 photo_cameraImage coming soon 6685182 CAM PLATE €8.48
133
 Damper Spring for Chainsaw Hitachi Tanaka CS33EA-CS25EC-SC 6685183 Damper Spring for Chainsaw Hitachi Tanaka CS33EA-CS25EC-SC €8.48
134
 Starter Pulley for Chainsaw Hitachi Tanaka CS25EC-SC 6685184 Starter Pulley for Chainsaw Hitachi Tanaka CS25EC-SC €10.92
135
 Spring Case Set for Chainsaw Tanaka TCS-2801S 6685185 Spring Case Set for Chainsaw Tanaka TCS-2801S €15.80
137
 photo_cameraImage coming soon 6685187 FAN CASE COMP. €21.90
138
 photo_cameraImage coming soon 6685188 STARTER HANDLE €6.04
140
 photo_cameraImage coming soon 6685190 RECOIL STARTER ASS'Y €40.20

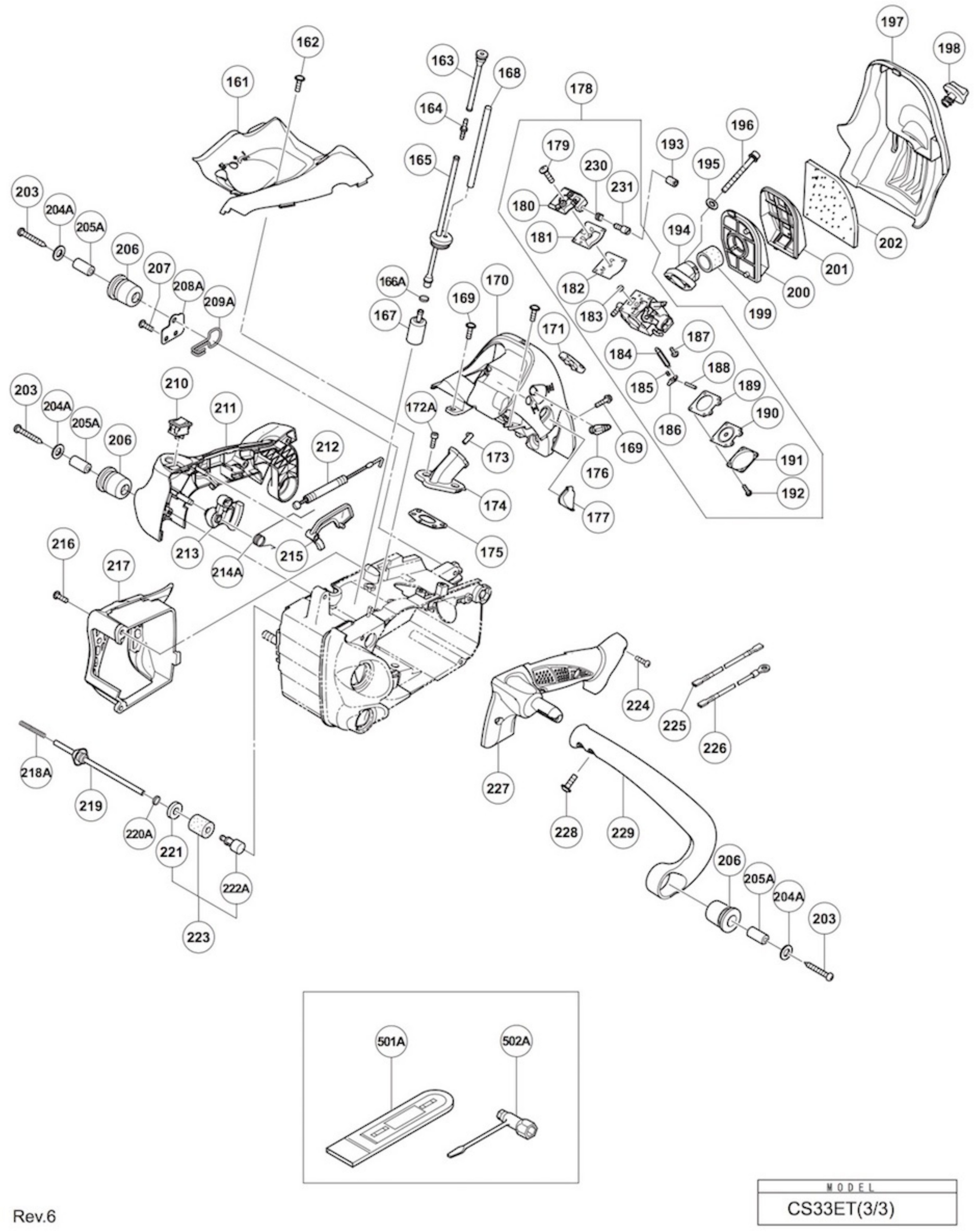

Page 3 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 3
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
164
 photo_cameraImage coming soon 6685196 FITTING €2.38
165
 photo_cameraImage coming soon 6685197 SHIELD TUBE ASS'Y €8.48
166A
 photo_cameraImage coming soon 6685311 CLIP €2.38
171
 photo_cameraImage coming soon 6685202 INLET MANIFOLD SPACER €4.82
173
 photo_cameraImage coming soon 6685203 PULSE GUIDE €2.38
174
 photo_cameraImage coming soon 6685204 INTAKE COMP. €10.92
175
 photo_cameraImage coming soon 6685205 INTAKE PACKING €1.16
176
 photo_cameraImage coming soon 6685206 CHOKE LEVER €2.38
178
 photo_cameraImage coming soon 6685208 CARBURETOR ASS'Y WT-940 €126.82
179
 photo_cameraImage coming soon 6685210 SCREW €2.38
181
 Carburetor Pump Gasket for Chainsaws Hitachi CS25-33-40-45-51 6685212 Carburetor Pump Gasket for Chainsaws Hitachi CS25-33-40-45-51 €3.60
182
 Carburetor Pump Diaphragm for Chainsaws Hitachi CS25-33-40-45-51 6685213 Carburetor Pump Diaphragm for Chainsaws Hitachi CS25-33-40-45-51 €10.92
183
 Carburator Inlet Screen for Chainsaws and Bruschcutters Hitachi 6684700 Carburator Inlet Screen for Chainsaws and Bruschcutters Hitachi €3.60
184
 Carburator Needle Valve for Chainsaws Hitachi-HiKoki Tanaka 6685215 Carburator Needle Valve for Chainsaws Hitachi-HiKoki Tanaka €10.92
186
 Control Lever for Chainsaw Hitachi CS25EC-SC 6685217 Control Lever for Chainsaw Hitachi CS25EC-SC €6.04
187
 photo_cameraImage coming soon 6685218 HINGE PIN SET SCREW €3.60
188
 Hitachi CS25EC-SC Hinge Pin 6685219 Hitachi CS25EC-SC Hinge Pin €2.38
189
 Diaphragm Packing Metering for Chainsaws Hitachi CS25-33-40-45-51 6685220 Diaphragm Packing Metering for Chainsaws Hitachi CS25-33-40-45-51 €3.60
190
 Metering Diaphragm for Chainsaws Hitachi CS-33-40-51 6684690 Metering Diaphragm for Chainsaws Hitachi CS-33-40-51 €26.78
192
 photo_cameraImage coming soon 6685223 SET SCREW €2.38
194
 photo_cameraImage coming soon 6685225 AIR CLEANER BASE €2.38
195
 photo_cameraImage coming soon 6685226 WASHER M5 (BLACK) €2.38
197
 photo_cameraImage coming soon 6685227 CLEANER COVER €6.04
198
 Cleaner Cover Knob for Chainsaw Hitachi CS25EC-SC 6685228 Cleaner Cover Knob for Chainsaw Hitachi CS25EC-SC €3.60
199
 photo_cameraImage coming soon 6685229 CLEANER SPONGE (B) €1.16
200
 Lower Cleaner Element for Chainsaw Tanaka TCS33EDT 6685230 Lower Cleaner Element for Chainsaw Tanaka TCS33EDT €6.04
201
 Upper Cleaner Element for Chainsaw Tanaka TCS33EDT 6685231 Upper Cleaner Element for Chainsaw Tanaka TCS33EDT €6.04
202
 photo_cameraImage coming soon 6685232 CLEANER SPONGE (A) €2.38
203
 photo_cameraImage coming soon 6685233 TAPPING SCREW D5X45 €1.16
205A
 photo_cameraImage coming soon 6696800 COLLAR 28.2 €3.60
210
 photo_cameraImage coming soon 6685239 STOP SWITCH €8.48
212
 photo_cameraImage coming soon 6685241 THROTTLE WIRE COMP. €8.48
213
 photo_cameraImage coming soon 6685242 THROTTLE LEVER €2.38
214A
 photo_cameraImage coming soon 6698691 THROTTLE LEVER SPRING €2.38
215
 photo_cameraImage coming soon 6685244 TRIGGER LOCKOUT €2.38
217
 photo_cameraImage coming soon 6685245 MUFFLER COVER €12.14
219
 Shield Tube for Chainsaw Hitachi Tanaka TCS-2801S 6685247 Shield Tube for Chainsaw Hitachi Tanaka TCS-2801S €6.04 Not available for order
222A
 Oil Filter Body for Chainsaw Hitachi Tanaka CS33EDT 6685310 Oil Filter Body for Chainsaw Hitachi Tanaka CS33EDT €2.38
223
 Oil Filter Body Ass’y for Chainsaw Tanaka TCS-2800S 6685249 Oil Filter Body Ass’y for Chainsaw Tanaka TCS-2800S €7.26
226
 photo_cameraImage coming soon 6685252 CABLE €6.04
228
 photo_cameraImage coming soon 6685074 TAPPING SCREW D5X16 €2.38
230
 photo_cameraImage coming soon 6685297 IDLE ADJUST SPRING €3.60
231
 photo_cameraImage coming soon 6685298 IDLE ADJUST SCREW €3.60
501A
 photo_cameraImage coming soon 6685401 CHAIN COVER 12" €7.26
501A
 photo_cameraImage coming soon 6685439 CHAIN BAR COVER 35 CM €9.70

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Hitachi Spare Parts for Engine Chainsaw CS33ET

HITACHI-HIKOKI TANAKA

Authorized Technical Assistance, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Pruning Chainsaw CS33ET.

In the following table, look for the model of the Chainsaw and ripettivo spare part.
Hitachi CS33ET

Chainsaw CS33ET
# Part Num. Description
1A 6685326 CIRCLIP
2A 6696764 PISTON PIN
3 6685080 PISTON SET
4A 6685331 PISTON RING (XR1-1856)
6A 6698697 CYLINDER PACKING
7 6685084 CYLINDER SET
12 6685089 IGNITION COIL COMP.
13 6684602 RUBBER CAP
18A 6698700 GLASS WASHER
21 6685095 NEEDLE ROLLER 2.5X9.8
22A 6685328 BALL BEARING
24 6684899 WOODRUFF KEY 3X13X4.5
25 6685098 SHIM S T0.2
25 6685099 SHIM S T0.3
27 6684668 HEX.HOLE BOLT M5X20/S
28A 6685336 RETAINING RING D4
29 6685102 MAGNETO ROTOR ASS'Y
30 6685103 BOLT WASHER M7
31 6685104 FLYWHEEL NUT
32A 6685335 STARTER PAWL SPRING
33A 6685334 STARTER PAWL
34 6685107 CRANK CASE ASS'Y
35 6685109 MACHINE SCREW (W/SP. WASHER) M4X8
40 6685114 HEX. SOCKET HD. BOLT M5X50
41 6684661 WASHER 5
42 6685115 MUFFLER COMP.
43 6685117 MUFFLER PACKING
71 6685119 BRAKE SUPPORT PLATE COMP.
72 6685120 COLLAR
73A 6685388 BRAKE LINK
74A 6696783 BRAKE LEVER SPRING
75 6685123 BRAKE HANDLE
78 6685127 OIL ADJUST GROMMET
79 6685128 OIL PUMP ADJUSTER
80 6685129 ADJUSTER SPRING
81 6685070 BOLT WASHER M4
82A 6685130 OIL PUMP ADJUST CAP
83 6685131 PUMP GEAR SPRING
84 6685132 PUMP GEAR COMP.
85 6685133 MACHINE SCREW M3X8
87A 6685135 OIL PUMP CASE ASS'Y
91 6685139 PRIMING PUMP COMP.
92 6685140 BRAKE BAND - DISCONTINUED
93A 6685391 NEEDLE ROLLER D3
95A 6685361 NEEDLE BEARING (D)
96A 6685403 CLUTCH HOUSING
97A 6685414 CLUTCH WASHER
98A 6685360 CRANK SHAFT COLLAR
99 6685147 OIL PUMP COVER
100 6685148 TAPPING SCREW D4X15
101 6685149 MACHINE SCREW (W/SP. WASHER) M4X14
102 6685150 OIL PIPE (A)
103 6685151 SCREW GEAR
105 6685153 TAPPING SCREW D4.5X14
106 6685154 FUEL PIPE
107 6685155 CHAIN CATCHER
108 6685156 AIR VENT SPONGE
109A 6696784 GUIDE PLATE (B)
110 6685158 TAPPING SCREW D3X8
112 6685161 TAPPING SCREW D4X10
115 6685165 SIDE COVER COMP.
116A 6685416 CHAIN BAR CLAMP NUT
117A 6685389 BRAKE SPRING
118 6685168 GEAR (A)
119B 6698986 CHAIN PULLER
121 6685161 TAPPING SCREW D4X10
123 6685173 AIR VENT VALVE (B)
124 6685174 ENGINE CASE ASS'Y
125A 6685175 INNER CAP
129 6685179 TANK CAP PACKING
130 6685180 TANK CAP ASS'Y
131 6684679 SET SCREW
132 6685182 CAM PLATE
133 6685183 DAMPER SPRING
134 6685184 STARTER PULLEY
135 6685185 SPRING CASE SET
137 6685187 FAN CASE COMP.
138 6685188 STARTER HANDLE
140 6685190 RECOIL STARTER ASS'Y
141 6685191 TAPPING SCREW D4.5X20
164 6685196 PIPE JOINT
165 6685197 SHIELD TUBE ASS'Y
166A 6685311 CLIP
169 6685153 TAPPING SCREW D4.5X14
171 6685202 INLET MANIFOLD SPACER
173 6685203 PULSE GUIDE
174 6685204 INTAKE COMP.
175 6685205 INTAKE PACKING
176 6685206 CHOKE LEVER
*178 6685208 CARBURETOR ASS'Y WT-940
179 6685210 SCREW
181 6685212 PUMP GASKET
182 6685213 PUMP DIAPHRAGM
183 6684700 INLET SCREEN
184 6685215 NEEDLE VALVE
186 6685217 CONTROL LEVER
187 6685218 HINGE PIN SET SCREW
188 6685219 HINGE PIN
189 6685220 DIAPHRAGM PACKING-METERING
190 6684690 METERING DIAPHRAGM
192 6685223 SET SCREW
193 6685224 IDLE SPONGE
194 6685225 AIR CLEANER BASE
195 6685226 WASHER M5 (BLACK)
196 6685114 HEX. SOCKET HD. BOLT M5X50
197 6685227 CLEANER COVER
198 6685228 CLEANER KNOB
199 6685229 CLEANER SPONGE (B)
200 6685230 CLEANER ELEMENT A COMP.
201 6685231 CLEANER ELEMENT B COMP.
202 6685232 CLEANER SPONGE (A)
203 6685233 TAPPING SCREW D5X45
205A 6696800 COLLAR 28.2
207 6685153 TAPPING SCREW D4.5X14
210 6685239 STOP SWITCH
212 6685241 THROTTLE WIRE COMP.
213 6685242 THROTTLE LEVER
214A 6698691 THROTTLE LEVER SPRING
215 6685244 TRIGGER LOCKOUT
217 6685245 MUFFLER COVER
219 6685247 SHIELD TUBE
220A 6685311 CLIP
221 6684661 WASHER 5
222A 6685310 OIL FILTER BODY
223 6685249 OIL FILTER BODY ASS'Y
226 6685252 CORD 180MM
228 6685074 TAPPING SCREW D5X16
230 6685297 IDLE ADJUST SPRING
231 6685298 IDLE ADJUST SCREW
501A 6685401 CHAIN COVER 12"
501A 6685439 CHAIN COVER 14"
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Hitachi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to hitachi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Hitachi CS33ET
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Hitachi CS33ET

Diagram Hitachi CS33ET

Download (646.08KB)

You might also like

Oil Pump for Chainsaw Hitachi Tanaka CS33EA-CS25EC-SC
HiKOKI Power Tools Italia S.p.a. SKU: 6685135
Oil Pump for Chainsaw Hitachi Tanaka CS33EA-CS25EC-SC
Oil Pump for Chainsaw Hitachi Tanaka CS33EA-CS25EC-SC Original spare parts Hitachi Koky Tanaka, Oil Pump Ass'y for Chainsaws CS33EA-CS25EC-SC - Tanaka TCS-2800S - TCS-2801S. Part for the following products:...
on 7/10 Business Days Approx €34.10
Details
Starter Pawl for Chainsaw Hitachi Tanaka CS33EDT-EB
HiKOKI Power Tools Italia S.p.a. SKU: 6685334
Starter Pawl for Chainsaw Hitachi Tanaka CS33EDT-EB
Starter Pawl for Chainsaw Hitachi Tanaka CS33EDT-EB Genuine spare parts Hitachi Tanaka, Starter Pawl for Chainsaws CS30EG(S) - CS33EG(S) - CS33EA - CS33EB - CS33EDP - CS33EDT - CS33EDTP Part...
Last items in stock €2.38
Details
Starter Pawl Spring for Chainsaw Hitachi Tanaka CS33EDT-EB
HiKOKI Power Tools Italia S.p.a. SKU: 6685335
Starter Pawl Spring for Chainsaw Hitachi Tanaka CS33EDT-EB
Starter Pawl Spring for Chainsaw Hitachi Tanaka CS33EDT-EB Genuine spare parts Hitachi Tanaka, Starter Pawl Spring for Chainsaws CS30EG(S) - CS33EG(S) - CS33EA - CS33EB - CS33EDP - CS33EDT - CS33EDTP Part for the following products:...
on 7/10 Business Days Approx. €2.38
Details
Clutch Drum for Chainsaw Hitachi Tanaka CS33EB
HiKOKI Power Tools Italia S.p.a. SKU: 6685403
Clutch Drum for Chainsaw Hitachi Tanaka CS33EB
Clutch Drum for Chainsaw Hitachi Tanaka CS33EB Original spare part for Chainsaw Hitachi Koky Tanaka, Clutch Drum for Chainsaws CS33EA - CS33EB - CS33ET - CS35Y. Part for the following products: - Chainsaw Hitachi CS33EA - Chainsaw...
AVAILABLE €20.68
Details
Guide Plate for Chainsaw Hitachi Tanaka CS33EDT
HiKOKI Power Tools Italia S.p.a. SKU: 6696784
Guide Plate for Chainsaw Hitachi Tanaka CS33EDT
Guide Plate for Chainsaw Hitachi Tanaka CS33EDT Original spare part Hitachi Koky Tanaka, Guide plate for Pruning Chainsaw CS33EDT Part for the following products: - Chainsaw HITACHI CS33EA - Chainsaw HITACHI CS33ET -...
AVAILABLE €9.70
Details
Bar Chain Nut for Chainsaw Hitachi Tanaka CS33EB-CS40EA
HiKOKI Power Tools Italia S.p.a. SKU: 6685416
Bar Chain Nut for Chainsaw Hitachi Tanaka CS33EB-CS40EA
Bar Chain Nut for Chainsaw Hitachi Tanaka CS33EB-CS40EA Genuine replacement part Hitachi Koky Tanaka, Nut for Locking Chainsaw Bar for Chainsaw CS33EB - CS40EA. Part for the following products: - Chainsaw Hitachi...
Last items in stock €2.38
Details
Clutch Needle Bearing for Chain Saws Hitachi CS33EB-EDT
HiKOKI Power Tools Italia S.p.a. SKU: 6685361
Clutch Needle Bearing for Chain Saws Hitachi CS33EB-EDT
Clutch Needle Bearing for Chain Saws Hitachi CS33EB-EDT Hitachi-HIKOKI Tanaka genuine part, Clutch Needle Bearing for pruning  Hitachi Garden Tanaka Chainsaws CS33EB - CS33EDT. Part for the following products: - Chainsaw CS33EDT -...
AVAILABLE €10.92
Details
Tension Adjustment Bolt for Chainsaw Hitachi CS33EB-CS33EDT-CS40EA
HiKOKI Power Tools Italia S.p.a. SKU: 6698986
Tension Adjustment Bolt for Chainsaw Hitachi CS33EB-CS33EDT-CS40EA
Tension Adjustment Bolt for Chainsaw Hitachi CS33EB-CS33EDT-CS40EA Genuine parts Hitachi Koky Tanaka, Tension Adjustment Bolt Ass'y for Chainsaw Bar for Pruning CS33EB - CS33EDT - CS40EA. Part for the following products: - Chainsaw...
Last items in stock €26.78
Details
Piston Ring for Chainsaw Hitachi Tanaka CS33EB
HiKOKI Power Tools Italia S.p.a. SKU: 6685331
Piston Ring for Chainsaw Hitachi Tanaka CS33EB
Piston Ring for Chainsaw Hitachi Tanaka CS33EB Original spare part for Chainsaw Hitachi Koky Tanaka, Piston Ring for Pruning Chainsaw CS33EB. Parts for the following products: - PRUNING CHAINSAW CS33EDT - CHAINSAW CS 33EB -...
AVAILABLE €10.92
Details
Damper Spring for Chainsaw Hitachi Tanaka CS33EA-CS25EC-SC
HiKOKI Power Tools Italia S.p.a. SKU: 6685183
Damper Spring for Chainsaw Hitachi Tanaka CS33EA-CS25EC-SC
Damper Spring for Chainsaw Hitachi Tanaka CS33EA-CS25EC-SC Genuine spare parts for Chainsaw Hitachi Koky Tanaka, Damper Spring for Chainsaw CS25EC-SC HEDGETRIMMER CH22EBP2 - HEDGETRIMMER CH22ECP2. Parts for the following...
AVAILABLE €8.48
Details
Priming Pump for Chain Saws and Brushcutters Hitachi Tanaka
HiKOKI Power Tools Italia S.p.a. SKU: 6685139
Priming Pump for Chain Saws and Brushcutters Hitachi Tanaka
Priming Pump for Chain Saws and Brushcutters Hitachi Tanaka Genuine spare Hitachi Koky Tanaka, Priming Pump complete for Brushcutters and Chain Saws Hitachi Tanaka. Parts for the following products: - BRUSHCUTTER CG47EF (L) -...
AVAILABLE €13.36
Details
Carburetor Pump Gasket for Chainsaws Hitachi CS25-33-40-45-51
HiKOKI Power Tools Italia S.p.a. SKU: 6685212
Carburetor Pump Gasket for Chainsaws Hitachi CS25-33-40-45-51
Carburetor Pump Gasket for Chainsaws Hitachi CS25-33-40-45-51 Original parts for Chainsaw Hitachi HiKoky Tanaka, Carburetor Pump Gasket for Chainsaws, CS25EC-SC-EU - CS33EDT - CS38EK - CS40EA - CS45EL - CS51EAP. Parts for the...
AVAILABLE €3.60
Details
Carburetor Pump Diaphragm for Chainsaws Hitachi CS25-33-40-45-51
HiKOKI Power Tools Italia S.p.a. SKU: 6685213
Carburetor Pump Diaphragm for Chainsaws Hitachi CS25-33-40-45-51
Carburetor Pump Diaphragm for Chainsaws Hitachi CS25-33-40-45-51 Original parts for Chainsaw Hitachi Koky Tanaka, Pump Diaphragm for Carburetor Chainsaws, CS25EC-SC-EU - CS33EDT - CS38EK - CS40EA - CS45EL - CS51EAP - BRUSHCUTTERS...
AVAILABLE €10.92
Details
Starter Pulley for Chainsaw Hitachi Tanaka CS25EC-SC Sale
HiKOKI Power Tools Italia S.p.a. SKU: 6685184
Starter Pulley for Chainsaw Hitachi Tanaka CS25EC-SC
Starter Pulley for Chainsaw Hitachi Tanaka CS25EC-SC Genuine spare parts for Chainsaw Hitachi Koky Tanaka, Starter Pulley for chainsaw CS25EC-SC. Articles made parts for the following: - CHAINSAW CS25EC-SC - Tanaka Code: 6685184
AVAILABLE €10.92
Details
Oil Pipe (A) for Chainsaw Hitachi Tanaka CS25EC-SC
HiKOKI Power Tools Italia S.p.a. SKU: 6685150
Oil Pipe (A) for Chainsaw Hitachi Tanaka CS25EC-SC
Oil Pipe (A) for Chainsaw Hitachi Tanaka CS25EC-SC Original spare part Hitachi Koky Tanaka, Oil Pump Pipe(A) cfor Chainsaw CS25EC-SC. Part for the following products: - CHAINSAW HITACHI CS25 (S) - CHAINSAW HITACHI CS25...
AVAILABLE €8.48
Details
Adjustment Oil Pump Screw for Chainsaw Hitachi Tanaka CS25EC-SC
HiKOKI Power Tools Italia S.p.a. SKU: 6685128
Adjustment Oil Pump Screw for Chainsaw Hitachi Tanaka CS25EC-SC
Adjustment Oil Pump Screw for Chainsaw Hitachi Tanaka CS25EC-SC Genuine parts Hitachi Koky Tanaka, Adjustment Oil Screw Pump for Chainsaw Hitachi Tanaka CS25EC-SC. Part for the following products: - CHAINSAW FOR PRUNING HITACHI...
Last items in stock €7.26
Details
Diaphragm Packing Metering for Chainsaws Hitachi CS25-33-40-45-51
HiKOKI Power Tools Italia S.p.a. SKU: 6685220
Diaphragm Packing Metering for Chainsaws Hitachi CS25-33-40-45-51
Diaphragm Packing Metering for Chainsaws Hitachi CS25-33-40-45-51 Original parts for Chainsaw Hitachi Koky Tanaka, Diaphragm Packing Metering Gasket for Carburetor Chainsaws, CS25EC-SC-EU - CS33EDT - CS38EK - CS40EA - CS45EL - CS51EAP...
AVAILABLE €3.60
Details
Metering Diaphragm for Chainsaws Hitachi CS-33-40-51
HiKOKI Power Tools Italia S.p.a. SKU: 6684690
Metering Diaphragm for Chainsaws Hitachi CS-33-40-51
Metering Diaphragm for Chainsaws Hitachi CS-33-40-51 Original parts for Chainsaw Hitachi Koky Tanaka, Metering Diaphragm for Carburetor Chainsaws,CS33EDT - CS 33EB - CS40EA - TANAKA TCS-40EA - Hitachi CS51EAP -...
AVAILABLE €26.78
Details
Brake Spring for Chainsaws Hitachi CS33EB
HiKOKI Power Tools Italia S.p.a. SKU: 6685389
Brake Spring for Chainsaws Hitachi CS33EB
Brake Spring for Chainsaws Hitachi CS33EB Original spare Hitachi Koky Tanaka, Brake Spring for Prunung Chainsaws Hitachi CS 33EB - CS 33EDT Parts for the following products: - CHAINSAW HITACHI CS 33EDT - CHAINSAW...
Usually Ships in: 7/10 Business Days Approx. €2.38
Details
Crank Shaft Collar for Chainsaw Hitachi Tanaka CS33EB Sale
HiKOKI Power Tools Italia S.p.a. SKU: 6685360
Crank Shaft Collar for Chainsaw Hitachi Tanaka CS33EB
Crank Shaft Collar for Chainsaw Hitachi Tanaka CS33EB Original spare part Hitachi Koky Tanaka, Crank Shaft Collar for Chainsaws CS33EB - CS30EG - CS35EG - CS30EH - CS35EH Part for the following products: - Chainsaw Hitachi CS33EB -...
AVAILABLE €7.26
Details
Clutch Washer for Chainsaws Hitachi CS33EDT-CS33EB
HiKOKI Power Tools Italia S.p.a. SKU: 6685414
Clutch Washer for Chainsaws Hitachi CS33EDT-CS33EB
Clutch Washer for Chainsaws Hitachi CS33EDT-CS33EB Hitachi genuine parts, Clutch Washer for Chainsaws Hitachi CS33EDT - CS33EB. Parts for the following products: - Chainsaw CS33EDT - Chainsaw CS33EB  - Code : 6685414
AVAILABLE €2.38
Details
Petrol-Oil Tank Cap Packing for Chainsaw Hitachi CS33EDT
HiKOKI Power Tools Italia S.p.a. SKU: 6685179
Petrol-Oil Tank Cap Packing for Chainsaw Hitachi CS33EDT
Petrol-Oil Tank Cap Packing for Chainsaw Hitachi CS33EDT Original part Hitachi Koky Tanaka, Petrol - Oil Tank Cap Packing for Chainsaws, CS 33EDT - CS 33EB - CS 40EA - CS 51EAP Parts for the following products: - Motosega Hitachi...
Out-of-Stock €2.38
Details
Screw D. 4x15 for Chainsaw Hitachi CS25EC-SC-CS30EG Sale
HiKOKI Power Tools Italia S.p.a. SKU: 6685148
Screw D. 4x15 for Chainsaw Hitachi CS25EC-SC-CS30EG
Screw D. 4x15 for Chainsaw Hitachi CS25EC-SC-CS30EG Original spare part Hitachi, Screw D. 4x15 for Chainsaw Hitachi CS25EC-SC - CS30EG - Tanaka TCS-2801S - Tanaka TCS-3301S - Tanaka TCS-2800S. Part for the following products: -...
AVAILABLE €1.16
Details
Chain Catcher Protection Pipe for Chainsaw Hitachi CS25EC-SC
HiKOKI Power Tools Italia S.p.a. SKU: 6685154
Chain Catcher Protection Pipe for Chainsaw Hitachi CS25EC-SC
Chain Catcher Protection Pipe for Chainsaw Hitachi CS25EC-SC Genuine part Hitachi, Tensioner Protection Pipe for Chainsaw Hitachi CS25EC-SC - CS30EC - CS30EG - CS38EK - CS45EL Ricambio per i seguenti prodotti: - Chainsaw Tanaka...
AVAILABLE €1.16
Details
Oil Filter Body for Chainsaw Hitachi Tanaka CS33EDT
HiKOKI Power Tools Italia S.p.a. SKU: 6685310
Oil Filter Body for Chainsaw Hitachi Tanaka CS33EDT
Oil Filter Body for Chainsaw Hitachi Tanaka CS33EDT Genuine spare part Hitachi Koky Tanaka, Oil Filter Body for Chainsaws CS33EDT - CS33EDTP - CS33EA - CS33EB - CS33ET...
AVAILABLE €2.38
Details
Chain Catcher for Chainsaw Hitachi CS25EC-SC
HiKOKI Power Tools Italia S.p.a. SKU: 6685155
Chain Catcher for Chainsaw Hitachi CS25EC-SC
Chain Catcher for Chainsaw Hitachi CS25EC-SC Genuine part Hitachi, Chain Catcher for Chainsaw Hitachi CS25EC-SC - CS30EC - CS30EG - CS38EK - CS45EL Ricambio per i seguenti prodotti:...
Last items in stock €2.38
Details
Guide Plate Screw M4x10 for Chainsaw Hitachi CS25EC-SC
HiKOKI Power Tools Italia S.p.a. SKU: 6685161
Guide Plate Screw M4x10 for Chainsaw Hitachi CS25EC-SC
Guide Plate Screw M4x10 for Chainsaw Hitachi CS25EC-SC Genuine part Hitachi, Guide Plate Screw M4x10 for Chainsaw Hitachi CS25EC-SC - CS30EC - CS30EG - CS38EK - CS45EL. Ricambio per i seguenti prodotti: - Chainsaw Tanaka TCS-2800S -...
AVAILABLE €1.16
Details
Needle Roller mm 3 for Chainsaw Hitachi Tanaka CS40EA
HiKOKI Power Tools Italia S.p.a. SKU: 6685391
Needle Roller mm 3 for Chainsaw Hitachi Tanaka CS40EA
Needle Roller mm 3 for Chainsaw Hitachi Tanaka CS40EA Original spare part Hitachi Koky Tanaka, Needle Roller mm 3 for Chainsaws CS33EDT - CS40EA - CS33EB - CS51EAP - Tanaka TCS-40EA - TCS 33ED. Part for the following products: -...
AVAILABLE €2.38
Details
Cleaner Cover Knob for Chainsaw Hitachi CS25EC-SC
HiKOKI Power Tools Italia S.p.a. SKU: 6685228
Cleaner Cover Knob for Chainsaw Hitachi CS25EC-SC
Cleaner Cover Knob for Chainsaw Hitachi CS25EC-SC Original part Hitachi Koky Tanaka, Cleaner Cover Knob for Chainsaws Hitachi CS25EC-SC - Tanaka TCS-2801S - TCS-3301S. Part for the following products: -...
Last items in stock €3.60
Details
Cleaner Fixing Collar for Chainsaw Hitachi CS25EC-SC
HiKOKI Power Tools Italia S.p.a. SKU: 6685180
Tank Cap Ass'y for Chainsaws Hitachi CS25EC-SC
Tank Cap Ass'y for Chainsaws Hitachi CS25EC-SC Original spare part Hitachi Koky Tanaka, Tank Cap Ass'y for Chainsaws Hitachi CS25EC-SC - CS 30EC - CS30EH - TCS-2800S - TCS-2801S. Part for the following products: - Chainsaw Hitachi...
AVAILABLE €6.04
Details
Brake Lever Rod for Chainsaws Hitachi CS25EC-SC
HiKOKI Power Tools Italia S.p.a. SKU: 6685119
Brake Lever Rod for Chainsaws Hitachi CS25EC-SC
Brake Lever Rod for Chainsaws Hitachi CS25EC-SC Original spare part Hitachi Koky Tanaka, Brake Lever Rod for Chainsaws Hitachi CS25EC-SC - CS 30EC - CS30EH - TCS-2801S. Part for the following products: - Chainsaw Hitachi CS25EC-SC -...
AVAILABLE €6.04
Details
Brake Lever Rod Collar for Chainsaw Hitachi CS25EC-SC
HiKOKI Power Tools Italia S.p.a. SKU: 6685120
Brake Lever Rod Collar for Chainsaw Hitachi CS25EC-SC
Brake Lever Rod Collar for Chainsaw Hitachi CS25EC-SC Original spare part Hitachi Koky Tanaka, Brake Lever Rod Collar for Chainsaws CS25EC (S) - CS25EC (SC) - CS30EG - CS 30EC. Part for the following products: - Chainsaw Hitachi...
AVAILABLE €2.38
Details
Shield Tube for Chainsaw Hitachi Tanaka CS25EC-SC
HiKOKI Power Tools Italia S.p.a. SKU: 6685247
Shield Tube for Chainsaw Hitachi CS25EC-SC
Shield Tube for Chainsaw Hitachi CS25EC-SC Original spare part Hitachi Koky Tanaka, Shield Tube for Chainsaws CS25EC-SC - CS 30EC - CS33ET - CS33EA. Part for the following products: - Chainsaw Hitachi CS25EC-SC - Chainsaw Hitachi CS...
Details
Machine Screw M3x8 for Chainsaw Hitachi CS25EC-SC
HiKOKI Power Tools Italia S.p.a. SKU: 6685133
Machine Screw M3x8 for Chainsaw Hitachi CS25EC-SC
Machine Screw M3x8 for Chainsaw Hitachi CS25EC-SC Original spare part Hitachi-HIKOKI Tanaka, Machine Screw M3x8 for Chainsaws CS25EC-SC - CS 30EC - CS33ET - CS33EA Part for the following products: -  Motosega HITACHI CS25EC-SC -...
Last items in stock €2.38
Details
Comments (0)
