HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Engine Brush Cutter CG27EAP2

SKU: Hitachi CG27EAP2
€1.04
VAT included

Hitachi Spare Parts for Engine Brush Cutter CG27EAP2

Hitachi genuine spare parts or replacement parts for to repair Engine Bushcutter CG27EAP2.

Fix Your Hitachi Engine Brushcutter CG27EAP2. All Spares are Available at best and Cheapest and Discounted Prices. Our spare parts are original and come with a full Guarantee.
Hitachi Spare Parts for Engine Brush Cutter CG27EAP2
  • Hitachi Spare Parts for Engine Brush Cutter CG27EAP2
  • Hitachi Spare Parts for Engine Brush Cutter CG27EAP2
  • Hitachi Spare Parts for Engine Brush Cutter CG27EAP2
  • Hitachi Spare Parts for Engine Brush Cutter CG27EAP2
HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Engine Brush Cutter CG27EAP2

SKU: Hitachi CG27EAP2 Condition: New
€1.04
VAT included

Hitachi Spare Parts for Engine Brush Cutter CG27EAP2

Hitachi genuine spare parts or replacement parts for to repair Engine Bushcutter CG27EAP2.

Fix Your Hitachi Engine Brushcutter CG27EAP2. All Spares are Available at best and Cheapest and Discounted Prices. Our spare parts are original and come with a full Guarantee.
settings 200 spare parts
description 4 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 7/10 Business Days Approx

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
183 spare parts

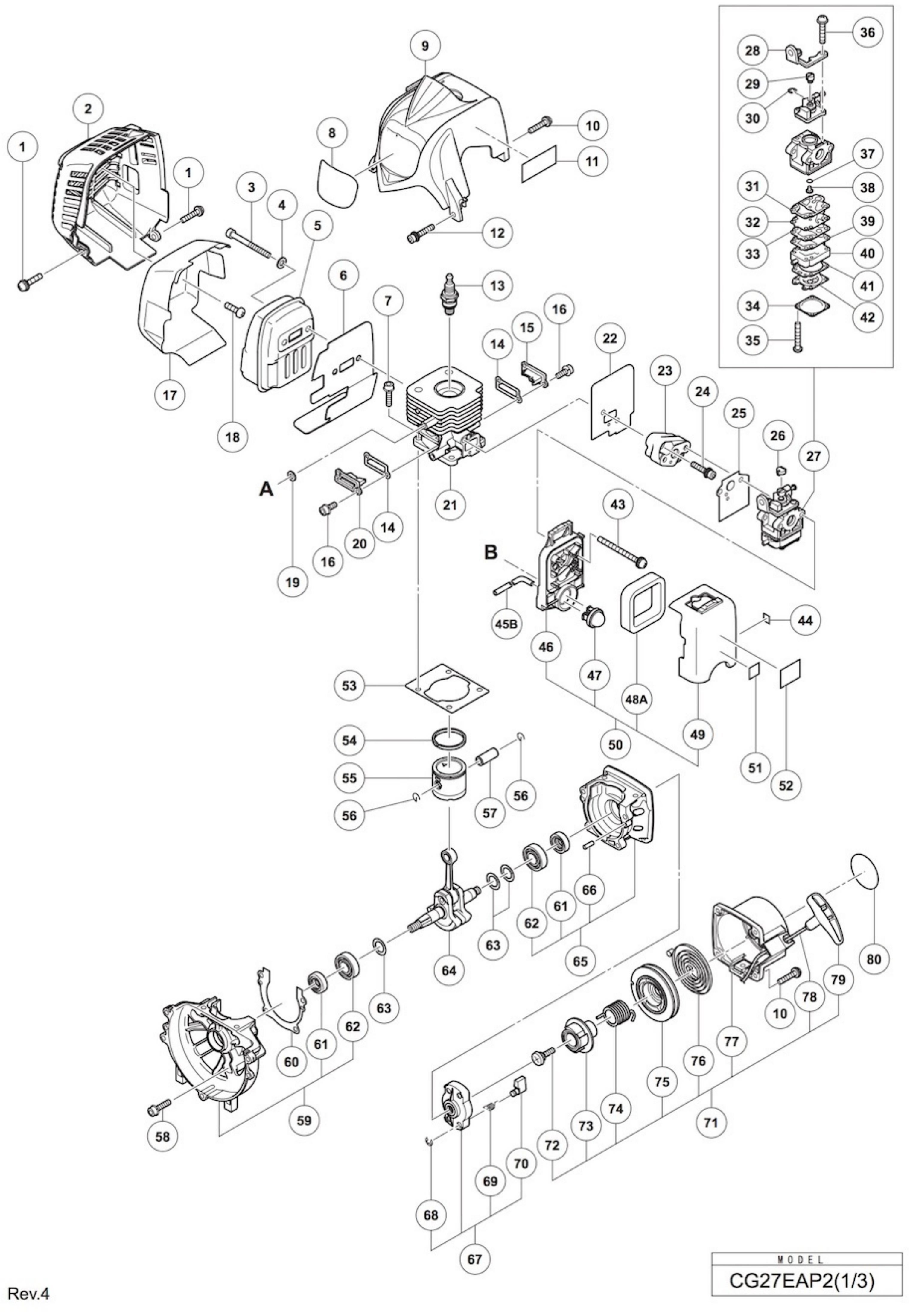

Esploso pagina 1
Pos. Item Price Buy
99
 photo_cameraImage coming soon 6696560 THROTTLE WIRE COMP. €9.03
99
 photo_cameraImage coming soon 6696593 THROTTLE WIRE COMP. €10.33
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 1
Pos. Item Price Buy
*131
 Fuel Tank for Brushcutters Hitachi CG24EASP-CG27EASP 6600317 Fuel Tank for Brushcutters Hitachi CG24EASP-CG27EASP €16.39
*126
 photo_cameraImage coming soon 6698716 FUEL PIPE €5.16
*131
 photo_cameraImage coming soon 6699719 TANK €32.65
2
 photo_cameraImage coming soon 6600322 MUFFLER COVER €13.14
3
 photo_cameraImage coming soon 6698384 HEX. SOCKET HD. BOLT M6X65 €2.24
5
 photo_cameraImage coming soon 6600004 MUFFLER (B) €55.51
6
 photo_cameraImage coming soon 6600324 HEAT PROTECTION PANEL €3.22
7
 photo_cameraImage coming soon 6696958 HEX. SOCKET BOLT M5X20 €3.86
14
 photo_cameraImage coming soon 6698365 COVER PACKING €2.57
15
 photo_cameraImage coming soon 6698484 SCAVENGING COVER (A) €5.16
16
 photo_cameraImage coming soon 6698385 HEX. SOCKET HD. BOLT M4X12 €2.24
19
 photo_cameraImage coming soon 6698700 GLASS WASHER €2.16
20
 photo_cameraImage coming soon 6698485 SCAVENGING COVER (B) €5.16
21
 Cylinder for Brushcutter Hitachi CG27EASP 6698480 Cylinder for Brushcutter Hitachi CG27EASP €99.59
22
 photo_cameraImage coming soon 6698473 INTAKE PACKING €2.57
23
 Hitachi CH22EBP2 Carburetor Insulator 6698387 Hitachi CH22EBP2 Carburetor Insulator €6.29
24
 photo_cameraImage coming soon 6698844 SEAL LOCK HEX. SOCKET BOLT (W/WASHERS)M5 €2.16
25
 photo_cameraImage coming soon 6698405 CARBURETOR PACKING €4.33
26
 photo_cameraImage coming soon 6691337 SWIVEL CAP €1.78
27
 photo_cameraImage coming soon 6698489 CARBURETOR ASS'Y WYC-29 €122.82
29
 photo_cameraImage coming soon 6696830 SWIVEL €7.91
30
 photo_cameraImage coming soon 6684696 STOP RING €1.76
31
 photo_cameraImage coming soon 6684692 PUMP GASKET €26.45
32
 Pump Diaphragm for Chainsaw Hitachi CS33EB 6684693 Pump Diaphragm for Chainsaw Hitachi CS33EB €9.95
33
 photo_cameraImage coming soon 6691242 PUMP PLATE €5.81
35
 photo_cameraImage coming soon 6691312 SET SCREW €2.48
37
 photo_cameraImage coming soon 6684695 ORING €3.16
39
 Circuit Plate Gasket for Brushcutter Hitachi CG22EAS 6691234 Circuit Plate Gasket for Brushcutter Hitachi CG22EAS €6.64
40
 photo_cameraImage coming soon 6696828 PUMP BODY COMP. €24.52
41
 Diaphragm Packing Metering for Chainsaws Hitachi CS25-33-40-45-51 6685220 Diaphragm Packing Metering for Chainsaws Hitachi CS25-33-40-45-51 €3.45
42
 Metering Diaphragm for Chainsaws Hitachi CS-33-40-51 6684690 Metering Diaphragm for Chainsaws Hitachi CS-33-40-51 €25.81
46
 Air Filter Housing for Brushcutter Hitachi Tanaka CG22EAB 6696832 Air Filter Housing for Brushcutter Hitachi Tanaka CG22EAB €22.46
47
 Priming Pump for Chain Saws and Brushcutters Hitachi Tanaka 6685139 Priming Pump for Chain Saws and Brushcutters Hitachi Tanaka €13.15
48A
 photo_cameraImage coming soon 6600704 CLEANER SPONGE €6.47
49
 photo_cameraImage coming soon 6696831 AIR CLEANER COVER €15.50
50
 photo_cameraImage coming soon 6696549 AIR CLEANER ASS'Y €15.50
53
 Cylinder Gasket for Brushcutter CG27EASP 6698366 Cylinder Gasket for Brushcutter CG27EASP €2.52
54
 Piston Ring for Brushcutter Hitachi CG27EASP 6686121 Piston Ring for Brushcutter Hitachi CG27EASP €7.30
55
 Piston for Brushcutter Hitachi CG27EASP 6698483 Piston for Brushcutter Hitachi CG27EASP €19.80
56
 Circlip for Brushcutter Hitachi CG 24EBS 6684590 Circlip for Brushcutter Hitachi CG 24EBS €1.57
57
 Piston Pin for Brushcutter Hitachi CG27EASP 6684591 Piston Pin for Brushcutter Hitachi CG27EASP €4.14
59
 photo_cameraImage coming soon 6698370 CRANK CASE (B) ASS'Y €34.85
60
 Hitachi CG27EASP Crankcase Packing 6698371 Hitachi CG27EASP Crankcase Packing €2.11
64
 photo_cameraImage coming soon 6698488 CRANK SHAFT COMP. €118.64
65
 photo_cameraImage coming soon 6698369 CRANK CASE (A) ASS'Y €28.39
67
 Starter Pulley for Bruschcutters Hitachi CG22EAS-CG24EASP-CG27-33EJ 6684681 Starter Pulley for Bruschcutters Hitachi CG22EAS-CG24EASP-CG27-33EJ €23.26
68
 photo_cameraImage coming soon 6684683 STOP RING E5 €1.22
69
 photo_cameraImage coming soon 6684684 STARTER PAWL SPRING €3.48
70
 photo_cameraImage coming soon 6684685 STARTER PAWL €6.11
71
 Recoil Starter for Brushcutter Hitachi Tanaka CG22EAS/24-27EASP 6699995 Recoil Starter for Brushcutter Hitachi Tanaka CG22EAS/24-27EASP €33.10
72
 Set Screw for Hedge Trimmer Hitachi CH62EA(ST) 6684679 Set Screw for Hedge Trimmer Hitachi CH62EA(ST) €6.81
73
 photo_cameraImage coming soon 6699996 CAM PLATE FOR (S) TYPE SINCE 9.2013 FOR AUS €5.81
74
 Damper Spring for Brushcutters Hitachi CG22EAS-CG24EASP-CG27EASP 6684677 Damper Spring for Brushcutters Hitachi CG22EAS-CG24EASP-CG27EASP €7.83
75
 photo_cameraImage coming soon 6699997 STARTER ROPE REEL €6.45
76
 photo_cameraImage coming soon 6684675 RECOIL SPRING €12.16
77
 photo_cameraImage coming soon 6684673 RECOIL STARTER BODY COMP. €17.27
92
 photo_cameraImage coming soon 6696487 HANDLE (B) €9.04
92
 photo_cameraImage coming soon 6696942 HANDLE (B) €6.14
93
 photo_cameraImage coming soon 6696490 LOCK LEVER €1.93
94
 Throttle Lever for Brushcutters Hitachi CG22/27 6696488 Throttle Lever for Brushcutters Hitachi CG22/27 €5.17
95
 photo_cameraImage coming soon 6696489 SPRING (A) €2.30
96A
 photo_cameraImage coming soon 6601275 STOP SWITCH €2.62
97
 photo_cameraImage coming soon 6696491 STOP SWITCH CORD €4.23
98
 photo_cameraImage coming soon 6696967 PROTECTION TUBE €2.30
99
 photo_cameraImage coming soon 6696560 THROTTLE WIRE COMP. €9.03
99
 photo_cameraImage coming soon 6696593 THROTTLE WIRE COMP. €10.33
100
 photo_cameraImage coming soon 6696486 HANDLE (A) €9.04
100
 photo_cameraImage coming soon 6696941 HANDLE (A) €6.14
102
 photo_cameraImage coming soon 6695492 HEX. HOLE BOLT 5X22/S €1.23
103
 Anti Vibe Rubber (A) for Brushcutter Hitachi CG22EAB 6696963 Anti Vibe Rubber (A) for Brushcutter Hitachi CG22EAB €4.44
104
 photo_cameraImage coming soon 6698643 PIPE HOLDER (A) €5.16
105
 photo_cameraImage coming soon 6698644 PIPE HOLDER (B) €5.16
106
 photo_cameraImage coming soon 6696964 ANTI VIBE RUBBER (B) €5.81
107
 Retaining Ring 12 mm for Hitachi Power Tools 939542 Retaining Ring 12 mm for Hitachi Power Tools €3.13
109
 photo_cameraImage coming soon 6699400 CLUTCH SHAFT €16.88
110
 photo_cameraImage coming soon 6696469 STEP BOLT €1.93
111
 photo_cameraImage coming soon 6684648 BENT WASHER 8 €1.98
112
 photo_cameraImage coming soon 6696546 CLUTCH PLATE (A) €2.58
113
 photo_cameraImage coming soon 6696948 CLUTCH €25.81
114
 photo_cameraImage coming soon 6696547 CLUTCH WASHER (B) €2.58
115
 Flywheel Nut for Chainsaw Hitachi CS33EB 6685337 Flywheel Nut for Chainsaw Hitachi CS33EB €2.49
118
 photo_cameraImage coming soon 6698492 IGNITION COIL ASS'Y €47.76
122
 Coil Rarth Cord (Yellow) for Brushcutter Hitachi CG22EAS 6696545 Coil Rarth Cord (Yellow) for Brushcutter Hitachi CG22EAS €2.65
123
 photo_cameraImage coming soon 6698396 MAGNETO ROTOR COMP. €23.69
125A
 photo_cameraImage coming soon 6600358 TANK GROMMET FROM YEAR OF PRODUCTION OCTOBER 2016 €2.18
128
 photo_cameraImage coming soon 6697846 RETURN GROMMET €1.79
129
 Fuel Tank Cap for Brushcutter Hitachi CG24ECP (SL) 6698402 Fuel Tank Cap for Brushcutter Hitachi CG24ECP (SL) €9.73
131A
 photo_cameraImage coming soon 6600354 TANK (C) €14.48
132
 photo_cameraImage coming soon 6600351 PUMP FILTER €5.32
135
 photo_cameraImage coming soon 6696557 FLANGE BOLT €1.93
136
 photo_cameraImage coming soon 6698991 BOLT (W/FLANGE) L27.8 €2.24
155
 photo_cameraImage coming soon 6691098 HANDLE GRIP €9.30
158
 photo_cameraImage coming soon 6695255 TAPPING SCREW 5X20 €1.98
160
 photo_cameraImage coming soon 6696975 LOOP HANDLE €7.47
163
 photo_cameraImage coming soon 6696972 HANDLE HOLDER (A) €1.65
164
 photo_cameraImage coming soon 6684838 BOLT 6X43/P (BLACK) €1.98
165
 photo_cameraImage coming soon 6696974 BOLT (BLACK) M6 €2.58
166
 photo_cameraImage coming soon 6696973 BARRIER €4.31
172
 photo_cameraImage coming soon 6684714 HEX. HOLE BUTTON SCREW 6X25S €1.98
173
 Hitachi CG22EAS Gear Case 6699402 Hitachi CG22EAS Gear Case €86.29
175
 photo_cameraImage coming soon 6696977 CUTTER HOLDER (A) €29.69
176
 photo_cameraImage coming soon 6698659 CUTTER HOLDER (B) €25.68
177
 photo_cameraImage coming soon 6699188 NUT COVER €16.77
181
 photo_cameraImage coming soon 6696494 COVER BRACKET €3.87
184
 photo_cameraImage coming soon 6685064 HEX. SOCKET HD. BOLT (W/BUTTON) M6X20 €1.93
189
 photo_cameraImage coming soon 6696558 MAIN PIPE COMP. €42.60
190
 photo_cameraImage coming soon 6698514 DRIVE SHAFT €34.85
193
 photo_cameraImage coming soon 6698794 COVER €25.83
196
 photo_cameraImage coming soon 6698796 REEL €10.09
198
 Button for Brushcutter Hitachi CG22EAS 6698798 Button for Brushcutter Hitachi CG22EAS €10.60
199
 photo_cameraImage coming soon 6698799 CORD GUIDE €10.01
199
 photo_cameraImage coming soon 6698942 CORD GUIDE €6.47
200
 photo_cameraImage coming soon 6698800 CASE €18.02
202
 photo_cameraImage coming soon 6696980 COVER €23.23
203
 photo_cameraImage coming soon 6696951 GUARD HOLDER €3.08
204
 photo_cameraImage coming soon 6696950 COVER GUARD €16.78
205
 photo_cameraImage coming soon 6684751 TAPPING SCREW 4X14 €1.98
206
 photo_cameraImage coming soon 6684750 KNIFE €3.98
209
 photo_cameraImage coming soon 6685068 MACHINE SCREW (W/SP. WASHER) M4X12 €1.93
510
 photo_cameraImage coming soon 6696977 CUTTER HOLDER (A) €29.69
Page 2 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

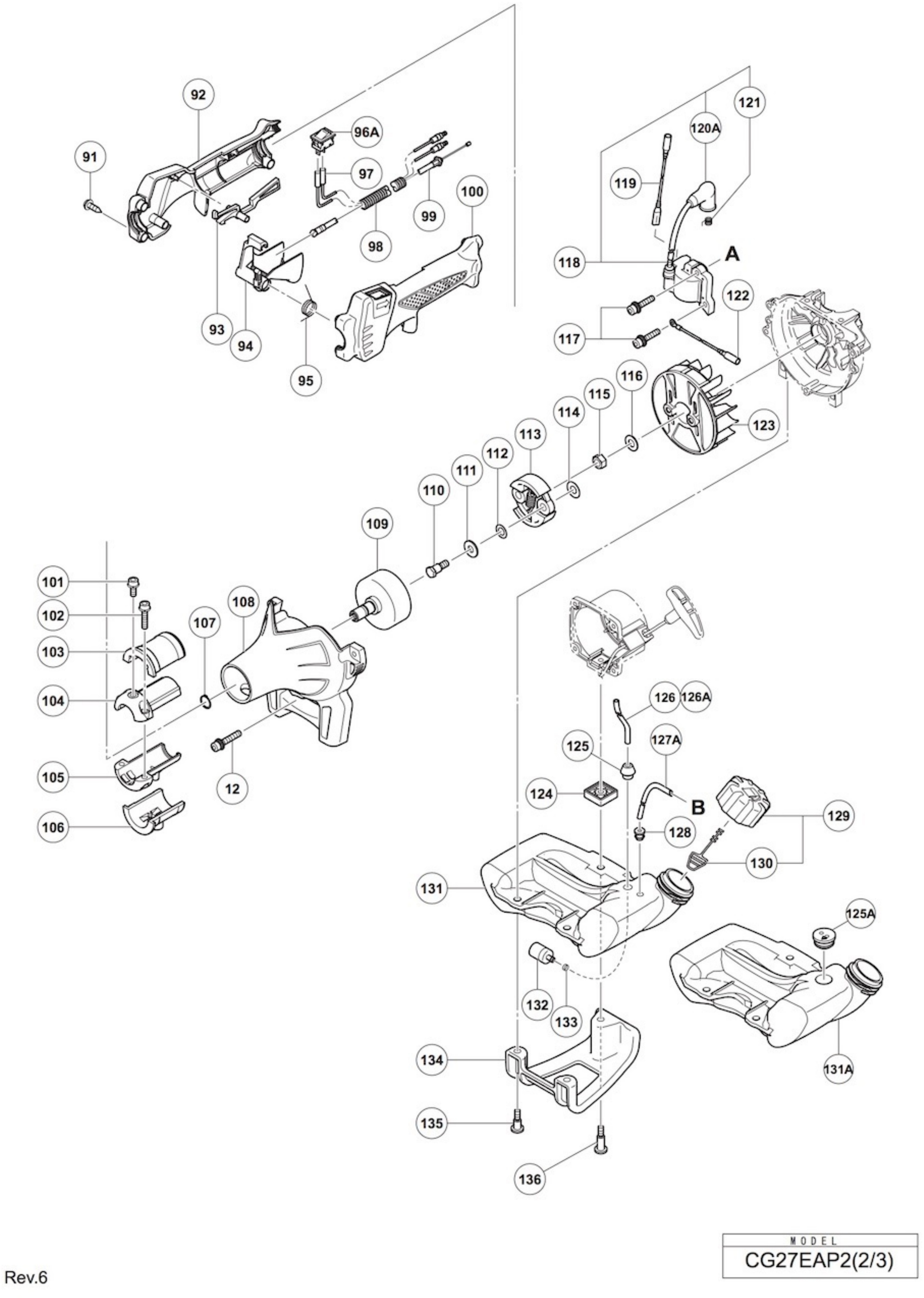

Esploso pagina 2
Pos. Item Price Buy
92
 photo_cameraImage coming soon 6696487 HANDLE (B) €9.04
92
 photo_cameraImage coming soon 6696942 HANDLE (B) €6.14
93
 photo_cameraImage coming soon 6696490 LOCK LEVER €1.93
94
 Throttle Lever for Brushcutters Hitachi CG22/27 6696488 Throttle Lever for Brushcutters Hitachi CG22/27 €5.17
95
 photo_cameraImage coming soon 6696489 SPRING (A) €2.30
96A
 photo_cameraImage coming soon 6601275 STOP SWITCH €2.62
97
 photo_cameraImage coming soon 6696491 STOP SWITCH CORD €4.23
98
 photo_cameraImage coming soon 6696967 PROTECTION TUBE €2.30
100
 photo_cameraImage coming soon 6696486 HANDLE (A) €9.04
100
 photo_cameraImage coming soon 6696941 HANDLE (A) €6.14
102
 photo_cameraImage coming soon 6695492 HEX. HOLE BOLT 5X22/S €1.23
103
 Anti Vibe Rubber (A) for Brushcutter Hitachi CG22EAB 6696963 Anti Vibe Rubber (A) for Brushcutter Hitachi CG22EAB €4.44
104
 photo_cameraImage coming soon 6698643 PIPE HOLDER (A) €5.16
105
 photo_cameraImage coming soon 6698644 PIPE HOLDER (B) €5.16
106
 photo_cameraImage coming soon 6696964 ANTI VIBE RUBBER (B) €5.81
107
 Retaining Ring 12 mm for Hitachi Power Tools 939542 Retaining Ring 12 mm for Hitachi Power Tools €3.13
109
 photo_cameraImage coming soon 6699400 CLUTCH SHAFT €16.88
110
 photo_cameraImage coming soon 6696469 STEP BOLT €1.93
111
 photo_cameraImage coming soon 6684648 BENT WASHER 8 €1.98
112
 photo_cameraImage coming soon 6696546 CLUTCH PLATE (A) €2.58
113
 photo_cameraImage coming soon 6696948 CLUTCH €25.81
114
 photo_cameraImage coming soon 6696547 CLUTCH WASHER (B) €2.58
115
 Flywheel Nut for Chainsaw Hitachi CS33EB 6685337 Flywheel Nut for Chainsaw Hitachi CS33EB €2.49
118
 photo_cameraImage coming soon 6698492 IGNITION COIL ASS'Y €47.76
122
 Coil Rarth Cord (Yellow) for Brushcutter Hitachi CG22EAS 6696545 Coil Rarth Cord (Yellow) for Brushcutter Hitachi CG22EAS €2.65
123
 photo_cameraImage coming soon 6698396 MAGNETO ROTOR COMP. €23.69
125A
 photo_cameraImage coming soon 6600358 TANK GROMMET FROM YEAR OF PRODUCTION OCTOBER 2016 €2.18
128
 photo_cameraImage coming soon 6697846 RETURN GROMMET €1.79
129
 Fuel Tank Cap for Brushcutter Hitachi CG24ECP (SL) 6698402 Fuel Tank Cap for Brushcutter Hitachi CG24ECP (SL) €9.73
131A
 photo_cameraImage coming soon 6600354 TANK (C) €14.48
132
 photo_cameraImage coming soon 6600351 PUMP FILTER €5.32
135
 photo_cameraImage coming soon 6696557 FLANGE BOLT €1.93
136
 photo_cameraImage coming soon 6698991 BOLT (W/FLANGE) L27.8 €2.24
Page 3 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

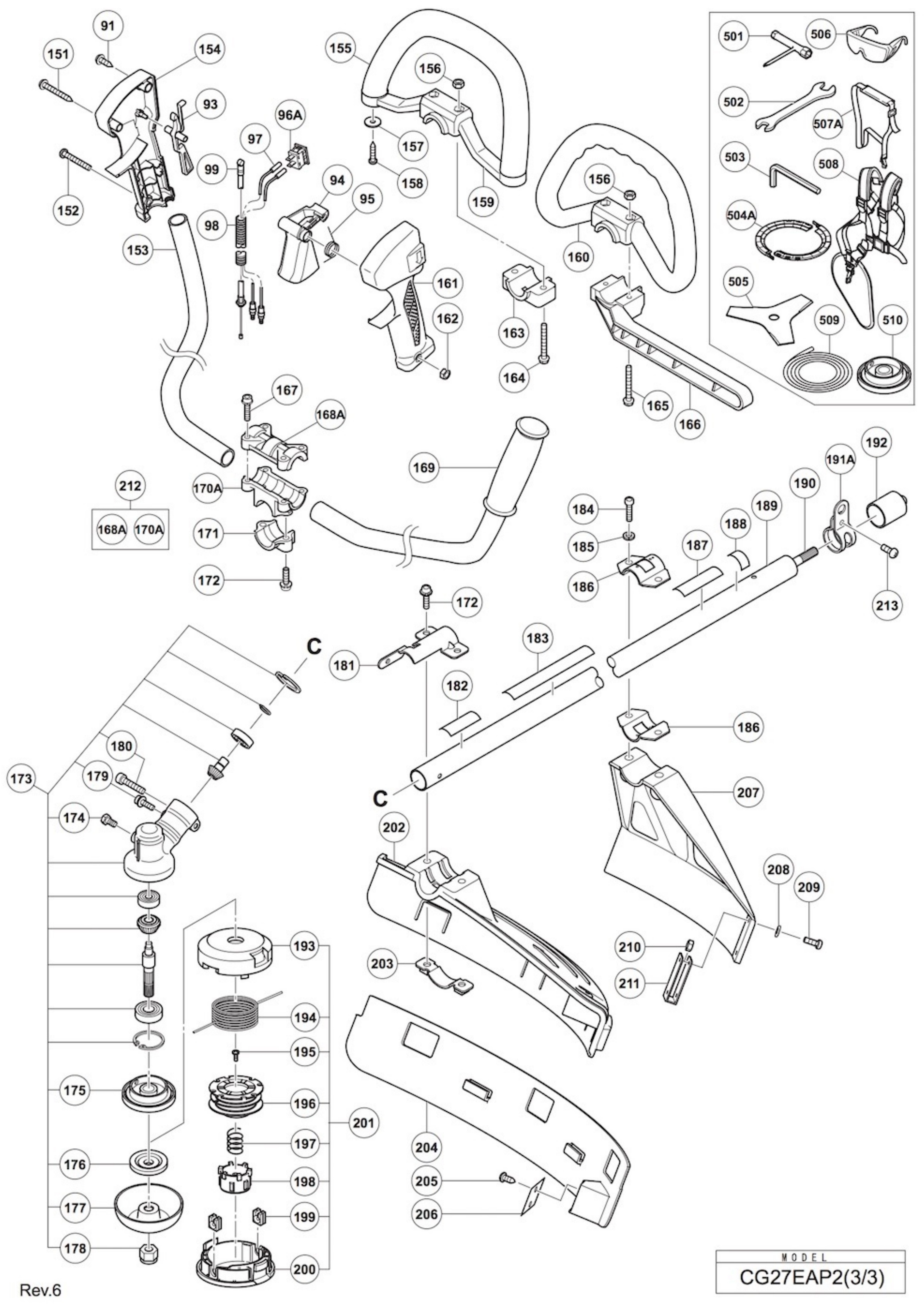

Esploso pagina 3
Pos. Item Price Buy
155
 photo_cameraImage coming soon 6691098 HANDLE GRIP €9.30
158
 photo_cameraImage coming soon 6695255 TAPPING SCREW 5X20 €1.98
160
 photo_cameraImage coming soon 6696975 LOOP HANDLE €7.47
163
 photo_cameraImage coming soon 6696972 HANDLE HOLDER (A) €1.65
164
 photo_cameraImage coming soon 6684838 BOLT 6X43/P (BLACK) €1.98
165
 photo_cameraImage coming soon 6696974 BOLT (BLACK) M6 €2.58
166
 photo_cameraImage coming soon 6696973 BARRIER €4.31
172
 photo_cameraImage coming soon 6684714 HEX. HOLE BUTTON SCREW 6X25S €1.98
173
 Hitachi CG22EAS Gear Case 6699402 Hitachi CG22EAS Gear Case €86.29
175
 photo_cameraImage coming soon 6696977 CUTTER HOLDER (A) €29.69
176
 photo_cameraImage coming soon 6698659 CUTTER HOLDER (B) €25.68
177
 photo_cameraImage coming soon 6699188 NUT COVER €16.77
181
 photo_cameraImage coming soon 6696494 COVER BRACKET €3.87
184
 photo_cameraImage coming soon 6685064 HEX. SOCKET HD. BOLT (W/BUTTON) M6X20 €1.93
189
 photo_cameraImage coming soon 6696558 MAIN PIPE COMP. €42.60
190
 photo_cameraImage coming soon 6698514 DRIVE SHAFT €34.85
193
 photo_cameraImage coming soon 6698794 COVER €25.83
196
 photo_cameraImage coming soon 6698796 REEL €10.09
198
 Button for Brushcutter Hitachi CG22EAS 6698798 Button for Brushcutter Hitachi CG22EAS €10.60
199
 photo_cameraImage coming soon 6698799 CORD GUIDE €10.01
199
 photo_cameraImage coming soon 6698942 CORD GUIDE €6.47
200
 photo_cameraImage coming soon 6698800 CASE €18.02
202
 photo_cameraImage coming soon 6696980 COVER €23.23
203
 photo_cameraImage coming soon 6696951 GUARD HOLDER €3.08
204
 photo_cameraImage coming soon 6696950 COVER GUARD €16.78
205
 photo_cameraImage coming soon 6684751 TAPPING SCREW 4X14 €1.98
206
 photo_cameraImage coming soon 6684750 KNIFE €3.98
209
 photo_cameraImage coming soon 6685068 MACHINE SCREW (W/SP. WASHER) M4X12 €1.93

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Hitachi Spare Parts for Engine Brush Cutter CG27EAP2

Fix Your Hitachi Engine Brushcutter CG27EAP2. All Spares are Available at best and Cheapest and Discounted Prices. Our spare parts are original and come with a full Guarantee.

In the following table, look for the model of the Bush Cutter and ripettivo spare part.

Bushcutter CG27EAP2
# Part Num. Description
2 6600322 MUFFLER COVER
3 6698384 HEX. SOCKET HD. BOLT M6X65
5 6600004 MUFFLER (B)
6 6600324 HEAT PROTECTION PANEL
7 6696958 HEX. SOCKET BOLT M5X20
14 6698365 COVER PACKING
15 6698484 SCAVENGING COVER (A)
16 6698385 HEX. SOCKET HD. BOLT M4X12
19 6698700 GLASS WASHER
20 6698485 SCAVENGING COVER (B)
21 6698480 CYLINDER
22 6698473 INTAKE PACKING
23 6698387 CARBURETOR INSULATOR
24 6698844 SEAL LOCK HEX. SOCKET BOLT (W/WASHERS)M5
25 6698405 CARBURETOR PACKING
26 6691337 SWIVEL CAP
27 6698489 CARBURETOR ASS'Y WYC-29
29 6696830 SWIVEL
30 6684696 STOP RING
31 6684692 PUMP GASKET
32 6684693 PUMP DIAPHRAGM
33 6691242 PUMP PLATE
35 6691312 SET SCREW
37 6684695 O-RING
39 6691234 CIRCUIT PLATE
40 6696828 PUMP BODY COMP.
41 6685220 DIAPHRAGM PACKING-METERING
42 6684690 METERING DIAPHRAGM
46 6696832 AIR CLEANER HOUSING
47 6685139 PRIMING PUMP COMP.
48A 6600704 CLEANER SPONGE
49 6696831 AIR CLEANER COVER
50 6696549 AIR CLEANER ASS'Y
53 6698366 CYLINDER PACKING
54 6686121 PISTON RING
55 6698483 PISTON
56 6684590 CIR CLIP
57 6684591 PISTON PIN
59 6698370 CRANK CASE (B) ASS'Y
60 6698371 CRANK CASE PACKING
64 6698488 CRANK SHAFT COMP.
65 6698369 CRANK CASE (A) ASS'Y
67 6684681 STARTER PULLEY ASS'Y
68 6684683 STOP RING E-5
69 6684684 STARTER PAWL SPRING
70 6684685 STARTER PAWL
71 6699995 RECOIL STARTER BODY ASS'Y
72 6684679 SET SCREW
73 6699996 CAM PLATE
74 6684677 DAMPER SPRING
75 6699997 STARTER ROPE REEL
76 6684675 RECOIL SPRING
77 6684673 RECOIL STARTER BODY COMP.
79 6684680 STARTER HANDLE
91 305812 TAPPING SCREW (W/FLANGE) D4X16 (BLACK)
92 6696487 HANDLE (B)
92 6696942 HANDLE (B)
93 6696490 LOCK LEVER
94 6696488 LEVER
95 6696489 SPRING (A)
96A 6601275 STOP SWITCH
97 6696491 STOP SWITCH CORD
98 6696967 PROTECTION TUBE
99 6696560 THROTTLE WIRE COMP.
99 6696593 THROTTLE WIRE COMP.
100 6696486 HANDLE (A)
100 6696941 HANDLE (A)
102 6695492 HEX. HOLE BOLT 5X22/S
103 6696963 ANTI VIBE RUBBER (A)
104 6698643 PIPE HOLDER (A)
105 6698644 PIPE HOLDER (B)
106 6696964 ANTI VIBE RUBBER (B)
107 939542 RETAINING RING FOR D12 SHAFT
108 6697922 FAN CASE
109 6699400 CLUTCH SHAFT
110 6696469 STEP BOLT
111 6684648 BENT WASHER 8
112 6696546 CLUTCH PLATE (A)
113 6696948 CLUTCH
114 6696547 CLUTCH WASHER (B)
115 6685337 FLYWHEEL NUT
118 6698492 IGNITION COIL ASS'Y
122 6696545 EARTH CORD
123 6698396 MAGNETO ROTOR COMP.
125 6698931 FUEL GROMMET
125A 6600358 FUEL GROMMET
*126 6698716 FUEL PIPE
128 6697846 RETURN GROMMET
129 6698402 FUEL TANK CAP ASS'Y
*131 6600317 TANK (B)
*131 6699719 TANK
131A 6600354 TANK (C)
132 6600351 PUMP FILTER
135 6696557 FLANGE BOLT
136 6698991 BOLT (W/FLANGE) L27.8
155 6691098 HANDLE GRIP
156 949556 NUT M6 (10 PCS.)
157 6689681 BRAKE SHAFT WASHER
158 6695255 TAPPING SCREW 5X20
160 6696975 LOOP HANDLE
163 6696972 HANDLE HOLDER (A)
164 6684838 BOLT 6X43/P (BLACK)
165 6696974 BOLT (BLACK) M6
166 6696973 BARRIER
167 6684709 HEX. HOLE BOLT M5X25/S
172 6684714 HEX. HOLE BUTTON BOLT M6X25
172 6684714 HEX. HOLE BUTTON BOLT M6X25
173 6699402 GEAR CASE ASS'Y 3BB (A)
175 6696977 CUTTER HOLDER (A)
176 6698659 CUTTER HOLDER (B)
177 6699188 NUT COVER
178 335759 U-NUT (LEFT HAND) M10
181 6696494 COVER BRACKET
184 6685064 HEX. SOCKET HD. BOLT (W/BUTTON) M6X20
189 6696558 MAIN PIPE COMP.
190 6698514 DRIVE SHAFT
193 6698794 COVER
196 6698796 REEL
197 6698797 RETURN SPRING
198 6698798 BUTTON
199 6698799 CORD GUIDE
199 6698942 CORD GUIDE
200 6698800 CASE
202 6696980 GUARD
203 6696951 GUARD HOLDER
204 6696950 COVER GUARD
205 6684751 TAPPING SCREW 4X14
206 6684750 KNIFE
209 6685068 MACHINE SCREW (W/SP. WASHER) M4X12
510 6696977 CUTTER HOLDER (A)
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Hitachi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to hitachi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Hitachi CG27EAP2
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Hitachi CG27EAP2

Diagram Hitachi CG27EAP2

Download (745.18KB)

You might also like

Recoil Starter for Brushcutter Hitachi Tanaka CG22EAS/24-27EASP
HiKOKI Power Tools Italia S.p.a. SKU: 6699995
Recoil Starter for Brushcutter Hitachi Tanaka CG22EAS/24-27EASP
Recoil Starter for Brushcutters Hitachi Tanaka CG22EAS/24-27EASP Original spare part Hitachi Koky Tanaka, Recoil Starter for Brushcutters CG22EAS - CG24EASP - CG27EASP. Part for the following items: - Brushcutters CG22EAS -...
Last items in stock €33.10
Details
Priming Pump for Chain Saws and Brushcutters Hitachi Tanaka
HiKOKI Power Tools Italia S.p.a. SKU: 6685139
Priming Pump for Chain Saws and Brushcutters Hitachi Tanaka
Priming Pump for Chain Saws and Brushcutters Hitachi Tanaka Genuine spare Hitachi Koky Tanaka, Priming Pump complete for Brushcutters and Chain Saws Hitachi Tanaka. Parts for the following products: - BRUSHCUTTER CG47EF (L) -...
AVAILABLE €13.15
Details
Starter Pulley for Bruschcutters Hitachi CG22EAS-CG24EASP-CG27-33EJ
HiKOKI Power Tools Italia S.p.a. SKU: 6684681
Starter Pulley for Bruschcutters Hitachi CG22EAS-CG24EASP-CG27-33EJ
Starter Pulley for Bruschcutters Hitachi CG22EAS-CG24EASP-CG27-33EJ Genuine parts for Bruschcutters Hitachi Koky Tanaka, Starter Pulley Assembly for Brushcutters Recoil CG22EAS - CG24EASP - CG27EJ (SLNP) - CG33EJ-SL. For the following...
Last items in stock €23.26
Details
Damper Spring for Brushcutters Hitachi CG22EAS-CG24EASP-CG27EASP
HiKOKI Power Tools Italia S.p.a. SKU: 6684677
Damper Spring for Brushcutters Hitachi CG22EAS-CG24EASP-CG27EASP
Damper Spring for Brushcutters Hitachi CG22EAS-CG24EASP-CG27EASP Genuine spare parts Hitachi Koky Tanaka, Damper Spring for Brushcutters CG22EAS - CG24EASP - CG27EJ (SLNP) - CG27EASP - CG33EJ-SL Parts for the following products:...
Last items in stock €7.83
Details
Cylinder Gasket for Brushcutter CG27EASP
HiKOKI Power Tools Italia S.p.a. SKU: 6698366
Cylinder Gasket for Brushcutter CG27EASP
Cylinder Gasket for Brushcutter CG27EASP Genuine spare part for Brushcutters Hitachi Koky Tanaka, Cylinder Gasket for Brushcutter CG27EASP Blower RB24EAP Hitachi Tanaka. Part for the following article : - Bruschcutter CG27EASP -...
AVAILABLE €2.52
Details
Fuel Tank for Brushcutters Hitachi CG24EASP-CG27EASP
HiKOKI Power Tools Italia S.p.a. SKU: 6600317
Fuel Tank for Brushcutters Hitachi CG24EASP-CG27EASP
Fuel Tank for Brushcutters Hitachi CG24EASP-CG27EASP Genuine part Hitachi Koky Tanaka, Fuel Tank for Brushcutters CG24EASP - CG27EASP - Hedge Trimmer CS 27EPAP - Pruner CS 27EPAP - Blower RB 24EAP. Parts for the following...
Last items in stock €16.39
Details
Throttle Lever for Brushcutters Hitachi CG33EJ-LP-CG33EJ-SL Sale
HiKOKI Power Tools Italia S.p.a. SKU: 6696488
Throttle Lever for Brushcutters Hitachi CG22/27
Throttle Lever for Brushcutters Hitachi CG22/27 Genuine spare parts Hitachi Koky Tanaka, Throttle Lever for Brushcutters CG25EUS - CG22EAS - CG24EASP - CG27EASP - CH27EPAP - CS27EPAP.
AVAILABLE €5.17
Details
Coil Rarth Cord (Yellow) for Brushcutter Hitachi CG22EAS Sale
HiKOKI Power Tools Italia S.p.a. SKU: 6696545
Coil Rarth Cord (Yellow) for Brushcutter Hitachi CG22EAS
Coil Rarth Cord (Yellow) for Brushcutter Hitachi CG22EAS Original spare Hitachi Koky Tanaka, Coil Rarth Cord (Yellow) for Brushcutter Hitachi CG22EAS - CG24EASP - CG27EASP. Parts for the following products: -  BRUSHCUTTER HITACHI...
AVAILABLE €2.65
Details
Diaphragm Packing Metering for Chainsaws Hitachi CS25-33-40-45-51
HiKOKI Power Tools Italia S.p.a. SKU: 6685220
Diaphragm Packing Metering for Chainsaws Hitachi CS25-33-40-45-51
Diaphragm Packing Metering for Chainsaws Hitachi CS25-33-40-45-51 Original parts for Chainsaw Hitachi Koky Tanaka, Diaphragm Packing Metering Gasket for Carburetor Chainsaws, CS25EC-SC-EU - CS33EDT - CS38EK - CS40EA - CS45EL - CS51EAP...
AVAILABLE €3.45
Details
Metering Diaphragm for Chainsaws Hitachi CS-33-40-51
HiKOKI Power Tools Italia S.p.a. SKU: 6684690
Metering Diaphragm for Chainsaws Hitachi CS-33-40-51
Metering Diaphragm for Chainsaws Hitachi CS-33-40-51 Original parts for Chainsaw Hitachi Koky Tanaka, Metering Diaphragm for Carburetor Chainsaws,CS33EDT - CS 33EB - CS40EA - TANAKA TCS-40EA - Hitachi CS51EAP -...
Last items in stock €25.81
Details
Pump Diaphragm for Chainsaw Hitachi CS33EB
HiKOKI Power Tools Italia S.p.a. SKU: 6684693
Pump Diaphragm for Chainsaw Hitachi CS33EB
Pump Diaphragm for Chainsaw Hitachi CS33EB Original parts Hitachi Koky Tanaka, Pump Diaphragm for Carburetor Chainsaw, CS33EB - CS 33EB - Brushcutters CG22EAS - CG24EKS - CG27EJ-SLNP...
Last items in stock €9.95
Details
Circuit Plate Gasket for Brushcutter Hitachi CG22EAS
HiKOKI Power Tools Italia S.p.a. SKU: 6691234
Circuit Plate Gasket for Brushcutter Hitachi CG22EAS
Circuit Plate Gasket for Brushcutter Hitachi CG22EAS Original parts Hitachi Koky Tanaka, Circuit Plate Gasket for Brushcutters CG22EAS - CG24EASP - CG27EASP Parts for the following products: - Brushcutter Hitachi...
AVAILABLE €6.64
Details
Piston for Brushcutter Hitachi CG27EASP
HiKOKI Power Tools Italia S.p.a. SKU: 6698483
Piston for Brushcutter Hitachi CG27EASP
Piston for Brushcutter Hitachi CG27EASP Genuine replacement part Hitachi Koky Tanaka, Piston for Brushcutter CG27EASP. Part for the following products: - Brushcutter Hitachi CG27EAP2 (SL)...
Last items in stock €19.80
Details
Piston Ring for Brushcutter Hitachi CG27EASP
HiKOKI Power Tools Italia S.p.a. SKU: 6686121
Piston Ring for Brushcutter Hitachi CG27EASP
Piston Ring for Brushcutter Hitachi CG27EASP Genuine part Hitachi Koky Tanaka, Piston Ring for Brushcutter CG27EASP - CG27EBSP - CG27EJ(SLNP) - Engine Hedge Trimmer CS 27EPAP - Engine...
AVAILABLE €7.30
Details
Piston Pin for Brushcutter Hitachi CG27EASP
HiKOKI Power Tools Italia S.p.a. SKU: 6684591
Piston Pin for Brushcutter Hitachi CG27EASP
Piston Pin for Brushcutter Hitachi CG27EASP Genuine part Hitachi Koky Tanaka, Piston Pin for Brushcutters CG24EASP - CG24EKS - CG25EUS - CG27EASP - CG27EJ(SLNP) Parts for the following products: - Brushcutter Hitachi CG24EASP -...
Last items in stock €4.14
Details
Air Filter Housing for Brushcutter Hitachi Tanaka CG22EAB
HiKOKI Power Tools Italia S.p.a. SKU: 6696832
Air Filter Housing for Brushcutter Hitachi Tanaka CG22EAB
Air Filter Housing for Brushcutter Hitachi Tanaka CG22EAB Original spare part Hitachi, Air Cleaner Housing for Brushcutters CG22EAB(LP) - CG22EAP2(SL) - CG22EAS(SLP) -  CG24EAP2(SL) -  CG24EBSP(SL) -  CG27EAP2(SL) Part for the...
Last items in stock €22.46
Details
Switch for Brushcutter Hitachi Tanaka CG24EASP
HiKOKI Power Tools Italia S.p.a. SKU: 6696940
Switch for Brushcutter Hitachi Tanaka CG24EASP
Switch for Brushcutter Hitachi Tanaka CG24EASP Genuine spare part for Hitachi Koky Tanaka, Switch for Brushcutters CG25EUS - CG24EASP - CG24EACP - CG27EASP - CG22EAS. Part for the following products: - Brushcutter Hitachi CG25EUS -...
Last items in stock €9.30
Details
Circlip for Brushcutter Hitachi CG 24EBS
HiKOKI Power Tools Italia S.p.a. SKU: 6684590
Circlip for Brushcutter Hitachi CG 24EBS
Circlip for Brushcutter Hitachi CG 24EBS Original replacement part Hitachi Koky Tanaka, Piston Pin Circlip for Brushcutters, Chainsaws, Hedgecutters Hitachi - Tanaka. Part for the following...
Last items in stock €1.57
Details
Cylinder for Brushcutter Hitachi CG27EASP
HiKOKI Power Tools Italia S.p.a. SKU: 6698480
Cylinder for Brushcutter Hitachi CG27EASP
Cylinder for Brushcutter Hitachi CG27EASP Genuine replacement part Hitachi Koky Tanaka, Cylinder E311579A for Brushcutters CG27EASP - CG27EAP2 - CG27EBDP - CG27EBSP - Tanaka TCG 27EBS - TCG 27EASP. Part for the following products: -...
AVAILABLE €99.59
Details
Anti Vibe Rubber (A) for Brushcutter Hitachi CG22EAB
HiKOKI Power Tools Italia S.p.a. SKU: 6696963
Anti Vibe Rubber (A) for Brushcutter Hitachi CG22EAB
Anti Vibe Rubber (A) for Brushcutter Hitachi CG22EAB Original spare part Hitachi, Anti Vibe Rubber (A) for Brushcutters CG22EAB(LP) - CG22EAP2(SL) - CG22EAS(SLP) -  CG24EAP2(SL) -  CG24EBSP(SL) -  CG27EAP2(SL) Part for the following...
on 7/10 Business Days Approx €4.44
Details
Hitachi CG27EASP Crankcase Packing
HiKOKI Power Tools Italia S.p.a. SKU: 6698371
Hitachi CG27EASP Crankcase Packing
Hitachi CG27EASP Crankcase Packing Genuine replacement part Hitachi Koky Tanaka, Crankcase Packing for Brushcutters CG27EASP - CG27EAP2 - CG27EBDP - CG27EBSP - Tanaka TCG 27EBS - TCG 27EASP. Part...
Last items in stock €2.11
Details
Hitachi CG22EAS Gear Case
HiKOKI Power Tools Italia S.p.a. SKU: 6699402
Hitachi CG22EAS Gear Case
Hitachi Gear Case for Brushcutter CG40EAS Genuine spare part Hoitachi HIKOKI Tanaka, Gear Case Ass'y for Brushcutter CG22EAS - CG25EUP2 - TCG 27EASP. Part for the following products: - Brushcutter Hitachi...
Last items in stock €86.29
Details
Comments (0)
