HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Engine Brush Cutter CG24EBSP

SKU: Hitachi CG24EBSP
€2.04
VAT included

Hitachi Spare Parts for Engine Brush Cutter CG24EBSP

Genuine spare parts and replacement parts for Hitachi Engine Brush Cutter CG24EBSP.

Fix Your Hitachi Engine Brush Cutter CG24EBSP. All Spares are Available at best and Cheapest and Discounted Prices. Our spare parts are original and come with a full Guarantee.
Hitachi Spare Parts for Engine Brush Cutter CG24EBSP
  • Hitachi Spare Parts for Engine Brush Cutter CG24EBSP
  • Hitachi Spare Parts for Engine Brush Cutter CG24EBSP
  • Hitachi Spare Parts for Engine Brush Cutter CG24EBSP
  • Hitachi Spare Parts for Engine Brush Cutter CG24EBSP
HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Engine Brush Cutter CG24EBSP

SKU: Hitachi CG24EBSP Condition: New
€2.04
VAT included

Hitachi Spare Parts for Engine Brush Cutter CG24EBSP

Genuine spare parts and replacement parts for Hitachi Engine Brush Cutter CG24EBSP.

Fix Your Hitachi Engine Brush Cutter CG24EBSP. All Spares are Available at best and Cheapest and Discounted Prices. Our spare parts are original and come with a full Guarantee.
settings 108 spare parts
description 3 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 7/10 Business Days Approx

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
102 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

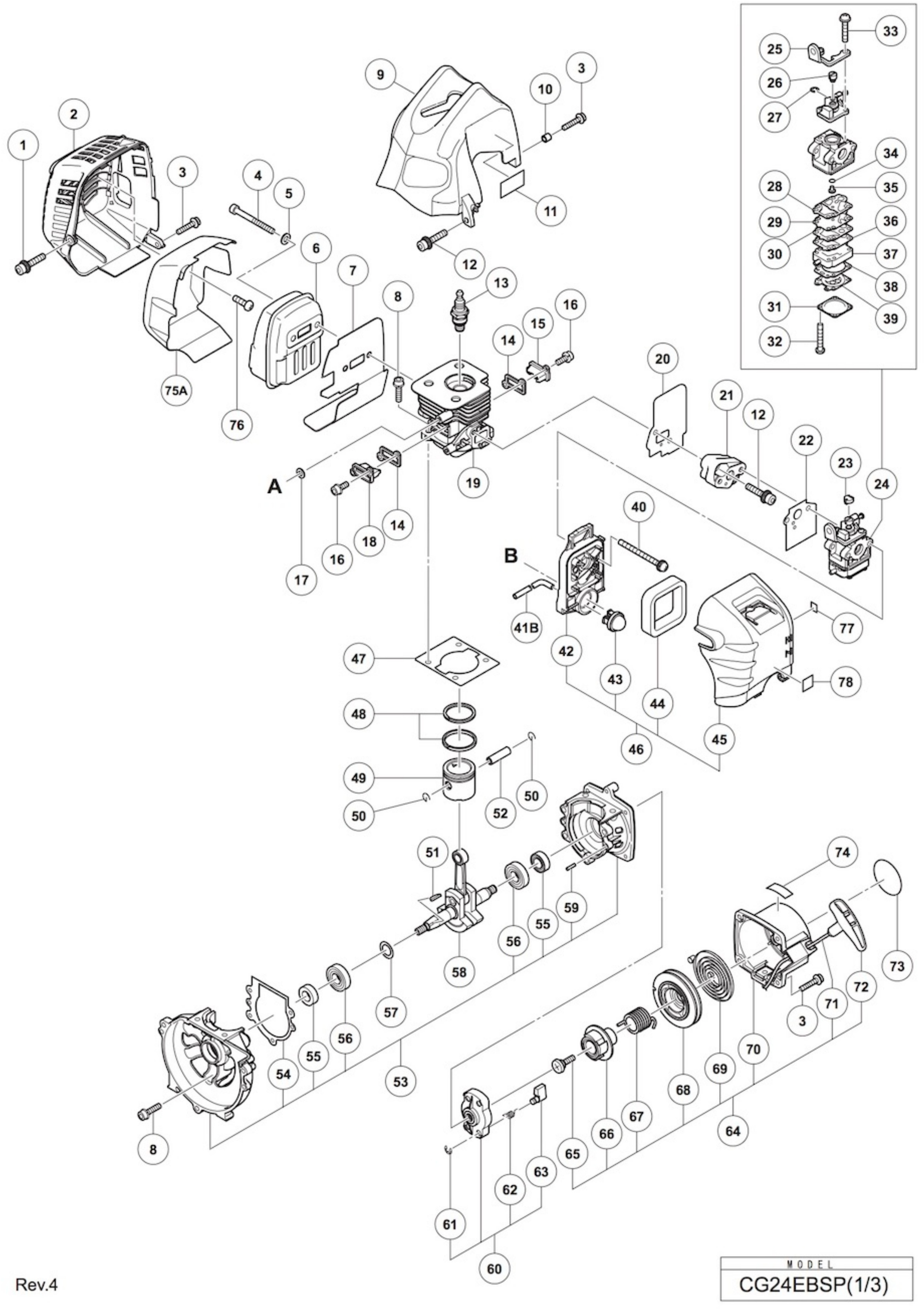

Esploso pagina 1
Pos. Item Price Buy
2
 photo_cameraImage coming soon 6600319 MUFFLER COVER €12.00
3
 Hex Socket HD Bolt M4x18 for Chainsaw Tanaka TCS-40EA 6696326 Hex Socket HD Bolt M4x18 for Chainsaw Tanaka TCS-40EA €2.40
4
 photo_cameraImage coming soon 6698384 HEX. SOCKET HD. BOLT M6X65 €2.24
6
 photo_cameraImage coming soon 6600004 MUFFLER (B) €55.51
7
 photo_cameraImage coming soon 6600320 HEAT PROTECTION PANEL €2.63
12
 photo_cameraImage coming soon 6698844 SEAL LOCK HEX. SOCKET BOLT (W/WASHERS)M5 €2.16
14
 photo_cameraImage coming soon 6698468 COVER PACKING €2.24
15
 photo_cameraImage coming soon 6698469 SCAVENGING COVER (A) €2.24
16
 photo_cameraImage coming soon 6698385 HEX. SOCKET HD. BOLT M4X12 €2.24
17
 photo_cameraImage coming soon 6698700 GLASS WASHER €2.16
18
 photo_cameraImage coming soon 6698470 SCAVENGING COVER (B) €2.24
19
 photo_cameraImage coming soon 6698465 CYLINDER €67.12
20
 Intake Packing for Brushcutter Hitachi CG24EAP2 6699437 Intake Packing for Brushcutter Hitachi CG24EAP2 €2.16
21
 Hitachi CH22EBP2 Carburetor Insulator 6698387 Hitachi CH22EBP2 Carburetor Insulator €6.29
22
 photo_cameraImage coming soon 6698405 CARBURETOR PACKING €4.33
23
 photo_cameraImage coming soon 6691337 SWIVEL CAP €1.78
24
 photo_cameraImage coming soon 6600321 CARBURETOR ASS'Y WYC-36 €50.54
26
 photo_cameraImage coming soon 6696830 SWIVEL €7.91
27
 photo_cameraImage coming soon 6684696 STOP RING €1.76
28
 photo_cameraImage coming soon 6684692 PUMP GASKET €26.45
29
 Pump Diaphragm for Chainsaw Hitachi CS33EB 6684693 Pump Diaphragm for Chainsaw Hitachi CS33EB €9.95
30
 photo_cameraImage coming soon 6691242 PUMP PLATE €5.81
32
 photo_cameraImage coming soon 6691312 SET SCREW €2.48
34
 photo_cameraImage coming soon 6684695 ORING €3.16
36
 Circuit Plate Gasket for Brushcutter Hitachi CG22EAS 6691234 Circuit Plate Gasket for Brushcutter Hitachi CG22EAS €6.64
37
 photo_cameraImage coming soon 6696828 PUMP BODY COMP. €24.52
38
 Diaphragm Packing Metering for Chainsaws Hitachi CS25-33-40-45-51 6685220 Diaphragm Packing Metering for Chainsaws Hitachi CS25-33-40-45-51 €3.45
39
 Metering Diaphragm for Chainsaws Hitachi CS-33-40-51 6684690 Metering Diaphragm for Chainsaws Hitachi CS-33-40-51 €25.81
42
 Air Filter Housing for Brushcutter Hitachi Tanaka CG22EAB 6696832 Air Filter Housing for Brushcutter Hitachi Tanaka CG22EAB €22.46
43
 Priming Pump for Chain Saws and Brushcutters Hitachi Tanaka 6685139 Priming Pump for Chain Saws and Brushcutters Hitachi Tanaka €13.15
44
 photo_cameraImage coming soon 6690347 CLEANER ELEMENT €5.39
45
 photo_cameraImage coming soon 6699185 CLEANER COVER €13.79
46
 photo_cameraImage coming soon 6699132 AIR CLEANER (A) ASS'Y €16.56
47
 photo_cameraImage coming soon 6684587 CYLINDER GASKET €1.93
48
 Piston Ring for Bruschcutter and Blower Hitachi Tanaka 6698404 Piston Ring for Bruschcutter and Blower Hitachi Tanaka €9.16
49
 photo_cameraImage coming soon 6699456 PISTON €11.47
50
 Circlip for Brushcutter Hitachi CG 24EBS 6684590 Circlip for Brushcutter Hitachi CG 24EBS €1.57
51
 photo_cameraImage coming soon 6684899 WOODRUFF KEY 3X13X4.5 €1.68
52
 Piston Pin for Brushcutter Hitachi CG27EASP 6684591 Piston Pin for Brushcutter Hitachi CG27EASP €4.14
54
 photo_cameraImage coming soon 6684609 CRANK CASE GASKET €1.91
58
 photo_cameraImage coming soon 6696533 CRANK SHAFT COMP. €73.45
60
 Starter Pulley for Bruschcutters Hitachi CG22EAS-CG24EASP-CG27-33EJ 6684681 Starter Pulley for Bruschcutters Hitachi CG22EAS-CG24EASP-CG27-33EJ €23.26
61
 photo_cameraImage coming soon 6685101 D4E RETAINING RING €1.25
62
 photo_cameraImage coming soon 6684684 STARTER PAWL SPRING €3.48
63
 photo_cameraImage coming soon 6684685 STARTER PAWL €6.11
64
 Recoil Starter for Brushcutter Hitachi Tanaka CG22EAS/24-27EASP 6699995 Recoil Starter for Brushcutter Hitachi Tanaka CG22EAS/24-27EASP €33.10
65
 Set Screw for Hedge Trimmer Hitachi CH62EA(ST) 6684679 Set Screw for Hedge Trimmer Hitachi CH62EA(ST) €6.81
66
 photo_cameraImage coming soon 6699996 CAM PLATE FOR (S) TYPE SINCE 9.2013 FOR AUS €5.81
67
 Damper Spring for Brushcutters Hitachi CG22EAS-CG24EASP-CG27EASP 6684677 Damper Spring for Brushcutters Hitachi CG22EAS-CG24EASP-CG27EASP €7.83
68
 photo_cameraImage coming soon 6699997 STARTER ROPE REEL €6.45
69
 photo_cameraImage coming soon 6684675 RECOIL SPRING €12.16
70
 photo_cameraImage coming soon 6684673 RECOIL STARTER BODY COMP. €17.27
Page 2 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

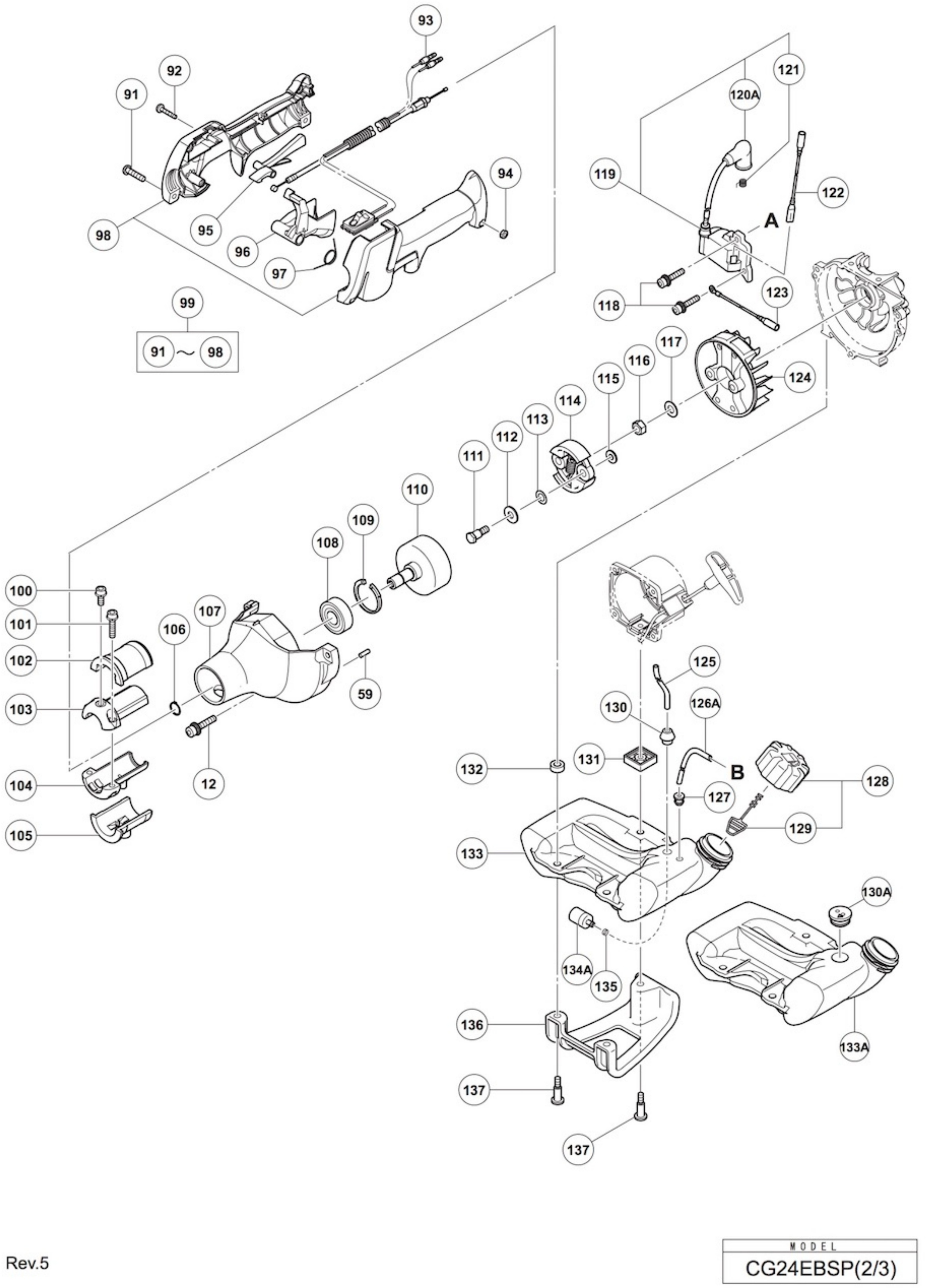

Esploso pagina 2
Pos. Item Price Buy
95
 photo_cameraImage coming soon 6699192 STOP LEVER €3.19
96
 photo_cameraImage coming soon 6699191 LONG LEVER €4.57
99
 photo_cameraImage coming soon 6699133 THROTTLE LEVER (A) ASS'Y €39.39
101
 photo_cameraImage coming soon 6695492 HEX. HOLE BOLT 5X22/S €1.23
102
 Anti Vibe Rubber (A) for Brushcutter Hitachi CG22EAB 6696963 Anti Vibe Rubber (A) for Brushcutter Hitachi CG22EAB €4.44
103
 photo_cameraImage coming soon 6698643 PIPE HOLDER (A) €5.16
104
 photo_cameraImage coming soon 6698644 PIPE HOLDER (B) €5.16
105
 photo_cameraImage coming soon 6696964 ANTI VIBE RUBBER (B) €5.81
106
 Retaining Ring 12 mm for Hitachi Power Tools 939542 Retaining Ring 12 mm for Hitachi Power Tools €3.13
107
 photo_cameraImage coming soon 6699457 FAN CASE (A) €24.07
108
 photo_cameraImage coming soon 6699435 BALL BEARING 6301ZZC3 €4.72
109
 photo_cameraImage coming soon 322813 RETAINING RING 37MM €1.99
110
 photo_cameraImage coming soon 6699434 CLUTCH SHAFT €13.01
111
 photo_cameraImage coming soon 6696469 STEP BOLT €1.93
112
 photo_cameraImage coming soon 6684648 BENT WASHER 8 €1.98
113
 photo_cameraImage coming soon 6696546 CLUTCH PLATE (A) €2.58
114
 photo_cameraImage coming soon 6699130 CLUTCH €41.54
116
 Flywheel Nut for Chainsaw Hitachi CS33EB 6685337 Flywheel Nut for Chainsaw Hitachi CS33EB €2.49
119
 photo_cameraImage coming soon 6699458 IGNITION COIL ASS'Y €42.35
122
 Coil Cord (BLACK) for Brushcutter Hitachi CG22EAS 6696544 Coil Cord (BLACK) for Brushcutter Hitachi CG22EAS €2.65
123
 Coil Rarth Cord (Yellow) for Brushcutter Hitachi CG22EAS 6696545 Coil Rarth Cord (Yellow) for Brushcutter Hitachi CG22EAS €2.65
124
 photo_cameraImage coming soon 6699289 MAGNETO ROTOR ASS'Y €31.63
125
 photo_cameraImage coming soon 6698716 FUEL PIPE €5.16
127
 photo_cameraImage coming soon 6697846 RETURN GROMMET €1.79
128
 Fuel Tank Cap for Brushcutter Hitachi CG24ECP (SL) 6698402 Fuel Tank Cap for Brushcutter Hitachi CG24ECP (SL) €9.73
130A
 photo_cameraImage coming soon 6600358 TANK GROMMET FROM YEAR OF PRODUCTION OCTOBER 2016 €2.18
133
 Fuel Tank for Brushcutters Hitachi CG24EASP-CG27EASP 6600317 Fuel Tank for Brushcutters Hitachi CG24EASP-CG27EASP €16.39
133A
 photo_cameraImage coming soon 6600354 TANK (C) €14.48
134A
 photo_cameraImage coming soon 6600351 PUMP FILTER €5.32
137
 photo_cameraImage coming soon 6698991 BOLT (W/FLANGE) L27.8 €2.24
Page 3 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

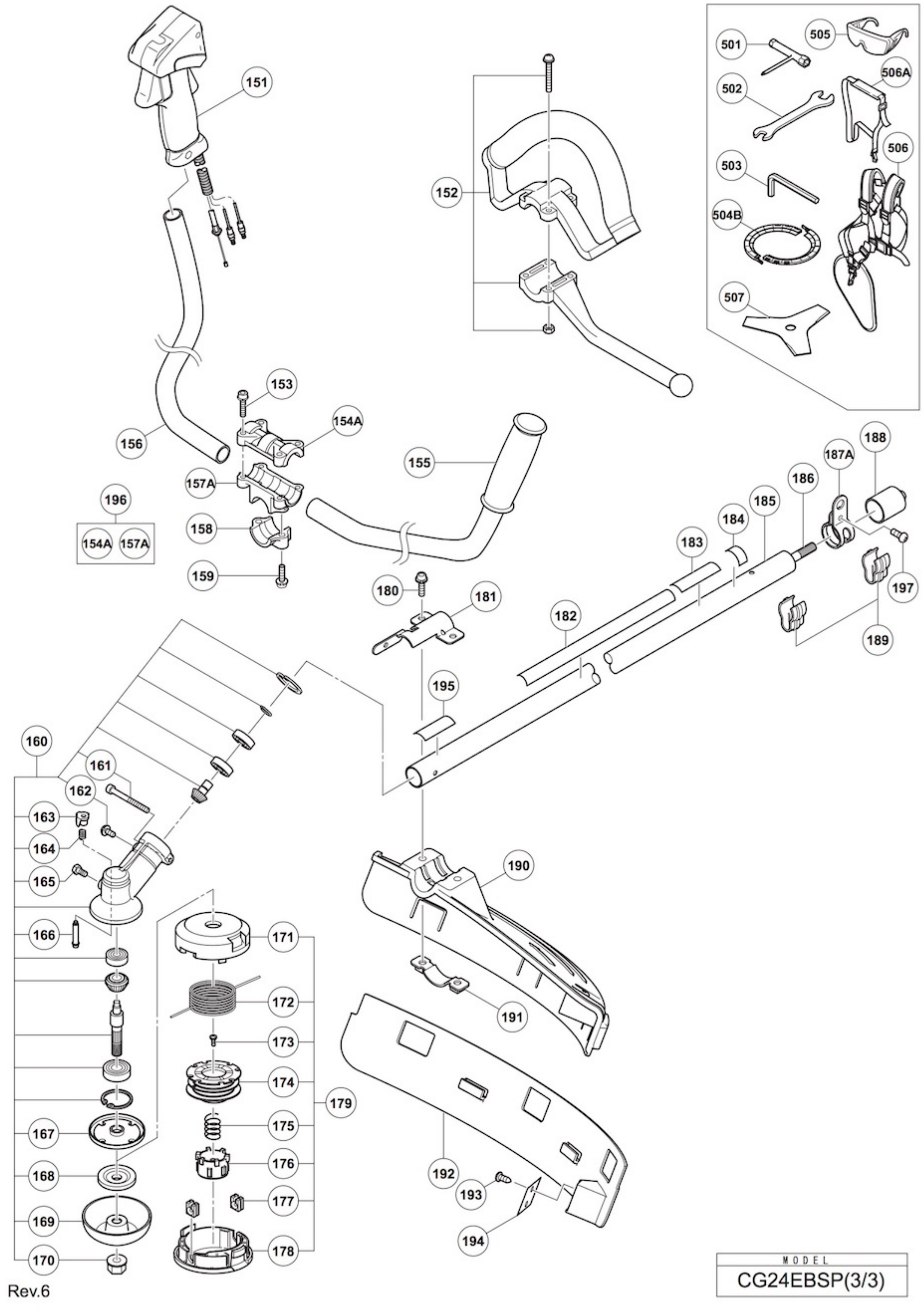

Esploso pagina 3
Pos. Item Price Buy
152
 photo_cameraImage coming soon 6699448 LOOP HANDLE (W/BARRIER) €20.06
159
 photo_cameraImage coming soon 6684714 HEX. HOLE BUTTON SCREW 6X25S €1.98
160
 photo_cameraImage coming soon 6699439 GEAR CASE ASS'Y (4BB) €91.39
163
 photo_cameraImage coming soon 6600005 CAP €4.72
168
 photo_cameraImage coming soon 6698659 CUTTER HOLDER (B) €25.68
169
 photo_cameraImage coming soon 6699188 NUT COVER €16.77
171
 photo_cameraImage coming soon 6698794 COVER €25.83
174
 photo_cameraImage coming soon 6698796 REEL €10.09
176
 Button for Brushcutter Hitachi CG22EAS 6698798 Button for Brushcutter Hitachi CG22EAS €10.60
177
 photo_cameraImage coming soon 6698799 CORD GUIDE €10.01
178
 photo_cameraImage coming soon 6698800 CASE €18.02
181
 photo_cameraImage coming soon 6699442 COVER BRACKET €2.81
185
 photo_cameraImage coming soon 6699445 MAIN PIPE €45.69
186
 photo_cameraImage coming soon 6698514 DRIVE SHAFT €34.85
190
 photo_cameraImage coming soon 6696980 COVER €23.23
191
 photo_cameraImage coming soon 6696951 GUARD HOLDER €3.08
192
 photo_cameraImage coming soon 6696950 COVER GUARD €16.78
193
 photo_cameraImage coming soon 6684751 TAPPING SCREW 4X14 €1.98
194
 photo_cameraImage coming soon 6684750 KNIFE €3.98
506
 photo_cameraImage coming soon 6695796 SHOULDER HARNESS D3X €20.06

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Hitachi Spare Parts for Engine Brush Cutter CG24EBSP

Genuine spare parts and replacement parts for Hitachi Engine Brush Cutter CG24EBSP.

Fix Your Hitachi Engine Brush Cutter CG24EBSP. All Spares are Available at best and Cheapest and Discounted Prices. Our spare parts are original and come with a full Guarantee.

In the following table, look for the model of the Brush Cutter and ripettivo spare part.
Hitachi Engine Brush Cutter CG24EBSP

Engine Brush Cutter CG24EBSP
# Part Num. Description
2 6600319 MUFFLER COVER
3 6696326 HEX. SOCKET HD. BOLT (W/FLANGE) M4X18
4 6698384 HEX. SOCKET HD. BOLT M6X65
6 6600004 MUFFLER (B)
7 6600320 HEAT PROTECTION PANEL
12 6698844 SEAL LOCK HEX. SOCKET BOLT (W/WASHERS)M5
14 6698468 COVER PACKING
15 6698469 SCAVENGING COVER (A)
16 6698385 HEX. SOCKET HD. BOLT M4X12
17 6698700 GLASS WASHER
18 6698470 SCAVENGING COVER (B)
19 6698465 CYLINDER
20 6699437 INTAKE PACKING
21 6698387 CARBURETOR INSULATOR
22 6698405 CARBURETOR PACKING
23 6691337 SWIVEL CAP
24 6600321 CARBURETOR ASS'Y WYC-36
26 6696830 SWIVEL
27 6684696 STOP RING
28 6684692 PUMP GASKET
29 6684693 PUMP DIAPHRAGM
30 6691242 PUMP PLATE
32 6691312 SET SCREW
34 6684695 O-RING
36 6691234 CIRCUIT PLATE
37 6696828 PUMP BODY COMP.
38 6685220 DIAPHRAGM PACKING-METERING
39 6684690 METERING DIAPHRAGM
42 6696832 AIR CLEANER HOUSING
43 6685139 PRIMING PUMP COMP.
44 6690347 CLEANER ELEMENT
45 6699185 CLEANER COVER
46 6699132 AIR CLEANER (A) ASS'Y
47 6684587 CYLINDER GASKET
48 6698404 PISTON RING
49 6699456 PISTON
50 6684590 CIR CLIP
51 6684899 WOODRUFF KEY 3X13X4.5
52 6684591 PISTON PIN
54 6684609 CRANK CASE GASKET
58 6696533 CRANK SHAFT COMP.
60 6684681 STARTER PULLEY ASS'Y
61 6685101 D4E RETAINING RING
62 6684684 STARTER PAWL SPRING
63 6684685 STARTER PAWL
64 6699995 RECOIL STARTER BODY ASS'Y
65 6684679 SET SCREW
66 6699996 CAM PLATE
67 6684677 DAMPER SPRING
68 6699997 STARTER ROPE REEL
69 6684675 RECOIL SPRING
70 6684673 RECOIL STARTER BODY COMP.
72 6684680 STARTER HANDLE
95 6699192 STOP LEVER
96 6699191 LONG LEVER
99 6699133 THROTTLE LEVER (A) ASS'Y
101 6695492 HEX. HOLE BOLT 5X22/S
102 6696963 ANTI VIBE RUBBER (A)
103 6698643 PIPE HOLDER (A)
104 6698644 PIPE HOLDER (B)
105 6696964 ANTI VIBE RUBBER (B)
106 939542 RETAINING RING FOR D12 SHAFT
107 6699457 FAN CASE (A)
108 6699435 BALL BEARING 6301ZZC3
109 322813 RETAINING RING 37MM
110 6699434 CLUTCH SHAFT
111 6696469 STEP BOLT
112 6684648 BENT WASHER 8
113 6696546 CLUTCH PLATE (A)
114 6699130 CLUTCH
116 6685337 FLYWHEEL NUT
119 6699458 IGNITION COIL ASS'Y
122 6696544 CORD
123 6696545 EARTH CORD
124 6699289 MAGNETO ROTOR
125 6698716 FUEL PIPE
127 6697846 RETURN GROMMET
128 6698402 FUEL TANK CAP ASS'Y
130 6698931 FUEL GROMMET
130A 6600358 FUEL GROMMET
132 6699459 SPACER (B)
133 6600317 TANK (B)
133A 6600354 TANK (C)
134A 6600351 PUMP FILTER
137 6698991 BOLT (W/FLANGE) L27.8
152 6699448 LOOP HANDLE (W/BARRIER)
153 6684709 HEX. HOLE BOLT M5X25/S
159 6684714 HEX. HOLE BUTTON BOLT M6X25
160 6699439 GEAR CASE ASS'Y (4BB)
163 6600005 CAP
168 6698659 CUTTER HOLDER (B)
169 6699188 NUT COVER
170 335759 U-NUT (LEFT HAND) M10
171 6698794 COVER
174 6698796 REEL
175 6698797 RETURN SPRING
176 6698798 BUTTON
177 6698799 CORD GUIDE
178 6698800 CASE
180 6684714 HEX. HOLE BUTTON BOLT M6X25
181 6699442 COVER BRACKET
185 6699445 MAIN PIPE
186 6698514 DRIVE SHAFT
190 6696980 GUARD
191 6696951 GUARD HOLDER
192 6696950 COVER GUARD
193 6684751 TAPPING SCREW 4X14
194 6684750 KNIFE
506 6695796 SHOULDER HARNESS D3X

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Hitachi websites, which we consider as reliable Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to hitachi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Hitachi CG24EBSP
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Hitachi CG24EBSP

Diagram Hitachi CG24EBSP

Download (671.13KB)

You might also like

Recoil Starter for Brushcutter Hitachi Tanaka CG22EAS/24-27EASP
HiKOKI Power Tools Italia S.p.a. SKU: 6699995
Recoil Starter for Brushcutter Hitachi Tanaka CG22EAS/24-27EASP
Recoil Starter for Brushcutters Hitachi Tanaka CG22EAS/24-27EASP Original spare part Hitachi Koky Tanaka, Recoil Starter for Brushcutters CG22EAS - CG24EASP - CG27EASP. Part for the following items: - Brushcutters CG22EAS -...
Last items in stock €33.10
Details
Priming Pump for Chain Saws and Brushcutters Hitachi Tanaka
HiKOKI Power Tools Italia S.p.a. SKU: 6685139
Priming Pump for Chain Saws and Brushcutters Hitachi Tanaka
Priming Pump for Chain Saws and Brushcutters Hitachi Tanaka Genuine spare Hitachi Koky Tanaka, Priming Pump complete for Brushcutters and Chain Saws Hitachi Tanaka. Parts for the following products: - BRUSHCUTTER CG47EF (L) -...
AVAILABLE €13.15
Details
Starter Pulley for Bruschcutters Hitachi CG22EAS-CG24EASP-CG27-33EJ
HiKOKI Power Tools Italia S.p.a. SKU: 6684681
Starter Pulley for Bruschcutters Hitachi CG22EAS-CG24EASP-CG27-33EJ
Starter Pulley for Bruschcutters Hitachi CG22EAS-CG24EASP-CG27-33EJ Genuine parts for Bruschcutters Hitachi Koky Tanaka, Starter Pulley Assembly for Brushcutters Recoil CG22EAS - CG24EASP - CG27EJ (SLNP) - CG33EJ-SL. For the following...
Last items in stock €23.26
Details
Damper Spring for Brushcutters Hitachi CG22EAS-CG24EASP-CG27EASP
HiKOKI Power Tools Italia S.p.a. SKU: 6684677
Damper Spring for Brushcutters Hitachi CG22EAS-CG24EASP-CG27EASP
Damper Spring for Brushcutters Hitachi CG22EAS-CG24EASP-CG27EASP Genuine spare parts Hitachi Koky Tanaka, Damper Spring for Brushcutters CG22EAS - CG24EASP - CG27EJ (SLNP) - CG27EASP - CG33EJ-SL Parts for the following products:...
Last items in stock €7.83
Details
Piston Ring for Bruschcutter and Blower Hitachi Tanaka
HiKOKI Power Tools Italia S.p.a. SKU: 6698404
Piston Ring for Bruschcutter and Blower Hitachi Tanaka
Piston Ring for Bruschcutter and Blower Hitachi Tanaka Original spare part for Hitachi HiKoki Tanaka, Piston Ring for Bruschcutter and Blower Hitachi Tanaka. Part for the following products: - Bruschcutter CG24EASP - Blower RB 24EAP -...
Last items in stock €9.16
Details
Fuel Tank for Brushcutters Hitachi CG24EASP-CG27EASP
HiKOKI Power Tools Italia S.p.a. SKU: 6600317
Fuel Tank for Brushcutters Hitachi CG24EASP-CG27EASP
Fuel Tank for Brushcutters Hitachi CG24EASP-CG27EASP Genuine part Hitachi Koky Tanaka, Fuel Tank for Brushcutters CG24EASP - CG27EASP - Hedge Trimmer CS 27EPAP - Pruner CS 27EPAP - Blower RB 24EAP. Parts for the following...
Last items in stock €16.39
Details
Coil Cord (BLACK) for Brushcutter Hitachi CG22EAS Sale
HiKOKI Power Tools Italia S.p.a. SKU: 6696544
Coil Cord (BLACK) for Brushcutter Hitachi CG22EAS
Coil Cord (BLACK) for Brushcutter Hitachi CG22EAS Original spare Hitachi Koky Tanaka, Coil Cord (BLACK) for Brushcutter Hitachi CG22EAS - CG24EASP. Parts for the following products: - BRUSHCUTTER HITACHI CG22EAS - BRUSHCUTTER HITACHI...
AVAILABLE €2.65
Details
Coil Rarth Cord (Yellow) for Brushcutter Hitachi CG22EAS Sale
HiKOKI Power Tools Italia S.p.a. SKU: 6696545
Coil Rarth Cord (Yellow) for Brushcutter Hitachi CG22EAS
Coil Rarth Cord (Yellow) for Brushcutter Hitachi CG22EAS Original spare Hitachi Koky Tanaka, Coil Rarth Cord (Yellow) for Brushcutter Hitachi CG22EAS - CG24EASP - CG27EASP. Parts for the following products: -  BRUSHCUTTER HITACHI...
AVAILABLE €2.65
Details
Diaphragm Packing Metering for Chainsaws Hitachi CS25-33-40-45-51
HiKOKI Power Tools Italia S.p.a. SKU: 6685220
Diaphragm Packing Metering for Chainsaws Hitachi CS25-33-40-45-51
Diaphragm Packing Metering for Chainsaws Hitachi CS25-33-40-45-51 Original parts for Chainsaw Hitachi Koky Tanaka, Diaphragm Packing Metering Gasket for Carburetor Chainsaws, CS25EC-SC-EU - CS33EDT - CS38EK - CS40EA - CS45EL - CS51EAP...
AVAILABLE €3.45
Details
Metering Diaphragm for Chainsaws Hitachi CS-33-40-51
HiKOKI Power Tools Italia S.p.a. SKU: 6684690
Metering Diaphragm for Chainsaws Hitachi CS-33-40-51
Metering Diaphragm for Chainsaws Hitachi CS-33-40-51 Original parts for Chainsaw Hitachi Koky Tanaka, Metering Diaphragm for Carburetor Chainsaws,CS33EDT - CS 33EB - CS40EA - TANAKA TCS-40EA - Hitachi CS51EAP -...
Last items in stock €25.81
Details
Pump Diaphragm for Chainsaw Hitachi CS33EB
HiKOKI Power Tools Italia S.p.a. SKU: 6684693
Pump Diaphragm for Chainsaw Hitachi CS33EB
Pump Diaphragm for Chainsaw Hitachi CS33EB Original parts Hitachi Koky Tanaka, Pump Diaphragm for Carburetor Chainsaw, CS33EB - CS 33EB - Brushcutters CG22EAS - CG24EKS - CG27EJ-SLNP...
Last items in stock €9.95
Details
Circuit Plate Gasket for Brushcutter Hitachi CG22EAS
HiKOKI Power Tools Italia S.p.a. SKU: 6691234
Circuit Plate Gasket for Brushcutter Hitachi CG22EAS
Circuit Plate Gasket for Brushcutter Hitachi CG22EAS Original parts Hitachi Koky Tanaka, Circuit Plate Gasket for Brushcutters CG22EAS - CG24EASP - CG27EASP Parts for the following products: - Brushcutter Hitachi...
AVAILABLE €6.64
Details
Piston Pin for Brushcutter Hitachi CG27EASP
HiKOKI Power Tools Italia S.p.a. SKU: 6684591
Piston Pin for Brushcutter Hitachi CG27EASP
Piston Pin for Brushcutter Hitachi CG27EASP Genuine part Hitachi Koky Tanaka, Piston Pin for Brushcutters CG24EASP - CG24EKS - CG25EUS - CG27EASP - CG27EJ(SLNP) Parts for the following products: - Brushcutter Hitachi CG24EASP -...
Last items in stock €4.14
Details
Air Filter Housing for Brushcutter Hitachi Tanaka CG22EAB
HiKOKI Power Tools Italia S.p.a. SKU: 6696832
Air Filter Housing for Brushcutter Hitachi Tanaka CG22EAB
Air Filter Housing for Brushcutter Hitachi Tanaka CG22EAB Original spare part Hitachi, Air Cleaner Housing for Brushcutters CG22EAB(LP) - CG22EAP2(SL) - CG22EAS(SLP) -  CG24EAP2(SL) -  CG24EBSP(SL) -  CG27EAP2(SL) Part for the...
Last items in stock €22.46
Details
Circlip for Brushcutter Hitachi CG 24EBS
HiKOKI Power Tools Italia S.p.a. SKU: 6684590
Circlip for Brushcutter Hitachi CG 24EBS
Circlip for Brushcutter Hitachi CG 24EBS Original replacement part Hitachi Koky Tanaka, Piston Pin Circlip for Brushcutters, Chainsaws, Hedgecutters Hitachi - Tanaka. Part for the following...
Last items in stock €1.57
Details
Button for Brushcutter Hitachi CG22EAS
HiKOKI Power Tools Italia S.p.a. SKU: 6698798
Button for Brushcutter Hitachi CG22EAS
Button for Brushcutter Hitachi CG22EAS Original spare Hitachi HiKoki Tanaka, Nylon Head Button for Brushcutter Hitachi CG22EAS - CG24EASP - CG27EASP. Parts for the following products: -  BRUSHCUTTER HITACHI CG22EAS -  BRUSHCUTTER...
Last items in stock €10.60
Details
Anti Vibe Rubber (A) for Brushcutter Hitachi CG22EAB
HiKOKI Power Tools Italia S.p.a. SKU: 6696963
Anti Vibe Rubber (A) for Brushcutter Hitachi CG22EAB
Anti Vibe Rubber (A) for Brushcutter Hitachi CG22EAB Original spare part Hitachi, Anti Vibe Rubber (A) for Brushcutters CG22EAB(LP) - CG22EAP2(SL) - CG22EAS(SLP) -  CG24EAP2(SL) -  CG24EBSP(SL) -  CG27EAP2(SL) Part for the following...
on 7/10 Business Days Approx €4.44
Details
Hex Socket HD Bolt M4x18 for Chainsaw Tanaka TCS-40EA
HiKOKI Power Tools Italia S.p.a. SKU: 6696326
Hex Socket HD Bolt M4x18 for Chainsaw Tanaka TCS-40EA
Hex Socket HD Bolt (W/Flange) M4x18 for  Chainsaw  Tanaka TCS-40EA Original parts Hitachi Koky Tanaka, Hex Socket HD Bolt (W/Flange) M4x18 for Chainsaws TCS-40EA - TCS 33ED - TCS33EDT. Parts for the following products: -  Chainsaw...
on 7/10 Business Days Approx €2.40
Details
Intake Packing for Brushcutter Hitachi CG24EAP2
HiKOKI Power Tools Italia S.p.a. SKU: 6699437
Intake Packing for Brushcutter Hitachi CG24EAP2
Intake Packing for Brushcutter  Hitachi  CG24EAP2 Original spare part Hitachi-HIKOKI Tanaka, Intake Packing for Brushcutters  CG24EAP2 -  CG24EBSP -  CG27EBSP. Parts for the...
AVAILABLE €2.16
Details
Comments (0)
