Hitachi Spare Parts for Engine Brush Cutter CG24EAP2

SKU: Hitachi CG24EAP2 Condition: New
€55.26
VAT included

Hitachi Spare Parts for Engine Brush Cutter CG24EAP2

Hitachi-HIKOKI Tanaka authorized service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Hitachi Engine Brush Cutter CG24EAP2.
settings 119 spare parts
description 3 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
115 spare parts

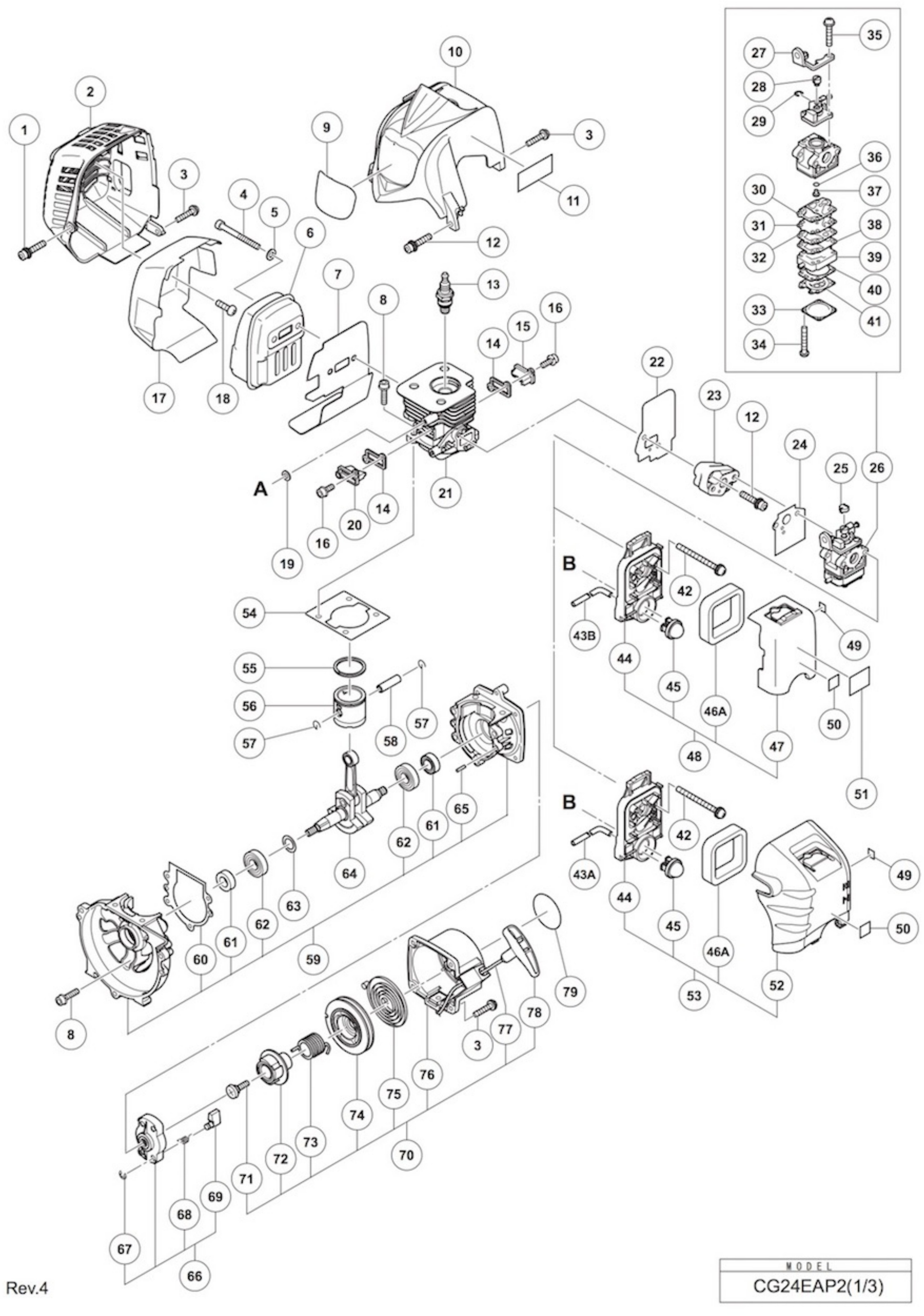

Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 1
Pos. Item Price Buy
2
 photo_cameraImage coming soon 6600319 MUFFLER COVER €12.00
4
 photo_cameraImage coming soon 6698384 HEX. SOCKET HD. BOLT M6X65 €2.24
6
 photo_cameraImage coming soon 6600004 MUFFLER (B) €55.51
7
 photo_cameraImage coming soon 6600320 HEAT PROTECTION PANEL €2.63
10
 photo_cameraImage coming soon 6699128 CYLINDER COVER €8.16
12
 photo_cameraImage coming soon 6698844 SEAL LOCK HEX. SOCKET BOLT (W/WASHERS)M5 €2.16
14
 photo_cameraImage coming soon 6698468 COVER PACKING €2.24
15
 photo_cameraImage coming soon 6698469 SCAVENGING COVER (A) €2.24
16
 photo_cameraImage coming soon 6698385 HEX. SOCKET HD. BOLT M4X12 €2.24
19
 photo_cameraImage coming soon 6698700 GLASS WASHER €2.16
20
 photo_cameraImage coming soon 6698470 SCAVENGING COVER (B) €2.24
21
 photo_cameraImage coming soon 6698465 CYLINDER €67.12
22
 Intake Packing for Brushcutter Hitachi CG24EAP2 6699437 Intake Packing for Brushcutter Hitachi CG24EAP2 €2.16
23
 Hitachi CH22EBP2 Carburetor Insulator 6698387 Hitachi CH22EBP2 Carburetor Insulator €6.29
24
 photo_cameraImage coming soon 6698405 CARBURETOR PACKING €4.33
25
 photo_cameraImage coming soon 6691337 SWIVEL CAP €1.78
26
 photo_cameraImage coming soon 6698474 CARBURETOR ASS'Y WYC-28 €114.89
28
 photo_cameraImage coming soon 6696830 SWIVEL €7.91
29
 photo_cameraImage coming soon 6684696 STOP RING €1.76
30
 photo_cameraImage coming soon 6684692 PUMP GASKET €26.45
31
 Pump Diaphragm for Chainsaw Hitachi CS33EB 6684693 Pump Diaphragm for Chainsaw Hitachi CS33EB €9.95
32
 photo_cameraImage coming soon 6691242 PUMP PLATE €5.81
34
 photo_cameraImage coming soon 6691312 SET SCREW €2.48
36
 photo_cameraImage coming soon 6684695 ORING €3.16
38
 Circuit Plate Gasket for Brushcutter Hitachi CG22EAS 6691234 Circuit Plate Gasket for Brushcutter Hitachi CG22EAS €6.64
39
 photo_cameraImage coming soon 6696828 PUMP BODY COMP. €24.52
40
 Diaphragm Packing Metering for Chainsaws Hitachi CS25-33-40-45-51 6685220 Diaphragm Packing Metering for Chainsaws Hitachi CS25-33-40-45-51 €3.45
41
 Metering Diaphragm for Chainsaws Hitachi CS-33-40-51 6684690 Metering Diaphragm for Chainsaws Hitachi CS-33-40-51 €25.81
44
 Air Filter Housing for Brushcutter Hitachi Tanaka CG22EAB 6696832 Air Filter Housing for Brushcutter Hitachi Tanaka CG22EAB €22.46
45
 Priming Pump for Chain Saws and Brushcutters Hitachi Tanaka 6685139 Priming Pump for Chain Saws and Brushcutters Hitachi Tanaka €13.15
46A
 photo_cameraImage coming soon 6600704 CLEANER SPONGE €6.47
47
 photo_cameraImage coming soon 6696831 AIR CLEANER COVER €15.50
48
 photo_cameraImage coming soon 6696549 AIR CLEANER ASS'Y €15.50
52
 photo_cameraImage coming soon 6699185 CLEANER COVER €13.79
53
 photo_cameraImage coming soon 6699132 AIR CLEANER (A) ASS'Y €16.56
54
 photo_cameraImage coming soon 6684587 CYLINDER GASKET €1.93
55
 Piston Ring for Bruschcutter and Blower Hitachi Tanaka 6698404 Piston Ring for Bruschcutter and Blower Hitachi Tanaka €9.16
56
 Piston for Brushcutter Hitachi Tanaka CG24EASP 6698368 Piston for Brushcutter Hitachi Tanaka CG24EASP €18.46
57
 Circlip for Brushcutter Hitachi CG 24EBS 6684590 Circlip for Brushcutter Hitachi CG 24EBS €1.57
58
 Piston Pin for Brushcutter Hitachi CG27EASP 6684591 Piston Pin for Brushcutter Hitachi CG27EASP €4.14
60
 photo_cameraImage coming soon 6684609 CRANK CASE GASKET €1.91
64
 photo_cameraImage coming soon 6696533 CRANK SHAFT COMP. €73.45
66
 Starter Pulley for Bruschcutters Hitachi CG22EAS-CG24EASP-CG27-33EJ 6684681 Starter Pulley for Bruschcutters Hitachi CG22EAS-CG24EASP-CG27-33EJ €23.26
67
 photo_cameraImage coming soon 6684683 STOP RING E5 €1.22
68
 photo_cameraImage coming soon 6684684 STARTER PAWL SPRING €3.48
69
 photo_cameraImage coming soon 6684685 STARTER PAWL €6.11
70
 Recoil Starter for Brushcutter Hitachi Tanaka CG22EAS/24-27EASP 6699995 Recoil Starter for Brushcutter Hitachi Tanaka CG22EAS/24-27EASP €33.10
71
 Set Screw for Hedge Trimmer Hitachi CH62EA(ST) 6684679 Set Screw for Hedge Trimmer Hitachi CH62EA(ST) €6.81
72
 photo_cameraImage coming soon 6699996 CAM PLATE FOR (S) TYPE SINCE 9.2013 FOR AUS €5.81
73
 Damper Spring for Brushcutters Hitachi CG22EAS-CG24EASP-CG27EASP 6684677 Damper Spring for Brushcutters Hitachi CG22EAS-CG24EASP-CG27EASP €7.83
74
 photo_cameraImage coming soon 6699997 STARTER ROPE REEL €6.45
75
 photo_cameraImage coming soon 6684675 RECOIL SPRING €12.16
76
 photo_cameraImage coming soon 6684673 RECOIL STARTER BODY COMP. €17.27

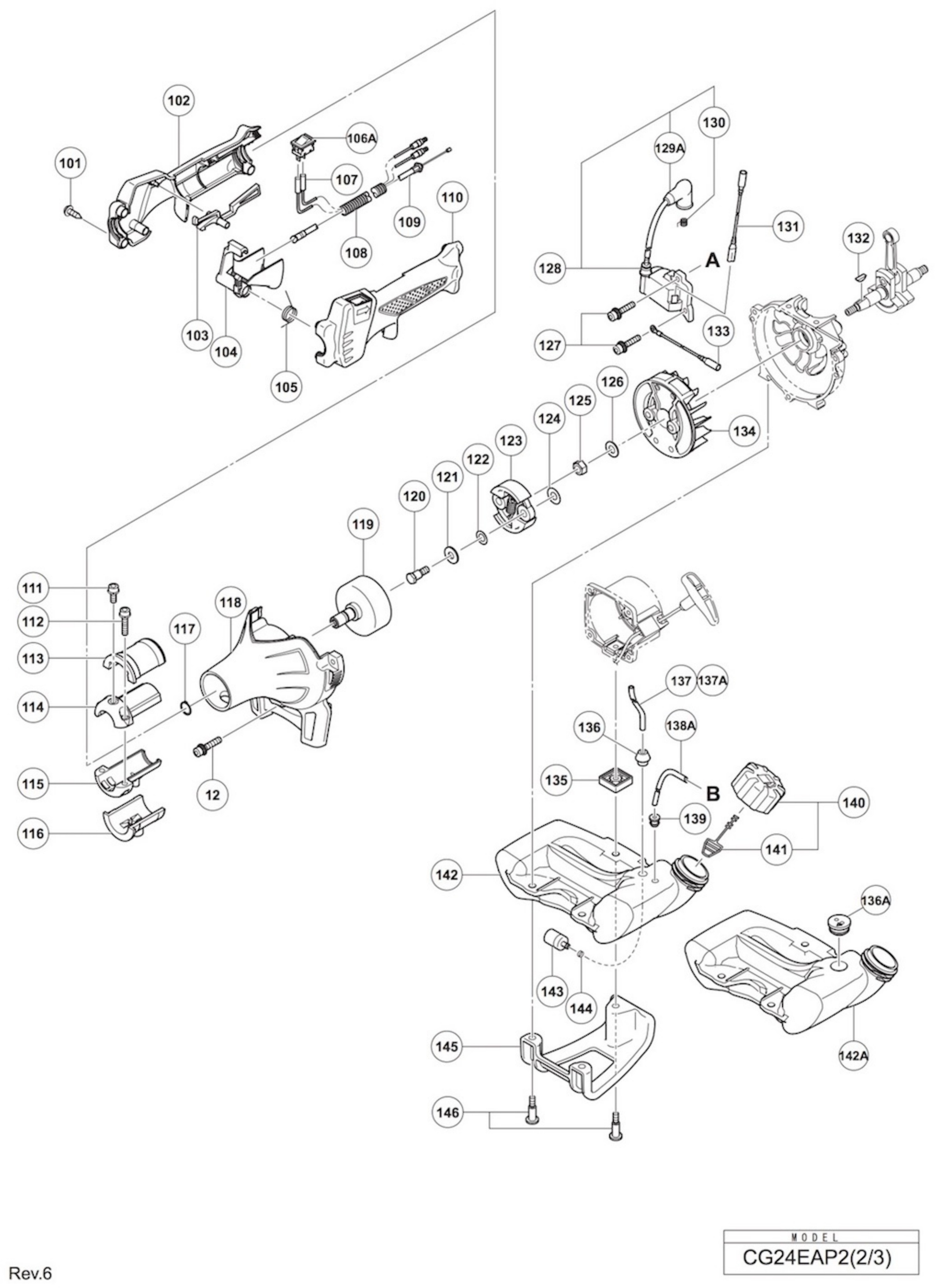

Page 2 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 2
Pos. Item Price Buy
102
 photo_cameraImage coming soon 6696487 HANDLE (B) €9.04
102
 photo_cameraImage coming soon 6696942 HANDLE (B) €6.14
103
 photo_cameraImage coming soon 6696490 LOCK LEVER €1.93
104
 Throttle Lever for Brushcutters Hitachi CG22/27 6696488 Throttle Lever for Brushcutters Hitachi CG22/27 €5.17
105
 photo_cameraImage coming soon 6696489 SPRING (A) €2.30
106A
 photo_cameraImage coming soon 6601275 STOP SWITCH €2.62
107
 photo_cameraImage coming soon 6696491 STOP SWITCH CORD €4.23
108
 photo_cameraImage coming soon 6696967 PROTECTION TUBE €2.30
109
 photo_cameraImage coming soon 6696560 THROTTLE WIRE COMP. €9.03
109
 photo_cameraImage coming soon 6696593 THROTTLE WIRE COMP. €10.33
110
 photo_cameraImage coming soon 6696486 HANDLE (A) €9.04
110
 photo_cameraImage coming soon 6696941 HANDLE (A) €6.14
112
 photo_cameraImage coming soon 6695492 HEX. HOLE BOLT 5X22/S €1.23
113
 Anti Vibe Rubber (A) for Brushcutter Hitachi CG22EAB 6696963 Anti Vibe Rubber (A) for Brushcutter Hitachi CG22EAB €4.44
114
 photo_cameraImage coming soon 6698643 PIPE HOLDER (A) €5.16
115
 photo_cameraImage coming soon 6698644 PIPE HOLDER (B) €5.16
116
 photo_cameraImage coming soon 6696964 ANTI VIBE RUBBER (B) €5.81
118
 photo_cameraImage coming soon 6699129 FAN CASE €16.65
119
 photo_cameraImage coming soon 6699400 CLUTCH SHAFT €16.88
120
 photo_cameraImage coming soon 6696469 STEP BOLT €1.93
121
 photo_cameraImage coming soon 6684648 BENT WASHER 8 €1.98
122
 photo_cameraImage coming soon 6696546 CLUTCH PLATE (A) €2.58
123
 photo_cameraImage coming soon 6696948 CLUTCH €25.81
124
 photo_cameraImage coming soon 6696547 CLUTCH WASHER (B) €2.58
125
 Flywheel Nut for Chainsaw Hitachi CS33EB 6685337 Flywheel Nut for Chainsaw Hitachi CS33EB €2.49
128
 Ignition Coil for Brushcutters Hitachi Tanaka CG22EAS-CG24EASP 6699464 Ignition Coil for Brushcutters Hitachi Tanaka CG22EAS-CG24EASP €35.76
131
 Coil Cord (BLACK) for Brushcutter Hitachi CG22EAS 6696544 Coil Cord (BLACK) for Brushcutter Hitachi CG22EAS €2.65
132
 photo_cameraImage coming soon 6684899 WOODRUFF KEY 3X13X4.5 €1.68
133
 Coil Rarth Cord (Yellow) for Brushcutter Hitachi CG22EAS 6696545 Coil Rarth Cord (Yellow) for Brushcutter Hitachi CG22EAS €2.65
134
 photo_cameraImage coming soon 6699289 MAGNETO ROTOR ASS'Y €31.63
136A
 photo_cameraImage coming soon 6600358 TANK GROMMET FROM YEAR OF PRODUCTION OCTOBER 2016 €2.18
137
 photo_cameraImage coming soon 6698716 FUEL PIPE €5.16
139
 photo_cameraImage coming soon 6697846 RETURN GROMMET €1.79
140
 Fuel Tank Cap for Brushcutter Hitachi CG24ECP (SL) 6698402 Fuel Tank Cap for Brushcutter Hitachi CG24ECP (SL) €9.73
142
 Fuel Tank for Brushcutters Hitachi CG24EASP-CG27EASP 6600317 Fuel Tank for Brushcutters Hitachi CG24EASP-CG27EASP €16.39
142A
 photo_cameraImage coming soon 6600354 TANK (C) €14.48
142
 photo_cameraImage coming soon 6699719 TANK €32.65
143
 photo_cameraImage coming soon 6600351 PUMP FILTER €5.32
146
 photo_cameraImage coming soon 6698991 BOLT (W/FLANGE) L27.8 €2.24

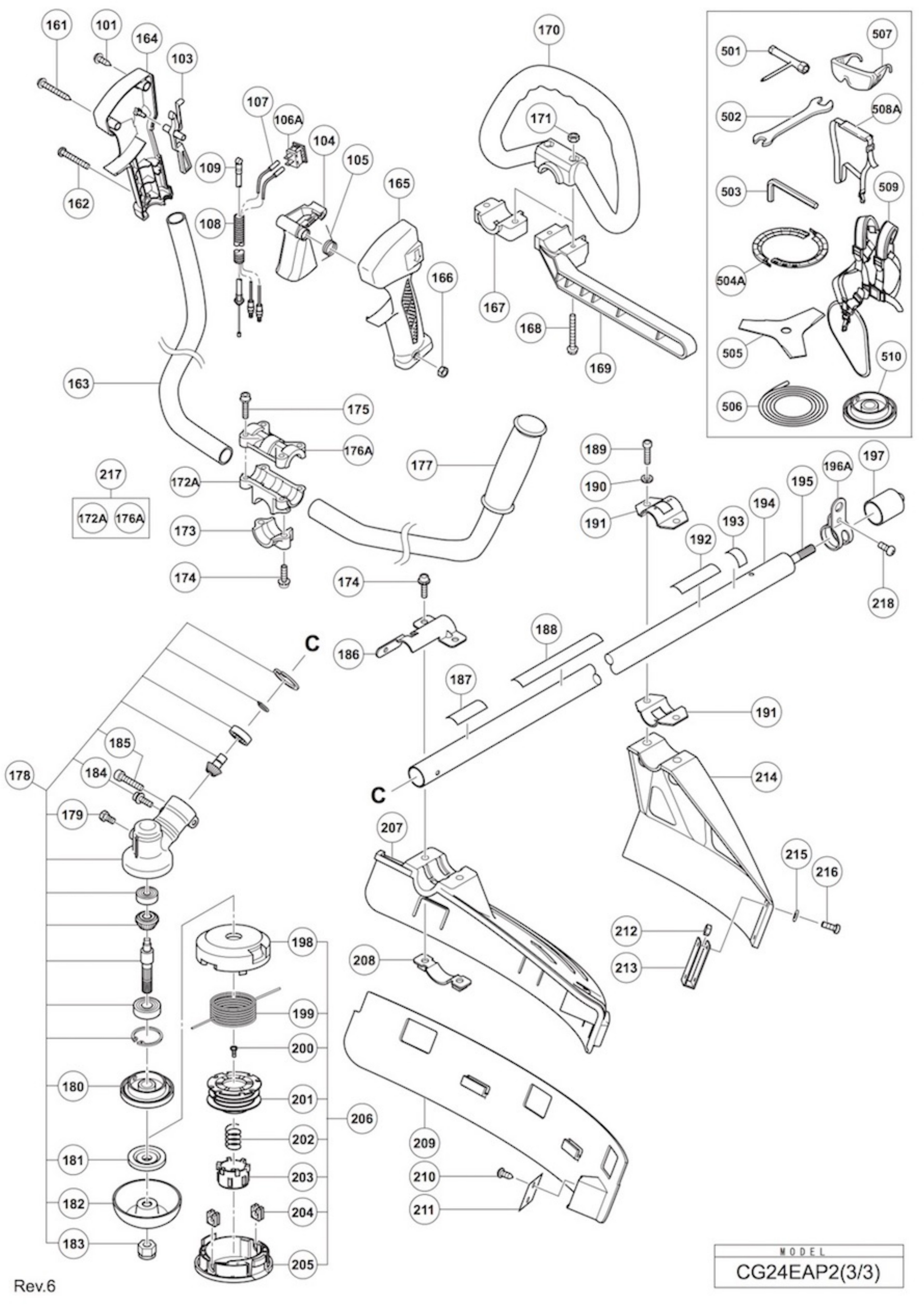

Page 3 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 3
Pos. Item Price Buy
168
 photo_cameraImage coming soon 6696974 BOLT (BLACK) M6 €2.58
169
 photo_cameraImage coming soon 6696973 BARRIER €4.31
174
 photo_cameraImage coming soon 6684714 HEX. HOLE BUTTON SCREW 6X25S €1.98
178
 Hitachi CG22EAS Gear Case 6699402 Hitachi CG22EAS Gear Case €86.29
180
 photo_cameraImage coming soon 6696977 CUTTER HOLDER (A) €29.69
181
 photo_cameraImage coming soon 6698659 CUTTER HOLDER (B) €25.68
182
 photo_cameraImage coming soon 6699188 NUT COVER €16.77
186
 photo_cameraImage coming soon 6696494 COVER BRACKET €3.87
189
 photo_cameraImage coming soon 6685064 HEX. SOCKET HD. BOLT (W/BUTTON) M6X20 €1.93
194
 photo_cameraImage coming soon 6696558 MAIN PIPE COMP. €42.60
194
 photo_cameraImage coming soon 6699445 MAIN PIPE €45.69
195
 photo_cameraImage coming soon 6698514 DRIVE SHAFT €34.85
198
 photo_cameraImage coming soon 6698794 COVER €25.83
201
 photo_cameraImage coming soon 6698796 REEL €10.09
203
 Button for Brushcutter Hitachi CG22EAS 6698798 Button for Brushcutter Hitachi CG22EAS €10.60
204
 photo_cameraImage coming soon 6698799 CORD GUIDE €10.01
204
 photo_cameraImage coming soon 6698942 CORD GUIDE €6.47
205
 photo_cameraImage coming soon 6698800 CASE €18.02
207
 photo_cameraImage coming soon 6696980 COVER €23.23
209
 photo_cameraImage coming soon 6696950 COVER GUARD €16.78
210
 photo_cameraImage coming soon 6684751 TAPPING SCREW 4X14 €1.98
211
 photo_cameraImage coming soon 6684750 KNIFE €3.98
216
 photo_cameraImage coming soon 6685068 MACHINE SCREW (W/SP. WASHER) M4X12 €1.93

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Hitachi Spare Parts for Engine Brush Cutter CG24EAP2

Hitachi-HIKOKI Tanaka authorized service center

 and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Hitachi Engine Brush Cutter CG24EAP2.

In the following table, look for the model of the Brush Cutter and ripettivo spare part.
Engine Brush Cutter CG24EAP2

Brush Cutter CG24EAP2
# Part NUm. Description
2 6600319 MUFFLER COVER
4 6698384 HEX. SOCKET HD. BOLT M6X65
6 6600004 MUFFLER (B)
7 6600320 HEAT PROTECTION PANEL
10 6699128 CYLINDER COVER
12 6698844 SEAL LOCK HEX. SOCKET BOLT (W/WASHERS)M5
14 6698468 COVER PACKING
15 6698469 SCAVENGING COVER (A)
16 6698385 HEX. SOCKET HD. BOLT M4X12
19 6698700 GLASS WASHER
20 6698470 SCAVENGING COVER (B)
21 6698465 CYLINDER
22 6699437 INTAKE PACKING
23 6698387 CARBURETOR INSULATOR
24 6698405 CARBURETOR PACKING
25 6691337 SWIVEL CAP
26 6698474 CARBURETOR ASS'Y WYC-28
28 6696830 SWIVEL
29 6684696 STOP RING
30 6684692 PUMP GASKET
31 6684693 PUMP DIAPHRAGM
32 6691242 PUMP PLATE
34 6691312 SET SCREW
36 6684695 O-RING
38 6691234 CIRCUIT PLATE
39 6696828 PUMP BODY COMP.
40 6685220 DIAPHRAGM PACKING-METERING
41 6684690 METERING DIAPHRAGM
44 6696832 AIR CLEANER HOUSING
45 6685139 PRIMING PUMP COMP.
46A 6600704 CLEANER SPONGE
47 6696831 AIR CLEANER COVER
48 6696549 AIR CLEANER ASS'Y
52 6699185 CLEANER COVER
53 6699132 AIR CLEANER (A) ASS'Y
54 6684587 CYLINDER GASKET
55 6698404 PISTON RING
56 6698368 PISTON
57 6684590 CIR CLIP
58 6684591 PISTON PIN
60 6684609 CRANK CASE GASKET
64 6696533 CRANK SHAFT COMP.
66 6684681 STARTER PULLEY ASS'Y
67 6684683 STOP RING E-5
68 6684684 STARTER PAWL SPRING
69 6684685 STARTER PAWL
70 6699995 RECOIL STARTER BODY ASS'Y
71 6684679 SET SCREW
72 6699996 CAM PLATE
73 6684677 DAMPER SPRING
74 6699997 STARTER ROPE REEL
75 6684675 RECOIL SPRING
76 6684673 RECOIL STARTER BODY COMP.
78 6684680 STARTER HANDLE
102 6696487 HANDLE (B)
102 6696942 HANDLE (B)
103 6696490 LOCK LEVER
104 6696488 LEVER
105 6696489 SPRING (A)
106A 6601275 STOP SWITCH
107 6696491 STOP SWITCH CORD
108 6696967 PROTECTION TUBE
109 6696560 THROTTLE WIRE COMP.
109 6696593 THROTTLE WIRE COMP.
110 6696486 HANDLE (A)
110 6696941 HANDLE (A)
112 6695492 HEX. HOLE BOLT 5X22/S
113 6696963 ANTI VIBE RUBBER (A)
114 6698643 PIPE HOLDER (A)
115 6698644 PIPE HOLDER (B)
116 6696964 ANTI VIBE RUBBER (B)
118 6699129 FAN CASE
119 6699400 CLUTCH SHAFT
120 6696469 STEP BOLT
121 6684648 BENT WASHER 8
122 6696546 CLUTCH PLATE (A)
123 6696948 CLUTCH
124 6696547 CLUTCH WASHER (B)
125 6685337 FLYWHEEL NUT
128 6699464 IGNITION COIL ASS'Y
131 6696544 CORD
132 6684899 WOODRUFF KEY 3X13X4.5
133 6696545 EARTH CORD
134 6699289 MAGNETO ROTOR
136 6698931 FUEL GROMMET
136A 6600358 FUEL GROMMET
137 6698716 FUEL PIPE
139 6697846 RETURN GROMMET
140 6698402 FUEL TANK CAP ASS'Y
142 6600317 TANK (B)
142 6699719 TANK
142A 6600354 TANK (C)
143 6600351 PUMP FILTER
146 6698991 BOLT (W/FLANGE) L27.8
168 6696974 BOLT (BLACK) M6
169 6696973 BARRIER
174 6684714 HEX. HOLE BUTTON BOLT M6X25
174 6684714 HEX. HOLE BUTTON BOLT M6X25
175 6684709 HEX. HOLE BOLT M5X25/S
178 6699402 GEAR CASE ASS'Y 3BB (A)
180 6696977 CUTTER HOLDER (A)
181 6698659 CUTTER HOLDER (B)
182 6699188 NUT COVER
186 6696494 COVER BRACKET
189 6685064 HEX. SOCKET HD. BOLT (W/BUTTON) M6X20
194 6696558 MAIN PIPE COMP.
194 6699445 MAIN PIPE
195 6698514 DRIVE SHAFT
198 6698794 COVER
201 6698796 REEL
202 6698797 RETURN SPRING
203 6698798 BUTTON
204 6698799 CORD GUIDE
204 6698942 CORD GUIDE
205 6698800 CASE
207 6696980 GUARD
209 6696950 COVER GUARD
210 6684751 TAPPING SCREW 4X14
211 6684750 KNIFE
216 6685068 MACHINE SCREW (W/SP. WASHER) M4X12
510 6696977 CUTTER HOLDER (A)
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Hitachi websites, which we consider as reliable Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to hitachi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Hitachi CG24EAP2
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Hitachi CG24EAP2

Diagram Hitachi CG24EAP2

Download (683.03KB)

You might also like

Starter Pulley for Bruschcutters Hitachi CG22EAS-CG24EASP-CG27-33EJ
HiKOKI Power Tools Italia S.p.a. SKU: 6684681
Starter Pulley for Bruschcutters Hitachi CG22EAS-CG24EASP-CG27-33EJ
Starter Pulley for Bruschcutters Hitachi CG22EAS-CG24EASP-CG27-33EJ Genuine parts for Bruschcutters Hitachi Koky Tanaka, Starter Pulley Assembly for Brushcutters Recoil CG22EAS - CG24EASP - CG27EJ (SLNP) - CG33EJ-SL. For the following...
Last items in stock €23.26
Details
Piston for Brushcutter Hitachi Tanaka CG24EASP
HiKOKI Power Tools Italia S.p.a. SKU: 6698368
Piston for Brushcutter Hitachi Tanaka CG24EASP
Piston for Brushcutter Hitachi Tanaka CG24EASP Original parts for Brushcutter Hitachi Koky Tanaka, Piston for Brushcutter CG24EASP HITACHI -  Blower HITACHI RB 24EAP. Parts for the following products: - Brushcutter...
Last items in stock €18.46
Details
Damper Spring for Brushcutters Hitachi CG22EAS-CG24EASP-CG27EASP
HiKOKI Power Tools Italia S.p.a. SKU: 6684677
Damper Spring for Brushcutters Hitachi CG22EAS-CG24EASP-CG27EASP
Damper Spring for Brushcutters Hitachi CG22EAS-CG24EASP-CG27EASP Genuine spare parts Hitachi Koky Tanaka, Damper Spring for Brushcutters CG22EAS - CG24EASP - CG27EJ (SLNP) - CG27EASP - CG33EJ-SL Parts for the following products:...
Last items in stock €7.83
Details
Piston Ring for Bruschcutter and Blower Hitachi Tanaka
HiKOKI Power Tools Italia S.p.a. SKU: 6698404
Piston Ring for Bruschcutter and Blower Hitachi Tanaka
Piston Ring for Bruschcutter and Blower Hitachi Tanaka Original spare part for Hitachi HiKoki Tanaka, Piston Ring for Bruschcutter and Blower Hitachi Tanaka. Part for the following products: - Bruschcutter CG24EASP - Blower RB 24EAP -...
Last items in stock €9.16
Details
Fuel Tank for Brushcutters Hitachi CG24EASP-CG27EASP
HiKOKI Power Tools Italia S.p.a. SKU: 6600317
Fuel Tank for Brushcutters Hitachi CG24EASP-CG27EASP
Fuel Tank for Brushcutters Hitachi CG24EASP-CG27EASP Genuine part Hitachi Koky Tanaka, Fuel Tank for Brushcutters CG24EASP - CG27EASP - Hedge Trimmer CS 27EPAP - Pruner CS 27EPAP - Blower RB 24EAP. Parts for the following...
Last items in stock €16.39
Details
Ignition Coil for Brushcutters Hitachi Tanaka CG22EAS-CG24EASP
HiKOKI Power Tools Italia S.p.a. SKU: 6699464
Ignition Coil for Brushcutters Hitachi Tanaka CG22EAS-CG24EASP
Ignition Coil for Brushcutters Hitachi Tanaka CG22EAS-CG24EASP Genuine parts for Hitachi Koky Tanaka, Ignition Coil for Petrol Brushcutter 2 stoke CG22EAS - CG24EASP. Replace your old Ignition coil of your petrol brush...
Last items in stock €35.76
Details
Coil Cord (BLACK) for Brushcutter Hitachi CG22EAS Sale
HiKOKI Power Tools Italia S.p.a. SKU: 6696544
Coil Cord (BLACK) for Brushcutter Hitachi CG22EAS
Coil Cord (BLACK) for Brushcutter Hitachi CG22EAS Original spare Hitachi Koky Tanaka, Coil Cord (BLACK) for Brushcutter Hitachi CG22EAS - CG24EASP. Parts for the following products: - BRUSHCUTTER HITACHI CG22EAS - BRUSHCUTTER HITACHI...
AVAILABLE €2.65
Details
Coil Rarth Cord (Yellow) for Brushcutter Hitachi CG22EAS Sale
HiKOKI Power Tools Italia S.p.a. SKU: 6696545
Coil Rarth Cord (Yellow) for Brushcutter Hitachi CG22EAS
Coil Rarth Cord (Yellow) for Brushcutter Hitachi CG22EAS Original spare Hitachi Koky Tanaka, Coil Rarth Cord (Yellow) for Brushcutter Hitachi CG22EAS - CG24EASP - CG27EASP. Parts for the following products: -  BRUSHCUTTER HITACHI...
AVAILABLE €2.65
Details
Diaphragm Packing Metering for Chainsaws Hitachi CS25-33-40-45-51
HiKOKI Power Tools Italia S.p.a. SKU: 6685220
Diaphragm Packing Metering for Chainsaws Hitachi CS25-33-40-45-51
Diaphragm Packing Metering for Chainsaws Hitachi CS25-33-40-45-51 Original parts for Chainsaw Hitachi Koky Tanaka, Diaphragm Packing Metering Gasket for Carburetor Chainsaws, CS25EC-SC-EU - CS33EDT - CS38EK - CS40EA - CS45EL - CS51EAP...
AVAILABLE €3.45
Details
Metering Diaphragm for Chainsaws Hitachi CS-33-40-51
HiKOKI Power Tools Italia S.p.a. SKU: 6684690
Metering Diaphragm for Chainsaws Hitachi CS-33-40-51
Metering Diaphragm for Chainsaws Hitachi CS-33-40-51 Original parts for Chainsaw Hitachi Koky Tanaka, Metering Diaphragm for Carburetor Chainsaws,CS33EDT - CS 33EB - CS40EA - TANAKA TCS-40EA - Hitachi CS51EAP -...
Last items in stock €25.81
Details
Pump Diaphragm for Chainsaw Hitachi CS33EB
HiKOKI Power Tools Italia S.p.a. SKU: 6684693
Pump Diaphragm for Chainsaw Hitachi CS33EB
Pump Diaphragm for Chainsaw Hitachi CS33EB Original parts Hitachi Koky Tanaka, Pump Diaphragm for Carburetor Chainsaw, CS33EB - CS 33EB - Brushcutters CG22EAS - CG24EKS - CG27EJ-SLNP...
Last items in stock €9.95
Details
Circuit Plate Gasket for Brushcutter Hitachi CG22EAS
HiKOKI Power Tools Italia S.p.a. SKU: 6691234
Circuit Plate Gasket for Brushcutter Hitachi CG22EAS
Circuit Plate Gasket for Brushcutter Hitachi CG22EAS Original parts Hitachi Koky Tanaka, Circuit Plate Gasket for Brushcutters CG22EAS - CG24EASP - CG27EASP Parts for the following products: - Brushcutter Hitachi...
AVAILABLE €6.64
Details
Piston Pin for Brushcutter Hitachi CG27EASP
HiKOKI Power Tools Italia S.p.a. SKU: 6684591
Piston Pin for Brushcutter Hitachi CG27EASP
Piston Pin for Brushcutter Hitachi CG27EASP Genuine part Hitachi Koky Tanaka, Piston Pin for Brushcutters CG24EASP - CG24EKS - CG25EUS - CG27EASP - CG27EJ(SLNP) Parts for the following products: - Brushcutter Hitachi CG24EASP -...
Last items in stock €4.14
Details
Air Filter Housing for Brushcutter Hitachi Tanaka CG22EAB
HiKOKI Power Tools Italia S.p.a. SKU: 6696832
Air Filter Housing for Brushcutter Hitachi Tanaka CG22EAB
Air Filter Housing for Brushcutter Hitachi Tanaka CG22EAB Original spare part Hitachi, Air Cleaner Housing for Brushcutters CG22EAB(LP) - CG22EAP2(SL) - CG22EAS(SLP) -  CG24EAP2(SL) -  CG24EBSP(SL) -  CG27EAP2(SL) Part for the...
Last items in stock €22.46
Details
Switch for Brushcutter Hitachi Tanaka CG24EASP
HiKOKI Power Tools Italia S.p.a. SKU: 6696940
Switch for Brushcutter Hitachi Tanaka CG24EASP
Switch for Brushcutter Hitachi Tanaka CG24EASP Genuine spare part for Hitachi Koky Tanaka, Switch for Brushcutters CG25EUS - CG24EASP - CG24EACP - CG27EASP - CG22EAS. Part for the following products: - Brushcutter Hitachi CG25EUS -...
Last items in stock €9.30
Details
Circlip for Brushcutter Hitachi CG 24EBS
HiKOKI Power Tools Italia S.p.a. SKU: 6684590
Circlip for Brushcutter Hitachi CG 24EBS
Circlip for Brushcutter Hitachi CG 24EBS Original replacement part Hitachi Koky Tanaka, Piston Pin Circlip for Brushcutters, Chainsaws, Hedgecutters Hitachi - Tanaka. Part for the following...
Last items in stock €1.57
Details
Button for Brushcutter Hitachi CG22EAS
HiKOKI Power Tools Italia S.p.a. SKU: 6698798
Button for Brushcutter Hitachi CG22EAS
Button for Brushcutter Hitachi CG22EAS Original spare Hitachi HiKoki Tanaka, Nylon Head Button for Brushcutter Hitachi CG22EAS - CG24EASP - CG27EASP. Parts for the following products: -  BRUSHCUTTER HITACHI CG22EAS -  BRUSHCUTTER...
Last items in stock €10.60
Details
Anti Vibe Rubber (A) for Brushcutter Hitachi CG22EAB
HiKOKI Power Tools Italia S.p.a. SKU: 6696963
Anti Vibe Rubber (A) for Brushcutter Hitachi CG22EAB
Anti Vibe Rubber (A) for Brushcutter Hitachi CG22EAB Original spare part Hitachi, Anti Vibe Rubber (A) for Brushcutters CG22EAB(LP) - CG22EAP2(SL) - CG22EAS(SLP) -  CG24EAP2(SL) -  CG24EBSP(SL) -  CG27EAP2(SL) Part for the following...
on 7/10 Business Days Approx €4.44
Details
Intake Packing for Brushcutter Hitachi CG24EAP2
HiKOKI Power Tools Italia S.p.a. SKU: 6699437
Intake Packing for Brushcutter Hitachi CG24EAP2
Intake Packing for Brushcutter  Hitachi  CG24EAP2 Original spare part Hitachi-HIKOKI Tanaka, Intake Packing for Brushcutters  CG24EAP2 -  CG24EBSP -  CG27EBSP. Parts for the...
AVAILABLE €2.16
Details
Hitachi CG22EAS Gear Case
HiKOKI Power Tools Italia S.p.a. SKU: 6699402
Hitachi CG22EAS Gear Case
Hitachi Gear Case for Brushcutter CG40EAS Genuine spare part Hoitachi HIKOKI Tanaka, Gear Case Ass'y for Brushcutter CG22EAS - CG25EUP2 - TCG 27EASP. Part for the following products: - Brushcutter Hitachi...
Last items in stock €86.29
Details
Comments (0)
