Hitachi Spare Parts for Engine Brush Cutter CG22EAP2

SKU: Hitachi CG22EAP2
€1.04
VAT included

Hitachi Spare Parts for Engine Brush Cutter CG22EAP2

Hitachi-HIKOKI Original spare parts sourced from the manufacturer, at the lowest price on the web, with after-sales service, for to make maintenance or repair deteriorated parts for Engine Brush Cutter CG22EAP2.
Hitachi Spare Parts for Engine Brush Cutter CG22EAP2
  • Hitachi Spare Parts for Engine Brush Cutter CG22EAP2
  • Hitachi Spare Parts for Engine Brush Cutter CG22EAP2
  • Hitachi Spare Parts for Engine Brush Cutter CG22EAP2
  • Hitachi Spare Parts for Engine Brush Cutter CG22EAP2
  • Hitachi Spare Parts for Engine Brush Cutter CG22EAP2
  • Hitachi Spare Parts for Engine Brush Cutter CG22EAP2
HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Engine Brush Cutter CG22EAP2

SKU: Hitachi CG22EAP2 Condition: New
€1.04
VAT included

Hitachi Spare Parts for Engine Brush Cutter CG22EAP2

Hitachi-HIKOKI Original spare parts sourced from the manufacturer, at the lowest price on the web, with after-sales service, for to make maintenance or repair deteriorated parts for Engine Brush Cutter CG22EAP2.
settings 145 spare parts
description 5 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 7/10 Business Days Approx

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
137 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

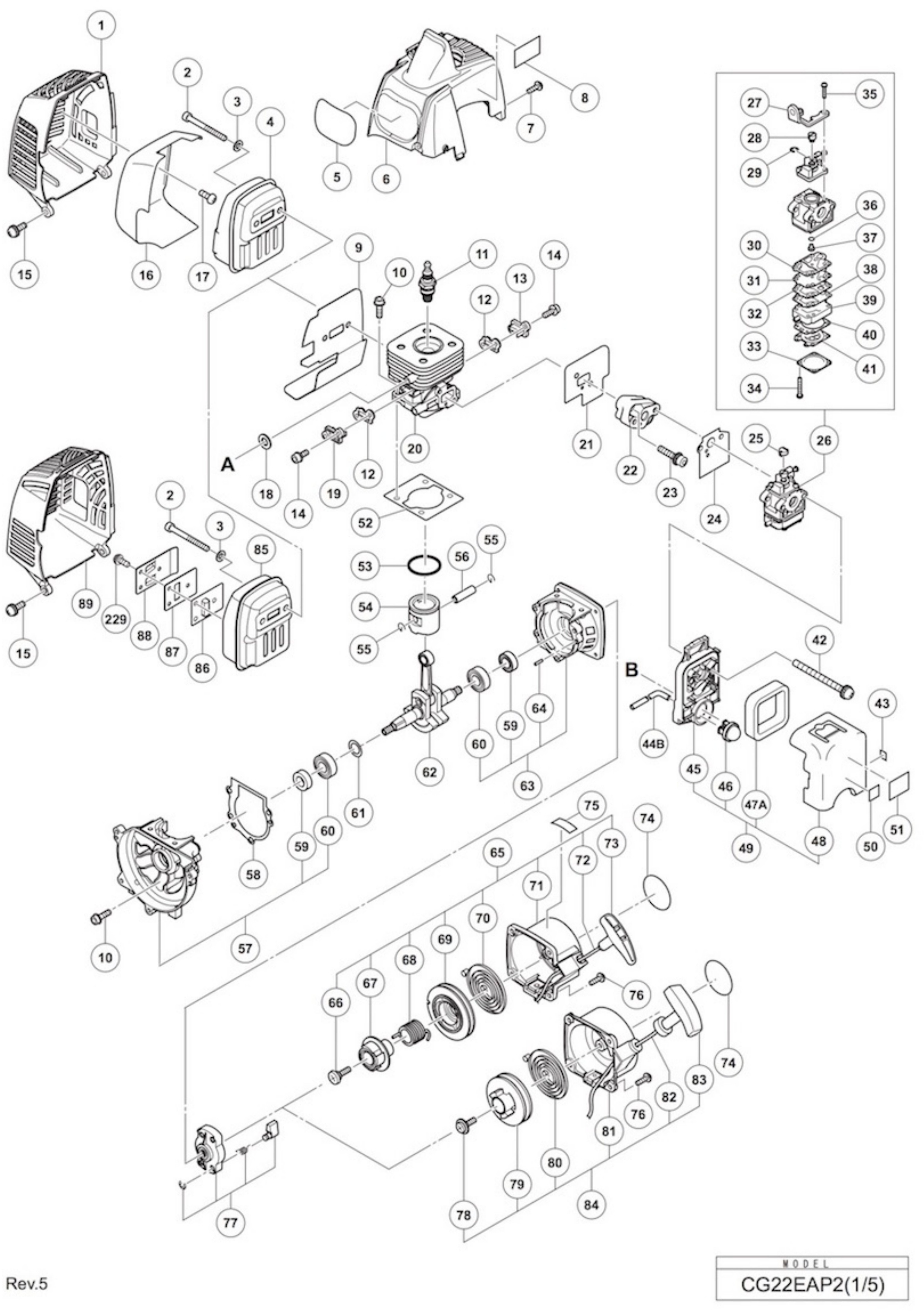

Esploso pagina 1
Pos. Item Price Buy
4
 photo_cameraImage coming soon 6696554 MUFFLER €57.96
6
 photo_cameraImage coming soon 6600424 CYLINDER COVER €5.98
9
 photo_cameraImage coming soon 6600320 HEAT PROTECTION PANEL €2.63
12
 Carburator Cover Packing for Brushcutter Hitachi CG22EAS 6696534 Carburator Cover Packing for Brushcutter Hitachi CG22EAS €2.14
13
 photo_cameraImage coming soon 6696535 INTAKE COVER (A) €2.25
14
 photo_cameraImage coming soon 6698385 HEX. SOCKET HD. BOLT M4X12 €2.24
16
 photo_cameraImage coming soon 6600340 MUFFER HEAT COVER €10.32
18
 photo_cameraImage coming soon 6698700 GLASS WASHER €2.16
19
 photo_cameraImage coming soon 6696536 INTAKE COVER (B) €2.16
20
 Cylinder for Brushcutter Hitachi Tanaka CG22EAB (LP) 6696527 Cylinder for Brushcutter Hitachi Tanaka CG22EAB (LP) €57.03
21
 photo_cameraImage coming soon 6696548 INTAKE PACKING €2.58
22
 Hitachi CH22EBP2 Carburetor Insulator 6698387 Hitachi CH22EBP2 Carburetor Insulator €6.29
23
 photo_cameraImage coming soon 6698844 SEAL LOCK HEX. SOCKET BOLT (W/WASHERS)M5 €2.16
24
 photo_cameraImage coming soon 6698405 CARBURETOR PACKING €4.33
25
 photo_cameraImage coming soon 6691337 SWIVEL CAP €1.78
26
 photo_cameraImage coming soon 6696550 CARBURETOR ASS'Y WYC-22 €99.49
28
 photo_cameraImage coming soon 6696830 SWIVEL €7.91
29
 photo_cameraImage coming soon 6684696 STOP RING €1.76
30
 photo_cameraImage coming soon 6684692 PUMP GASKET €26.45
31
 Pump Diaphragm for Chainsaw Hitachi CS33EB 6684693 Pump Diaphragm for Chainsaw Hitachi CS33EB €9.95
32
 photo_cameraImage coming soon 6691242 PUMP PLATE €5.81
34
 photo_cameraImage coming soon 6691312 SET SCREW €2.48
36
 photo_cameraImage coming soon 6684695 ORING €3.16
38
 Circuit Plate Gasket for Brushcutter Hitachi CG22EAS 6691234 Circuit Plate Gasket for Brushcutter Hitachi CG22EAS €6.64
39
 photo_cameraImage coming soon 6696828 PUMP BODY COMP. €24.52
40
 Diaphragm Packing Metering for Chainsaws Hitachi CS25-33-40-45-51 6685220 Diaphragm Packing Metering for Chainsaws Hitachi CS25-33-40-45-51 €3.45
41
 Metering Diaphragm for Chainsaws Hitachi CS-33-40-51 6684690 Metering Diaphragm for Chainsaws Hitachi CS-33-40-51 €25.81
45
 Air Filter Housing for Brushcutter Hitachi Tanaka CG22EAB 6696832 Air Filter Housing for Brushcutter Hitachi Tanaka CG22EAB €22.46
46
 Priming Pump for Chain Saws and Brushcutters Hitachi Tanaka 6685139 Priming Pump for Chain Saws and Brushcutters Hitachi Tanaka €13.15
47A
 photo_cameraImage coming soon 6600704 CLEANER SPONGE €6.47
48
 photo_cameraImage coming soon 6696831 AIR CLEANER COVER €15.50
49
 photo_cameraImage coming soon 6696549 AIR CLEANER ASS'Y €15.50
52
 Cylinder Gasket for Brushcutter Hitachi Tanaka CG22EAS 6696530 Cylinder Gasket for Brushcutter Hitachi Tanaka CG22EAS €2.16
53
 Piston Ring for Brush Cutter end Hedge Trimmers Hitachi 6696532 Piston Ring for Brush Cutter end Hedge Trimmers Hitachi €6.50
54
 Piston for Brush Cutter and Hedge Trimmer Hitachi Tanaka CG-CH 6696531 Piston for Brush Cutter and Hedge Trimmer Hitachi Tanaka CG-CH €15.81
55
 Circlip for Brushcutter Hitachi CG 24EBS 6684590 Circlip for Brushcutter Hitachi CG 24EBS €1.57
56
 Piston Pin for Brushcutter Hitachi Tanaka CG22EAS 6696944 Piston Pin for Brushcutter Hitachi Tanaka CG22EAS €7.30
57
 photo_cameraImage coming soon 6696538 CRANK CASE (B) COMP €28.27
58
 photo_cameraImage coming soon 6696539 CRANK CASE PACKING €2.25
62
 photo_cameraImage coming soon 6696533 CRANK SHAFT COMP. €73.45
65
 Recoil Starter for Brushcutter Hitachi Tanaka CG22EAS/24-27EASP 6699995 Recoil Starter for Brushcutter Hitachi Tanaka CG22EAS/24-27EASP €33.10
66
 Set Screw for Hedge Trimmer Hitachi CH62EA(ST) 6684679 Set Screw for Hedge Trimmer Hitachi CH62EA(ST) €6.81
67
 photo_cameraImage coming soon 6699996 CAM PLATE FOR (S) TYPE SINCE 9.2013 FOR AUS €5.81
68
 Damper Spring for Brushcutters Hitachi CG22EAS-CG24EASP-CG27EASP 6684677 Damper Spring for Brushcutters Hitachi CG22EAS-CG24EASP-CG27EASP €7.83
69
 photo_cameraImage coming soon 6699997 STARTER ROPE REEL €6.45
70
 photo_cameraImage coming soon 6684675 RECOIL SPRING €12.16
71
 photo_cameraImage coming soon 6684673 RECOIL STARTER BODY COMP. €17.27
77
 Starter Pulley for Bruschcutters Hitachi CG22EAS-CG24EASP-CG27-33EJ 6684681 Starter Pulley for Bruschcutters Hitachi CG22EAS-CG24EASP-CG27-33EJ €23.26
77
 photo_cameraImage coming soon 6696471 STARTER PULLEY ASS'Y €9.04
78
 photo_cameraImage coming soon 6693633 SET SCREW €1.74
82
 photo_cameraImage coming soon 6693168 ROPE €3.26
83
 photo_cameraImage coming soon 6693227 STARTER HANDLE €6.94
84
 Recoil Starter Assembly for Blower Hitachi RB24EAP 6696572 Recoil Starter Assembly for Blower Hitachi RB24EAP €26.45
109
 photo_cameraImage coming soon 6698790 CLUTCH SHAFT €19.44
229
 photo_cameraImage coming soon 6685068 MACHINE SCREW (W/SP. WASHER) M4X12 €1.93
Page 2 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

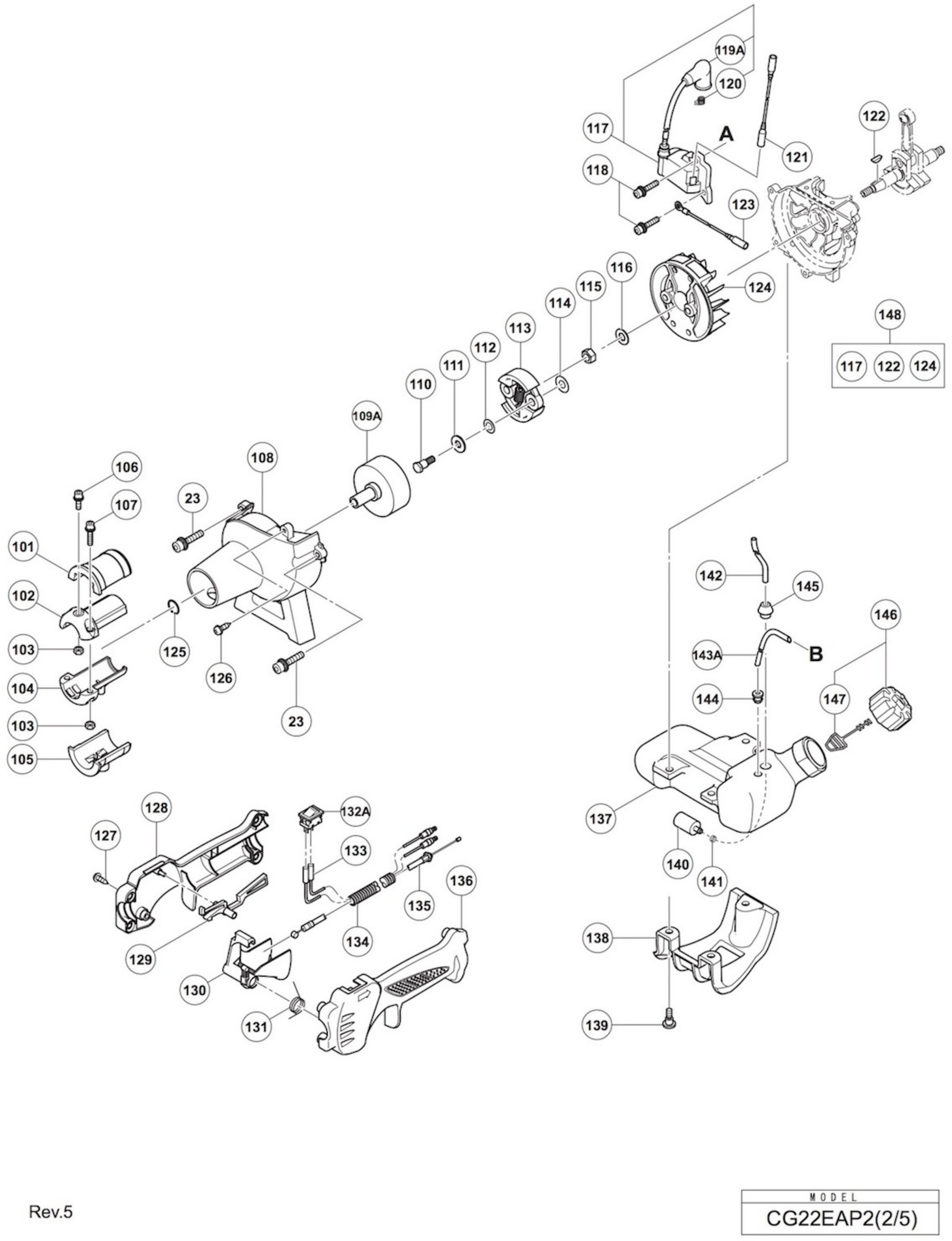

Esploso pagina 2
Pos. Item Price Buy
101
 Anti Vibe Rubber (A) for Brushcutter Hitachi CG22EAB 6696963 Anti Vibe Rubber (A) for Brushcutter Hitachi CG22EAB €4.44
102
 photo_cameraImage coming soon 6696542 PIPE HOLDER (A) €2.58
102
 photo_cameraImage coming soon 6698643 PIPE HOLDER (A) €5.16
104
 photo_cameraImage coming soon 6696543 PIPE HOLDER (B) €2.58
104
 photo_cameraImage coming soon 6698644 PIPE HOLDER (B) €5.16
105
 photo_cameraImage coming soon 6696964 ANTI VIBE RUBBER (B) €5.81
107
 photo_cameraImage coming soon 6695492 HEX. HOLE BOLT 5X22/S €1.23
108
 photo_cameraImage coming soon 6699159 FAN CASE (VERMILION) €17.94
109A
 photo_cameraImage coming soon 6696541 CLUTCH SHAFT COMP €20.53
110
 photo_cameraImage coming soon 6696469 STEP BOLT €1.93
111
 photo_cameraImage coming soon 6684648 BENT WASHER 8 €1.98
112
 photo_cameraImage coming soon 6696546 CLUTCH PLATE (A) €2.58
113
 photo_cameraImage coming soon 6696948 CLUTCH €25.81
114
 photo_cameraImage coming soon 6696547 CLUTCH WASHER (B) €2.58
115
 Flywheel Nut for Chainsaw Hitachi CS33EB 6685337 Flywheel Nut for Chainsaw Hitachi CS33EB €2.49
117
 Ignition Coil for Brushcutters Hitachi Tanaka CG22EAS-CG24EASP 6699464 Ignition Coil for Brushcutters Hitachi Tanaka CG22EAS-CG24EASP €35.76
121
 Coil Cord (BLACK) for Brushcutter Hitachi CG22EAS 6696544 Coil Cord (BLACK) for Brushcutter Hitachi CG22EAS €2.65
122
 photo_cameraImage coming soon 6684899 WOODRUFF KEY 3X13X4.5 €1.68
123
 Coil Rarth Cord (Yellow) for Brushcutter Hitachi CG22EAS 6696545 Coil Rarth Cord (Yellow) for Brushcutter Hitachi CG22EAS €2.65
124
 photo_cameraImage coming soon 6699289 MAGNETO ROTOR ASS'Y €31.63
125
 Retaining Ring 12 mm for Hitachi Power Tools 939542 Retaining Ring 12 mm for Hitachi Power Tools €3.13
128
 photo_cameraImage coming soon 6696487 HANDLE (B) €9.04
128
 photo_cameraImage coming soon 6696942 HANDLE (B) €6.14
129
 photo_cameraImage coming soon 6696490 LOCK LEVER €1.93
130
 Throttle Lever for Brushcutters Hitachi CG22/27 6696488 Throttle Lever for Brushcutters Hitachi CG22/27 €5.17
131
 photo_cameraImage coming soon 6696489 SPRING (A) €2.30
132A
 photo_cameraImage coming soon 6601275 STOP SWITCH €2.62
133
 photo_cameraImage coming soon 6696491 STOP SWITCH CORD €4.23
134
 photo_cameraImage coming soon 6696967 PROTECTION TUBE €2.30
135
 photo_cameraImage coming soon 6696560 THROTTLE WIRE COMP. €9.03
136
 photo_cameraImage coming soon 6696486 HANDLE (A) €9.04
136
 photo_cameraImage coming soon 6696941 HANDLE (A) €6.14
137
 Fuel Tank for Brushcutter Hitachi CG22EAS 6696569 Fuel Tank for Brushcutter Hitachi CG22EAS €10.63
139
 photo_cameraImage coming soon 6696557 FLANGE BOLT €1.93
139
 photo_cameraImage coming soon 6696574 BOLT (W/FLANGE) L17.8 €2.58
140
 photo_cameraImage coming soon 6600351 PUMP FILTER €5.32
142
 photo_cameraImage coming soon 6698716 FUEL PIPE €5.16
144
 photo_cameraImage coming soon 6697846 RETURN GROMMET €1.79
146
 Fuel Tank Cap for Brushcutter Hitachi CG24ECP (SL) 6698402 Fuel Tank Cap for Brushcutter Hitachi CG24ECP (SL) €9.73
Page 3 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

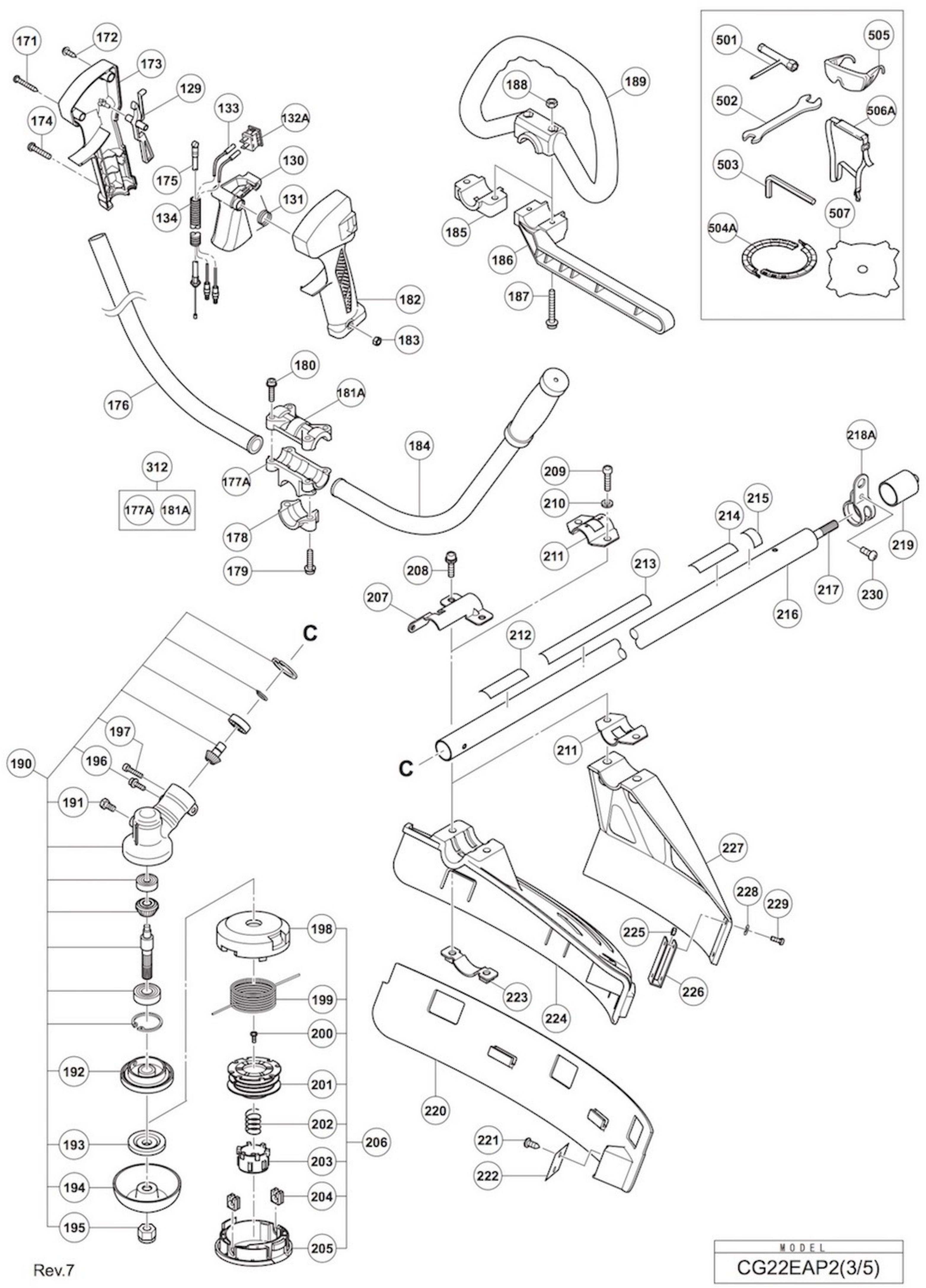

Esploso pagina 3
Pos. Item Price Buy
175
 photo_cameraImage coming soon 6696593 THROTTLE WIRE COMP. €10.33
179
 photo_cameraImage coming soon 6684714 HEX. HOLE BUTTON SCREW 6X25S €1.98
185
 photo_cameraImage coming soon 6696972 HANDLE HOLDER (A) €1.65
186
 photo_cameraImage coming soon 6696973 BARRIER €4.31
187
 photo_cameraImage coming soon 6696974 BOLT (BLACK) M6 €2.58
189
 photo_cameraImage coming soon 6696975 LOOP HANDLE €7.47
190
 Hitachi CG22EAS Gear Case 6699402 Hitachi CG22EAS Gear Case €86.29
192
 photo_cameraImage coming soon 6696977 CUTTER HOLDER (A) €29.69
193
 photo_cameraImage coming soon 6698659 CUTTER HOLDER (B) €25.68
194
 photo_cameraImage coming soon 6699188 NUT COVER €16.77
198
 photo_cameraImage coming soon 6698794 COVER €25.83
201
 photo_cameraImage coming soon 6698796 REEL €10.09
203
 Button for Brushcutter Hitachi CG22EAS 6698798 Button for Brushcutter Hitachi CG22EAS €10.60
204
 photo_cameraImage coming soon 6698799 CORD GUIDE €10.01
205
 photo_cameraImage coming soon 6698800 CASE €18.02
207
 photo_cameraImage coming soon 6696494 COVER BRACKET €3.87
209
 photo_cameraImage coming soon 6685064 HEX. SOCKET HD. BOLT (W/BUTTON) M6X20 €1.93
216
 photo_cameraImage coming soon 6696558 MAIN PIPE COMP. €42.60
217
 photo_cameraImage coming soon 6698514 DRIVE SHAFT €34.85
220
 photo_cameraImage coming soon 6696950 COVER GUARD €16.78
221
 photo_cameraImage coming soon 6684751 TAPPING SCREW 4X14 €1.98
222
 photo_cameraImage coming soon 6684750 KNIFE €3.98
223
 photo_cameraImage coming soon 6696951 GUARD HOLDER €3.08
224
 photo_cameraImage coming soon 6696980 COVER €23.23
Page 4 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

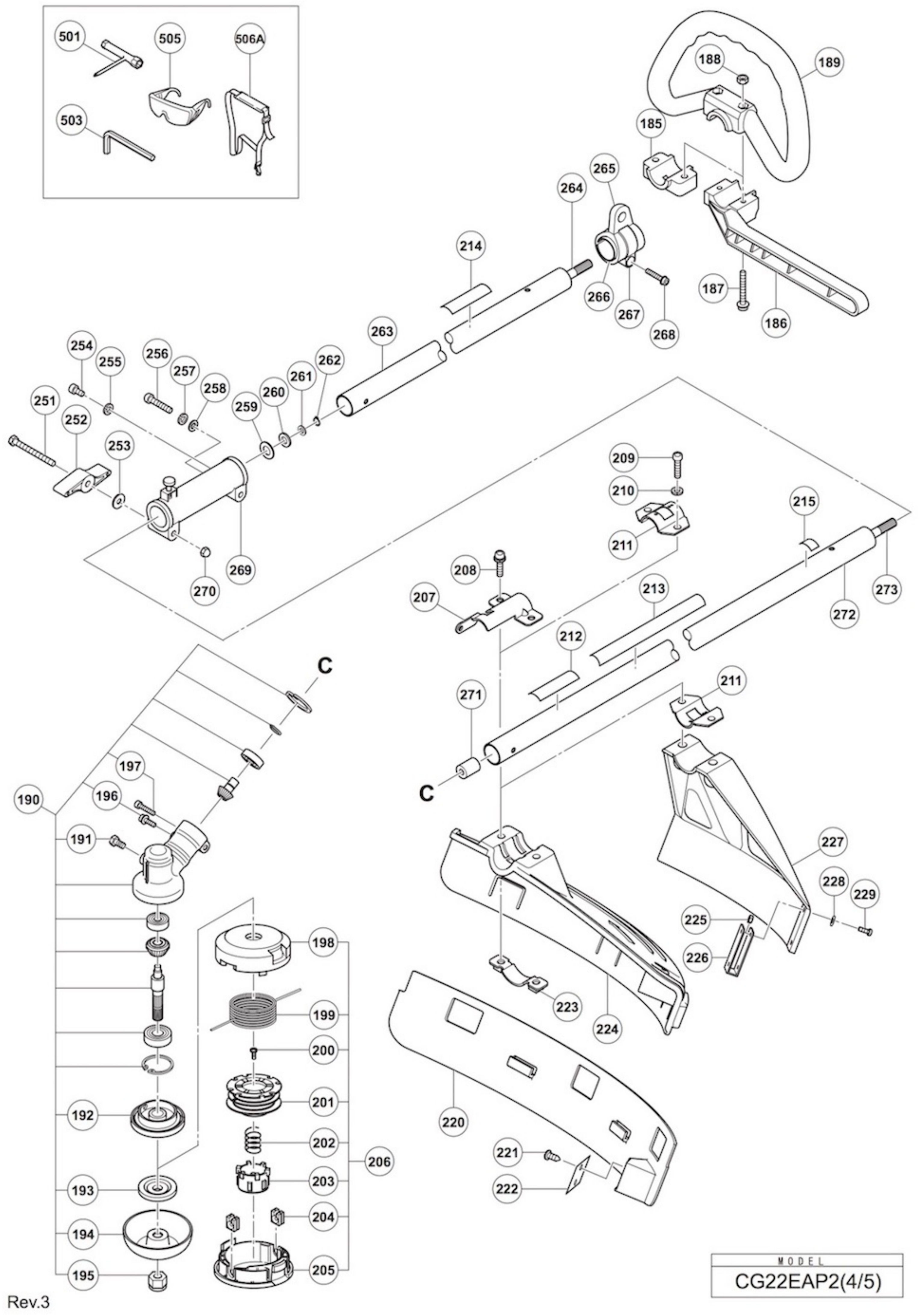

Esploso pagina 4
Pos. Item Price Buy
251
 photo_cameraImage coming soon 6684824 HEX.BOLT 6X50 €1.98
252
 photo_cameraImage coming soon 6684823 HANDLE KNOB €3.98
253
 photo_cameraImage coming soon 6684822 SPECIAL WASHER B €1.98
254
 photo_cameraImage coming soon 6684829 HEX. SOCKET HD. BOLT M5X12 €1.98
256
 photo_cameraImage coming soon 6684825 HEX. SOCKET HD. BOLT (W/BUTTON) M6 €1.98
260
 photo_cameraImage coming soon 6684819 SPACER €3.98
262
 Retaining Ring D.10 for Hammer DH45ME - DH40MR 939540 Retaining Ring D.10 for Hammer DH45ME - DH40MR €0.35
264
 photo_cameraImage coming soon 6684814 DRIVE SHAFT A €42.41
265
 photo_cameraImage coming soon 6684705 HANGER €6.47
269
 photo_cameraImage coming soon 6684817 JOINT CASE €33.10
270
 photo_cameraImage coming soon 6684828 CAP NUT 6 €1.98
271
 photo_cameraImage coming soon 6684833 BUSHING €3.28
272
 photo_cameraImage coming soon 6697838 DRIVE SHAFT COMP €37.94
273
 photo_cameraImage coming soon 6684832 DRIVE SHAFT B 783L €34.12
Page 5 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

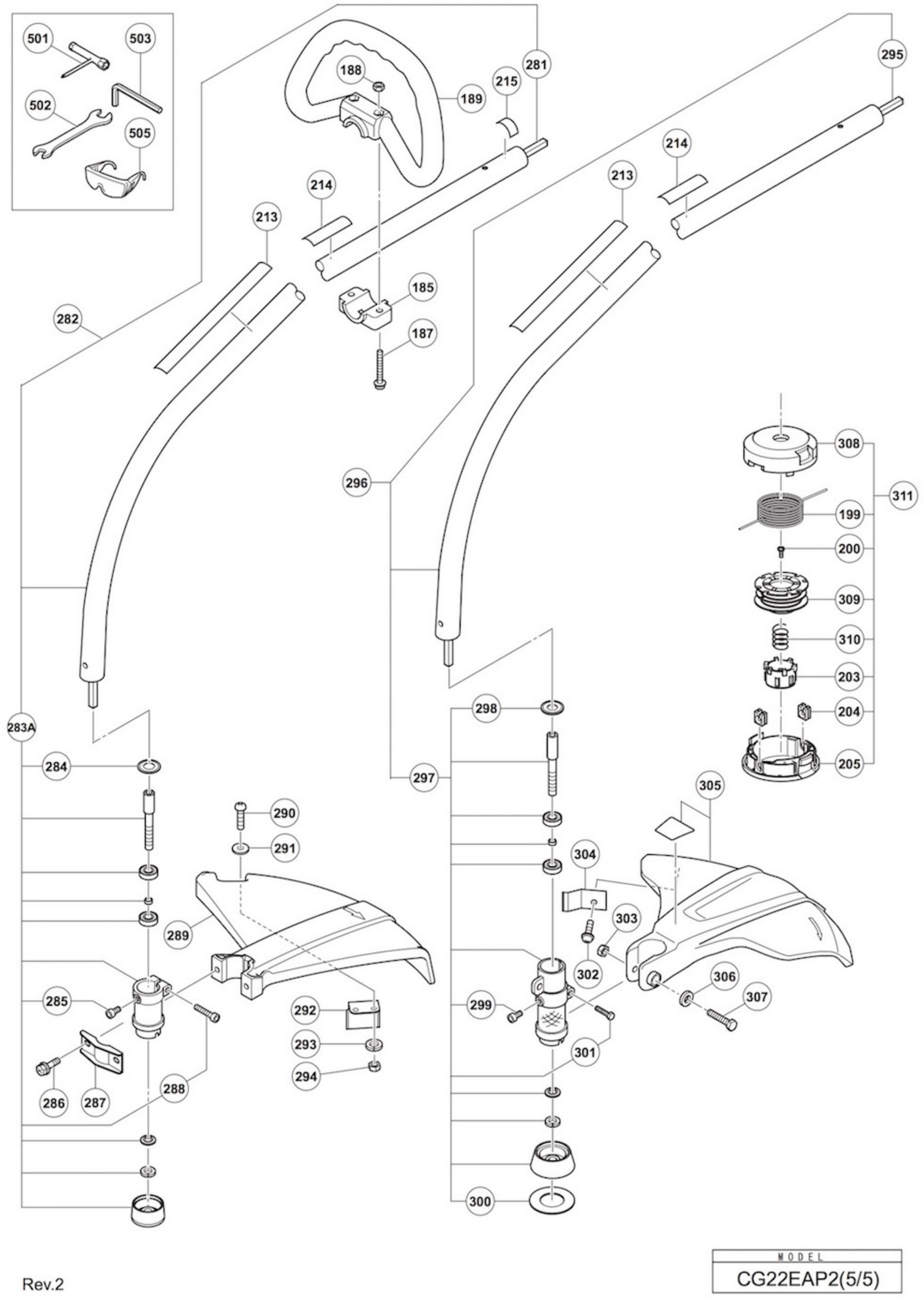

Esploso pagina 5
Pos. Item Price Buy
281
 photo_cameraImage coming soon 6698325 FLEXIBLE SHAFT €26.16
289
 photo_cameraImage coming soon 6698809 GUARD €38.40
291
 photo_cameraImage coming soon 949424 WASHER M5 (10 PCS.) €1.96
302
 photo_cameraImage coming soon 6685074 TAPPING SCREW D5X16 €1.93
306
 Bolt Washer 6 for Brushcutters Chainsaws Hitachi Hikoki Tanaka 6684639 Bolt Washer 6 for Brushcutters Chainsaws Hitachi Hikoki Tanaka €1.98

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Hitachi Spare Parts for Engine Brush Cutter CG22EAP2

Hitachi-HIKOKI Original spare parts sourced from the manufacturer, at the lowest price on the web, with after-sales service, for to make maintenance or repair deteriorated parts for Engine Brush Cutter CG22EAP2.

In the following table, look for the model of the Brush Cutter and ripettivo spare part.
Hitachi Hikoki

Brush Cutter CG22EAP2
# Part Num. Description
1 6600423 MUFFLER PROTECTOR
4 6696554 MUFFLER
6 6600424 CYLINDER COVER
9 6600320 HEAT PROTECTION PANEL
12 6696534 COVER PACKING
13 6696535 INTAKE COVER (A)
14 6698385 HEX. SOCKET HD. BOLT M4X12
16 6600340 MUFFER HEAT COVER
18 6698700 GLASS WASHER
19 6696536 INTAKE COVER (B)
20 6696527 CYLINDER
21 6696548 INTAKE PACKING
22 6698387 CARBURETOR INSULATOR
23 6698844 SEAL LOCK HEX. SOCKET BOLT (W/WASHERS)M5
24 6698405 CARBURETOR PACKING
25 6691337 SWIVEL CAP
26 6696550 CARBURETOR ASS'Y WYC-22
28 6696830 SWIVEL
29 6684696 STOP RING
30 6684692 PUMP GASKET
31 6684693 PUMP DIAPHRAGM
32 6691242 PUMP PLATE
34 6691312 SET SCREW
36 6684695 O-RING
38 6691234 CIRCUIT PLATE
39 6696828 PUMP BODY COMP.
40 6685220 DIAPHRAGM PACKING-METERING
41 6684690 METERING DIAPHRAGM
45 6696832 AIR CLEANER HOUSING
46 6685139 PRIMING PUMP COMP.
47A 6600704 CLEANER SPONGE
48 6696831 AIR CLEANER COVER
49 6696549 AIR CLEANER ASS'Y
52 6696530 CYLINDER PACKING
53 6696532 PISTON RING
54 6696531 PISTON
55 6684590 CIR CLIP
56 6696944 PISTON PIN
57 6696538 CRANK CASE (B) COMP
58 6696539 CRANK CASE PACKING
62 6696533 CRANK SHAFT COMP.
65 6699995 RECOIL STARTER BODY ASS'Y
66 6684679 SET SCREW
67 6699996 CAM PLATE
68 6684677 DAMPER SPRING
69 6699997 STARTER ROPE REEL
70 6684675 RECOIL SPRING
71 6684673 RECOIL STARTER BODY COMP.
73 6684680 STARTER HANDLE
77 6684681 STARTER PULLEY ASS'Y
77 6696471 STARTER PULLEY ASS'Y
78 6693633 SET SCREW
80 6684675 RECOIL SPRING
82 6693168 ROPE
83 6693227 STARTER HANDLE
84 6696572 RECOIL STARTER BODY ASS'Y
101 6696963 ANTI VIBE RUBBER (A)
102 6696542 PIPE HOLDER (A)
102 6698643 PIPE HOLDER (A)
104 6696543 PIPE HOLDER (B)
104 6698644 PIPE HOLDER (B)
105 6696964 ANTI VIBE RUBBER (B)
107 6695492 HEX. HOLE BOLT 5X22/S
108 6699159 FAN CASE (VERMILION)
109 6698790 CLUTCH SHAFT
109A 6696541 CLUTCH SHAFT COMP
110 6696469 STEP BOLT
111 6684648 BENT WASHER 8
112 6696546 CLUTCH PLATE (A)
113 6696948 CLUTCH
114 6696547 CLUTCH WASHER (B)
115 6685337 FLYWHEEL NUT
117 6699464 IGNITION COIL ASS'Y
121 6696544 CORD
122 6684899 WOODRUFF KEY 3X13X4.5
123 6696545 EARTH CORD
124 6699289 MAGNETO ROTOR
125 939542 RETAINING RING FOR D12 SHAFT
127 305812 TAPPING SCREW (W/FLANGE) D4X16 (BLACK)
128 6696942 HANDLE (B)
128 6696487 HANDLE (B)
129 6696490 LOCK LEVER
130 6696488 LEVER
131 6696489 SPRING (A)
132A 6601275 STOP SWITCH
133 6696491 STOP SWITCH CORD
134 6696967 PROTECTION TUBE
135 6696560 THROTTLE WIRE COMP.
136 6696941 HANDLE (A)
136 6696486 HANDLE (A)
137 6696569 TANK
139 6696574 BOLT (W/FLANGE) L17.8
139 6696557 FLANGE BOLT
140 6600351 PUMP FILTER
142 6698716 FUEL PIPE
144 6697846 RETURN GROMMET
145 6698931 FUEL GROMMET
146 6698402 FUEL TANK CAP ASS'Y
175 6696593 THROTTLE WIRE COMP.
179 6684714 HEX. HOLE BUTTON BOLT M6X25
180 6684709 HEX. HOLE BOLT M5X25/S
185 6696972 HANDLE HOLDER (A)
186 6696973 BARRIER
187 6696974 BOLT (BLACK) M6
188 949556 NUT M6
189 6696975 LOOP HANDLE
190 6699402 GEAR CASE ASS'Y 3BB (A)
192 6696977 CUTTER HOLDER (A)
193 6698659 CUTTER HOLDER (B)
194 6699188 NUT COVER
195 335759 U-NUT (LEFT HAND) M10
198 6698794 COVER
201 6698796 REEL
202 6698797 RETURN SPRING
203 6698798 BUTTON
204 6698799 CORD GUIDE
205 6698800 CASE
207 6696494 COVER BRACKET
208 6684714 HEX. HOLE BUTTON BOLT M6X25
209 6685064 HEX. SOCKET HD. BOLT (W/BUTTON) M6X20
216 6696558 MAIN PIPE COMP.
217 6698514 DRIVE SHAFT
220 6696950 COVER GUARD
221 6684751 TAPPING SCREW 4X14
222 6684750 KNIFE
223 6696951 GUARD HOLDER
224 6696980 GUARD
229 6685068 MACHINE SCREW (W/SP. WASHER) M4X12
229 6685068 MACHINE SCREW (W/SP. WASHER) M4X12
251 6684824 HEX. BOLT 6X50
252 6684823 HANDLE KNOB
253 6684822 SPECIAL WASHER B
254 6684829 HEX. SOCKET HD. BOLT M5X12
256 6684825 HEX. SOCKET HD. BOLT (W/BUTTON) M6
260 6684819 SPACER
262 939540 RETAINING RING FOR D10 SHAFT
264 6684814 DRIVE SHAFT A
265 6684705 HANGER
268 6684709 HEX. HOLE BOLT M5X25/S
269 6684817 JOINT CASE
270 6684828 CAP NUT 6
271 6684833 BUSHING
272 6697838 DRIVE SHAFT COMP
273 6684832 DRIVE SHAFT B 783L
281 6698325 FLEXIBLE SHAFT
289 6698809 GUARD
291 949424 WASHER M5
302 6685074 TAPPING SCREW D5X16
306 6684639 BOLT WASHER 6
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Hitachi websites, which we consider as reliable Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to hitachi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Hitachi CG22EAP2
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Hitachi CG22EAP2

Diagram Hitachi CG22EAP2

Download (1.11MB)

You might also like

Recoil Starter for Brushcutter Hitachi Tanaka CG22EAS/24-27EASP
HiKOKI Power Tools Italia S.p.a. SKU: 6699995
Recoil Starter for Brushcutter Hitachi Tanaka CG22EAS/24-27EASP
Recoil Starter for Brushcutters Hitachi Tanaka CG22EAS/24-27EASP Original spare part Hitachi Koky Tanaka, Recoil Starter for Brushcutters CG22EAS - CG24EASP - CG27EASP. Part for the following items: - Brushcutters CG22EAS -...
Last items in stock €33.10
Details
Priming Pump for Chain Saws and Brushcutters Hitachi Tanaka
HiKOKI Power Tools Italia S.p.a. SKU: 6685139
Priming Pump for Chain Saws and Brushcutters Hitachi Tanaka
Priming Pump for Chain Saws and Brushcutters Hitachi Tanaka Genuine spare Hitachi Koky Tanaka, Priming Pump complete for Brushcutters and Chain Saws Hitachi Tanaka. Parts for the following products: - BRUSHCUTTER CG47EF (L) -...
AVAILABLE €13.15
Details
Starter Pulley for Bruschcutters Hitachi CG22EAS-CG24EASP-CG27-33EJ
HiKOKI Power Tools Italia S.p.a. SKU: 6684681
Starter Pulley for Bruschcutters Hitachi CG22EAS-CG24EASP-CG27-33EJ
Starter Pulley for Bruschcutters Hitachi CG22EAS-CG24EASP-CG27-33EJ Genuine parts for Bruschcutters Hitachi Koky Tanaka, Starter Pulley Assembly for Brushcutters Recoil CG22EAS - CG24EASP - CG27EJ (SLNP) - CG33EJ-SL. For the following...
Last items in stock €23.26
Details
Damper Spring for Brushcutters Hitachi CG22EAS-CG24EASP-CG27EASP
HiKOKI Power Tools Italia S.p.a. SKU: 6684677
Damper Spring for Brushcutters Hitachi CG22EAS-CG24EASP-CG27EASP
Damper Spring for Brushcutters Hitachi CG22EAS-CG24EASP-CG27EASP Genuine spare parts Hitachi Koky Tanaka, Damper Spring for Brushcutters CG22EAS - CG24EASP - CG27EJ (SLNP) - CG27EASP - CG33EJ-SL Parts for the following products:...
Last items in stock €7.83
Details
Piston Ring for Brush Cutter end Hedge Trimmers Hitachi
HiKOKI Power Tools Italia S.p.a. SKU: 6696532
Piston Ring for Brush Cutter end Hedge Trimmers Hitachi
Piston Ring for Brush Cutter end Hedge Trimmers Hitachi Original spare Hitachi Koky Tanaka, Piston Ring for Brush Cutter end Hedge Trimmers Hitachi. Parts for the following products: - Brush Cutter CG22EAS - Hedge Trimmers CH22EBP2 -...
AVAILABLE €6.50
Details
Piston for Brush Cutter and Hedge Trimmer Hitachi Tanaka CG-CH
HiKOKI Power Tools Italia S.p.a. SKU: 6696531
Piston for Brush Cutter and Hedge Trimmer Hitachi Tanaka CG-CH
Piston for Brush Cutter and Hedge Trimmer Hitachi Tanaka CG-CH Original spare part Hitachi Koky Tanaka, Piston for Brush Cutter and Hedge trimmer Hitachi Tanaka CG-CH. Part for the followinf article: - Brush Cutter CG22EAS - Hedge...
Last items in stock €15.81
Details
Fuel Tank for Brushcutter Hitachi CG22EAS
HiKOKI Power Tools Italia S.p.a. SKU: 6696569
Fuel Tank for Brushcutter Hitachi CG22EAS
Fuel Tank for Brushcutter Hitachi CG22EAS Original spare Hitachi Koky Tanaka, Fuel Tank for Brushcutter Hitachi CG22EAS. Parts for the following products: - BRUSHCUTTER Hitachi CG22EAS - BRUSHCUTTER HITACHI CG22EAB - BRUSHCUTTER...
Last items in stock €10.63
Details
Ignition Coil for Brushcutters Hitachi Tanaka CG22EAS-CG24EASP
HiKOKI Power Tools Italia S.p.a. SKU: 6699464
Ignition Coil for Brushcutters Hitachi Tanaka CG22EAS-CG24EASP
Ignition Coil for Brushcutters Hitachi Tanaka CG22EAS-CG24EASP Genuine parts for Hitachi Koky Tanaka, Ignition Coil for Petrol Brushcutter 2 stoke CG22EAS - CG24EASP. Replace your old Ignition coil of your petrol brush...
Last items in stock €35.76
Details
Throttle Lever for Brushcutters Hitachi CG33EJ-LP-CG33EJ-SL Sale
HiKOKI Power Tools Italia S.p.a. SKU: 6696488
Throttle Lever for Brushcutters Hitachi CG22/27
Throttle Lever for Brushcutters Hitachi CG22/27 Genuine spare parts Hitachi Koky Tanaka, Throttle Lever for Brushcutters CG25EUS - CG22EAS - CG24EASP - CG27EASP - CH27EPAP - CS27EPAP.
AVAILABLE €5.17
Details
Coil Cord (BLACK) for Brushcutter Hitachi CG22EAS Sale
HiKOKI Power Tools Italia S.p.a. SKU: 6696544
Coil Cord (BLACK) for Brushcutter Hitachi CG22EAS
Coil Cord (BLACK) for Brushcutter Hitachi CG22EAS Original spare Hitachi Koky Tanaka, Coil Cord (BLACK) for Brushcutter Hitachi CG22EAS - CG24EASP. Parts for the following products: - BRUSHCUTTER HITACHI CG22EAS - BRUSHCUTTER HITACHI...
AVAILABLE €2.65
Details
Coil Rarth Cord (Yellow) for Brushcutter Hitachi CG22EAS Sale
HiKOKI Power Tools Italia S.p.a. SKU: 6696545
Coil Rarth Cord (Yellow) for Brushcutter Hitachi CG22EAS
Coil Rarth Cord (Yellow) for Brushcutter Hitachi CG22EAS Original spare Hitachi Koky Tanaka, Coil Rarth Cord (Yellow) for Brushcutter Hitachi CG22EAS - CG24EASP - CG27EASP. Parts for the following products: -  BRUSHCUTTER HITACHI...
AVAILABLE €2.65
Details
Diaphragm Packing Metering for Chainsaws Hitachi CS25-33-40-45-51
HiKOKI Power Tools Italia S.p.a. SKU: 6685220
Diaphragm Packing Metering for Chainsaws Hitachi CS25-33-40-45-51
Diaphragm Packing Metering for Chainsaws Hitachi CS25-33-40-45-51 Original parts for Chainsaw Hitachi Koky Tanaka, Diaphragm Packing Metering Gasket for Carburetor Chainsaws, CS25EC-SC-EU - CS33EDT - CS38EK - CS40EA - CS45EL - CS51EAP...
AVAILABLE €3.45
Details
Metering Diaphragm for Chainsaws Hitachi CS-33-40-51
HiKOKI Power Tools Italia S.p.a. SKU: 6684690
Metering Diaphragm for Chainsaws Hitachi CS-33-40-51
Metering Diaphragm for Chainsaws Hitachi CS-33-40-51 Original parts for Chainsaw Hitachi Koky Tanaka, Metering Diaphragm for Carburetor Chainsaws,CS33EDT - CS 33EB - CS40EA - TANAKA TCS-40EA - Hitachi CS51EAP -...
Last items in stock €25.81
Details
Retaining Ring D.10 for Hammer DH45ME - DH40MR
HiKOKI Power Tools Italia S.p.a. SKU: 939540
Retaining Ring D.10 for Hammer DH45ME - DH40MR
Retaining Ring D.10 for Rotary Hammers DH45ME - DH40MR Original spare parts HITACHI, Retaining Ring D.10 for Rotary Hammers DH45ME - DH40MR - Angle Grinder S23UBY - G23UBY...
AVAILABLE €0.35
Details
Pump Diaphragm for Chainsaw Hitachi CS33EB
HiKOKI Power Tools Italia S.p.a. SKU: 6684693
Pump Diaphragm for Chainsaw Hitachi CS33EB
Pump Diaphragm for Chainsaw Hitachi CS33EB Original parts Hitachi Koky Tanaka, Pump Diaphragm for Carburetor Chainsaw, CS33EB - CS 33EB - Brushcutters CG22EAS - CG24EKS - CG27EJ-SLNP...
Last items in stock €9.95
Details
Cylinder for Brushcutter Hitachi Tanaka CG22EAB (LP) Sale
HiKOKI Power Tools Italia S.p.a. SKU: 6696527
Cylinder for Brushcutter Hitachi Tanaka CG22EAB (LP)
Cylinder for Brushcutter Hitachi Tanaka CG22EAB (LP) Genuine spare part Hitachi Koky Tanaka, Cylinder for Brushcutters CG22EAB (LP) - CG22EAP2 (SP) - CG22EAS (SLP) Part for the following products: - Brushcutter Hitachi CG22EAB (LP) -...
Last items in stock €57.03
Details
Circuit Plate Gasket for Brushcutter Hitachi CG22EAS
HiKOKI Power Tools Italia S.p.a. SKU: 6691234
Circuit Plate Gasket for Brushcutter Hitachi CG22EAS
Circuit Plate Gasket for Brushcutter Hitachi CG22EAS Original parts Hitachi Koky Tanaka, Circuit Plate Gasket for Brushcutters CG22EAS - CG24EASP - CG27EASP Parts for the following products: - Brushcutter Hitachi...
AVAILABLE €6.64
Details
Carburator Cover Packing for Brushcutter Hitachi CG22EAS
HiKOKI Power Tools Italia S.p.a. SKU: 6696534
Carburator Cover Packing for Brushcutter Hitachi CG22EAS
Carburator Cover Packing for Brushcutter Hitachi CG22EAS Original parts Hitachi Koky Tanaka, Carburator Cover Packing for Brushcutters CG22EAS Parts for the following products: - Brushcutter Hitachi CG22EAS - Hedge Trimmer Hitachi...
Last items in stock €2.14
Details
Cylinder Gasket for Brushcutter Hitachi Tanaka CG22EAS
HiKOKI Power Tools Italia S.p.a. SKU: 6696530
Cylinder Gasket for Brushcutter Hitachi Tanaka CG22EAS
Cylinder Gasket for Brushcutter Hitachi Tanaka CG22EAS Genuine spare part Hitachi Koky Tanaka, Cylinder Gasket for Brushcutters CG22EAB - CG22EAS - Edge Trimmer Hitachi CH22EBP2 Part for the following products: - Brushcutter Hitachi...
AVAILABLE €2.16
Details
Piston Pin for Brushcutter Hitachi Tanaka CG22EAS
HiKOKI Power Tools Italia S.p.a. SKU: 6696944
Piston Pin for Brushcutter Hitachi Tanaka CG22EAS
Piston Pin for Brushcutter Hitachi Tanaka CG22EAS Genuine spare part Hitachi Koky Tanaka, Piston Pin for Brushcutters CG22EAB - CG22EAS - Edge Trimmer Hitachi CH22EBP2 Part for the following products: - Pump Hitachi A25EB(N) -...
Last items in stock €7.30
Details
Air Filter Housing for Brushcutter Hitachi Tanaka CG22EAB
HiKOKI Power Tools Italia S.p.a. SKU: 6696832
Air Filter Housing for Brushcutter Hitachi Tanaka CG22EAB
Air Filter Housing for Brushcutter Hitachi Tanaka CG22EAB Original spare part Hitachi, Air Cleaner Housing for Brushcutters CG22EAB(LP) - CG22EAP2(SL) - CG22EAS(SLP) -  CG24EAP2(SL) -  CG24EBSP(SL) -  CG27EAP2(SL) Part for the...
Last items in stock €22.46
Details
Circlip for Brushcutter Hitachi CG 24EBS
HiKOKI Power Tools Italia S.p.a. SKU: 6684590
Circlip for Brushcutter Hitachi CG 24EBS
Circlip for Brushcutter Hitachi CG 24EBS Original replacement part Hitachi Koky Tanaka, Piston Pin Circlip for Brushcutters, Chainsaws, Hedgecutters Hitachi - Tanaka. Part for the following...
Last items in stock €1.57
Details
Button for Brushcutter Hitachi CG22EAS
HiKOKI Power Tools Italia S.p.a. SKU: 6698798
Button for Brushcutter Hitachi CG22EAS
Button for Brushcutter Hitachi CG22EAS Original spare Hitachi HiKoki Tanaka, Nylon Head Button for Brushcutter Hitachi CG22EAS - CG24EASP - CG27EASP. Parts for the following products: -  BRUSHCUTTER HITACHI CG22EAS -  BRUSHCUTTER...
Last items in stock €10.60
Details
Anti Vibe Rubber (A) for Brushcutter Hitachi CG22EAB
HiKOKI Power Tools Italia S.p.a. SKU: 6696963
Anti Vibe Rubber (A) for Brushcutter Hitachi CG22EAB
Anti Vibe Rubber (A) for Brushcutter Hitachi CG22EAB Original spare part Hitachi, Anti Vibe Rubber (A) for Brushcutters CG22EAB(LP) - CG22EAP2(SL) - CG22EAS(SLP) -  CG24EAP2(SL) -  CG24EBSP(SL) -  CG27EAP2(SL) Part for the following...
on 7/10 Business Days Approx €4.44
Details
Hitachi CG22EAS Gear Case
HiKOKI Power Tools Italia S.p.a. SKU: 6699402
Hitachi CG22EAS Gear Case
Hitachi Gear Case for Brushcutter CG40EAS Genuine spare part Hoitachi HIKOKI Tanaka, Gear Case Ass'y for Brushcutter CG22EAS - CG25EUP2 - TCG 27EASP. Part for the following products: - Brushcutter Hitachi...
Last items in stock €86.29
Details
Comments (0)
