HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Engine Brush Cutter CG22EAB

SKU: Hitachi CG22EAB
€1.04
VAT included

Hitachi Spare Parts for Engine Brush Cutter CG22EAB

Hitachi-HIKOKI Original spare parts sourced from the manufacturer, at the lowest price on the web, with after-sales service, for to make maintenance or repair deteriorated parts for Engine Brush Cutter CG22EAB.
Hitachi Spare Parts for Engine Brush Cutter CG22EAB
  • Hitachi Spare Parts for Engine Brush Cutter CG22EAB
  • Hitachi Spare Parts for Engine Brush Cutter CG22EAB
  • Hitachi Spare Parts for Engine Brush Cutter CG22EAB
  • Hitachi Spare Parts for Engine Brush Cutter CG22EAB
  • Hitachi Spare Parts for Engine Brush Cutter CG22EAB
  • Hitachi Spare Parts for Engine Brush Cutter CG22EAB
HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Engine Brush Cutter CG22EAB

SKU: Hitachi CG22EAB Condition: New
€1.04
VAT included

Hitachi Spare Parts for Engine Brush Cutter CG22EAB

Hitachi-HIKOKI Original spare parts sourced from the manufacturer, at the lowest price on the web, with after-sales service, for to make maintenance or repair deteriorated parts for Engine Brush Cutter CG22EAB.
settings 174 spare parts
description 3 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 7/10 Business Days Approx

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
164 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

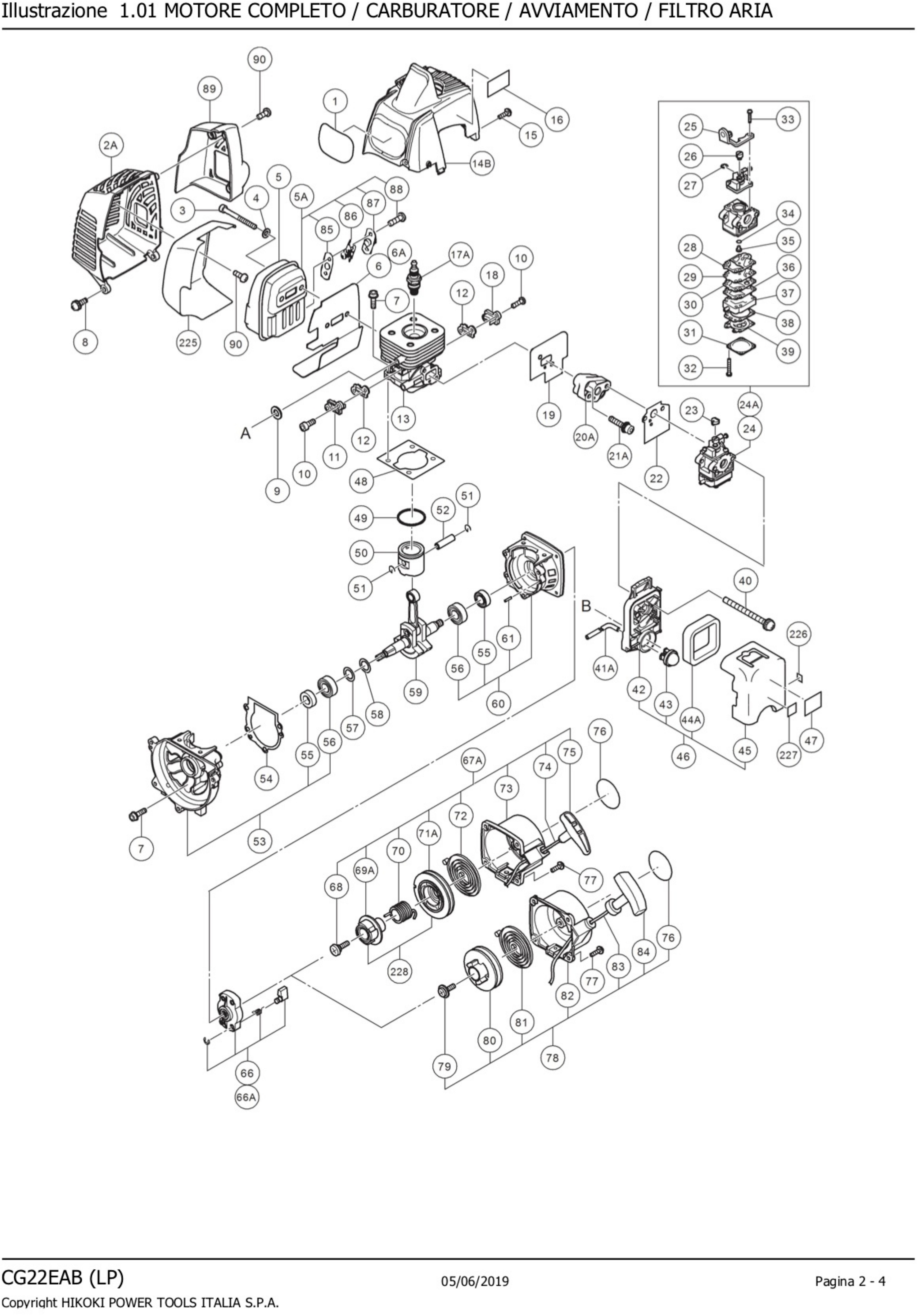

Esploso pagina 1
Pos. Item Price Buy
3
 photo_cameraImage coming soon 6684638 HEX. HOLE BOLT M6X55 €1.93
5
 photo_cameraImage coming soon 6696554 MUFFLER €57.96
6A
 photo_cameraImage coming soon 6600320 HEAT PROTECTION PANEL €2.63
7
 Bolt M5X18/S for Chainsaws Hitachi CS38EK-CS45EL 6684586 Bolt M5X18/S for Chainsaws Hitachi CS38EK-CS45EL €1.98
10
 photo_cameraImage coming soon 6684595 HEX. SOCKET HD. BOLT (W/SP.WASHER) M4X12 €1.71
11
 photo_cameraImage coming soon 6696536 INTAKE COVER (B) €2.16
12
 Carburator Cover Packing for Brushcutter Hitachi CG22EAS 6696534 Carburator Cover Packing for Brushcutter Hitachi CG22EAS €2.14
13
 Cylinder for Brushcutter Hitachi Tanaka CG22EAB (LP) 6696527 Cylinder for Brushcutter Hitachi Tanaka CG22EAB (LP) €57.03
14B
 photo_cameraImage coming soon 6600424 CYLINDER COVER €5.98
18
 photo_cameraImage coming soon 6696535 INTAKE COVER (A) €2.25
19
 photo_cameraImage coming soon 6696548 INTAKE PACKING €2.58
20A
 Hitachi CH22EBP2 Carburetor Insulator 6698387 Hitachi CH22EBP2 Carburetor Insulator €6.29
21A
 photo_cameraImage coming soon 6698844 SEAL LOCK HEX. SOCKET BOLT (W/WASHERS)M5 €2.16
22
 photo_cameraImage coming soon 6684616 CARBURETOR PACKING €1.98
24
 photo_cameraImage coming soon 6696550 CARBURETOR ASS'Y WYC-22 €99.49
24A
 photo_cameraImage coming soon 6698474 CARBURETOR ASS'Y WYC-28 €114.89
27
 photo_cameraImage coming soon 6684696 STOP RING €1.76
28
 photo_cameraImage coming soon 6684692 PUMP GASKET €26.45
29
 Pump Diaphragm for Chainsaw Hitachi CS33EB 6684693 Pump Diaphragm for Chainsaw Hitachi CS33EB €9.95
30
 photo_cameraImage coming soon 6691242 PUMP PLATE €5.81
32
 photo_cameraImage coming soon 6691312 SET SCREW €2.48
34
 photo_cameraImage coming soon 6684695 ORING €3.16
36
 Circuit Plate Gasket for Brushcutter Hitachi CG22EAS 6691234 Circuit Plate Gasket for Brushcutter Hitachi CG22EAS €6.64
38
 Diaphragm Packing Metering for Chainsaws Hitachi CS25-33-40-45-51 6685220 Diaphragm Packing Metering for Chainsaws Hitachi CS25-33-40-45-51 €3.45
39
 Metering Diaphragm for Chainsaws Hitachi CS-33-40-51 6684690 Metering Diaphragm for Chainsaws Hitachi CS-33-40-51 €25.81
41A
 photo_cameraImage coming soon 6698720 FUEL PIPE €7.10
42
 Air Filter Housing for Brushcutter Hitachi Tanaka CG22EAB 6696832 Air Filter Housing for Brushcutter Hitachi Tanaka CG22EAB €22.46
43
 Priming Pump for Chain Saws and Brushcutters Hitachi Tanaka 6685139 Priming Pump for Chain Saws and Brushcutters Hitachi Tanaka €13.15
44A
 photo_cameraImage coming soon 6600704 CLEANER SPONGE €6.47
45
 photo_cameraImage coming soon 6696831 AIR CLEANER COVER €15.50
46
 photo_cameraImage coming soon 6696549 AIR CLEANER ASS'Y €15.50
48
 Cylinder Gasket for Brushcutter Hitachi Tanaka CG22EAS 6696530 Cylinder Gasket for Brushcutter Hitachi Tanaka CG22EAS €2.16
49
 Piston Ring for Brush Cutter end Hedge Trimmers Hitachi 6696532 Piston Ring for Brush Cutter end Hedge Trimmers Hitachi €6.50
50
 Piston for Brush Cutter and Hedge Trimmer Hitachi Tanaka CG-CH 6696531 Piston for Brush Cutter and Hedge Trimmer Hitachi Tanaka CG-CH €15.81
51
 Circlip for Brushcutter Hitachi CG 24EBS 6684590 Circlip for Brushcutter Hitachi CG 24EBS €1.57
52
 Piston Pin for Brushcutter Hitachi Tanaka CG22EAS 6696944 Piston Pin for Brushcutter Hitachi Tanaka CG22EAS €7.30
53
 photo_cameraImage coming soon 6696538 CRANK CASE (B) COMP €28.27
54
 photo_cameraImage coming soon 6696539 CRANK CASE PACKING €2.25
59
 photo_cameraImage coming soon 6696533 CRANK SHAFT COMP. €73.45
66
 Starter Pulley for Bruschcutters Hitachi CG22EAS-CG24EASP-CG27-33EJ 6684681 Starter Pulley for Bruschcutters Hitachi CG22EAS-CG24EASP-CG27-33EJ €23.26
66A
 photo_cameraImage coming soon 6696471 STARTER PULLEY ASS'Y €9.04
67A
 Recoil Starter for Brushcutter Hitachi Tanaka CG22EAS/24-27EASP 6699995 Recoil Starter for Brushcutter Hitachi Tanaka CG22EAS/24-27EASP €33.10
68
 Set Screw for Hedge Trimmer Hitachi CH62EA(ST) 6684679 Set Screw for Hedge Trimmer Hitachi CH62EA(ST) €6.81
69A
 photo_cameraImage coming soon 6699996 CAM PLATE FOR (S) TYPE SINCE 9.2013 FOR AUS €5.81
70
 Damper Spring for Brushcutters Hitachi CG22EAS-CG24EASP-CG27EASP 6684677 Damper Spring for Brushcutters Hitachi CG22EAS-CG24EASP-CG27EASP €7.83
71A
 photo_cameraImage coming soon 6699997 STARTER ROPE REEL €6.45
72
 photo_cameraImage coming soon 6684675 RECOIL SPRING €12.16
73
 photo_cameraImage coming soon 6684673 RECOIL STARTER BODY COMP. €17.27
78
 Recoil Starter Assembly for Blower Hitachi RB24EAP 6696572 Recoil Starter Assembly for Blower Hitachi RB24EAP €26.45
79
 photo_cameraImage coming soon 6693633 SET SCREW €1.74
81
 photo_cameraImage coming soon 6684675 RECOIL SPRING €12.16
83
 photo_cameraImage coming soon 6693168 ROPE €3.26
84
 photo_cameraImage coming soon 6693227 STARTER HANDLE €6.94
85
 photo_cameraImage coming soon 6684650 MUFFLER SPECIAL GASKET €1.51
86
 photo_cameraImage coming soon 6684652 SPARK ARRESTOR €2.64
88
 photo_cameraImage coming soon 6685068 MACHINE SCREW (W/SP. WASHER) M4X12 €1.93
89
 photo_cameraImage coming soon 6600339 MUFFLER REAR COVER €6.88
98
 photo_cameraImage coming soon 6696560 THROTTLE WIRE COMP. €9.03
101
 Anti Vibe Rubber (A) for Brushcutter Hitachi CG22EAB 6696963 Anti Vibe Rubber (A) for Brushcutter Hitachi CG22EAB €4.44
102
 photo_cameraImage coming soon 6696542 PIPE HOLDER (A) €2.58
104
 photo_cameraImage coming soon 6696543 PIPE HOLDER (B) €2.58
105
 photo_cameraImage coming soon 6696964 ANTI VIBE RUBBER (B) €5.81
106
 photo_cameraImage coming soon 6684667 HEX.HOLE BOLT M5X12/S €1.93
108B
 photo_cameraImage coming soon 6699159 FAN CASE (VERMILION) €17.94
109A
 photo_cameraImage coming soon 6698790 CLUTCH SHAFT €19.44
110
 photo_cameraImage coming soon 6696469 STEP BOLT €1.93
111
 photo_cameraImage coming soon 6684648 BENT WASHER 8 €1.98
112
 photo_cameraImage coming soon 6696546 CLUTCH PLATE (A) €2.58
113
 photo_cameraImage coming soon 6696948 CLUTCH €25.81
114
 photo_cameraImage coming soon 6696547 CLUTCH WASHER (B) €2.58
115
 Flywheel Nut for Chainsaw Hitachi CS33EB 6685337 Flywheel Nut for Chainsaw Hitachi CS33EB €2.49
117B
 Ignition Coil for Brushcutters Hitachi Tanaka CG22EAS-CG24EASP 6699464 Ignition Coil for Brushcutters Hitachi Tanaka CG22EAS-CG24EASP €35.76
121
 Coil Cord (BLACK) for Brushcutter Hitachi CG22EAS 6696544 Coil Cord (BLACK) for Brushcutter Hitachi CG22EAS €2.65
123
 Coil Rarth Cord (Yellow) for Brushcutter Hitachi CG22EAS 6696545 Coil Rarth Cord (Yellow) for Brushcutter Hitachi CG22EAS €2.65
124A
 photo_cameraImage coming soon 6699289 MAGNETO ROTOR ASS'Y €31.63
127
 photo_cameraImage coming soon 6696487 HANDLE (B) €9.04
127
 photo_cameraImage coming soon 6696942 HANDLE (B) €6.14
128
 photo_cameraImage coming soon 6696490 LOCK LEVER €1.93
129
 Throttle Lever for Brushcutters Hitachi CG22/27 6696488 Throttle Lever for Brushcutters Hitachi CG22/27 €5.17
130
 photo_cameraImage coming soon 6696489 SPRING (A) €2.30
131A
 photo_cameraImage coming soon 6601275 STOP SWITCH €2.62
132
 photo_cameraImage coming soon 6696491 STOP SWITCH CORD €4.23
133
 photo_cameraImage coming soon 6696967 PROTECTION TUBE €2.30
134
 photo_cameraImage coming soon 6696486 HANDLE (A) €9.04
134
 photo_cameraImage coming soon 6696941 HANDLE (A) €6.14
135
 Fuel Tank for Brushcutter Hitachi CG22EAS 6696569 Fuel Tank for Brushcutter Hitachi CG22EAS €10.63
136A
 photo_cameraImage coming soon 6600351 PUMP FILTER €5.32
139
 photo_cameraImage coming soon 6696557 FLANGE BOLT €1.93
139
 photo_cameraImage coming soon 6696574 BOLT (W/FLANGE) L17.8 €2.58
140A
 photo_cameraImage coming soon 6698716 FUEL PIPE €5.16
142A
 photo_cameraImage coming soon 6697846 RETURN GROMMET €1.79
144A
 Fuel Tank Cap for Brushcutter Hitachi CG24ECP (SL) 6698402 Fuel Tank Cap for Brushcutter Hitachi CG24ECP (SL) €9.73
145
 photo_cameraImage coming soon 6684899 WOODRUFF KEY 3X13X4.5 €1.68
146
 photo_cameraImage coming soon 6699463 MAGNETO KEY SET €43.75
163
 photo_cameraImage coming soon 6696975 LOOP HANDLE €7.47
165
 photo_cameraImage coming soon 6698325 FLEXIBLE SHAFT €26.16
169
 photo_cameraImage coming soon 6698323 FLEXIBLE LINER €19.04
170
 photo_cameraImage coming soon 6696972 HANDLE HOLDER (A) €1.65
171
 photo_cameraImage coming soon 6696974 BOLT (BLACK) M6 €2.58
174
 photo_cameraImage coming soon 6698322 MAIN PIPE €64.14
177A
 photo_cameraImage coming soon 6698809 GUARD €38.40
184
 photo_cameraImage coming soon 608VVM BALL BEARING 608VVC2PS2L €7.12
186
 photo_cameraImage coming soon 608DDM BALL BEARING 608DDC2PS2L €7.07
192
 photo_cameraImage coming soon 6698336 MAIN PIPE (A) €88.36
195
 photo_cameraImage coming soon 6685074 TAPPING SCREW D5X16 €1.93
202
 photo_cameraImage coming soon 608DDM BALL BEARING 608DDC2PS2L €7.07
208
 Bolt Washer 6 for Brushcutters Chainsaws Hitachi Hikoki Tanaka 6684639 Bolt Washer 6 for Brushcutters Chainsaws Hitachi Hikoki Tanaka €1.98
216
 Button for Brushcutter Hitachi CG22EAS 6698798 Button for Brushcutter Hitachi CG22EAS €10.60
217
 photo_cameraImage coming soon 6698799 CORD GUIDE €10.01
218
 photo_cameraImage coming soon 6698800 CASE €18.02
225
 photo_cameraImage coming soon 6600340 MUFFER HEAT COVER €10.32
228
 photo_cameraImage coming soon 6699691 CAMPLATE ASS'Y €11.62
Page 2 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

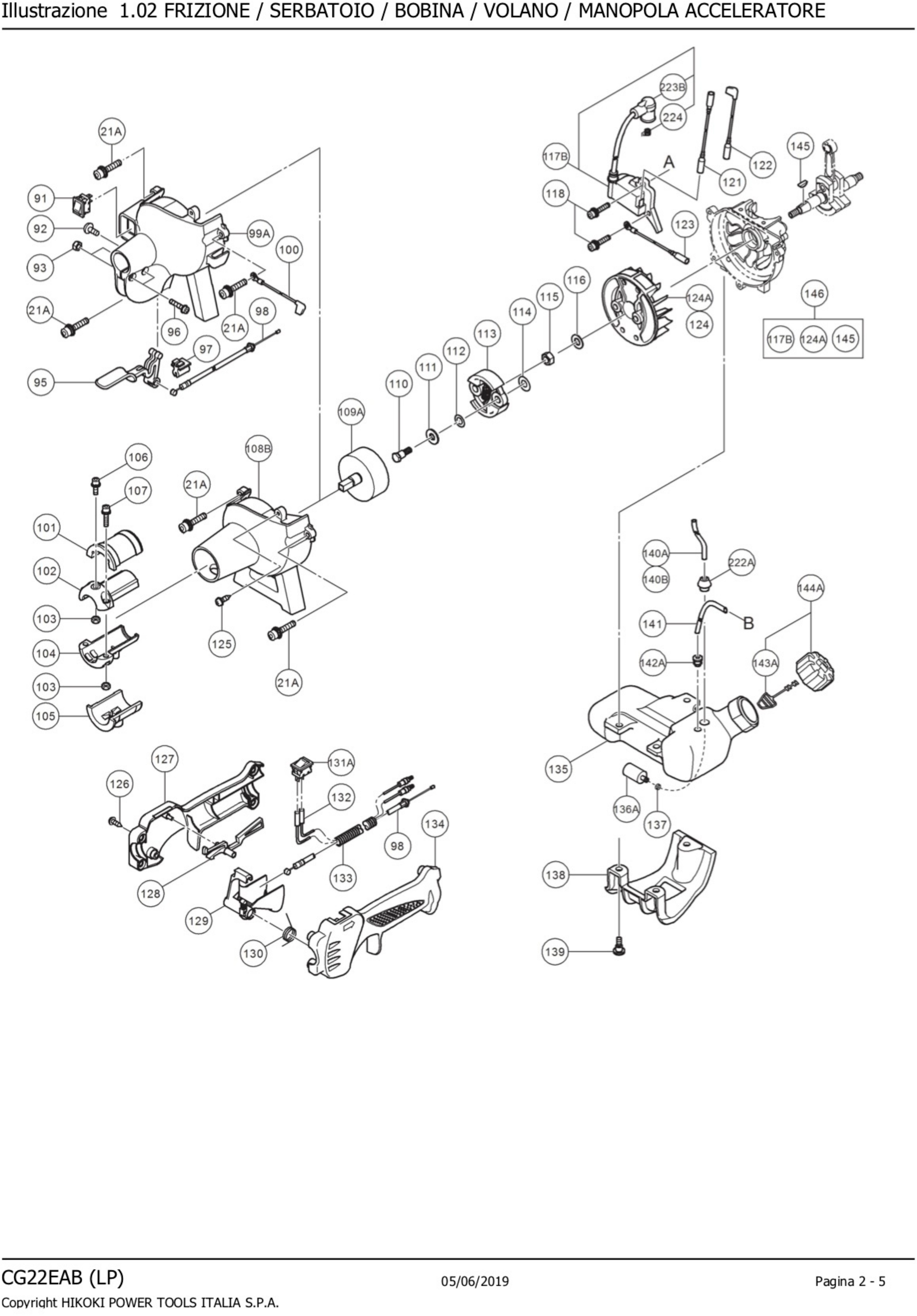

Esploso pagina 2
Pos. Item Price Buy
98
 photo_cameraImage coming soon 6696560 THROTTLE WIRE COMP. €9.03
101
 Anti Vibe Rubber (A) for Brushcutter Hitachi CG22EAB 6696963 Anti Vibe Rubber (A) for Brushcutter Hitachi CG22EAB €4.44
102
 photo_cameraImage coming soon 6696542 PIPE HOLDER (A) €2.58
104
 photo_cameraImage coming soon 6696543 PIPE HOLDER (B) €2.58
105
 photo_cameraImage coming soon 6696964 ANTI VIBE RUBBER (B) €5.81
106
 photo_cameraImage coming soon 6684667 HEX.HOLE BOLT M5X12/S €1.93
108B
 photo_cameraImage coming soon 6699159 FAN CASE (VERMILION) €17.94
109A
 photo_cameraImage coming soon 6698790 CLUTCH SHAFT €19.44
110
 photo_cameraImage coming soon 6696469 STEP BOLT €1.93
111
 photo_cameraImage coming soon 6684648 BENT WASHER 8 €1.98
112
 photo_cameraImage coming soon 6696546 CLUTCH PLATE (A) €2.58
113
 photo_cameraImage coming soon 6696948 CLUTCH €25.81
114
 photo_cameraImage coming soon 6696547 CLUTCH WASHER (B) €2.58
115
 Flywheel Nut for Chainsaw Hitachi CS33EB 6685337 Flywheel Nut for Chainsaw Hitachi CS33EB €2.49
117B
 Ignition Coil for Brushcutters Hitachi Tanaka CG22EAS-CG24EASP 6699464 Ignition Coil for Brushcutters Hitachi Tanaka CG22EAS-CG24EASP €35.76
121
 Coil Cord (BLACK) for Brushcutter Hitachi CG22EAS 6696544 Coil Cord (BLACK) for Brushcutter Hitachi CG22EAS €2.65
123
 Coil Rarth Cord (Yellow) for Brushcutter Hitachi CG22EAS 6696545 Coil Rarth Cord (Yellow) for Brushcutter Hitachi CG22EAS €2.65
124A
 photo_cameraImage coming soon 6699289 MAGNETO ROTOR ASS'Y €31.63
127
 photo_cameraImage coming soon 6696487 HANDLE (B) €9.04
127
 photo_cameraImage coming soon 6696942 HANDLE (B) €6.14
128
 photo_cameraImage coming soon 6696490 LOCK LEVER €1.93
129
 Throttle Lever for Brushcutters Hitachi CG22/27 6696488 Throttle Lever for Brushcutters Hitachi CG22/27 €5.17
130
 photo_cameraImage coming soon 6696489 SPRING (A) €2.30
131A
 photo_cameraImage coming soon 6601275 STOP SWITCH €2.62
132
 photo_cameraImage coming soon 6696491 STOP SWITCH CORD €4.23
133
 photo_cameraImage coming soon 6696967 PROTECTION TUBE €2.30
134
 photo_cameraImage coming soon 6696486 HANDLE (A) €9.04
134
 photo_cameraImage coming soon 6696941 HANDLE (A) €6.14
135
 Fuel Tank for Brushcutter Hitachi CG22EAS 6696569 Fuel Tank for Brushcutter Hitachi CG22EAS €10.63
136A
 photo_cameraImage coming soon 6600351 PUMP FILTER €5.32
139
 photo_cameraImage coming soon 6696557 FLANGE BOLT €1.93
139
 photo_cameraImage coming soon 6696574 BOLT (W/FLANGE) L17.8 €2.58
140A
 photo_cameraImage coming soon 6698716 FUEL PIPE €5.16
142A
 photo_cameraImage coming soon 6697846 RETURN GROMMET €1.79
144A
 Fuel Tank Cap for Brushcutter Hitachi CG24ECP (SL) 6698402 Fuel Tank Cap for Brushcutter Hitachi CG24ECP (SL) €9.73
145
 photo_cameraImage coming soon 6684899 WOODRUFF KEY 3X13X4.5 €1.68
146
 photo_cameraImage coming soon 6699463 MAGNETO KEY SET €43.75
Page 3 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

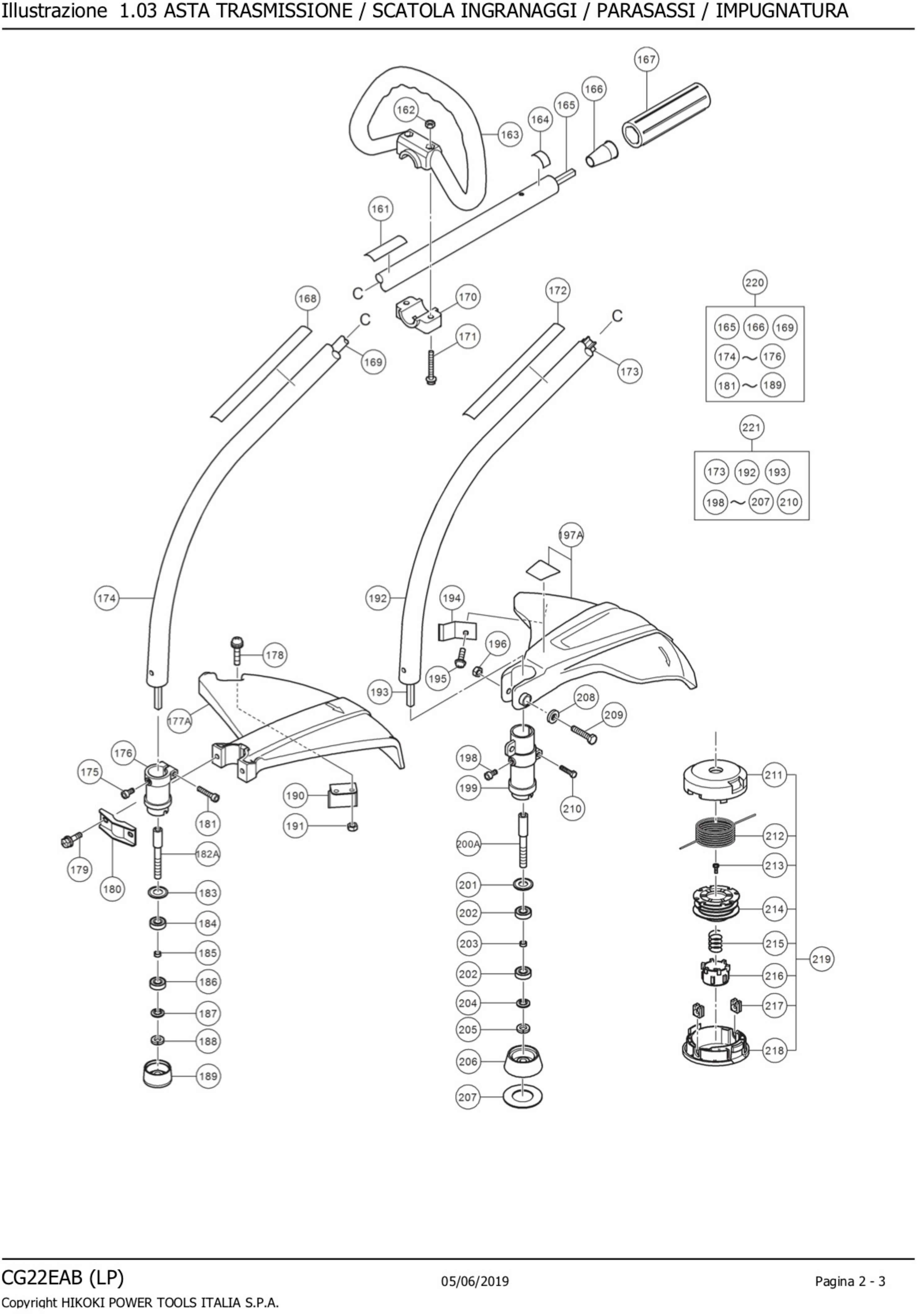

Esploso pagina 3
Pos. Item Price Buy
163
 photo_cameraImage coming soon 6696975 LOOP HANDLE €7.47
165
 photo_cameraImage coming soon 6698325 FLEXIBLE SHAFT €26.16
169
 photo_cameraImage coming soon 6698323 FLEXIBLE LINER €19.04
170
 photo_cameraImage coming soon 6696972 HANDLE HOLDER (A) €1.65
171
 photo_cameraImage coming soon 6696974 BOLT (BLACK) M6 €2.58
174
 photo_cameraImage coming soon 6698322 MAIN PIPE €64.14
177A
 photo_cameraImage coming soon 6698809 GUARD €38.40
184
 photo_cameraImage coming soon 608VVM BALL BEARING 608VVC2PS2L €7.12
186
 photo_cameraImage coming soon 608DDM BALL BEARING 608DDC2PS2L €7.07
192
 photo_cameraImage coming soon 6698336 MAIN PIPE (A) €88.36
195
 photo_cameraImage coming soon 6685074 TAPPING SCREW D5X16 €1.93
208
 Bolt Washer 6 for Brushcutters Chainsaws Hitachi Hikoki Tanaka 6684639 Bolt Washer 6 for Brushcutters Chainsaws Hitachi Hikoki Tanaka €1.98
216
 Button for Brushcutter Hitachi CG22EAS 6698798 Button for Brushcutter Hitachi CG22EAS €10.60
217
 photo_cameraImage coming soon 6698799 CORD GUIDE €10.01
218
 photo_cameraImage coming soon 6698800 CASE €18.02
Page 4 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

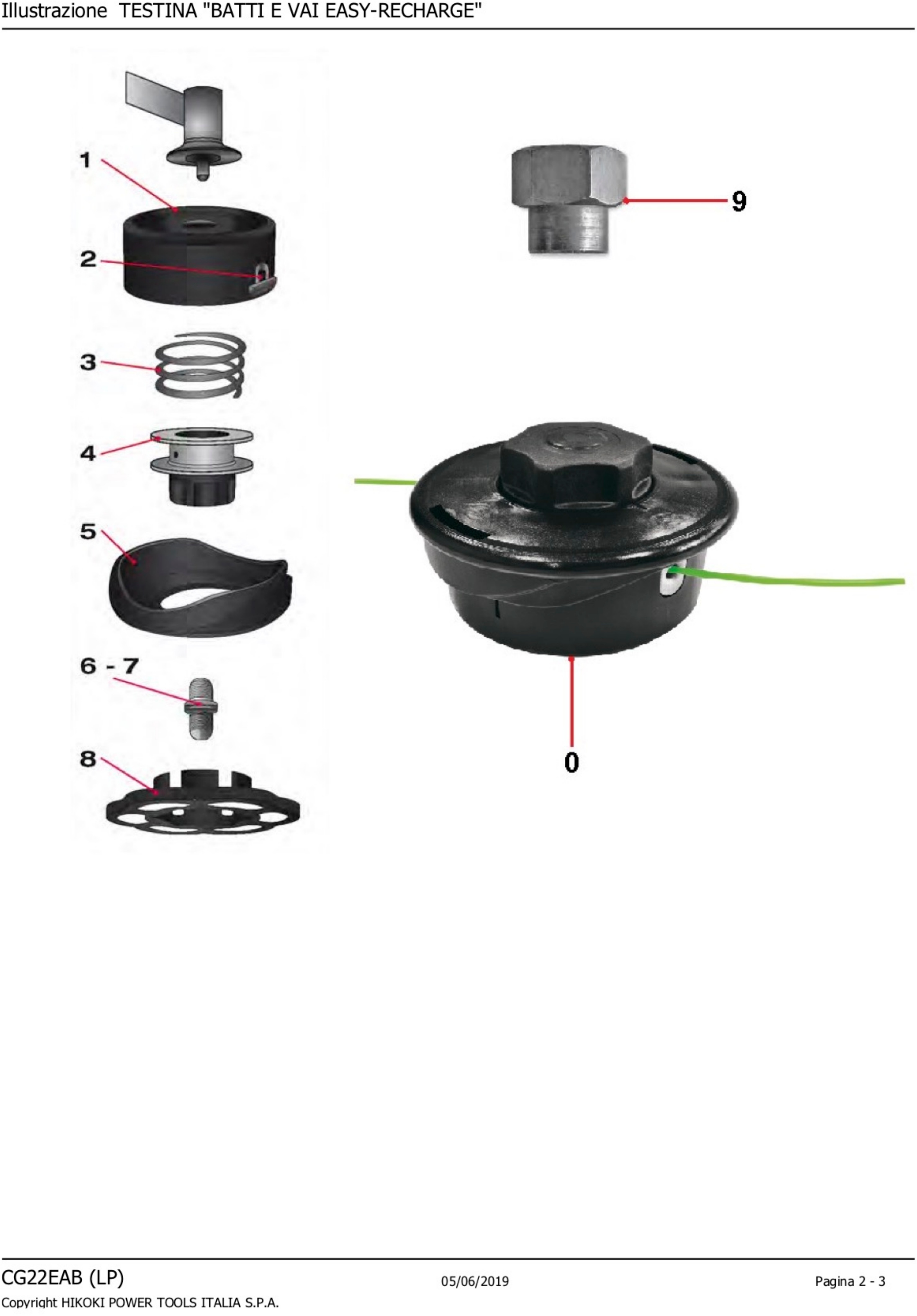

Esploso pagina 4
info_outline

No spare parts mapped to this page.
Check the other pages for available parts.

Page 5 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

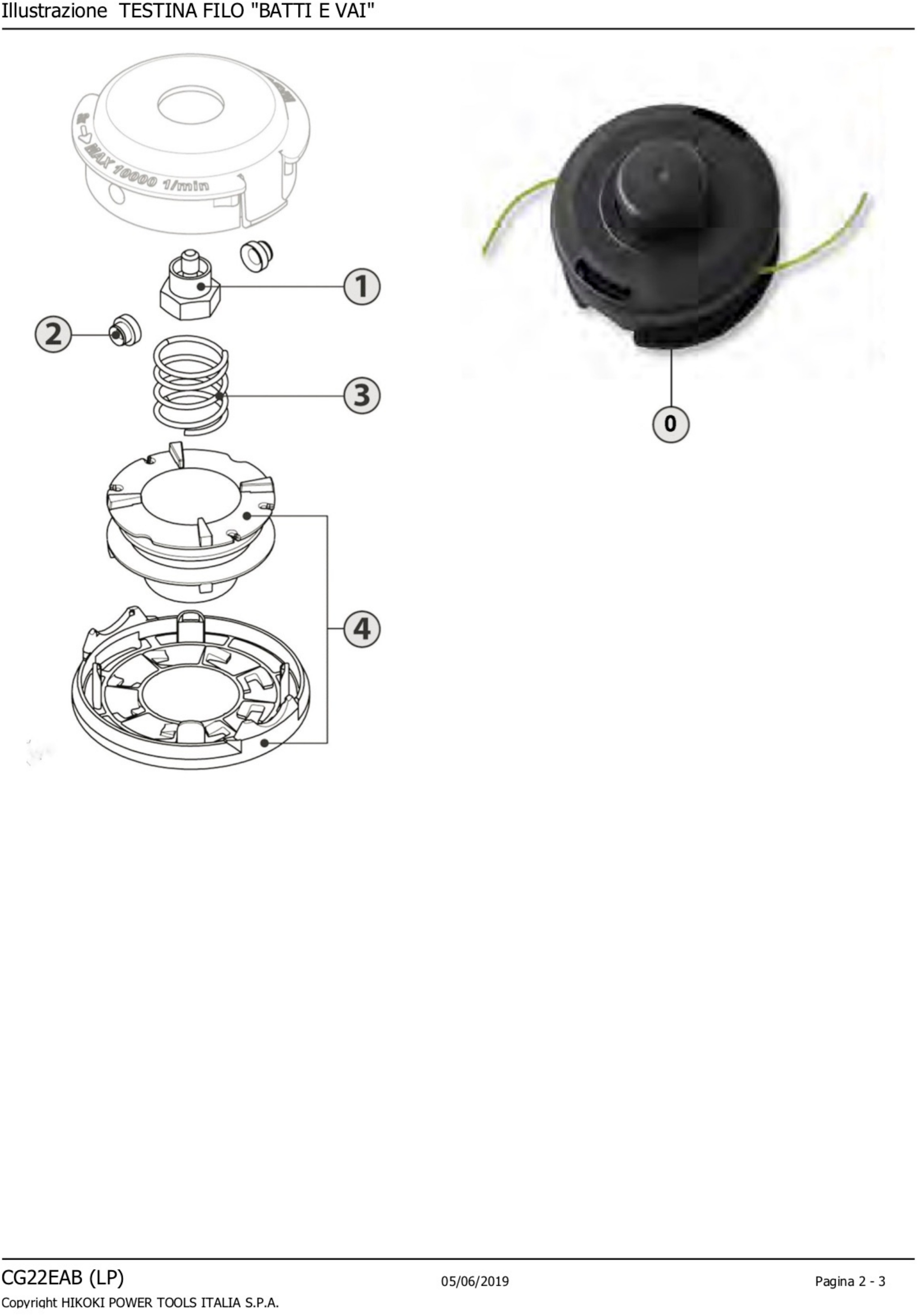

Esploso pagina 5
info_outline

No spare parts mapped to this page.
Check the other pages for available parts.

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Hitachi Spare Parts for Engine Brush Cutter CG22EAB

Hitachi-HIKOKI Original spare parts sourced from the manufacturer, at the lowest price on the web, with after-sales service, for to make maintenance or repair deteriorated parts for Engine Brush Cutter CG22EAB.

In the following table, look for the model of the Brush Cutter and ripettivo spare part.
Engine Brush Cutter CG22EAB

Brush Cutter CG22EAB
# Part Num. Description
2A 6600337 MUFFLER PROTECTOR
3 6684638 HEX. HOLE BOLT M6X55
5 6696554 MUFFLER
6A 6600320 HEAT PROTECTION PANEL
7 6684586 HEX.HOLE BOLT M5X18/S
10 6684595 HEX. SOCKET HD. BOLT (W/SP.WASHER) M4X12
11 6696536 INTAKE COVER (B)
12 6696534 COVER PACKING
13 6696527 CYLINDER
14B 6600424 CYLINDER COVER
18 6696535 INTAKE COVER (A)
19 6696548 INTAKE PACKING
20A 6698387 CARBURETOR INSULATOR
21A 6698844 SEAL LOCK HEX. SOCKET BOLT (W/WASHERS)M5
22 6684616 CARBURETOR PACKING
24 6696550 CARBURETOR ASS'Y WYC-22
24A 6698474 CARBURETOR ASS'Y WYC-28
27 6684696 STOP RING
28 6684692 PUMP GASKET
29 6684693 PUMP DIAPHRAGM
30 6691242 PUMP PLATE
32 6691312 SET SCREW
34 6684695 O-RING
36 6691234 CIRCUIT PLATE
38 6685220 DIAPHRAGM PACKING-METERING
39 6684690 METERING DIAPHRAGM
41A 6698720 FUEL PIPE
42 6696832 AIR CLEANER HOUSING
43 6685139 PRIMING PUMP COMP.
44A 6600704 CLEANER SPONGE
45 6696831 AIR CLEANER COVER
46 6696549 AIR CLEANER ASS'Y
48 6696530 CYLINDER PACKING
49 6696532 PISTON RING
50 6696531 PISTON
51 6684590 CIR CLIP
52 6696944 PISTON PIN
53 6696538 CRANK CASE (B) COMP
54 6696539 CRANK CASE PACKING
59 6696533 CRANK SHAFT COMP.
66 6684681 STARTER PULLEY ASS'Y
66A 6696471 STARTER PULLEY ASS'Y
67A 6699995 RECOIL STARTER BODY ASS'Y
68 6684679 SET SCREW
69A 6699996 CAM PLATE
70 6684677 DAMPER SPRING
71A 6699997 STARTER ROPE REEL
72 6684675 RECOIL SPRING
73 6684673 RECOIL STARTER BODY COMP.
75 6684680 STARTER HANDLE
78 6696572 RECOIL STARTER BODY ASS'Y
79 6693633 SET SCREW
81 6684675 RECOIL SPRING
83 6693168 ROPE
84 6693227 STARTER HANDLE
85 6684650 MUFFLER SPECIAL GASKET
86 6684652 SPARK ARRESTOR
88 6685068 MACHINE SCREW (W/SP. WASHER) M4X12
89 6600339 MUFFLER REAR COVER
98 6696560 THROTTLE WIRE COMP.
101 6696963 ANTI VIBE RUBBER (A)
102 6696542 PIPE HOLDER (A)
104 6696543 PIPE HOLDER (B)
105 6696964 ANTI VIBE RUBBER (B)
106 6684667 HEX.HOLE BOLT M5X12/S
108B 6699159 FAN CASE (VERMILION)
109A 6698790 CLUTCH SHAFT
110 6696469 STEP BOLT
111 6684648 BENT WASHER 8
112 6696546 CLUTCH PLATE (A)
113 6696948 CLUTCH
114 6696547 CLUTCH WASHER (B)
115 6685337 FLYWHEEL NUT
117B 6699464 IGNITION COIL ASS'Y
121 6696544 CORD
123 6696545 EARTH CORD
124A 6699289 MAGNETO ROTOR
125 6684636 TAPPING SCREW D4.5X16
126 305812 TAPPING SCREW (W/FLANGE) D4X16 (BLACK)
127 6696487 HANDLE (B)
127 6696942 HANDLE (B)
128 6696490 LOCK LEVER
129 6696488 LEVER
130 6696489 SPRING (A)
131A 6601275 STOP SWITCH
132 6696491 STOP SWITCH CORD
133 6696967 PROTECTION TUBE
134 6696486 HANDLE (A)
134 6696941 HANDLE (A)
135 6696569 TANK
136A 6600351 PUMP FILTER
139 6696557 FLANGE BOLT
139 6696574 BOLT (W/FLANGE) L17.8
140A 6698716 FUEL PIPE
142A 6697846 RETURN GROMMET
144A 6698402 FUEL TANK CAP ASS'Y
145 6684899 WOODRUFF KEY 3X13X4.5
146 6699463 MAGNETO KEY SET
162 949556 NUT M6
163 6696975 LOOP HANDLE
165 6698325 FLEXIBLE SHAFT
169 6698323 FLEXIBLE LINER
170 6696972 HANDLE HOLDER (A)
171 6696974 BOLT (BLACK) M6
174 6698322 MAIN PIPE
177A 6698809 GUARD
184 608VVM BALL BEARING 608VVC2PS2L
186 608DDM BALL BEARING 608DD
192 6698336 MAIN PIPE (A)
195 6685074 TAPPING SCREW D5X16
202 608DDM BALL BEARING 608DD
208 6684639 BOLT WASHER 6
216 6698798 BUTTON
217 6698799 CORD GUIDE
218 6698800 CASE
222A 6698931 FUEL GROMMET
225 6600340 MUFFER HEAT COVER
228 6699691 CAMPLATE ASS'Y
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Hitachi websites, which we consider as reliable Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to hitachi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Hitachi CG22EAB
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Hitachi CG22EAB

Diagram Hitachi CG22EAB

Download (1.1MB)

You might also like

Recoil Starter for Brushcutter Hitachi Tanaka CG22EAS/24-27EASP
HiKOKI Power Tools Italia S.p.a. SKU: 6699995
Recoil Starter for Brushcutter Hitachi Tanaka CG22EAS/24-27EASP
Recoil Starter for Brushcutters Hitachi Tanaka CG22EAS/24-27EASP Original spare part Hitachi Koky Tanaka, Recoil Starter for Brushcutters CG22EAS - CG24EASP - CG27EASP. Part for the following items: - Brushcutters CG22EAS -...
Last items in stock €33.10
Details
Priming Pump for Chain Saws and Brushcutters Hitachi Tanaka
HiKOKI Power Tools Italia S.p.a. SKU: 6685139
Priming Pump for Chain Saws and Brushcutters Hitachi Tanaka
Priming Pump for Chain Saws and Brushcutters Hitachi Tanaka Genuine spare Hitachi Koky Tanaka, Priming Pump complete for Brushcutters and Chain Saws Hitachi Tanaka. Parts for the following products: - BRUSHCUTTER CG47EF (L) -...
AVAILABLE €13.15
Details
Starter Pulley for Bruschcutters Hitachi CG22EAS-CG24EASP-CG27-33EJ
HiKOKI Power Tools Italia S.p.a. SKU: 6684681
Starter Pulley for Bruschcutters Hitachi CG22EAS-CG24EASP-CG27-33EJ
Starter Pulley for Bruschcutters Hitachi CG22EAS-CG24EASP-CG27-33EJ Genuine parts for Bruschcutters Hitachi Koky Tanaka, Starter Pulley Assembly for Brushcutters Recoil CG22EAS - CG24EASP - CG27EJ (SLNP) - CG33EJ-SL. For the following...
Last items in stock €23.26
Details
Damper Spring for Brushcutters Hitachi CG22EAS-CG24EASP-CG27EASP
HiKOKI Power Tools Italia S.p.a. SKU: 6684677
Damper Spring for Brushcutters Hitachi CG22EAS-CG24EASP-CG27EASP
Damper Spring for Brushcutters Hitachi CG22EAS-CG24EASP-CG27EASP Genuine spare parts Hitachi Koky Tanaka, Damper Spring for Brushcutters CG22EAS - CG24EASP - CG27EJ (SLNP) - CG27EASP - CG33EJ-SL Parts for the following products:...
Last items in stock €7.83
Details
Piston Ring for Brush Cutter end Hedge Trimmers Hitachi
HiKOKI Power Tools Italia S.p.a. SKU: 6696532
Piston Ring for Brush Cutter end Hedge Trimmers Hitachi
Piston Ring for Brush Cutter end Hedge Trimmers Hitachi Original spare Hitachi Koky Tanaka, Piston Ring for Brush Cutter end Hedge Trimmers Hitachi. Parts for the following products: - Brush Cutter CG22EAS - Hedge Trimmers CH22EBP2 -...
AVAILABLE €6.50
Details
Piston for Brush Cutter and Hedge Trimmer Hitachi Tanaka CG-CH
HiKOKI Power Tools Italia S.p.a. SKU: 6696531
Piston for Brush Cutter and Hedge Trimmer Hitachi Tanaka CG-CH
Piston for Brush Cutter and Hedge Trimmer Hitachi Tanaka CG-CH Original spare part Hitachi Koky Tanaka, Piston for Brush Cutter and Hedge trimmer Hitachi Tanaka CG-CH. Part for the followinf article: - Brush Cutter CG22EAS - Hedge...
Last items in stock €15.81
Details
Bolt M5X18/S for Chainsaws Hitachi CS38EK-CS45EL
HiKOKI Power Tools Italia S.p.a. SKU: 6684586
Bolt M5X18/S for Chainsaws Hitachi CS38EK-CS45EL
Bolt M5X18/S for Chainsaws Hitachi CS38EK-CS45EL Genuine spare Hitachi Koky Tanaka, Bolt M5X18 / S Brushcutters Hitachi CG22EAS - CG27EJ (SLNP) - CG47EJ-L - CG47EY-T - CG47EF (L) - Chainsaws CS38EK - CS45EL. Parts for the following...
AVAILABLE €1.98
Details
Fuel Tank for Brushcutter Hitachi CG22EAS
HiKOKI Power Tools Italia S.p.a. SKU: 6696569
Fuel Tank for Brushcutter Hitachi CG22EAS
Fuel Tank for Brushcutter Hitachi CG22EAS Original spare Hitachi Koky Tanaka, Fuel Tank for Brushcutter Hitachi CG22EAS. Parts for the following products: - BRUSHCUTTER Hitachi CG22EAS - BRUSHCUTTER HITACHI CG22EAB - BRUSHCUTTER...
Last items in stock €10.63
Details
Ignition Coil for Brushcutters Hitachi Tanaka CG22EAS-CG24EASP
HiKOKI Power Tools Italia S.p.a. SKU: 6699464
Ignition Coil for Brushcutters Hitachi Tanaka CG22EAS-CG24EASP
Ignition Coil for Brushcutters Hitachi Tanaka CG22EAS-CG24EASP Genuine parts for Hitachi Koky Tanaka, Ignition Coil for Petrol Brushcutter 2 stoke CG22EAS - CG24EASP. Replace your old Ignition coil of your petrol brush...
Last items in stock €35.76
Details
Throttle Lever for Brushcutters Hitachi CG33EJ-LP-CG33EJ-SL Sale
HiKOKI Power Tools Italia S.p.a. SKU: 6696488
Throttle Lever for Brushcutters Hitachi CG22/27
Throttle Lever for Brushcutters Hitachi CG22/27 Genuine spare parts Hitachi Koky Tanaka, Throttle Lever for Brushcutters CG25EUS - CG22EAS - CG24EASP - CG27EASP - CH27EPAP - CS27EPAP.
AVAILABLE €5.17
Details
Coil Cord (BLACK) for Brushcutter Hitachi CG22EAS Sale
HiKOKI Power Tools Italia S.p.a. SKU: 6696544
Coil Cord (BLACK) for Brushcutter Hitachi CG22EAS
Coil Cord (BLACK) for Brushcutter Hitachi CG22EAS Original spare Hitachi Koky Tanaka, Coil Cord (BLACK) for Brushcutter Hitachi CG22EAS - CG24EASP. Parts for the following products: - BRUSHCUTTER HITACHI CG22EAS - BRUSHCUTTER HITACHI...
AVAILABLE €2.65
Details
Coil Rarth Cord (Yellow) for Brushcutter Hitachi CG22EAS Sale
HiKOKI Power Tools Italia S.p.a. SKU: 6696545
Coil Rarth Cord (Yellow) for Brushcutter Hitachi CG22EAS
Coil Rarth Cord (Yellow) for Brushcutter Hitachi CG22EAS Original spare Hitachi Koky Tanaka, Coil Rarth Cord (Yellow) for Brushcutter Hitachi CG22EAS - CG24EASP - CG27EASP. Parts for the following products: -  BRUSHCUTTER HITACHI...
AVAILABLE €2.65
Details
Diaphragm Packing Metering for Chainsaws Hitachi CS25-33-40-45-51
HiKOKI Power Tools Italia S.p.a. SKU: 6685220
Diaphragm Packing Metering for Chainsaws Hitachi CS25-33-40-45-51
Diaphragm Packing Metering for Chainsaws Hitachi CS25-33-40-45-51 Original parts for Chainsaw Hitachi Koky Tanaka, Diaphragm Packing Metering Gasket for Carburetor Chainsaws, CS25EC-SC-EU - CS33EDT - CS38EK - CS40EA - CS45EL - CS51EAP...
AVAILABLE €3.45
Details
Metering Diaphragm for Chainsaws Hitachi CS-33-40-51
HiKOKI Power Tools Italia S.p.a. SKU: 6684690
Metering Diaphragm for Chainsaws Hitachi CS-33-40-51
Metering Diaphragm for Chainsaws Hitachi CS-33-40-51 Original parts for Chainsaw Hitachi Koky Tanaka, Metering Diaphragm for Carburetor Chainsaws,CS33EDT - CS 33EB - CS40EA - TANAKA TCS-40EA - Hitachi CS51EAP -...
Last items in stock €25.81
Details
Pump Diaphragm for Chainsaw Hitachi CS33EB
HiKOKI Power Tools Italia S.p.a. SKU: 6684693
Pump Diaphragm for Chainsaw Hitachi CS33EB
Pump Diaphragm for Chainsaw Hitachi CS33EB Original parts Hitachi Koky Tanaka, Pump Diaphragm for Carburetor Chainsaw, CS33EB - CS 33EB - Brushcutters CG22EAS - CG24EKS - CG27EJ-SLNP...
Last items in stock €9.95
Details
Cylinder for Brushcutter Hitachi Tanaka CG22EAB (LP) Sale
HiKOKI Power Tools Italia S.p.a. SKU: 6696527
Cylinder for Brushcutter Hitachi Tanaka CG22EAB (LP)
Cylinder for Brushcutter Hitachi Tanaka CG22EAB (LP) Genuine spare part Hitachi Koky Tanaka, Cylinder for Brushcutters CG22EAB (LP) - CG22EAP2 (SP) - CG22EAS (SLP) Part for the following products: - Brushcutter Hitachi CG22EAB (LP) -...
Last items in stock €57.03
Details
Circuit Plate Gasket for Brushcutter Hitachi CG22EAS
HiKOKI Power Tools Italia S.p.a. SKU: 6691234
Circuit Plate Gasket for Brushcutter Hitachi CG22EAS
Circuit Plate Gasket for Brushcutter Hitachi CG22EAS Original parts Hitachi Koky Tanaka, Circuit Plate Gasket for Brushcutters CG22EAS - CG24EASP - CG27EASP Parts for the following products: - Brushcutter Hitachi...
AVAILABLE €6.64
Details
Carburator Cover Packing for Brushcutter Hitachi CG22EAS
HiKOKI Power Tools Italia S.p.a. SKU: 6696534
Carburator Cover Packing for Brushcutter Hitachi CG22EAS
Carburator Cover Packing for Brushcutter Hitachi CG22EAS Original parts Hitachi Koky Tanaka, Carburator Cover Packing for Brushcutters CG22EAS Parts for the following products: - Brushcutter Hitachi CG22EAS - Hedge Trimmer Hitachi...
Last items in stock €2.14
Details
Cylinder Gasket for Brushcutter Hitachi Tanaka CG22EAS
HiKOKI Power Tools Italia S.p.a. SKU: 6696530
Cylinder Gasket for Brushcutter Hitachi Tanaka CG22EAS
Cylinder Gasket for Brushcutter Hitachi Tanaka CG22EAS Genuine spare part Hitachi Koky Tanaka, Cylinder Gasket for Brushcutters CG22EAB - CG22EAS - Edge Trimmer Hitachi CH22EBP2 Part for the following products: - Brushcutter Hitachi...
AVAILABLE €2.16
Details
Piston Pin for Brushcutter Hitachi Tanaka CG22EAS
HiKOKI Power Tools Italia S.p.a. SKU: 6696944
Piston Pin for Brushcutter Hitachi Tanaka CG22EAS
Piston Pin for Brushcutter Hitachi Tanaka CG22EAS Genuine spare part Hitachi Koky Tanaka, Piston Pin for Brushcutters CG22EAB - CG22EAS - Edge Trimmer Hitachi CH22EBP2 Part for the following products: - Pump Hitachi A25EB(N) -...
Last items in stock €7.30
Details
Air Filter Housing for Brushcutter Hitachi Tanaka CG22EAB
HiKOKI Power Tools Italia S.p.a. SKU: 6696832
Air Filter Housing for Brushcutter Hitachi Tanaka CG22EAB
Air Filter Housing for Brushcutter Hitachi Tanaka CG22EAB Original spare part Hitachi, Air Cleaner Housing for Brushcutters CG22EAB(LP) - CG22EAP2(SL) - CG22EAS(SLP) -  CG24EAP2(SL) -  CG24EBSP(SL) -  CG27EAP2(SL) Part for the...
Last items in stock €22.46
Details
Circlip for Brushcutter Hitachi CG 24EBS
HiKOKI Power Tools Italia S.p.a. SKU: 6684590
Circlip for Brushcutter Hitachi CG 24EBS
Circlip for Brushcutter Hitachi CG 24EBS Original replacement part Hitachi Koky Tanaka, Piston Pin Circlip for Brushcutters, Chainsaws, Hedgecutters Hitachi - Tanaka. Part for the following...
Last items in stock €1.57
Details
Button for Brushcutter Hitachi CG22EAS
HiKOKI Power Tools Italia S.p.a. SKU: 6698798
Button for Brushcutter Hitachi CG22EAS
Button for Brushcutter Hitachi CG22EAS Original spare Hitachi HiKoki Tanaka, Nylon Head Button for Brushcutter Hitachi CG22EAS - CG24EASP - CG27EASP. Parts for the following products: -  BRUSHCUTTER HITACHI CG22EAS -  BRUSHCUTTER...
Last items in stock €10.60
Details
Anti Vibe Rubber (A) for Brushcutter Hitachi CG22EAB
HiKOKI Power Tools Italia S.p.a. SKU: 6696963
Anti Vibe Rubber (A) for Brushcutter Hitachi CG22EAB
Anti Vibe Rubber (A) for Brushcutter Hitachi CG22EAB Original spare part Hitachi, Anti Vibe Rubber (A) for Brushcutters CG22EAB(LP) - CG22EAP2(SL) - CG22EAS(SLP) -  CG24EAP2(SL) -  CG24EBSP(SL) -  CG27EAP2(SL) Part for the following...
on 7/10 Business Days Approx €4.44
Details
Comments (0)
