Hitachi Spare Parts for Pressure Washer AW100
We are
Hitachi-HIKOKI authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair problem for
Pressure Washer AW100.

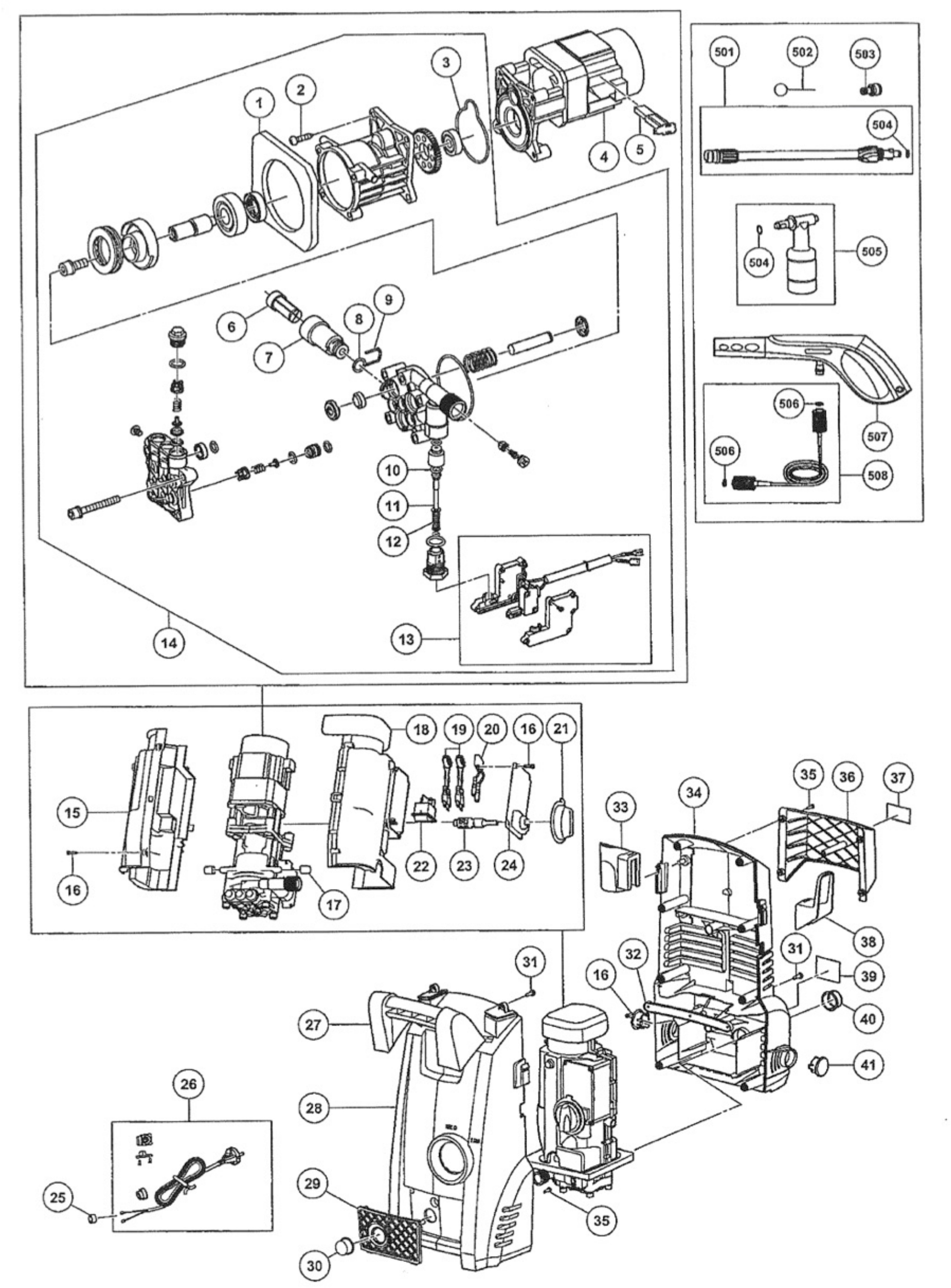

In the following table, look for the model of the Pressure Washer and theirs spare part.

| Pressure Washer AW100 |
| # |
Part Num. |
Description |
| 1 |
335550 |
FRONT MOTOR FILTER |
| 2 |
335545 |
SCREW 5.5×20 |
| 3 |
335544 |
SEAL RING |
| 4 |
335543 |
MOTOR AW100 |
| 5 |
335549 |
CARBON BRUSH |
| 6 |
335542 |
INLET FILTER |
| 7 |
335540 |
INLET PIPE |
| 8 |
335541 |
O-RING (11X2) |
| 9 |
335539 |
U-PIN |
| 10 |
335535 |
O-RING (9X2) |
| 11 |
335536 |
VALVE CORE |
| 12 |
335537 |
SPING |
| 13 |
335538 |
MICRO SWITCH CORD ASS'Y (AW100) |
| 14 |
335556 |
PUMP ASS'Y (P11)(AW100) |
| 15 |
335553 |
BACK MOTOR COVER |
| 16 |
335520 |
SCREW 2.9×13 |
| 17 |
335551 |
RUBBER CAP |
| 18 |
335552 |
FRONT MOTOR COVER |
| 19 |
335557 |
FERRITE CORE |
| 20 |
335555 |
CAPACITOR ASS'Y |
| 21 |
335546 |
KNOB |
| 22 |
335554 |
MAIN SWITCH |
| 23 |
335548 |
SW SHAFT |
| 24 |
335547 |
SW CAP |
| 25 |
335558 |
FERRITE CORE |
| 26 |
335517 |
CORD ASS'Y(5M) (EUROPE) |
| 27 |
335532 |
HANDLE |
| 28 |
335514 |
FRONT HOUSING |
| 29 |
335513 |
OUTLET PLATE |
| 30 |
335512 |
OUTLET COVER |
| 31 |
335529 |
SCREW 4.8×16 |
| 32 |
335516 |
PLATE |
| 33 |
335530 |
GUN HOLDER |
| 34 |
335521 |
BACK HOUSING |
| 35 |
335528 |
SCREW 3.5×13F |
| 36 |
335527 |
ACCESSORIES HOLDER |
| 38 |
335524 |
ORD HOLDER |
| 40 |
335522 |
INLET COVER |
| 41 |
335515 |
WHEEL CAP |
| 501 |
335533 |
NOZZLE |
| 502 |
335534 |
NOZZLE CLEANER PIN |
| 503 |
335523 |
INLET NUT |
| 504 |
335559 |
O-RING 9×2.65 |
| 505 |
335525 |
BOTTLE |
| 506 |
335560 |
O-RING 10×2.5 |
| 507 |
335531 |
GUN (A) |
| 508 |
335526 |
PIPE (5M) (120 BAR) |
