HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Electric Saw CS 40Y

SKU: Hitachi CS40Y
€1.40
VAT included

Hitachi Spare Parts for Electric Saw CS 40Y

We supply original Hitachi-HIKOKI spare parts on offer at unbeatable prices, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Electric Saw CS 40Y.
Hitachi Spare Parts for Electric Saw CS 40Y
  • Hitachi Spare Parts for Electric Saw CS 40Y
  • Hitachi Spare Parts for Electric Saw CS 40Y
HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Electric Saw CS 40Y

SKU: Hitachi CS40Y Condition: New
€1.40
VAT included

Hitachi Spare Parts for Electric Saw CS 40Y

We supply original Hitachi-HIKOKI spare parts on offer at unbeatable prices, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Electric Saw CS 40Y.
settings 62 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
50 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

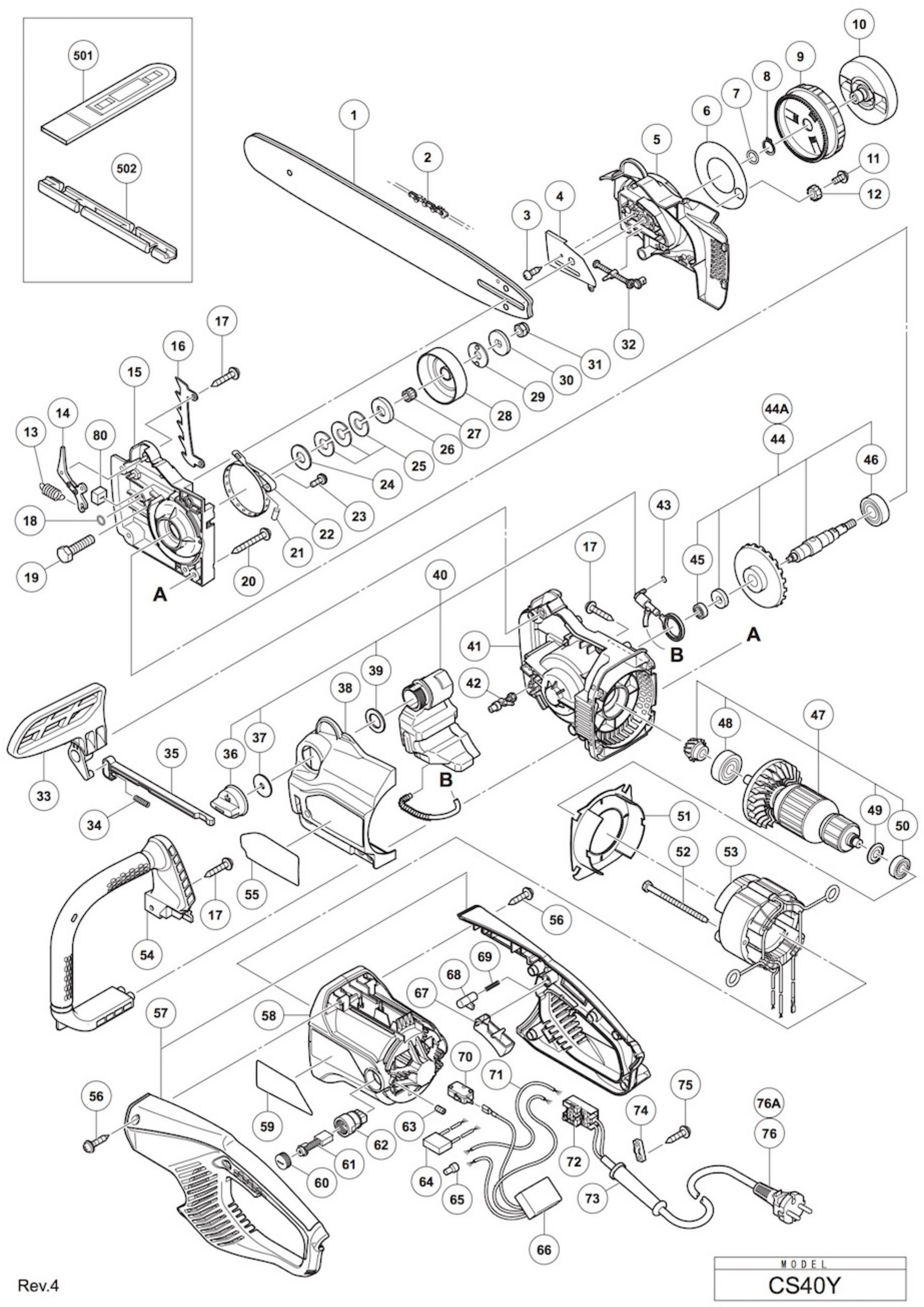

Esploso pagina 1
Pos. Item Price Buy
1
 photo_cameraImage coming soon 781236 KIT CHAIN BAR 40CM 3/8 1.3 57M €38.42
2
 photo_cameraImage coming soon 781126 CHAIN SAW 3/8 LP 1.3 57M €27.87
3
 Tapping Screw D3 for Electric Chain Saw Hitachi CS 35Y 696352 Tapping Screw D3 for Electric Chain Saw Hitachi CS 35Y €1.61
4
 photo_cameraImage coming soon 335471 GUIDE PLATE €1.49
5
 Side Cover for Electric Chainsaws Hitachi CS 35Y - CS 40Y 335470 Side Cover for Electric Chainsaws Hitachi CS 35Y - CS 40Y €9.32
7
 photo_cameraImage coming soon 996407 O-RING (1AP-12) €1.52
8
 Retaining Ring Type C 14 mm for Hammer Hitachi H60MC 939543 Retaining Ring Type C 14 mm for Hammer Hitachi H60MC €3.47
9
 photo_cameraImage coming soon 335150 TENSION DIAL €3.23
10
 photo_cameraImage coming soon 335151 KNOB €9.24
12
 photo_cameraImage coming soon 335152 TENSION GEAR €1.80
13
 Brake Spring for Chainsaws Hitachi CS33EB 6685389 Brake Spring for Chainsaws Hitachi CS33EB €2.65
14
 photo_cameraImage coming soon 6698587 BRAKE LINK €7.26
15
 photo_cameraImage coming soon 335472 INNER COVER €16.24
18
 photo_cameraImage coming soon 997218 O-RING (S-6) €1.80
21
 Needle Roller mm 3 for Chainsaw Hitachi Tanaka CS40EA 6685391 Needle Roller mm 3 for Chainsaw Hitachi Tanaka CS40EA €2.52
22
 Brake Band for Chainsaw Hitachi Tanaka CS33EB 6685390 Brake Band for Chainsaw Hitachi Tanaka CS33EB €10.49
26
 photo_cameraImage coming soon 335486 COLLAR (B) €3.91
27
 Clutch Needle Bearing for Chain Saws Hitachi CS33EB-EDT 6685361 Clutch Needle Bearing for Chain Saws Hitachi CS33EB-EDT €10.63
28
 Clutch Drum for Chainsaw Hitachi Tanaka CS33EB 6685403 Clutch Drum for Chainsaw Hitachi Tanaka CS33EB €19.80
29
 photo_cameraImage coming soon 335487 WASHER (C) €83.89
30
 photo_cameraImage coming soon 335488 WASHER (D) €3.76
32
 Chain Puller Set for Electric Chainsaw Hitachi CS 35Y 335966 Chain Puller Set for Electric Chainsaw Hitachi CS 35Y €8.86
33
 Carbon Brushes for Rotorbital Sander FLEX XS 713 335479 Carbon Brushes for Rotorbital Sander FLEX XS 713 €10.00
38
 photo_cameraImage coming soon 335477 SIDE COVER (L) €4.64
39
 Oil Tank Gasket for Electric Chainsaw Hitachi CS 35Y 335490 Oil Tank Gasket for Electric Chainsaw Hitachi CS 35Y €1.10
40
 Oil Pump Ass'y for Electric Chainsaws Hitachi CS 35Y - CS 40Y 335474 Oil Pump Ass'y for Electric Chainsaws Hitachi CS 35Y - CS 40Y €16.00
41
 photo_cameraImage coming soon 335476 GEAR CASE €12.37
42
 photo_cameraImage coming soon 335967 ADJUSTING BOLT €4.54
43
 photo_cameraImage coming soon 981317 O-RING (S-4) €1.30
44
 photo_cameraImage coming soon 335473 SPINDLE GEAR ASS'Y €20.82
45
 photo_cameraImage coming soon 606ZZM BALL BEARING 606VVC2 €16.22
46
 photo_cameraImage coming soon 6202VV BALL BEARING 6202VVCMPS2L €7.42
47
 photo_cameraImage coming soon 360957E ARMATURE AND PINION SET 220V-230V €54.93
48
 photo_cameraImage coming soon 6301VV BALL BEARING 6301VVCMPS2L €12.55
50
 photo_cameraImage coming soon 6000VV BALL BEARING 6000VVCMPS2L €9.76
53
 photo_cameraImage coming soon 340864E STATOR ASS'Y 220V-230V €42.82
54
 Front Handle for Chainsaw Hitachi CS 40Y 335478 Front Handle for Chainsaw Hitachi CS 40Y €19.80
56
 photo_cameraImage coming soon 307811 TAPPING SCREW (W/FLANGE) D4X16 (BLACK) €1.40
57
 photo_cameraImage coming soon 335475 HANDLE SET €17.43
58
 photo_cameraImage coming soon 335469 HOUSING ASS'Y €16.98
60
 Brush Holder Cap for Angle Grinders Hitachi G23SS-G23SW-G23SWU 945161 Brush Holder Cap for Angle Grinders Hitachi G23SS-G23SW-G23SWU €2.78
61
 photo_cameraImage coming soon 999065 CARBON BRUSH (1 PAIR) €10.05
62
 Brush Holder for Angle Grinders Hitachi G23SS-G23SW-G23SWU 938241 Brush Holder for Angle Grinders Hitachi G23SS-G23SW-G23SWU €11.86
66
 photo_cameraImage coming soon 335455 CONTROLLER 200V-240V €25.60
70
 photo_cameraImage coming soon 335460 TUBE 4.8X70 €2.21
72
 photo_cameraImage coming soon 335453 SWITCH €15.46
73
 Cord Armor D.10.1 for Hitachi Power Tools 938051 Cord Armor D.10.1 for Hitachi Power Tools €1.34
73
 Cord Armor D.8.8 for Hitachi Power Tools 953327 Cord Armor D.8.8 for Hitachi Power Tools €1.37
74
 photo_cameraImage coming soon 937631 CORD CLIP €1.37
501
 photo_cameraImage coming soon 6699115 CHAIN COVER €3.38

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Hitachi Spare Parts for Electric Saw CS 40Y

We supply original Hitachi-HIKOKI spare parts on offer at unbeatable prices, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Electric Saw CS 40Y.

In the following table, look for the model of the Electric Saw and their spare part.
Hitachi CS 40Y

Electric Saw CS 40Y
# Part Num. Description
1 781236 KIT CHAIN BAR 40CM 3/8 1.3 57M
2 781126 SAW CHAIN (3/8X16") 91PX-57XJ
3 696352 TAPPING SCREW D3X6
4 335471 GUIDE PLATE
5 335470 SIDE COVER (R)
6 335688 DUST SHEET
7 996407 O-RING (1AP-12)
8 939543 RETAINING RING FOR D14 SHAFT
9 335150 TENSION DIAL
10 335151 KNOB
12 335152 TENSION GEAR
13 6685389 BRAKE SPRING
14 6698587 BRAKE LINK
15 335472 INNER COVER
16 335482 SPIKE BAR
18 997218 O-RING (S-6)
21 6685391 NEEDLE ROLLER D3
22 6685390 BRAKE BAND
24 335484 WASHER (E)
25 335485 SPRING WASHER
26 335486 COLLAR (B)
27 6685361 NEEDLE BEARING (D)
28 6685403 CLUTCH HOUSING
29 335487 WASHER (C)
30 335488 WASHER (D)
32 335966 CHAIN PULLER
33 335479 BRAKE HANDLE
34 335483 SPRING (C)
35 335480 SWITCH ROD
36 335144 TANK CAP
37 335691 TANK CAP PACKING
38 335477 SIDE COVER (L)
39 335490 GASKET
40 335474 OIL PUMP ASS'Y
41 335476 GEAR CASE
42 335967 ADJUSTING BOLT
43 981317 O-RING (S-4)
44 335473 SPINDLE GEAR ASS'Y
45 606ZZM BALL BEARING 606VV
46 6202VV BALL BEARING 6202VVCMPS2L
48 6301VV BALL BEARING 6301VVCMPS2L
50 6000VV BALL BEARING 6000VVCMPS2L
51 335481 FAN GUIDE
54 335478 FRONT HANDLE
56 307811 TAPPING SCREW (W/FLANGE) D4X16 (BLACK)
57 335475 HANDLE SET
58 335469 HOUSING ASS'Y
60 945161 BRUSH CAP
62 938241 BRUSH HOLDER
67 335463 TRIGGER
68 335464 OFF LOCK BUTTON
69 335465 SPRING (A)
70 335460 MICRO SWITCH
72 335453 SWITCH
74 937631 CORD CLIP
47 360957E ARMATURE AND PINION SET 220V-230V
53 340864E STATOR ASS'Y 220V-230V
61 999065 CARBON BRUSH (1 PAIR)
66 335455 CONTROLLER 200V-240V
73 953327 CORD ARMOR D8.8
73 938051 CORD ARMOR D10.1
74 937631 CORD CLIP
501 6699115 CHAIN COVER
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Hitachi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to hitachi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Hitachi CS40Y
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Hitachi CS 40Y

Diagram Hitachi CS 40Y

Download (334.35KB)
