HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Engine Hedge Trimmer CH78ED

SKU: Hitachi CH78ED
€0.93
VAT included

Hitachi Spare Parts for Engine Hedge Trimmer CH78ED

Original spare parts Hitachi-HIKOKI recommended for you, at the best prices, fast delivery and lowest prices, for to make maintenance for Engine Hedge Trimmer CH78ED.
Hitachi Spare Parts for Engine Hedge Trimmer CH78ED
  • Hitachi Spare Parts for Engine Hedge Trimmer CH78ED
  • Hitachi Spare Parts for Engine Hedge Trimmer CH78ED
  • Hitachi Spare Parts for Engine Hedge Trimmer CH78ED
  • Hitachi Spare Parts for Engine Hedge Trimmer CH78ED
  • Hitachi Spare Parts for Engine Hedge Trimmer CH78ED
  • Hitachi Spare Parts for Engine Hedge Trimmer CH78ED
  • Hitachi Spare Parts for Engine Hedge Trimmer CH78ED
  • Hitachi Spare Parts for Engine Hedge Trimmer CH78ED
  • Hitachi Spare Parts for Engine Hedge Trimmer CH78ED
  • Hitachi Spare Parts for Engine Hedge Trimmer CH78ED
  • Hitachi Spare Parts for Engine Hedge Trimmer CH78ED
HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Engine Hedge Trimmer CH78ED

SKU: Hitachi CH78ED Condition: New
€0.93
VAT included

Hitachi Spare Parts for Engine Hedge Trimmer CH78ED

Original spare parts Hitachi-HIKOKI recommended for you, at the best prices, fast delivery and lowest prices, for to make maintenance for Engine Hedge Trimmer CH78ED.
settings 128 spare parts
description 10 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
AVAILABLE

verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
128 spare parts

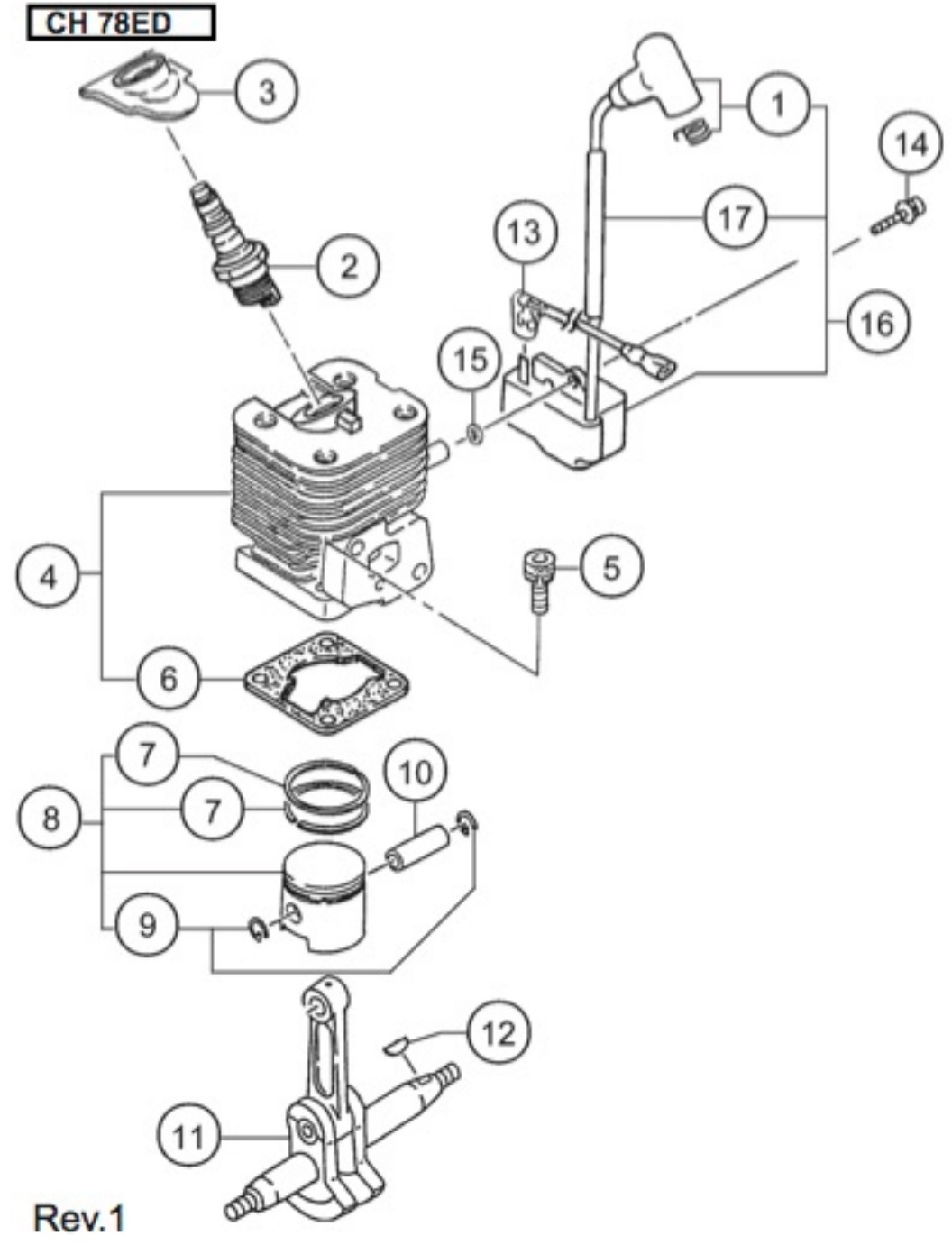

Page 1 zoom_in View exploded
Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
4
 photo_cameraImage coming soon 6685462 CYLINDER SET €108.52
5
 Bolt M5X18/S for Chainsaws Hitachi CS38EK-CS45EL 6684586 Bolt M5X18/S for Chainsaws Hitachi CS38EK-CS45EL €2.38
6
 photo_cameraImage coming soon 6685728 CYLINDER GASKET €2.38
7
 photo_cameraImage coming soon 6684588 PISTON RING €9.70
8
 photo_cameraImage coming soon 6685877 PISTON SET €46.30
9
 Hitachi CG33EJ-LP Circlip 6685078 Hitachi CG33EJ-LP Circlip €1.16
10
 photo_cameraImage coming soon 6686016 PISTON PIN €6.04
12
 photo_cameraImage coming soon 6684899 WOODRUFF KEY 3X13X4.5 €1.16
16
 photo_cameraImage coming soon 6687704 IGNITION COIL ASS'Y €79.24
37
 photo_cameraImage coming soon 6686771 STUD BOLT 6X22 €1.16
38
 photo_cameraImage coming soon 6684786 HEX. SOCKET HD. BOLT M5X30 S €1.16
40
 Spring Washer 5 for Brushcutter Hitachi CG33EJ-SL 6684834 Spring Washer 5 for Brushcutter Hitachi CG33EJ-SL €1.16
42
 photo_cameraImage coming soon 6684971 WASHER 8 €2.38
43
 photo_cameraImage coming soon 6684611 BOLT WASHER M8 €1.16
51
 photo_cameraImage coming soon 6689874 INTAKE MANIFOLD GASKET €2.38
52
 photo_cameraImage coming soon 6689937 INSULATOR SET,SPARE €13.36
53
 photo_cameraImage coming soon 6695515 HEX HOLE BOLT 5X25WS €1.16
54
 photo_cameraImage coming soon 6689828 CARBURETOR GASKET €4.82
59
 photo_cameraImage coming soon 6684658 WAVE WASHER 8 €2.38
60
 Blow Over Check Board for Brushcutter Hitachi CG40EAS 6690843 Blow Over Check Board for Brushcutter Hitachi CG40EAS €3.60
61
 Washer D. 5 for Chainsaw Hitachi CS45EL-CS38EK 6684662 Washer D. 5 for Chainsaw Hitachi CS45EL-CS38EK €1.16
63
 photo_cameraImage coming soon 6690364 CLEANER SPONGE €1.16
64
 photo_cameraImage coming soon 6690415 AIR FILTER COVER €10.92
66
 photo_cameraImage coming soon 6690461 CARBURETOR SET WYL139A €114.62
67
 photo_cameraImage coming soon 6688174 SHIELD TUBE €4.82
68
 CLIP D6 6685198 CLIP D6 €2.38
71
 photo_cameraImage coming soon 6685049 TANK CAP ASS'Y €13.36
73
 Collar 5.8 for Brushcutter Hitachi CG47EJ-L 6692244 Collar 5.8 for Brushcutter Hitachi CG47EJ-L €1.16
75
 Hex Hole Bolt M5x18PS for Hedge Trimmer Tanaka THT 210 6695505 Hex Hole Bolt M5x18PS for Hedge Trimmer Tanaka THT 210 €2.38
76
 photo_cameraImage coming soon 6691337 SWIVEL CAP €2.38
77
 Priming Pump for Chain Saws and Brushcutters Hitachi Tanaka 6685139 Priming Pump for Chain Saws and Brushcutters Hitachi Tanaka €13.36
80
 photo_cameraImage coming soon 6697846 RETURN GROMMET €2.38
91
 photo_cameraImage coming soon 6692772 MUFFLER PROTECTOR €17.02
92
 photo_cameraImage coming soon 6692455 MUFFLER SET €118.28
94
 Bolt Washer 6 for Brushcutters Chainsaws Hitachi Hikoki Tanaka 6684639 Bolt Washer 6 for Brushcutters Chainsaws Hitachi Hikoki Tanaka €2.38
97
 photo_cameraImage coming soon 6686957 FAN CASE COMP. €21.90
98
 photo_cameraImage coming soon 6684675 RECOIL SPRING €12.14
99
 photo_cameraImage coming soon 6693066 STARTER ROPE REEL €6.04
100
 photo_cameraImage coming soon 6693633 SET SCREW €1.16
101
 photo_cameraImage coming soon 6693405 STARTER PULLEY ASS'Y €9.70
102
 photo_cameraImage coming soon 6688049 PRIMARY CORD GROMMET €1.16
103
 photo_cameraImage coming soon 6693168 ROPE €3.60
104
 photo_cameraImage coming soon 6693237 STARTER HANDLE €4.82
106
 photo_cameraImage coming soon 6692718 MUFFLER COVER A COMP. €12.14
107
 photo_cameraImage coming soon 6692696 MUFFLER ARRESTOR €2.38
108
 photo_cameraImage coming soon 6684661 WASHER 5 €1.16
113
 photo_cameraImage coming soon 6695441 4X12PS SCREW €2.38
114
 photo_cameraImage coming soon 6684684 STARTER PAWL SPRING €3.60
115
 Starter Pawl for Hedge Trimmer Hitachi CH78EC(C) 6693319 Starter Pawl for Hedge Trimmer Hitachi CH78EC(C) €3.60
121
 photo_cameraImage coming soon 6684698 SCREW €3.60
122
 photo_cameraImage coming soon 6684697 SWIVEL €4.82
123
 photo_cameraImage coming soon 6684696 STOP RING €1.16
124
 photo_cameraImage coming soon 6684695 ORING €3.60
126
 photo_cameraImage coming soon 6691457 PUMP GASKET €9.70
127
 Pump Diaphragm for Chainsaw Hitachi CS33EB 6684693 Pump Diaphragm for Chainsaw Hitachi CS33EB €9.70
128
 Carburator Inlet Screen for Chainsaws and Bruschcutters Hitachi 6684700 Carburator Inlet Screen for Chainsaws and Bruschcutters Hitachi €3.60
130
 Diaphragm Packing Metering for Chainsaws Hitachi CS25-33-40-45-51 6685220 Diaphragm Packing Metering for Chainsaws Hitachi CS25-33-40-45-51 €3.60
131
 photo_cameraImage coming soon 6690830 METERING DIAPHRAGM COMP. €15.80
133
 photo_cameraImage coming soon 6691312 SET SCREW €2.38
141
 photo_cameraImage coming soon 6688672 GEAR CASE A €81.68
142
 Retaining Ring 26MM for Brushcutter Tanaka TBC-340 6695294 Retaining Ring 26MM for Brushcutter Tanaka TBC-340 €2.38
144
 photo_cameraImage coming soon 6695526 BALL BEARING n.6000Z 26MM/OD €14.58
145
 photo_cameraImage coming soon 6688571 CLUTCH HOUSING COMP. €25.56
147
 photo_cameraImage coming soon 6688978 GEAR 2 €24.34
148
 photo_cameraImage coming soon 6686810 CAMROD COMP. €70.70
149
 photo_cameraImage coming soon 6686791 CAM SHAFT €57.28
150
 Hitachi CH78EC-C Gear Case Gasket 6688910 Hitachi CH78EC-C Gear Case Gasket €1.16
151
 photo_cameraImage coming soon 6684738 BALL BEARING n.608,22MM/OD €9.70
152
 photo_cameraImage coming soon 6686655 GREASE SEAL A €1.16
153
 photo_cameraImage coming soon 6688293 COLLAR €7.26
155
 Grease Nipple for Hedgetrimmers Hitachi - HIKOKI - Tanaka 6688643 Grease Nipple for Hedgetrimmers Hitachi - HIKOKI - Tanaka €3.60
158
 photo_cameraImage coming soon 6695183 SMALL WASHER 6 €1.16
159
 photo_cameraImage coming soon 6686467 FIXING PLATE €3.60
162
 photo_cameraImage coming soon 6695475 SPRING NUT 6 €1.16
164
 photo_cameraImage coming soon 6695475 SPRING NUT 6 €1.16
181
 photo_cameraImage coming soon 6687151 CUTTER GUIDE 830L M6 €60.94
184
 photo_cameraImage coming soon 6684822 SPECIAL WASHER B €2.38
186
 Hitachi CH78EC-C Cutter B 852L 6687113 Hitachi CH78EC-C Cutter B 852L €82.90
188
 photo_cameraImage coming soon 6687187 WASHER 7 BLACK €2.38
190
 photo_cameraImage coming soon 6687180 BLADE HOLDER €2.38
192
 photo_cameraImage coming soon 6687168 FIXING BOLT B M6 €2.38
193
 photo_cameraImage coming soon 6686311 HANDLE B COMP. €19.46
194
 photo_cameraImage coming soon 6684708 HANDLE GRIP €8.48
196
 Bolt Washer 6 for Brushcutters Chainsaws Hitachi Hikoki Tanaka 6684639 Bolt Washer 6 for Brushcutters Chainsaws Hitachi Hikoki Tanaka €2.38
197
 photo_cameraImage coming soon 6695219 S.WASHER 6 €2.38
198
 photo_cameraImage coming soon 6687308 CUTTER COVER, L-773 €9.70
221
 photo_cameraImage coming soon 6688684 GEAR CASE COMP. €42.64 Not available for order
222
 Stop Ring C-15 for Hedge Trimmer Tanaka THT 210 THT 210 B 6695285 Stop Ring C-15 for Hedge Trimmer Tanaka THT 210 THT 210 B €1.16
224
 Ball Bearing 6002Z for Hedge Trimmer Hitachi CH62EA(ST) 6695538 Ball Bearing 6002Z for Hedge Trimmer Hitachi CH62EA(ST) €14.58
225
 Clutch Drum for Hedge Trimmers Tanaka THT 210-HTD2530PF 6688570 Clutch Drum for Hedge Trimmers Tanaka THT 210-HTD2530PF €46.30
226
 photo_cameraImage coming soon 6686612 PLATE €2.38
227
 Cam Rod for Hedge Trimmer Hitachi CH78EC3(ST) 6686811 Cam Rod for Hedge Trimmer Hitachi CH78EC3(ST) €19.46
228
 photo_cameraImage coming soon 6688625 GEAR 2 COMP. €48.74
229
 Gear Case Cover Gasket for Hedge Trimmer Hitachi CH62EA3 (ST) 6688909 Gear Case Cover Gasket for Hedge Trimmer Hitachi CH62EA3 (ST) €2.38
231
 photo_cameraImage coming soon 6687144 CUTTER GUIDE 845L M6 €38.98
232
 photo_cameraImage coming soon 6687289 PROTECTION PLATE €20.68
233
 photo_cameraImage coming soon 6695075 HEX. HOLE FLUSH BOLT 6X25 €2.38
234
 photo_cameraImage coming soon 6687092 CUTTER A (812L) €78.02
235
 Clean Blade Felt for Hedge Trimmers Tanaka THT 210-HTD2530PF 6686654 Clean Blade Felt for Hedge Trimmers Tanaka THT 210-HTD2530PF €2.38
236
 photo_cameraImage coming soon 6687187 WASHER 7 BLACK €2.38
239
 photo_cameraImage coming soon 6684595 HEX. SOCKET HD. BOLT (W/SP.WASHER) M4X12 €1.16
240
 Grease Nipple for Hedgetrimmers Hitachi - HIKOKI - Tanaka 6688643 Grease Nipple for Hedgetrimmers Hitachi - HIKOKI - Tanaka €3.60
242
 photo_cameraImage coming soon 6690762 SUPPORT PLATE €8.48
243
 photo_cameraImage coming soon 6695175 LOCK NUT 6 UPSP €1.16
244
 Bolt Washer 6 for Brushcutters Chainsaws Hitachi Hikoki Tanaka 6684639 Bolt Washer 6 for Brushcutters Chainsaws Hitachi Hikoki Tanaka €2.38
247
 photo_cameraImage coming soon 6695475 SPRING NUT 6 €1.16
248
 photo_cameraImage coming soon 6687275 GUARD PLATE €4.82
249
 Hex Hole Bolt M4x10S for Hedgetrimmer Hitachi CH62EA 6695484 Hex Hole Bolt M4x10S for Hedgetrimmer Hitachi CH62EA €3.60
250
 photo_cameraImage coming soon 6695547 BALL BEARING 608 ZZ C3 €10.92
263
 photo_cameraImage coming soon 6688229 THROTTLE LEVER €4.82
264
 photo_cameraImage coming soon 6688238 SAFETY LEVER €2.38
267
 photo_cameraImage coming soon 6694585 STOP BUTTON MARK €1.16
272
 photo_cameraImage coming soon 6686275 HANDLE A COMP. €47.52
273
 photo_cameraImage coming soon 6693877 THROTTLE WIRE 270+49 €7.26
278
 photo_cameraImage coming soon 6688366 BUTTON STOP €1.16
280
 photo_cameraImage coming soon 6684667 HEX.HOLE BOLT M5X12/S €2.38
282
 photo_cameraImage coming soon 6686396 HANDLE DUMPER RUBBER €4.82
301
 photo_cameraImage coming soon 6688377 FLAME €12.14
302
 photo_cameraImage coming soon 6688097 HANDLE €13.36
303
 Tanaka TCS-3301S Damper Collar B 6688485 Tanaka TCS-3301S Damper Collar B €3.60
304
 Damper B for Hedge Trimmer Tanaka THT 210 6688412 Damper B for Hedge Trimmer Tanaka THT 210 €2.38
306
 photo_cameraImage coming soon 6684786 HEX. SOCKET HD. BOLT M5X30 S €1.16
308
 Handle Support for Hedge Trimmer Tanaka THT 210 6686111 Handle Support for Hedge Trimmer Tanaka THT 210 €6.04
310
 Spring Washer 5 for Brushcutter Hitachi CG33EJ-SL 6684834 Spring Washer 5 for Brushcutter Hitachi CG33EJ-SL €1.16
311
 photo_cameraImage coming soon 6684918 WASHER M5 €2.38
321
 photo_cameraImage coming soon 6686314 HANDLE B - SINCE C226131 FOR US €9.70
322
 photo_cameraImage coming soon 6686279 HANDLE A - SINCE C226131 FOR US €9.70
323
 photo_cameraImage coming soon 6688230 THROTTLE LEVER €2.38
324
 photo_cameraImage coming soon 6688240 SAFETY LEVER OR €2.38
325
 photo_cameraImage coming soon 6688244 SPRING LEVER ACCELERATOR €2.38
327
 photo_cameraImage coming soon 6688246 LOCK LEVER €2.38
328
 photo_cameraImage coming soon 6688279 SPRING €2.38
329
 Oil Pump Setting Bolt Washer for Chainsaw Tanaka TCS-2800S 6685070 Oil Pump Setting Bolt Washer for Chainsaw Tanaka TCS-2800S €2.38
330
 Guide Plate Screw M4x10 for Chainsaw Hitachi CS25EC-SC 6685161 Guide Plate Screw M4x10 for Chainsaw Hitachi CS25EC-SC €1.16
333
 photo_cameraImage coming soon 6688366 BUTTON STOP €1.16
335
 photo_cameraImage coming soon 6687524 PROTECTION TUBE 150L €1.16
336
 photo_cameraImage coming soon 6694588 STOP SWITCH €2.38

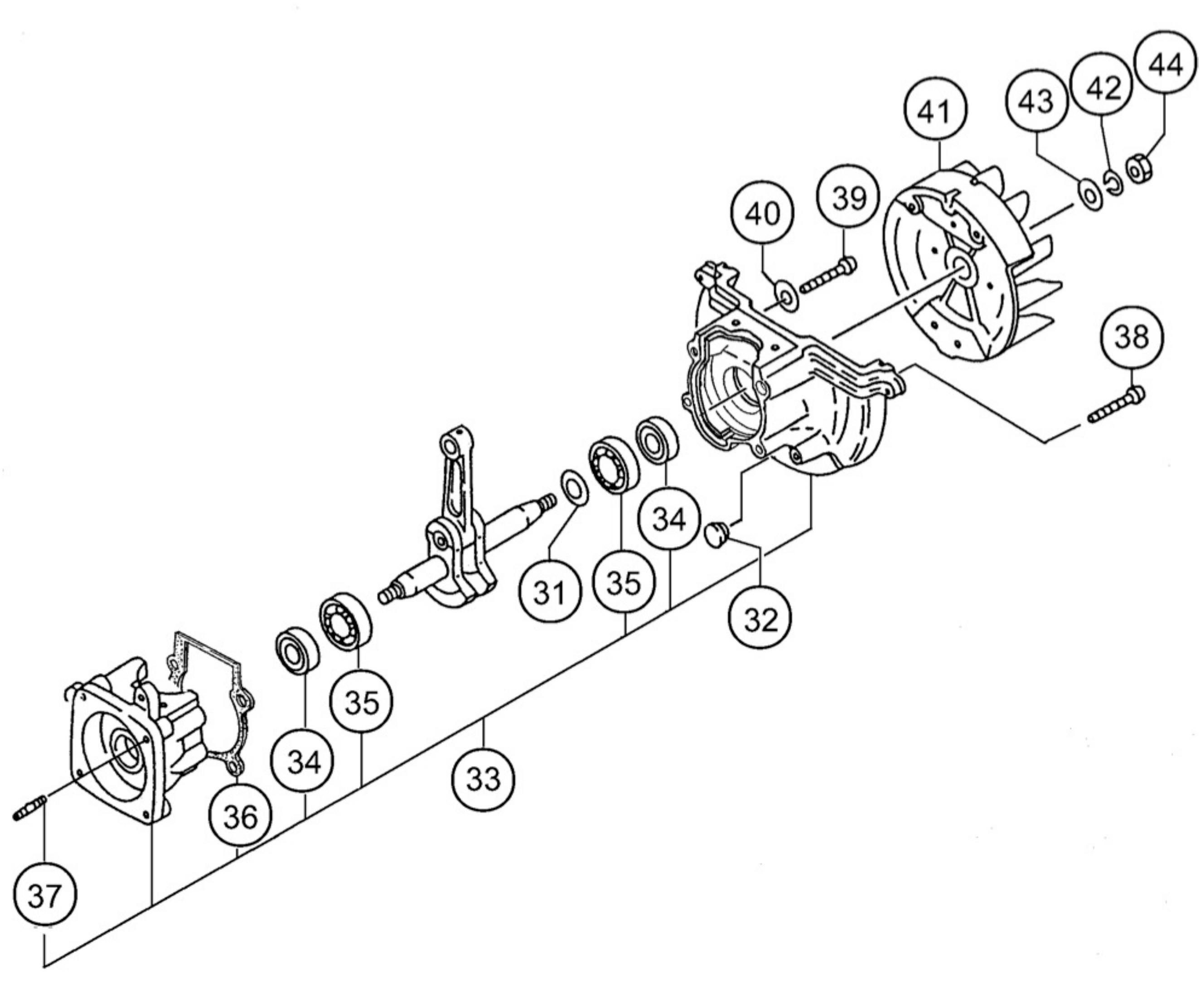

Page 2 zoom_in View exploded
Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
37
 photo_cameraImage coming soon 6686771 STUD BOLT 6X22 €1.16
38
 photo_cameraImage coming soon 6684786 HEX. SOCKET HD. BOLT M5X30 S €1.16
40
 Spring Washer 5 for Brushcutter Hitachi CG33EJ-SL 6684834 Spring Washer 5 for Brushcutter Hitachi CG33EJ-SL €1.16
42
 photo_cameraImage coming soon 6684971 WASHER 8 €2.38
43
 photo_cameraImage coming soon 6684611 BOLT WASHER M8 €1.16

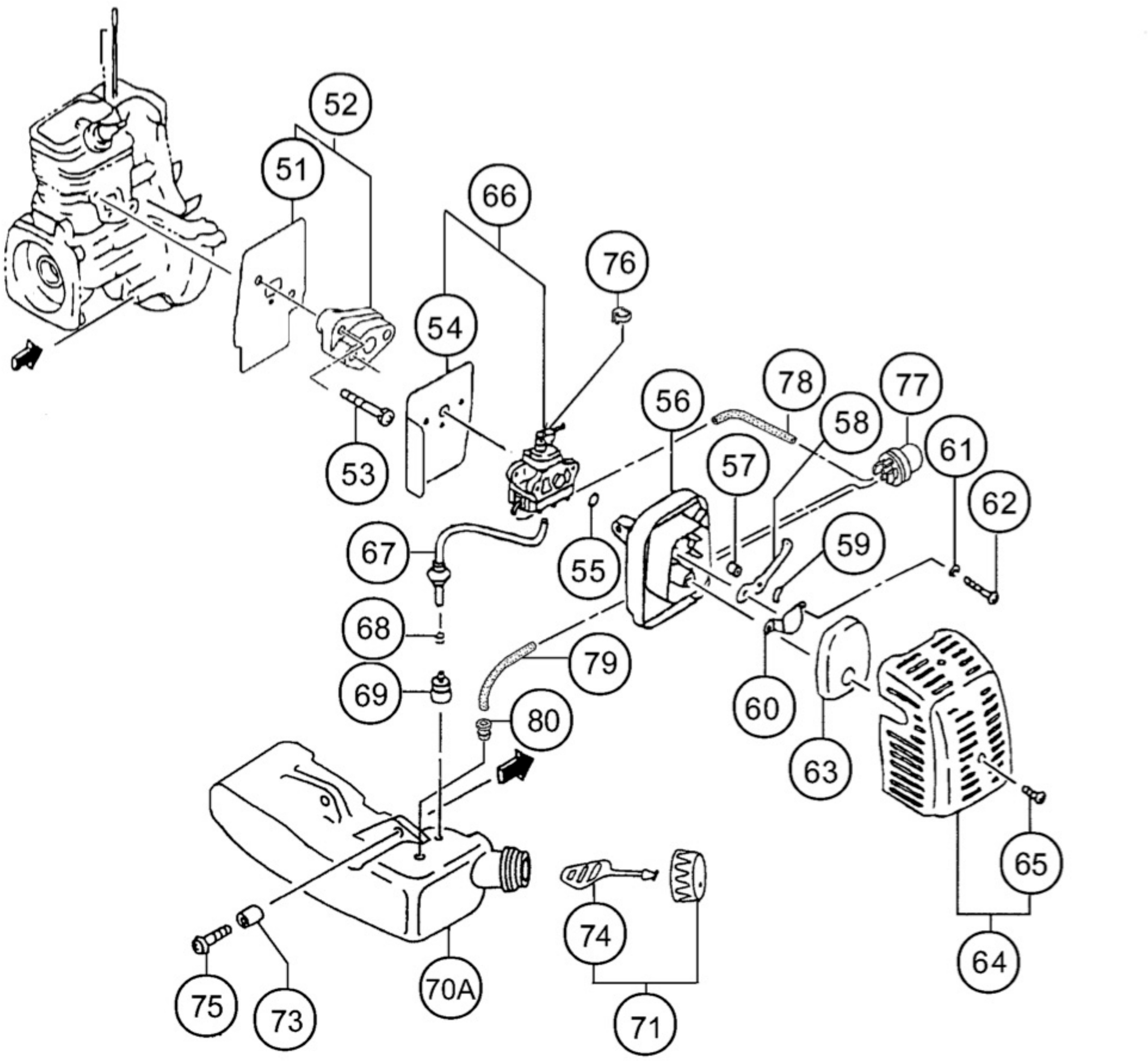

Page 3 zoom_in View exploded
Esploso pagina 3
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
51
 photo_cameraImage coming soon 6689874 INTAKE MANIFOLD GASKET €2.38
52
 photo_cameraImage coming soon 6689937 INSULATOR SET,SPARE €13.36
53
 photo_cameraImage coming soon 6695515 HEX HOLE BOLT 5X25WS €1.16
54
 photo_cameraImage coming soon 6689828 CARBURETOR GASKET €4.82
59
 photo_cameraImage coming soon 6684658 WAVE WASHER 8 €2.38
60
 Blow Over Check Board for Brushcutter Hitachi CG40EAS 6690843 Blow Over Check Board for Brushcutter Hitachi CG40EAS €3.60
61
 Washer D. 5 for Chainsaw Hitachi CS45EL-CS38EK 6684662 Washer D. 5 for Chainsaw Hitachi CS45EL-CS38EK €1.16
63
 photo_cameraImage coming soon 6690364 CLEANER SPONGE €1.16
64
 photo_cameraImage coming soon 6690415 AIR FILTER COVER €10.92
66
 photo_cameraImage coming soon 6690461 CARBURETOR SET WYL139A €114.62
67
 photo_cameraImage coming soon 6688174 SHIELD TUBE €4.82
68
 CLIP D6 6685198 CLIP D6 €2.38
71
 photo_cameraImage coming soon 6685049 TANK CAP ASS'Y €13.36
73
 Collar 5.8 for Brushcutter Hitachi CG47EJ-L 6692244 Collar 5.8 for Brushcutter Hitachi CG47EJ-L €1.16
75
 Hex Hole Bolt M5x18PS for Hedge Trimmer Tanaka THT 210 6695505 Hex Hole Bolt M5x18PS for Hedge Trimmer Tanaka THT 210 €2.38
76
 photo_cameraImage coming soon 6691337 SWIVEL CAP €2.38
77
 Priming Pump for Chain Saws and Brushcutters Hitachi Tanaka 6685139 Priming Pump for Chain Saws and Brushcutters Hitachi Tanaka €13.36
80
 photo_cameraImage coming soon 6697846 RETURN GROMMET €2.38

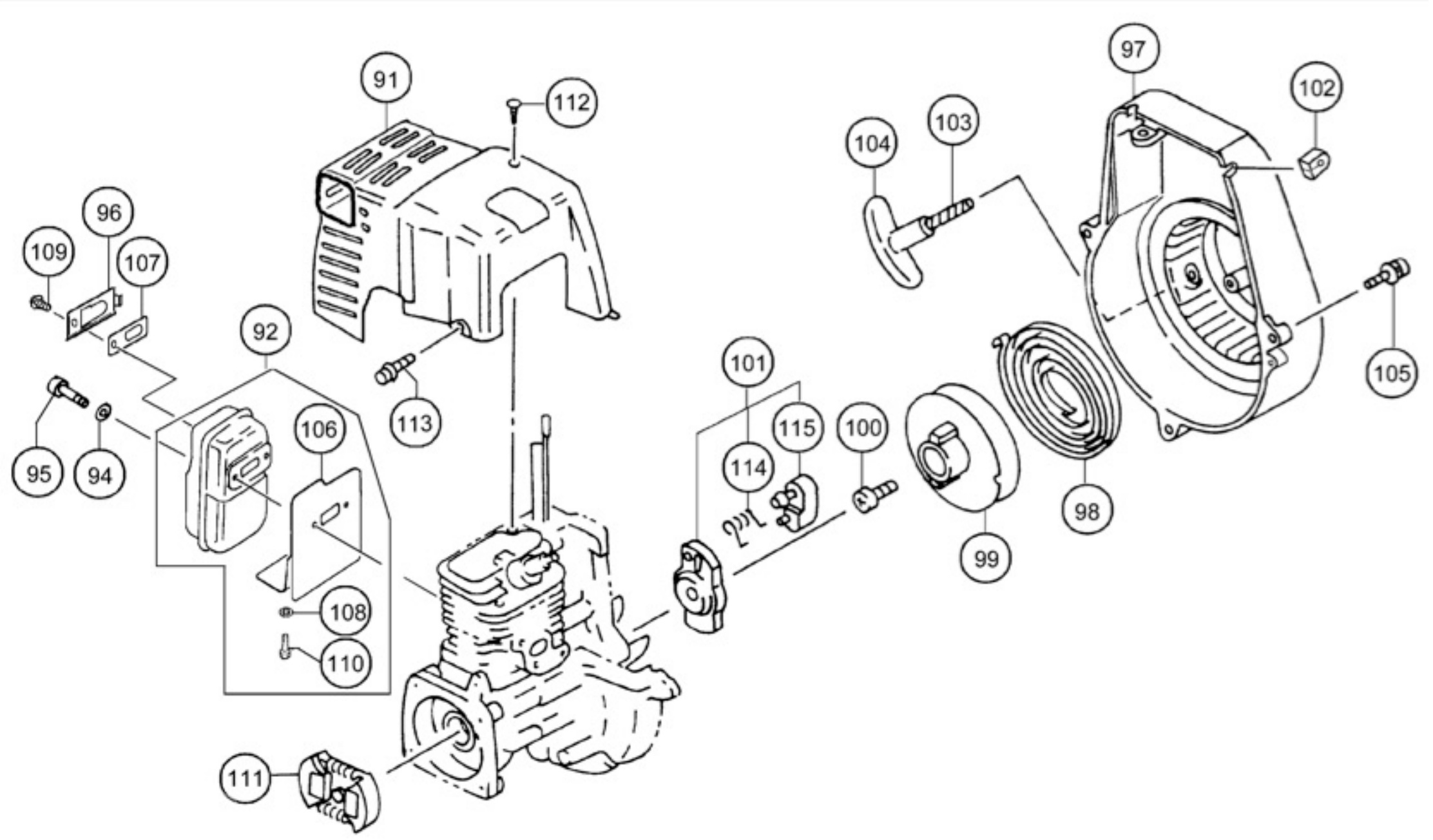

Page 4 zoom_in View exploded
Esploso pagina 4
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
91
 photo_cameraImage coming soon 6692772 MUFFLER PROTECTOR €17.02
92
 photo_cameraImage coming soon 6692455 MUFFLER SET €118.28
94
 Bolt Washer 6 for Brushcutters Chainsaws Hitachi Hikoki Tanaka 6684639 Bolt Washer 6 for Brushcutters Chainsaws Hitachi Hikoki Tanaka €2.38
97
 photo_cameraImage coming soon 6686957 FAN CASE COMP. €21.90
98
 photo_cameraImage coming soon 6684675 RECOIL SPRING €12.14
99
 photo_cameraImage coming soon 6693066 STARTER ROPE REEL €6.04
100
 photo_cameraImage coming soon 6693633 SET SCREW €1.16
101
 photo_cameraImage coming soon 6693405 STARTER PULLEY ASS'Y €9.70
102
 photo_cameraImage coming soon 6688049 PRIMARY CORD GROMMET €1.16
103
 photo_cameraImage coming soon 6693168 ROPE €3.60
104
 photo_cameraImage coming soon 6693237 STARTER HANDLE €4.82
106
 photo_cameraImage coming soon 6692718 MUFFLER COVER A COMP. €12.14
107
 photo_cameraImage coming soon 6692696 MUFFLER ARRESTOR €2.38
108
 photo_cameraImage coming soon 6684661 WASHER 5 €1.16
113
 photo_cameraImage coming soon 6695441 4X12PS SCREW €2.38
114
 photo_cameraImage coming soon 6684684 STARTER PAWL SPRING €3.60
115
 Starter Pawl for Hedge Trimmer Hitachi CH78EC(C) 6693319 Starter Pawl for Hedge Trimmer Hitachi CH78EC(C) €3.60

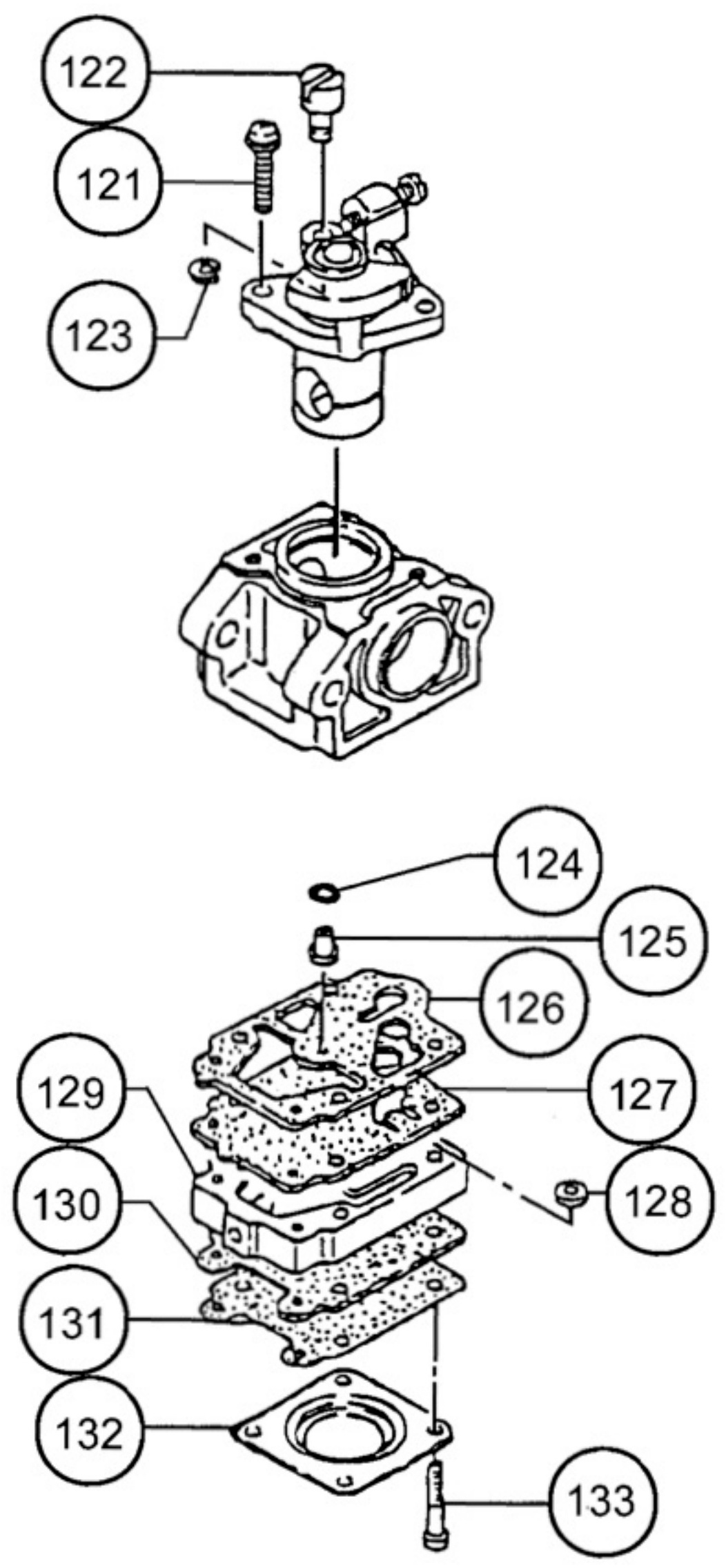

Page 5 zoom_in View exploded
Esploso pagina 5
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
121
 photo_cameraImage coming soon 6684698 SCREW €3.60
122
 photo_cameraImage coming soon 6684697 SWIVEL €4.82
123
 photo_cameraImage coming soon 6684696 STOP RING €1.16
124
 photo_cameraImage coming soon 6684695 ORING €3.60
126
 photo_cameraImage coming soon 6691457 PUMP GASKET €9.70
127
 Pump Diaphragm for Chainsaw Hitachi CS33EB 6684693 Pump Diaphragm for Chainsaw Hitachi CS33EB €9.70
128
 Carburator Inlet Screen for Chainsaws and Bruschcutters Hitachi 6684700 Carburator Inlet Screen for Chainsaws and Bruschcutters Hitachi €3.60
130
 Diaphragm Packing Metering for Chainsaws Hitachi CS25-33-40-45-51 6685220 Diaphragm Packing Metering for Chainsaws Hitachi CS25-33-40-45-51 €3.60
131
 photo_cameraImage coming soon 6690830 METERING DIAPHRAGM COMP. €15.80
133
 photo_cameraImage coming soon 6691312 SET SCREW €2.38

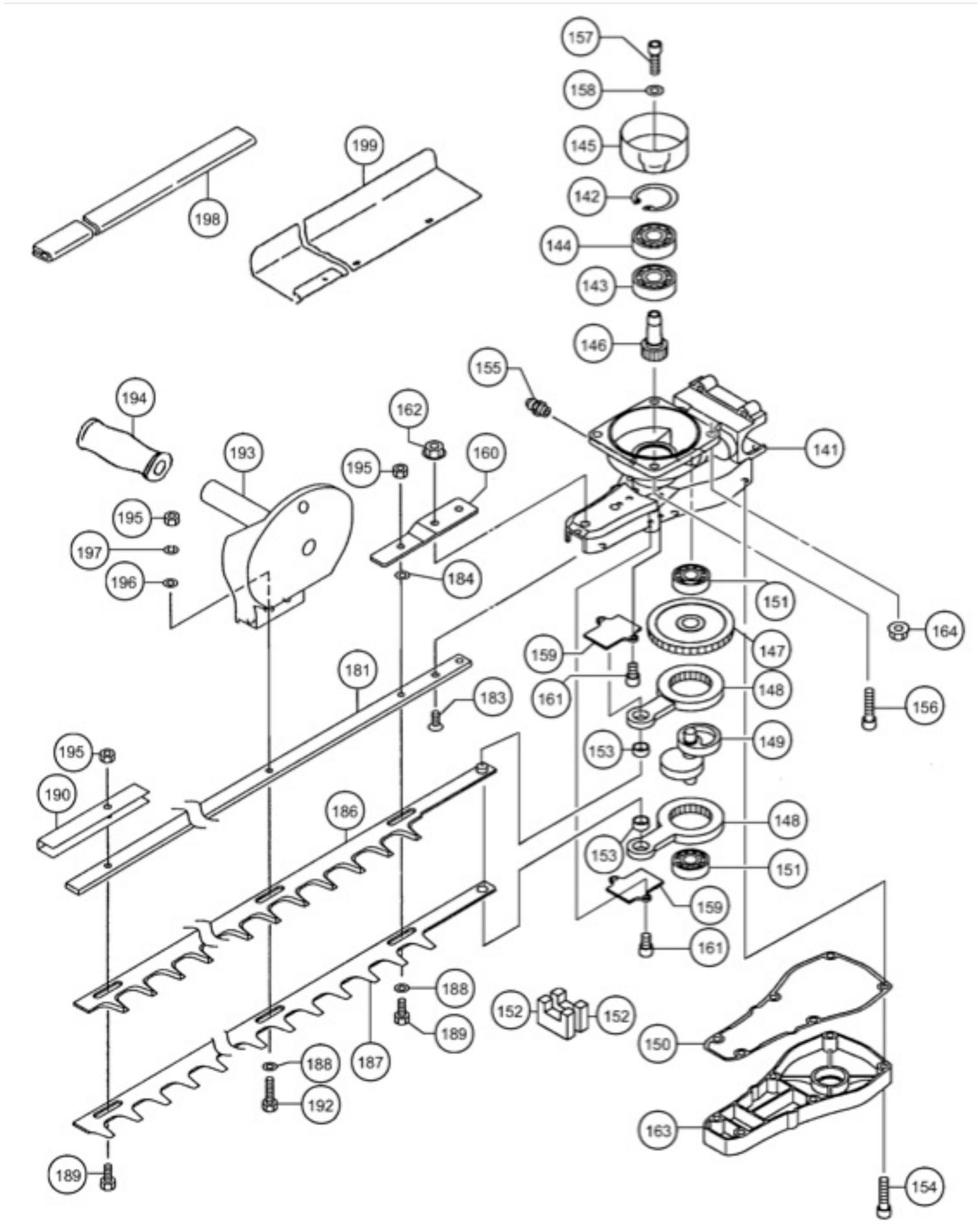

Page 6 zoom_in View exploded
Esploso pagina 6
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
141
 photo_cameraImage coming soon 6688672 GEAR CASE A €81.68
142
 Retaining Ring 26MM for Brushcutter Tanaka TBC-340 6695294 Retaining Ring 26MM for Brushcutter Tanaka TBC-340 €2.38
144
 photo_cameraImage coming soon 6695526 BALL BEARING n.6000Z 26MM/OD €14.58
145
 photo_cameraImage coming soon 6688571 CLUTCH HOUSING COMP. €25.56
147
 photo_cameraImage coming soon 6688978 GEAR 2 €24.34
148
 photo_cameraImage coming soon 6686810 CAMROD COMP. €70.70
149
 photo_cameraImage coming soon 6686791 CAM SHAFT €57.28
150
 Hitachi CH78EC-C Gear Case Gasket 6688910 Hitachi CH78EC-C Gear Case Gasket €1.16
151
 photo_cameraImage coming soon 6684738 BALL BEARING n.608,22MM/OD €9.70
152
 photo_cameraImage coming soon 6686655 GREASE SEAL A €1.16
153
 photo_cameraImage coming soon 6688293 COLLAR €7.26
155
 Grease Nipple for Hedgetrimmers Hitachi - HIKOKI - Tanaka 6688643 Grease Nipple for Hedgetrimmers Hitachi - HIKOKI - Tanaka €3.60
158
 photo_cameraImage coming soon 6695183 SMALL WASHER 6 €1.16
159
 photo_cameraImage coming soon 6686467 FIXING PLATE €3.60
162
 photo_cameraImage coming soon 6695475 SPRING NUT 6 €1.16
181
 photo_cameraImage coming soon 6687151 CUTTER GUIDE 830L M6 €60.94
184
 photo_cameraImage coming soon 6684822 SPECIAL WASHER B €2.38
186
 Hitachi CH78EC-C Cutter B 852L 6687113 Hitachi CH78EC-C Cutter B 852L €82.90
188
 photo_cameraImage coming soon 6687187 WASHER 7 BLACK €2.38
190
 photo_cameraImage coming soon 6687180 BLADE HOLDER €2.38
192
 photo_cameraImage coming soon 6687168 FIXING BOLT B M6 €2.38
193
 photo_cameraImage coming soon 6686311 HANDLE B COMP. €19.46
194
 photo_cameraImage coming soon 6684708 HANDLE GRIP €8.48
197
 photo_cameraImage coming soon 6695219 S.WASHER 6 €2.38
198
 photo_cameraImage coming soon 6687308 CUTTER COVER, L-773 €9.70

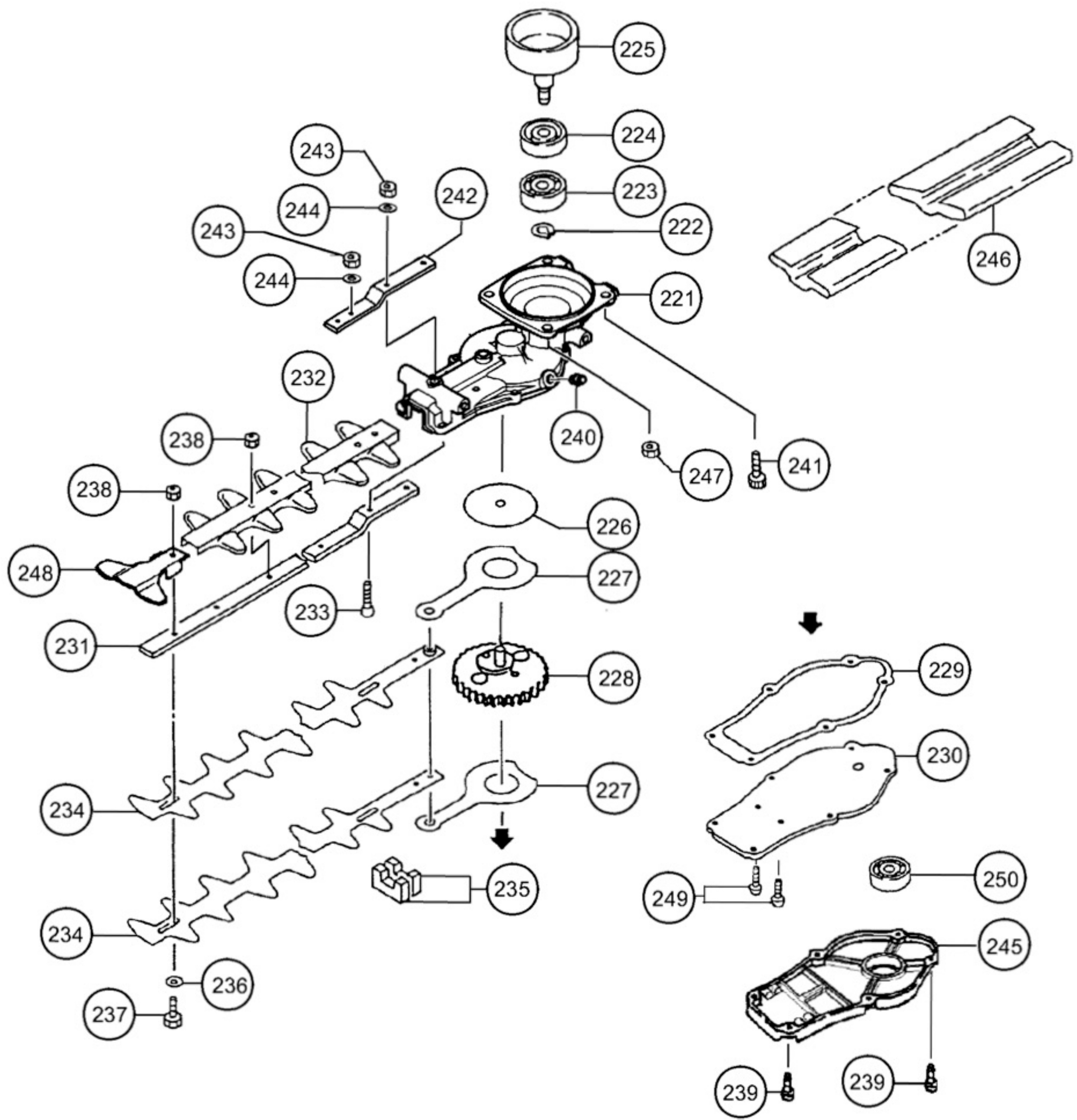

Page 7 zoom_in View exploded
Esploso pagina 7
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
221
 photo_cameraImage coming soon 6688684 GEAR CASE COMP. €42.64 Not available for order
222
 Stop Ring C-15 for Hedge Trimmer Tanaka THT 210 THT 210 B 6695285 Stop Ring C-15 for Hedge Trimmer Tanaka THT 210 THT 210 B €1.16
224
 Ball Bearing 6002Z for Hedge Trimmer Hitachi CH62EA(ST) 6695538 Ball Bearing 6002Z for Hedge Trimmer Hitachi CH62EA(ST) €14.58
225
 Clutch Drum for Hedge Trimmers Tanaka THT 210-HTD2530PF 6688570 Clutch Drum for Hedge Trimmers Tanaka THT 210-HTD2530PF €46.30
226
 photo_cameraImage coming soon 6686612 PLATE €2.38
227
 Cam Rod for Hedge Trimmer Hitachi CH78EC3(ST) 6686811 Cam Rod for Hedge Trimmer Hitachi CH78EC3(ST) €19.46
228
 photo_cameraImage coming soon 6688625 GEAR 2 COMP. €48.74
229
 Gear Case Cover Gasket for Hedge Trimmer Hitachi CH62EA3 (ST) 6688909 Gear Case Cover Gasket for Hedge Trimmer Hitachi CH62EA3 (ST) €2.38
231
 photo_cameraImage coming soon 6687144 CUTTER GUIDE 845L M6 €38.98
232
 photo_cameraImage coming soon 6687289 PROTECTION PLATE €20.68
233
 photo_cameraImage coming soon 6695075 HEX. HOLE FLUSH BOLT 6X25 €2.38
234
 photo_cameraImage coming soon 6687092 CUTTER A (812L) €78.02
235
 Clean Blade Felt for Hedge Trimmers Tanaka THT 210-HTD2530PF 6686654 Clean Blade Felt for Hedge Trimmers Tanaka THT 210-HTD2530PF €2.38
239
 photo_cameraImage coming soon 6684595 HEX. SOCKET HD. BOLT (W/SP.WASHER) M4X12 €1.16
242
 photo_cameraImage coming soon 6690762 SUPPORT PLATE €8.48
243
 photo_cameraImage coming soon 6695175 LOCK NUT 6 UPSP €1.16
248
 photo_cameraImage coming soon 6687275 GUARD PLATE €4.82
249
 Hex Hole Bolt M4x10S for Hedgetrimmer Hitachi CH62EA 6695484 Hex Hole Bolt M4x10S for Hedgetrimmer Hitachi CH62EA €3.60
250
 photo_cameraImage coming soon 6695547 BALL BEARING 608 ZZ C3 €10.92

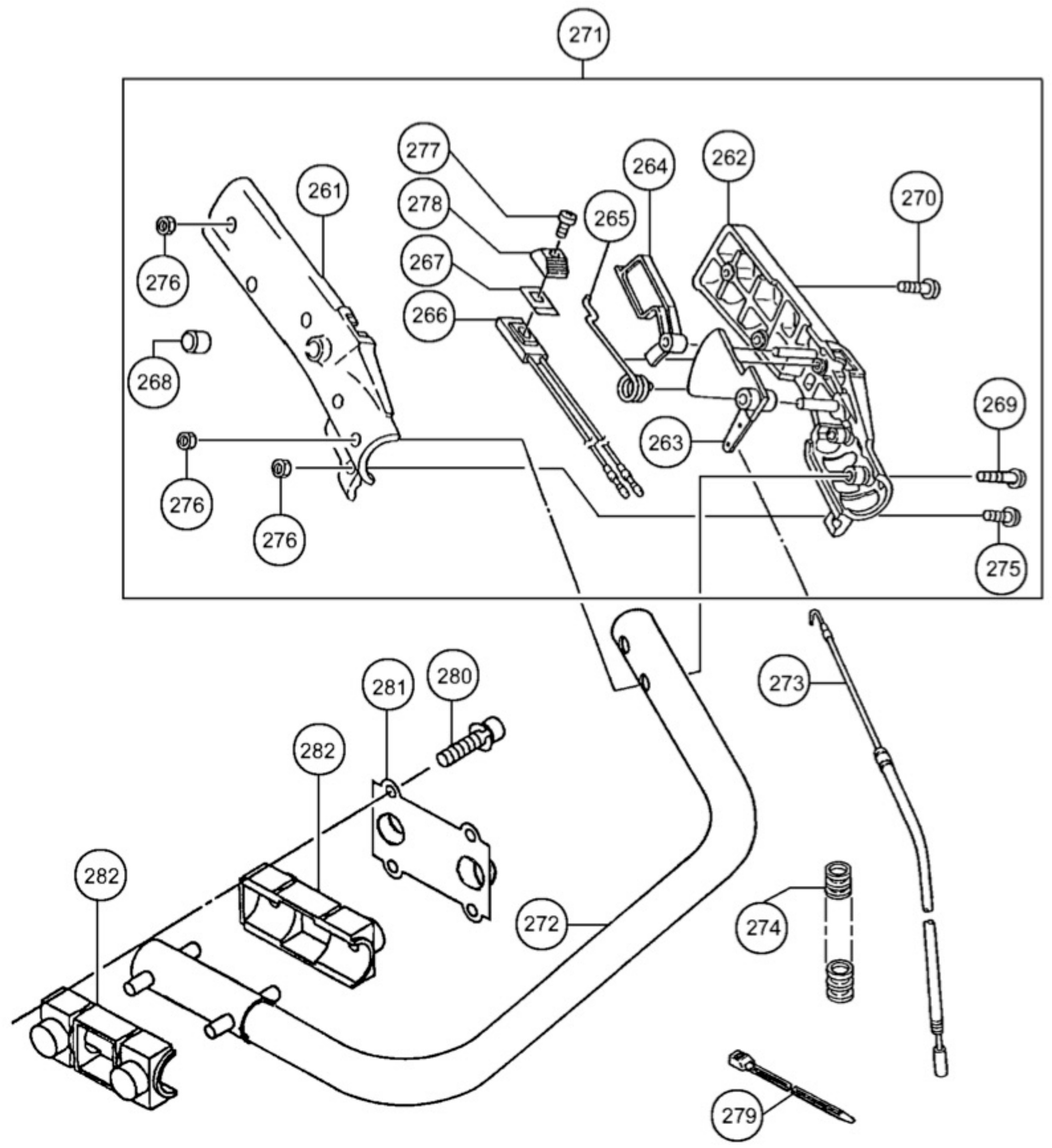

Page 8 zoom_in View exploded
Esploso pagina 8
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
263
 photo_cameraImage coming soon 6688229 THROTTLE LEVER €4.82
264
 photo_cameraImage coming soon 6688238 SAFETY LEVER €2.38
267
 photo_cameraImage coming soon 6694585 STOP BUTTON MARK €1.16
272
 photo_cameraImage coming soon 6686275 HANDLE A COMP. €47.52
273
 photo_cameraImage coming soon 6693877 THROTTLE WIRE 270+49 €7.26
278
 photo_cameraImage coming soon 6688366 BUTTON STOP €1.16
280
 photo_cameraImage coming soon 6684667 HEX.HOLE BOLT M5X12/S €2.38
282
 photo_cameraImage coming soon 6686396 HANDLE DUMPER RUBBER €4.82

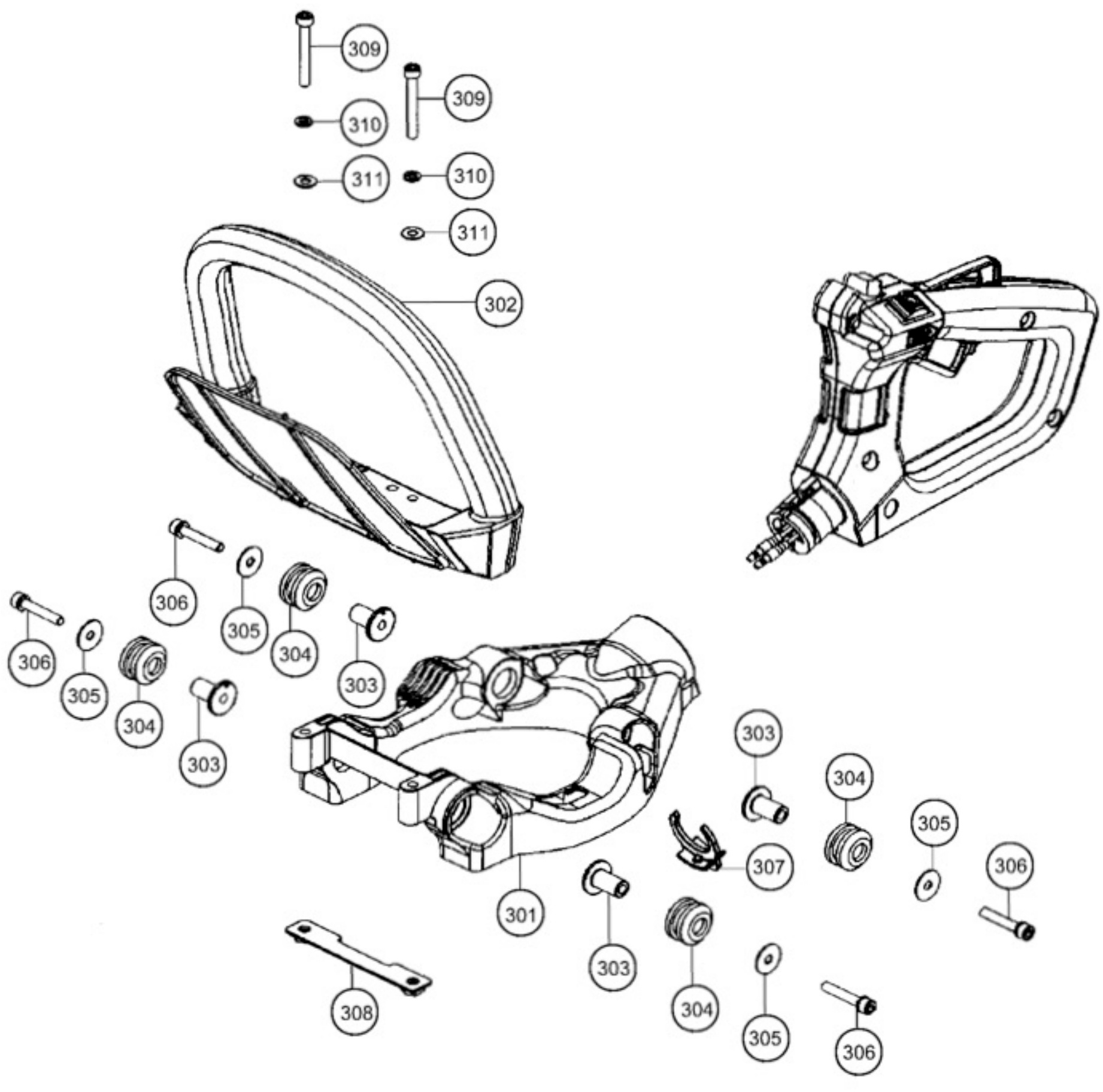

Page 9 zoom_in View exploded
Esploso pagina 9
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
301
 photo_cameraImage coming soon 6688377 FLAME €12.14
302
 photo_cameraImage coming soon 6688097 HANDLE €13.36
303
 Tanaka TCS-3301S Damper Collar B 6688485 Tanaka TCS-3301S Damper Collar B €3.60
304
 Damper B for Hedge Trimmer Tanaka THT 210 6688412 Damper B for Hedge Trimmer Tanaka THT 210 €2.38
308
 Handle Support for Hedge Trimmer Tanaka THT 210 6686111 Handle Support for Hedge Trimmer Tanaka THT 210 €6.04
311
 photo_cameraImage coming soon 6684918 WASHER M5 €2.38

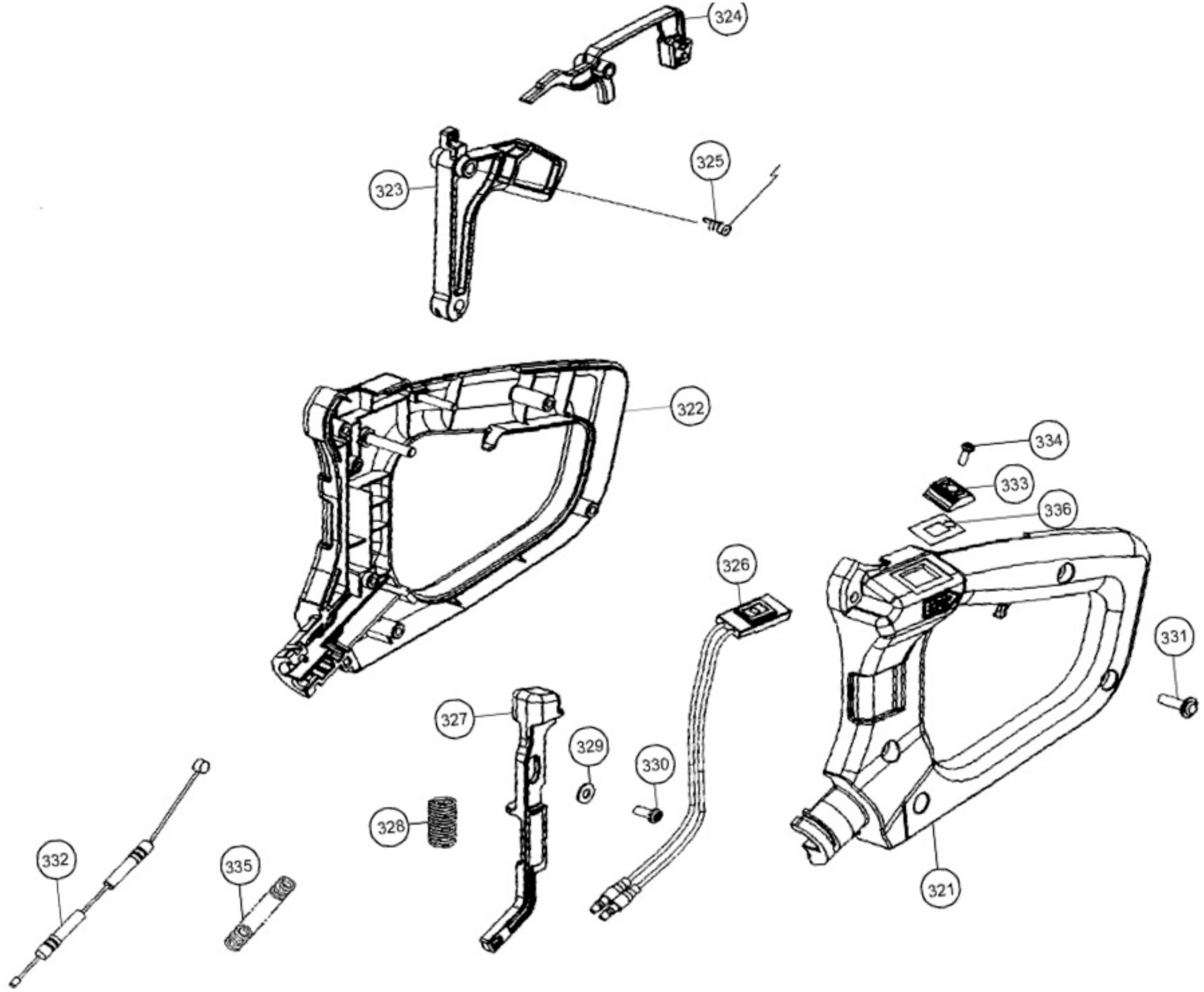

Page 10 zoom_in View exploded
Esploso pagina 10
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
321
 photo_cameraImage coming soon 6686314 HANDLE B - SINCE C226131 FOR US €9.70
322
 photo_cameraImage coming soon 6686279 HANDLE A - SINCE C226131 FOR US €9.70
323
 photo_cameraImage coming soon 6688230 THROTTLE LEVER €2.38
324
 photo_cameraImage coming soon 6688240 SAFETY LEVER OR €2.38
325
 photo_cameraImage coming soon 6688244 SPRING LEVER ACCELERATOR €2.38
327
 photo_cameraImage coming soon 6688246 LOCK LEVER €2.38
328
 photo_cameraImage coming soon 6688279 SPRING €2.38
329
 Oil Pump Setting Bolt Washer for Chainsaw Tanaka TCS-2800S 6685070 Oil Pump Setting Bolt Washer for Chainsaw Tanaka TCS-2800S €2.38
330
 Guide Plate Screw M4x10 for Chainsaw Hitachi CS25EC-SC 6685161 Guide Plate Screw M4x10 for Chainsaw Hitachi CS25EC-SC €1.16
335
 photo_cameraImage coming soon 6687524 PROTECTION TUBE 150L €1.16
336
 photo_cameraImage coming soon 6694588 STOP SWITCH €2.38

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Hitachi Spare Parts for Engine Hedge Trimmer CH78ED

Original spare parts Hitachi-HIKOKI recommended for you, at the best prices, fast delivery and lowest prices, for to make maintenance for Engine Hedge Trimmer CH78ED.

In the following table, look for the model of Trimmer and the respective parts of the code.
HedgeTrimmer CH78ED

Hedge Trimmer CH78ED
# Part Num. Description
4 6685462 CYLINDER SET
5 6684586 HEX.HOLE BOLT M5X18/S
6 6685728 CYLINDER GASKET
7 6684588 PISTON RING
8 6685877 PISTON SET
9 6685078 CIRCLIP
10 6686016 PISTON PIN
12 6684899 WOODRUFF KEY 3X13X4.5
16 6687704 IGNITION COIL ASS'Y
16 6687704 IGNITION COIL ASS'Y
31 6684604 GEAR SHAFT SHIM 0.20
37 6686771 STUD BOLT 6X22
38 6684786 HEX. SOCKET HD. BOLT M5X30 S
39 6695055 HEX. HOLE BOLT 5X45
40 6684834 SPRING WASHER 5
42 6684971 S.WASHER 8
43 6684611 BOLT WASHER M8
51 6689874 INTAKE MANIFOLD GASKET
52 6689937 INSULATOR SET,SPARE
53 6695515 HEX. HOLE BOLT 5X25WS
54 6689828 CARBURETOR GASKET
56 6690119 CLEANER BODY COMP.
57 6690804 COLLAR 7.5
59 6684658 WAVE WASHER 8
60 6690843 BLOW OVER CHECK BOARD
61 6684662 S.WASHER 5
62 6684660 SCREW M5X60
63 6690364 CLEANER SPONGE
64 6690415 CLEANER COVER ASS'Y
65 6689737 SPECIAL SCREW
66 6690461 CARBURETOR SET WYL139A
67 6688174 SHIELD TUBE
68 6685198 CLIP D6
71 6685049 TANK CAP ASS'Y
73 6692244 COLLAR 5.8
75 6695505 HEX. HOLE BOLT 5X18PS
76 6691337 SWIVEL CAP
77 6685139 PRIMING PUMP COMP.
78 6692347 FUEL PIPE 2.5X4X80
79 6692346 FUEL PIPE 2.5X4X70
80 6697846 RETURN GROMMET
91 6692772 MUFFLER PROTECTOR
92 6692455 MUFFLER SET
94 6684639 BOLT WASHER 6
97 6686957 FAN CASE COMP.
98 6684675 RECOIL SPRING
99 6693066 STARTER ROPE REEL
100 6693633 SET SCREW
101 6693405 STARTER PULLEY ASS'Y
102 6688049 PRIMARY CORD GROMMET
103 6693168 ROPE
104 6693237 STARTER HANDLE
105 6684682 HEX. HOLE BOLT 4X15/PS
106 6692718 MUFFLER COVER A COMP.
107 6692696 MUFFLER ARRESTOR
108 6684661 WASHER 5
111 6688494 CLUTCH
113 6695441 BOLT 4X12PS
114 6684684 STARTER PAWL SPRING
115 6693319 STARTER PAWL
121 6684698 THROTTLE SET SCREW
122 6684697 SWIVEL
123 6684696 STOP RING
124 6684695 O-RING
126 6691457 PUMP GASKET
127 6684693 PUMP DIAPHRAGM
128 6684700 INLET SCREEN
130 6685220 DIAPHRAGM PACKING-METERING
131 6690830 METERING DIAPHRAGM COMP.
133 6691312 SET SCREW
141 6688672 GEAR CASE A
142 6695294 RETAINING RING C-TYPE D26
144 6695526 BALL BEARING #6000Z, 26MM/OD
145 6688571 CLUTCH HOUSING COMP.
147 6688978 GEAR 2
148 6686810 CAM-ROD COMP.
149 6686791 CAM SHAFT
150 6688910 GEAR CASE GASKET
151 6684738 BALL BEARING #608,22MM/OD
152 6686655 GREASE SEAL A
153 6688293 COLLAR
154 6684709 HEX. HOLE BOLT M5X25/S
155 6688643 GREASE NIPPLE COMP.
156 6695495 HEX. HOLE BOLT 6X18/S
157 6695079 HEX HOLE BUTTON SCREW 6X15
158 6695183 SMALL WASHER 6
159 6686467 FIXING PLATE
161 6685093 HEX. SOCKET HD. BOLT M4X10
162 6695475 SPRING NUT 6
164 6695475 SPRING NUT 6
181 6687151 CUTTER GUIDE 830L M6
184 6684822 SPECIAL WASHER B
186 6687113 CUTTER B 852L
187 6687091 CUTTER A
188 6687187 WASHER 7 BLACK
189 6687158 FIXING BOLT A M6
190 6687180 BLADE HOLDER
192 6687168 FIXING BOLT B M6
193 6686311 HANDLE B COMP.
194 6684708 HANDLE GRIP
195 6695170 FLANGE NUT 6
196 6684639 BOLT WASHER 6
197 6695219 S.WASHER 6
198 6687308 CUTTER COVER, L-773
221 6688684 GEAR CASE COMP.
222 6695285 STOP RING C-15, OUTER
224 6695538 BALL BEARING #6002Z, 32MM/OD
225 6688570 CLUTCH DRUM COMP.
226 6686612 GUIDE PLATE
227 6686811 CAM ROD
228 6688625 GEAR 2 COMP.
229 6688909 GEAR CASE GASKET
230 6692101 GEAR CASE COVER
231 6687144 CUTTER GUIDE 845L M6
232 6687289 PROTECTION PLATE
233 6695075 HEX. HOLE FLUSH BOLT 6X25
234 6687092 CUTTER A (812L)
235 6686654 GREASE SEAL A
236 6687187 WASHER 7 BLACK
237 6687158 FIXING BOLT A M6
238 6695170 FLANGE NUT 6
239 6684595 HEX. SOCKET HD. BOLT (W/SP.WASHER) M4X12
240 6688643 GREASE NIPPLE COMP.
241 6695495 HEX. HOLE BOLT 6X18/S
242 6690762 SUPPORT PLATE
243 6695175 LOCK NUT 6 UPS-P
244 6684639 BOLT WASHER 6
245 6688846 GEAR CASE B
247 6695475 SPRING NUT 6
248 6687275 GUARD PLATE
249 6695484 HEX. HOLE BOLT 4X10S
250 6695547 BALL BEARING 608 ZZ C3
263 6688229 THROTTLE LEVER
264 6688238 SAFETY LEVER
267 6694585 STOP BUTTON MARK
268 6693002 CAP
272 6686275 HANDLE A COMP.
273 6693877 THROTTLE WIRE 270+49
277 6684913 SCREW 3X10
278 6688366 BUTTON STOP
280 6684667 HEX.HOLE BOLT M5X12/S
282 6686396 HANDLE DUMPER RUBBER
301 6688377 FLAME
302 6688097 HANDLE
303 6688485 DAMPER COLLAR B
304 6688412 DAMPER B
305 6689680 BRAKE SHAFT WASHER
306 6684786 HEX. SOCKET HD. BOLT M5X30 S
308 6686111 HANDLE SUPPORT COMP.
309 6695054 HEX. HOLE BOLT 5X40
310 6684834 SPRING WASHER 5
311 6684918 WASHER M5 (BLACK)
321 6686314 HANDLE B
322 6686279 HANDLE A
323 6688230 THROTTLE LEVER
324 6688240 SAFETY LEVER OR
325 6688244 THROTTLE LEVER SPRING
327 6688246 LOCK LEVER
328 6688279 SPRING
329 6685070 BOLT WASHER M4
330 6685161 TAPPING SCREW D4X10
331 6684636 TAPPING SCREW D4.5X16
333 6688366 BUTTON STOP
334 6684913 SCREW 3X10
335 6687524 PROTECTION TUBE 150L
336 6694588 STOP BUTTON MARK
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Hitachi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to hitachi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Hitachi CH78ED
12 Items

Specific References

New

Download

Diagram Hitachi CH78ED

Diagram Hitachi CH78ED

Download (1.07MB)

You might also like

Damper B for Hedge Trimmer Tanaka THT 210
HiKOKI Power Tools Italia S.p.a. SKU: 6688412
Damper B for Hedge Trimmer Tanaka THT 210
Damper B for Hedge Trimmer Tanaka THT 210 Genuine spare parts Tanaka, Damper B for Hedge Trimmer Tanaka THT 210 - HTD2530PF - Chainsaws Tanaka TCS-3301S - ECS-3350D Part for the following items: - Hedge Trimmer Tanaka THT 210 - Hedge...
AVAILABLE €2.38
Details
Spring Washer 5 for Brushcutter Hitachi CG33EJ-SL
HiKOKI Power Tools Italia S.p.a. SKU: 6684834
Spring Washer 5 for Brushcutter Hitachi CG33EJ-SL
Spring Washer 5 for Brushcutter Hitachi CG33EJ-SL Original spare part Hitachi, Spring Washer 5 for Brushcutters CG33EJ-SL - CG47EY-T - CG27EJ-SLNP - CG22EJ. Parts for the following products: - Brushcutter TBC-340 - Brushcutter...
AVAILABLE €1.16
Details
Cam Rod for Hedge Trimmer Hitachi CH78EC3(ST)
HiKOKI Power Tools Italia S.p.a. SKU: 6686811
Cam Rod for Hedge Trimmer Hitachi CH78EC3(ST)
Cam Rod for Hedge Trimmer Hitachi CH78EC3(ST) Original spare part Hitachi Koky Tanaka, Cam Rod for Hedge Trimmer Hitachi Tanaka CH78EC(ST) -  CH78EC3(ST) - CH66EB(ST) - CH66EB2(ST) - CH66EB3(ST)....
on 7/10 Business Days Approx €19.46
Details
Starter Pawl for Hedge Trimmer Hitachi CH78EC(C)
HiKOKI Power Tools Italia S.p.a. SKU: 6693319
Starter Pawl for Hedge Trimmer Hitachi CH78EC(C)
Starter Pawl for Hedge Trimmer Hitachi CH78EC(C) Original spare part Hitachi Koky Tanaka, Starter Pawl for Hedge Trimmer Hitachi Tanaka Hitachi CH78EC(C) -  CH78ED - Tanaka THT-2530 - THT 210 B. Parts for the following products: -...
AVAILABLE €3.60
Details
Collar 5.8 for Brushcutter Hitachi CG47EJ-L
HiKOKI Power Tools Italia S.p.a. SKU: 6692244
Collar 5.8 for Brushcutter Hitachi CG47EJ-L
Collar 5.8 for Brushcutter Hitachi CG47EJ-L Original part Hitachi-HIKOKI, Fuel Tank Collar 5.8 for Brushcutters CG47EJ-L - CG47EY-T - CG40EF-L - CG47EF(L) - CG22EJ. Parts for the following...
Usually Ships in: 7/10 Business Days Approx. €1.16
Details
Hex Hole Bolt M5x18PS for Hedge Trimmer Tanaka THT 210
HiKOKI Power Tools Italia S.p.a. SKU: 6695505
Hex Hole Bolt M5x18PS for Hedge Trimmer Tanaka THT 210
Hex Hole Bolt M5x18PS for Hedge Trimmer Tanaka THT 210 Original spare part Hitachi-HIKOKI Tanaka, Hex Hole Bolt M5x18PS for Hedge Trimmers THT 210 - THT 210 B - THT 210 S. Parts for the following products: -  Hedge Trimmer Tanaka THT...
AVAILABLE €2.38
Details
Ball Bearing 6002Z for Hedge Trimmer Hitachi CH62EA(ST)
HiKOKI Power Tools Italia S.p.a. SKU: 6695538
Ball Bearing 6002Z for Hedge Trimmer Hitachi CH62EA(ST)
Ball Bearing 6002Z for Hedge Trimmer Hitachi CH62EA(ST) Original spare part Hitachi HiKoki Tanaka, Ball Bearing 6002Z C3 32MM OD for Hedge Trimmers Hitachi CH62EA(ST) - CH62EA2(ST) Part for the following products: -  Hedge Trimmer...
on 7/10 Business Days Approx €14.58
Details
Retaining Ring 26MM for Brushcutter Tanaka TBC-340
HiKOKI Power Tools Italia S.p.a. SKU: 6695294
Retaining Ring 26MM for Brushcutter Tanaka TBC-340
Retaining Ring 26MM for Brushcutter Tanaka TBC-340 Genuine spare part Tanaka, Retaining Ring 26MM for Brushcutter Tanaka TBC-340 - TBC-340D - Hitachi CG33EJ-SL Part for the following products: -  Brushcutter Tanaka TBC-340 -...
on 7/10 Business Days Approx €2.38
Details
Handle Support for Hedge Trimmer Tanaka THT 210
HiKOKI Power Tools Italia S.p.a. SKU: 6686111
Handle Support for Hedge Trimmer Tanaka THT 210
Handle Support for Hedge Trimmer Tanaka THT 210 Original parts Hitachi Koky Tanaka, Handle Support Comp. for Hedge Trimmer THT 210 - THT 210 B - THT 210 S Parts for the following products: -  Hedge Trimmer Tanaka THT 210 -  Hedge...
on 7/10 Business Days Approx €6.04
Details
Grease Nipple for Hedgetrimmers Hitachi - HIKOKI - Tanaka
HiKOKI Power Tools Italia S.p.a. SKU: 6688643
Grease Nipple for Hedgetrimmers Hitachi - HIKOKI - Tanaka
Grease Nipple for Hedgetrimmers Hitachi - HIKOKI - Tanaka Original spare part Hitachi HIKOKI, Grease Nipple for Hedgetrimmers Hitachi - HIKOKI - Tanaka. Parts for the following products: - HEDGETRIMMER THT-2520 - 2520 B - HEDGETRIMMER...
on 7/10 Business Days Approx. €3.60
Details
Hex Hole Bolt M4x10S for Hedgetrimmer Hitachi CH62EA
HiKOKI Power Tools Italia S.p.a. SKU: 6695484
Hex Hole Bolt M4x10S for Hedgetrimmer Hitachi CH62EA
Hex Hole Bolt M4x10S for Hedgetrimmer Hitachi CH62EA Original spare part Hitachi-HIKOKI Tanaka, Hex Hole Bolt M4x10S for Hedgetrimmers CH62EA - CH66EB - CH62EA3. Parts for the following...
AVAILABLE €3.60
Details
Hitachi CH78EC-C Cutter B 852L
HiKOKI Power Tools Italia S.p.a. SKU: 6687113
Hitachi CH78EC-C Cutter B 852L
Hitachi CH78EC-C Cutter B 852L Original spare part Hitachi Koky Tanaka, Cutter B 852L for Hedge Trimmer CH78EC-C - CH78ED - Tanaka THT-2530. Parts for the following products: - Engine Hedge Trimmer CH78EC-C - Engine Hedge Trimmer...
Last items in stock €82.90
Details
Hitachi CH78EC-C Gear Case Gasket
HiKOKI Power Tools Italia S.p.a. SKU: 6688910
Hitachi CH78EC-C Gear Case Gasket
Hitachi CH78EC-C Gear Case Gasket Original spare part Hitachi Koky Tanaka, Gear Case Gasket for Hedge Trimmer CH78EC-C - CH78ED - Tanaka THT-2530. Parts for the following products: - Engine Hedge Trimmer CH78EC-C - Engine Hedge...
AVAILABLE €1.16
Details
Comments (0)
