Hitachi Spare Parts for Chainsaw CS 30EC

SKU: Hitachi CS30EC
€43.35
VAT included

Hitachi Spare Parts for Chainsaw CS 30EC

Hitachi original spare parts for the replacement of damaged parts or to repair electrical or mechanical components of the Chainsaw CS 30EC.
Hitachi Spare Parts for Chainsaw CS 30EC
  • Hitachi Spare Parts for Chainsaw CS 30EC
  • Hitachi Spare Parts for Chainsaw CS 30EC
  • Hitachi Spare Parts for Chainsaw CS 30EC
  • Hitachi Spare Parts for Chainsaw CS 30EC
  • Hitachi Spare Parts for Chainsaw CS 30EC
  • Hitachi Spare Parts for Chainsaw CS 30EC
  • Hitachi Spare Parts for Chainsaw CS 30EC
  • Hitachi Spare Parts for Chainsaw CS 30EC
  • Hitachi Spare Parts for Chainsaw CS 30EC
  • Hitachi Spare Parts for Chainsaw CS 30EC
  • Hitachi Spare Parts for Chainsaw CS 30EC
HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Chainsaw CS 30EC

SKU: Hitachi CS30EC Condition: New
€43.35
VAT included

Hitachi Spare Parts for Chainsaw CS 30EC

Hitachi original spare parts for the replacement of damaged parts or to repair electrical or mechanical components of the Chainsaw CS 30EC.
settings 154 spare parts
description 10 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 7/10 Business Days Approx

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
154 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

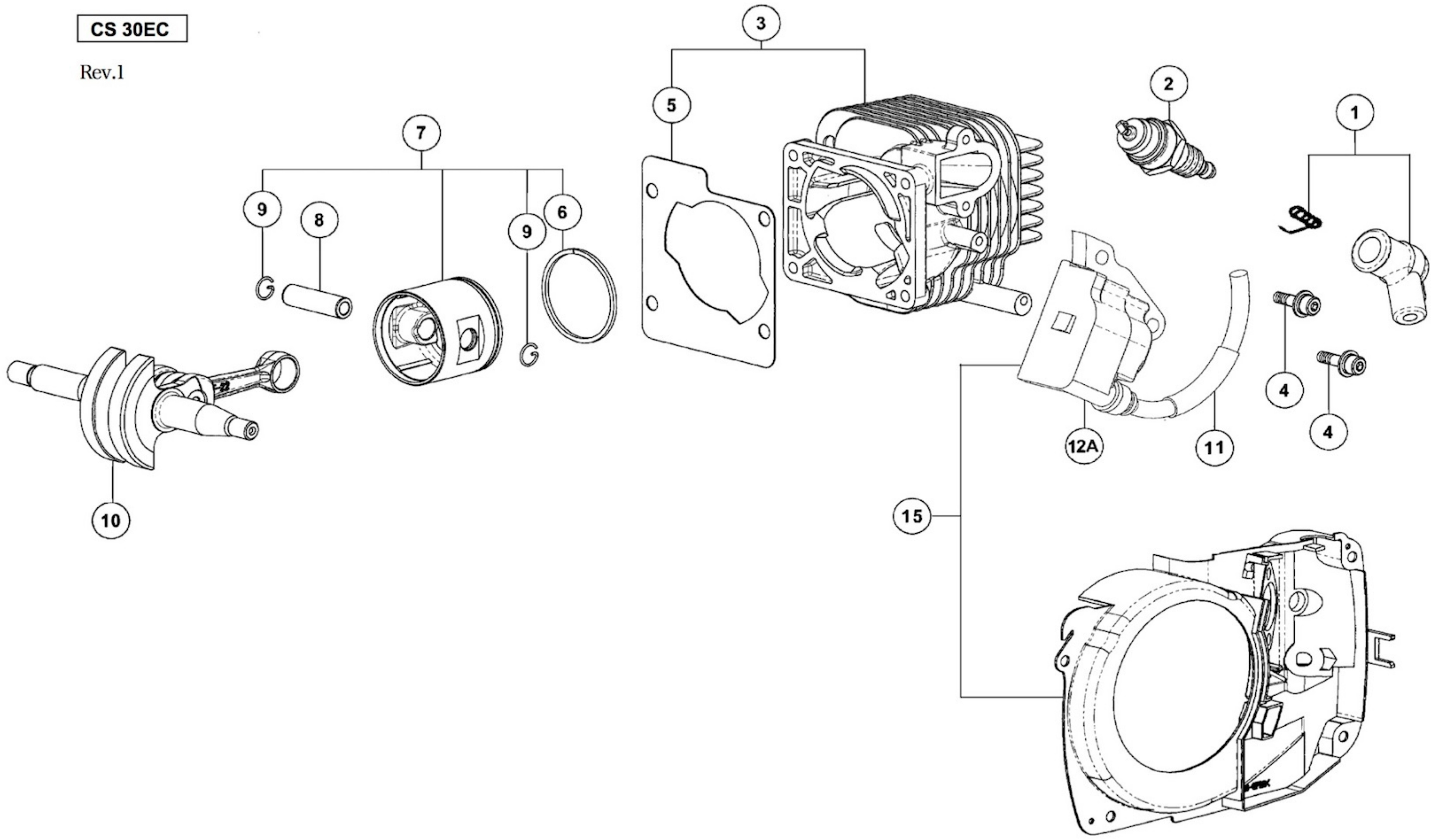

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 6687468 SPARK PLUG CAP ASS'Y €4.82
3
 photo_cameraImage coming soon 6685461 CYLINDER SET €119.50
5
 photo_cameraImage coming soon 6685726 CYLINDER GASKET €2.38
6
 Piston Ring for Chainsaw Hitachi Tanaka CS25EC-SC 6686119 Piston Ring for Chainsaw Hitachi Tanaka CS25EC-SC €8.48
7
 Set Piston for Chainsaw Hitachi Tanaka CS25EC-SC 6685881 Set Piston for Chainsaw Hitachi Tanaka CS25EC-SC €34.10
8
 Piston Pin for Brushcutter Hitachi CG27EASP 6684591 Piston Pin for Brushcutter Hitachi CG27EASP €3.60
9
 Circlip for Brushcutter Hitachi CG 24EBS 6684590 Circlip for Brushcutter Hitachi CG 24EBS €1.16
10
 photo_cameraImage coming soon 6686173 CRANK SHAFT COMP. €142.68
12A
 photo_cameraImage coming soon 6601174 IGNITION COIL ASS'Y €41.42
20
 photo_cameraImage coming soon 6685098 SHIM S T0.2 €2.38
20
 photo_cameraImage coming soon 6685099 SHIM S T0.3 €2.38
20
 photo_cameraImage coming soon 6686475 SHIM 0.4 €2.38

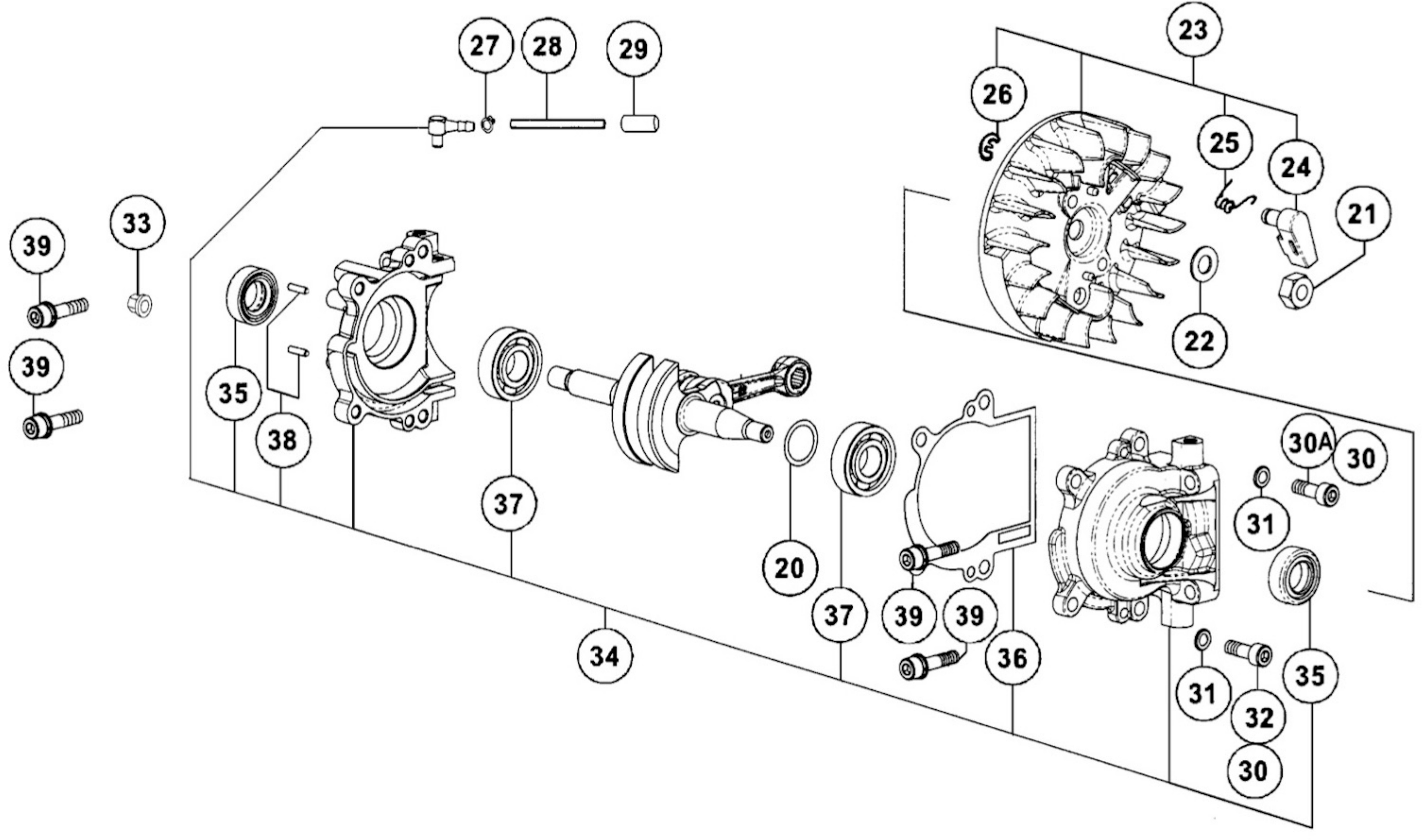

22
 photo_cameraImage coming soon 6685103 BOLT WASHER M7 €1.16
23
 Magneto Rotor Set for Chainsaw Hitachi Tanaka CS25EC-SC 6687378 Magneto Rotor Set for Chainsaw Hitachi Tanaka CS25EC-SC €51.18
24
 photo_cameraImage coming soon 6693305 STARTER PAWL €4.82
25
 photo_cameraImage coming soon 6685105 STARTER PAWL SPRING €1.16
26
 photo_cameraImage coming soon 6685101 D4E RETAINING RING €1.16
27
 photo_cameraImage coming soon 6692304 CLIP 4.5 €2.38
28
 photo_cameraImage coming soon 6692412 FUEL PIPE 2.5X4.5X175 €3.60
29
 Insulator Tube for Chainsaw Hitachi CS25EC-SC 6684597 Insulator Tube for Chainsaw Hitachi CS25EC-SC €1.16
30
 photo_cameraImage coming soon 6695046 HEX. HOLE BOLT 5X16 €2.38
30A
 photo_cameraImage coming soon 6695046 HEX. HOLE BOLT 5X16 €2.38
31
 photo_cameraImage coming soon 6685226 WASHER M5 (BLACK) €2.38
34
 Crank Case Assy for Chainsaw Hitachi CS25EC-SC 6686526 Crank Case Assy for Chainsaw Hitachi CS25EC-SC €82.90
35
 photo_cameraImage coming soon 6684607 OIL SEAL TB 12227 €3.60
36
 photo_cameraImage coming soon 6686703 CRANK CASE GASKET €2.38
39
 photo_cameraImage coming soon 6695514 HEX.HOLE BOLT 5X22/WS €2.38

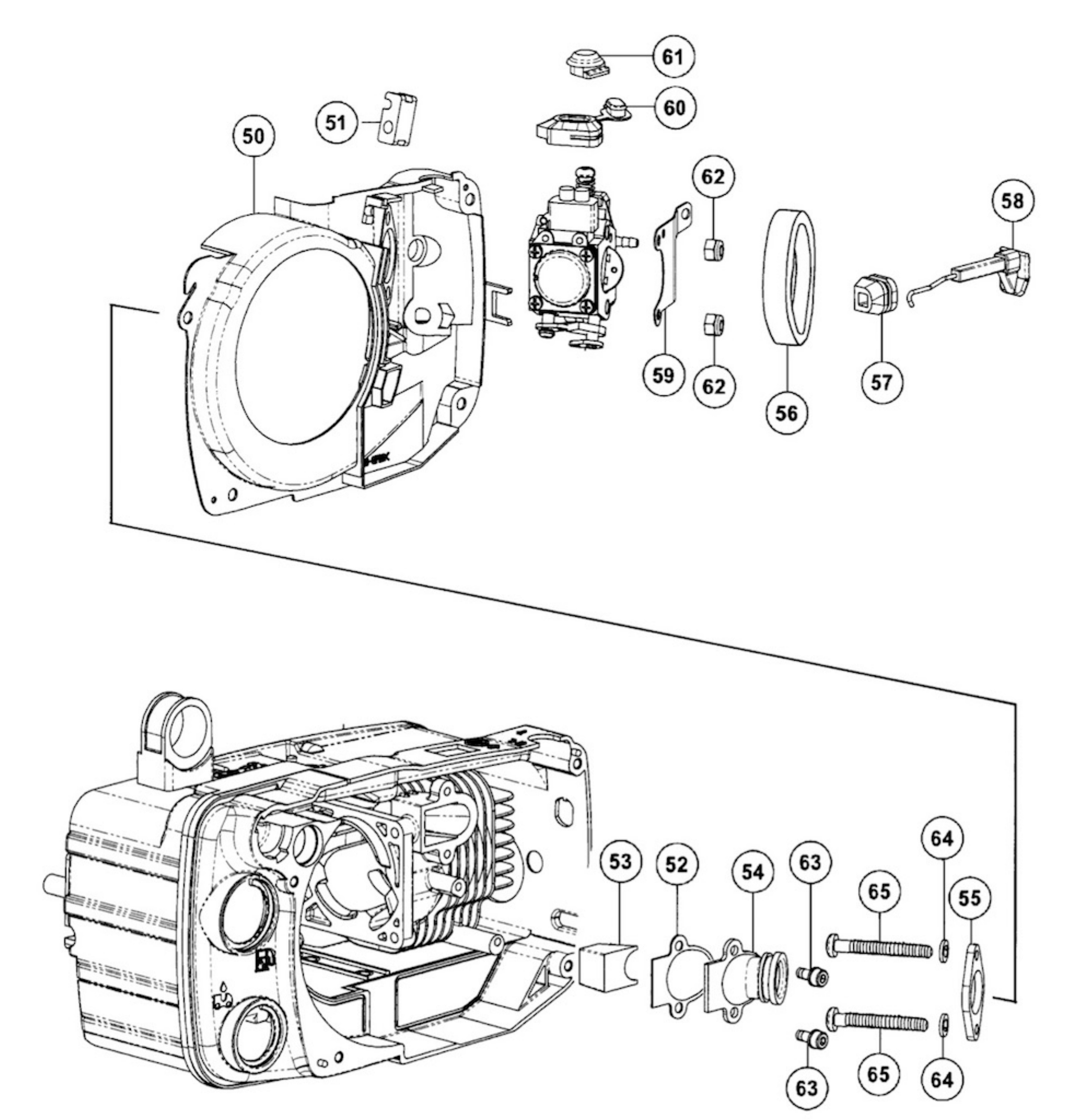

50
 Air Deflector for Chainsaw Hitachi CS25EC-SC 6687328 Air Deflector for Chainsaw Hitachi CS25EC-SC €10.92
51
 photo_cameraImage coming soon 6691466 PIPE HOLDING GROMMET €2.38
52
 Inlet Manifold Gasket for Chainsaw Hitachi Tanaka CS25EC-SC-EU 6689872 Inlet Manifold Gasket for Chainsaw Hitachi Tanaka CS25EC-SC-EU €2.38
53
 photo_cameraImage coming soon 6689819 INLETMANIFOLD SPACER €3.60
55
 photo_cameraImage coming soon 6689997 CARB. FIXING PLATE €3.60
56
 Dust Cover for Chainsaw Hitachi Tanaka CS25EC-SC-EU 6690811 Dust Cover for Chainsaw Hitachi Tanaka CS25EC-SC-EU €3.60 Not available for order
57
 photo_cameraImage coming soon 6692587 CHOKE ROD HOLDING RUBB €2.38
58
 photo_cameraImage coming soon 6692515 CHOKE BUTTOM COMP. €9.70
59
 photo_cameraImage coming soon 6690679 CARUB. SUPPORT PLATE €3.60
60
 photo_cameraImage coming soon 6687960 ADJUSTER CAP €3.60
61
 photo_cameraImage coming soon 6687980 IDLE GROMMET €2.38
63
 Hex Hole Bolt M4x10S for Hedgetrimmer Hitachi CH62EA 6695484 Hex Hole Bolt M4x10S for Hedgetrimmer Hitachi CH62EA €3.60

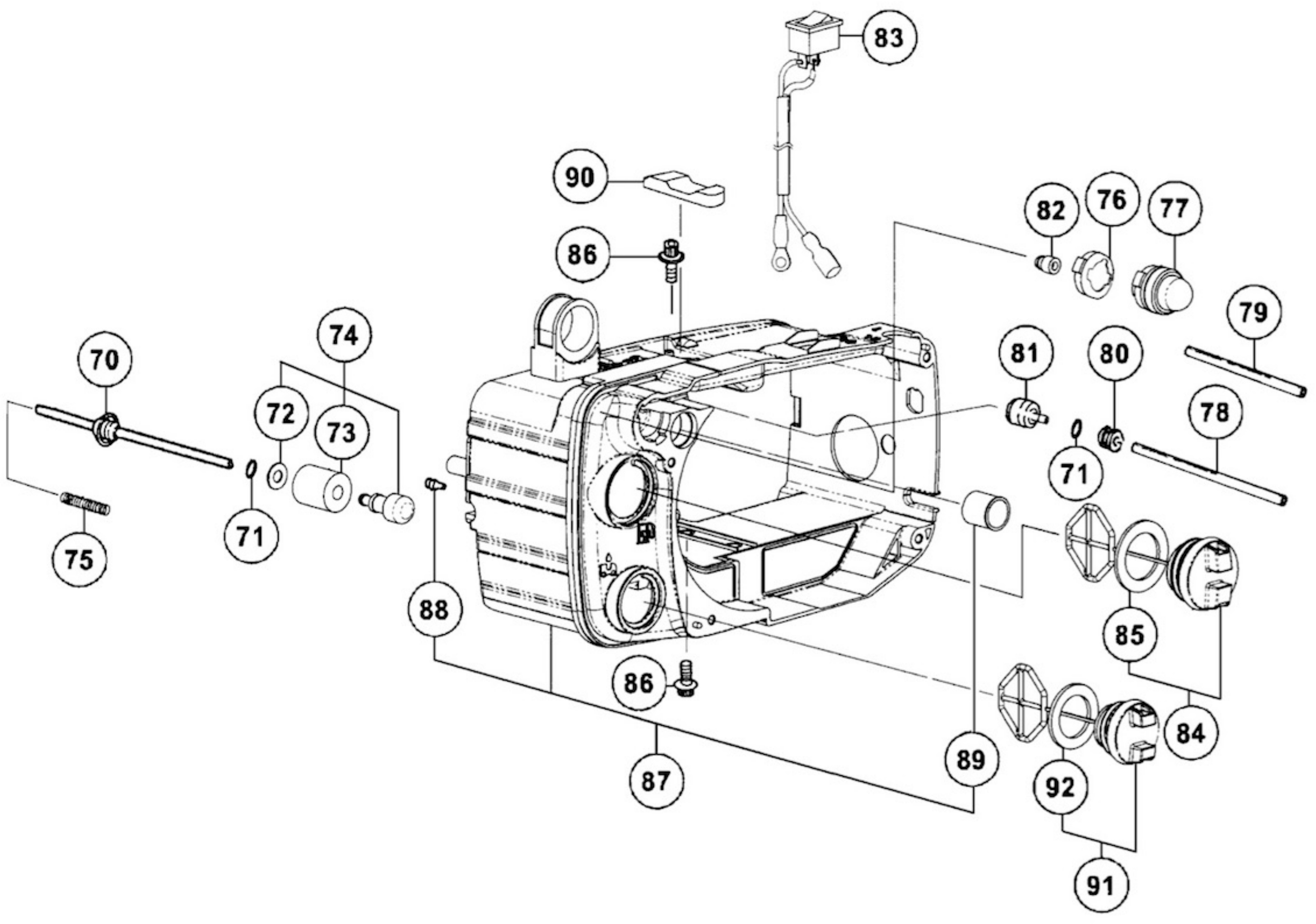

70
 Shield Tube for Chainsaw Hitachi CS25EC-SC 6685247 Shield Tube for Chainsaw Hitachi CS25EC-SC €4.82 Not available for order
71
 CLIP D6 6685198 CLIP D6 €2.38
72
 photo_cameraImage coming soon 6684661 WASHER 5 €1.16
74
 Oil Filter Body Ass’y for Chainsaw Tanaka TCS-2800S 6685249 Oil Filter Body Ass’y for Chainsaw Tanaka TCS-2800S €7.26
76
 photo_cameraImage coming soon 6692126 PUMP FIXING PLATE €2.38
77
 Priming Pump for Chain Saws and Brushcutters Hitachi Tanaka 6685139 Priming Pump for Chain Saws and Brushcutters Hitachi Tanaka €13.36
78
 photo_cameraImage coming soon 6692413 FUEL PIPE €3.60
79
 photo_cameraImage coming soon 6692350 FUIL PIPE 2.5X4.5X140 €2.38
83
 photo_cameraImage coming soon 6687504 STOP SWITCH COMP. €12.14
84
 Tank Cap Ass'y for Chainsaws Hitachi CS25EC-SC 6685180 Tank Cap Ass'y for Chainsaws Hitachi CS25EC-SC €6.04
85
 Petrol-Oil Tank Cap Packing for Chainsaw Hitachi CS33EDT 6685179 Petrol-Oil Tank Cap Packing for Chainsaw Hitachi CS33EDT €2.38 Not available for order
87
 Engine Case Ass'y for Chainsaw Hitachi CS25EC-SC 6691368 Engine Case Ass'y for Chainsaw Hitachi CS25EC-SC €82.90
88
 photo_cameraImage coming soon 6685173 AIR VENT VALVE (B) €6.04
89
 photo_cameraImage coming soon 6692086 AIR VENT ASS'Y €14.58
90
 photo_cameraImage coming soon 6691380 ENGINE CASE COVER €2.38
91
 Oil Tank Cap for Chainsaws Tanaka TCS-2800S - TCS-2801S 6697756 Oil Tank Cap for Chainsaws Tanaka TCS-2800S - TCS-2801S €6.04 Not available for order
92
 Oil Tank Cap Packing for Chainsaw Tanaka TCS-2800S 6697888 Oil Tank Cap Packing for Chainsaw Tanaka TCS-2800S €2.38 Not available for order

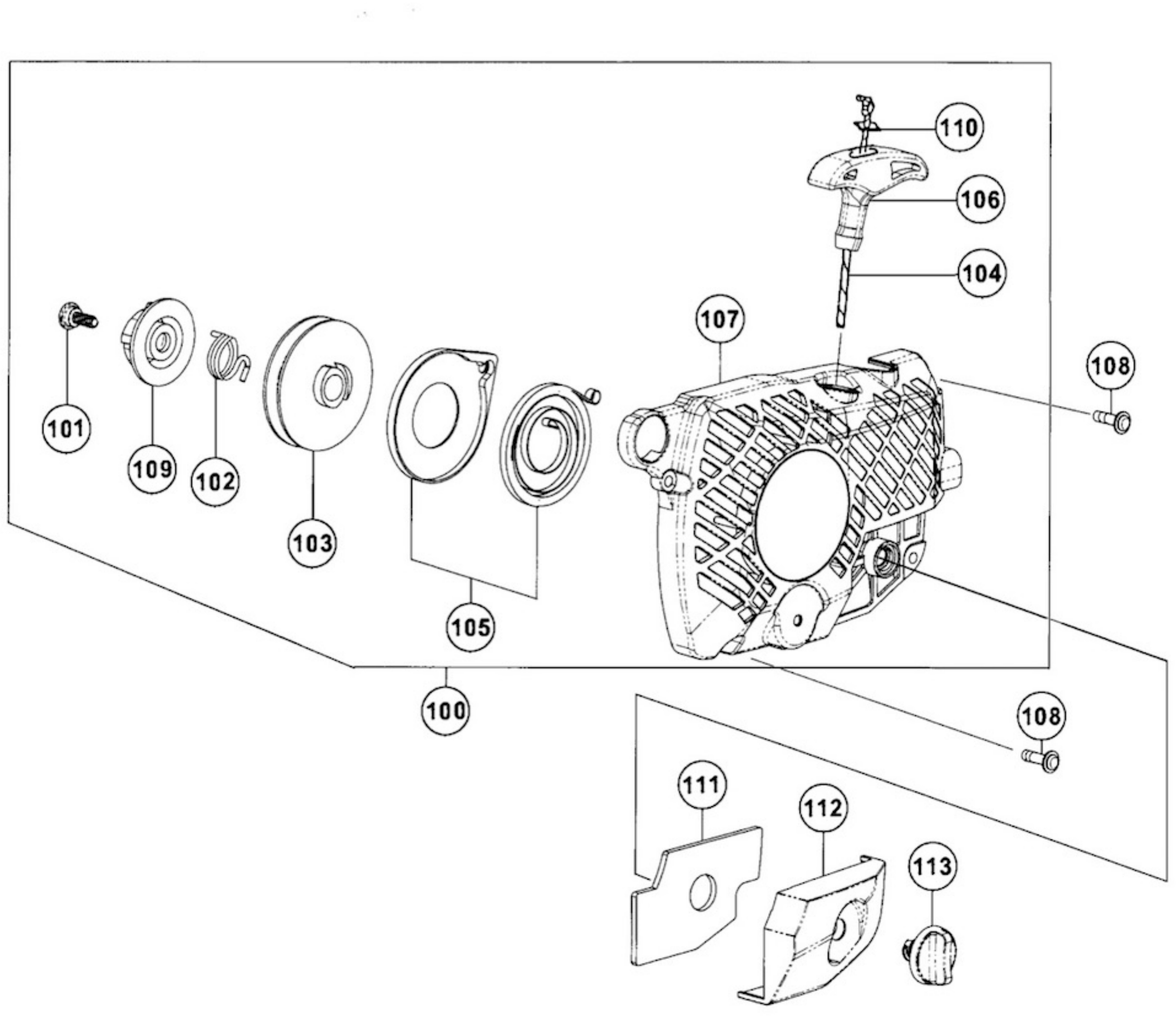

100
 Recoil Starter Ass'y for Chainsaw Hitachi Tanaka CS25EC-SC 6692912 Recoil Starter Ass'y for Chainsaw Hitachi Tanaka CS25EC-SC €43.86
101
 Set Screw for Hedge Trimmer Hitachi CH62EA(ST) 6684679 Set Screw for Hedge Trimmer Hitachi CH62EA(ST) €7.26
102
 Damper Spring for Chainsaw Hitachi Tanaka CS33EA-CS25EC-SC 6685183 Damper Spring for Chainsaw Hitachi Tanaka CS33EA-CS25EC-SC €8.48
103
 Starter Pulley for Chainsaw Hitachi Tanaka CS25EC-SC 6685184 Starter Pulley for Chainsaw Hitachi Tanaka CS25EC-SC €10.92
105
 Spring Case Set for Chainsaw Tanaka TCS-2801S 6685185 Spring Case Set for Chainsaw Tanaka TCS-2801S €15.80
106
 photo_cameraImage coming soon 6685188 STARTER HANDLE €6.04
107
 photo_cameraImage coming soon 6686953 FAN CASE COMP. €29.22
109
 Cam Plate for Chainsaw Hitachi Tanaka CS33EA-CS25EC-SC 6692936 Cam Plate for Chainsaw Hitachi Tanaka CS33EA-CS25EC-SC €8.48
111
 Air Cleaner Element for Chainsaw Hitachi Tanaka CS25EC-SC 6690065 Air Cleaner Element for Chainsaw Hitachi Tanaka CS25EC-SC €3.60
112
 Cleaner Cover for Chainsaw Tanaka TCS-2801S 6686315 Cleaner Cover for Chainsaw Tanaka TCS-2801S €10.92
113
 Cleaner Cover Knob for Chainsaw Tanaka TCS-2801S 6685228 Cleaner Cover Knob for Chainsaw Tanaka TCS-2801S €3.60

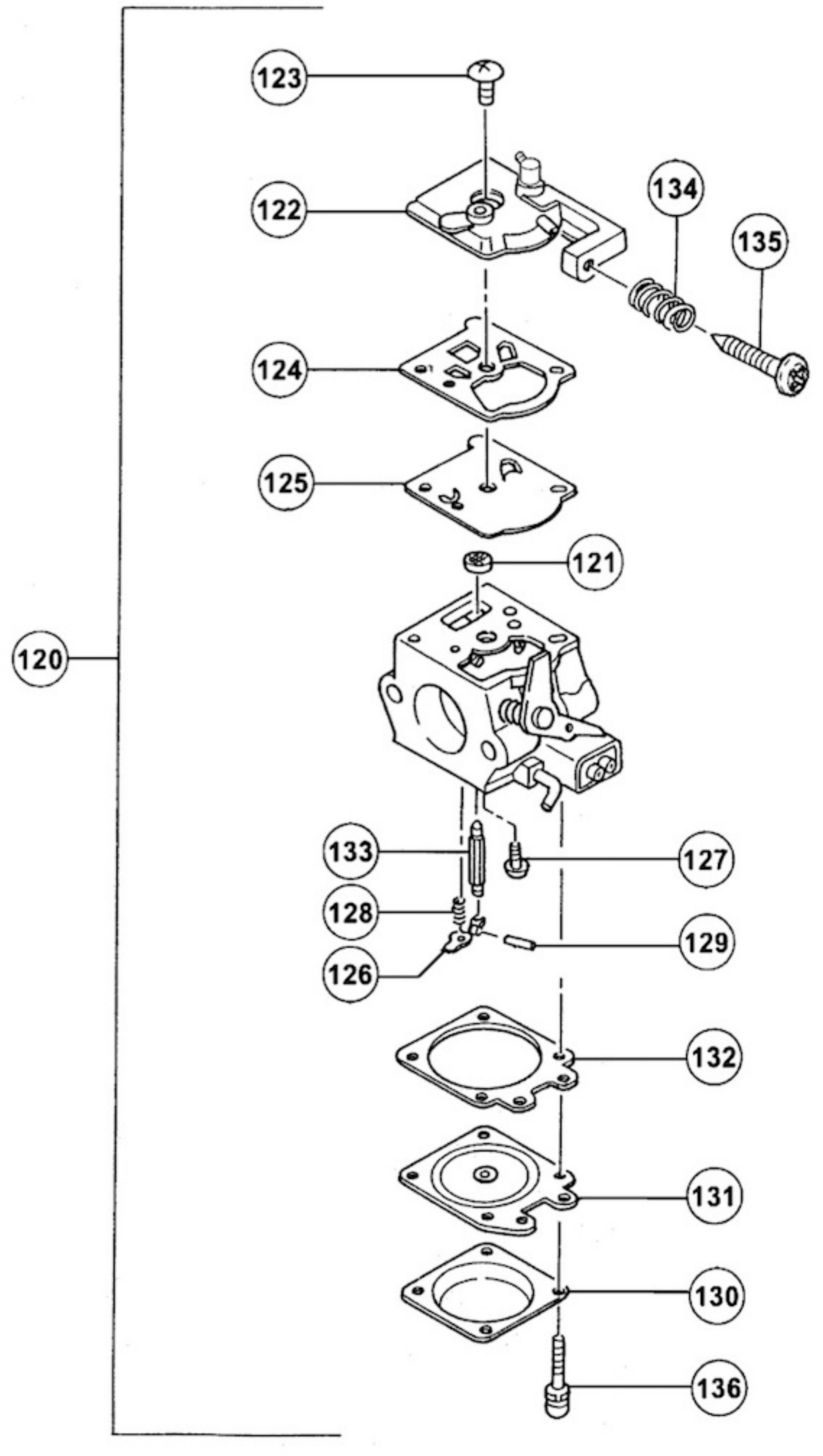

120
 Hitachi CS25EC-SC Carburetor Ass'y 6690651 Hitachi CS25EC-SC Carburetor Ass'y €119.50
121
 Carburator Inlet Screen for Chainsaws and Bruschcutters Hitachi 6684700 Carburator Inlet Screen for Chainsaws and Bruschcutters Hitachi €3.60
122
 photo_cameraImage coming soon 6691438 PUMP COVER €21.90
123
 photo_cameraImage coming soon 6685210 SCREW €2.38
124
 Carburetor Pump Gasket for Chainsaws Hitachi CS25-33-40-45-51 6685212 Carburetor Pump Gasket for Chainsaws Hitachi CS25-33-40-45-51 €3.60
125
 Carburetor Pump Diaphragm for Chainsaws Hitachi CS25-33-40-45-51 6685213 Carburetor Pump Diaphragm for Chainsaws Hitachi CS25-33-40-45-51 €10.92
126
 Control Lever for Chainsaw Hitachi CS25EC-SC 6685217 Control Lever for Chainsaw Hitachi CS25EC-SC €6.04
127
 photo_cameraImage coming soon 6685218 HINGE PIN SET SCREW €3.60
129
 Hitachi CS25EC-SC Hinge Pin 6685219 Hitachi CS25EC-SC Hinge Pin €2.38
131
 Metering Diaphragm Comp. for Chainsaws Hitachi CS25-33-40-45-51 6690827 Metering Diaphragm Comp. for Chainsaws Hitachi CS25-33-40-45-51 €24.34
132
 Diaphragm Packing Metering for Chainsaws Hitachi CS25-33-40-45-51 6685220 Diaphragm Packing Metering for Chainsaws Hitachi CS25-33-40-45-51 €3.60
133
 Carburator Needle Valve for Chainsaws Hitachi-HiKoki Tanaka 6685215 Carburator Needle Valve for Chainsaws Hitachi-HiKoki Tanaka €10.92
134
 photo_cameraImage coming soon 6690766 IDLE ADJUST SPRING €3.60
135
 photo_cameraImage coming soon 6690736 IDLE ADJUST SCREW €6.04
136
 photo_cameraImage coming soon 6685223 SET SCREW €2.38

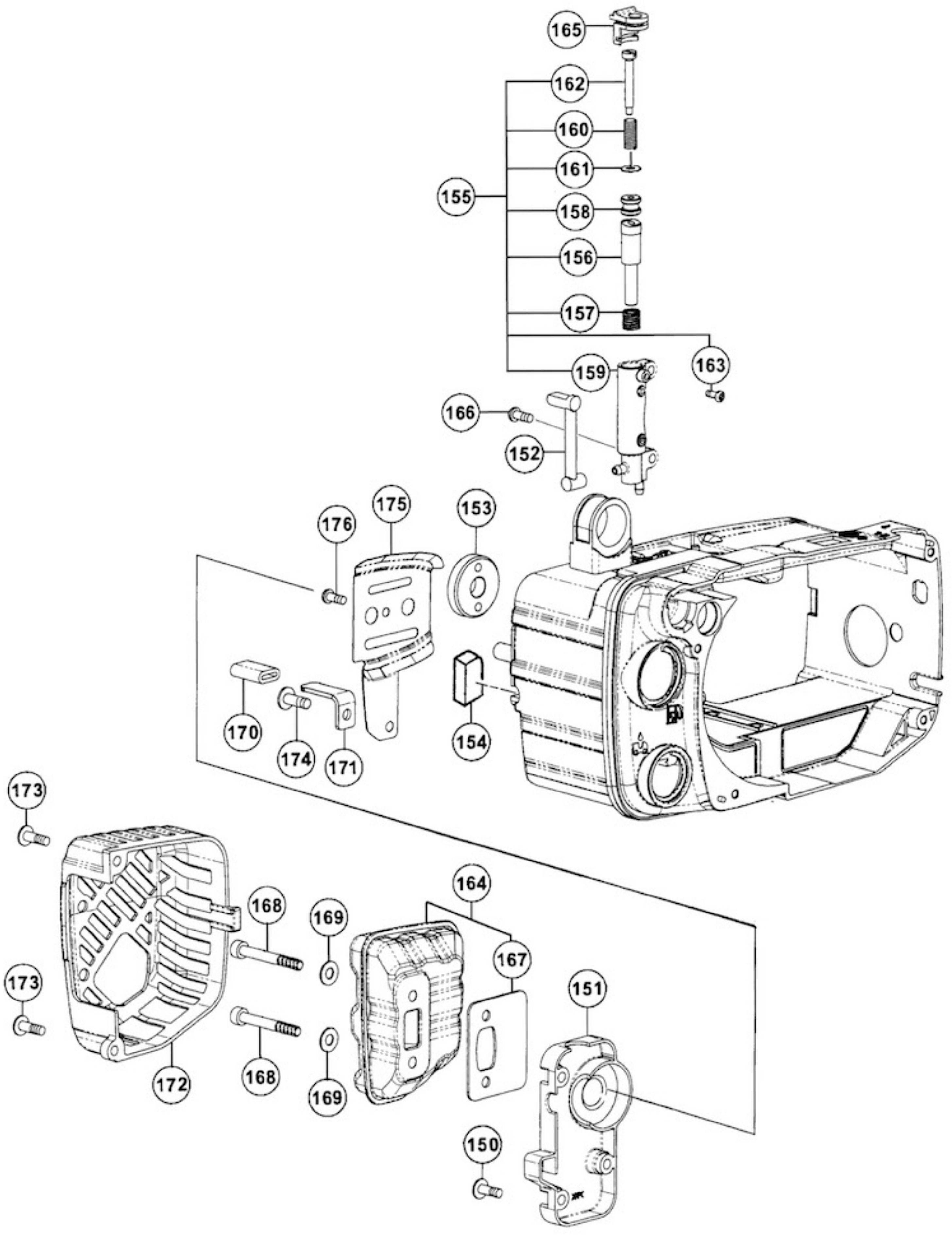

151
 Hitachi CS25EC-SC Oil Pump Cover 6686765 Hitachi CS25EC-SC Oil Pump Cover €4.82
152
 Oil Pipe (A) for Chainsaw Hitachi Tanaka CS25EC-SC 6685150 Oil Pipe (A) for Chainsaw Hitachi Tanaka CS25EC-SC €8.48
153
 photo_cameraImage coming soon 6685151 SCREW GEAR €12.14
154
 photo_cameraImage coming soon 6691401 AIR VENT SPONGE €2.38
155
 Oil Pump for Chainsaw Hitachi Tanaka CS33EA-CS25EC-SC 6685135 Oil Pump for Chainsaw Hitachi Tanaka CS33EA-CS25EC-SC €34.10
156
 Oil Pump Gear for Chainsaw Tanaka TCS-2800S 6685132 Oil Pump Gear for Chainsaw Tanaka TCS-2800S €34.10
157
 photo_cameraImage coming soon 6685131 PUMP GEAR SPRING €2.38
158
 Adjustment Oil Pump Piston for Chainsaw Hitachi Tanaka CS25EC-SC 6685130 Adjustment Oil Pump Piston for Chainsaw Hitachi Tanaka CS25EC-SC €3.60
160
 Adjustment Oil Pump Screw Spring for Chainsaw Hitachi Tanaka CS25EC-SC 6685129 Adjustment Oil Pump Screw Spring for Chainsaw Hitachi Tanaka CS25EC-SC €2.38
161
 Oil Pump Setting Bolt Washer for Chainsaw Tanaka TCS-2800S 6685070 Oil Pump Setting Bolt Washer for Chainsaw Tanaka TCS-2800S €2.38
162
 Adjustment Oil Pump Screw for Chainsaw Hitachi Tanaka CS25EC-SC 6685128 Adjustment Oil Pump Screw for Chainsaw Hitachi Tanaka CS25EC-SC €7.26
163
 Machine Screw M3x8 for Chainsaw Hitachi CS25EC-SC 6685133 Machine Screw M3x8 for Chainsaw Hitachi CS25EC-SC €2.38
164
 Hitachi CS25EC-SC Muffler 6692450 Hitachi CS25EC-SC Muffler €31.66
165
 Adjustment Oil Screw Cover for Chainsaw Hitachi Tanaka CS25EC-SC 6690959 Adjustment Oil Screw Cover for Chainsaw Hitachi Tanaka CS25EC-SC €2.38
166
 Machine Screw M4X14 for Chainsaws Hitachi Tanaka CS33EA-CS25EC-SC 6685149 Machine Screw M4X14 for Chainsaws Hitachi Tanaka CS33EA-CS25EC-SC €1.16
167
 Muffler Gasket for Chainsaw Hitachi Tanaka CG33EJ-SL 6692734 Muffler Gasket for Chainsaw Hitachi Tanaka CG33EJ-SL €4.82
169
 photo_cameraImage coming soon 6684661 WASHER 5 €1.16
170
 Chain Catcher Protection Pipe for Chainsaw Hitachi CS25EC-SC 6685154 Chain Catcher Protection Pipe for Chainsaw Hitachi CS25EC-SC €1.16
171
 Chain Catcher for Chainsaw Hitachi CS25EC-SC 6685155 Chain Catcher for Chainsaw Hitachi CS25EC-SC €2.38
172
 Muffler Cover for Chainsaw Hitachi CS25EC-SC 6692753 Muffler Cover for Chainsaw Hitachi CS25EC-SC €10.92
174
 Chain Catcher Screw M5X14 for Chainsaw Hitachi CS25EC-SC 6685275 Chain Catcher Screw M5X14 for Chainsaw Hitachi CS25EC-SC €1.16
175
 Guide Plate for Chainsaw Hitachi Tanaka CS25EC-SC-EU 6696077 Guide Plate for Chainsaw Hitachi Tanaka CS25EC-SC-EU €6.04
176
 Guide Plate Screw M4x10 for Chainsaw Hitachi CS25EC-SC 6685161 Guide Plate Screw M4x10 for Chainsaw Hitachi CS25EC-SC €1.16

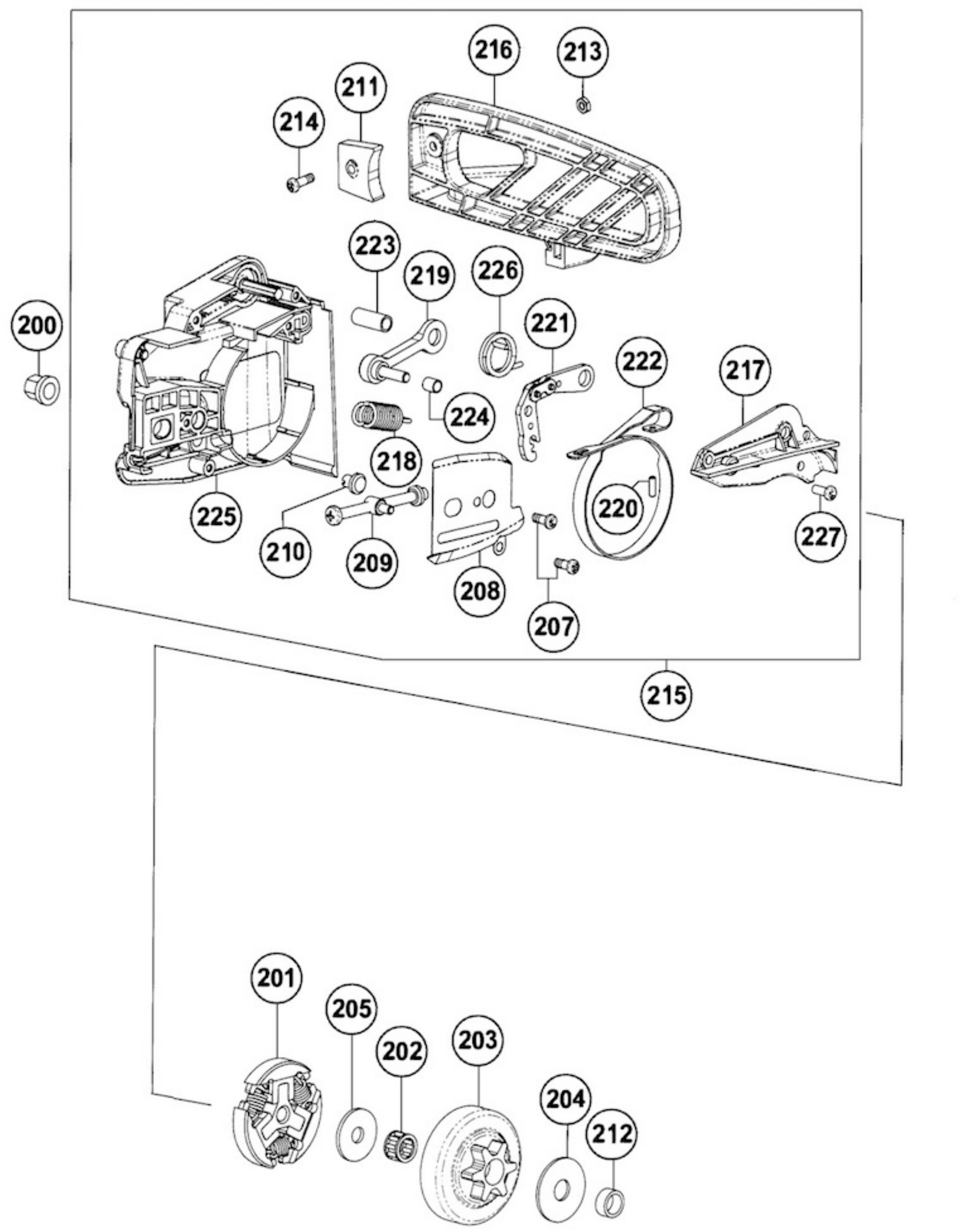

200
 Chain Bar Lock Nut for Chainsaw Hitachi CS25EC-SC 6685166 Chain Bar Lock Nut for Chainsaw Hitachi CS25EC-SC €4.82
201
 Clutch Ass'y for Chainsaw Hitachi CS25EC-SC 6688560 Clutch Ass'y for Chainsaw Hitachi CS25EC-SC €36.54
202
 Clutch Needle Bearing for Chain Saws Hitachi CS25EC-SC 6685143 Clutch Needle Bearing for Chain Saws Hitachi CS25EC-SC €10.92 Not available for order
203
 Clutch Drum 3/8'' for Chainsaw Hitachi Tanaka CS25EC-SC 6689037 Clutch Drum 3/8'' for Chainsaw Hitachi Tanaka CS25EC-SC €34.10
204
 Lower Clutch Washer for Chainsaws Hitachi CS25EC-SC 6689635 Lower Clutch Washer for Chainsaws Hitachi CS25EC-SC €6.04
205
 Upper Clutch Washer for Chainsaws Hitachi CS25EC-SC 6689641 Upper Clutch Washer for Chainsaws Hitachi CS25EC-SC €6.04 Not available for order
207
 Guide Plate Screw M4x10 for Chainsaw Hitachi CS25EC-SC 6685161 Guide Plate Screw M4x10 for Chainsaw Hitachi CS25EC-SC €1.16
208
 Guide Plate B for Chainsaw Hitachi Tanaka CS25EC-SC 6690765 Guide Plate B for Chainsaw Hitachi Tanaka CS25EC-SC €4.82
210
 Gear (A) Chain Tensioner for Chainsaw Tanaka TCS-2801S 6685168 Gear (A) Chain Tensioner for Chainsaw Tanaka TCS-2801S €6.04
211
 photo_cameraImage coming soon 6693485 HAND GUARD WEIGHT €6.04
212
 photo_cameraImage coming soon 6691198 CRANK SHAFT COLLAR 6 €3.60
213
 photo_cameraImage coming soon 6685069 NUT M4 €1.16
214
 photo_cameraImage coming soon 6685068 MACHINE SCREW (W/SP. WASHER) M4X12 €2.38
215
 Clutch Cover Assy for Chainsaw Hitachi CS25EC-SC 6686112 Clutch Cover Assy for Chainsaw Hitachi CS25EC-SC €92.66 Not available for order
216
 Brake Handle for Chainsaws Hitachi CS25EC-SC-TCS-2801S 6689677 Brake Handle for Chainsaws Hitachi CS25EC-SC-TCS-2801S €13.36
217
 Brake Link Cover for Chainsaw Hitachi Tanaka CS25EC-SC 6689713 Brake Link Cover for Chainsaw Hitachi Tanaka CS25EC-SC €3.60
219
 Brake Lever Rod for Chainsaws Hitachi CS25EC-SC 6685119 Brake Lever Rod for Chainsaws Hitachi CS25EC-SC €6.04
220
 Needle Roller 3x9,8 mm for Chainsaw Tanaka ECV-3801 6685141 Needle Roller 3x9,8 mm for Chainsaw Tanaka ECV-3801 €2.38
221
 photo_cameraImage coming soon 6685388 BRAKE LINK €8.48
222
 Brake Band for Chainsaw Hitachi CS25EC-SC 6689729 Brake Band for Chainsaw Hitachi CS25EC-SC €21.90
223
 Cleaner Fixing Collar for Chainsaw Tanaka TCS-2801S 6690805 Cleaner Fixing Collar for Chainsaw Tanaka TCS-2801S €3.60
224
 Brake Lever Rod Collar for Chainsaw Tanaka TCS-2801S 6685120 Brake Lever Rod Collar for Chainsaw Tanaka TCS-2801S €2.38
226
 Brake Lever Spring for Chainsaw Tanaka TCS-2801S 6685122 Brake Lever Spring for Chainsaw Tanaka TCS-2801S €6.04
227
 Screw D. 4x15 for Chainsaw Hitachi CS25EC-SC-CS30EG 6685148 Screw D. 4x15 for Chainsaw Hitachi CS25EC-SC-CS30EG €1.16

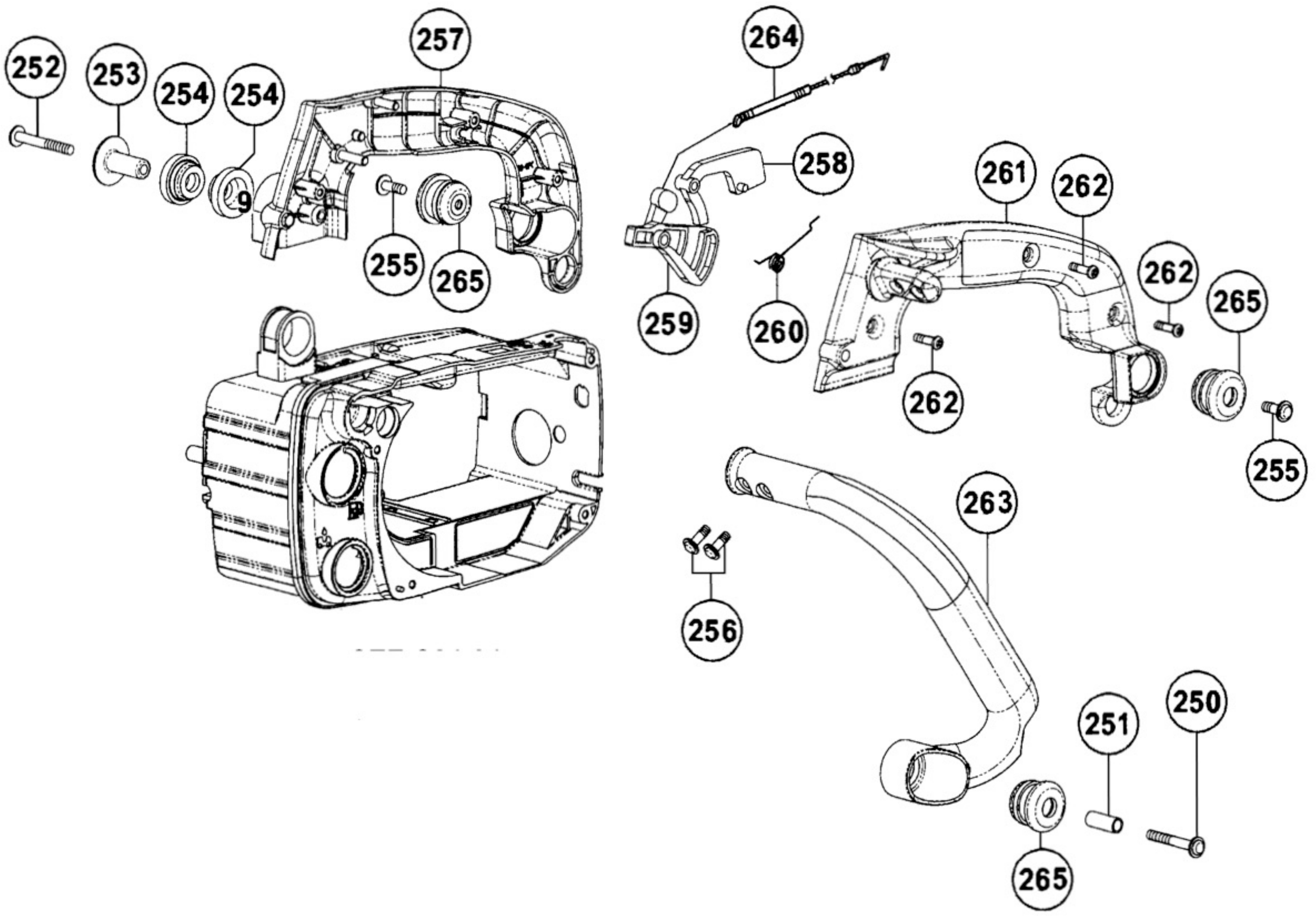

250
 Tanaka TCS-3301S Tapping Screw 5x35 6695107 Tanaka TCS-3301S Tapping Screw 5x35 €1.16
251
 Cleaner Fixing Collar for Chainsaw Tanaka TCS-2801S 6690805 Cleaner Fixing Collar for Chainsaw Tanaka TCS-2801S €3.60
252
 photo_cameraImage coming soon 6695108 TAPPING SCREW 5X40 €2.38
253
 photo_cameraImage coming soon 6688480 DAMPER COLLAR A €2.38
254
 photo_cameraImage coming soon 6688117 DAMPER A €1.16
255
 Chain Catcher Screw M5X14 for Chainsaw Hitachi CS25EC-SC 6685275 Chain Catcher Screw M5X14 for Chainsaw Hitachi CS25EC-SC €1.16
256
 photo_cameraImage coming soon 6685074 TAPPING SCREW D5X16 €2.38
257
 Hitachi CS25EC-SC Rear Handle B 6685653 Hitachi CS25EC-SC Rear Handle B €10.92
258
 photo_cameraImage coming soon 6688363 SAFETY LEVER €3.60
259
 photo_cameraImage coming soon 6686395 THROTTLE LEVER €3.60
260
 photo_cameraImage coming soon 6686416 THROTTLE LEVER SPRING €3.60
261
 Hitachi CS25EC-SC Rear Handle A 6685628 Hitachi CS25EC-SC Rear Handle A €10.92
262
 Screw D. 4x15 for Chainsaw Hitachi CS25EC-SC-CS30EG 6685148 Screw D. 4x15 for Chainsaw Hitachi CS25EC-SC-CS30EG €1.16
263
 Front Handle for Chainsaw Tanaka TCS-2801S 6688088 Front Handle for Chainsaw Tanaka TCS-2801S €12.14
265
 photo_cameraImage coming soon 6688262 DAMPER COMP. €10.92
502
 photo_cameraImage coming soon 6686632 4X50 MINUS DRIVER €9.70
602
 photo_cameraImage coming soon 6694471 STARTER MARK €1.16
Page 2 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
20
 photo_cameraImage coming soon 6685098 SHIM S T0.2 €2.38
20
 photo_cameraImage coming soon 6685099 SHIM S T0.3 €2.38
20
 photo_cameraImage coming soon 6686475 SHIM 0.4 €2.38
22
 photo_cameraImage coming soon 6685103 BOLT WASHER M7 €1.16
23
 Magneto Rotor Set for Chainsaw Hitachi Tanaka CS25EC-SC 6687378 Magneto Rotor Set for Chainsaw Hitachi Tanaka CS25EC-SC €51.18
24
 photo_cameraImage coming soon 6693305 STARTER PAWL €4.82
25
 photo_cameraImage coming soon 6685105 STARTER PAWL SPRING €1.16
26
 photo_cameraImage coming soon 6685101 D4E RETAINING RING €1.16
27
 photo_cameraImage coming soon 6692304 CLIP 4.5 €2.38
28
 photo_cameraImage coming soon 6692412 FUEL PIPE 2.5X4.5X175 €3.60
29
 Insulator Tube for Chainsaw Hitachi CS25EC-SC 6684597 Insulator Tube for Chainsaw Hitachi CS25EC-SC €1.16
30
 photo_cameraImage coming soon 6695046 HEX. HOLE BOLT 5X16 €2.38
31
 photo_cameraImage coming soon 6685226 WASHER M5 (BLACK) €2.38
34
 Crank Case Assy for Chainsaw Hitachi CS25EC-SC 6686526 Crank Case Assy for Chainsaw Hitachi CS25EC-SC €82.90
35
 photo_cameraImage coming soon 6684607 OIL SEAL TB 12227 €3.60
36
 photo_cameraImage coming soon 6686703 CRANK CASE GASKET €2.38
39
 photo_cameraImage coming soon 6695514 HEX.HOLE BOLT 5X22/WS €2.38
Page 3 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 3
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
50
 Air Deflector for Chainsaw Hitachi CS25EC-SC 6687328 Air Deflector for Chainsaw Hitachi CS25EC-SC €10.92
51
 photo_cameraImage coming soon 6691466 PIPE HOLDING GROMMET €2.38
52
 Inlet Manifold Gasket for Chainsaw Hitachi Tanaka CS25EC-SC-EU 6689872 Inlet Manifold Gasket for Chainsaw Hitachi Tanaka CS25EC-SC-EU €2.38
53
 photo_cameraImage coming soon 6689819 INLETMANIFOLD SPACER €3.60
55
 photo_cameraImage coming soon 6689997 CARB. FIXING PLATE €3.60
56
 Dust Cover for Chainsaw Hitachi Tanaka CS25EC-SC-EU 6690811 Dust Cover for Chainsaw Hitachi Tanaka CS25EC-SC-EU €3.60 Not available for order
57
 photo_cameraImage coming soon 6692587 CHOKE ROD HOLDING RUBB €2.38
58
 photo_cameraImage coming soon 6692515 CHOKE BUTTOM COMP. €9.70
59
 photo_cameraImage coming soon 6690679 CARUB. SUPPORT PLATE €3.60
60
 photo_cameraImage coming soon 6687960 ADJUSTER CAP €3.60
61
 photo_cameraImage coming soon 6687980 IDLE GROMMET €2.38
63
 Hex Hole Bolt M4x10S for Hedgetrimmer Hitachi CH62EA 6695484 Hex Hole Bolt M4x10S for Hedgetrimmer Hitachi CH62EA €3.60
Page 4 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 4
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
70
 Shield Tube for Chainsaw Hitachi Tanaka TCS-2801S 6685247 Shield Tube for Chainsaw Hitachi Tanaka TCS-2801S €6.04 Not available for order
71
 CLIP D6 6685198 CLIP D6 €2.38
72
 photo_cameraImage coming soon 6684661 WASHER 5 €1.16
74
 Oil Filter Body Ass’y for Chainsaw Tanaka TCS-2800S 6685249 Oil Filter Body Ass’y for Chainsaw Tanaka TCS-2800S €7.26
76
 photo_cameraImage coming soon 6692126 PUMP FIXING PLATE €2.38
77
 Priming Pump for Chain Saws and Brushcutters Hitachi Tanaka 6685139 Priming Pump for Chain Saws and Brushcutters Hitachi Tanaka €13.36
78
 photo_cameraImage coming soon 6692413 FUEL PIPE €3.60
79
 photo_cameraImage coming soon 6692350 FUIL PIPE 2.5X4.5X140 €2.38
83
 photo_cameraImage coming soon 6687504 STOP SWITCH COMP. €12.14
84
 Tank Cap Ass'y for Chainsaw Hitachi CS25EC-SC 6685180 Tank Cap Ass'y for Chainsaw Hitachi CS25EC-SC €6.04
85
 Petrol-Oil Tank Cap Packing for Chainsaw Hitachi CS33EDT 6685179 Petrol-Oil Tank Cap Packing for Chainsaw Hitachi CS33EDT €2.38 Not available for order
87
 Engine Case Ass'y for Chainsaw Hitachi CS25EC-SC 6691368 Engine Case Ass'y for Chainsaw Hitachi CS25EC-SC €82.90
88
 photo_cameraImage coming soon 6685173 AIR VENT VALVE (B) €6.04
89
 photo_cameraImage coming soon 6692086 AIR VENT ASS'Y €14.58
90
 photo_cameraImage coming soon 6691380 ENGINE CASE COVER €2.38
91
 Oil Tank Cap for Chainsaw Hitachi CS 30EC 6697756 Oil Tank Cap for Chainsaw Hitachi CS 30EC €6.04 Not available for order
92
 Oil Tank Cap Packing for Chainsaw Tanaka TCS-2800S 6697888 Oil Tank Cap Packing for Chainsaw Tanaka TCS-2800S €2.38 Not available for order
Page 5 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 5
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
100
 Recoil Starter Ass'y for Chainsaw Hitachi Tanaka CS25EC-SC 6692912 Recoil Starter Ass'y for Chainsaw Hitachi Tanaka CS25EC-SC €43.86
101
 Set Screw for Hedge Trimmer Hitachi CH62EA(ST) 6684679 Set Screw for Hedge Trimmer Hitachi CH62EA(ST) €7.26
102
 Damper Spring for Chainsaw Hitachi Tanaka CS33EA-CS25EC-SC 6685183 Damper Spring for Chainsaw Hitachi Tanaka CS33EA-CS25EC-SC €8.48
103
 Starter Pulley for Chainsaw Hitachi Tanaka CS25EC-SC 6685184 Starter Pulley for Chainsaw Hitachi Tanaka CS25EC-SC €10.92
105
 Spring Case Set for Chainsaw Tanaka TCS-2801S 6685185 Spring Case Set for Chainsaw Tanaka TCS-2801S €15.80
106
 photo_cameraImage coming soon 6685188 STARTER HANDLE €6.04
107
 photo_cameraImage coming soon 6686953 FAN CASE COMP. €29.22
109
 Cam Plate for Chainsaw Hitachi Tanaka CS33EA-CS25EC-SC 6692936 Cam Plate for Chainsaw Hitachi Tanaka CS33EA-CS25EC-SC €8.48
111
 Air Cleaner Element for Chainsaw Tanaka TCS-2801S 6690065 Air Cleaner Element for Chainsaw Tanaka TCS-2801S €4.82
112
 Cleaner Cover for Chainsaw Hitachi CS25EC-SC 6686315 Cleaner Cover for Chainsaw Hitachi CS25EC-SC €10.92
113
 Cleaner Cover Knob for Chainsaw Hitachi CS25EC-SC 6685228 Cleaner Cover Knob for Chainsaw Hitachi CS25EC-SC €3.60
Page 6 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 6
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
120
 Hitachi CS25EC-SC Carburetor Ass'y 6690651 Hitachi CS25EC-SC Carburetor Ass'y €119.50
121
 Carburator Inlet Screen for Chainsaws and Bruschcutters Hitachi 6684700 Carburator Inlet Screen for Chainsaws and Bruschcutters Hitachi €3.60
122
 photo_cameraImage coming soon 6691438 PUMP COVER €21.90
123
 photo_cameraImage coming soon 6685210 SCREW €2.38
124
 Carburetor Pump Gasket for Chainsaws Hitachi CS25-33-40-45-51 6685212 Carburetor Pump Gasket for Chainsaws Hitachi CS25-33-40-45-51 €3.60
125
 Carburetor Pump Diaphragm for Chainsaws Hitachi CS25-33-40-45-51 6685213 Carburetor Pump Diaphragm for Chainsaws Hitachi CS25-33-40-45-51 €10.92
126
 Control Lever for Chainsaw Hitachi CS25EC-SC 6685217 Control Lever for Chainsaw Hitachi CS25EC-SC €6.04
127
 photo_cameraImage coming soon 6685218 HINGE PIN SET SCREW €3.60
129
 Hitachi CS25EC-SC Hinge Pin 6685219 Hitachi CS25EC-SC Hinge Pin €2.38
131
 Metering Diaphragm Comp. for Chainsaws Hitachi CS25-33-40-45-51 6690827 Metering Diaphragm Comp. for Chainsaws Hitachi CS25-33-40-45-51 €24.34
132
 Diaphragm Packing Metering for Chainsaws Hitachi CS25-33-40-45-51 6685220 Diaphragm Packing Metering for Chainsaws Hitachi CS25-33-40-45-51 €3.60
133
 Carburator Needle Valve for Chainsaws Hitachi-HiKoki Tanaka 6685215 Carburator Needle Valve for Chainsaws Hitachi-HiKoki Tanaka €10.92
134
 photo_cameraImage coming soon 6690766 IDLE ADJUST SPRING €3.60
135
 photo_cameraImage coming soon 6690736 IDLE ADJUST SCREW €6.04
136
 photo_cameraImage coming soon 6685223 SET SCREW €2.38
Page 7 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 7
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
151
 Hitachi CS25EC-SC Oil Pump Cover 6686765 Hitachi CS25EC-SC Oil Pump Cover €4.82
152
 Oil Pipe (A) for Chainsaw Hitachi Tanaka CS25EC-SC 6685150 Oil Pipe (A) for Chainsaw Hitachi Tanaka CS25EC-SC €8.48
153
 photo_cameraImage coming soon 6685151 SCREW GEAR €12.14
154
 photo_cameraImage coming soon 6691401 AIR VENT SPONGE €2.38
155
 Oil Pump for Chainsaw Hitachi Tanaka CS33EA-CS25EC-SC 6685135 Oil Pump for Chainsaw Hitachi Tanaka CS33EA-CS25EC-SC €34.10
156
 Oil Pump Gear for Chainsaw Tanaka TCS-2800S 6685132 Oil Pump Gear for Chainsaw Tanaka TCS-2800S €34.10
157
 photo_cameraImage coming soon 6685131 PUMP GEAR SPRING €2.38
158
 Adjustment Oil Pump Piston for Chainsaw Hitachi Tanaka CS25EC-SC 6685130 Adjustment Oil Pump Piston for Chainsaw Hitachi Tanaka CS25EC-SC €3.60
160
 Adjustment Oil Pump Screw Spring for Chainsaw Hitachi Tanaka CS25EC-SC 6685129 Adjustment Oil Pump Screw Spring for Chainsaw Hitachi Tanaka CS25EC-SC €2.38
161
 Oil Pump Setting Bolt Washer for Chainsaw Tanaka TCS-2800S 6685070 Oil Pump Setting Bolt Washer for Chainsaw Tanaka TCS-2800S €2.38
162
 Adjustment Oil Pump Screw for Chainsaw Hitachi Tanaka CS25EC-SC 6685128 Adjustment Oil Pump Screw for Chainsaw Hitachi Tanaka CS25EC-SC €7.26
163
 Machine Screw M3x8 for Chainsaw Hitachi CS25EC-SC 6685133 Machine Screw M3x8 for Chainsaw Hitachi CS25EC-SC €2.38
164
 Hitachi CS25EC-SC Muffler 6692450 Hitachi CS25EC-SC Muffler €31.66
165
 Adjustment Oil Screw Cover for Chainsaw Hitachi Tanaka CS25EC-SC 6690959 Adjustment Oil Screw Cover for Chainsaw Hitachi Tanaka CS25EC-SC €2.38
166
 Machine Screw M4X14 for Chainsaws Hitachi Tanaka CS33EA-CS25EC-SC 6685149 Machine Screw M4X14 for Chainsaws Hitachi Tanaka CS33EA-CS25EC-SC €1.16
167
 Muffler Gasket for Chainsaw Hitachi Tanaka CG33EJ-SL 6692734 Muffler Gasket for Chainsaw Hitachi Tanaka CG33EJ-SL €4.82
170
 Chain Catcher Protection Pipe for Chainsaw Hitachi CS25EC-SC 6685154 Chain Catcher Protection Pipe for Chainsaw Hitachi CS25EC-SC €1.16
171
 Chain Catcher for Chainsaw Hitachi CS25EC-SC 6685155 Chain Catcher for Chainsaw Hitachi CS25EC-SC €2.38
172
 Muffler Cover for Chainsaw Hitachi CS25EC-SC 6692753 Muffler Cover for Chainsaw Hitachi CS25EC-SC €10.92
174
 Chain Catcher Screw M5X14 for Chainsaw Hitachi CS25EC-SC 6685275 Chain Catcher Screw M5X14 for Chainsaw Hitachi CS25EC-SC €1.16
175
 Guide Plate for Chainsaw Hitachi Tanaka CS25EC-SC-EU 6696077 Guide Plate for Chainsaw Hitachi Tanaka CS25EC-SC-EU €6.04
176
 Guide Plate Screw M4x10 for Chainsaw Hitachi CS25EC-SC 6685161 Guide Plate Screw M4x10 for Chainsaw Hitachi CS25EC-SC €1.16
Page 8 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 8
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
200
 Chain Bar Lock Nut for Chainsaw Hitachi CS25EC-SC 6685166 Chain Bar Lock Nut for Chainsaw Hitachi CS25EC-SC €4.82
201
 Clutch Ass'y for Chainsaw Hitachi CS25EC-SC 6688560 Clutch Ass'y for Chainsaw Hitachi CS25EC-SC €36.54
202
 Clutch Needle Bearing for Chain Saws Hitachi CS25EC-SC 6685143 Clutch Needle Bearing for Chain Saws Hitachi CS25EC-SC €10.92 Not available for order
203
 Clutch Drum 3/8'' for Chainsaw Hitachi Tanaka CS25EC-SC 6689037 Clutch Drum 3/8'' for Chainsaw Hitachi Tanaka CS25EC-SC €34.10
204
 Lower Clutch Washer for Chainsaws Hitachi CS25EC-SC 6689635 Lower Clutch Washer for Chainsaws Hitachi CS25EC-SC €6.04
205
 Upper Clutch Washer for Chainsaws Hitachi CS25EC-SC 6689641 Upper Clutch Washer for Chainsaws Hitachi CS25EC-SC €6.04 Not available for order
208
 Guide Plate B for Chainsaw Tanaka TCS-2800S 6690765 Guide Plate B for Chainsaw Tanaka TCS-2800S €6.04
210
 Gear (A) for Chain Tensioner for Chainsaw Hitachi CS25EC-SC 6685168 Gear (A) for Chain Tensioner for Chainsaw Hitachi CS25EC-SC €4.82
211
 photo_cameraImage coming soon 6693485 HAND GUARD WEIGHT €6.04
212
 photo_cameraImage coming soon 6691198 CRANK SHAFT COLLAR 6 €3.60
213
 photo_cameraImage coming soon 6685069 NUT M4 €1.16
214
 photo_cameraImage coming soon 6685068 MACHINE SCREW (W/SP. WASHER) M4X12 €2.38
215
 Clutch Cover Assy for Chainsaw Hitachi CS25EC-SC 6686112 Clutch Cover Assy for Chainsaw Hitachi CS25EC-SC €92.66 Not available for order
216
 Brake Handle for Chainsaws Hitachi CS25EC-SC-TCS-2801S 6689677 Brake Handle for Chainsaws Hitachi CS25EC-SC-TCS-2801S €13.36
217
 Brake Link Cover for Chainsaw Hitachi Tanaka CS25EC-SC 6689713 Brake Link Cover for Chainsaw Hitachi Tanaka CS25EC-SC €3.60
219
 Brake Lever Rod for Chainsaw Tanaka TCS-2801S 6685119 Brake Lever Rod for Chainsaw Tanaka TCS-2801S €7.26
220
 Needle Roller 3x9,8 mm for Chainsaw Hitachi CS25EC-SC 6685141 Needle Roller 3x9,8 mm for Chainsaw Hitachi CS25EC-SC €2.38
221
 photo_cameraImage coming soon 6685388 BRAKE LINK €8.48
222
 Brake Band for Chainsaw Tanaka TCS-2801S 6689729 Brake Band for Chainsaw Tanaka TCS-2801S €23.12
223
 Cleaner Fixing Collar for Chainsaw Hitachi CS25EC-SC 6690805 Cleaner Fixing Collar for Chainsaw Hitachi CS25EC-SC €3.60
224
 Brake Lever Rod Collar for Chainsaw Hitachi CS25EC-SC 6685120 Brake Lever Rod Collar for Chainsaw Hitachi CS25EC-SC €2.38
226
 Brake Lever Spring for Chainsaw Hitachi CS25EC-SC 6685122 Brake Lever Spring for Chainsaw Hitachi CS25EC-SC €4.82
227
 Screw D. 4x15 for Chainsaw Hitachi CS25EC-SC-CS30EG 6685148 Screw D. 4x15 for Chainsaw Hitachi CS25EC-SC-CS30EG €1.16
Page 9 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 9
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
250
 Tanaka TCS-3301S Tapping Screw 5x35 6695107 Tanaka TCS-3301S Tapping Screw 5x35 €1.16
252
 photo_cameraImage coming soon 6695108 TAPPING SCREW 5X40 €2.38
253
 photo_cameraImage coming soon 6688480 DAMPER COLLAR A €2.38
254
 photo_cameraImage coming soon 6688117 DAMPER A €1.16
256
 photo_cameraImage coming soon 6685074 TAPPING SCREW D5X16 €2.38
257
 Hitachi CS25EC-SC Rear Handle B 6685653 Hitachi CS25EC-SC Rear Handle B €10.92
258
 photo_cameraImage coming soon 6688363 SAFETY LEVER €3.60
259
 photo_cameraImage coming soon 6686395 THROTTLE LEVER €3.60
260
 photo_cameraImage coming soon 6686416 THROTTLE LEVER SPRING €3.60
261
 Hitachi CS25EC-SC Rear Handle A 6685628 Hitachi CS25EC-SC Rear Handle A €10.92
263
 Front Handle for Chainsaw Tanaka TCS-2801S 6688088 Front Handle for Chainsaw Tanaka TCS-2801S €12.14
265
 photo_cameraImage coming soon 6688262 DAMPER COMP. €10.92

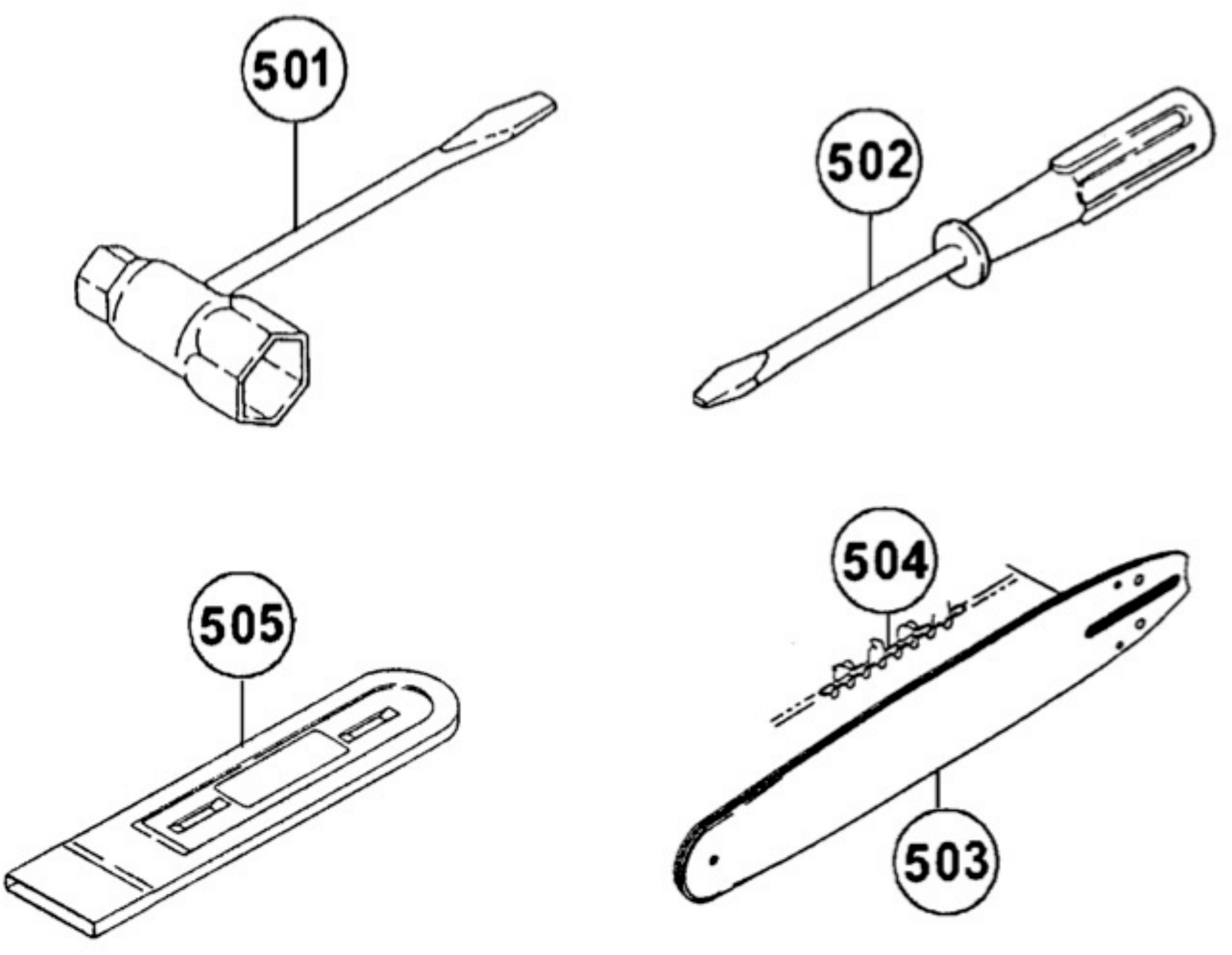

Page 10 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 10
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
502
 photo_cameraImage coming soon 6686632 4X50 MINUS DRIVER €9.70

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Hitachi Spare Parts for Chainsaw CS 30EC

Hitachi original spare parts for the replacement of damaged parts or to repair electrical or mechanical components of the Chainsaw CS 30EC.

In the following table, look for the model of the Chainsaw and ripettivo spare part.
Hitachi CS30EC

Chainsaw CS 30EC
# Part Num. Description
1 6687468 SPARK PLUG CAP ASS'Y
3 6685461 CYLINDER SET
4 6684682 HEX. HOLE BOLT 4X15/PS
5 6685726 CYLINDER GASKET
6 6686119 PISTON RING
7 6685881 PISTON SET
8 6684591 PISTON PIN
9 6684590 CIR CLIP
10 6686173 CRANK SHAFT COMP.
11 6692900 CORD INSULATOR TUBE
12A 6601174 IGNITION COIL ASS'Y
15 6601179 IGNITION COIL SET PN
20 6685098 SHIM S T0.2
20 6685099 SHIM S T0.3
20 6686475 SHIM 0.4
21 6685104 FLYWHEEL NUT
22 6685103 BOLT WASHER M7
23 6687378 MAGNETO ROTOR SET
24 6693305 STARTER PAWL
25 6685105 STARTER PAWL SPRING
26 6685101 D4E RETAINING RING
27 6692304 CLIP 4.5
28 6692412 FUEL PIPE 2.5X4.5X175
29 6684597 INSULATOR TUBE 50L
30 6695046 HEX. HOLE BOLT 5X16
30A 6695046 HEX. HOLE BOLT 5X16
31 6685226 WASHER M5 (BLACK)
33 6695169 FLUNGE NUT 5
34 6686526 CRANK CASE ASSY
35 6684607 OIL SEAL TB 12227
36 6686703 CRANK CASE GASKET
38 6685095 NEEDLE ROLLER 2.5X9.8
39 6695514 HEX.HOLE BOLT 5X22/WS
50 6687328 AIR DEFLECTOR ASS'Y
51 6691466 PIPE HOLDING GROMMET
52 6689872 INLET MANIFOLD GASKET
53 6689819 INLET MANIFOLD SPACER
54 6689788 INLE TMANIFOLD COMP.
55 6689997 CARB. FIXING PLATE
56 6690811 DUST COVER
57 6692587 CHOKE ROD HOLDING RUBBER
58 6692515 CHOKE BUTTOM COMP.
59 6690679 CARUB. SUPPORT PLATE
60 6687960 ADJUSTER CAP
61 6687980 IDLE GROMMET
62 6695157 U-NUT 5
63 6695484 HEX. HOLE BOLT 4X10S
64 6684864 SMALL WASHER 5
70 6685247 SHIELD TUBE
71 6685198 CLIP D6
72 6684661 WASHER 5
73 6690919 OIL FILTER
74 6685249 OIL FILTER BODY ASS'Y
75 6685246 PROTECTIVE COIL
76 6692126 PUMP FIXING PLATE
77 6685139 PRIMING PUMP COMP.
78 6692413 FUEL PIPE
79 6692350 FUIL PIPE 2.5X4.5X140
80 6692422 FUEL GROMMET
82 6691286 RETURN GROMMET
83 6687504 STOP SWITCH COMP.
84 6685180 TANK CAP ASS'Y
85 6685179 TANK CAP PACKING
87 6691368 ENGINE CASE ASS'Y
88 6685173 AIR VENT VALVE (B)
89 6692086 AIR VENT ASS'Y
90 6691380 ENGINE CASE COVER
91 6697756 OIL TANK CAP ASS'Y
92 6697888 OIL TANK CAP PACKING
100 6692912 RECOIL STARTER ASS'Y
101 6684679 SET SCREW
102 6685183 DAMPER SPRING
103 6685184 STARTER PULLEY
105 6685185 SPRING CASE SET
106 6685188 STARTER HANDLE
107 6686953 FAN CASE COMP.
108 6685191 TAPPING SCREW D4.5X20
109 6692936 CAM PLATE
111 6690065 CLEANER ELEMENT
112 6686315 CLEANER COVER
113 6685228 CLEANER KNOB
120 6690651 CARBURETOR ASS'Y WT-797A
121 6684700 INLET SCREEN
122 6691438 PUMP COVER
123 6685210 SCREW
124 6685212 PUMP GASKET
125 6685213 PUMP DIAPHRAGM
126 6685217 CONTROL LEVER
127 6685218 HINGE PIN SET SCREW
129 6685219 HINGE PIN
131 6690827 METERING DIAPHRAGM COMP.
132 6685220 DIAPHRAGM PACKING-METERING
133 6685215 NEEDLE VALVE
134 6690766 IDLE ADJUST SPRING
135 6690736 IDLE ADJUST SCREW
136 6685223 SET SCREW
151 6686765 OIL PUMP COVER
152 6685150 OIL PIPE (A)
153 6685151 SCREW GEAR
154 6691401 AIR VENT SPONGE
155 6685135 OIL PUMP CASE ASS'Y
156 6685132 PUMP GEAR COMP.
157 6685131 PUMP GEAR SPRING
158 6685130 OIL PUMP ADJUST CAP
160 6685129 ADJUSTER SPRING
161 6685070 BOLT WASHER M4
162 6685128 OIL PUMP ADJUSTER
163 6685133 MACHINE SCREW M3X8
164 6692450 MUFFLER SET
165 6690959 OIL ADJUST GROMMET
166 6685149 MACHINE SCREW (W/SP. WASHER) M4X14
167 6692734 MUFFLER GASKET
168 6695054 HEX. HOLE BOLT 5X40
169 6684661 WASHER 5
170 6685154 FUEL PIPE
171 6685155 CHAIN CATCHER
172 6692753 MUFFLER COVER
174 6685275 TAPPING SCREW D5X14
175 6696077 GUIDE PLATE A
176 6685161 TAPPING SCREW D4X10
200 6685166 NUT
201 6688560 CLUTCH COMP.
202 6685143 NEEDLE BEARING
203 6689037 CLUTCH HOUSING COMP.
204 6689635 CLUTCH WASHER
205 6689641 CLUTCH WASHER
207 6685161 TAPPING SCREW D4X10
208 6690765 GUIDE PLATE B
209 6687074 TENTION ADJUST BOLT COMP.
210 6685168 GEAR (A)
211 6693485 HAND GUARD WEIGHT
212 6691198 CRANK SHAFT COLLAR 6
213 6685069 NUT M4
214 6685068 MACHINE SCREW (W/SP. WASHER) M4X12
215 6686112 SIDE CASE ASS'Y
216 6689677 BRAKE HANDLE
217 6689713 BRAKE LINK COVER
218 6689707 BRAKE SPRING
219 6685119 BRAKE SUPPORT PLATE COMP.
220 6685141 NEEDLE ROLLER 3X9.8
221 6685388 BRAKE LINK
222 6689729 BRAKE BAND
223 6690805 CLEANER FIXING COLLAR
224 6685120 COLLAR
225 6686049 SIDE COVER COMP.
226 6685122 BRAKE LEVER SPRING
227 6685148 TAPPING SCREW D4X15
250 6695107 TAPPING SCREW 5X35
251 6690805 CLEANER FIXING COLLAR
252 6695108 TAPPING SCREW 5X40
253 6688480 DAMPER COLLAR A
254 6688117 DAMPER A
255 6685275 TAPPING SCREW D5X14
256 6685074 TAPPING SCREW D5X16
257 6685653 REAR HANDLE B
258 6688363 TRIGGER LOCKOUT VERMILION
259 6686395 THROTTLE LEVER
260 6686416 THROTTLE LEVER SPRING
261 6685628 REAR HANDLE A
262 6685148 TAPPING SCREW D4X15
263 6688088 FRONT HANDLE
264 6693875 THROTTLE WIRE COMP.
265 6688262 DAMPER COMP.
502 6686632 4X50 MINUS DRIVER
602 6694471 STARTER MARK
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Hitachi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to hitachi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Hitachi CS30EC
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Hitachi CS 30EC

Diagram Hitachi CS 30EC

Download (1.49MB)

You might also like

Guide Plate for Chainsaw Hitachi Tanaka CS25EC-SC-EU
HiKOKI Power Tools Italia S.p.a. SKU: 6696077
Guide Plate for Chainsaw Hitachi Tanaka CS25EC-SC-EU
Guide Plate for Chainsaw Hitachi Tanaka CS25EC-SC-EU Genuine spare part Hitachi, Guide plate for Pruning Chainsaw CS25EC-SC-EU Part for the following products: -  Chainsaw CS25EC-SC-EU -  Chainsaw CS 30EC.C. - ...
AVAILABLE €6.04
Details
Front Handle for Chainsaw Tanaka TCS-2801S
HiKOKI Power Tools Italia S.p.a. SKU: 6688088
Front Handle for Chainsaw Tanaka TCS-2801S
Front Handle for Chainsaw Tanaka TCS-2801S Original part Hitachi Koky Tanaka, Front Handle for Chainsaws TCS-2801S - Chainsaw Hitachi CS25EC-SC - EU Part for the following products: - ...
Last items in stock €12.14
Details
Chain Catcher Protection Pipe for Chainsaw Hitachi CS25EC-SC
HiKOKI Power Tools Italia S.p.a. SKU: 6685154
Chain Catcher Protection Pipe for Chainsaw Hitachi CS25EC-SC
Chain Catcher Protection Pipe for Chainsaw Hitachi CS25EC-SC Genuine part Hitachi, Tensioner Protection Pipe for Chainsaw Hitachi CS25EC-SC - CS30EC - CS30EG - CS38EK - CS45EL Ricambio per i seguenti prodotti: - Chainsaw Tanaka...
AVAILABLE €1.16
Details
Air Deflector for Chainsaw Hitachi CS25EC-SC
HiKOKI Power Tools Italia S.p.a. SKU: 6687328
Air Deflector for Chainsaw Hitachi CS25EC-SC
Air Deflector for Chainsaw Hitachi CS25EC-SC Hitachi genuine part, Air Deflector for Chainsaws Hitachi CS25EC-SC EU - CS 30EC - Tanaka TCS-2800S - TCS-2801S Part for the following products: - Chainsaw Hitachi CS25EC-SC EU - Chainsaw...
AVAILABLE €10.92
Details
Oil Tank Cap for Chainsaws Tanaka TCS-2800S - TCS-2801S
HiKOKI Power Tools Italia S.p.a. SKU: 6697756
Oil Tank Cap for Chainsaws Tanaka TCS-2800S - TCS-2801S
Oil Tank Cap for Chainsaws Tanaka TCS-2800S - TCS-2801S Original parts for Chainsaw Hitachi Koky Tanaka, Oil Tank Cap Ass'y for Chainsaws, TCS-2800S - TCS-2801S - ECV-3801 - ECV-4501 Parts...
Out-of-Stock €6.04
Details
Clutch Drum 3/8'' for Chainsaw Hitachi Tanaka CS25EC-SC
HiKOKI Power Tools Italia S.p.a. SKU: 6689037
Clutch Drum 3/8'' for Chainsaw Hitachi Tanaka CS25EC-SC
Clutch Drum 3/8'' for Chainsaw Hitachi Tanaka CS25EC-SC Original part Hitachi Koky Tanaka, Clutch Drum 3/8" with Pinion, for chainsaw CS25EC-SC - CS30EC - Tanaka TCS-2800S - TCS 2801S. Part for the following products:...
Last items in stock €34.10
Details
Chain Catcher for Chainsaw Hitachi CS25EC-SC
HiKOKI Power Tools Italia S.p.a. SKU: 6685155
Chain Catcher for Chainsaw Hitachi CS25EC-SC
Chain Catcher for Chainsaw Hitachi CS25EC-SC Genuine part Hitachi, Chain Catcher for Chainsaw Hitachi CS25EC-SC - CS30EC - CS30EG - CS38EK - CS45EL Ricambio per i seguenti prodotti:...
Last items in stock €2.38
Details
Guide Plate Screw M4x10 for Chainsaw Hitachi CS25EC-SC
HiKOKI Power Tools Italia S.p.a. SKU: 6685161
Guide Plate Screw M4x10 for Chainsaw Hitachi CS25EC-SC
Guide Plate Screw M4x10 for Chainsaw Hitachi CS25EC-SC Genuine part Hitachi, Guide Plate Screw M4x10 for Chainsaw Hitachi CS25EC-SC - CS30EC - CS30EG - CS38EK - CS45EL. Ricambio per i seguenti prodotti: - Chainsaw Tanaka TCS-2800S -...
AVAILABLE €1.16
Details
Chain Catcher Screw M5X14 for Chainsaw Hitachi CS25EC-SC
HiKOKI Power Tools Italia S.p.a. SKU: 6685275
Chain Catcher Screw M5X14 for Chainsaw Hitachi CS25EC-SC
Chain Catcher Screw M5X14 for Chainsaw Hitachi CS25EC-SC Genuine part Hitachi, Guide Plate Screw M4x10 for Chainsaw Hitachi CS25EC-SC - CS30EC - CS30EG - CS38EK - CS45EL. Ricambio per i seguenti prodotti: - Chainsaw Tanaka TCS-2800S -...
AVAILABLE €1.16
Details
Chain Bar Lock Nut for Chainsaw Hitachi CS25EC-SC
HiKOKI Power Tools Italia S.p.a. SKU: 6685166
Chain Bar Lock Nut for Chainsaw Hitachi CS25EC-SC
Chain Bar Lock Nut for Chainsaw Hitachi CS25EC-SC Genuine part Hitachi, Chain Bar Lock Nut for Chainsaw Hitachi CS25EC-SC - CS30EC - CS30EG - Tanaka TCS-2800S - ECS-3350D. Ricambio per i seguenti prodotti: - Chainsaw Hitachi CS25EC-SC...
AVAILABLE €4.82
Details
Gear (A) Chain Tensioner for Chainsaw Tanaka TCS-2801S Sale
HiKOKI Power Tools Italia S.p.a. SKU: 6685168
Gear (A) Chain Tensioner for Chainsaw Tanaka TCS-2801S
Gear (A) Chain Tensioner for Chainsaw Tanaka TCS-2801S Original part Hitachi Koky Tanaka, Gear (A) Chain Tensioner for Chainsaws TCS-2801S - TCS-3301S -  TCS-2800S - Chainsaw Hitachi CS25EC-SC - EU Part for the following products:: -...
AVAILABLE €6.04
Details
Piston Ring for Chainsaw Hitachi Tanaka CS25EC-SC Sale
HiKOKI Power Tools Italia S.p.a. SKU: 6686119
Piston Ring for Chainsaw Hitachi Tanaka CS25EC-SC
Piston Ring for Chainsaw Hitachi Tanaka CS25EC-SC Genuine spare part Hitachi Koky Tanaka, Piston Ring for Chainsaws CS25EC-SC - CS 30EC - Tanaka TCS-2801S - TCS-2800S. Part for the following products: - Chainsaw Hitachi CS25EC-SC -...
AVAILABLE €8.48
Details
Circlip for Brushcutter Hitachi CG 24EBS
HiKOKI Power Tools Italia S.p.a. SKU: 6684590
Circlip for Brushcutter Hitachi CG 24EBS
Circlip for Brushcutter Hitachi CG 24EBS Original replacement part Hitachi Koky Tanaka, Piston Pin Circlip for Brushcutters, Chainsaws, Hedgecutters Hitachi - Tanaka. Part for the following...
AVAILABLE €1.16
Details
Crank Case Assy for Chainsaw Hitachi CS25EC-SC
HiKOKI Power Tools Italia S.p.a. SKU: 6686526
Crank Case Assy for Chainsaw Hitachi CS25EC-SC
Crank Case Assy for Chainsaw Hitachi CS25EC-SC Genuine part Hitachi-Koky Tanaka, Crank Case Assy for Chainsaws CS25EC-SC EU - CS 30EC - Tanaka TCS-2800S - TCS-2801S. Part for the following products: -  Chainsaw CS25EC-SC-EU -...
Last items in stock €82.90
Details
Clutch Cover Assy for Chainsaw Hitachi CS25EC-SC
HiKOKI Power Tools Italia S.p.a. SKU: 6686112
Clutch Cover Assy for Chainsaw Hitachi CS25EC-SC
Clutch Cover Assy for Chainsaw Hitachi CS25EC-SC Genuine spare part Hitachi Koky Tanaka, Clutch Cover Assy for Chainsaws CS25EC-SC - Hitachi CS30EC - Tanaka TCS-2801S. Part for the...
Out-of-Stock €92.66
Details
Brake Band for Chainsaw Hitachi CS25EC-SC
HiKOKI Power Tools Italia S.p.a. SKU: 6689729
Brake Band for Chainsaw Hitachi CS25EC-SC
Brake Band for Chainsaw Hitachi CS25EC-SC Genuine spare part Hitachi, Brake Band for Chainsaws CS25EC (S) - CS25EC (SC) - CS30EC - Tanaka TCS-2801S. Part for the following products: - Chainsaw Hitachi CS25EC (S) - Chainsaw Hitachi...
AVAILABLE €21.90
Details
Cleaner Cover Knob for Chainsaw Hitachi CS25EC-SC
HiKOKI Power Tools Italia S.p.a. SKU: 6685228
Cleaner Cover Knob for Chainsaw Hitachi CS25EC-SC
Cleaner Cover Knob for Chainsaw Hitachi CS25EC-SC Original part Hitachi Koky Tanaka, Cleaner Cover Knob for Chainsaws Hitachi CS25EC-SC - Tanaka TCS-2801S - TCS-3301S. Part for the following products: -...
Last items in stock €3.60
Details
Oil Tank Cap for Chainsaw Hitachi CS 30EC
HiKOKI Power Tools Italia S.p.a. SKU: 6697756
Oil Tank Cap for Chainsaw Hitachi CS 30EC
Oil Tank Cap for Chainsaw Hitachi CS 30EC Original spare part Hitachi Koky Tanaka, Oil Tank Cap Ass'y (Black) for Chainsaws, CS 30EC - CS30EH - CS30EH(S) - CE35EH(S) - CS38EK. Parts for the following products: - Chainsaw Hitachi CS...
Out-of-Stock €6.04
Details
Cleaner Fixing Collar for Chainsaw Hitachi CS25EC-SC
HiKOKI Power Tools Italia S.p.a. SKU: 6685180
Tank Cap Ass'y for Chainsaws Hitachi CS25EC-SC
Tank Cap Ass'y for Chainsaws Hitachi CS25EC-SC Original spare part Hitachi Koky Tanaka, Tank Cap Ass'y for Chainsaws Hitachi CS25EC-SC - CS 30EC - CS30EH - TCS-2800S - TCS-2801S. Part for the following products: - Chainsaw Hitachi...
AVAILABLE €6.04
Details
Brake Lever Spring for Chainsaw Hitachi CS25EC-SC
HiKOKI Power Tools Italia S.p.a. SKU: 6685122
Brake Lever Spring for Chainsaw Hitachi CS25EC-SC
Brake Lever Spring for Chainsaw Hitachi CS25EC-SC Original spare part Hitachi Koky Tanaka, Brake Lever Spring for Chainsaws CS25EC-SC - CS 30EC - CS30EG - CS30EH - CS33ET. Part for the following products: - Chainsaw Hitachi CS25EC...
AVAILABLE €4.82
Details
Shield Tube for Chainsaw Hitachi Tanaka CS25EC-SC
HiKOKI Power Tools Italia S.p.a. SKU: 6685247
Shield Tube for Chainsaw Hitachi CS25EC-SC
Shield Tube for Chainsaw Hitachi CS25EC-SC Original spare part Hitachi Koky Tanaka, Shield Tube for Chainsaws CS25EC-SC - CS 30EC - CS33ET - CS33EA. Part for the following products: - Chainsaw Hitachi CS25EC-SC - Chainsaw Hitachi CS...
Details
Engine Case Ass'y for Chainsaw Hitachi CS25EC-SC
HiKOKI Power Tools Italia S.p.a. SKU: 6691368
Engine Case Ass'y for Chainsaw Hitachi CS25EC-SC
Engine Case Ass'y for Chainsaw Hitachi CS25EC-SC Original spare part Hitachi Koky Tanaka, Engine Case Ass'y for Chainsaw CS25EC-SC - CS 30EC - Tanaka TCS-2800S - TCS-2801S. Part for the following products: - Chainsaw Hitachi...
Last items in stock €82.90
Details
Clutch Ass'y for Chainsaw Hitachi CS25EC-SC
HiKOKI Power Tools Italia S.p.a. SKU: 6688560
Clutch Ass'y for Chainsaw Hitachi CS25EC-SC
Clutch Ass'y for Chainsaw Hitachi CS25EC-SC Original spare part for Chainsaw Hitachi-HIKOKI Tanaka, Clutch Ass'y for Chainsaws CS25EC-SC - CS 30EC - Tanaka TCS-2800S - TCS-2801S. Part for the...
Last items in stock €36.54
Details
Oil Tank Cap Packing for Chainsaw Tanaka TCS-2800S
HiKOKI Power Tools Italia S.p.a. SKU: 6697888
Oil Tank Cap Packing for Chainsaw Tanaka TCS-2800S
Oil Tank Cap Packing for Chainsaw Tanaka TCS-2800S Genuine spare part Tanaka, Oil Tank Cap Packing for Chainsaws TCS-2800S - TCS-2801S - Hitachi CS 30EC. Part For the following items: -  CHAINSAW TANAKA TCS-2800S -  CHAINSAW TANAKA...
Out-of-Stock €2.38
Details
Machine Screw M3x8 for Chainsaw Hitachi CS25EC-SC
HiKOKI Power Tools Italia S.p.a. SKU: 6685133
Machine Screw M3x8 for Chainsaw Hitachi CS25EC-SC
Machine Screw M3x8 for Chainsaw Hitachi CS25EC-SC Original spare part Hitachi-HIKOKI Tanaka, Machine Screw M3x8 for Chainsaws CS25EC-SC - CS 30EC - CS33ET - CS33EA Part for the following products: -  Motosega HITACHI CS25EC-SC -...
Last items in stock €2.38
Details
Hitachi CS25EC-SC Engine Assembly
HiKOKI Power Tools Italia S.p.a. SKU: CS25EC-ENGINE
Hitachi CS25EC-SC Engine Assembly
Hitachi CS25EC-SC Engine Assembly  Original spare parts Hitachi HIKOKI Tanaka, Engine Assembly for Chainsaws CS30EC-CS25EC-SC - Tanaka TCS-2800S - TCS-2801S. Part for the following products:...
Last items in stock €257.36
Details
Hitachi CS25EC-SC Muffler
HiKOKI Power Tools Italia S.p.a. SKU: 6692450
Hitachi CS25EC-SC Muffler
Hitachi CS25EC-SC Muffler Original spare parts Hitachi HIKOKI Tanaka, Muffler Exaust for Chainsaws CS30EC-CS25EC-SC - Tanaka TCS-2800S - TCS-2801S. Part for the following products: - ...
Last items in stock €31.66
Details
Hitachi CS25EC-SC Carburetor Ass'y
HiKOKI Power Tools Italia S.p.a. SKU: 6690651
Hitachi CS25EC-SC Carburetor Ass'y
Hitachi CS25EC-SC Carburetor Ass'y Original spare parts Hitachi HIKOKI Tanaka, Carburetor Ass'y WT797A for Chainsaws CS30EC-CS25EC-SC - Tanaka TCS-2800S - TCS-2801S. Part for the following products:...
Last items in stock €119.50
Details
Hitachi CS25EC-SC Rear Handle A
HiKOKI Power Tools Italia S.p.a. SKU: 6685628
Hitachi CS25EC-SC Rear Handle A
Hitachi CS25EC-SC Rear Handle A Original spare parts Hitachi HIKOKI Tanaka, Rear Handle A for Chainsaws CS30EC-CS25EC-SC - Tanaka TCS-2800S - TCS-2801S. Part for the following products: - ...
Last items in stock €10.92
Details
Hitachi CS25EC-SC Rear Handle B
HiKOKI Power Tools Italia S.p.a. SKU: 6685653
Hitachi CS25EC-SC Rear Handle B
Hitachi CS25EC-SC Rear Handle B Original spare parts Hitachi HIKOKI Tanaka, Rear Handle B for Chainsaws CS30EC-CS25EC-SC - Tanaka TCS-2800S - TCS-2801S. Part for the following products: - ...
Last items in stock €10.92
Details
Hitachi CS25EC-SC Oil Pump Cover
HiKOKI Power Tools Italia S.p.a. SKU: 6686765
Hitachi CS25EC-SC Oil Pump Cover
Hitachi CS25EC-SC Oil Pump Cover Original spare parts Hitachi HIKOKI Tanaka, Oil Pump Cover for Chainsaws CS30EC-CS25EC-SC - Tanaka TCS-2800S - TCS-2801S. Part for the following products: - ...
Last items in stock €4.82
Details
Hitachi CS25EC-SC Clip D.6
HiKOKI Power Tools Italia S.p.a. SKU: 6685198
CLIP D6
Hitachi CS25EC-SC Clip D.6 Original spare parts Hitachi HIKOKI Tanaka, Clip D.6 for Chainsaws CS30EC-CS25EC-SC - Tanaka TCS-2800S - TCS-2801S. Part for the following products: - ...
AVAILABLE €2.38
Details
Hitachi CS25EC-SC Hinge Pin
HiKOKI Power Tools Italia S.p.a. SKU: 6685219
Hitachi CS25EC-SC Hinge Pin
Hitachi CS25EC-SC Hinge Pin Original spare parts Hitachi HIKOKI Tanaka, Hinge Pin for Chainsaws CS30EC-CS25EC-SC - Tanaka TCS-2800S - TCS-2801S. Part for the following products: - ...
AVAILABLE €2.38
Details
Comments (0)
