Fox Spare Parts for Vertical Bandsaw F28-191
We supply
original FOX spare parts on offer at unbeatable prices, we are a service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for
Vertical Wood Bandsaw F28-191.
- ATTENTION! SPARES NOT SUITABLE FOR "DELTA FRANCE" DISTRIBUTION MACHINESIn the following table, look for the model of the Vertical Bandsaw and the respective parts of the code.

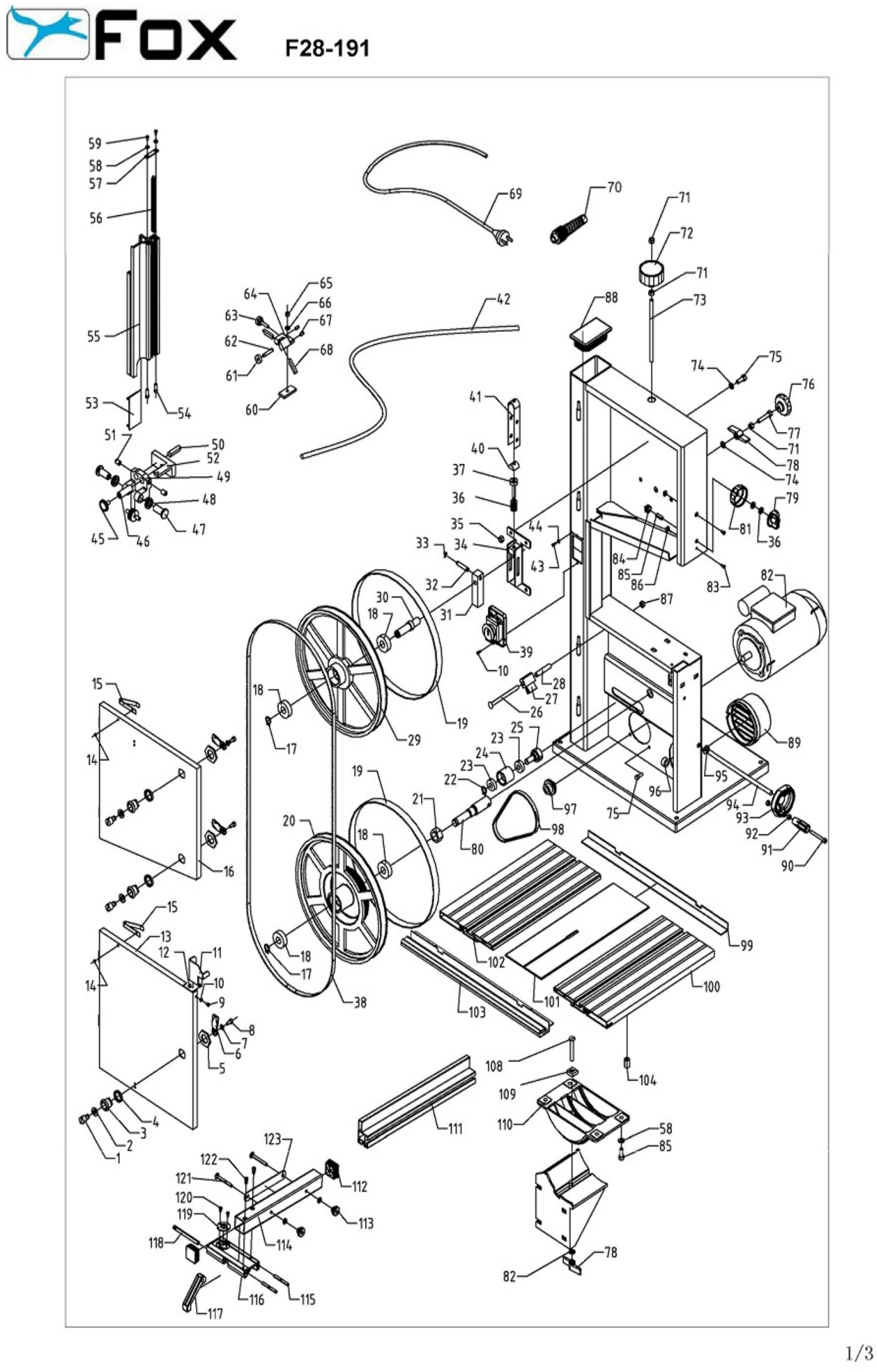

| Bandsaw Fox F28-191 |
| # |
Part Num. |
Description |
| 100 |
F28191-100 |
RIGHT TABLE |
| 101 |
F28191-101 |
MIDDLE TABLE |
| 102 |
F28191-102 |
LEFT TABLE |
| 103 |
F28191-103 |
FENCE GUIDER |
| 110 |
F28191-110 |
CUP SQUARE |
| 111 |
F28191-111 |
RIP FENCE |
| 113 |
F28191-113 |
KNOB |
| 116 |
F28191-116 |
FENCE CARRIER |
| 117 |
F28191-117 |
QUICK FIXING HANDLE |
| 124 |
F28191-124 |
COMPLETE UPPER FENCE |
| 13 |
F28191-13 |
LOWER DOOR ASSEMBLY |
| 15 |
F28191-15 |
LEAF SPRING-REAR LOCK |
| 16 |
F28191-16 |
UPPER DOOR ASSEMBLY |
| 18 |
F28191-18 |
DEEP GROOVE BALL BEARING 6000ZZ |
| 19 |
F28191-19 |
BAND SAW TYRE |
| 20 |
F28191-20 |
LOWER BAND SAW WHEEL ASSEMBLY |
| 23 |
F28191-23 |
CUSCINETTO 6001 ZZ |
| 25 |
F28191-25 |
SLIDING SHAFT |
| 27 |
F28191-27 |
BRUSH STRIP |
| 28 |
F28191-28 |
SPACER BUSH |
| 29 |
F28191-29 |
UPPER BAND SAW WHEEL ASSEMBLY |
| 30 |
F28191-30 |
UPPER BEARING SHAFT |
| 31 |
F28191-31 |
WHEEL CARRIER BRACKET |
| 34 |
F28191-34 |
GUIDING PLATE |
| 36 |
F28191-36 |
SPRING WASHER |
| 39 |
F28191-39 |
SWITCH |
| 40 |
F28191-40 |
SPECIAL NUT |
| 41 |
F28191-41 |
TENSION BRACKET |
| 45 |
F28191-45 |
ROLLER |
| 46 |
F28191-46 |
SHAFT FOT PILOT |
| 47 |
F28191-47 |
ADJUST SCREW |
| 48 |
F28191-48 |
NUT |
| 49 |
F28191-49 |
ROLLER GUIDE HOUSING |
| 50 |
F28191-50 |
PARALLEL PIN |
| 500 |
F28191-500 |
COMPLETE LOCKING DEVICE |
| 501 |
F28191-501 |
UPPER COMPLETE GUIDE |
| 503 |
F28191-503 |
LOWER COMPLETE GUIDE |
| 51 |
F28191-51 |
GUIDE SCREW |
| 52 |
F28191-52 |
ROLLER GUIDE SEAT |
| 53 |
F28191-53 |
SLIDING BOARD |
| 55 |
F28191-55 |
GUIDE CARRIER EXTRUSION |
| 56 |
F28191-56 |
RACK |
| 60 |
F28191-60 |
LOWER GUIDING PIECE PAD |
| 61 |
F28191-61 |
DEEP GROOVE BALL BEARING |
| 62 |
F28191-62 |
THRUST BEARING SHAFT |
| 63 |
F28191-63 |
IDLER WHEEL SHAFT |
| 64 |
F28191-64 |
HOUSING LOWER GUIDE |
| 65 |
F28191-65 |
GUIDE NUT |
| 66 |
F28191-66 |
GUIDE WASHER |
| 67 |
F28191-67 |
GUIDE SCREW |
| 68 |
F28191-68 |
GUIDE PIN |
| 70 |
F28191-70 |
STRAIN RELIEF |
| 73 |
F28191-73 |
FASTENING SHAFT |
| 76 |
F28191-76 |
SETTING KNOB |
| 78 |
F28191-78 |
THUMB NUT |
| 79 |
F28191-79 |
LOCKING KNOB |
| 80 |
F28191-80 |
LOWER WHEEL SHAFT |
| 81 |
F28191-81 |
ADJUSTING KNOB BASE |
| 82 |
F28191-82 |
MOTOR |
| 84 |
F28191-84 |
GEAR |
| 85 |
F28191-85 |
SHAFT |
| 86 |
F28191-86 |
GUIDE PLATE |
| 88 |
F28191-88 |
LAMELLO PLUG |
| 89 |
F28191-89 |
SUCTION CONNECTOR |
| 91 |
F28191-91 |
HANDLE |
| 93 |
F28191-93 |
KNOB |
| 94 |
F28191-94 |
SCREW POLE |
| 97 |
F28191-97 |
MOTOR PULLEY |
| 98 |
F28191-98 |
BELT |
| 99 |
F28191-99 |
FIXING PLATE |
