Fox Spare Parts for Bench Drill Press F12-921

SKU: Fox F12-921
€2.47
VAT included

Fox Spare Parts for Bench Drill Press F12-921

We are FOX original spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Floor and Bench Drill Press F12-921

- ITEM NOT SUITABLE FOR MACHINES WITH THE NO DELTA FRANCE BRAND

Fox Spare Parts for Bench Drill Press F12-921
  • Fox Spare Parts for Bench Drill Press F12-921
  • Fox Spare Parts for Bench Drill Press F12-921

Fox Spare Parts for Bench Drill Press F12-921

SKU: Fox F12-921 Condition: New
€2.47
VAT included

Fox Spare Parts for Bench Drill Press F12-921

We are FOX original spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Floor and Bench Drill Press F12-921

- ITEM NOT SUITABLE FOR MACHINES WITH THE NO DELTA FRANCE BRAND

settings 29 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
MORE INFO:: PLEASE PAY ATTENTION! FOR MACHINES FEMI SPA DISTRIBUTION ONLY
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

29 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon F12921-1 ANTIVIBRATION Ø40X30 MF M8X25 65SH €59.72
2
Column Holder for Bench Drill Fox 12921 F12921-2 Column Holder for Bench Drill Fox 12921 €19.95
4
photo_cameraImage coming soon F12921-4 TUBE COLUMN €31.27
5
photo_cameraImage coming soon F12921-5 TABLE SUPPORT €21.45
6
photo_cameraImage coming soon F12921-6 CLAMP TABLE €6.52
7
photo_cameraImage coming soon F12921-7 TABLE €42.36
9
Knob for Floor Bench Drill Fox F12921 F12921-9 Knob for Floor Bench Drill Fox F12921 €19.27
11
photo_cameraImage coming soon F12921-11 SHAFT PINION €13.06
15
photo_cameraImage coming soon F12921-15 MOTOR HEIGHT LEVER €4.95
20
Motor for Bench Drill Fox 12921 F12921-20 Motor for Bench Drill Fox 12921 €108.95
21
Motor Pulley for Floor Bench Drill Fox 12921 F12921-21 Motor Pulley for Floor Bench Drill Fox 12921 €21.34
29
photo_cameraImage coming soon F12921-29 BELT PROTECTION €6.09
30
Trapezoidal Belt for Bench Drill Fox F12921 F12921-30 Trapezoidal Belt for Bench Drill Fox F12921 €16.30
35
photo_cameraImage coming soon F12921-35 MICRO SWITCH €10.36
38
Driven Pulley for Floor Bench Drill Fox F12921 F12921-38 Driven Pulley for Floor Bench Drill Fox F12921 €21.34 Not available for order
40
Pulley Holder Shaft for Bench Drill Press Fox F12-921 F12921-40 Pulley Holder Shaft for Bench Drill Press Fox F12-921 €15.82
42
Drive Pulley Bearing Spacer for Bench Drill Press Fox F12-921 F12921-42 Drive Pulley Bearing Spacer for Bench Drill Press Fox F12-921 €5.18
44
photo_cameraImage coming soon F12921-44 INDEX €3.11
45
photo_cameraImage coming soon F12921-45 INDEX €3.53
48
photo_cameraImage coming soon F12921-48 SPRING COVER €6.52
49
Spring Chuck for Floor Bench Drill Fox 12921 F12921-49 Spring Chuck for Floor Bench Drill Fox 12921 €9.90
50
photo_cameraImage coming soon F12921-50 SPRING RING €4.95
53
photo_cameraImage coming soon F12921-53 BOX-SWITCH W/DEPTH SCALE €2.11
57
photo_cameraImage coming soon F12921-57 SWITCH €23.44
60
photo_cameraImage coming soon F12921-60 TUBE QUILL €24.58
62
Chuck Guard for Bench Drill FOX F12-921 F12921-62 Chuck Guard for Bench Drill FOX F12-921 €21.13
64
photo_cameraImage coming soon F12921-64 SHAFT SPINDLE €24.87
65
photo_cameraImage coming soon F12921-65 CHUCK €48.34
79
photo_cameraImage coming soon F12921-79 VICE €42.65

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Fox Spare Parts for Bench Drill Press F12-921

We are FOX original spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Floor and Bench Drill Press F12-921.

- ITEM NOT SUITABLE FOR MACHINES WITH THE NO DELTA FRANCE BRAND

In the following table, look for the model of the Drill Presses and the respective parts of the code.
Fox F12-921

Drill Press Fox F12-921
# Part Num. Description
1 F12921-1 BASE
11 F12921-11 SHAFT PINION
15 F12921-15 MOTOR HEIGHT LEVER
2 F12921-2 SUPPORT COLUMN
20 F12921-20 MOTOR ASS'Y
21 F12921-21 PULLEY MOTOR
29 F12921-29 BELT PROTECTION
30 F12921-30 V-BELT
35 F12921-35 MICRO SWITCH
38 F12921-38 PULLEY SPINGLE
4 F12921-4 TUBE COLUMN
40 F12921-40 PULLEY INSERT
42 F12921-42 SPACER
44 F12921-44 INDEX
45 F12921-45 INDEX
48 F12921-48 SPRING COVER
49 F12921-49 SPRING TENSION
50 F12921-50 SPRING RING
5 F12921-5 TABLE SUPPORT
53 F12921-53 BOX-SWITCH W/DEPTH SCALE
57 F12921-57 SWITCH
6 F12921-6 CLAMP TABLE
60 F12921-60 TUBE QUILL
62 F12921-62 EYE-SHIELD
64 F12921-64 SHAFT SPINDLE
65 F12921-65 CHUCK
7 F12921-7 TABLE
79 F12921-79 VICE
9 F12921-9 KNOB
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Fox websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Fox F12-921
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
MORE INFO:
PLEASE PAY ATTENTION! FOR MACHINES FEMI SPA DISTRIBUTION ONLY
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT

Specific References

New

Download

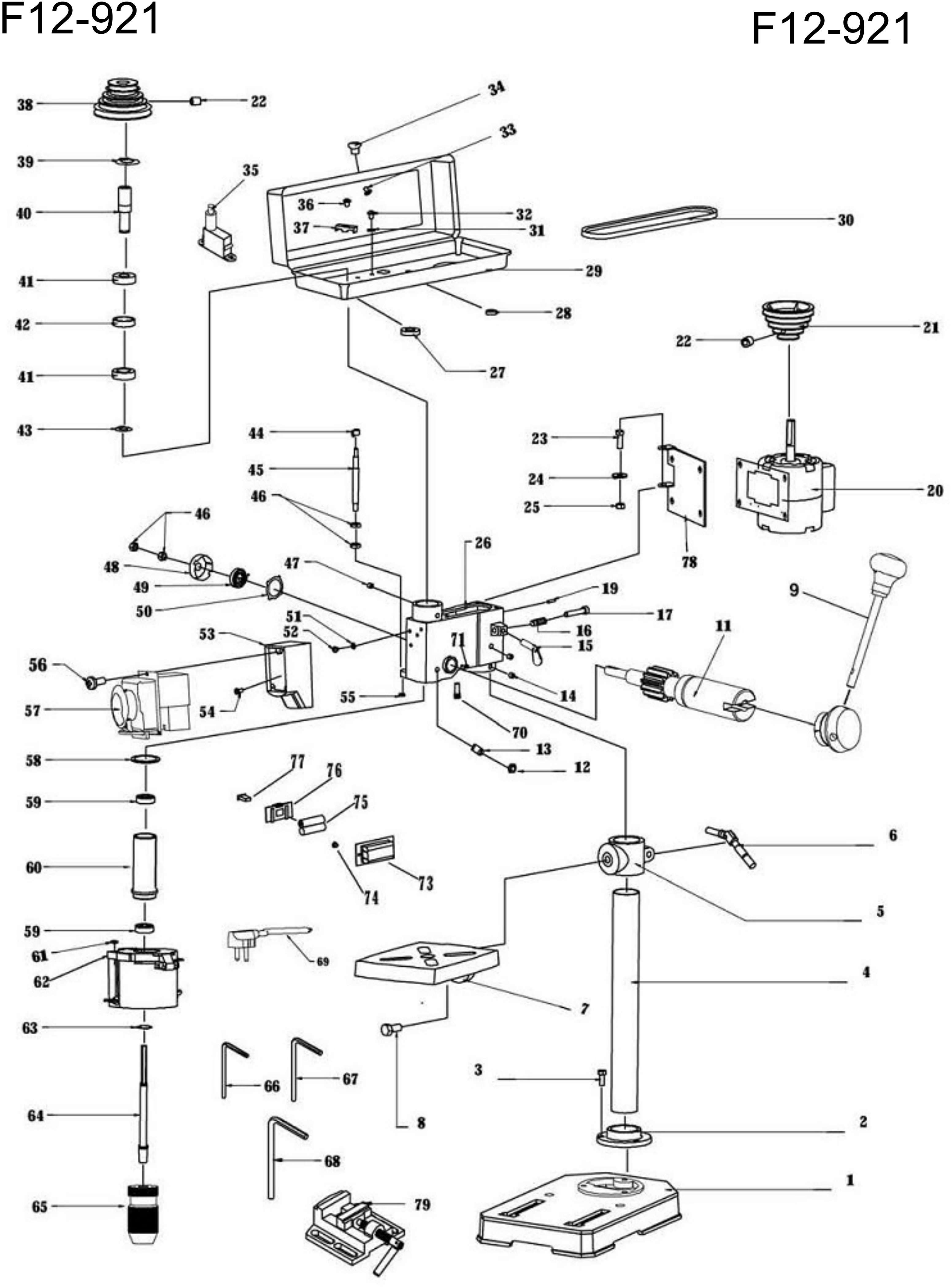

Diagram Fox F12-921

Diagram Fox F12-921

Download (175.3KB)

You might also like

Femi SKU: F12921-21
Motor Pulley for Floor Bench Drill Fox 12-921 Original spare Fox, pulley made in strengthened nylon, with 5 grooves, for the postponement of the spindle drive belt for bench drill FOX F12-921 . Part for the following products: -...
AVAILABLE €21.34
Femi SKU: F12921-38
Driven Pulley for Floor Bench Drill Fox F12-921 Original spare Fox, driven pulley belt, reinforced nylon, for the postponement of the spindle drive belt for bench drill Fox F12-921 . Part for the following products: - Frill press Fox...
AVAILABLE €21.34
Valex s.p.a. SKU: F12921-30
V-Belt for Drill Press Fox F12921 Genuine part FOX, V-Belt for Floor Drill Press FOX F12-F12-921. Part for the following products: -  Drill Press FOX F12-921 - Tech Data: - Inner Diameter: 200 mm - Outer diameter: 210 mm -...
AVAILABLE €16.30
Femi SKU: F12921-49
Spring Chuck for Floor Bench Drill Fox 12-921 Genuine spare Fox, Steel Spring for Lift Chuck for Bench Drill Press FOX F12-921 Part for the following products: -  Drill Press FOX F12-921 - Code: F12921-49
AVAILABLE €9.90
Femi SKU: F12921-2
Column Holder for Bench Drill Fox 12921 Original spare Fox, Column Holder for Bench Drill FOX F12921 Part for the following products: - Bench Drill Press Fox F12-921 - Code: F12921-2
AVAILABLE €19.95
Femi SKU: F12921-9
Knob for Floor Bench Drill Fox F12921 Original part FOX, Knob for Floor Bench Drill Fox F12921. Part for the following article: - Floor Bench Drill Fox F12921 - Code: F12921-9
AVAILABLE €19.27
Femi SKU: F12921-62
Chuck Guard for Drill Press FOX F12-921 Genuine part FOX, Chuck Guard Assembly for Drill Press FOX model F12-921 Parts for the following products: -  Drill Press Fox F12-941 - Code : F12921-62 - ATTENTION REPLACEMENT...
AVAILABLE €21.13
Femi SKU: F12921-20
Motor for Drill Press Fox 12921 Original spare part Fox, 230V Motor for Drill Press Fox F12921 Part for the following products: -  Drill Press Fox F12-921 Technical data: - Power supply: 230V - 50Hz - Power: 350 Watt - Rotation...
AVAILABLE €108.95
Femi SKU: F12921-40
Pulley Holder Shaft for Bench Drill Press Fox F12-921 Original spare part Fox, Pulley Holder Shaft for Drill Press Bench Model Fox F12-921. Part for the following products: - Drill Press Fox F12-921 - Code: F12921-40
Last items in stock €15.82
