Femi

Fox Spare Parts for Band Saw F28-186A

SKU: Fox F28-186A
€143.15
VAT included

Fox Spare Parts for Band Saw F28-186A

Distribution and Sale at attractive prices of FOX Original Spare Parts. Low prices and a professional Assistance guarantee, repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance issue for Wood Band Saw F28-186A.

- SPARE PARTS NOT SUITABLE FOR MACHINES WITH THE DELTA FRANCE BRAND
Fox Spare Parts for Band Saw F28-186A
  • Fox Spare Parts for Band Saw F28-186A
  • Fox Spare Parts for Band Saw F28-186A
Femi

Fox Spare Parts for Band Saw F28-186A

SKU: Fox F28-186A Condition: New
€143.15
VAT included

Fox Spare Parts for Band Saw F28-186A

Distribution and Sale at attractive prices of FOX Original Spare Parts. Low prices and a professional Assistance guarantee, repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance issue for Wood Band Saw F28-186A.

- SPARE PARTS NOT SUITABLE FOR MACHINES WITH THE DELTA FRANCE BRAND
settings 39 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
MORE INFO:: PLEASE PAY ATTENTION! FOR MACHINES FEMI SPA DISTRIBUTION ONLY
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
39 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

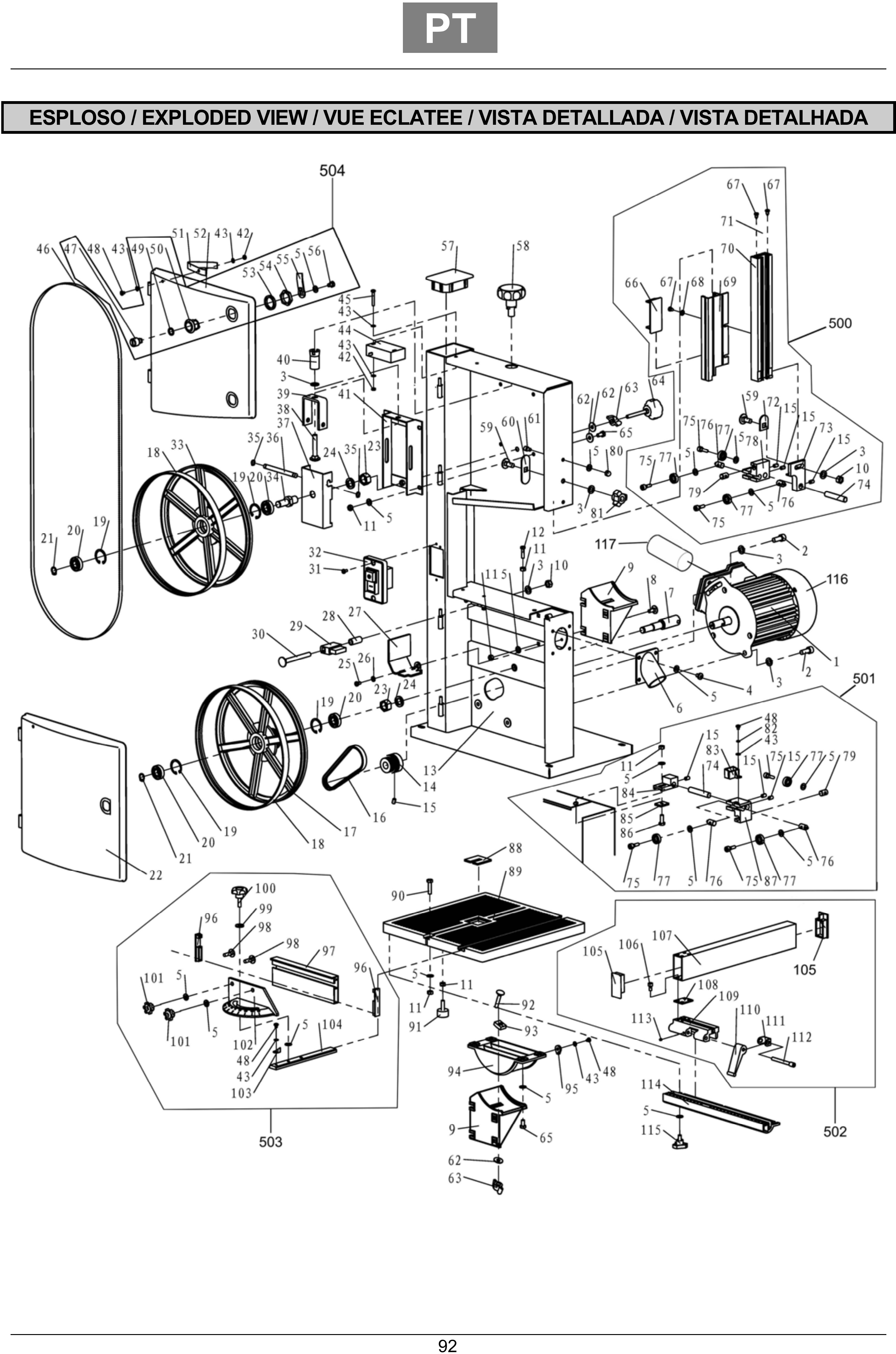

Esploso pagina 1
Pos. Item Price Buy
1
 Motor for Wood Band Saw FOX F28-186A F28186A-001 Motor for Wood Band Saw FOX F28-186A €143.16
6
 photo_cameraImage coming soon F28186A-006 DUST DISCHARGE SUPPORT €11.30
7
 photo_cameraImage coming soon F28186A-007 DRIVING PULLEY SHAFT €6.46
9
 photo_cameraImage coming soon F28186A-009 TABLE SUPPORT €14.32
14
 photo_cameraImage coming soon F28186A-014 BELT PULLEY €11.30
16
 Motor Belt for Wood Band Saw Fox F28-186A F28186A-016 Motor Belt for Wood Band Saw Fox F28-186A €20.50
17
 photo_cameraImage coming soon F28186A-017 DRIVING PULLEY €42.50
18
 Pulley Rubber Ring for Wood Band Saw FOX F28-186A F28186A-018 Pulley Rubber Ring for Wood Band Saw FOX F28-186A €10.90
20
 photo_cameraImage coming soon F28186A-020 BEARING €7.98
22
 photo_cameraImage coming soon F28186A-022 DRIVING PULLEY PROTECTION €25.66
27
 photo_cameraImage coming soon F28186A-027 SWITCH PROTECTION €1.48
29
 photo_cameraImage coming soon F28186A-029 BRUSH €1.48
32
 ON/OFF Switch for Wood Band Saw Fox F28-186A F28186A-032 ON/OFF Switch for Wood Band Saw Fox F28-186A €19.80
33
 photo_cameraImage coming soon F28186A-033 FREE PULLEY €27.17
34
 photo_cameraImage coming soon F28186A-034 FREE PULLEY SHAFT €2.69
36
 photo_cameraImage coming soon F28186A-036 PIN €1.78
37
 photo_cameraImage coming soon F28186A-037 SHAFT SUPPORT €4.05
39
 photo_cameraImage coming soon F28186A-039 PULLEY SUPPORT €6.77
40
 photo_cameraImage coming soon F28186A-040 PIN €2.23
41
 photo_cameraImage coming soon F28186A-041 FREE PULLEY GUIDE €18.10
44
 photo_cameraImage coming soon F28186A-044 MICRO SWITCH €10.85
52
 photo_cameraImage coming soon F28186A-052 FREE PULLEY PROTECTION €24.60
57
 photo_cameraImage coming soon F28186A-057 COVER €12.81
58
 photo_cameraImage coming soon F28186A-058 BLADE TESION KNOB €8.28
63
 photo_cameraImage coming soon F28186A-063 KNOB LEVER €3.75
64
 photo_cameraImage coming soon F28186A-064 PULLEY ADJUSTING KNOB €4.80
81
 photo_cameraImage coming soon F28186A-081 BLADE GUIDE KNOB €4.05
88
 photo_cameraImage coming soon F28186A-088 TABLE INSERT €4.65
89
 photo_cameraImage coming soon F28186A-089 WORKTABLE €42.28
94
 Work Table Rotation Support for Wood Band Saw FOX F28-186A F28186A-094 Work Table Rotation Support for Wood Band Saw FOX F28-186A €26.45
114
 photo_cameraImage coming soon F28186A-114 WORKTABLE GUIDE €16.59
115
 FOX F28-186A Knob Guide Lever F28186A-115 FOX F28-186A Knob Guide Lever €3.71
116
 photo_cameraImage coming soon F28186A-116 MOTOR FAN COVER €9.79
117
 photo_cameraImage coming soon F28186A-117 CONDENSATOR €18.10
500
 Complete Upper Blade Guide for Wood Band Saw FOX F28-186A F28186A-500 Complete Upper Blade Guide for Wood Band Saw FOX F28-186A €43.74
501
 Lower Blade Guide Assy for Wood Band Saw FOX F28-186A F28186A-501 Lower Blade Guide Assy for Wood Band Saw FOX F28-186A €32.56
502
 photo_cameraImage coming soon F28186A-502 UPPER FENCE GROUP €22.63
503
 Protractor Complete for Wood Band Saw Fox F28-186A F28186A-503 Protractor Complete for Wood Band Saw Fox F28-186A €33.10
504
 Complete Panel Lock for Wood Band Saw FOX F28-186A F28186A-504 Complete Panel Lock for Wood Band Saw FOX F28-186A €26.45

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Fox Spare Parts for Band Saw F28-186A

Distribution and Sale at attractive prices of FOX Original Spare Parts

. Low prices and a professional Assistance guarantee, repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance issue for Wood Band Saw F28-186A.

- SPARE PARTS NOT SUITABLE FOR MACHINES WITH THE DELTA FRANCE BRAND

In the following table, look for the model of the Band Saw and the respective parts of the code.
Fox F28-186A

Wood Band Saw F28-186A
# Part Num. Description
1 F28186A-001 MOTOR ASS'Y
6 F28186A-006 DUST DISCHARGE SUPPORT
7 F28186A-007 DRIVING PULLEY SHAFT
9 F28186A-009 TABLE SUPPORT
14 F28186A-014 BELT PULLEY
16 F28186A-016 BELT
17 F28186A-017 DRIVING PULLEY
18 F28186A-018 PULLEYS RING
20 F28186A-020 BEARING
22 F28186A-022 DRIVING PULLEY PROTECTION
27 F28186A-027 SWITCH PROTECTION
29 F28186A-029 BRUSH
32 F28186A-032 SWITCH
33 F28186A-033 FREE PULLEY
34 F28186A-034 FREE PULLEY SHAFT
36 F28186A-036 PIN
37 F28186A-037 SHAFT SUPPORT
39 F28186A-039 PULLEY SUPPORT
40 F28186A-040 PIN
41 F28186A-041 FREE PULLEY GUIDE
44 F28186A-044 MICRO SWITCH
51 F28186A-051 STEEL SHEET SUPPORT
52 F28186A-052 FREE PULLEY PROTECTION
57 F28186A-057 COVER
58 F28186A-058 BLADE TESION KNOB
63 F28186A-063 KNOB LEVER
64 F28186A-064 PULLEY ADJUSTING KNOB
81 F28186A-081 BLADE GUIDE KNOB
88 F28186A-088 TABLE INSERT
89 F28186A-089 WORKTABLE
91 F28186A-091 TABLE STOPPER
93 F28186A-093 SLIDING NUT
94 F28186A-094 TABLE ROTATION SUPPORT
95 F28186A-095 INDEX
114 F28186A-114 WORKTABLE GUIDE
115 F28186A-115 KNOB GUIDE LEVER
116 F28186A-116 MOTOR FAN COVER
117 F28186A-117 CONDENSATOR
500 F28186A-500 UPPER BLADE GUIDE GROUP
501 F28186A-501 LOWER BLADE GUIDE GROUP
502 F28186A-502 UPPER FENCE GROUP
503 F28186A-503 COMPLETE GONIOMETER
504 F28186A-504 DOOR LOCKING SET
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Fox websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Fox F28-186A
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
MORE INFO:
PLEASE PAY ATTENTION! FOR MACHINES FEMI SPA DISTRIBUTION ONLY
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT

Specific References

New

Download

Diagram Fox F28-186A

Diagram Fox F28-186A

Download (346.99KB)
