Femi

Fox Spare Parts for Band Saw F28-182A

SKU: Fox F28-182A
€38.87
VAT included

Fox Spare Parts for Band Saw F28-182A

Fox original spare parts for to replace broken parts for to fix Band Saw F28-182A.

Fix Your Band Saw. All Spares are Ready For Quick Delivery. Our Spares are Genuine Parts and Come with a Full Guarantee.

- SPARE PARTS NOT SUITABLE FOR MACHINES WITH THE DELTA FRANCE BRAND
Fox Spare Parts for Band Saw F28-182A
  • Fox Spare Parts for Band Saw F28-182A
  • Fox Spare Parts for Band Saw F28-182A
Femi

Fox Spare Parts for Band Saw F28-182A

SKU: Fox F28-182A Condition: New
€38.87
VAT included

Fox Spare Parts for Band Saw F28-182A

Fox original spare parts for to replace broken parts for to fix Band Saw F28-182A.

Fix Your Band Saw. All Spares are Ready For Quick Delivery. Our Spares are Genuine Parts and Come with a Full Guarantee.

- SPARE PARTS NOT SUITABLE FOR MACHINES WITH THE DELTA FRANCE BRAND
settings 53 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
MORE INFO:: PLEASE PAY ATTENTION! FOR MACHINES FEMI SPA DISTRIBUTION ONLY
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
53 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

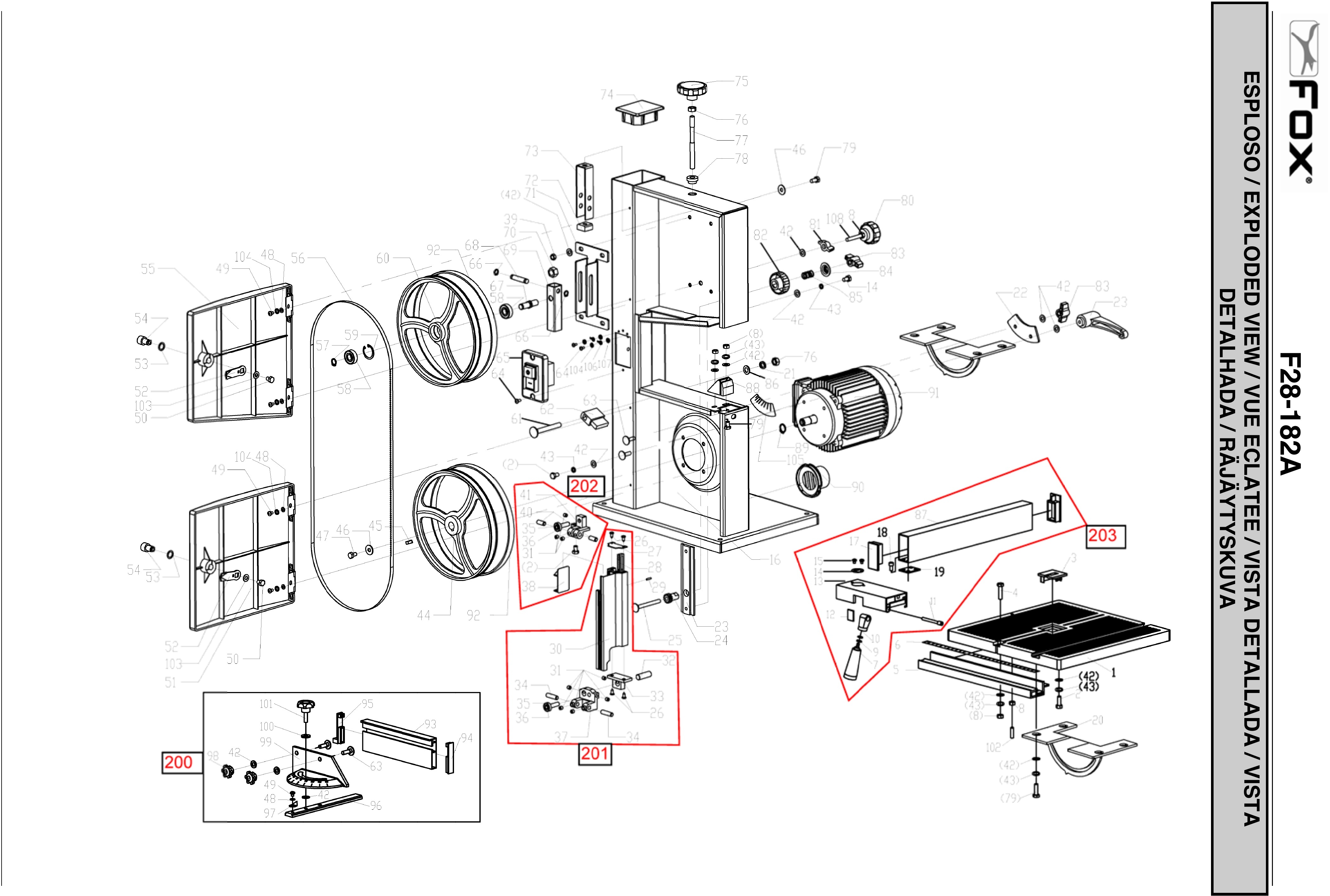

Esploso pagina 1
Pos. Item Price Buy
1
 photo_cameraImage coming soon F28182A-001 WORKTABLE €35.59
3
 Work Table Insert for Wood Band Saw Fox F28-182A F28182A-003 Work Table Insert for Wood Band Saw Fox F28-182A €1.52
5
 photo_cameraImage coming soon F28182A-005 TABLE GUIDE €7.24
6
 photo_cameraImage coming soon F28182A-006 SCALE €1.39
7
 photo_cameraImage coming soon F28182A-007 HANDLE €3.81
10
 photo_cameraImage coming soon F28182A-010 CLAMP €3.81
13
 photo_cameraImage coming soon F28182A-013 FASTEN PLATE €4.53
16
 photo_cameraImage coming soon F28182A-016 FRAME €149.53
20
 photo_cameraImage coming soon F28182A-020 TABLE SUPPORT €17.07
22
 photo_cameraImage coming soon F28182A-022 ROTATION PLATE €1.39
23
 photo_cameraImage coming soon F28182A-023 LOCKING LEVER €4.53
24
 photo_cameraImage coming soon F28182A-024 GEAR €1.39
25
 photo_cameraImage coming soon F28182A-025 SCREW €1.39
36
 photo_cameraImage coming soon F28182A-036 BEARING €3.96
37
 photo_cameraImage coming soon F28182A-037 LOWER BLADE GUIDE SUPPORT €4.25
44
 Lower Pulley for Wood Band Saw FOX F28-182A F28182A-044 Lower Pulley for Wood Band Saw FOX F28-182A €30.74
51
 photo_cameraImage coming soon F28182A-051 PULLEY PROTECTION €13.51
52
 photo_cameraImage coming soon F28182A-052 PANEL COVER €1.39
54
 photo_cameraImage coming soon F28182A-054 COVER FRAME €3.81
55
 photo_cameraImage coming soon F28182A-055 PULLEY PROTECTION €13.51
58
 photo_cameraImage coming soon F28182A-058 BEARING €9.23
60
 Upper Pulley for Wood Band Saw FOX F28-182A F28182A-060 Upper Pulley for Wood Band Saw FOX F28-182A €32.67
62
 photo_cameraImage coming soon F28182A-062 BRUSH €2.26
65
 ON/OFF Switch for Wood Band Saw Fox F28-182A F28182A-065 ON/OFF Switch for Wood Band Saw Fox F28-182A €18.47
67
 photo_cameraImage coming soon F28182A-067 PULLEY SHAFT €6.10
68
 photo_cameraImage coming soon F28182A-068 PIN €1.39
69
 photo_cameraImage coming soon F28182A-069 SHAFT SUPPORT €3.81
71
 photo_cameraImage coming soon F28182A-071 PULLEY GUIDE €7.24
73
 photo_cameraImage coming soon F28182A-073 ROD GUIDE €2.54
74
 photo_cameraImage coming soon F28182A-074 COVER €2.54
75
 photo_cameraImage coming soon F28182A-075 TENSIONING HANDWHEEL €2.54
77
 photo_cameraImage coming soon F28182A-077 TENSIONING THREADED ROD €4.74
78
 Band Tensioner Bushing for Wood Band Saw Fox F28-182A F28182A-078 Band Tensioner Bushing for Wood Band Saw Fox F28-182A €2.65
80
 Blade Handwheel for Wood Band Saw Fox F28-182A F28182A-080 Blade Handwheel for Wood Band Saw Fox F28-182A €3.85
81
 photo_cameraImage coming soon F28182A-081 LEVER HANDWHEEL €1.39
82
 photo_cameraImage coming soon F28182A-082 LOCKING HANDWHEEL €2.54
83
 photo_cameraImage coming soon F28182A-083 LOCKING LEVER €1.39
84
 photo_cameraImage coming soon F28182A-084 HANDWHEEL COVER €1.39
85
 photo_cameraImage coming soon F28182A-085 HANDWHEEL SPRING €1.39
88
 photo_cameraImage coming soon F28182A-088 LOWER PROTECTION €2.54
90
 photo_cameraImage coming soon F28182A-090 AIR INLET ADAPTER €3.81
91
 photo_cameraImage coming soon F28182A-091 COMPLETE MOTOR €170.89
92
 Pulley Rubber Ring for Wood Band Saw FOX F28-182A F28182A-092 Pulley Rubber Ring for Wood Band Saw FOX F28-182A €11.83
110
 photo_cameraImage coming soon F28182A-110 MOTOR FAN COVER €9.23
111
 photo_cameraImage coming soon F28182A-111 CONDENSATOR €6.38
200
 FOX F28-182A Goniometer Ass'y F28182A-200 FOX F28-182A Goniometer Ass'y €21.74
201
 Complete Upper Blade Guide for Wood Band Saw FOX F28-182A F28182A-201 Complete Upper Blade Guide for Wood Band Saw FOX F28-182A €43.55
202
 Lower Blade Guide for Wood Band Saw Fox F28-182A F28182A-202 Lower Blade Guide for Wood Band Saw Fox F28-182A €36.56
203
 FOX F28-182A Fence Complete F28182A-203 FOX F28-182A Fence Complete €24.86
204
 photo_cameraImage coming soon F28182A-204 PROTECTION CLOSING €7.10
900
 Band Tightining Ass'y for Wood Band Saw FOX F28-182A F28182A-TEN Band Tightining Ass'y for Wood Band Saw FOX F28-182A €25.12
901
 Band Tensioner Complete for Wood Band Saw Fox F28-182A F28182A-901 Band Tensioner Complete for Wood Band Saw Fox F28-182A €11.83
902
 Wing and Setting Knob Complete for Wood Band Saw Fox F28-182A F28182A-902 Wing and Setting Knob Complete for Wood Band Saw Fox F28-182A €11.83

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Fox Spare Parts for Band Saw F28-182A

Fox original spare parts for to replace broken parts for to fix Band Saw F28-182A.

- SPARE PARTS NOT SUITABLE FOR MACHINES WITH THE DELTA FRANCE BRAND

In the following table, look for the model of the Band Saw and the respective parts of the code.
Fox F28-182A

Band Saw F28-182A
# Part Num. Description
1 F28182A-001 WORKTABLE
3 F28182A-003 TABLE INSERT
5 F28182A-005 TABLE GUIDE
6 F28182A-006 SCALE
7 F28182A-007 HANDLE
10 F28182A-010 CLAMP
13 F28182A-013 FASTEN PLATE
16 F28182A-016 FRAME
20 F28182A-020 TABLE SUPPORT
22 F28182A-022 ROTATION PLATE
23 F28182A-023 LOCKING LEVER
24 F28182A-024 GEAR
25 F28182A-025 SCREW
36 F28182A-036 BEARING
37 F28182A-037 LOWER BLADE GUIDE SUPPORT
44 F28182A-044 DRIVING PULLEY
51 F28182A-051 PULLEY PROTECTION
52 F28182A-052 PANEL COVER
54 F28182A-054 COVER FRAME
55 F28182A-055 PULLEY PROTECTION
58 F28182A-058 BEARING
60 F28182A-060 FREE PULLEY
62 F28182A-062 BRUSH
65 F28182A-065 SWITCH
67 F28182A-067 PULLEY SHAFT
68 F28182A-068 PIN
69 F28182A-069 SHAFT SUPPORT
71 F28182A-071 PULLEY GUIDE
73 F28182A-073 ROD GUIDE
74 F28182A-074 COVER
75 F28182A-075 TENSIONING HANDWHEEL
77 F28182A-077 TENSIONING THREADED ROD
78 F28182A-078 TENSIONING BUSCHING
80 F28182A-080 BLADE HANDWHEEL
81 F28182A-081 LEVER HANDWHEEL
82 F28182A-082 LOCKING HANDWHEEL
83 F28182A-083 LOCKING LEVER
84 F28182A-084 HANDWHEEL COVER
85 F28182A-085 HANDWHEEL SPRING
88 F28182A-088 LOWER PROTECTION
90 F28182A-090 AIR INLET ADAPTER
91 F28182A-091 COMPLETE MOTOR
92 F28182A-092 PULLERY RUBBER RING
110 F28182A-110 MOTOR FAN COVER
111 F28182A-111 CONDENSATOR
200 F28182A-200 COMPLETE GONIOMETER
201 F28182A-201 UPPER BLADE GUIDE GROUP
202 F28182A-202 LOWER BLADE GUIDE GROUP
203 F28182A-203 COMPLETE FENCE
204 F28182A-204 PROTECTION CLOSING
900 F28182A-TEN BAND TIGHTINING ASS'Y
901 F28182A-901 BAND TENSIONER COMPL.
902 F28182A-902 WING AND SETTING KNOB
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Fox websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Fox F28-182A
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
MORE INFO:
PLEASE PAY ATTENTION! FOR MACHINES FEMI SPA DISTRIBUTION ONLY
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT

Specific References

New

Download

Diagram Fox F28-182A

Diagram Fox F28-182A

Download (255.65KB)
