Fox Spare Parts for Slide Compound Mitre Saw F36-255
Fox original spare parts, at discounted prices, we are a service center with after-sales service able to quickly solve the maintenance and repair any issues for Slide Compound Mitre Saw for Wood F36-255.
- Spare parts for FEMI SPA DISTRIBUTION - NOT Suitable for DELTA FRANCE Mitre Saws

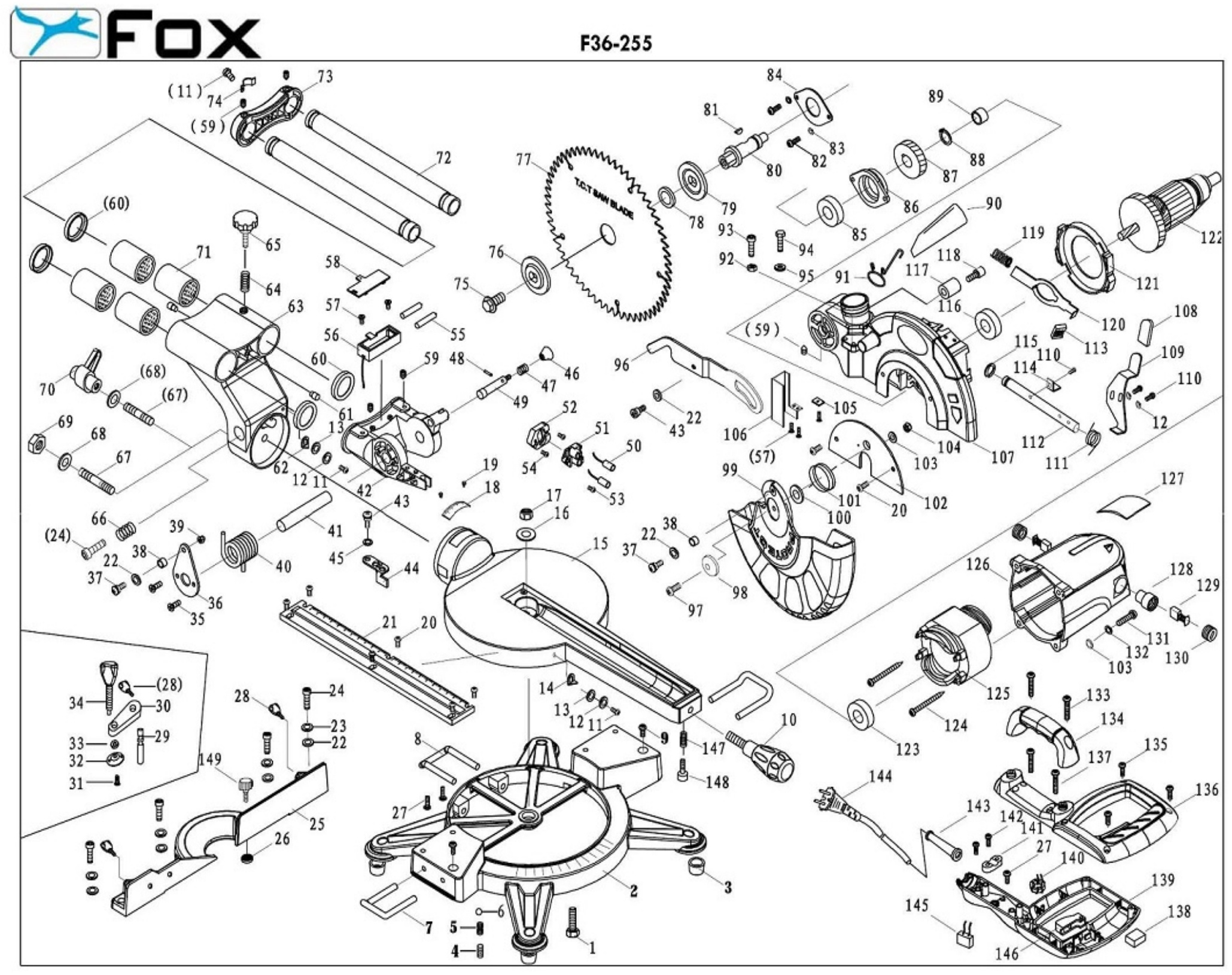

In the following table, look for the model of theSliding compound mitresaw and the respective parts of the code.
| Slide Compound Mitre Saw Fox F36-255 |
| # |
Part Num. |
Description |
| 10 |
F36255-10 |
ROTATING TABLE HANDLE |
| 101 |
F36255-101 |
BLADE PROTECTION SPRING |
| 102 |
F36255-102 |
PROTECTION PLATE |
| 106 |
F36255-106 |
PROTECTION GUARD SHROUD BLOCK |
| 107 |
F36255-107 |
PROTECTION GUARD |
| 108 |
F36255-108 |
PROTECTION GUARD FIXED COVER |
| 109 |
F36255-109 |
TRASPARENT PROTECTION SELF BLOCK |
| 111 |
F36255-111 |
SMALL SPRING |
| 112 |
F36255-112 |
TURNOVER AXIS |
| 119 |
F36255-119 |
SELF-LOCKED SPRING |
| 120 |
F36255-120 |
SELF LOCK |
| 121 |
F36255-121 |
FAN SHROUD |
| 122 |
F36255-122 |
ARMATURE |
| 123 |
F36255-123 |
BALL BEARING |
| 125 |
F36255-125 |
STATOR |
| 126 |
F36255-126 |
MOTOR HOUSING |
| 128 |
F36255-128 |
BRUSH HOLDER |
| 129 |
F36255-129 |
CARBON BRUSHE SET |
| 130 |
F36255-130 |
BRUSH COVER |
| 134 |
F36255-134 |
LIFT HANDLE |
| 136 |
F36255-136 |
HANDLE COVER |
| 138 |
F36255-138 |
SWITCH |
| 139 |
F36255-139 |
NETHER HANDLE |
| 140 |
F36255-140 |
INDUCTION |
| 144 |
F36255-144 |
CABLE WITH PLUG |
| 145 |
F36255-145 |
CAPABILITY |
| 146 |
F36255-146 |
SWITCH KEY |
| 147 |
F36255-147 |
SPRING |
| 148 |
F36255-148 |
SCREW |
| 15 |
F36255-15 |
ROTATING TABLE |
| 150 |
F36255-150 |
COMPLETE MOTOR |
| 151 |
F36255-151 |
COMPLETE VICE |
| 18 |
F36255-18 |
SCALE |
| 2 |
F36255-2 |
BASE |
| 21 |
F36255-21 |
CUTTING ASSISTANT |
| 25 |
F36255-25 |
FENCE |
| 28 |
F36255-28 |
KNOB |
| 3 |
F36255-3 |
BASE FOOT |
| 36 |
F36255-36 |
LINK SUPPORT PLATE |
| 37 |
F36255-37 |
SPECIAL SCREW |
| 38 |
F36255-38 |
BUSHING |
| 40 |
F36255-40 |
BIG SPRING |
| 41 |
F36255-41 |
PROTECTION GUARD PIN |
| 42 |
F36255-42 |
STAND |
| 43 |
F36255-43 |
ROUND SCREW |
| 44 |
F36255-44 |
DEPTH ADJUSTMENT BLOCK |
| 46 |
F36255-46 |
SELF-LOCKED PIN |
| 47 |
F36255-47 |
SELF-LOCKED SPRING |
| 49 |
F36255-49 |
PROTECTION GUARD SELF-LOCKED PIN |
| 50 |
F36255-50 |
LASER 9X20 |
| 500 |
F36255-500 |
LASER ASS'Y |
| 51 |
F36255-51 |
LASER SEAT |
| 52 |
F36255-52 |
FIXED SEAT |
| 56 |
F36255-56 |
BATTERY BOX |
| 58 |
F36255-58 |
BATTERY |
| 59 |
F36255-59 |
BATTERY BOX COVER |
| 60 |
F36255-60 |
SPACER RING |
| 63 |
F36255-63 |
ROTATING TABLE STAND |
| 65 |
F36255-65 |
TRACK LOCKED HANDWHEEL |
| 67 |
F36255-67 |
DOUBLE HEAD SCREW |
| 7 |
F36255-7 |
EXTENSION ROD |
| 70 |
F36255-70 |
STAND LOCKED HANDLE |
| 71 |
F36255-71 |
LINEAR BEARING |
| 72 |
F36255-72 |
TELESCOPIC ROD |
| 73 |
F36255-73 |
TRACK END COVER |
| 75 |
F36255-75 |
BLADE SCREW |
| 76 |
F36255-76 |
OUTER FLANGE |
| 78 |
F36255-78 |
BLADE FIXED CIRCLE |
| 79 |
F36255-79 |
INNER FLANGE |
| 80 |
F36255-80 |
OUTPUT AXIS |
| 81 |
F36255-81 |
FLAP |
| 84 |
F36255-84 |
BEARING GLAND |
| 85 |
F36255-85 |
6203BEARING |
| 86 |
F36255-86 |
BEARING HOUSE |
| 87 |
F36255-87 |
BIG GEAR |
| 88 |
F36255-88 |
DIA 17 CIRCLIP |
| 89 |
F36255-89 |
HK161210 ROLLOR PIN BEARING |
| 90 |
F36255-90 |
DUST BAG |
| 96 |
F36255-96 |
LINK |
| 97 |
F36255-97 |
BLADE SCREW |
| 99 |
F36255-99 |
TRANSPARENT PROTECTION |
