Fox Spare Parts for Combined Belt and Disk Bench Sander F31-462251

SKU: F31-462
€43.06
VAT included

Fox Spare Parts for Combined Belt and Disk Bench Sander F31-462

Fox Genuine spare parts or replacement parts for to repair Combined Belt and Disk Bench Sander F31-462.

- Motor 500 Watt
- Belt dimensions: mm 914 x mm 100
- Disk diameter: 150 mm
- Weight: 22 Kg

- SPARE PARTS NOT SUITABLE FOR "DELTA FRANCE" MACHINES
Fox Spare Parts for Combined Belt and Disk Bench Sander F31-462251
  • Online only
  • Fox Spare Parts for Combined Belt and Disk Bench Sander F31-462251
  • Fox Spare Parts for Combined Belt and Disk Bench Sander F31-462251

Fox Spare Parts for Combined Belt and Disk Bench Sander F31-462251

SKU: F31-462 Condition: New
€43.06
VAT included

Fox Spare Parts for Combined Belt and Disk Bench Sander F31-462

Fox Genuine spare parts or replacement parts for to repair Combined Belt and Disk Bench Sander F31-462.

- Motor 500 Watt
- Belt dimensions: mm 914 x mm 100
- Disk diameter: 150 mm
- Weight: 22 Kg

- SPARE PARTS NOT SUITABLE FOR "DELTA FRANCE" MACHINES
settings 45 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on Demand Only Call Us Before

SHIPPING IN:: ON DEMAND ONLY
MORE INFO:: PLEASE PAY ATTENTION! FOR MACHINES FEMI SPA DISTRIBUTION ONLY
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

35 spare parts
Page 1 zoom_in View exploded local_shipping ON DEMAND ONLY
Pos. Item Price Buy
2
photo_cameraImage coming soon F31462-2 BELT COVER  €5.40
15
photo_cameraImage coming soon F31462-15 IDLER WHEEL  €5.40
18
photo_cameraImage coming soon F31462-18 JUNCTION BOX  €4.04
21
photo_cameraImage coming soon F31462-21 SWITCH PLATE  €2.69
26
photo_cameraImage coming soon F31462-26 IDLER DRUM  €23.00
28
photo_cameraImage coming soon F31462-28 BUSH  €2.69
29
photo_cameraImage coming soon F31462-29 IDLER SHAFT  €9.46
30
photo_cameraImage coming soon F31462-30 ADJUSTING SPRING  €4.72
31
photo_cameraImage coming soon F31462-31 RUBBER WASHER  €2.69
33
photo_cameraImage coming soon F31462-33 BELT ADJUSTING SCREW  €5.40
36
photo_cameraImage coming soon F31462-36 TENSION SPRING  €5.40
37
photo_cameraImage coming soon F31462-37 SANDING FRAME  €59.41
38
photo_cameraImage coming soon F31462-38 SUPPORT HOUSING  €6.75
48
photo_cameraImage coming soon F31462-48 BEARING CAP  €2.01
54
photo_cameraImage coming soon F31462-54 WORK SUPPORT  €12.17
59
photo_cameraImage coming soon F31462-59 BEAR BASE  €13.38
63
photo_cameraImage coming soon F31462-63 WORK TABLE  €33.82
64
photo_cameraImage coming soon F31462-64 SCALE  €17.58
67
photo_cameraImage coming soon F31462-67 TABLE CONNECTOR  €44.65
70
Work Table Knob for Combined Sander FOX F 31-462 F31462-70 Work Table Knob for Combined Sander FOX F 31-462 €5.18
73
photo_cameraImage coming soon F31462-73 TABLE SUPPORT  €9.46
74
photo_cameraImage coming soon F31462-74 CONNECT BRACKET  €13.38
75
Toothed Belt for Combined Sander FOX F 31-462 F31462-75 Toothed Belt for Combined Sander FOX F 31-462 €19.95
76
photo_cameraImage coming soon F31462-76 MOTOR GEAR €17.58
79
photo_cameraImage coming soon F31462-79 END BELL  €26.92
80
photo_cameraImage coming soon F31462-80 BEARING 180203Z1  €9.46
81
photo_cameraImage coming soon F31462-81 ROTOR  €63.61
85
photo_cameraImage coming soon F31462-85 WHEEL BOX  €33.82
88
photo_cameraImage coming soon F31462-88 SANDER DISC COVER  €9.46
91
photo_cameraImage coming soon F31462-91 DISC SUPPORT €20.29
92
photo_cameraImage coming soon F31462-92 RUBBER FOOT  €2.69
98
photo_cameraImage coming soon F31462-98 TABLE SCALE  €13.38
105
photo_cameraImage coming soon F31462-105 SAFE BOARD  €9.92
111
photo_cameraImage coming soon F31462-111 COMPLETE GONIOMETER  €40.59
500
photo_cameraImage coming soon F31462-500 COMPLETE MOTOR €169.92

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Fox Spare Parts for Combined Belt and Disk Bench Sander F31-462

Fox Genuine spare parts or replacement parts for to repair Combined Belt and Disk Bench Sander F31-462.

- SPARE PARTS NOT SUITABLE FOR "DELTA FRANCE" MACHINES

In the following table, look for the model of the Combined Belt and the respective parts of the code.
Combined Belt and Disk Bench Sander F31-462

Combined Belt and Disk Bench Sander F31-462
# Part Num. Description
105 F31462-105 SAFE BOARD
11 F31462-11 CAPACITOR
111 F31462-111 COMPLETE GONIOMETER
15 F31462-15 IDLER WHEEL
16 F31462-16 RELAIS
18 F31462-18 JUNCTION BOX
2 F31462-2 BELT COVER
21 F31462-21 SWITCH PLATE
23 F31462-23 SWITCH
25 F31462-25 BEARING 101Z
26 F31462-26 IDLER DRUM
27 F31462-27 SPRING RETAINING RING D12
28 F31462-28 BUSH
29 F31462-29 IDLER SHAFT
30 F31462-30 ADJUSTING SPRING
31 F31462-31 RUBBER WASHER
33 F31462-33 BELT ADJUSTING SCREW
35 F31462-35 GUIDE STANDER
36 F31462-36 TENSION SPRING
37 F31462-37 SANDING FRAME
38 F31462-38 SUPPORT HOUSING
48 F31462-48 BEARING CAP
500 F31462-500 COMPLETE MOTOR
52 F31462-52 DRIVE DRUM
54 F31462-54 WORK SUPPORT
57 F31462-57 DRIVE SHAFT
59 F31462-59 BEAR BASE
63 F31462-63 WORK TABLE
64 F31462-64 SCALE
67 F31462-67 TABLE CONNECTOR
70 F31462-70 WORK TABLE KNOB
73 F31462-73 TABLE SUPPORT
74 F31462-74 CONNECT BRACKET
75 F31462-75 BELT
76 F31462-76 MOTOR GEAR
79 F31462-79 END BELL
80 F31462-80 BEARING 180203Z1
81 F31462-81 ROTOR
82 F31462-82 STATOR
85 F31462-85 WHEEL BOX
88 F31462-88 SANDER DISC COVER
91 F31462-91 DISC SUPPORT
92 F31462-92 RUBBER FOOT
93 F31462-93 DUST COLLECTOR - DISCONTINUED
98 F31462-98 TABLE SCALE
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Fox websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
F31-462
10 Items

Data sheet

SHIPPING IN:
ON DEMAND ONLY
MORE INFO:
PLEASE PAY ATTENTION! FOR MACHINES FEMI SPA DISTRIBUTION ONLY
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT

Specific References

New

Download

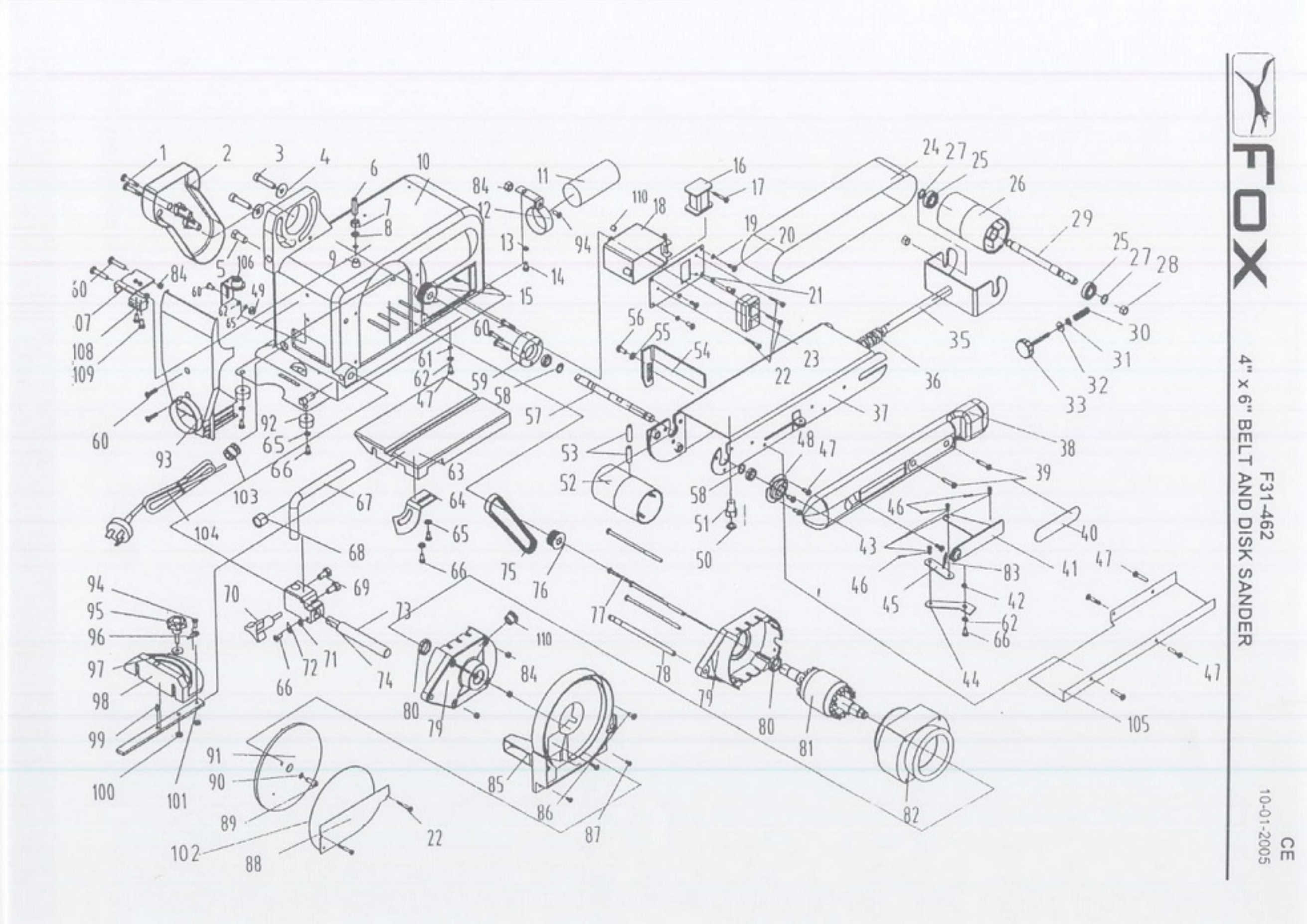

Diagram Fox F31-462

Diagram Fox F31-462

Download (229.31KB)
