Fox Spare Parts for Floor Bench Drill Press F11-991

SKU: Fox F11-991
€202.73
VAT included

Fox Spare Parts for Floor Bench Drill Press F11-991

Fox genuine spare parts or replacement parts for to repair Floor and Bench Drill Press F11-991.

- - SPARE PARTS NOT SUITABLE FOR MACHINES WITH THE DELTA FRANCE BRAND
Fox Spare Parts for Floor Bench Drill Press F11-991
  • Out-of-Stock
  • Fox Spare Parts for Floor Bench Drill Press F11-991
  • Fox Spare Parts for Floor Bench Drill Press F11-991

Fox Spare Parts for Floor Bench Drill Press F11-991

SKU: Fox F11-991 Condition: New
€202.73
VAT included

Fox Spare Parts for Floor Bench Drill Press F11-991

Fox genuine spare parts or replacement parts for to repair Floor and Bench Drill Press F11-991.

- - SPARE PARTS NOT SUITABLE FOR MACHINES WITH THE DELTA FRANCE BRAND
settings 39 Spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Out-of-Stock

SHIPPING IN: Usually Ships in 10 BUSYNESS DAYS
MORE INFO:: PLEASE PAY ATTENTION! FOR MACHINES FEMI SPA DISTRIBUTION ONLY
CHECK ITEM CODE OR S/N: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
Machine Type: Drill
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal PayPal Pay in 3 Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

39 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in 10 BUSYNESS DAYS
Pos. Item Price Buy
VICE
photo_cameraImage coming soon F11991-VICE COMPLETE VICE €56.06
001
photo_cameraImage coming soon F11991-001 BIT DRAWER €7.26
004
photo_cameraImage coming soon F11991-004 BIT DRAWER - HOUSING €14.58
008
photo_cameraImage coming soon F11991-008 KEY €4.82
010
photo_cameraImage coming soon F11991-010 GUIDE RING €6.04
013
Table Height Adjustment Handle for floor Drill Press Fox 11-991 F11991-013 Table Height Adjustment Handle for floor Drill Press Fox 11-991 €0.00 Not available for order
016
photo_cameraImage coming soon F11991-016 TABLE GUIDE €7.26
019
photo_cameraImage coming soon F11991-019 DRILLING TABLE €64.60
020
photo_cameraImage coming soon F11991-020 TABLE EXTENSION ROD €3.60
021
photo_cameraImage coming soon F11991-021 BORING SUPPORT EXTENSION €8.48
024
photo_cameraImage coming soon F11991-024 LOCKING LEVER €4.82
025
photo_cameraImage coming soon F11991-025 DRILLING MACHINE TABLE SUPPORT €43.86
026
photo_cameraImage coming soon F11991-026 RACK €3.60
028
photo_cameraImage coming soon F11991-028 DRILLING COLUMN €43.86
029
Rack for Drill Press Fox F11-991 F11991-029 Rack for Drill Press Fox F11-991 €30.44
030
photo_cameraImage coming soon F11991-030 LASER COVER €6.04
031
photo_cameraImage coming soon F11991-031 LASER ASSY  €18.24
035
photo_cameraImage coming soon F11991-035 SHAFT PINION €14.58
036
photo_cameraImage coming soon F11991-036 HANDWHEEL HANDLE €3.60
037
photo_cameraImage coming soon F11991-037 HAND WHEEL €26.78
038
FOX Drill Press 11-991 Motor F11991-038 FOX Drill Press 11-991 Motor €202.46
039
Motor Pulley for Bench Drill Press FOX F11-991 F11991-039 Motor Pulley for Bench Drill Press FOX F11-991 €26.78
046
photo_cameraImage coming soon F11991-046 UPPER SUPPORT €8.48
050
photo_cameraImage coming soon F11991-050 DRILL DEPTH STOP €6.04
056
photo_cameraImage coming soon F11991-056 APARTURE DRILL DEPTH STOP €4.82
069
photo_cameraImage coming soon F11991-069 BELT COVER €13.36
070
Spring Chuck for Floor Bench Drill Fox 11991 F11991-070 Spring Chuck for Floor Bench Drill Fox 11991 €10.92
071
photo_cameraImage coming soon F11991-071 SPIRAL SPRING HOUSING €6.04
078
photo_cameraImage coming soon F11991-078 V-BELT XPZ800 €6.04
080
Driven Pulley for Bench Drill Press FOX F11-991 F11991-080 Driven Pulley for Bench Drill Press FOX F11-991 €26.78
081
photo_cameraImage coming soon F11991-081 PULLEY SHAFT €0.00 Not available for order
086
photo_cameraImage coming soon F11991-086 DRILL SLEEVE €38.98
090
Conical Shaft Housing for Floor Bench Drill Chuck Fox F11-991 F11991-090 Conical Shaft Housing for Floor Bench Drill Chuck Fox F11-991 €38.98
091
photo_cameraImage coming soon F11991-091 MORSE TAPER €24.34
092
photo_cameraImage coming soon F11991-092 QUICK ACTION DRILL CHUCK €104.86
096
photo_cameraImage coming soon F11991-096 SWITCH €21.90
101
photo_cameraImage coming soon F11991-101 LASER HOUSE €4.82
102
photo_cameraImage coming soon F11991-102 V-BELT €6.04
103
Chuck Guard for Bench Drill FOX F11-991 F11991-103 Chuck Guard for Bench Drill FOX F11-991 €21.90 Not available for order

Shipping and delivery information will be available shortly.

Fox Spare Parts for Floor Bench Drill Press F11-991

Fox genuine spare parts or replacement parts for to repair Floor and Bench Drill Press F11-991.

- - SPARE PARTS NOT SUITABLE FOR MACHINES WITH THE DELTA FRANCE BRAND

In the following table, look for the model of the Drill Presses and the respective parts of the code.
FOX

Drill Press Fox F11-991ùà
# Part NUm. Description
1 F11991-001 BIT DRAWER
4 F11991-004 BIT DRAWER - HOUSING
8 F11991-008 KEY
10 F11991-010 GUIDE RING
13 F11991-013 TABLE HEIGHT ADJUSTMENT HANDLE
16 F11991-016 TABLE GUIDE
19 F11991-019 DRILLING TABLE
20 F11991-020 TABLE EXTENSION ROD
21 F11991-021 BORING SUPPORT EXTENSION
24 F11991-024 LOCKING LEVER
25 F11991-025 DRILLING MACHINE TABLE SUPPORT
26 F11991-026 RACK
28 F11991-028 DRILLING COLUMN
29 F11991-029 TOOTHED ROD
30 F11991-030 LASER COVER
31 F11991-031 LASER
35 F11991-035 SHAFT PINION
36 F11991-036 HANDWHEEL HANDLE
37 F11991-037 HAND WHEEL
38 F11991-038 MOTOR B160T
39 F11991-039 V-BELT MOTOR PULLEY
46 F11991-046 UPPER SUPPORT
50 F11991-050 DRILL DEPTH STOP
56 F11991-056 APARTURE DRILL DEPTH STOP
69 F11991-069 BELT COVER
70 F11991-070 SPIRAL SPRING
71 F11991-071 SPIRAL SPRING HOUSING
78 F11991-078 V-BELT XPZ800
80 F11991-080 FREE PULLEY
81 F11991-081 PULLEY SHAFT
86 F11991-086 DRILL SLEEVE
90 F11991-090 DRILL SPINDLE
91 F11991-091 MORSE TAPER
92 F11991-092 QUICK ACTION DRILL CHUCK
96 F11991-096 SWITCH
101 F11991-101 LASER HOUSE
102 F11991-102 V-BELT
103 F11991-103 TRANSPARENT PROTECTION FOR SPINDLE - DISCONTINUED
VICE F11991-VICE COMPLETE VICE

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Fox websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.

Fox F11-991

Data sheet

SHIPPING IN
Usually Ships in 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
Machine Type
Drill
MORE INFO:
PLEASE PAY ATTENTION! FOR MACHINES FEMI SPA DISTRIBUTION ONLY

Specific References

New

Download

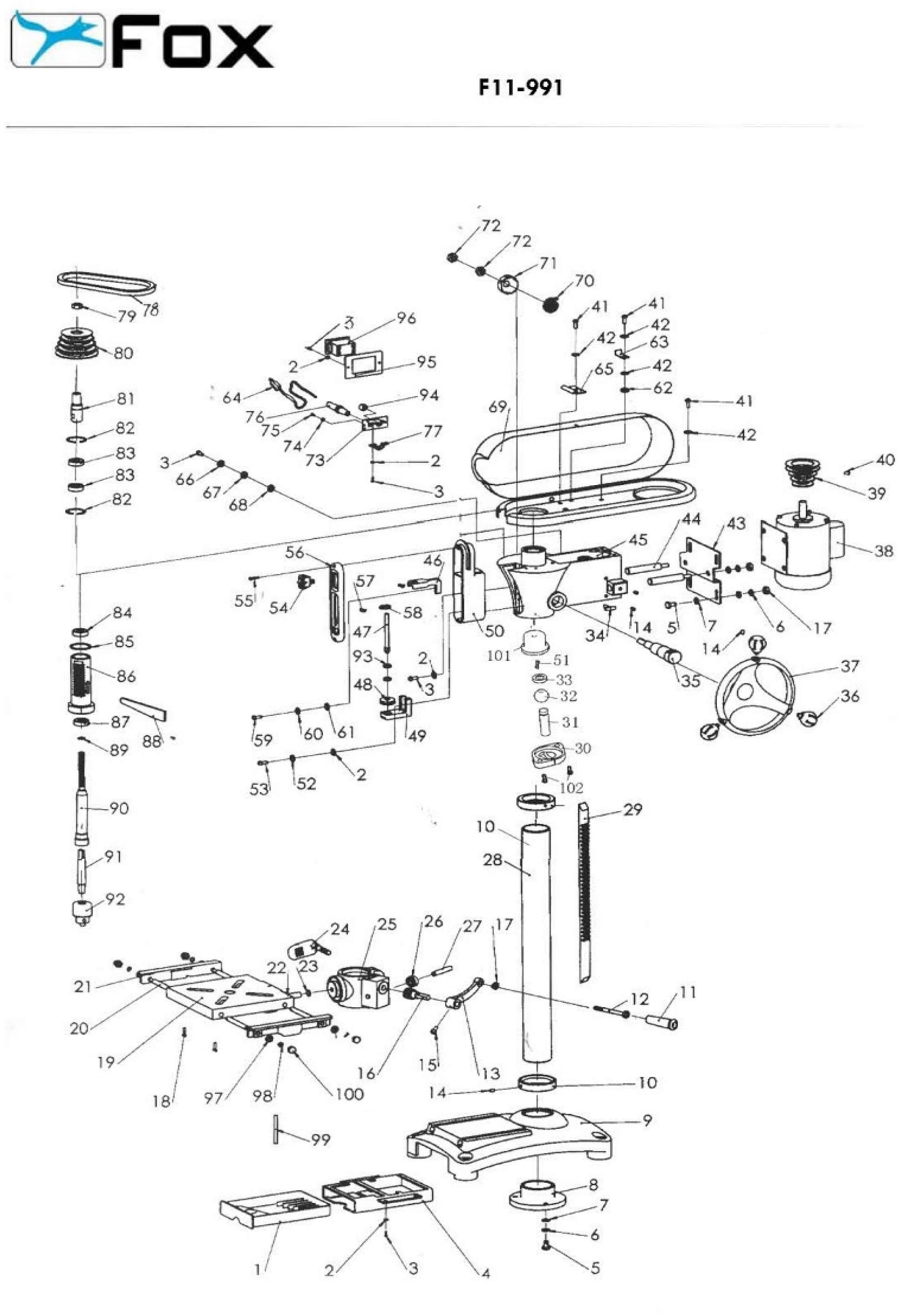

Diagram Fox F11-991

Diagram Fox F11-991

Download (198.65KB)
